Radhakrishnan Surendrakumar1*
Akbar Idhayadhulla1
Anis Ahamed2Hissah Abdulrahman Alodaini2Raman Gurusamy3- 1Department of Chemistry, Nehru Memorial College (Affiliated Bharathidasan University), Trichy, Tamil Nadu, India
- 2Department of Botany & Microbiology, College of Sciences, King Saud University (KSU), Riyadh, Saudi Arabia
- 3Department of Life Sciences, Yeungnam University, Gyeongsan, South Korea
Cow dung is a valuable source of manure to improve soil quality. This study aims to enhance the soil quality by decreasing diesel contamination in the soil through the vermicomposting of cow dung and nanoparticles of ZnO. Using a powder made from cow dung, zinc ions may be easily converted into ZnO nanoparticles. To increase the quality of soil, Eisenia fetida and nanoparticles of ZnO mixed with cow dung was used. These nanoparticles were characterized by FT-IR, SEM, and TEM. The diesel impure soils were examined for 70 days by gas chromatography. Observations showed that the soil samples without the earthworms had a higher concentration of diesel than the earthworm present in the soil. In this method, diesel (4.5 ml) was reduced by almost 50% after 70 days. Diesel concentrations were significantly higher during sampling time than they were later in soil contaminated with E. fetida.
Introduction
Soil contamination is caused by a wide range of human activities, including industrial and agricultural wastes. Vermiremediation, which uses an earthworm called Eisenia fetida, was successful in purifying diesel-contaminated soil (Behnaz et al., 2020). Abiotic and biotic components of the soil interact mechanically and biochemically with Eisenia fetida to promote plant growth and productivity (Dada et al., 2015). Burrowing earthworms ingests soil particles so that they are mechanically broken down, and this provides them with increased surface area for biotic activities. Earthworm burrows facilitate water movement, enhance soil aeration, and facilitate the movement of nutrients and oxygen. Also, earthworms increase the soil quality (Sinha et al., 2008). They create favorable conditions for bacteria and improve soil aeration by stimulating and accelerating the microbial activity (Singleton et al., 2003). A large number of biodegraded microorganisms are found in the guts of earthworms. They are reduced into the soil as vermicast by the worms (Dabke, 2013). Vermi transformation involves the decomposition of degradable organic contaminants such as pesticides and herbicides using enzymes (such as peroxidases) and microorganisms (such as bacteria and fungi) found in the alimentary canal of earthworms (Shi et al., 2020). The use of various treatment methods has been proposed for oily sludge in recent years, including land farming, incineration, stabilization/solidification, solvent extraction, ultrasonication, pyrolysis, chemical treatment, and bioremediation (Ping et al., 2012; Teresa et al., 2012; Leandro et al., 2020). Earthworms have the ability to survive harsh chemical conditions, which makes them ideal for purifying hydrocarbon-based aromatic contaminants (Luc et al., 2011; Jacobo et al., 2014). During vermicomposting, cow dung is commonly used, owing to its effective contribution to worm growth (Xin et al., 2016). As such, metal nanoparticles (MgO, NiO, CuO, ZnO, TiO2, etc.) and their metal oxides (Ag, Au, Pt, Cu, Zn, etc.) become the most feasible solution, and physically, they differ from each other such as their big outside area-to-volume ratio, controlled morphology (consistent and homogenous), and small sizes (Hirpara and Gajera, 2020). ZnO-based nanoparticles have gained popularity in the synthesis and production process due to their decreased toxicity (Veeramani et al., 2013). Due to the high energy and toxic chemical requirements, neither of these methods is easily scaleable. Because harmful chemicals can be utilized in the synthesis process and because they persist on the nanoparticle surface despite repeated washings, this technique’s biocompatibility is compromised for a number of reasons, one of which is that it can be used to treat diseases (Khan et al., 2018; Shahid et al., 2019). Worldwide demand for petroleum products is still high, both for use as fuel and as lubricants in machinery. Because crude oil is so prevalent and widely used, soil degradation brought on by crude oil derivatives is a serious ecological issue. Gasoline hydrocarbons can disrupt water relationships and gas exchange in plants, inhibit germination, and promote chlorophyll degradation (Bona et al., 2011). Alkyl, ethylene, naphthenic, and aromatic hydrocarbons are the most hazardous petroleum xenobiotics (Gray et al., 1994). Organic pollutants persistent in the atmosphere are polycyclic aromatic hydrocarbons, which decrease plant growth (Jain et al., 2011). Additionally, many earthworms can help clean up polluted soils from various oils like engine oil (Murugan et al., 2022). In soils, petroleum hydrocarbons are toxic to plants and microorganisms. Mixtures of petroleum products are commonly falling in the soils of mechanic workshops in developing countries, and diverse types of petroleum products can penetrate into the soil at the same time or at different times. Based on the literature report, previous research work was expensive and took more time to remove diesel from the soil. The aim of this work was to remove 50% diesel from soils using cow manure and ZnO nanoparticles in a quick and inexpensive process.
2 Materials and methods
2.1 Sources of materials
Zinc nitrate was purchased from Sigma-Aldrich. The earthworms used in this experiment weighed around 0.89*0.81 g each. Merck eicosane is the supplier of gasoline and diesel fuel. FT-IR (Shimadzu 8201pc, Japan 4,000–1,000 cm-1) spectra were captured using the KBr disc approach. Gas chromatography–mass spectroscopy was performed using a PerkinElmer Clarus SQ8 GC-MS model (EI, United States). Scanning electron microscopy and transmission electron microscopy were used to confirm the morphology of ZnO nanoparticles. A scanning electron microscope (SEM) typeVP-1450 (LEO, Co., Germany) was utilized for the SEM study. LEO 912 AB (TEM) equipment was utilized for the study. Red soil (local soil name) cow manure was purchased from a local market.
2.2 Experimental design
For the experiment, 100 g of fine-sieved previously identified red soil (local soil, South India) was added to a 500-ml beaker. The soils were selected for this study, according to the Indian naming system (Pitchaikkaran et al., 2022) and the USDA key to taxonomy (Staff, 2010). The 4500-ppm (4.5 ml) diesel was added to the dried soil. The cow dung was crushed to remove large lumps, air-dried, and stored in a dry area. Eicosane soil–diesel mixture, cow dung, and the ZnO nanoparticles were stirred following the procedures (Schwartz et al., 2012). For every group of beakers, one is with earthworms and another one without earthworms. In the control experiment, there were no earthworms. Each beaker of earthworm soil was weighed, and 15 earthworms were added in 48 h on top of the soil in each beaker (Barkley et al., 2011).
At room temperature, both the experimental and control beakers were incubated for 5–70 days. A gauze lid was placed on the beakers, and they were left at room temperature. The soil’s total petroleum hydrocarbon content was extracted using a standard literature method (Contreras-Ramos et al., 2006). A PerkinElmer GC-MS Clarus SQ-18 model instrument was used to determine the amounts of petroleum hydrocarbon in the soil samples.
2.2.1 Preparation of ZnO with the cow dung extract
The extract for the reduction of ZnO ions into nanoparticles (ZnO) was made by combining 60 g of cow dung. After that, the mixture was boiled for 60 min. The extract was cooled to room temperature before being filtered onto a filter paper. To be used in future research, the extract was kept in the refrigerator (Ponnusamy et al., 2021).
2.2.2 Preparation of zinc nanoparticles
A stirrer heater was used to boil 60 ml of water and dried cow dung (10 g) to 70–80°C for the synthesis of nanoparticles. As the temperature reached 70°C, 10 g of zinc nitrate was applied to the solution. This mixture is then reduced to a deep yellow paste by boiling it. This paste was then deposited in a ceramic crucible and heated for 3 h at 350°C in an air-heated furnace. For characterization purposes, a light-yellow powder was obtained and carefully collected and packed. To obtain a finer nature for characterization, the substance was mashed in a mortar pestle. Scheme 1 depicts the synthesis of ZnO nanoparticles.
Scheme 1. Synthesis of ZnO nanoparticles using cow dung
3 Results and discussion
3.1 Characterization of ZnO nanoparticles: FT-IR spectra
According to the IR spectra (Figure 1), peaks at 3272cm-1 and 1628cm-1 3,445 attributed to ZnO and OH functional groups, respectively. It was concluded that the extract was responsible for removing metal ions and for capping the nanoparticles because bioactive molecules were present in the extract.

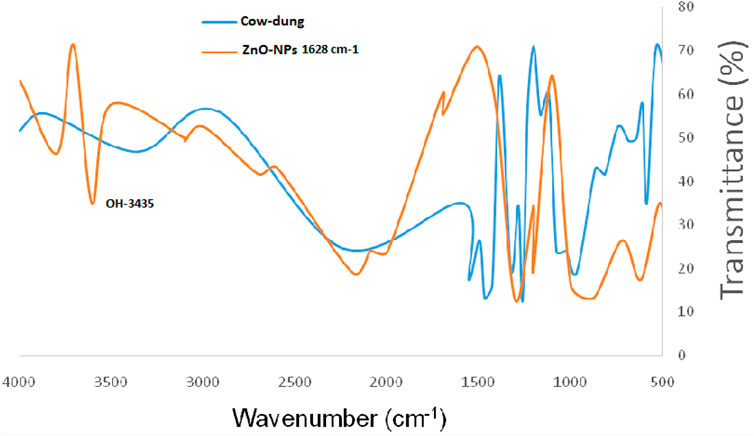

Figure 1. FT-IR spectrum of the cow dung–ZnO nanocomposite.
3.2 Characterization of ZnO nanoparticles
3.2.1 Transmission electron microscopy
To learn more about the size and morphology of the ZnO nanoparticles, a TEM study was performed. TEM images of ZnO nanoparticles at different magnifications are shown in Figures 2A,B. The average particle size of ZnO nanoparticles can be seen in the TEM images to be in the range of 16–27 nm.
Figure 2. TEM image of ZnO nanoparticles.
3.2.2 Scanning electron microscopy
Zinc particles and zinc aggregates can be seen in the scan of SEM. The SEM image revealed a spherical-shaped nanoparticle with a diameter of 200 nm. Figure 3 shows the formation of aggregated molecules in the 12 m range. Figure 4 indicates soil stabilization with cow dung ZnO nanoparticles.
Figure 3. SEM image of the ZnO nanoparticle.
Figure 4. Soil stabilization using Eisenia fetida.
3.2.3 Table 1 and GC-MS (with and without earthworms)
Cow dung and ZnO nanoparticles were prepared by a slight modification of the experimental procedure (Mupondi, 2010; Ponnusamy et al., 2021). The eicosane, the earthworms, and the soil–petroleum mixture were prepared by following the literature method (Mohan et al., 2011). Mature E. fetida earthworms had been purchased from a local market.
In diesel-contaminated soil, the addition of E. fetida and ZnO nanoparticles increased the minimum soil quality during 70 days. Such vermiremediation processes increase the soil nature and reduce the diesel contamination in soil naturally (Isabela et al., 2022).
Many methods can be used to achieve vermicomposting in practice. A contaminated field or farmland may be seeded directly with earthworms. In addition to earthworms, cow dung, poultry droppings, or formulated supplements can be added to the soil as nutrient media (Hickman and Reid, 2008). During a period of 60 days, Eisenia fetida and Lumbricus terrestris were used to remediate soils polluted with petroleum hydrocarbons, measured as total petroleum hydrocarbons. There was a significant reduction in soil TPH by the end of the experiment (Almutairi, 2019). The use of earthworms as a biomonitoring agent may not be appropriate when earthworms are being used to clean up contaminants. The adaptations that earthworms have developed physiologically and genetically may influence risk assessments in long-term contaminated sites (Spurgeon and Hopkin, 2000) (Ponnusamy et al., 2021). Organic carbon contents and soil toxicity (NPK) were reduced in vermiremediation treatment (Abdollahinejad et al., 2020; Vasilyeva et al., 2020; Ugochukwu et al., 2021). The FT-IR results indicate the ZnO nanoparticles present in cow dung. SEM analysis indicates the morphology of nanoparticles. The GC-MS shows diesel reduction with and without earthworms of E. fetida. It could be hypothesized that petroleum hydrocarbons in polluted soils incubated with an earthworm could have resulted from the degradation of diesel since they were absent in polluted soils not incubated with an earthworm. Figure 5 indicates without earthworm GC-MS, and Figure 6 shows the earthworm-treated diesel GC-MS. Based on the GC-MS result, the earthworms of E. fetida contained 50% diesel hydrocarbons, as was observed in the study. E. fetida may be capable of vermiremediating petroleum through degradation (vermidegradation).

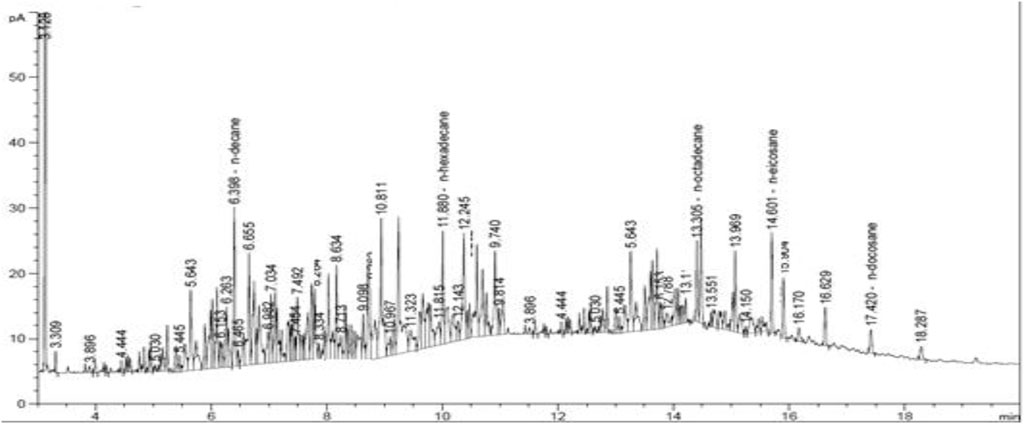

Figure 5. Diesel GCMS (without earthworms).

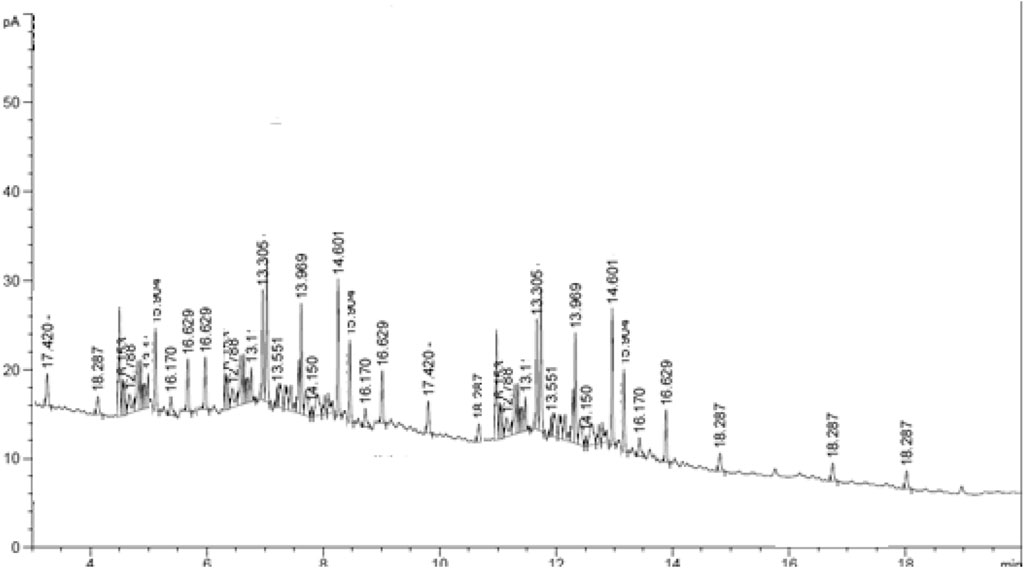

Figure 6. Diesel GCMS (with the earthworm E. fetida).
This suggests that E. fetida contributes to the degradation of diesel in soil and that these hydrocarbons are possible degradation products. Incubation of soil with an earthworm for 70 days resulted in a higher concentration of degradation by-products, indicating that the longer the period the greater the degradation is. A single petroleum hydrocarbon was detected initially in the soil but was lost completely during the study Table 1.
Table 1. Effect of the E.fetida earthworm, cow dung, and ZnO nanoparticles on the diesel-contaminated soil.
4 Conclusion
Globally, soil is continuously subjected to contamination from diesel, petrol, and industrial wastes. We used the traditional method of vermiremediation to remove oil contamination in the soil. This research revealed some findings that are useful for the future application of vermiremediation to remove diesel oil from soil using E.fetida earthworms. The less toxic metals are used to prepare cow dung nanoparticles. The ZnO nanoparticles were characterized by FT-IR, SEM, and TEM. Based on the results of this study, it can be concluded that E fetida has the potential to facilitate the cleansing of diesel-contaminated soil. As 70 days would not be enough time to achieve full remediation, 50% diesel was removed from soils in a short period of time and at a low price. Such remediation can be extended to a longer period to achieve a higher level of soil remediation.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.
Author contributions
RS: Project administration and all aspects of this manuscript’s chemistry and biology have been investigated. The manuscript was writing original draft preparation through the contributions of all authors. AI: All kinds of characterization. AA: Data collection. HAA: Chemical compounds characterization, and RG: Data analysis and English Corrections.
Acknowledgments
The authors extend their appreciation to the Researchers Supporting Project number (RSP-2022R479), King Saud University, Riyadh, Saudi Arabia.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Abdollahinejad, B., Pasalari, H., Jafari, A. J., Esrafili, A., and Farzadkia, M. (2020). Bioremediation of diesel and gasoline-contaminated soil by co-vermicomposting amended with activated sludge: diesel and gasoline degradation and kinetics. Environ. Pollut. 263, 114584. doi:10.1016/j.envpol.2020.114584
Almutairi, M. (2019). Vermiremediation strategy for remediation of Kuwaiti oil contaminated soil. SN Appl. Sci. 1, 1312. doi:10.1007/s42452-019-1297-3
Barkley, J., Davidson, S., Gough, H., Nassau, E., and Azwell, T. (2011). Vermiremediation of crude oil contaminated soils. JASEM Publications, University of Lagos.
Behnaz, A., Hasan, P., Ahmad, J. A., Ali, E., and Mahid, F. (2020). Bioremediation of diesel and gasoline-contaminated soil by co-vermicomposting amended with activated sludge: Diesel and gasoline degradation and kinetics. Environ. Pollut. 263, 114584. doi:10.1016/j.envpol.2020.114584
Bona, C., de Rezende, I. M., de Oliveira Santos, G., and de Souza, L. A. (2011). Effect of soil contaminated by diesel oil on the germination of seeds and the growth of Schinus terebinthifolius Raddi (Anacardiaceae) seedlings. Braz. Arch. Biol. Technol. 54 (6), 1379–1387. doi:10.1590/S1516-89132011000600025
Contreras-Ramos, S. M., A´lvarez-Bernal, D., and Dendooven, L. (2006). Eisenia fetida increased removal of polycyclic aromatic hydrocarbons from soil. Environ. Pollut. 141, 396–401. doi:10.1016/j.envpol.2005.08.057
Dabke, S. V. (2013). Vermi-remediation of heavy metal-contaminated soil. J. Health Pollut. 3 (4), 4–10. doi:10.5696/2156-9614-3.4.4
Dada, E. O., Njoku, K. L., Osuntoki, A. A., and Akinola, M. O. (2015). A review of current techniques of in situ physicochemical and biological remediation of heavy metals polluted soil. Ethiop. J. Env. Stud. Manag. 8 (5), 606. doi:10.4314/ejesm.v8i5.13
Gray, M. R., Banerjee, D. K., Fedorak, P. M., Hashimoto, A., Masliyah, J. H., and Pickard, M. A. (1994). Biological remediation of anthracene-contaminated soil in rotating bioreactors. Appl. Microbiol. Biotechnol. 40, 933–940. doi:10.1007/BF00174002
Hickman, Z. A., and Reid, B. J. (2008). Earthworm assisted bioremediation of organic contaminants. Environ. Int. 34 (7), 1072–1081. doi:10.1016/j.envint.2008.02.013
Hirpara, D. G., and Gajera, H. P. (2020). Green synthesis and antifungal mechanism of silver nanoparticles derived from chitin-induced exometabolites of Trichoderma interfusant. Appl. Organomet. Chem. 34, 5407. doi:10.1002/aoc.5407
Isabela, K. D. F., Naiara, J. C., Gabriele, K. D., Carolina, G. S., and Daroit, D. J. (2022). Remediation of soil contaminated with a commercial diesel-biodiesel blend (B12): A microcosm evaluation on the effects of (in)organic amendments. Chemosphere 287, 132059. doi:10.1016/j.chemosphere.2021.132059
Jacobo, R., Luc, D., Alvarez-Bernal, D., and Contreras-Ramos, S. M. (2014). Potential of earthworms to accelerate removal of organic contaminants from soil: A review. Appl. soil Ecol. 79, 10–25. doi:10.1016/j.apsoil.2014.02.010
Jain, P. K., Gupta, V. K., Gaur, R. K., Lowry, M., Jaroli, D. P., and Chauhan, U. K. (2011). Bioremediation of petroleum oil contaminated soil and water. Res. J. Environ. Toxicol. 5, 1–26. doi:10.3923/rjet.2011.1.26
Khan, S. A., Kanwal, S., Rizwan, K., and Shahid, S. (2018). Enhanced antimicrobial, antioxidant, in vivo antitumor and in vitro anticancer effects against breast cancer cell line by green synthesized un-doped SnO2 and Co-doped SnO2 nanoparticles from Clerodendrum inerme. Microb. Pathog. 125, 366–384. doi:10.1016/j.micpath.2018.09.041
Leandro, G. de A., Eduardo, S. P. P., Miranda, F. d. S., Vicente, R., Sobrinho, A. S. d. S., Filho, G. P., et al. (2020). Physicochemical modifications of radioactive oil sludge by ozone treatment. J. Environ. Chem. Eng. 8, 104128. doi:10.1016/j.jece.2020.104128
Luc, D., Dioselina, A., and Silvia, M. C. (2011). Earthworms, a means to accelerate removal of hydrocarbons (PAHs) from soil? A mini-review. Pedobiol. (Jena) 54, 6–11. doi:10.1016/j.pedobi.2011.08.006
Mohan, K. V., Hrushikesh, N., Sreehari, K., Aravind kumar, T., Vidyavathi, N., and Pallavi, A. (2011). Studies on bioremediation of Phenol by earthworm. Inter. J. Environ. Sci. 1 (6), 1268–1273.
Mupondi, L. T. (2010). Improving sanitization and fertiliser value of dairy manure and waste paper mixtures enriched with rock phosphate through combined thermophilic composting and vermicomposting. Ph.D. Thesis. Alice, South Africa: University of Fort Hare. doi:10.1016/j.heliyon.2018.e00749
Murugan, R., Natchimuthu, K., Soundarapandian, K., Ananthanarayanan, Y., and Ramasundaram, T. (2022). Vermiremediation of engine oil contaminated soil employing indigenous earthworms, Drawidamodesta and Lampitomauritii. J. Environ. Manage. 301, 113849. doi:10.1016/j.jenvman.2021.113849
Ping, Y., Mang, L., Qin, Y., Hai-Ling, Z., ZhongZhi, Z., and Rong, C. (2012). Oil recovery from refinery oily sludge using a rhamnolipid biosurfactant-producing Pseudomonas. Bioresour. Technol. 116, 24–28. doi:10.1016/j.biortech.2012.04.024
Pitchaikkaran, R., Karthikeyan, S., MarigoudarKrishna, R. V., Sharma Mallavarapu, V. R. M., and Ramana Murthy, M. V. (2022). Spatial distribution of total petroleum hydrocarbons in surface sediments of Palk Bay, Tamil Nadu, India. Environ. Chem. Ecotoxicol., 20–28. (Article in press). doi:10.1016/j.enceco.2021.10.002
Ponnusamy, P., Gobinath, P., Ali, D., Alarifi, S., Balasubramani, R., Idhayadhulla, A., et al. (2021). Novel chitosan polymer design, synthesis using mentha piperita of ZnO NPs as a catalyst: Antibacterial evaluation against gram-negative multidrug-resistant pathogens. J. Nanomater. 2021, 8804837. doi:10.1155/2021/8804837
Schwartz, G., Ben-Dor, E., and Eshel, G. (2012). Quantitative analysis of total petroleum hydrocarbons in soils: Comparison between reflectance spectroscopy and solvent extraction by 3 certified laboratories. Appl. Environ. Soil Sci. 2012, 751956. doi:10.1155/2012/751956
Shahid, S., Fatima, U., Sajjad, R., and Khan, S. A. (2019). Bioinspired nanotheranostic agent: Zinc oxide green synthesis and biomedical potential. Dig. J. Nanomater. Biostruct. 14, 1023–1031.
Shi, Z., Liu, J., Tang, Z., Zhao, Y., and Wang, C. (2020). Vermiremediation of organically contaminated soils: Concepts, current status, and future perspectives. Appl. Soil Ecol. 147, 103377. doi:10.1016/j.apsoil.2019.103377
Singleton, D. R., Hendrix, B. F., Coleman, D. C., and Whitemann, W. B. (2003). Identification of uncultured bacteria tightly associated with the intestine of the earthworm Lumbricus rubellus (Lumbricidae; Oligochaeta). Soil Biol. Biochem. 35, 1547–1555. doi:10.1016/S0038-0717(03)00244-X
Sinha, R. K., Bharambe, G., and Ryan, D. (2008). Converting wasteland into wonderland by earthworms—a low-cost nature’s technology for soil remediation: a case study of vermiremediation of PAHs contaminated soil. Environmentalist 28, 466–475. doi:10.1007/s10669-008-9171-7
Spurgeon, D. J., and Hopkin, S. P. (2000). The development of genetically inherited resistance to zinc in laboratory selected generations of the earthworm Eisenia fetida. Environ. Pollut. 109, 193–201. doi:10.1016/S0269-7491(99)00267-5
Teresa, R., Gladys, C. C., Icoquih, Z. P., Patricia, O. L., Jesus, R., and Patricia, O. L. (2012). Aerobic biodegradation of sludge with high hydrocarbon content generated by a Mexican natural gas processing facility. J. Environ. Manag. 95, S93–S98. doi:10.1016/j.jenvman.2011.04.014
Ugochukwu, U. C., Okonkwo, F., Sokari, W., Eneh, C., and Ezogu, L. (2021). Bioremediation strategy based on risk assessment of exposure to residual polycyclic aromatic hydrocarbons. J. Environ. Manage. 280, 111650. doi:10.1016/j.jenvman.2020.111650
Vasilyeva, G., Kondrashina, V., Strijakova, E., and Ortega-Calvo, J. J. (2020). Adsorptive bioremediation of soil highly contaminated with crude oil. Sci. Total Environ. 706, 135739. doi:10.1016/j.scitotenv.2019.135739
Veeramani, H., Aruguete, D., Monsegue, N., Murayama, M., Dippon, U., Kappler, A., et al. (2013). Low-temperature green synthesis of multivalent manganese oxide nanowires. ACS Sustain. Chem. Eng. 1, 1070–1074. doi:10.1021/sc400129n
Keywords: diesel, E. fetida, ZnO (NPs), SEM, TEM, cow dung
Citation: Surendrakumar R, Idhayadhulla A, Ahamed A, Alodaini HA and Gurusamy R (2022) Vermiremediation: Analysis of contaminated diesel in soil using Eisenia fetida and ZnO nanoparticles with cow dung. Front. Environ. Sci. 10:934287. doi: 10.3389/fenvs.2022.934287
Received: 02 May 2022; Accepted: 29 September 2022;
Published: 28 October 2022.
Edited by:
Balasubramani Ravindran, Kyonggi University, South KoreaReviewed by:
Debadatta Sethi, Odisha University of Agriculture and Technology, IndiaAnanthanarayanan Yuvaraj, Periyar University, India
Copyright © 2022 Surendrakumar, Idhayadhulla, Ahamed, Alodaini and Gurusamy. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Radhakrishnan Surendrakumar, surendrakumar@nmc.ac.in, organicsurendar@gmail.com
