Reduced Nitrous Oxide Emissions From Drained Temperate Agricultural Peatland After Coverage With Mineral Soil

Yuqiao Wang,
Yuqiao Wang1,2*Sonja M. PaulSonja M. Paul1Markus JocherMarkus Jocher1Christine AlewellChristine Alewell2Jens Leifeld,Jens Leifeld1,2
  • 1Climate and Agriculture Group, Agroscope, Zürich, Switzerland
  • 2Environmental Geosciences, University of Basel, Basel, Switzerland

Peatlands drained for agriculture emit large amounts of nitrous oxide (N2O) and thereby contribute to global warming. In order to counteract soil subsidence and sustain agricultural productivity, mineral soil coverage of drained organic soil is an increasingly used practice. This management option may also influence soil-borne N2O emissions. Understanding the effect of mineral soil coverage on N2O emissions from agricultural peatland is necessary to implement peatland management strategies which not only sustain agricultural productivity but also reduce N2O emissions. In this study, we aimed to quantify the N2O emissions from an agriculturally managed peatland in Switzerland and to evaluate the effect of mineral soil coverage on these emissions. The study was conducted over two years on a grassland on drained nutrient-rich fen in the Swiss Rhine Valley which was divided into two parts, both with identical management. One site was not covered with mineral soil (reference “Ref”), and the other site had a ∼40 cm thick mineral soil cover (coverage “Cov”). The grassland was intensively managed, cut 5–6 times per year, and received c. 230 kg N ha−1 yr−1 of nitrogen fertilizer. N2O emissions were continuously monitored using an automatic time integrating chamber (ATIC) system. During the experimental period, site Ref released 20.5 ± 2.7 kg N ha−1 yr−1 N2O-N, whereas the N2O emission from site Cov was only 2.3 ± 0.4 kg N ha−1 yr−1. Peak N2O emissions were mostly detected following fertilizer application and lasted for 2–3 weeks before returning to the background N2O emissions. At both sites, N2O peaks related to fertilization events contributed more than half of the overall N2O emissions. However, not only the fertilization induced N2O peaks but also background N2O emissions were lower with mineral soil coverage. Our data suggest a strong and continued reduction in N2O emissions with mineral soil cover from the investigated organic soil. Mineral soil coverage, therefore, seems to be a promising N2O mitigation option for intensively used drained organic soils when a sustained use of the drained peatland for intensive agricultural production is foreseen, and potential rewetting and restoration of the peatland are not possible.

1 Introduction

Nitrous oxide (N2O) is the third most important long-lived greenhouse gas (GHG) and also an important reactant with stratospheric ozone (Ravishankara et al., 2009; Prather et al., 2015). In the last centuries, N2O emission increased from ∼12 Tg N yr−1 in the preindustrial period to ∼19 Tg N yr−1 (Syakila and Kroeze, 2011). To a large extent, the rapid increase in N2O emissions is driven by soil-borne N2O, which increased from ∼6.3 Tg N yr−1 to ∼10 Tg N yr−1 over the same period, accounting for ∼53% of the total N2O increase (Tian et al., 2019). Therefore, lowering soil N2O emission is of great importance for global N2O mitigation, and consequently for meeting the climate target.

Peatlands only account for 3% of the terrestrial land surface but store around 644 Gt organic carbon (C) (Yu et al., 2010). Peatlands are also an important pool of organic nitrogen (N) of 8–15 Gt N (Leifeld and Menichetti, 2018). To date, more than 10% of the global peatland areas have been drained for agriculture and forestry, with a much higher share in some European countries, where around half of the peatlands are artificially drained to enhance agricultural and forest productivity in Europe, and even ∼90% in Switzerland (Bragg et al., 2013; Wüst-Galley et al., 2015; Kasimir et al., 2018). However, long-term drainage causes peatland subsidence due to physical processes and mineralization of the surface peat. These processes cause soil degradation and induce very high GHG emissions, which turned the global peatland biome from a net GHG sink to a net source. It has been estimated that with the ongoing peatland degradation, c. 2.3 Gt N will be released globally (Leifeld and Menichetti, 2018). In Europe, peatland management induces N2O emission of c. 145 Gg N yr−1 (Liu et al., 2020). Full peatland restoration or other steps involving rewetting decrease the peat oxidation by re-raising the water table (Blodau, 2002) and might save substantial parts of the N mineralization and also halt peatland subsidence (Knox et al., 2015; Hemes et al., 2019). However, with rewetting, intensive agricultural production is in many cases not possible anymore. Hence, there is a trade-off between environmental goals and agricultural production demands that creates challenges to implementing peatland restoration (Ferré et al., 2019). Therefore, peatland management strategies, which could not only sustain the productive use of organic soil but also counterbalance soil subsidence and reduce N2O emission, are urgently needed. It has been reported that artificial mineral soil coverage with thicknesses of 0.2–0.5 m is becoming an increasingly used practice in Switzerland and other European countries (Schindler and Müller, 2001; Ferré et al., 2019). Mineral soil coverage may have two main impacts on N and C transformation and N2O emissions. First, it changes the topsoil properties of drained organic soil and influences substrate availability for N2O production. As the soil depth from which emitted N2O originates is only 0.7–2.8 cm, the topsoil properties are particularly relevant for N2O emission (Neftel et al., 2000). After mineral soil coverage, the topsoil contains much less organic matter than the degrading peat. With this, carbon and nitrogen availability for denitrification might become limiting, thereby also influencing soil N2O production (Stehfest and Bouwman, 2006; Flechard et al., 2007). Second, mineral soil coverage alters soil hydraulic properties and soil aeration due to the changing pore size distribution. Soil moisture and concomitantly the amount of oxygen are important regulators for microbial activity, thus affecting nitrification, denitrification, and subsequent N loss as N2O (Davidson et al., 2000).

In Switzerland, peatlands covered an area of ca. 1,000–1,500 km2 in preindustrial times. Today, most of the former organic soils are already lost, with only ∼280 km2 left. Ninety percent of the remaining organic soils are still drained for agriculture (Wüst-Galley et al., 2020) and continuously contribute to the national economic values of agriculture output. It is estimated that these soils emit around 1.2–7.9 kg N2O-N ha−1 yr−1 (Leifeld, 2018), corresponding to an annual N2O emission of c. 65 kt CO2-eq, or ∼10% of the national GHG emissions from drained organic soil (FOEN, 2021). However, hitherto neither N2O flux measurements from organic soil do exist for Switzerland nor are experimental data available to quantify the impact of mineral soil coverage on N2O emissions from drained peatland.

In this study, we utilized an automatic time integrating chamber system (ATIC) to determine the N2O emission from long-term intensively managed temperate drained peatland with (Cov) and without (Ref) mineral soil coverage. Our specific objectives were to 1) quantify the N2O emission from a drained nutrient-rich managed peat meadow in the Swiss Rhine valley and 2) explore the effect of mineral soil coverage on N2O fluxes from this soil.

2 Material and Methods

2.1 Study Site

The measurements were carried out in the Swiss Rhine Valley, at the site Rüthi (47°17′ N, 9°32′ E), a drained fen with a peat thickness of ∼10 m. The site has a cool temperate moist climate with a mean annual precipitation of 1,297 mm and a mean annual temperature of 10.1°C (1981–2010, https://www.meteoswiss.admin.ch). Drainage with ditches commenced before 1890 (https://map.geo.admin.ch). An integral drainage system with drainage pipes (depth 1 m, distance between pipes 14 m) and a pump was built in 1973; at the same time, the site was used as pasture until 2013, and since then as an intensively managed meadow with mineral and slurry fertilization and 5–6 grass cuts per year. In 2006–2007, one part of the field (1.7 ha) was covered with mineral soil material (thickness around 40 cm, see details in Table 1) to improve the trafficability and agriculture usability by raising the soil surface and counterbalancing peat subsidence. We established our field experiment at this mineral soil coverage site (Cov) and used the adjacent drained organic soil without mineral soil coverage as the reference (Ref, see details in Supplementary Figure S1). Both sites have identical farming practices and similar vegetation. Dominant grass species are Lolium perenne, Alopecurus pratensis, Festuca arundinacea, Trifolium spec., and Festuca pratensis. The atmospheric N deposition at the study site as estimated for 2015 is 20–30 kg N ha−1 yr−1 (Rihm and Künzle, 2019).

TABLE 1
www.frontiersin.org

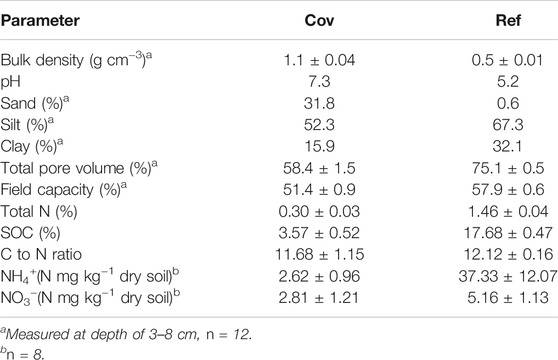

TABLE 1. Surface (0–10 cm) soil properties of drained organic soil with (Cov) and without (Ref) mineral soil coverage (n = 11).

2.2 N2O Flux Measurements

2.2.1 Automatic Time Integrating Chamber System

The ATIC system used here was developed based on the automatic chamber system design introduced by Flechard et al. (2005), and the air sampling follows the system introduced by Ambus et al. (2010). The ATIC is operated as a non-steady-state flow-through chamber with a main loop that recirculates the headspace chamber air (Figure 1). The lid of the chamber closes automatically for 15 min. During this period, four headspace gas samples are collected (at 3.50, 7.25, 11.50, and 14.25 min after chamber closure) for 15 s and flushed into four different foil gas bags through a valve manifold. The use of the ATIC system allows flux measurements at relatively high frequency (like for online automatic chamber systems) but reduces the frequency of gas analysis and avoids the use of online trace gas analysis, which lowers the cost and energy consumption in the field. The ATIC runs with a battery (12 V) or power line, and the latter is used in our experiment. It consists of three parts: 1) a stainless steel chamber (L = l = 300 mm, H = 220 mm) with a pump (Thomas, Germany), CO2 sensor (Senseair, Sweden), flow sensor (McMillan, New York City, NY, United States), lid inclinometer sensor (DIS Sensors, Netherland), and motor connected with the lid of the chamber through pulley and rope (Figure 1A, unit 2); 2) an associated controller system, including the main control module (Siemens, Germany), and the data logger (Onset, MA, United States) for the sensors attached with the chamber (Figure 1A, unit 1); and 3) 4 replaceable foil gas bags (Supelco, Germany; Figure 1A, unit 3). The controlling system opens and closes the chamber lid through the motor. Each chamber was placed on a PVC frame, inserted 5 cm into the soil. Flexible silicone attached below the chamber and the foam sealing above the chamber was used to achieve gas tightness of the chamber.

FIGURE 1
www.frontiersin.org

FIGURE 1. Brief overview of the automatic time integrating chamber system ATIC (A) and basic outline of ATIC gas sampling (B); black line indicates the control signal pathway, and blue line indicates the sample gas pathway.

2.2.2 N2O Sample Accumulation and Analysis

N2O fluxes were measured quasi-continuously for two entire years from 28 February 2019 to 02 March 2021. Here, we designate the first sampling year period (from 28 February 2019 to 28 February 2020) as the first year and the second sampling year period (from 28 February 2020 to 02 March 2021) as the second year. In the study site, the ATIC systems (four on Cov, four on Ref) were installed on 13 February 2019 for testing. On 28 February 2019, eight ATIC systems (four on Cov and four on Ref) started to collect gas samples with a frequency (time between measurement cycles) of 3–9 h per individual chamber, differing between growing season and non-growing season. Here, we define a measurement cycle as a lid closing phase of 15 min with sequential gas sampling into each of the four foil gas bags.

The bags were filled at 3.50, 7.25, 11.50, and 14.25 min after chamber closure, respectively, and the gas samples from individual cycles were accumulated in these four foil gas bags. The final bag samples represented an average over a time period of 3–14 days (hereafter referred to as “sampling period”), depending on the sampling frequency and the total number of measurement cycles. Usually, gas samples accumulated in the bags over 30–40 cycles, which was limited by the volume of the foil gas bag (10 L) and the flow rate of the pump (1 L min−1). After the sampling period, the foil gas bags were replaced with empty ones, and the filled gas bags were transferred to the lab to determine their gas concentration using the gas analyzer (G2308, Picarro, Santa Clara, CA, United States). Overall, each ATIC system was working for ∼3,200 cycles during the two entire years. The foil gas bags have been tested and proven to be suitable for long-term storage of N2O near ambient concentrations in air (Supplementary Figure S2).

2.3 N2O Flux Calculation

For static (non-steady-state) chamber measurement, the increase in headspace gas concentration is widely thought to be linear during a short closure time (Charteris et al., 2020). The analysis of the gas bags as described in the previous section resulted in four average concentrations, C¯1C¯4, for each chamber and sampling period. Calculating a linear regression of the four concentrations against their sampling times (3.50, 7.25, 11.50, and 14.25 min after chamber closure) yielded the regression slope C¯/t (mg m−3 min−1) from which the average flux of the sampling period was derived as:

F= VA×C¯t ,(1)

where V and A are the volume (m3) and the covered area (m2) of the static chamber, 0.02 m3 and 0.09 m2, respectively. Since each average bag concentration C¯a is the arithmetic average of the respective concentrations in each cycle (Ca,b), where a (a = 1, 2, 3, 4) is the number of bags and b is the number of cycles, the average slope C¯/t also represents the average of the individual concentration increases of each measurement cycle (Cb/t) in the sampling period. Therefore, F (Eq. 1) represents the average gas flux of each sampling period.

The multiplication of gas fluxes during each sampling period F (mg N m−2 day−1) and the duration of each sampling period T (days) yielded the cumulative gas fluxes of each sampling period. Finally, the annual cumulative N2O fluxes (Fa, kg N ha−1) were calculated from the cumulative gas fluxes of each sampling period as given below:

Fa= i=1i=nFiTi,(2)

where Fi is the N2O emission (mg N m−2 day−1) from sampling period i, and Ti is the duration of each sampling period i (days).

N2O fluxes resulted from fertilization induced N2O peaks (F-peak) and background N2O emissions. The comparison of N2O emissions before and after a fertilization event allowed for the detection and quantification of F-peak N2O emissions. Quantifying background N2O emissions after fertilization event is challenging, and here, we use mean N2O emissions one week before fertilization to represent the background N2O emissions during the fertilization event and for further analysis of the F-peaks. Only when the observed N2O emissions during a fertilization event were higher than the background N2O emissions, we consider this as F-peak induced by the fertilization event.

2.4 Data Quality Control and Gap Filling

2.4.1 Data Quality Control

The accuracy of the ATIC system was accessed by the CO2 and inclinometer sensors inside the chamber. The measurement of the real-time headspace chamber CO2 concentration and the incline angle between the lid and chamber allowed us to detect any operational chamber problem (e.g., leakage and power failure). The CO2 fluxes during each chamber closure time were evaluated by linear regression, and an overall R2 ≥ 0.9 was taken as an indicator for a fully functional ATIC within the sampling period. With the comparison between the average CO2 fluxes during each chamber closure time and the CO2 fluxes from the ATIC system within each sampling period, we determined whether the gas fluxes from the ATIC system represented the average gas fluxes within the sampling period (Supplementary Figure S3). N2O fluxes calculated from the concentration gradient from the four foil gasbags were selected for post-processing after fulfilling certain quality criteria. First, R2 of CO2 fluxes calculated from the regression lines of the four bags had to exceed 0.9, indicating that within the sampling days, the ATIC worked properly. R2 ≤ 0.9 indicated a failure of gas sampling within the sampling days, which led to a rejection of the N2O flux data. Second, R2 > 0.9 of the N2O regression lines was used as critical to accept the data for further analysis. However, low fluxes (±0.5 mg N m−2 day−1, calculated based on the detection limit of the Picarro) were accepted regardless of R2. With low fluxes, the random error of the measurement could be larger than the N2O concentration difference between different sampling points, which could result in low R2, and therefore, rejection of the N2O emission based on low R2 would lead to an underestimation of the overall fluxes. After two years of continuous field observation, the N2O data could cover ∼86% of the sampling days, that is, a data gap of ∼14%.

2.4.2 Gap Filling

For any missing N2O emissions outside the fertilization event (background N2O emissions), that is, values missing owing to a failure of ATIC systems or a rejection of data, a look-up table approach with two parameters (soil moisture and soil temperature) was used to fit the missing values (RMSE = 0.62 mg N m−2 day−1, R2 = 0.60), and tested by the available background N2O values through cross-validation. For each chamber, background N2O emissions were divided into 16 classes based on soil moisture (0–25th percentile, > 25th percentile–median, > median–75th percentile, and > 75th percentile), and soil temperature (0–25th percentile, > 25th percentile–median, > median–75th percentile, and > 75th percentile). With the assumption that without extra fertilizer input background N2O should respond similar to similar soil temperature and moisture conditions at each site, the mean N2O fluxes from each class were used to fit the missing value under the same soil temperature and moisture condition. To check the sensitivity of the N2O gap-filling method for the background fluxes, two other methods were compared with the look-up table approach: 1) linear interpolation (RMSE = 0.65 mg N m−2 day−1, R2 = 0.51) to bridge the missing values and 2) taking mean values from the properly operating chambers for each site (RMSE = 1.3 mg N m−2 day−1, R2 = 0.36). For an N2O gap caused by a power failure during the fertilization event on 30 August 2019 (site Ref), data were linearly interpolated to fill the data gap. For the failure of individual chambers (n = 6) during fertilization events, mean values from the properly operating chambers at each site were used to fill the data gap.

2.5 Additional Measurements

2.5.1 Environmental Variables

The air temperature was measured using a Vaisala Weather Transmitter (WXT520, Finland) and continuously logged every 10 min on a CR1000 data logger (Campbell Scientific, United Kingdom). Rainfall data and missing air temperature (27 December 2020 to 2 February 2021) were filled with data from a nearby meteorological station operated by MeteoSwiss (https://www.meteoswiss.admin.ch). Soil temperature and soil moisture (GS3 and 5 TE decagon devices, NE Hopkins Court, United States) were continuously recorded half-hourly at a depth of 5 cm for both Cov (n = 3) and Ref (n = 3). On 4 December 2019, 24 additional soil temperature sensors (UA-001-64 devices, Onset, MA, United States) were installed near each chamber at three depths (0, 2.5, and 5 cm) for recording surface soil temperature in winter. These sensors were taken out on 21 April 2020 for reading out the data, and the same process was followed for winter 2020/2021. Close to the chambers, the soil volumetric water contents at −5 cm depth were consistently recorded every 10 min with soil moisture sensor (EC-5, decagon devices, NE Hopkins Court, United States). Missing soil temperature data—due to a failure of a data logger between November to December 2019 and April to May 2020 (site Cov)—were fitted using linear regression between temperatures of the two sites with a similar temperature range (RMSE = 0.07°C, R2 = 0.98).

2.5.2 Soil Properties and Fertilizer Nutrient

To determine the soil pore volume, on 12 April 2019, 72 undisturbed cylindrical soil samples (100 cm−3) were collected at three depths (3–8, 18–23, and 58–63 cm) with 12 replications at each site and transferred to the laboratory. In the laboratory, different pore diameters were measured following the approach by Keller et al. (2019). For this, samples were saturated from below and then drained to soil matric potentials of −30, −60, −100, −300, and −1,500 kPa.

Air porosity was calculated based on the difference between volumetric water content (VWC) and total pore volume. The relative gas diffusion coefficient (Dp/D0) was calculated based on air-filled porosity by following the approach by Keller et al. (2019). A Dp/D0 of 0.02 has been suggested as the critical threshold for adequate soil aeration, and the Dp/D0 value lower than 0.02 indicates insufficient soil aeration (Schjønning et al., 2003). The water-filled pore space was determined by the ratio of volumetric water content and total pore volume, and field capacity was determined by water retention at −30 kPa. Here, we used the threshold of 80% of the field capacity for each site to roughly distinguish dry and wet conditions separately for Cov and Ref. Soil moisture of below 80% of the field capacity was designated as dry, and >80% of the field capacity as wet.

For soil organic carbon (C) and total nitrogen (N) content measurement, 22 soil samples were taken in 2018, with 11 replications at each site. Soil samples were dried at 105°C for 72 h, ground using mortar and pestle, and then milled in a ball mill (Retsch, MM 400, Germany) at 25-rotation s−1 for 3 min. Samples containing carbonate (soil surface from Cov) were fumigated with hydrochloric acid overnight in a desiccator before being analyzed by elemental analysis (Hekatech, Germany). For soil pH, soil (unground) was suspended 10 g in 0.01 M calcium chloride (CaCl2), shaken at 160 cycles min−1 for 15 min, and left overnight before the soil pH was measured with a flat surface electrode (pH3310, WTW, Germany). For ammonium and nitrate measurements, 16 soil samples were taken in July 2021, with eight replications at each site. Soil N was extracted from 20 g field-moist soil with 0.01 M CaCl2 solution and filtered. The filtrate was analyzed by segmented flow injection analysis (Skalar Analytical B.V., Breda, Netherlands). The C and N content in the slurry was determined in a central laboratory (Labor für Boden und Umweltanalytik, Eric Schweizer AG, Thun, Switzerland. For details about N application rate and frequency, see Table 2).

TABLE 2
www.frontiersin.org

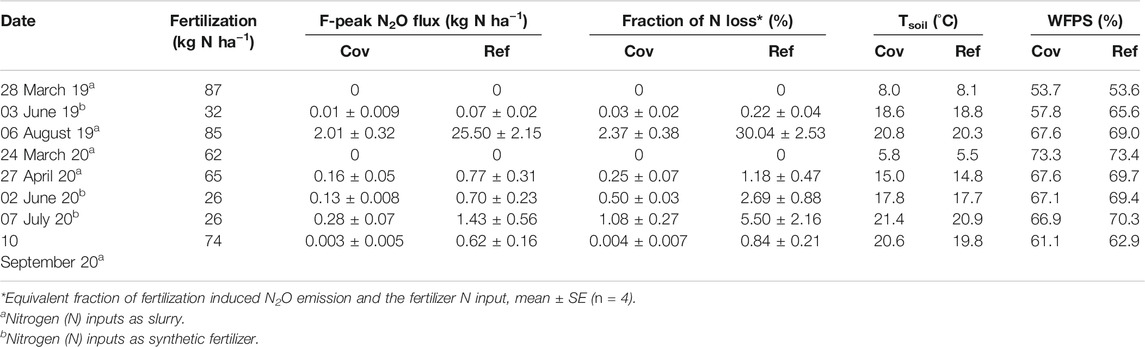

TABLE 2. Fertilization event-induced nitrous oxides (N2O) fluxes (mean ± se, n = 4) and associated environmental parameters, soil temperature (Tsoil), and water-filled pore space (WFPS) from drained organic soil with (Cov) and without (Ref) mineral soil coverage.

2.6 Data Analysis

Plots and statistical analysis were performed using open-source software R (version 3.6.0, The R Project, 2014). N2O emissions as measured by the ATIC systems were calculated based on linear regression in R. Environmental parameters including soil temperature, soil moisture, air-filled porosity, and Dp/D0 were calculated and plotted as daily means. A multiple linear regression (MLR) model with unstandardized explanatory variables was used to evaluate the drivers for the F-peak and daily background N2O emissions, with soil temperature, water-filled pore space, and nitrogen (N) input as explanatory variables. For each of those variables, its statistical significance to the MLR model was chosen as p < 0.05. The adjusted coefficient of determination (R2adj) is then given by the number of driving variables and the sample size, and is used to describe the explained variation of the dependent variable. For the daily background N2O emissions, the minimum N2O flux plus one (which was determined by the minimum observed N2O emission data) was added to N2O fluxes separately for the two sites and log-transformed before being applied to the MLR model. The difference in soil temperature, soil moisture, air-filled porosity, daily N2O emission, annual N2O emission, daily N2O emission from fertilization events (daily F-peak N2O), fertilization-induced N2O peaks, daily background N2O emission, and cumulative background N2O emission were analyzed for statistical difference between Cov and Ref by using a t-test. An error probability of p < 0.05 was chosen. Results are always reported as mean ±1 standard error (se).

For the annual N2O emission from Cov and Ref, we calculated the standard error based on the spatial variability among the four ATIC systems for both sites. The annual cumulative se of each N2O flux calculation by linear regression within each chamber contributed only 0.1% to the se derived from the spatial variability of the four replicates. Therefore, we believe that the se derived from spatial variability covers the overall se inherent to our N2O flux calculations.

3 Result

3.1 Environmental Conditions

The two sampling years had a mean annual air temperature of 10.7°C (Figure 2A) and annual precipitation of 1,535 mm. The latter was higher in the first (1,690 mm) than in the second year (1,380 mm, Figure 2B). The two years and two sites had similar daily mean soil temperature on average. At both sites, 5 cm soil temperature was continuously above 0°C during the two sampling years despite frequent winter frost (Figure 2A). In the second year, spring and summer were moister with ∼10.9 and ∼11.4% higher (p < 0.01) soil water-filled pore space (WFPS) during March to June and June to August, respectively, than in the first year. Soil WFPS was not different between sites but more variable for Cov (30.8–91.6%) than for Ref (24.2–76.4%, Figure 2B). During spring and summer of 2019, air-filled porosity was higher (p < 0.05) than that in 2020 by ∼ 3.9 and ∼5.4%. Air-filled porosity was almost continuously higher (p < 0.01) at Ref than at Cov (Figure 2C). Consequently, the relative gas diffusion coefficient of Ref exceeded that of Cov (p < 0.01). At Cov, the relative gas diffusion coefficient was lower than the critical threshold for adequate soil aeration (0.02) at 172 days, whereas it never passed the critical threshold at Ref (Figure 2D).

FIGURE 2
www.frontiersin.org

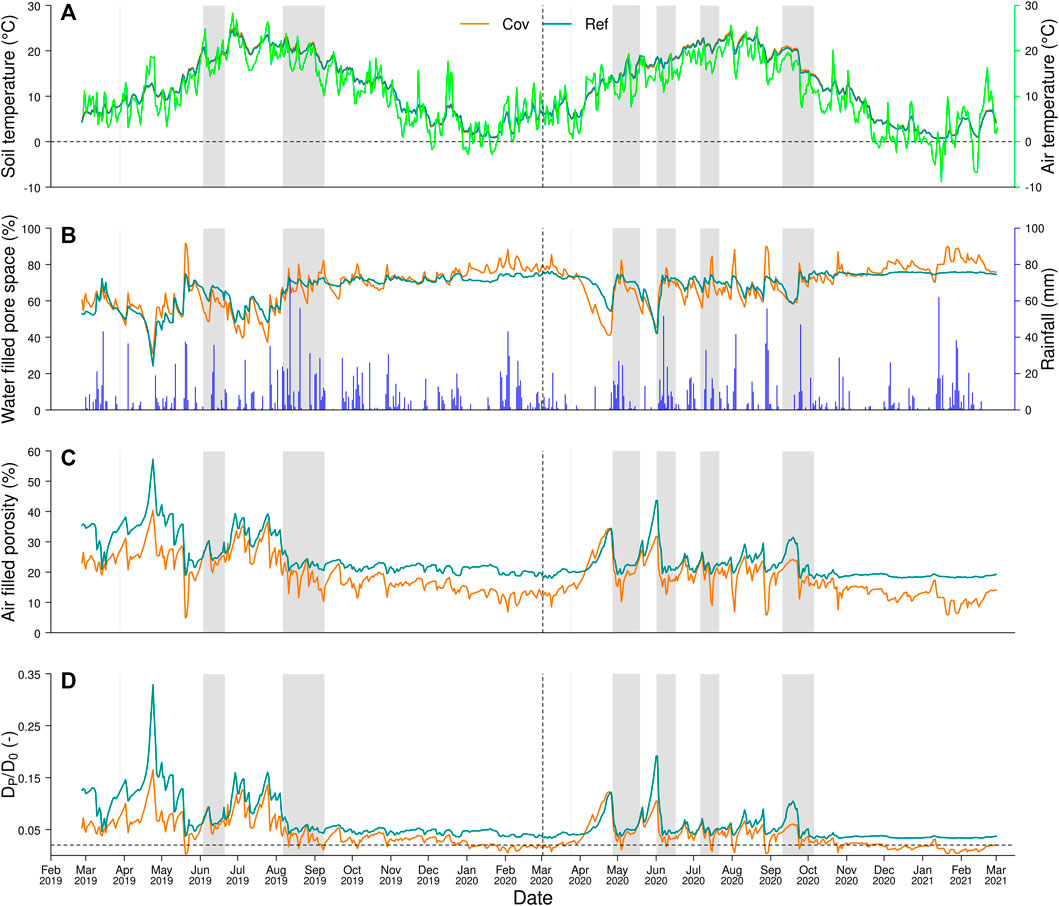

FIGURE 2. Daily mean soil (dark green and orange lines are overlaying because of the high similarity of the soil temperature at Cov and Ref) and air (light green) temperature (A), soil water-filled pore space and rainfall (B), air-filled porosity (C), and relative gas diffusion coefficient (DP/D0, D) from drained peatland with (Cov) and without (Ref) mineral soil coverage at 5 cm depth. The horizontal dashed line in panel (D) indicates the critical threshold for adequate soil aeration, which was set at 0.02 by Schjønning et al. (2003). The vertical dashed line separates the first year (28.02.2019–28.02.2020) from the second year (28.02.2020–02.03.2021). The shaded areas indicate time periods influenced by fertilization events.

3.2 N2O Emissions

The N2O emissions integrated over two years of continuous field measurement from Ref exceeded that of Cov by a factor of 9 (Figure 3). Daily N2O emissions showed a larger variability during the first year, ranging from −0.02 to 242.01 mg N m−2 day−1 for Ref, and from −0.04 to 22 .08 mg N m−2 day−1 for Cov. During the second year, daily N2O emission ranged from −0.04 to 18.41 mg N m−2 day−1 for Ref and from −0.04 to 2.80 mg N m−2 day−1 for Cov (Figure 3). At Ref, the average daily N2O emissions during the first year was 8.98 ± 1.03 mg N m−2 day−1, which was higher (p < 0.01) than that of Cov (0.86 ± 0.10 mg N m−2 day−1, see Figure 4C).

FIGURE 3
www.frontiersin.org

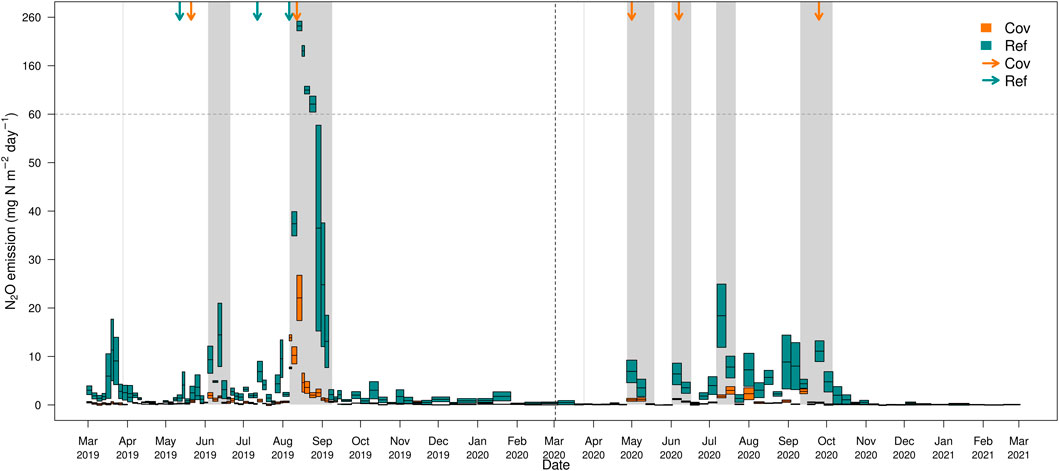

FIGURE 3. Comparison of gap-filled N2O emissions (mean ± se, n = 4) from drained organic soil with (Cov) and without (Ref) mineral soil coverage for the period 28.02.2019–02.03.2021. The width of the box represents the length of each sampling period. Each box shows the mean ± se (n = 4) value of N2O emissions from four chambers per site. The shaded areas indicate time periods influenced by fertilization events. Arrows on the top indicate when field conditions changed from long-term dry to wet. The vertical black dashed line separates the first year (28.02.2019–28.02.2020) from the second year (28.02.2020–02.03.2021). For better readability, the scale of the y-axis is expended ten times for N2O emission higher than 60 mg N m−2 day−1, indicated by a gray dashed line.

FIGURE 4
www.frontiersin.org

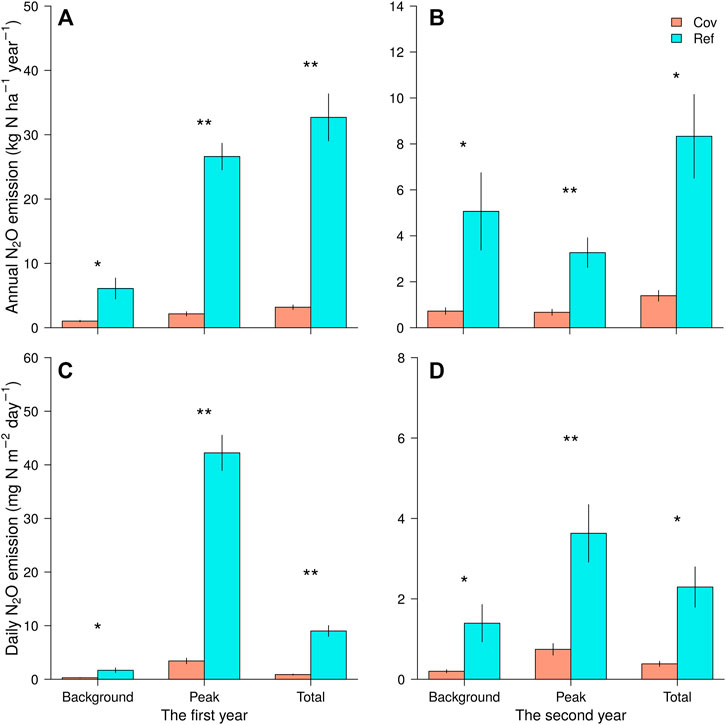

FIGURE 4. Cumulative N2O emissions (mean ± se, n = 4) and contribution of the emission types to the overall field N2O emission from drained organic soil with (Cov) and without (Ref) mineral soil coverage during the first year (A) and the second year (B); and average daily N2O emission (mean ± se, n = 4) for two emission types during the first year (C) and the second year (D). Significant differences between the two sites are indicated with asterisks (“**” p < 0.01, “*”p < 0.05).

Overall, N2O emissions differed largely between the two sites and the two years. At Ref, emissions were ∼4 times higher during the first year than during the second year. At Cov, the first year emissions were ∼2 times higher than the second year ones. The annual N2O fluxes for the two years were different for both sites, but the N2O emissions from Ref were still clearly higher (p < 0.01) than those from Cov. In the first year, the cumulative annual N2O flux from Ref was 32.71 ± 3.87 kg N ha−1 yr−1, around 11 times higher than Cov (3.18 ± 0.35 kg N ha−1 yr−1; Figure 4A). In the second year, the annual N2O fluxes from Ref was 8.28 ± 1.77 kg N ha−1 yr−1 (Figure 4B), which was around six times higher than Cov (1.33 ± 0.23 kg N ha−1 yr−1). The difference of N2O emissions between the sites was not only related to higher (p < 0.01) fertilization-induced peak N2O emissions from Ref (42.48 ± 3.34 mg N m−2 day−1) than Cov (3.41 ± 0.54 mg N m−2 day−1) but also driven by higher (p < 0.05) background N2O emissions from Ref (1.63 ± 0.46 mg N m−2 day−1) than Cov (0.27 ± 0.04 mg N m−2 day−1, see Figure 4C). A similar pattern was seen in the second year (Figure 4D).

3.3 Main Driving Factors of N2O Emissions

3.3.1 Fertilization Effect

At both sites, high N2O emission peaks were primarily triggered by fertilization events (F-peak) and lasted for 2–3 weeks before returning to background N2O emissions (Figure 3). There were eight fertilization events during the experimental period, but we only observed six F-peaks during summer and autumn when the soil temperature was high (Table 2). To further explore the influence of N input on N2O emissions, we defined a corresponding fraction of N loss as the ratio of the N2O emissions during each F-peak and the corresponding fertilizer N input. We found the fraction of N loss to be higher at Ref than at Cov (p < 0.01) for each of the six individual F-peaks. In the first year, F-peaks contributed ∼78% to the annual N2O emissions at Ref, corresponding to 25.56 ± 2.15 kg N ha−1. At Cov, F-peaks contributed ∼64% to the annual N2O emissions, corresponding to 2.02 ± 0.32 kg N ha−1 (Figure 4A). For the second year, at both sites, F-peak fluxes only contributed ∼43% to the annual N2O emissions, corresponding to 3.51 ± 0.84 kg N ha−1 for Ref and 0.57 ± 0.11 kg N ha−1 for Cov (Figure 4B). It needs to be noted that during the fertilizer event in August 2019, we observed a relatively high peak at both sites (Figure 3), which extended over 25 days (8 sampling periods). The N2O emissions from this high peak contributed ∼78% to the annual N2O emissions to Ref and ∼64% to Cov.

3.3.2 Environmental Parameters

In order to identify the main driving factors for N2O emissions, regression analyses were applied separately on fertilization-induced and background N2O emissions. For fertilization-induced N2O emissions, the regression analysis was performed on each individual fertilization-induced F-peak. We found that 50 to 60% of the variation in F-peak N2O emissions could be explained by the multiple linear regression model with soil temperature, soil water-filled pore space, and amount of N input as explanatory variables (Table 3). At both sites, the variability of F-peak emission was mainly driven by soil temperature and N inputs (p < 0.05; p < 0.01), and the two parameters were positive drivers for F-peak N2O emissions. In addition, the average WFPS during the fertilization events also contributed significantly to the variability of the F-peak N2O emissions at both sites. For background N2O emissions, the variation in N2O emissions explained by the MLR model was low with R2 of 0.10 (Cov) and 0.16 (Ref). The impact of the two potentially driving parameters soil temperature and soil WFPS differed between Cov and Ref. Overall, soil temperature was a significant driver for background N2O emissions at both sites (p < 0.01), but the effect of soil WFPS on background N2O emissions was not significant (Table 3). A threshold of 80% of the field capacity was used to define dry and wet conditions in the field. At Ref, soil WFPS was a positive driver for background N2O emissions during dry conditions in the field, whereas it was negative under wet conditions (p < 0.01). At Cov, soil WFPS only exerted limited influence on background fluxes.

TABLE 3
www.frontiersin.org

TABLE 3. Regression analysis using log-transformed background N2O fluxes, and fertilization-induced N2O fluxes from each chamber as the dependent variable and soil temperature (Tsoil), water-filled pore space (WFPS), and nitrogen input (N input) as explanatory variables.

4 Discussion

4.1 Magnitude of N2O Fluxes From the Two Sites

Our continuous two years of field N2O observation showed that the drained nutrient-rich fen (Ref) emitted 20.5 ± 2.7 kg N ha−1 yr−1. This was substantially higher than the IPCC default value and its 95% confidence interval, 8.2 (4.9–11) kg N ha−1 yr−1 (IPCC, 2014). Moreover, the study site also emitted substantially more N2O than 25 measured fen peats in Germany (average 2.9 ± 2.7 kg N ha−1 yr−1; Tiemeyer et al., 2016), and also more than the average from drained grassland organic soils from 217 annual budgets across Europe (5.8 ± 10.3 kg N ha−1 yr−1; Leppelt et al., 2014). However, the annual N2O emissions from the study site were lower than the N2O emissions from drained fens with high organic carbon in Slovenia (37.1 ± 0.2 kg N ha−1 yr−1; Danevčič et al., 2010). In our opinion, these differences in the N2O emissions from drained fens between our site and the bulk of measurements from temperate grasslands are mainly driven by climate conditions and the amount of fertilizer input. Compared with the overall peatland distribution across Europe (Tanneberger et al., 2017), our site and the Slovenian site (Danevčič et al., 2010) are situated in regions with relatively high soil temperatures, particularly during summer. This may foster higher N2O emissions, owing to the normally positive correlation between soil temperature and N2O emission that we found, in line with previous studies (Marushchak et al., 2011; Parn et al., 2018). Regarding fertilizer input, our site received c. 230 kg N ha−1 yr−1, which is much above the average rate of ∼44 kg N ha−1 yr−1 for drained grassland organic soils across Europe (Leppelt et al., 2014), and ∼52 kg N ha−1 yr−1 of drained fens managed as grassland in Germany (Tiemeyer et al., 2016). Moreover, for some of the study sites mentioned by Tiemeyer et al. (2016), where fertilizer input was higher than 300 kg N ha−1 yr−1, these authors also reported higher N2O emissions of 6.4–27.2 kg N ha−1 yr−1.

With mineral soil coverage, the N2O emissions were strongly reduced (2.3 ± 0.4 kg N ha−1 yr−1) and also lower than the IPCC emission factor for managed deeply drained nutrient-rich grassland on organic soil (8.2 kg N ha−1 yr−1; IPCC, 2014). It is not possible to compare the N2O emission from Cov with former studies, because no N2O emission data from drained peatland with artificial mineral soil coverage exist up to date. The observed N2O emissions from Cov were in the range of N2O emissions from mineral grassland soils in Switzerland. These have been reported to be 1.0–2.6 kg N ha−1 yr−1 N2O-N from an intensively used grassland in the temperate Swiss Central Plateau with a fertilization rate of ∼200 kg N yr−1 (Flechard et al., 2005); 2.2–7.4 kg N ha−1 yr−1 from another intensively used grassland in the Swiss Central Plateau during 2010–2011 and 2013–2014 with extra total N inputs of ∼350 kg N yr−1 (Merbold et al., 2021); and 3.9–5.9 kg N ha−1 yr−1 from an intensively used grassland in the Swiss Plateau during 2013–2016 with extra total N inputs of ∼270 kg N yr−1 (Fuchs et al., 2020). Based on IPCC (2019), a fertilizer N input of c. 45 kg N ha−1 yr−1 mineral and c. 185 kg N ha−1 yr−1 organic fertilizer nitrogen (N) as in our study site would induce an N2O emission of 0.8–2.9 kg N ha−1 yr−1, and the average rate measured in Cov is within the range. Therefore, it seems that with mineral soil coverage, the drained organic soil of our site behaves like mineral soil in terms of its N2O release.

4.2 Drivers of N2O Emissions and Effects of Mineral Soil Coverage

4.2.1 Drivers of N2O Emissions for the Two Sites

In our study, soil temperature, soil water-filled pore space, and N input could explain more than half of the variance of fertilization-induced N2O emissions (F-peak; Table 3). Higher F-peaks were found with warm temperatures and lower with cold temperatures (Table 2), most likely due to the reduced soil microbial activity (Holtan-Hartwig and Bakken, 2002). The fertilizer N inputs and the high WFPS did not compensate for the effect of cold temperatures (Table 2), indicating that in our field, high N2O peaks only occur if all the driving variables (soil temperature, soil water content, and N availability) are supporting high N2O production. Previous research also highlighted that peak N2O emissions were not observed if one driving factor was below thresholds for soil temperature and moisture (Holtan-Hartwig and Bakken, 2002; Meng et al., 2005). In turn, if these driving factors were above the threshold, a fertilization event will lead to very high N2O emissions. In the first year, we observed a very high F-peak after fertilization in August, which contributed more than half to the annual N2O emissions for both sites and even 78% for Ref. This led to a significantly higher annual N2O release in the first year than in the second year. One explanation might be the time line of the dry summer period followed by a wetting event together with the fertilizer application (Figure 3). This interpretation is supported by a large body of former research works that after dry and wet cycles for both mineral soils and organic soils, a greater amount of N2O is emitted from grassland owing to the enhanced availability of C and N as related to soil organic matter mineralization (Priemé and Christensen, 2001; Beare et al., 2009; Harrison-Kirk et al., 2013). The differences in fertilization-induced N2O emissions under different soil temperatures and soil WFPS suggest that as one N2O mitigation option for the study site, fertilizer application should be avoided in hot summer periods or during frequent precipitation.

4.2.2 Drivers of N2O Reduction After Mineral Soil Coverage

Despite receiving the same amount of N input and having similar soil temperatures and WFPS, as well as the same agricultural management, Ref had much higher N2O emissions after fertilization. The different N2O releases after fertilization might be related to various mechanisms. First, exogenous N inputs might prime the mineralization of SOM, thereby influencing N2O production differently in Cov and Ref. Priming effects are defined as short-term changes of SOM mineralization in response to external stimuli, for example, exogenous N addition, and they alter the subsequent N2O production from SOM-N (Kuzyakov et al., 2000; Daly and Hernandez-Ramirez, 2020; Thilakarathna and Hernandez-Ramirez, 2021). Priming may affect N2O emissions positively or negatively, depending on soil moisture and SOM content (Roman-Perez and Hernandez-Ramirez, 2020). Former studies revealed positive N2O priming effects to be associated with wetter soil conditions (WFPS >60%) and higher SOM content (Schleusner et al., 2018; Thilakarathna and Hernandez-Ramirez, 2021). In our study site, soil moisture for Cov and Ref were similar during the fertilization events (Table 2), but SOC content in surface soil of Ref was five times higher than that in surface soil of Cov (Table 1), which might have induced stronger priming by adding N, subsequently leading also to higher N2O emissions for Ref (Perveen et al., 2019). For the background N2O emissions, soil temperature was still a significant driver at both sites, but the influence of the soil water-filled pore space was limited (Table 3). Moreover, the variance of background N2O emissions explained by the MLR model with soil temperature and soil water content was low, indicating that for both sites, the influence of soil temperature and soil moisture on background N2O emission was limited. In our study, background N2O emissions were also significantly reduced (p < 0.05) with mineral soil coverage, indicating that the higher N2O emission from Ref was not only directly related to fertilization but also to the properties of the surface soil itself, for example, soil pH and soil N availability. Surface soil properties are of particular relevance for the amount of N2O release as it has been shown that the soil depth from which emitted N2O originates is only 0.7–2.8 cm (Neftel et al., 2000).

Second, surface soil pH increased from 5.2 to 7.3 (Table 1) with mineral soil coverage in our study site. It has been reported that the net production of N2O from denitrification is strongly dependent on soil pH (Nadeem et al., 2020); N2O emissions are negatively correlated with soil pH in organic soil, due to the decreased N mineralization with increasing soil pH under aerobic conditions of peat (Chapin et al., 2003; Weslien et al., 2009) and the possible enhancement of the synthesis of functional N2O reductase from denitrification (Liu et al., 2014), resulting in a higher share of N2. Hence, the relatively high soil pH at Cov may have contributed to the lower background N2O emissions.

Third, the two topsoils differed in soil N content and soil N availability (Table 1). Soil available N from SOM mineralization is considered to be the main source for background N2O production (Lampe et al., 2006). Our study site revealed a carbon loss of 3,100–6,300 kg C ha−1 yr−1 from peat oxidation after drainage based on a former study using a radiocarbon approach to estimate the soil carbon loss (Wang et al., 2021). Considering the C to N ratios of ∼25 (at a depth of 2 m) as representative for nitrogen stored in peat without fertilization, the study site has an N mineralization potential of 120–250 kg N ha−1 yr−1. This relatively high soil N supply at Ref, as also indicated by higher available soil N (Table 1), becomes available for microbial processing and consequently N2O production. After mineral soil coverage with a thickness of ∼40 cm, N release from peat mineralization of topsoil SOM as an N source for N2O formation is no longer available. Instead, mineralization of SOM from the mineral soil coverage, whose soil N content and the corresponding soil available N are much lower (Table 1), becomes a major N source. The decreased surface soil N availability due to mineral soil coverage for nitrification and denitrification may then restrain the N2O production (Senbayram et al., 2012). As one consequence for management, the high soil N supply in drained peatland suggests that the fertilization demand for organic grassland soils might be substantially lower than that for mineral grassland soils.

Fourth, although the organic soil at site Cov still has the potential to produce N2O, the mineral soil coverage might have pushed the organic soil underneath into a deeper zone with higher soil moisture and lower oxygen availability as compared to the organic topsoil at site Ref. Higher soil moisture could influence the exchange of N2O between the site of production and the aerated pore space, thereby affecting the balance between N2O production and consumption. With high soil moisture, a reduction of N2O emission is expected owing to the higher consumption of N2O when gas diffusion is slow (Kuang et al., 2019; Harris et al., 2021). Moreover, under strongly anaerobic conditions, N2 as the end product of denitrification will be produced preferentially (Davidson et al., 2000). Thus, the amount of formed N2O from the organic soil underneath might be reduced at site Cov via enhanced dissolution in soil water (Clough et al., 2006; Goldberg et al., 2008) or full denitrification before escaping into the atmosphere (Davidson et al., 2000). These effects are further pronounced by the lower gas diffusivity of the surface soil of Cov compared to Ref (Figure 2D). We suppose these effects in combination lead to lower N2O emissions after mineral soil coverage.

4.3 Potential of N2O Reduction by Mineral Soil Coverage

Based on two years of continuous field observation, the results from our study site showed that mineral soil coverage as a management option for organic soils induced a strong reduction of N2O emissions from drained organic soil in the Swiss Rhine valley. In Switzerland, ∼ 250 km2 organic soils are still drained for agricultural production (Wüst-Galley et al., 2020), and N2O release contributes by ∼ 10% to the overall c. 650 kt CO2 -eq yr−1 GHG emissions from these soils (FOEN, 2021). Globally, c. 2.7 × 105 km2 peatlands are drained for agricultural (grassland and cropland) production, those areas are estimated to result in c. 1,046 Mt CO2 -eq yr−1 GHG emissions, and N2O release contributes by ∼ 24% to it (FAOSTAT, 2019; Evans et al., 2021). Rewetting has been suggested as key to reducing those GHG emissions from drained organic soils (Hemes et al., 2019; Günther et al., 2020; Ojanen and Minkkinen, 2020). However, in many areas, rewetting of all of those areas will be difficult to be achieved. First, for some countries, cultivation on drained organic soils is continuously making significant contributions to the economic development; therefore, rewetting of those areas might cause economic losses. Second, global demand for food and feed production and pressure on land is continuously increasing (FAO, 2017). These set barriers for full rewetting of drained agricultural organic soil despite the need for GHG reduction (Biancalani and Avagyan, 2014). Thus, in situations where full rewetting is not possible, mineral soil coverage might become a promising building block for GHG mitigation and, at the same time, counterbalance soil subsidence and maintain the productivity of drained organic soil.

5 Conclusion

Draining organic soil for intensive agricultural production induced N2O emissions of 20.5 ± 2.7 kg N ha−1 yr−1 at our study site, which were reduced to 2.3 ± 0.4 kg N ha−1 yr−1 by mineral soil coverage. Most of the N2O emissions were related to fertilization, and a single fertilization event under suitable soil temperature and soil moisture may contribute by more than half to the annual N2O emissions in our study site, underpinning the need for high-frequency flux measurements. Mineral soil coverage of drained organic soil could significantly reduce both fertilization-induced N2O emissions and background N2O emissions. The large potential of N2O reduction after mineral soil coverage, which itself is a measure applied by farmers to counterbalance soil subsidence, provides an opportunity for not only reducing the environmental footprint of using drained organic soils but also for maintaining their agricultural productivity, and hence, farmers income. We are not aware of any management options apart from peatland restoration and rewetting that have the potential to substantially reduce N2O emissions from organic soils. Mineral soil coverage of intensively used drained peatlands, which are not suitable for rewetting owing to soil conditions or socio-economic constraints, may therefore be a prospective management strategy for the sustained use of these soils. Our findings encourage further research on this measure, particularly for tropical conditions where drained peatlands are GHG hotspots and contribute the most to the overall emissions from managed organic soils (Dommain et al., 2018; Leifeld and Menichetti, 2018).

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.

Author Contributions

YW, SP, CA, and JL: conceived and designed the study. YW and MJ: collected and analyzed the samples. JL: managed the project. MJ: designed experimental instrument. YW: performed data analysis and drafted the original manuscript. SP, CA, MJ, and JL: edited the manuscript. All the authors read and approved the final manuscript.

Funding

The research was supported by funding received from the Swiss Federal Office for the Environment (contract number 06.0091. PZ/R261-2425), and the China Scholarship Council (NSCIS 201806350221).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

We acknowledge the help of Stefan Gloor, Robin Giger, Urs Zihlmann, and Marlies Sommer at Agroscope during field sampling and lab analysis. We are thankful for many insightful discussions with Christof Ammann and Karl Voglmeier at Agroscope. We thank Bernhard Schneider for collaboration on his farm.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fenvs.2022.856599/full#supplementary-material
