Predicting Sugar Balance as the Impact of Land-Use/Land-Cover Change Dynamics in a Sugarcane Producing Regency in East Java, Indonesia

Lamongan Regency is one of Indonesia’s regencies in Indonesia that contribute to the country’s sugarcane and sugar production. Land-use/land-cover changes (LULC) have happened in various areas, including Lamongan Regency in East Java, Indonesia. This study aimed to analyze the impact of land-use/land-cover change (LULCC) in 2007–2031 on the sugar balance in the Lamongan Regency in 2031. The LULC forecast in 2031 was made using R studio using the CLUE-s function in the LULCC package. Following that, the sugar requirements and sugar balance in Lamongan Regency in 2031 were forecasts. The kappa accuracy of the LULC model tested in 2019 was 0.81 when using the CLUE-s model in R studio’s LULCC package. The findings of the LULC prediction in Lamongan Regency for 2031 indicated that there could be significant changes in LULC, resulting in an estimated reduction in 1,687.5 ha sugarcane, influenced by LULC competition for built-up areas. The Built-up areas in Lamongan Regency have exploded in size as a result of population. An increase in built-up areas and a reduction in sugarcane plantations as a result of LULCC are expected to diminish the sugar balance in Lamongan Regency by 10,470.76 tons in 2031 when compared to 2019. The results of this study can be utilized to prevent uncontrolled LULCC in the future to meet sugar needs in Lamongan Regency and at the national level.

1 Introduction

Indonesia’s current sugar production capacity is insufficient to meet the community’s high demand for sugar, which exceeds six million tons per year. National sugar production in 2019 was only 2.23 million tons. Meanwhile, in 2019 sugar imports in Indonesia imported 4.09 million tons, worth up to US $1.36 billion, or approximately Rp19.3 trillion. Sugar was imported from 20 countries, with Thailand importing the most (86.53%) and Australia importing the least (13.26%) (Indonesian Statistics, 2020). Sugar production is poor as a result of sugarcane production being low. Domestic sugar production peaked in the 1930s. At that time, 179 sugar factories were operational, but today, less than half of those remain operational, totaling 64 sugar factories (Marpaung et al., 2011). One of the causes of the fall in the number of sugar factories in Indonesia is a scarcity of raw materials sufficient to match the sugar factories’ production capacity.

East Java Province is Indonesia’s major producer of sugarcane and sugar. East Java Province itself accounted for 51.5% or 1.11 million tons, of the total national total sugar production in 2018. (Indonesian Statistics, 2019). East Java’s top three sugarcane/sugar producers are Kediri, Malang, and Lumajang Regencies. Lamongan Regency is one of the regencies that contributes as a producer of sugar cane as well as sugar in East Java. Sugar production in Lamongan Regency has been highly erratic over the last 10 years. In 2008, sugar production was 18,445 tons, and subsequently declined until 2010 when it was only 11,542 tons. After that, production improved until 2014, it reached 24,995 tons. However, it dropped again in the following year, to 23,832 tons. In 2016 production grew to 28,521 tons, then fell to 28,104 in 2017 and 24,497 tons in 2018.

The increase in population in Lamongan Regency from 2015 to 2019 increased by 31,124 people or 2.31%, from 1,342,266 to 1,373,390 people (Lamongan Statistics, 2020). This rising population has an impact on the increasing demand for sugar usage. Population growth is also pushing changes in agricultural land use, particularly the convention of the sugarcane plantation sub-sector to non-agricultural. LULCC can be driven by a variety of factors, including population growth (Mhawish and Saba, 2016), industrialization (Hatami and Shafieardekani, 2014), urbanization (Tali and Murthy, 2013), and the lower economic value of agricultural land relative to built-up areas (Rondhi et al., 2018; Peerzado et al., 2019). Changes in LULC influence a variety of areas, such as agriculture, the economy, society, and the environment.

Modeling of LULC has been widely used to forecast future trends in LULCC. Several approaches were employed to model the LULC, including CLUE (the Conversion of Land Use/Land Cover and Its Effect) (Veldkamp and Fresco, 1996), Cellular Automata (Clarke and Gaydos, 1998), Spatial Markov (Wood et al., 1997), and the Logit model (Wear and Flamm, 1993). CLUE-s (The Conversion of Land Use/Land Cover and Its Effect at Small Regional Scale) is a variant of CLUE that takes into account the interaction between current LULCs and their underlying variables as well as competition among LULCs for regional applications (Verburg et al., 2002). The CLUE-s model is commonly utilized in land-use planning research (Islam et al., 2021; Song et al., 2021; Xu et al., 2021).

Therefore, it is necessary to investigate changes in LULC that are both existent and predictable to ascertain the future pattern of LULC changes in the Lamongan Regency. This study aimed to analyze the impact of land-use/land-cover change (LULCC) in 2007–2031 on the sugar balance in the Lamongan Regency in 2031. This research used the CLUE-s model to examine the influence of LULCC from 2007 to 2031 on the sugar sufficiency balance in Lamongan Regency in 2031. The prediction year in this research is 2031, which corresponds to the end of the Lamongan Regency’s 2011–2031 Regional Spatial Plan (RTRW), and thus this research is expected to contribute to science related to land-use change and its impact on future food availability and can be used as input for formulating policy strategies related to sugarcane plantations and meeting the community’s sugar needs in the coming period.

2 Materials and Methods

2.1 Study Area

This study was conducted in the Lamongan Regency, Indonesia’s East Java Province (Figure 1) Lamongan Regency, located between 6^o51′54″‒7^o23′06″ south latitude and 112^o33′45″‒112^o34′45″ east longitude has a tropical climate. Lamongan Regency is divided into 27 sub-districts had a population of 2019 of 1,373,390 people. The Java Sea forms the northern boundary of Lamongan Regency; Gresik Regency forms the eastern border boundary; Mojokerto and Jombang Regencies from the southern boundary, and Bojonegoro and Tuban Regencies form the western boundary.

FIGURE 1

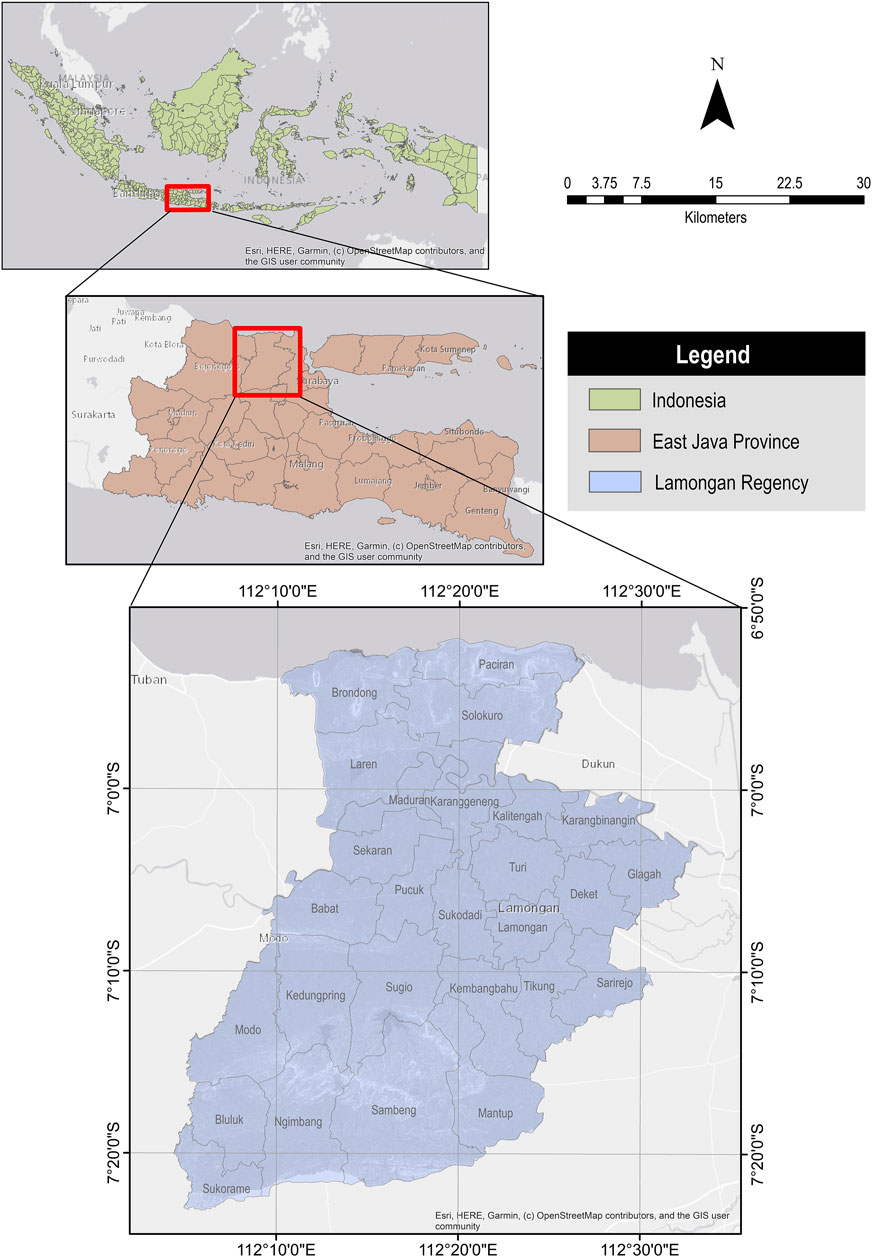

FIGURE 1. The study area map.

2.2 Data

The orthorectified SPOT satellite images from 2007 to 2013 and 2019 were collected by the National Institute of Aeronautics and Space. The 2007 image was taken by a SPOT 4 satellite on 22 June 2007. The 2013 image was obtained by a SPOT 5 satellite on 12 June 2013, and the 2019 image was taken by a SPOT 5 satellite on 10 June 2019. The slope data is coming from NASA’s Digital Elevation Model; the distance between the road and administration boundary comes from the Geospatial Information Agency; and the climate data from the Meteorology, Climatology, and Geophysics Council. The final resolution of all spatial data is processed is 30 × 30 m. Indonesia statistics provided statistical data on population and sugarcane productivity. GPS was used to conduct field checks, ArcGIS was utilized to rectify spatial data, R Studio was used for modeling, and Microsoft Office was used for other analyses.

2.3 Data Processing and Analysis

2.3.1 Analysis of Land-Use/Land-Cover Change in 2007, 2013, and 2019

The land use and cover of Lamongan Regency were investigated visually (Andries et al., 2021; Wei et al., 2021) using SPOT satellite images of 2007, 2013, and 2019. The analyzed LULC was classified using a one-level classification scheme into nine categories, including forest, field/moor, built-up area, open land, sugarcane plantation, rice field, shrubs, fishpond, and water body. The classification findings were validated in the field utilizing a purposive sample technique specific to the LULC type. The status of LULC in the past was determined through interviews with residents who knew the condition of the location in the past (Debeko et al., 2018) and also integrated with high-resolution time-series imagery on Google Earth (Getachew and Meten, 2021). Each type of LULC was assigned eight sample points, for a total of 72 points, taken under limited mobility during the COVID-19 pandemic. These sample points are then used as a reference for evaluating the classification accuracy of LULCs. The kappa accuracy test was used to obtain the accuracy. The greater the kappa accuracy score, the more precise the results of the LULC prediction. The kappa accuracy test has the following equation (Cohen, 1960; Foody, 2002; Adhiatma, 2020):

${\mathrm{K}}_i=\frac{N{{\displaystyle \sum }}_{i=1}^r{X}_{ii}-{{\displaystyle \sum }}_{i=1}^r\left(X_{i+}+X_{+i}\right) }{N^2-{{\displaystyle \sum }}_{i=1}^r\left(X_{i+}+X_{+i}\right) }$

where Ki denotes the kappa accuracy index; xii: denotes the simulation result of the i LULC type which corresponds to the i LULC the observed; xi: the simulation result of the i LULC; x + i denotes the observed i LULC type; N denotes the total number of observation points, r denotes the total type of LULC.

2.3.2 Prediction Model of Land Use/Land Cover in Lamongan Regency in 2031

Model Description

The CLUE-s model was utilized in this research to simulate and predict changes in LULCs by considering the empirical conditions of a place, spatio-temporal dynamic interactions, and competition between LULCs at that location (Verburg, 2010). Elasticity is a measure of competition among LULCs; the greater the elasticity, the more competitive the LULC is in comparison to other LULCs (Liao et al., 2010). After determining the relationship between LULC and its driving factor through neighborhood analysis using binary logistic regression analysis the CLUE-s model can be employed to stimulate LULCC (Setiawan and Kunihiko, 2020). The binary logistic regression formula is:

$\mathit{ln}\left[\frac{p}{1-p}\right]={\beta }_0+{\beta }_1{x}_1+{\beta }_2{x}_2+{\beta }_3{x}_3+\dots +{\beta }_n{x}_n$

where the dependent variable is the probability of occurrence of nonoccurrence; β0 is the intercept; and β1, β2, β3,.., βn: the coefficients of the driving factor as independent variables (x1, x2, x3,.., and xn) (Siagian et al., 2019). The slope, distance from the road, rainfall, and temperature are all considered driving considerations in this study (Supplementary Figure S1).

Following that, LULCC modeling can be carried out. The stages of LULCC modeling began with a simulation in 2007, and then the model was validated to predict LULC in 2013. The initial elasticity value for each LULC class was determined based on a previous study (Sinurat et al., 2015) then adjusted based on the model’s performance in 2013 so that better modeling results are obtained. After that, the simulation is continued by predicting and validating LULC in 2019. If the validation results indicate that the model is accurate, LULC predictions for 2031 can be produced. In this investigation, the procedure of modeling and predicting LULC using the CLUE-s model was performed using the LULC package in the R studio software (Moulds et al., 2015), because it lacks cell boundaries and thus enables high-resolution analysis.

Model Validation

Model is validated is by comparing the LULC in 2019 obtained the simulation and the LULC in 2019 resulting from the categorization (actual map) (Leta et al., 2021; Yu et al., 2021). The accuracy of the model validation results was illustrated by the kappa index value which ranges from 0 to 1. A kappa index worth one means that there is a perfect agreement or the model is doing better, while the kappa index closer to 0 means there is a bad agreement (poor agreement) or the resulting model is not good (Landis and Koch, 1977).

2.3.3 Calculation of Sugar Balance in 2031

Before establishing the sugar balance, the sugar requirements for Lamongan Regency in 2031 were calculated by population projections. The population in 2031 is forecast by first estimating the rate of population growth over the previous 5 years (2015–2020). The population growth rate and population predictions are measured as follows (Indonesian Statistics, 2010; Mekonnen, 2018; Al-Eideh and Al-Omar, 2019) is:

$r=\frac{1}{t}\mathit{ln}\left(\frac{P_t}{P_0}\right)$

$P_t=P_0{e}^{rt}$

where r donates the population growth rate, Pt is the total population in year t (projected year); P0 denotes the population in year 0 (base year); t denotes the time between years 0 and year t. Sugar needs may be obtained after determining the population in 2031. Sugar needs in Lamongan Regency are calculated as follows:

$Sn=Sc\ast Pt$

where Sn denotes sugar needs (ton); Sc denotes sugar consumption per capita, which is 9.25 kg/capita/year (Food Security Agency, 2017); and Pt is the total population in year t (people) (Murdaningsih et al., 2017). following measuring of sugar requirements in 2031, the next step was to compute the sugar balance in 2031 using Rejekiningrum’s (2013) formula:

$S/D=S{P}_t- S{C}_t$

where S/D stands for surplus/deficit; SPt stands for sugar production at time t (tons), which is calculated by multiplying the area of sugarcane plantations (ha) resulting from the classification and projection of LULC by the average productivity value of sugarcane plantations in Lamongan Regency, which is 70.66 tons/ha (Lamongan Statistics, 2020); and SCt stands for sugar consumption at time t (tons).

3 Results

3.1 Land-Use/Land-Cover Classification of 2007, 2013, and 2019

The classification of LULC was carried out to ascertain the state of the current LULC in the Lamongan Regency. The classification of LULC in Lamongan Regency using SPOT images in 2007, 2013, and 2019 demonstrated that LULC has comprised of forest, fields/moors, built-up areas, open land, sugarcane plantations, rice fields, shrubs, fishponds, and water bodies. The accuracy procedure was conducted to test the accuracy of the findings of the LULC classification. The accuracy test was conducted using 72 points. Each LULC type had eight sample points. The kappa accuracy-test values were above 0.84 (2007), 0.82 (2013), and 0.86 (2019) (Supplementary Table S1), illustrating that the LULC classification was acceptable because the kappa accuracy-test values were above the minimum level of nearly perfect agreement (very high accuracy) of 0.81 (Rwanga and Ndambuki, 2017).

From 2007 to 2019, there was a change in the LULC classification, as demonstrated by the annual changes in the area of each every year (Figure 2). Land uses/land cover that has reduced in the area from 2007 to 2019 include forests, rice fields, shrubs, fishponds, and water bodies. The greatest reduction occurred in the forest area, which decreased by 9,080.4 ha (47.41%). Between 2007 and 2019, the forest turned into fields/moor at most, which was 9,429.8 ha, but there was also an increase in forest area from the previous fields/moor, which totaled 757.2 ha (Supplementary Table S2). In general, Indonesian forests are decreasing as agricultural land is converted (Austin et al., 2019). Meanwhile, the area built-up land increased the most, which totaled 10,780.2 ha. The increase in the built-up land was mostly due to the addition of 7,508.5 ha of rice fields. Rice fields were converted to built-up land as a result of the development of infrastructure, housing, and economic activity centers in numerous regions, all of which were a result of Lamongan Regency’s population growth. Sugarcane plantations increased by 2,298.9 ha because in 2015 there was a new sugar factory built in Lamongan Regency, but starting in 2020 the plantation area began to decline again (Lamongan Statistics, 2020).

FIGURE 2

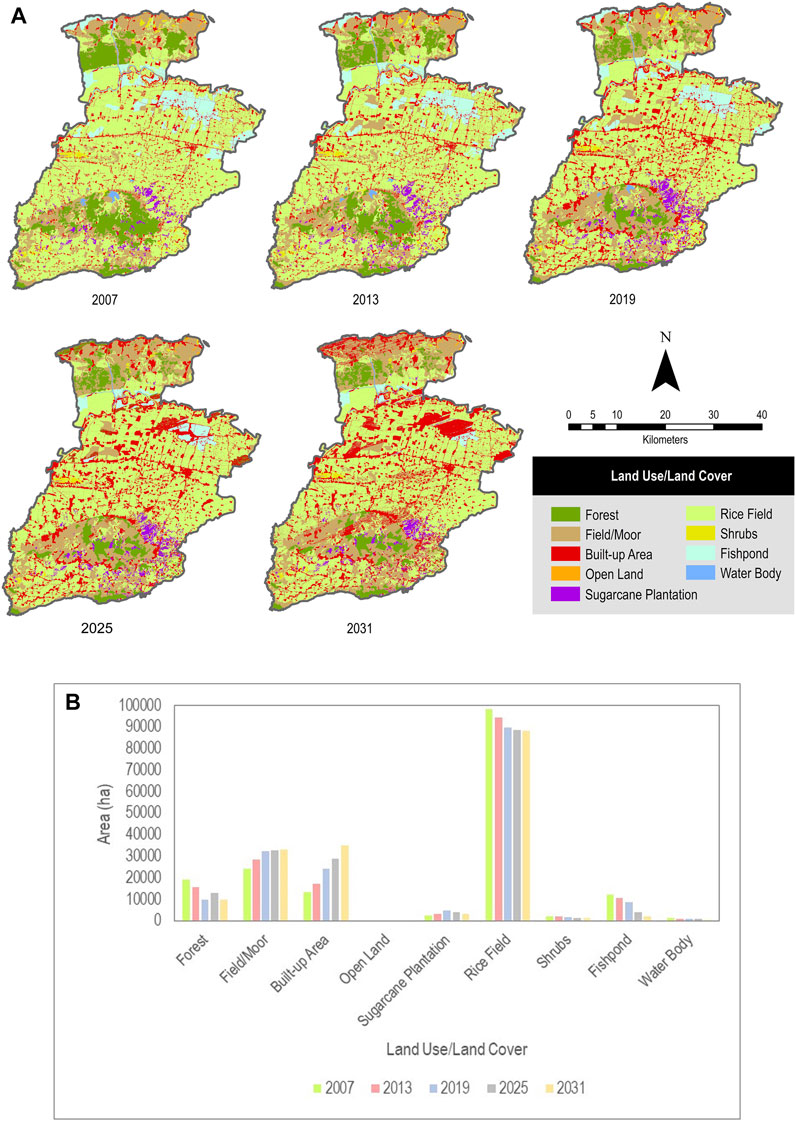

FIGURE 2. The distribution of LULC in Lamongan Regency in 2007, 2013, 2019, and the anticipated results for LULC in Lamongan Regency in 2025 and 2031 (A); graph of change of each LULC (B).

3.2 Prediction Model of Land Use/Land Cover in Lamongan Regency in 2031

Land-Use/Land-Cover Change Model

The LULCC model in this research incorporates input in the form of driving factors affecting land-use/land-cover changes in the modeling. Natural variables such as slope, climate, elevation, hydrological effects, construction costs, and forest distribution play a major role in LULCC (Bajocco et al., 2016; Zhao et al., 2018; Zhu et al., 2021). According to the analysis’s results, the driving factor, as expressed as slope, has a substantial impact on all types of LULC. The slope is positively associated with forest, filed/moor, open land, sugarcane plantation, and shrubs, but negatively associated with the built-up area, rice field, fishpond, and water body. Distance from the road has a considerable negative influence on the field/moor and rice fields and fishpond, but a large favorable effect on the fishpond. Rainfall has a large positive influence on the forest, sugarcane plantation, and water bodies but has a significant negative effect on field/moor, built-up area, and open land. The temperature has a significant positive impact on the forest, sugarcane plantation, rice fields, fishpond, and water body but has a significant negative effect on field/moor, open land, and shrubs (Supplementary Table S3).

Model Validation

The kappa value generated from this study’s validation of the LULC prediction model was 0.81 (Supplementary Table S4). As a result of the categorization and range of kappa value classes, the model generated in this study has a near-perfect level of similarity with the current LULC conditions in 2019 as a result of the classification (Alkaradaghi et al., 2018). Therefore, the finding model can be used to project LULC over the next years. In other words, this research is capable of predicting the distribution of LULC in 2031 in Lamongan Regency.

Land-Use/Land-Cover Prediction in 2031 in Lamongan Regency

The LULC prediction for 2031 is based on a “business as usual” scenario. Along with 2031, a projection for 2025 was created to obtain changes during a 6-year interval. LULC maps from 2007 to 2013, and 2019 were utilized as inputs. The LULC modeling of CLUE-s conversion demands that the elasticity of LULC conversion be specified. The elasticity value is a characteristic that indicates whether or not the land may be used for another LULC. The elasticity value of LULC conversion has a range of 0–1. The closer the value to zero, the easier it is to convert the land; on the other hand, the closer the value to one, the more difficult it is to convert the land (Luo et al., 2010). Each form of LULC has an elasticity value that is adjusted to the conditions of land-use/land-cover changes that occur in a given area (Murdaningsih et al., 2017). The elasticity of 0.7 for the forest, 0.5 for fields/moor, 1.0 for built-up areas, 0.3 for open land, 0.7 for sugarcane plantations, 0.6 for rice fields, 0.6 for shrubs, 0.5 for fishponds, and 0.9 for water bodies were utilized in this study. The distribution of LULC in Lamongan Regency in 2007, 2013, 2019, as well as prediction, projected findings for LULC in Lamongan Regency in 2025 and 2031 are depicted in Figure 2.

Based on the prediction results, between 2019 and 2031, Lamongan Regency is expected to experience an increase in the area of field/moor and built-up areas. The area covered by built-up areas increase the most by 10,881.6 ha. Meanwhile, it is anticipated that there is the extent of forest, open land, sugarcane plantations, rice fields, shrubs, ponds, and bodies of water. Rice fields will lose most of the area, totaling 1,687.5 ha. The reduced rice fields are predicted to be converted to built-up land covering an area of 2,632.7 ha. The area and percentage of each LULC in 2019–2031 and their changes are shown in Table 1.

TABLE 1

TABLE 1. Area and percentage of each land-use/land-cover in 2019–2031 and their changes.

3.3 Sugar Balance of Lamongan Regency in 2031

Based on the results of the LULC classification and predictions, the area of sugarcane plantations between 2019 and 2031 decreased by 1,687.5 ha which may have contributed to the loss in the sugar balance in Lamongan Regency, as the population was predicted to increase while the output of sugarcane decreased. The total population of Lamongan Regency total population in 2019 was 1,373,390 and is anticipated to reach 1,419,843 in 2031. Lamongan Regency’s sugar production in 2019 was 27,357.39 tons. According to the projections, the value of sugar production in the Lamongan Regency in 2031 will reach 17,316.32 tons (Figure 3). This means that sugar production in Lamongan Regency in 2031 compared to production in 2019 is expected to fall by 10,470.76 tons. Sugar balance projections for 2031 showed that Lamongan Regency will have a total sugarcane surplus of 4,182.77 tons. According to the analysis’s results, Lamongan Regency had a sugar surplus in 2007, 2013, 2019, 2025, and 2031 but the surplus are expected to decrease in 2025 and 2031 due to the decline in the area of ​​sugarcane plantations, which is influenced by changes in land use from sugarcane plantations to other land-uses, particularly built-up areas. Sugarcane plantations, it is predicted, will eventually be unable to compete with built-up areas in the future. This is because the built-up area in Lamongan Regency has an elasticity value of one, making it more competitive than sugarcane plantations with an elasticity value of 0.7.

FIGURE 3

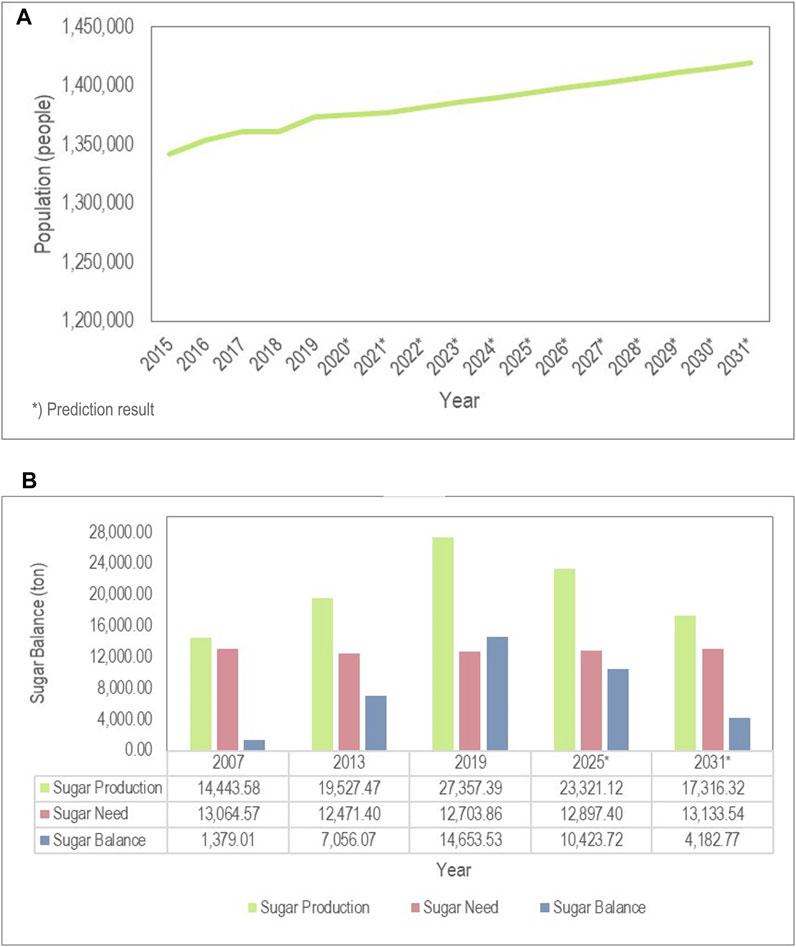

FIGURE 3. The population projection result in Lamongan Regency until 2031 (A); the sugar balance in 2007, 2013, 2019, 2025, and 2031 (B).

4 Discussions

4.1 Sugar Balance as the Impact of Land-Use/Land-Cover Change Dynamics

In this study, there was a land-use/land-cover change in Lamongan Regency in 2007–2019 which has caused the greatest loss in the forest. Human activities and population growth influence land-use/land-cover change (Awotwi et al., 2019; Hailu et al., 2020; Mengist et al., 2021). The population growth stimulates the conversion of LULC from forests to agricultural land as the population grows, so will the diverse needs. This encourages the community, especially farmers, to encroach on the forest and convert it into agricultural land to suit their needs. Meanwhile, the built-up area tends to continue to develop. The built-up area increase the most, from 10,780.2 ha in 2007–2019. The phenomenon of urbanization and population growth contributes to the expansion of built-up areas and changes in spatial structure in suburban areas (Surya et al., 2021).

Based on these conditions, we have modeled the LULCC, including driving factors and elasticity settings, to forecast LULC in 2031. Based on the results of the investigation, it is predicted that the built-up areas will see the most development, reducing the area of ​​sugarcane plantations to 1,687.5 ha. Although sugarcane plantations increased from 2007 to 2019, the annual increase rate of sugarcane plantation areas is still substantially lower than the increase rate of built-up area. The built-up area increased by 898.4 ha on average in 2007–2019, whereas sugarcane plantations increased by only 191.6 ha on average. Due to the built-up area’s huge growth, areas that previously had the potential to see a rise in sugarcane plantations finally overlapped with built-up areas. The built-up areas have been expanded to sugarcane plantations because the area is close to the inter-district road so it is very massive to experience development. Furthermore, there has been competition among LULCs. The built-up area has an elasticity of one, makes it difficult to convert to other LULCs, whereas sugarcane plantations have an elasticity of 0.7, allowing sugarcane plantations to be converted to other LULCs, and allowing conversion from sugarcane plantations to built-up areas to be possible in 2031.

According to the predicted drop in sugarcane plantations in 2031 as a result of competition from built-up areas, sugar production in Lamongan Regency is still quite susceptible to falling in the future. Lamongan Regency had a sugar surplus in 2031 of 4,182.77 tons but the surplus is expected to decrease compared to previous years due to the decline in the area of sugarcane plantations which caused a reduction in sugar production. If the reduction is not countered by prevention initiatives, it is believed that sugar self-sufficiency in Lamongan Regency will be jeopardized in the future. As a result of this, the growth of sugarcane plantations is critical in Lamongan Regency. The development of sugarcane plantations in Lamongan Regency is expected to continue to support sugar self-sufficiency in Lamongan Regency and contribute to the fulfillment of sugar needs in East Java and throughout the country.

4.2 Managerial Implication

The regional spatial plan of Lamongan Regency makes sugarcane the main plantation commodity to be developed, but currently, there is no specific map for sugarcane, but only for plantations in general (Supplementary Figure S3). This study is expected to be an input for the government in formulating policies for developing sugarcane plantations and controlling LULCC in the future. Apart from promoting regional and national self-sufficiency in sugarcane and sugar, the development of sugarcane plantations has the potential to improve people’s welfare. According to Anam and Qibtiyah (2018), sugarcane plantations are possible to cultivate in Lamongan based on the R-C ratio analysis. The existence of sugarcane plantations in Lamongan Regency has also facilitated the establishment of the Sugarcane Farmer Cooperative (KPTR) which can support economic development (Perdana and Nasution, 2016). The establishment of sugarcane farmer cooperatives the acquisition of capital and production facilities, the conduct of savings and loans activities, and the improvement of coordination among sugarcane farmers.

5 Conclusions

The land-use/land-cover patterns in Lamongan Regency were highly diversified from 2007 to 2019. Changes in LULC are predicted to lead to a drop in sugarcane plantation areas in 2025 and 2031 as a result of competition between built-up areas and sugarcane plantation growth. The built-up area has grown rapidly in line with the population growth of Lamongan Regency in 2031, resulting in the built-up area being the most competitive when compared to other LULC, such as sugarcane plantations. The elasticity of LULC conversion demonstrates the conflict between built-up areas and sugarcane. The built-up area is elastic of one, while sugarcane plantations are elastic of 0.7.

The estimated area of ​​sugarcane plantation in 2031 can be transformed into sugarcane production in 2031, allowing for the determination of the sugar balance in 2031. The dynamics of land-use/land-cover change in 2007–2031 and population growth are projected to have an impact on the sugar balance in Lamongan Regency in 2031. The population is expected to grow, but sugarcane production is expected to decline, leading to the sugar balance in 2031 being predicted to decrease by 10,470.76 tons compared to 2019. This may jeopardize regional and national sugar sufficiency, so a strategy is required to secure sugar sufficiency in the future, including the development of sugarcane plantations and control of the built-up area in the Lamongan Regency.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

SDA collected the data and wrote the initial article. Widiatmaka is the project leader who provided funding for the research, as well as provided the methods used. YS provided land-use/land-cover modeling methods. Meanwhile, Marimin provided the discussion and revision.

Funding

This research was funded by PMDSU Scholarship, the Ministry of Education and Culture of the Republic of Indonesia (Grant Number. 2317/IT3.L1/PN/2021).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, orclaim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

We would like to thank the Ministry of Education and Culture for the funding of the PMDSU research scheme. We would also like to thank IPB University; National Institute of Aeronautics and Space; Ministry of Environment and Forestry; Ministry of Agrarian and Spatial Planning/National Land Agency; Geospatial Information Agency; Indonesian Statistics; Development Planning Agency of Lamongan Regency; and Office of Food Crops, Horticulture, and Plantations of Lamongan Regency as data sources and research facilitators. We also gratefully acknowledge all parties who contributed to this research.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fenvs.2022.787207/full#supplementary-material
