Accelerated catalytic ozonation for aqueous nitrobenzene degradation over Ce-loaded silicas: Active sites and pathways

Cerium oxides loaded silica catalysts were synthesized by an impregnation method by simply mixing Ce precursor with silica spherule (Ce/SS) and ordered MCM-41 zeolites (Ce/MCM-41), followed by a mild calcination. Compared with pure SS and MCM-41, Ce modified Ce/SS and Ce/MCM-41 demonstrate much improved catalytic ozonation activities for mineralization of recalcitrant nitrobenzene (NB). At solution pH of 6, 86 and 97% TOC mineralization rates were achieved within 60 min for Ce/MCM-41 and Ce/SS, respectively. Characterization results suggest that Ce loading significantly increases the surface Lewis acidic sites, which would synergize with Ce³⁺/Ce⁴⁺ redox cycle for the activity improvement. With the aid of in situ electron paramagnetic resonance (EPR) spectra and quenching tests, hydroxyl radical (·OH), superoxide radical (O₂^•–), and singlet oxygen (¹O₂) are identified as the O₃ catalytic decomposition products, while ·OH mainly accounts for NB mineralization. The detailed degradation route of NB was further investigated by the multi-chromatography analysis. NB is firstly oxidized into polyhydroxy compounds, followed by small molecular organic acids, and finally being mineralized into CO₂ and H₂O. This study established a facile strategy to synthesize highly active and stable Ce/SiO₂ catalysts for catalytic ozonation, and elucidated the in-depth mechanisms for the activity origins of the Ce loaded silica-based materials in catalytic ozonation processes (COP).

GRAPHICAL ABSTRACT

Introduction

The accompanying environment pollutions, especially the water pollutions, as the side-effects of the boosted development in civilization and industrialization of the human society have greatly threatened the health of human beings and the natural life (Tarpeh and Chen 2021). Refractory organic contaminants (ROCs) discharged from petrochemical wastewater such as phenolics and nitroaromatics obtain high ecotoxicity and are recalcitrant to be naturally degraded (Liu et al., 2021a). Additionally, most of degradation intermediates of these ROCs are even more toxic and possess intensive threats to the nature. It is of great significance to develop fast and complete mineralization techniques to treat these ROCs.

As a capable branch of advanced oxidation processes (AOPs), catalytic ozonation process (COP) offers a fast pollutants degradation rate and a high mineralization efficiency (Wang and Chen 2020; Liu et al., 2021b). With the presence of catalysts, the generated reactive oxygen species (ROS) such as hydroxyl radicals (·OH) and surface adsorbed oxygen atoms (*O_ad) by O₃ activation are responsible for rapid and complete treatment of ROCs owing to their high oxidation potentials (Yu et al., 2020; Jin et al., 2021). In recent studies, the prevailing carbonaceous catalysts such as activated carbon (Xiong et al., 2020), graphene-based nanocarbons (Wang et al., 2020; Zhang et al., 2021), and wasted carbon-derived catalysts (Chen et al., 2019) demonstrated outstanding catalytic ozonation activities for ROCs degradation. Nevertheless, high catalytic activities usually tied with unstable structures (Xiao et al., 2017; Li et al., 2021). During the reactions, carbon-based catalysts, especially those nanocarbons, are prone to be deactivated because of the variations of the surface chemistry and even the collapse of the carbon skeleton (Xiao et al., 2017). In addition, the singlet oxygenation and surface O₃ direction oxidation induced by the carbonaceous catalysts can efficiently oxidize the electron-rich ROCs, yet they obtain weak mineralization abilities (Xie et al., 2022).

Silica-based zeolites obtain robust structures and their rich surface Lewis acidic sites can be easily hydroxylated to form silanol structures, which accelerate the O₃ adsorption to produce ·OH (Valdés et al., 2012; Song et al., 2022). Furthermore, the rich channels with the zeolites and their high specific surface area facilitate the surface modification by active metal oxides (Li et al., 2020). Recent years, SBA-15 and MCM-41 loaded with transitional metal oxides such as MnO₂ and Co₃O₄ have been fruitfully synthesized as ozonation catalysts for efficient treatment of ROCs (Tang et al., 2017; Li et al., 2019; Zhang et al., 2020; Ma et al., 2022). However, the leaching of these active transitional metal oxides components can result in secondary pollution issues because of their high toxicity. Cerium oxide (CeO₂) is abundant in Earth and obtains much less toxicity than Co and Mn. Additionally, the special storage oxygen ability and the electron transfer among the multivalence enable CeO₂ a proficient ozonation catalyst (Orge et al., 2012; Afzal et al., 2019).

In this work, CeO₂ supported on silica spherule (SS) and MCM-41 which have different space configuration were synthesized and employed as the ozonation catalysts for NB mineralization. Influence of solution pH on both adsorption capabilities and catalytic ozonation efficiencies were evaluated. In addition, to unveil the mechanistic insights into the Ce-doped silica catalysts for catalytic ozonation, multiscale characterizations such as the spectroscopy (XPS) and pyridinic Fourier transformed infrared spectroscopy (py-FTIR) were performed to investigate surface chemistry and the potential active sites. A combined quenching and in situ electro paramagnetic resonance (EPR) study was further conducted to probe the generated ROS and their roles in NB degradation. Additionally, the detailed NB degradation route was proposed based on the multi-chromatography analysis results.

Materials and methods

Chemicals

SS and MCM-41 were purchased from Shanghai Sunny Molecular Sieve Co., Shanghai, China. Sodium hydroxide (NaOH; AR), hydrochloric acid (HCl; AR), NB (C₆H₅NO₂; AR), Cerium (III) nitrate hexahydrate (Ce(NO₃)₃·6H₂O; AR) were obtained from Beijing Chemical Reagents Co., China. Furfuryl alcohol (FFA; AR), tert-Butanol (TBA; AR) and p-benzoquinone (p-BQ) were purchased from Aladdin Reagent Co., Ltd., Shanghai, China. 5,5-Dimethyl-1-pyrroline (DMPO; GC grade) and 4-amino-2,2,6,6-tetramethylpiperidine (TEMP; GC grade) were procured from Sigma-Aldrich Inc. All the chemicals were used without further purification. The standard chemicals used to quantify the concentrations of degradation intermediates were listed in Supplementary Text S1 in Supporting Information.

Catalysts preparation

An incipient wetness impregnation method was employed to prepare the CeO₂ loaded SS and MCM-41 catalysts. In a typical synthesis, 48.8 g of SS or MCM-41 was saturated with a Ce³⁺ solution containing 1.56 g Ce(NO₃)₃·6H₂O and 35 ml of ultrapure water. The mixed sample was sonicated for 30 min and then kept 24 h at room temperature, which was followed by drying in an oven at 80 C for 6 h. The dried sample was then grounded and calcined in a muffle furnace in air at 550°C for 4 h. In accordance with the support used, the prepared sample was denoted as Ce/SS and Ce/MCM-41, respectively. The theoretical content of loaded CeO₂ for both catalysts was approximately 1 wt%.

Characterizations

Powder X-ray diffraction (XRD) was measured on an XRD-6000 powder diffraction instrument (Shimadzu, Kyoto, Japan) in the 2θ range of 0.5–90^o, utilizing an accelerated voltage of 40 kV with Cu Kα radiation (λ = 1.5418 Å). The morphology of samples was examined on a Tecnai G2 F20 transmission electron microscope (TEM) (FEI, Hillsboro, OR, United States). The N₂ adsorption and desorption isotherms were obtained from an ASAP 2000 accelerated surface area and porosimetry system (Micromeritics, Norcross, GA, United States). The relative amounts of Lewis acid sites were measured by pyridine Fourier-transformed infrared spectroscopy (py-FTIR) on a Nicolet iS10 FT-IR spectrometer (Thermo Scientific, Waltham, MA, United States). Surface element distribution was recorded by a PHI Quantera SXM X-ray photoelectron spectrometer (XPS) (ULVAC-PHI, Chanhassen, MN, United States). Binding energy shift was calibrated by using C1s (B.E. = 284.8 eV) as the standard. The pH for point zero charge (pH_pzc) of the catalysts was determined according to the pH-drift method (Davranche et al., 2003). Electron spin resonance (ESR) experiments were performed on a Bruker EMX-Plus spectrometer to identify the types of reactive oxygen species (ROS). The microwave frequency was 9.057 GHz, the modulation frequency was 100 GHz and the microwave power was set as 10.00 mW.

Catalytic ozonation procedure

The COP experiments were performed according to the previous study (Chu et al., 2020). Gaseous ozone produced by the pure O₂ (99.999%) with the concentration of 7.5 mg min⁻¹ was bubbled at the bottom of the reactor. In a typical test, 1 g L⁻¹ of the catalyst was dosed into the NB solution (100 mg L⁻¹) and allowed to be stirred for 15 min to achieve sorption equilibrium. During the test, samples were withdrawn from the reactor at fixed time intervals and filtered by the 0.45 μm PTFE filter once O₃ was injected. A 7890B gas chromatographer integrated with a 5977B mass spectrometer (GC-MS, Agilent, Santa Clara, United States) was employed for identifying the intermediate products of NB. Concentrations of NB and its degradation intermediates were quantified by a high-performance liquid chromatography (HPLC, Thermo Scientific™ UltiMate™ 3,000, Waltham, United States). The detailed measurement methods were summarized in Supplementary Table S2. Additionally, a Dionex Aquion Ion Chromatograph (IC, Thermo Scientific, Waltham, United States) which equipped with an AG11-HC column (4 × 250 mm), was used to measure small molecular organic acids during the NB degradation. To determine the mineralization rate of NB, total organic carbon (TOC) was measured by a TOC-L CPH CN 200 TOC analyzer (Shimadzu, Kyoto, Japan). During the COP experiments, the concentration of leached Ce was measured by an ICP-AES (Perkin Elmer DV7000, Waltham, MA, United States). All the catalytic ozonation tests were triplicate performed and the average values were provided.

Results and discussion

Characterization of the as-synthesized catalysts

Typical characteristic peaks centered at 2.2°, 3.8°, 4.4° were observed in the low-angle XRD pattern of MCM-41, which can be accordingly indexed to the (100), (110), and (200) facets of the ordered hexagonal structure (Figure 1A). The corresponding TEM observation in Supplementary Figure S1 also illustrated this ordered structure. On the contrary, no such diffraction peaks nor ordered lattice were discerned for SS and the existence of a broad diffraction peak centered at 2θ = 23° in the wide-angle XRD pattern (Figure 1B) was attributed to the amorphous SiO₂. Loading CeO₂ induced negligible changes to the XRD patterns of MCM-41 and SS, which can be ascribed to the low loading amount and high dispersion of CeO₂. For Ce/MCM-41, the low-angle XRD pattern revealed that the diffraction peak for (100) facet was shifted to a higher diffraction angle compared to that of MCM-41, suggesting the loading of CeO₂ increased the interplane spacing of the original lattice structure of MCM-41. TEM images further displayed the successful loading of CeO₂ on the MCM-41 and SS (Figures 1C,D). For both Ce/MCM-41 and Ce/SS, CeO₂ were evenly dispersed on the surface of MCM-41 and SS. Specific surface areas (SSAs) and the pore information of the materials were derived from the N₂-sorption isotherms and the corresponding pore size distributions, respectively (Supplementary Figure S2). Compared to SS, MCM-41 possesses greater SSA (1,024 vs. 491 m²/g) and pore volume (0.93 vs. 0.75 cm³/g). Both the SSA and pore volume of Ce/MCM-41 and Ce/SS decreased after loading CeO₂ (Supplementary Table S1), because the formed CeO₂ clusters occupied the surface or blocked the partial pore of the substrates.

FIGURE 1

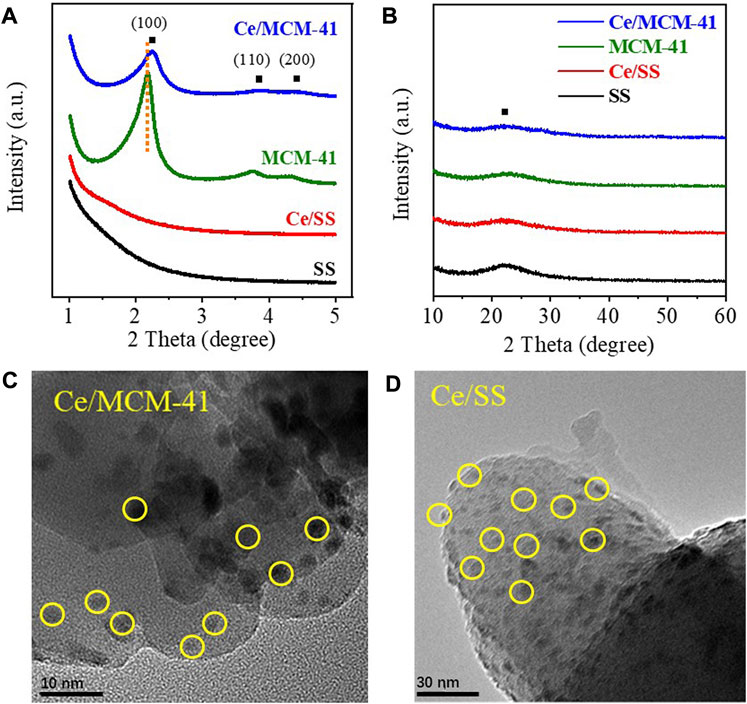

FIGURE 1. (A, B) XRD spectra of silica-based catalysts; (C) TEM image of Ce/MCM-41; (D) TEM image of Ce/SS.

XPS was employed to investigate the surface chemistry of Ce/MCM-41 and Ce/SS (Figure 2). The high-resolution Ce 3d surveys of the samples could be deconvoluted into Ce 3d5/2 and Ce 3d3/2 spin–orbit split doublets, which were further fitted with ten peaks (Anandan and Bera 2013). The peaks at 881.9, 886.7, 898.3, and 904.5 eV represent Ce³⁺ and the peaks at 884.1, 888.5, 891.8, 901.3, 907.9, and 917.8 eV were identified as Ce⁴⁺. Based on the deconvolution results, the Ce³⁺/Ce⁴⁺ ratios could be derived by the corresponding integral peak areas and are listed in Supplementary Table S1. Evidently, Ce/SS obtained a higher Ce³⁺/Ce⁴⁺ ratio than that of Ce/MCM-41 (0.65 vs. 0.31), indicating that SS has a more reductive surface than that of MCM-41. Additionally, the higher composition of Ce³⁺ in Ce/SS than that of Ce/MCM-41 might be ascribed to the existence of higher amount of oxygen vacancies. The high-resolution O 1s XPS surveys of the Ce/SiO₂ catalysts were further deconvoluted to evaluate the composition of the surface oxygen species. The peaks at 532.0, 532.8, and 533.5 eV can be indexed to the lattice oxygen (O_lat), surface hydroxyl groups/oxygen vacancy (O_-OH/O_v), and surface adsorbed H₂O species (O_H2O), respectively. A greater proportion of O_-OH/O_v was identified on Ce/SS than that of Ce/MCM-41 (0.58 vs. 0.37). Previous studies suggested that the both O_-OH and O_v can function as the Lewis acidic sites, which facilitated the O₃ adsorption and the subsequent dissociation into ROS (Yu et al., 2020).

FIGURE 2

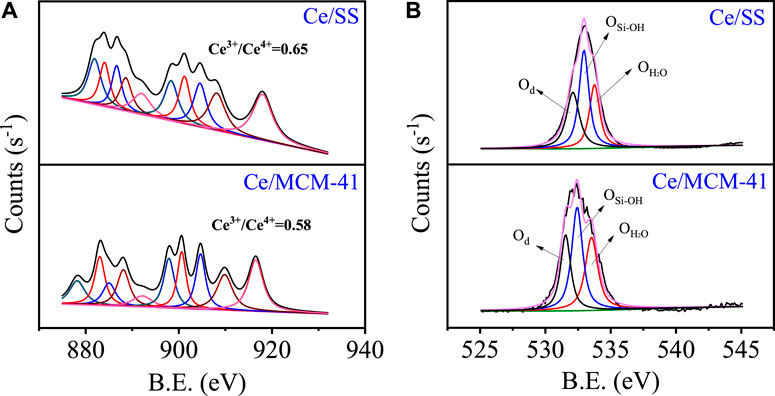

FIGURE 2. High resolution XPS spectra on Ce 3d (A) and O1s (B) for Ce/SS and Ce/MCM-41.

Py-FTIR measurements were further performed to investigate the types of the acidic sites and Lewis acidity of the Ce/SiO₂ catalysts (Figure 3). IR bands centered around 1,446 cm⁻¹ and 1,598 cm⁻¹ were discerned, which could be ascribed to pyridine adsorbed on Lewis acids sites. The peaks centered at 1,544 and 1,491 cm⁻¹ were assigned to the pyridine adsorbed on strong Brønsted acid and both Lewis and Brønsted acid sites, respectively (Xu et al., 2019). For both catalysts, the intensities of Lewis acid peaks were notably higher than those of Brønsted acid, suggesting Lewis acid was the main acid sites. Meanwhile, Lewis acid peak intensities of Ce/SS were significantly greater than those of Ce/MCM-41, revealing the presence of higher amount of Lewis acidic sites on Ce/SS than that of Ce/MCM-41. The higher amount of Lewis acidic sites also led to the greater reducibility, which agreed well with the XPS analysis results.

FIGURE 3

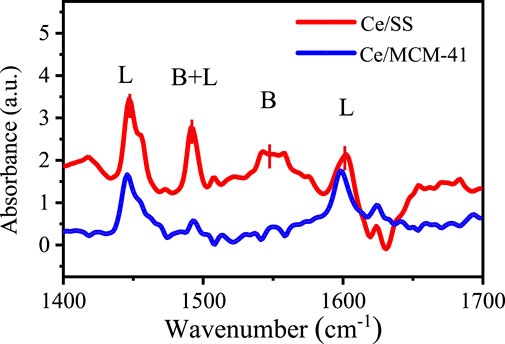

FIGURE 3. Py-FTIR spectra of Ce/SS and Ce/MCM-41.

Catalytic efficiencies and active sites

Prior to evaluating the catalytic ozonation performance of the catalysts, single adsorption tests (SAP) and single ozonation treatment (SOP) were performed as the benchmarks. Adsorption by Ce/MCM-41 and Ce/SS resulted in 11.9 and 5.5% TOC removal within 60 min at pH 6, revealing the minor contribution of adsorption to NB removal (Figure 4A). Additionally, decrease or increase of solution pH resulted in trivial variations in adsorption capabilities. With the pKa value of 11.9, NB existed in its molecular form. The pH point of zero charges (pH_pzcs) of Ce/MCM-41 and Ce/SS were determined as 3.2 and 5.4, respectively. Therefore, the negligible electrostatic interaction between the neutrally charged NB and the negatively charged catalysts induced marginal electrostatic adsorption. And the higher adsorption capacity of Ce/MCM-41 than that of Ce/SS can be ascribed to its larger SSA. Meanwhile, the greater pH_pzc value of Ce/SS than that of Ce/MCM-41 agreed with the py-FTIR results because the zeta potential would be enhanced by the increased amount of surface Lewis acidic sites. In the SOP test, around 45% TOC mineralization was achieved at pH 6, suggesting the inability of single ozonation treatment for NB destruction.

FIGURE 4

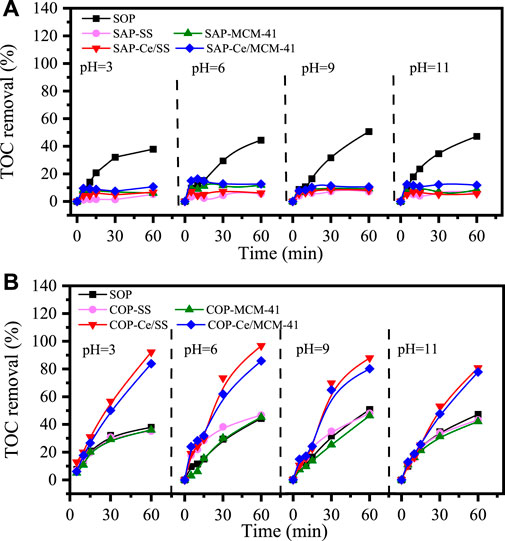

FIGURE 4. Comparison in TOC removal rates under different solution pHs for SAPs (A) and COPs (B) using as-synthesized catalysts. Reaction condition: Catalyst: 1 g L⁻¹ catalyst; ozone concentration: 10 mg/min; temperature: 25°C [NB]₀=100 mg L⁻¹.

For catalytic ozonation processes (COPs), trivial TOC mineralization enhancements were observed with the presence of MCM-41 and SS compared to that of SOP, indicating the SiO₂ substrates obtained marginal catalytic ozonation activities (Figure 4B). Contrarily, substantial augments in TOC mineralization rates were discerned by utilizing Ce modified SiO₂ as the catalysts. With the solution pH 6, 86 and 97% TOC mineralization was achieved for Ce/MCM-41 and Ce/SS accordingly, confirming the crucial role of CeO₂ on silica-based materials in boosting the catalytic ozonation activities. Ce³⁺ leaching was also tested by ICP-AES for catalytic ozonation over Ce/SS and Ce/MCM-41 and around 0.3 mg/L of Ce³⁺ was detected for both catalytic ozonation systems. Considering the low catalytic ozonation activity of Ce³⁺ (Orge et al., 2012), this trace amount of Ce³⁺ contributed trivially to NB mineralization in form of homogeneous catalysis.

To determine the real catalytic performance of the as-synthesized materials, TOC mineralization rates by COPs were subtracted by the corresponding TOC removal rates of SAPs and SOPs. As the result, a 46 and 29% increase in TOC mineralization rate was achieved for Ce/SS and Ce/MCM-41 at pH 6, respectively. Though the SSA of Ce/MCM-41 was 2.1-fold higher than that of Ce/SS (1,024 vs. 491 m²/g), Ce/MCM-41 demonstrated an inferior catalytic activity than Ce/SS. The significant improvement in catalytic activity for Ce/SS can be ascribed to the elevated amount of surface Lewis acidic sites, which are well illustrated through the characterizations. Apart from the intrinsic surface hydroxyl groups, the oxygen vacancies also facilitate the adsorption of ambient water molecules, which subsequently transform into hydroxyl groups via surface hydroxylation process (Yu et al., 2020). Both intrinsic and extrinsic hydroxyl groups can induce the interaction between the O₃ molecules and their dissociation into ROS. On the other hand, oxygen vacancy sites also favored the chemisorption of O₃ molecules and their subsequent evolution into ROS. Additionally, the high reducibility of SS surface created greater amount of Ce³⁺ than that of MCM-41. The Ce³⁺/Ce⁴⁺ redox cycle further boosted the electron transfer between the O₃ and the Lewis acidic sites and promoted the catalytic activity.

Influence of initial pH on ozonation activities was also evaluated. For single ozonation treatment, increasing the initial pH from three to nine enhanced the TOC removal rate (37.9 ∼ 50.7%), while further increasing the initial solution pH to 11 slightly inhibited the TOC abatement rate (47.2%). It is suggested that OH⁻ could promote ozone decomposition to generate ·OH, thus TOC removal could be enhanced in ozonation systems with higher pH values (Zhu et al., 2017). However, the over abundant OH⁻ might deplete the produced ·OH and thus suppressed the TOC removal rate (Cheng et al., 2020). Both Ce/SS- and Ce/MCM-41-driven catalytic ozonation systems demonstrated good treatment compatibility to a wide pH range and Ce/SS obtained a greater TOC removal efficiency than Ce/MCM-41. Noted that, TOC mineralization rates reached maximum when initial solution pH values were close to pH_pzc values of Ce/SS and Ce/MCM-41 (3.2 and 5.4). A 47.6 and 35.2% improvement in TOC mineralization was achieved for Ce/SS/O₃ and Ce/MCM-41/O₃ at pH three and pH six accordingly, compared to their single ozonation treatments. It is suggested that the relaxation of the electric double layer (EDL) on surface of the catalysts facilitated the inner-sphere interaction with O₃ molecules and their subsequent evolution into ·OH (Wang et al., 2020). When initial pH values are higher than the pH_pzc, the deprotonated surface as well as the compressed EDL inhibited the chemisorption of O₃. For pH < pH_pzc of the catalysts, although the protonated surface could act as the Lewis acidic sites promoting the attraction of the O₃ molecules, the slightly compression of the EDL hindered this process.

Generated ROS and the possible reaction mechanisms

Quenching tests were carried out to investigate the possible generated ROS for NB degradation (Figures 5A,B). The as-mentioned strong inner-sphere interaction between the surface Lewis acidic sites and O₃ molecules is prone to induce the formation of ·OH, which has been recognized as the prevailing ROS produced in metal-based catalysts-driven catalytic ozonation processes (Liu et al., 2021b; Liu et al., 2022). To investigate the contribution of ·OH in NB degradation, TBA which obtains low react rate with O₃ (${\mathrm{k}}_{{\mathrm{O}}_3}$=3 × 10^–5 M⁻¹ s⁻¹) but can rapidly react with ·OH (${\mathrm{k}}_{\mathbf{·}\mathrm{O}\mathrm{H}}$= 3.8 × 10⁸–7.6×10⁸ M⁻¹s⁻¹) was employed as the quenching agent (Wang et al., 2022). Addition of 15 mM of TBA to both Ce/SS/O₃ and Ce/MCM-41/O₃ systems significantly inhibited 62% of the NB degradation, revealing the dominant role of ·OH in NB degradation. To semi-quantify the ·OH produced amounts in these catalytic ozonation systems, in situ EPR measurements were performed. To better trap the produced ROS, the withdrawn samples were immediately mixed with DMPO solution and cryo-frozen by liquid nitrogen. Figure 5C displays that the intensity of DMPO-·OH adduct in Ce/SS/O₃ is greater than that in Ce/MCM-41/O₃, suggesting a higher amount of ·OH was produced, which explained the higher TOC removal rate. DMPO-·OOH adducts with the hyperfine couplings of a_N=14.2 G, a_H^β=11.4 G, a_H^γ=1.2 G were identified by addition methanol to the DMPO solution (Figure 5D), suggesting the existence of superoxide radicals (O₂^•–) (Wang et al., 2020). However, O₂^•– obtained a less oxidation potential than ·OH (1.7 vs. 2.7 V), making it fail to oxidize the recalcitrant organics such as NB. The corresponding quenching test with the addition of pBQ (0.5 mM), which is an effective scavenger for both O₂^•– (${\mathrm{k}}_{{{\mathrm{H}\mathrm{O}}_2^{\mathbf{·}-}/\mathrm{O}}_2^{\mathbf{·}-}}$= 3.5 × 10⁸–7.8×10⁸ M⁻¹s⁻¹) and ·OH (${\mathrm{k}}_{\mathbf{·}\mathrm{O}\mathrm{H}}$= 1.2×10⁹ M⁻¹s⁻¹) (Samoilova et al., 2011), resulted in a similar inhibition degree to that of TBA. Therefore, O₂^•– was the pivotal intermediate for ·OH formation in this process. Apart from ·OH and O₂^•–, the characteristic EPR signal for singlet oxygen (¹O₂) was also identified by using TEMP as the spin trapping agent (Figure 5E). Notably, trace amount of pBQ was added to the TEMP solution to quench the produced ·OH and O₂^•–, which can also oxidize TEMP to form the triplet TEMPO EPR signals. TEMP solution pH was also adjusted to three to avoid the alkaline activation of O₃. Although ¹O₂ was generated, its low oxidation potential (0.85 V) hindered the attack to the recalcitrant NB. The overlapped NB degradation curves for TBA and FFA quenching tests further confirm the incapability of ¹O₂ to degrade NB. The combined results of quenching tests and the in situ EPR measurements revealed that ·OH was the predominated ROS for NB degradation and the mineralization. O₂^•– and ¹O₂ contributed marginally to NB degradation, yet they can oxidize the less-recalcitrant intermediates and facilitate their degradation. The following equations (Eqs. (1)-(7)) are the possible routes for generation and evolution of these ROS on the Lewis acidic sites of Ce/SiO₂ catalysts, where -Meⁿ⁺, V_o, and ${\mathrm{O}}_{\mathrm{o}}^{\times }$ denote the Lewis acidic sites metal cations, the doubly charged OV, and the oxygen ion in a normal oxygen site, respectively.

$-{\mathrm{M}\mathrm{e}}^{\mathrm{n}+}+{\mathrm{H}}_2\mathrm{O}\to -{\mathrm{M}\mathrm{e}}^{\mathrm{n}+}-\mathrm{O}\mathrm{H}+{\mathrm{H}}^{+}(1)$

$-{\mathrm{M}\mathrm{e}}^{\mathrm{n}+}-\mathrm{O}\mathrm{H}+{\mathrm{O}}_3\to -{\mathrm{M}\mathrm{e}}^{\mathrm{n}+}-{\mathrm{O}}_3^{•}+\mathrm{•O}\mathrm{H}(2)$

$-{\mathrm{M}\mathrm{e}}^{\mathrm{n}+}-{\mathrm{O}}_3^{•}+{\mathrm{O}\mathrm{H}}^{-}\to -{\mathrm{M}\mathrm{e}}^{\mathrm{n}+}+{\mathrm{H}\mathrm{O}}_2^{•}+{\mathrm{O}}_2(3)$

${\mathrm{V}}_{\mathrm{o}}+{\mathrm{O}}_3+{\mathrm{H}}_2\mathrm{O}\to {\mathrm{O}}_{\mathrm{o}}^{\times }+\mathrm{O}\mathrm{H}+{\mathrm{H}}^{+}+{\mathrm{O}}_2(4)$

${\mathrm{H}\mathrm{O}}_2^{•}\to {\mathrm{H}}^{+}+{\mathrm{O}}_2^{•-}(5)$

${\mathrm{O}}_2^{•-}+•\mathrm{O}\mathrm{H}{\to }^1{\mathrm{O}}_2+{\mathrm{O}\mathrm{H}}^{-}(6)$

${\mathrm{H}\mathrm{O}}_2^{•}+{\mathrm{O}}_2^{•-}{\to }^1{\mathrm{O}}_2+{\mathrm{H}\mathrm{O}\mathrm{O}}^{-}(7)$

FIGURE 5

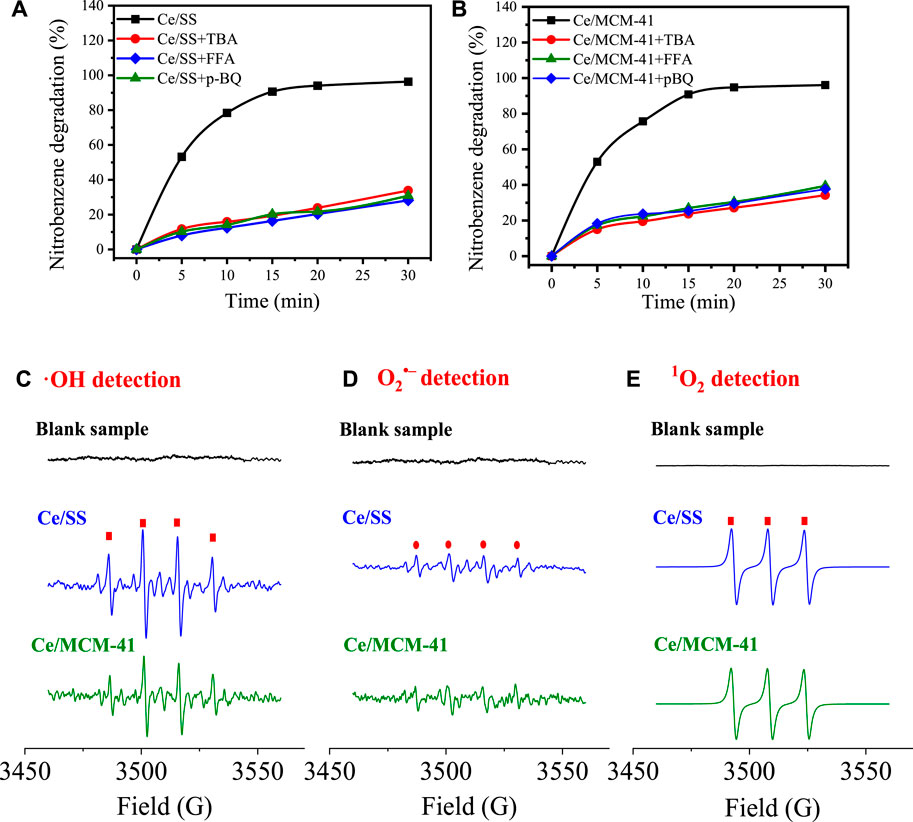

FIGURE 5. Radical quenching tests for catalytic ozonation using Ce/SS (A) and Ce/MCM-41 (B); In situ EPR spectra for ·OH (C), O₂^•– (D), and 1O₂ (E) identification in Ce/SS- and Ce/MCM-41- driven COPs.

Evaluation of NB degradation intermediate and degradation pathways

A combined analysis of GC-MS, HPLC and IC was employed to investigate the degradation intermediates and their concentrations. The identified degradation intermediates and their detection techniques were summarized in Supplementary Table S3. The heatmap diagrams derived from the quantitative analysis of intermediate products from different oxidation systems were shown in Figure 6. Polyhydroxy phenols, p-BQ and small molecular aliphatic acids were the main intermediates in catalytic ozonation systems. Compared to the SOP, COPs possessed much faster NB oxidation to form benzoquinone. Furthermore, the formed benzoquinone could be mineralized more rapidly than SOP. The formed aliphatic acids such as oxalic acid, formic acid and maleic acid as the terminal intermediates gradually accumulated and can hardly be oxidized in single ozonation treatment. In contrast, the accumulated aliphatic acids would be destructed in catalytic ozonation processes. The variations of solution pH during the oxidation processes further confirmed the production of these aliphatic acids followed by their mineralization (Supplementary Figure S3).

FIGURE 6

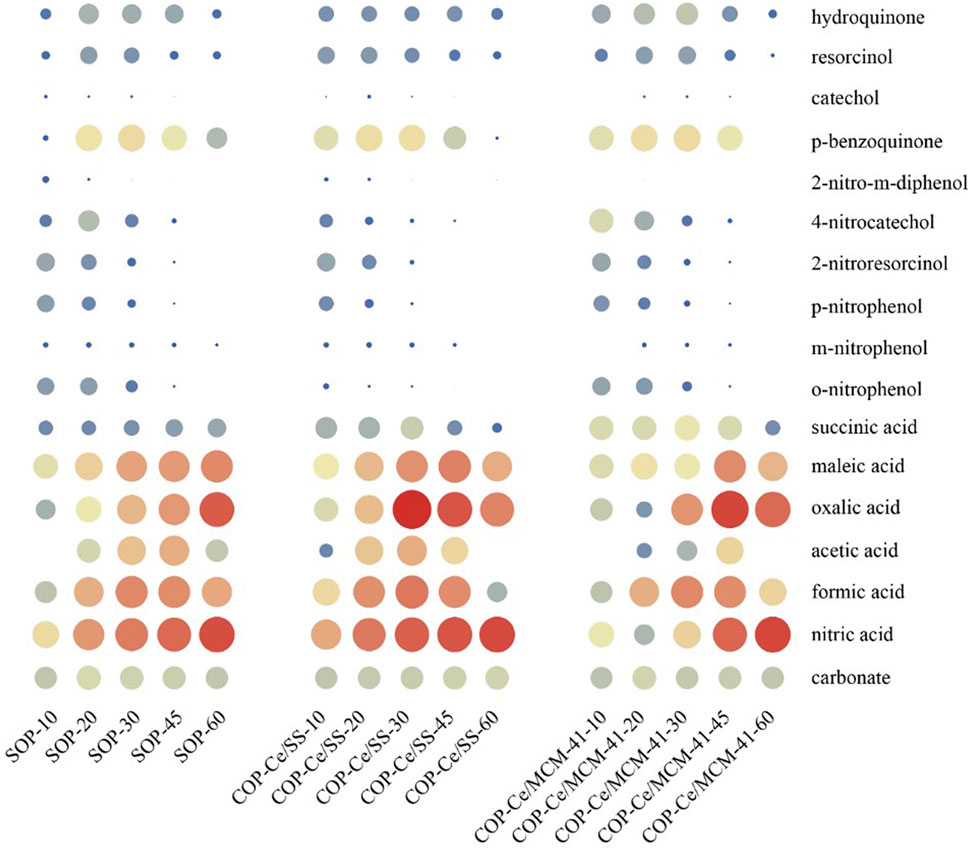

FIGURE 6. Heatmap diagrams of intermediate products of NB degradation in COPs with the Ce/Si catalysts.

Based on the identified degradation intermediates and their evolution trends, the proposed pathways for NB degradation in catalytic ozonation with CeO₂/SiO₂ catalysts were thus deduced (Supplementary Figure S4). It was assumed that electron transfer, electrophilic addition, and nucleophilic substitution reaction can participate in the degradation of NB via the following three stages (Zhao et al., 2008): 1) Phenyl radicals and nitrophenyl radicals were formed by electron transfer process between the ROS and NB molecules. Then phenyl radicals and nitrophenyl radicals were oxidized to form polyhydroxyphenols by electrophilic addition (Li et al., 2006). 2) Denitration of NB could be attributed to the nucleophilic substitution reaction with ROS, and then polyhydroxyphenols were formed via electrophilic addition, which were further oxidized to benzoquinone (Wang et al., 2016; Yang et al., 2018). 3) Polyhydroxyphenols and benzoquinone would be further oxidized to form small molecular aliphatic acids such as formic acid, acetic acid, and oxalic acid as the terminal intermediates. These aliphatic acids were finally mineralized to CO₂ and H₂O by ·OH.

Reusability of catalysts in COP

Reusability of the as-synthesized Ce/SS and Ce/MCM-41 was evaluated by an 8-cycle stability test (Supplementary Figure S5). After each run, the used catalyst was collected by filtration and dried. The lost amount of the catalyst (approximately 5% in average) was compensated by addition of the fresh catalyst prior to the next use. After each run, concentration of the leached Ce³⁺ was examined by ICP-AES (Supplementary Table S2). Passivation was observed on both catalysts. TOC removal rate for Ce/SS reduced from 96.8 to 63.1% after eight reuses and TOC removal rate decreased from 92.8 to 47.1% using Ce/MCM-41. It was found that the accumulated Ce³⁺ leaching amount for the eight cycles of Ce/MCM-41 was almost twice as much as that of Ce/SS (1.3 vs. 2.5 mg/L). This result suggests the critical role of the Ce-O-Si bond in formation of surface Lewis acidic sites which facilitated the chemisorption of O₃ and the subsequent ROS formation.

Based on the limited leaching of Ce³⁺, it could be deduced that the main reason for Ce/SiO₂ deactivation is the reduction of catalytic active sites with the surface covered by intermediates. Thus, mild annealing in the air (e.g., calcinated at 350°C for 3 h) is a feasible method for catalysts regeneration. On one hand, intermediates attached to the surface could be removed to expose catalytic active sites in the process of calcination. On the other hand, the carbon adsorbed on Ce/SiO₂ surface could also reduce the oxidized catalyst, which would further facilitate the recovery of activity.

Conclusion

Ce loaded silica catalysts were synthesized via a facile impregnation method and employed for catalytic ozonation of NB. Compared with pure SS and MCM-41, Ce/SS and Ce/MCM-41 with Ce loading dramatically increased the catalytic activities, resulting in the increment of the corresponding TOC mineralization rates by 46.2 and 35.8%, respectively. Based on the XPS analysis and py-FTIR results, higher amount of surface Lewis acidic sites were formed on silica catalysts with Ce loading than the pure silicas, which accounted for the activity enhancement. The Ce³⁺/Ce⁴⁺ redox cycle further accelerated the electron transfer. Additionally, influence of solution pH on catalytic activities was also investigated. It was found that the catalysts obtained the highest activities when pH was closed to their pH_pzcs, confirming the critical roles of Lewis acidic sites in catalytic performance. Results from radical quenching tests suggested that although ·OH, O₂^•– and ¹O₂ were produced during the catalytic ozonation process, ·OH is the dominant ROS for NB mineralization. Chromatography analysis suggested that NB was firstly oxidized into polyhydroxy compounds, followed by small molecular organic acids and finally being mineralized into CO₂ and H₂O. This study demonstrated the potential and mechanisms of the Ce/SiO₂ catalysts in COP treatment of recalcitrant chemical wastewaters.
