A Bayesian-Model-Averaging Copula Method for Bivariate Hydrologic Correlation Analysis

A Bayesian-model-averaging Copula (i.e., BMAC) approach was proposed for correlation analysis of monthly rainfall and runoff in Xiangxi River watershed, China. The BMAC approach was formulated by incorporating existing Bayesian model averaging (i.e., BMA) method and Archimedean Copula techniques (e.g., Gumbel-Hougaard, Clayton and Frank Copulas) within a general bivariate hydrologic correlation analysis framework. In this paper, the BMA method was applied to determine the marginal distribution functions of variables, and the Copula method was used to analyze the correlation. Results showed that: 1) the BMA method could improve the representation of the marginal distribution of hydrological variables with smaller corresponding errors; 2) the predictive joint distributions of monthly rainfall and runoff was much better calibrated by the Gumbel Copula according to criteria of the root mean square error (i.e., RMSE), Akaike Information Criterion (i.e., AIC) values, Anderson-Darling test (i.e., AD test), and Cramer-von Mises test (i.e., CM test); and 3) the bivariate joint probability and return periods of rainfall and runoff based on the optimal Copula function was characterized and the monthly rainfall and runoff presented a strong positive correlation based on Kendall and Spearman’s rank correlation coefficients. Therefore, the BMAC approach performed reasonably well and can be further used to simulate runoff values according to the historical and predicted rainfall data. Highlights: 1) A Bayesian-model-averaging Copula method is proposed for correlation analysis; 2) the monthly rainfall and runoff in Xiangxi River watershed has a positive correlation. 3) Gumbel Copula is the best in modelling the joint distributions in the Xiangxi River watershed.

1 Introduction

Investigating the hydrological variables relations is of vital significance for flood control and water resource management (Fan et al., 2018). Univariate hydrological frequency analysis procedures are important tools for analyzing the change rules between rainfall and runoff (Andres-Domenech et al., 2015; Shin et al., 2015; Zhou et al., 2020). However, it cannot reflect the variation of variables effectively because it overlooks the joint effects of variables. In addition, variables of real-world hydrological systems are complicated with many factors, such as correlations and multidimensional characteristics in hydrological processes (Zhang et al., 2006; Zhang et al., 2007; Remesan et al., 2009; Reusser et al., 2010; Takbiri and Ebtehaj, 2017; Sun and Zhou, 2020). Consequently, statistical theories of joint probability analysis were undertaken for developing more effective methods in this field.

As a sufficient probabilistic analysis method for correlated multivariate events, Copula function has been widely applied to hydrological simulations (Aghakouchak et al., 2010; Chebana et al., 2012; Ma et al., 2013; Serinaldi, 2013; Madadgar and Moradkhani, 2014; Qiang et al., 2014; Li and Zheng, 2016; Nasr and Chebana, 2019.; Yang et al., 2019). One of the advantages is that the calculations of marginal distributions and correlation analysis in Copula function are relatively independent, which is the successful key to make the joint analysis of multivariate methods more popular (Favre et al., 2004; Shiau et al., 2007; Chebana and Ouarda, 2009; Sraj et al., 2015; Sugimoto et al., 2016; Lei et al., 2018). On the other hand, the inherent uncertainty has been proved by practices existing in any single frequency distribution model structure (See and Abrahart, 2001; Wu et al., 2022), which directly affects the reliability of hydrological prediction (Zhou et al., 2018). Therefore, a multi-model method is proposed to deal with the inherent uncertainty for improving the accuracy of hydrological modeling and forecasting. Currently, the multi-model combination methods include: the weighted average method, linear regression, and neural networks (DeChant and Moradkhani, 2014; Xu et al., 2017; Zhou et al., 2021). These methods are mainly based on different deterministic theories to form a more accurate synthesis simulation results, but rarely consider the uncertainty of the model structure. Therefore, a better method to reflect the uncertainty of the multi-model method is particularly important.

The Bayesian model averaging (BMA) method has been widely used to construct a simulation process with better description of variables’ probabilities in areas of management, medicine, meteorology, etc. (Tsai, 2010; Fang et al., 2018; Zhang and Yang, 2018). It can efficiently handle the marginal probability distribution function (Zhang and Yang, 2012) and produce more accurate model synthesis results for the uncertain model structure. In this case, the obtained marginal distribution functions can be directly used as inputs of the Copula function. However, the adjunct process has not been used to study the correlation between rainfall and runoff, and thus its applicability remains to be further verified.

When considering the structure of the marginal distribution in the present hydrological field, a single model is usually used to calculate the hydrological frequency curve of each variable (Xu et al., 2021). General models of distribution of unique hydrological probabilities include primarily Gamma distribution, generalized extreme value distribution, lognormal distribution, etc. (Lu et al., 2021). According to the principle of the BMA method, it is found that we can construct a more suitable expression form for specific hydrological variables through this method and use this distribution form as a marginal distribution to calculate the Copula joint distribution function (Lin et al., 2021; Rahimi et al., 2021). Compare with the non-parametric method. Non-parametric methods are generally robust but ineffective. The precision of the parameter estimates is high. Ramsey proposed a method for modelling the core and imported histograms into the model. This method not only improves the accuracy of the estimate, but also increases the design speed (Ramsey, 2012). The nonparametric method gives more attention to sample distribution as it does not take the form of distribution. However, when the quantity of data is different, the parameter method is more stable because of the a priori assumption that it responds to a specific distribution. When the amount of data is small, using the parameter method and considering its underestimated risk can obtain better results (Zeng, 2014). Therefore, in this paper, we compare the marginal distribution among the parameter, nonparametric, and BMA methods to choose the best method of this study.

The objective of this article is to develop a BMA Copula (BMAC) approach for correlation analysis with rainfall-runoff in the Xiangxi River, the largest tributary of the Yangtze River in the Hubei part of the Three Gorges Reservoir area. In this system, the marginal distributions of monthly rainfall and runoff are simulated by the BMA method with better description in probability of each variable. Then correlation analysis between rainfall and runoff is constructed by the Gumbel Copula method. This paper aims to: 1) determine the variables’ marginal distribution functions; 2) estimate the two-dimensional Copula function parameters and calculate the Kendall and Spearman’s rank correlation coefficients to ascertain the optimal Copula function; and 3) characterize the bivariate joint probability and return periods of rainfall and runoff based on the optimal Copula function.

2 Methodology

2.1 Bayesian Model Averaging Theory

2.1.1 Bayesian Model Averaging

BMA is a statistical analysis method and can be used to infer a probabilistic prediction. It is a statistical analytical method that considers the uncertainty of the model itself. In this paper, the BMA method is applied to simulate the streamflow. Suppose that y is the forecasted variable, $\mathit{F}=\left(f_1,f_2,\cdots f_k\right)$ is the all considered model predictions, and $\mathit{M}=\left(y_1,y_2,\cdots y_t\right)$ is a given empirical probability distribution, where $y_t$ is the experience distribution probability at t time. Considering the inherent uncertainty of a model, the posterior distribution of y under a given empirical probability distribution condition can be presented as:

$p\left(y|F,M\right)={\displaystyle \sum _{k=1}^{k}p\left(f_k|M\right)p_k\left(y|f_k,M\right)}(1)$

where $p\left(f_k|M\right)$ represents the posterior probability of a single distribution model $f_k$, $p_k\left(y|f_k,M\right)$ means the posterior distribution of y under a given model prediction $f_k$ and data set M.

Let ${\omega }_k$ represent $p\left(f_k|M\right)$ with ${\displaystyle \sum _{k=1}^K{\omega }_k=1}$. The posterior mean value and variance of the BMA prediction can be expressed as (Raftery et al., 2003; Duan et al., 2006):

$E\left(y|M\right)={\displaystyle \sum _{k=1}^{K}p\left(f_k|M\right)E\left[p_k\left(y|f_k,M\right)\right]}={\displaystyle \sum _{k=1}^K{\omega }_k{f}_k}(2)$

$Var\left(y|M\right)={{\displaystyle \sum _{k=1}^K{\omega }_k\left(f_k-{\displaystyle \sum _{i=1}^K{\omega }_i{f}_i}\right)}}^2+{\displaystyle \sum _{k=1}^K{\omega }_k{\sigma }_k^2}(3)$

where ${\sigma }_k^2$ represents the variable variance when the empirical frequency and model prediction are $M$ and $f_k$, respectively. The BMA mean value prediction can be calculated by the weighted average probability distributions for different optimal simulation. The two parts denoted by ${{\displaystyle \sum _{k=1}^K{\omega }_k\left(f_k-{\displaystyle \sum _{k=1}^K{\omega }_i{f}_i}\right)}}^2$ and ${\displaystyle \sum _{k=1}^K{\omega }_k{\sigma }_k^2}$ in Eq. 3 mean the error between models and error of the model itself individually. Compared to deterministic multi-model combinations, BMA possesses more reliability in reflecting the uncertainty of distribution models.

2.1.2 Expectation Maximization Algorithm

To effectively calculate the weight and variance of BMA, the expectation-maximization (EM) method is introduced in this paper. EM is an iterative calculation method and has been widely used (Bilmes, 1998) to calculate the maximum likelihood estimation, and the obtained results show good effect especially in dealing with a great number of missing data. In detail, the EM algorithm can be illustrated as follows.

Considering the stability and convenience of calculation, the EM algorithm uses log-likelihood function (Duan et al., 2006). Assume the prediction error in time and space is independent, the log-likelihood function can be formulated as follows (Duan et al., 2006):

$\ell \left({\omega }_1,\cdots ,{\omega }_k,{\sigma }^2\right)={\displaystyle \sum _{t=1}^T\log \left({\displaystyle \sum _{k=1}^K{\omega }_k{g}_k\left(y_t|f_{k,t}\right)}\right)}(4)$

Assume $Z_{k,t}$ is an unobserved variable, if at time t, $f_k$ is the best prediction model, then $Z_{k,t}=1$; otherwise, $Z_{k,t}=0$. At any time t, only one of $\left\{Z_{1,t},\cdots ,Z_{k,t}\right\}$ is equal to 1 and the others are equal to zero. The key of applying the EM method is to switch steps between the expectation and maximization. It starts under an initial guess, such as assuming a value of ${\theta }^{\left(0\right)}$ for parameter $\theta$. In the expectation (E) step, $Z_{k,t}$ is estimated by the given current guess value of $\theta$. In the maximization (M) step, $\theta$ is estimated by the given current values of $Z_{k,t}$. These two steps are repeated until a predetermined accuracy meets the requirement. The detailed EM computation process is as follows.

Step 1. Initialization:

$\mathrm{S}\mathrm{e}\mathrm{t}j=0,{\omega }_k^{\left(j\right)}=\frac{1}{k},{\sigma }_k^{2\left(j\right)}=\frac{1}{k}{\displaystyle \sum _{t=1}^T\frac{\left({\displaystyle \sum _{k=1}^K{\left(y_t-f_{k,t}\right)}^2}\right)}{T}}(5)$

where $T$ is the number of data, and $j$ is the number of iterations.

Step 2. Calculate the initial likelihood:

$\ell \left({\theta }^{\left(j\right)}\right)=\log \left({\displaystyle \sum _{k=1}^K{\omega }_k\cdot p_k\left(y|f_k,M\right)}\right)=\log \left({\displaystyle \sum _{k=1}^K{\omega }_k\cdot {\displaystyle \sum _{t=1}^{T}g\left(y_t|f_{k,t},{\sigma }_k^{\left(j\right)}\right)}}\right)(6)$

Step 3. Implementation of the E-step operation:

$\mathrm{S}\mathrm{e}\mathrm{t}j=j+1,Z_{k,t}^{\left(j\right)}=\frac{g\left(y_t|f_{k,t},{\sigma }_k^{\left(j-1\right)}\right)}{\sum _{k=1}^{K}g\left(y_t|f_{k,t},{\sigma }_k^{\left(j-1\right)}\right)}k=\mathrm{1,2},\cdots ,K,t=\mathrm{1,2},\cdots ,T(7)$

Step 4. Perform the M-step operation:Calculate the weights of the single prediction model:

${\omega }_k^{\left(j\right)}=\frac{1}{T}{\displaystyle \sum _{t=1}^T{Z}_{k,t}^{\left(j\right)}}(8)$

Update the single forecast model variance:

${\sigma }^{2\left(j\right)}=\frac{{{\displaystyle \sum _{t=1}^T{Z}_{k,t}^{\left(j\right)}\cdot \left(y_t-f_{k,t}\right)}}^2}{{\displaystyle \sum _{t=1}^T{Z}_{k,t}^{\left(j\right)}}}(9)$

Update the value of the likelihood function $\ell \left({\theta }^{\left(j\right)}\right)$.

Step 5. Check convergence:If $\ell \left({\theta }^{\left(j\right)}\right)-\ell \left({\theta }^{\left(j-1\right)}\right)$ is less than or equal to ${10}^{-4}$, then stop the operation; else return to the third step.Readers can refer to McLachlan and Krishnan (McLachlan and Krishnan, 1997) for more detailed information of the EM algorithm.

2.1.3 Kernel Density Estimation

In statistics, the kernel density estimation (KDE) is a non-parametric way to estimate the probability density function of a random variable. KDE is a fundamental data smoothing problem where inferences about the population are made, based on a finite data sample (Li et al., 2022). Among the many non-parametric methods currently used, the KDE method proposed by Guo et al. (1996) is the most widely used, and the effect is the most ideal.

The estimation formula of the univariate kernel probability density function:

${\widehat{f}}_x\left(x\right)=\frac{1}{nh}{\displaystyle \sum _{i=1}^{n}k\left(\frac{x-x_i}{h}\right)}(10)$

where $n$ is the length of observed data $x_i$; $K(\cdot )$ is the kernel density function; and $h$ is the window width, it determines the variance of the kernel function.

2.2 Copula Function Theory

Copula theory was proposed by Sklar (1959), which has many types of Copula functions, such as normality of Copula, t-Copula functions, and Archimedean Copula function family (Nelsen, 1999). Among them, Archimedean Copula function family, including Gumbel-Hougaard Copula function, Clayton Copula function, and Frank Copula functions, has characteristics of simplified structure, diversification, and practicability, which lead to relatively simple processes in constructing corrections among variables (Xie et al., 2020). Consequently, the Archimedean Copula function family could be an important method for hydrologic frequency analysis.

2.2.1. Archimedean Copula Function

Let u_i be the variable margin, $\theta$ be the parameter of the Copula function, the cumulative probability distribution of the three Archimedean Copula functions mentioned above can be expressed as follows:

(1) Gumbel-Hougaard Copula function

$C\left(u_1,u_2\cdots ,u_t\right)=\exp \left\{-{\left[{\left(-\ln \left(u_1\right)\right)}^{\theta }+{\left(-\ln \left(u_2\right)\right)}^{\theta }+\cdots +{\left(-\ln \left(u_t\right)\right)}^{\theta }\right]}^{\frac{1}{\theta }}\right\};\theta \in \left[1,\infty \right)(11)$

$\mathrm{Expression}\mathrm{of}\mathrm{generator}:\varphi \left(t\right)={\left[-\ln \left(t\right)\right]}^{\theta }(12)$

(2) Clayton Copula function

$C\left(u_1,u_2,\cdots ,u_t\right)={\left\{u_1^{-\theta }+u_2^{-\theta }+\cdots +u_t^{-\theta }-\left(t-1\right)\right\}}^{\frac{1}{\theta }};\theta \in {\left(0,\infty \right)}^{\infty }(13)$

$\mathrm{Expression}\mathrm{of}\mathrm{generator}:\varphi \left(t\right)=t^{-\theta }-1(14)$

(3) Frank Copula function

$C\left(u_1,u_2,\cdots u_t\right)=-\frac{1}{\theta }\ln \left\{1+\frac{\left[\exp \left(-\theta u_1\right)-1\right]\left[\exp \left(-\theta u_2\right)-1\right]\cdots \left[\exp \left(-\theta u_t\right)-1\right]}{{\left[\exp \left(-\theta \right)-1\right]}^{t-1}}\right\};\theta \in R(15)$

$\mathrm{Expression}\mathrm{of}\mathrm{generator}:\phi =-\ln \frac{\exp \left(-\theta t\right)-1}{\exp \left(\theta \right)-1}(16)$

2.2.2 Correlation Measure of Copula

Correlation measure of random variables is used to describe the mutual dependence between random variables. There are many test metrics, in this study Kendall’s rank correlation coefficient $\tau$ and Spearman’s rank correlation coefficient $\rho$ are used to evaluate the correlation of the streamflow variables. In detail, the corresponding Kendall’s rank correlation coefficient $\tau$ and Spearman’s rank correlation coefficient ${\rho }_s$ for Copula function $C\left(u,v\right)$ can be expressed as follows:

$\tau =4{\displaystyle {\int }_0^1{\displaystyle {\int }_0^{1}C\left(u,v\right)dC\left(u,v\right)-1}}(17)$

${\rho }_s=12{\displaystyle {\int }_0^1{\displaystyle {\int }_0^{1}uvdC\left(u,v\right)-3=12}}{\displaystyle {\int }_0^1{\displaystyle {\int }_0^{1}C\left(u,v\right)dudv-3}}(18)$

2.2.3 Estimation of Copula Function Parameter

To estimate the parameter of Copula function, the exact maximum likelihood (EML) method is used (Dupuis, 2007). If the joint distribution function of t-dimensional continuous random variables $x_1,x_2,\cdots x_t$ can be expressed as $C\left(u_1,u_2,\cdots u_t\right)$, its maximum likelihood estimate can be calculated as follows (Dupuis, 2007):

Step 1. Establish the relevant likelihood functionThe joint density function is expressed as:

$c\left[\left(u_1,u_2,\cdots u_t\right);\left({\theta }_1,{\theta }_2,\cdots ,{\theta }_t\right),\alpha \right]=\frac{{\partial }^{t}C\left[\left(u_1,u_2,\cdots u_t\right);\left({\theta }_1,{\theta }_2,\cdots ,{\theta }_t\right),\alpha \right]}{\partial u_1\partial u_2\cdots \partial u_t}(19)$

Likelihood function is expressed as:

$L\left[\left({\theta }_1,{\theta }_2,\cdots ,{\theta }_t\right),\alpha \right]={\displaystyle \prod _{i=1}^{n}c\left[\left(u_{i1},u_{i2},\cdots ,u_{it}\right);\left({\theta }_1,{\theta }_2,\cdots ,{\theta }_t\right),\alpha \right]}(20)$

Correspondingly, the log-likelihood function can be expressed as:

$\ln L\left[\left({\theta }_1,{\theta }_2,\cdots ,{\theta }_t\right),\alpha \right]={\displaystyle \sum _{i=1}^n\ln c\left[\left(u_{i1},u_{i2},\cdots ,u_{it}\right);\left({\theta }_1,{\theta }_2,\cdots ,{\theta }_t\right),\alpha \right]}(21)$

Step 2. Solve the likelihood function

$\left({\widehat{\theta }}_1,{\widehat{\theta }}_2,\cdots ,{\widehat{\theta }}_t\right),\widehat{\alpha }=\arg \max \ln L\left[\left({\theta }_1,{\theta }_2,\cdots ,{\theta }_t\right),\alpha \right](22)$

where: $\left({\theta }_1,{\theta }_2,\cdots {\theta }_t\right)$ are the unknown parameters of the distribution function for each margin; $\alpha$ is the associated unknown parameter in the Copula function.

2.3 Goodness-Of-Fit Statistical Tests

In order to perform the goodness-of-fit statistic tests for both univariate distribution and Copula functions the root mean square error (RMSE) and Akaike Information Criterion (AIC) are adopted to assess the validation of the BMAC method. RMSE can quantitatively analyze the results when the graph fitting effect is similar. To evaluate the performance and select the best fitted Copulas, the goodness-of-fit statistics test is conducted based on AIC (Akaike, 1974) and Cramér von Mises statistics (Genest et al., 2009).

$MSE=\frac{1}{N-k}{{\displaystyle \sum _{i=1}^N\left(F_{em}\left(x_{i1},x_{i2},\cdots ,x_{it}\right)-C\left(u_{i1},u_{i2},\cdots ,u_{it}\right)\right)}}^2(23)$

$RMSE=\sqrt{MSE}(24)$

where $F_{em}\left(x_{i1},x_{i2},\cdots ,x_{it}\right)$ is the value of empirical joint distribution; $C\left(u_{i1},u_{i2},\cdots u_{it}\right)$ is the value of the predicted joint distribution; MSE is the mean square error; $N$ is the length of the observed data; $k$ is the number of unknown parameters in the model.

$AIC=N\ln \left(MSE\right)+2k(25)$

The Kolmogorov-Smirnov test (K-S test) is chosen because it is a useful nonparametric hypothesis test, which is primarily used to test if a set of samples comes from some probability distribution (Miller, 1956).

$D=\underset{1\le i\le n}{\max }\left|F^{est}\left(x\le x_{\left(i\right)}\right)-F^{obs}\left(x\le x_{\left(i\right)}\right)\right|(26)$

where $F^{est}\left(x\le x_{\left(i\right)}\right)$ is the value of theoretical probability distribution; $F^{obs}\left(x\le x_{\left(i\right)}\right)$ is the value of the empirical probability distribution; $n$ is the length of the data.

The Anderson-Darling test (AD test) also has been chosen because of its excellent properties against a variety of alternatives, the test statistic is as follows (D'Agostino, 1986):

$A_n^2=-n-\frac{1}{n}{\displaystyle \sum _{i=1}^n\left(2i-1\right)\cdot \left[\ln \left[F_s\left(H_{\left(i\right)}\right)\right]+\ln \left(1-F_s\left(H_{\left(n-i+1\right)}\right)\right)\right]}(27)$

where: $H_{\left(1\right)}\le H_{\left(2\right)}\le \cdots \le H_{\left(n\right)}$ are values in ascending order; $F_s$ is the distribution function of ${\chi }^2\left(2\right)$.

Specific calculation steps are as follows:

Step 1. Calculate the marginal distribution functions $F_X$ and $F_Y$ by the univariate empirical formula.

Step 2. Calculate $H\left(X,Y\right)$, obey ${\chi }^2\left(2\right)$ distribution.

$H\left(X,Y\right)={\left[{\mathrm{\Phi }}^{-1}\left(F_X\right)\right]}^2+{\left[{\mathrm{\Phi }}^{-1}\left(C\left(F_Y|F_X\right)\right)\right]}^2(28)$

where: ${\mathrm{\Phi }}^{-1}$ is the inverse function of the standard normal distribution.

Step 3. Calculate statistic value $A_n^2$.

Step 4. Estimate Copula parameter $\theta$ based on the marginal distribution function.

Step 5. Simulate and generate Copula random samples with Rosenblatt’s transformation test method, find new Copula function parameter $\widehat{\theta }$.

Step 6. Calculate a new $H^{\ast }\left(X^{\ast },Y^{\ast }\right)$, and then calculate statistic value ${\widehat{A}}_n^2$.

Step 7. Repeat steps 3 to 6 $m$ times, obtain a sequence of ${\widehat{A}}_n^2$, put the sequence in ascending order, and calculate the critical and statistical value of each sub-site.

Step 8. Compare the relationship between the statistic ${\widehat{A}}_n^2$ and critical statistics. If the statistical value is lower than the critical one, the distribution of the results can be accepted; otherwise, reject the distribution results.

2.4 Bayesian-Model-Averaging Copula (BMAC) Method

In this study, the BMAC method would be proposed by combining the BMA and Copula methods into a general framework. In detail, the BMA method is used to determine the marginal distributions of monthly rainfall and runoff, and the Archimedean Copula method can be used to construct the joint distribution of monthly rainfall of runoff. Correspondingly, the BMAC method involves four steps: 1) determining the marginal distributions of monthly rainfall and runoff based on the principle of BMA and generating the values of weight through the EM method, 2) establishing the joint distributions by the Archimedean Copula (e.g., Gumbel-Hougaard Copula, Clayton Copula, and Frank Copula) method, 3) estimating the values of the Copula parameter $\theta$ through the maximum likelihood method, and 4) performing the goodness-of-fit statistic tests by RMSE, AIC, and AD test. The framework of the BMAC is shown in Figure 1.

FIGURE 1

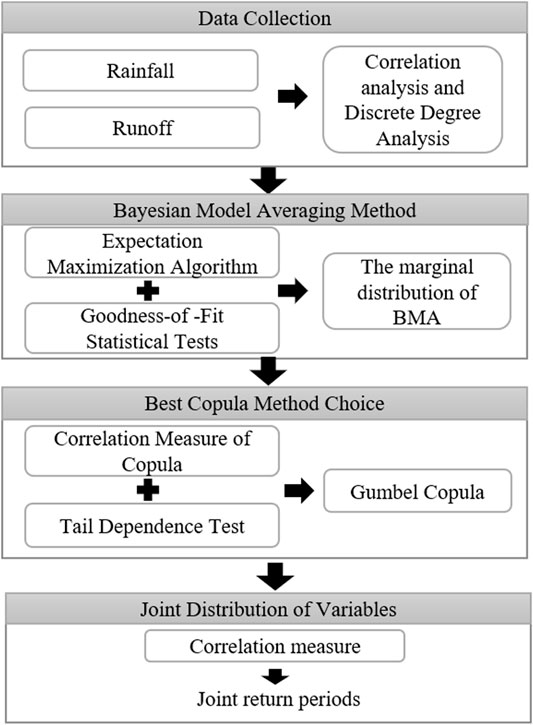

FIGURE 1. The framework of BMAC.

3 Case Study

3.1 Overview of the Studied Area

The Xiangxi River basin is located between 30.96 ∼ 31.67° N and 110.47 ∼ 111.13°E in the Hubei part of China, being the largest tributary of the Yangtze River in the Three Gorges Reservoir area (see Figure 2). It originates in the Shennongjia Nature Reserve, with the mainstream length of 94 km and a catchment area of 3,099 km² (Han et al., 2014). This region experiences a northern subtropics climate, and the main rainfall season is from May to September with the annual precipitation of 1,100 mm (Xu et al., 2009). In addition, the hydrological station mostly covering this river is called the Xiangshan Hydrological Station (110.45°E, 31.13°N).

FIGURE 2

FIGURE 2. The Studied are (Fan et al., 2016).

In order to provide decision support for flood control and water resource management of the Xiangxi River basin, the hydrological frequency analysis of this region would be studied based on daily rainfall and runoff data (1991–2008) from Xingshan Hydrological Station in this study (see Figure 3). Figure 3 demonstrates that rainfall and runoff in 1996 were relatively high, while rainfall and runoff in 1997 were relatively low. The annual distribution of runoff is primarily concentrated. The annual distribution of rainfall is rather dispersed. Annual rainfall and runoff during 1996 and 2007 were particularly sparse. Rainfall and runoff are strongly correlated. Figure 4 demonstrates that the distribution of monthly rainfall and runoff are similar. The scatter plot demonstrates that the R-square value is 0.698 and the AUK value of the Kendall plot is 0.667. Both of them show a positive correlation (Figure 5).

FIGURE 3

FIGURE 3. The boxspots of monthly rainfall and runoff in the Xiangxi River watershed. Median id the midlevel line of the data, Upper and Lower are the maximum and minimum values, Q₁ and Q₃ are the lower and upper quantities.

FIGURE 4

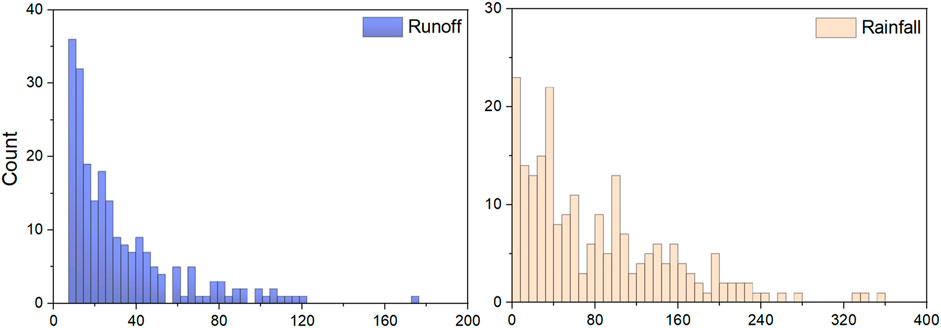

FIGURE 4. The Histogram of mothly rainfall and runoff in the Xiangxi River watershed.

FIGURE 5

FIGURE 5. The Scatter plot and Kendall plot of monthly rainfall and runoff. The top one is Scatter plot and the bottom one is Kendall plot.

3.2 Results Analysis

3.2.1 Comparison of Marginal Distributions

In the procedure of hydrological frequency analysis, the monthly rainfall and runoff probability distributions in the Xiangxi River basin are first estimated by the Gamma, the generalized extreme value, and the lognormal distributions, respectively. And then, the BMA-based marginal distributions are obtained according to the three estimated distributions. Table 1 shows the fitting parameters of probability distributions.

TABLE 1

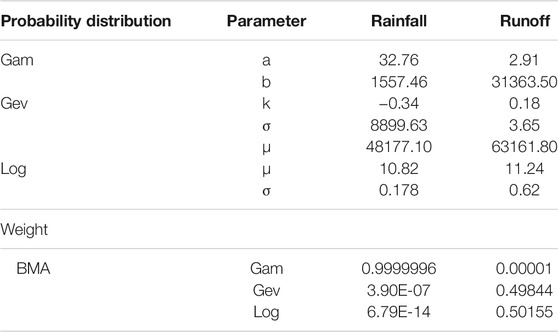

TABLE 1. The fitting parameters of probability distributions.

Based on the weights and distribution parameters presented above, the BMA-based marginal distributions of monthly rainfall and runoff can be obtained. The Gamma distribution may account for a major proportion (99.99%) to produce the BMA-based marginal distribution of monthly rainfall; while the generalized extreme value distribution and lognormal distribution may account for almost the same proportion to produce the BMA-based marginal distribution of monthly runoff.

The comparison of empirical and generated marginal cumulative distribution functions (CDFs) for monthly rainfall and runoff is shown in Figure 6. It indicates that the BMA-based marginal distribution may appropriately represent the univariate rainfall and runoff probability distributions. In order to clearly clarify, the D, RMSE, and AIC values for the marginal distributions obtained by the four methods are also calculated and presented in Table 2. In addition, to compare with the non-parametric methods, the KDE method is also calculated in the same way. Results D show that only the GEV and BMA methods pass the K-S test (the upper boundary of D is 0.092 while alpha is 0.05) in both rainfall and runoff. The obtained results indicate the corresponding errors of the BMA method are relatively smaller suggesting the accuracy of the marginal distributions generated by the BMA method is very excellent.

FIGURE 6

FIGURE 6. Comparison of the generated and empirical marginal CDF_s for mothly rainfall (A) and runoff (B).

TABLE 2

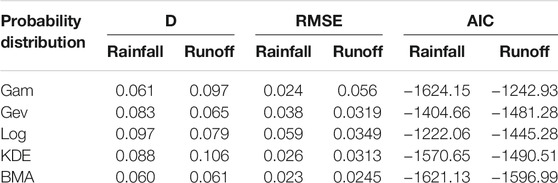

TABLE 2. The D, RMSE and AIC analysis for marginal distributions.

3.2.2 Comparison of Joint Distributions

After determining marginal distributions, the joint probability distributions of monthly rainfall and runoff in the Xiangxi River can be estimated by a Copula function. The estimation parameters for each Copula function are calculated based on the maximum likelihood estimation theory. In addition, according to the obtained parameters, the correlation coefficients can be calculated. Results are given in Table 3. It can be seen that the Kendall’s rank correlation coefficient ranges from 0.42 to 0.59 and the Spearman’s rank correlation coefficient ranges from 0.56 to 0.78. Therefore, it can be concluded that the monthly rainfall and runoff of the Xiangxi River have a relatively strong positive correlation.

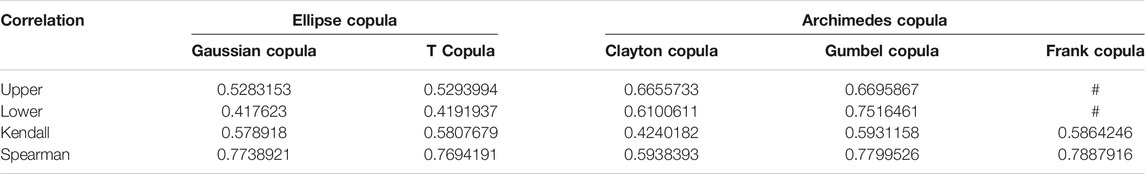

TABLE 3

TABLE 3. Parameters estimation and correlation analysis of copula function.

According to Table 3, Gumbel-Hougaard-Copula-based joint distribution and Frank-Copula-based joint distribution are superior to the Clayton one based on the Kendall correlation and the Spearman correlation. Moreover, it shows that the estimation of the upper tail correlation coefficient should select the Gumbel Copula, the number is 0.6696. The estimation of the lower tail correlation coefficient should select the Gumbel Copula, the number is 0.7516. Obviously, there are both upper tail correlation and lower tail correlation in the Xiangxi River. This conforms to research by Yang et al. (2016). Goodness-of-fit tests of empirical joint CDFs and theoretical joint CDFs are calculated for further analysis (as shown in Figure 7).

FIGURE 7

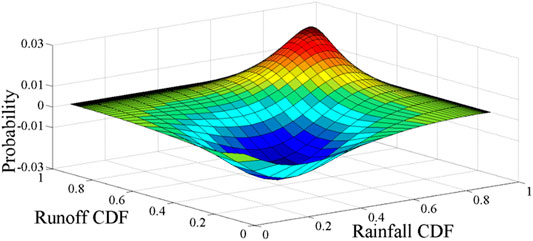

FIGURE 7. Comparison of the theotrical and empircal joint CDFs for rainfall and runoff in Xiangxi River. (A) Gumbell-Hougard-Copula-based joint distribution. (B) Frank-Copula-based joint distribution, respectively.

Comparing the results shown in Figure 7, it can be known that the joint distribution by Frank-Copula is close to the one by Gumbel-Hougaard-Copula in quantifying the relevant characteristics of monthly rainfall and runoff of the Xiangxi River. The RMSE of the Gumbel-Hougaard-Copula is less than the Clayton copula. The Frank-Copula function has no tail correlation and cannot capture the tail correlation between variables according to Xue (2018). Gumbel Copula performs better in the upper correlation while Clayton Copula performs better in the lower correlation (Jondeau, 2016). Therefore, the Gumbel Copula function would be chosen to construct the joint distribution of monthly rainfall-runoff pairs. The corresponding results are plotted and shown in Figure 8. Figure 9 shows the combined probability density and return period of rainfall and runoff using the Gumbel Copula. It indicates that the extreme value of annual precipitation or annual runoff, the joint probability density is relatively small. When the annual runoff is constant, the greater the annual precipitation, the longer the time of return period is. In addition, the largest rainfall of observed data is 1,341.7 mm, the runoff of that year is 556.36 m³/s. The return period is about 10 years, which is reasonable.

FIGURE 8

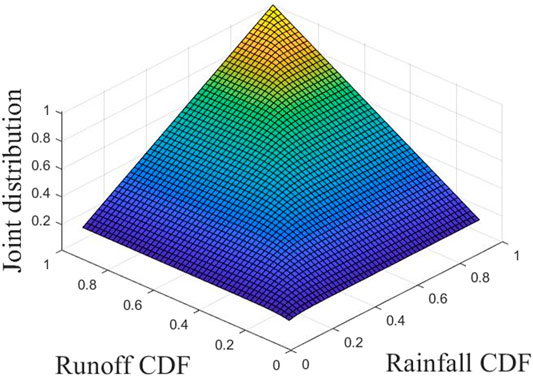

FIGURE 8. The joint CDFs of rainfall and runoff.

FIGURE 9

FIGURE 9. Joint probability density and return periods of rainfall and runoff.

In this study, the AD test and the CM test also have been selected to investigate the suitability of the BMAC-based joint distributions in describing the dependencies for different rainfall-runoff pairs. The results are displayed in Table 4, and statistics $A_n^2$ are less than threshold values $A_{n,0.1}^{2(\ast )}\left(\alpha =0.1\right)$ and $A_n^{2(\ast )}\left(\alpha =0.05\right)$, where $\alpha$ is the significant level. Thus, the null hypothesis $H_0$ would be accepted. In total, it can be concluded that BMAC has a distinct superiority in modelling variable pairs.

TABLE 4

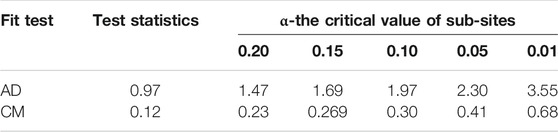

TABLE 4. Goodness-of-fit of BMAC.

3.2.3 Comparison of BMAC and MEGHC

In order to further clarify the efficiency of the BMAC method, a Maximum Entropy-Gumbel-Hougaard Copula (MEGHC) method proposed by Kong et al. (2015) has been applied for comparison. Accordingly, two joint distributions can be generated by the two methods, and the bias value between the two methods also can be obtained (shown in Figure 10). From Figure 10, the results are quite close to each other, and the great deviation value (i.e., absolute error) is 0.03, which illustrates that both of the two methods can be used to generate the joint distribution of the rainfall and runoff because of the best fitting effect. It also can be found that, under the condition of the CDF interval being 0–0.4, results obtained by the BMAC method are superior to the MEGHC method; while the CDF interval being 0.9–1, the MEGHC method may converge much faster. To some extent, the MEGHC method can better capture the characteristics of the upper tail dependence, which plays a great role in flood and drainage control and watershed design work (Kong et al., 2015). However, in the situation of representing the uncertainty of the model structure, it is hard to find a suitable distribution to capture the characteristic of the hydrologic variable. Comparatively, the BMAC method can obtain a synthetic simulation result especially in exactly reflecting the variables’ correlations.

FIGURE 10

FIGURE 10. Comparison of BMAC and MEGHC.

4 Conclusion

In this study, a BMAC method has been proposed for assessing correlations of bivariate variables in hydrological processes. Through incorporating BMA and Copula functions within a general framework, BMAC can determine the marginal distribution functions of variables, and meanwhile analyze the correlation. To demonstrate the applicability, the developed BMAC method also has been adopted to investigate the hydrological frequency analysis of the Xiangxi River basin. The specific conclusions can be summarized as follows:

(1) Compared with the empirical and nonparametric marginal CDFs, the Bayesian model averaging method can improve the representation of the marginal distribution of hydrological variables and comprehensively capture the shape of empirical CDF with smaller corresponding errors.

(2) The goodness-of-fit statistical tests, consisting of RMSE, K-S, and AD test, indicate that the BMAC method is suitable for describing the statistical probabilities and the dependencies in the historical data of the Xiangxi River, China.

(3) There is a relatively strong positive correlation existing between the monthly rainfall and runoff. The Gumbel Copula would be best for modelling the joint distributions of monthly rainfall and runoff.

(4) Compared with the MEGHC method proposed by Kong et al. (2015), the BMAC method can obtain more accurate synthesis results when the model structure is evaluated as uncertain.

(5) The accuracy of the BMAC method in modelling the joint distribution of hydrological variables would be influenced by the performance of the marginal distribution of the variables and the algorithm used for estimating the unknown parameters in Copula functions. Consequently, further studies are required to analyze the uncertainty of the calculation process.

Data Availability Statement

The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.

Author Contributions

YW conceived and designed the method of BMAC, collected the data and analyzed the results, and wrote the manuscript. AY conceived and designed the method. XK collected the data and analyzed the results. YS analyzed the results. All authors read and approved the final manuscript.

Funding

This research was funded by the Natural Science Foundation of Fujian Province, China (2021J011180).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The authors thank the support from the Hydrologic Bureau of Xingshan County.
