Comparison Between Hydraulic Conductivity Anisotropy and Electrical Resistivity Anisotropy From Tomography Inverse Modeling

Hydrogeophysics is increasingly used to understand groundwater flow and contaminant transport, essential basis for groundwater resources forecast, management, and remediation. It has proven its ability to improve the characterization of the hydraulic conductivity (K) when used along with hydrogeological knowledge. Geophysical tools and methods provide high density information of the spatial distribution of physical properties in the ground at relatively low costs and in a non-destructive manner. Amongst them, the Electrical Resistivity Tomography (ERT) has been widely used for its high spatial coverage and for the strong theoretical links between electrical resistivity (ρ) and key hydrogeological parameters, such as K. Historically, ERT data processing was based on isotropic hypothesis. However, the unconsolidated aquifers in Canada reveal in most cases a strong anisotropic behavior for K both with in situ or laboratory measurements. Recently, electrical anisotropy has been considered model-wise, but it is seldom considered as an interpretation tool or in the characterization process of the anisotropy of K. In order to evaluate the potential of ERT to assess the anisotropy of electrical resistivity, we developed a forward and inverse modeling code. These codes have been validated and tested on a realistic synthetic case reproducing the behavior of a real aquifer extensively characterized, the site of Saint-Lambert-de-Lauzon in Quebec (Canada). On this site, innovative in situ hydraulic tomography has revealed a strong anisotropy, with up to three orders of magnitude between horizontal and vertical K components. In order to confirm the link between in situ K- and ρ-anisotropies, an ERT survey has been performed, using the same wells as for the hydraulic tomography. The inversion confirms a strong link between K- and ρ-anisotropies. It demonstrates the suitability of the anisotropic ERT approach coupled with well measurements to provide better estimates of K and its anisotropy at the scale of a site.

1. Introduction

Understanding groundwater flow and contaminant transport in the subsurface for water management and aquifer remediation generally requires a good knowledge of the spatial distribution of hydraulic properties within the aquifers. The hydraulic conductivity (K) is a key parameter to assess as it affects both the direction and velocity of flow and contaminant in aquifers. K can also vary over several orders of magnitude within a same geological unit, which highlights the importance of having accurate high-resolution and high-coverage estimates to reduce errors in groundwater flow and mass transport (de Marsily et al., 2005) and improve groundwater management. While several methods have shown their potential to estimate K at different scales (Butler, 2005), few have been focused on the characterization of its anisotropy that can greatly affect the outcomes of different hydrogeological in situ problems, such as groundwater recharge (e.g., Hart et al., 2006) well capture zone (e.g., Barry et al., 2009), and spreading of contaminant plumes (e.g., Falta et al., 2005).

Indeed, K-anisotropy can be obtained from laboratory permeameters on sediment or rock samples collected in the field (Wenzel and Fishel, 1942). However, the difficulties in the experimental procedures related to sample collection and manipulation may restrict reliable estimations of K-anisotropy for certain kinds of materials. Moreover, permeameter estimates may require an up-scaling to field conditions to be representative. In order to overcome this burdens, several authors have proposed different hydraulic tests in wells to estimate K-anisotropy, such as the dipole-flow test using in one well (Kabala, 1993; Zlotnik and Ledder, 1996; Xiang and Kabala, 1997; Zlotnik and Zurbuchen, 1998; Hvilshøj et al., 2000; Sutton et al., 2000; Zlotnik et al., 2001) or two wells (Goltz et al., 2008), the single-well vertical interference test (Burns Jr et al., 1969; Hirasaki et al., 1974; Onur et al., 2002; Sheng, 2009; Paradis and Lefebvre, 2013), and hydraulic tomography (Paradis et al., 2015a, 2016a,b).

While previous hydraulic tests were shown to provide invaluable estimates of K-anisotropy in real field conditions, these methods are time consuming to operate and can thus only provide very local information. In this study, we propose using geophysical data to complement hydraulic tests as geophysical methods can provide broad pictures of the subsurface in a considerably shorter amount of time than hydraulic methods. Electrical methods, in particular direct current (DC) methods, are frequently used to infer porosity and K (Archie, 1942; Lesmes and Friedman, 2005). However, only a few studies have been done to study the anisotropy of the resistivity of unconsolidated sediments. Anisotropy of electrical conductivity (ρ) is a well-known phenomenon (Maillet, 1947) but its accurate in situ estimation has only been studied recently (Greenhalgh et al., 2010; Kenkel and Kemna, 2016; Gernez et al., 2018). Moreover, there is a theoretical equivalence between K-anisotropy and ρ-anisotropy in unconsolidated sediments were the electric current flows in the conductive saturated pores (Hubbard and Rubin, 2005). Recently, laboratory investigations have demonstrated strong similarities between ρ- and K-anisotropies on core samples (Adams et al., 2016). In addition, recent field works have shown that taking into account ρ-anisotropy in DC surveys leads to more accurate estimations of both ρ values and structures (Pekşen and Yas, 2018), and have shown reasonable estimates of hydraulic anisotropy in slightly anisotropic aquifer systems (Yeboah-Forson and Whitman, 2014).

The objective of this paper is to demonstrate the ability of DC methods to quantify ρ-anisotropy and to illustrate how it compares with K-anisotropy in a real case study. After introducing the study area (section 2) and presenting theoretical considerations related to ρ-anisotropy (section 3), we provide methodological insights, through a synthetic case, related to DC data acquisition to ascertain the presence of ρ-anisotropy (section 4). Then, the methodology is applied for a real case study known to be highly heterogeneous, and ρ-anisotropy estimated through anisotropic inversion is compared to K-anisotropy obtained with hydraulic tests at the study site to strengthen the reliability of the proposed approach (section 5). This study exposes the capacity of DC surveys to improve hydrogeological characterization.

2. Study Area and Evidences of Anisotropic Conditions

The study area is located in Saint-Lambert-de-Lauzon (SLdL), 30 km south of Quebec City, Canada (Figure 1). The SLdL study area is a 12 km² sub-watershed surrounding a decommissioned sanitary landfill site in an unconfined granular aquifer. The surficial sediments composing the aquifer consists primarily of Late Quaternary sandy and silty sediments that were deposited in the receding Champlain Sea, which was an arm of the Atlantic Ocean that invaded the St-Lawrence Valley at the time of the last deglaciation (Bolduc, 2003). Deposition of the Saint-Lambert site was controlled mainly by longshore currents that redeposited in littoral and sublittoral settings that supplied the Chaudière River paleodelta. This geological depositional environment leads thus to sediment size ranging from fine sand to very fine silt with poor to very poor grain-size sorting. Furthermore, this environment shows minor proportions of clay (generally < 20%). Clay in major proportions (>50%) is only present below the cross-section studied. The resulting superposition of finely layered sand and silt sediments create very heterogeneous distribution of sediments at centimetric to decametric scales along with more gradual lateral transitions in these littoral and sublittoral sediments as a result of changing energy levels along the Champlain Sea shorelines. The depth of the granular aquifer varies in depth between 0 and 22 m, the water table is generally within 2 m from the surface (Paradis et al., 2014; Tremblay et al., 2014).

FIGURE 1

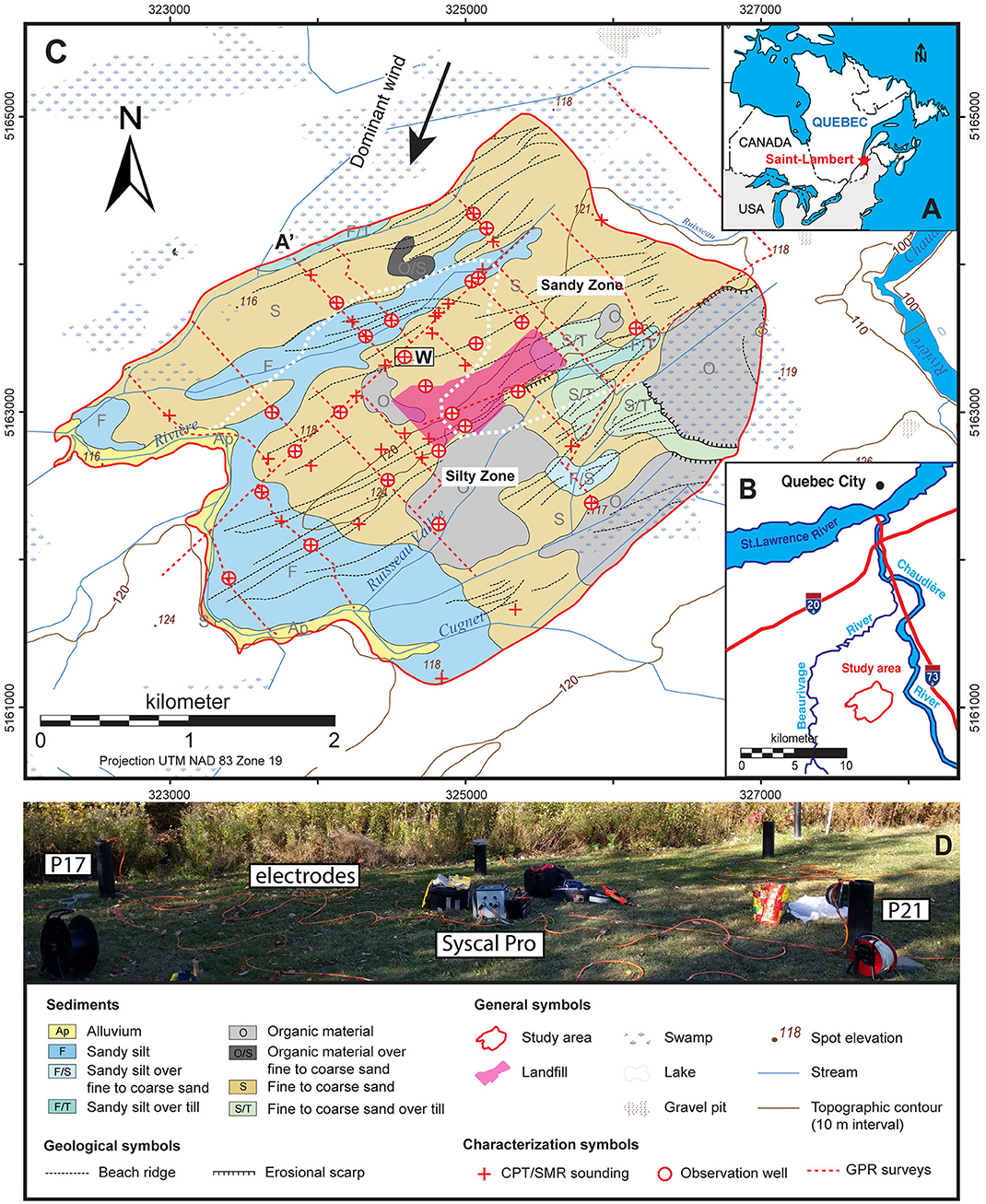

Figure 1. Saint-Lambert-de-Lauzon (SLdL) study area. It is located (A) in Québec, Canada, (B) 30 km south of Québec City between to the Chaudière and Beaurivage rivers. (C) Geology and characterization details of the study area. (D) Anisotropic hydraulic and electrical tomography site corresponding to the “W” on (C). ERT acquisition is done using an IRIS Syscal Pro system. Nine and Eight electrodes are, respectively, immersed in P17 and P21. Seventeen electrodes are planted between P17 and P21. P17 and P21 are separated by 8 m, electrodes separation is 1 m inside the wells and 0.5 m at the surface. Adapted from Paradis et al. (2015b).

This site has been extensively characterized by previous studies using different techniques, such as Ground Penetrating Radar (GPR) and resistivity surveys, Cone Penetrometer Test—Soil Moisture Resistivity soundings (CPT/SMR), hydraulic tests in wells and logging (Paradis et al., 2014; Tremblay et al., 2014). These data allowed to obtain valuable information on the structure of the aquifer system (aquifer and aquitard layers) including information on its heterogeneity. Particularly, several observations suggest that the heterogeneous nature of the sediments at a fine scale may induce anisotropy at larger scale posing challenges to the interpretation of flow and transport processes in this environment. Anisotropy can be due to the microscopic scale organization of the minerals (micro or intrinsic anisotropy, e.g., crystals ordered structure or oblong grains) or, as is the case here, to the macroscopic structural elements of the ground (macro or extrinsic anisotropy, e.g., fractures or alternating heterogeneous beds). First, the comparison of 59 vertical hydraulic conductivity (K_V) estimates made on 15 cm undisturbed sediment samples with a laboratory permeameter to horizontal hydraulic conductivity (K_H) values obtained from high-resolution multi-level slug tests on similar intervals reveals a strong K-anisotropy even at this small scale. K-anisotropy (or the ratio of K_H on K_V, K_H/K_V) was indeed up to two orders of magnitude (Paradis and Lefebvre, 2013). Then, numerical inversion of vertical interference slug tests and hydraulic tomography experiments indicate that K-anisotropy should be considered to match hydraulic responses measured in wells (Paradis and Lefebvre, 2013; Paradis et al., 2016a). For a 60 cm vertical resolution of the numerical grid, K_H/K_V values ranged from near isotropy (1) to more than 100. Moreover, comparison of high-resolution cone-based ρ measurements (SMR probe) with collocated estimates of the ρ computed with surface-based surveys (ERT) revealed a bias between the two data sets (Ruggeri et al., 2014). For instance, the magnitudes of the SMR probe data are generally higher than those of the ERT surveys. This suggests that given the SMR probe sense essentially the horizontal component of ρ due to the configuration of its electrodes (spaced vertically by 9 cm), lower ρ values from ERT surveys are the results of the influence of the ρ-anisotropy induced by the heterogeneous nature of the sediments (section 3.2.2). Finally, those evidences motivate the need to develop a geophysical approach able to handle this anisotropy to provide insights about K-anisotropy in order to better characterize aquifer systems for groundwater flow and contaminant transport studies.

3. Electrical Resistivity Anisotropy

3.1. Theoretical Considerations and Definitions

Electrical anisotropy refers to the directional dependence of electrical conductivity or resistivity which results in the directional dependence of the measured potential fields. This means that the current can preferentially flow in certain directions compared to others. Ohm's law establishes the relationship between an injected electric current in the ground and the induced potential field (Dey and Morrison, 1979). In order to take into account the 2D electrical anisotropy, the scalar conductivity σ in Ohm's law is replaced by the conductivity tensor $\overline{\stackrel{̄}{\sigma }}=\left[\begin{array}{cc}{\sigma }_H& 0\\ 0& {\sigma }_V\end{array}\right]$(or its inverse, the resistivity tensor $\overline{\stackrel{̄}{\rho }}={\overline{\stackrel{̄}{\sigma }}}^{-1}$), with σ_H and σ_V being the conductivity values in the horizontal and vertical directions, respectively (Greenhalgh et al., 2009). Anisotropic Poisson's equation has the following expression in the 2.5D case, i.e., 2-D resistivity structure (plane invariance) and 3-D current flow (Zhou et al., 2009):

$\begin{array}{ll}\nabla ·(\overline{\overline{\sigma }}\nabla \tilde{\varphi })+k_y^2{\sigma }_H\tilde{\varphi }=-\frac{I}{2}\delta (r(x,z)-r_s(x_s,z_s))& (1)\end{array}$

where $\tilde{\varphi }$ is the potential in the frequential domain, k_y is the wavenumber, r(x, z) are the coordinates in the computational domain or on its boundaries, I is the current source intensity located at r_s(x_s, z_s) and δ is the Dirac function. The coefficient of anisotropy is defined as $\lambda =\sqrt{{\sigma }_H/{\sigma }_V}=\sqrt{{\rho }_V/{\rho }_H}\ge 1$: anisotropy increases as λ departs from the value of 1 (λ = 1 corresponds to isotropy). In this study, we will consider an H/V anisotropy. More complex geometries are handleable by the numerical modeling tool we developed to this end (AIM4RES), but they will not be investigated in this study.

3.2. Diagnosis of Electrical Anisotropy

The next sections aim at demonstrating the effects of electrical anisotropy on the interpretation of ERT data using isotropic ERT inversion. We take advantage of three particular effects to propose an electrical diagnosis to detect anisotropy on measured electric potentials. These effects are observable without the need for a complete characterization study, both in terms of field and numerical resources.

3.2.1. Importance of Data Acquisition Protocols

The measured electric potential field is linked to the amount of electric current passing through the different heterogeneous part of the ground. Hence, in the case of surface ERT measurements, a thin conductive anisotropic layer and a thicker less conductive isotropic layer can produce the same electric potential differences (equivalence principle, Maillet, 1947). In other words, it is impossible to distinguish between isotropic layer response from anisotropic layer response using surface ERT data. Consequently, isotropic ERT inversion (Loke, 2001; Bouchedda, 2010) of surface anisotropic data always converge to an equivalent resistivity model which is not representative of the true electrical state of the ground, leading to erroneous resistivity model of the earth. To overcome this problem, anisotropic ERT acquisition and inversion should be used. To address the data directionnality problem, we unavoidably need borehole electrodes along with surface electrodes. In that way, anisotropic ERT inversion requires an optimization of the acquisition protocol, in order to converge toward the true solution.

Nevertheless, in presence of anisotropy, isotropic inversion of ERT directional data leads to unrealistic solutions. It is explained by the fact that there is no physical isotropic solution fitting both surface and inhole data. To demonstrate this effect, two data experiments were simulated using only surface electrodes in the first one and both borehole and surface electrodes in the second one. The resistivity model consists of two horizontally anisotropic layers (Figure 2A). The first layer has a thickness h = 4 m with ρ_H = 100 Ω.m and ρ_V = 400 Ω.m. The second layer is a semi-infinite space with ρ_H = 10 Ω.m and ρ_V = 40 Ω.m. For the whole section, the anisotropy coefficient λ is 2.

FIGURE 2

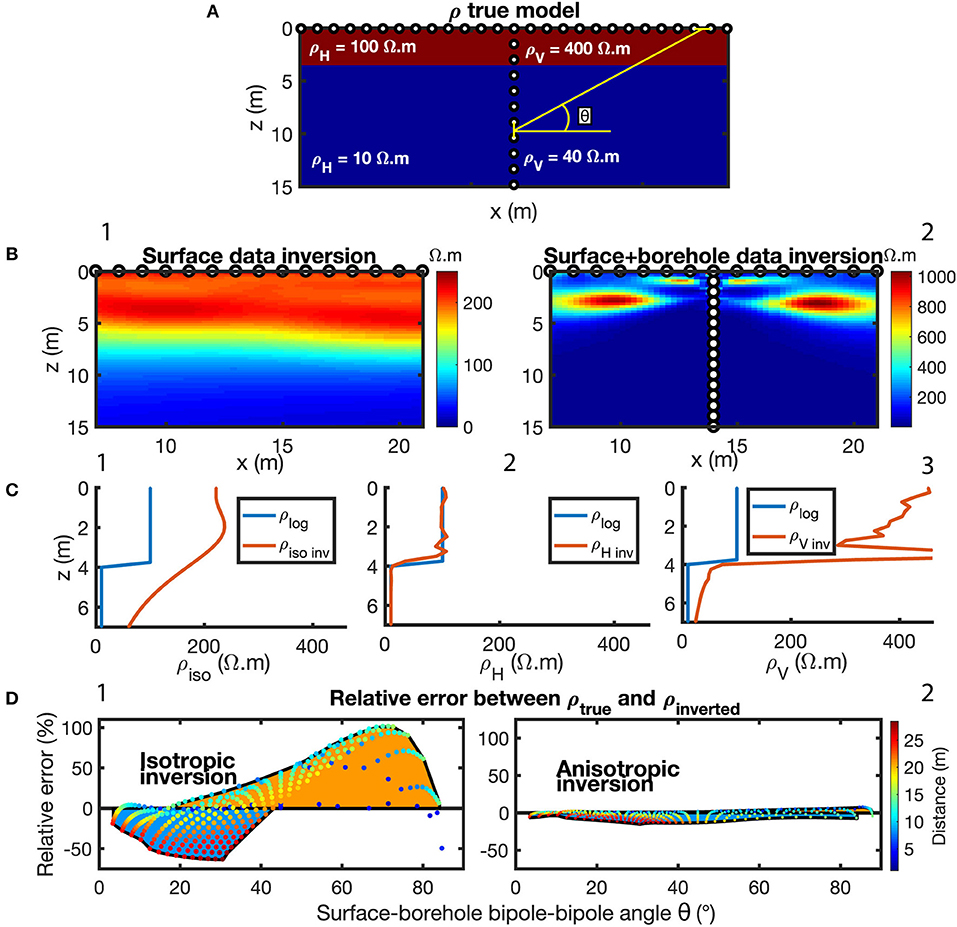

Figure 2. (A) Synthetic model, constituted of an anisotropic layer over an anisotropic semi-infinite space. Upper layer: ρ_H = 100 Ω.m and ρ_V = 400 Ω.m. Semi-infinite space: ρ_H = 10 Ω.m and ρ_V = 40 Ω.m. λ = 2 for the whole model. Electrodes (white dots) are located at the surface and in-hole borehole at x = 14m. In yellow is shown an example of surface-borehole measure angle (D). (B) (section 3.2.1) Isotropic inversions of potentials acquired using (B.1) only surface electrodes and (B.2) surface and borehole electrodes (borehole at x = 14 m). (C) (section 3.2.2) Comparison between logged (ρ_log, blue curve) and inverted (ρ_inv, red curves) resistivities: (C.1) isotropically inverted resistivity. (C.2) ρ_H from inversion vs. ρ_log. (C.3) ρ_V from inversion vs. ρ_log (borehole at x = 20 m). The logged resistivity is the direct resistivity measurement at x = 20 m, therefore the blue curve is the same for all (C.1–3) graphs. (D) (section 3.2.3) Relative error behavior as a function of the measure angle θ. The points are the error values, their color represents the associated dipole-dipole distance. Orange area represents a positive error, blue area represents a negative error. (D.1) Relative error from an isotropic inversion of data acquired on an anisotropic model, displaying a sigmoid shape. (D.2) Relative error from an anisotropic inversion of data acquired on an anisotropic model, relative error is close to zero and is not angle dependant (borehole at x = 25 m).

The first experiment was performed using only surface Wenner array data. We assumed the convergence is reached as the RMSE values are very low (0.0026%), but the inverted model (Figure 2B.1) is not consistent with the true resistivity model (Figure 2A) neither in terms of amplitude of the resistivity nor in terms of geology. According to the theory, the resistivity of the upper layer appears to be $\sqrt{100·400}=200\Omega .$m and the resistivity of the semi-infinite space appears to be $\sqrt{10·40}=20\Omega .$m. In addition, the thickness of the upper layer appears to be λ·h = 8m.

In addition to the previous Wenner surface array, a dipole-dipole array in the borehole and a mixed surface-borehole array were added to the acquisition protocol in the second experiment. The isotropic ERT inversion result of these data sets are presented in the Figure 2B.2. It can be clearly seen that isotropic inversion of directional ERT data leads to unrealistic solutions. Furthermore, the final misfit between measured data and predicted data is high (RMSE = 22.1%) for isotropic inversion in comparison to anisotropic inversion (0.002%), showing that directional data are unable to fit an isotropic solution. This can be used as an evidence of electrical anisotropy.

3.2.2. Effect of Anisotropy on ERT Measurements

In the case of horizontally anisotropic resistivity model, it has been pointed out by Maillet (1947) and Keller and Frischknecht (1966) that the measurements made in the horizontal direction are equal to geometric mean of horizontal and vertical resistivity components, while the measurements made in the vertical direction are equal to the horizontal resistivity components. This is the paradox of electrical resistivity anisotropy: measurements along vertical profiles in the case of layered anisotropic model are sensitive to horizontal component as shown in our synthetic model example. For formal demonstration please see Lüling (2013). Indeed, electrical resistivity logs can be used as in situ measurements of the horizontal resistivity ρ_H that can be introduced as a constraint in the inversion system or employed in combination of surface ERT data to diagnose the anisotropy.

In our case, the electrical resistivity logging was measured using a CPT-SMR instrument which does not require a well installation, simplifying its implementation. The probe is 5 cm thick and 9 cm long. Note that the small probe diameter and the small electrodes separation make the hole effect negligible and the measured resistivity is only sensitive to ρ_H.

In order to demonstrate the effectiveness of resistivity well logs as anisotropy diagnosis tool, let us compare well logs resistivities and estimated resistivities from isotropic ERT inversion of surface data obtained on an anisotropic resistivity models. When isotropic ground is considered, both resistivities are expected to be similar. For horizontally anisotropic ground (as in SLdL), well log resistivities are equal to horizontal resistivity components whereas isotropic ERT inversion returns an equivalent resistivity model which combines both horizontal and vertical resistivity components (equivalence and paradox effects). In other words, the difference between the two resistivities can be very important depending on the value of anisotropy coefficient. Consequently, any difference between the two resistivities is an indication of the presence of anisotropy.

To illustrate the anisotropy diagnosis using synthetic model let consider the previous two layered anisotropic model (Figure 2A). Figure 2C.1 shows the comparison between the electrical resistivity logging (blue curve, e.g., obtained with a CPT-SMR logging at x = 14 m) and the corresponding resistivity (red curve) estimated using the isotropic ERT inversion of surface data. Both curves depart from each other, indicating the presence of anisotropy. Figures 2C.2,C.3 show the comparison between the same electrical resistivity logging and collocated horizontal and vertical resistivities obtained from anisotropic ERT inversion of surface and borehole data. As logged resistivity is carried along a vertical profile, it is only sensitive to the horizontal resistivity component of the ground and thus departs from the estimated vertical resistivity of anisotropic medium which confirms the validity of our methodological approach to quantify the anisotropy. Please see references for more details.

3.2.3. Relative Error vs. Array Angle

To assess the effect of anisotropy on data misfit error of isotropic ERT inversion, we consider the same two layered synthetic model as in sections 3.2.1 and 3.2.2. The data acquisition is simulated using only surface-borehole data. The current electrodes are located in wells and the potential electrodes are located at the surface. Array configuration were made using 50 surface electrodes and 15 boreholes electrodes. Electrode spacing is 1 m. Centers of each bipole describe a skew line with the horizontal, forming an angle θ (Figure 2A). The simulated potential data (ϕ_true) are isotropically inverted. The data misfit relative error is computed as the normalized difference between the potential data calculated using the inverted model (ϕ_calc) and the simulated potential data (ϕ_true):

$\begin{array}{ll}\frac{{\varphi }_{calc}-{\varphi }_{true}}{{\varphi }_{true}}*100& (2)\end{array}$

Figure 2D displays scatter plots of data misfit relative error as function of array angle θ for isotropic and anisotropic ERT inversion. For angles between 0 and 45°, the relative errors are mostly negative, meaning that ϕ_calc are underestimated (blue area in Figure 2D.1). The errors become positive for angles between 45 and 90° (orange area in Figure 2D.1). This sigmoid error shape is expected when an isotropic inversion is used to invert ERT data of horizontally anisotropic media. The horizontal resistivity component ρ_H is lower than the vertical resistivity component ρ_V. At low acquisition angles, current flow is mainly driven by ρ_H, and isotropic inversion underestimate the apparent resistivity values. Conversely, current flow is mainly driven by ρ_V at high angles and isotropic inversion overestimate the apparent resistivity values. The underestimations (blue area at low angles) compensate overall the overestimations (orange area at high angles). The sigmoid shape arises for any borehole dipole depth. For a given angle value, the more space is integrated—i.e., the deeper the borehole dipole–, they higher the local relative error (as represented by the colored points in Figure 2D.1). The total mean error of the measures is −2%. The same relative error computation is made with anisotropically inverted data. It shows an error close to zero (−2.75%) and independent of array angles (Figure 2D.2). A sigmoid relative error shape between true data and calculated data resulting from isotropic ERT inversion is then a strong indication of anisotropy existence in the ground.

The points addressed by section 3.2 give various ways to detect electrical anisotropy by analyzing ERT data. It can be difficult to gather information from multiple sources on the field: lack of outcrops, incapacity of drilling numerous wells (e.g., as needed for hydraulic tomography), or even total absence of well. We propose this preliminary methodological qualitative study to ascertain the presence of electrical anisotropy, and then a fortiori to ascertain the presence of hydraulic anisotropy. A full quantitative anisotropic study, in terms of data acquisition and processing, represents more time, resources and costs than a common isotropic study. Nevertheless, processes comprehension and interpretations suffer greatly from the lack of trustful data, and anisotropy consideration might be unavoidable to produce better forecasts, reducing the uncertainties and then the risks on the investigation or engineering works.

The next sections methodologically demonstrate the ability of anisotropic ERT campaigns to quantify the electrical and hydraulic ground anisotropies.

4. Anisotropic Electrical Resistivity Inversion for a Synthetic Case

Before starting the real case study, a synthetic electrical model is created on the basis of hydraulic tomography results. Forward modeling is performed on this model to generate synthetic electric potentials to simulate data acquisition in the field. After that, anisotropic ERT inversion is used to reconstruct ρ_H and ρ_V fields. The comparison between anisotropically inverted fields and the original synthetic model will allow to assess the robustness of the proposed approach to estimate ρ-anisotropy. The section describes the synthetic model (section 4.1), the optimal data acquisition protocol for anisotropic characterization of the subsurface (section 4.2), and the details of the forward and inverse modeling procedures (section 4.3) along with the performances of inversion (section 4.4).

4.1. Synthetic Model

The synthetic model used in this numerical experiment mimics the K fields model obtained from the hydraulic tomography experiment measured between wells P21 and P17 (see Figure 1 for location) by Paradis et al. (2016a). The two wells are separated by 8 m and the aquifer thickness is 9 m, which corresponds to the approximate length of the wells. The K fields were directly transformed in σ values by increasing K by a factor 10⁵, which were inverted to obtain ρ values, to make it realistic of earth materials at the site (values between 10² and 10⁵ Ω.m, Figure 3). This transformation leads to log(ρ_H)∈[1.30;2.52]log(Ω.m) (Figure 3A), log(ρ_V)∈[2.44;4.60]log(Ω.m) (Figure 3B), and log(ρ_V/ρ_H)∈[1;3] (Figures 3C,D), which could be qualified as a moderate anisotropic field. For the synthetic simulation, 34 electrodes (black dots in Figure 3) were placed around the synthetic model: every 1 m inside the wells and every 0.5 m at the surface.

FIGURE 3

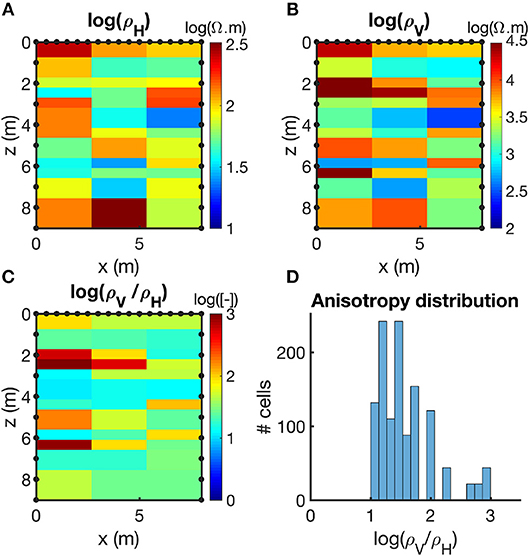

Figure 3. Electrical resistivity synthetic model based on real case hydraulic study results from Paradis et al. (2016a). The horizontal (A) and vertical (B) resistivities ρ_H and ρ_V are the components of the anisotropic resistivity tensor $\overline{\stackrel{̄}{\rho }}$. The anisotropy (C) shows locally up to three orders of magnitude. Black dots represent the electrodes locations. The distribution of anisotropy is represented on the histogram (D).

4.2. Optimal Data Acquisition Protocol

As in the isotropic case presented in section 3, it is crucial to adapt the data acquisition protocol given that electrode configurations are not necessarily sensitive to the same subsurface features. Different electrodes configurations do not have the same sensitivity to anisotropy (Wiese et al., 2009; Greenhalgh et al., 2010; Kenkel and Kemna, 2016). In particular, Bing and Greenhalgh (2000) have detailed the use of cross-hole ERT. Thus, configurations not sensitive to anisotropy should be avoided as using them will lead the inversion toward an isotropic (hence wrong) inverted solution. Using the synthetic model previously described (Figure 3), nine quadrupoles configurations were tested (Figure 4) to assess their ability to detect anisotropy (Figure 5). Those quadrupoles use different combinations of electrodes placed in wells and at the soil surface. The following arrays were tested:

• Two inline borehole protocols with the four electrodes in the left (IB1) or right (IB2) borehole,

• One surface protocol with the four electrodes at the surface (S),

• Two cross-hole protocols with the current electrodes in the same (XH1) or separated (XH2) boreholes,

• Two surface-borehole protocols using left (SB1, SB2) or right (SB3, SB4) borehole, with both current electrodes (or indifferently potential electrodes) in the borehole, the other two electrodes at the surface (SB1 or SB3) or with one current electrode and one potential electrode in the borehole, and one current electrode and one potential electrode at the surface (SB2 or SB4).

FIGURE 4

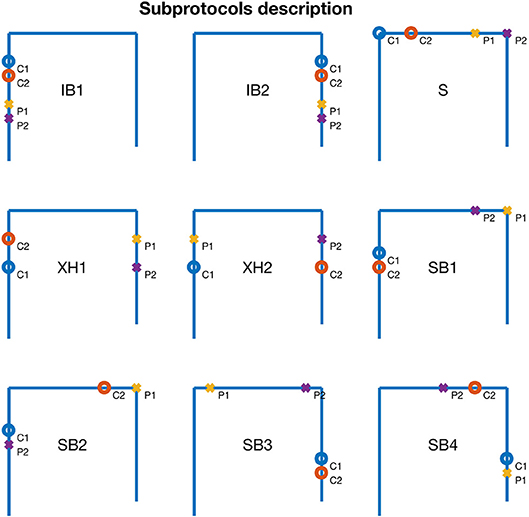

Figure 4. Representation of the different subprotocols used during this study in boreholes and at the surface. For each subprotocol, ◦ represent the current electrodes C1 and C2 and × represent the potential electrodes P1 and P2.

FIGURE 5

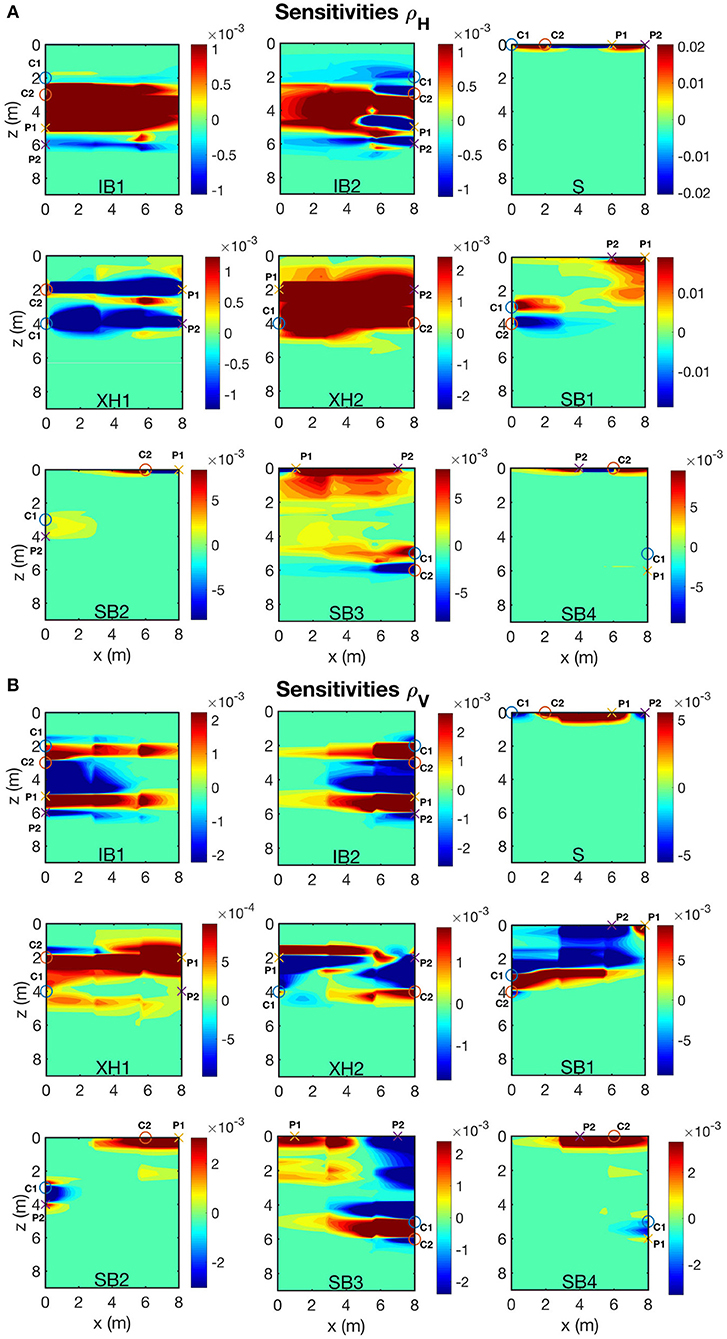

Figure 5. The sensitivity pattern is obtained from the Jacobian matrix (matrix of the potential derivatives according to the resistivity values of the model) computation of the electrode quadrupoles on the synthetic model from Figure 3. (A) Sensitivity pattern relative to ρ_H and (B) Sensitivity pattern relative to ρ_V. Same subprotocols as Figure 4. ◦ represent the current electrodes C1 and C2 and × represent the potential electrodes P1 and P2.

For each of these quadrupoles, the sensitivity of the electric potentials to ρ_H and ρ_V was analyzed using values of the Jacobian matrix, which is the matrix of the potential derivatives according to the resistivity values of the model (Greenhalgh et al., 2009).

As each quadrupole have a distinct sensitivity pattern, several observations can be made from Figure 5. First, inline borehole (IB1, 1B2) and surface (S) configurations show larger sensitivities close to the location of the electrodes, which limit the area of investigation of the surveys performed with those quadrupoles. On the other hand, crosshole (XH1, XH2) and surface-borehole (SB1, SB2, SB3, SB4) quadrupoles are sensitive to much larger areas. However, the magnitude of the sensitivities is larger for S, SB1, and SB3 quadrupoles, which can better resolve ρ_H and ρ_V in the associated sensitive areas using those configurations. Then, the sensitivity patterns for symmetric configurations (IB1 and IB2, SB1 and SB3, SB2 and SB4) show similar behavior despite the electrodes being located in different materials due to the heterogeneous nature of the synthetic model. The contrast in ρ material seems thus to have less impact on sensitivities than the electrode configuration itself. Also, sensitivity patterns for ρ_H and ρ_V are different. This means that a quadrupole can be more influenced by one component of $\overline{\stackrel{̄}{\rho }}$ than by the other. Quadrupoles configuration should be thus chosen accordingly to avoid bias in the measurements.

Given the previous observations, the S, IB1, IB2, XH1, XH2, SB1, and SB3 quadrupoles were then found the most informative and useful for an anisotropic inversion. IB1, IB2, XH1, XH2, SB1, and SB3 quadrupoles were chosen because they appear to be more sensitive to the central region of the investigated section, far from the surface and the wells. They provide information on the whole section. The S quadrupoles, even not significantly sensitive in depth, have been considered because they provide constraints for the model. This further constraints are particularly important since the surficial cells are not well-constrained by borehole electrode configurations and have an important effect on the inversion. Amongst the chosen subprotocols, electrode configurations might be sensitive to the same parts of the characterized section, incorporate redundancy. This redundancy is to be avoided in order to ease convergence of an inverted solution.

4.3. Forward and Inverse Modeling

In this section, the forward- and inverse-modeling (Dey and Morrison, 1979) adapted for anisotropic conditions (Gernez et al., 2018) is used to compute both forward and inverse modeling of ERT data on a numerical grid made of 8,970 squared cells of 25 × 25 cm. The forward modeling on the synthetic model used a protocol made of 755 quadrupoles chosen to be sensitive to the anisotropy (IB1[73], IB2[63], S[39], XH2[220], SB1[118], SB3[242]). The synthetic potentials are transformed on equivalent apparent resistivities ρ_app and were then inverted to reconstruct ρ_H and ρ_V fields. For this reason, XH1 has not been considered since most of its apparent resistivities were negative. To reduce the risk of the model to converge toward a local minimum, homogeneous and anisotropic ρ values were also used to initialize the inverted model (lnρ_H = 4.75 ln Ω.m, ln λ = 6.2146). A weak first-order Tikhonov constraint (α) on the vertical direction was used (α_V/α_H = 0.5) in order to promote horizontal structures (which is consistent which geological information and GPR data). This horizontal smoothing is used to favor a layered inverted model. Conversely, a ratio departing too much from 1 will show horizontal artifacts. By rule of thumb, we choose 0.1 < α_V/α_H < 1. Refining is done by trial and error. A regularized iterative Gauss-Newton method was used to tackle the non-linear inverse problem.

4.4. Inversion Performances

The Figure 6C presents a histogram of the relative error between synthetic and inverted potential values after convergence of the model at the seventh iteration. With most of the relative error centered on zero and an overall low RMSE of 1.7%, the inversion is considered to fit almost perfectly the synthetic potentials.

FIGURE 6

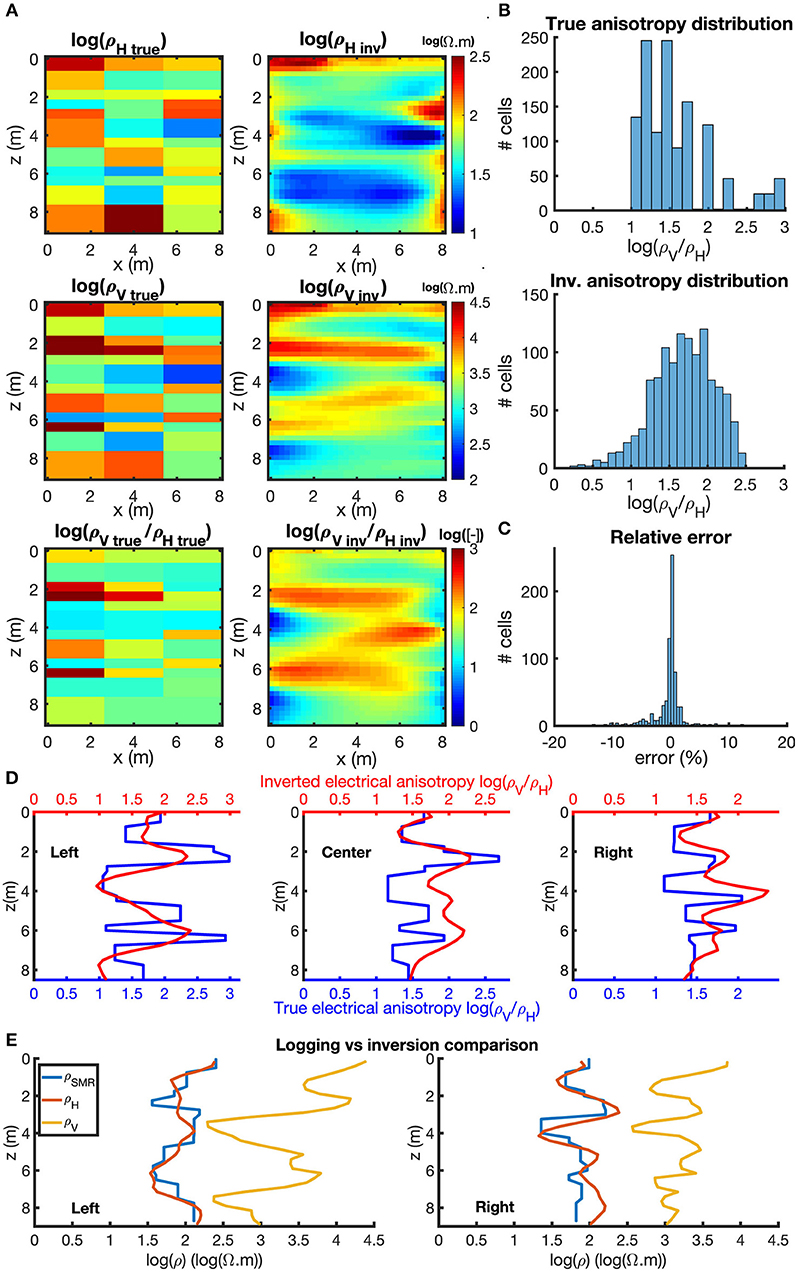

Figure 6. Synthetic study anisotropic inversion results displaying logarithmic inverted resistivities. Unless otherwise stated, ρ_H and ρ_V represent the components of the inverted resistivity ρ_Hinv and ρ_Vinv. (A) True and inverted resistivity models (wells at x = 0 m and x = 8 m). (B) Histograms of the true and inverted anisotropy distributions. (C) Histogram of the relative error between measured and inverted ρ_app. (D) Comparison between true (blue curves) and inverted (red curves) anisotropies. To compensate the resolution difference, the inverted anisotropy is averaged on the 2.5 m around the wells and in the center of the modeled section. (E) Comparison between the logged (ρ_SMR, blue curves), and the inverted horizontal (ρ_H, red curves) and vertical (ρ_V, yellow curves) resistivities (corresponding to the left and right resistivities section). Notice the similarities between ρ_SMR and ρ_H.

Moreover, the Figure 6A (right) shows ρ fields resulting from the inversion. While the ρ fields are smoother than the synthetic model [Figure 3, 6A (left)], the main features of the subsurface are reproduced, such as alternations of low and high ρ layers and overall range of ρ variations. Also, the analysis of the frequency distributions of synthetic and inverted ρ-anisotropy reveals similarities with quasi-normal distributions (Figures 3D, 6B). Examination of rho profiles along the depth (Figure 6D) illustrates more specifically the good agreement between synthetic and inverted fast alternations between low and high values of rho-anisotropy: both the trends and magnitudes of the synthetic and inverted profiles are well-reproduced. Finally, inverted ρ_H matches well the logged rho (Figure 6E), in agreement with the paradox of electrical resistivity anisotropy detailed in section 3.2.2.

Given the above model performances, we have shown that anisotropic inverse modeling is able to reconstruct ρ fields, particularly ρ-anisotropy, even for a very challenging aquifer with moderate heterogeneity and anisotropy.

5. Field Case Study: Comparison Between Electrical and Hydraulic Anisotropies

Through the synthetic study presented in section 4.1, we demonstrated the ability of our methodology to characterize an electrically anisotropic environment using an adapted ERT survey (acquisition and inversion), without further external information. In this section, we want to verify with in situ measurements the possibility to characterize K-anisotropy from ERT anisotropic inversion.

The wells used for ERT were installed by direct-push technique in order to minimize skin effects around wells during testing (Paradis et al., 2011). Conventional well installation procedures indeed require the use of sand-pack to fulfill the space between the drilling hole and the screen, which may hinder the electrical response of the natural formation behind it. Direct-push well installation procedure allows the screen to be in direct contact with the aquifer with minimal disturbances to the surrounding sediments. The screen of the wells is open to the entire thickness of the aquifer allowing for multi-level hydrogeological and geophysical surveys. The screens ensure the free flow of water with slotted openings of 2.5 mm spaced vertically at every centimeter and covering over half of the circumference of the screens. The wells are also made of electrical insulator material (PVC) to ensure the integrity of electrical measurements.

The ERT setup is displayed in Figure 1. It consists of 17 inhole electrodes (9 in P17 and 8 in P21) and 17 surface electrodes located around the plane formed by P17 and P21 wells. P17 and P21 are separated by 8 m, electrodes separation is 1 m inside the wells and 0.5 m at the surface. Using this configuration, 18,936 electric potentials were measured with an IRIS Syscal Pro system. In addition, high resolution horizontal resistivity log data are available, acquired along P17 and P21 with the CPT-SMR probe. The SMR probe measures the resistivity using two ring electrodes 9 cm apart at a 1 kHz frequency to reduce polarization effects (Shinn et al., 1998; Paradis et al., 2015b). The log is 10.41 m deep at P17 and 9.96 m deep at P21, and ρ_H is measured over a 5 cm interval.

Before getting to the inversion, a quality control was done on the data using the reciprocal data. Interchanging the two electrodes inside a pair (current or potential) should only alter the sign of the measured potential data. Alternatively, interchanging the two pairs (current with electrodes) should provide the same measured potential data by principle of reciprocity (Slater et al., 2000). During our survey, 5369 data has been acquired to that end. Amongst them, 89.6% of these data show a difference of < 15%, and that 84.5% show a difference of < 5%. These values show an overall good quality data set. From the whole data set, we can extract the data used for the inversion (section 5.2). Inverse modeling is computed on a numerical grid made of 8,970 squared cells of 25 × 25 cm, similarly to the synthetic case (section 4).

5.1. Anisotropy Diagnosis of Real Case Study ERT Data

In section 3.2 two different approaches were presented to assess the electrical anisotropy by analyzing ERT data. In the following, anisotropy diagnosis of real case study ERT data is studied by performing isotropic ERT inversion. After removing negative ρ_app data and poor quality data, 12,933 resistance data measurements were considered for the inversion. The isotropic ERT inversion converges after 10 iterations with an acceptable RMSE of 8.3%. Nevertheless, numerous erratic structures that do not correspond to the known geology of the site (section 2) appear on the isotropic resistivity image (ρ_iso, Figure 7A). More precisely, few small resistivity structures are close to the electrodes, where the inverted section is usually better resolved as shown in Figure 2B.2.

FIGURE 7

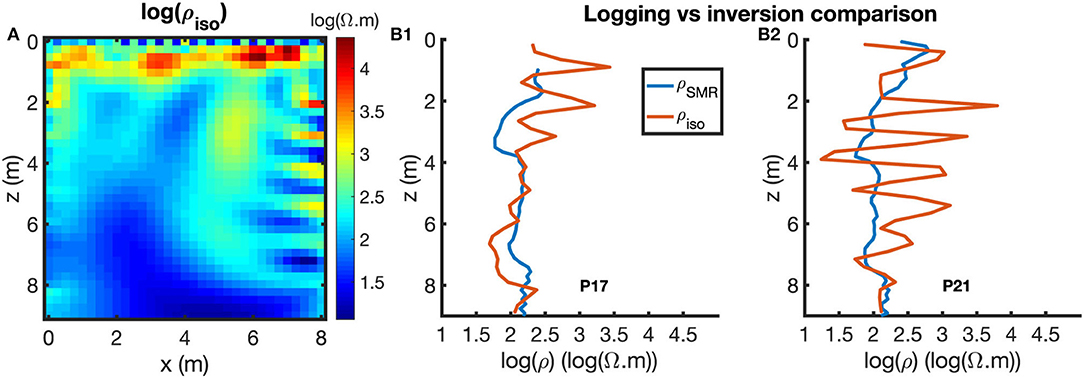

Figure 7. Real case study isotropic inversion results displaying logarithmic inverted resistivities. (A) Inverted results from the apparent resistivities acquired between P17 (x = 0 m) and P21 (x = 8 m) on the tomography site (Figure 1). (B) Comparison between the logged (ρ_SMR, blue curves) and the inverted isotropic (ρ_H, red curves) resistivities (corresponding to the P17 [B1] and P21 [B2] resistivities).

When ρ_iso is compared to the logged ρ in P17 and P21 wells (Figure 7B), ρ_iso shows very high frequency variations on both wells, and its values do not correspond to ρ values. As we have shown before (section 3 and Figure 3C), this is due to anisotropy. We then established the presence of anisotropy using a very fast approach in comparison to hydrogeological experiments. In fact, ERT data are carried out in less than a few hours, whereas several weeks are needed for anisotropic hydrogeological tomography data acquisition. Therefore, electrical anisotropy diagnosis approaches can be used as an assisting tool to help taking hydraulic decisions.

5.2. Anisotropic Inversion of Anisotropic ERT Data

As for the synthetic case, XH1, SB2, and SB4 arrays are not considered. The used protocol is made of 975 measures (IB1[75], IB2[64], S[38], XH2[436], SB1[186], SB3[176]), based on the result obtained in the synthetic study. Homogeneous and anisotropic ρ values were used to initialize the inverted model with an initial ρ_H value corresponding to the median of the measured apparent resistivities and an initial anisotropy value of λ = 10. The convergence is reached after 6 iterations, after which misfit or RMSE slightly decrease, but do not improve significantly anymore. At this point, the inverted model starts integrating the noise held in the data, so further iterations are ignored. The relative error between the measured and the computed ρ_app from the inverted model is shown in Figure 8B. The histogram displays a slight bias of 4.3% in the relative error and a standard deviation of 10.83%. Unlike the synthetic case study, detailed information of the ground structure is unavailable, making hard the building of an optimized protocol. The chosen protocol was inspired from the synthetic case study since the latter was based on the hydraulic characterization of the ground. The residual error can be explained by the difficulty it met to reconcile its different sensitivities, whose preliminary examination is not achievable. Nevertheless, the final error (9.3%) combined with the relative error are considered low in a noisy real case study context.

FIGURE 8

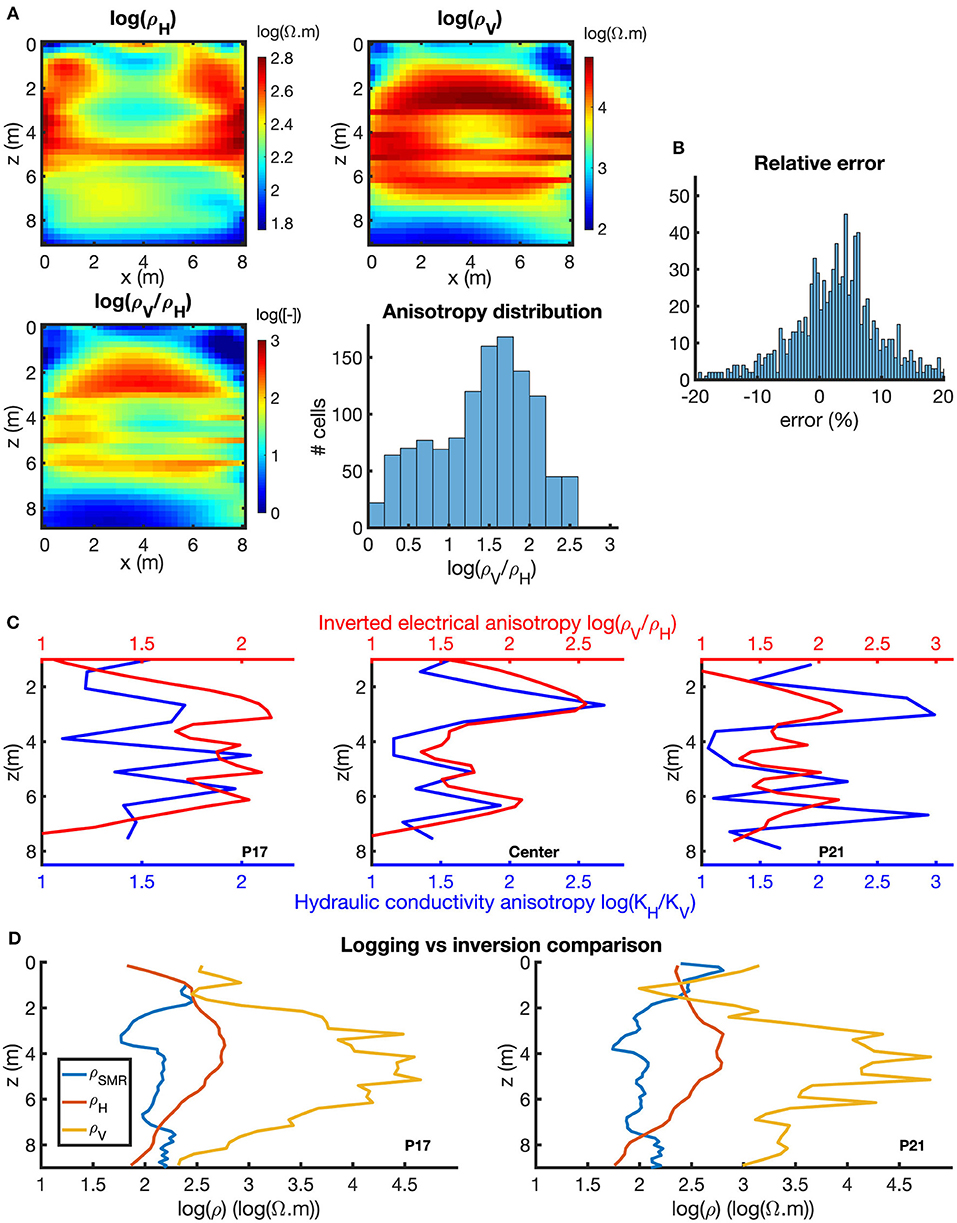

Figure 8. Real case study inversion results displaying logarithmic inverted resistivities. (A) Inverted results from the apparent resistivities acquired between P17 (x = 0 m) and P21 (x = 8 m) on the tomography site (Figure 1). (B) Histogram of the relative error between measured and inverted ρ_app. (C) Comparison between inverted hydraulic (blue curves) and electrical (red curves) anisotropies. Hydraulic data starts at z = 1 m (saturated depth). To compensate the resolution difference, the inverted resistivities are averaged on the 2.5 m around the wells and in the center of the modeled section. (D) Comparison between the logged (ρ_SMR, blue curves), and the inverted horizontal (ρ_H, red curves) and vertical (ρ_V, yellow curves) resistivities (corresponding to the P17 and P21 resistivities).

The inverted sections are shown in Figure 8A. Both ρ_H and ρ_V sections show subhorizontal structures, as expected from our geological and hydrogeological knowledge of SLdL. The comparison between K (blue curve in Figure 8C) and ρ (red curve Figure 8C) anisotropies show strong similarities in their patterns and their amplitudes. It indicates the ability of anisotropic ERT inversion to characterize K-anisotropy. Finally, CPT-SMR resistivity is compared to anisotropic ERT inversion results (Figure 8D). Similarly to the synthetic case, the graphs display the collocated logged (ρ_SMR, blue curve), horizontal (ρ_H, red curve) and vertical (ρ_V, yellow curve) resistivities on wells P17 and P21. On the contrary to isotropic ERT inversion, horizontal resistivities at P17 and P21 are smooth which is consistent with CPT-SMR resistivities. However, there is a gap between the two curves. More precisely, horizontal resistivities are several times higher than CPT-SMR resistivities. This difference is due to the fully-screened wells effect on ERT data. CPT-SMR data measurement is carried out by direct-push before fully-screened well installation. Its coupling is very good, the electrodes being in direct contact with the undisturbed investigated underground. In the ERT case, acquisition is done using electrodes immersed into water in the screened well. Due to this aqueous environment, a part of the current is channelized along the well and affects the inverted model. The use of packers could prevent this channeling. Unfortunately, we were not able to implement this experiment during the campaign acquisition. Moreover, to our knowledge, the borehole effect has been studied in the isotropic case when the electrodes are mounted on the electrically insulated borehole casing (Doetsch et al., 2010; Wagner et al., 2015; Lee et al., 2016). This effect is important only for large resistivity contrasts between the rock formation and borehole fluid and for large borehole diameters (Doetsch et al., 2010). Furthermore, sensitivity is very high close to the electrode. Impact of close objects or structures are important (Binley and Kemna, 2005). According to us, because the ERT method is very sensitive to the resistivity variations close to the electrodes, the screened borehole casing impacts the resistivity model. In our opinion, borehole effect in our case is substantially handled by anisotropic inversion because hydraulic tomography shows approximately the same anisotropy variations as electrical resistivity tomography. On the contrary, isotropic inversion shows a lot of artifacts around the boreholes.

If Figures 8C,D show the comparison between various linked parameters, a direct proportionality relation between ρ and K anisotropies is hard to achieve. The sensitivities of the geophysical and hydraulic methods are not the same. Moreover, both anisotropy sections are inverted sections, coming from two different inversions (in terms of grid size, regularization, etc.). To obtain a direct proportionality relation between ρ and K anisotropies, or even directly between ρ and K values, further investigations are needed to that goes beyond the framework of this work (use of packers to prevent current channeling, use 3-D finite elements code to more efficiently remove the well effects, etc.).

6. Conclusions

Hydraulic anisotropy has a major influence on the groundwater flow and mass transport. Its consideration is essential when it exists. Through this study, we pointed out: 1. the ability of isotropic ERT modeling to assess the presence of ρ-anisotropy, 2. the ability of anisotropic ERT modeling to quantify ρ-anisotropy and 3. the strong relationship existing between K- and ρ-anisotropies through an in situ survey. To achieve this work, we developed a new methodology based on an innovative anisotropic ERT modeling tool. To overcome the equivalence problem, electrodes were placed inside a fully screened borehole along with surface electrodes. Anisotropic ERT inversion is then carried out to estimate the ρ-anisotropic model. The latter suggest a strong link with the collocated K-anisotropic characterization: even though the setup used does not allow a direct proportionality relation, the proposed geophysical method is able to provide proxy of the in-situ hydraulic anisotropy.

In this study, we have shown that the anisotropic electrical resistivity surveys are helpful for anisotropic hydrogeologic parameters characterization, which paves the way for large scale hydrogeophysical characterization campaigns, even in challenging anisotropic environments. Integrated hydrogeophysical studies can therefore be powerful approaches in the understanding processes in order to produce more reliable forecasts.

Author Contributions

EG funded the project. DP and EG conceived the idea of linking the in situ resistivity and hydraulic anisotropies. AB, DP, and EG supervised the project. AB and SG developed the physical and numerical theory, worked on data curation and analysis, and designed the computational modeling framework. AB encouraged further investigation on the data selected for the inversion, contributed to the interpretation of the results, and proposed further methodological experiments to improve data interpretation and final conclusion. SG conceived and carried out the synthetic and field experiments and wrote the manuscript draft. SG, EG, AB, and DP provided review, editing, and final approving on the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The field data considered in this paper were acquired through the support of the Régie Intermunicipale de gestion des déchets des Chutes-de-la-Chaudière. The authors would like to acknowledge the participation of students for fieldwork. The authors would also like to thank the two reviewers that helped to improve the initial manuscript. This is LMS contribution number 20180391.
