Estimation of phosphorus isotherm parameters: a simple and cost-effective procedure

Equilibrium models used for predicting phosphorus (P) loss from a site often use the Langmuir strength of P bonding, K_L and the P sorption maximum, S_max, or the Freundlich adsorption coefficient, K_F, obtained from traditional isotherms, as model input parameters. The overall objective of the study was to develop a protocol to allow estimation of isotherm parameters for soils using simple extraction techniques without generating time-consuming isotherms. A threshold P saturation ratio (PSR; molar ratio of P to [Fe+Al] in an oxalate- or soil test extracting solution) is the PSR value at which P release from a soil increases abruptly. The soil P storage capacity (SPSC) indicates the amount of P a soil can hold before becoming an environmental risk: SPSC = (Threshold PSR-Soil PSR)*(Fe+Al)*31 mg kg⁻¹. Soil samples with varying P-impact levels from four manure-impacted sites were collected by horizon (Ap, E, and Bt). The PSR, SPSC and isotherm parameters (K_L, K_F, S_max) were determined for all soils and regression equations among various parameters evaluated. Equations were validated with soils data from three other sites. Relationship between predicted and determined parameters were significant (R² = 0.98 for K_L and 0.95 for K_F and S_max) suggesting that isotherm parameters can be obtained from P, Fe, and Al in an oxalate or soil test solution without generating time- and resource-consuming isotherms.

Introduction

Eutrophication of water bodies caused by phosphorus (P) loss from manure and fertilizer-impacted sandy soils has become a major concern in several parts of the world including Canada (Chambers et al., 2009), Europe (Withers and Haygarth, 2007), New Zealand (McDowell and Monaghan, 2015), Sweden (Bergström et al., 2015), and the southeastern United States (Greening and Janicki, 2006; Lehrter, 2008; Paerl, 2009; Jarvie et al., 2013; Sharpley et al., 2013; King et al., 2015; Kleinman et al., 2015). Cost-effective tools are needed to identify locations within agricultural systems impacted by excess P that pose a threat to water quality. The P saturation ratio (PSR) was described (Sims et al., 2002) as the molar ratio of extractable P to extractable Fe and Al using P, Fe and Al concentrations in either an oxalate (Ox) solution (van der Zee and van der Riemsdijk, 1988) or in soil test solutions such as Mehlich 1, “M1” (Nair and Graetz, 2002; Beck et al., 2004) or Mehlich 3, “M3” (Maguire and Sims, 2002; Sims et al., 2002). A threshold PSR, or “change point,” has been identified as the PSR at which P release from a soil through runoff or leaching increases abruptly with further P addition (Casson et al., 2006). In Florida, the PSR concept has been shown to be applicable to the A, E, and Bt horizons of Ultisols (Chakraborty et al., 2012). Based on a threshold PSR value, the soil P storage capacity (SPSC) can be calculated (Nair and Harris, 2004). The SPSC indicates the amount of P a soil can hold before it becomes an environmental risk. The SPSC, unlike the PSR, provides an absolute calculation of remaining P storage (mg kg⁻¹, kg ha⁻¹, etc.) prior to P release at levels posing environmental risks (Nair and Harris, 2004, 2014).

The PSR and SPSC are not routinely determined when quantifying soil P sorption and subsequent risk on a site-specific basis. The widely used methods for soil P sorption and desorption studies are traditional batch P isotherm determinations (Barrow, 1978; Zhou and Li, 2001) for calculations of Langmuir (Berkheiser et al., 1980; Mehadi and Taylor, 1988; Taylor et al., 1996; Li et al., 2007) and Freundlich parameters (Chardon and Blaauw, 1998). The Langmuir isotherm provides valuable information on the maximum P sorption parameter, S_max, and a constant, K_L related to the P bonding energy (Nair et al., 1998).

Phosphorus isotherm parameters are used in various field-scale models like the Agricultural Nutrient Model (ANIMO), (Groenendijk and Kroes, 1999) the Agricultural Policy Extender model (APEX), and the Soil and Water Assessment Tool (SWAT; Gassman et al., 2004). The isotherm parameters used in specific models are presented in Table 1. Models use P isotherm parameters, either the linear (McCray et al., 2005) or non-linear (e.g., the P bonding strength, Langmuir K_L or the Freundlich adsorption coefficient, K_F), as an input. A potential problem associated with using the linear isotherm equation in simulating P loss from soils at higher solution P concentration has been indicated (Knisel et al., 1991; Zhou et al., 1997). Therefore, the use of non-linear isotherm models is preferable to linear isotherm models for prediction of P loss under long-term animal agricultural production systems (Radcliffe and Cabrera, 2006; Nelson et al., 2007). The proper P loss risk assessment via mechanistic model can better be assessed by incorporating the values of isotherm parameters (either Langmuir or Freundlich equations) obtained site-specifically from real field situations.

TABLE 1

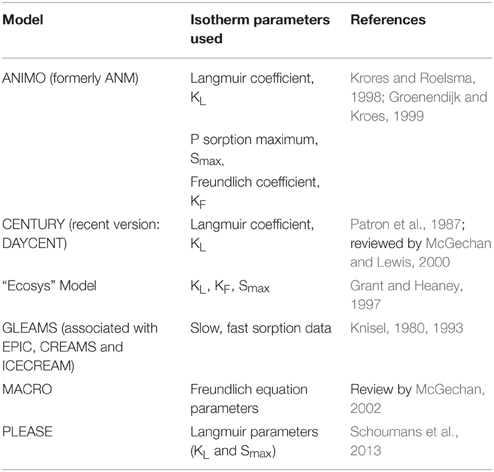

Table 1. Isotherm parameters used in various mechanistic phosphorus loss models.

Our hypothesis is that K_L or K_F would be variable below the threshold PSR and would tend toward zero as the threshold PSR is exceeded. Isotherm parameters below the threshold value will be related to SPSC. The K_L or K_F value will increase with increase in positive SPSC such that isotherm parameters may be predicted from P, Fe, and Al concentrations in an oxalate solution or soil test solutions like M1 or M3. Based on the above hypotheses, the overall objective of the study was to develop a protocol that would allow the estimation of K_L or K_F, and other isotherm parameters such as the S_max of a soil, without generating time-consuming isotherms. Specific objectives of the study were to: (i) develop a relationship between isotherm parameters (K_L or K_F) and values of PSR and SPSC for horizons of common soil orders in Florida and the southeastern USA (e.g., Ultisols/Alfisols/Entisols), (ii) perform cross validation by testing the predictive accuracy of the relationships using samples from other P-impacted sites, and (iii) develop and test the relationship for predicting S_max from Ox-[Fe+Al].

Materials and Methods

Soil Sampling and Sites Description

Sites for Protocol Development

Soil profiles from four dairy farms located in the Suwannee River Basin, southeastern USA (Sites 1–4; Figure 1) were sampled by horizon (Ap, lower depth ~25 cm; E, lower depth ~50 cm; Bt, lower depth of subsamples collected for this study ranged from about 0.5–2.0 m). Random locations within the four sites (1–4) were chosen for sampling (Supplementary Table S1). The total number of soil samples was 108. Samples from these four sites were used for the protocol development. Soils of all these locations within sites were Grossarenic and Arenic Paleudults.

FIGURE 1

Figure 1. Location of the study sites. Sites 1–4 were sampled for Protocol Development and Sites 5–7 were sampled for Protocol Testing 1. All sites were sampled (different locations within the sites) in a subsequent year for Protocol Testing 2.

Sites for Protocol Testing 1

Locations were selected at random from three other sites (Sites 5–7) within the Suwannee River Basin. Soils were collected by horizon for a total of 66 samples (Supplementary Table S1). Sites 5 and 6 were dairy farms in Florida; Site 7 was a poultry farm in Georgia (Chrysostome et al., 2007; Figure 1). Soils from these sites included Grossarenic- and Arenic subgroups of Paleudults and Paleudalfs, and Typic Quartzipsamments.

Sites for Protocol Testing 2

Soil samples were collected in a subsequent year, after additional P loading, from locations within Sites 1–7 (total 135 samples, Supplementary Table S1).

Chemical Analyses

Soil Physico-chemical Properties Determination

Samples were homogenized, air-dried, and passed through a 2-mm sieve before analyses. Soil pH was measured with a suspension of soil in water at a 1:2 (w:v) soil-to-solution ratio using a glass electrode. Oxalic acid (0.1 M) and ammonium oxalate (0.175 M) solution, equilibrated at a pH of 3.0 (McKeague and Day, 1966), were used as the extracting agent to determine oxalate-extractable P (Ox-P), Fe (Ox-Fe), and Al (Ox-Al). The suspension was shaken in a mechanical shaker for 4-h in the dark, centrifuged, filtered through a 0.45-μm filter, and analyzed for P, Fe, and Al by inductively coupled plasma spectrometry (Thermo Jarrel Ash ICP 61E, Thermo Elemental, Franklin, MA; Loeppert and Inskeep, 1996). Water-soluble P (WSP) was determined by extracting each soil sample with deionized water at 1:10 (w:v) soil-to-water ratio, and analyzing P on the filtrate collected after passing through a 0.45 μm filter. Water-soluble P concentrations were determined by an autoanalyzer (USEPA, 1983) following the Murphy and Riley (1962) procedure.

Phosphorus Sorption Isotherms

Phosphate sorption was measured on all collected soil samples using 2 g of air-dried, homogenized soil treated with 20 mL of 0.01 M KCl solution containing 0, 0.1, 1, 5, 10, 25, 50, and 100 mg P L⁻¹ added as KH₂PO₄ (Graetz and Nair, 1995) in 50 mL centrifuge tubes. Tubes were placed on a mechanical shaker for a 24-h equilibration period, centrifuged at 6000 rpm for 10 min and filtered through a 0.45-μm membrane filter. The filtrate was analyzed for soluble reactive P by an autoanalyser (USEPA, 1983) following the Murphy and Riley (1962) procedure. All extractions and determinations were done at room temperature (25 ± 1°C).

Calculations

Isotherm Parameters Calculation

The Langmuir K_L (Langmuir, 1918) or P bonding strength was calculated from the modified Langmuir isotherm model (Nair and Reddy, 2013) (Equation 1) as:

$\begin{array}{ll}S=(S_{\text{max}}{\text{K}}_{\text{L}}\text{C})∕(1+{\text{K}}_{\text{L}}\text{C})\text{ or C}∕\text{S}=1∕{\text{K}}_{\text{L}}{\text{S}}_{\text{max}}+\text{C}∕{\text{S}}_{\text{max}}& \left(1\right)\hfill \end{array}$

Where, S = S′ + S₀, the total amount of P sorbed (mg kg⁻¹),

S′ = P sorbed by the soil solid phase (mg kg⁻¹),

S₀ = Originally sorbed P on the soil solid phase (mg kg⁻¹),

C = Concentration of P after 24 h equilibration (mg L⁻¹),

S_max = P sorption maximum (mg kg⁻¹),

K_L = A constant related to bonding energy (L mg⁻¹),

S₀ was estimated using a least square fit of S' measured at low equilibrium concentration (Nair et al., 1998). The procedure was illustrated to adjust the total amount of P sorbed taking into consideration the initial P present in the soil phase (Graetz and Nair, 1995). A typical example of a Langmuir isotherm plot from the current data including the procedure in estimating S₀ and EPC₀ is shown in Supplementary Figure S1.

The Freundlich adsorption coefficient or K_F was calculated from non-linear Freundlich isotherm model (Freundlich, 1926) (Equation 2) as:

$\begin{array}{ll}\text{A}={\text{K}}_{\text{F}}{\text{C}}^{\text{N}}& \left(2\right)\hfill \end{array}$

Where, A = amount of adsorbate adsorbed per unit mass of solid (mg kg⁻¹),

C = equilibrium solution concentration of the adsorbate (mg L⁻¹),

K_F = Freundlich coefficient,

N = empirical constant.

The Freundlich equation becomes a linear relationship when N = 1. Subsequently, the Freundlich equation (Equation 2) can be log-linearized and Equation (3) can be obtained. Plotting of log C on the x-axis and log A on the y-axis showed a best-fit straight line with a slope of N, and log K_F is its intercept. The log linearized form of the equation is:

$\begin{array}{ll}\text{Log}(\text{A})=\text{Log}({\text{K}}_{\text{F}})+\text{NLog}(\text{C})& \left(3\right)\hfill \end{array}$

PSR Calculations

The PSR of a soil from P, Fe, and Al concentrations can be calculated (Equation 4) as:

$\begin{array}{l}\text{PSR}=(\text{Extractable}-\text{P}/31)\text{/}((\text{Extractable}-\text{Fe}/56)\\ +(\text{Extractable}-\text{Al}/27))& \left(4\right)\hfill \end{array}$

where, P, Fe, and Al are expressed in moles (Sims et al., 2002; Nair, 2014). The extracting reagent can be an acid ammonium oxalate extractant or a soil test solution such as M1 or M3. In this study, the PSR has been calculated using acid ammonium oxalate (Ox) extractant (Equation 5).

$\begin{array}{ll}\text{PSR}=(\text{Ox}-\text{P}∕31)∕((\text{Ox}-\text{Fe}∕56)+(\text{Ox}-\text{Al}∕27))& \left(5\right)\hfill \end{array}$

SPSC Calculation

SPSC (Equations 6 and 7) was calculated using the threshold PSR as:

$\begin{array}{l}\text{SPSC }(\text{mgk}{\text{g}}^{-1})=(\text{Threshold PSR}-\text{Soil PSR})\\ *(\text{Ox}-\text{Fe}+\text{Ox}-\text{Al})*31& \left(6\right)\hfill \end{array}$

$\begin{array}{l}\text{SPSC\hspace{0.17em}}({\text{mgkg}}^{-1})=(0.10-\text{Soil\hspace{0.17em}PSR})\ast [(\text{Ox}-\text{Fe}/56)\\ +(\text{Ox}-\text{Al}/27)]\ast 31& \left(7\right)\hfill \end{array}$

Nair and Harris (2014), in a recent review of the SPSC concept they developed earlier (Nair and Harris, 2004), indicated the benefits of the procedure for environmental P risk assessment. The value for the threshold PSR (0.10; 95% Confidence interval of 0.05–0.15) was obtained as the “change point” in a water soluble P vs. PSR relationship (Nair, 2014). There is a strong (nearly 1:1) linear relationship between SPSC as calculated from oxalate P, Fe, and Al and from a soil test solution such as M3-P, Fe, and Al (Supplementary Figure S2). Hence results of this study are applicable for M3 extraction results as well as for ammonium oxalate. Andres and Sims (2013) used P, Fe, and Al in a Mehlich 3 solution to show how the inexpensive tests (PSR and SPSC) could be used to assess the impacts of a wastewater rapid infiltration basin system on groundwater quality in Delaware, USA.

Statistical Analyses

Empirical relationships developed between P isotherm parameters and soil test parameters (PSR and SPSC) were statistically obtained using correlation and regression analyses in Excel 2013. A proc non-linear split line (NLIN) model in SAS 9.3 (SAS, 2010) statistical software was used to determine the change point or threshold PSR as computed by others (McDowell and Sharpley, 2001; Casson et al., 2006; Chakraborty et al., 2011). The model describes linear relationships between WSP and PSR before and after the PSR vs. WSP change point (Nair, 2014). The model parameters sensitivity analyses were performed by random sub-sampling with replacement in R software (Team, 2012).

Results and Discussion

Soil Characterization

Soil samples analyzed for protocol development were acidic in nature with pH values ranging from 4.61 to 6.27 for all the locations in Sites 1–4 (Supplementary Table S2). Water-soluble P, an indicator of the amount of P that will be released from the soil when it is in contact with water from sources like rain or irrigation, showed a decreasing trend from Ap and E horizons to subsurface (Bt) horizons. The sandy Ap horizons generally had greater Ox-P content than subjacent horizons (Supplementary Table S2). The Bt horizons were characterized by highest amount of metal oxides concentration compared to overlying Ap and E horizons, with Ox-Fe values up to 662 mg kg⁻¹ and Ox-Al values up to 921 mg kg⁻¹, consistent with higher P adsorption capacity than for sandier overlying horizons. These data are consistent with those of other studies reporting on P distribution in Paleudult profiles of the southeastern USA Coastal Plain (Harris et al., 1996; Zhou et al., 1997; Chakraborty et al., 2012) with a wide range of P sorption capacities.

Protocol Development: Relationship of Soil PSR and SPSC to Isotherm Parameters

A plot of K_L vs. PSR (Figure 2A, n = 108) showed that P bonding strength is high and variable below the threshold PSR and gradually decreases and approaches zero once the threshold value of PSR is reached. A similar trend was observed for K_F vs. PSR (Figure 2B, n = 108). It was reported that equilibrium P concentrations (EPC₀) showed a similar trend with PSR, being minimal below the threshold PSR but increasing above the threshold PSR for acid mineral soils of Florida (Chakraborty et al., 2012). The relationship between PSR and EPC₀ is also applicable to wetland soils; organic matter in a wetland does not contribute to P retention below the threshold PSR (Nair et al., 2015). In the current study, there was a clustering of Bt samples below the threshold in the current study, of E samples near the threshold, and of Ap samples near to the threshold. These clustering trends reflect both depth proximity to the surface P deposition and greater P retention capacity of the Bt due to higher clay and metal content.

FIGURE 2

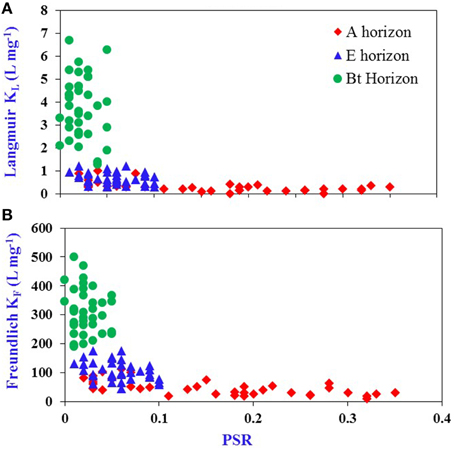

Figure 2. Relationship between: (A) K_L and P saturation ratio (PSR) calculated using P, Fe, and Al in an oxalate extract and (B) K_F and PSR for A, E, and Bt horizons of Ultisols/Entisols/Alfisols (n = 108).

The K_L vs. SPSC relationship could provide a better risk estimation compared with the corresponding relationship with PSR, as SPSC takes into account the P that may be added to a soil prior to reaching the threshold PSR of 0.10 (Nair and Harris, 2014). The Langmuir K_L increased with positive SPSC (Figure 3A) but such a trend was not evident for the K_L vs. PSR relationship (Figure 2A) or when SPSC is negative such that K_L is essentially zero. The K_F vs. SPSC relationship gives two linear equations, one for positive SPSC and the other for negative SPSC (Figure 3B) independent of the horizon designations. Hence the Freundlich model could be used in cases of negative SPSC; such a relationship cannot be obtained for the Langmuir parameters since K_L approaches zero for the A horizons in this study.

FIGURE 3

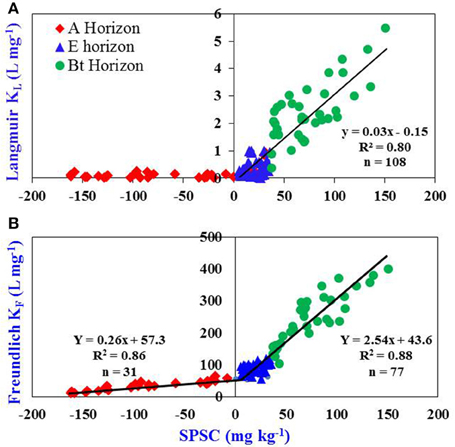

Figure 3. Relationship between: (A) K_L and soil P storage capacity (SPSC) and (B) K_F and SPSC for A, E, and Bt horizons of Ultisols/Entisols/Alfisols. The relationship between K_L and positive SPSC is linear; y = 0.03x–0.15. The relationship between K_F and SPSC has been divided into two parts: positive SPSC and negative SPSC. The relationship of K_F under both the situations (positive and negative SPSC) is linear; y = 0.26x + 57.3 and y = 2.54x + 43.6, respectively. The units for each parameter in the linear equations are Y = L mg⁻¹, X = mg kg⁻¹, 0.03 = L mg⁻¹, 0.15 = mg kg⁻¹, 0.26 = L mg⁻¹, 57.3 = mg kg⁻¹, 2.54 = L mg⁻¹, 43.6 = mg kg⁻¹.

The SPSC vs. K (K_L or K_F) relationship allows K_L or K_F for soils to be estimated. The SPSC was not significantly related to K_L or K_F for A or E horizons analyzed individually due to clustering at very low values of SPSC. However, these relationships were highly significant for Bt horizon samples analyzed separately (R² = 0.74 and p < 0.001). The approach of getting a relationship between isotherm parameters and soil test data across all horizons is especially important when considering P loss via leaching and subsurface movement through tile drainage resulting in water quality degradation (King et al., 2014). Since the PSR—SPSC concept is also applicable to wetland soils (Nair et al., 2015), relationships between isotherm parameters and soil test data obtained in this study would likely be useful in evaluating legacy P storage and release from wetland soils as well.

The K_F and K_L values as obtained from the relationships developed represent values obtained for soils under site-specific conditions. For example, addition of poultry manure to a soil, showed that when data were fitted to the Freundlich equation, the extent of adsorption was lowered (Bahl and Toor, 2002), and the ability to bind additional P reduced. Similarly, Nair et al. (1998) found that addition of dairy manure to a soil resulted in P release from a soil with minimal P-retaining properties since the high energy sorption sites were saturated (K_L became 0), corresponding to the soil reaching the threshold PSR (or zero SPSC). Therefore, both K_F and K_L values are reduced with P additions and the values no longer represent the true binding affinity of a soil that is based on soil texture and composition.

Protocol Testing

Protocol Testing 1

Isotherms were performed for the soil samples collected from Sites 5–7 by the traditional batch incubation method; the K_L, K_F, and S_max were calculated by fitting the data into respective models. These isotherm parameters are referred to as determined values. The isotherm parameters for these sites obtained from the SPSC relationships developed from data in Sites 1–4 (Figures 3A,B) are referred to as the predicted values. The predicted isotherm values were then compared with determined values. A linear relationship was observed for predicted and determined K_L with an R²-value of 0.98 (close to the 1:1 linear correlation line), indicating a good fit (Figure 4A).

FIGURE 4

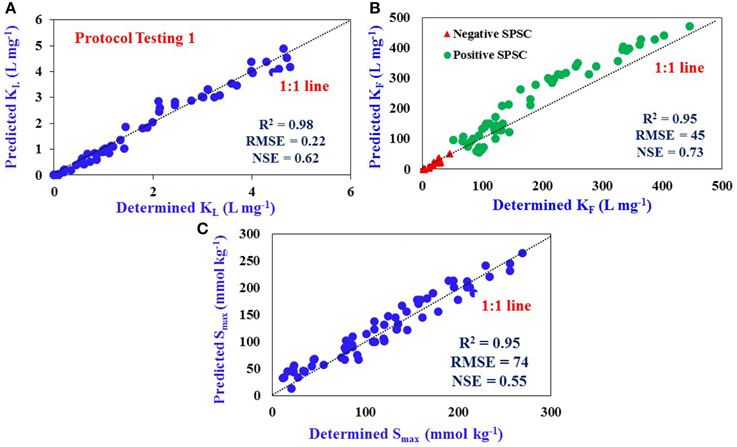

Figure 4. Comparison of determined and predicted values: (A) Langmuir K_L (R² = 0.98), (B) Freundlich K_F (R² = 0.95), and (C) P Sorption Maximum, S_max (R² = 0.95) for Sites 5–7 using predictive equations developed from Sites 1–4 data. Dotted line represents 1:1 linear correlation. The number of samples used for Protocol Testing 1 is 66 (n = 66). The data represent samples from all three horizons.

The K_F values for Sites 5–7 were predicted from the equations developed (Figure 3B) for positive and negative SPSC. However, it was possible to obtain a single predicted K_F vs. determined K_F relationship that was independent of the nature of SPSC (positive or negative; Figure 4B) since the slopes for the independent relations were identical. The R²-value of this relationship was 0.95, again indicating a good fit. The S_max of a soil could be predicted based on its relationship with [Fe+Al] and the predicted vs. determined S_max relationship indicated a good fit with R² of 0.95 (Figure 4C).

The accuracy of model prediction was assessed by the root mean-square error (RMSE), Nash-Sutcliffe efficiency (NSE) for both Langmuir and Freundlich models as well as S_max testing graphs. The NSE values for all the three predictions were within optimum range of model prediction (0.62, 0.73, and 0.55 for K_L, K_F and S_max, respectively; 0–1 being optimum range), suggesting a good fit of model for testing the predictive equations. The determined vs. predicted relationship for K_L (Figure 4A) and K_F (Figure 4B) was used to verify the applicability of the equations developed to predict isotherm parameters across soil horizons and soil types. Properties of the soils at these sites (Supplementary Table S3) were similar to those at Sites 1–4 (Supplementary Table S2). The K_L and K_F values along with S_max, and N, the Freundlich coefficient, for all sites are provided in Supplementary Tables S4, S5. The soils used in validating the equations had a range of P impact levels (Supplementary Table S3) including Ap horizons with both positive (5 to 160 mg kg⁻¹) and negative (−22 to −291 mg kg⁻¹) SPSC values.

The S_max of a soil can be predicted based on its relationship with [Fe+Al] van der Zee and van der Riemsdijk, 1988. From the relationship between S_max and oxalate extracted-[Fe+Al] obtained for the soils in four sites (Supplementary Figure S3), S_max for the soils for Sites 5–7 was predicted. The relationship between oxalate extracted-[Fe+Al] and Mehlich-3 extracted-[Fe+Al] (Supplementary Figure S4) was evaluated. A 1:1 linear correlation was obtained between determined and predicted S_max (Figure 4C) with a R²-value of 0.95 (RMSE: 74 and NSE: 0.55) suggesting that S_max can be obtained from a soil test solution such as M3. Nair and Graetz (2002) obtained a similar relationship of S_max with [Fe+Al] for Florida soils in the Lake Okeechobee Basin dominated by Spodosols with a organically-complexed Bh (spodic) horizon, suggesting that the equation developed in this study would most likely be applicable across other mineral soils as well.

Protocol Testing 2

The predictive equations were also tested in different locations other than those were used for “protocol development” and “Protocol testing 1” within all the sites (Sites 1–7) in a subsequent year to verify their applicability. Again, the determined values of K_L, K_F, and S_max were compared with predicted values as obtained from SPSC values (Figures 4A–C). A good fit of all isotherm values as predicted from equations were noted with a close 1:1 linear correlation line. The values of RMSE, R², and NSE (Figures 5A–C) are indicative of good model prediction for all sites in a subsequent year after additional P loading.

FIGURE 5

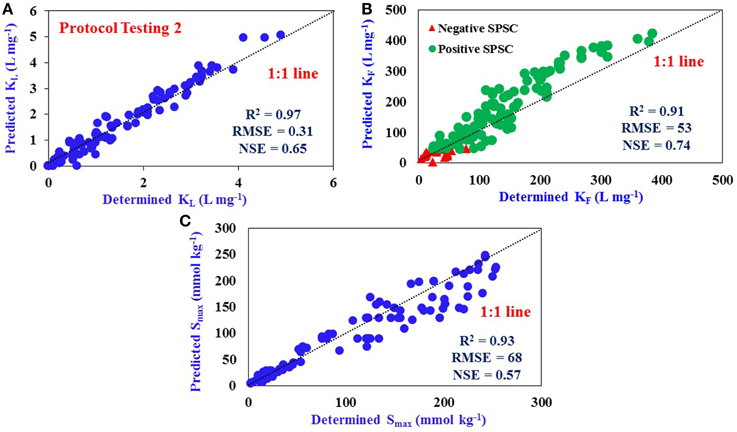

Figure 5. Comparison of determined and predicted values: (A) Langmuir K_L (R² = 0.97), (B) Freundlich K_F (R² = 0.91), and (C) P Sorption Maximum, S_max (R² = 0.93) for various other locations within Sites 1–7 using predictive equations developed from Sites 1–4 data in a previous year. Dotted line represents 1:1 linear correlation. The number of samples used for Protocol Testing 2 is 135 (n = 135). The data represent samples from all three horizons.

Model Parameter Sensitivity Analysis

An alternative approach of model verification and parameter sensitivity was performed on all samples collected for both protocol development and testing through the use of random sub sampling with replacement. Two hundred random samples each of size 108 (the number of soil samples used in protocol development) where taken without replacement out of total of 309 soil samples used for both protocol development and testing (Politis and Romano, 1994). A linear regression model was then fit for each subsample and resulting parameter estimates were saved. The models were fit using the R software. A contour plot of the distribution of the parameter estimates is shown in Supplementary Figure S5 for Langmuir model (graph not shown for Freundlich model fit). The parameter estimates for the Langmuir isotherms fell within the 95% confidence interval (CI) of the experimental data (Supplementary Figure S6). Only one data point was outside the 95% CI for K_F estimate for negative SPSC; most of the predicted values fell within the 95% CI for positive SPSC with a few outside the range (Supplementary Figure S7). Parameter estimates and their respective standard errors were calculated for K_L and K_F (Supplementary Table S6).

A mean value of 0.028 and median value of 0.029 (5th and 95th percentile: 0.00–0.04) were obtained for all the slope values of linear predictive equations (for Langmuir K_L) from model sensitivity analyses indicated the average slopes of the linear equation would be 0.02. The estimate would vary little with change in data, based on the small width of the observed percentiles. Similarly, the average value of intercept of the predictive equation obtained was −0.10 (5th and 95th percentile: 0.05–0.15). Based on the model sensitivity analyses, we propose a more generalized equation of Y = 0.02X-0.12. Similarly, the more generalized form of predictive exponential equation for Freundlich K_F would be Y = 1.24X + 5.12 (mean: 1.25 and median: 1.23; 5th and 95th percentile: 1.05–1.49). These generalized equations can potentially be used site-specifically to predict the isotherm parameters from soil test data for samples in regions where Fe and Al primarily control soil P retention. The generalized equations are, however, not very different from the predictive equations developed.

Conclusions

Extant P loss predictive models use the Langmuir K_L or Freundlich K_F obtained from P adsorption isotherms. Our study documents a practical and accurate means of estimating K_L and K_F, normally determined by more cumbersome adsorption techniques, using readily-determinable extraction data incorporated into the PSR and SPSC expressions. This faster, more cost-effective means of obtaining these adsorption parameters can enable more detailed, site-specific modeling of dynamics and potential environment impact of P in surface and subsurface soil environments. Further studies are needed to verify the validity of the predictive equations for a wide range of soil types across Europe, the US and elsewhere.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

Archived soils used in this study were collected with partial support from the Florida Department of Environmental Protection and the USDA—IFAFS. Support from the USDA—Hatch Funds for various soil analyses is gratefully acknowledged. Thanks are due to P K Nair and Lynn Sollenberger for critically going through the manuscript. The authors would also like to thank Don Graetz, Myrlene Chrysostome, and lab personnel for their help with soil sampling, and Debolina Chakraborty and Dawn Lucas for help with the analytical procedures. We would also like to express our thanks to Dean Rhue for valuable discussions during the earlier stages of this work.

Supplementary Material

The Supplementary Material for this article can be found online at: http://journal.frontiersin.org/article/10.3389/fenvs.2015.00070
