This article is a commentary on:
Comment on “Record solar UV irradiance in the tropical Andes, by Cabrol et al.”
Donat-P. Häder
Uwe Feister
Nathalie A. Cabrol- 1Department of Biology, Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen, Germany
- 2Meteorological Observatory Lindenberg-Richard-Aßmann-Observatory, German Meteorological Service, Lindenberg, Germany
- 3The SETI Institute Carl Sagan Center/NASA Ames Research Center, Moffett Field, Sunnyvale, CA, USA
A commentary on
Comment on “Record solar UV irradiance in the tropical Andes, by Cabrol et al.”
by McKenzie, R. L., Bernhard, G., Madronich, S., and Zaratti, F. (2015). Front. Environ. Sci. 3:26. doi: 10.3389/fenvs.2015.00026
The record high UV-B values measured in the tropical Andes by Cabrol et al. (2014) are due to several circumstances. The location is within the equatorial belt, at high altitude (5917 m a.s.l.) and is characterized by an extremely clear and dry atmosphere. The exceptional high values can be explained by two effects: radiation scattering by clouds described by a cloud modification factor (CMF) and negative ozone anomalies (NOA; Feister et al., 2015). An enhancement of solar irradiance of 43% over cloudless conditions (CMF = 1.43) was reported for Recife, Brazil (8°S; Piacentini et al., 2011). Enhancements by 50% in the UV-B irradiance were reported for Girona (Spain, 42°N and 100 m a.s.l.), and for Toowoomba (Australia, 28°S and 693 m a.s.l.; Sabburg and Long, 2004; Sabburg and Calbó, 2009).
Unfortunately, no satellite-based column ozone data are available for the time and location of the ground-based UV-B irradiance measurements. In addition to generally low stratospheric ozone values in the tropics, small-scale negative ozone anomalies need to be considered which result in short-term high UV-B irradiances and high UV-B/UV-A irradiance ratios occurring at high-altitude sites. Both scattering of solar radiation by clouds and the occurrence of NOAs as discussed by Feister et al. (2015) can explain the high UV-B irradiances and the enhanced UV-B/UV-A ratios.
In addition to the potential sources of NOAs discussed by Cabrol et al. (2014), NOAs could be also produced by short-time and small-scale blue jets, as proposed by Feister et al. (2015). These are beams of electromagnetic pulses with narrow spatial extension of about 400 m on top of Cumulonimbus clouds. They can reach into the stratosphere and extend horizontally to reach diameters of about 3 km at 35 km altitude (Mishin, 1997). The consequences are a short initial increase in ozone due to NOx and N2O production followed by a drastic decrease in ozone concentration due to the production of NO which destroys ozone (Winkler and Notholt, 2015). If spread by atmospheric motion, these NOAs can be detected by satellite-based instruments with high pixel resolution.
The Eldonet instruments used in the study by Cabrol et al. (2014) are part of an international network with over 100 instruments deployed in many countries on five continents. McKenzie has used one of these instruments in New Zealand and is a coauthor of a publication which reported the results of measurements covering more than a decade (Häder et al., 2007). The absolute calibration of the instruments was tested in intercalibrations in Garmisch-Partenkirchen (Häder et al., 1999) and at the Physikalisch-Meteorologisches Observatorium in Davos, Switzerland in 2006. A calibration coefficient of 1.0044 has been calculated (certificate number 2006/BB14/1). The absolute spectral irradiance of the instruments was calibrated against a light source traceable to the primary irradiance standard of the PTB (Braunschweig, Germany).
One final consideration concerns a potential malfunctioning of an instrument due to the challenging environmental conditions in the high Andes. While the UV-B maxima on the summit were about 4.1 W m−2 during the summer, eight instances of extreme irradiances were recorded between 25 November 2003 and 25 January 2004 (Cabrol et al., 2014). A strong argument against a malfunctioning of an instrument being the source for the extreme values is the fact that on several occasions maximal values were found in one instrument located on Licancabur (5917 m a.s.l.) and several hours later by a second instrument positioned at Laguna Blanca 10 km to the east (4340 m a.s.l.) with somewhat lower UV-B irradiances due to the lower altitude. Figure 1 shows the extreme UV-B irradiances recorded on 15 January 2004 for the two locations. The irradiance patterns indicate partly cloudy conditions, which are a prerequisite for the enhanced CMFs, and maxima in the morning between 10 and 11 h for Licancabur and maximal values between 14 and 15 h for the Laguna Blanca instrument. This result (and several others, not shown here) makes the assumption of an instrument malfunctioning highly improbable.

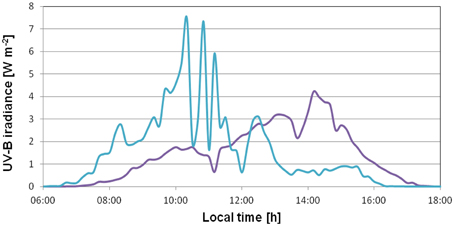

FIGURE 1
Figure 1. UV-B irradiances measured on 16 January 2004 on Licancabur (22.48°S/67.47°W, 5917 m a.s.l.; blue) and at Laguna Blanca (22.50°S/67.53°W, 4340 m a.s.l.; violet).
As a conclusion, the simultaneous occurrence of wavelength-dependent enhanced cloud amplification factors and assumed NOAs at this high altitude site characterized by a close vicinity to the equator and pristine atmospheric conditions may well explain the record high UV-B irradiances reported by Cabrol et al. (2014). A malfunctioning of an instrument can be excluded.
Author Contributions
DH has built and calibrated the Eldonet instruments used on site; UF made the simulation and did the calculation of the cloud amplification factor; NC set up the instruments on the high Andes locations and retrieved them after the measurements were done.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
Cabrol, N. A., Feister, U., Häder, D.-P., Piazena, H., Grin, E. A., and Klein, A. (2014). Record solar UV irradiance in the tropical Andes. Front. Environ. Sci. 2:19. doi: 10.3389/fenvs.2014.00019
Feister, U., Cabrol, N., and Häder, D.-P. (2015). UV irradiance enhancements by scattering of solar radiation from clouds. Atmosphere 5, 1211–1228. doi: 10.3390/atmos6081211
Häder, D.-P., Lebert, M., Marangoni, R., and Colombetti, G. (1999). ELDONET - European Light Dosimeter Network hardware and software. J. Photochem. Photobiol. B Biol. 52, 51–58. doi: 10.1016/S1011-1344(99)00102-5
Häder, D.-P., Lebert, M., Schuster, M., del Ciampo, L., Helbling, E. W., and McKenzie, R. (2007). ELDONET - a decade of monitoring solar radiation on five continents. Photochem. Photobiol. 83, 1348–1357. doi: 10.1111/j.1751-1097.2007.00168.x
Mishin, E. (1997). Ozone layer perturbation by a single blue jet. Geophys. Res. Lett. 24, 1919–1922. doi: 10.1029/97GL01890
Piacentini, R. D., Salum, G. M., Fraidenraich, N., and Tiba, C. (2011). Extreme total solar irradiance due to cloud enhancement at sea level of the NE Atlantic Coast of Brazil. Renew. Energ. 36, 409–412. doi: 10.1016/j.renene.2010.06.009
Sabburg, J., and Calbó, J. (2009). Five years of cloud enhanced surface uv radiation measurements at two sites (in the Northern and Southern Hemispheres). Atmos. Res. 93, 902. doi: 10.1016/j.atmosres.2009.05.003
Sabburg, J. M., and Long, C. N. (2004). Improved sky imaging for studies of enhanced uv irradiance. Atmos. Chem. Phys. Discuss. 4, 6213–6238. doi: 10.5194/acpd-4-6213-2004
