Modeling radionuclide Cs and C dynamics in an artificial forest ecosystem in Japan -FoRothCs ver1.0-

Predicting the environmental fate of Cs radionuclides in forest ecosystems is important for the effective management and assessment of radioactively contaminated forest areas. A large proportion of the radioactively contaminated areas in Japan consist of forest ecosystems, and most of these areas are artificial forests that are used for timber production [e.g., Japanese cedar (Cryptomeria japonica) and red pine (Pinus densiflora)]. Determining the long-term redistribution of ¹³⁷Cs in forest ecosystems is important for estimating human doses and understanding the ecological impacts and challenges associated with managing contaminated forests. To facilitate the management and ¹³⁷Cs decontamination of these forests, we developed a new open-source ¹³⁷Cs cycling model, ForRothCs, that considers C cycling within forests, as well as biomass production and soil decomposition processes. For the ¹³⁷Cs inventory, this model estimates the dynamics (Bq m⁻²) and activity (Bq kg⁻²) of ¹³⁷Cs on a decadal time scale, primarily in the leaves, branches, stems, litter layer, and the soil. This model is based on the biomass production and the dynamics of the C cycle models. We tested the model by considering a simple scenario of forest management, i.e., thinning and harvesting, for the first five years following a fallout event. The results showed that these activities have a limited impact on the ¹³⁷Cs inventory due to the rapid migration of ¹³⁷Cs from vegetation to soil. Our projections also showed the examined forest management practices resulted in reduced litterfall, which in turn reduced C input to the forest floor and increased the concentration of ¹³⁷Cs in the litterfall and soil organic layer. Although further validation of the ForRothCs model is required using field observation data, the model can be used to evaluate long-term ¹³⁷Cs dynamics associated with commonly used forest and decontamination management scenarios.

Introduction

As a result of the March 2011 accident at the Fukushima Daiichi Nuclear Power Plant (FDNPP), large quantities of radionuclides were released into the atmosphere and distributed over terrestrial environments in Japan (Morino et al., 2011). The dominant land use type affected by the FDNPP event was forest, which comprises approximately 70% of the affected area and 11 Mm³ of the above-ground biomass in the region (Hashimoto et al., 2012). Although the total amount of ¹³⁷Cs released into the atmosphere was estimated to be 1.2 × 10¹⁶ Bq (Chino et al., 2011), the extent of radioactive contamination in the forests (up to 24 Sv h⁻¹) produced an air dose that was well below the lethal dose for living plants (Geras'kin et al., 2008; Steinhauser et al., 2014). Consequently, no direct radiation damage, such as necrosis of plant tissues, was reported in the region.

In the case of the Chernobyl nuclear power plant (ChNPP) accident, decontamination management of forests was not conducted over a wide area and little export of radioactive substances from these ecosystems has been observed (e.g., Tikhomirov et al., 1993; Ueda et al., 2013). Therefore, a large proportion of the radionuclides derived from fallout tend to remain in these ecosystems for extended periods of time; for example, ¹³⁷Cs has a slow rate of decay (the half-life of ¹³⁷Cs is 30.2 years). Previous studies have shown that some of the ecosystem components in the region affected by the ChNPP event still have high levels of ¹³⁷Cs contamination due to the long effective half-life of itself or the active accumulation of ¹³⁷Cs; examples include the litter layer (Thiry and Myttenaere, 1993), wild boar (Semizhon et al., 2009), and mushrooms (Yoshida et al., 1994). Recycling of ¹³⁷Cs within the forest ecosystem is a dynamic processes in which reciprocal transfers occur between biotic and abiotic components of the ecosystem on a seasonal (or longer-term) basis (Tikhomirov and Shcheglov, 1994). Accumulation, retention, and internal cycling of radionuclides in a forest ecosystem are dependent on a variety of different compartments, each of which has different turnover rates and phenologies. It is therefore considered necessary to develop radioecological models capable of accurately clarifying ¹³⁷Cs cycling dynamics in order to support forest management and radioactive decontamination activities. Such models could also be applied to predict ecological impacts on decadal timescales and characterize the migration of radioactive substances in forest ecosystems.

In Fukushima prefecture, 50% of the forested land is artificial forest, and this amounts to an area of about 120,000 ha; the trees range from 20 to 45 years old, and thus it might be necessary to manage them with thinning and pruning in order to maintain growth (Forestry Agency, 2014). In Japan, a special management measure had been planned to promote improvement of the forest, by thinning and pruning about 58,000 ha in the Fukushima area by 2020. However, after the fallout, the forest management area in Fukushima prefecture rapidly decreased (from 12,000 ha in 2010 to 7800 ha in 2012). From the point of view of ecosystem services (MEA, 2005), plantation forests that are not well managed (relatively low thinning and harvesting activities) tend to have a reduced amount of ecosystem services, such as slower C accumulation, lower runoff, and higher leaching of N (Ooba et al., 2010). In addition, plantation forests with less than a moderate amount of management have high levels of soil erosion (e.g., Onda et al., 2010), and this might promote the migration via stream flow of ¹³⁷Cs from the forest ecosystem to other ecosystems. Thus, for an artificial forest contaminated with radioactive Cs, it is important to maintain the natural ecosystem services in order to reduce the human dose and to promote sustainable forest management.

Approximately 50% of the forested area in Fukushima Prefecture comprises artificial forest (Forestry Agency, 2014). The trees in a 120,000 ha area range from 20 to 45 years old, which means that it is necessary to manage them by thinning and pruning in order to maintain growth. The act on special measures concerning advancement of implementation of forest thinning were drafted by the Japanese government to thin and prune about 58,000 ha of forest in the prefecture by 2020. However, after the accident at the FDNPP, the area of forest under management decreased from 12,000 ha in 2010 to 7800 ha in 2012. From a view of ecosystem services (MEA, 2005), this is a problem because poorly managed plantation forests tend provide fewer ecosystem services and are characterized by slower rates of C accumulation and runoff, and higher rates of N leaching (Ooba et al., 2010). In addition, forest plantations with less than moderate amounts of management have high levels of soil erosion (e.g., Onda et al., 2010), which can promote the migration of ¹³⁷Cs from the contaminated forest to other ecosystems via stream flow. It is therefore considered important to maintain natural ecosystem services in artificial forests that have been contaminated with radioactive Cs, as doing so can reduce the potential for human exposure, and to promote sustainable forest management.

Given the persistence of radioactive Cs in forest ecosystems, it is necessary to use operational models that can predict the exposure dose and to assess the risk of exposure; this information can also be used to assess the effectiveness of countermeasures and to develop remediation strategies (Riesen, 2002). Fesenko et al. (2005) emphasized the importance of optimizing the long-term radioactive Cs dynamics prior to implementing countermeasures. Process models are important management tools for limiting exposure to radioactivity and for increasing forest production. There currently are several models that could potentially be used to predict ¹³⁷Cs cycling in forest ecosystems, including FORESTPATH (Schell et al., 1996), RIFE (Shaw and Belli, 1999), and FORSUN (Konoplev et al., 2002). The International Atomic Energy Agency's BIOMASS Forest Working Group (IAEA, 2002; Shaw et al., 2005) has already evaluated more than ten radioecological models for forest ¹³⁷Cs cycling, by performing simulations with standardized inputs. All of the models were found to be practicable and appropriate for evaluating remedial policies. However, most of the models did not explicitly implement tree dynamics (IAEA, 2002) or the C dynamics of soils, which meant that they were unable to comprehensively forecast the ¹³⁷Cs dynamics, especially under non-steady-state conditions (e.g., due to natural disturbances or forest management activities). In terms of radioecology, the C:Cs ratio is important for herbivores and decomposers of litterfall (i.e., soil animals) as they feed on plant material (Witkamp and Frank, 1970). Consequently, the ability to implement both C and Cs cycling in a radioecological model would allow managers to more accurately comprehend the migration of ¹³⁷Cs in forest ecosystems.

In this paper, we present the forest Roth-C and Cs cycling model (FoRothCs), a new open-source model for predicting the ¹³⁷Cs dynamics in artificial forest ecosystems and for evaluating the effects of forest management practices and decontamination activities on ¹³⁷Cs cycling. The model couples a forest growth model with the Rothamsted carbon model (Jenkinson et al., 1990) and uses ¹³⁷Cs transfer factors as parameters. Therefore, our model can predict the C dynamics in forest environments, by simultaneously considering trees, the litter layer, and soils. We introduce the model structure and its behavior by presenting a sensitivity analysis for a forest of Japanese cedar (Cryptomeria japonica).

Materials and Methods

The model presented in this study is based on the Rothamsted Carbon (Roth-C) model (Jenkinson et al., 1990; Coleman and Jenkinson, 1999) and the diameter distribution prediction system (DDPS; Hayashi et al., 2002; Hayashi and Yamamoto, 2006). The Roth-C model is a carbon-cycling model for soil organic C decomposition, and the DDPS is a self-thinning growth model for artificial forest biomass prediction. Our model is coupled to these two models, and it incorporates the Cs dynamics into the C cycling by using transfer factor parameters based on the dynamics of both C and biomass.

Based on the studies of Avila et al. (2001) and IAEA (2002), we used a matrix representation to summarize the overall model structure and transfer processes (Figure 1). Our model has seven compartments, of which three are for aboveground biomass, and the others are for soil components (litter layer, organic soil fraction, and mineral soil fraction). Table 1 summarizes all of the input variables and parameters that are used in the simulation. The model requires monthly climate data (temperature and precipitation), initial forest condition (age, density, and basal area), soil properties, and parameters related to ¹³⁷Cs dynamics (such as ¹³⁷Cs deposition, initial ¹³⁷Cs inventory in each component, tree uptake constant, pullback rate, and retranslocation rate). The code for the FoRothCs model is provided in the Supplementary Materials.

FIGURE 1

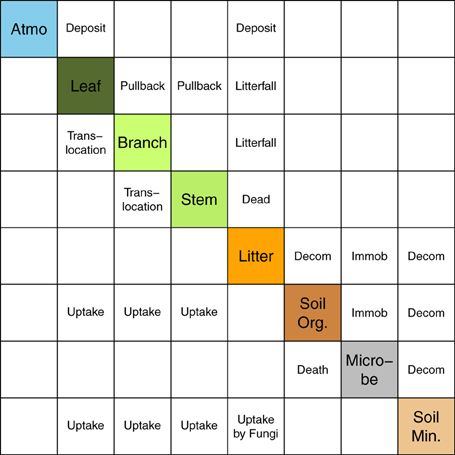

Figure 1. Representation matrix of the FoRothCs model. Diagonal components (shaded) indicate variables in the model. The other components indicate processes that are explicitly included in the model.

TABLE 1

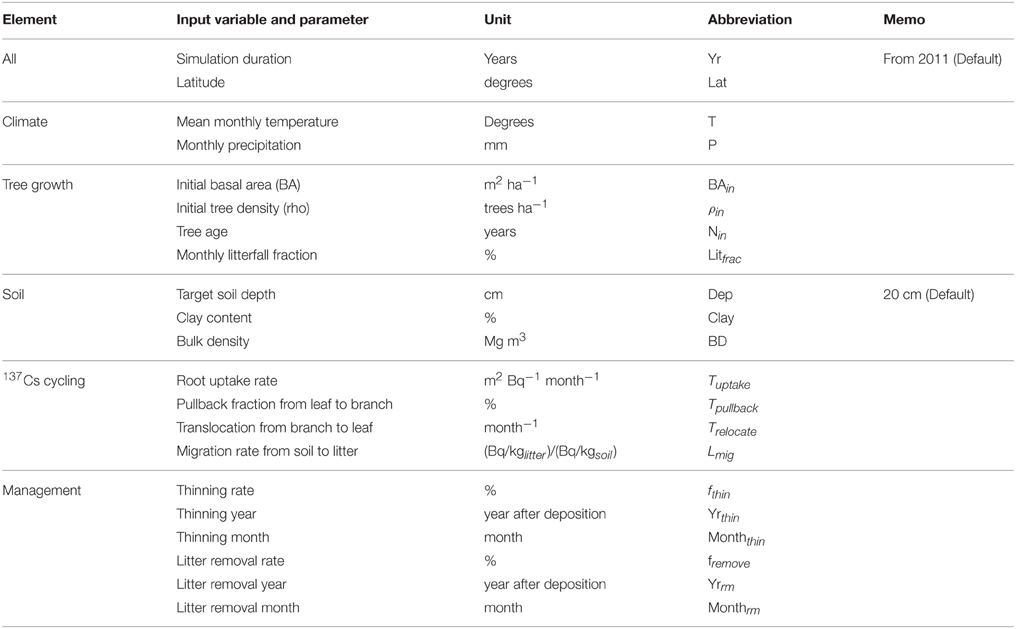

Table 1. Input parameters for the FoRothCs model.

Forest Growth Model

For the tree growth model, we used the DDPS (Hayashi et al., 2002; Hayashi and Yamamoto, 2006) for basal area prediction and the allometry equations for estimating aboveground biomass (leaves, branches, and stems) in an artificial forest stand in which all of the trees are of the same age. The DDPS calculates the annual tree density, tree height, and total basal area in a forest stand, based on the self-thinning theory. Using this model, we estimated tree growth and implemented forest management practices, such as thinning. The model is stated as follows:

$\begin{array}{ll}{G}_{(n+1)}=G_{\left(n\right)}\text{exp}\left[a_1\right(\frac{1}{n+1}-\frac{1}{n}\left)\right]{\left[\frac{n+1}{n}\right]}^{{}^{a_2}}{\left[\frac{\rho (n+1)}{\rho \left(n\right)}\right]}^{{}^{a_3}}\hfill & \left(1\right)\hfill \end{array}$

where G_(n) indicates the basal area of the stand at age n (m² ha⁻¹), ρ_(n) is the density of the stand at age n (trees ha⁻¹), and a₁, a₂, and a₃ are parameters for the shape of the growing trees.

To estimate the maximum density, we used following equation:

$\begin{array}{ll}\text{ln}{\rho }_{max}(n)=\text{ln}{b}_0+\frac{1}{b_2}\text{ln}[{\left(\frac{G_{\left(n\right)}}{b_3}\right)}^{{}^{{}^{b_1{b}_2}}}+{\left(\frac{G_{\left(n\right)}}{{\rho }_0}\right)}^{{}^{{}^{b_2}}}]\hfill & \left(2\right)\hfill \end{array}$

where ρ_max(n) indicates the maximum density of the stand at age t (trees ha⁻¹). This equation indicates maximum density line, which determines self-thinning rate at year n. If ρ_max(n) is lower than ρ(n), then ρ(n) decreases to the previous level and G(n + 1) is recalculated with an updated ρ(n).

To estimate the tree height [H(n)], we used the following empirical equation:

$\begin{array}{ll}{a}_h(n)=c_0+c_1\ast Tre{e}_{age}(n)+c_2\ast \rho (1)+c_3\ast G(n)\hfill & \left(3\right)\hfill \end{array}$

$\begin{array}{ll}\frac{1}{H(n)}=\frac{1}{10a_h(n)}+\frac{1}{H_{max}}\hfill & \left(4\right)\hfill \end{array}$

where c₀, c₁, c₂, and c₃ are empirical coefficients; the values used in this study are for Japanese cedar forests (Hayashi and Yamamoto, 2006). H_max is the maximum height allowed for the forest stand, which is determined by the conditions at the study site.

To estimate the aboveground biomass (kg ha⁻¹), we used the allometry relationships for the diameter, height, leaves (branches and stems), and the basal area and density:

$\begin{array}{ll}{\text{L}}_{\text{ind}}(\text{n}) =d_{l0}{(DBH{(n)}^{2}H(n))}^{d_{l1}}\hfill & \left(5\right)\hfill \end{array}$

$\begin{array}{ll}{\text{B}}_{\text{ind}}(\text{n}) =d_{b0}{(DBH{(n)}^{2}H(n))}^{d_{b1}}\hfill & \left(6\right)\hfill \end{array}$

$\begin{array}{ll}{\text{S}}_{\text{ind}}(\text{n}) =d_{s0}{(DBH{(n)}^{2}H(n))}^{d_{s1}}\hfill & \left(7\right)\hfill \end{array}$

where DBH(n) is the diameter at breast height (cm) at stand age n, which is calculated from the basal area G(n) and tree density ρ(n). The parameters for the allometry equations (d_l0, d_l1, d_b0, d_b1, d_s0, and d_s1) were obtained from a national survey conducted for general allometric equations for Japanese cedar in Japan (Tanouchi and Utsugi, 2004). L_ind, B_ind, and S_ind all give the biomass of a typical tree (kg tree⁻¹). Using the biomass multiplied by the tree density ρ(n), we can then calculate the biomass in each compartment for each stand (i.e., L_ms, B_ms, and S_ms; kg m⁻²). Finally, we summed the compartments to calculate the total above-ground biomass All_ms (kg m⁻²), as follows:

$\begin{array}{ll}{\text{All}}_{\text{ms}}{\left(\text{n}\right)=\text{ L}}_{\text{ms}}(\text{n})+{\text{ B}}_{\text{ms}}{(\text{n})+\text{ S}}_{\text{ms}}(\text{n})\hfill & \left(8\right)\hfill \end{array}$

Carbon Cycling in Soils (Roth-C)

For carbon cycling in soils, we used the Roth-C model (Coleman and Jenkinson, 1996), which can be formulated as the following transition matrix equation:

$\begin{array}{ll}\left[\begin{array}{c}{\text{ cDPM}}_{\text{t}+1}\\ {\text{ cRPM}}_{\text{t}+1}\\ {\text{ cBIO}}_{\text{t}+1}\\ {\text{ cHUM}}_{\text{t}+1}\end{array}\right]=\left[\begin{array}{cccc}{f}_1& 0& 0& 0\\ 0& f_2& 0& 0\\ a_{1}D(1-f_1)& a_{1}D(1-f_2)& fc+a_{1}D(1-f_3)& a_{1}D(1-f_4)\\ a_{2}D(1-f_1)& a_{2}D(1-f_2)& a_{2}D(1-f_3)& f_4+a_{2}D(1-f_4)\end{array}\right]\left[\begin{array}{c}{\text{ cDPM}}_{\text{t}}\\ {\text{ cRPM}}_{\text{t}}\\ {\text{ cBIO}}_{\text{t}}\\ {\text{ cHUM}}_{\text{t}}\end{array}\right]+\left[\begin{array}{c}{\text{ Din}}_{\text{t}}\\ {\text{ Rin}}_{\text{t}}\\ 0\\ 0\end{array}\right]\hfill & \left(9\right)\hfill \end{array}$

where the time step t is 1 month. In this model, there are four different active compartments for C: decomposable plant material (cDPM), resistant plant material (cRPM), microbial biomass (cBIO), and humus (cHUM). In this study, cDPM and cRPM are considered as part of the litter layer, with factors a₁ = 0.46 and a₂ = 0.54, respectively. A_t and B_t are the monthly inputs from vegetation litterfall. D is the clay content, which is determined by the partitioning ratio between CO₂ in the atmosphere and the (cBIO + cHUM) formed during decomposition. The f_i are defined as the decomposition functions for the monthly step in each compartment of the soil C. All compartments (cDPM, cRPM, cHUM, cBIO) can be described by first-order kinetics decomposition equations with limitation functions, as follows:

$\begin{array}{ll}{f}_i=e^{-k_i{f}_T{f}_M{f}_C}\hfill & \left(10\right)\hfill \end{array}$

where the decay constant k_i (month⁻¹) for each compartment corresponds to the degree of decomposition, as follows: DPM, 10.0/12; RPM, 0.3/12; BIO, 0.66/12; and HUM, 0.02/12. f_T, f_M, and f_C are regulation functions for the monthly average air temperature, monthly average soil moisture, and the soil coverage, respectively. f_T is an exponential function. f_M is the precipitation and potential evaporation rate, which was estimated using the Thornthwaite equation (Thornthwaite, 1948). f_C is the soil cover factor, which has only two states: bare or covered. Details on the formulation of the regulation functions employed in the Roth-C model are presented in Coleman and Jenkinson (1996).

Din_t and Rin_t are the C inputs from tree compartments to the forest floor as litterfall, which is formulated as follows:

$\begin{array}{ll}{\text{Din}}_t=F_D\{(F_S+M_t)\ast ({\text{cL}}_t+{\text{cB}}_t)+M_t{\text{cS}}_{\text{t}}\}\hfill & \left(11\right)\hfill \end{array}$

$\begin{array}{ll}{\text{Rin}}_t=F_R\{(F_S+M_t)\ast ({\text{cL}}_t+{\text{cB}}_t)+M_t{\text{cS}}_{\text{t}}\}\hfill & \left(12\right)\hfill \end{array}$

where F_S is the monthly litterfall rate, which represents the fraction of each biomass component at the corresponding increment for each year (n). The carbon content of each of the tree compartments (cL, cB, cS) is set to be 50% of each of the biomass compartments (L_ms, B_ms, S_ms; Noguchi et al., 2009). F_D and F_R are the fractions of DPM and RPM in the litterfall, respectively. For the DPM/RPM ratio of forest vegetation, we used a value of 0.25 (Coleman and Jenkinson, 1996). In FoRothCs, the litter layer is assumed to be the sum of DPM and RPM. M_t is the mortality rate caused by self-thinning.

Cesium-137 Cycling

In FoRothCs, the components have different descriptions for ¹³⁷Cs (see Table 2); these are based on an area inventory (Bq m⁻²) and activity, which is a mass-based concentration (Bq kg⁻¹) (i.e., the activity of each compartment was divided by the mass weight). The ¹³⁷Cs activity of each compartment is indicated by a subscript, e.g., L_act.

TABLE 2

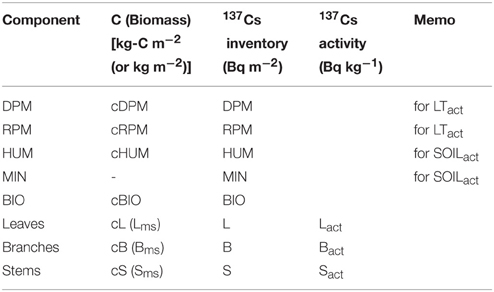

Table 2. List of components and their abbreviations in the FoRothCs model.

In FoRothCs, the ¹³⁷Cs cycling in the soil and tree compartments is formulated as follows:

$\begin{array}{ll}\begin{array}{l}\left[\begin{array}{c}{\text{DPM}}_{t+1}\\ {\text{RPM}}_{t+1}\\ {\text{BIO}}_{t+1}\\ {\text{HUM}}_{t+1}\\ {\text{MIN}}_{t+1}\\ {\text{L}}_{t+1}\\ {\text{B}}_{t+1}\\ {\text{S}}_{t+1}\end{array}\right]=[\begin{array}{ccccc}{f}_1& 0& 0& 0& F_D{L}_{mig}\\ 0& f_2& 0& 0& F_R{L}_{mig}\\ a_{1}D(1-f_1)& a_{1}D(1-f_2)& f_3+a_{1}D(1-f_3)& a_{1}D(1-f_4)& 0\\ a_{2}D(1-f_1)& a_{2}D(1-f_2)& a_{2}D(1-f_3)& f_4+a_{2}D(1-f_4)& 0\\ (1-D)(1-f_1)& (1-D)(1-f_2)& (1-D)(1-f_3)& (1-D)(1-f_4)& 1-T_{uptake}(Al{l}_{ms})-L_{mig}\\ 0& 0& 0& 0& T_{uptake}{L}_{ms}\\ 0& 0& 0& 0& T_{uptake}{B}_{ms}\\ 0& 0& 0& 0& T_{uptake}{S}_{ms}\end{array}\\ \begin{array}{ccc}{F}_D(Fs(1-T_{pullback})+M)& F_D(Fs+M)& F_{D}M\\ F_R(Fs(1-T_{pullback})+M)& F_R(Fs+M)& f{F}_{R}M\\ 0& 0& 0\\ 0& 0& 0\\ 0& 0& 0\\ 1-fs-M& R_{BtoL}& 0\\ R_{LtoB}& 1-R_{BtoL}-fs-M& R_{StoB}\\ R_{LtoS}& 0& 1-R_{StoB}-M\end{array}]\left[\begin{array}{l}{\text{DPM}}_t\hfill \\ {\text{RPM}}_t\hfill \\ {\text{BIO}}_t\hfill \\ {\text{HUM}}_t\hfill \\ {\text{MIN}}_t\hfill \\ {\text{ L}}_t\hfill \\ {\text{ B}}_t\hfill \\ {\text{ S}}_t\hfill \end{array}\right]\\ \end{array}\hfill & \left(13\right)\hfill \end{array}$

where the transition matrix in Equation (13) almost corresponds to the matrix in Figure 1, even though the order and the number of components are different (e.g., DPM and RPM). The dynamics of Cs in soil organic matter were based on the decomposition dynamics of the Roth-C model, and the parameters and functions related to the decomposition processes in Cs cycling are the same as those used in the Roth-C model (e.g., f₁ – f₄). In our model, the ¹³⁷Cs in the fraction of decomposed organic materials to CO₂ migrates mineral soils. In addition to decomposition processes, Brückmann and Wolters (1994) and Fukuyama and Takenaka (2004) described the upward migration of radioactive Cs from the soil layer into the litter layer through litterfall decomposition and translocation by fungi. To account for this process, we introduced a migration parameter L_mig ((Bq/kg_litter)/(Bq/kg_soil)), which is based on the findings of Fukuyama and Takenaka (2004).

T_uptake (m² kg⁻¹ month⁻¹) is a parameter that determines the uptake rate of ¹³⁷Cs relative to the 137Cs in soil (HUM and the soil mineral compartments). T_pullback is the translocation parameter that determines the fraction of ¹³⁷Cs that is recycled by green leaves prior to them becoming litterfall.

R_BtoL, R_LtoB, R_LtoS, and R_StoB are the translation rates between tree compartments and can be defined as follows:

$\begin{array}{ll}{R}_{BtoL}\text{ = }{T}_{relocate}{\text{B}}_{{\text{act}}_t}{\text{L}}_{{\text{ms}}_t}{\text{/B}}_t\hfill & \left(14\right)\hfill \end{array}$

T_relocate determines the retranslocation rate from branches to leaves. Thus, R_BtoL is proportional to the ¹³⁷Cs activity of a branch (Bq kg⁻¹), but not to the ¹³⁷Cs inventory of a branch.

$\begin{array}{ll}{R}_{LtoB}\text{ = }Fs{T}_{pullback}{\text{B}}_{{\text{ms}}_t}{/(\text{B}}_{{\text{ms}}_t}+{\text{ S}}_{{\text{ms}}_t}\text{)}\hfill & \left(15\right)\hfill \end{array}$

$\begin{array}{ll}{R}_{LtoS}\text{ = }Fs{T}_{pullback}{\text{S}}_{{\text{ms}}_t}{/(\text{B}}_{{\text{ms}}_t}+{\text{ S}}_{{\text{ms}}_t}\text{)}\hfill & \left(16\right)\hfill \end{array}$

R_LtoB and R_LtoS are the translocation rates due to the pullback of ¹³⁷Cs from leaves to branches and leaves to stems, respectively. The distribution of pullback ¹³⁷Cs is determined by biomass.

For translocation from stems to branches (R_StoB), we used the following equations:

$\{\begin{array}{l}{R}_{StoB}=({\text{B}}_{\text{act}}-{\text{S}}_{\text{act}})\ast {\text{B}}_{\text{ms}}/{\text{S}}_{\text{t}}({\text{L}}_{\text{act}}-{\text{S}}_{\text{act}}>0)\hfill \\ R_{StoB}=0.5\ast ({\text{S}}_{\text{act}})\ast {\text{B}}_{\text{ms}}/{\text{S}}_{\text{t}}(otherwise)\hfill \end{array}\left(17\right)$

We incorporated the deposition of ¹³⁷Cs from the atmosphere on March 2011 at t = 3; the initial time t₀ was defined as December 2010. In this study, the fallout of ¹³⁷Cs was assumed to have been deposited onto tree leaves and the litter layer, as follows:

$\begin{array}{ll}\left[\begin{array}{c}{\text{DPM}}_3\\ {\text{RPM}}_3\\ {\text{BIO}}_3\\ {\text{HUM}}_3\\ {\text{MIN}}_3\\ {\text{L}}_3\\ {\text{B}}_3\\ {\text{S}}_3\end{array}\right]=\left[\begin{array}{c}{\text{DPM}}_3\\ {\text{RPM}}_3\\ {\text{BIO}}_3\\ {\text{HUM}}_3\\ {\text{MIN}}_3\\ {\text{L}}_3\\ {\text{B}}_3\\ {\text{S}}_3\end{array}\right]+\left[\begin{array}{c}{F}_{int}{F}_{D}Dep\\ F_{int}{F}_{R}Dep\\ 0\\ 0\\ 0\\ (1-F_{int})Dep\\ 0\\ 0\end{array}\right]\hfill & \left(18\right)\hfill \end{array}$

where F_int is the interception ratio of ¹³⁷Cs deposited in the canopy layer. Based on Kato et al. (2012), the interception ratio for the forest canopy of Japanese cedar is set to 62%. The ¹³⁷Cs intercepted by the forest crown is assumed to have remained in or on the tree or its surfaces for at least a year (Nishikiori et al., 2015). In addition, we assumed that the captured ¹³⁷Cs was chemically and biologically absorbed into the leaf tissue.

Finally, we summed the components of DPM and RPM to form a litter layer (LT), and the components of HUM and MIN to form a soil layer (SOIL), which we calculated based on the ¹³⁷Cs activity of each compartment, as follows:

$\begin{array}{ll}{\text{LT}}_{{\text{act}}_t}{\text{ = (DPM}}_t{\text{ + RPM}}_t{\text{/(cDPM}}_t{\text{ + cRPM}}_t\text{)/}{c}_1\hfill & \left(19\right)\hfill \end{array}$

$\begin{array}{ll}{\text{SOIL}}_{{\text{act}}_t}=({\text{HUM}}_t+{\text{MIN}}_t)/(BD\ast 1000\ast Depth)\hfill & \left(20\right)\hfill \end{array}$

Simulation Settings and Sensitivity Analysis

The initial forest and climate condition were set to match those of the Mt. Tsukuba site, which is located approximately 160 km southwest of the FDNPP (Nishikiori et al., 2015). The stand age was 50 years, the mean tree height was 21.6 m, the mean DBH was 25.3 cm, and the stand density was 1600 trees ha⁻¹. The initial values of the soil organic C (SOC) components were calculated by inverse estimation technique (Jenkinson et al., 1999). We assumed that SOC was in equilibrium at the beginning of the experiment. To achieve this, we ran the FoRothCs model for 200 years. Inert organic matter (IOM) was estimated using the equation of Falloon et al. (1998) with an initial total SOC at a depth of 0–20 cm in 2011. We used the monthly average temperature and precipitation conditions for the 30-year period between 1981 and 2010, which we obtained from the closest meteorological observation station. The ¹³⁷Cs fallout was taken as 11,000 Bq m⁻², based on a reference level for the Mt. Tsukuba site (Nishikiori et al., 2015).

To explore feasible transfer parameters for tree ¹³⁷Cs cycling, sensitivity analyses were conducted with different settings for the tree uptake constant T_uptake, the pullback rate T_pullback, and the retranslocation rate T_relocate by grid searching method. All of the parameters were specified by range, with maximum and minimum values, in order to ensure that the parameters were appropriately framed. We calculated the aggregated transfer factors TF_ag (m² Bq⁻¹) for the leaves at 30 years after the fallout event, as follows:

${\text{TF}}_{\text{ag}}=\frac{Lac{t}_t}{HU{M}_t+MI{N}_t}$ at t = 30 years with no forest management.

The reason why we used TF_ag instead of the concentration-based transfer factor (kg Bq⁻¹) was the availability of appropriate values for different forest ecosystems. Importantly, in FoRothCs, the concentration of ¹³⁷Cs in the soil compartment is arbitrary and depends on the soil depth. It is thus necessary to carefully consider the activity of ¹³⁷Cs in soils, but the model gave a robust estimate for TF_ag.

In order to evaluate the impact of thinning and litterfall removal on decontamination 30 years after the fallout event, we conducted base-case scenario analyses with different timings and intensities of management activities and using appropriate parameters. In the thinning analysis, we assumed that entire trees were removed and we considered an extreme and unrealistic case of over 70% thinning (100% thinning is equal to clearcutting). For the removal of litterfall, we assumed that all of the litter layers (Ol, Of, and Oh) were removed at the same rate. For both scenarios, management activities were performed in October of each year.

Results and Discussion

General Behavior of FoRothCs and a Sensitivity Test for the Tree Transfer Parameters

The model presented in this paper can simulate the monthly dynamics of the ¹³⁷Cs inventory in a Japanese cedar forest over a decadal time scale. Figures 2, 3 show the simulations that were performed to determine the behavior of FoRothCs. The model successfully estimated forest biomass production (kg m⁻²) in Figure 2A, soil C (kg-C m⁻²) in Figure 2B, ¹³⁷Cs inventory (Bq m⁻²) in Figure 2C, and their activities (Bq kg⁻¹) in Figure 2D in the various forest ecosystem compartments (Figure 1). These are the general output variables of FoRothCs. In addition, the dynamics of tree density (trees ha⁻¹) and mean basal area of each individual tree (cm²) were estimated in FoRothCs according to the self-thinning power law (Hayashi et al., 2002). Late in each of the simulation periods, the unmanaged above-ground biomass fluctuated due to self-thinning (Figure 2). As can be seen for ¹³⁷Cs in the RIFE simple compartment model (Hashimoto et al., 2013), our model also showed rapid migration of ¹³⁷Cs inventory from leaves to the forest floor (i.e., to litterfall and soil compartments), even though the migration via litterfall was represented as biomass- or C-based mass flow. This rapid migration was also comparable with field observations of Japanese cedar in Fukushima, where the ¹³⁷Cs inventory in the litter layer doubled from the autumn of 2011 to the autumn of 2012 (Kaneko et al., 2014).

FIGURE 2

Figure 2. Simulation case 1: No forest management. (A) Forest biomass (annual), (B) litter layer and soil C, (C) ¹³⁷C_s inventory, and (D) ¹³⁷C_s activity.

FIGURE 3

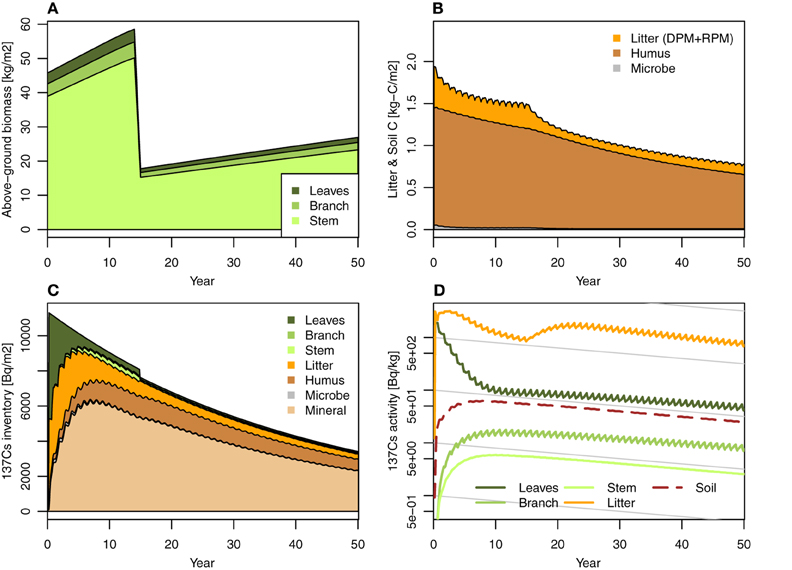

Figure 3. Simulation case 2: Intensity thinning (70%) management, at 15 years after fallout event. (A) Forest biomass (annual), (B) litter layer and soil C, (C) ¹³⁷C_s inventory, and (D) ¹³⁷C_s activity.

The ¹³⁷Cs in the litter layer showed relatively high radioactivity and long persistence during the entire simulation period (Figure 2D). In most forest types, most of the radioactive Cs was observed in the fragmented litter (Of) and humus (Oh) layers (Thiry and Myttenaere, 1993; Karadeniz et al., 2015). In the definition of FoRothCs, the litter layer is comprised of litter at different stages of decomposition: Ol (fresh litter), Of, and Oh. Therefore, the high amount of ¹³⁷Cs in the litter layer that was predicted by FoRothCs is considered reasonable. Stemmer et al. (2005) reported that the fraction of soil microbial biomass to total ¹³⁷Cs inventory ranged from 2 to 3% at six forest sites in Austria. The microbial compartments in our results are comparable with that study, particularly in the early phase shortly after the fallout event.

We tested the impact of 70% thinning management at 15 years after the fallout on ¹³⁷Cs dynamics in FoRothCs (Figure 3). Figure 3D show that the reduction in litterfall after intensive thinning reduced the litter layer and consequently enriched the concentration of ¹³⁷Cs in the litter layer, even though the inventory of ¹³⁷Cs in the litter layer was not markedly different from that in the no-thinning condition (Figure 2). This enrichment in the concentration of ¹³⁷Cs in the litter layer is due to the low ¹³⁷Cs activity in litter, its upward migration from the soil into the litter layer, and immobilization by microbes during decomposition (Witkamp and Barzansky, 1968; Rafferty et al., 1997). Thus, by simulating C cycling in conjunction with Cs cycling, FoRothCs enables us to evaluate the disturbance in the ¹³⁷Cs dynamics in a forest ecosystem. However, this simulation was restricted to the case in which all of the trees were removed. A previous field study (Berthelsen et al., 1999) showed that clearcutting resulted in leaf and branch slash that caused an increase of ¹³⁷Cs on the forest floor. It is considered that future studies need to verify this phenomenon in the field during an actual forest thinning operation.

Since little data exists for the transfer factors of ¹³⁷Cs for trees, we first reconciled the parameters associated with the internal cycling of ¹³⁷Cs in trees (T_uptake, T_pullback, and T_relocate) by searching them against published values for the mean aggregated transfer factor TF_ag (m² g⁻¹) of old needles in conifers (Calmon et al., 2009) in Figure 4. The sensitivity tests revealed that these parameters were sensitive to the TF_ag in FoRothCs (Figure 4), which determines the ecological half-life of ¹³⁷Cs in whole trees. Since we avoid the effect of surface absorption of fallout occurred in the canopy, we used the values of the ¹³⁷Cs inventory and activities for 30 years after the fallout event to estimate TF_ag. Calmon et al. (2009) summarizes the TF_ag values published to date, although these values were likely to be for steady-state conditions some years after a fallout event. Figure 4 shows TF_ag for various ranges of T_uptake and T_pullback. In ForRothCs, instead of mathematically fitting the data, we used a rounded figure (see Figure 4) for estimating the average TF_ag for coniferous trees; the values obtained for T_uptake, T_pullback, and T_relocate were 4.0 × 10⁻⁵, 0.30, and 5.0 × 10⁻³, respectively. TF_ag is not an exact match for Japanese cedar and might vary depending on environmental factors. The values of TF_ag for coniferous needles in the literature vary widely, ranging from 2.4 × 10⁻⁴ to 1.8 × 10⁻³ (m² g⁻¹) (Calmon et al., 2009). However, some comparable data to be found for T_pullback in previous field observations; for example, the percentage of N and P pullback in coniferous trees (Pinus Radiate) from senescence before litterfall was estimated to range from 20 to 40% (Sadanandan Nambiar and Fife, 1991). On the other hand, because of the high mobility of ¹³⁷Cs ions inside tree compartments (Goor and Thiry, 2004; Thiry et al., 2009), 60–70% of the annual supply of ¹³⁷Cs was pulled-back into nonphotosynthetic tissues (stems and branches) before litterfall from Scots pines contaminated by the Chernobyl accident. Compared to that study, our values for T_pullback were relatively small. Since more than 60% of the ¹³⁷Cs in Japanese cedar needles remains in the epicuticular wax (Nishikiori et al., 2015), which might not contribute to the inter-tree cycling of ¹³⁷Cs, the magnitude of T_pullback employed in this study is not considered unreasonable. However, more intensive field validation is required in order to better clarify these aspects of ¹³⁷Cs dynamics.

FIGURE 4

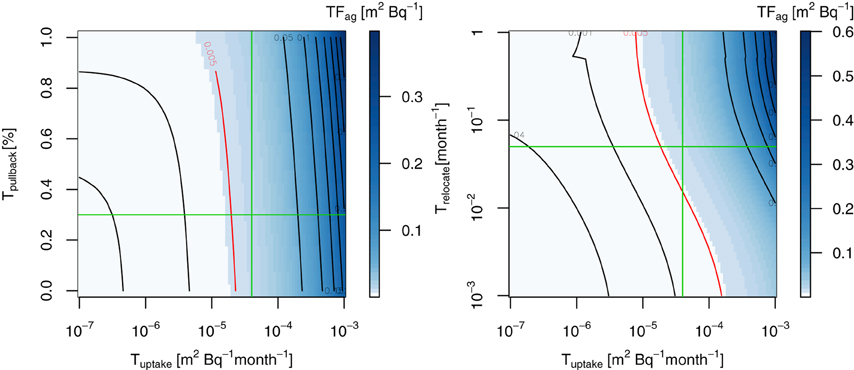

Figure 4. Sensitivity test of T_uptake, T_pullback, and T_relocate for TF_ag (m² kg⁻¹) of unmanaged forest, 30 years after the FDNPP fallout event. Red lines indicates the averaged TF_ag values in the literature for coniferous forest (Calmon et al., 2009). Green lines indicates the values used in this study.

Impact of Thinning and Litter Removal on the Cesium-137 Inventory of a Forest Stand

As mentioned in the introduction, thinning of the forest trees is considered necessary for extensive areas in Fukushima. In addition, the removal of trees and litter layers are other important countermeasures for decontaminating forest ecosystems (Guillitte et al., 1993, 1994), and both have been conducted in the regions affected by the FDNPP accident. However, the extent and timing of such countermeasures and their effect on the long-term ¹³⁷Cs dynamics remains unclear. In this study, we used the total ¹³⁷Cs inventory at 30 years after the fallout event as a reference point for the reduction effects of the countermeasures in ¹³⁷Cs inventory. Figures 5, 6 show the reduction of total ¹³⁷Cs inventory by the thinning and litter removal timings and intensities in FoRothCs simulation. The reduction rate under the no-management scenario was still nearly 50%, and this was attributable to physical decay (see Figures 5, 6).

FIGURE 5

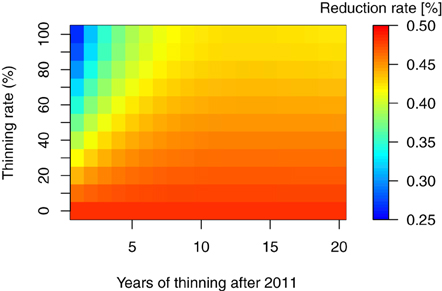

Figure 5. Reduction rate in percent total ¹³⁷Cs inventory, 30 years after the fallout event, for thinning at various rates and timing.

FIGURE 6

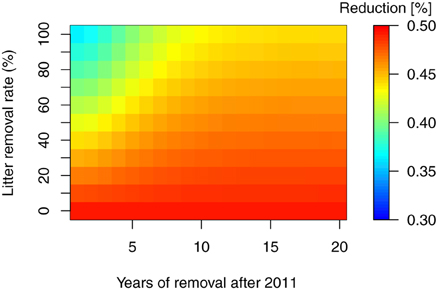

Figure 6. Reduction rate in percent total ¹³⁷Cs inventory, 30 years after the fallout event, for litter removal at various rates and timing.

The simulation revealed that, five years after the fallout event, forest management practices such as thinning and harvesting has a limited effect on ¹³⁷Cs inventories, as the migration of ¹³⁷Cs from the vegetation to the soil is so rapid. This migration rate is comparable to the values obtained in field observations at various sites (e.g., Calmon et al., 2009) and from modeling studies (e.g., Hashimoto et al., 2013). However, when intensive thinning or harvesting is undertaken in an area, the reduction of C input via litterfall to the forest floor leads to an increase in ¹³⁷Cs activity in the litter and soil organic layer (Figure 3).

For the litter removal management, as suggested in previous studies (Linkov et al., 1997; Hashimoto et al., 2012), our simulation results showed that the efficiency of litter removal as a means of reducing the total ¹³⁷Cs inventory is only effective in the first few years after a fallout event, mainly because the ¹³⁷Cs rapidly migrates to the soil organic and mineral layers by decomposing litter layer (Figure 2). Our result also showed that the ¹³⁷C migration initially interrupted by the canopy via litterfall lasted for at least 10 years. So, the timing depends on the fraction of ¹³⁷Cs interrupted by the canopy. The magnitude of the reduction due to these management activities is thus highly dependent on the vertical distribution of the initial deposition onto the forest crown (leaves).

Uncovered Processes in FoRothCs and Upcoming Challenges

FoRothCs does not explicitly incorporate ¹³⁷Cs migration due to throughfall precipitation. Especially during the first half year after the fallout event, throughfall processes contributed to the migration of ¹³⁷Cs from the canopy to the forest floor at a rate that was comparable to litterfall migration in the area affected by the FDNPP accident (Teramage et al., 2014; Nishikiori et al., 2015). On the other hand, in a Japanese cedar forest, throughfall migration of ¹³⁷Cs was negligible after only a single year, even though a considerable amount of ¹³⁷Cs remained in the leaves. The low rates of throughfall were attributed to most of the ¹³⁷Cs being captured (Koizumi et al., 2013), absorbed, and cycled within the internal tissues of the trees (Tagami et al., 2012; Mahara et al., 2014; Nishikiori et al., 2015). Thus, in this model, the initial deposition onto the forest crown (leaf compartment) should be reduced, and the actual crown interception should consider throughfall migration.

Goor and Thiry (2004) suggested from the field observations that the root uptake rate and translocation of ¹³⁷Cs circulated within a plant varies as a function of tree age and other environmental factors. In addition, immobilization of ¹³⁷Cs in soils could affect uptake rate of ¹³⁷Cs by the tree over the long term (Goor and Thiry, 2004; Takeda et al., 2013). Thus, the parameters affecting the transfer factors for the tree uptake rate T_uptake may also change for trees of different ages (Rantavaara et al., 2012); the parameters used in our model are constants. Regarding the mobility of ¹³⁷Cs in soils, it is possible that soil organic matter may affect the radiocesium interception potential (RIP) (Takeda et al., 2014), and consequently, the availability of ¹³⁷Cs in soils (Rigol et al., 2002; Rantavaara et al., 2012). In addition, changes in the vertical profile of ¹³⁷Cs by factors such as bioturbation and the vertical distribution of roots may also affect the uptake of ¹³⁷Cs by the roots (Velasco et al., 1993, 1997).

In ForRothCs, the distribution of ¹³⁷Cs in each tree compartment was assumed to be homogeneous. However, parts of the stem (i.e., bark, sapwood, and heartwood) showed different levels of ¹³⁷Cs activity, especially early in the contamination period (Rantavaara et al., 2012; Ohashi et al., 2014). Although the proportion of bark biomass to stem is about 5% in Japanese cedar (Lim et al., 2013), the ¹³⁷Cs concentration in bark was much higher due to sorption of the initial fallout on the bark surface (Kuroda et al., 2013; Ohashi et al., 2014). A refinement of the model should consider ¹³⁷Cs activity in the tree to be heterogeneous, as in the other compartments. Further, the slope of the reference site in a forested catchment on Mount Tsukuba was 0.3% (NIES, 2012), and if our model is applied to a steep forest stands or to a regional catchment, the soil erosion rate should be implemented using models such as the Revised Universal Soil Loss Equation (RUSLE; Renard et al., 1991).

Although we did not show the results for ¹³⁴Cs, because the ratio of ¹³⁴Cs to ¹³⁷Cs is approximately unity in the affected region (Tagami et al., 2011), the use of the ¹³⁴Cs decay constant in FoRothCs enables us to simulate ¹³⁴Cs cycling in the forest ecosystem affected by the FDNPP accident.

Finally, we need to validate our model with various field observations and data for different tree species—for both the inventory and transfer processes—in order to fully understand the mid- to long-term ¹³⁷Cs projections of the model. FoRothCs is highly parameterized, whereas our knowledge is limited, especially for the transfer processes (Linkov and Burmistrov, 2003; Rantavaara et al., 2012; Nishikiori et al., 2015). For this reason, parameterization for the various transfer processes is essential. To reduce the uncertainties in the parameters in process models, data assimilation is widely used in many fields. For the ¹³⁷Cs dynamics, the FORESTPATH model was applied using Bayesian calibration for the time series analysis of ¹³⁷Cs activity in the soil organic layer (Linkov et al., 1999). As a consequence of the parameter calibration, the uncertainties in the prediction are expected to be reduced. However, structural uncertainties associated with the model cannot be determined by a single model inversion. To evaluate these uncertainties and to make valid management decisions, it will be necessary to use multiple models to assimilate data, especially chronosequence observations. As shown in this study, the effects of disturbances due to management and decontamination activities on the ¹³⁷Cs dynamics have not been sufficiently considered in field observations and previous model studies. Meeting this challenge will improve our capacity to predict ¹³⁷Cs dynamics in forest ecosystems, and take us one step closer to the actual application of these models.

Conclusion

We developed a new open-source model, FoRothCs, to facilitate forest management and decontamination decisions in radioactively contaminated artificial forest environments. Although further validation of FoRothCs using field observation data is necessary, the results presented here are a preliminary step toward applying this model to evaluate and project the long-term ¹³⁷Cs dynamics in artificial forests in conjunction with forest management and decontamination activities. An advanced forest management plan using a process-based model is recommended for comprehending the effects of management activities on the ¹³⁷Cs dynamics of forest ecosystems. The findings of this study will be applied to a series of future field studies in which the projections of ¹³⁷Cs behavior in different forest ecosystems will be explored.

Funding

This study was performed in part as a project contracted by the Ministry of the Environment, Government of Japan.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The author is grateful for the assistance and advice of Dr. M. Koshikawa, Dr. M. Watanabe, Dr. K Nishikori, and Dr. H. Tsuji, all of whom are members of the Soils Environmental Laboratory at the National Institute for Environmental Studies (NIES), Japan. Dr. M. Ooba of NIES is thanked for his feedback on the manuscript, and Dr. T. Fukuyama at Shinshu University for providing the value for the upward migration rate of the litter layer.

Supplementary Material

The Supplementary Material for this article can be found online at: http://journal.frontiersin.org/article/10.3389/fenvs.2015.00061

The R code of FoRothCs used in this study is in supplementary material.
