Biosorption of methylene blue by bone meal: experimental and modeling with machine learning and full factorial design

Sorption technologies have been proposed for the treatment of water containing methylene blue (MB), a toxic and persistent pollutant. Despite its environmental risks, the role of process variables in MB removal has not been fully explored through experimental design. The objective of this study is to assess the potential of bone meal powder (BMP), an underexplored agricultural byproduct, as an affordable adsorbent for the removal of MB from water. BMP was subjected to a series of analytical characterization techniques, and its adsorption capacity was evaluated through a comprehensive factorial design, which investigated the effects of biosorbent dosage, solution pH, and initial MB concentration. The study revealed that the highest adsorption level was 14.49 mg g⁻¹, attained under the following conditions: 1 g L⁻¹ BMP, pH 11, and 100 mg L⁻¹ MB. The adsorption equilibrium was reached within 60 min, with a measured capacity (qexp) of 18 mg g⁻¹. Theoretical adsorption isotherms indicated a capacity of 63 mg g⁻¹, which aligned well with the Langmuir model. To predict adsorption outcomes, machine learning models were applied, with multiple linear regression performing best. Optimization of decision trees and neural networks improved accuracy but risked overfitting. FT-IR, XRD, and ICP analyses indicated ion exchange as a significant mechanism of adsorption. In desorption studies, H₂SO₄ was the most effective agent, achieving 68.72% desorption efficiency. BMP exhibited optimal recyclability for up to four cycles before efficiency declined.

1 Introduction

Dyes find extensive applications across diverse industries, encompassing cosmetics, textiles, food, paints and varnish, leather, pharmaceuticals, and pulp and paper. As a result, they are significant contributors to industrial pollutants (Benkhaya et al., 2020; Chen et al., 2020; Hynes et al., 2020). The direct discharge of untreated wastewater containing dyes into natural water bodies has adverse effects on aquatic ecosystems, endagering aquatic organisms and posing risks to human health (Nasar and Mashkoor, 2019; Deering et al., 2020; Lau et al., 2014; Lellis et al., 2019).

Finding effective methods for removing dyes from wastewater is of utmost importance. Among common techniques employed for the removal of dyes from industrial effluents include surfactants (Shah et al., 2022; Shah et al., 2021), coagulation/flocculation (Raj et al., 2023), electrocoagulation (Nippatla and Philip, 2019), filtration (Suresh et al., 2023), adsorption (Agarwala and Mulky, 2023), ion-exchange (Barman et al., 2023), advanced oxidation processes (AOPs) (Zahrani and Ayati, 2020; Prado et al., 2022), activated sludge processes (Meerbergen et al., 2017), sequencing batch reactors (Lawal et al., 2023), membrane bioreactors (Mojiri et al., 2023), moving bed biofilm reactors (Maurya et al., 2023), and constructed wetlands (Jayalakshmi et al., 2023).

Among the afore-mentioned techniques, adsorption stands out as a crucial and valuable method for decontamination. It is recognized for its effectiveness, afordability, lack of sludge generation, high removal efficiency and/or selectivity, mechanical stability, and recyclability (Xiong et al., 2018; Tong et al., 2019; Zhou S. et al., 2019; Dutta et al., 2020), Additionally, in certain instances, the dye can be recovered without altering its chemical identity, as adsorption is a non-destructive process (da Fontoura et al., 2017; Toor and Jin, 2012; Azari et al., 2020; Guilhen et al., 2022).

Methylene blue (MB) is a widely recognized cationic dye belonging to the primary thiazine class, with a chemical composition expressed by the molecular formula C₁₆H₁₈N₃ClS (Khan et al., 2022). This dye finds many applications across industries, such as textiles, pharmaceuticals, paper production, dyeing, printing, paints, medicine, and food (Koyuncu and Kul, 2020; Mijinyawa, Durga, and Mishra, 2019; Parakala et al., 2019; Balarak et al., 2020). Above certain concentration, MB dye is harmful to human health due to its considerable toxicity (Cheng et al., 2020). Human health and the environment are affected by MB for its toxicity, carcinogenicity, and non-biodegradability (Contreras et al., 2019; Sun et al., 2019; Guilhen et al., 2022), being also highly water-soluble. The ocurrence of MB in water bodies, even at minute concentrations, may reduce the transmission of sunlight, which, in turn, diminishes oxygen solubility and, consequently, disrupts the photosynthetic processes of aquatic organisms (Zhou Y. et al., 2019; Lawagon and Amon, 2019; Ahmad Zaini and Sudi, 2018; Kosswattaarachchi and Cook, 2018).

In this context, various types of biosorbents, including yeast (de Araujo et al., 2020; Chen and Wang, 2016; Yu et al., 2017), algae (de Araujo et al., 2022; Vieira et al., 2019), alginate (de Araujo et al., 2020; Yu et al., 2017), and agricultural crop residues (Sah et al., 2022), such as sugarcane bagasse ash and husks (de Padua Ferreira et al., 2020), can be used as low-grade biosorbents (Sfair, 2021). The application of bone meal powder (BMP) for treating aqueous solutions containing MB has not been thoroughly studied considering an experimental design approach. It is an inexpensive, abundant and natural material with considerable adsorptive capacity, being obtained from industrial meat processing residues and consists of 65%–70% inorganic matter, mainly hydroxyapatite (Ca₁₀(PO₄)₆(OH)₂) (Chojnacka, 2005; Mattar et al., 2014; Watanabe et al., 2021).

The aim of this study was to assess BMP’s effectiveness as an adsorbent material in eliminating MB from water matrices. Although BMP has demonstrated potential in other applications, its use as an adsorbent for water purification remains understudied, particularly for the removal of synthetic dyes like MB. Existing studies have predominantly focused on more conventional or modified adsorbents, thereby leaving a gap in understanding the capabilities of BMP as a cost-effective and sustainable alternative. In order to achieve this, biosorption treatment using BMP was applied to synthetic aqueous solutions containing MB, under various experimental conditions. An experimental factorial design was employed to identify optimal conditions by altering key parameters such as the initial concentration of MB, pH of the solution, and BMP biosorbent dosage. Additionally, aspects such as equilibrium time and kinetics, equilibrium adsorption isotherms, were explored to offer a comprehensive analysis (Ali Ahmed et al., 2024; Jain et al., 2022; Al-Asadi et al., 2023; Holliday et al., 2024; Farch et al., 2023; Mussa et al., 2023). By investigating these factors, this research provides valuable insights into BMP’s potential as a promising adsorbent for the removal of MB from water solutions.

2 Materials and methods

2.1 Biosorbent

The bone meal (manufactured by Fênix - Indústria e Comércio de Fertilizantes LTDA-ME, located in Cidade Cedral, Brazil) was ground and sieved, resulting in particle sizes ranging from 0.297 to 0.125 mm. Subsequently, the samples were stored in sealed polyethylene bottles, properly labeled, within the laboratory for future use.

2.2 Synthetic solutions

The solutions were formulated by employing analytical grade reagents and distilled water. The MB solutions utilized in the adsorption assays were derived from the respective stock solutions of the MB dye (C.I.52015, Merck, Darmstadt, Germany; Composition: Dye, ≥82% spectrophotometric assay).

2.3 Adsorption essays

The experiments were conducted using a batch approach, in which predetermined concentrations of MB were brought into contact with the biosorbent. Erlenmeyer flasks containing MB solutions and the biosorbent were placed in a BT 400 orbital shaking incubator (Biothec, Piracicaba, Brazil) and shaken at 130 rpm, maintaining a controlled temperature of 25°C ± 2°C. Appropriate amounts of BMP were suspended in 50 mL of the MB-containing solution, and the contact time was set at 24 h. After shaking, the biosorbent was separated from the solution by centrifugation at 6,000 rpm for 15 min. Initial exploratory experiments were carried out with an adsorbent mass/solution (M) of 2 g L⁻¹, initial MB concentration ([MB]₀) of 50 mg L⁻¹, and pH 8. Posteriorly, a factorial experimental design was implemented to further investigate M, [MB]₀, and pH. Using the most appropriate experimental conditions, provided by the experimental design, the equilibrium time and adsorption isotherms were evaluated through kinetic and isotherm modeling. Equilibrium time was evaluated by varying time within 0–24 h using pre-determined time intervals, whereas the isothermal study involved varying the initial MB concentrations from 5 to 1,500 mg L⁻¹. All experiments were performed in triplicate.

The quantitative determination of MB was performed employing a Pharmacia Biotech Ultrospec 3000 UV UV-VIS spectrophotometer (Uppsala, Sweden). The absorption spectrum was obtained by measuring the absorbance at λ_max = 668 nm, representing the peak absorption wavelength of MB detected by UV-VIS spectroscopy. The MB calibration curve was obtained using solutions of different concentrations of MB, in the range of 0–10 mg L⁻¹ (five points: 0/1/2.5/5 and 10 mg L⁻¹; Supplementary Figure S1). The equations for computing the adsorption capacity (q_t or q_exp) (Equation 1) and the removal percentage (R (%)) (Equation 2) are as follows:

${\mathit{q}}_{\mathit{t}}=\frac{\left({\mathit{C}}_{\mathbf{0}}-{\mathit{C}}_{\mathit{t}}\right)\mathit{V}}{\mathit{M}}(1)$

where q is the adsorption capacity of MB (mg g⁻¹), C₀ is the initial concentration of MB in solution (mg L⁻¹), C_t is the equilibrium concentration in solution (mg L⁻¹) at a given time t, V is the volume of the solution (L) and M is the mass of the biosorbent (g).

$\mathit{R}\left(\%\right)=\mathbf{100}\left[\frac{\left({\mathit{C}}_{\mathbf{0}}-{\mathit{C}}_{\mathit{t}}\right)}{{\mathit{C}}_{\mathbf{0}}}\right](2)$

where R is the extraction efficiency or percentage retention, C₀ (mg L⁻¹) is the initial concentration of MB and C_t (mg L⁻¹) represents the concentration of MB at time t.

The equations related to the equilibrium kinetics, error functions with their deviation estimates, and isotherm models are presented in the Tables 1, 2 and in Supplementary Table S1.

Table 1

Table 1. Equations of the kinetic models used.

Table 2

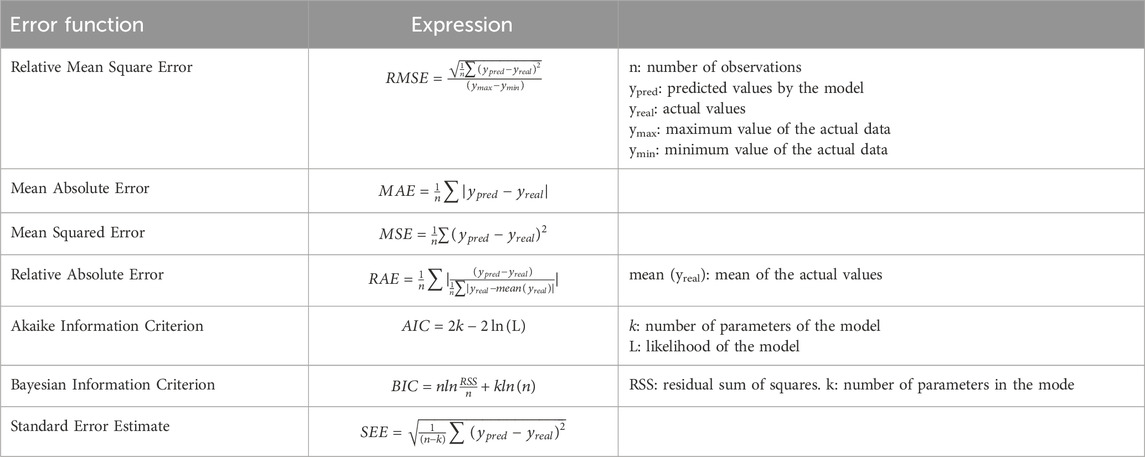

Table 2. Deviation estimate equations.

2.4 Characterization methods

Nitrogen adsorption/desorption isotherms were utilized to analyze the Brunauer–Emmett–Teller (BET) surface area (Quanta Chrome NOVA, ACIL and Weber, Brazil). The total phosphorous concentration in the aqueous solutions before and after adsorption studies was determined using a Spectro ARCOS (Spectro Analytical Instruments, Germany) inductively coupled plasma optical emission spectrometer (ICP OES) with a linear calibration curve ranging from 0 to 1.25 mg L⁻¹ at 177.495 nm (R² = 0.9999).

The biosorbents were subjected to imaging analysis using a Hitachi TM4000Plus II tabletop Scanning Electron Microscopy (SEM) manufactured in Tokyo, Japan. In order Energy-dispersive X-ray spectroscopy (EDS) data were collected alongside SEM imaging to gather detailed information about the elemental composition of the biosorbent. The EDS measurements were conducted using a tungsten source and acceleration voltages of 5 and 15 kV, with an electron beam resolution of 30 nm. SEM images were acquired at magnifications ranging from 500 to 1,500 times. With micrographs of the BMP biosorbent material captured using particles ranging in size from 0.125 mm to 0.297 mm.

Fourier Transform InfraRed (FT-IR) spectroscopy was carried out using a Nicolet 6,700 FT-IR spectrometer (Thermo Fisher, United States) equipped with a liquid N₂ cooled MCT detector and an ATR accessory (MIRacle with a Pike^® diamond/ZnSe crystal plate). The X-ray diffraction (XRD) analysis was conducted on a Miniflex II X-ray diffractometer (Rigaku Co., Japan) using a CuKα radiation source with a wavelength of 1.5406Å. The analysis was carried out in 20°–90° and 2° min⁻¹ as the scan rate.

The zeta potential of the BMP was measured using a Zetasizer NANO-Z instrument (Malvern Instruments Limited, United Kingdom) equipped with a helium-neon laser (633 nm), and a scattering angle of 173° for the measurement of the scattered light intensity. Particles were suspended in ultrapure water at a concentration of 1 mg mL⁻¹ in an ultrasonic bath for 10 min. The experiment was carried out in triplicate at each point and the pH of the potentiometric titration was adjusted with 0.40 M HCl and 0.10 M NaOH solutions, with the pH evaluated from 1 to 9. The Smoluchowski approximation was the theoretical model used to calculate the value of the zeta potential (Hunter, 1988).

2.5 2^k factorial experimental design and mathematical modeling

Factorial experimental design is a robust approach commonly used in modeling experiments for adsorption of dye (Salman et al., 2024; Khalfaoui et al., 2024). By systematically varying the factors of interest, factorial design allows for the efficient exploration of the entire experimental parameters, helping to identify significant factors and interactions affecting the response variable.

The equation for the adsorption experiments is n = 2^k, where ‘n’ denotes the total number of experiments (24, performed in triplicate) and ‘k’ represents the number of variables (three in total). The experimental design chosen is the full factorial design, which was implemented in order to maximize MB removal. For this purpose, three parameters were selected: initial MB concentration ([MB]₀), solution pH, and BMP biosorbent dosage (M). Table 3 lists the real and coded values considered for each test. The lower and upper bounds of each parameter were denoted by (−1) and (+1), respectively. Both the experimental design and statistical analyses studies were performed in RStudio (R Core Team, 2023). The most used R package was the “Process Improvement using Data”, named PID (Dunn, 2018). Analysis of Variance (ANOVA) was employed to facilitate comparison, with a confidence level of 95% utilized to assess both main and interaction effects concerning the percentage of MB removal and q_exp.

Table 3

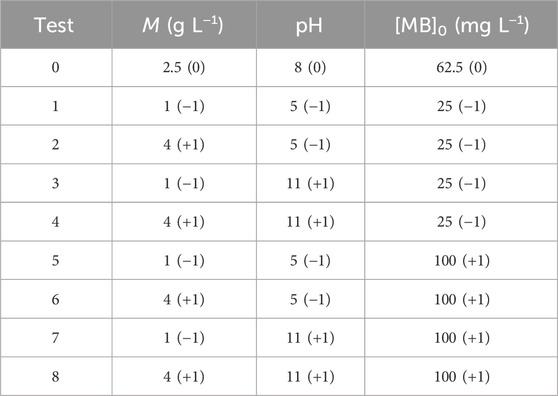

Table 3. Two-level full factorial experimental design matrix.

Equation 3 was used to calculate the coded values of the variables, where var is the selected variable.

$\mathbf{\text{coded\hspace{0.17em}}}\mathbf{v}\mathbf{a}\mathbf{r}=\frac{\mathit{v}\mathit{a}\mathit{r}\left(\mathit{r}\mathit{e}\mathit{a}\mathit{l}\right)-\mathit{c}\mathit{e}\mathit{n}\mathit{t}\mathit{e}\mathit{r}\left(\mathit{r}\mathit{e}\mathit{a}\mathit{l}\right)}{\frac{\mathit{r}\mathit{a}\mathit{n}\mathit{g}\mathit{e}\left(\mathit{r}\mathit{e}\mathit{a}\mathit{l}\right)}{\mathbf{2}}}(3)$

The equations generated by applying the multiple linear model were submitted to the stepwise algorithm based on the Akaike Information Criterion (AIC) for a significance level of 0.05. Therefore, only the statistically significant variables and their interactions were included in the equations. The stepwise algorithm was used to automatically select the most relevant variables in the applied model, simplifying the interpretation of the resulting equations and ensuring an efficient and accurate analysis of the relationships between the factors studied.

In the mathematical modeling study, Python code was employed to evaluate various machine learning (ML) techniques for analyzing experimental data, similarly to previous studies (Kumari et al., 2023a; Kumari et al. 2024; Kumari et al. 2023b; Kooh et al., 2022; Musa et al., 2024; Aghilesh et al., 2023; Mijwel et al., 2023). Initially, linear regression, decision tree (DT) regression, random forest (RF) regression, support vector machine (SVM), and neural network (NN) models were applied to predict the adsorption capacity based on experimental factors A, B, and C. Each model underwent training and evaluation for mean absolute error (MAE), with a grid search approach used to optimize hyperparameters for the SVM model. Further analysis involved incorporating interactions between variables A, B, and C, followed by modeling using the same ML techniques. Lastly, the study explored NN models with different configurations using grid search. The packages used were “pandas,” “numpy,” “matplotlib,” “sklearn,” and “seaborn.”

2.6 Desorption and regeneration experiments

Three different chemical reagents, including hydrochloric acid (HCl 37%, Supelco), sulfuric acid (H₂SO₄ 98%, Synth) and sodium hydroxide (NaOH 99%, Isofar) were tested as eluents. A concentration of 1% (w/v for NaOH; v/v for HCl and H₂SO₄) of each eluent was used in the desorption experiments, which were carried out in 125 mL capped Erlenmeyer flasks, each containing 50 mL solution of the eluent solution. For these studies, BMP was loaded with MB at the concentration at which the isotherm reached its maximum point (300 mg L⁻¹). This material was placed in contact with the desorption medium under constant agitation at 130 rpm for 1 h. Analyses were carried out three times at intervals of 15, 30, and 60 min. After selecting the best desorption medium, 1% and 3% H₂SO₄ were used for the recycling experiments, in which BMP was used again to remove MB in aqueous solution ([MB]₀ = 100 mg L⁻¹). The adsorbent was washed with distilled water after each experiment. The loss of efficiency was recorded for each cycle. The study of the cycles was completed when the % removal decreased by half, reaching its maximum reuse capacity.

2.7 Effect of coexisting ions

Four common coexisting ions: PO₄³⁻, CO₃²⁻, Cl⁻, and K⁺ (C_{co-existing ions} = 10 mg L⁻¹) were added into the aqueous solutions with MB ([MB]₀ = 100 mg L⁻¹) to investigate their effect on the adsorption performance.

3 Results and discussion

3.1 Characterization of bone meal powder

BMP has a BET surface area of 48 m² g⁻¹ and showed no significant changes after the adsorption process. Compared to other bone materials, this value is significantly higher than that of Bali cow bone hydrochar powder, which presented 15 m² g⁻¹, and was used for the adsorption of methyl red from aqueous solution (Neolaka et al., 2023). Nevertheless, CO₂ physically activated bone chars have been employed for dye adsorption and presented high BET surface area values of 137 m² g⁻¹ (Bedin et al., 2017).

Micrographs of BMP are presented in Figure 1A, illustrating its irregular surface morphology. For instance, SEM imaging of comparable biosorbents such as hydroxyapatite and tricalcium phosphate/chitosan, also showed irregular surface morphology, with clusters and agglomerates, surface roughness and intricate structures (Fijoł et al., 2021; Viswanathan et al., 2019). These observations strengthen the validity of the micrographs obtained for BMP, indicating that its irregular surface is a common feature among comparable biosorbent materials. Furthermore, as shown in Figure 1A, a measurement of the particles’ sizes was done, indicating sizes between 54.4 μm and 129 μm, which agree with (Deydier et al., 2005) who found particles between 50 and 245 μm by laser diffraction analysis. Figures 1B, C shows BMP after in contact with MB. After this contact, the BMP was larger in size, although deagglomerated, showing a broken structure in thin sheets, with spheres on its surface and homogeneously scattered, with a clear presence of pores, indicating a strong change in its structure after contact with the dye.

Figure 1

Figure 1. Scanning Electron Microscopy (SEM) Imaging and Energy Dispersive X-ray Spectroscopy (EDS) analysis of bone meal. (A) Micrograph of raw bone meal at 120× magnification with powder size measurement; (B) micrograph of bone meal after contact with MB ([MB]₀ = 100 mg L⁻¹, adsorbent dosage = 1 g L⁻¹, time of contact = 1 h, pH = 11) at 30× magnification; (C) micrograph of bone meal after contact with MB at ×120 magnification; (D) raw bone meal micrograph with EDS scanning; (E) EDS analysis of raw bone meal.

Additionally, EDS analysis was conducted on the raw material, revealing the presence of calcium, phosphorus, and sulfur, as demonstrated in Figures 1D, E. EDS analyses of analogous raw materials have consistently detected the presence of calcium and phosphorus (Biedrzycka et al., 2021; Viswanathan et al., 2019), similar to what was observed in the analysis of BMP. This shared elemental composition across different biosorbents suggests a common chemical composition and potentially similar properties.

Phosphate constitutes a vital element within hydroxyapatite (Ca₁₀(PO₄)₆(OH)₂), a primary component of BMP. This is evident from the mid-IR spectrum of BMP (Figure 2), showcasing pronounced absorption bands at 1,000–1,100 cm⁻¹ associated with the antisymmetric stretching bands of apatite PO₄³⁻ groups (Paschalis et al., 2011; Vassalo et al., 2016). Additionally, the peak at 668 cm⁻¹ corresponds to the out-of-plane bending vibrations of the PO₄³⁻^- ions (Vassalo et al., 2016).

Figure 2

Figure 2. Mid-IR spectra of the (bottom) bone meal powder and (top) bone meal powder with methylene blue ([MB]₀ = 100 mg L⁻¹, adsorbent dosage = 1 g L⁻¹, time of contact = 1 h, pH = 11).

The observed peak at 1,620 cm⁻¹ could be ascribed to two types of vibrations: in plane H-O-H bending (water) and carbonyl stretching (carbon dioxide) (Mendes et al., 2012; Kesmez, 2020). CO₃²⁻ peak is observed at 1,435 cm^-1 and can be explained by carbonate substitution for hydroxyl and phosphate groups in hydroxyapatite (Sahana et al., 2013; Chappard et al., 2016). The mid-IR spectrum indicates deep involvement of PO₄³⁻ groups (650–680 cm⁻¹) in MB adsorption and suggests that the interaction of MB with these groups may elevate the HPO₄²⁻ species in the solution. Quantifying the phosphate mass in the aqueous solution pre and post the adsorption process revealed noteworthy changes. Initially, the MB solutions exhibited a phosphate concentration of 0.073 ± 0.003 (mg L⁻¹), surging to 0.569 ± 0.009 (mg L⁻¹) post-mixture with BMP, marking an eightfold increase. This substantial increment strongly indicates a significant participation of the ion exchange mechanism in the MB adsorption by BMP. It is important to note that the concentration of phosphate released during the adsorption process is far below its presence in typical sewage effluents, which is commonly between 4 and 15 mg L⁻¹ (Dantas et al., 2021). Therefore, the release of phosphate from BMP to the environment is within acceptable levels and does not pose a significant risk of secondary pollution.

XRD analysis was conducted to investigate any structural changes induced by the adsorption process. The diffractogram of the samples are shown in Figure 3. Crystalline phases found in the sample prior to adsorption were potassium hydrogen phosphate hydrate (PDF#26-0905), calcium phosphate (PDF#52-1538), hydroxyapatite (PDF#89-4405) and phosphorus oxide (PDF#870-0952). After dye adsorption, it can be seen that the crystalline structure has become amorphous.

Figure 3

Figure 3. XRD of the BMP material before: BMP; after in contact with MB: BMP + MB. ([MB]₀ = 100 mg L⁻¹, adsorbent dosage = 1 g L⁻¹, time of contact = 1 h, pH = 11).

The zeta potential study of the BMP as a function of pH was done and it is presented in Supplementary Figure S2. MB is cationic, indicating a higher affinity for the adsorbent when it the latter exhibits a negative zeta potential (Zhang et al., 2012; Ebadollahzadeh and Zabihi, 2020; Li et al., 2022), i.e. at pH values above the isoelectric point (IEP). Below the IEP (1.85), the BMP surface has a positive charge balance. As all pH values tested in this study were above the IEP, the affinity of MB for the BMP surface remained unaffected.

3.2 Experimental design

The exploratory results indicated a q_exp of 7.5 ± 0.04 mg g⁻¹, with a removal of 32% ± 0.002% (M = 2 g L⁻¹; pH = 8; [MB]₀ = 50 mg L⁻¹). To search for higher q_exp and removal rates, further experiments were conducted and a factorial experimental design was employed. The response (q_exp) obtained for each experiment is shown in Table 4. The model equations represent the role of each variable process and estimates variations in the experimental range. Equations 4, 5 show the estimated model for q_exp and for the removal percentage, respectively. The whole design matrix with the predicted data and the statistical parameters and their values are provided in the (Supplementary Tables S2, S3). The estimated values, ŷ₁ and ŷ₂, shown in Supplementary Table S2, represent the experimental data well, being consistent with R² values (Supplementary Table S3) of 99.50% for y₁ and 99.95% for y₂.

${\mathbf{Y}}_{\mathbf{1},\mathbf{\text{model}}}=\mathbf{6.84}-\mathbf{1.46}\mathbf{A}+\mathbf{0.84}\mathbf{B}+\mathbf{3.52}\mathbf{C}-\mathbf{0.48}\mathbf{A}:\mathbf{B}-\mathbf{1.03}\mathbf{A}:\mathbf{C}+\mathbf{0.28}\mathbf{B}:\mathbf{C}(4)$

${\mathbf{Y}}_{\mathbf{2},\mathbf{\text{model}}}=\mathbf{28.62}+\mathbf{14.00}\mathbf{A}+\mathbf{1.75}\mathbf{B}-\mathbf{7.25}\mathbf{C}–\mathbf{0.25}\mathbf{A}:\mathbf{B}-\mathbf{4.25}\mathbf{A}:\mathbf{C}–\mathbf{0.50}\mathbf{B}:\mathbf{C}+\mathbf{1.00}\mathbf{A}:\mathbf{B}:\mathbf{C}(5)$

Table 4

Table 4. Design matrix for MB removal by BMP. y₁ and y₂ are the adsorption capacity (mg g⁻¹) and percentage removals, respectively.

3.3 Statistical analysis

The Pareto plot, depicted in Figure 4A, provides insights into the most influential factors affecting q_exp. Notably, the variables C (initial MB concentration) and A (M, g L⁻¹) exhibited the most significant effects, followed by the A:C interaction, with variable B (pH) and the A:B interaction having a comparatively lower impact. The analysis reveals that variable C plays a predominant role in the process, positively influencing q_exp. Conversely, the effect of variable A negatively influences this response, ranking second in importance.

Figure 4

Figure 4. (A) Pareto plot from q_exp,BMP on the removal of MB (most significant effects labeled); (B) Contour plot of the main interaction (A:C) regarding BMP adsorption capacity of MB. (C) Pareto plot from the MB removal percentage by BMP (most significant effects labeled); (D) Contour plot of the main interaction (A:C) regarding MB removal percentage by the BMP.

Figure 4B presents a contour plot that visually represents these effects while highlighting the relatively weak interaction between the terms. It is evident that increasing the initial MB concentration (variable C) and decreasing the adsorbent dosage (variable A) are key strategies for enhancing q_exp values. However, the impact of variable B (pH) on performance appears to be statistically insignificant, potentially overshadowed by the more pronounced effect of variable C, which has a significantly higher magnitude.

The contour plot further supports this behavior, with higher values concentrated in the upper left corner of Figure 4B. The observed curvatures imply that the interactions between these variables play an important role in the adsorption process and must be considered to provide optimized treatment systems. According to this experimental range, design experiments with lower values of M (<1 g L⁻¹) and higher values of [MB]₀ (>75 mg L⁻¹) are recommended to optimize the most relevant adsorption conditions. These findings emphasize the importance of careful consideration and manipulation of the initial MB concentration and adsorbent dosage to maximize q_exp values and support scaling-up in an optimized manner. Further experimentation within the suggested parameter ranges can yield even more optimized conditions for the adsorption process.

When considering the removal percentages, the adsorbent dosage (variable A) emerged as the most influential factor (Figures 4C, D). However, unlike q_exp values, an interesting contrast was observed: variable A exhibited a positive effect on MB removal. Following this, the initial MB concentration (variable C) was identified as the second most significant variable affecting MB removal. Intriguingly, its effect on the response was also opposite to that observed for q_exp values, with a negative impact.

These distinct responses underscore the importance of carefully selecting appropriate response variables when making informed decisions regarding the system conditions. Depending on the desired outcome (e.g., maximizing q_exp values or achieving high removal percentages), different variables may exert opposing effects. It becomes crucial to consider the specific objectives and desired outcomes of the system in order to make optimal choices.

Understanding the varying effects of different variables on different response variables enables informed decision-making, allowing for the selection of system conditions that align with the desired goals. By carefully considering and selecting the appropriate response variables, researchers and practitioners can navigate these complexities and make well-informed choices to achieve the desired outcomes in the system.

3.4 Machine learning study

While linear regression modeling yielded high correlation values and offered valuable insights into MB adsorption by BMP, the application of additional mathematical tools is crucial to enhance our understanding of the process. Indeed, multiple linear regression comes with certain limitations, including multicollinearity when independent variables are highly correlated, and the risk of overfitting or overly complex models when the number of independent factors is large relative to the amount of observations. In addressing these challenges, several measures were implemented in this study, such as excluding non-statistically significant factors and ensuring an appropriate ratio of independent variables to the number of observations. However, to further address these issues and offer alternative mathematical formulations, the incorporation of regularization techniques such as Ridge Regression and Lasso Regression is essential. These methods penalize unnecessary factors, thus helping to prevent overfitting and simplifying model complexity. Figure 5 presents a comparison between these linear models, both considering and not considering interactions between independent variables, respectively.

Figure 5

Figure 5. Comparison between linear, Ridge and Lasso models. The stepwise was not employed for these comparisons. (left side) the effects of the interactions were not included in the evaluation; (right side) the effect of the pair and triple interactions were considered into the models but are not given in the graph equations.

Clearly, multiple linear regression yielded the most accurate fittings, with Mean Absolute Errors (MAEs) of 0.99 and 0.15, depending on whether the interaction of independent variables was included. Without interactions, Ridge outperformed the linear model for lower values but exhibited decreased performance as values exceeded approximately seven. The Lasso model appeared to overly penalize linear equations, resulting in significantly poorer performance for both scenarios and indicating insensitivity to the addition of interactions. However, when interactions were considered, the linear model demonstrated exceptional fitting, achieving a MAE of 0.15, with predicted values closely aligned with experimental ones. For extrapolation beyond the study’s data range, the Ridge model could prove advantageous, as it exhibited sensitivity to added interaction values without achieving near-perfect fitting.

Alternative mathematical approaches offer intriguing methods for data prediction and can be particularly useful for guiding further experimentation. For instance, the DT model provides a systematic decision-making process based on parameter selection, facilitating the identification of optimal values for the dependent variable. As depicted in Supplementary Figure S3, this figure highlights that to enhance adsorption capacity, one should initiate with a MB concentration exceeding 43.75 mg L⁻¹, followed by a lower adsorbent dosage of less than 1.75 g L⁻¹, and subsequently, a pH level higher than 8. By adhering to this sequence, adsorption capacity can significantly increase from 3.23 to 14.49 mg g⁻¹.

The linear regression model remains the most effective, outperforming DT, RF, SVM, and NN (Figure 6). Notably, augmenting linear regression with interactions resulted in superior accuracy, surpassing even high-performance models like NN.

Figure 6

Figure 6. Predictions by different ML models and their MAE calculations. The SVM model included was selected by working with different values for the hyperparameters (see Supplementary Figure S4 for the grid search configuration study).

However, these models operate with distinct parameter values, including hyperparameters. Consequently, optimizing these parameters may yield a perfect yet unrealistic fit. For instance, when varying the maximum depth parameter for DT, perfect fitting was achieved by increasing the value from one to two (see SI, Supplementary Figure S5). Conversely, with NN, significantly improved predictions were observed by adjusting hidden layer sizes, culminating in a MAE of 0.47 (see SI, Supplementary Figures S6–S8). However, achieving a perfect fit may require incorporating interactions between independent variables, while suboptimal parameter values may lead to poor fitting.

3.5 Effect of contact time

The adsorption of MB over time under the specified conditions (M = 1 g L⁻¹; pH = 11; [MB]₀ = 100 mg L⁻¹) is presented in Figure 7. The data reveals that the adsorption is rapid and that most MB is adsorbed within the initial 30 min. Subsequently, the rate of adsorption slows as equilibrium is approached, likely due to the gradual occupancy of vacant sites initially available.

Figure 7

Figure 7. Kinetic models of MB adsorption onto BMP. For the equations, see Table 1.

To gain further insights into the adsorption process, we conducted kinetic studies utilizing six distinct models: Avrami, Elovich, pseudo-first order (PFO), and pseudo-second order (PSO) (refer to Table 1, for the equations). These kinetic models offer valuable insights into the kinetic parameters and the underlying mechanism of MB adsorption onto BMP. The parameter values are presented in Table 5, along with the corresponding residual standard errors, enabling the assessment of the models’ accuracy. Additionally, the Relative Mean Square Error (RMSE) was calculated to provide a comprehensive evaluation of the model’s performance.

Table 5

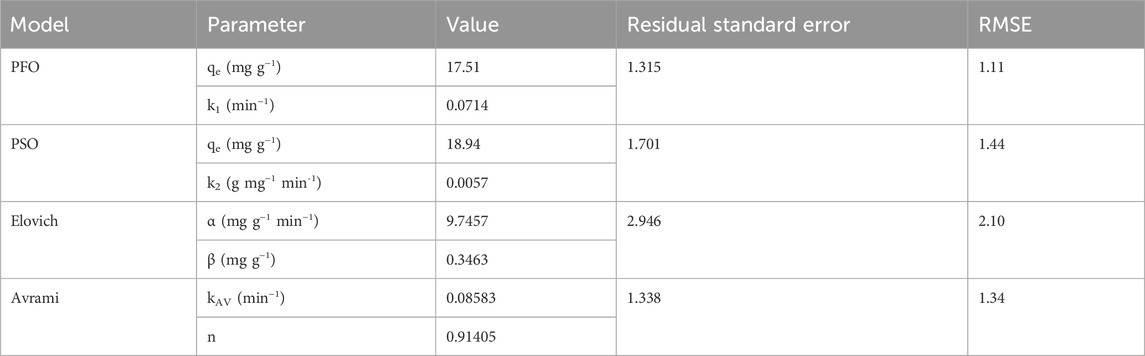

Table 5. Kinetic parameters calculated for MB removal with the BMP adsorbent material.

The calculated values of q_exp for PFO and PSO exhibited slightly discrepancies, with PFO being closer to the experimentally observed value (q_exp). Furthermore, the RMSE was lower for the PFO model, 1.11, indicating a superior fit compared to the PSO model, which yielded an RMSE of 1.44. In this manner, the experimental data aligns better with the non-linear PFO model, suggesting that adsorption follows a pseudo-first-order chemical reaction and that the rate of the adsorption can be elucidated by the first-order reaction rate equation (Yang and Al-Duri, 2005). In simpler terms, PFO kinetics imply that the adsorption governs the rate-limiting step in the process (Ahmad et al., 2005).

The data also exhibited a good fit with the Avrami fractional kinetic equation, concurring with the PFO model, since it displayed lower error function values than PSO and Elovich for the studied MB concentration (Passos et al., 2008). Upon analyzing the kinetic parameter values presented in Table 5, it is evident that the values of K_AV are much more suitable for evaluating the kinetics of the process than the pseudo-second-order rate constant (k₂). This is due to the fact that the Avrami constant values are independent of the initial concentration of the adsorbate, having min^-1 as their units. Conversely, the values of k₂ are highly dependent on initial pollutant concentrations, given that their units are g mg⁻¹ min⁻¹ (Oladoja, 2016).

3.6 Isotherm studies: Langmuir and Freundlich models

Langmuir and Freundlich isotherms were employed and fitted to the experimental data (Figure 8). The parameters obtained by linear and non-linear regression for each isotherm model are presented in Table 6. At equilibrium, our findings demonstrate an augmentation in the amount of MB adsorbed. Notably, with an increase in the initial concentration of MB, there is a corresponding decrease in the efficiency of MB removal. The Langmuir isotherm, which assumes monolayer adsorption on a surface with a finite number of identical sites, provided the highest correlation coefficient (R² = 0.935), suggesting that the adsorption process is predominantly occurring on homogeneous sites on the BMP surface. The calculated maximum adsorption capacity (q_max) of 63 mg g⁻¹ aligns well with the experimental data, indicating that BMP has a substantial number of active sites for MB adsorption.

Figure 8

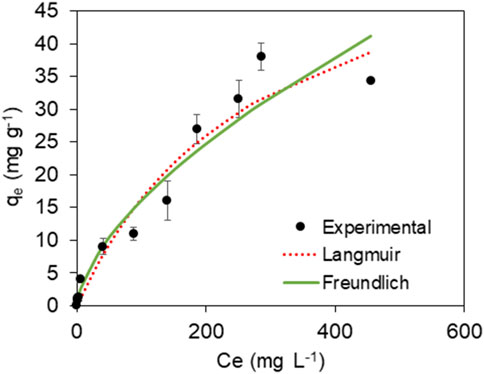

Figure 8. Non-linear isotherms of BMP during MB adsorption.

Table 6

Table 6. Parameters calculated by using the Langmuir and Freundlich adsorption isotherm models for MB adsorption on BMP, along with the corresponding correlation coefficients obtained for each model.

In contrast, the Freundlich isotherm, which is an empirical model describing adsorption on heterogeneous surfaces, also demonstrated a satisfactory fit with a slightly lower R² value of 0.928. This indicates that while the BMP surface exhibits some degree of heterogeneity, the prevalence of homogeneous adsorption sites is more pronounced, as evidenced by the superior fit of the Langmuir model. The Freundlich constant (K_F = 0.93), which is related to adsorption capacity, and the heterogeneity factor (n = 1.71) were also consistent with moderate adsorption intensity, reflecting the complex nature of the adsorption process.

The higher correlation observed with the Langmuir model in comparison to the Freundlich model suggests that the adsorption of MB on BMP may occur primarily on uniform sites until saturation is reached. Once saturation is achieved, multilayer adsorption (as suggested by the Freundlich model) could potentially take place within the pores or at more heterogeneous sites.

In this study, a brief investigation was conducted into the q_pred values of various adsorbent materials for MB removal. To facilitate a thorough comparison, performance of BMP in relation to other commonly studied adsorbents was carefully evaluated, including olive pomace, charcoal, silicas, and several zeolites. The detailed results are accessible in Supplementary Table S4 of the Supplementary Information, offering significant insights into the adsorption properties of these materials.

The findings from this study unequivocally demonstrate that BMP exhibits superior q_pred values for MB when compared to olive pomace, charcoal, silicas, and the majority of the investigated zeolites. This underscores the remarkable potential of BMP as a proficient adsorbent for removing MB in water and wastewater treatment applications. However, it is important to note that certain modified adsorbents, such as the zwitterion composite chitosan-epichlorohydrin/zeolite, as well as peels derived from banana, potato, and jackfruit, displayed even higher q_pred values for MB. These modified materials exhibited exceptional performance, suggesting promising avenues for further research and development with modified BMP in the field of pollutant removal.

3.7 Desorption and regeneration

As shown in Figure 9A, at a time span of 1 h, a maximum of 68.72% and 63.14% of desorption were achieved using H₂SO₄ 1% and HCl 1% as desorption solutions, respectively, while in the alkaline media (NaOH 1%), a 12.91% desorption efficiency was observed.

Figure 9

Figure 9. (A) Desorption efficiencies of MB under various desorption conditions, (black square) 1% H₂SO₄; (red circle) 1% NaOH, (blue triangle) 1% HCl; (B) Regeneration cycles of BMP with H₂SO₄ as the desorption agent; (C) Effect of co-existing ions in the aqueous solutions; (D) Proposed mechanism of the adsorption process between bone meal powder and methylene blue. The material used was obtained after the experiments with the following conditions: [MB]₀ = 100 mg L⁻¹, adsorbent dosage = 1 g L⁻¹, time of contact = 1 h, pH = 11, C_{co-existing ions} = 10 mg L⁻¹.

This difference suggests that the desorption efficiency of adsorbed MB is strongly pH-sensitive and can be attributed to the fact that, BMP was prone to protonation in acidic media and, hence, not a favorable surface for MB adsorption. The recovery of BMP was evaluated and is critical for reducing the cost of MB removal process, enabling the potential reuse of the adsorbent.

The MB adsorption-desorption cycles are shown in Figure 9B. H₂SO₄ was chosen as the desorption agent due to its superior efficiency. Two concentrations were used to assess regeneration capacity (1% and 5%, v/v). H₂SO₄ 5% exhibited superior recycling capability. The BMP regeneration efficiency decreased from 89.74% to 37.54% after five consecutive cycles, suggesting effective recycling (>50% removal efficiency) over four cycles. After the fourth cycle, the reduction in MB removal indicates that a significant number of chemical reactions have occurred on BMP’s surface, resulting in the collapse of its porous structure and decreased adsorption capacity during subsequent regeneration cycles. Conversely, using H₂SO₄ 1% (v/v) resulted in considerably lower recycling, with BMP regeneration efficiency decreasing from 80.94% to 29.91% after three consecutive cycles, allowing for only two cycles of BMP regeneration.

With regard to desorption agents and their efficacy in recycling, direct comparisons with previous investigations have proven challenging. The current literature lacks comprehensive studies utilizing BMP and BMP-derived materials specifically for contaminant adsorption, creating a gap in the field. As highlighted by (Adewuyi, 2020), this is a common problem across different applications using biosorbents, highlighting the need to prioritize regeneration studies to thoroughly evaluate the value of these affordable biosorbents.

3.8 Effect of coexisting ions

Figure 9C shows that the presence of coexisting ions had minimal impact MB adsorption onto BMP when the MB concentration was 10 mg L⁻¹. The adsorption capacities of MB after the addition of coexisting ions ranged from 11.2 to 17.5 mg g⁻¹, higher than that observed in the absence of co-ions (10.7 mg g⁻¹). These findings suggest that the process was not negatively affected by the presence of coexisting ions. However, there was an important increase in adsorption capacity, particularly when anions were added into the solution, which may be ascribed to enhanced dimerization reactions of MB in solution due to the forces: ion-dipole interactions, dipole-dipole interactions, and van der Waals forces among MB molecules (Lin et al., 2017; Kuang et al., 2020). Notably, the presence of PO₄^3- had a more pronounced effect on MB adsorption by BMP.

3.9 Mechanisms of adsorption between bone meal powder and methylene blue

The adsorption of MB molecules onto BMP is primarily driven by a combination of electrostatic interactions, ion exchange, and surface chemistry. The BMP, with its BET surface area of 48 m² g⁻¹, provides a substantial and irregular surface morphology that facilitates the adsorption process. The interaction between the phosphate groups (PO₄³⁻) in BMP and the nitrogen atoms in the MB molecules is crucial, as depicted in Figure 9D. Additionally, these nitrogen atoms are likely to interact with Ca²⁺ ions present in hydroxyapatite through Lewis acid-base interactions, as suggested elsewhere (Sharma et al., 2021).

As the pH value increases, the surface of BMP becomes increasingly negatively charged due to the prevalence of neutral -CaOH groups and negatively charged PO- species. This results in a stronger electrostatic attraction between the negatively charged BMP surface and the positively charged groups of the MB dye. Furthermore, the release of phosphate ions during the adsorption process indicates that ion exchange is also a significant mechanism, whereby phosphate groups on BMP are replaced by MB molecules in solution. The observed structural changes in BMP after adsorption, such as increased porosity and the appearance of thin, broken sheets, provide further evidence that these interactions lead to a strong and efficient adsorption process.

4 Conclusion

This study demonstrated the effectiveness of BMP as an adsorbent for removing MB from aqueous solutions. Among the experimental conditions tested, N4 (M = 4 g L⁻¹; pH = 11; [MB]₀ = 25 mg L⁻¹) achieved the highest removal efficiency (R = 55%). However, the highest adsorption capacity (q_exp = 14.49 mg g⁻¹) was observed under the N7 condition (M = 1 g L⁻¹; pH = 11; [MB]₀ = 100 mg L⁻¹). Equilibrium was reached within 30 min, with a final q_exp value of 18 mg g^-1. The kinetic analysis revealed that the pseudo-first order model provided the best fit to the experimental data, yielding a q_exp value of 17.51 mg g⁻¹ and a rate constant (k₁) of 0.0714 min⁻¹. This indicates that the adsorption process is primarily governed by the rate of MB removal over time. The adsorption isotherms followed the Langmuir model, predicting a maximum adsorption capacity (q_pred) of 63 mg g⁻¹, suggesting monolayer adsorption on a homogeneous surface. Desorption studies indicated that the efficiency of MB desorption from BMP is highly pH-dependent, with the highest desorption (68.72%) occurring in acidic conditions using H₂SO₄ as the desorbing agent. This highlights the importance of pH in the regeneration process, where acidic conditions reduce BMP’s effectiveness for re-adsorption due to surface protonation. The findings of this research underscore the potential of BMP as a viable adsorbent for MB removal, particularly in the context of utilizing agricultural byproducts in wastewater treatment. The experimental data provide valuable insights into the adsorption kinetics, equilibrium behavior, and the impact of operational parameters, which can inform the development of practical applications for dye-containing wastewater treatment. Future work will focus on translating these theoretical results into scalable and efficient treatment processes for real-world wastewater applications.
