Recent advances in graphene research have enabled the utilization of its nanocomposites for numerous energy-based and environmental applications. Recently, the advancement in graphene-based polymer nanocomposites has received much attention with special emphasis on synthesis and application. Graphene-based nanocomposites show astonishing electrical, mechanical, chemical, and thermal characteristics. Graphene nanocomposites (GNCs) are synthesized using a variety of methods, including covalent and non-covalent methods, a chemical-based deposition approach, hydrothermal growth, electrophoresis deposition, and physical deposition. Chemical methods are the most viable route for producing graphene in small quantities at low temperatures. The technique can also produce graphene films on a variety of substrate materials. The use of artificial intelligence (AI) for the synthesis of AI-created nanoparticles has recently received a lot of attention. These nanocomposite materials have excellent applications in the environmental, energy, and agricultural sectors. Due to high carrier mobility, graphene-based materials enhance the photocatalytic performance of semiconductor materials. Similarly, these materials have high potential for pollutant removal, especially heavy metals, due to their high surface area. This article highlights the synthesis of graphene-based nanocomposites with special reference to harnessing the power of modern AI tools to better understand GNC material properties and the way this knowledge can be used for its better applications in the development of a sustainable future.
1 Introduction
Carbon is abundantly present on Earth’s surface and is a major component of human life. Elements of biological life and fossil fuels all contain carbon as a major proportion. This shows the overall versatility of this element and its broad range of applications in daily life (Lam and Luong, 2014; Zeng et al., 2020). Carbon’s unique ability to create multiple bonds with each other allows it to create various forms of arrangements, ranging from linear sheet-like layers to tetrahedral structure formations (Serp and Figueiredo, 2009). This unique arrangement of carbon atoms allows the formation of various iso-forms, each possessing its own unique electrical, physical, thermal, and chemical properties. As a result, this carbon-based material can be utilized to make various kinds of products, ranging from nanofibers to carbon material sheets to more advanced stage carbon nanotube materials. In recent years, graphene has emerged as a nascent isoform of carbon and is getting heavily integrated into everyday life. This is attributed to the unique physio-chemical properties of graphene, which include a relatively higher surface area, thermal stability, mechanical strength, and high electric mobility (Gopiraman et al., 2013a).
Graphene is the basic building block for all available graphitic allotropes of carbon. It has several unique properties that make it stand out from all other allotropic forms of carbon. Ever since the groundbreaking research at the University of Manchester in 2007, it has gained great attention for application in multiple fields (Kravets et al., 2010). It has a two-dimensional structure and is often observed to be the thinnest existing material with only a single atom thickness. Inside the single layer, these atoms are interconnected in a honey comb like structure via sp2 atomic hybridization. Its unique properties include a theoretical surface area of 2,630 m2/g, a young modulus of around 1 TPa with high breaking strength, and a thermal conductivity of 5,000 W per meter per kelvin, making it a hot material for various novel applications in various fields of life (Zhu et al., 2010; Yang et al., 2013). Although it is composed of a single 2-D layer of carbon atoms, which are closely packed in a hexagonal structure, graphene is a highly flexible material and can stretch to a great extent from its original shape. Graphene is lighter than any form of existing steel, yet it is stronger than the strongest known form of steel. Although graphene materials mostly possess unique and favorable properties, allowing their wide-scale applications, a few of their attributes have some negative impacts as well. For instance, graphene layers have a lower light absorption rate and, due to their transparent nature, are utilized for the synthesis of various optoelectronic devices. However, this weak light absorption makes them less popular for the synthesis of solar energy absorption panels (Kravets et al., 2010). Collectively, this rapidly developing field of graphene applications has envisioned great potential in electronics, optoelectronics, and electrochemical and biomedical applications due to its unique structure and properties.
The conductivity of graphene is due to a single free electron in a covalent sp2 bond between carbon atoms. As a radical nanomaterial with extraordinary physical features, such as remarkably high heat conductivity and excellent electrical conductivity, graphene is gaining a lot of interest from the physical, chemical, and biomedical areas (Blake et al., 2007; Potts et al., 2011; Singh et al., 2011; Young et al., 2012) due to its biocompatibility, surface-to-volume ratio, and excellent mechanical strength (Yasmin and Daniel, 2004; Novoselov et al., 2005; Lee et al., 2008; Compton and Nguyen, 2010; Zhu et al., 2010; Chandrasekaran et al., 2014). Graphene is the most thermally conductive material known, and it has unusual electronic properties. At normal temperature, graphene possesses remarkably high electron mobility, according to experiments, and has been proposed as a transistor circuitry option. Graphene has over 200 times the electron mobility of Si and over 4 times that of III–V semiconductors (Chen et al., 2008; Pallecchi et al., 2014; Lamichhane and Ravindra, 2020). As a result, graphene would be a very appealing material for high-speed transistors.
Graphene layers are more commonly used in various structures in order to harness the potential properties of the compound. However, most recently, graphene-based nanocomposites have found a relatively quick rise in their application for numerous electrical, environmental, and biological purposes. In general, nanocomposites are materials that are made up of multiple (two or more) layers with engineered high-density interfaces and with hierarchical geometries. Nanocomposites have such physical and mechanical properties that they are higher than the corresponding single-layered structures of the same compound. Various nanocomposites are also formed by the combination of alternate layers of two different kinds of materials, which exhibit ultra–high-level strength (Mara et al., 2008). All of these characteristics of graphene and its nanocomposites were reported by different researchers along with the preparation methods and applications in the fields of the environment, energy, and agriculture. There is still a technological gap in the preparation and applications of these composites, which provides room for advancements in this domain. This article mainly highlights the conventional and AI-based preparation methods for graphene and its nanocomposites and the advanced applications of these composites in different fields.
Conclusively, this review makes use of previous research and presents a comprehensive insight into the manufacturing methods and applications of graphene-based composites. Previous review articles lack the combined approach toward conventional and AI-based synthesis of GNCs. Some articles discuss only the conventional methods of synthesis (Gorga and Cohen, 2004; Yuan et al., 2009; Rourke et al., 2011; Goenka et al., 2014; Jayasena and Melkote, 2015; Jaleh et al., 2017). Moreover, some articles mentioned the applications of GNCs in the fields of the environment sector (Hao et al., 2012; Cao and Li, 2014; Latha et al., 2016; Luo and Yang, 2017), energy sector (Choi et al., 2010; Kamat, 2010; Dimakis et al., 2015), and agricultural sector (Gomez De Arco et al., 2010; Nuvoli et al., 2011; Fan et al., 2018; Mohan and Panicker, 2019) separately. This review article, however, explored AI-based synthesizing methods and also, a combined approach toward applications in all three sectors is evaluated.
2 Structural analysis of graphene nanocomposites
In general, nano-materials are divided into various categories based on the dimension of the particles, i.e., zero-dimension, one dimension, and up to three-dimension graphene materials, which are used for a number of purposes (Tiwari et al., 2012). These materials are prepared by inter-mixing several layers of graphene and other compounds (i.e., ZnO, TiO2, etc.) (Chang et al., 2016). The chemical structure of GO is redrawn as shown in Figure 1 (Xiang et al., 2021).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/890408/fenvc-03-890408-HTML/image_m/fenvc-03-890408-g001.jpg)

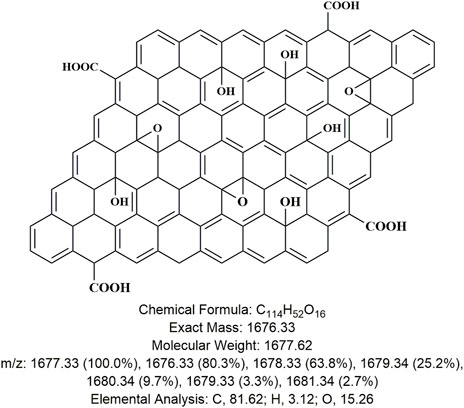

FIGURE 1. Chemical structure of graphene oxide with its chemical analysis redrawn using ChemDraw ultra 12 (Xiang et al., 2021).
Graphene comes in three different forms: graphene powder, graphene film, and graphene liquid. Mechanical stripping and SiC epitaxial growth are the most common graphene powder fabrication methods; chemical vapor deposition (CVD), electrochemical, and rapid heating methods are the most common graphene film fabrication methods; and graphene liquids are mostly graphene derivatives (Yap and Liu, 2020). Excellent mechanical strength, high electrical conductivity, strong flexibility, more surface area, and having light weight are among the features which provide it with the ability to store electric charge, ions, or hydrogen (Mahmood et al., 2014; Hu et al., 2018; Wang et al., 2019a). Despite this, the area is still in its infancy, and many experimental findings defy the theoretical explanation. For example, graphene, which is originally extremely conductive, can become a heat-proofing material when the environment is neutral (Cao et al., 2018). The oxidation of graphite in fuming nitric acid using potassium chlorate is the basis to produce GO (Green and Hersam, 2010; Jankovský et al., 2017; Khan et al., 2018; Yap and Liu, 2020).
Graphene has become the focus of numerous scientific sectors since its discovery in 2004 (Novoselov et al., 2004; Hernandez et al., 2008; Nagashio et al., 2009; Aristov et al., 2010; Bonanni and Pumera, 2011; Paredes et al., 2011; Avouris and Xia, 2012; Brownson et al., 2012; Mattevi et al., 2012; Prasai et al., 2012; Song et al., 2013; Bolotin, 2014). Because of its 2-D structure, every atom in this form of carbon is accessible for chemical reactions. It is the strongest material, with a stiffness value of 1 TPa (Lee et al., 2008). Other notable properties of graphene include a hundred times more electron mobility than silicon and a thousand times higher electrical conductivity than diamonds. Because of new technologies to make and examine graphene, research on it has exploded in the last decade. Many applications, including ultra-thin flexible displays, smart phones, chemical sensors, super-fast transistors, hydrogen storage, and biosensors, have successfully exploited and functionalized graphene (Bonaccorso et al., 2010; Wang et al., 2010; Lerner et al., 2014; El-Kady et al., 2016).
Ruan et al. (2018) used Hummer’s approach to prepare for GO. Initially, a beaker containing graphite powder and NaNO3 was filled with H2SO4 and continuously stirred. Following that, during stirring, KMnO4 in a measured quantity was added. After that, H2O2 was mixed with the reaction solution and washed with distilled water (Shi et al., 2017; Fan et al., 2018; Hou et al., 2020). According to Chang et al. (2016), the Staudenmaier method was used to prepare GO. Graphite was treated with H2SO4 and HNO3. Potassium chlorate was used to control the temperature, filtered, and then rinsed with HCL. Tan and Pumera, (2017) proved that graphite oxide can be made using the Hoffman method. The mixture of H2SO4 and HNO3 was cooled to 0°C and graphite was added rapidly. Chlorine gas was released by adding KCLO3. The temperature was brought to ambient conditions and 3 L of water was added. Then, 5% HCL was added in the reaction mixture. Centrifuge was used to separate the solid from the liquid. A vacuum oven was used to dry it for 48 h.
Many studies have been published regarding the creation of graphene-based nanocomposites, for example, to generate graphene/ZnO nanocomposites films, ZnO nanoparticles can be distributed in distilled water over graphene (Chang et al., 2016). Zhang et al. (2016) demonstrated the production of TiO2-graphene aerogel hybrids. The GO solution was first treated with anhydrous ethanol. The reactant was then sonicated after adding tetra-butyl-titanate. The combination was then moved to a Teflon-lined stainless-steel autoclave, where the TiO2-graphene hydrogel was hydrothermally treated. Han et al. (2019) used a simple sono-chemical approach to synthesize SnO2/rGO nanocomposites from SnCl2 and GO precursors. Sn2+ was homogeneously disseminated on the GO surface in the first step, and then GO was reduced by using ultrasound and adding SnO2.
To prepare graphene using the electrochemical approach, the choice of suitable electrolyte and electrolysis conditions is an important factor (Yap and Liu, 2020). The electrochemical exfoliations of charcoal and graphite were investigated using various electrolytes. The cathode was copper foil, while the anode was graphene. Electrolytes were used to soak both electrodes. Ma et al. (Ma et al., 2018) reported the mechanical exfoliation and stirring of graphite powder into honey formulating mono-and-multi–layered structures of graphene. To make graphene quantum dots, top-down and bottom-up approaches are typically utilized (Ding et al., 2018). Large-scale resources are sliced to obtain carbon-based structures and especially graphene, e.g., G-Quantumdots using the top-down method. The chemical approach is used to make graphene quantum dots from small molecular carbon sources in the bottom-up process. Because the preparation and post-treatment of graphene quantum dots can be manipulated, it is vital to carefully optimize the preparation procedure. Graphene quantum dots can be surface-passivated, functionalized, heteroatom doped, or recombined to fulfill the needs of various applications (Chen et al., 2019). The growth mechanism can be classified into two kinds (Han et al., 2017; Jo, 2018):
1) For metal substrates with a large carbon capacity, such as nickel, the mechanism of carburizing and carbon deposition is the same. When the temperature is decreased, the carbon atoms (created by the breaking of the carbon source) penetrate through the metal substrate at a high temperature, and nucleation is precipitated from inside.
2) The surface growth method nucleates graphene with high-temperature growth, in which carbon atoms are adsorbed on metal surfaces by copper and other low-carbon metal. Rapid thermal treatment (RTT) is used to make first-class graphene from silicon carbide in amorphous form (a-SiC). The SiO2/Si composite is first coated with an a-SiC film, followed by Ni and Cu films.
Carbon exists in numerous allotropes based on the type of chemical bonding. The electronic and mechanical properties of each allotrope differ. Carbon nanotubes (CNTs), graphene, and fullerenes are emerging new materials with superior properties (Potts et al., 2011; Singh et al., 2011). Carbon materials’ adaptability stems from the fact that their physical properties are highly dependent on the ratio of sp2 graphite-like to sp3 diamond-like links (Hu et al., 2018). From microcrystalline graphite to glassy carbon, there are numerous carbon structures with different hybridizations. As a result of their excellent mechanical and electrical capabilities, these materials have been extensively studied.
3 Conventional and AI-based synthesis of graphene
Due to its unique characteristics of high thermal and electrical strength, graphene has a bright future in environmental and energy applications (Potts et al., 2011; Singh et al., 2011). These applications necessitate vast amounts of graphene in different forms, e.g., low-cost nanoparticles, nanoplatelets, and nanocomposites.
3.1 Conventional preparation methods
Graphene has been prepared in a variety of ways. The electrical characteristics of graphene may be harmed by structural faults, imperfections, and wrinkles inside the material (Goenka et al., 2014). Different researchers reported many methods to produce several graphene-based nanocomposites.
Jaleh et al. (2017) utilized the co-precipitation method at low temperatures for the formation of graphene oxide/Fe3O4 (GO/Fe3O4) nanocomposites. Use of energy dispersive X-ray analysis, XRD and FT-IR, and TEM and SEM were used to determine the particle size and morphology of the prepared nanocomposites. Particle size was found to be smaller than 20 nm. GO/Fe3O4 nanocomposites were prepared using different amounts of FeCl2.4H2O and FeCl3.6H2O.
Qian et al. (2020) prepared lignin-poly (N-methylanine)-reduced graphene oxide hydrogel using a two-step method. Characteristically, a modified hummer’s method was utilized to prepare reduced-GO (Wang et al., 2018). Firstly, polymerization of NMA in the presence of an aqueous lignin solution is carried out to produce microspheres of lignin-PNMA. Secondly, the reduction-induced self-assembly method was incorporated to encapsulate the already prepared GO hydrogel nanosheets.
Nasrollahzadeh et al., (2014) reported the synthesis of GO/ZnO nanocomposites. Various tetrazoles were reported to be manufactured using this heterogeneous catalyst. Characterization was done by XRD, SEM, EDS, TEM, and UV-Vis spectroscopies. The employed method gave a high yield and provided simplicity in operation.
Depending on the desired use, graphene can be produced in following ways:
• Mechanical exfoliation (ME)
• Chemical vapor deposition (CVD)
• Liquid-phase exfoliation (LPE)
Each approach has various advantages and limits. The following is a quick summary of various strategies.
3.1.1 Exfoliation
Most of the graphene used in research during the last decade was made by mechanical exfoliation (Rourke et al., 2011; Jayasena and Melkote, 2015; Yi and Shen, 2015). In this method, adhesive tape is pressed on a specified substrate surface, and graphite samples are speeded on the tape, then the tape is peeled of (Figure 2A). Graphene fragments are spread on the substrate (Novoselov et al., 2005). The scotch tape approach produces exceptionally high-quality graphene that allows investigators to study its mechanical and physical characteristics. However, this approach is not feasible for large-scale graphene production in industrial applications.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/890408/fenvc-03-890408-HTML/image_m/fenvc-03-890408-g002.jpg)

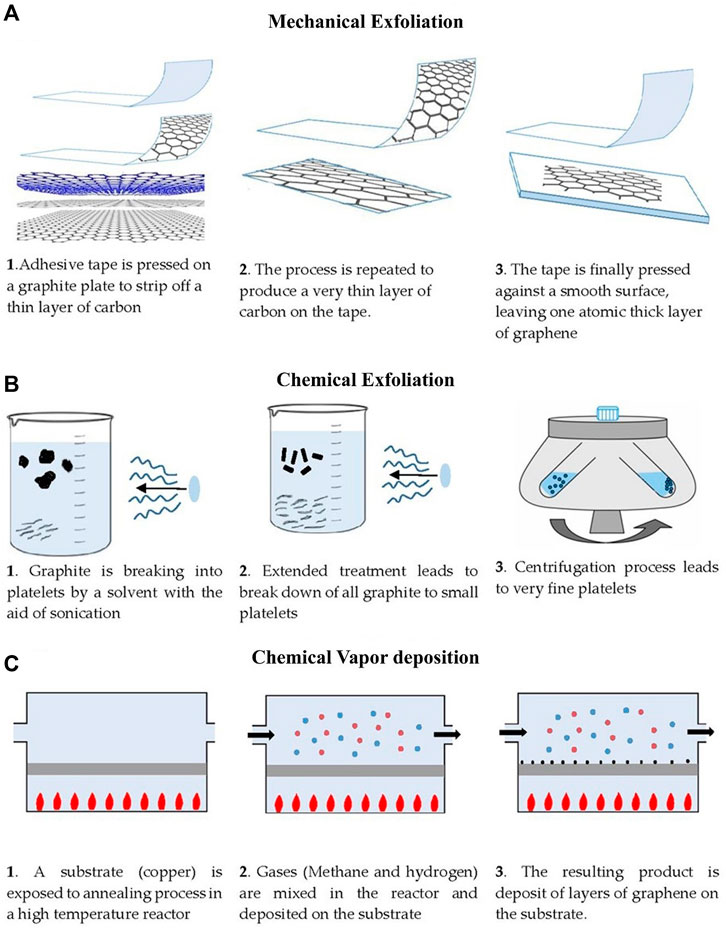

FIGURE 2. The main graphene production strategies are depicted in this diagram. (A) Exfoliation by mechanical means, (B) Liquid-phase chemical exfoliation (C) Chemical vapour deposition (CVD).
3.1.2 Liquid-phase exfoliation
This approach is extremely adaptable and can be used in a large diversity of settings and on numerous substrates. A combination of sonication and wet chemical dispersion using an appropriate solvent is the most viable route for LPE (Zhou et al., 2014). It consists of three steps: (Lam and Luong, 2014): solvent dispersion, (Zeng et al., 2020), exfoliation, and (Serp and Figueiredo, 2009) separation of the exfoliated material through cleansing as mentioned in Figure 2B. Ultrasonic force and solvent interaction are the key steps for the exfoliation processes. LPE use makes the separation of graphene layers easier. They are bound together in graphite through strong attractions, and an enormous amount of mechanical energy is required to break these bonds apart. Disrupting the attraction forces that hold the graphene layers together is one approach to lowering this energy input. This is accomplished by submerging the bulk material in a specific solvent and then exfoliating it. Nuvoli et al., (2011) used LPE of graphite in an ionic liquid to acquire highly concentrated, layered graphene sheets. This is an excellent strategy for creating fine graphene particles. High yield with low cost and scale-up skill are main advantages of the LPE processes.
3.1.3 Chemical vapor deposition
Carbon-based composites, such as graphene quantum dots and carbon nanostructures (CNTs), were preferably prepared by CVD (Eletskii et al., 2011; Zhu et al., 2013). Figure 2C depicts the thermo-catalytic breakdown of gaseous HC on a metal surface to produce graphene. It is a relatively new process for generating films of continuous 2D graphene structures with a huge surface area. In this process, a metal is placed in a furnace. Gases are being pumped into the furnace (methane and hydrogen). Hydrogen (H2) then catalyzes a reaction between methane and the surface metal, causing the methane’s carbon atoms to settle on the metal’s outer layer. A layer of graphene is deposited on the substrate as a result of the process. Different metals can be used in the CVD method, e.g., Ni, Co. A number of layers generated can be precisely controlled using the CVD process (Gopiraman et al., 2013a; Khan et al., 2018).
Seo et al. (2018) used an ambient-air CVD technique to produce permeable graphene for water desalination. No nanopores in graphene microstructures were observed, unlike earlier studies in which post-treatment procedures created nanopores on the graphene surface. Instead, they found a multilayer graphene film with multiple grain borders resulting from tiny domain widths and numerous overlapping regions of graphene. These results support graphene’s status as a 2-D nanomaterial with substantial thermal anisotropy, with great thermal conductivity in the x–y direction due to sp2 bonding in the graphene lattice, and low thermal conductivity in the z direction due to weak van der Waals interaction.
3.2 Graphene-based nanocomposites/nanopolymers
Due to its outstanding material characteristics, such as toughness, yield strength, and thermal conductivity, polymer nanocomposite (PNC) manufacturing has increased significantly over the last decade (Chang et al., 2013; Arash et al., 2014; Mahmood et al., 2014; Li and Wang, 2016; Wang and Zhi, 2016; Zope et al., 2016; Wang et al., 2019b; Khatun et al., 2020; Ibrahim et al., 2021). Traditional composite structures typically have a high proportion of filler bound (Nguyen and Nguyen, 2016). However, it has been demonstrated that micron-sized graphene can be scaled up for mass production. As a result, graphene-based composite materials are appropriate for a wide variety of applications (Lerner et al., 2014).
Significant amounts of graphene can be created by oxidizing graphite precursors. As a result, graphene-based polymer nanocomposites have piqued researchers’ curiosity all over the world. Graphene polymer nanocomposites have been made using a variety of polymers as matrices, including epoxy (Gervasoni, 2016; Wu et al., 2020a), PMMA (Ramanathan et al., 2007; Jang et al., 2009), HDPE (Zheng et al., 2004), polystyrene (Yuan et al., 2009), and nylon (Frontini and Pouzada, 2011; Goodfellow et al., 2016; Moore et al., 2018; Pierson et al., 2019; Qi et al., 2019; Schwarzer et al., 2019; Lin et al., 2022). The use of graphene-supported nanocomposites for the development of novel materials is becoming more common.
Nanocomposites have matrices consisting of polymer, metal, or ceramic, as well as fillers like nanotubes (CNTs), clay minerals, and graphene nanodots. These inclusions improve the material’s properties (Haraguchi, 2011; Mittal et al., 2015). Polymeric nanocomposites are the most versatile, with applications in a wide range of industries including energy, electronics, biomedical, and others. Polymer composites are separated into three groups based on the dispersion of nano-scale layers: intercalated nanocomposites, micro-composites, and exfoliated nanocomposites (Costantino et al., 2012).
Chemically, the compatible nature of the matrix and filler material, the concentration of the filler, and the dispersion of the filler impart different properties to graphene nanocomposites. Appropriate fabrication procedures must be used to produce the best outcomes. Furthermore, the degree of dispersion has a substantial relationship with the performance quality of nanocomposites (Frontini and Pouzada, 2011; Unalan et al., 2014; Fu et al., 2019). In situ polymerization, exfoliation adsorption, and melt intercalation are the three types of polymer nanocomposites.
3.2.1 In situ polymerization
In situ polymerization is a very effective approach during the formation of diversified graphene in a polymer matrix. In this process, the monomers join through polymerization with the stacking components. The filler is immersed in a solution of monomers. The filler expands and monomers pass through the monomer spaces. A sonicator is used to sonicate and stir the mixed solution. After an even distribution, polymerization is carried out by direct heating, a catalyst, or radiation. By incorporating additional functional groups, in situ polymerization offers higher compatibility with polymers and the dispersion of graphene on the polymers. Unlike previous processes, thermoset polymers are employed. The ability to generate strong bonds between a nano-filler and matrix is a fundamental benefit of this approach (Unalan et al., 2014; Fu et al., 2019).
3.2.2 Melt blending
Inorganic-based hybrid polymers at nano levels are preferably prepared through melt blending (Avouris and Xia, 2012). It has been determined that it is cheap and environmentally friendly. In these processes, graphene or modified graphene can be obtained without the use of any solvent. This is the traditional approach to graphene. The fundamental drawback of this approach is the graphene’s poor dispersion in the polymer matrix, particularly at higher filler loadings. This is because composites have a higher viscosity.
Melt intercalation or melt blending is the most frequent method of creating polymer nanocomposites (Gorga and Cohen, 2004; Bao et al., 2012). Thermally stable fillers are required to be used to avoid filler degradation during the process (Uhl et al., 2005). (Khvan et al., 2007) synthesized graphene/polylactic acid (PLA) nanocomposites with exceptional characteristics. PLA nanocomposites with well-dispersed graphene have dramatically increased crystallinity, mechanical properties, and electrical conductivity. The method’s main disadvantages include greater stickiness at large filler portions and a lower intercalation degree than other approaches (Jung et al., 2015).
3.2.3 Exfoliation adsorption
The use of exfoliation adsorption to produce highly adhesive forces between the matrix solution and the filler materials is a very effective approach (Vazquez et al., 2012; Unalan et al., 2014). This technique includes solution mixing and demands for the filler and matrix solvent. The filler swells as it allows the intercalation of polymer chains and increases the interlayer space. Uniform distribution is achieved through proper stirring and sonication. A multilayered structure is then achieved after removing the solvent. This approach is used to manufacture nanocomposites using polymers of low polarity. However, it is not suited for industrial use because it requires large amounts of solvents (Khvan et al., 2007; Jayasena and Melkote, 2015; Yap and Liu, 2020). Polymer nanocomposites can be made by solution mixing with a variety of polymers, including polymethylmethacrylate (PMMA) (Zhang et al., 2012a), polyurethane (PU) (Kim et al., 2010a), and polyvinyl alcohol (PVA) (Kim et al., 2010b).
Many researchers explored these techniques and similar approaches for the manufacturing of GNCs depending upon the diverse nature of graphene-based materials, their structural properties and their ultimate usage. In order to provide a more accurate and in-time evaluation of the structural integrity of graphene-based compounds, researchers are now gradually shifting toward AI-based modeling for attaining a higher design efficiency.
3.3 AI-based modeling and preparation of graphene
Recent advanced research in the chemical and material science field has highlighted the usefulness of applying various kinds of nano-materials to enhance the structural integrity and strength of compounds. Among these, graphene-based nano-materials have received great attention. Research has shown that an addition of about 0.05% graphene in concrete materials has a significant impact on the enhancement of their mechanical properties (Isfahani et al., 2016). For better understanding, binding and formation analyses of nanocomposites, image analysis of the compound is an effective process. The data gathered can then be used to improve the predictions and designs for new nanocomposite materials. In this regard, Scrivener (2004) utilized the back-scattered electron (BSE) method to visualize the structure of such compounds at the 100 nm level. It also gave crucial information regarding various size factors and presented a fractal analysis for such nanocomposites (Ruan et al., 2018). However, this approach often faced technical difficulties in observing the full-scale impact of nano-materials on the structural enhancement at the micro level. In this regard, modern artificial intelligence (AI) approaches are now providing a new view regarding the evaluation of nanocomposites. Lin et al. (2022) has used convolutional neural networks (CNN), an advanced AI approach, to evaluate the mechanism of nanomaterial reinforcements using data image processing. Conventional approaches involving such studies often required a higher degree of technicality and sophistication, making the entire process more time-consuming and laborious. In comparison to this, using an AI approach eliminates such complexities as programmed algorithms are able to analyze and learn from a given dataset and ultimately perform wide-scale image analyses and extract important findings from the image study to better understand nanocomposites (Goodfellow et al., 2016). Furthermore, these AI methods exhibit their superiority in mining features regarding spatial correlation and other dominant factors in material microstructures. Ultimately, this provides a pathway for the microstructural characterization of nano-reinforced composite materials.
The use of AI models to assess nanocomposite structures has resulted in significantly higher levels of accuracy, and the overall predictive accuracy increases with the size of the dataset provided to the program. The increase in the image dataset provided more information for the program to study and enabled it to capture and analyze information regarding the material. At a micro level, the AI extracts higher-dimensional information such as porosity, solid material shape, and the arrangement of numerous phases, providing a better understanding of its structural dynamics. This enables a better interpretation of the potential mechanism behind nano-reinforcement of composite materials, aiding the design of such nanocomposites (Lin et al., 2022).
The unique features of AI, which tend to reduce the overall computational time for analysis and preparation of high-fidelity modeling of materials, make it an effective tool in material sciences (Qi et al., 2019). Cracking or fracturing is an important phenomenon occurring in different materials and is caused by the breakage of bonds at an atomic level. Understanding the behavior of cracking in materials is important from a scientific as well as industrial point of view in order to manipulate the integrity and durability of materials. In this regard, the development of such AI models that can predict the cracking phenomenon of materials based on the atomic level bond breaking data can provide numerous possibilities during nano-scale material designing. Various AI models have been developed to detect and study cracks in materials. Moore et al. (2018) developed a random forest-based advanced AI model using data from a finite–discrete element mode in order to predict vibrant fractures in materials (Moore et al., 2018). Similarly, certain models have been developed for the detection of microscopic 3D crack structures in brittle materials and alloys at microscopic levels (Pierson et al., 2019; Schwarzer et al., 2019). Furthermore, using the data obtained from molecular dynamics, a model was constructed to predict brittle fractures in general, with another related model developed for fracture mechanism prediction in graphene as a function of its crystal orientation (Lew et al., 2021).
Elapolu et al. (2022) developed an AI model for the prediction of brittle fractures occurring in polycrystalline graphene under certain tensile stress. The model uses convolution neural networks (CNN) to predict crack growth in realistic polycrystalline graphene by processing spatial and sequential datasets. The recorded spatial features included grain boundaries as well as their orientation, whereas their sequential features were linked with crack growth. Novel image processing data were collected and fed in to the model which carried out the predictive analysis. The final results obtained via AI model analysis depict a close agreement with the molecular dynamic simulation, which is used for obtaining information related to the fracture process in pre-cracked polycrystalline graphene sheets subjected to tensile load. The corresponding model gave accurate predictions regarding the crack path of graphene with high accuracy. It also provides instantaneous results, providing an option to bypass high-cost computational dynamic simulations. These AI-based modelings are now proving to be an effective method for a quick structural evaluation and can be a vital tool in graphene-based product developments.
3.4 Characterization of graphene-based nanocomposites

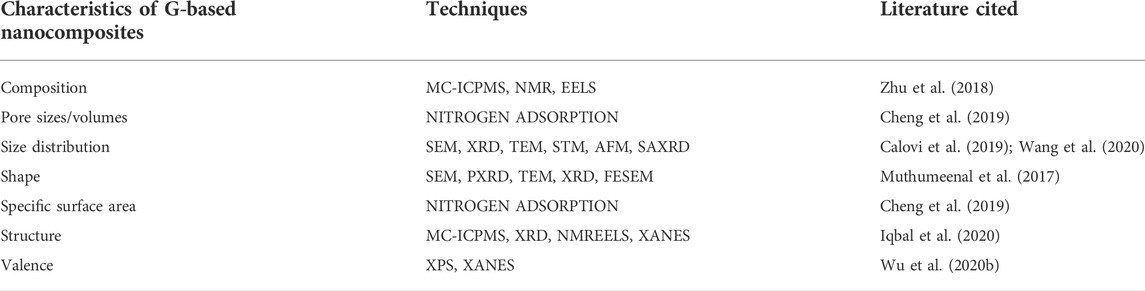

Various analyses may be used to determine the physicochemical features of graphene-based nanocomposites, e.g., particle size and size distribution, shape, valence state, specific surface area, etc. As shown in Table 1, there are different techniques that can be used. As shown previously, graphene and its composites have a wide range of unique properties, making them ideal candidates for use in clean energy materials to reduce pollution and promote humanity’s long-term development.
4 Applications of graphene and its nanocomposites
Carbon-based agents are extremely adaptable and can be employed in a variety of applications (Zeng et al., 2019; Zeng et al., 2020). In the realm of heterogeneous catalysis, graphene and graphene-based composites have received a lot of attention in recent years (Gopiraman et al., 2013a; Gopiraman et al., 2013b; Gopiraman et al., 2014; Vinoth et al., 2015; Carreño et al., 2017; Wu et al., 2020a). These composites offer a lot of flexibility when it comes to tailoring the catalytic capabilities to specific needs. For example, a large surface area aids in the dispersion of nanoparticles, and so, increases the performance (Gopiraman et al., 2015a; Vuong Hoan et al., 2016; Yi et al., 2017). Furthermore, due to its high thermal stability under decreasing conditions, it is an excellent substrate for metal nano-particles (Dhand et al., 2013; Gopiraman et al., 2015b). Similarly, graphene’s high-speed electron mobility boosts the electrocatalytic activity while also improving the photocatalytic behavior by reducing the electron–hole pair recombination (Ramaswamy and Mukerjee, 2012; Ganesh Babu et al., 2015). Defect sites in graphene-based materials, on the other hand, act as nucleation locations for nanomaterials, preventing them from sintering throughout the catalytic process (Babu et al., 2016).
Graphene-based materials are categorically promising as energy and environmental support materials. This claim is backed up by the instances provided. Photovoltaics, wastewater treatment through photocatalysis, and water splitting could all benefit from graphene’s outstanding electron mobility (Hassanpour et al., 2017; Monsef et al., 2018). Graphene’s thermal and chemical resilience also makes it a good support material for nano-catalysts in a variety of applications (Blake et al., 2007; Lalwani et al., 2013). It is almost translucent to visible light, ultraviolet light, and infrared light. Graphene is a truly multidisciplinary substance that is being studied in a variety of sectors for a variety of extraordinary applications. The optical properties of graphene are promising research and application areas (Mohan et al., 2021).
Graphene oxide (GO), due to its exceptional thermal, electrical, and mechanical characteristics has attracted multiple disciplinary fields, and it has been applied in the fields of energy production, environmental rehabilitation, and water treatment/decontamination (Dreyer et al., 2010; Eda and Chhowalla, 2010; Zhou and Bongiorno, 2014). GO is being applied in different forms. Previously, computational simulation approaches were used to examine Fe adsorption on graphene (Hu et al., 2010; Nakada and Ishii, 2011; Dimakis et al., 2015; Dimakis et al., 2017). Furthermore, reduced graphene oxide (rGO) has high chemical stability, making it a viable support option.
Graphene and its composites are extensively employed in several catalyst-supported reactions, such as the oxygen reduction reaction (ORR) (Kamat, 2010; Lei et al., 2014), due to the aforementioned unique features, Fischer–Tropsch synthesis (FTS) (Berger et al., 2004; Pereira et al., 2004; Marforio et al., 2019), oxidative dehydrogenation (ODH) of ethylbenzene to styrene, oxidation of SO2 gas to SO3 (Long et al., 2011), oxidative dehydrogenation (ODH), (Lu et al., 2016), water splitting (Choi et al., 2010; Guo and Dong, 2011), selective hydrogenation (Srivastava et al., 2010), oxidative dehydrogenation (ODH) of ethylbenzene to styrene (Mestl et al., 2001; Su et al., 2005; Hass et al., 2008; Wang et al., 2019a), NOx abatement (Kim et al., 2009), catalytic purification of VOCs (Peng et al., 2010), hydrogen fuel cells (Seger and Kamat, 2009), and wastewater treatment (Dadvar et al., 2017) are only a few examples of graphene applications. There are wide applications of graphene nanomaterials, which is two-dimensional lattice structure with a hexagonal comb composed of carbon atoms and sp2 hybrid orbitals.
4.1 Pollutant degradation through photocatalysis
Global industrialization has played a critical part in the modern world’s economic growth and urbanization (Hu and Teng, 2007; Sur, 2012; Wu and Hung, 2015). The expansion of a large number of enterprises resulted in pollution, mostly water contamination, as industrial waste was dumped into the aquatic environment (Karthik et al., 2015; Kumar et al., 2016; Latha et al., 2016). As a result of the wastewater generated by industries, major difficulties have risen in aquatic living areas. Preventing industrial wastewater from mixing into the aquatic environment is a difficult undertaking, and it is preferable to minimize the effluents before they are mixed into an aquatic environment. For the degradation of pollutants generated by companies, several technologies are available (Luo and Yang, 2017; Wang et al., 2019b; Longxing et al., 2019; Zhao et al., 2019). Photocatalysis is one of them, and it has the ability to degrade/decompose wastewater–contaminated water, primarily organic contaminants (Zhang et al., 2012b; Xiang et al., 2012). A range of metal composites and carbon-based materials have been used since the introduction of photocatalysis employing semiconductor nanoparticles (Liu et al., 2017a; Zhang et al., 2017a; Zheng et al., 2019), extending the applicability of graphene to the photocatalysis processes by tuning its electronic characteristics by inserting heteroatoms or functionality (Liu et al., 2011). As a result, the photocatalytic behavior of graphene-based nanomaterials is studied in this section.
Babu et al. (2015) used nanostructured rGO-supported CuO–TiO2 for the photocatalyzed removal of methyl orange (MO). A modified Hummer’s method was used to make graphitic oxide from graphite powder. Sono-chemical techniques were utilized in preparing ex-foliateded graphene and reduced graphene oxide (rGO). Under ultrasonication, rGO is coated with a CuO–TiO2 nanocomposite was also loaded onto the surface of rGO. The authors went over to determine the photocatalytic activity of rGO. The authors compare the photocatalytic performance of several photocatalysts, including CuO/TiO2, CuO, TiO2, and rGO-loaded CuO/TiO2 nanocomposites. It was assumed that rGO-loaded CuO/TiO2 had a higher photocatalytic proficiency than other photocatalysts. They also tested the photocatalytic response in a variety of settings, including darkness, ultrasound, light, diffused sunlight, and a combination of both visible and ultrasound. According to the findings, combining ultrasound with diffused sunlight resulted in better productivity. Monsef et al. (2021) tested carbon nano-composites in lanthanide oxides showing a high degree of proficiency for electrochemical activities and are more super capacitive than either of these oxides alone.
Liu et al. (2017a) have reported the photocatalytic degradation of phenol using the composites of TiO2–G and ZnO–G. It was examined using SEM and TEM that both ZnO and TiO2 were properly imparted on a graphene surface. TEM images were also used to assess the size of these nanoparticles. When compared to pure TiO2 and ZnO nanoparticles, the rate was raised by up to 30 percent. This showed that graphene conducts electrons and suppresses recombination, while linking two composites created a more effective charge separation and extended charge carrier life, which improved the photocatalytic efficiency. Experimentation was optimized by controlling pH, intensity of light, phenol concentration, and catalyst dose. Using coupled ZnO–G/TiO2–G photocatalysts, the full degradation of a 40-ppm phenol solution took just 60 min at the optimum conditions. The fact that graphene boosts the photocatalytic performance of semiconductors is well demonstrated by these examples in the literature.
Bhunia and Jana, (2014) developed a straightforward method for synthesizing nanocomposites of rGO with a loading of silver (rGO–Ag), which showed a high removal of atrazine, phenol, and A-bisphenol in visible light. The creation of pure rGO–Ag was firmly shown by XPS and XRD studies, as well as greater crystallinity. Furthermore, the authors used TEM analysis to establish the composite nature of rGO–Ag, demonstrating the homogeneous decorating of Ag nanoparticles over the rGO surface. Furthermore, Ag nanoparticles were calculated to have an average particle size of roughly 5 nm. Experimenters experimented with different catalyst loadings e.g., 1: ½ and 1: ¼. Furthermore, the authors carried out a reusability test and, using photoluminescence spectroscopy, proposed a mechanism for photocatalytic degradation.
4.2 Heavy metal and heavy metal ion removal
Heavy metal contamination is an intensified environmental and aquatic system problem in today’s industrial world. The flow of these pollutants into the soil, water systems, and atmosphere severely pollutes ecosystems. Heavy metal ions are soluble in aquatic environments and also tend to bond with important biological constituents (i.e. proteins and nucleic acids), posing a danger to human health directly or indirectly (Jin et al., 2014). The mining sector, sewage irrigation, metal plating, electronic industry, pesticides, plastics, and fertilizers are all major sources of heavy metals (Ebrahimi et al., 2013; Maleki et al., 2015; Li et al., 2019; Saljnikov et al., 2019). Because of the increased use of heavy metals in businesses, the amount of heavy metals released into the ecosystem has recently increased (Zhong et al., 2016). Arsenic (As), cadmium (Cd), copper (Cu), chromium (Cr), lead (Pb), nickel (Ni), Mercury (Hg), and zinc (Zn) are the most frequent heavy metals found in the environment. These pollutants can cause major health problems in humans, including emphysema, kidney damage, hypertension, and cancer, even at low concentrations (Jacob et al., 2000; Cao et al., 2012; Gao et al., 2017).
Detection and elimination of these heavy metal ions from aquatic systems is important as even a trace quantity of these contaminants can cause major health problems (Motahari et al., 2015). Heavy metals are removed using a variety of technologies, including ion exchange, coagulation, reverse osmosis (RO), solvent extraction, and adsorption (Lesmana et al., 2009; Bashir et al., 2019). Among these, the adsorption approach is the most effective for removing heavy metal ions from aquatic systems.
There are numerous adsorbents in the market today, including activated carbon (Moreno-Fernandez et al., 2017), polymeric adsorbents, clay (Cantuaria et al., 2016), and palm shell (Ismaiel et al., 2013). However, the task is made more difficult by the limited performance against metal ion removal. Due to its excellent properties, e.g. greater surface area, graphene and its oxide derivatives have been efficaciously employed as adsorbents (Chowdhury and Balasubramanian, 2014; Cortés-Arriagada and Toro-Labbé, 2016). Graphene oxide (GO) has also been reported as a versatile adsorbent for the removal of heavy metal ions e.g., Au(III) and Pt (IV) (Liu et al., 2012), Pb(II) (Huang et al., 2011), Cu(II) (Yang et al., 2010), Zn(II) (Niu et al., 2013), Cd(II) (Bian et al., 2015), and Co(II) (Gao et al., 2011). Due to aggregation, Pure GO has a huge surface area, making it ineffective for heavy metal removal. As a result, the chemical treatment of GO surface was necessary to remove the heavy metal ion (Cao and Li, 2014).
4.2.1 Chromium (Cr) removal
Cr (III) and Cr (VI) are the two mostly existing oxidation states of chromium. The trivalent chromium Cr (III) is required for the insulin hormone to function properly. Cr (VI), on the other hand, is extremely harmful, being about 500 times deadlier than Cr (III). Similarly, Cr ions can exist as chromate or dichromate ions depending on the pH of the medium. These ions are both extremely soluble in water and extremely poisonous in nature. Cr (VI) is the most dangerous pollutant to the environment, according to the US Environmental Protection Agency (EPA). As a result, Cr ions must be removed from the aquatic system (Song et al., 2020). The adsorption behavior of graphene-based catalysts toward Cr removal is better than that of conventional adsorbents.
Besharat et al. (2021) used reduction techniques to explore the effectiveness of graphene catalysts include electroreduction, photoreduction, adsorption-reduction, chemical reduction and bio-reduction. Because of chromium’s high carcinogenicity to humans and marine habitats, hexavalent chromium Cr(VI)) toxicity in water resources is among the most serious environmental concerns. Because Cr(VI) is discharged into water from a variety of industrial sources, such as alloy fabrication, mining, and so on, eliminating it from water-based solutions is a major focus. Reducing Cr(VI) is said to be highly effective in removing it from aqueous systems, and has attracted a lot of attention in recent years because the end product is Cr(III), which is a non-toxic chemical and nutrient. Novel catalysts founded on nanostructures of carbon - containing materials, particularly graphene and its derivatives, have gained significant interest in heavy metal reduction and water purification due to their enormous surface area and excellent conductivity. Reduction techniques used to examine graphene catalysts include electroreduction, photoreduction, adsorption-reduction, chemical reduction (formic acid aided methods), and bio-reduction. Graphene-based catalysts have been found to have improved the photocatalytic activity and protracted stability when compared to a variety of other commercially available catalysts.
Seongpil et al. (An et al., 2017) projected a mechanism for removing heavy metals from water using graphene and its composites. Graphite was modified to make it more hydrophilic, which has a narrow water contact range. Another researcher discovered that SnS2/rGO composites lowered K2CrO7 by approximately 90%, but pure SnS2 only reduced K2CrO7 by 36% under similar conditions. For the large-scale manufacture of highly mechanically stable graphene, the authors adopted a roll-to-roll fabrication approach. Furthermore, this approach led to the creation of nano-porous GO stacking, which increased filtration. Because of their increased size and electrostatic interactions, these nanoporous graphene membranes rejected the salts (Zhou et al., 2013; Perreault et al., 2015).
4.2.2 Arsenic (As) removal
Arsenic is involved in a variety of critical physiological processes. It has an easy time attaching to proteins and enzymes, resulting in delayed metabolic abnormalities. Arsenite (As3+) and arsenate (As5+) are two oxidation states of arsenic. However, As3+ ions are shown to be more hazardous than As5+ ions (Lizama et al., 2011). Pourbeyram et al. (2016) produced graphene oxide–zirconium nanocomposites (GO–Zr) for removing both (As3+) and (As5+) from synthetic solutions. They exposed that As5+ ions are absorbed rapidly in the first 5 min, then gradually increased until equilibrium was reached after 10 min. When compared to As5+ ions, the elimination of As3+ ions took longer under similar conditions. However, As5+ has a higher removal capacity than As3+, and they were able to accomplish a complete removal with the catalyst dose of 2 mg/L in only 20 min. Zhang et al. (2010) used a series of composites of GO, iron hydroxide, and arsenic ions. Authors discovered that as-prepared composites enhanced the effectiveness of arsenic ion removal. The elimination of arsenate was most effective when the pH was between 4 and 8. At increasing pH values, however, the effectiveness of arsenate elimination decreased.
4.2.3 Cadmium (Cd), copper (Cu), and lead (Pb) removal
Li et al. developed a DTPA/magnetic graphene oxide (MGO) composite for the removal of copper, lead, and cadmium ions at low pH. In comparison to MGO, DTPA/MGO presented higher removal rates of metal ions. It is also slightly affected by pH levels (Li et al., 2017). Similarly, Hao et al. (2012) developed a metal ion solution containing copper, lead, and cadmium for competitive adsorption. It was perceived that the electrostatic interaction between lead cations and the negative surface charge of the SiO2/GO composite enhances its removal. The ability to remove other ions, on the other hand, declines, meaning that this developed composite behaves selectively. It was discovered that heavy metal ion reduction is independent of the ionic radii of ions but dependent on the electronegativity of metal ions (Gu et al., 2015; Duru et al., 2016).
4.3 Water desalination
Membranes’ inability to withstand a wide range of contaminants is a significant unsolved problem in water treatment. Recent improvements have been seen in water purification through membrane technology by constructing modified membranes with graphene films (Garaj et al., 2010; Surwade et al., 2015; Abraham et al., 2017). On the other hand, these techniques include a succession of highly concentrated and controlled, resource-conserving, sophisticated operations that are challenging to perform uniformly at greater densities. As a result, CVD graphene sheets’ potential to purify and desalinate water is limited to small-scale experiments (Surwade et al., 2015). Furthermore, while CVD synthesis allows for the precise control of graphene sheet formation, in addition, the hydrophobic characteristics of CVD-G materials typically cause further barriers to their use in water purification membranes. As a result, the economic practicability of these sheets for water filtration is hampered by these technical constraints (Sun et al., 2016).
MD is a new thermally driven water purification technology with a lot of promise for treating highly salty water especially seawater, such as reverse osmosis (Drioli et al., 2015). In the MD process, the pressure differential over a porous/hydrophobic membrane drives water purification. Because of these benefits, MD is a green technology in purification processes with zero liquid discharge (Tijing et al., 2015). MD has a few major limitations: a huge amount of energy requirement, temperature maintenance, and the MD membrane’s inability to tolerate a wide range of pollutant combinations (Drioli et al., 2015; Tijing et al., 2015). Furthermore, conduction in typical MD membranes results in poor water vapor flow and performance degradation over time, which remains a serious concern (Camacho et al., 2013). For antifouling membranes to properly handle these difficulties, new materials for antifouling membranes are required. Several approaches, such as electrospinning and phase, have been used to create improved MD membranes. However, getting large amounts of filtered water without fouling the membrane is still a problem (Lin et al., 2014; Boo et al., 2016). The use of graphene flakes in membranes has recently been shown to improve the efficacy of water purification processes (Woo et al., 2016). However, the vast potential and promises of 2D graphene films for water purification have yet to be fully employed.
Yuyang et al. (Wang et al., 2021) used an AI approach to synthesize G-based membranes for water purification. Because of their exceptional physical properties, 2-D nanomaterials, mainly graphene, have been intensively explored. The nanopore morphology and topology of such materials can have a big impact on how well they work in real-world problems. However, finding the most efficient nanopores frequently necessitates expensive and time-consuming experimentations. A study suggested a data-driven artificial intelligence framework for determining the most efficient graphene nanopore for its application in water treatment. When compared to typical circular nanopores, the MD simulations of prospective AI-created graphene nanopores show a high ion rejection rate with higher water flux as compared to other membranes. The irregular shape of AI-created pores with rough edges has been found to be a key factor in their high water desalination performance. Finally, this study shows that artificial intelligence can be a useful tool for creating and screening nanomaterials.
According to Dong et al. (Seo et al., 2018), the samples were then wet transferred to a PTFE/MD membrane. Unlike traditional CVD procedures, ambient-air graphene manufacturing does not necessitate the use of costly and potentially explosive purified compressed gases (Ruan et al., 2011). Growth source is replaced with soybean oil, which is a cheap, safe, and sustainable bio-agent. On a polycrystalline-Ni substrate, ambient-air CVD technique allows the formation of continuous graphene sheets that are suitable as water vapor-permeable channels. The PTFE membrane is used as supporting component. At the same time, the membrane can reject both salt and hazardous water-borne contaminants including surfactants and oils. Real seawater is processed through the developed membrane to demonstrate its practical applicability under real desalination circumstances. A commercial PTFE-based MD membrane was fouled during the processing of saltwater, causing a continuous decline in the water vapor flux and a small decrease in salt rejection over 72 h. A permeable graphene-based membrane, on the other hand, demonstrated 100 percent salt rejection while maintaining a high water flow and long-term stability over 72 h. Long-term resilience of permeable graphene-based membrane under actual seawater feed was also established. This study demonstrated water desalination using a graphene membrane containing nanochannels of multilayers. Graphene-based membranes had much greater water vapor flux retention and salt rejection rates than the standard distillation membranes, as well as a superior antifouling performance under a mixture of saline water containing pollutants such as oils and surfactants.
4.4 Energy production in hydrogen fuel cells
For hydrogen fuel cells, water splitting is one of the basic units that are used for hydrogen production which takes place according to the following reactions (Ali et al., 2021):

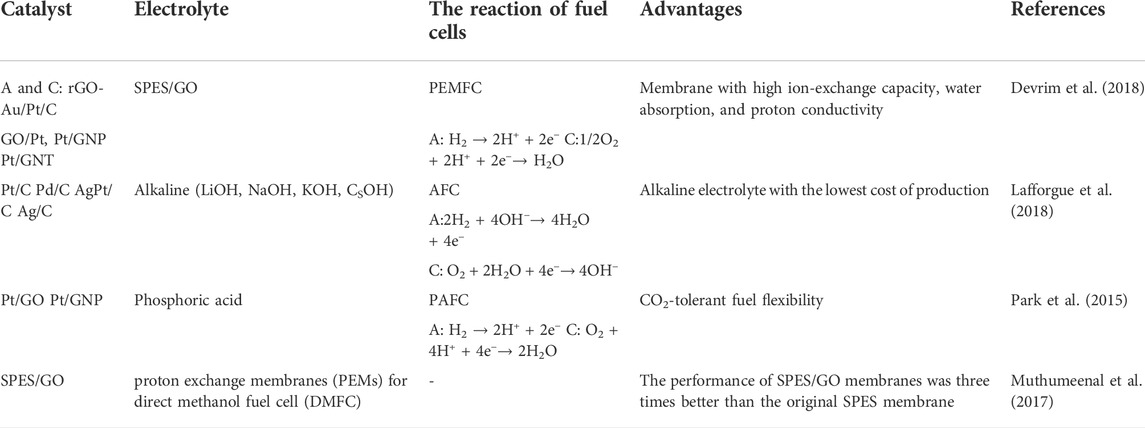

For the production of electricity directly from the chemical energy of oxygen and hydrogen, HFCs are more efficient power generation devices from which more than 50% of power can be generated efficiently (Durbin and Malardier-Jugroot, 2012). Reverse reaction of electrolyzing water is the working principle of HFCs. See Equations 1–3. Through the catalyst, hydrogen ions are generated at the anode by hydrogen when oxygen and hydrogen are supplied at the cathode and anode, respectively, from which, lost electrons generate electricity through an external circuit when they reach the cathode. On the other hand, hydrogen ions on the anode side through a polymer electrolyte membrane (PEM) reach the cathode side to generate water after the reaction with oxygen. High power, long driving distance, no noise, low emissions of pollutants, and an environmentally friendly behavior are some of the advantages of the HFCs (Xin et al., 2019). Table 2 summarizes the different catalytic reactions involved in the energy production through fuel cell.
In a study about the fabrication of GO/Nafion composite membrane, Choi et al. (Choi and Lee, 2012) explained methanol permeability, which is greatly reduced by the addition of GO as a filler. The reason for the modification of the microstructure of hydrophilic and hydrophobic PEM regions is the interaction of GO (hydrophilic nature) with non-polar main chain and cluster of polar ions. Thus, in the presence of water, phase separation of the membrane is reduced while it is improved in the case of permeability of proton exchange membrane.
In a study by Hu et al. (2014), they reported the characteristics of graphene-based membrane materials for the transportation of protons and found that good conducting membranes for protons, graphene, and boron nanocomposites could be used, which are two-dimensional and consist of a single layer of atoms.
4.5 Energy production in a polymer solar cell
Including possible solutions, flexibility, low cost, light weight, and large area coatings are all the considerable advantages that have gained interest regarding solar cells which are based on bulk heterojunction (BHJ) (Günes et al., 2007; Li et al., 2012). BHJ absorbs solar light efficiently because it consists of a mixture of polymer materials that are electron donors and acceptors, which dissociate into free charge carriers while generating excitons (van Hal et al., 2003; Xiao et al., 2018; Marforio et al., 2019).
In PSCs, photoactive blends are the most widely used acceptors that are based on poly (3,4-ethylenedioxythiophene) (P3HT) and fullerene. To increase efficiency, recently, polymers with low bandgaps have been developed which are able to absorb a wide range of solar spectra (Peet et al., 2007; Ma et al., 2015). However, commercialization of PSCs is greatly affected by many factors, which include chemical instability, low efficiency of power conversion, fast degradation of photoactive layers, and an insufficient separation of charges (Lipomi et al., 2012; Savagatrup et al., 2015).
Because of its unusual physicochemical properties and numerous applications in fuel cells, solar cells, sensors, batteries, and photocatalysis, graphene sheets with a two-dimensional structure have piqued the interest of researchers (Stoller et al., 2008; Loh et al., 2010; Chen et al., 2013; Mahmood et al., 2014; Liu et al., 2017b; Abdullah and Hashim, 2019). For PSC applications, graphene proves to be an inspiring candidate because of its tunable work function, optical transparency, and outstanding electrical conductivity (Eletskii et al., 2011; Seo et al., 2018).
Different components in PSCs have been presented in recent research studies, which are mainly based on the utilization of graphene and graphene/nanocomposites (Liu et al., 2014). Graphene offers a wide range of opportunities because of its active edges and large surface area to develop a highly efficient PSC while incorporating various polymeric, organic, and inorganic materials (Vinoth et al., 2017).
4.6 Applications in the hole-transporting layer
A successful implication of graphene oxide (GO) was carried out by Li et al. (2010) with electron donor polymers and an anode as a hole-transporting layer (HTL) due to its proper function with it. Furthermore, researchers motivated the work based on the GO buffer layers in PSC. The work function of poly (3-hexylthiophene) [P3HT] closely matches the calculated work function of GO (−4.7 eV), facilitating the hole transport from the donor polymer (P3HT) to anode. A suitable work function and an effective separation of charges mainly enhance the performance of GO sheets. Likewise, GO was represented as a HTL in a PSC inverted-type device with the architecture of ITO/ZnO/C60-SAM/P3HT: PCBM (Gao et al., 2010).
4.7 Applications in electrodes
In PSC, graphene sheets have been widely used, which are few-layered or single in nature, transparent and flexible (He et al., 2012). Graphene with the device structure of CVD-grown graphene/PEDOT: PSS/CuPc/C60/Al was used as an anode in PSC (Gomez De Arco et al., 2010). Maximum PCE displayed by the electrode of the resultant CVD-grown graphene was comparable with devices such as the PCE of ITO-based PSC. In PSC-inverted devices, a top electrode was demonstrated by CVD-grown graphene in earlier research studies (Lee et al., 2011). Remarkably, as compared to the widely used ITO anode, CVD-grown graphene exhibited better mechanical stability and also increased the PCE.
On the other hand, the bottom electrode was constructed in PSC based on P3HT: PCBM on the basis of chemically reduced graphene (rGO). The polyethylene terephthalate (PET) substrate, which is flexible, was spin-coated with rGO sheets. Under the optimized rGO thick films, almost 0.78% of the highest PCE was achieved. A graphene as the electrodes for both the anode and cathode for flexible PSC has been designed by Park et al. (2014). PSC devices significantly enhanced the PCE from 6.1% to 7.1%, which is based on the graphene anode and cathode, respectively. Recently, for PSC, a possible solution was reported by Zhang et al. rGO/silver nanowires (AgNWs)/rGO, which is based on the transparent electrode (Zhang et al., 2017b). At 550 nm, a 90% transparency was shown by the hybrid electrode rGO/AgNWs/rGO. As compared to control devices that are fabricated with an ITO electrode, the electrode rGO/AgNWs/rGO demonstrated excellent mechanical flexibility and improved photovoltaic performance.
4.8 Applications in the agricultural sector
The agriculture sector is of great importance as it provides a great deal of the materials necessary to ensure food, feed, and fiber for human life. Satisfying these basic needs of mankind in the face of climate change and rising global population is a major challenge. In order to combat such issues, an integrated technological approach is necessary to ensure global food security. Since the last decade, the discovery of graphene materials has resulted in the advancement in various fields of life, including the field of agriculture.
4.8.1 Water treatment membranes
Water is a necessary component for life sustenance throughout the world, as it supports health and hygiene on one hand and agriculture and food production on the other. According to an estimate, in order to achieve per capita water security, an annual demand of 1,200 cubic meters is required, and owing to shrinking fresh water resources around the world, questions regarding future water security around the globe are raised. During the early 1970’s, water was heavily utilized to ensure optimum soil moisture levels. This approach resulted in increased food production and, at the same time, caused various negative effects in the form of ground water depletion, river water resource depletion, and pollution of water bodies. Managing water resources is crucial from a consumption point of view, as well as maintaining the minimum fresh water bodies required for sustainable aquatic life (Fan et al., 2018).
Despite the early success in the green revolution, many parts of the world with dry climates and limited water resources experienced severe malnutrition, exposing the relative unsustainability of this approach. Water treatment for the removal of pollutants and desalination of ocean water is crucial in this perspective as ocean bodies form the largest proportion of the hydrosphere. Graphene-based layers are an effective way to reduce water pollution and increase the availability of water sources for consumption. Thin layers that are developed are called “Graphair,” and they enable the filtering of compounds through membrane distillation. Prior to this development, a wide-scale purification of water bodies by removing different pollutants was a key challenge in water treatment efforts. Graphair includes thin, multi-layered graphene which filters water passing through it by enabling permeation via nano-channels developed using graphene grains in a layer form. In contrast to ordinary filters, graphene-based filters enable the filtration of highly toxic compounds while allowing pure water with a neutral pH through them. Narrow channel systems allow smaller water molecules to pass but hinder the movement of larger dissolved molecules and ions through its channels, all while dealing with high concentrations of acid or alkaline that rapidly destroy other filtering membranes. This can allow the filtration of water and stable water supplies for drinking and agricultural purposes at remote and deserted locations (Seo et al., 2018).
4.8.2 Antimicrobial applications
Graphene has been reported to possess significant anti-microbial properties, making it a suitable candidate for the development of new anti-fungal and anti-bacterial chemicals (Wang et al., 2014; Mohan and Panicker, 2019). These microbes are responsible for causing some severe disease infections in plant species resulting in significant yield losses (Mansfield et al., 2012). Graphene oxide tends to control fungal growth by inhibiting the growth of mycelium, disrupting cell membranes, distorting electron and ion transport chains, and introducing oxidative stress (Sawangphruk et al., 2012). Graphene sheets have great anti-bacterial activity, with smaller sheets exhibiting a higher degree of anti-microbial activity. Graphene oxide nanocomposites have shown a great degree of cytotoxicity for various bacterial species, including E. coli, R. solanacearum and P. aeruginosa (Akhavan and Ghaderi, 2010; Sawangphruk et al., 2012; Mohan and Panicker, 2019). These compounds tend to rupture the cell membranes at various growth levels, resulting in the release of cellular content from the bacteria. This germicidal and preservative action of the graphene composites makes them suitable for disease-control applications, plant preservation, and promoting plant growth.
4.8.3 Smart sensors
Water is a basic necessity of life and is required by every kind of cellular life form, including plants, as they utilize water for various processes to maintain their health and vigor. In this regard, monitoring and assessment of soil moisture levels is of great significance as the optimum levels of moisture tend to promote soil health by ensuring a better uptake of nutrients required for ideal growth (Palaparthy et al., 2013). For this purpose, moisture estimation sensors are used for large field applications. However, these sensors are often rendered faulty due to fluctuating temperatures and changing concentrations of ions that manipulate soil conductivity, resulting in sensor degradation (Kabiri et al., 2017). For this reason, the development of low-cost, effective sensors that can be deployed on a large scale and are resistant to temperature drift and salt fluctuations is necessary.
In this regard, graphene oxide-based capacitive sensors have been developed which are highly sensitive to soil moisture content. These sensors have the ability to detect moisture changes in a fast detection method (response time range of 100–120 s) with relative ease. It was also observed that these graphene-based sensors showed an output change of 6% with temperature variations from 25°C to 65 °C, which leads to just 3% discrepancies for soil moisture measurements (Palaparthy et al., 2013).
4.8.4 Smart Fertilizer release system
Fertilizers are essential in ensuring growth in agriculture, and there is a need to enhance their uptake efficiency and reduce the losses to the environment. In this regard, the application of graphene in the development of new slow-release fertilizers is viewed as an important alternative to reduce these losses. It is known that, in covering fertilizer granules, a graphene layer tends to induce their physical resistance, preventing them from friction-related damages and degradation during the manufacture, transport, and application phases (Kabiri et al., 2017). In this process, the graphene oxide is composed of layers that are negatively charged. This enables it to retain cationic micronutrients including zinc (Zn), copper (Cu), and anions such as negatively charged phosphate groups. In comparison to commercial fertilizers, these graphene fertilizer mixtures reduce the possibility of soluble nutrients leaching. The addition of graphene can provide a great deal of benefits by preventing wastage and overdose of fertilizer applications and can result in a great yield of gains for high-value crops such as fruits and vegetables (Andelkovic et al., 2018).
5 Conclusion
This article begins with a brief discussion of the fundamental structure and composition of graphene materials, then, it moves on to its synthesis and application. The role of modern AI technologies has been discussed for better understanding the structure and synthesis of graphene materials in the development of more efficient nanomaterials in the near future. Graphene materials have come a long way since their discovery and are now integrated into many walks of life. These materials present a high potential as support materials in energy, agriculture, and environmental conservation, and this is evident from many of the examples discussed. As graphene-based materials provide exceptional electron mobility, they can be highly useful in photovoltaic, photocatalytic hydrolysis, and photocatalytic removal of pollutants from wastewater. A higher degree of chemical stability makes graphene suitable as a support material for nano-catalytic applications. The higher surface area of graphene materials makes them an excellent adsorbent and enable them to remove heavy metals and other related pollutants from water. These massive applications indicate the potential of graphene materials and the possibility of further integrating them into energy, water, and agriculture applications in the near future.
