Diamine-Appended Metal Oxide Framework Materials for Thermal-Swing Ad- and Desorption of Carbon Dioxide at Ambient Conditions

Carbon dioxide is a waste product of human metabolism that is unwanted in the indoor atmosphere. Here we test advanced materials that could be used to pump away carbon dioxide and thereby improve indoor air quality. Metal-organic framework (MOF) structures have a variety of properties that make them attractive for direct air capture (DAC) of CO₂. In this study, Mg₂ (dobpdc4- = 4,4-dioxidobiphenyl-3,3-dicarboxylate) and m-2-m-Mg₂(dobpdc) were evaluated for their ability to adsorb and desorb CO₂ at ambient atmospheric conditions via a thermal swing. The Mg₂(dobpdc) sample did not show appreciable interaction with CO₂ in contrast to the diamine-appended version. The molar occupancy of CO₂ on the active sites of m-2-m-Mg₂ (dobpdc) (m-2-m = N,N-dimethylethylenediamine) during adsorption and desorption was in the range of 5.6–11.8%. These experiments showed the rapid ad- and de-sorption of CO₂ by the MOF. Relative humidity was seen to be an important variable and the performance of the tested structures decreased slightly after several cycles of use.

1 Introduction

Carbon dioxide in indoor environments is a concern due to its impacts on health including fatigue, impaired thinking, high blood pressure, unconsciousness and at very high levels, mortality (Azuma et al., 2018; Wis 2019; Du et al., 2020). In addition CO₂ is frequently used as a proxy for poor indoor air quality due to its association with bioeffluents including bioaerosol and other types of pollution. Dose-effect relationships for CO₂ have been established (Wis 2019). Mole fractions of 400–1,000 ppm are typical of indoor spaces with proper ventilation (Wis 2019).

There are a large number of methods for capturing CO₂ including scrubbers, bioconversion, precipitation or mineralization, adsorption, et. cetera, which are used in industry, only a few of them might be practicable in an indoor application. Reversible capture would appear to be the most manageable and practical technology for control of indoor CO₂. Several studies investigated the reduction of CO₂ in indoor environments via sorption-type air filters (Hu et al., 2016). Metal-organic frameworks (MOFs) are a new class of nanostructural adsorptive materials which have shown the capability of capturing various gas-phase compounds thanks to their ultra-high porosity and surface functionalization. It was found that MOFs are capable of selectively capturing CO₂ (Furukawa et al., 2010; Lu et al., 2010; Hu et al., 2019; Liu et al., 2016; Chen et al., 2017) reversibly, this advantage being in line with the goal of this study. As CO₂ can react with amines to form carbamate or bicarbonate ions, diamine-functionalized MOFs are very promising candidates for CO₂capture. There are many studies (McDonald et al., 2012; McDonald et al., 2015; Martell et al., 2020; Zhang et al., 2020a; Zhang et al., 2020b) that have been carried out show the capture CO₂ using diamine-appended dobpdc. There has been significant progress in designing new and better CO₂-capturing MOFs over the last decade. Mg₂-based structures are the most popular MOFs have been taken into consideration by researchers (McDonald et al., 2012; Yu and Balbuena, 2013; McDonald et al., 2015). For example, Zhang et al.’s findings state that a Mg₂-based MOF together with a Sc-based MOF showed the highest potential for CO₂ capture of the 11 metals used in their study (Zhang et al., 2020a). In this study two MOFs, one without amine functionalization, Mg₂ (dobpdc4- = 4,4-dioxidobiphenyl-3,3-dicarboxylate), and the other amended with an amine compound, m-2-m-Mg₂ (dobpdc) (m-2-m = N,N-dimethylethylenediamine), were used to capture CO₂.

Siegelman et al (Siegelman et al., 2017) examined mechanisms related to the interaction between CO₂ and diamine-appended MOFs. They found that these MOFs exhibit step-shaped CO₂ adsorption isotherms arising from CO₂ being inserted into the metal-amine bonds, creating ammonium carbamate chains. Figure 1 shows the proposed mechanism for CO₂ insertion. A key point of the mechanism is that the diamine structure affects on the strength of both the Mg²⁺amine bond and the ammonium carbamate interaction (Siegelman et al., 2017). The application of diamine-appended MOFs could prove to be useful in atmospheric conditions, by improving performance and delaying hydrolysis of the Mg-O bonds. In this work, the performance of the CO₂ adsorbants was studied in thermal swing mode under ambient atmospheric conditions. The goals of the study are to characterise the adsorbants by determining the amount of CO₂ they can adsorb, the change in performance over multiple adsorption/desorption cycles, the required temperature change, and the effect of humidity.

FIGURE 1

FIGURE 1. This diagram is inspired from the work by Siegelman (Siegelman et al., 2017) and Martell (Martell et al., 2020) and shows the specific mechanism for the insertion of CO₂, resulting in ammonium carbamate chains.

2 Methods

2.1 Experimental Setup and Procedure

The MOF samples were synthesized using the method reported by Martell et al. (Long et al., 2018; Martell et al., 2020). A chamber made of Plexiglas was constructed (length, width and height: 0.52 m; volume: 0.14 m³) to perform the tests. The chamber is shown in Figure 2 schematically. A stainless-steel plate was used to support the MOF powders. First, the MOF was dissolved in methanol. The methanol-MOF mixture was put on the plate and left to evaporate, leaving a MOF-coated plate. The coated sample plate was weighed to determine the amount of MOF present in a sample. The sample plate was placed inside the chamber on a Peltier effect thermoelectric (TEC) cooler, which was placed over a heat-sink and exposed to the air inside the chamber. The chamber was sealed and the experiment was performed. A new MOF-coated plate sample was prepared for each experiment. The amount of m-2-m-Mg₂ (dobpdc) coated on the plate ranged between 0.220–0.423 g (5 × 10⁻⁴ to 1 × 10⁻³ mol).

FIGURE 2

FIGURE 2. Chamber layout; (A) Fans, (B) Infrared thermometer, (C) Funneling tower, (D) Air-permeable rack/fan, (E) Tubes for sampling in/out, (F) GaseraOne photoacoustic analyzer, (G) Wires, (H) Tube for adding CO₂, C1 - Sample plate, C2 - Heat sink, C3 - TEC plate, C4 - Scaffolding, C5 - Wires, C6 - Fan.

The chamber had two walls made of metal and 4 contiguous walls made of plexiglass, for visibility. The front wall was detachable via screws with a rubber gasket to make an airtight seal.

As seen in Figure 2, ports allow access for wires and air sampling by a GaseraOne gas photoacoustic multi-gas analyzer. Inside the chamber, there were medium-sized fans (38 × 38 mm, flow rate = 31 m³/h) connected to the floor and side-wall and a flow tube placed roughly in the middle of the chamber, which contained equipment as seen in Figure 2. Inside of the tower, there was a MOF-coated sample plate, a TEC plate (maximum voltage = 8.8 V), a heat-sink for the TEC plate, scaffolding to hold the heat-sink, and a fan underneath the tower (80 × 80 mm, flow rate = 52 m³/h) for airflow to flow from beneath, into the tower.

The TEC plate was wired to an external DC power supply, which allowed for easy switching between heating and cooling. The maximum temperature reached was 78.3°C, whereas the minimum was 13.5°C.

2.1.1 Thermal Swing

This study uses thermal swing to test the conversion between adsorption and desorption of CO₂. Theoretically, as the specimen is cooled and heated up, it should adsorb and desorb CO₂ (Raganati et al., 2020). The temperature of the sample is controlled using Peltier effect controllers and measured using a thermocouple.

2.1.2 Measurements

The concentration of CO₂ in the chamber was measured using an online photo-acoustic sensor (GaseraOne), which also measures the other main greenhouse gases, CO₂, N₂O, CH₄, H₂O, with a sub-ppm detection limit. The GaseraOne was allowed to run until the CO₂ concentration reached a steady-state, to ensure equilibrium. Then, the sample was cooled to observe adsorption. Next the sample was heated leading to desorption of CO₂, allowing measurement of the capacity of adsorption during the next cooling period. This thermal swing was repeated, and the CO₂ concentrations were recorded by the GaseraOne. All tubes to measure the variables were connected to the chamber by Teflon tubes through different air-tight sampling ports.

A laser-thermometer (Fluke 64 MAX IR thermometer, with a basic accuracy of ±1°C) was suspended above the sample plate to measure the temperature of the MOF. There was a small tube on the left wall, shown in Figure 2, that was used to increase the CO₂ concentration artificially.

2.2 Calculations

Concentrations are measured using a GaseraOne photoacoustic trace gas monitor. Mole percent (mol%) is used in this work instead of weight percent (wt%), mmol/g, or cm³/g (Lu et al., 2010; Liu et al., 2016; Chen et al., 2017) due to added chemical insight and ease in evaluating ad- or desorption of CO₂ relative to MOF active sites at the molecular level, as well as comparing to data for other MOFs.

Therefore, the mole fraction (mixing ratio) of x(CO₂) in the gas phase was converted into amount concentration c(CO₂) with the convention that negative values represent adsorption and positive, desorption. The amount concentration c(CO₂) was multiplied by the volume of the chamber to yield the amount of CO₂ in the system.

The sample weight data were collected before and after coating the metal plate with m-2-m-Mg₂ (dobpdc). This difference was then converted from mass (g) to amount (moles). The molecular weight of C₁₈H₁₈N₂O₆Mg₂, i.e. m-2-m-Mg₂ (dobpdc), is 406.95 g/mol.

Finally, the occupation of CO₂ on MOF active sites was calculated using the amounts of adsorbed CO₂ and MOF active sites. A negative mole fraction represents desorption and positive, adsorption. The equation can be written as:

$f=\frac{\mathrm{\Delta }N\left(C{O}_2\right)}{N\left(MOF\right)}(1)$

where N is an amount in moles and f is a mole fraction of ad- or de-sorbed CO₂ relative to the number of MOF active sites.

3 Results

Figure 3 shows a blank experiment performed without any sample in the chamber. This was essential to quantify the (small) background leak rate. The leak rate calculation is shown in Eq. (2). The measurements of x(CO₂) were taken at 20.5 and 80.3 min, thus Δt = 59.8 min, with a Δx(CO₂) of 6.835 ppm.

$\mathit{\text{r}}=\frac{\mathrm{\Delta }\mathit{\text{x}}\left(C{O}_2\right)}{\mathrm{\Delta }t}=\frac{6.835\text{\hspace{0.17em}ppm}}{59.8\text{min}}=0.114\frac{\text{ppm}}{\text{min}}(2)$

This leak rate was incorporated into the experimental error as a limit on possible gas exchange, which is shown in Table 1 as the error on the mass fractions and rates. Decay in other experimental trials could be explained also by combination of adsorption and leakage. The yellow-highlighted sections show the heating periods in each trial, whereas the blue periods between them represent cooling, i.e. desorption and adsorption, respectively. Each figure, from 3–9, shows x (CO₂) in ppm versus time, represented by the blue line. The plot of x (H₂O) vs. time shows the interaction of water with the material.

FIGURE 3

FIGURE 3. A control experiment without any sample inside; the yellow region indicates when heating via the TEC plate occurred. Temperature swing between 13.5°C (adsorption) and 78.3°C (desorption).

TABLE 1

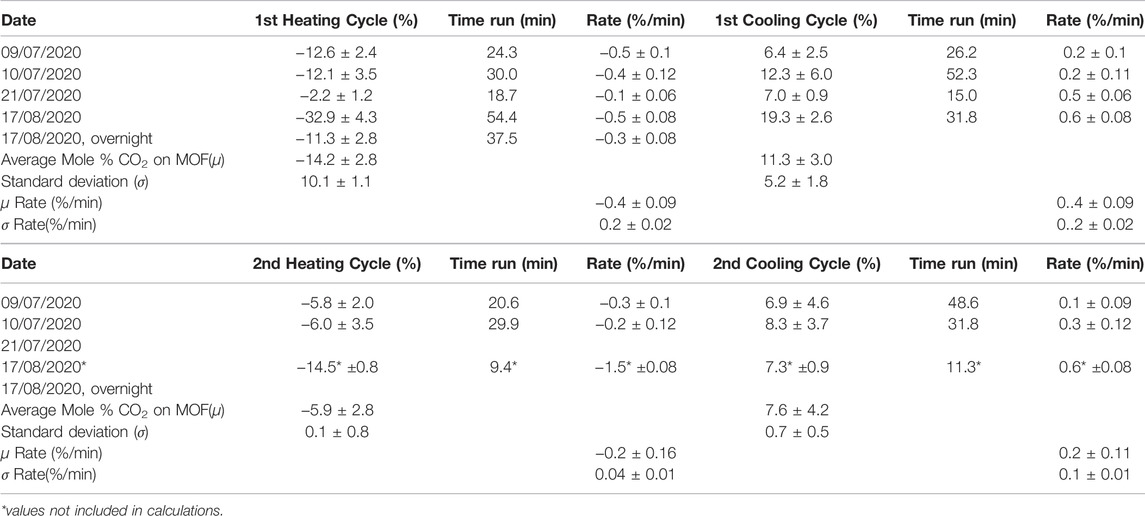

TABLE 1. Mole % of CO₂ on MOF.

3.1 Mg₂(dobpdc)

Figure 4 shows the experimental results for Mg₂ (dobpdc). There is not a discernible difference between adsorption and desorption with respect to the thermal swing. This result was expected with this MOF as it has been also shown by Martell et al. (Martell et al., 2020).

FIGURE 4

FIGURE 4. Experiment with Mg₂ (dobpdc), i.e. non-diamine-doped MOF, where the yellow region shows when heating via the TEC plate occurred. Temperature swing was between 13.5°C (adsorption) and 78.3°C (desorption).

3.2 m-2-m-Mg₂(dobpdc)

Figures 5–9 show the results of the effects of the thermal swing on the ambient concentration of CO₂. Overall, when the thermal swing was heating the plate, the concentration of ambient CO₂ increased due to desorption of CO₂ from the MOF. Conversely, when the plate was being cooled, the concentration of ambient CO₂ decreased due to adsorption of CO₂ onto the MOF. These changes in concentration are shown in Tables 1 and 2.

FIGURE 5

FIGURE 5. A typical thermal swing experiment with m-2-m-Mg₂ (dobpdc), where the yellow regions show heating via the TEC plate occurring, and the clear regions showing the cooling periods. This experiment also has rapid-switching, which starts just after the 200 min. Temperature swing was between 13.5°C (adsorption) and 78.3°C (desorption).

FIGURE 6

FIGURE 6. A typical thermal swing experiment with m-2-m-Mg₂ (dobpdc), where the yellow regions show the heating periods via the TEC plate, and the clear regions after show the cooling periods. Temperature swing was between 13.5°C (adsorption) and 78.3°C (desorption).

FIGURE 7

FIGURE 7. A typical thermal swing experiment with m-2-m-Mg₂ (dobpdc), where the yellow region shows the heating period via the TEC plate, and the clear regions after shows the cooling period. Temperature swing was between 13.5°C (adsorption) and 78.3°C (desorption).

FIGURE 8

FIGURE 8. A typical thermal swing experiment with m-2-m-Mg₂ (dobpdc), where the yellow regions show the heating periods via the TEC plate, and the clear regions after show the cooling periods. Temperature swing was between 13.5°C (adsorption) and 78.3°C (desorption).

FIGURE 9

FIGURE 9. A typical overnight thermal swing experiment with m-2-m-Mg₂ (dobpdc), where the yellow regions show the heating periods via the TEC plate, and the clear regions after show the cooling periods. This experiment shows a noticeable increase in gas concentrations after the second heating period, showing potential efficiency of m-2-m-Mg₂ (dobpdc) even after long-term exposure. Temperature swing was between 13.5°C (adsorption) and 78.3°C (desorption).

TABLE 2

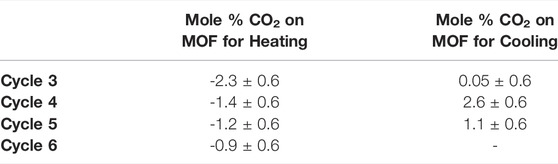

TABLE 2. Mole % for Fast Switching of Thermoswing on 9 July 2020 Sample. All times were ≈5.6 min.

4 Discussion

The major difference between this study and others, e.g. Hu Z. (Hu et al., 2019), Martell (Martell et al., 2020), Siegelman (Siegelman et al., 2017), etc., lies in the conditions at which these MOF substances were tested. In those studies experiments were conducted using thermal gravimetric analysis (TGA), which uses operational condition including pressure and temperature controlled as well as a pure inlet gas stream. In contrast the present study was performed under ambient conditions and feed gas flow. In TGA, one is able to continuously measure the amount of a species while changing temperature and gas composition. In contrast this experiment shows m-2-m-Mg₂ (dobpdc) is effective for use in thermal swing adsorption applications at ambient conditions. One of the main challenges in building practical devices is to find methods of retaining this good performance through multiple cycles of operation; in present form it degrades rapidly (Martell et al., 2020).

4.1 Mg₂(dobpdc)

Martell et al. conducted several experiments with Mg₂ (dobpdc), the non-appended version of our target compound and characterised CO₂ ad- and de-sorption kinetics for this compound (Martell et al., 2020). However, due to rapid degradation of the exposed Mg₂ sites to oxygen, water, and other oxidizing compounds as stated by Vitillo and Bordiga (Vitillo and Bordiga 2017), this non-diamine-appended version of the MOF was not suitable for testing CO₂ adsorption-desorption kinetics via thermal swing. The preparation method using methanol as stabilizing solvent before commencing the experiments might be a significant reason to cause Mg₂ (dobpdc) degradation, according to (Vitillo and Bordiga 2017).

In our tests of Mg₂ (dobpdc), there was no noticeable thermal-swing-induced activity. As seen in Figure 4, even though the thermal swing was activated, the level of CO₂ steadily decreased, without any notable desorption present. A possible reason can be due to an almost non-efficient cooling period adsorption of CO₂ by the un-appended MOF, and thus, nothing to be desorbed during the heating up period. This was expected based on isotherms measured on literature at RT (Vitillo and Ricchiardi, 2017). The steady decrease of humidity in the chamber can be linked to the strong water affinity of the considered MOF (Vitillo and Bordiga, 2017), which can slightly desorb the adsorbed water even when cooling, Figure 4. Therefore, this MOF showed no activity which may be due to hydrolysis of the unprotected active sites on the Mg₂. In contrast, m-2-m-Mg₂ has diamine appendices that protect it from such damage, allowing for the enhanced adsorption of CO₂ at RT. We recommend that preventing this type of degradation is prioritised in future research.

4.2 m-2-m-Mg₂(dobpdc)

By appending Mg₂ (dobpdc) with diamines it is possible to achieve more selective CO₂ capture while minimizing the risk of oxidation via water, oxygen, nitric oxide, etc., effectively increasing the stability of the MOF (Vitillo and Bordiga 2017; Martell et al., 2020). In particular, we conducted experiments on m-2-m-Mg₂ (dobpdc), because of its superior stability to its non-diamine-doped analogue. This material showed more favorable properties for CO₂ capture as can be seen in Figures 5–9. A typical thermal swing experiment can be seen in the initial period of Figure 5. The end of the same figure shows a trial of rapid thermal cycling. Experiments of this kind were used to determine the CO₂ uptake parameters shown in Table 2. Figure 5 shows the first successful experiment. For each period of heating (yellow-highlighted regions), we observed an increase in x(CO₂), relating to desorption, and for each period of cooling (the transparent regions between the heating periods), we observed a decrease in x(CO₂), relating to adsorption. For most of these experiments, we allowed the temperature to settle over a lengthened period of time, between 0.5 and 1 h, however as shown in Figure 5, we observed that a series of fast-switches between heating and cooling resulted in noticeable capture kinetics. This demonstrates that these compounds are capable of working rapidly. The kinetics of CO₂ desorption and adsorption were already reported by MacDonald (McDonald et al., 2015) although for a higher partial pressure of CO₂.

Table 2 shows the calculated mole percentages from the fast-switching portions from Figure 5. For example, in the first cycle in Figure 5, we calculate the CO₂ mole fraction as (0.57 μM)/(4.5 μM) ≈ 0.126 = 12.6% per mole MOF. There were four heating periods and three cooling periods. Besides the outlier of the cycle 3 cooling (0.05% CO₂ on MOF) data-point, the other results showed gradual loss in capture capacity of the MOF, due to possible degradation via oxidation or morphological rearrangement. These rearrangements could be caused by switching between adsorptive and desorptive states, leading to the active sites being blocked over time.

4.3 Analysis of Thermal Swing Sorption

We gathered the results from these experiments and averaged them, in order to more accurately represent the capture capacity of the MOF.

The first heating cycle removed much of the CO₂ that was captured due to equilibrium with the air while preparing the sample. The average occupancy of CO₂ on the amine-MOF was 0.57 micro mole (corresponding mole fraction about 14.2 ± 2.8% of carbon dioxide), meaning that this amount of CO₂ is desorbed per mole of MOF, with a standard deviation of 10.1 ± 1.1%.

The first cooling cycle in each experiment tested the capture capacity of the MOF. The average occupancy of CO₂ on MOF was 11.3 ± 3.0%, with a standard deviation of 5.2 ± 1.8%. The second heating cycles showed a lower average occupancy than the first, at −5.9 ± 2.8%, with a standard deviation of 0.1 ± 0.8%. The second cooling cycles showed a lower occupancy than the first, at 7.6 ± 4.2%, with a standard deviation of 0.7 ± 0.5%.

As is evident from the average occupancies as we transitioned between heating and cooling cycles, the capacity or depth of the material decreased with each cycle. The average occupancy is ∼ ∣8∣% lower from the first to the second (for heating), whereas the standard deviation has been lowered by ∼ 9%. The first to second cooling shows a decrease in occupancy of ∼ ∣4%∣, and a change in standard deviation of ∼ 4.5%.

4.3.1 Material Stability and Lifetime

The key feature in the effectiveness of MOFs for CO₂ capture is that they have a favorable pore size and affinity for CO₂. These properties can also limit the lifetime of the materials as they can decrease stability. The crystallinity of the MOF is altered when the CO₂ molecules are removed, due to capillary force-driven destruction (Mouchaham et al., 2018). A study by Zhao et al. showed structural dynamics of a MOF (ZIF-7) induced by CO₂ flow (Zhao et al., 2019). While this is not the same MOF as the one we tested (m-2-m-Mg₂ (dobpdc)), ours may display similar mechanisms, shown in Figure 10. This capillary force-driven destruction can lead to severe structural changes, therefore affecting the exposure and efficacy of the active sites on the MOF.

FIGURE 10

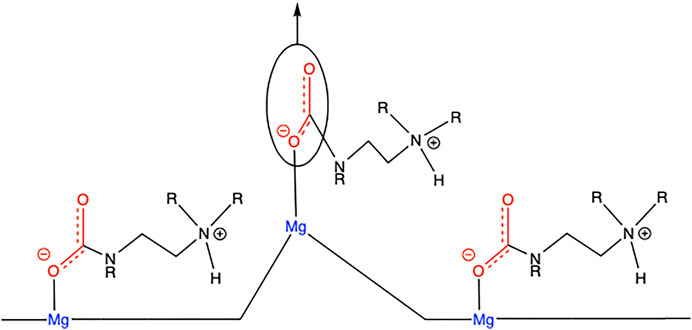

FIGURE 10. Diagram of CO₂-induced capillary force-driven destruction of the MOF structure.

Another important cause of the gradual degradation of capacity in our MOF may be that there is a progressive oxidation of the MOF active sites by ambient O₂ and NO₂ which may be accelerated by the presence of H₂O (Vitillo and Bordiga 2017; Martell et al., 2020). H₂O and O₂ in particular are very abundant. We believe that further investigation of the morphological changes to the adsorbent material could help improving affinity, capacity, and selectivity towards CO₂ (Deng et al., 2020).

4.4 Rates of Adsorption and Desorption

Results for the rates of ad- and de-sorption are collected in Table 1. For the first heating and cooling cycles all data points were included in the analysis as none were more than 4σ from the mean. For the second cycle we omitted the starred data points due to their deviations from the mean. The fast-switching regions from Figure 5 were analyzed separately into Table 2. During this experiment, the ad- and desorption of CO₂ onto MOF was still noticeable. This is an important example because it suggests that prolonged exposure is not necessary and might even be detrimental, due to the deterioration of the specimen.

4.5 Thermal Swing

The temperature range for our thermal swing experiments ranged from 13.5 to 78.5°C. In contrast, Siegelman et al. (2017), Vitillo and Bordiga (2017), and Martell et al. (2020) used temperatures as high as 120°C. Interestingly, Martell et al. state that maximum adsorption is reached at 70°C (Martell et al., 2020). In the present work a switch from adsorption to desorption is observed between 25 and 30°C . In the present work effective desorption of CO₂ is observed at temperatures just above ambient (between 25 and 30°C), while adsorption was achieved quickly at temperatures just below. We hypothesize that this is due to the change of matrix between their experiments and ours.

4.6 Effects of Humidity

As can be seen in Figures 4–6, the partial pressure of water vapor is much higher than that of carbon dioxide, and water is well known to be attracted to surfaces (Asay and Kim 2005). Our results show that water is likely to play an important role in modulating the interaction of CO₂ with the material. Similar effects were seen by Yu and Balbuena (2013) who tested a similar material and suggest that water blocks active sites. As seen in Figure 3 there are not significant background fluctuations of water in the chamber. In contrast in Figure 4, while there is no CO₂ capture activity, there is a strong positive trend of H₂O, suggesting that H₂O is desorbed from the material on heating. We suggest that this desorption may play a role in deteriorating the activity of the material.

Figures 5–9 show concerted fluctuations of H₂O and CO₂, reinforcing the idea of water molecules competing with CO₂ for active sites (Erucar and Keskin 2020).

Water varies by over 300 ppm within a heating cycle and rapidly decays by over a 100 ppm upon cooling. One of the strongest examples is shown in Figure 9, because of the relatively large spike in [H₂O] during the final heating cycle, which was initiated after almost 20 h, suggesting that H₂O is captured in the MOF during the extended cooling period overnight. Figure 11 shows a comparison of the correlation between CO₂ and H₂O concentrations from Figure 5. The dark colors of the curve represent lower values of [H₂O], whereas the lighter colors represent higher values. Thus, it is easy to see the correlation between CO₂ and H₂O adsorption and desorption activity. For viewing convenience, the 3D models are available online via the links presented here supplementary index 3D-graphs:

9/7/2020 (bit.ly/3i9yQWE)

10/7/2020 (bit.ly/2WoKRPC)

21/7/2020 (bit.ly/3xeFY8B)

17/8/2020 Ambient (bit.ly/3rGrywQ)

FIGURE 11

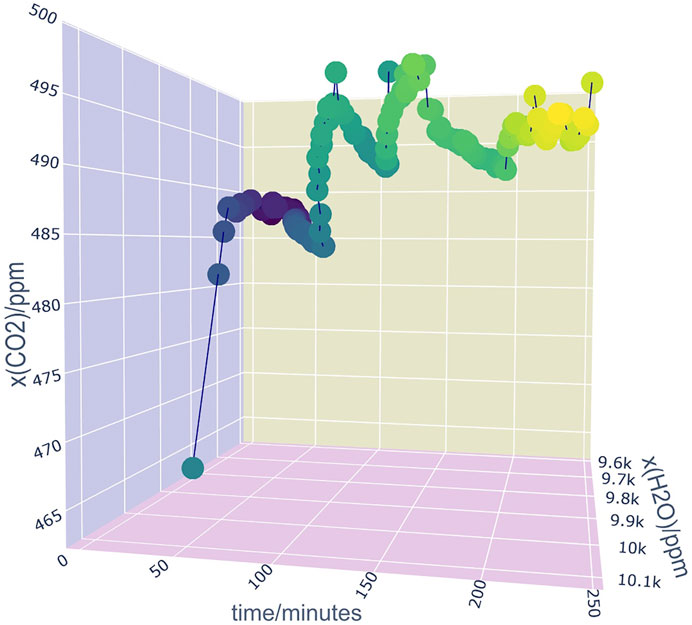

FIGURE 11. 9 July 2020 3D Correlation plot between CO₂, H₂O, and time.

5 Conclusion

We have tested the ability of Mg₂ (dobpdc) and m-2-m-Mg₂ (dobpdc) under ambient atmospheric conditions for their ability to ad- and de-sorb CO₂ via thermal swing. We found that Mg₂ (dobpdc) showed no activity. We also saw that the sample degraded rapidly in ambient conditions presumably due to exposure to the atmosphere, potentially due to common, abundant atmospheric compounds such as O₂, H₂O, and NO₂. We conclude that the openly-accessible sites of Mg₂ (dobdpc) result in it not being suitable for ambient air CO₂ capture. In contrast m-2-m-Mg₂ (dobpdc) showed significant capture of CO₂.

Hydrolysis was slower in m-2-m-Mg₂ (dobpdc), we believe because of the diamine-appended Mg₂ sites, leading to a more robust material that better resists degradation. Our experiments showed that this material is successful in removing CO₂ from ambient air via thermal swing, but unfortunately performance still degrades over time. The m-2-m-Mg₂ (dobpdc) samples showed good capacity with occupancies of CO₂ on MOF reaching as high as 16.2% during cooling and −24.8% during heating.

Our experiments show that the material interacted with water vapor in a manner similar to CO₂ suggesting competition for active sites on the MOF. It would be interesting to test CO₂ sorption as a function of humidity swing, due to this synergistic behavior. Additional research on the effect of relative humidity in capture dynamics of CO₂ in ambient conditions via MOFs would be useful. We have shown that MOF compounds have the necessary capacity, but not yet the inertness necessary for use for direct air capture (DAC).
