Evaluation of Manganese Oxide Octahedral Molecular Sieves for CO and C3H6 Oxidation at Diesel Exhaust Conditions

Mn-based materials have been widely applied in the environmental catalysis field for their excellent redox properties. Here, three kinds of crystallite manganese oxides (pyrolusite, cryptomelane and todorokite) with different tunnel sizes (MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3)) were prepared by hydrothermal method, and their catalytic performance in complete oxidation of diesel vehicle exhaust were tested. The highest catalytic oxidation activity was achieved on MnO(3 × 3) when compared with that on MnO(1 × 1) and MnO(2 × 2). Via a series of characterizations, such as transmission electron microscope, scanning electron microscope, X-ray powder diffraction, N₂-sorption experiments, temperature-programmed reduction by H₂/CO, and X-ray photoelectron spectroscopy, etc., it was found that the catalytic activity was mainly determined by the tunnel structure, specific surface area, and redox ability.

Introduction

Diesel vehicles have been widely used due to its less carbon dioxide emissions, higher fuel efficiency, better reliability and durability. However, diesel vehicle engines emit many harmful pollutants, including NO_x, CO, and unburned hydrocarbons (C_xH_y), which are dangerous for both human health and environment. Due to the lean-burn and oxygen-rich conditions, traditional three-way catalyst (TWC) cannot meet the requirements of diesel engine exhaust systems for increasingly stringent government laws and regulations. In decades, many efforts have been devoted to developing diesel exhaust after-treatment systems.

Diesel oxidation catalyst (DOC) is the core of current technologies for controlling diesel vehicle exhaust, which is used to oxidize CO and C_xH_y into non-toxic CO₂ and H₂O, and oxidize NO into NO₂ to accelerate sequential fast SCR reaction (Tan et al., 2021). At present, the most common active components of DOC catalysts in industrial applications are platinum-group metals, such as Pt, Pd, etc., with transition metal oxides such as Al₂O₃ and CeO₂ as supports (Liu et al., 2013; Liu et al., 2015; Raj et al., 2015; Carrillo et al., 2017; Ren et al., 2018; Leistner et al., 2019). Pt-group metals exhibit the excellent removal efficiency on CO, C_xH_y, NO, and other polluting components in diesel vehicle exhaust at low temperatures (Khosravi et al., 2014). There are still some problems with the usage of them, such as the rather expensive, limited reserves, and the susceptibility to sinter causing activity loss at high temperatures. It is significantly demanded to design an efficient noble metal-free DOC catalyst.

Among various noble metal-free DOC catalysts, transition metal oxides have received more and more attention, and they are considered to be environmental-friendly catalysts with great potential to replace the precious metals (Wang F. et al., 2012; Heo et al., 2018). Manganese oxide (MnO_x) is one of the most common transition metal oxides. The variable valence of Mn and the superior redox propertie have enabled MnO_x as a promising candidate for efficient DOC catalyst (Kim et al., 2010; Gao et al., 2016; Xu et al., 2006; Shi et al., 2019; Miao et al., 2019; Liu F. et al., 2018). Manganese oxides exist in many crystallines, which can be roughly divided into one-dimensional tunnel structure, two-dimensional layered structure and three-dimensional spinel structure (Huang Z. et al., 2012; Liu P. et al., 2018), manganese oxide with tunnel structure, also named as manganese oxide octahedral molecular sieve, has received extensive attention due to its superior catalytic performance (Makwana et al., 2002; Jarrige and Vervisch, 2009; Huang et al., 2017; Tang et al., 2010; Zhou et al., 2017; Liu Y. et al., 2018; Uematsu et al., 2016; Wang et al., 2017; Tang et al., 2006; Chen et al., 2009). Three typical manganese oxide square tunnel structures (pyrolusite, cryptomelane and todorokite) are shown in Figure 1, denoted as MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3), respectively. The [MnO₆] octahedron forms single, double or triple chains through edge and/or angle sharing, then the chains form a square hollow tunnel in an approximately orthogonal manner (Shiley and Buseck, 1981; Shen et al., 2005). For pyrolusite, single chains of edge-sharing [MnO₆] octahedra share corners with neighboring chains to form a framework structure containing tunnels with square cross sections that are one octahedron by one octahedron (1 × 1) on one side, forming a framework structure containing approximately 0.23 × 0.23 nm² tunnels (MnO(1 × 1)) (Ooi et al., 1987). The microstructure of cryptomelane is constructed of double chains of edge-sharing [MnO₆] octahedra, but they are linked in such a way as to form tunnels with square cross sections about 0.46 × 0.46 nm², measuring two octahedra on a side (MnO(2 × 2)) (Brock et al., 1998; Qi et al., 1999). The tunnel in todorokite is composed of [MnO₆] octahedrons with three edges sharing chains, forming a frame structure of about 0.69 × 0.69 nm² tunnel (MnO(3 × 3)) (Golden et al., 1985; Shen et al., 1993; Ching and Roark, 1997). Their structural frameworks are similar to zeolite (Shiley and Buseck, 1981; Ooi et al., 1987; Qi et al., 1995). Many studies have confirmed the tunnel structure of manganese oxide is similar to molecular sieve through different methods. (Fleischer and Richmond, 1943; Breck, 1974; Kijima et al., 2004; Liu P. et al., 2018). However, although the unique microstructure of MnO_x tunnels have arose great interests of researchers, few studies on revealing the impact of tunnel structure effect over MnO_x as DOCs on their catalytic performance have been reported.

FIGURE 1

FIGURE 1. Three typical manganese oxide square tunnel structures.

Herein, three different tunnel structure catalysts were prepared by a hydrothermal method, and the influence of the tunnel structure over on the catalytic activity of diesel vehicle exhaust gas (CO, C₃H₆) oxidation was studied. Via a series of characterizations, such as X-ray powder diffraction (XRD), transmission electron microscope (TEM), scanning electron microscope (SEM), nitrogen adsorption and desorption experiments (N₂-sorption), temperature programmed reduction by CO (CO-TPR), temperature programmed reduction by H₂ (H₂-TPR), and X-ray photoelectron spectroscopy (XPS), a structure-performance relationship has been established where the tunnel structure, as well as the redox properties of manganese oxide, determined the catalytic oxidation activity. The present result is expected to give a promising pathway for the design and preparation of the low-cost efficient DOCs that are entirely noble metal-free.

Experiments

Materials

Analytical grade hydrate MnSO₄·H₂O, MnCl₂.4H₂O (NH₄)₂S₂O₈, and NaOH were purchased from Sinopharm Chemical Reagent, Co., Ltd., China. KMnO₄ was purchased from Nanjing Chemical Reagent, Co., Ltd., China. MgCl₂·6H₂O was obtained from Shanghai Macklin Biochemical Co., Ltd., China. Deionized water was used throughout the experiment process.

Catalysts Preparation

The MnO(1 × 1) and MnO(2 × 2) manganese oxides were prepared by a redox hydrothermal method according to the following reaction Eqs. 1, 2, respectively (Wang and Li, 2002):

${\text{S}}_2{\text{O}}_8^{2-}+{\text{Mn}}^{2+}+2{\text{H}}_2\text{O}\to 2{\text{SO}}_4^{2-}+{\text{MnO}}_2+4{\text{H}}^{+}{\text{E}}^{\Theta }=0.786\text{V}(1)$

$2{\text{MnO}}_4^{-}+3{\text{Mn}}^{2+}+2{\text{H}}_2\text{O}\to 5{\text{MnO}}_2+4{\text{H}}^{+}{\text{E}}^{\Theta }=0.455\text{V}(2)$

A certain amount of manganese sulfate (MnSO₄·H₂O (2.91 g)) and an equal amount of ammonium persulfate ((NH₄)₂S₂O₈ (3.93 g)) were dissolved in distilled water (40 mL) at room temperature under vigorous magnetic stirring, then the homogeneous solution was transferred into a Teflon-lined stainless steel autoclave, sealed, and maintained at 160°C for 24 h. The obtained black solid product was filtered, washed with distilled water to remove ions possibly remaining in the final products, and finally dried at 110°C overnight. The whole process, appropriate for the preparation of pyrolusite, was conveniently adjusted to prepare MnO(2 × 2) by simply adding analytical grade KMnO₄ (1.66 g) instead of (NH₄)₂S₂O₈ to the reaction system.

The MnO(3 × 3) manganese oxide was prepared through the precipitation method according to the reported literature (Breck, 1974). Briefly, birnessite was initially synthesized by the coprecipitation method. Manganese dichloride (MnCl₂·4H₂O (3.96 g)) and MgCl₂·6H₂O (1.63 g) were dissolved in 40 mL deionized water to form a mixed solution, in which the 5.0 M NaOH (50 mL) and 0.20 M KMnO₄ (40 mL) solutions were successively added. The mixture was stirred for 30 min and aged at room temperature for 48 h and then washed with the deionized water to obtain Na-birnessite. MnO(3 × 3) was prepared by the addition of the Na-birnessite above into 1 L of 1.0 M MgCl₂, and stirred for 12 h at room temperature. The sample was then centrifuged and washed three times with a large amount of distilled deionized water, then charged into Teflon-lined autoclaves at 150°C for 48 h. The resulting solid product was filtered, washed with the deionized water and dried at 110 °C overnight. The manganese oxides were obtained by calcining the dried samples above in air at 300°C for 6 h and denoted as MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3), respectively, according to the properties of their tunnels for clarity.

Catalysts Characterizations

Transmission electron microscopy (TEM) images were taken on a JEM-1011 instrument at an acceleration voltage of 200 kV. The sample was dispersed in A.R. grade ethanol with ultrasonic treatment and the resulting suspension was allowed to dry on a carbon film supported on copper grids. The morphologies of samples were observed via a field-emission scanning electron microscope (JSM-6701F, JEOL accelerating voltage of 5 kV).

X-ray diffraction patterns were recorded on a Philips X’pert Pro diffractometer using Ni-filtered Cu Kα radiation source (λ = 0.15 nm) at 40 kV and 30 mA under ambient conditions. The scan angle extended from 10° to 90° using a step size of 0.02°, and scan speed was 10 min⁻¹.

N₂ adsorption-desorption isotherms were carried out on a Micromeritics ASAP 2020 instrument using nitrogen gas as an adsorbate at 77 K. Before measurement, the samples were vacuum-pretreated at 200°C for 3 h. The Brunauer-Emmett-Teller (BET) equation and the Barrett-Joyner-Halenda (BJH) method were applied for the measurement of the specific surface area and the pore size distribution, respectively.

X-ray photoelectron spectroscopy (XPS) measurements were conducted using a PHI 5000 Versa Probe system with a monochromatic Al Kα radiation (1486.6 eV, 15 kW). All binding energies were calibrated by the adventitious C 1s (284.6 eV) to compensate for surface charge effects. This reference gave BE values with accuracy at ± 0.1 eV. All the data were analyzed by XPS PEAK software using Shirley type background.

Inductively coupled plasma atomic emission spectroscopy (ICP-AES) was used for elemental analysis on a Perkin Elmer Optima 5300DV instrument with a radiofrequency power of 1300 W. The sample was dispersed in a mixture of HNO₃ and H₂SO₄ (volume ratio 1:3) before the determination of their chemical compositions and treated by ultrasonic for 1 h to get the sample completely dissolved in the liquid phase.

Temperature programmed reduction by H₂ (H₂-TPR) experiments were carried out in a quartz U-tube reactor connected to a TCD with a H₂/Ar mixture (7% H₂ by volume) as a reductant. 10 mg sample was used for each measurement. Before introducing the sample to the H₂/Ar stream, the sample was pretreated in a N₂ stream (50 mL/min) at 150°C for 1 h. The H₂ consumption profiles were collected from room temperature to 800°C at a rate of 10°C/min.

CO temperature-programmed reduction (CO-TPR) experiments were conducted in a quartz tube with 30 mg catalyst loaded. The sample was pretreated in Ar stream (200 mL/min) at 120°C for 0.5 h before reduction and then cooled to room temperature. After that, CO/He mixture was switched on and the sample was heated from room temperature to 650°C with a heating rate of 10°C min⁻¹. The effluent gases including CO and CO₂ were continuously analyzed by an online LC-D series mass spectrometer.

Catalytic Activity Tests

Catalytic activity tests for C₃H₆ or CO oxidation were carried out on a fixed-bed continuous flow quartz reactor. The feeding gas contains 1% C₃H₆ (or CO)/He, 20% O₂/He with a total flow rate of 10 mL min⁻¹. In each test, 50 mg sample was used and the weight hourly space velocity (WHSV) was 12,000 mL g⁻¹·h⁻¹. Before switching on the reactant flow, the sample was pretreated in a flowing He stream at a rate of 20 mL/min at 150°C for 0.5 h to remove the adsorbed impurities. After that, the sample was cooled to room temperature and exposed to reactant gases until reaching saturated adsorption. The oxidation activity was tested under steady conditions. The outlet gas composition was measured by an online GC-9860 gas chromatograph equipped with TCD and FID detectors. C₃H₆ and CO conversion were calculated by the following equations:

${\text{C}}_3{\text{H}}_6\text{ coversion }\left(\text{\%}\right)=\left(1-\frac{{\left[{\text{C}}_3{\text{H}}_6\right]}_{\text{out}}}{{\left[{\text{C}}_3{\text{H}}_6\right]}_{\text{in}}}\right)\times 100\text{\%}$

$\text{CO coversion }\left(\text{\%}\right)=\left(1-\frac{{\left[\text{CO}\right]}_{\text{out}}}{{\left[\text{CO}\right]}_{\text{in}}}\right)\times 100\text{\%}$

where [C₃H₆]_in and [CO]_in represent the initial C₃H₆ and CO concentrations, [C₃H₆]_out and [CO]_out represent the residual C₃H₆ and CO concentrations, respectively.

The light-off experiments of CO and C₃H₆ simultaneous oxidation activity performance of various catalysts were evaluated in a fixed-bed quartz reactor (8 mm internal diameter) operating with a steady state flow. The feed stream was fixed with 200 ppm CO, 200 ppm C₃H₆, 10% O₂, and the total gas flow is controlled at 100 mL/min. In each test, 100 mg sample was used and the weight hourly space velocity (WHSV) was 60,000 mL g⁻¹·h⁻¹. Before the test, it was pretreated in purified N₂ stream at 150°C for 0.5 h to avoid surface impurities. Then the mixed gases were switched on and the activity data were collected at every target temperature after stabilizing for 30 min. The concentration of effluent gases was continuously analyzed on an MKS MultiGas 6030 FTIR spectrometer equipped with a 2 m path-length gas cell (2 L volume). The C₃H₆ and CO conversion were calculated by the equations shown above.

Results and Discussion

Structure Characterizations

As shown in Figure 2, MnO_x samples synthesized by different methods exhibited significantly different morphologies. MnO(1 × 1) and MnO(2 × 2) displayed uniform shapes of nanowire and nanorod. While the MnO(3 × 3) showed a uniform petal-like shape. The morphologies of the samples were consistent with previous reports (Wang and Li, 2002; Kijima et al., 2004).

FIGURE 2

FIGURE 2. TEM and SEM images of MnO(1 × 1) (A,D), MnO(2 × 2) (B,E), and MnO(3 × 3) (C,F).

To determine the crystalline structure of MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3), the XRD patterns were collected (Figure 3). The XRD patterns of the MnO(1 × 1) could be readily indexed to the pure pyrolusite with a tetragonal structure (β-MnO₂, JCPDS 24-0735). While the diffraction peaks of MnO(2 × 2) were attributed to the crystalline phase of cryptomelane (α-MnO₂, JCPDS 29-1020) with a tetragonal structure. For MnO(3 × 3) the diffraction peaks were ascribed to the orthorhombic phase of the todorokite MnO₂ (JCPDS 38-0475).

FIGURE 3

FIGURE 3. XRD patterns of MnO(1 × 1), MnO(2 × 2), MnO(3 × 3).

The specific surface area (SSA) of MnO(1 × 1), MnO(2 × 2) and MnO(3 × 3) were characterized by N₂ adsorption-desorption isotherms and the result were listed in Table 1. MnO(3 × 3) (68.3 m²/g) exhibited a higher SSA than MnO(1 × 1) (15.3 m²/g), and MnO(2 × 2) (33.6 m²/g). Compared to MnO(1 × 1) (0.05 cm³/g) and MnO(2 × 2) (0.11 cm³/g) samples, higher total pore volume was also achieved on MnO(3 × 3) (0.33 cm³/g). When combined with the results of SEM, the stacking-type pores of petal-like morphology might account for the higher SSA and larger pore volume of MnO(3 × 3). Liu et al. found that the tunnels in MnO(1 × 1) were too small to accommodate other chemical species, and chemical analysis indicates that the composition of MnO(1 × 1) only slightly deviated from pure MnO₂ (Liu P. et al., 2018). Wang et al. (Wang and Li, 2002) examined the structure and pore properties of MnO(2 × 2) by adsorbing different gases with different molecular diameters. Both H₂O and NH₃ with diameters below 0.265 nm could be inserted into the tunnel structure of MnO(2 × 2), whereas N₂, O₂, Ar, CO, and CO₂ with diameters above 0.33 nm were excluded from the structure. As reported by Shen et al. (Shen et al., 1993), MnO(3 × 3) with a tunnel size of 0.69 nm showed satisfactory adsorptive capacity for C₆H₁₂ and CCl₄ with size dimensions of 0.61 and 0.69 nm, respectively. Such a special structure made MnO(3 × 3) exhibit a superior oxidation activity for hydrocarbons.

TABLE 1

TABLE 1. The textural properties of various catalysts.

Catalytic Activity of CO and/or C₃H₆ Oxidation

C₃H₆ oxidation and CO oxidation reactions were selected to evaluated the catalytic oxidation activity of MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3). As shown in Figure 4, for the non-catalyst test, the T20 of CO is about 300°C and the T20 of C₃H₆ is about 350°C, which should be due to the ordinary thermal oxidation. The catalytic performances have been significantly improved after loading the catalyst. MnO(3 × 3) shows extremely high catalytic activity for the oxidation of C₃H₆, which achieved a C₃H₆ conversion of 50% at ca. 110°C and a completely oxidation at ca. 170°C. However, the C₃H₆ conversions over MnO(1 × 1) and MnO(2 × 2) are only ca. 5% at 110°C. Under the same conditions, the temperatures required for the complete oxidation of C₃H₆ over MnO(1 × 1) and MnO(2 × 2) are 320 and 240°C, respectively. Interestingly, their CO oxidation activities are almost the same.

FIGURE 4

FIGURE 4. C₃H₆ oxidation and CO oxidation tests of three manganese oxides or non-catalyst. Reaction conditions: 5000 ppm C₃H₆(CO), 10% O₂, He balanced, WSHV of 12,000 ml g⁻¹·h⁻¹.

Light-off experiments of CO and C₃H₆ simultaneous oxidation at higher WHSV were also carried out to further estimate the catalytic oxidation activity of MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3) to approach the practical instance. As shown in Figure 5, the light-off temperatures of CO and C₃H₆ oxidation on these three MnO_x catalysts shifted to the high temperature, which should be due to the different reaction conditions, especially the increasing of the WSHV from 12,000 to 60,000 mL g⁻¹·h⁻¹. MnO(3 × 3) catalyst still showed the best C₃H₆ oxidation activity. Interesting, in the presence of C₃H₆, MnO(3 × 3) exhibited much better CO oxidation activity than MnO(2 × 2) and MnO(1 × 1), which was quite different from the results of CO oxidation without C₃H₆ in the reactant. The catalytic performance of some typical catalysts for the oxidation of CO and propylene were listed in Table 2 (Seo et al., 2021; Li et al., 2019; Ma et al., 2018; Li et al., 2021; Hazlett et al., 2017; Wang et al., 2019; Rida et al., 2006; Tan et al., 2020; Liu et al., 2020; Březina et al., 2020). It was seen that noble metal catalysts had outstanding low-temperature activity below 250°C, while the catalytic activity of transition metal catalysts was generally lower than that of noble metal catalysts. Even though MnO(3 × 3) still shown the comparable catalytic performance. In short, MnO(3 × 3) was a superior catalyst for CO and C₃H₆ oxidation, which made it a promising candidate as a diesel oxidation catalyst. To reveal the reasons for the higher oxidation activity of MnO(3 × 3), a series of physiochemical characterizations were carried out.

FIGURE 5

FIGURE 5. C₃H₆ oxidation and CO oxidation tests of three manganese oxides. Reaction conditions: 200 ppm C₃H₆, 200 ppm CO, 500 ppm NO, 10% O₂, N₂ balanced, WSHV of 60,000 ml g⁻¹·h⁻¹.

TABLE 2

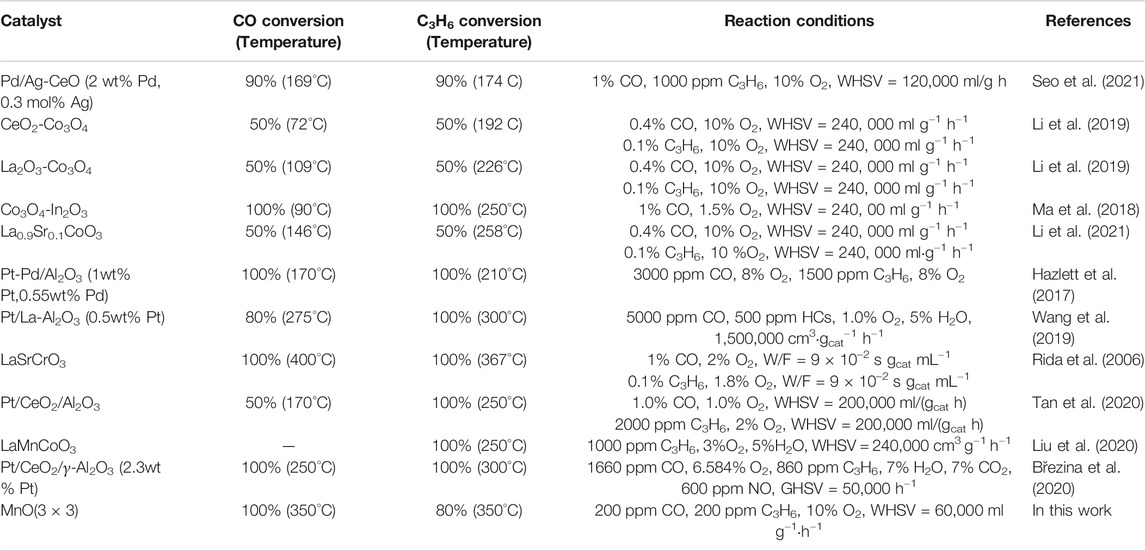

TABLE 2. The catalytic properties of CO and C₃H₆ oxidation reactions over some typical catalysts.

The Redox Property (H₂-TPR, CO-TPR)

H₂-TPR was used to investigate the redox ability of these catalysts. The reduction profiles was shown in Figure 6, and the quantitative results of the H₂-consumption peaks in the process of reduction were listed in Table 3. For all three MnO catalysts, there were two H₂-consumption peaks in each H₂-TPR curves. According to the previous reports, the H₂-consumption peak at relatively lower temperature possibly represented the reduction of MnO₂ or Mn₂O₃ to Mn₃O₄, and the high temperature one be assigned to the further reduction of Mn₃O₄ to MnO (Gao et al., 2016). Moreover, it could be found that the initial reduction temperature of the low-temperature H₂-consumption peak of MnO(3 × 3) began at 187°C and centered at 338°C, which were about 70°C lower than those of MnO(1 × 1) and MnO (2 × 2), indicating that the redox recycling of Mn⁴⁺/Mn³⁺ was more easily to occur on MnO(3 × 3) catalyst. As shown in Table 3, the amount of H₂ consumptions decreased from 11.03 to 7.42 mmol g⁻¹ in the order of MnO(1 × 1) > MnO(2 × 2) > MnO(3 × 3). However, when the H₂ consumptions were normalized by the corresponding contents of manganese, the relative ratios were about 0.15 for all three catalysts, indicating the similar reduction amount of all MnO_x catalysts. As reported previously, the catalytic oxidation of C_xH_y on manganese oxides was mainly proceeded by the Mars-van Krevelen mechanism (Shen et al., 1993; Fleischer and Richmond, 1943), in which the lattice oxygen species reacted with C_xH_y, and the reduced manganese oxides were re-oxidized by gaseous oxygen. As a result, the C_xH_y oxidation activity of manganese oxides was mainly determined by its redox performance. Summarzing the above results, it seemed reasonably to suggest that the excellent reducibility of MnO(3 × 3) at low temperatures played the dominated factor for its best C₃H₆ oxidation activity. More importantly, it was not difficult to see that MnO(3 × 3), which had the best propylene oxidation activity, had a lower initial reduction temperature than MnO(1 × 1) and MnO(2 × 2). Accordingly, it could be concluded that the redox properties at low temperatures were more important for improving catalytic oxidation performance.

FIGURE 6

FIGURE 6. H₂-TPR profiles of MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3).

TABLE 3

TABLE 3. The redox properties of various catalysts.

As reported by Ma et al. (Ma et al., 2018), the CO oxidation performance is extremely related to the interaction between the CO molecules and the active lattice oxygen of the catalysts. Therefore, the CO-TPR experiment was conducted on MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3) to further determine the reactivity of lattice oxygen species. As shown in Figure 7, two CO-consumption peaks were observed on these three samples, suggesting two types of lattice oxygen with different reactivity (Shen et al., 1993). The peak at lower temperature range was ascribed to the reduction of MnO₂ to Mn₃O₄ (Shen et al., 1993; Fleischer and Richmond, 1943), while the peak at higher temperature range was attributed to the reduction of Mn₃O₄ to MnO. Similar to the results of H₂-TPR, it can be seen clearly that the initial reduction temperatures of the low-temperature reduction peak, as well as the peak center on MnO(3 × 3) was still slightly lower than those on MnO(1 × 1) and MnO(2 × 2). The excellent low-temperature redox property of MnO(3 × 3) should be one of the main reasons for the best catalytic oxidation activity.

FIGURE 7

FIGURE 7. CO-TPR profiles of MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3).

The Chemical States of Surface Species (XPS)

XPS was performed to identify the chemical state of surface elements. The Mn 2p spectra are shown in Figure 8A. Mn 2p_3/2 and Mn 2p_1/2 XPS peaks were centered at 642.3 and 654.1 eV, respectively, with the separation energy of 11.8 eV, close to that of Mn 2p XPS with an octahedral coordination in MnO₂ (Liu P. et al., 2018). The peaks at 654.7 and 643.5 eV were attributed to Mn⁴⁺, and the peaks at 653.5 and 642.1 eV were attributed to Mn³⁺. The mixed valence in catalysts was important for electron transport because the efficiencies of catalysts were usually governed by their ability and tendency to cycle between different valence states of the relevant cationic ions (Sun et al., 2011; Fang et al., 2017). Thus, the ratio of Mn³⁺/Mn⁴⁺ was calculated as a parameter to compare the catalytic activity of MnO_x samples. As calculated from Figure 8A, MnO(1 × 1) possessed the lowest Mn³⁺/Mn⁴⁺ ratio of 0.73 (Table 3). When tunnel size increased from 0.23 to 0.69 nm, the ratio of Mn³⁺/Mn⁴⁺ increased from 0.71 to 1.54, which indicated that more Mn³⁺ formed on MnO(3 × 3). More surface Mn³⁺ ions were always related to the formation of more surface oxygen vacancies on MnO₂, which was beneficial to the adsorption, activation and migration of oxygen species. Such a conclusion was further proven by the XPS results of O 1s. As shown in Figure 8B, two peaks centered at 529.5 and 531.4 eV were observed. The peak at ca. 529.5 eV was corresponded to surface lattice oxygen (O_latt), while the latter peak at ca. 531.4 eV was attributed to surface adsorbed oxygen (O_ads) (Galakhov et al., 2002; Wang W. et al., 2012). As shown in Table 3, the ratio of surface adsorbed oxygen species (O_ads/(O_latt + O_ads)) on MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3) were 0.27, 0.31 and 0.41, respectively. MnO(3 × 3) possessed the most abundant surface adsorbed oxygen species. The formation of adsorbed oxygen species are most likely resulted from the presence of surface oxygen vacancies on the different tunnel size MnO₂ catalysts. Surface active oxygen species played an important role in oxidation reactions (Tang et al., 2008; Widmann and Behm, 2011). Abundant surface adsorbed oxygen species were easily stripped at low temperatures and were favorable for stronger reducibility to enhance the oxidation performance, well consistent with the results of H₂-TPR. In other words, the abundant surface oxygen vacancies and surface adsorbed oxygen species dramatically facilitated the redox properties at low temperature, and then promoted its catalytic oxidation activity.

FIGURE 8

FIGURE 8. XPS spectra of Mn 2p (A) and O 1s (B) for MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3).

Relationship Between Catalytic Performance and Catalysts Properties

To further reveal the reasons for the most superior catalytic oxidation activity on MnO(3 × 3), the results of catalytic performance test, H₂-TPR, CO-TPR, XPS, as well as the structural/textural properties were re-organized in Figure 9. Here, T20, the temperature at which C₃H₆/CO conversion were 20%, was selected to represent the catalytic oxidation activity of MnO(1 × 1), MnO(2 × 2) and MnO(3 × 3), and lower T20 meant higher catalytic oxidation activity. As far as we know, for some important catalytic reactions, the increase of the specific surface area of support was beneficial to provide more active sites, which could lead the activity to increase. Taking into account the previous research about the tunnel sizes of these three MnO catalysts, N₂ can be adsorbed throughout the tunnel of MnO(3 × 3), partially adsorbed in the tunnel of MnO(2 × 2), and excluded from the tunnel of MnO(1 × 1). This indicated that the SSA results from the N₂ adsorption-desorption isotherms in our study reflected the effective adsorption sites of the MnO catalysts, i.e., the effective catalytic oxidation sites. It could be considered that MnO(3 × 3) with the largest tunnel size and the biggest SSA was in favor of the catalytic oxidation performance (Waterhouse et al., 2003). Other than the optimal tunnel structures and higher SSA of MnO(3 × 3), it was found that the enhanced catalytic oxidation activity of MnO(3 × 3) was more related to its excellent redox property. Lower initial reduction temperatures in H₂/CO-TPR were always related to better redox properties. In this work, lower initial reduction temperatures in H₂/CO-TPR were achieved on MnO(3 × 3), meaning that the oxygen species on MnO(3 × 3) were more reactive. The higher concentration of surface adsorbed oxygen species on MnO(3 × 3) suggested the formation of more oxygen vacancies, which could significantly facilitate the adsorption and activation of oxygen during the reaction. In short, the optimal tunnel structure, highest SSA, and most superior redox properties accounted for the best catalytic oxidation activity of MnO(3 × 3). Through the above-mentioned comparative studies, a structure-activity relationship was well established.

FIGURE 9

FIGURE 9. The relationship between the catalytic oxidation activity and the results of H₂-TPR, CO-TPR, XPS, as well as the structural/textural properties.

Conclusion

In this work, three kinds of manganese oxides: MnO(1 × 1), MnO(2 × 2), and MnO(3 × 3) with different tunnel structures were prepared by a hydrothermal method. MnO(3 × 3) showed much superior catalytic oxidation activity than MnO(1 × 1) and MnO(2 × 2). Through a series of characterizations, a structure-activity relationship was established that the unique tunnel structure, higher specific surface area, and better redox properties on MnO(3 × 3) accounted for its best catalytic oxidation activity. This work provides a new strategy for designing highly efficient catalytic oxidation catalysts through tuning the tunnel structures of metal oxide catalysts.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Author Contributions

XW: Methodology, Validation, Investigation, Writing—original draft. WT: Writing—review and editing. KG: Methodology. JJ: Methodology. FG: Conceptualization, Validation, Writing—review and editing, Supervision, Funding acquisition. QT: Conceptualization, Validation, Writing—review and editing. LD: Resources, Supervision, Project administration.

Funding

The finial support from the National Natural Science Foundation of China (No. 21972063) and Natural Science Foundation of Jiangsu Province (BK20200012).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
