Jack Pakkebier ¹ Christopher Skangos ² Melanie M. Derby ^1*

• ¹ Alan Levin Department of Mechanical and Nuclear Engineering, Carl R. Ice College of Engineering, Kansas State University, Manhattan, Kansas, United States
• ² National Renewable Energy Laboratory (DOE), Golden, Colorado, United States

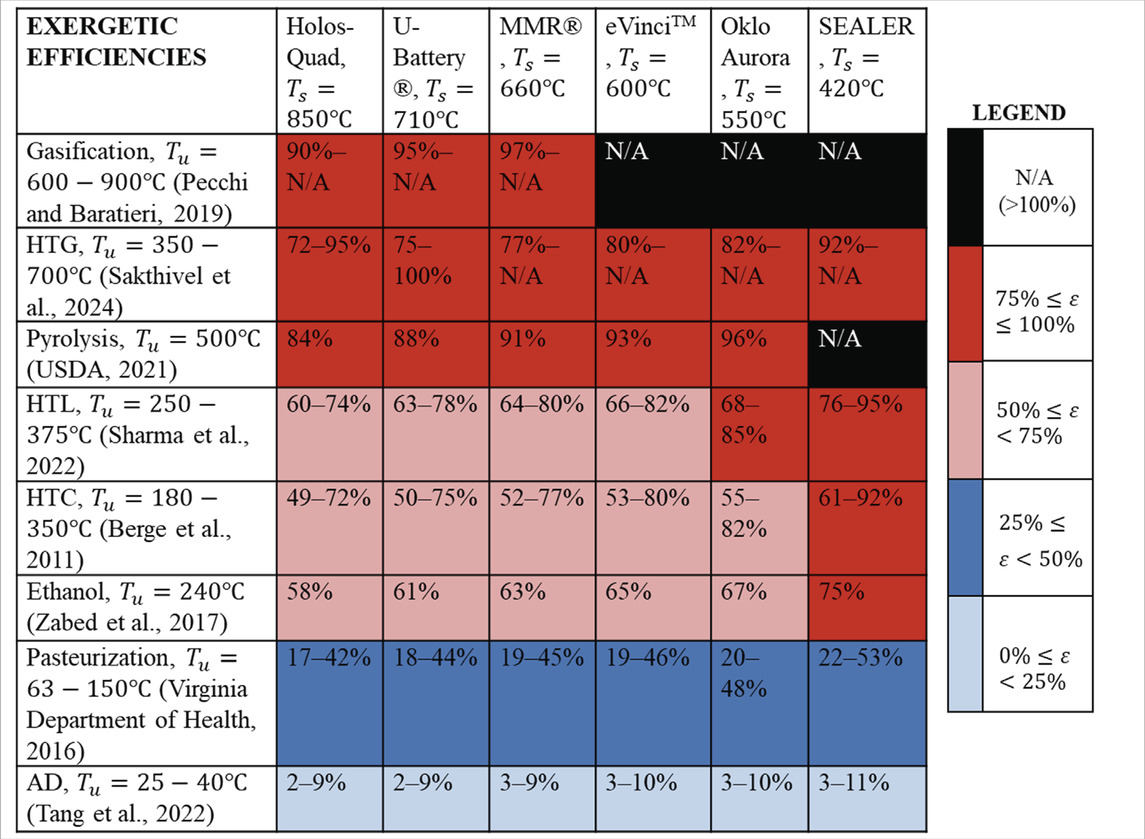

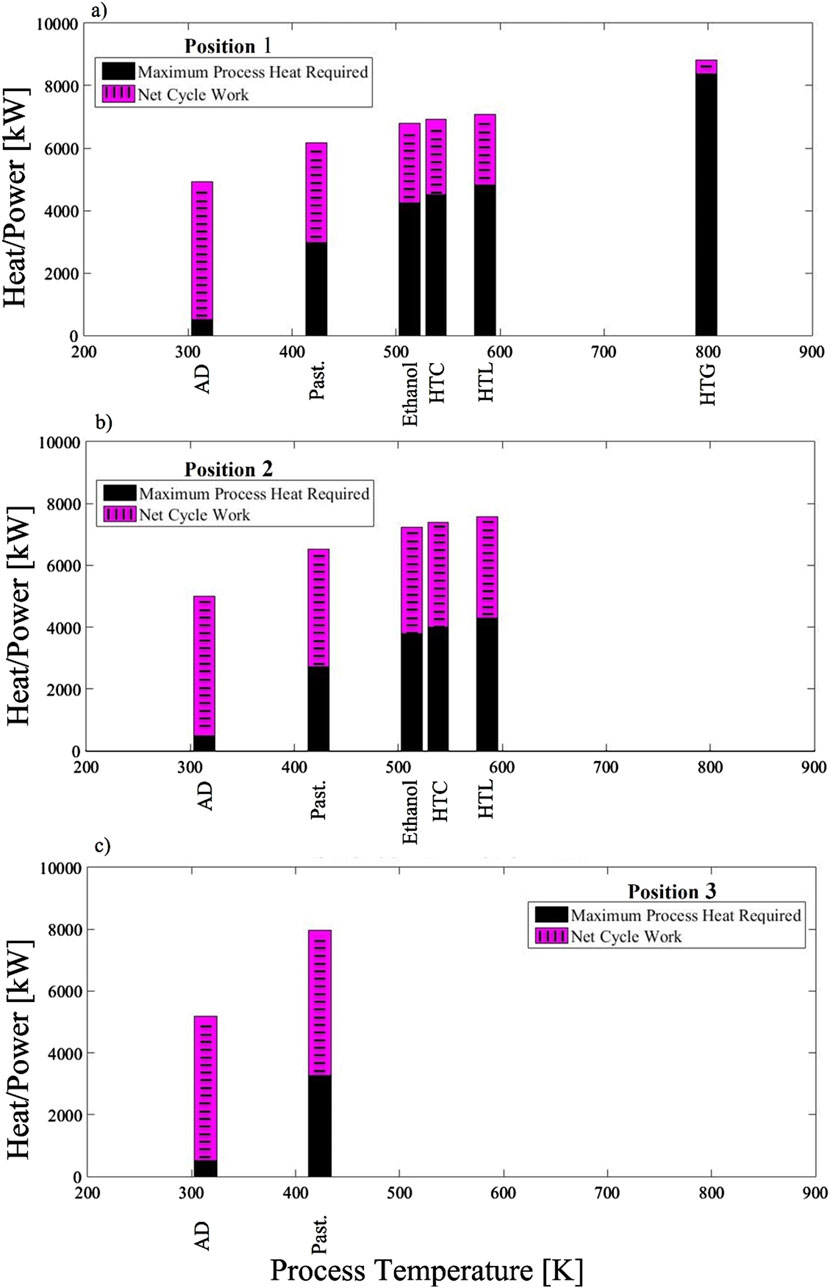

Introduction: There is a global goal to reduce greenhouse gas emissions by 43% by 2023. Nuclear microreactors, a subset of small modular reactors, offer a potential solution due to their compact size, transportability, and carbon-neutral power generation capabilities. Methods: This study explores the feasibility of using heat from nuclear microreactors for bioconversion and agricultural processes, including transforming biomass into energy carriers and products such as syngas, bio-oil, and pasteurized milk. Operating requirements for gasification, pyrolysis, hydrothermal carbonization, hydrothermal liquefaction, hydrothermal gasification, ethanol production, anaerobic digestion, and pasteurization were obtained through a literature review. A Brayton cycle model based on the eVinciTM microreactor was developed to assess the feasibility of powering these processes using nuclear microreactor heat. Results and discussion: Exergetic efficiency values for high-temperature processes ranged from 72–100%, whereas lower-temperature processes ranged from 2–53%. These efficiencies depend on the available source temperature for each microreactor design. There were trade-offs between producing net power and using process heat, particularly for high-temperature processes. Three heat exchanger locations were considered: before the turbine (600℃), between the turbine and regenerator (370℃), and after the regenerator (192℃). High-temperature processes like gasification require temperatures too high for feasibility. Middle temperature processes are better suited to a heat exchanger between the turbine and regenerator, while also operable before the turbine. Lower-temperature processes like pasteurization and anaerobic digestion can use waste heat after the regenerator and do not impact power production. These findings are valuable for optimizing nuclear microreactor heat use and aligning with global climate initiatives.
