First downhole sampling of a natural hydrogen reservoir in Colombia

In Colombia, natural hydrogen (H₂) was recently declared a source of unconventional renewable energy. An opportunity has been recognized to take advantage of information on the infrastructure of oil fields as a springboard for H₂ exploration in the country’s sedimentary basins. Establishing similarities and identifying components of the possible H₂ systems in the different geological contexts where the presence of H₂ has been proven in Colombia’s sedimentary basins allows the establishment of the probability of H₂ in the Ecopetrol oil and gas fields in Colombia. The components of H₂ systems include potential H₂ source rocks and reservoirs. Potential accumulations need to be confirmed through measurements, sampling, and well testing. The main types of H₂ well exploration carried out in this study resemble those in oil fields and include surface surveys, logging while drilling (mud gas and petrophysics), and downhole sampling. In the case of a hydrocarbon field in the Llanos Basin, a detailed seismic and geological review, supported by surface survey indications of H₂ traces, prompted further investigation while drilling wells in the basin to establish the provenance and distribution of H₂. Based on the proposed workflows, we evaluated possible strategies in the area. Given the positive evaluation of the possible elements of a theoretical H₂ strategy, a sampling plan was defined both in the well and on the surface that will reduce the uncertainty of the prospect of natural H₂ in the studied basin but may also be applied to similar geological settings worldwide. This study shows the application of such an H₂ exploration strategy, leading to the presented results from the first well and confirming the presence of an active natural H₂ system in the Llanos Basin.

1 Dawn of natural hydrogen exploration

Natural hydrogen (H₂) is emerging as an attractive clean energy for the future due to its minimal carbon footprint, high future economic margins compared to other forms of H₂ generation, and energetic characteristics. The generation of natural H₂ has been identified in various regions of the world and in different geological contexts. Although there is already an H₂ production field in Mali, Africa, the large-scale exploitation probabilities of H₂ in other places in the world are not yet apparent. The forefront of exploration today is in Australia (Withcombe et al., 2024), the United States, and France, where tenders and offers for exploration blocks have been opened; drilling has started in the first two. Within the areas where H₂ has been found, there are also sedimentary basins with oil production activity (Australia and, in this study, Colombia) or accidental discoveries in water wells (Mali and Kansas, USA). In recent years, dedicated drilling has begun in areas with potential natural H₂ systems. However, no significant accumulation has yet been reported.

2 Introduction to the Llanos Basin geology as a potential natural hydrogen system

2.1 Basement and hydrogen source rocks

To understand natural H₂ generation systems, it is important to establish an analogy between the basement as a possible so-called source rock and the petroleum system’s kitchen since without the source there would be no H₂ production. In most cases, the basement is the rock formation in which H₂ generation occurs and from which H₂ is released. Most basement rocks associated with H₂ production have mafic/ultramafic characteristics, high iron content, and/or high concentration of radioactive elements; these rocks favor serpentinization or iron oxidation processes and/or water radiolysis. These processes require the presence of percolated waters or aquifers to interact with the basement rocks, promoting natural chemical reactions that release the H₂. The geomechanical conditions of the alteration and/or other mechanisms that favor the exposure of a rock volume to water improve the production per unit area of H₂ in the system. In the Llanos Basin, the areas of the basement with high heat flux and/or with hydraulic head-driven water influx were the key elements of the targeted natural H₂ system (Figures 1, 2). This implied the need for not only suitable source rock at adequate H₂-kitchen temperatures in the case of potential serpentinization but also continuous delivery of the substrate water needed for water radiolysis.

Figure 1

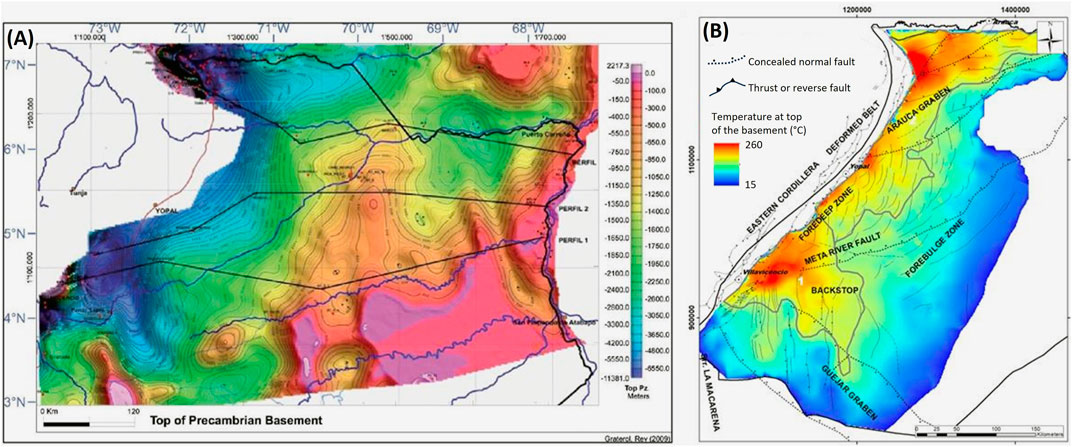

Figure 1. Llanos Basin maps of interest for the definition of natural H₂ generation potential associated with the Precambrian and crystalline basement: (A) top of the Precambrian basement; (B) relative heat flux at the crystalline basement (López-Ramos et al., 2022) within the outline of the basin and with the main fault populations highlighted.

Figure 2

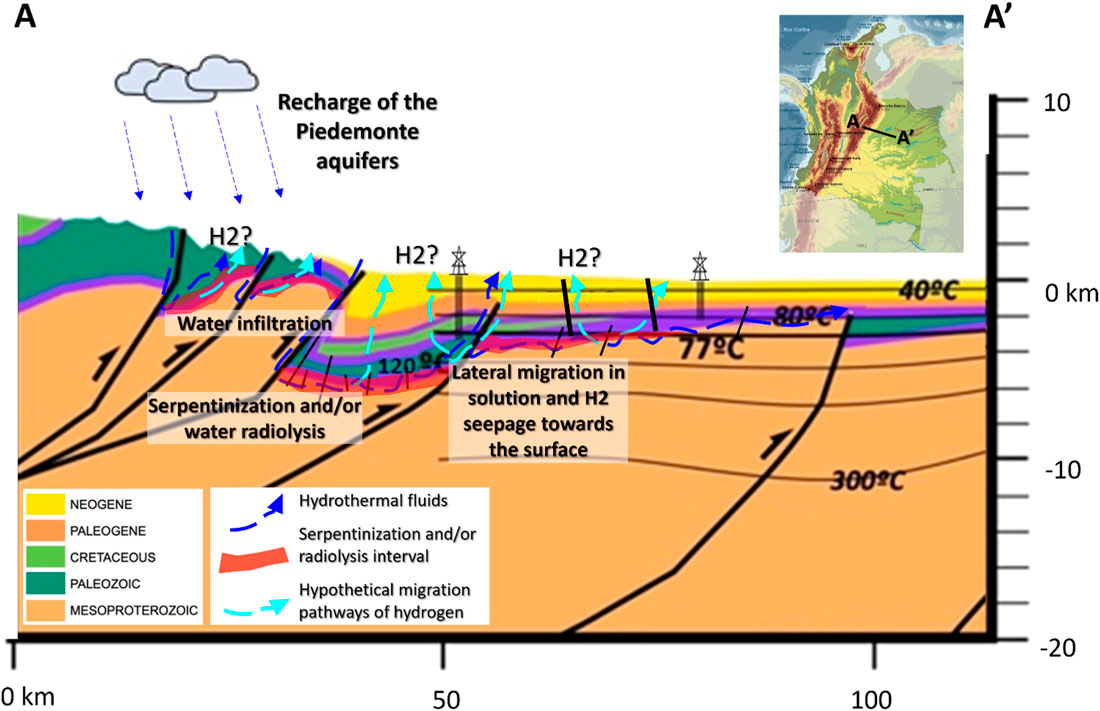

Figure 2. Schematic section of Colombia’s Llanos Orientales Basin (A, A'), modified by López-Ramos et al. (2022). Intervals in purple highlight potentially active H₂ generation zones within the upper sections of the basement reacting with conceptualized water influx. The most promising are the fault blocks, where the ultramaphics basement is at temperatures that guarantee a fast rate of serpentinization.

2.2 Hydrogen kitchen

The presence or interaction of water is essential for H₂ genesis. Water is the source of free H₂ in the Earth’s crust due to its reduction by minerals or ores containing Fe²⁺or via radiolysis by radioactive elements (see the extensive list of natural H₂-forming reactions in the subsurface by Boreham et al., 2021). Chemical reactions that occur with mafic or radioactive rocks give rise to this hydrogen release. The lower acidity and higher temperature of the water trigger or promote H₂ production since they catalyze or accelerate the water reduction reactions—serpentinization (McCollom et al., 2020). Hence, geothermal anomalies are believed to be related to favorable environments for the generation of natural H₂ at higher rates. The main characteristics of the Llanos Basin are its active and extensive aquifers, given the powerful recharge of meteoric waters in the foothills area, toward the basin’s eastern limit. López-Ramos et al. (2022) suggested that in different locations of the basin, the recharge has varying contributions from different directions that result in diverse geothermal and compositional characteristics for each area. In the evaluation area, analysis of water from the basin suggests a greater deepening of the meteoric waters to the east because they arrive at a higher temperature than in the surrounding fields. This condition implies that water may have traveled from deeper areas—probably from the crystalline basement (Figures 2, 3). This favors the likely participation of these waters in serpentinization or radiolysis processes and, in turn, their help in advective aqueous media transport of theoretically generated hydrogen produced in these deep zones. Hence, the basement in this part of the basin is mostly granitic, dioritic, and phyllitic, so water radiolysis might be the main H₂-forming mechanism (but both can contribute), independent of temperature. That may imply that in iron oxidation and water radiolysis, importance may shift in magnitude across the basin depending on temperature and rock radioactivity, respectively.

Figure 3

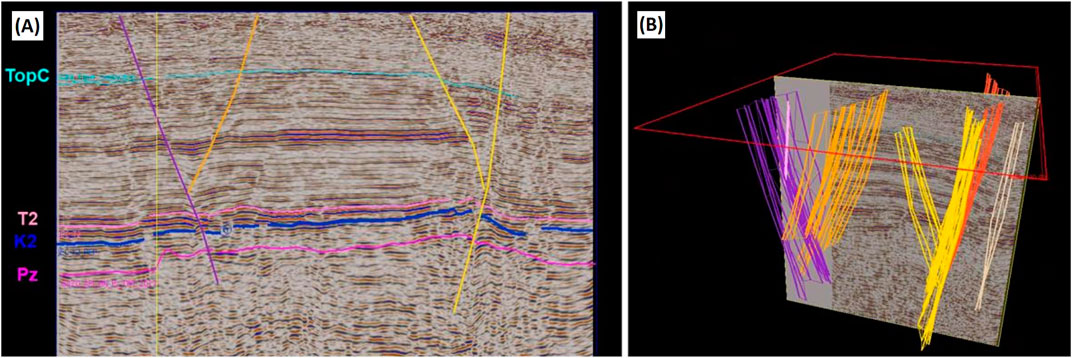

Figure 3. (A, B) Interpretation of 3D seismic data showing the main faults, which are noticeable features from the crystalline basement to the surface. The exact position of this seismic line in the basin cannot be revealed (Patiño et al., 2023a).

2.3 Migration

Contrary to what occurs in hydrocarbon exploration, the temporal relationship that exists in this case between the H₂ migration stages, the production stages, and the associated H₂ volumes does not hold the same relevance because H₂ is assumed to be continuously replenished due to the geological cycle of crustal and mantle rocks. Therefore, unlike hydrocarbons, H₂ is not produced in restricted windows of time of adequate thermal maturity of certain organic-rich lithologies. This indicates that the H₂ being produced now originates in recent geological times and hence does not require exploration for ancient accumulations. Instead, due to its mobility, H₂ can be found in recently formed traps along main generation and leakage fairways.

Once H₂ is released, its migration to the surface or toward natural traps is easy as it is a gas with a very small molecular size that is capable of passing through most materials with minimal porosity, except for nonfractured crystalline rocks such as mafics or evaporites like thick and laterally extensive salt layers. Faulting/fracturing in crystalline basements, as in the Llanos Basin (Figure 2), could exponentially multiply the contact area of the reactive rocks with incoming water and, therefore, exponentially multiply the possibilities of the release of the generated excess of H₂. Such release could initially occur in the dissolved aqueous phase H₂ (aq) if the H₂ flux is lower than that required to saturate the water’s flow rate, which could be the case for the Llanos Basin.

2.4 Possible reservoirs and seals

Due to the small molecular size of H₂, practically any type of rock with minimal porosity and permeability can store it. It should be noted that analogous to self-sourced unconventional petroleum reservoirs, rocks that tend to have active H₂ recharges will represent a greater target for exploration since H₂ concentration in them is expected to be higher. Dynamic aquifers with active surface seepage can also be active H₂ storage locations and constitute the main interest when evaluating reservoirs. Hence, dissolved H₂ carrier beds may lead to gas cap/phase accumulations up-dip or under conditions of oversaturation. The molecular size of H₂ is 0.24 nm, and the rocks that act as seals in petroleum systems have microporosities with apertures of nearly 2 nm, so only transitional gas trapping of dissolved H₂ can occur. In Mali, the seal rock has been characterized as dolerite—a crystalline rock without intrinsic porosity and whose texture, without secondary fracture-permeability, does not allow hydrogen to leak (Maiga et al., 2023). Another type of rock capable of effectively trapping H₂ is salt in the evaporitic sequences, and green H₂ storage is being proposed and evaluated in voluminous post-mining salt caverns (Ozarslan, 2013).

The main challenge when defining a hydrogen “play” concept in any basin in Colombia is the type of seal and its capacity to effectively trap H₂ in the aqueous or gas phase. In this study, the possibility of a type of play associated with the main faults that would conduct H₂ from the crystalline basement to the surface is proposed. However, in the Llanos Basin, the crossing of the basin-wide León shale formation (Figure 4), characterized by very low permeability, would create a funnel effect that would reduce or delay the continuous migration of H₂ and could form sectors with a major H₂ accumulation under the shale and near the interpreted faults.

Figure 4

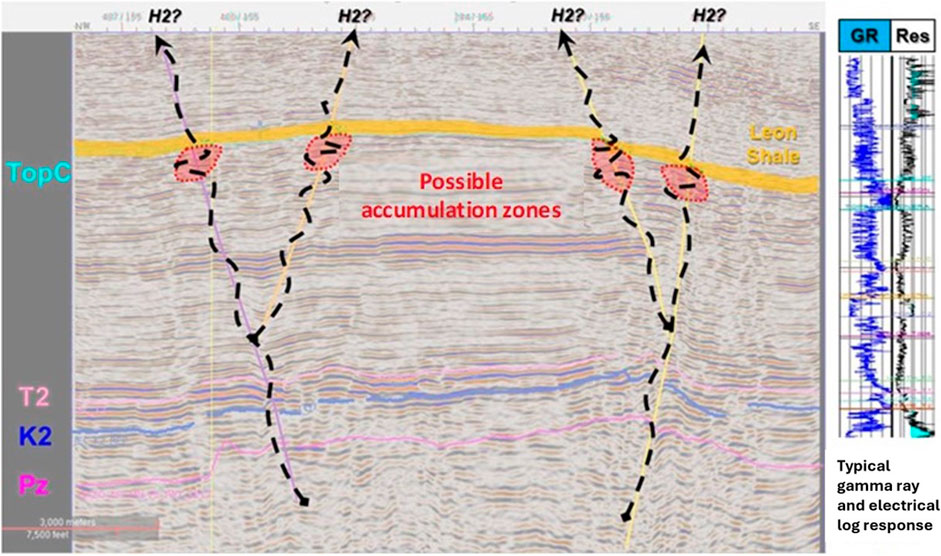

Figure 4. Seismic cross-section of Llanos Basin: a theoretical concept of a gas trapping via funnel effect, which could facilitate the accumulation of H₂ (Patiño et al., 2023a). Orange highlight: regional seal, with the Leon shale below it, which is the hypothesized transient H₂ trapping mechanism.

3 Surface-based hydrogen exploration

3.1 Basin-scale seismic

The interpretation of deep faults in the existing seismic data has great relevance for understanding the possible migration paths for H₂ from the crystalline basement to the surface via advection and diffusion effects. The presence of these faults may help explain the migration of H₂ to the surface. The main faults would be responsible for crossing the entire sedimentary sequence, from Paleozoic through to Mesozoic and Cenozoic to the present in the area, and for distributing H₂ in the permeable layers or even bringing it to the surface (Figure 3). In the area (onshore), no surface morphologies associated with surface H₂ seepages like those described in the literature, such as “fairy circles,” were identified. However, the lack of these structures is not a definitive indicator of the lack of a hydrogen kitchen in the basin (Truche et al., 2024) —for example, due to microbial consumption in the crust’s biosphere, especially in the soil. Since these morphologies do not exist, the projections of the main faults that originate in the basement to the surface are identified as the most prospective areas for surface surveying, sampling, and verifying the presence of H₂ in this part of the basin. Figure 4 shows the proposed concept of the funnel effect overlain on the interpreted seismic image of the field, showing regional seal shale also supported by the petrophysical response of the Mesozoic and Cenozoic formations.

3.2 Seepage surveys

From a remote sensing perspective, surface geomorphic anomalies have special significance in the exploration of hydrocarbons (Gupta, 2017) and H₂. In the case of the “Carolina bays” (Zgonnik et al., 2015) or “fairy circles” (Myagkiy et al., 2020), these depressions are considered the surface expression of H₂ emanations from the underground to the surface. These geomorphological features favor the initial approach of explorers to an area and drive the concentration of technical and economic resources. Many authors (Halbouty, 1976; Saunders et al., 1999; Schumacher, 1996; Almeida-Filho et al., 2010; Gupta, 2017) have noted obvious examples of geomorphic anomalies related to hydrocarbon leaks, establishing a precedent among the surface effects that can be created by the emanation of gases to the surface. Geomorphic anomalies generally appear as circular to oblong and elongated features, which are distinguishable from the environment in terms of features such as topography, image tone, vegetation, soil, soil moisture, and surface roughness, with often hazy boundaries (Gupta, 2017). All these features are recognizable via remote sensing.

Geomorphic anomalies are identified mainly from the interpretation of drainage patterns and their disturbances (Ibanez et al., 2007) in the Llanos Basin. Generally, anomalous expressions correspond to radial or annular drainage patterns that show dome-like geomorphic features or depressions. These features can correspond to anticlines, domes of different natures, and alteration chimneys due to gas microleaks. In the case of depressed expressions, these are generally identified by the formation of circular or elongated bodies of water. They may correspond to faults, which represent potential conduits of gases from depth to surface.

In practical terms, the identification of geoforms must be accompanied by an initial characterization of the mineralogy—the presence of alteration minerals. These can be identified with spectral mapping techniques in optical images, and the characteristics of vegetation, such as the state of plant health, senescence, and species abundance or absence, are identifiable in optical images using spectral band algebra. The geomorphic anomaly presented in Figure 5 was identified using the automated interpretation of the drainage from the 12.5 m PALSAR DEM (radiometric terrain correction) and applying the “sun shading” technique (Cooper, 2003), using optical imaging, ASTER, and SENTINEL 2.

Figure 5

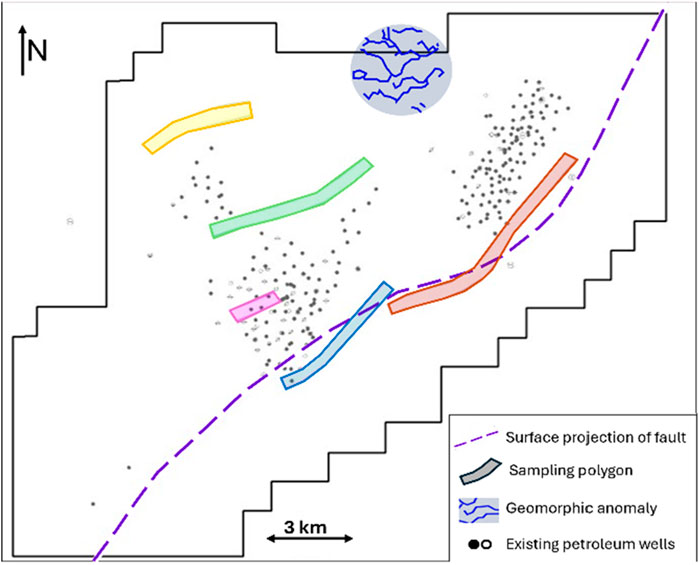

Figure 5. Surface sampling areas of H₂ seepage based on seismic interpretation. Sampling areas shown around the surface expression of an example major fault and a nearby geoform. Source: Ecopetrol S.A.

3.3 Surface gas sampling

The surface sampling stage of exploration seeks to acquire surface data of H₂ in the soil. This should follow the stages involving remote sensors and indirect methods, like seismic interpretation, since this information is collected to define the best locations to capture gases at shallow depths that indicate migration from the underground to the surface. The procedure was similar to the capture of discrete soil-gas sampling. However, the considerations of detecting and capturing the smallest molecule include special materials and established sampling protocols that seek to ensure that a sample is taken in the shortest possible time to avoid any losses. In addition, there must be a blank sampling procedure to reduce uncertainties and artifacts inherent to the sampling process. Accordingly, we developed a procedure based on the premises described above to preserve gas samples until their laboratory analysis. During sampling, a gas measurement was carried out in the field, which was used as backup data to compare with the laboratory results. In the soil samples taken in the Llanos Basin, H₂ concentrations were 100–1,132 ppm (Patiño et al., 2023b). Subsequently, gas speciation and concentration measurements performed in a specialized laboratory resulted in comparable data.

4 Subsurface hydrogen hybrid exploration with petroleum

This section demonstrates how different petroleum system tools and techniques have been adapted for natural H₂ exploration, including mud gas logging, petrophysical logging, and downhole sampling. This adaptation includes the well that initially targeted shallow petroleum deposits and was extended deeper to search for H₂ accumulations and source rocks.

4.1 Mud gas logging techniques

4.1.1 Analyzer calibration

The main objective of this research was to characterize the H₂ metrology using the DQ1000™ Mass Spectrometer Gas Analyzer. The tool is used globally as a mud gas analyzer in exploration for hydrocarbons that use air as a carrier gas. It is also used for logging while drilling selected inorganic gases. This characterization was required to obtain quantitative H₂ logging and provide realistic concentrations of this new energy resource, for which exploration and assessment have intensified recently. The calibration of this mass spectrometer was not a straightforward process for several reasons. First, the reading at the mass over charge ratio equals 2 (m/z = 2), corresponding to the molecular ion of H₂, which is impacted by background noise. This background noise, called the “m/z = 1 blast effect,” varies between machines and can drift over time. Another challenge is that the H₂ signal is strongly exaggerated or amplified by this analyzer. Additionally, the pattern of the H₂ amplification is complex. Detailed testing of multiple mass spectrometers using multiple gas mixtures followed by in-depth data analysis provides a better understanding of the pattern. Ultimately, the improved quantification of the H₂ method of the DQ1000 Mass Spectrometer was developed and recommended for deployment prior to logging any well in which H₂ might be the main or auxiliary target (Strąpoć et al., 2023). The method involves several H₂ mixtures at different concentrations, which allows the contraction of a linear signal transformation. This method also provides minimum and maximum (saturation) levels of the quantitative range of an individual DQ1000 system based on its background H₂ reading and its m/z = 2 signal exaggeration established by the calibration procedure. A typical mass spectrometer is characterized by the quantitativeness of H₂, ranging from 50 ppm to approximately 15–20% by volume.

4.1.2 Drill bit metamorphism H₂ generation

Drill-bit metamorphism (DBM) is a drilling process where the drill bit, rock, and drilling fluid react at high temperatures, cracking and breaking down artificial gases (hydrocarbons and non-hydrocarbons) in mud, which return to the surface (Wenger et al., 2009). The most common DBM-related gases are ethene, propene, and butene (unsaturated hydrocarbons) and, gaseous alkanes and CO₂, CO, COS, and H₂ (Faber et al., 1988). In H₂ exploration, a distinction of natural H₂ from DBM-added H₂ is of key importance and can be flagged with other DBM-specific gas species such as ethene. Such non-DBM H₂ concentrations corrected for analytical bias can then be normalized per rock volume using flow rates (mud and air in flow pumps and degassing chamber), borehole volumetrics, and rate of penetration (ROP). This normalized quantitative H₂ provides realistic H₂ concentration in drilled formations. However, there is a risk of overprinting drill-bit metamorphism-derived H₂, which could be corrected for in oil-based mud (OBM) drilling if logging of ethene, propene, or CO is deployed (Strąpoć et al., 2020; Strąpoć and Fornasier et al., 2022). This methodology aids emerging natural H₂ exploration with a quantitative mud gas logging tool. C₂H₄ (ethene) is one of the main alkene molecules used to distinguish DBM-related gases. Direct mass spectrometers, used while drilling to read surface mud gas, can obtain close to pure ethane in mass over charge m/z ion 30 and a mix of ethane + ethene ion m/z 26. Part of this study methodology is to obtain C₂H₄ from these spectrometers. First, these two masses need to be cleaned of recycling, background, and baseline gases. Then, based on the fragmentation in the mass spectrometer by the ion source, the basic subtraction of these two masses must be divided by 2.28 (according to the NIST Standard Reference Database) as follows:

$C_2{H}_{4}cor=\left(26cor-30cor\right)/2.28,$

where cor means cleaning by recycling or baseline gases on mass 26 and from recycling and shoulder effect (from nitrogen molecule, mass 28) on mass 30. In this study, C₂H₄cor will be the variable used to filter out artificial hydrogen, as shown in the crossplot graphic of Figure 6.

Figure 6

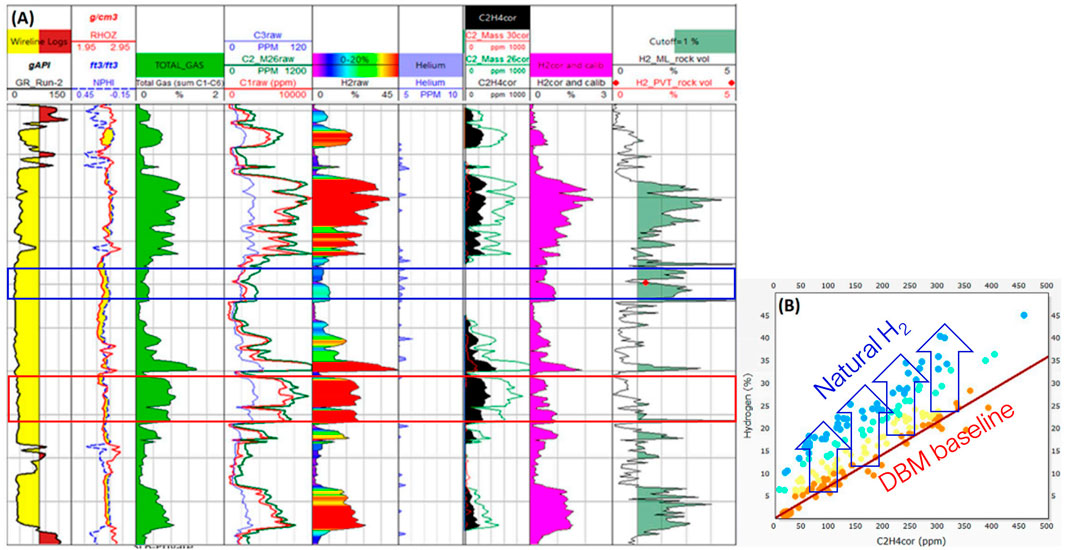

Figure 6. (A) Geochemical mud gas log from an exploration well in Llanos Basin showing raw gas readings (C1–C3 alkanes, H₂, and helium), ethene calculation proxy, calibrated H₂ signal corrected for drill-bit metamorphism in vol% of the mud gas carrier by air to the analyzer, and, finally (far right) H₂ normalized per rock volume drilled in volume at ambient conditions (includes the red data point for downhole sample normalization as described in the text). (B) Crossplot showing co-generation of H₂ and ethene (C₂H₄) by DBM from OBM, where any data point above the DBM baseline (orange) contains contribution of natural H₂: proxy used to correct the raw signal for DBM overprint.

4.1.3 Hydrogen normalization per drilled rock volume

Once mud gas data are corrected for all drilling-related artifacts, the following technique leads to the quantification of gas species per mud volume and, subsequently, per drilled rock volume. The liberation of formation gas due to drill-bit milling of the rock allows the assumption of a representative amount of gas entrained in a volume of mud circulating per unit of time at the bottom of the drilled well. Such a correction is an industry standard and includes the mud flow rate recorded by the flow pumps, wellbore diameter, and the ROP of the drill bit. The resulting gas concentration data, corrected by the mud flow rate at the degasser versus its air flow rate, allows for the derivation of moles per volume of mud and, ultimately, moles and volume at surface conditions per volume of drilled rock (Figure 6).

Translating the moles of H₂ to volume at surface conditions (1 bar, 25 °C) provides a one-dimensional estimate of H₂ resources along the trajectory of the well. It is assumed that all gas is released from the rock by the crushing action of the drill bit and that all gas is entrained in the mud volume that has swept past the drill bit. Additionally, as shown by Strąpoć and Fornasier et al. (2022), gas remains firmly entrained in the mud until reaching the degassing device (mud degasser). Degassing efficiency depends on the type of drilling fluid and the thermal and physical treatment of the mud flowing through. Specifically, the mud flow rate, agitation rate, heating temperature (if any), and finally the flow rate of the headspace gas phase—here, air—are responsible for stripping away the released mud gas. A gas extraction efficiency study (Strąpoć and Fornasier et al., 2022) has shown that the behavior of H₂ and methane in oil-based mud (OBM, used in this well) is very similar in terms of the extraction rate. The efficient release of H₂ from mud in the degasser device permits a limited error of underestimation of its entrainment in mud concentration. Certainly, the cumulative propagated error H₂ concentration in surface volume per volume of drilled rock is large, yet it provides a realistic resource estimate continuously along the exploratory wells.

Another challenge of such low intrinsic permeability reservoirs, where the gas primarily occupies the joints, fractures, or faults, is that mud gas data can appear as sudden spikes. What remains unknown is the level of spreading of small-scale feature gas spikes within the upward-traveling mud volume versus the cycle time of the surface mud gas analyzer. Therefore, caution is needed in interpreting the mud gas data, especially when normalizing it over the entire reservoir section. Figure 6 shows that in many sections of the drilled interval, the observed mud gas H₂ concentration correlates with that of ethene (C₂H₄) generated by the drill-bit metamorphism of the oil-based mud. Only certain sections of the reservoir show less DBM levels, yet still highlight significant H₂ target zones for H₂ downhole sampling. Ultimately, the final reservoir H₂ concentration was compared with petrophysical logs; their integration dictated the decision on the wireline downhole fluid sampling strategy.

4.2 Petrophysical logging

Petrophysical analysis rests on three foundations: density neutron, advanced spectroscopy, and nuclear magnetic resonance. Advanced spectroscopy is a pulsed neutron wireline-conveyed tool that can be logged both in open- and cased-hole conditions. The device has a pulsed neutron generator (PNG) and one detector. The gamma ray energy spectra acquired during predefined time gates in the tool detector are processed to provide a complete set of elemental yields. The relative yields are then converted to absolute dry-weight concentrations via the oxide closure model (Grau and Schweitzer, 1989; Herron et al., 2011). The difference between the total measured carbon and total inorganic carbon (TIC, fraction of the total carbon contained within minerals in the rock matrix) provides the formation’s total organic carbon (TOC) (Pemper et al., 2009). The TOC here was very important for confirming that the reservoirs were water-bearing sands. In addition, the dry frame matrix density, matrix neutron, matrix photoelectric factor, and matrix sigma are also obtained from the elemental dry weights. The matrix information is critical to achieving matrix-corrected porosity outputs for both density and neutron, thus leaving any potential porosity deficit due to formation fluid effects. The mineral volumes were obtained by a machine-learning approach based on variational autoencoder frameworks (Craddock et al., 2021). This technique relies on the quantification of common mineral concentrations in sedimentary formations using input measurements of atomic element concentrations from spectroscopy logs. An algorithm involves inputs, encoders, outputs, and cost functions for coefficient optimization during the training process. The inputs are the dry-weight concentrations of atomic elements (and their associated uncertainties), with outputs of the dry-weight fractions of 14 minerals. Inspecting the lack of porosity deficit between matrix-corrected density porosity and neutron porosity outputs, respectively, labeled as DPHI_MC and TNPH_MC in Figure 7, in addition to zero TOC values across the cleaner reservoir sections, confirms that the reservoirs are water bearing. In this study, we incorporated continuous nuclear magnetic resonance (NMR) transverse relaxation (TH2) measurement from an eccentered pad-type device. The purpose was to obtain pore size distribution (rock quality assessment), matrix-independent porosity (for assessing potential porosity deficits vs. nuclear logs due to hydrocarbon presence), irreducible water saturation estimation (to derive continuous free-water saturation), and continuous permeability estimates to support the determination of the optimum zones for acquiring dynamic tester information and formation fluid samples. Due to oil-based mud as the drilling fluid, we found that 52 milliseconds was an optimal TH2 cutoff to split between free vs. bound fluid fractions on the NMR TH2 signal.

Figure 7

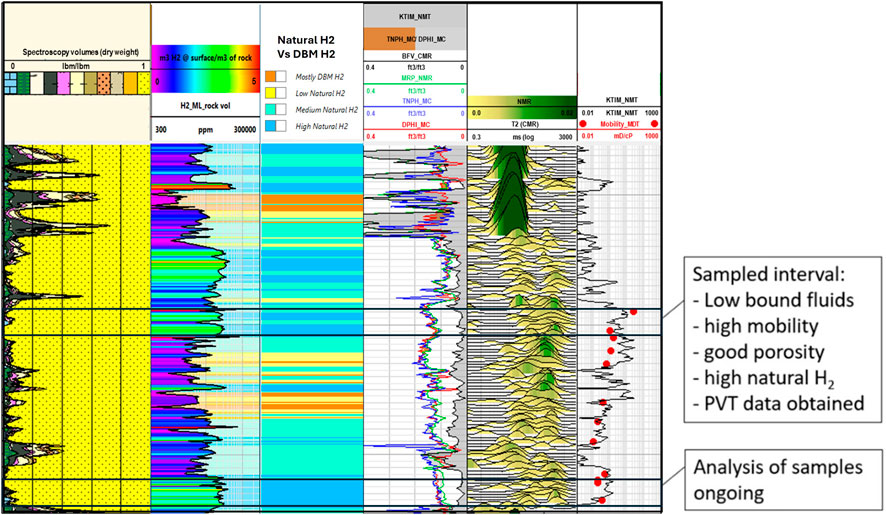

Figure 7. Integration of interpreted petrophysics (elemental spectroscopy to mineralogy content; NMR TH2 spectral distribution and mobility) and mud gas geochemistry (calibrated raw H₂ readings, corrected for DBM and normalized per rock volume in volume at ambient conditions), logs driving wireline modular drill stem tester (MDT) measurements and sampling points (rightmost track).

The main sandstone lobes contain free fluid volumes of approximately 10 p.u. and permeabilities close to 100 mD. The NMR permeability was compared and adjusted against mobility points from dynamic testers. The good correlation between mobility points and continuous NMR permeability using the Timur–Coates equation suggests that reservoir mobility is mostly driven by pore-size distributions. In addition, a good correlation between NMR pore size distribution and clay volume from spectroscopy was observed. The combination of spectroscopy, magnetic resonance, and matrix-corrected porosity supports the dynamic tester pressure acquisition program. Once the pressure points were taken and mobility vs. NMR permeability was adjusted, the formation fluid sampling points were defined. Regarding the comparison of natural H₂ from mudlogging data and electrical logs, we observed some correlation between “high natural H₂” zones and larger T₂ distributions in the NMR signal. The next step to be treated in a technical study would be nuclear and NMR modeling to attempt detection and quantification of natural H₂, thus achieving continuous hydrogen-related petrophysical outputs.

4.3 Downhole sampling

Openhole wireline formation sampling is widely used around the world for both formation oil and formation water sampling. There is always concern about obtaining a clean formation sample with minimal or no contamination from invaded mud filtrate in the drilling fluid. Openhole wireline formation tools and methods have been developed to minimize this contamination. In all cases, longer pumping times for wireline sample acquisition are used to reduce contamination levels of mud filtrate in the recovered sample. For immiscible sampling, such as formation water sampling in wells drilled with OBM, the contamination is a separate phase, so removal of the bulk of contamination is trivial. However, in the case of sampling formation H₂, there is possible contamination of H₂ from DBM. Initially, any H₂ DBM will be in the OBM; this filtrate can then enter the formation in the normal filtrate invasion process. The question then arises as to whether measurable H₂ from DBM could transfer from the oil to the water phase during the time from initial filtrate invasion during and after formation sample acquisition, finally terminating at the point of physical separation of the oil and water phases of the acquired sample. Convective mixing of the water and oil in the formation is limited mainly to the relatively short periods of bulk mass transfer during filtrate invasion and sample acquisition. Diffusive mixing is relatively slow. It is highly unlikely that all DBM-H₂ would have the time to dissipate by any mechanism into the nearby formation water.

H₂ solubility greatly depends on pressure and temperature. Nevertheless, (nonpolar) H₂ is much more soluble in aliphatic solvents than in water, so if there is any mass transport of H₂ from one phase to the other, the transfer of natural H₂ from formation water to OBM filtrate contamination is more likely from a solubility standpoint than the transfer of DBM-H₂ from OBM filtrate to formation water. As noted above, H₂ migration from one phase to the other in the formation is not fast. In any event, to test for any possible DBM-H₂ contamination originating in the OBM filtrate and leaching into the formation water sample, multiple formation water samples were taken at the same sampling depth station at different times. These samples varied significantly in the quantity of the filtrate. Ultimately, samples with very low contamination were obtained. Samples with more filtrate would be expected to have more DBM-H₂ if (and only if) this is a significant contaminant. The fact that the quantity of H₂ detected in the formation water had no dependence on the fraction of contamination indicates there is no significant DBM-H₂ in these samples. It should be noted that all H₂ was collected from the sample bottle liquids, whether water or oil.

Based on petrophysics-based proxy logs (mobility and water saturation) and indications from H₂ richness from mud gas and the magnitude of DBM-H2 in the reservoir section, a dedicated downhole sampling strategy was designed. The outlined high-water saturation and mobility interval were ranked based on natural H₂ richness. Overlapping best-chance intervals for successful sampling were targeted. Due to the relatively low solubility of H₂ in water, standard pressure-compensated sampling was used to prevent gas phase separation and direct contact of H₂ gas with the steel body of the bottles. In addition to reservoir fluid sampling, the wireline tool sampled the mud filtrate. After surface transfer of the pressurized fluid above reservoir pressure, flash phase separation was performed in a PVT laboratory. The contamination level with the OBM filtrate of each reservoir fluid sample was estimated. The exsolved gas phase and residual liquid phase were analyzed for H₂ concentration. The reservoir samples were corrected for H₂ content found in the filtrate fraction. Using petrophysics-derived porosity (∼11%) and quantified H₂ amount per reservoir water volume at reservoir conditions, we derived the richness of dissolved H₂ in volume at surface conditions per rock volume of the reservoir (∼1.1 vol./vol.) and mass (∼0.9 g/m3). The result of this downhole sample was comparable to the normalized mud gas H₂ from the equivalent depth (∼1.3 vol./vol., rightmost log track in Figure 6). However, in the sampling depth vicinity, the normalized H₂ log shows significant variability. This methodology needs to be confirmed with more comparisons of downhole samples.

5 Learnings from the first downhole hydrogen samples in the context of the natural hydrogen system

The proposed methodologies and workflows in this study mainly consider the reviews in terms of updated technological monitoring and surveillance carried out worldwide, along with constant communication with experts who are references throughout the world, about the search and identification of natural H₂ genesis/accumulations. The main objective was to carry out a preliminary review of the theoretical elements of a probable H₂ system in the eastern Llanos Basin of Colombia. In addition, this methodology is proposed as a guide for a first review and use of existing data in an oil field that can be useful for defining H₂ presence. Dedicated exploration was deployed on the field and basin scales. Initial surface surveys of H₂ in soil were based on seismic prospecting of the Llanos Basin. This basin is also under oil and gas exploration drilling, and in areas of overlapping petroleum and H₂ potential, we used a mud gas logging technique (described above) that monitors hydrocarbons (C1–C10) and inorganic gases, including H₂ and helium. The evaluation of a significant H₂ resource after it is identified must include the H₂ origin, establishing the existence of the kitchen and its type. There are similarities between the geological configurations of some of the basins where natural H₂ has been detected worldwide and the possible generation systems at the Llanos Basin. The circular surface geoforms were H₂ seepage areas, yet without detectable impacts on the soil mineralogical or floral assemblages. In terms of lithology, in this case, there are no known mafic or ultramafic rocks in the basement, no volcanic influence, and no associated helium or NH₂ detected. Instead, granites, diorites, and phyllite are the basement at a depth of 13–15 km. The level of radioactivity, natural fracture density, and ferric iron content remain to be investigated. However, there are advantageous elements of the Llanos Basin system that increase natural H₂ potential: the presence of hydrothermal activity and foothill aquifer recharge imply high hydraulic head and likely deep penetration of water via deeply seated faults in the system with a high geothermal gradient. Additionally, the granitic basement can contribute to H₂ generation via water radiolysis, and the sedimentary system contains promising seals.

Consequently, the nature of the reservoir in the area explored so far has proven to be water-saturated with dissolved gases—perhaps a dissolved-H₂ carrier bed. Despite low H₂ solubility in water at surface conditions, it is enhanced at elevated pressure and temperature—for example, 0.077 weight % (0.386 mol/kg of pure water) at 150 °C at 400 bar (4 km depth of hydrostatic pressure), 8.65 vol./vol., or 8.65 L of H₂ at surface conditions per 1 L of water at reservoir conditions (Zhu et al., 2022). Due to the literature-based study on H₂ solubility at these downhole conditions, we were confident that we could safely deploy the standard pressure-compensated wireline downhole sampling system. By keeping the H₂ in solution and avoiding phase separation, we minimized the risk of damage to the steel-based components of the tools. The gas in solution allowed for the use of the normal practices of sampling such fluids, which require premeditated calculations of phase behavior using measured in situ fluid (wireline) pressures and concentrations, such as those from calibrated, corrected for artifacts, and normalized mud gas readings. These H₂-calculated estimates must be juxtaposed against maximum H₂ solubility in the formation water. In this study, we used the worst-case scenario of pure water with the highest H₂ solubility, but we recommend including downhole salinity evaluation to not overestimate H₂ solubility for safety reasons. Ultimately, these concentrations per rock volume serve as a guideline for targeted downhole sampling and testing of promising intervals, specifically in hypothetical up-dip or sub-seal gas phase accumulations, pending an efficient trap or adjacent to large gas conduits such as large faults (the funnel concept—Figure 4). Although the relatively high concentration of H₂ observed in the drilled rock was confirmed by downhole sampling at reservoir pressure, no estimations of flow rate, reservoir pressure, or accumulation size are guaranteed. Further testing of the pressure support of the reservoir and the sustained production rate is necessary to properly evaluate the reserves.

6 The way forward

The current study serves as an example of a basin-scale proof of concept for natural H₂ system exploration, starting with basin modeling, field simulation, and deep regional seismic and geohydrological studies, leading to surface surveys and ultimately drilling with advanced hydrogen logging and downhole reservoir fluid sampling. This workflow has proven that the concept of the “play” is correct; the system has i) H₂-generation mechanisms, potentially renewable, via natural hydrothermal water circulation, ii) migration conduits via faults and dynamic aquifers, and iii) likely transient trapping mechanism under a basin-wide shale formation. Further research should evaluate potential trap structures associated with this shale and the connection to the kitchen via deep faults that likely deliver H₂. Preferentially, gas phase accumulations can be found where the water-dissolved H₂ has reached concentrations beyond the bubble point, either due to cumulative H₂ influx or to water depressurization as it migrates upward (via faults or up-dip in the carrier beds). Successfully identified H₂-containing intervals, even if in oil and gas wells, should be isolated and flow-tested to allow for a technoeconomic assessment of this decarbonized energy resource. Therefore, this study contributes to establishing a standard approach for natural H₂ exploration across the energy industry.
