Design of a Triple Port Integrated Topology for Gridintegrated EV Charging stations for Three-way Power Flow

Provisionally accepted
Harshita Tiwari Harshita Tiwari 1Arnab Ghosh Arnab Ghosh 1Subrata Banerjee Subrata Banerjee 2Debabrata Mazumdar Debabrata Mazumdar 3Chiranjit Sain Chiranjit Sain 4Furkan Ahmad Furkan Ahmad 5*Taha Selim Ustun Taha Selim Ustun 6*
  • 1 National Institute of Technology Rourkela, Rourkela, Odisha, India
  • 2 National Institute of Technology, Durgapur, Durgapur, West Bengal, India
  • 3 Abacus institute of Engineering and Management, Hooghly, India
  • 4 Ghani Khan Choudhury Institute of Engineering & Technology (GKCIT), West Bengal, India
  • 5 Hamad bin Khalifa University, Doha, Qatar
  • 6 FREA, Tsukuba, Japan

The final, formatted version of the article will be published soon.

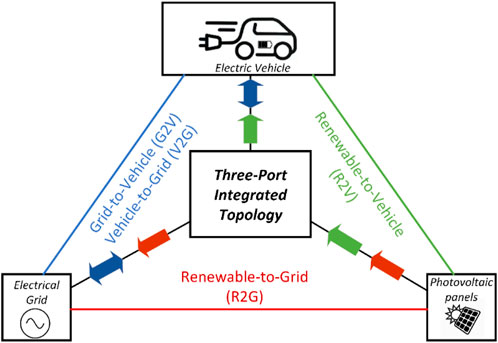

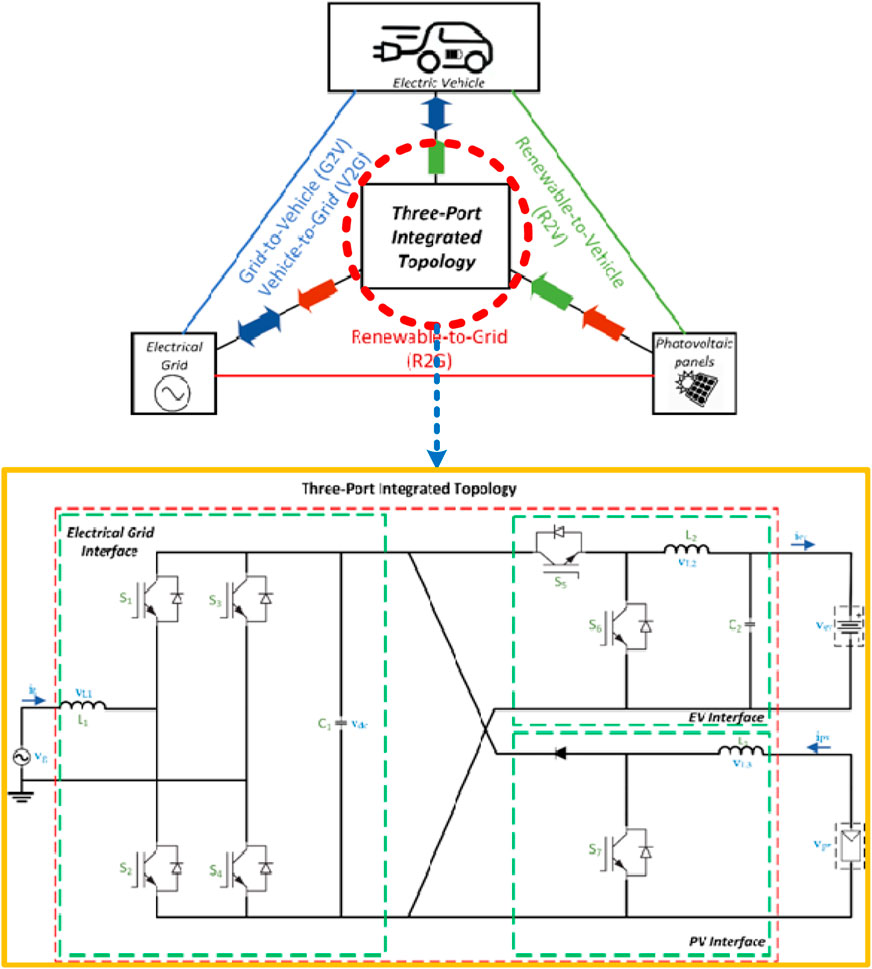

    Environmental fluctuations, solar irradiance, and ambient temperature significantly affect photovoltaic (PV) system output. PV systems should be efficient at the Maximum Power Point in various weather climates to maximize their potential power output. The Maximum Power Point Tracking (MPPT) technique is employed to plan a specific location that yields the maximum amount of power. Operating dispersed alternative energy sources connected to the grid in this situation makes energy control an unavoidable task. This research article suggests designing a power electronics converter topology that links sustainable resources and electric vehicles to the power grid. There are four modes of operation for this proposed converter topology: grid-tovehicle, vehicle-to-grid, renewable-to-vehicle, and renewable-to-grid discussed. The three power electronic converters and their uses are discussed, and their controllers are also designed to maintain the energy balance and stability in all cases. The battery characteristics indicate the operating mode. The work primarily focuses on the converter's Triple Port Integrated Topology (TPIT) power flow and voltage control. Here, three power converters integrate the TPIT with three systems-the electric grid, renewable energy, and electric vehicles-into one system.The source battery and solar photovoltaic (PV) array cells are integrated using unidirectional and bidirectional DC-DC converters. The future scope of the work is to investigate the potential of adding additional ports for integrating other energy resources, such as hydrogen fuel cells or additional renewable sources, to create a more versatile and robust energy management system for EV charging stations.

    Keywords: DC-DC converters, Electric Vehicles, PV system, Three Port Integrated Topology, Voltage Source Inverter
