Experimental study and application of similar materials in thick coal seam mining

The orthogonal experiments of similar materials were optimized and analyzed in order to accurately simulate the mechanical properties and the fracture evolution law of thick coal seam overlying strata during mining in this study. The experimental results indicated that similar materials using gypsum and calcium carbonate as cementing agents had a wide range of compressive strength (173.80 kPa–425.95 kPa) and were suitable for simulating various rock properties. Adding an appropriate amount of calcium carbonate can improve the brittleness and mechanical properties of similar materials using gypsum as cementing agents. The failure mode of similar materials transitioned from shear to tensile failure with the increase of the mass ratio of aggregate to cementing agents and the mass ratio of calcium carbonate to gypsum. Moreover, the compressive strength of similar materials rapidly decreased with an increase in the mass ratio of aggregate to cementing materials. And the compressive strength showed an increasing trend with the decrease of the mass ratio of calcium carbonate to gypsum. Moisture content had a significant impact on the density of similar materials, other parameters had small impacts. A thick coal seam mining experimental model was designed based on the experimental results of similar materials, which showed that Qianjiaying Mine may experience basic roof collapse when mining reached 58.1 m. The recommended periodic weighting pace for face pressure on the working face was approximately 15.0 m. Appropriate measures are necessary to adopt to prevent disasters after mining to a length of 58.1 m, followed by every 15.0 m of mining.

1 Introduction

Coal mining often induces fractures in the overlying strata, and continuous development of these fractures can lead to secondary disasters such as collapse, dynamic ground pressure, water influx, and gas outbursts (Ma et al., 2021). To understand the evolution of overlying strata fractures during coal seam mining, commonly utilized methods include theoretical analysis, numerical simulation, physical simulation, and field monitoring (Kusui et al., 2016; Li et al., 2020; Hou et al., 2021; Ye et al., 2021; Yu et al., 2022; Wang et al., 2023). The high costs associated with field monitoring and testing often pose challenges in practical engineering applications (Yu et al., 2017; Liu S. L. et al., 2020; Marsden et al., 2022). Theoretical analysis and numerical simulation methods can analyze stress distribution patterns and failure modes of overlying strata (Wang et al., 2016; Sun, 2017; Zhang et al., 2019; Liu W. T. et al., 2020; Wang and Dai, 2023). However, relying solely on these methods can result in significant deviations from reality due to the complexity of rock mechanics. In contrast, physical simulation involves physical experiments that recreate on-site geological conditions. Through laboratory experiments, this approach provides in-depth insights into the stress conditions, movement processes, and failure modes of overlying strata (Yang et al., 2021; Shang et al., 2023). Many scholars have extensively explored strata movement, surface subsidence, and mining-induced stresses using similar material simulation methods (Shahani, 2005; Meguid et al., 2008; Cheng et al., 2016; Nardean et al., 2021; Liu et al., 2023). In physical experiments, the selection and proportions of raw materials critically influence the accuracy of the experiments (Ye et al., 2014; Shi et al., 2020).

Many researchers explored the selection and proportions of similar materials, the cementing materials of similar materials typically consist of cement, gypsum, or calcium carbonate (Zhuo et al., 2018; Duan et al., 2021; Zhang et al., 2021). Shi et al. (2021) employed aggregates (river sand and mica powder) and cementing agents (lime, gypsum, and cement) to simulate the development of fractures in overlying strata. The study indicated that cement exhibited higher strength than gypsum and effectively bonds with river sand. However, the significant differences in cement strength between actual engineering and similar simulation experiments, coupled with the time-dependent nature of cement hardening and the relatively short duration of simulation experiments, may lead to substantial errors (Zhu et al., 2017; Mendes and Thompson, 2019; Rodrigues and de Souza Mendes, 2019). Additionally, temperature significantly influenced the cement hardening process (Iesaka et al., 2004; Termkhajornkit and Barbarulo, 2012; Wang, 2022). Gypsum serves as a widely employed gas-hardening cementing agent in similar material experiments, possessing lower strength, lower cost, and a faster hardening process, making it potentially more suitable for simulating low-strength and brittle materials (Misnikov, 2018; Lesovik et al., 2020; Shi et al., 2022). However, pure gypsum is suitable for simulating linear elastic materials, the mechanical properties of overlying strata in coal seams often exhibit nonlinearity with significant deformations (Mou et al., 2020). Consequently, employing gypsum alone as a cementing agent in similar materials experiments may not effectively emphasize its residual strength and deformation characteristics (Li and Wang, 2022). To enhance the mechanical performance and deformability of the similar materials, the calcium carbonate was recommended to add as a cementing agent to improve the performance of similar materials (Zhuo et al., 2018; Shi et al., 2020). However, the addition of calcium carbonate can have an impact on the strength and curing time of similar materials.

In order to more accurately simulate the mechanical properties and fracture development patterns for overlying strata of thick coal seams, this study utilizes gypsum and calcium carbonate as cementing agents, river sand as aggregate, and water as a regulator, employing an orthogonal experimental design. Similar material experiments were conducted in order to systematically investigate the mechanical properties of similar materials under different mass ratios of aggregate to cementing agents, mass ratios of calcium carbonate to gypsum, and to explore the influence of moisture content and curing time on the density of similar materials. On the basis of similar materials experiments, a physical experiment was carried out with Qianjiaying coal mine as the engineering background to explore the development law and evolution mechanism of overlying strata fractures during thick coal seam mining, and the collapse law of overlying strata in thick coal seams was studied.

2 Experimental program of similar materials

2.1 Experiment design

An orthogonal experimental design was employed in this study, and gypsum and calcium carbonate were utilized as cementing agents, river sand as aggregate, and water as a regulator. In order to systematically investigate the mechanical properties of similar materials under various parameters, four factors were considered as experimental variables: mass ratio of aggregate to cementing agents, mass ratio of calcium carbonate to gypsum, moisture content, and curing time. Based on the ${\mathrm{L}}_{25}\left(5^4\right)$ method, with each factor including five experimental levels, the orthogonal experiment details are presented in Table 1.

Table 1

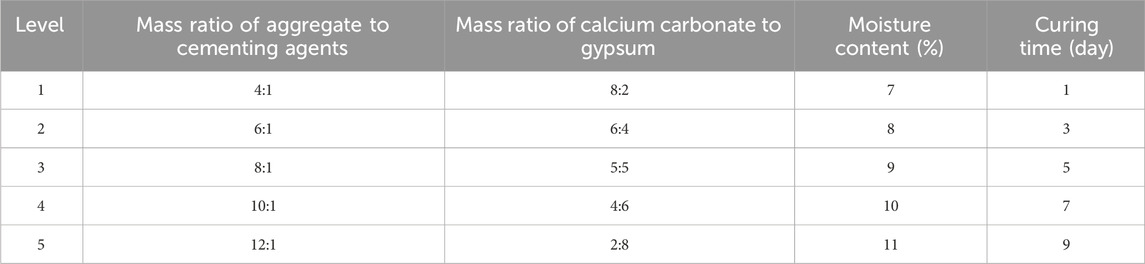

Table 1. Orthogonal experiment details.

In the experiment, the mass ratio of aggregate to cementing agents was divided into five levels (i.e., 4:1, 6:1, 8:1, 10:1, and 12:1). The mass ratio of calcium carbonate to gypsum was set at the following: 8:2, 6:4, 5:5, 4:6, 2:8. Moisture content was set: 7%, 8%, 9%, 10%, and 11%. Curing time was set at 1 day, 3 days, 5 days, 7 days, and 9 days. A total of 25 similar material specimens were prepared, labeled as S1 to S25. The specimen details are listed in Table 2.

Table 2

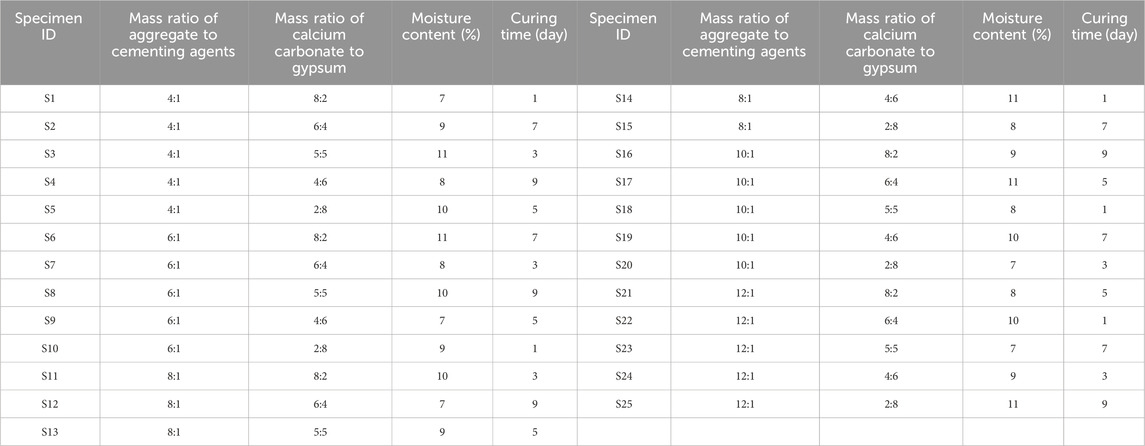

Table 2. Orthogonal test schemes for similar materials.

2.2 Sample preparation

All specimens were fabricated using river sand, gypsum, calcium carbonate, and water. Initially, measured amounts of river sand, gypsum, and calcium carbonate powders were uniformly mixed. Subsequently, a specific quantity of water was added, and the mixture was thoroughly stirred. The mixed materials were poured into a plastic double-open mold with a diameter of 50 mm and a height of 100 mm. Approximately 25 mm of the mixture was poured for each layer, followed by compaction until the height of specimen reached 100 mm. It is noteworthy that during the pouring of upper layers of the mixture, the interface of the lower layer was scratched to avoid interface effects, the sample production process is depicted in Figure 1. After casting, specimens were cured at room temperature (20°C) according to the curing times in Table 2 and subsequently demolded. To minimize experimental errors, each group of specimens included three identical samples, and the average of their physical-mechanical parameters was taken as the final result.

Figure 1

Figure 1. Material preparation and sample production process.

2.3 Mechanical testing of similar materials

The weight of the specimens was measured after the curing period. Subsequently, uniaxial compression tests of the specimens were carried out using a universal testing machine, as illustrated in Figure 2. The loading protocol employed displacement control, loading at a rate of 1.0 mm/min. During the loading process, stress results of the specimens were obtained by an automated data acquisition system, and the failure modes of specimens were observed.

Figure 2

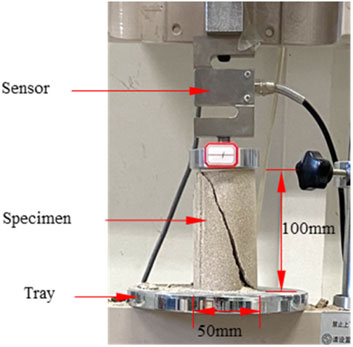

Figure 2. Universal testing machine.

3 Experimental results and discussion

3.1 Experimental results

The test results for all specimens are presented in Table 3, and the failure modes are illustrated in Figure 3. The failure modes can be classified into shear failure and tensile failure. Figure 3 depicts the failure modes under different mass ratios of aggregate to cementing agents. When the mass ratio of aggregate to cementing agents was less than 8:1, the specimens exhibited shear failure. As the mass ratio of aggregate to cementing agents increased, the failure mode gradually transitioned to tensile failure. The change of failure modes is attributed to the weakening of the cementing effect between aggregates as the amount of cementing agents decreased, resulting in a shift towards tensile failure, a similar experimental results were observed in reference (Wen et al., 2020).

Table 3

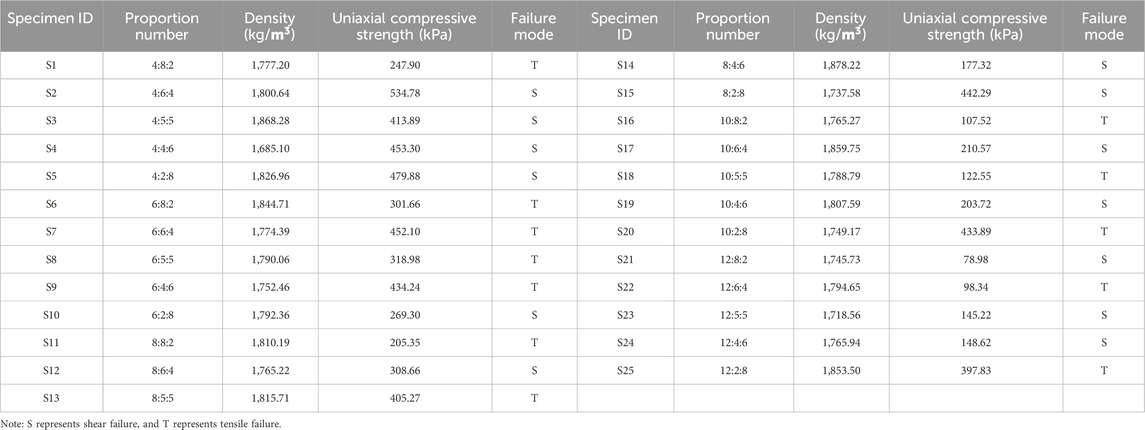

Table 3. Orthogonal test results for similar materials.

Figure 3

Figure 3. Failure modes under various mass ratios of aggregates to cementing agents. (A) 4:1 (B) 6:1 (C) 8:1 (D) 10:1 (E) 12:1.

Figure 4 illustrates the failure modes under various mass ratios of calcium carbonate to gypsum, while keeping the mass ratio of aggregate to cementing agents constant. When the mass ratio of calcium carbonate to gypsum was less than 4:6, the specimens exhibited shear failure. However, as the mass ratio of calcium carbonate to gypsum increased, the failure mode transitioned from shear failure to tensile failure. This is due to the significant improvement in the plasticity of similar materials when calcium carbonate was added to gypsum as a cement. However, gypsum controlled the strength of similar materials. When an appropriate amount of calcium carbonate (i.e., 20%–40% in this study) was added, it significantly enhanced the overall performance of similar materials, resulting in shear failure. However, when the mass ratio of calcium carbonate to gypsum exceeded 4:6, the similar materials failed to achieve the required strength of experimental materials, exhibiting poorer overall performance and, consequently, tensile failure.

Figure 4

Figure 4. Failure modes under various mass ratios of calcium carbonate to gypsum. (A) 2:8 (B) 4:6 (C) 5:5 (D) 6:4 (E) 8:2.

Furthermore, the failure mode of similar materials was significantly influenced by curing time, as illustrated in Figure 5. When the curing time was equal to or less than 3 days, the specimens primarily exhibited tensile failure (Figures 5A, B). However, with a curing time of 5 days or longer, shear failure became the predominant failure mode (Figures 5C–E). This can be attributed to insufficient solidification of the cementing agents (i.e., calcium carbonate and gypsum) when the curing time was relatively short, resulting in poor overall integrity and a tendency towards tensile failure. Conversely, if the curing time was 5 days or longer, complete solidification of the cementing materials occurred, leading to better overall integrity and shear failure becoming the main failure mode.

Figure 5

Figure 5. Failure modes at different curing times. (A) 1 day (B) 3 days (C) 5 days (D) 7 days (E) 9 days.

It is worth noting that with curing times of 1 day or 3 days, the increase in the mass ratio of calcium carbonate to gypsum led to a transition from tensile failure to shear failure and subsequently back to tensile failure. Analyzing the case of a 3-day curing time, this transition is primarily because of the addition of calcium carbonate, which shortens the curing time of the cementing agents. This results in similar materials achieving higher strength under shorter curing times, leading to a shift from tensile to shear failure modes (Figures 6A–C). However, as the calcium carbonate content increased and gypsum content decreased, despite the reduced curing time of similar materials, the strength of the similar materials failed to meet the requirements, and the failure mode was tensile failure (Figures 6D, E).

Figure 6

Figure 6. Failure modes with different mass ratios of calcium carbonate to gypsum for curing 3 days. (A) 2:8 (B) 4:6 (C) 5:5 (D) 6:4 (E) 8:2.

Figure 7 illustrates the failure modes under various moisture content. Specimens exhibited tensile failure at a moisture content of 7% (Figure 7A), while shear failure became the predominant mode with a moisture content of 8% (Figure 7B). However, when the moisture content exceeded 8%, the specimens exhibited tensile failure (Figures 7C–E). This is because at a moisture content of 7%, the moisture was insufficient, and the cementing agents cannot fully function, resulting in lower strength of similar materials and a failure mode characterized by tensile failure. At a moisture content of 8%, comprehensive reactions occurred in the similar materials, establishing a strong bond with the aggregate, leading to higher specimen strength and shear failure. Beyond 8% moisture content, excess moisture negatively impacted material bonding, and excessive hydration reactions in the cementing material reduced specimen strength, resulting in tensile failure.

Figure 7

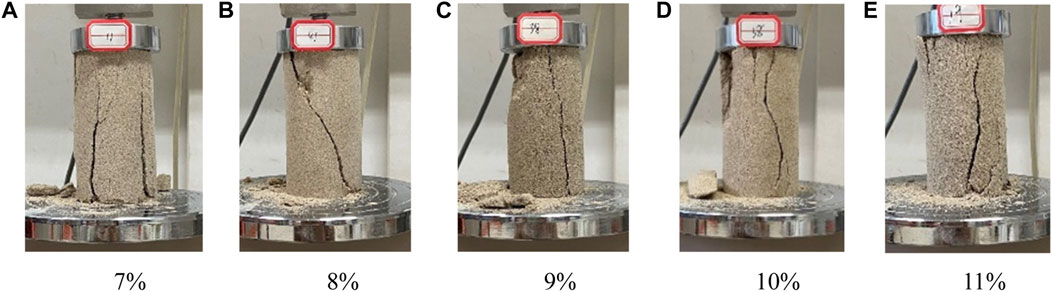

Figure 7. Failure modes at different moisture contents. (A) 7% (B) 8% (C) 9% (D) 10% (E) 11%.

3.2 Compressive strength

The uniaxial compressive strength of similar materials under various factors is presented in Figure 8 and Table 4. With an increase in the mass ratio of aggregate to cementing agents, the compressive strength rapidly decreased, which is owing to a higher mass ratio of aggregate to cementing agents resulting in insufficient cementing agent content, leading to weaker bonding between aggregates and a subsequent reduction in compressive strength. When the mass ratio of aggregate to cementing agents was constant, an increase in gypsum content led to an increase trend in the compressive strength of similar materials, which is due to gypsum content determining the strength of similar materials, with calcium carbonate showing no significant enhancement in compressive strength. However, when the gypsum content was excessively high, similar materials exhibited noticeable brittleness, and the addition of calcium carbonate can improve the properties of similar materials (Shen et al., 2023; Sun et al., 2023).

Figure 8

Figure 8. Uniaxial compressive strength of similar materials. (A) Mass ratio of aggregates to cementing agents (B) Mass ratio of calcium carbonate to gypsum (C) Moisture content (D) Curing Time.

Table 4

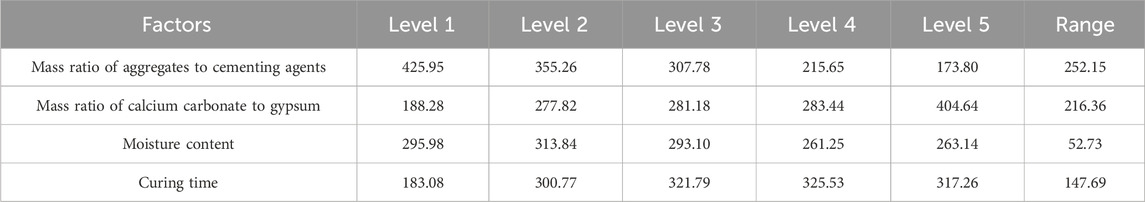

Table 4. Range analysis of compressive strength (kPa).

As curing time extended, the compressive strength of specimens initially increased and then stabilized. For samples with a mass ratio of calcium carbonate to gypsum greater than or equal to 5:5, the compressive strength of similar materials stabilized after curing 3 days, while for samples with a lower mass ratio of calcium carbonate to gypsum, the compressive strength stabilized after curing 5 days. This is due to the relatively short hydration time of calcium carbonate, which shortened the curing time of the cementing agents. Moisture content had minimal impact on compressive strength. With an increase in moisture content, the compressive strength initially increased and then reduced, with the highest compressive strength observed at the moisture content of 8%. Table 4 indicates that the mass ratio of aggregate to cementing agents and the mass ratio of calcium carbonate to gypsum had a significant impact on the compressive strength of similar materials, with a range of 252.15 kPa. In contrast, moisture content had a small effect, with a range of only 52.73 kPa.

3.3 Density

The density results of similar materials under different factors are presented in Table 5; Figure 9 illustrates the variation in density under various influencing factors. Moisture content had significant impact on the density of similar materials. When the moisture content exceeded 8%, the density had a rapid increase, rising from 1,746.32 kg/m³ to 1,860.89 kg/m³. In comparison, the mass ratio of aggregate to cementing agents, the mass ratio of calcium carbonate to gypsum, and curing time had relatively small effects on density.

Table 5

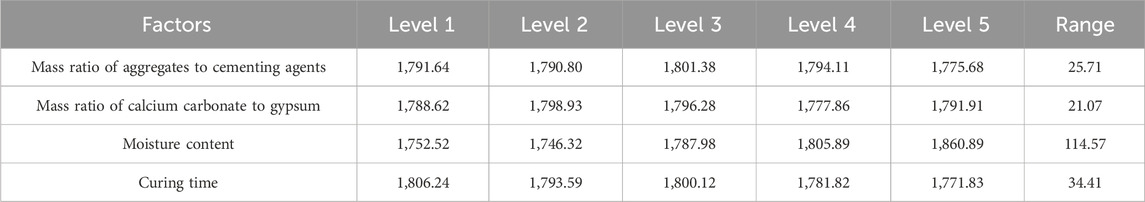

Table 5. Density results ($\text{unit}:\text{kg}/{\mathrm{m}}^3$).

Figure 9

Figure 9. Density results under various factors. (A) Mass ratio of aggregates to cementing agents (B) Mass ratio of calcium carbonate to gypsum (C) Moisture content (D) Curing time.

From the above analysis, using river sand as aggregate, gypsum and calcium carbonate as cementing agents, and water as a regulator, the compressive strength of the prepared similar materials ranges from 173.80 kPa to 425.95 kPa, indicating a significant variation in compressive strength. This variability allowed for the preparation of similar materials with corresponding strengths, demonstrating a strong adaptability to similar model tests. To obtain the uniaxial compressive strength and density of similar materials using gypsum and calcium carbonate as cementing materials, a multivariate regression analysis was conducted on various experimental parameters. The uniaxial compressive strength (Y₁) and density (Y₂) of the specimens can be expressed by Eqs 1, 2, respectively.

$Y_1=671.746-35.369X_1-38.342X_2-9.344X_3+6.795X_4(1)$

$Y_2=1573.438-1.430X_1+0.131X_2+27.631X_3-4.030X_4(2)$

where $X_1$ is the mass ratio of aggregates to cementing agents, $X_2$ is the mass ratio of calcium carbonate to gypsum, $X_3$ is the moisture content, and $X_4$ is the curing time.

4 Engineering application

The comprehensive mechanized mining face with large mining height in thick coal seams has a large mining space, and the degree and range of disturbance to the overlying strata during mining are high. This will lead to changes in the laws of strata movement, roof structure morphology, and the development characteristics of overlying strata fractures. Relevant research using physical simulation experiments was conducted to gain a deeper understanding of these features. This study selected the 2078 working face of Qianjiaying Mine as the research object, which is located in Tangshan City, Hebei Province and belongs to the Kailuan Coalfield (Figure 10A). The coal seam in the 2078 mining face of Qianjiaying Mine is well preserved, with a thickness of 6.0 m and typical characteristics of thick coal seams. The stratigraphic columns is shown in Figure 10B. The elevation range of the mining face is −719.3 m ∼ -781.8 m, and the elevation selected for model testing is −736.4 m. The ground elevation range is +20.9 m∼+24.2 m, and the model test takes +24.0 m. The total thickness of the overlying strata is taken as 760.4 m. The working face has a length of 822.0 m and a tilt length of 206.5 m. The dip angle of the coal seam ranges from 3° to 11°, with an average of 7°, and is simulated in a horizontal coal seam manner. The coal mining method was comprehensive mechanized coal mining, with a mining speed of 3.0 m per day.

Figure 10

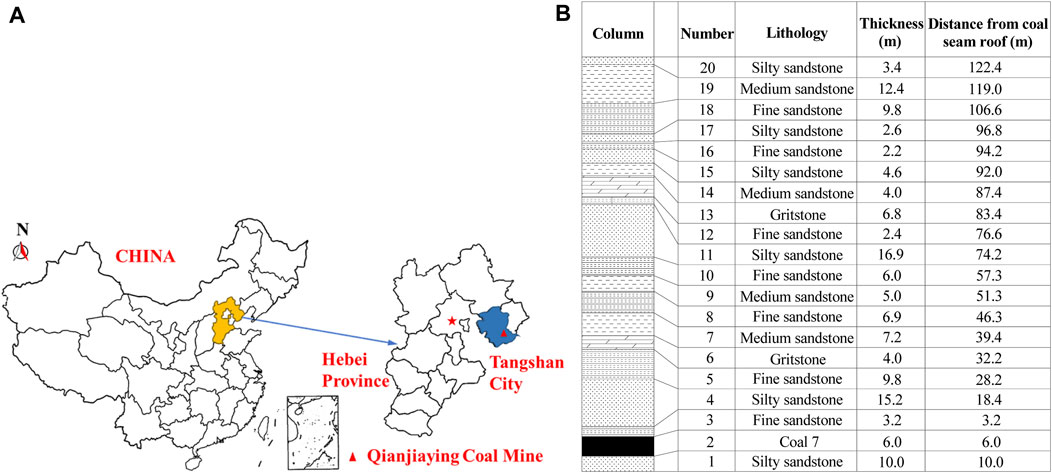

Figure 10. (A) Location map of study area; (B) Stratigraphic columns.

Based on the geological data of the 2078 working face of Qianjiaying Mine, a geometric similarity ratio of 1:100 was taken for physical simulation experiments based on similarity theory. The overlying strata was mainly composed of fine sandstone, siltstone, medium sandstone, and coarse sandstone, with uniaxial compressive strengths of 30.2 MPa, 33.5 MPa, 36.1 MPa, and 38.9 MPa, respectively, corresponding to a density of 2,382 kg/m³, 2,632 kg/m³, 2,330 kg/m³, and 2,200 kg/m³. The size of the similar model was set to be 2.0 m (length), 1.354 m (height), and 0.175 m (width). The height of the coal seam mining was set to 6 cm. The proportions for the similar materials were determined based on similarity theory and Eqs 1, 2. The displacement monitoring points in the experimental model were set at the top and bottom of the model, as well as the position of the main key layer (65 cm away from the top of the coal seam), with an interval of 10 cm. The experimental model is shown in Figure 11. The coal seam was mined at a speed of 3.0 cm/2.4 h, while monitoring the dynamic changes in overlying strata displacement and fractures during the thick coal seam mining process. The monitoring equipment and data acquisition system are shown in Figure 12.

Figure 11

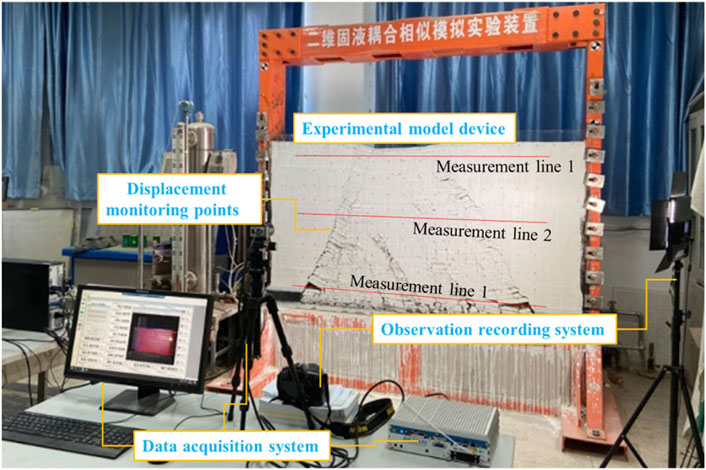

Figure 11. Testing system for thick coal seam mining overlying strata.

Figure 12

Figure 12. ISM-CONTR-VG5-2DB series non-contact video strain and displacement precision measurement system.

Evolution process of overlying strata fractures during thick coal seam mining is depicted in Figure 13. It can be observed that with a coal seam extraction of 36.7 cm, the immediate roof collapsed, and fractures started to appear in the overlying strata. This condition persisted until a coal seam extraction length of 52.0 cm, indicating that when the mining distance is relatively short, the coal seam extraction had no significant impact on the overlying strata. After a coal seam extraction length of 58.1 cm, a large-scale collapse occurred in the roof, with a fracture height of 41.5 cm and a separation space height of 4.1 cm. On the pillar side, the overlying strata above the basic roof directly sheared off, forming an articulated structure on the working face side. The initial weighting pace for the first face pressure was 58.1 cm. After a coal seam extraction of 94.9 cm on the working face, the main key layer fractured, and the overlying strata collapsed entirely, resulting in intense face pressure. The fracture angle on the working face side significantly increased (from 64° to 71°). With the expansion of the extraction distance, the extent of fractures development gradually extended in a trapezoidal pattern and tended to stabilize. The fractures exhibited a distinct “two-side fractured zones, middle compacted zone” morphology, and the periodic weighting pace for face pressure on the working face was approximately 15.0 cm.

Figure 13

Figure 13. Evolution process of overlying strata fractures during thick coal seam mining. (A) Mining 36.7 cm (B) Mining 58.1 cm (C) Mining 73.4 cm (D) Mining 94.9 cm (E) Mining 140.8 cm.

Continuous monitoring was conducted on the displacement monitoring points during the excavation process of the model, as illustrated in Figure 14. With the decrease in the distance between the overlying strata and the top of the coal seam, the horizontal range of strata settlement gradually expanded. The displacement curve transformed from a “funnel shape” to an “inverted trapezoid.” The settlement height of the strata gradually increased, ultimately settling at 27.27 cm, 40.51 cm, and 59.82 cm, respectively. During the third periodic weighting of face pressure, significant displacements were observed in all three displacement monitoring lines, indicating a notable influence of the key layer on overlying strata displacement. The displacement curves of the rear monitoring points on the working face gradually overlapped, and the amount of strata settlement stabilized.

Figure 14

Figure 14. Sinking curves of monitoring points at different mining stages. (A) Measurement line 1 (B) Measurement line 2 (C) Measurement line 3.

The results of the physical experiment showed that Qianjiaying Mine may experience a basic roof collapse when mining reached 58.1 m. The periodic weighting pace for face pressure on the working face was approximately 15.0 m. It is suggested to adopt appropriate measures to prevent disasters after mining to a length of 58.1 m, followed by every 15.0 m of mining.

5 Conclusion

In order to investigate the mechanical properties of thick coal seams, an orthogonal experiment was conducted using gypsum and calcium carbonate as cementing agents to study the effects of different parameters on the failure modes, compressive strength, and density of similar materials. The main conclusions are as follows:

1. The failure mode of similar materials can be divided into shear and tensile failure, and the specimens exhibited significant shear failure when the mass ratio of aggregate to cementing agents was less than 8:1, and the failure mode transitioned from shear to tensile failure with the increase of the mass ratio of aggregate to cementing agents. Moreover, shear failure was observed when the mass ratio of calcium carbonate to gypsum was below 4:6, but the failure mode transitioned from shear failure to tensile failure with the ratio increased.

2. Shear failure was the predominant failure mode when the curing time was enough. At a moisture content of 8%, the specimens exhibited shear failure, while at moisture contents exceeding 8%, the specimens showed tensile failure.

3. The compressive strength rapidly decreased with an increase in the mass ratio of aggregate to cementing materials. When the mass ratio of aggregate to cementing agents was constant, an increase in gypsum content led to an increase trend in the compressive strength of similar materials. An appropriate increase in calcium carbonate content can shorten the curing time. Moisture content has a minimal impact on compressive strength, with the highest compressive strength observed at the moisture content of 8%.

4. Moisture content had significant impact on the density of similar materials. When the moisture content exceeded 8%, the density had a rapid increase. However, the mass ratio of aggregate to cementing agents, the mass ratio of calcium carbonate to gypsum, and curing time had relatively small effects on density.

5. Based on the model test results, Qianjiaying Mine may experience basic roof collapse when mining reached 58.1 m. The recommended periodic weighting pace for face pressure on the working face was approximately 15.0 m. It is suggested to adopt appropriate measures to prevent disasters after mining to a length of 58.1 m, followed by every 15.0 m of mining.
