Lean resource management and reliable interaction for a low-carbon-oriented new grid

The lean resource management and reliable interaction of massive data are important components of a low-carbon-oriented new grid. However, with a high proportion of distributed low-carbon resources connected to a new grid, issues such as data anomalies, data redundancy, and missing data lead to inefficient resource management and unreliable interaction, affecting the accuracy of power grid decision-making, as well as the effectiveness of emission reduction and carbon reduction. Therefore, this paper proposes a lean resource management and reliable interaction framework of a middle platform based on distributed data governance. On this basis, a distributed data governance approach for the lean resource management method of the middle platform in the low-carbon new grid is proposed, which realizes anomalous data cleaning and missing data filling. Then, a data storage and traceability method for reliable interaction is proposed, which prevents important data from being illegally tampered with in the interaction process. The simulation results demonstrate that the proposed algorithm significantly enhances efficiency, reliability, and accuracy in anomalous data cleaning and filling, as well as data traceability.

1 Introduction

With the increasing demand of a low-carbon-oriented new grid for strengthening the management and control of massive data, lean resource management and reliable interaction with functions such as data cleaning and governance play an important role in the low-carbon-oriented new grid (Li et al., 2021; Shahbazi and Byun, 2022; Liao et al., 2023a). However, due to the complex operating environment and the diversity of data sources, lean resource management poses high requirements on the data quality and reliability (Bo et al., 2023). Issues such as data anomalies, data redundancy, and missing data have a significant impact on the accuracy and stability of the system operation and may also increase the risk of low-carbon-oriented new grid decisions and even pose a threat to the security and stability of the entire grid financial operation (Zhou et al., 2018; Tariq et al., 2021; Li et al., 2022). The emergence of a data middle platform provides a solution for the lean management and unified integration of financial data, realizing the fine configuration of resources and improving the overall economic efficiency through integrating financial data middle platform and service middle platform (Tariq and Poor, 2018; Ashtiani and Raahemi, 2022; Fei et al., 2022).

However, data governance under the traditional middle platform architecture often adopts a centralized management model, with issues such as data silos, poor data quality, high data security risk, low data governance efficiency, and poor scalability. Therefore, research on data cleaning governance for lean resource management and reliable interaction of financial financing in the low-carbon-oriented new grid is required (Li et al., 2023).

1.1 Contribution

The main contribution of this research lies in proposing a lean resource management and reliable interaction framework for the middle platform based on distributed data governance in the context of the lean financing management environment for power grid companies. The paper addresses the pressing need for enhanced data management and control in the grid, particularly focusing on functions such as data cleaning and governance.

First, the existing research algorithms for anomalous data detection have encountered some limitations, such as a manual anomaly threshold setting and untimely threshold updating. In this regard, an anomalous data cleaning method is proposed, based on the dynamic adjustment of local outlier factor (LOF) anomaly thresholds, to achieve the optimal selection of the anomaly threshold for eliminating anomalous data and ensuring high standards of data quality and reliability in lean resource management.

Second, there are some shortcomings in various methods to complete missing data, such as the incomplete utilization of context information and data correlation. In this regard, a missing data-filling method based on an adaptive update domain genetic algorithm is proposed to ensure reliable data support for decision-making processes in the low-carbon-oriented new grid.

Finally, a data storage and traceability method was proposed, integrating blockchain with the InterPlanetary File System (IPFS) to ensure the authenticity and reliability of financial data during the interaction process, thereby enhancing the efficiency and efficacy of lean resource management and reliable interaction in the context of the new energy grid.

The remainder of the paper is structured as follows: Section 2 outlines the related work; Section 3 introduces the lean resource management and reliable interaction framework of the middle platform based on distributed data governance; Section 4 presents a distributed data governance approach for lean resource management of the middle platform in the low-carbon-oriented new grid; Section 5 introduces a data storage and traceability method for reliable interaction; Section 6 presents the simulation results; Section 7 presents the discussion and limitations; and Section 8 presents the conclusion.

2 Related works

At present, a number of studies focus on the data cleaning governance of the grid financial financing lean resource management and reliable interaction, and the main methods include data anomaly identification algorithms and missing data filling algorithms (Kalid et al., 2020; de Prieëlle et al., 2022). The LOF algorithm is a typical algorithm in data anomaly identification. Several studies have introduced methods for evaluating the extent of outliers within data segments through the utilization of the LOF calculated with respect to principal components (Wang et al., 2021). Some other methods include the LOF based on the sample density (SD-LOF) data cleaning algorithm (Xu et al., 2018). However, the above methods still have some issues. The identification of anomalous data usually requires manual setting of the anomalous determination threshold, which is inefficient and inaccurate. For missing data filling, the current main methods include vector-based and matrix-based missing data filling methods. In addition, there are tensor-based missing data filling methods, which can be regarded as matrix-based extensions and are suitable for multi-dimensional data filling (Deng et al., 2019; Jiang et al., 2021). In this regard, there is research on missing data interpolation methods based on tensor completion (Dai et al., 2017; Liao et al., 2021), and some scholars have put forward a missing data-reconstruction method based on matrix completion (Li Q. et al., 2020). However, the missing filling method often fails to make full use of the contextual information of the data and the correlation between the data, which leads to inaccurate or incomplete filling results. In the realm of reliable interaction among cooperating systems through the interoperability platform, several studies have sought to enhance the trustworthiness of digital governance interoperability and data exchange using blockchain and deep learning-based frameworks while also integrating a lightweight Feistel structure with optimal operations to enhance privacy preservation (Malik et al., 2023). However, there is a lack of consideration for data cleaning and filling, leading to compromised data quality and low contextual relevance in business flows. Additionally, studies have proposed the integrated service architectural view and two methods of modeling messaging flows at the service and business levels, defining a business flow context using the integrated process view, thereby improving communication efficiency in complex systems (Górski, 2023). Nevertheless, this modeling approach overlooks the essentiality of reliable data storage and traceability, resulting in the inefficient generation of executable integrated flows for large-scale composite systems such as grid companies. In addressing the abovementioned issues, this paper presents significant innovations in service and business flow data processing. It introduces a dynamic data cleaning algorithm with adaptive data-filling methods that consider contextual information. Furthermore, it proposes a data trust storage method based on a blockchain and IPFS, along with data traceability through Merkle trees. This series of data processing methods is closely interconnected, enhancing the effectiveness of lean resource management and the performance and trustworthiness of digital governance interoperability and data exchange within the reliable interaction framework.

3 Lean resource management and reliable interaction framework of the middle platform based on distributed data governance

With the continuous development of the financing scale of low-carbon-oriented new grid financial systems and the gradual expansion of interest-bearing liabilities of electric power companies, lean resource management and reliable interaction of financial financing are urgently needed. Therefore, this paper constructs a lean resource management and reliable interaction framework of a financial middle platform based on distributed data governance, as shown in Figure 1. The proposed framework mainly includes the data awareness layer, distributed data governance layer, management and interaction layer, middle platform layer, and overall decision-making layer. The following paragraphs describe how to realize the fine allocation of financial data resources and improve the overall economic benefits of electric power companies.

Figure 1

Figure 1. Lean resource management and reliable interaction framework of the middle platform based on distributed data governance.

The data awareness layer is the foundation of the lean resource management framework, which covers the core capital flow data of the low-carbon-oriented new grid financial system (Li Z. et al., 2020). The core capital flow data include the cash inflow and outflow data of the whole chain of cost and expense inputs and benefit outputs, such as assets, equipment, projects, costs, capital, loads, reliability, electricity sales, and tariffs. Data awareness encompasses the acquisition, organization, analysis, and visualization of data, serving to enhance individuals’ comprehension of the concealed trends and value inherent within the data. Through efficient data collection and integration, it ensures the accuracy and completeness of the basic data of the financing lean management framework and provides reliable data support for the subsequent financing lean management of electric power companies.

The distributed data governance layer is mainly responsible for the management of distributed financial data standardization, data quality, master data, metadata, data security, data sharing, data value, and life cycle of the low-carbon-oriented new grid, aiming to improve the security and controllability of data in the system and achieve the purpose of lean resource management and reliable interaction. By adopting advanced data governance technologies, such as data anomaly identification cleaning and missing data filling (Ali et al., 2021; Hou et al., 2023), the usability and integrity of financial data are guaranteed, and a credible database is provided to meet the data requirements of financing lean management, thus enhancing the protection of financial data and providing reliable support for financial decision-making in the low-carbon-oriented new grid. Furthermore, through distributed data governance, the consistency and accuracy of data across disparate systems and departments can be ensured, thereby mitigating data redundancy and errors. It can establish a robust data security and compliance storage mechanism, hence enhancing the lean level of resource management. Distributed data governance, by safeguarding data consistency, security, quality, and traceability, enhances the reliability of data resource interactions to ensure the dependable exchange and sharing of data across various systems and departments.

The management and interaction layer is responsible for analyzing the financial data from the distributed data governance layer and formulating the financing strategy of electric power companies, including the modules of financing scale measurement, financing structure measurement, financial cost upper- and lower-limit measurement, and electricity tariff sensitivity analysis. Among them, the goal of financing scale measurement is to scientifically determine the capital demand. Financing structure measurement aims to optimize the allocation of capital. Financial cost upper- and lower-limit measurement ensures that the financial cost is controlled within a reasonable range. Electricity tariff sensitivity analysis is used to assess the financial performance of the enterprise in different market situations. In addition, this layer is also responsible for providing reliable financing data interaction. The blockchain and IPFS are located in this layer, which realizes the functions of trusted storage and accurate traceability of distributed financial data (Tant and Stratoudaki, 2019). The IPFS is a peer-to-peer distributed file system that uses content addressing for data storage and retrieval. Trusted storage leverages this technology to ensure the integrity, confidentiality, and reliability of data, guarding against tampering, loss, or leakage, which further ensures the reliability of the financing strategy and improves the reliable interaction capability of the distribution grid.

The financial middle platform layer includes the financial service middle platform and the financial data middle platform. First, the financial service middle platform integrates common and universal core financial accounting capabilities such as fund accounting, tax management, expense reimbursement, management reports for material procurement, power purchase fee payment, and power sales revenue, achieving the reuse and sharing of financial service capabilities of different service units of the enterprise. The financial data middle platform realizes the integration and unification of multi-level and multi-professional data such as distribution network projects, assets, equipment, costs, funds, power, and users. The financial middle platform integrates the data and functions of each layer of the lean resource management and reliable interaction framework, provides unified interfaces and service, improves the quality of business and financial data, and forms various types of data products, which can be used to serve in the front-end business and support the lean resource management and reliable interaction for the low-carbon-oriented new grid.

The overall decision-making layer mainly includes carbon trading management, enterprise budget management, personnel performance management, and investment decision-making modules (Tariq et al., 2020; Liao et al., 2023b). Through the implementation of financing strategies as well as the analysis and feedback of the results, it formulates to ensure the controllable scale of interest-bearing liabilities and optimize financing costs.

4 A distributed data governance approach for the lean resource management of the middle platform in the low-carbon-oriented new grid

In the process of data acquisition, execution, control, and feedback, data anomalies and missing data easily occur due to factors such as short-term failure of sensors, manual errors, and redundancy of information, which reduce the available information of original data and affect data accuracy and continuity. In this paper, we propose a distributed data governance method for the lean resource management of the middle platform in the low-carbon-oriented new grid. The specific process is shown in Figure 2, which can significantly improve the quality of basic data and improve the available information through the identification and cleaning of data anomaly and the automatic filling of missing data. Data governance technology supports the lean resource management in the low-carbon-oriented new grid and the efficient and reliable operation of the power system.

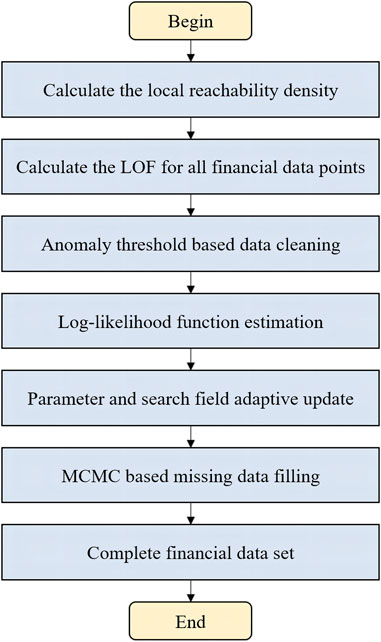

Figure 2

Figure 2. Flowchart of the distributed data governance method for the lean resource management of the middle platform.

4.1 Data anomaly cleaning method based on the dynamic adjustment of LOF anomaly thresholds

The LOF algorithm is a classic unsupervised anomaly identification algorithm, mainly utilizing the density of the data to determine the data anomaly. However, the traditional LOF algorithm requires the LOF threshold to be set manually in advance, which is not applicable to massive financial data cleaning (Zheng et al., 2015; Salehi et al., 2016). This paper proposes a data anomaly cleaning method based on the dynamic adjustment of LOF anomaly thresholds, which adjusts and updates the anomaly threshold according to the number of samples of the LOF value. The proposed method realizes the optimal selection of anomaly thresholds, which is described as follows.

The kth reachable distance is calculated. The kth distance between the point farthest from d_i and d_i in all financial data points is defined; the distance S_k(d_i) is the kth distance of d_i, and S_k(d_i, d_j) denotes the distance between point d_i and point d_j. Thus, the kth reachable distance from point d_i to point d_i is denoted as $S_k(d_i,d_j)=\max \left\{s(d_i,d_j),S_k(d_i)\right\}$.

The local reachable density for each financial data point is calculated. The kth distance domain of point d_i is denoted by V_k(d_i), that is, all points within the kth distance of point d_i. The local reachability density ρ_k(d_i) of point d_i is the inverse of the average reachability distance from all points within V_k(d_i) to point d_i, reflecting the density between point d_i and points in the surrounding domain, which is given by the following expression:

${\rho }_k\left(d_i\right)=\frac{\left|V_k\left(d_i\right)\right|}{{\sum }_{d_j\in V_k\left(d_i\right)}{S}_k\left(d_i,d_j\right)}.(1)$

The LOF is calculated for all financial data points in the sample. The local anomaly factor ξ_LOF(d_i) for point d_i is given by the following equation:

${\xi }_{\text{LOF\hspace{0.17em}}}\left(d_i\right)=\frac{{\sum }_{d_j\in V_k\left(d_i\right)}\frac{{\rho }_k\left(d_j\right)}{{\rho }_k\left(d_i\right)}}{\left|V_k\left(d_i\right)\right|}.(2)$

Here, ξ_LOF(d_i) denotes the average value of the ratio of the local reachability density of points within the kth distance domain V_k(d_i) of point d_i to the local reachability density of point d_i. The larger ξ_LOF (d_i) is, the more likely that point d_i is an anomalous data point.

The LOF anomaly threshold is determined. After obtaining all LOF values, the anomaly threshold can be continuously adjusted based on the number of statistics of LOF values to realize the accurate identification of anomaly financial data, and the LOF anomaly threshold is defined as ${\xi }_{\text{LOF}}^{\prime }$, which is calculated as follows:

${\xi }_{\text{LOF\hspace{0.17em}}}^{\prime }={\bar{\xi }}_{\text{LOF\hspace{0.17em}}}+\frac{\beta \cdot \sqrt{{\sum }_{i=1}^n{\left({\xi }_{\text{LOF\hspace{0.17em}}}\left(d_i\right)-{\bar{\xi }}_{\text{LOF\hspace{0.17em}}}\right)}^2}}{n}.(3)$

Here, ${\bar{\xi }}_{\text{LOF\hspace{0.17em}}}=\frac{1}{n}{\sum }_{i=1}^n{\xi }_{\text{LOF}}\left(d_i\right)$ is the mean of all LOF values. n is the sample size of LOF values. β is the anomaly skewness, which measures the extent to which the anomalous data differ from the normal data, and the larger the value of β, the larger the ${\xi }_{\text{LOF}}^{\prime }$ is likely to be. When ξ_LOF(d_i) is greater than ${\xi }_{\text{LOF}}^{\prime }$, d_i is an anomalous data point.

Since β is an important parameter affecting the LOF anomaly threshold, a too-large value of β will lead to a large anomaly identification error, while a too-small value of β will lead to slow identification efficiency. Therefore, the optimal β needs to be selected. This paper further adapts the parameter of β, which is given as follows:

$\beta =\sum _{i=1}^n\left(1-\frac{1}{e^{a_i}}\right)\cdot \frac{{\xi }_{\text{LOF}}\left(d_i\right)-{\bar{\xi }}_{\text{LOF}}}{{\xi }_{\text{LOF},\max }-{\xi }_{\text{LOF},\text{\hspace{0.17em}min\hspace{0.17em}}}},(4)$

where a_i ∈ [0, 1] is an indicator variable for the mean value of the financial data. When a_i = 0, it indicates that ${\xi }_{\text{LOF}}^{\prime }={\bar{\xi }}_{lof}$; otherwise, a_i = 1. ξ_LOF, max and ξ_LOF, min indicate the maximum and minimum values of the LOF financial data point, respectively. Using the above equation, the optimal β can be adaptively adjusted according to the number of samples of LOF values, and the optimal LOF anomaly threshold can be further obtained, which improves the efficiency and accuracy of financial data point anomaly identification.

The above steps are repeated until all anomalous financial data points are identified, and the anomalous financial data are cleaned to obtain a new financial dataset $\mathbf{E}=\left\{E_1,E_2,\dots ,E_m\right\}$.

4.2 Missing data-filling method based on the adaptive update domain genetic algorithm

As the cleaning of anomalous financial data will result in missing financial data points, it is necessary to fill in the missing data to protect the integrity of financial data to support the lean resource management of financial financing. We assume that $\mathbf{E}=\left\{E_1,E_2,\dots ,E_m\right\}$ satisfies the m dimensional normal distribution, which is denoted as E = E_obs ∪ E_mis. E_obs is the set of financial data with observations, and E_mis is the set of missing financial data. In this paper, based on the adaptive update domain genetic algorithm, we estimate the log-likelihood function of the parameters μ and Ω of the financial dataset E as follows:

$\mathrm{\Phi }\left(\mathit{\mu },\mathbf{\Omega }\right)=-\frac{t}{2}\ln \left(2\pi \right)-\frac{t}{2}\ln |\mathbf{\Omega }|-\frac{1}{2}\sum _{1=1}^t{\left(e_1-\mathit{\mu }\right)}^{\mathbf{T}}\cdot {\mathbf{\Omega }}_1^{-1}\left(e_1-\mathit{\mu }\right),(5)$

where $\mathit{\mu }=\left\{{\mu }_1,{\mu }_2,\dots ,{\mu }_m\right\}$ is a vector of means for each financial data and $\mathbf{\Omega }\left({\sigma }_{pq}\right)$ is the covariance matrix of variable $\left\{E_1,E_2,\dots ,E_m\right\}$. The initial values of μ and Ω are generally determined by the financial dataset E_obs, and e_l denotes the vector of variables corresponding to the financial data record l = {1, 2, …, t}, where t is the number of financial data records.

In this paper, Φ(μ, Ω) is used as the fitness function to calculate the fitness of each parameter individual in the population. The larger the Φ(μ, Ω) value is, the closer and more accurate the parameter. The following constraints must be met.

$\text{\hspace{0.17em}s.t.\hspace{0.17em}}\left\{{\mu }_{1,\min }\le {\mu }_1\le {\mu }_{1,\max },\dots ,{\mu }_{m,min}\le {\mu }_m\le {\mu }_{m,max}\right\},(6)$

where μ_m, min and μ_m, max denote the minimum and maximum values of the mth anomalous financial data point, respectively, whose values are determined by E_obs.

In order to improve the speed of selecting the optimal parameters, the parameters determined by Φ(μ, Ω) are further crossed and mutated to realize the selection of the optimal parameters. Assuming that p_c is the crossover probability and there are t parameter individuals in the parameter population, tp_c parameter individuals are selected for crossover operation. Assuming that $\mathbf{O}=\left\{O_1,O_2,\dots ,O_t\right\}$ denotes the parent of the parameter population, two parameters are randomly chosen in $\mathbf{O}=\left\{O_1,O_2,\dots ,O_t\right\}$ to form the crossover pair $\mathbf{O}\left(O_r,O_s\right)$. At the same time, v is randomly chosen in {1, 2, …, m}. Two offspring ${\mu }_{rv}^{\prime },{\mu }_{sv}^{\prime }$ are generated by performing a c-crossing operation on μ_rv, μ_sv in $\mathbf{O}\left(O_r,O_s\right)$, which, in turn, yields a new parameter $O_{rv}^{\prime },O_{sv}^{\prime }$. The crossover formula is expressed as follows:

$\begin{array}{c}\hfill {\mu }_{rv}^{\prime }=\mathrm{e}{\mu }_{rv}+\left(1-\mathrm{e}\right){\mu }_{sv}\\ \hfill {\mu }_{sv}^{\prime }=\left(1-\mathrm{e}\right){\mu }_{rv}+\mathrm{e}{\mu }_{sv}\end{array},(7)$

where e is the crossover random number and its value is within [0,1].

Assuming that p_x is the variation probability and there are t parameter individuals in the parameter population, tp_x parameter individuals are selected from the parameter population for crossover operation. O_h is denoted as an individual in the parameter population. $\left\{{\mu }_{h1,}{\mu }_{hn,}\cdots ,{\mu }_{hm}\right\}$ is the set of means of O_h, and φ is randomly selected in {1, 2, …, m} for the mutation operation. Then, the mutated parameter is $O_h^{\prime }$, and the mean is $\left\{{\mu }_{h1}^{\prime },{\mu }_{hn}^{\prime },\dots ,{\mu }_{hm}^{\prime }\right\}$. The mutation formula is expressed as follows:

${\mu }_{h\phi }^{\prime }=\left\{\begin{array}{c}{\mu }_{h\phi }+\mathrm{\Delta }\left(g,{\max }_{\phi }-{\mu }_{h\phi }\right),\mathrm{r}\mathrm{a}\mathrm{n}\mathrm{d}\mathrm{o}\mathrm{m}\left(\cdot \right)>0\hfill \\ {\mu }_{h\phi }-\mathrm{\Delta }\left(g,{\mu }_{h\phi }-{\min }_{\phi }\right),\mathrm{r}\mathrm{a}\mathrm{n}\mathrm{d}\mathrm{o}\mathrm{m}\left(\cdot \right)<0\hfill \end{array}\right.,(8)$

$\mathrm{\Delta }\left(g,x\right)=x\left(1-{\eta }^{\left(1-\frac{g}{G}\right)}\beta \right),(9)$

where random () is a random function that produces a uniform distribution. If a random number is greater than 0, the mean value after mutation will increase, that is, random(⋅) > 0; if a random number is less than 0, the mean value after mutation will decrease, that is, random(⋅) < 0; and if a random number is 0, the mean value after mutation will remain unchanged, that is, random(⋅) = 0. G is the maximum number of generations of variants, g is the current number of generations of variants, β is a parameter that determines the degree of non-consistency, and η is a random number in [0,1].

Considering that the genetic algorithm easily falls into the local optimum and has many iterations, this paper makes the algorithm jump out of the local optimum by the chaotic disturbance of excellent parameters to reduce the number of iterations. Let the fitness function of the current optimal parameter μ* be Φ* and the mean vector of the excellent parameter ${\mu }_h^{*}=\left\{{\mu }_{h1}^{*},{\mu }_{h2}^{*},\dots ,{\mu }_{hm}^{*}\right\}$, then, the chaotic disturbance to ${\mu }_{hm}^{*}$ can be expressed by the following equation:

${\mu }_{hm}^{*}={\mu }_{hm-1}^{*}+1-{\left[\frac{\left(y-1\right)}{y}\right]}^n{\chi }_{j-1}.(10)$

Here, μ* is the value after chaotic perturbation in the traversal interval of the smaller feasible domain. $1-{\left[\frac{(y-1)}{y}\right]}^n$ is the adjustment coefficient with respect to the number of iterations y. The value of χ_j−1 is randomly set as 1 or -1.

In order to further improve the optimization accuracy of the genetic algorithm, this paper introduces the search domain adaptive update mechanism. The update domain includes a total of two phases. Φ_o and Φ_o−1 are defined as the optimal adaptation values of the oth and o − 1th generations, respectively. α is a threshold, which takes the value of (0,1). If the difference between Φ_o and Φ_o−1 is less than a threshold α, the search domain update is in the first stage; otherwise, it is in the second stage. The stage discrimination formula of the search domain update is shown as follows:

${\mathrm{\Phi }}^{*}=\left|{\mathrm{\Phi }}_o-{\mathrm{\Phi }}_{o-1}\right|<\alpha .(11)$

When the search domain update is in the first stage, the lower bound of the search domain is increased, and the upper bound of the search domain is decreased, thus reducing the overall search domain. The upper and lower bounds of the search domain for the oth generation are calculated as follows:

$\begin{array}{c}\hfill b_o^{low}=b_{o-1}^{low}+\min \left(\left|b_{o-1}^{up}-b_{o-1}^{low}\right|\right)/\epsilon ,\\ \hfill b_o^{up}=b_{o-1}^{up}-\min \left(\left|b_{o-1}^{up}-b_{o-1}^{low}\right|\right)/\epsilon \end{array},(12)$

where $b_o^{\mathit{low}}$ and $b_o^{up}$ are the upper and lower bounds of the oth generation, respectively, and ɛ is the scale parameter.

When the difference between Φ_o and Φ_o−1 is larger than a threshold α, the replicated optimal individual enters the second stage, and then, the search domain is updated as follows:

$\begin{array}{c}\hfill c_o^{low}={\mu }_{h\phi }^{\prime }+\min \left(\left|c_{o-1}^{up}-c_{o-1}^{low}\right|\right)/\epsilon ,\\ \hfill c_o^{up}={\mu }_{h\phi }^{\prime }-\min \left(\left|c_{o-1}^{up}-c_{o-1}^{low}\right|\right)/\epsilon \end{array},(13)$

where $c_o^{low}$ and $c_o^{up}$ are the adjusted lower and upper bounds, respectively. Φ^* is used as the criterion to shrink the boundaries one by one. When the distance of the optimal individual from the boundaries is less than the fault-tolerant variable, the boundaries are restored to the initially defined domain. The current optimal individual is preserved, and then, the genetic search is continued until reaching the maximum number of iterations.

In order to reduce the error of the estimated value of missing data, it is necessary to further estimate the missing anomalous financial data. Therefore, this paper uses the Markov chain Monte Carlo (MCMC) method to fill the missing data. This method iteratively estimates the missing data on the condition of incomplete datasets and parameters of incomplete data, and the filling process is as follows.

1) Each of the missing-type anomalous financial data are estimated according to the optimal parameters μ, Ω, and E_obs, and the value of ${\mathbf{E}}_{\mathit{mis}}^{y+1}$ is derived from the conditional distribution p(E_mis, E_obs, O_y). p(E_mis, E_obs, O_y) is the probability distribution associated with E_mis, E_obs, and O_y. μ and Ω are generally determined by the financial dataset E_obs.

2) The posterior mean vector and covariance matrix of the simulated data, that is, O_y+1, are obtained in $p\left(O\mid {\mathbf{E}}_{obs},{\mathbf{E}}_{mis}^{y+1}\right)$, based on the filled complete financial dataset, which will be repeated in (1).

3) Filling the missing-type financial data by iterating (1) and (2) over each other produces a Markov chain $\left(\left\{Y^1,O^1\right\},\left\{Y^2,O^2\right\},\dots ,\left\{Y^{y+1},O^{y+1}\right\}\right)$, which exhibits a $p\left(\left({\mathbf{E}}_{mis},O\right)\mid {\mathbf{E}}_{obs}\right)$ distribution. When the distribution is stabilized, the filled missing data of E_mis will be obtained, yielding the complete financial dataset $\mathbf{U}=\left\{u_1,\dots ,u_m\right\}$.

5 A data storage and traceability method for reliable interaction

After the anomaly financial data cleaning and missing data filling, measures are implemented to further guarantee the reliable interaction between different departments in the financial financing of electric power companies. This paper proposes a data storage and traceability method for the reliable interaction of the financial system, which prevents the financial data from being illegally tampered with in the interaction process. It ensures the authenticity and reliability of power grid data and further supports the calculation and interaction of the internal financing revenues and costs in electric power companies and the cost units.

5.1 Data storage method based on th IPFS

After data governance, the dataset $\mathbf{U}=\left\{u_1,\dots ,u_m\right\}$ is stored using the IPFS. The IPFS enables the data storage and retrieval based on the content of financial data and uses the idle storage resources in the network to establish a distributed data storage system. It divides the data to different network locations, supports fast retrieval and data sharing, and possesses a fault-tolerant nature.

Considering that the IPFS uses the hash value of data as the storage address, this feature is naturally consistent with the tamper-proof feature of blockchain storing data hash values. Therefore, this paper proposes a data storage scheme combining the IPFS and blockchain, which combines the IPFS to store data and blockchain to store data hash so as to realize distributed data storage and ensure data safety reliability, and traceability. When uploading data larger than 256 KB to the IPFS, the system automatically divides the data into 256 KB chunks and stores these chunks on different nodes in the network. Blockchain nodes store hash values of data elements, while nodes except leaf nodes store hash values of child nodes. Therefore, the hash value in the node is calculated as follows:

$A^{i,j}=\mathrm{H}\mathrm{a}\mathrm{s}\mathrm{h}\left(A^{i-\mathrm{1,2}j-1},A^{i-\mathrm{1,2}j}\right),(14)$

where A^i,j denotes the hash value of the jth target node in the ith level.

To represent the hash of the data, the IPFS uses a multi-hash format and Base58 encoding. The storage address A_d is represented as follows:

$A_d=\mathrm{B}\mathrm{a}\mathrm{s}\mathrm{e}\mathrm{58}\left(A_{Code}\left|A_{Lengh}\right|A_{Hash}\right),(15)$

where A_Code denotes the hash algorithm encoding; A_Lengh denotes the length of the hash value; and A_Hash denotes the hash value.

For each fragment, a unique hash value is generated. Subsequently, the IPFS concatenates the hash values of all fragments and computes the resulting hash value for the data, which is

$A_{Hash}=\sum \mathrm{H}\mathrm{a}\mathrm{s}\mathrm{h}\left(u_m\right).(16)$

5.2 Data traceability method based on Merkle mountain proof

In order to ensure the authenticity and traceability of financial data flow records (DFRs) of electric power companies, this paper proposes a data traceability method based on Merkle mountain proof, supporting the safety and reliability of financial data in the interaction process. Specifically, a new Merkle mountain block structure is introduced to construct a data storage structure, which includes two parts: block header and block body. Between them, the block header contains the data version number, time stamp, degree of confidentiality, business category, hash value of the previous block, Merkle tree root (MTR), and Merkle mountain range root (MMRR). The block body consists of the Merkle tree and Merkle mountain. As a special Merkle tree, the Merkle mountain has the advantage of dynamic data addition, and it is not necessary to rebuild the data structure. The data traceability method based on Merkle mountain proof includes two parts, Merkle mountain proof and data traceability of Merkle mountain proof based on data private blockchain (DPBC), which are introduced as follows.

Algorithm 1.The proposed Merkle mountain proof-based data traceability method.

1: Input: h, MTR

2: Output:MTR', MMRR_h

3: Phase 1: Downloading

4: Initialize Θ_i(t) = ∅ and y_i,j = 0.

5: A target node in the financial middle platform synchronizes information about a block of height h from the local ledger of the entire node in the DPBC network of the company.

6: Obtain the MTR' of the Merkle tree in block h.

7: Phase 2: Merkle mountain proof

8:Calculate the MTR' of a node by Merkle mountain proof.

9: if MTR′ = MTR then

10: Synchronize the block information of the latest height H from the local account book of all nodes in the DPBC network, and obtain MMRR from the H block.

11: Calculate the MMRR_h of the target node by Merkle mountain proof.

12: ifMMRR_h = MMRR_H then

13: DFR care authentic and traceability is completed.

14: else

15: Error in DFR.

16: end if

17: else

18: Error in DFR.

19: end if

5.2.1 Merkle mountain proof

The process of data traceability requires the initial generation of Merkle mountain proof, which involves verifying the data stored in the leaf nodes of the Merkle mountain to ensure their integrity and authenticity, thereby safeguarding against tampering and ensuring trustworthiness. The Merkle mountain proof process is as follows:

Step 1: The process starts with the target node to be verified, looks up to the upper parent node, and ends with the MTR of the Merkle tree where the target node is located. The set of nodes passed through in the search process is called Merkle mountain range path.

Step 2: The MTR is retrieved for all subtrees within the Merkle mountain range.

Step 3: The Merkle mountain range proof set is assembled by combining the nodes from the Merkle mountain range path in step 1 and the MTRs from step 2.

Step 4: A hash operation is performed on the Merkle mountain range proof set, which is compared with the field in the block header to complete the Merkle mountain proof.

Then, the set of Merkle mountain proof can be expressed as follows:

$A_M^{i,j}=\left\{\sum A_{MP}^{i,j}\otimes \sum A_{MTR}^{i,j}\right\},(17)$

where $\sum A_{MP}^{i,j}$ is the node in the path of the Merkle mountains and $\sum A_{MTR}^{i,j}$ is the MTR of all subtrees. ⊗ means that all nodes in the path of the Merkle mountain form a one-to-one combination relationship with the MTR of all subtrees.

Therefore, the MMRR_h of the target node can be obtained through hash operation, that is,

$MMR{R}_h=\mathrm{H}\mathrm{a}\mathrm{s}\mathrm{h}\left(A_M^{i,j}\right),(18)$

where MMRR_h denotes the MMRR of the block with height h.

5.2.2 Data traceability of Merkle mountain proof based on the DPBC

The traceability process is shown in Algorithm 1, where H represents the latest block height in the current network and h represents the height of the block to be verified. When it is necessary to trace the DFR in the block with height h, the node only needs to synchronize the block with height h and the block header with the latest height H from the network to complete the verification.

6 Simulation results

6.1 Analysis of anomalous data identification and cleaning performance

This paper uses a sample set consisting of 10³–10⁴ distribution grid financial system data points collected for the purpose of identifying and cleaning anomalous financial data. The financial data points used are sourced from the transaction data and financial books of five departments in the distribution network financial system of a certain power supply company of the State Grid Corporation of China from January to March 2017 (Shouyu et al., 2019). To further validate the efficiency of the proposed algorithm in this paper, a comparative analysis is conducted with two existing algorithms for identifying and cleaning anomalous data: the quartile algorithm and the traditional LOF algorithm. The quartile algorithm demonstrates high cleaning efficiency but is prone to excessive removal, leading to identifying and cleaning some data points within the normal fluctuation range, resulting in a serrated pattern in the clustered regions of the data. The traditional LOF algorithm requires a manually preset threshold, heavily relying on expert experience. When applied to the cleaning of massive financial data characterized by high uncertainty, its efficiency and accuracy are notably compromised.

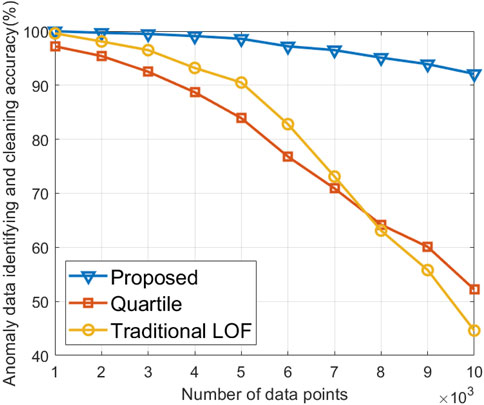

Figure 3 shows the anomalous data identifying and cleaning results under different numbers of data points. The proposed algorithm exhibits higher accuracy in identifying and cleaning anomalous data than the two comparing algorithms. Specifically, when the number of data points is set at 10⁴, the performance of the proposed algorithm improves by 76.4% compared to the quartile algorithm and 106.5% compared to the traditional LOF algorithm. This improvement stems from the adaptive adjustment of the anomaly threshold based on the sample size of LOF values in the proposed algorithm, enabling a dynamic optimal selection of the anomaly threshold and consequently enhancing the accuracy of anomalous data identifying and cleaning in massive financial datasets. The weaker ability of the quartile algorithm to identify biases in the data leads to the excessive removal of normal data, resulting in a decrease in accuracy in the identification and cleaning of anomalous data. The traditional LOF algorithm, when confronted with large datasets, has a fixed threshold, which limits its ability to identify and eliminate a significant portion of extreme anomalies, particularly in the context of multivariate high-dimensional data, thereby diminishing its accuracy in anomaly identification.

Figure 3

Figure 3. Anomalous data identifying and cleaning results versus different numbers of data points.

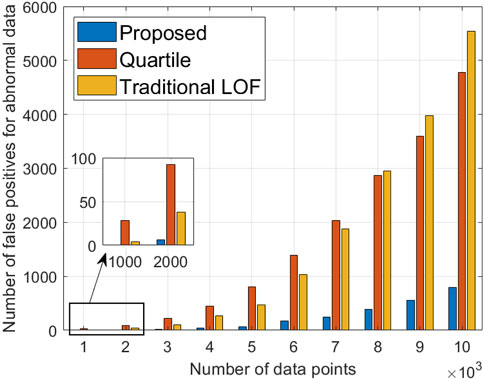

Figure 4 shows the number of false positives for anomalous data under different numbers of data points. The proposed algorithm exhibits a significantly lower count of misjudged anomalous data than the two comparison algorithms. Specifically, when the number of data points is set at 10⁴, the number of false positives for anomalous data in the proposed algorithm is 790, representing reductions of 83.5% and 85.7% compared to the quartile algorithm and traditional LOF algorithm, respectively. This noteworthy improvement stems from the real-time dynamic adjustment of the LOF threshold by the proposed algorithm, leading to a substantial decrease in the misjudgment count, particularly in the context of handling vast datasets. In contrast, the two comparison algorithms lack the capability to adapt to dynamic changes in financial data, resulting in an increase in the misjudgment count as data rapidly expand.

Figure 4

Figure 4. Number of false positives for anomalous data versus different numbers of data points.

6.2 Analysis of missing data-filling performance

The performance of the algorithm is validated through simulation using a foundational financial dataset from the power grid financial system, aiming to demonstrate its data imputation capabilities in a multivariate dataset. The validation indicator is the data-filling accuracy, which refers to the similarity between the filled data and the original data. The specific attributes of the selected dataset are detailed in Table 1 (Wu et al., 2012).

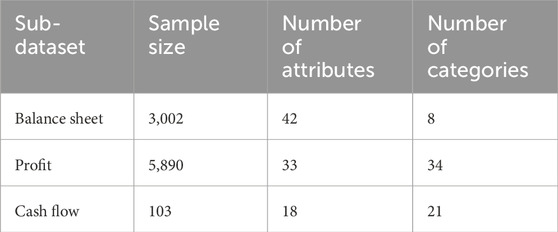

Table 1

Table 1. Simulation parameters.

To validate the performance of the proposed algorithm, the expectation maximization algorithm (EMA) and genetic algorithm (GA) are selected as comparison algorithms. The EMA assumes a distribution for a financial dataset with partially missing data and makes inferences based on the likelihood under this distribution, replacing missing data with expected values. The GA, on the other hand, derives the optimal combination of attribute weights, or the best chromosome, through selection, crossover, and mutation operations. Consequently, it estimates missing values in the dataset based on this optimal chromosome.

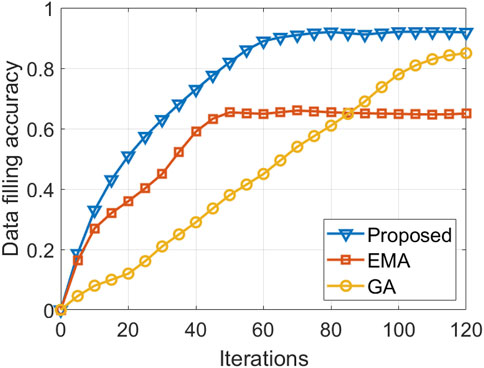

Figure 5 shows the variation in data-filling accuracy with the number of algorithm iterations. The proposed algorithm demonstrates superior data-filling accuracy and faster convergence than the two comparison algorithms. At the 120th iteration, the data-filling accuracy of the proposed algorithm surpasses those of the EMA and GA by 41.1% and 8.2%, respectively. This improvement is attributed to the adaptive updating mechanism of the search space introduced by the proposed algorithm, which dynamically identifies whether the improvement rate of the optimal individual meets the requirements, leading to adjustments in the updating space. Consequently, it conducts global optimization for the attributes of each sub-dataset. Although the EMA exhibits faster convergence than the proposed algorithm, its failure to consider the entire parameter space may result in estimating optimal parameters that are specific to local optima in individual sub-datasets, leading to a decrease in the overall data imputation accuracy. The GA lacks the ability to promptly use feedback information from the network, exhibiting a slower search speed, requiring more training epochs to achieve more accurate solutions.

Figure 5

Figure 5. Accuracy of data filling versus the number of iterations.

6.3 Analysis of data traceability performance

To validate the performance of the proposed data traceability algorithm in this paper, simulation experiments are conducted, with the evaluation metrics being the amount of data downloaded and data traceability verification time. The amount of data downloaded refers to the size of data that nodes need to store locally when performing data traceability verification. The data traceability verification time is the time required to verify a specific transaction, encompassing the duration from submitting the proof of inclusion of a transaction to locating its corresponding hash value. The comparison algorithm chosen for this analysis is the simplified payment verification (SPV) algorithm. The impact of block height at various magnitudes on simulations is discussed, with the experimental setup including block heights of 0.01 × 10⁵, 0.02 × 10⁵, 0.02 × 10⁵, 0.1 × 10⁵, 0.2 × 10⁵, 0.3 × 10⁵, 0.6 × 10⁵, 1 × 10⁵, 1.5 × 10⁵, and 2 × 10⁵.

Figure 6 shows the amount of data downloaded at different blockchain heights. As the blockchain height increases, both the proposed algorithm and SPV algorithm experience an increase in the required data volume. However, at the same block height, the proposed algorithm necessitates a smaller data download than the comparison Algorithm. At a blockchain height of 2 × 10⁵, the amount of data downloaded for the proposed algorithm is 45.4 MB, representing a 16% reduction compared to the SPV algorithm. This discrepancy arises from the fact that during data verification, the SPV algorithm needs to download the block header information for the entire chain, whereas the proposed algorithm only requires the download of the latest block in the longest valid chain, thereby reducing the storage resource consumption for nodes.

Figure 6

Figure 6. Amount of data downloaded versus different blockchain heights.

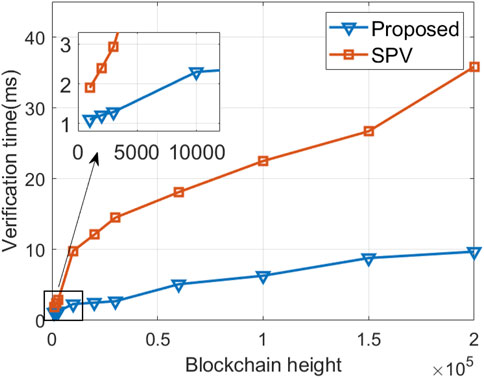

Figure 7 shows the results of data traceability verification time at different blockchain heights. As the number of blocks in the blockchain network increases, the verification time for both the proposed algorithm and SPV algorithm gradually escalates. The proposed algorithm exhibits a shorter verification time than the SPV algorithm. This is attributed to the fact that the proposed algorithm only requires obtaining the Merkle mountain range, calculating the verification path to derive the MMRR and comparing it with the hash value in the latest block header at the current height. In contrast, the SPV verification process is more complex as it involves traversing downward from the latest block to trace back to the target block. At a blockchain height of 2 × 10⁵, SPV incurs a maximum time cost of approximately 36 ms, while the maximum time cost of the proposed algorithm is approximately 10 ms. Consequently, the proposed algorithm achieves a reduction of approximately 72% in verification time compared to the SPV algorithm, thereby enhancing the efficiency of the verification process in data traceability.

Figure 7

Figure 7. Data traceability verification time versus different blockchain heights.

7 Discussion and limitations

Our proposed approach and framework offer several advantages that make them promising candidates for integration into enterprise architecture management (EAM) practices. One key strength is that the proposed framework adopts a distributed data governance method, which has high scalability and flexibility. At the same time, the proposed framework adopts advanced abnormal data cleaning and missing data-filling technology to ensure the availability and integrity of financial data. In the context of enterprise architecture management, our approach opens up opportunities for the introduction of a novel integration pattern. By leveraging the decision-making layer, organizations can establish a more seamless and responsive integration mechanism that aligns with the dynamic nature of contemporary enterprises. However, the proposed framework still has some limitations. Introducing a new approach may require significant changes to existing enterprise architecture management processes, potentially posing integration challenges. In addition, the compatibility of our approach with legacy systems may be a concern.

8 Conclusion

In this paper, we proposed a lean resource management and reliable interaction framework of the middle platform based on distributed data governance. First, the distribution grid anomaly data are cleaned by the dynamic adjustment of LOF anomaly thresholds, and then, the missing data are filled based on the adaptive update domain genetic algorithm, which enables lean resource management in the low-carbon-oriented new grid. Second, the data storage method based on the IPFS is proposed, and the distribution grid data can be traced back by Merkle mountain proof based on DPBC, which enables reliable interaction in the low-carbon-oriented new grid. Finally, the simulation results show that compared with the quartile algorithm and traditional LOF algorithm, the proposed algorithm improves the accuracy of identifying and cleaning anomalous data by 76.4% and 106.5%, respectively. Compared with the EMA and GA, the accuracy of the proposed data-filling algorithm is improved by 41.1% and 8.2%, respectively. Compared with SPV, the proposed data traceability method reduces the verification time by approximately 72%. In the future, we will study how to integrate the financing income evaluation of electric power companies into the proposed framework.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.

Author contributions

YL: conceptualization, formal analysis, funding acquisition, investigation, methodology, software, validation, writing–original draft, and writing–review and editing.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This research was supported by the Science and Technology Project of State Grid Jibei Electric Power Company (grant number: 71010521N004).

Conflict of interest

Author YL was employed by State Grid Jibei Electric Power Company Limited.

The authors declare that this study received funding from State Grid Jibei Electric Power Company. The funder had the following involvement in the study: collection, analysis, interpretation of data, the writing of this article, and the decision to submit it for publication.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
