Service scheduling strategy for microservice and heterogeneous multi-cores-based edge computing apparatus in smart girds with high renewable energy penetration

The microservice-based smart grid service (SGS) organization and the heterogeneous multi-cores-based computing resource supply are the development direction of edge computing in smart grid with high penetration of renewable energy sources and high market-oriented. However, their application also challenges the service schedule for edge computing apparatus (ECA), the physical carrier of edge computing. In the traditional scheduling strategy of SGS, an SGS usually corresponds to an independent application or component, and the heterogeneous multi-core computing environment is also not considered, making it difficult to cope with the above challenges. In this paper, we propose an SGS scheduling strategy for the ECA. Specifically, we first present an SGS scheduling framework of ECA and give the essential element of meeting SGS scheduling. Then, considering the deadline and importance attributes of the SGS, a microservice scheduling prioritizing module is proposed. On this basis, the inset-based method is used to allocate the microservice task to the heterogeneous multi-cores to utilize computing resources and reduce the service response time efficiently. Furthermore, we design the scheduling unit dividing module to balance the delay requirement between the service with early arrival time and the service with high importance in high concurrency scenarios. An emergency mechanism (EM) is also presented for the timely completion of urgent SGSs. Finally, the effectiveness of the proposed service scheduling strategy is verified in a typical SGS scenario in the smart distribution transformer area.

1 Introduction

With the widespread integration of renewable energy sources and the increasing marketization of the smart grid, the number and variety of smart grid service (SGS) at the edge of the smart grid, such as the smart distribution transformer area—typically functioning as the smallest unit of power supply management (Cen et al., 2022; Xiao, H. et al., 2023)—are expanding. These services encompass a diverse range, including Vehicle-to-Grid (V2G) (Chukwu and Mahajan, 2014; Chamola et al., 2020; Peng and Niu, 2023), micro-grid energy management and control (Mondal et al., 2022; Wu et al., 2022; Xiao et al., 2023), and demand response at the user side (Bachoumis et al., 2022; Jia et al., 2022). New demands are subsequently placed on edge computing apparatus (ECA), a key computing node at the edge side of the smart grid supporting the processing of the SGS (Li et al., 2021; 2022). On the one hand, these large numbers of SGSs require more efficient and powerful computing capabilities for the edge computing node (Li et al., 2022). On the other hand, the services deployed on ECA require a flexible service organization to meet their needs for flexibility and rapid iteration (Zhou et al., 2021). The heterogeneous multi-cores-based computing resource supply and microservice-based service organization can meet the abovementioned requirements, hence emerging as the development direction of ECA in smart grids (Zhang et al., 2019; Jiang et al., 2020).

In the ECA, an SGS consists of multiple independent microservices and can be realized by collaborating these microservices (Lyu et al., 2020; Yin et al., 2022). These microservices have different computational characteristics, such as matrix computation operations, digital signal processing operations, power message encapsulation, and encryption and parsing operations. During the processing, microservices with different computational characteristics have different computing speeds on different cores of the ECA (Lan et al., 2022). For example, the microservice task for message parsing is processed much faster on a specially customized FPGA core than on a general-purpose core such as a CPU. Besides, some microservices cannot execute in certain cores due to processing core instruction set dependencies. Subsequently, a key question arises regarding how the ECA can schedule the SGS task to different cores for better scheduling performance. However, very little literature in the smart grid area carries out a study of the above issues. The traditional smart grid apparatus with the function of edge computing, such as TTU, DTU, and other IED (Intelligent Electronic Device), carries a solidified and limited number of services, and the development and deployment of services is in the form of individual applications (Wojtowicz et al., 2018). The service scheduling is usually fixed during the development session for the apparatus. Thus, it is difficult to be applied to the ECA.

From the mathematical form, SGSs scheduling for ECA belongs to the problem of scheduling a set of microservices with dependencies in a heterogeneous system, which is an NP-C problem (Sahni et al., 2021; Roy et al., 2023). There are three general solutions: heuristic-based list scheduling algorithms, random search-based intelligent algorithms, and machine learning-based methods. Some effective heuristic-based list scheduling algorithms have been proposed, such as HEFT (Topcuoglu, Hariri, and Min-You Wu, 2002), PEFT (Arabnejad and Barbosa, 2014), CPOP (Kelefouras and Djemame, 2022). For the random search-based scheduling strategy, microservice scheduling is established as an optimization problem that is solved using intelligent algorithms such as the Genetic Algorithm (Rehman et al., 2019), Ant Colony Algorithm (Gao et al., 2019), and Particle Swarm Algorithm (Rodriguez and Buyya, 2014). In recent years, with the rapid development and application of AI technology, machine learning-based methods have also been applied to the study of this problem, such as deep reinforcement learning (Gao and Feng, 2022) and deep Q-learning (Kaur et al., 2022). The above literature mainly addresses the service scheduling problem for scientific workflow in distributed computing system environments, such as grid and cloud computing environments. In these scenarios, the service workflow is typically non-real-time tasks, and the type and number of services to be scheduled are fixed. However, in the SGS scheduling problem for the ECA, service requests arrive dynamically and concurrently in real-time, and different SGSs have different importance and quality of service requirements. In addition, the state of service request may change with the operational state of the smart grid and some needs to be finished before the deadline in emergencies (Li et al., 2018).

In this paper, we propose an ECA-oriented microservice scheduling strategy based on the inspiration of list scheduling to address the issues above and fill the gap in ECA-related research fields. The main contributions of this paper are summarized as follows:

(1) A services scheduling framework is proposed for the ECA in the smart grid. The problem of service scheduling is divided into two sub-problems: microservice prioritizing and core selection. Microservice prioritizing can determine the scheduling order of microservices for meeting the execution order constraints of microservices in a service. Then, the core selection can allocate the microservice to a proper core for execution. Two novel mechanisms, namely, scheduling unit dividing mechanism and emergency mechanism, are also integrated into the framework, where the former is used to balance the delay requirement between the service with early arrival time and the service with high importance in high concurrency scenarios; and the latter is responsible for the timely completion of urgent SGSs.

(2) A novel SGS scheduling strategy is proposed. The SGS scheduling models are built, including the service and ECA models. The SGS is represented by a directed acyclic graph (DAG), and the ECA is modeled as a heterogeneous system with multiple cores. We design a microservice scheduling prioritizing module considering the SGS attributes of importance and deadline to determine the microservices scheduling sequence. Then, the insert policy is introduced to allocate the microservices to heterogeneous cores of ECA. In addition, both scheduling unit dividing and emergency solutions are developed and integrated into the SGS scheduling algorithm.

(3) Extensive simulations-based performance evaluation is conducted. Based on the ideas of solutions in existing works, several benchmark solutions are developed for performance comparison. Three metrics are used to evaluate the scheduling performance, and the performance comparisons are conducted in different levels of service concurrency. The simulation results demonstrate that the proposed strategy is effective and superior for SGS scheduling of ECA. Furthermore, the influence analysis of the algorithm parameter scheduling unit length (SUL) is also performed for the parameter selection of the algorithm in practical applications.

The remainder of this article is organized as follows. Section 2 introduces the SGSs scheduling framework for ECA and outlines its basic operation principle. Section 2 introduces the SGS scheduling model for ECA, including the ECA and SGS models. Section 3 describes the proposed microservice scheduling strategy and gives the algorithm’s pseudo-code. Section 4 evaluates and analyzes the performance of the proposed strategy. Section 5 concludes this article.

2 The SGS scheduling framework for ECA

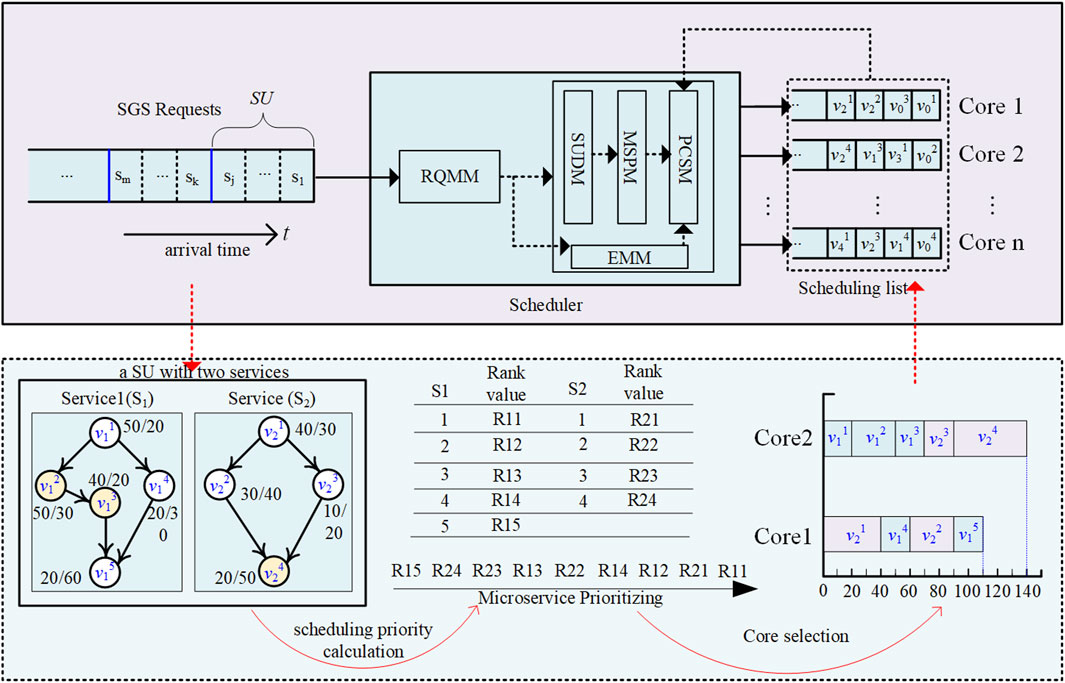

Figure 1 shows the proposed SGS scheduling framework for the ECA. As shown in Figure 1, the diagram is divided into two layers by boxes. The upper layer shows the main components of the scheduling framework, while the lower layer uses examples to illustrate the basic workflow of the scheduling framework. The upper layer has three parts: the service request queue, scheduler, and scheduling list. The services request queue storages the service request information. The scheduling list records the microservice sequence that a processing core needs to execute. The scheduler allocates services to the processing cores for execution according to a certain service strategy. There are several modules in the scheduler box. The request queue monitoring module (RQMM) collects request queue information, including queue length and service arrival time, and passes it to the scheduling unit dividing module (SUDM). The SUDM is responsible for dividing the service requests into multiple fixed-length request subgroups based on the arrival time of service, and a service request group is briefly denoted as a scheduling unit (SU). Each service request within an SU is sorted according to its importance, which is one of the attributes of the SGS. The microservice scheduling prioritizing module (MSPM) calculates the scheduling priority of each microservice in an SU through a microservice prioritizing algorithm (such as Algorithm 1 mentioned in Section 4.1), forming a microservice scheduling sequence. Then, based on a core section algorithm (such as Algorithm 1 mentioned in Section 4.2), the processing core selection module (PCSM) allocates each microservice to a processing core in turn. The algorithm needs to obtain scheduling queue information through module 1. When the RQMM finds an urgent request, it activates the emergency mechanism module (EMM). The ongoing normal service will be logged and paused at the time, and then the urgent service will be executed based on a predefined service scheduling scheme.

FIGURE 1

FIGURE 1. The microservice scheduling framework for ECA.

The lower layer illustrates the SGS scheduling process under normal conditions on an ECA with two processing cores, and the length of the SU is set to 2. The SGS is represented by DAG. The service is successfully completed when all the microservices are executed according to directed edge constraints.

3 Service scheduling model for ECA

In this section, we introduce the service scheduling model for ECA, including the ECA and SGS models. In addition, an evaluation metric model is also presented for service scheduling according to ECA’s actual performance demand.

3.1 The ECA model

The ECA belongs to a heterogeneous multi-core system, which integrates different types and numbers of processing cores and can be modeled as a set $P=\left\{\begin{array}{ccccc}{p}_1^{\#}& p_2^{\#}& \dots & p_r^x& \dots \end{array}\right\}$, where the element $p_r^x$ denotes the number x of core type r (x, r∈ Z+). The cores with the same type have the same workload for the same microservice task. Conversely, the cores with different types have different workloads for the same microservices task. Additionally, some cores may only be able to handle one or more specific microservices. Thus, the execution time of the microservice on the core p_r can be calculated by:

$w_{i,r}^j=\frac{L_{ij,r}}{C_r}(1)$

where $L_{ij,r}$ denotes the workload of microservice j of service i on the core r. $C_r$ represents the computation speed of core p_r.

The processing cores are interconnected via an on-chip high-speed bus. It can be assumed that the communication bandwidth among the cores is the same, and any two processing cores can communicate in both directions without contention (Roy et al., 2023). The communication bandwidth between the cores can be described by an adjacency matrix, and for an ECA with z cores:

$A_z=\left[\begin{array}{cccc}{a}_{11}& a_{12}& ...& a_{1z}\\ a_{21}& a_{22}& ...& a_{2n}\\ ⋮& ⋮& \ddots & ⋮\\ a_{z1}& a_{z2}& ...& a_{zz}\end{array}\right](2)$

where A_z is a symmetric matrix whose diagonal elements are infinite, and the non-diagonal elements a_gh represent the communication rate between the core g and the core p_h. Thus, the communication time between microservice j executed in core p_g and microservice k executed in core p_h is:

$c_{jg,\text{kh}}=\frac{d_{j,\mathrm{k}}}{a_{gh}}(3)$

where $d_{j,\mathrm{k}}$ denotes the data volume transmitted from microservice j to microservice k.

3.2 The SGS model

A set of SGSs in the SGSs request queue is denoted as S = {S₁,S₂,S_n}, and n is the concurrent number of SGSs. An SGS S_i = {A_i, D_i, T_i, I_i, G_i} contains several basic information. A_i and D_i represent the arrival time and deadline of the S_i; T_i represents the request state of service, which is a binary value, where 0 and 1 represent normal and urgent states, respectively; I_i denotes the importance of S_i, which is given based on expert experience. G_i is a DAG, G_i = (V_i, E_i), where V is the set of v microservices, and E is the set of e edges between the microservices. The edge represents the data dependency between two microservices. The non-entry node microservice may have one or more inputs and is triggered to execute when all input data from the directly connected nodes are available. The node in a DAG with zero in-degree denotes the entry microservice, and the node with zero out-degree denotes the exit microservice. Suppose there are multiple exit microservices or entry microservices for a service DAG. In that case, they can be connected with zero time-weight edges to a single pseudo-exit task or a single entry task with zero time-weight. The microservice j of the S_i denotes $v_i^j$. In addition, there are several scheduling attributes for each microservice.

(1) The average execution time. It is the average value of the execution times required on different processor cores for a microservice. The average execution time of microservice $v_i^j$ can be calculated by:

$w_i^j=\frac{{\displaystyle \sum _{r=1}^p}{w}_{i,r}^j}{p}(4)$

where $w_{i,r}^j$ is the execution time of the microservice $v_i^j$ on the core p_r, and p is the number of processing cores of ECA.

(2) The average communication time. It is the average value of the communication time between microservices on any two cores. The average communication time of microservice $v_i^j$ can be defined by:

$c_{i,k}^j=\frac{d_{i,k}^j}{{\displaystyle \sum _{r=1}^p}{\displaystyle \sum _{s=r+1}^{p-1}}{A}_{r,s}/\left(\left(p^2-p\right)/2\right)}(5)$

(3) The earliest execution start time (EST). The EST of microservice $v_i^j$ in core p_r is defined by:

$EST\left(v_i^j,p_r\right)=\max \left(\begin{array}{l}available\left(v_i^j,p_r\right),\\ \underset{v_i^k\in pred\left(v_i^j\right)}{\max }\left(\text{EFT}\left(v_i^k,p_l\right)+{\mathrm{c}}_{k,j,l,r}\right)\end{array}\right)(6)$

where $available\left(v_i^j,p_r\right)$ represents the earliest time that the core p_r can execute $v_i^j$. $pred\left(v_i^j\right)$ denotes the set of predecessor microservices for $v_i^j$.

(4) The earliest execution finish time (EFT). The EFT of microservice $v_i^j$ in core p_r is defined by:

$EFT\left(v_i^j,p_r\right)=w_{i,r}^j+EFT\left({\mathrm{v}}_{i,r}^j\right)(7)$

3.3 Evaluation metric model

Generally, the average response time of services is a basic metric for service scheduling, and it can evaluate the overall scheduling performance. Aiming to the ECA in the smart grid, if these services can be completed before the deadline, they can get a better effect on the smart grid operation. Especially when the smart grid is in an emergency or unhealthy state, some services must be completed before the deadline to offer help for restoring normal operation as soon as possible. Otherwise, it will lead to serious safety accidents and economic losses. Thus, this study introduces the service meeting deadlines rate (SMDA) for the performance evaluation, including the SMDA of normal service and the SMDA of urgent service. The above three metrics are abbreviated as M₁, M₂, and M₃, and their definitions are formulated as follows.

(1) M₁ represents the average response time of services and can be calculated by:

$M_1={\displaystyle \sum _{i=1}^n}\left(t_i^{finish}-t_i^{arrival}\right)/n(8)$

where n is the concurrent number of SGSs. $t_i^{finish}$ and $t_i^{arrival}$ represent the finished time and the arrival time of the SGS s_i, respectively.

(2) M₂ represents the SMDA of normal service and can be calculated by:

$\begin{array}{l}{M}_2=\left({\displaystyle \sum _{s_i\in S\_n}}{s}_i\right)/\left|S\_n\right|\\ T_i=\left\{\begin{array}{c}0,t_i^{finish}<D_i\\ 1,{t_i^{finish}}_i\ge D_i\end{array}\right.\end{array}(9)$

where S_n is the set of normal service requests,|S_n| is the number the normal services.

(3) M₃ represents the SMDA of urgent service and can be calculated by:

$\begin{array}{l}{M}_3=\left({\displaystyle \sum _{s_i\in S\_urgent}}{s}_i\right)/\left|S\_urgent\right|\\ s_i=\left\{\begin{array}{c}0,t_i^{finish}<D_i\\ 1,t_i^{finish}\ge D_i\end{array}\right.\end{array}(10)$

where S_u is the set of urgent services requests, and |S_u| is the number the urgent services.

4 SGS scheduling strategy for ECA

In this section, the specific scheduling algorithms are presented based on the proposed framework.

4.1 Microservice prioritizing

Microservice prioritizing generates the priority of each microservice using a rank value, which is used to determine the execution order of microservices. The pseudo-code of the proposed microservice prioritizing method is shown in Algorithm 1, which mainly includes the following three steps.

Step 1. Calculate the average execution time and average communication time of a microservice v_i^j according to Eq. 1 and Eq. 2, respectively.

Step 2. Calculate the critical path length for the microservice. The critical path length for microservice is computed by:

$cp\left(v_i^j\right)=w_j+\underset{v_k\in succ\left(v_i^j\right)}{\max }\left(c_{i,k}+cp\left(v_k\right)\right)(11)$

Step 3. Calculate the rank value of each microservice. The rank for a microservice v_i^j is computed by:

$rank\left(v_j^i\right)=\frac{cp\left(v_j^i\right)}{cp\left(v_{\text{entry}}^i\right)}/\left({\stackrel{\sim }{I}}^i+{\stackrel{\sim }{Q}}^i\right)(12)$

where the $v_{\text{entry}}^i$ is the entry node of the service i, and it is defined as the critical path of the service i; ${\stackrel{\sim }{I}}^i$ and ${\stackrel{\sim }{Q}}^i$ represents the normalized value of importance of service i, and the normalized value of deadline of the service i.

${\stackrel{\sim }{I}}_i=\frac{I_i-\underset{i\in I}{\min }\left\{I_i\right\}}{\underset{i\in I}{\max }\left\{I_i\right\}-\underset{i\in I}{\min }\left\{I_i\right\}}(13)$

${\stackrel{\sim }{Q}}_i=\frac{Q_i-\underset{i\in I}{\min }\left\{Q_i\right\}}{\underset{i\in I}{\max }\left\{Q_i\right\}-\underset{i\in I}{\min }\left\{Q_i\right\}}(14)$

Algorithm 1.Smart grid microservices prioritizing.

 1: For each SGS deployed in ECA do

  2: calculate the CP of the DAG of the SGS

  3: For each microservice in the DAG do

   4: calculate its average execution time according to Eq. (4)

   5: calculate its average communication time according to Eq. (5)

   6: calculate the CP of the microservice according to Eq. (11)

   7: calculate the rank value of the microservice according to Eq. (12)

  8: End for

 9: End for

 10: Output the rank value for each microservice

4.2 Insertion-based core selection

The insertion-based core selection method can insert a microservice into the earliest idle time slot between two microservices already scheduled on the same processing core. The execution time of the being scheduled microservice is less than or equal to the idle time slot, and its earliest execution finish time is less than or equal to the end time of the idle time slot.

The process for inserting microservice $v_i^j$ into an idle time slot on proper processing core is shown in Algorithm 2, where the $EST\left(v_{bottom,r}\right)$ represents the last microservice in the scheduling list of core p_r, the $EFT\left(v_{bottom-1,r}\right)$ represents the second last microservice in the scheduling list of core p_r.

Algorithm 2.Insertion policy-based processing core selection algorithm.

 1: for each processing core of ECA do

  2: while PQr (the scheduling list of processing core r) ≠ ∅ and $EST\left(v_{bottom,r}\right)$ > $\left(\underset{v_i^k\in pred\left(v_i^j\right)}{\max }\left(\text{EFT}\left(v_i^k,p_l\right)\right)+{\mathrm{c}}_{k,j,l,r}\right)$ do

   3: if $w_{j,r}^i\le EST\left(v_{bottom,r}\right)-EFT\left(v_{bottom-1,r}\right)$and $EFT\left(v_{bottom-1,r}\right)\ge \underset{v_k^i\in pred\left(v_j^i\right)}{\max }\left(\text{EFT}\left(v_k^i,p_l\right)+{\mathrm{c}}_{k,j,l,r}\right)$ then

   4: $available\left(v_j^i,p_r\right)$ = $EFT\left(v_{bottom-1,r}\right)$

   5: else if $EFT\left(v_{bottom-1,r}\right)<\underset{v_k^i\in pred\left(v_j^i\right)}{\max }\left(\text{EFT}\left(v_k^i,p_l\right)+{\mathrm{c}}_{k,j,l,r}\right)$and $w_{j,r}^i\le EST\left(v_{bottom,r}\right)-\underset{v_k^i\in pred\left(v_j^i\right)}{\max }\left(\text{EFT}\left(v_k^i,p_l\right)+{\mathrm{c}}_{k,j,l,r}\right)$ then

   6: $available\left(v_j^i,p_r\right)$ = $\underset{v_k^i\in pred\left(v_j^i\right)}{\max }\left(\text{EFT}\left(v_k^i,p_l\right)+{\mathrm{c}}_{k,j,l,r}\right)$

   7: remove the last microservice from the PQ_r.

   8: end if

   9: end while

  10: $EST\left(v_j^i,p_r\right)=\max \left(available\left(v_j^i,p_r\right),\underset{v_k^i\in pred\left(v_j^i\right)}{\max }\left(\text{EFT}\left(v_k^i,p_l\right)+{\mathrm{c}}_{k,j,l,r}\right)\right)$

  11: $EFT\left(v_i^j,p_r\right)=w_{i,r}^j+EFT\left({\mathrm{v}}_{i,r}^j\right)$

 12: end for

 13: if there are same EFT on different processing cores for microservice $v_j^i$

 14: insert it into the core which has the minimal execution time

 15: else

 16: insert it into the core which has the minimal EFT

 17: end if

4.3 SGS scheduling strategy considering the scheduling unit dividing and emergency mechanisms

There are still two scenarios that we have to consider. One is in the high concurrency scenario, how to balance the processing delay demand between the service, which has an earlier arrival time and low importance, and the service, which has a later arrival time and high importance. The other is how to meet the urgent services’ response time demand, which must be completed before the deadline in the emergency state of the smart grid. In response to the above issues, we design the scheduling unit dividing and emergency mechanism, respectively, which have been introduced in the above-proposed microservice scheduling framework for ECA in Section 1, and integrated them into the scheduling strategy. The pseudo-code of the SGSs scheduling algorithm is shown in Algorithm 3. The emergency mechanism program has preset the processing core allocation results of the microservices for the services in an emergency state, and its processing core allocation results can be determined by Algorithm 2.

Algorithm 3.SGSs scheduling strategy for ECA

 1: While true do

  2: if the MQMM detects an urgent service request then

  3: stop the currently executing microservice, and execute the established scheduling plan for the urgent services.

  4: continue

  5: end if

  6: While SGS request queue Q is not empty

  7: calculate the length of the SGS request queue |Q|.

  8: if |Q| ≥ ε then//where ε is the threshold for scheduling unit dividing, and it is equal to the SUL then

  9: divide the service requests into multiple scheduling units

  10: sort the service microservices within each scheduling unit in order of rank and move them to the microservice unscheduled list

  11: else

  12: sort the service microservices within services request queue in order of rank and move them to the microservice unscheduled list

  13: end if

  14: end while

  15: While unscheduled list is not empty do

  16: remove the first microservice at the unscheduled list and schedule the microservice to a processing core by the Algorithm 2

  17: end while

 18: end while

5 Simulation

This section reports the numerical simulation result of the proposed strategy. All programs are implemented by Matlab and executed on an HP workstation.

5.1 Simulation background

Some typical SGSs in a smart distribution transformer area (Cen et al., 2022) are chosen to deploy in the ECA with four heterogeneous processing cores. The parameters of the SGSs are shown in Table 1. The service DAG structure information is represented by an adjacency matrix. The execution times on the four processing cores are represented by a vector, where the symbol ‘∞’ indicates the microservice cannot execute in the core. SGS importance is given based on expert experience and divided into five levels from 1 (high) to 5 (low). Because the workload of microservice is difficult obtained accurately, the execution time of microservices on the different processing cores can be obtained by using an application profiler (Sahni et al., 2021) or using the statistics from multiple runs (Bochenina et al., 2016). Due to the low data transfer volume between microservices and the very high transmission rate between processing cores, the communication time is much shorter than the computation time, so communication time is ignored in the simulation. We assume all the kinds of SGSs have the same arrival probability. The number of concurrent service requests is set within the range [10–80], where the proportion of urgent service requests is set to 10%. Considering the service requests arrive at random, we repeat the experiment 100 times for each concurrency situation and take the average value as the simulation result to ensure the effectiveness of the simulation results.

TABLE 1

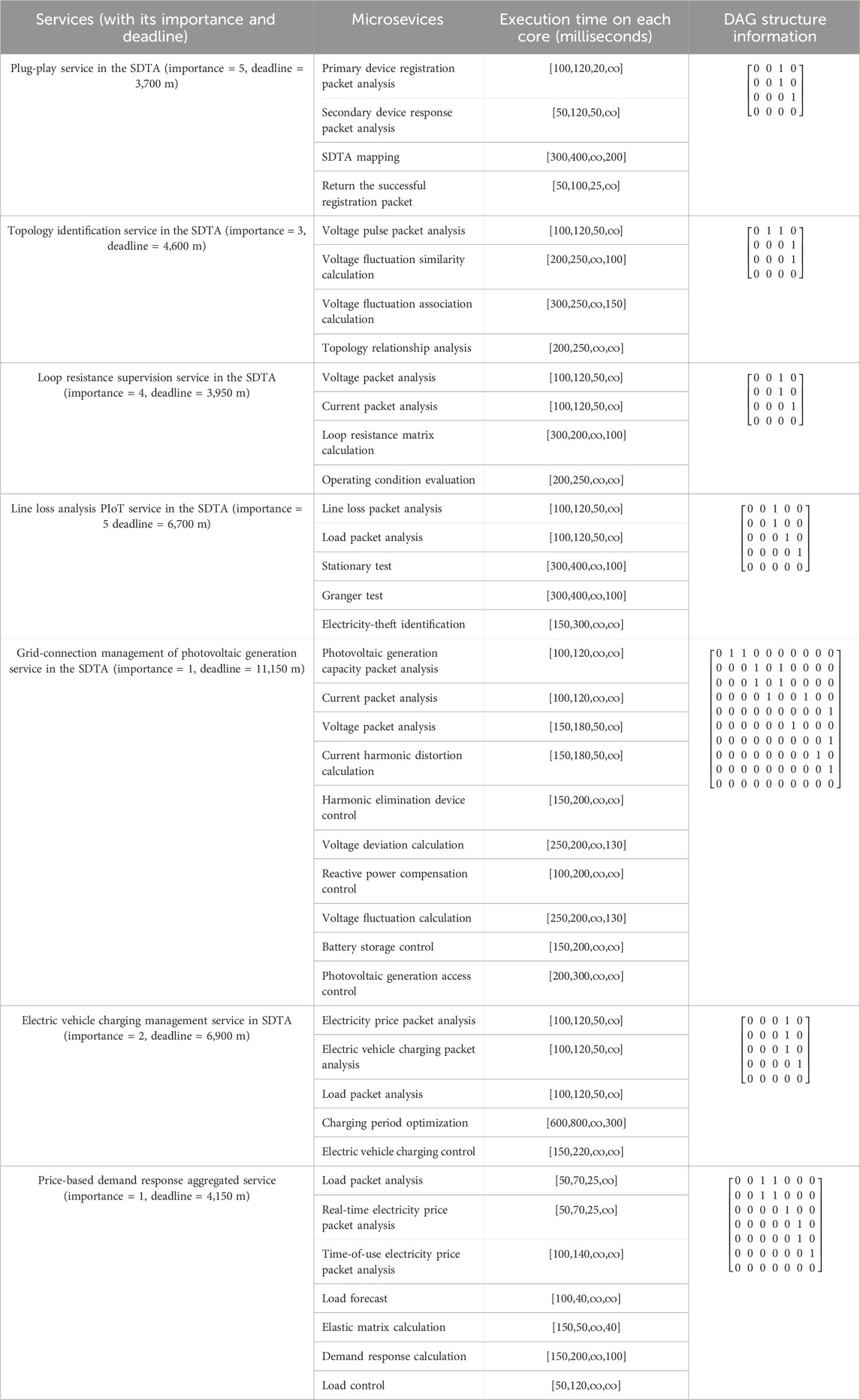

TABLE 1. Parameters of the SGSs.

5.2 Performance evaluation

Some benchmark solutions based on the ideas of solutions in existing works are developed to compare the performance.

(1) Improved Heterogeneous Earliest Finish Time (HEFT)-based strategy(S1): The strategy first integrates all the services DAG into a big DAG by adding a virtual common zero entry node and a virtual common zero exit node, and then the integrated DAG uses the HEFT algorithm, which selects the microservice with the highest upward or lowest downward rank and then assign the tasks to the core, which can minimize its earliest finish time. Figure 2 illustrates the integration of multi DAGs.

(2) Importance-based scheduling strategy (S2): The strategy first sorts service requests based on arrival time and then executes each service in sequence based on the HEFT algorithm.

(3) First Come First Serve-based scheduling strategy (S3): this strategy is similar to S2, but it first sorts the service requests based on importance.

FIGURE 2

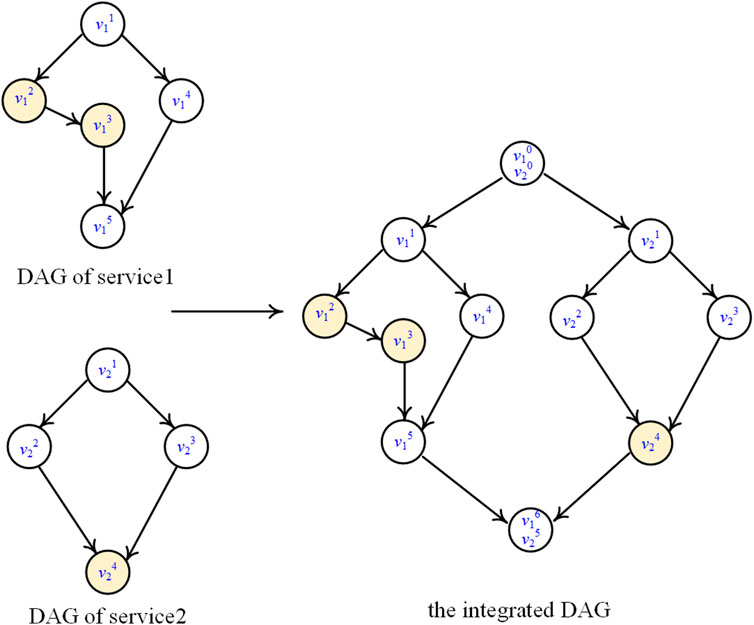

FIGURE 2. The illustration for multi-services integration.

For the proposed scheduling strategy, the trigger threshold of the SUDM is set to 20, and the scheduling unit length (SUL) is set to 10. The performance comparison result of these scheduling strategies under different concurrent service requests is shown in Figure 3.

FIGURE 3

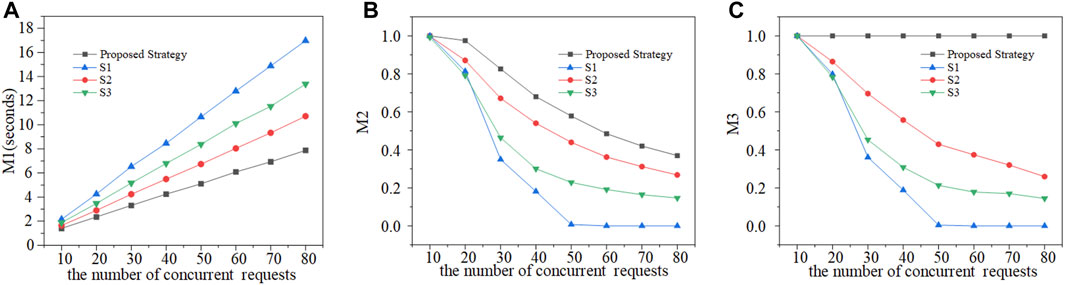

FIGURE 3. Effect of changing the number of concurrent requests (A) on M1, (B) on M2 for different strategy, and (C) on M3.

Figure 3A shows the calculation results of M1 under different numbers of concurrent requests n for these scheduling strategies. It can be seen that the proposed strategy obtains better average response time in all situations. As the number of service requests increases, the advantages of the proposed strategy become more apparent. Compared with S1, S2, and S3, the proposed strategy reduces the average response time by approximately 14.5%, 34.8%, and 25.4% at n = 10, respectively, and the decrease reached 26.5%, 53.6%, and 41.2% at n = 80. For the S2, all microservices of different services are mixed to schedule. Thus, the microservice at the exit node always requires more time to be scheduled. Consequently, it has the worst performance on M1. The services are scheduled one by one in the strategies S1 and S2. In strategy S1, the services are scheduled according to their arrival time. Thus, the early arrival service can be scheduled and finished in time. However, in strategy S3, the services are scheduled according to their importance value. Thus, it will lead to a larger response time for the early arrival service when services arrive later but have higher importance. Especially when the execution time of the services is long, the performance will worsen.

Figure 3B shows the calculation results of M2 under different concurrent service requests for these scheduling strategies. The performance of the proposed strategy is better than other strategies in all concurrent situations. When the number of concurrent requests is low, i.e., n = 10, all the strategies can complete the services before their deadlines. As the concurrent requests increase, the M2 gradually decreases in all the strategies. The S1 has the worst performance on M2 because of its bad performance on average response time, and M2 has already decreased to zero at n = 50. Thus, it is not easy to apply to high-concurrency scenarios in a smart grid.

Figure 3C shows the calculation results of M3 under different concurrent service requests for these scheduling strategies. The proposed scheduling strategy can complete the urgent services before their deadlines in all concurrent situations due to the emergency mechanism, while the other strategies achieved similar performance as M2. Considering the demand for urgent service requests and high concurrency scenarios in the smart grid, emergency mechanisms in the SGS scheduling strategy are necessary.

5.3 Influence analysis of the parameter SUL

This section conducts a simulation analysis for the effect of the SUL and assesses the effectiveness of SUDM. We set the maximum number of concurrent service requests to 80 and set eight experiment groups at intervals of 10 within [10, 80], where the case of SUL = 80 represents the case without considering SUDM. Regardless of the value of SUL, urgent services are always completed before the deadline due to the emergency mechanism, so the urgent service were ignored to avoid interference with the simulation results.

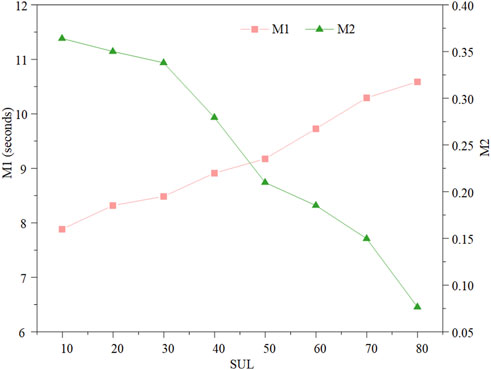

Figure 4 shows the performance evaluation results under different SUL. It can be seen that the proposed method also improves the performance to some extent. Overall, better M1 and M2 will be achieved as the SUL decreases. Compared with the case without considering the SMDA, M1 decreases by approximately 31.4% under the case of SUL = 10. The change in M2 is relatively small before the length of the SUL is less than 40, and the degree of change in M2 increases sharply and nonlinearly. M2 increases by approximately 76.1% under the case of SUL = 10.

FIGURE 4

FIGURE 4. Effect of changing SUL on M1 and M2.

Figures 5, 6 show the performance results for services with different importance. It can be seen that the SUDM can effectively balance the performance of services with different levels of importance. Compared with the case without considering the SMDA, the services with low importance can reduce their average response time, as shown in Figure 5, and increase the rate of meeting deadlines, as shown in Figure 6. For example, the services with the lowest importance have a 51.1% reduction in M1 compared to without using SMDA. However, the services with the highest importance have a 17.1% reduction in M1 simultaneously. As for M2, all services achieved varying degrees of improvement compared to not using SMDA. It should be noted that a lower average response time only sometimes means a higher on-time completion rate because some overtime services are completed close to the deadline.

FIGURE 5

FIGURE 5. Effect of changing SUL on M1 for the SGSs with different importance.

FIGURE 6

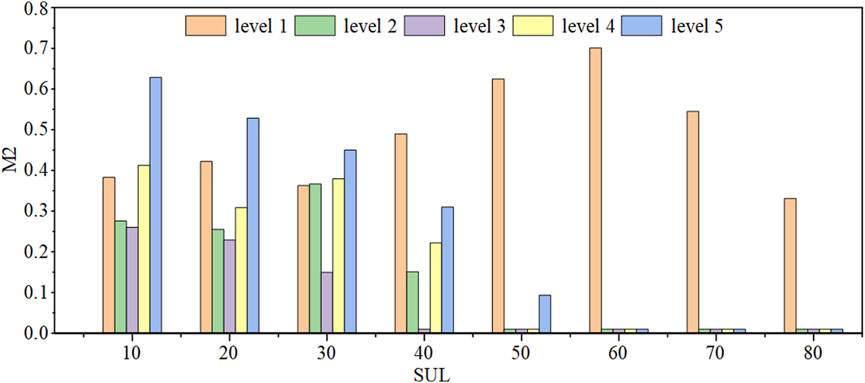

FIGURE 6. Effect of changing SUL on M2 for the SGSs with different importance.

5.4 Performance comparison with the homogeneous multi-cores ECA

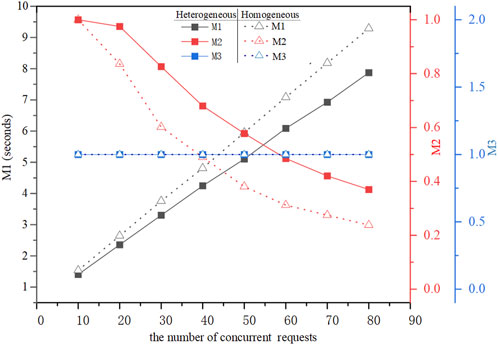

This section conducts a simulation analysis for the performance comparison with the homogeneous multi-cores ECA. In the simulation, the homogeneous multi-cores ECA have the same number of cores as the heterogeneous multi-cores ECA, but all the processing cores are set to type 1, whose execution time corresponds to the first element in the vector in the third column of Table 1. The performance comparison result is shown in Figure 7. At the low concurrent requests situation, such as n = 10, the two kinds of ECAs have similar performance in M1 and M2. As the concurrent requests increase, the heterogeneous multi-cores ECA has achieved better performance due to its dedicated core’s advantages in differentiated computation ability for different SGSs, and it leads up to 1 and 2 improvements in M1 and M2, respectively, at n = 80. In addition, the performance result of M3 shows that both can complete the urgent services before the deadline under all the concurrent situations due to the emergency mechanism.

FIGURE 7

FIGURE 7. Performance comparison result.

6 Conclusion

In this article, we have proposed an SGS scheduling strategy for ECA in smart grids. A microservice scheduling framework was presented to meet the demand for microservice-based SGS processing in the smart grid. Considering the SGS scheduling attributes of deadline and importance, a microservice prioritizing method was designed, and then the insert-based policy was utilized to schedule the microservice to the cores for efficient utilization of ECA’s computing resources. Two novel mechanisms, SUDM and EPM, were presented to deal with urgent services under abnormal smart grid conditions and balance the performance of SGS with different importance, respectively. Extensive simulation experiments have demonstrated that the proposed strategy can effectively solve the SGS scheduling problem for the ECA. Compared with other benchmark solutions, the proposed strategy can effectively reduce the average response time of services, improve the on-time completion rate, and guarantee the completion of urgent services before the deadline.

The work of this article aims to fill the related research gap in smart grids and promote the development of the ECA in the smart grid. In future work, we will further study the SGS offloading strategy to meet the quality of service demand for resource-constrained ECA by offloading microservices to the cloud center or other ECAs in smart grids.
