Multiphysics analysis of a metal hydride moderated megawatt heat pipe reactor with burnable poisons

With the development of nuclear energy, microreactors have received increasing interest among researchers in recent years. In this paper, a megawatt heat pipe reactor with metal hydride moderators and burnable poisons is proposed. The hydrogen stability of the reactor under accident conditions, including reactivity insertion accidents, loss of power conversion unit heat sink accidents, and heat pipe failure accidents are analyzed. In this work, Gd₂O₃ is introduced as a burnable poison in the form of mixing with the UO₂ fuel. According to the results of the burnable poison design, the 0.1% mass fraction of Gd₂O₃ is selected as the burnable poison loaded in the core. Safety analysis indicates that the introduction of burnable poisons can be beneficial during the positive reactivity insertion accident as it can reduce the excessive reactivity at BOL, thus reducing power peak and preventing hydrogen dissociation in ZrH_1.4 rods. However, during the loss of PCU heat sink accident, ZrH_1.4 rods will dissociate regardless of the presence of burnable poisons, whereas YH_1.7 rods show better hydrogen stability. Moreover, in the event of the heat pipe failure accident, ZrH_1.4 rods are more susceptible to dissociation than YH_1.7 rods. As a result, the YH_1.7+BP core is a better choice compared with other designs proposed in this paper as it provides a relatively high temperature margin.

1 Introduction

With the development of nuclear energy, micro reactors have received increasing interest among researchers in recent years. The main advantages of micro reactors are more flexibility in construction and deployment, better safety performance, and fewer operation requirements compared to large-scale nuclear power plants (Zohuri, 2020). Therefore, micro reactors have great application potential in the power supply of special scenarios, which is of great importance in developing revolutionary technology. Among the various micro reactor designs, Heat Pipe Reactors (HPRs) use heat pipe instead of the coolant circuit to export the heat out of the core (Yan et al., 2020). Compared with other reactor designs, HPRs have a simpler primary loop design with no flow system or flow auxiliary systems such as pumps and valves, which provide good mobility and plug-play availability. Moreover, HPRs possess inherent safety because of the passive heat conduction characteristics of the heat pipe (Mueller and Tsvetkov, 2021). Therefore, HPRs are considered to be an ideal choice for space power, deep-sea exploration, and power supply in remote regions (McClure et al., 2015; Maoioli, 2019).

Under the non-proliferation requirement of civilian terrestrial nuclear reactor applications, the low-enrichment uranium fuel challenges the achievement of the criticality of HPRs. The introduction of moderators is considered to be an ideal choice, and metal hydrides are the most popular moderator materials for HPRs at present. In our previous work, based on the OpenMC model of one-sixth of the MegaPower core (Guo et al., 2021), a moderated megawatt-class HPR core design has been proposed to increase the power density and reduce fuel loading, core volume, and weight (Feng et al., 2022). Other research has also evaluated the effectiveness of various moderator materials such as matrix graphite, yttrium hydride, and uranium-zirconium hydride (Li et al., 2022; Li et al., 2023; Wu et al., 2023).

However, the moderated core usually exhibits larger burnup reactivity loss and higher excessive reactivity at the beginning of the lifetime, which poses challenges to core safety. Furthermore, although the hydrogen stability of the moderator rods under normal conditions has been verified in our previous work, the hydrogen dissociation risk of metal hydrides under accident conditions has not been effectively assessed.

This paper will focus on addressing the large burnup reactivity loss problem by the application of burnable poisons (BP) and assessing the hydrogen stability of metal hydride under accident conditions. Boron, gadolinium, and erbium are the most common burnable poison materials used in thermal spectrum reactors (Evans et al., 2022). As for fast reactors, the designs combining low-enriched boron-based burnable poison and moderators are also investigated (Guo et al., 2020). These burnable poison materials will be assessed in this paper. As for the hydrogen dissociation risk problem, the temperature field variation during the transient process needs to be obtained to assess the hydrogen stability under accident conditions. The transient analysis of HPRs under accident conditions requires consideration of multiple physical fields (Agung et al., 2013; Ma et al., 2021b). Researchers have also proposed several multi-physics coupling analysis methods based on different platforms, such as RMC/ANSYS (Ma et al., 2021a; Ma et al., 2022), MOOSE (Matthews et al., 2021), and PRAGMA/OpenFOAM/ANLHTP (Im et al., 2023). In this work, a coupling method is developed based on OpenMC/ABAQUS with the point kinetic model to analyze the transient temperature response of the reactor under accident conditions, and the hydrogen stability of the moderator under accident conditions will be analyzed based on the temperature field and hydrogen dissociation criteria.

In this paper, Section 2 will describe the design of burnable poisons loaded in the moderated megawatt-class HPR core. Section 3 will discuss the safety characteristics of different designs during accident conditions, including reactivity insertion accidents, loss of power conversion unit (PCU) heat sink accidents, and heat pipe failure accidents. Finally, the conclusion and perspectives of this paper will be presented in Section 4.

2 Burnable poison design

2.1 BP design description

In our previous study, zirconium hydride was introduced as the moderator in the moderated core design (Mod. core) based on the reference MegaPower core (Ref. core). One-sixth of the Ref. core model consists of 204 potassium heat pipes and 352 fuel channels, containing 19.75 wt% enriched UO₂ fuel pellets (Mcclure et al., 2015). The Mod. core replaces all even rows of fuel rods, from inside to outside, with moderator rods, as shown in Figure 1. The ZrH_1.4 is chosen as the moderator in the Mod. core for analysis in this section. The open-source Monte Carlo neutron and photon transport simulation code OpenMC is chosen in this work to calculate the physical characteristics (Romano and Forget, 2013; Romano et al., 2015). The ENDF/B-VII.1 library is used as the cross-section library. The particles are set to 50,000. The batches are set to 500 with 50 inactive batches.

FIGURE 1

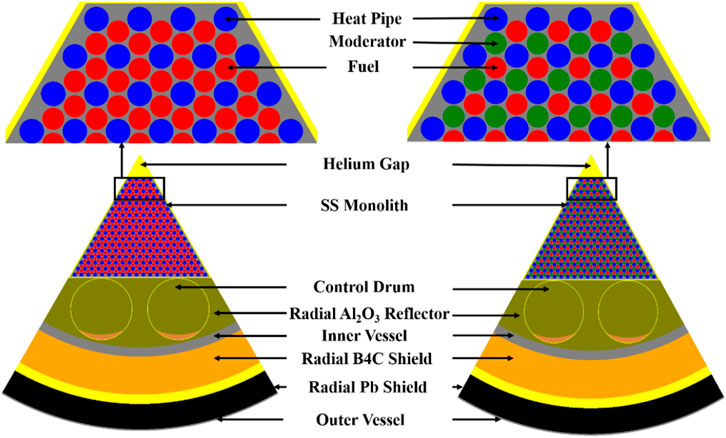

FIGURE 1. Radial layout of the Ref. core and the Mod. core (Feng et al., 2022).

As mentioned above, the introduction of metal hydrides can increase the power density and reduce the fuel loading as well as the core volume and weight. However, the burnup reactivity loss of the Ref. core and the Mod. core are separately −830 pcm and −4,052 pcm. A higher burnup reactivity loss and excessive reactivity at BOL pose significant safety challenges to the core. Therefore, the addition of BPs is a considerable option to compensate for the large burnup reactivity loss and excessive reactivity. In this section, 3 BP designs with different absorption materials are proposed. The core configuration of different designs are shown in Figure 2.

FIGURE 2

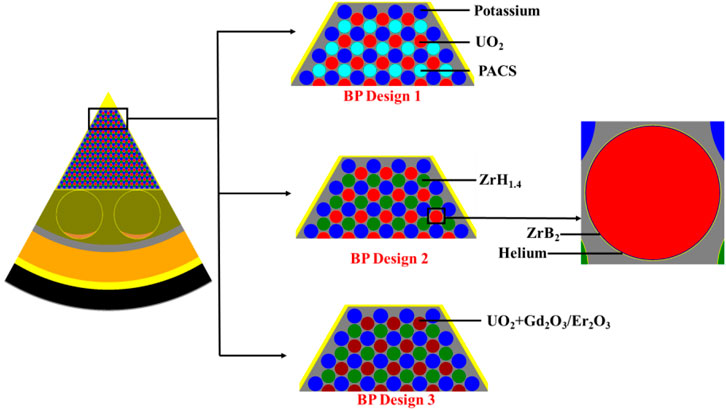

FIGURE 2. Radial layout of different BP designs.

Based on the Mod. core, the BP design 1 replaces all ZrH_1.4 rods with polycarboborane-siloxane-ethynyl (PACS) rods. PACS is a boron containing, high hydrogen polymer with strong thermal stability, being stable up to 1,000°C, and radiation resistance. The advantage of this design is that PACS rods can simultaneously serve as both moderator and BP, eliminating the need for additional design considerations. PACS-L is selected as the material of PACS rods, and the detailed composition of PACS-L can be seen from (Allen, 2003). A 0.1 mm ZrB₂ clad is coated on the surface of the fuel rods in the BP design 2 based on the Mod. core. Consequently, the radius of the fuel rods is reduced by 0.1 mm. As for the BP design 3, the discrete type BPs are used in the form of mixing with the UO₂ fuel. As the most common used discrete type BP materials, Gd₂O₃ and Er₂O₃ are seleted and will be assessed in the following section.

2.2 BP performance assessment

Two parameters were adopted to assess the performance of different materials: burnup reactivity loss and $k_{eff}^{EOL}$, which is the core effective multiplication factor at end of life (EOL). The design objective is to minimize the burnup reactivity loss while ensuring $k_{eff}^{EOL}$ is greater than 1. The calculations are conducted with 19.75 wt% enrichment of UO₂. The results are shown in Figure 3.

FIGURE 3

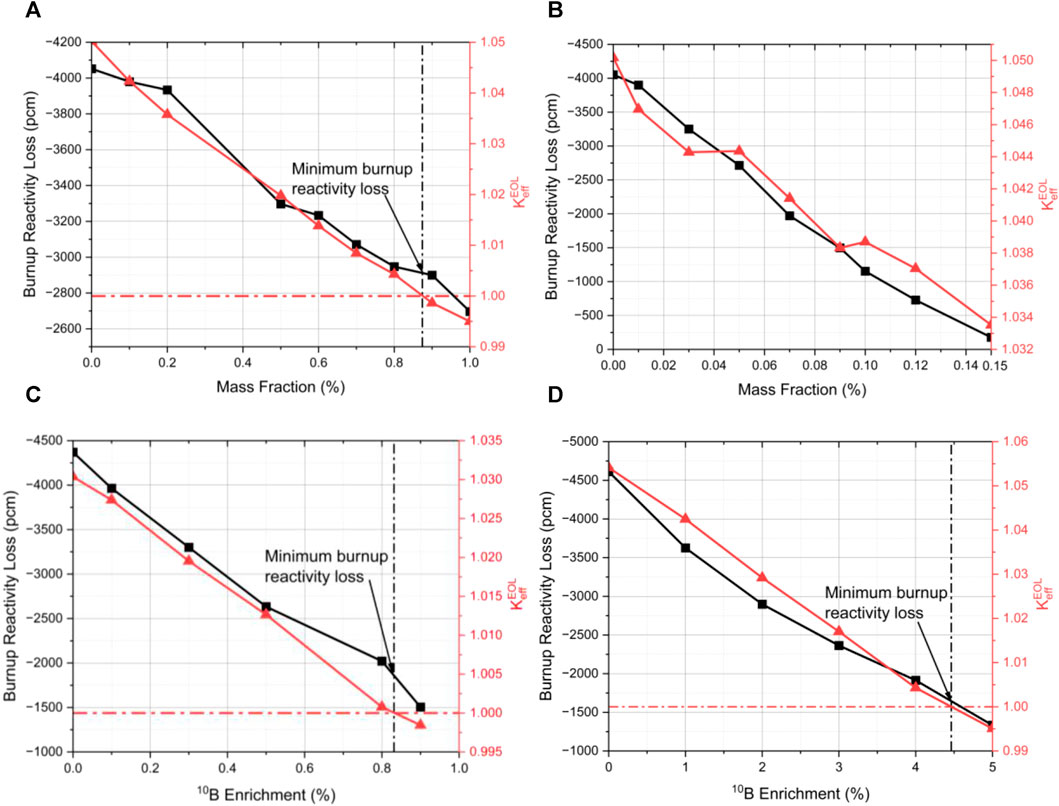

FIGURE 3. Evaluation of different burnable poison materials. (A) Er2O3. (B) Gd2O3. (C) PACS. (D) ZrB2.

It can be observed that the minimum burnup reactivity loss for Er₂O₃, PACS, and ZrB₂ are separately −2,900 pcm, −1850 pcm, and −1,650 pcm. While the three materials above can reduce the burnup reactivity loss, the effectiveness is limited. In contrast, Gd₂O₃ exhibits a better neutron absorption capacity, possessing lower burnup reactivity loss and higher $k_{eff}^{EOL}$. However, the excessive absorption capacity of Gd₂O₃ may lead to significant reactivity fluctuations or even increases during the lifetime. To determine a reasonable Gd₂O₃ mass fraction, the variation of K_eff with time under different mass fractions of Gd₂O₃ was calculated, and the results are shown in Figure 4. In Figure 4, the fuel enrichment under different Gd₂O₃ mass fractions is tuned to ensure the $k_{eff}^{EOL}$ equals 1. The tuned fuel enrichment for 0%, 0.05%, 0.1%, and 0.15% mass fractions of Gd₂O₃ are separately 16.2%, 16.6%, 16.9%, and 17.4%.

FIGURE 4

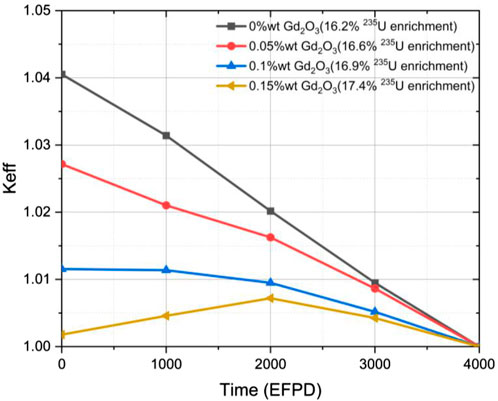

FIGURE 4. K_eff variation with time under different Gd₂O₃ mass fractions.

It can be seen that the 0.15% mass fraction of Gd₂O₃ exhibits the minimum burnup reactivity loss, but the K_eff increases with time in the early stage of the lifetime, which makes reactivity control more complex. In fact, The K_eff will begin to increase with time as long as the Gd₂O₃ mass fraction is larger than 0.1% according to our calculation. As a result, the 0.1% mass fraction of Gd₂O₃ is selected as the burnable poison loaded in the core in this work, reducing the burnup reactivity loss from −4,052 pcm to −1,154 pcm. It should be noted that the addition of 0.1% mass fraction of Gd₂O₃ has little impact on the thermal properties of fuel (Iwasaki et al., 2009). Therefore, the influence of BPs on temperature field is assumed to be negligible.

3 Safety analysis

To assess the performance of different moderators, the transient response of YH_1.7, which possesses a similar hydrogen atom density as ZrH_1.4, moderated core with BP is also included in the analysis. The geometry of the YH_1.7 core with BP is the same as the ZrH_1.4 core with BP, except that all ZrH_1.4 rods have been replaced with YH_1.7 rods. Also, the BP loaded in the YH_1.7 core is the 0.1% mass fraction of Gd₂O₃ mixed with fuel. The burnup reactivity loss of YH_1.7 core with BP is −1,259 pcm. This section will analyze the hydrogen stability characteristics of the Ref. core, the ZrH_1.4 moderated core without burnable poison (ZrH_1.4 core), the ZrH_1.4 moderated core with burnable poison (ZrH_1.4+BP core), and the YH_1.7 moderated core with burnable poison (YH_1.7+BP core) under accident conditions.

Based on the Phenomena Identification and Ranking Table (PIRT) of the MegaPower reactor published by LANL (Sterbentz et al., 2017), several important issues related to the transient behavior are selected as the basic transient process analyzed in this section.

3.1 Methodology

3.1.1 Neutronics model

The OpenMC model and the depletion mesh layout are presented in Figure 5, where each fuel rod is divided into 10 burnup zones in the axial direction. The reflective boundary condition is applied on the left and right surfaces of the model, while the vacuum boundary condition is applied on the surface of the outer stainless steel layer.

FIGURE 5

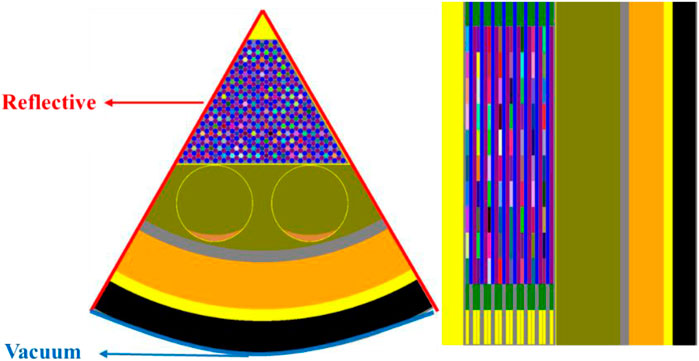

FIGURE 5. OpenMC depletion mesh layout.

A point neutron kinetic model is used to calculate the power change of the core during the transient process. The reactor is considered as a lumped parameter system without changes in the flux spatial distribution during the transient, and the initial flux spatial distribution is given by OpenMC. The point neutron kinetic equation with M groups delayed neutrons is described in Eq. (1) and Eq. (2):

$\frac{dN\left(t\right)}{dt}=\frac{\rho \left(t\right)-\beta }{\mathrm{\Lambda }}N\left(t\right)+{\displaystyle \sum _{i=1}^M}{\lambda }_i{C}_i\left(t\right)+Q,(1)$

$\frac{d{C}_i\left(t\right)}{dt}=\frac{{\beta }_i}{\mathrm{\Lambda }}N\left(t\right)-{\lambda }_i\left(t\right)i=1,2,\dots ,M,(2)$

where $N\left(t\right)$ is neutron flux, $C_i\left(t\right)$ is the concentration of the $i$ th group delayed neutron precursors, ${\beta }_i$ is the $i$ th group delayed neutron fraction, ${\lambda }_i$ is the decay constant of the $i$ th group delayed neutron precursors, $\mathrm{\Lambda }$ is the generation time of prompt neutrons.

In this work, a six-group delayed neutron structure is used in the calculation. And the six-group delayed neutron kinetic parameters of 4 different designs used in this equation are calculated using OpenMC. Moreover, in the reactivity feedback model, the reactivity feedback coefficients of 4 different designs are also calculated using OpenMC, and will be used to calculate the negative reactivity feedback. The reactivity feedback coefficients of 4 different designs are shown in Table 1.

TABLE 1

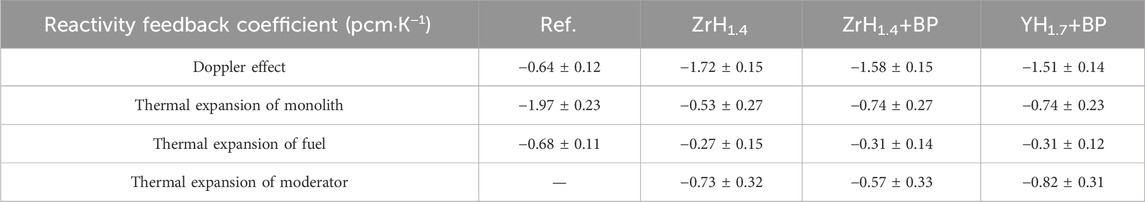

TABLE 1. The reactivity feedback coefficients of 4 cores.

3.1.2 Thermal model

The temperature field of the core is analyzed using the finite element software ABAQUS. For this purpose, one-sixth of the reactor core sectors and the heat pipes are explicitly modeled in this work. The ABAQUS model of the core is illustrated in Figure 6.

FIGURE 6

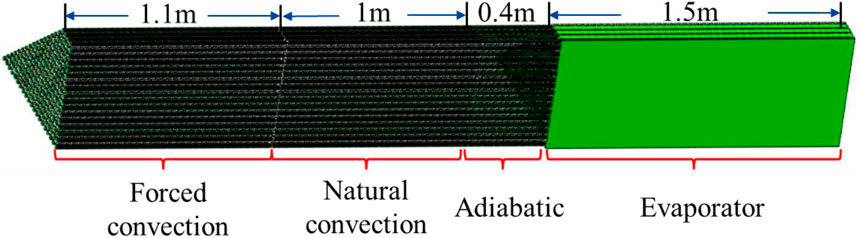

FIGURE 6. ABAQUS model of the core.

As for the heat pipes, heat pipes are high thermal conductance devices which transfer heat by two-phase fluid circulation. The heat pipes transfer the heat from the Then the vapor flows to the condenser section, where it condenses and releases its latent heat. The liquid is drawn back to the evaporator section by capillary action, where it is re-vaporized to continue the cycle (Zohuri, 2016). In the thermal model, heat pipes are divided into 4 sections in the axial direction, which are the evaporator section (1.5 m), adiabatic section (0.4 m), natural convection condenser section (1 m), and forced convection condenser section (1.1 m). The convective boundary condition is applied on the outer surface of each heat pipe wall to represent the secondary loop heat exchanger. Under normal conditions, the forced convection condenser section of the heat pipe is used to export the heat out of the core, while the natural convection condenser section is not activated.

In this work, the effective thermal resistance network model with the solid assumption is applied in the heat transfer model of heat pipes. This effective model is commonly used and validated in many researches (Liu et al., 2020; Ma et al., 2020; Wang et al., 2020; Liu et al., 2022). According to (Zuo and Faghri, 1998), the effective thermal conductivity coefficient of the wick region is written in Eq. (3):

$k=\frac{k_l+k_s-\left(1-\alpha \right)\left(k_l-k_s\right)}{k_l+k_s+\left(1-\alpha \right)\left(k_l-k_s\right)}{k}_l,(3)$

where $k_l$ is the thermal conductivity coefficient of the liquid working medium, $k_s$ is the thermal conductivity coefficient of the solid material of the wick, $\alpha$ is porosity of the wick.

According to (Lienhard IV and J.H.), the effective thermal conductivity coefficient of the vapor region is written in Eq. (4):

$\mathrm{\lambda }\left(t\right)=\frac{\pi d_v^4{\rho }^2\gamma }{128\mu T},(4)$

where $\rho$ is the density of the vapor working medium, $\gamma$ is the latent heat of the liquid working medium, $\mu$ is the dynamic viscosity of the vapor working medium.

At normal conditions, the secondary loop is considered to extract the heat of the core. According to the thermal equilibrium calculation under normal conditions, the convective heat transfer coefficient of the forced convection condenser section is $446W/m^2\bullet K$. The natural convection condenser section is considered to extract the core decay heat, which is 3% of the normal heat, so the convective heat transfer coefficient of the natural convection is $9W/m^2\bullet K$ according to the thermal equilibrium calculation.

3.1.3 Hydrogen dissociation criteria

The introduction of metal hydride moderator rods brings the risk of significant hydrogen dissociation during accident conditions. When the hydrogen dissociation occurs in the majority of moderator rods within the reactor, a large amount of combustible hydrogen gas will be released into the reactor core, and, if not effectively addressed, the accumulation could lead to an explosion.

Therefore, in design criteria, it is required that the simultaneous significant hydrogen dissociation in the majority of moderator rods should not occur. In our previous research (Feng et al., 2022), the variation of hydrogen atom density of zirconium hydride and yttrium hydride with temperature has been obtained from (Vetrano, 1971; Zuzek et al., 1990), which will be used in this work as hydrogen dissociation criteria during accident conditions to determine whether the moderator rods dissociate.

The variation of the hydrogen atom density of ZrH_1.4 and YH_1.7 with temperature is shown in Figure 7. It can be seen that the ZrH_1.4 rod begins to dissociate when the temperature reaches 1170 K. The YH_1.7 rod has a larger temperature margin and does not dissociate until the temperature reaches 1357 K.

FIGURE 7

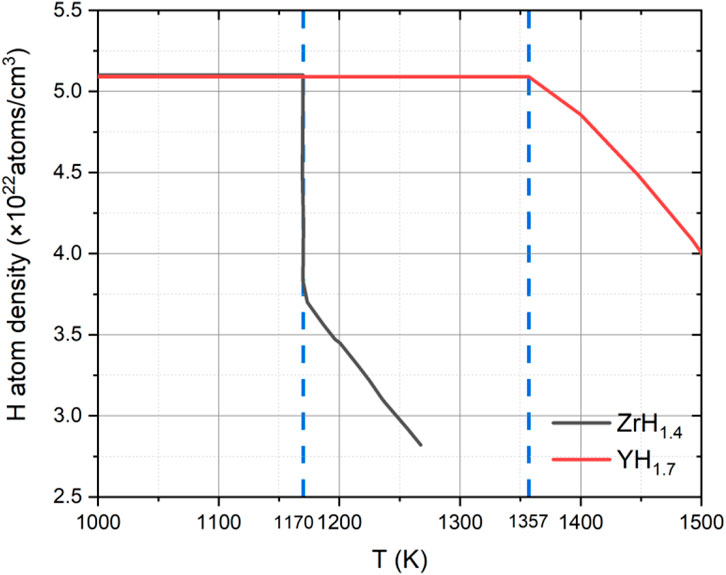

FIGURE 7. Hydrogen atom density variation of ZrH_1.4 and YH_1.7 with temperature.

The variation of the hydrogen atom density with temperature shown in Figure 7 Serves two purposes:

(i) As the basis for determining whether hydrogen dissociation occurs. If the maximum temperature of moderator rods exceeds the limitation, the core is considered not satisfying the hydrogen dissociation criteria. This is also the core objective of safety analysis in this paper.

(ii) Provides hydrogen density distribution for trend-based calculations of core changes after hydrogen dissociation. In the calculation after hydrogen dissociation occurs, it is assumed that the released hydrogen is removed from the core.

It should be noted that the released hydrogen distribution after dissociation in accident conditions is more complex than the simple hydrogen totally removed assumption. For example, the hydrogen diffusion, the hydrogen migration, and the permeation through the stainless steel of the monolith, etc., To obtain a more accurate depiction of core changes after hydrogen dissociation, a more refined model would be necessary.

After all, the primary focus of this paper remains on determining whether hydrogen dissociation occurs. As for the changes in the core after hydrogen dissociation, it merely provides a potential trend-based result based on the hydrogen totally removed assumption, as mentioned above.

3.1.4 OpenMC/ABAQUS coupling scheme

In this work, a coupling method is developed to integrate the OpenMC code and ABAQUS software with the point kinetic model, and reactivity feedback model to enable neutronic-thermal transient calculation. The schematic of the coupling method is shown in Figure 8.

FIGURE 8

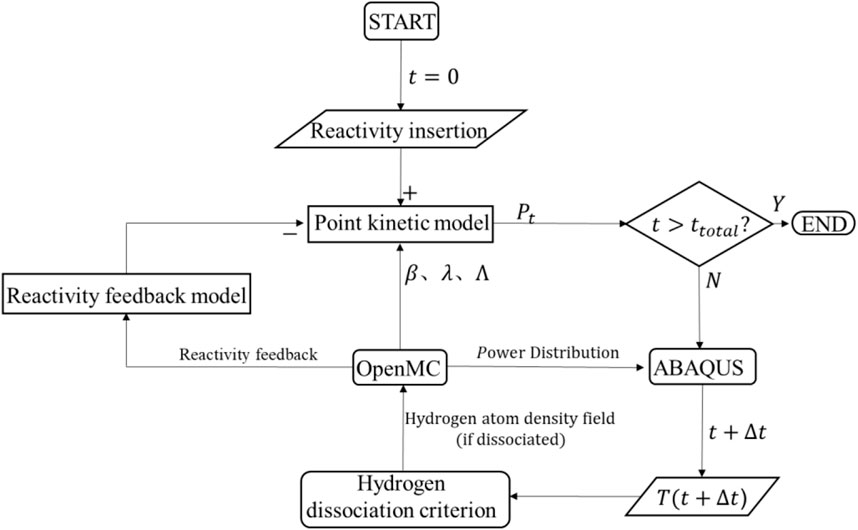

FIGURE 8. OpenMC/ABAQUS coupling scheme.

The calculation begins from the steady-state result under normal conditions. The point kinetic model is used to obtain the power change at each time step, taking into account external reactivity insertion and reactivity feedback. The temperature field at every time step is calculated by ABAQUS, and then this data is transported to the hydrogen dissociation criterion to determine whether the moderator rods dissociate and calculate the hydrogen atom density distribution in dissociated moderator rods, which will be transported to the OpenMC model at the next time step. The whole calculation and data exchange process is controlled by a Python script.

3.1.5 Safety criteria

UO₂ is adopted as fuel in all the core designs, and the melting point of UO₂ is 3120 K. Considering that the burnup effect will decrease the melting point, the temperature limitation of fuel is set to 2800 K. As for the monolith material, the melting point of 316 stainless steel is around 1600 K, so the temperature limitation of monolith is set to 1500 K with a temperature margin of 100 K. The temperature limitation of moderator rods are defined by hydrogen dissociation criteria, which is 1170 K and 1357 K separately for ZrH_1.4 and YH_1.7. The limitations are listed in Table 2.

TABLE 2

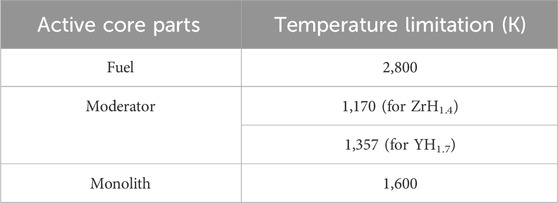

TABLE 2. Temperature limitation of fuel, moderator, and monolith.

3.2 Results and analysis

In this section, the transient response characteristics of the Ref. core, the ZrH_1.4 core, the ZrH_1.4+BP core, and the YH_1.7+BP core under accident conditions are calculated and analyzed. The focus of the analysis is the hydrogen stability of the moderator rods under accident conditions.

3.2.1 Positive reactivity insertion

Positive reactivity insertion due to accidental rotation of control drums is a basic accident of high importance in HPRs. In this work, the value of the reactivity insertion is considered to be the reactivity input caused by the accidental rotation of one single control drum at BOL. In this calculation, it is assumed that a single control drum rotates from the critical angle to the angle at which the absorber is completely away from the core.

As a result, the values of reactivity insertion in different core designs are decided by the excessive reactivity of different designs at BOL, and are shown in Table 3. The values of excessive reactivity of Ref., ZrH_1.4, ZrH_1.4+BP, and YH_1.7+BP cores at BOL are separately 830 pcm, 4,052 pcm, 1,154 pcm, and 1,259 pcm. A reactivity uncertainty of 350 pcm is considered in this calculation. There are 12 control drums in each core design, so the reactivity values of single control drum accidental rotation are separately 98 pcm, 367 pcm, 125 pcm, and 134 pcm in the 4 core designs, which will be input to point kinetic model as external reactivity insertion in the subsequent calculation.

TABLE 3

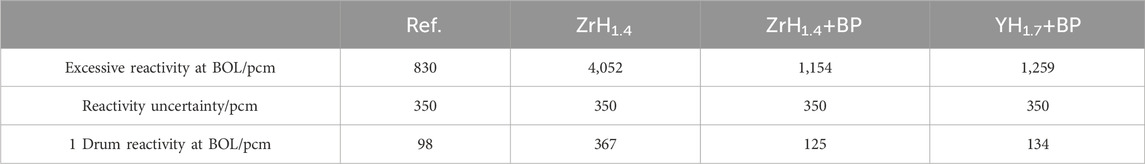

TABLE 3. Reactivity insertion values in different core designs.

The variation of the average and maximum fuel, moderator, and monolith temperature of different cores during the transient is shown in Figure 9. Compared with designs loaded with burnable poisons, the ZrH_1.4 core has a higher temperature peak during the accident. Moreover, the significant hydrogen occurs in the ZrH_1.4 core at 14 s after the transient occurs, which not occur in the ZrH_1.4+BP core and YH_1.7+BP core. So it can be concluded that the ZrH_1.4 core cannot satisfy the hydrogen dissociation criteria during the positive reactivity insertion accidents, while the introduction of burnable poisons can relieve this issue.

FIGURE 9

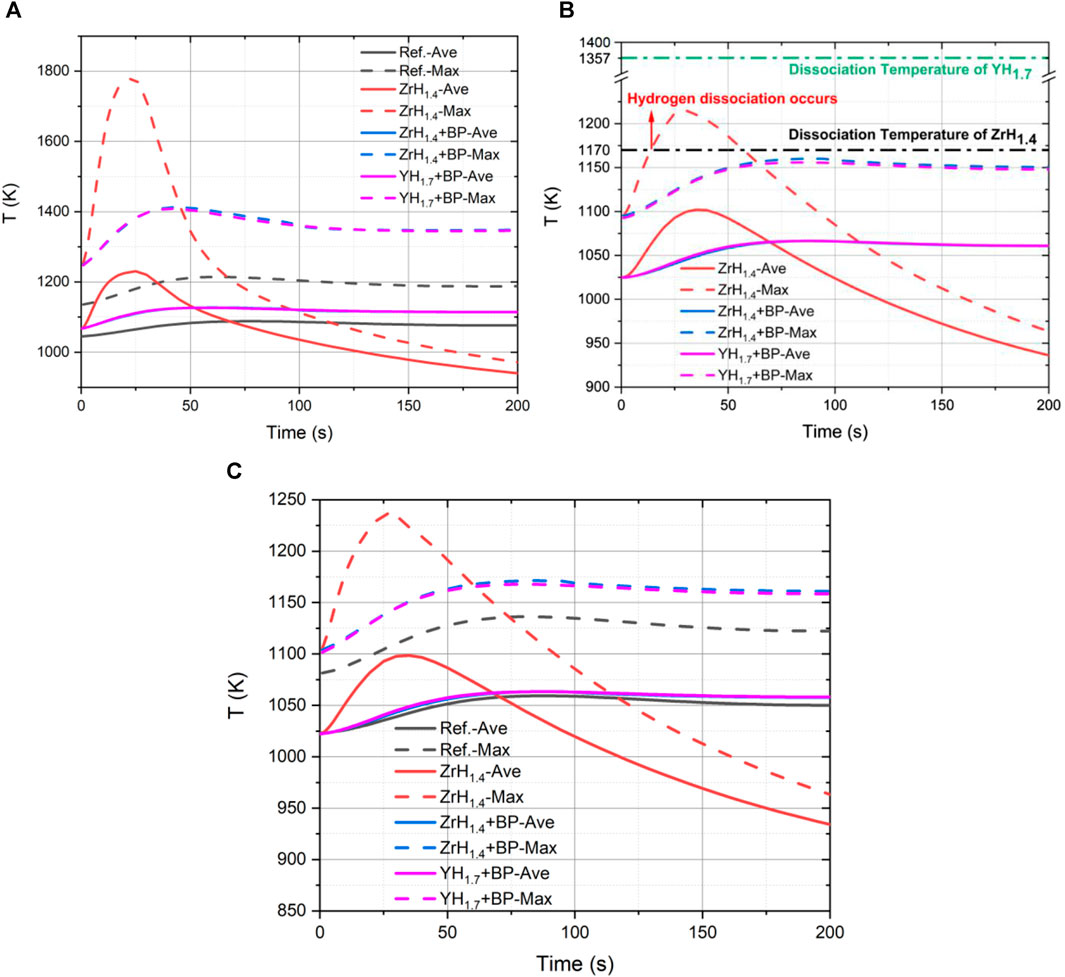

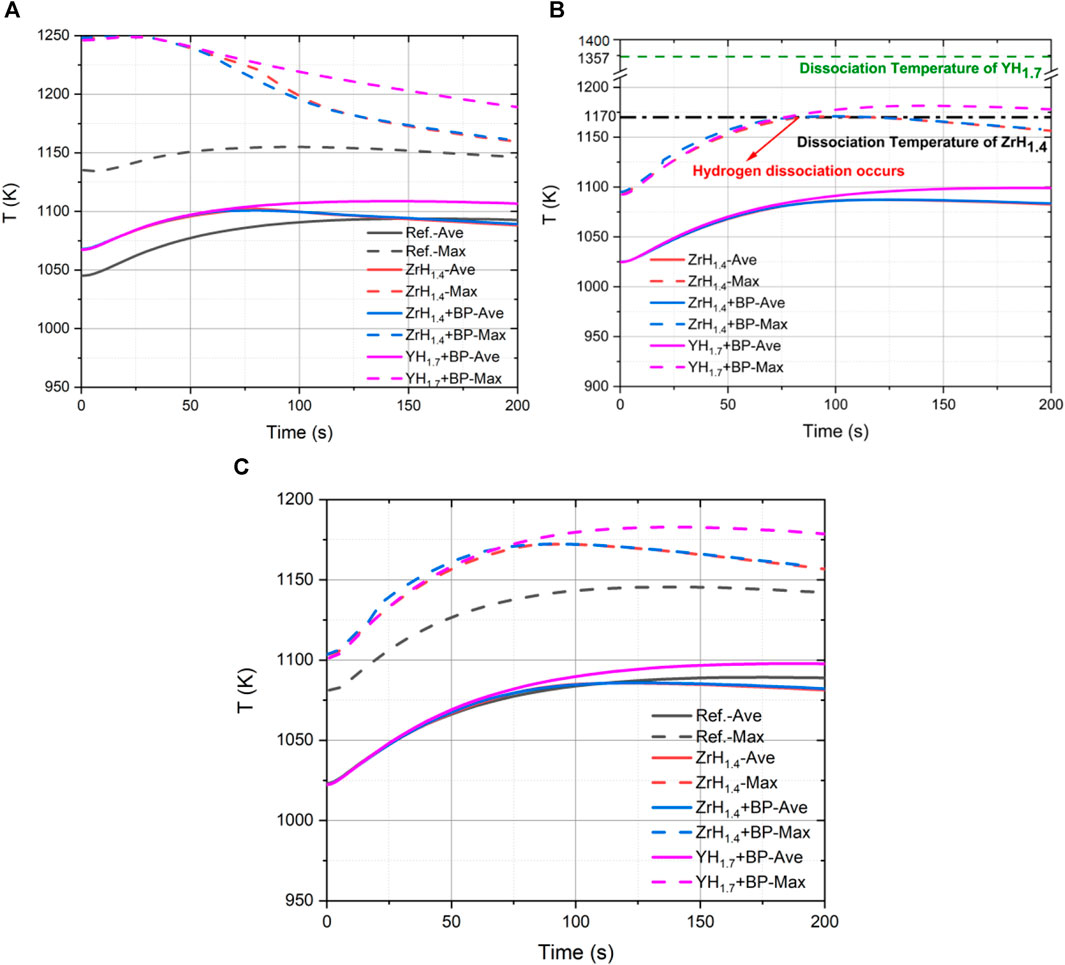

FIGURE 9. Temperature variation during positive reactivity insertion accidents. (A) Fuel temperature. (B) Moderator temperature. (C) Monolith temperature.

As for the other cores, the ZrH_1.4+BP core and YH_1.7+BP core exhibit similar trends in the average and maximum temperature during the accident, with the maximum temperature of 1410 K, 1160 K, and 1170 K separately for fuel, moderator, and monolith during the transient. Although the hydrogen dissociation does not occur in the ZrH_1.4+BP core, the safety margin for ZrH_1.4 is exceptionally slim, being less than 10 K. In contrast, YH_1.7 demonstrates a larger safety margin, making it a better choice.

Lastly, let’s examine the variation of the core temperature of the ZrH_1.4 core after hydrogen dissociation. Although these results are trend-based calculations under ideal conditions, the rapid decrease of core temperature also demonstrates the potential capability of rapid alleviation of accident consequences due to the negative reactivity feedback of hydrogen dissociation.

Figures 10, 11 display the relative power change and reactivity feedback of four different core designs during the positive reactivity insertion accident. As shown in Figure 10, the higher excessive reactivity in the ZrH_1.4 core leads to a higher power peak, which causes a higher core temperature and hydrogen dissociation. However, after the introduction of burnable poisons, the core exhibits power changes similar to those in the Ref. core, which shows better performance than the ZrH_1.4 core. As for the reactivity feedback shown in Figure 11, it can be seen that the monolith expansion is the primary reactivity feedback mechanism in the Ref. core, while the major reactivity feedback mechanism of the ZrH_1.4+BP core and YH_1.7+BP core is the Doppler effect of fuel instead of the monolith expansion.

FIGURE 10

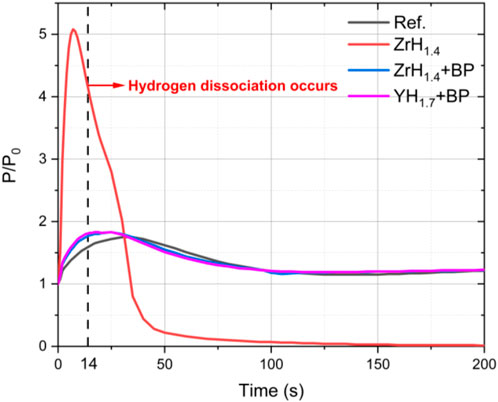

FIGURE 10. Relative power change during positive reactivity insertion accidents.

FIGURE 11

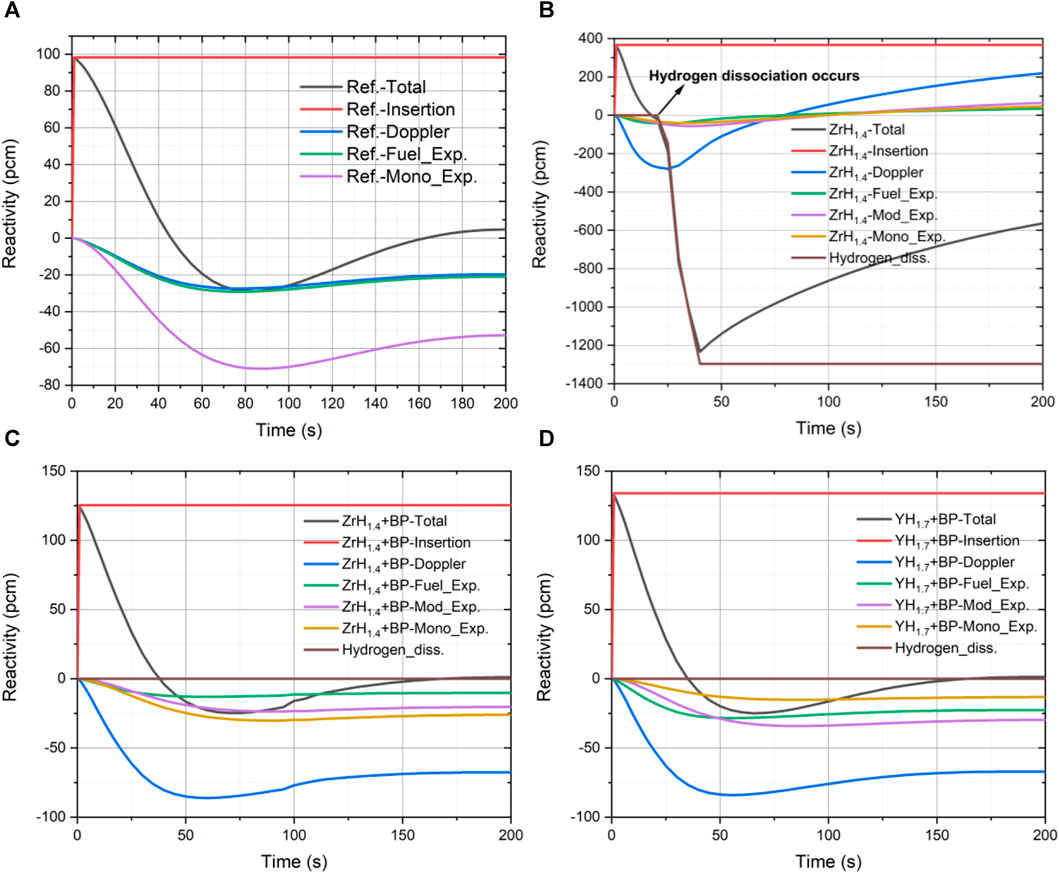

FIGURE 11. Temperature reactivity feedback variation during positive reactivity insertion accidents. (A) Ref. core. (B) ZrH1.4 core. (C) ZrH_1.4+BP core. (D) YH_1.7+BP core.

However, for the ZrH_1.4 core, The occurrence of hydrogen dissociation renders it in violation of safety criteria. Similarly, the reactivity feedback after hydrogen dissociation depicted in Figure 11 is a trend with the assumptions. However it is intriguing to note the significant negative reactivity feedback introduced by hydrogen dissociation under these conditions.

3.2.2 Loss of PCU heat sink

In this section, the hydrogen stability of different core designs during the loss of the PCU heat sink without safety system conditions is calculated. In this accident, the HPs continue to remove heat from the core, but the natural air convection cools HPs instead of the forced air convection. To simulate this condition, the convective boundary condition at the forced convection condenser section is removed in the thermal model, and the convective boundary condition at the natural convection condenser section is activated.

The variation of the average and maximum fuel, moderator, and monolith temperature of the core during the loss of PCU heat sink accidents is shown in Figure 12. It can be seen that the ZrH_1.4 will dissociate whether burnable poisons are introduced or not, while YH_1.7 still exhibits a substantial temperature margin, approximately 170 K. As a result, the ZrH_1.4 core and ZrH_1.4+BP core do not meet the hydrogen stability criteria during the loss of PCU heat sink accidents.

FIGURE 12

FIGURE 12. Temperature variation during loss of PCU heat sink accidents. (A) Fuel temperature. (B) Moderator temperature. (C) Monolith temperature.

Meanwhile, it is noteworthy to examine the variations in fuel temperature. In contrast to the continuous increase in maximum fuel temperature observed in the Ref. core, the maximum fuel temperature in other cores decreases during the transient. The primary cause of this phenomenon is the enhancement of fuel Doppler effects due to the moderation of the neutron spectrum.

The relative power change and reactivity feedback of different core designs during the loss of PCU heat sink accidents is shown in Figures 13, 14.

FIGURE 13

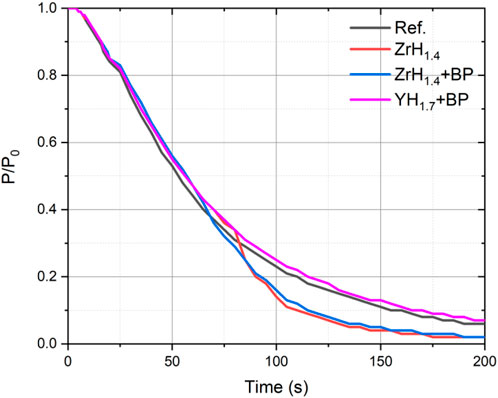

FIGURE 13. Relative power change during loss of PCU heat sink accidents.

FIGURE 14

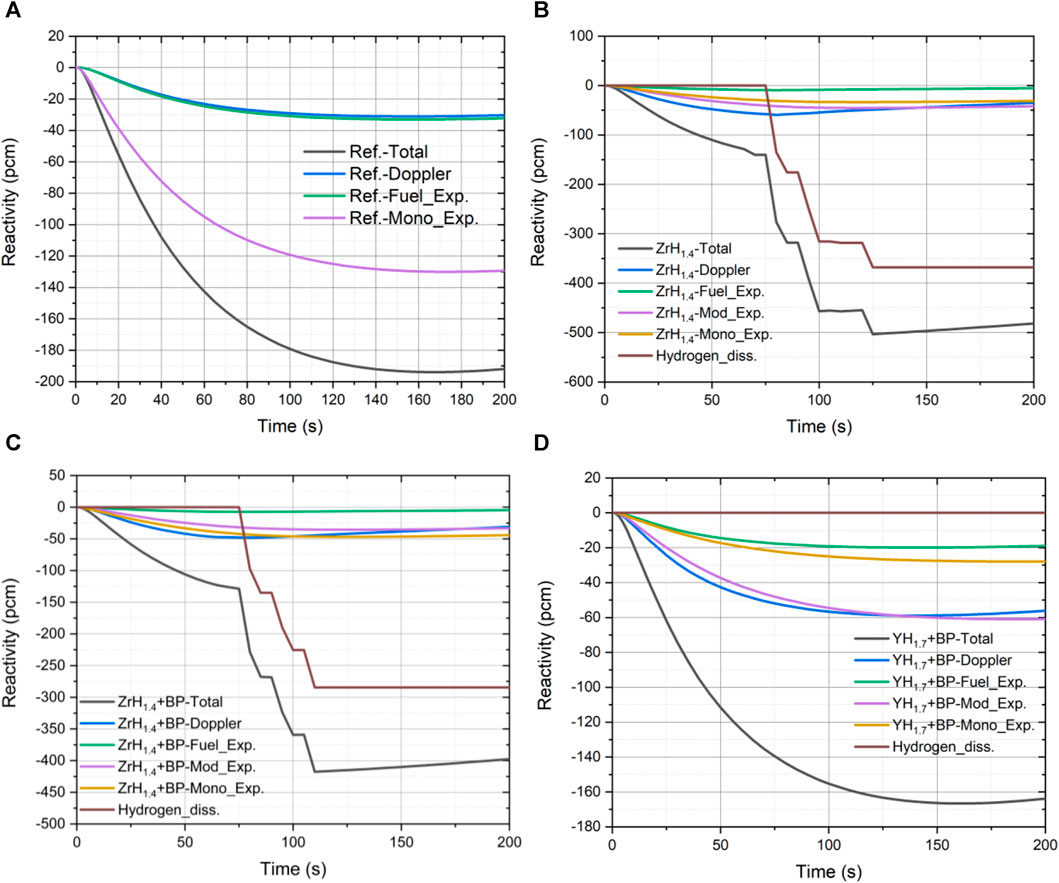

FIGURE 14. Temperature reactivity feedback variation during loss of PCU heat sink accidents. (A) Ref. core (B). ZrH1.4 core. (C) ZrH1.4+BP core. (D) YH1.7+BP core.

It can be seen that the relative power of all the cores decreases with time and decays to about 0 due to the negative reactivity feedback of the core. The loss of PCU heat sink accidents will lead to a core shutdown in all core designs. As for the reactivity feedback, the major reactivity feedback mechanism in the Ref. core is still the monolith expansion effect. For the ZrH_1.4 core and ZrH_1.4+BP core, hydrogen dissociation occurs in both cores at approximately 75 s after the transient happens. For the YH_1.7+BP core, it can be seen that although the YH_1.7+BP core possesses a higher core temperature during the transient process, hydrogen dissociation does not occur in the moderator rods. The main negative reactivity feedback comes from the Doppler effect of fuel rods and the moderator expansion effect.

In summary, under the loss of PCU heat sink accident, the hydrogen dissociation occurs in both the ZrH_1.4 core and ZrH_1.4+BP core, while the YH_1.7+BP core will not experience hydrogen dissociation and exhibit a larger temperature margin.

3.2.3 Heat pipe failure

The heat pipe failure accident is also one of the essential basic accidents in HPRs (Ma et al., 2020). In this calculation, the disabled heat pipe adjacent to the hottest fuel rod is removed from the thermal model, and the adiabatic boundary condition is applied to the surface of the heat pipe hole.

A steady-state calculation is conducted, and the maximum temperature of fuel rods, monolith, and moderator rods under different conditions are summarized in Table 4 to evaluate the hydrogen stability. Results show that under 1 heat pipe failure accident, the ZrH_1.4 core exhibits the highest temperature, and the hydrogen dissociation will not occur in moderator rods. However, under 2 heat pipes failure accident, the maximum temperature of ZrH_1.4 rods exceeds the critical temperature of hydrogen dissociation, while YH_1.7 rods will not dissociate. There are two cases in the event of 3 heat pipes failure accidents, namely the fuel-centered 3 heat pipes failure accident (case 1) and the moderator-centered 3 heat pipes failure accident (case 2). The results show that ZrH_1.4 rods will dissociate in both cases, while YH_1.7 rods will only dissociate in case 2. Figure 15 shows the temperature field of YH_1.7 core in three heat pipes failure accident (case 2). It can be seen that only the YH_1.7 rods in the center of three failed heat pipes exceeds the temperature limitation.

TABLE 4

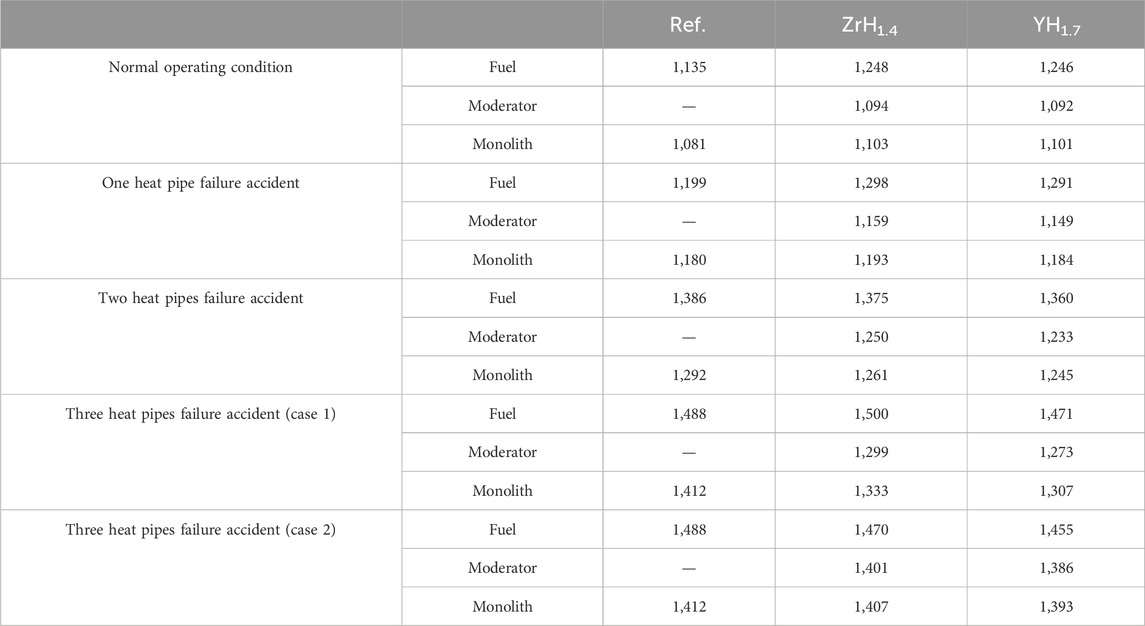

TABLE 4. The maximum core temperature under different conditions (unit: K).

FIGURE 15

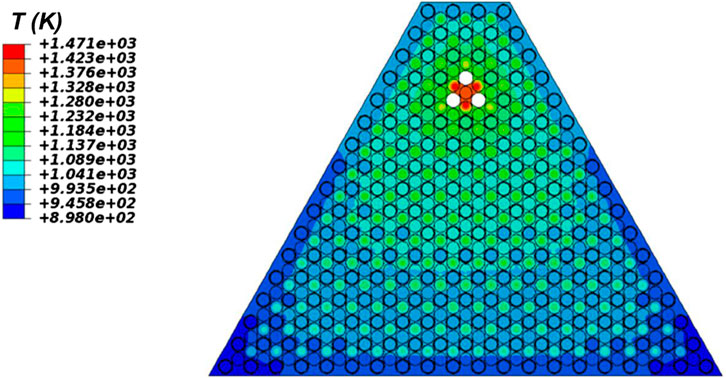

FIGURE 15. Temperature field of YH_1.7 core in three heat pipes failure accident (case 2).

3.2.4 Summary

In summary, the introduction of burnable poisons can be beneficial during the positive reactivity insertion accident as it can reduce the excessive reactivity at BOL, thus reducing core temperature and preventing hydrogen dissociation in ZrH_1.4 rods. However, during the loss of PCU heat sink accident, ZrH_1.4 rods will dissociate regardless of the presence of burnable poisons, whereas YH_1.7 rods show better hydrogen stability. Moreover, in the event of the heat pipe failure accident, ZrH_1.4 rods are more susceptible to dissociation than YH_1.7 rods.

4 Conclusion

HPRs exhibit good mobility, plug-play availability, and inherent safety. Therefore, HPRs are considered to be an ideal choice for space power, deep-sea exploration, and power supply in remote regions. Metal hydride moderated HPRs are good solutions for critical problem under the non-proliferation requirement. However, the larger burnup reactivity loss and hydrogen stability problems has not been effectively assessed.In this paper, a metal hydride moderated megawatt heat pipe reactor with burnable poisons is proposed, and the hydrogen stability is analyzed to assess the influence of moderator and burnable poisons. Gd₂O₃ is introduced as a burnable poison in the form of mixing with the UO₂ fuel. According to the results of the burnable poison design, the 0.1% mass fraction of Gd₂O₃ is selected as the burnable poison loaded in the core.

Safety analysis indicates that the introduction of burnable poisons can be beneficial during the positive reactivity insertion accident as it can reduce the excessive reactivity at BOL, thus reducing core temperature and preventing hydrogen dissociation in ZrH_1.4 rods. However, during the loss of PCU heat sink accident, ZrH_1.4 rods will dissociate regardless of the presence of burnable poisons, whereas YH_1.7 rods show better hydrogen stability. Moreover, in the event of the heat pipe failure accident, ZrH_1.4 rods are more susceptible to dissociation than YH_1.7 rods.

In conclusion, the introduction of burnable poisons is beneficial to reducing the core temperature and preventing moderator rods from hydrogen dissociation under the positive reactivity insertion accident. The YH_1.7+BP core is a better choice overall as it provides a relatively high temperature margin.

However, the neutron-thermal-mechanics coupling analysis in the dynamic analysis is also needed for deeper analysis, which will be concluded in our future work. Moreover, the preliminary trend-based calculations of hydrogen dissociation show a intriguing negative hydrogen dissociation reactivity feedback, potentially helping to mitigate the consequences of severe accidents under ideal conditions, which can be further researched with more refined hydrogen models.
