A control method for the single-phase three-leg unified power quality conditioner without a phase-locked loop

The single-phase three-leg unified power quality conditioner (UPQC) can achieve the functions of voltage compensation, reactive power compensation, and harmonic compensation. However, traditional control algorithms require a phase-locked loop to obtain the real-time phase angle of the grid voltage, which undoubtedly increases algorithm complexity. To simplify the phase-locked calculation, this paper proposes a control method without the phase-locked loop for the single-phase three-leg UPQC. In the proposed scheme, the instantaneous value of the grid voltage is employed to realize the grid integration control. Then, the load voltage reference is calculated in real time using a second-order generalized integrator. Moreover, a simple algorithm for reactive power and harmonic compensation is discussed, further simplifying the control algorithm. Finally, a small-scale experimental platform is built, and the effectiveness of the proposed method is verified by the experimental results.

1 Introduction

With the popularization of large-scale distributed renewable energy generation and the addition of disruptive and non-linear loads, the power quality of the grid side in distribution networks is facing severe challenges (Sun et al., 2013; He et al., 2015; Zhang et al., 2022a). Voltage fluctuations and harmonic problems, as the typical representatives of power quality issues, not only affect the safe and stable electricity consumption of power users but also add significant costs to power transmission and distribution (Moeini et al., 2018; He et al., 2020; Wang and Yang, 2023).

As a series-parallel hybrid power quality compensation device, the unified power quality conditioner (UPQC) is widely utilized to improve the power quality of the grid side. This equipment can address current-related power quality issues in distribution systems through its parallel compensation terminal (Lakshmi and Ganguly, 2019; Silva et al., 2020). Moreover, the voltage-related power quality issues can also be addressed through its series compensation terminal. Compared to the traditional isolated single-phase four-leg topology, the single-phase three-leg UPQC topology can eliminate the isolation transformer and reduce the number of legs for a low cost. Importantly, the lack of components does not compromise the effectiveness of power quality control. Therefore, this topology has gained widespread attention in recent years (Lu et al., 2016; Abdalaal and Ho, 2021).

In traditional control methods of the UPQC, the real-time phase angle of the grid voltage needs to be obtained through a phase-locked loop (PLL). First, the parallel compensation terminal requires the real-time phase angle of the grid voltage for grid integration (Cheng and Lee, 2006; He et al., 2019). Second, the series compensation terminal needs the real-time phase angle of the grid voltage to obtain an accurate compensation voltage reference (Srinivas et al., 2019). Moreover, the extraction of reactive current and harmonic current from the system also relies on the real-time phase angle of the grid voltage (Zhang et al., 2022b; Xia et al., 2022). However, the PLL not only increases the complexity of the control algorithm but also fails to respond promptly to phase variations in the grid voltage, leading to overcurrent issues in the compensation device (Mishra and Lal, 2022; Mohammed et al., 2023).

To overcome these previously discussed disadvantages, a control method without the PLL is proposed for the single-phase three-leg UPQC in this paper. Different from the traditional method, the proposed method utilizes the instantaneous value of the grid voltage for grid integration. Then, the real-time amplitude of the grid voltage is obtained through a second-order generalized integrator and the compensation voltage reference is calculated. Additionally, the proposed method uses the load current as a reference for the parallel inverter output, eliminating the need for the extraction of reactive current and harmonic currents. Then, the compensation of the reactive and harmonic power can be realized. The subsequent sections of this article analyze the proposed control method in the frequency domain using a coordinated control system. In addition, the feasibility and effectiveness of the proposed method through experiments is validated through the experimental results.

2 The proposed control method for the single-phase three-leg UPQC

2.1 The topology structure of the single-phase three-leg UPQC

This paper begins by providing a brief introduction to the topology of the single-phase three-leg UPQC. As shown in Figure 1, the parallel compensation port consists of leg a, leg b, and parallel interface filters (L_p1, L_p2, and C_p), while the series compensation port consists of leg b, leg c, and series interface filters (L_s and C_s). When the grid voltage V_g is not equal to the rated voltage V_N, the series compensation voltage V_sc will be provided through the series compensation port. As a result, the load voltage V_L can reach its rated value. Additionally, the series compensation port can compensate for the harmonic components of the grid voltage. The device also compensates for the harmonic currents generated by non-linear loads by providing the parallel compensation current I_pc through the parallel compensation terminal. Then, the grid current I_g can be sinusoidal. In addition, the reactive power component of the load current can be compensated through this single-phase three-leg UPQC. The two converters share a DC bus capacitor C_dc, and the DC bus voltage V_dc is controlled using a parallel compensator.

FIGURE 1

FIGURE 1. Diagram of the single-phase three-leg UPQC topology.

2.2 Parallel compensation control method

There are three control objectives for the parallel compensation terminal, including stabilizing the DC bus voltage, compensating for the load reactive current, and compensating for the load harmonic current. Therefore, the control strategy needs to be individually formulated around these three control objectives.

For the control of the DC bus voltage, first, the differential equation of the DC bus capacitor is derived as follows:

${\mathit{I}}_{\text{dc}}={\mathit{C}}_{\text{dc}}\frac{\mathit{d}{\mathit{V}}_{\text{dc}}}{\mathit{d}\mathit{t}},(1)$

where I_dc represents the current flowing into the DC bus. Therefore, the expression of the DC bus voltage can be obtained from Eq. (1)

${\mathit{V}}_{\text{dc}}=\frac{\mathbf{1}}{\mathit{s}{\mathit{C}}_{\text{dc}}}{\mathit{I}}_{\text{dc}}.(2)$

According to Kirchhoff’s current law, it can be known that I_dc = I_pc. However, the reactive component of I_pc only causes a ripple voltage at twice the frequency on the DC bus, while its active component I_pc,d plays a role in stabilizing the DC bus voltage. By designing a controller based on Eq. (2), the stability of the DC bus capacitor voltage can be achieved by controlling the active component I_pc,d of the parallel compensating current. The control strategy for I_pc,d is as follows:

${\mathit{I}}_{\mathbf{\text{pc}},\mathbf{d}}=\left({\mathit{k}}_{\mathbf{p},\mathbf{\text{dc}}}+\frac{{\mathit{k}}_{\mathbf{i},\mathbf{\text{dc}}}}{\mathit{s}}\right)\left({\mathit{V}}_{\text{dc}}^{\text{ref}}-{\mathit{V}}_{\text{dc}}\right),$

where k_p,dc represents the proportional coefficient of the PI controller and k_i,dc represents the integral coefficient of the PI controller. The overall control block diagram of the entire control system is shown in Figure 2.

FIGURE 2

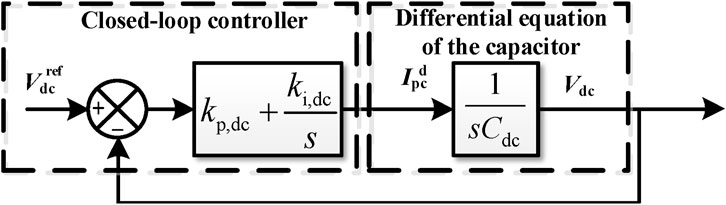

FIGURE 2. Control block diagram of the DC bus voltage system.

The load current can be decomposed into three parts as follows:

${\mathit{I}}_{\mathbf{L}}={\mathit{I}}_{\mathbf{L},\mathbf{d}}+{\mathit{I}}_{\mathbf{L},\mathbf{q}}+{\mathit{I}}_{\mathbf{L},\mathbf{h}},(3)$

where I_L,d represents the active component of the load current, I_L,q represents the reactive component of the load current, and I_L,h represents the harmonic component of the load current. To achieve compensation for I_L,q and I_L,h, it is necessary to first extract I_L,q and I_L,h and then control the parallel output port to output currents in the opposite direction of I_L,q and I_L,h, which can be implemented by the current closed-loop controller. According to Kirchhoff’s current law and Eq. (3), the grid current will no longer contain any reactive or harmonic components. Based on this idea, the control strategy proposed in this paper is given as follows: first, we obtain the reference value of the effective active current that is required to maintain the stability of the DC bus voltage based on the control loop of the DC bus voltage; then, it is multiplied by 1/K of the collected real-time grid voltage to generate the active current output reference using the parallel compensator, denoted as I_d^ref, where K generally takes the rated grid voltage amplitude. Therefore, the reference current of the parallel compensator’s output, denoted as I_pc^ref, is given as

${\mathit{I}}_{\text{pc}}^{\text{ref}}={\mathit{I}}_{\mathbf{d}}^{\text{ref}}-{\mathit{I}}_{\mathbf{L}}.(4)$

Since the active current reference for the DC bus voltage loop has been given, the active current reference for the parallel port output I_pc^ref, obtained from Eq. (4), represents the opposite current of the load reactive current I_L,q and the load harmonic current I_L,h. Then, the output current I_pc of the parallel port is controlled in real time using a current closed-loop controller. The current controller adopts a proportional resonant (PR) controller, which is denoted as G_cur,p. Therefore, the expression for the drive signal of the parallel inverter is given as

${\mathit{d}}_{\mathbf{p}}=\left({\mathit{k}}_{\mathbf{p},\mathbf{\text{cur}},\mathbf{p}}+{\displaystyle \sum _{\mathit{h}}}\frac{\mathbf{2}{\mathit{k}}_{\mathbf{r},\mathit{h},\mathbf{\text{cur}},\mathbf{p}}{\mathit{\omega }}_{\text{cut}}\mathit{s}}{{\mathit{s}}^{\mathbf{2}}+\mathbf{2}{\mathit{\omega }}_{\text{cut}}\mathit{s}+{\left(\mathit{h}{\mathit{\omega }}_{\mathbf{0}}\right)}^{\mathbf{2}}}\right)\left({\mathit{I}}_{\text{pc}}^{\text{ref}}-{\mathit{I}}_{\mathbf{\text{out}},\mathbf{p}}\right),(5)$

where k_p,cur,p represents the proportional coefficient of the PR controller, k_r,h,cur,p represents the resonance coefficient for each frequency h, ω_cut is the resonant bandwidth control parameter, and ω₀ is the natural angular frequency. The detailed control strategy for the parallel compensator is shown in Figure 3. It can be seen from the figure that the grid-connected control uses the instantaneous value of V_g instead of the real-time phase angle of V_g.

FIGURE 3

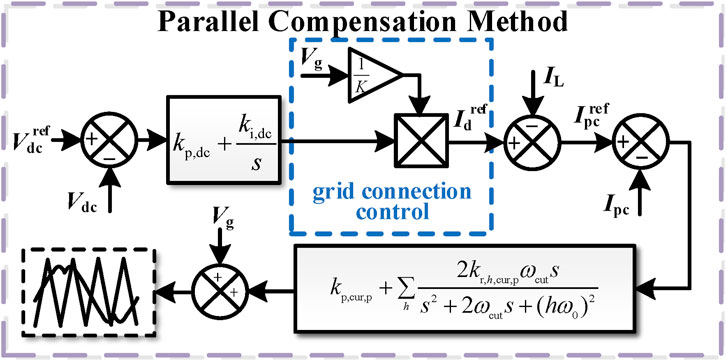

FIGURE 3. The proposed parallel compensation control strategy.

The circuit structure of the parallel port and the overall control block diagram are shown in Figure 1, where L_p1, L_p2, and C_p constitute the interface filters of the parallel inverter. Therefore, the expression for the output current I_out,p of the parallel inverter with respect to the inverter drive signal d_p is given by the following:

${\mathit{I}}_{\mathbf{\text{out}},\mathbf{p}}={\mathit{d}}_{\mathbf{p}}{\mathit{G}}_{\mathbf{i},\mathbf{\text{dc}}},(6)$

where G_i,dc represents the transfer function of the inverter drive signal d_p to I_out,p, and its expression is given as follows:

${\mathit{G}}_{\mathbf{i},\mathbf{\text{dc}}}=\frac{{\mathit{V}}_{\text{dc}}\left(\mathbf{1}+{\mathit{s}}^{\mathbf{2}}{\mathit{L}}_{\mathbf{p}\mathbf{2}}{\mathit{C}}_{\mathbf{p}}\right)}{\mathit{s}\left({\mathit{L}}_{\mathbf{p}\mathbf{1}}+{\mathit{L}}_{\mathbf{p}\mathbf{2}}\right)+{\mathit{s}}^{\mathbf{3}}{\mathit{L}}_{\mathbf{p}\mathbf{1}}{\mathit{L}}_{\mathbf{p}\mathbf{2}}{\mathit{C}}_{\mathbf{p}}}.(7)$

Based on the control block diagram and the topology of the single-phase three-leg UPQC, the closed-loop transfer function Φ_p of the parallel port output current I_pc, with respect to the output current reference I_pc^ref, can be obtained as follows:

${\mathit{\Phi }}_{\mathbf{p}}=\frac{{\mathit{G}}_{\mathbf{\text{cur}},\mathbf{p}}{\mathit{K}}_{\mathbf{\text{PWM}}}{\mathit{G}}_{\mathbf{i},\mathbf{\text{dc}}}}{\mathbf{1}+{\mathit{G}}_{\mathbf{\text{cur}},\mathbf{p}}{\mathit{K}}_{\mathbf{\text{PWM}}}{\mathit{G}}_{\mathbf{i},\mathbf{\text{dc}}}},(8)$

where K_PWM is the gain of PWM modulation, which represents the proportional coefficient between the controller output variable and the converter output voltage. From Eqs (6–8), the Bode plot of this closed-loop transfer function is obtained, as shown in Figure 4 and the parameters for plotting the Bode plot can be found in Table 1. From this graph, it can be observed that at odd harmonics frequencies, the magnitude response is 0 dB and the phase response is 0°. This indicates that the amplitude of the parallel port output current I_pc is equal to the amplitude of the output current reference I_pc^ref, and the phase of the parallel port output current I_pc is equal to the phase of the output current reference I_pc^ref, i.e., I_pc = I_pc^ref. Then, the control requirements can be satisfied.

FIGURE 4

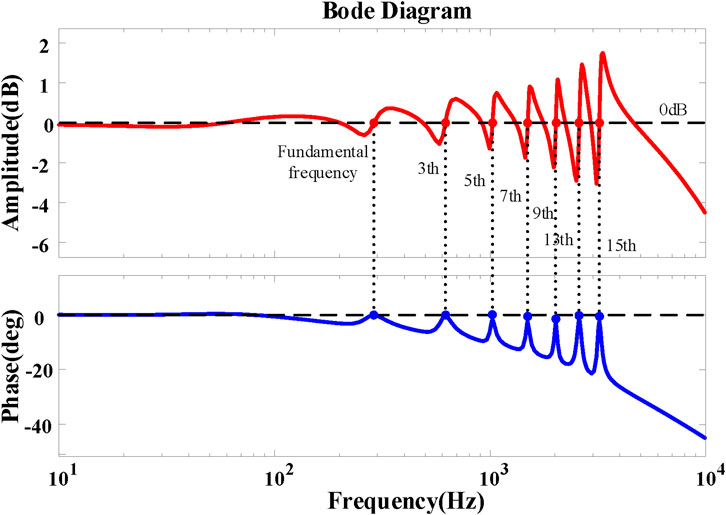

FIGURE 4. Closed-loop Bode plot of the parallel controller.

TABLE 1

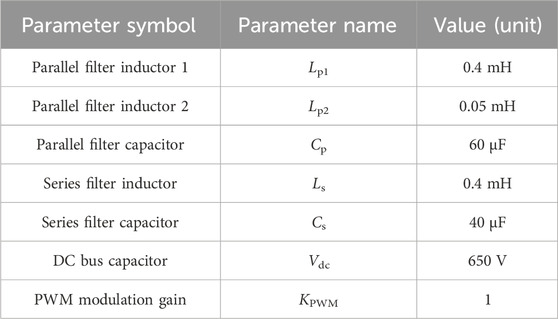

TABLE 1. Table of the relevant parameters for plotting the Bode plot of the control system.

2.3 Series compensation control method

The series compensation port has two control objectives. First, when the grid voltage exceeds the limits, it provides compensating voltage on the line to maintain the load voltage at the rated value. Second, it aims to reduce the harmonic components in the compensated grid voltage and increase the sinusoidal quality of the load voltage. To achieve these objectives, similar to the parallel compensation strategy, a PR controller is selected as the control function for the voltage loop and the current loop. The specific control block diagram is shown in Figure 5. The d-axis voltage V_d and the q-axis voltage V_q can be obtained through a second-order generalized integrator (SOGI), where the transfer functions of V_d and V_q relative to V_g are, respectively, as follows:

$\mathit{D}\left(\mathit{s}\right)=\frac{{\mathit{V}}_{\mathbf{d}}}{{\mathit{V}}_{\mathbf{g}}}=\frac{{\mathit{k}}_{\text{SOGI}}{\mathit{\omega }}_{\mathbf{0}}\mathit{s}}{{\mathit{s}}^{\mathbf{2}}+{\mathit{k}}_{\text{SOGI}}{\mathit{\omega }}_{\mathbf{0}}\mathit{s}+{\mathit{\omega }}_{\mathbf{0}}^{\mathbf{2}}},(9)$

$\mathit{Q}\left(\mathit{s}\right)=\frac{{\mathit{V}}_{\mathbf{q}}}{{\mathit{V}}_{\mathbf{g}}}=\frac{{\mathit{k}}_{\text{SOGI}}{\mathit{\omega }}_{\mathbf{0}}^{\mathbf{2}}}{{\mathit{s}}^{\mathbf{2}}+{\mathit{k}}_{\text{SOGI}}{\mathit{\omega }}_{\mathbf{0}}\mathit{s}+{\mathit{\omega }}_{\mathbf{0}}^{\mathbf{2}}},(10)$

where k_SOGI is the filter gain coefficient. It is evident from Eqs (9, 10) that when the frequency of V_g is ω₀, the amplitude gains of D(s) and Q(s) are both 1 and the phase angle gains are 0 and −90°, respectively. As a result, the grid voltage amplitude V_g^amp is as follows:

${\mathit{V}}_{\mathbf{g}}^{\text{amp}}=\sqrt{{\mathit{V}}_{\mathbf{d}}^{\mathbf{2}}+{\mathit{V}}_{\mathbf{q}}^{\mathbf{2}}.}(11)$

FIGURE 5

FIGURE 5. The proposed series compensation strategy.

We compare V_g^amp from Eq. (11) with the rated grid voltage amplitude and perform some simple calculations, as shown in Figure 7, to obtain the load voltage reference, which has an effective value of V_N and the same phase as the grid voltage.

The circuit structure of the series port and the control block diagram of the overall system are shown in Figure 1, where L_s and C_s constitute the interface filter of the series inverter. The expression for the compensation voltage V_sc in terms of the inverter drive signal d_s is given by the following:

${\mathit{V}}_{\text{sc}}={\mathit{d}}_{\mathbf{s}}{\mathit{G}}_{\mathbf{v},\mathbf{\text{dc}}},(12)$

where G_v,dc represents the gain of the inverter drive signal d_s with respect to the output voltage V_sc, and its expression is shown as follows:

${\mathit{G}}_{\mathbf{v},\mathbf{\text{dc}}}=\frac{{\mathit{V}}_{\text{dc}}}{\mathbf{1}+{\mathit{s}}^{\mathbf{2}}{\mathit{L}}_{\mathbf{s}\mathbf{1}}{\mathit{C}}_{\mathbf{f}}}.(13)$

Similar to the parallel port, d_s is determined by the control system. Based on the control block diagram, as shown in Figure 5, the expression for d_s can be obtained by the following:

${\mathit{d}}_{\mathbf{s}}=\frac{{\mathit{G}}_{\mathbf{\text{vol}},\mathbf{s}}{\mathit{G}}_{\mathbf{\text{cur}},\mathbf{s}}{\mathit{K}}_{\mathbf{\text{PWM}}}}{\mathbf{1}+{\mathit{G}}_{\mathbf{\text{cur}},\mathbf{s}}{\mathit{G}}_{\mathbf{\text{PWM}}}{\mathit{G}}_{\mathbf{v},\mathbf{i}}}\left({\mathit{V}}_{\text{sc}}^{\text{ref}}-{\mathit{V}}_{\text{sc}}\right),(14)$

where G_vol,s represents the transfer function of the voltage controller and G_cur,s represents the transfer function of the current controller, both of which are PR controllers. Moreover, k_p,vol,s and k_r,h,vol,s are the proportional coefficient and the resonance coefficient of the voltage controller for the series compensator, respectively; k_p,cur,s and k_r,h,cur,s are the proportional coefficient and the resonance coefficient of the current controller for the series compensator, respectively. G_v,i represents the transfer function of the load current to the output voltage of the series inverter, and its expression is shown as follows:

${\mathit{G}}_{\mathbf{v},\mathbf{i}}=\frac{\mathit{s}{\mathit{V}}_{\text{dc}}{\mathit{C}}_{\mathbf{f}}}{\mathbf{1}+{\mathit{s}}^{\mathbf{2}}{\mathit{L}}_{\mathbf{s}\mathbf{1}}{\mathit{C}}_{\mathbf{f}}}.(15)$

Therefore, the closed-loop transfer function Φ_s of the series port output voltage V_sc with respect to the output voltage reference V_sc^ref can be obtained as follows:

${\mathit{\Phi }}_{\mathbf{s}}=\frac{{\mathit{G}}_{\mathbf{\text{vol}},\mathbf{s}}{\mathit{G}}_{\mathbf{\text{cur}},\mathbf{s}}{\mathit{K}}_{\mathbf{\text{PWM}}}{\mathit{G}}_{\mathbf{v},\mathbf{\text{dc}}}}{\mathbf{1}+{\mathit{G}}_{\mathbf{\text{cur}},\mathbf{s}}{\mathit{K}}_{\mathbf{\text{PWM}}}{\mathit{G}}_{\mathbf{v},\mathbf{i}}+{\mathit{G}}_{\mathbf{\text{vol}},\mathbf{s}}{\mathit{K}}_{\mathbf{\text{PWM}}}{\mathit{G}}_{\mathbf{\text{cur}},\mathbf{s}}{\mathit{G}}_{\mathbf{v},\mathbf{\text{dc}}}}.(16)$

From Eq. (12–16), the Bode plot of the closed-loop transfer function Φ_s is obtained, as shown in Figure 6. The parameters for plotting the Bode plot can be found in Table 1. From the graph, it can be observed that at odd harmonic frequencies, the magnitude response is 0 dB and the phase response is 0°. This indicates that the amplitude of the series port output voltage V_sc is equal to the amplitude of the output voltage reference V_sc^ref, and the phase of the series port output voltage V_sc is equal to the phase of the output voltage reference V_sc^ref, i.e., V_sc = V_sc^ref. Then, the control requirements can be satisfied.

FIGURE 6

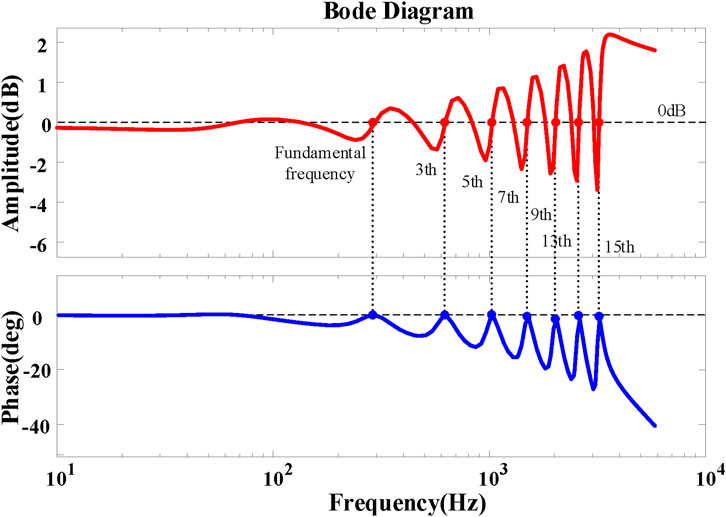

FIGURE 6. Closed-loop Bode plot of the series controller.

3 Experiment results

To verify the effectiveness of the proposed method, the experimental prototype of a single-phase three-leg UPQC is built, as shown in Figure 7. The parameters of the experimental prototype are the same as those given in Table 1. Some controller parameters are shown in Table 2. In addition, the switching frequency is 10 kHz, and the DC bus capacitance value is 2500 μF.

TABLE 2

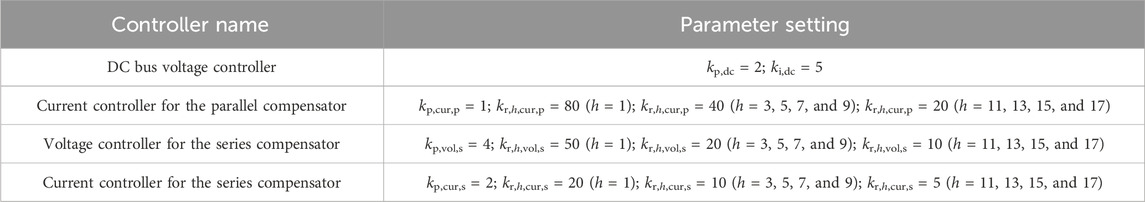

TABLE 2. Some key parameters of the experiment.

FIGURE 7

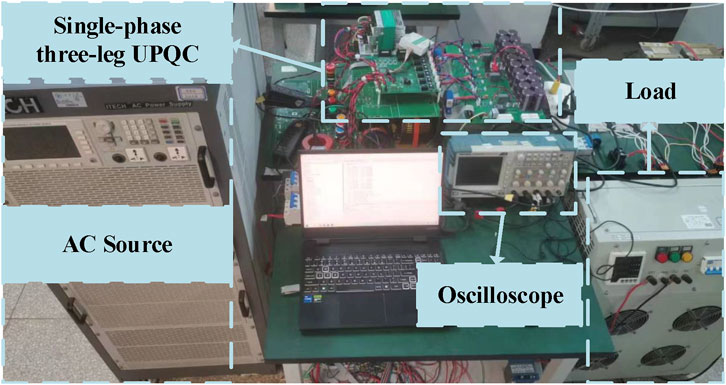

FIGURE 7. Experimental platform.

The first validation was carried out for the effectiveness of series port voltage regulation. The results of the first set of experiments are shown in Figure 8. The grid voltage suddenly dropped from 1.0 p. u. to 0.8 p. u. From the experimental results, it can be seen that there is a slight fluctuation in the DC bus voltage because of the direct utilization of the grid voltage in the proposed method. However, the compensated load voltage remains at 1.0 p. u., and from the detailed waveform, it can be seen that the compensated load voltage has almost no step change, meeting the expected effect.

FIGURE 8

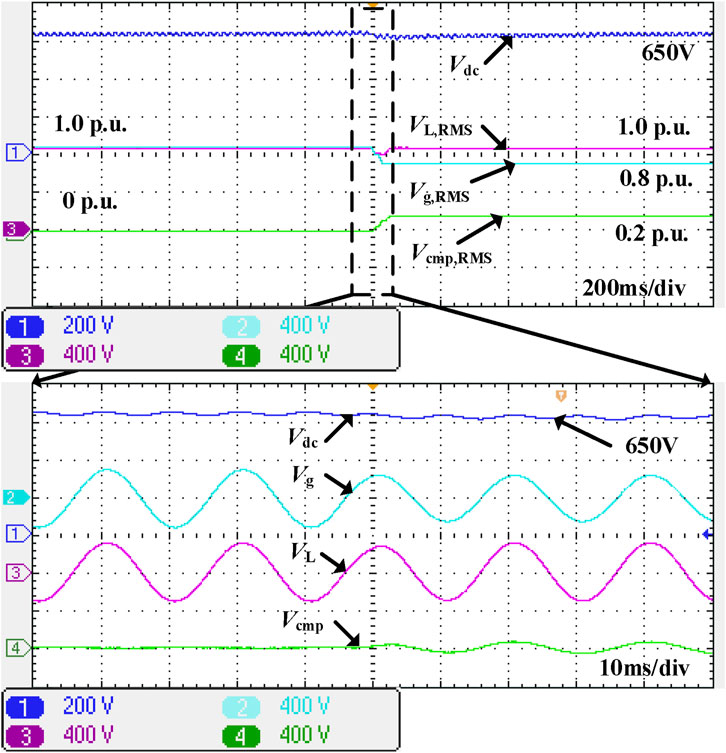

FIGURE 8. Voltage fluctuation compensation experiment.

Moreover, the effectiveness of the parallel port current compensation was verified, as shown in Figure 9. The load is a power electronic non-linear rectifier. Before compensation, the THD of the grid current is 25.67%. After compensation, the THD of the grid current is 3.66%. It can be seen that after compensation, the grid current has almost no harmonic distortion, which means that the experimental results meet the expectations.

FIGURE 9

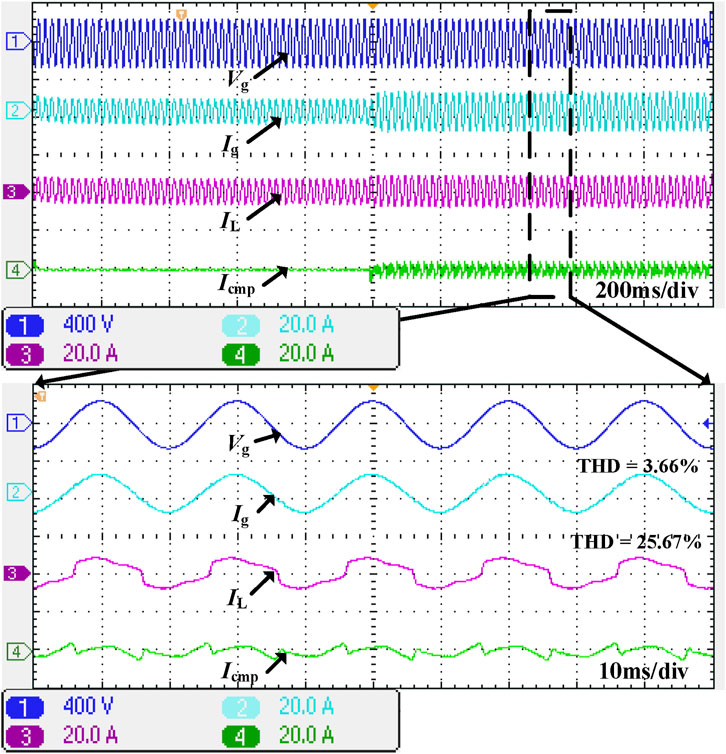

FIGURE 9. Parallel port compensation effect.

In addition, the comparison between the traditional control method and the proposed method can be seen in Figure 10. The load of this experiment is the same as that of experiment 2. The THD of the grid current is 25.67% without any compensation. However, whether the proposed method or the traditional method is applied, the THD of the grid current is significantly improved, where the proposed method can improve to 3.66% and the traditional method can improve to 3.78%. There is no difference in this fact. However, compared to the complexity of the algorithm, the method proposed in this article is greatly simplified.

FIGURE 10

FIGURE 10. Comparison of the effects between the proposed method and the traditional method.

4 Conclusion

This article presents a control method without a phase-locked loop for the single-phase three-leg UPQC. The instantaneous value of the grid voltage is used for grid connection, which greatly simplifies the complexity of the control algorithm. Furthermore, a simple compensation method is proposed for reactive power current and harmonic current at the grid connection point, which eliminates the need for extracting reactive power current and harmonic current. As a result, it further simplifies the computational complexity of the control. Finally, the experimental results show that the proposed method can achieve series voltage compensation along with reactive power current and harmonic current compensation at the grid connection point. The control method, without the phase-locked loop, proposed in this article is applied for the single-phase UPQC. As for the control method without the phase-locked loop for the three-phase UPQC, it will be further studied in the follow-up work.
