Consolidation-acidizing experiments on methane natural gas sediment skeleton

During the development of natural gas hydrates, it is important to ensure the stability of the reservoir. The hydrate reservoirs in the South China Sea are clayey silt sediments, which are prone to sand production and collapse during hydrate dissociation. This study innovatively proposes the idea of consolidation-acidizing for NGH reservoir modification. Based on the core parameters of well A drilling in the Shenhu Sea area of the South China Sea, NGH sediment skeleton samples were artificially prepared. Core sensitivity testing indicates that the NGH reservoir has the potential for acidizing modification. After using tetraethyl orthosilicate to solidify the sample, it was found that Young’s modulus of the sample increased by 58.8%, and the compressive strength increased by 54.78%. Although the porosity decreased by 39.33%, the pores were not completely blocked. After the acidizing experiment, the permeability of the consolidated sample was 2.88 mD, and the porosity increased by 10.63%; The permeability of the unconsolidated sample was 1.86 mD, and the porosity decreased by 10.73%. The CT scan images also showed that the pores of the sample after consolidation-acidizing developed uniformly without significant deformation; The unconsolidated sample undergoes severe deformation and sand production after acidizing. This study demonstrates that the consolidation-acidizing modification method is feasible in clayey silt hydrate reservoirs.

1 Introduction

Natural gas hydrate (NGH) is a special ice-like crystalline compound composed of gas molecules and water molecules (Kida et al., 2021). NGH forms under low temperature and high-pressure conditions (Yu et al., 2022). The gases that form hydrates include CH₄, C₂H₆, SO₂, and CO₂, with CH₄ accounting for over 90% (Zhan et al., 2018). NGH has a very high energy density (Zhao et al., 2023a), and the decomposition of 1 m³ methane hydrate produces 164 m³ methane gas. NGH reserves are huge, with almost twice as much hydrocarbon as in proven fossil reserves (Kuang et al., 2019; Yin et al., 2019; Zhang et al., 2020; Ren et al., 2022a; Ma et al., 2022). NGH is considered a promising clean energy source, but due to technological limitations, it has not been commercially developed (Sun et al., 2021). China has huge methane hydrate reserves, and the South China Sea is an important part of China’s NGH exploitation (Chen et al., 2022; Wang et al., 2023a).

The current methods of hydrate reservoir modification include hydraulic fracturing, jet breaking, overlying layer modification, and split grouting (Bai et al., 2023; L et al., 2022; Liu et al., 2020; Ma et al., 2023; Ren et al., 2022b; Du et al., 2023). As the main stimulation method for unconventional oil and gas, hydraulic fracturing is the main modification method for NGH reservoirs. Fracturing can effectively increase the permeability of reservoirs (Too et al., 2018a; Yu et al., 2022). Jet breaking utilizes high-velocity jets to break up NGH sediments, which are then carried to the platform for decomposition. Overlying layer modification involves using CO₂ to form a hydrate above the reservoir, which can stop seawater intrusion during hydrate dissociation. Split grouting is grout injection into the NGH reservoir, where the grout supports the fractures and provides a seepage channel for the gas (Wang et al., 2023b). Almost all NGH modification methods need to promote methane hydrate dissociation (Too et al., 2018b; Cheng et al., 2023), and the solid state of the hydrate will also become a flowing state (Luo et al., 2022). Over 90% of NGH reservoirs are distributed in clayey silt sediments (Ding et al., 2022; Zhang et al., 2022; Wang et al., 2023a; Zhao et al., 2023b; Yang et al., 2023). With the dissociation of hydrates, sand and clay minerals will migrate (Hannun et al., 2022; Li et al., 2022; Sun et al., 2023), causing blockage of seepage channels and even submarine landslides (Sun WT. et al., 2022; Sun HR. et al., 2022; Song et al., 2023), leading to the failure of NGH mining. It is essential to maintain the stability of the NGH reservoir while improving its permeability (Liu et al., 2023).

The authors found that fewer studies have been conducted on acidizing modification of natural gas reservoirs. This paper prepared a hydrate sediment skeleton based on the mineral composition of NGH in the Shenhu area of the South China Sea. Acidizing experiments were performed on the consolidated sediment skeleton and compared to the unconsolidated sediment skeleton. The experiments verified that the acidizing technology modification is feasible in NGH reservoirs. The research results will provide new insights into the efficient and safe extraction of NGH resources.

2 Experiment

2.1 Experimental apparatus

The experimental apparatus is shown in Figure 1. The experimental apparatus consists of three structures: a constant-pressure infusion pump, a storage tank, and core tubes. The continuous pressure infusion pump has two modes: constant pressure and constant flow (maximum pressure 30 MPa, maximum flow 20 mL/min), which can provide stable upstream pressure or flow. The storage tank is made of 316 stainless steel with a volume of 500 mL and is used to store displaced acid or consolidation agent. The core tubes hold the sediment skeleton and can provide a confining pressure exceeding 30 MPa.

FIGURE 1

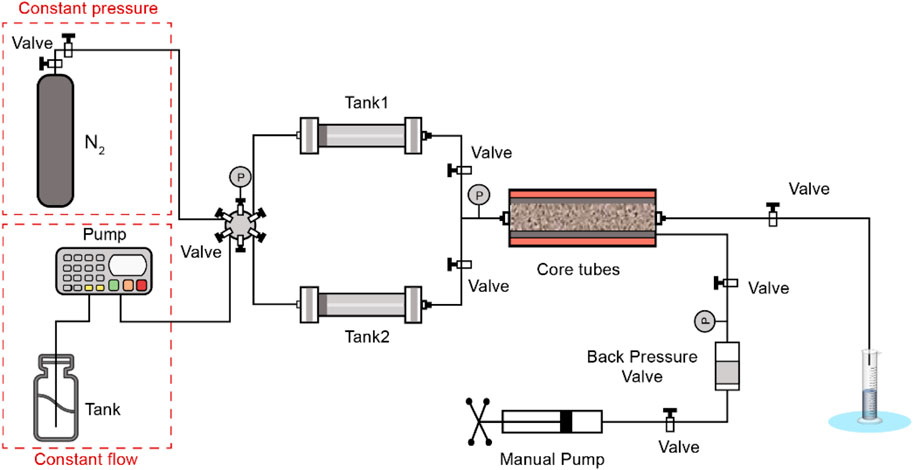

FIGURE 1. Schematic diagram of the flow apparatus.

2.2 Sample preparation

Considering the high cost and limited quantity of hydrate sediment coring, this paper chooses to prepare samples for experiments manually. Experimental samples were prepared by analyzing NGH sediments extracted by the Guangzhou Marine Geological Survey from well A (Figure 2) at Shenhu, Nanhai. The depth of the target NGH reservoir is 266 m, with a porosity of approximately 35.6% and a permeability of approximately 3–20 mD. X-ray diffraction (XRD) (Figure 3) analysis and grain size testing of the extracted sediments, in conjunction with previous studies (Kuang et al., 2019; Chen et al., 2022; Li et al., 2022), determined that the median grain size of the sediments was 8–16 μm and that the minerals were mainly quartz (39%), carbonate (15%), and clay minerals (26%–30%), with the clay minerals being mainly montmorillonite and illite. The mineral content of the target reservoir sediments and the mineral content of the experimental samples are shown in Table 1.

FIGURE 2

FIGURE 2. NGH sediment sampling location (A); NGH sediment picture (B).

FIGURE 3

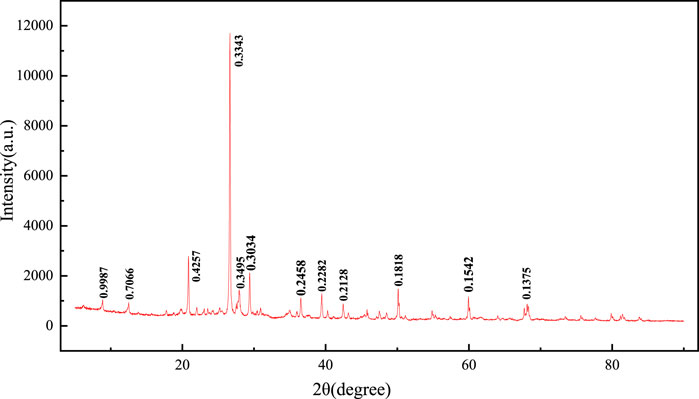

FIGURE 3. XRD image of NGH sediment sample extracted from well.

TABLE 1

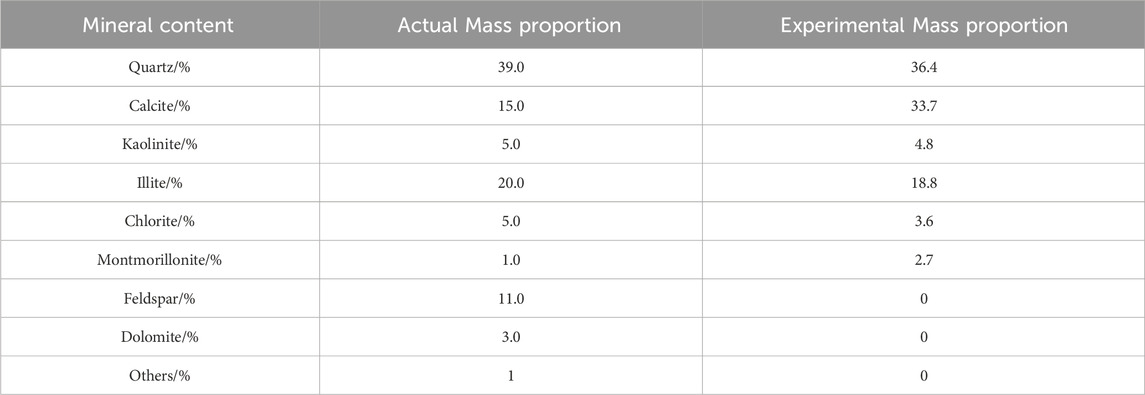

TABLE 1. Actual mineral content of target reservoir and mineral content of experimental samples.

Hydrate Sediment Skeleton Sample Preparation Process: 1) configure the minerals according to the proportions in Table 1; 2) Load the mineral into the mold and compact. In the process of compaction in five times filling, after each filling with the same pressure compaction, before filling with a fine wire to brush the surface rough to prevent delamination and fracture; 3) The pressed cores were sequentially 40°C, 60°C and 70°C water vapor cured and dried; 4) Porosity and permeability testing of artificially prepared sediment skeleton samples. The specific sediment skeleton preparation process is shown in Figure 4. The prepared sediment skeleton samples with porosity of 30%–40% and permeability of 10∼20 mD can meet the experimental requirements.

FIGURE 4

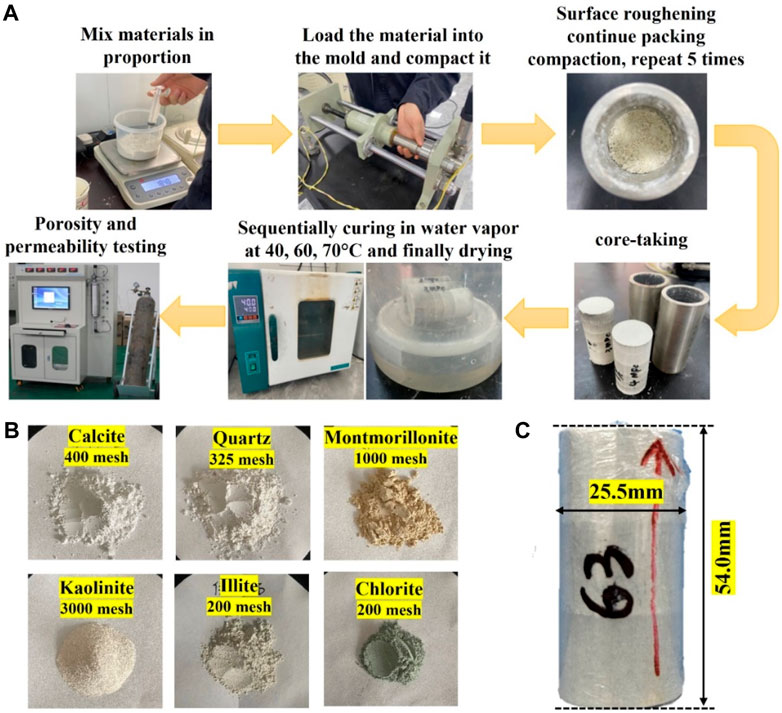

FIGURE 4. NGH sediment skeleton sample preparation process (A); mineral picture (B); a picture of artificially prepared NGH sediment skeleton sample (C).

2.3 Sensitivity experiment

The purpose of NGH reservoir stimulation is to improve permeability and stability. It may cause damage to the reservoir if it is not focused on reservoir protection. The prepared samples were tested for velocity sensitivity, water sensitivity, salt sensitivity, acid sensitivity, alkali sensitivity, and stress sensitivity according to the oil and gas industry standard SY/T5358-2010. Three parallel samples were made for each test to evaluate the sensitivity of the samples and analyze the feasibility of acidizing stimulation in NGH reservoirs.

2.4 Dissolution experiment

Dissolution experiments were used to select the acid solution for acidifying NGH reservoir sediment samples. Prepare rock powder in the proportions in Table 1. The dissolution rates of PORE-A, PORE-A + Perm-A, PORE-A + PORE-B, SA701, solid acid α, solid acid β, and solid acid γ were calculated at 5°C (seafloor temperature). Calculate the dissolution rate of the acid according to the following formula, make two parallel samples of each acid, and take the average value.

$\eta =\frac{m_0+m_1-m_2}{m_1}\times 100\%$

Where: $\eta$—dissolution rate of minerals, %; $m_0$—weight of filter paper before reaction, g; $m_1$—weight of rock powder before reaction, g; $m_2$—Total weight of filter paper and rock powder after filter drying, g.

2.5 Optimization experiment of consolidation agent

NGH reservoir sediments are almost weakly consolidated or unconsolidated (Hu et al., 2022), and it is important to ensure reservoir stability during the extraction of NGH. The NGH sediment is mainly composed of fine silt and clay minerals (Tang et al., 2023), and the permeability of the reservoir is low. Tetraethyl orthosilicate (C₈H₂₀O₄Si) is a colorless and transparent liquid at room temperature, with strong fluidity, and does not solidify itself. Hydrolysis catalyzed by acid or alkali generates sol, which is compatible with silicate, so it is easy to form si-o-si solid bonds on the surface of quartz and clay minerals and further condense into a gel. The reaction process is shown in Figure 5. Tetraethyl orthosilicate has low viscosity properties and can form a three-dimensional network structure under the catalysis of acids or bases, making it an ideal NGH sediment skeleton consolidation agent. Conduct experiments to optimize the concentration of tetraethyl orthosilicate. The experimental plan for optimizing the consolidation agent is shown in Table 2.

FIGURE 5

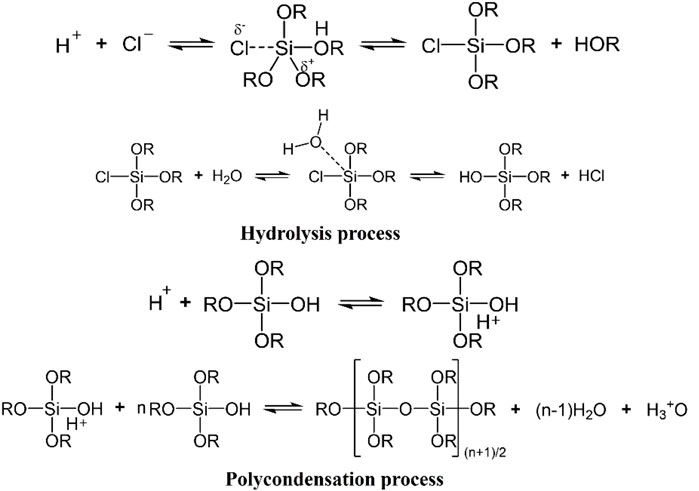

FIGURE 5. Tetraethyl orthosilicate hydrolysis-polycondensation process.

TABLE 2

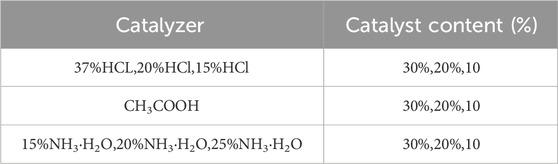

TABLE 2. Experimental plan for optimizing consolidation agents.

2.6 Consolidation and acidizing experiments

Weakly consolidated clayey silt NGH sediments are loose and prone to collapse, and acidizing has further weakened the strength of the skeletal consolidation. NGH reservoir sediments in the South China Sea are fine-grained, particles are more easily transported, and acidizing will exacerbate particle transport. Using consolidants to consolidate the NGH sediment skeleton can prevent reservoir sand production and improve stability. Acidizing experiments were performed on the consolidated sediment skeleton and compared to the unconsolidated sediment skeleton.

2.7 Microscopic observation

After drying the sample after the experiment, clean the surface with a blower. Scan the sample using a 3D X-ray microanalyzer (Zeiss X-ray Context) produced by Carl Zeiss Microscope GmbH in Germany. With a resolution of 0.95 μm in three dimensions and a high pixel density detector (six megapixels), it can resolve fine details in a complete 3D environment. Heterogeneity in the sample, such as pores, pore size, cracks, porosity, and connectivity, can be characterized and quantified without damaging the sample. The image processing method in this article refers to Ni et al. (Ni et al., 2021).

3 Results and discussion

3.1 Sensitivity experiment

3.1.1 Velocity sensitivity

The velocity sensitive test fluid was 8% standard brine (NaCl: CaCl₂: MgCl₂-6H₂O = 7: 0.6: 0.4). From the test results (Figure 6), it can be seen that the ratio of K_n/K_i increases significantly with increasing flow rate for all three samples (K_n is the original permeability and K_i is the tested permeability), and the critical flow rate ≤ 1 mL/min. According to the industry standard, velocity sensitivity damage rates are greater than 70%, and the degree of damage is strong. Sediment particles in NGH reservoirs are small, and because they are weakly consolidated, the particles are easily detached and transported with fluid flow. An acid flow rate that is too low in acidizing modification will lead to uneven pore development. Therefore, to ensure the successful implementation of acidizing modification, the sediment skeleton must be solidified; otherwise, the risk of sand production is exceptionally high.

FIGURE 6

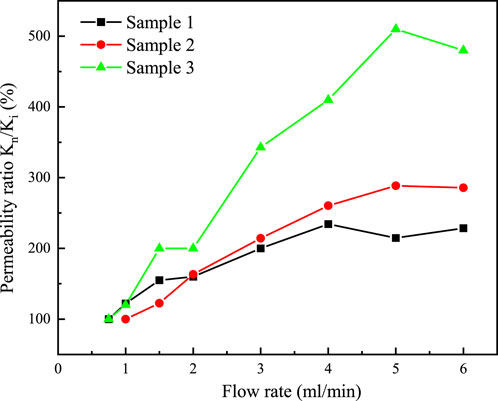

FIGURE 6. Velocity sensitivity experimental curve.

3.1.2 Water sensitivity and salt sensitivity

The NGH sediments in the Shenhu Sea have a high clay mineral content. Clay minerals such as Montmorillonite will expand when encountering low-salinity injection water, and Kaolinite will migrate when encountering low-salinity water, reducing reservoir permeability. The water sensitivity test was conducted using 8% standard brine. The intermediate test fluid was 4% standard saline. The change in permeability ratio during injection is shown in Figure 7. The permeability ratios of the three samples increased slightly with decreasing fluid mineralization. According to the industry standard, water sensitivity damage rates are 5%–30%, which is weak water sensitivity. Montmorillonite is the main water-sensitive mineral, followed by illite and kaolinite. Although the NGH sediments are high in clay minerals, montmorillonite is the least abundant, so the samples are weakly water-sensitive. The damage rate of all three samples in distilled water is less than 20%, and there is no need to conduct salinity reduction sensitivity experiments.

FIGURE 7

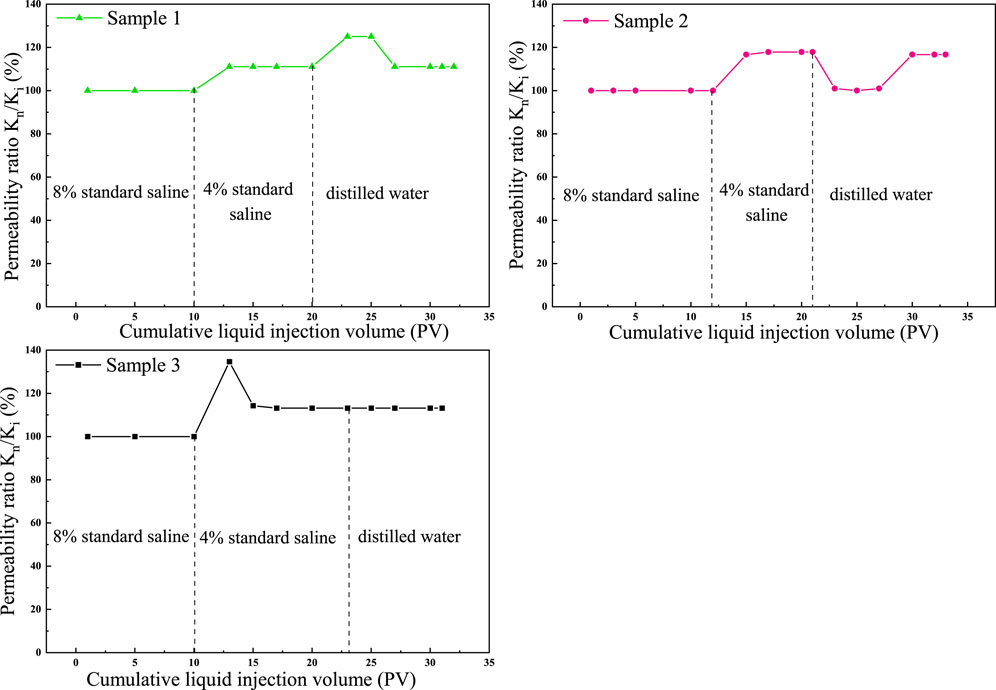

FIGURE 7. Water sensitivity experimental curve.

3.1.3 Acid sensitivity

The acid sensitivity experiment reflects the acid’s effect on the reservoir’s permeability. Hydroxide precipitates, fluoride precipitates, fluorosilicates, and gels produced by the acid and reservoir minerals may block the pores. Acidizing disrupts the reservoir’s original structure, aggravating velocity sensitivity, and the released clay particles swell and transport, leading to decreased permeability.

Permeability was measured before and after acidizing using an 8% KCl solution. The acid solution for the sensitivity test was 12% PORE-A + 3% Perm-A. The permeability ratio change curve is shown in Figure 8. Samples 1 and 3 showed increased permeability after acidizing, indicating an improvement in sample porosity. Sample 2 showed no significant change in permeability after acidizing, probably because dislodged particles blocked some of the pores. According to industry standards, acid sensitivity damage rates are less than 5%, and NGH reservoirs can be acid stimulated.

FIGURE 8

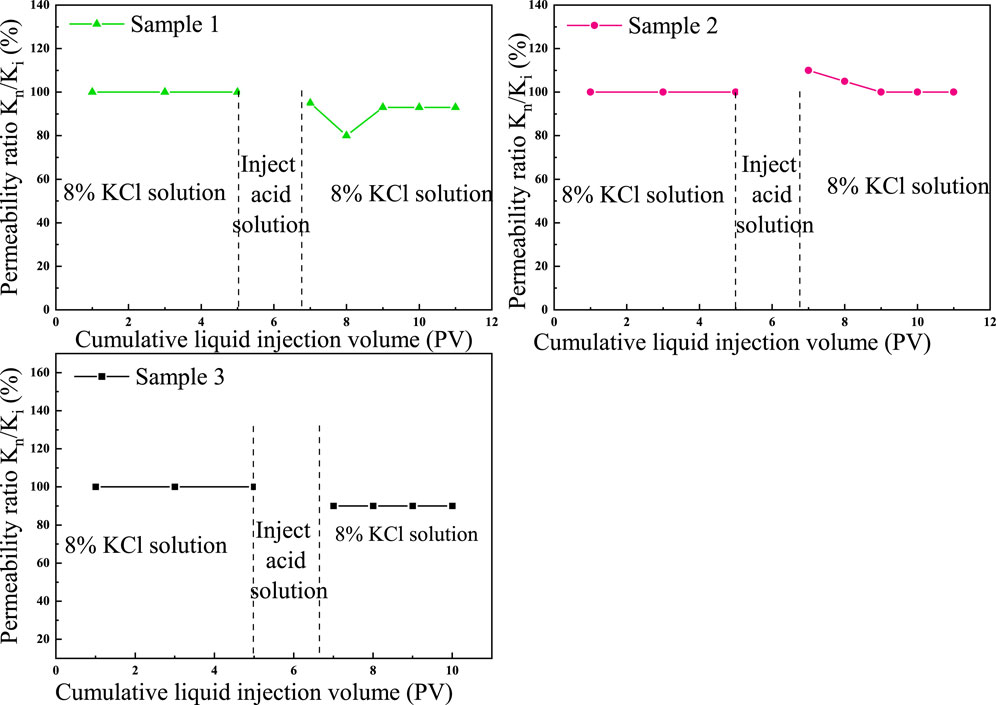

FIGURE 8. Acid sensitivity experimental curve.

3.1.4 Alkali sensitivity

The alkali sensitivity test fluid was 8% KCl solution, and the KOH solution changed its pH. The permeability ratio is shown in Figure 9. Sample 2 had a slight decrease in permeability during the pH increase, sample 1 had a slight increase in permeability, and sample 3 had no significant change in permeability. According to industry standards, Sample 2 has an alkali sensitivity damage rate of 5%–30%, which is a weak alkali sensitivity. Sample 1 and 3 have an alkali sensitivity damage rate of less than 5%, which is no alkali sensitivity damage.

FIGURE 9

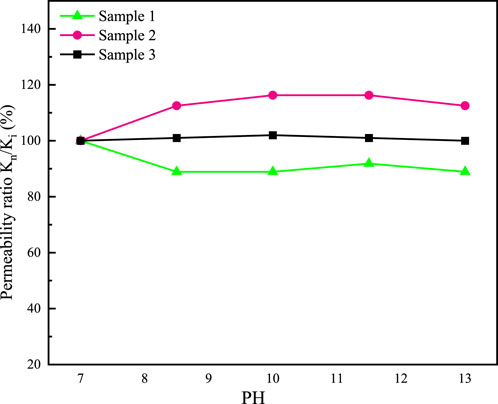

FIGURE 9. Alkali sensitivity experimental curve.

3.1.5 Stress sensitivity

With the internal fluid output, reservoir pore pressure reduction will change the reservoir’s original force balance, leading to changes in the pore structure and affecting the fluid flow in the reservoir. Stress sensitivity factors include reservoir lithology, cementation strength, pore structure, particle sorting, and pore pressure change rules.

The use of back-pressure variations brings it closer to the reality of the NGH reservoir. Refer to the GMGS3-W19 station model Wan (Wan et al., 2018) et al. developed during hydrate depression mining. The water depth of 1,273.9 m is converted to a top pressure of 12.86 MPa, and the in-situ stress gradient is 0.02597 MPa/m, which calculates the overburden pressure to be approximately 16.3 MPa. The initial pressure at the bottom boundary of the hydrate layer was 14.3 MPa, and the net overburden pressure was calculated to be 2 MPa, which was used as the initial net stress value of the sample. Considering the low bottomhole pressure in the late production period, the minimum bottomhole pressure was set to 2.3 MPa. The confining pressure was used to replace the overburden pressure. The initial backpressure value was 14.3 MPa, which was varied sequentially to 11.3, 8.3, 5.3, and 2.3 MPa, and then slowly increased to 14.3 MPa, all with a net stress interval of 3 MPa.

The stress sensitivity curve is shown in Figure 10. The critical stress of all three samples was 8 MPa, the stress-sensitive damage rate was around 30%–40%, and the irreversible permeability damage rate was around 30%, with moderate stress sensitivity.

FIGURE 10

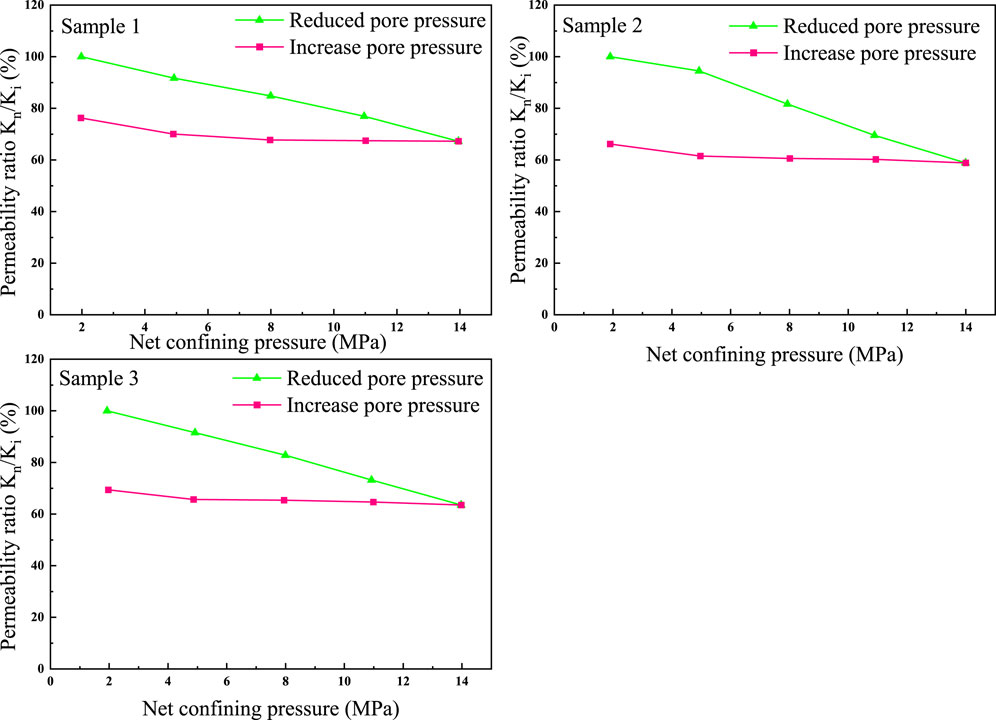

FIGURE 10. Stress sensitivity experimental curve.

3.2 Dissolution experiment

The average dissolution rate of each acid solution at 5°C is shown in Figure 11. PORE-A can dissolve through carbonate rocks, and the dissolution results of Perm-A and PORE-B systems are similar, and the dissolution rates are all in the range of 15%–35%.SA, solid acid γ, and solid acid β acid systems are prone to precipitation at high concentrations. Three acid systems, 8% PORE-A + 1% Perm-A, 5% PORE-A + 5% PORE-B, and 10% solid acid α, were selected for the experiments.

FIGURE 11

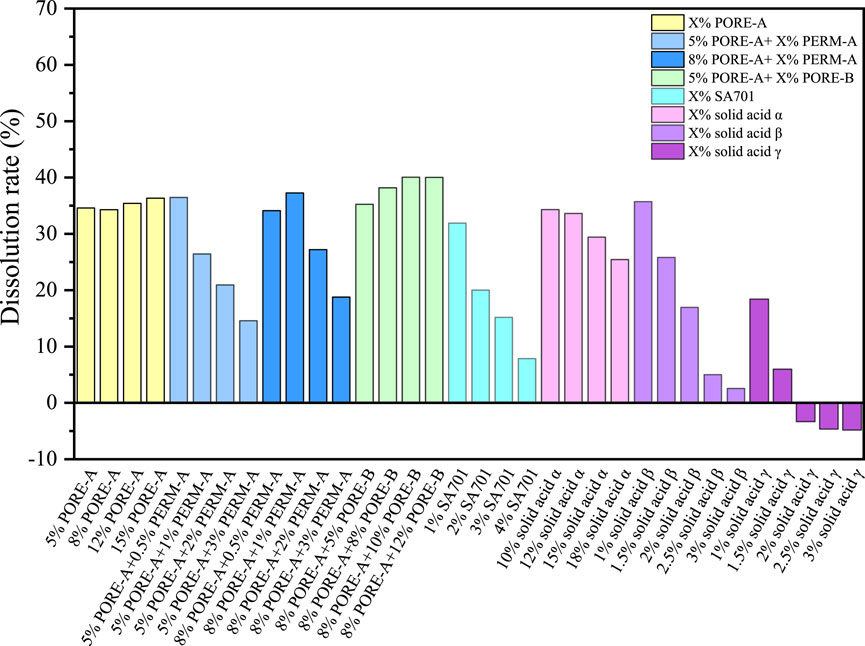

FIGURE 11. The average dissolution rate of different acids at 5°C.

3.3 Optimization experiment of consolidation agent

Tetraethyl orthosilicate solidified well under HCL catalysis, formed precipitates, and did not solidify after 24 h under CH₃COOH and NH₃·H₂O catalysis (Figure 12). When tetraethyl orthosilicate:37% HCl is7:3, it loses fluidity to form frozen gel-like crystals within 9 min, and the mechanical strength after curing is low. C₈H₂₀O₄Si:20%HCl = 9:1 has a gelling time of more than 2 h, good fluidity, completes solidification at 6 h, and solidifies to form glassy crystals with high mechanical strength. The C₈H₂₀O₄Si:20%HCl = 9:1 formulation was used for the consolidation experiments as it was characterized by low-temperature consolidation, long gelling time, and good fluidity.

FIGURE 12

FIGURE 12. Picture of acid/base catalyzed C₈H₂₀O₄Si consolidation.

3.4 Consolidation and acidizing experiments

3.4.1 Properties before and after consolidation

Inject the consolidation agent into the sample at a displacement of 0.5 mL/min and evaluate the changes in permeability, porosity, compressive strength, and pore throat structure after 6 h of consolidation. The experimental results are shown in Table 3.

TABLE 3

TABLE 3. Physical properties of NGH sediment skeleton before and after consolidation.

The increase in fluid viscosity during consolidation agent injection leads to a rise in drive pressure. During the infusion of the consolidation agent, the permeability decrease was significant, and the driving pressure increased up to 7.8 MPa (Figure 13: K_n is the original permeability, and K_i is the tested permeability). The consolidation agent occupies some of the pore space, resulting in a decrease in the porosity of the samples (Figure 14). The retention of permeability of the consolidated samples was around 56%, and the retention of porosity was 38%–41%. From the CT scanning results (Figure 15B), it can be clearly seen that the pore diameter of the sample after consolidation is obviously reduced, the pore distribution is more uniform, and the pore distribution in the exit section of the sample is denser compared with that in the middle section and the entrance section, which is similar to that before consolidation, indicating that the system of the consolidation agent has been uniformly infused into the sample. It can be seen from the slice map that the “small black dots” of the sample before consolidation are denser, and the “big black dots” are occasionally seen. After solidification, the sample is more dense, the distribution of “small black dots” is more sparse, and the pore size of “large black dots” is obviously smaller. As seen from the 3D and slice map, the pores of the consolidated samples were not completely blocked but retained some porosity and connectivity.

FIGURE 13

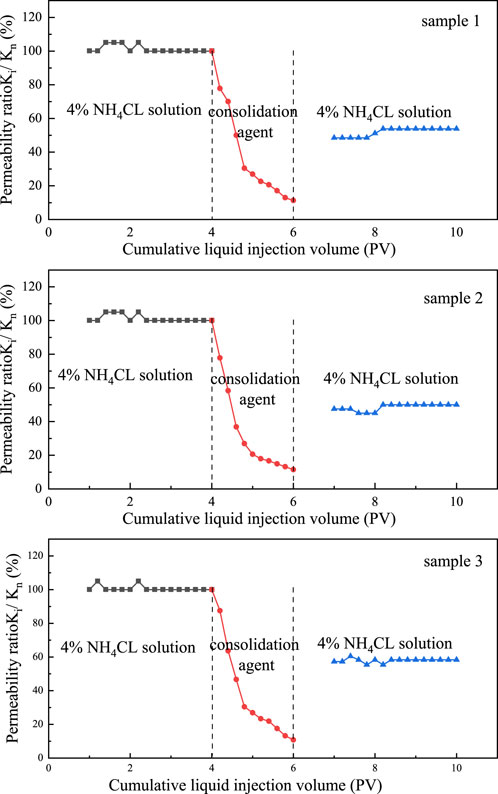

FIGURE 13. Solidification flow curves of NGH sediment skeleton samples.

FIGURE 14

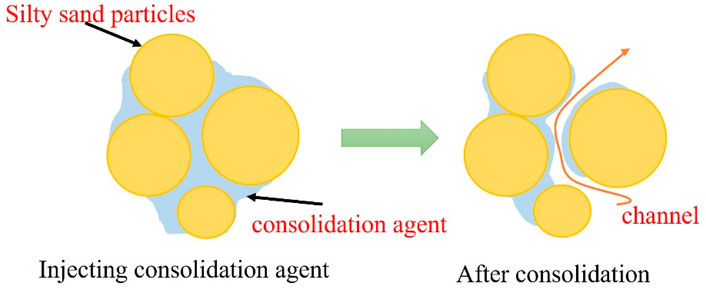

FIGURE 14. Schematic diagram of the consolidation process of the NGH sediment skeleton.

FIGURE 15

FIGURE 15. CT scans of NGH sediment skeleton samples before (A) and after consolidation (B). (Note: the blue portion indicates pore development and the light yellow portion indicates the sample matrix).

As shown in Figure 16, the mechanical properties of the consolidated sample are improved. The average compressive strength of the unconsolidated samples was 1.57 MPa, the average Young’s modulus was 144.05 MPa, and the average Poisson’s ratio was 0.27. The average compressive strength of the consolidated samples was 2.43 MPa, the average Young’s modulus was 228.76 MPa, and the average Poisson’s ratio was 0.24. After consolidation, the compressive strength and Young’s modulus of the sample increase, and Poisson’s ratio decreases, indicating that the resistance to deformation of the sample increases.

FIGURE 16

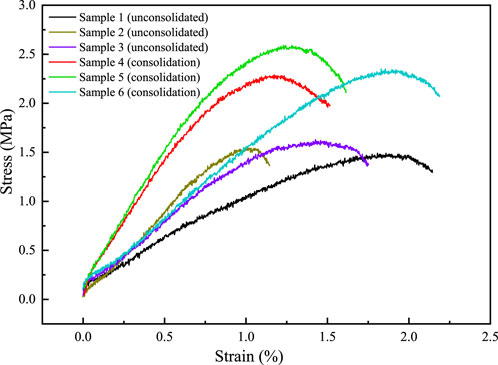

FIGURE 16. Stress-strain curves before and after consolidation of NGH sediment skeleton samples.

3.4.2 Acidizing experiment

The samples were subjected to acidizing experiments using three acid solutions: 8% PORE-A + 1% Perm-A, 5% PORE-A + 5% PORE-B, and 10% solid acid α. The results of the experiment are shown in Table 4.

TABLE 4

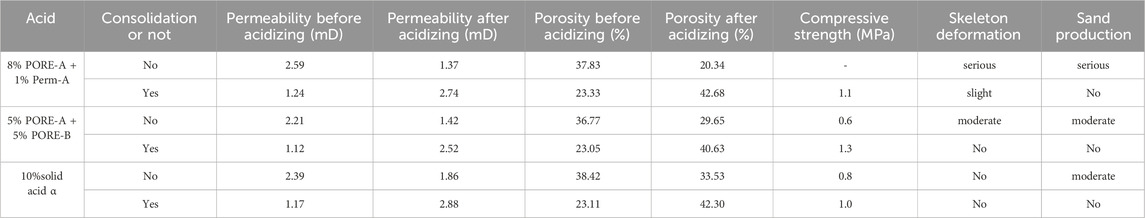

TABLE 4. Physical properties of sediment skeleton samples before and after acidizing.

The results of the 8% PORE-A + 1% Perm-A acid solution experiments showed that: The skeleton of the unconsolidated sample was severely deformed, and serious sand production occurred during the experiment. From the CT scan (Figure 17A), it can be seen that the skeleton at the injection end of the unconsolidated sample is difficult to maintain and undergoes severe deformation, and there is a clear interface in the middle part of the sample, suggesting that the silt transported to this place blocked the pore throat channel, resulting in the pore space not being developed at the outflow end of the core. It indicates that there is a problem with sand and gravel transport in the unconsolidated sample. In contrast, the skeleton of the consolidated sample (Figure 17B) was only slightly deformed, the acid reacted uniformly with the minerals in the flow direction, and no sand production occurred during the experiment, indicating that the consolidation agent can effectively prevent sand production and improve the stability of the sediment skeleton. The acidizing of the consolidated samples increased the permeability by 120.97% and porosity by 82.94%.

FIGURE 17

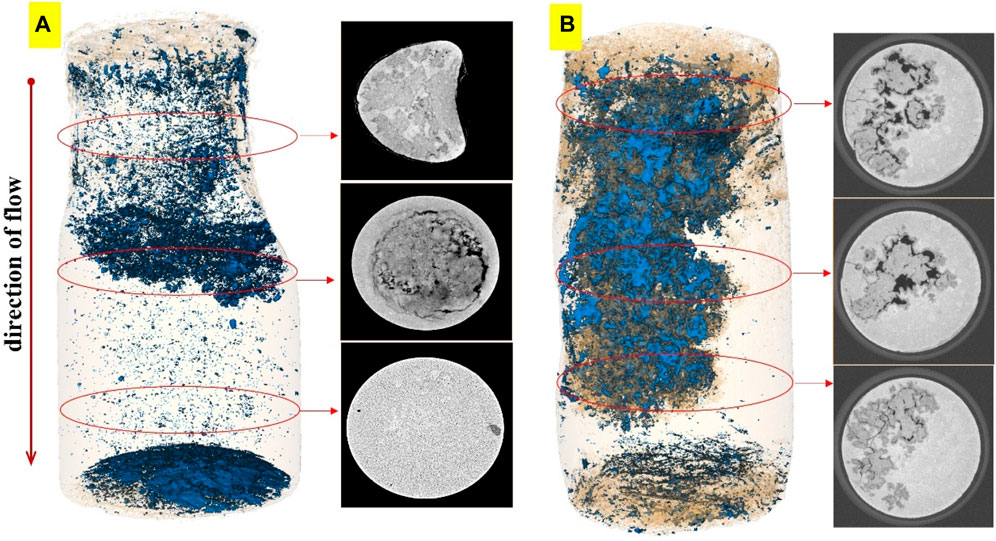

FIGURE 17. CT scans of the unconsolidated sample (A) and consolidated sample (B) after acidizing with 8% PORE-A + 1% Perm-A.

Similarly, the 5% PORE-A + 5% PORE-B and 10% solid acid α experiments showed that the solidified samples had better stability and were less prone to sand production. Figure 18 shows similar results to Figure 17. In Figure 18A, it can be clearly seen that the pore space at the injection end of the unconsolidated sample is very well developed. Still, the pore space at the outflow end is not clearly developed. There is a clear interface in the middle part of the sample, which suggests that the skeleton produces a serious amount of sand, and that the sand and gravel transportation blocks the seepage passage. Figure 18B shows the CT scan of the consolidated sample after acidizing, the result shows that the pore development of the consolidated sample is uniform, and the sample does not show sanding and deformation problems. Figure 19 shows the results of the 10% solid acid α flow experiment. Because of the slower reaction rate of solid acid α, the unconsolidated samples (Figure 19A) did not show significant pore throat plugging, but less pore development was observed in the unconsolidated samples compared to the consolidated samples (Figure 19B), which suggests that minor sanding may have occurred in the unconsolidated samples. The compressive strength test results also show that the consolidated samples have better compressive strength.

FIGURE 18

FIGURE 18. CT scans of the unconsolidated sample (A) and consolidated sample (B) after acidizing with 5% PORE-A + 5% PORE-B.

FIGURE 19

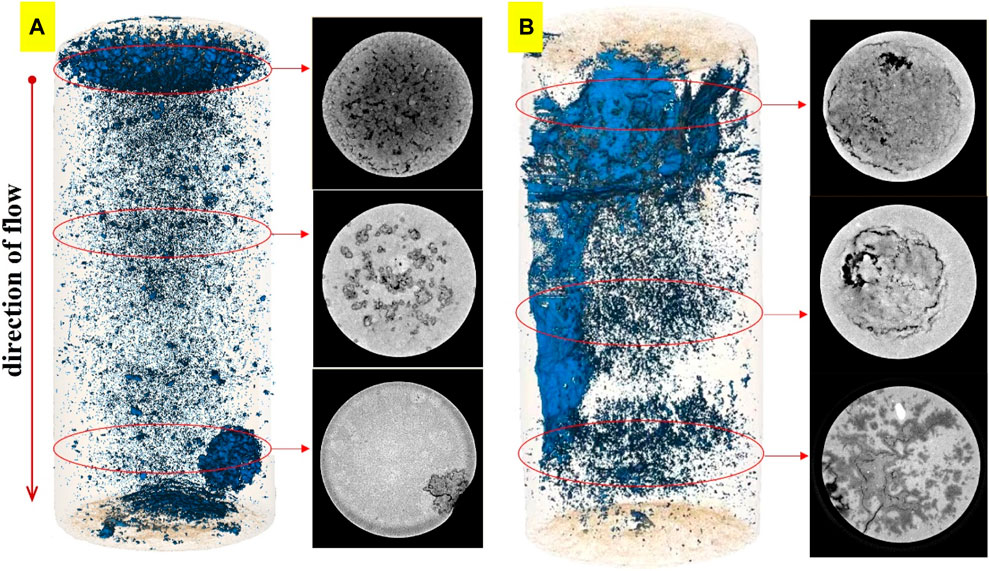

FIGURE 19. CT scans of unconsolidated sample (A) and consolidated sample (B) after acidizing with 10% solid acid α.

Unlike conventional reservoirs, NGH reservoirs are highly heterogeneous in terms of sediment distribution and hydrate saturation (Ren et al., 2022a; Ren et al., 2022b), which complicates consolidation-acidizing modification of NGH reservoirs. In the South China Sea, NGH sediments are predominantly clayey-silty sediments, and the presence of natural gas in the reservoir is in the form of cements at contracts, grain coating and pore-filling. The hydrate pore-filling type has the strongest cementing effect on the sand and gravel. With the further dissociation of gas hydrate, the sand and gravel cannot be effectively supported, which causes changes in the reservoir structure, and may cause sand production or collapse. Preventing reservoir sand production and maintaining reservoir stability are important aspects of developing NGH reservoirs. In this paper, we take the mud silt type weakly cemented NGH reservoir as the research object, and innovatively propose the consolidation-acidizing method of NGH reservoir modification. The experimental results show that the consolidant can effectively improve the strength and stability of the sediment skeleton, maintain the skeleton morphology during the hydrate dissociation process, and inhibit the sand production of the reservoir. Compared with the unconsolidated samples, the consolidated samples were stable in acid modification, not easy to produce sand, and had uniform pore development after acidification. It shows that consolidation-acidizing modification is feasible in natural gas reservoirs.

4 Conclusion

The clayey silt NGH reservoir sediments were used to solidify the reservoir skeleton samples using tetraethyl orthosilicate, and then the samples were subjected to acidizing experiments using the acid solution and compared with the unconsolidated samples. The pore development morphology of the samples was observed by CT scanning, and the feasibility of the consolidation-acidizing modification method was verified. The main research findings are as follows:

1) The Young’s modulus of the samples after consolidation with tetraethyl orthosilicate increased by 58.8% and the compressive strength increased by 54.78%. Although the porosity of the samples decreased by 39.33%, the consolidation agent did not completely block the pores.

2) The permeability of the consolidated-acidizing sample was 2.88 mD with a 10.63% increase in porosity, while the permeability of the acidizing unconsolidated sample was 1.86 mD with a 10.73% decrease in porosity. The consolidation agent can effectively improve the stability of the NGH sedimentary skeleton and prevent sand production or collapse of the reservoir. The condition of acidizing and reforming exists in the consolidated sediment skeleton. And the acidizing sediment skeleton has good pore development.

3) The CT scan images show that the unconsolidated sediment samples have severe deformation of the skeleton after acidizing and there is sand production. In contrast, the consolidated sediment samples have no obvious skeleton deformation after acidizing, the pore development is uniform, and no sand production is found.
