ORIGINAL RESEARCH article

Front. Energy Res., 10 August 2023
Sec. Solar Energy

A photovoltaic parameter identification method based on Pontogammarus maeoticus swarm optimization

Ling Chen
Ling Chen1*Wei HanWei Han2Yang ShiYang Shi3Jingwei ZhangJingwei Zhang3Shang CaoShang Cao3
  • 1School of Physics and Electronic Electrical Engineering, Huaiyin Normal University, Huai’an, China
  • 2State Grid Jiangsu Electric Power Co., Ltd., Huai’an Power Supply Branch, Huai’an, China
  • 3College of Mechanical and Electrical Engineering, Hohai University, Changzhou, China

Currently, the improvement of model parameter extraction accuracy is essential to research photovoltaic (PV) fields. In this study, a model parameter identification based on Pontogammarus maeoticus swarm optimization (PMSO) is proposed. The PMSO is used for parameter identification of mathematical models for PV modules. In the PMSO algorithm, by giving the ability of free exploration to particles that are far away from the optimal solution, the search scope is expanded to avoid falling into the local optimum. Besides, the local search for each Gammarus has a better convergence for PV parameter identification. Therefore, the accuracy of parameter identification for modeling PV modules is improved. The feasibility and superiority of the proposed method are verified by measured I-V characteristics of the PV array. The experimental results and error analysis verify that when compared with the conventional meta-heuristic algorithms, the proposed method achieves higher modeling accuracy. The proposed PMSO algorithm is suitable for engineering application of parameter identification and modeling of PV modules.

1 Introduction

In recent decades, with increasing concerns about resource depletion, climate change, and environmental pollution, the proportion of installed renewable energy has gradually increased (Renewables, 2022). Investment in renewable power and fuels has risen for the fourth consecutive year, and the record increase in global electricity generation has led to solar and wind power providing more than 10% of the world’s electricity for the first time ever (Renewables, 2022).

Therefore, in order to better estimate the generated power of photovoltaic (PV) power plants, many different types of PV models have been built, such as the single-diode model (SDM) (Kalliojärvi-Viljakainen et al., 2022; Javier Toledo et al., 2023), double-diode model (DDM) (Yahya-Khotbehsara and Ali, 2018), improved single-diode model (ISDM) (Abbassi et al., 2017), and triple-diode model (TDM) (Rezk and Ali Abdelkareem, 2022). The improvement of accuracy of parameter identification can enhance the simulation accuracy of PV models (Chouder et al., 2012). It can also help evaluate the performance of PV systems (Dabou et al., 2021), predict the output characteristics of PV arrays (Zhu et al., 2023), track the maximum power point (MPP) (Manna et al., 2023), and diagnose failure of PV arrays (Zhang and Huang, 2011), which directly affect the power generation efficiency and economic benefits of a PV power plant. Therefore, it is important to model the PV modules and accurately obtain the parameters of solar cells and PV modules.

The identification methods of PV model parameters can be divided into analytical and optimization methods. Many researchers have proposed to directly analyze the I-V curve to obtain parameters through the analysis method (Chan and Phang, 1987; Ortiz-Conde et al., 2006; Li Hong Idris Lim Ye et al., 2015; Torabi et al., 2017). This kind of method is direct and simple, but its accuracy depends on the correctness of the key information points selected on the I-V curve, i.e., short-circuit point, open-voltage point, and MPP. However, due to changes in outdoor ambient conditions, the I-V characteristic will have non-linear changes, so the analytical method cannot show good accuracy in practical applications.

Alternatively, with the progress of computer and artificial intelligence, many optimization methods based on the meta-heuristic algorithm to identify PV model parameters have been proposed. These methods are suitable for solving non-linear complex problems and improving the accuracy of solving. They are mainly divided into the following four categories: biology-based algorithms, physics-based algorithms, sociology-based algorithms, and mathematics-based algorithms (Yang et al., 2020). Many scholars have applied the meta-heuristic algorithm to identify PV model parameters. Mirjalili and Lewis (2016) proposed the whale optimization algorithm (WOA) in 2016. Xiong et al. (2018) soon applied the WOA to PV parameter identification. Zeng et al. (2021) proposed parameter identification of PV cells via the adaptive compass search (ACS) algorithm and when being compared with the WOA, the ACS algorithm showed better optimization accuracy and convergence rate. El-Dabah et al. (2023) proposed PV model parameter identification using the northern goshawk optimization (NGO) algorithm, and Kumar and Magdalin Mary (2022) proposed PV model parameter identification using the chaotic tuna swarm optimizer (CTSO) algorithm. Both methods have good results for the parameter identification of TDM. Wen et al. (2021) proposed the parameter identification of PV models by using an enhanced adaptive butterfly optimization algorithm (EABOA). The EABOA exhibits a precision superior to other methods in parameter extraction for the SDM and DDM. Nunes et al. (2020) proposed a novel multiswarm spiral leader particle swarm optimization (M-SLPSO) for PV parameter identification. The proposed M-SLPSO uses several swarms with different spiral trajectories, with population stagnation and premature convergence being alleviated. Alam et al. (2015) proposed a flower pollination algorithm (FPA)–based solar PV parameter estimation. Gude and Chandra Jana (2022) proposed the cuckoo search algorithm–based parameter identification of solar cells. Qais et al. (2019) proposed the coyote optimization algorithm (COA) for parameters extraction of three-diode PV models of PV modules. Lu et al. (2023) proposed the hybrid multi-group stochastic cooperative optimization algorithm (HMSCPSO), where the diversity of the population is increased to solve the problem of parameter identification. Shen et al. (2023) proposed the parameters of the discrete-time equivalent model (PDEM) of a PV system. The model parameters are identified using the least square method (LS) and bat algorithm (BA). Gu et al. (2023) proposed a simple and effective approach success-history adaptation differential evolution with linear population size reduction and decomposition (L-SHADED) to solve the problem of PV parameter identification, when the temperature and irradiance change. However, many problems still exist for the aforementioned algorithms, e.g., the adaptability of WOA parameters has to be improved. The NGO algorithm has worse accuracy considering noisy signals. The robustness of the FPA, CTSO, and EABOA should be enhanced for different temperature conditions. The accuracy of its identification is affected by the irradiance levels. Some algorithms do not take global search into account and may be easy to fall into local optimum.

This work proposes parameter identification of PV models by Pontogammarus maeoticus swarm optimization (PMSO). In the following experimental verification, the accuracy of the PV module parameter extraction by other conventional meta-heuristic algorithms and the proposed method is compared, which verifies the superiority of the proposed method. One of the advantages of the algorithm in comparison to others is that it can escape from local bests better for PV parameter identification. The local search for each Gammarus has a better convergence for PV parameter identification.

The contents of this article are organized as follows: the first section is the introduction. The second section introduces the SDM. The third section shows the detailed procedure of the PMSO algorithm. The fourth and fifth sections demonstrate the experimental verification and conclusions, respectively.

2 Single-diode model

The SDM is the most popular PV model, which includes five parameters—photogeneration current Iph, reverse saturation current Isat, diode ideality factor A, equivalent series resistance Rs, and parallel resistance Rsh (Xu et al., 2023). Parameters of the SDM should vary according to module performance and environmental conditions, which is challenging for model parameter identification. In this work, the parameters of SDM are identified, and modeling results using the identified parameters are compared with several other conventional algorithms to verify the effectiveness and superiority of the proposed method.

The equivalent circuit of the SDM is shown in Figure 1. The mathematical expression of SDM is given as follows (Chen et al., 2023):

I=IphIsatexpV+IRsAVT1V+IRSRsh,(1)
Iph=Isc+KiΔTGGs,(2)
Isat=Isc+KiΔTeVoc+KvΔT/VTN1,(3)

where I is the output current; V is the output voltage; G is the measured irradiance; Gs is the irradiance under standard test conditions (STC); T is the absolute temperature of the solar cell; ΔT is the difference of temperature; VT is the thermal voltage; Isc is the shunt current; Ki is the temperature coefficient of Isc; Voc is the open-circuit voltage of the PV module; Kv is the temperature coefficient of Voc; K is Boltzmann’s constant (1.380 × 1023 J/K); and q is the electron charge. The parameters to extract are Iph photogenerated current, Isat diode reverse saturation current, A diode quality factor, Rs equivalent series resistance, and Rsh parallel resistance. N is the number of solar cells connected in series. Besides, the predefined fitness function is required for parameter identification of the PV model. In this method, the fitness function takes the root mean square error of the measured current and theoretical current (Zhang et al., 2020), and is defined as follows:

RMSE=1ni=1nImea,iIthe,i2,(4)

where Imea,i is the i-th measured current, Ithe,i is the modeled theoretical current with the same voltage, and n represents the number of points in an I-V curve.

FIGURE 1
www.frontiersin.org

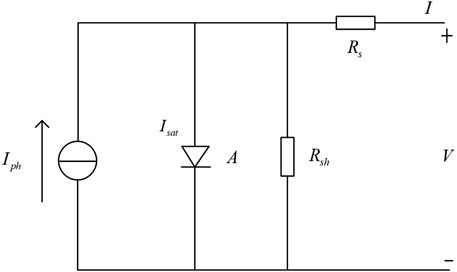

FIGURE 1. Single-diode model.

3 PMSO algorithm

3.1 Principle of Pontogammarus maeoticus swarm

Gammarus is a kind of hard-shell creature, which belongs to the order Amphipoda. Pontogammarus maeoticus is one of the popular Gammarus. Two factors mainly help Gammarus searching for food (Ghojogh and Sharifian, 2018). The first one is the sea wave, as shown in Figure 2. The Gammarus that is far from the sea edge may be influenced strongly by the sea wave. This sea edge is modeled as the global best. Once the Gammarus has reached the sea edge, it would further search the local best at the vicinity of its position. Then, another action of the Gammarus starts, i.e., foraging, as shown in Figure 3. The foraging helps the Gammarus further search the local best. At last, the nutrients are foraged and the local best optimum is obtained.

FIGURE 2
www.frontiersin.org

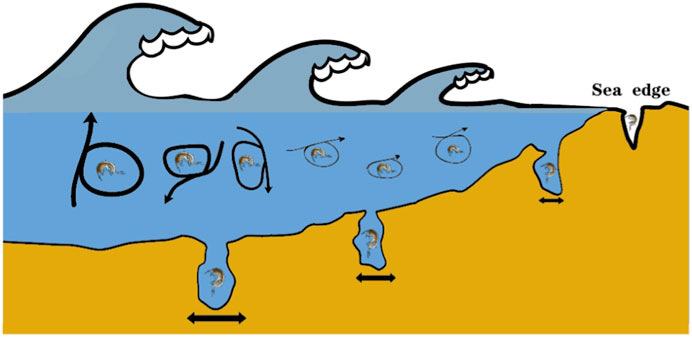

FIGURE 2. Sketch of sea waves, sea edge, sea bed, and Gammarus in sea and sea edge (Ghojogh and Sharifian, 2018).

FIGURE 3
www.frontiersin.org

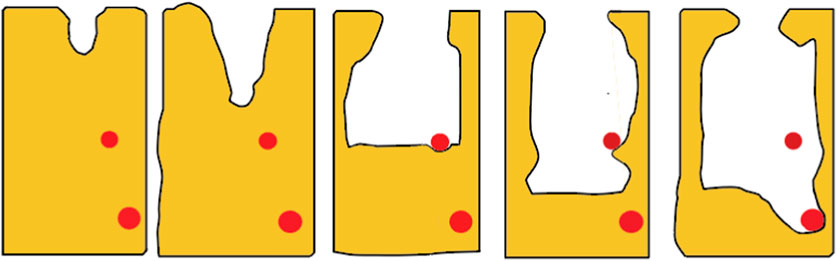

FIGURE 3. Sketch of local search by Gammarus for foraging, red dots are local bests (Ghojogh and Sharifian, 2018).

3.2 Initialization of Gammarus location

At first, the Gammarus is randomly generated for random exploration in the landscape, and its random initialization expression (Ghojogh and Sharifian, 2018) is given as follows:

Gid=Uld,ld,ldlandscapedld,i=1,..,NG,(5)

where Gi(d) is the location of the Gammarus, (−ld,ld) is the bound of search space in dimension d, and landscape (d) is dimension d of the landscape.

After randomly generating locations of the Gammarus, it should be checked whether collision occurs. If collision occurs, the Gammarus is repositioned. After repositioning, the collision should be checked again. For quantitatively measuring the collision, the distance between two Gammarus in a surrounding hyper-sphere or hyper-cube in the D-dimensional space is calculated. The distance calculation equation is as follows:

distanceXi,Xj=XiXj=d=1DXidXjd2,(6)

where Xi(d) and Xj(d) are the d-th decision variable for the position of i-th and j-th Gammarus, respectively. D is the number of all decision variables. Therefore, the collision distance is a hyper-parameter and should be set according to the specific problem. In this work, for the model parameter identification of the SDM, the five model parameters are determined as five decision variables. Furthermore, the distance between two Gammarus is calculated in a 5-D decision space.

3.3 Initial neighborhood settings

At the beginning of each global iteration, each Gammarus performs a local search of the domain. In the first global iteration, the initial domain Ni of all Gammarus is given as a constant. For the second and subsequent global iteration, the Ni of global optimal Gammarus is set as the initial neighborhood of founder of the global best (GB) at the first of every global iteration (NGB). Moreover, the Ni of other Gammarus will be determined by its distance from the global optimal solution. The greater the distance is, the greater will be the Ni. The equation is given as follows:

NiF×GBGi,(7)

where F is a hyperparameter to adjust the amplitude of distance, according to the distance between the GB and i-th Gammarus location in landscape, Gi.

3.4 Searching of optimal solution

The position of the Gammarus in the landscape is updated in each global iteration, except in the first. For each individual Gammarus, the moving distance is assigned according to the distance of the other Gammarus from the GB. The equation for updating positions is as follows:

WiGBGi,(8)

where Wi is the wave vector affecting the i-th Gammarus. On the other hand, all Gammarus are classified as the Gammarus close to the GB or that away from the GB, according to their distance from the GB. The criteria for judging and the number of close Gammarus are hyperparameters. For Gammarus close to the GB, the direction of its movement will be toward the GB. The angle calculation in different dimensions is as follows:

Θid=tan1j=d+1Dvij2VidΘiD1=2×tan1VidViD1+ViD2+ViD12,(9)

where Vi is the i-th Gammarus Gi vector to the GB. Vi(j) represents the j-th dimension component of this vector, j=1,,D. D is the number of dimensions of landscape. For Gammarus away from the GB, the direction of movement will be toward a random direction. The angle calculation is as follows:

θid=U0,2π,d=1,..,D1.(10)

Based on the moving distance and direction of the Gammarus, the vectors for moving are calculated as follows:

Wi=Wi1,Wi2,..,WiDTWi1=WicosΘi1,Wid=WicosΘidd1j=1sinΘij,d={2,..,D.WiD=WisinΘiD1D2j=1sinΘij(11)

This prevents all Gammarus from moving toward the global and local best that have been found, allowing them to explore more of the landscape and find better solutions. The flowchart of the PMSO algorithm is shown in Figure 4. Then, PMSO is used to identify the model parameters based on the I-V curve. The identification results are obtained through continuous iterations by reducing the RMSE in (4) with the measured I-V curve. The framework of the proposed method is illustrated in Figure 5.

FIGURE 4
www.frontiersin.org

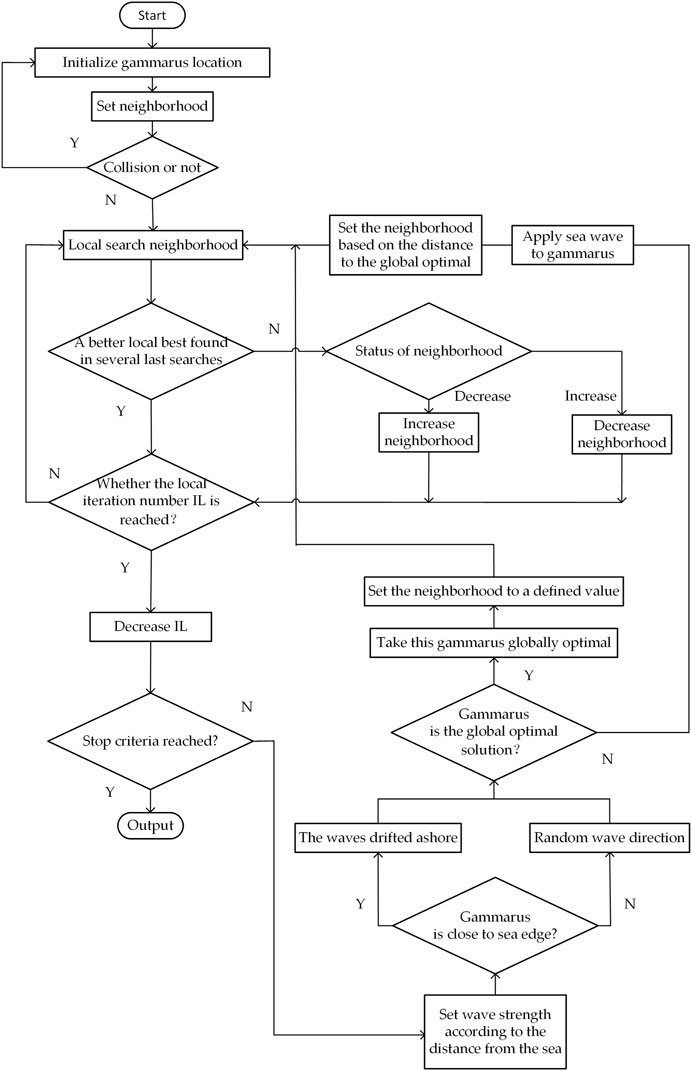

FIGURE 4. Flowchart of the PMSO algorithm.

FIGURE 5
www.frontiersin.org

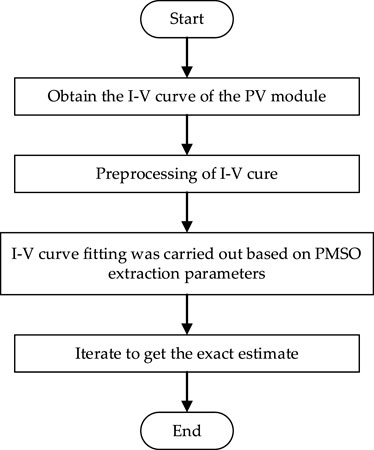

FIGURE 5. Framework of the method flow.

4 Experiment and conclusion

4.1 Experiment

In order to verify the accuracy of the PMSO algorithm in the extraction of PV module parameters, in this work, a 5.28-kWp PV array composed of 22 poly-crystalline PV modules TSM-240 is used for experimental verification. The three-phase grid-connected inverter GW20KN-DT is used to measure the I-V curve of the PV array. The pyranometer is used to measure the in-plane irradiance of the PV array. The platinum-resistant Pt100 is pasted to the back of the PV module to measure the temperature. The data acquisition system for measuring the I-V curve and meteorological data is shown in Figure 6; Table 1 lists the specifications of the PV modules under STC, provided by the manufacturer.

FIGURE 6
www.frontiersin.org

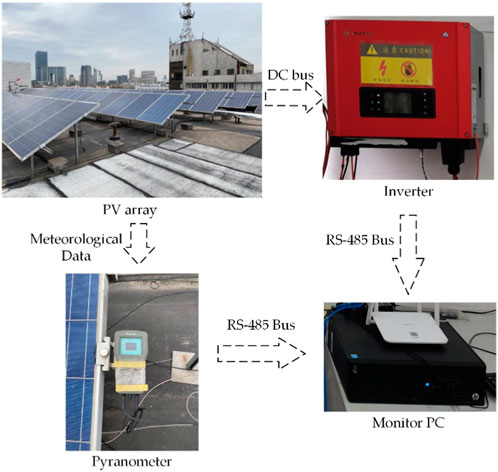

FIGURE 6. Data acquisition system for measuring I-V curve and meteorological data.

TABLE 1
www.frontiersin.org

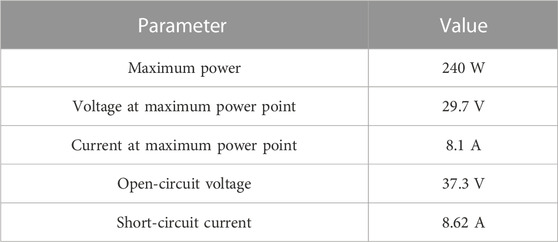

TABLE 1. Specification of PV module TSM-240.

Modeling is carried out using the proposed extraction method based on the PMSO algorithm. The I-V curves, in-plane irradiance, and temperature of the PV array are transmitted to the indoor monitoring computer through the RS-485 bus for analysis and verification. In order to avoid excessive loss of PV plant by measuring the I-V curve, the sample interval is determined to be 2 min. Meanwhile, in order to reduce the measurement error, the measured I-V curves are preprocessed, and the measured data with amplitude less than 200 W/m2 or curve distortion affected by local shadow are ignored. The number of local maximum and minimum values on the second derivative d2I/dV2 of the curve is used as an indicator to identify abnormal I-V curves (Li et al., 2019). Then, the PMSO is used to estimate the model parameters. Finally, the extraction results of the PMSO are compared with those of other conventional parameter extraction methods, i.e., FPA (Alam et al., 2015), artificial bee colony (ABC) (Gude and Chandra Jana, 2022), and COA (Qais et al., 2019). Figure 7 presents the comparison results between the measured and modeled I-V characteristics based on the aforementioned parameter extraction methods in the typical days of four seasons. The comparison results between the measured and modeled P-V characteristics based on the aforementioned parameter extraction methods are shown in Figure 8. It can be seen from the experimental results shown in Figures 7, 8that when compared with other conventional meta-heuristic algorithms, the parameter extraction of PV modules on typical days of the four seasons is more consistent with the measured I-V curve. The corresponding values of the identified model parameters using the four parameter identification methods for the ambient conditions in spring (621 W/m2, 29.5°C), summer (617 W/m2, 47.4°C), autumn (575 W/m2, 47.4°C), and winter (628 W/m2, 35.9°C) are shown in Table 2.

FIGURE 7
www.frontiersin.org

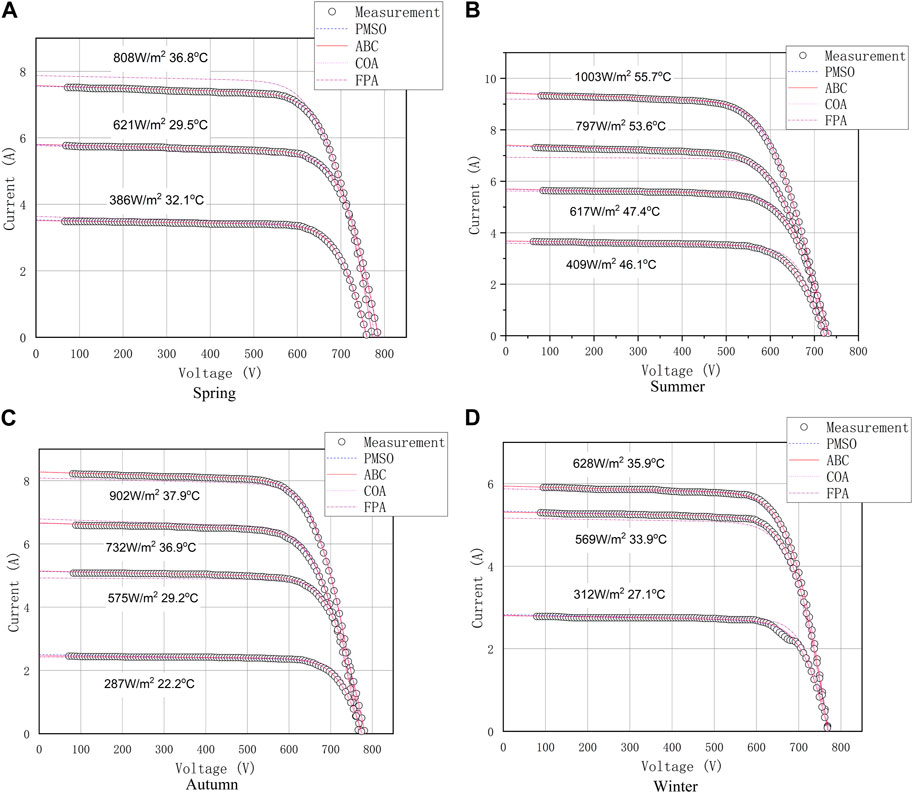

FIGURE 7. Comparison of measured and model estimated I-V characteristics in typical days in four seasons. (A) Spring, (B) Summer, (C) Autumn, and (D) Winter.

FIGURE 8
www.frontiersin.org

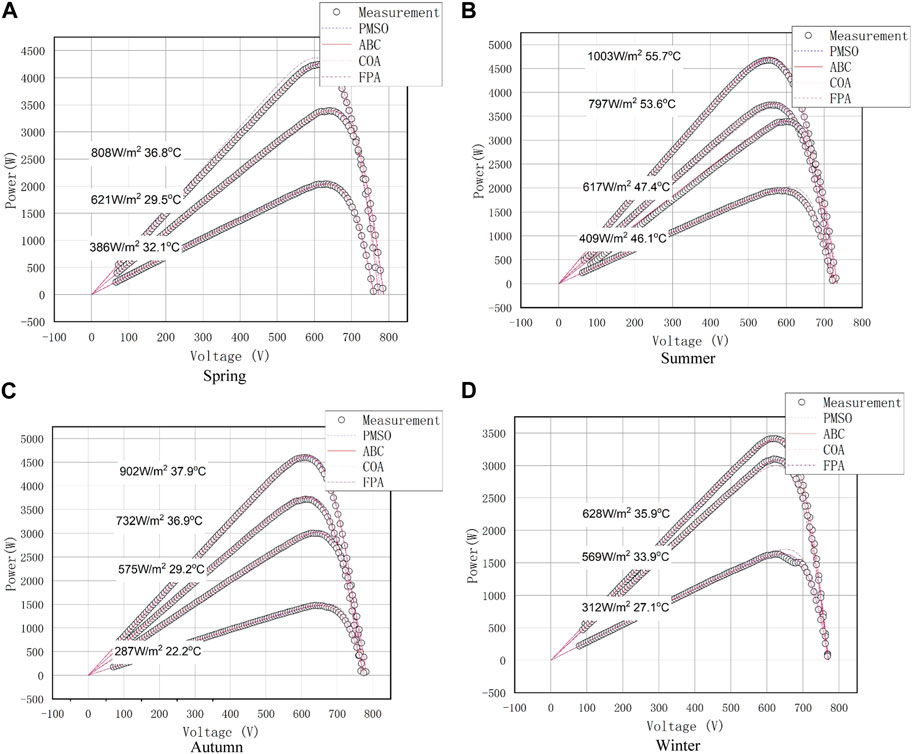

FIGURE 8. Comparison of measured and model estimated P-V characteristics in four seasons. (A) Spring, (B) Summer, (C) Autumn, and (D) Winter.

TABLE 2
www.frontiersin.org

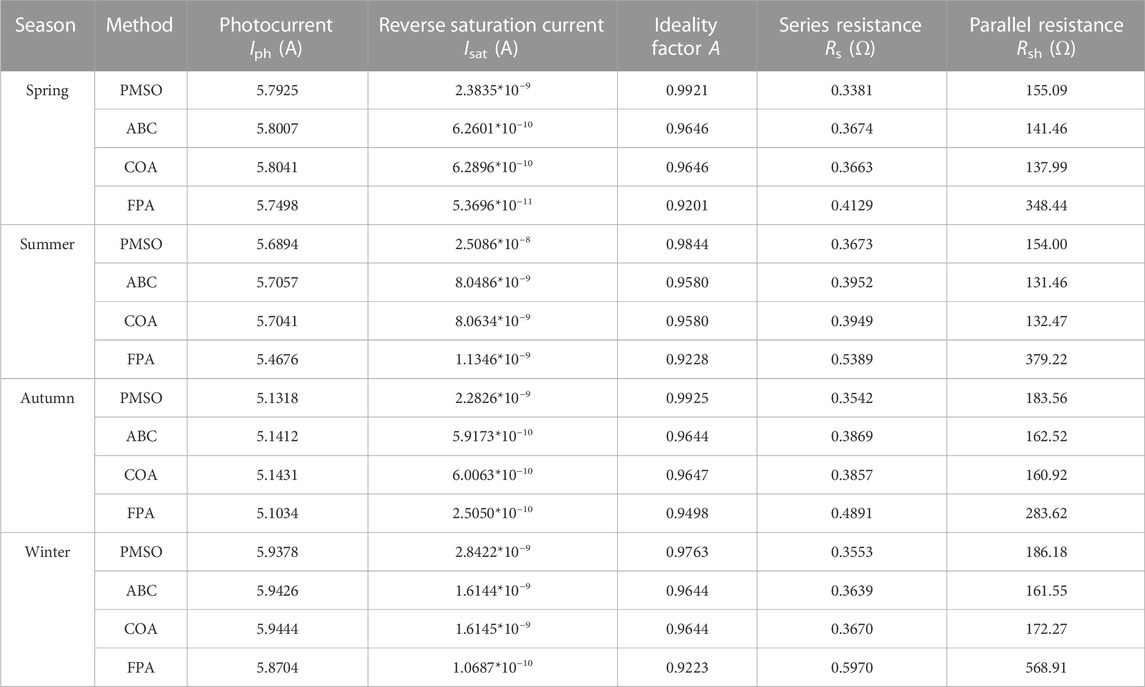

TABLE 2. Values of identified model parameters using four parameter identification methods for the ambient conditions in spring (621 W/m2, 29.5°C), summer (617 W/m2, 47.4°C), autumn (575 W/m2, 47.4°C), and winter (628 W/m2, 35.9°C).

4.2 Error analysis

In addition, the modeling error is analyzed by using model parameters identified by the proposed algorithm. Figure 9 shows the percentage error of the model based on the PMSO algorithm in four seasons at approximate 600 W/m2. The percentage error for the model estimated by the proposed PMSO algorithm is relatively closer to 0 when compared with the other three algorithms. The reason is that the sea wave and foraging action of the Gammarus is effective for searching the global optimum of the identified model parameters. It validates that the proposed algorithm can achieve higher accuracy of parameter identification. Besides, the root mean square error (RMSE), mean absolute error (MAE), and mean absolute percentage error (MAPE) are used to comprehensively assess the performance of different methods for model parameter identification. The RMSE is calculated via (4). The MAE and MAPE are calculated as follows:

MAE=1ni=1nImea,iIthe,i,(12)
MAPE=1ni=1nImea,iIthe,iImea,i×100%.(13)

FIGURE 9
www.frontiersin.org

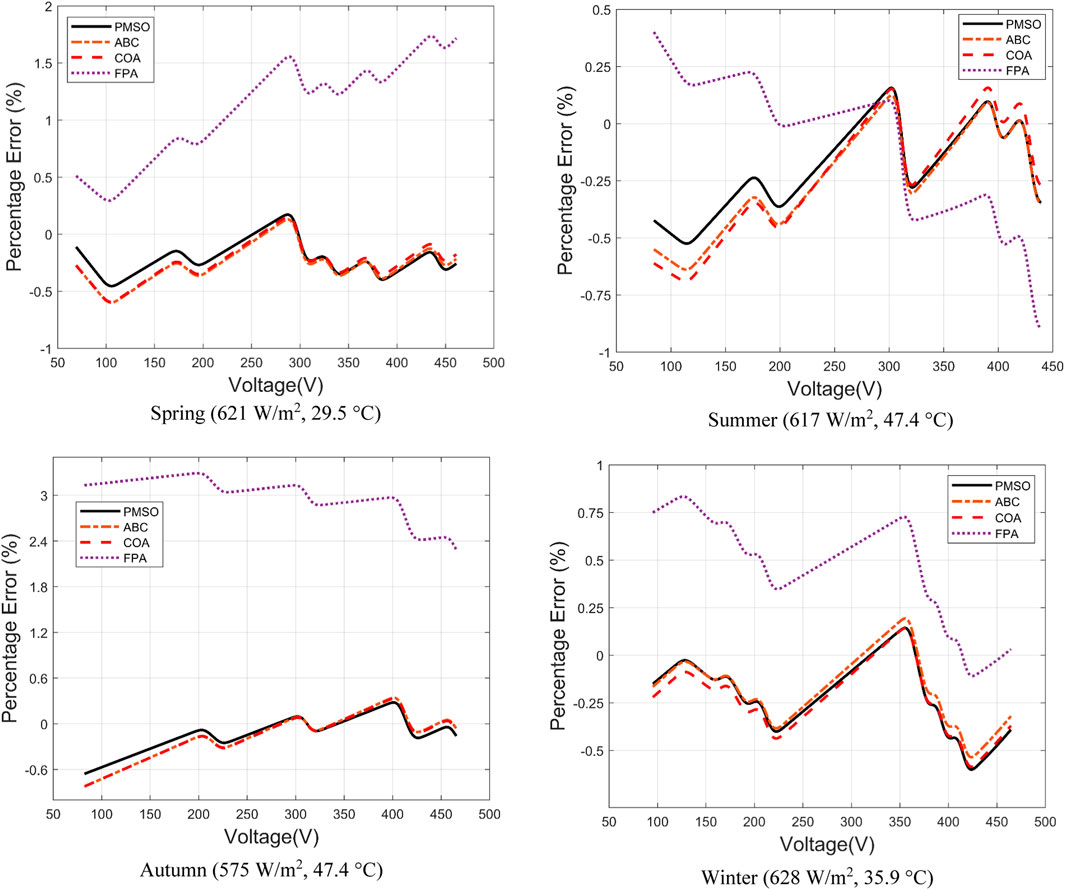

FIGURE 9. Percentage error of the estimated current based on PMSO in different seasons.

Table 3 shows the different error metrics of the four parameter identification methods for the ambient conditions in the four seasons. It reveals that the proposed PMSO algorithm achieves fewer errors than the other conventional meta-heuristic algorithms. Though, the RMSE of the model based on the proposed PMSO algorithm is greater in winter, the MAE of the modeled results is also the least. In most cases, the identification accuracy of the model parameters for the proposed PMSO algorithm is low enough for engineering applications.

TABLE 3
www.frontiersin.org

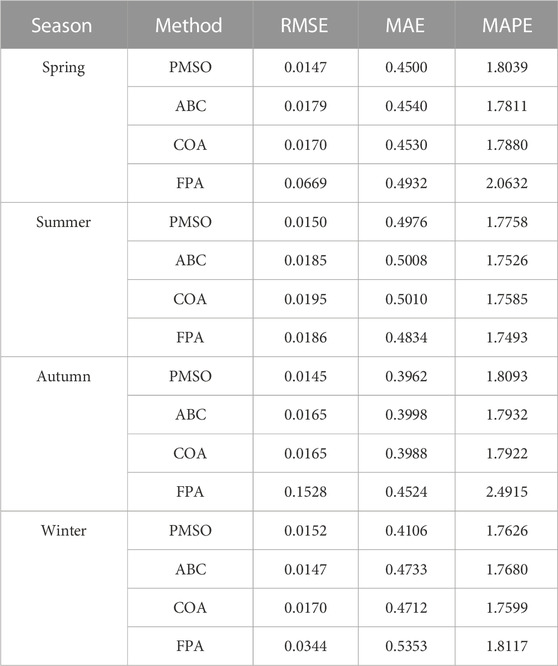

TABLE 3. Different error metrics of four parameter identification methods for the ambient conditions in spring (621 W/m2, 29.5°C), summer (617 W/m2, 47.4°C), autumn (575 W/m2, 47.4°C), and winter (628 W/m2, 35.9°C).

5 Conclusion

In this work, a model parameter identification method based on PMSO is proposed. In the PMSO algorithm, by giving the ability of free exploration to the particles that are far away from the optimal solution, the search scope is expanded to avoid falling into the local optimum. Therefore, the accuracy of parameter identification for modeling the PV module is improved. The feasibility and superiority of the proposed method are verified by the measured I-V characteristics of a PV array. Experimental results and error analysis verify that, compared with the conventional meta-heuristic algorithms, the proposed method achieves higher modeling accuracy. The proposed PMSO algorithm is suitable for engineering application of parameter identification of PV modules. Considering the advantage of the PMSO algorithm that it is not easy to fall into local optimum, the further research would focus on applying the PMSO algorithm for other different optimization problems, e.g., the maximum power point tracking of PV array with complicated shading.
