Juliusz Dąbrowa
Anna Stępień
Maria Szymczak1
Konrad Świerczek- 1AGH University of Science and Technology, Faculty of Materials Science and Ceramics, Krakow, Poland
- 2AGH University of Science and Technology, Faculty of Energy and Fuels, Krakow, Poland
- 3Aleksander Krupkowski Institute of Metallurgy and Materials Science, Polish Academy of Sciences, Krakow, Poland
- 4AGH Centre of Energy, AGH University of Science and Technology, Krakow, Poland
High-entropy (La,Pr,Nd,Sm,Gd)BaCo2O5+δ double perovskite-type oxide having an equimolar, high-entropy, A-site-layered arrangement of cations is synthesized for the first time. A modified Pechini method, followed by calcination and sintering at 1,100°C helps in obtaining a single-phase, homogenous material with tetragonal I4/mmm symmetry. In situ X-ray diffraction and dilatometric studies show excellent phase stability up to 1,100°C in air, with the average thermal expansion coefficient of 23.7∙10–6 K−1 within the 25–1,100°C range. Total electrical conductivity of the metallic character exceeds 1,600 S cm−1 at room temperature. Equilibrated oxygen content at room temperature is determined as 5.69. The cathodic polarization resistance of the (La,Pr,Nd,Sm,Gd)BaCo2O5+δ layers, manufactured on the La0.8Sr0.2Ga0.8Mg0.2O2.8 (LSGM) solid electrolyte of proved inertness, is as low as 0.037 Ω cm2 at 900°C, and 0.175 Ω cm2 at 750°C. The determined value of the power density in the LSGM-based, electrolyte-supported (thickness ca. 200 μm) fuel cell reaches 857 mW cm−2. These results indicate possible applicability of the developed cathode material for solid oxide fuel cells, making it also one of the best-performing high-entropy air electrodes reported until now. However, the determined physiochemical characteristics of the material indicate a relatively limited influence of the high-entropy A-site arrangement in comparison to the conventional analogs, including the synthesized Nd0.88Sm0.12Co2O5+δ composition, characterized by the same effective radius of the lanthanide cations.
1 Introduction
In the era of growing energy demand, the importance of green-energy conversion technologies cannot be overestimated. Among the proposed new approaches, Solid oxide fuel cells (SOFC) technology is of special interest, offering improved efficiency, not only in terms of electricity production but also through possible utilization of the concurrently produced heat (Larminie and Dicks, 2003). If fueled by hydrogen, the level of pollution generated by SOFCs is negligible, and even more importantly, the possibility of the reversible operation, i.e., work in the high-temperature electrolysis mode, which can be realized in the reversible solid oxide cells (rSOC), brings about unprecedented possibilities for supporting the power-grid balance (Ramadhani et al., 2017), making SOFC technology one of the most appealing opportunities regarding the development of the Power-to-X (P2X) technologies (Boaro, 2014; Gao et al., 2016). While finally, it seems that the broader commercial application of SOFCs is indeed taking place (Staffell et al., 2019), the technology remains limited by certain unresolved issues among which are still too high-operating temperature, long-term performance stability, as well as high manufacturing and operating costs should be listed (Mahato et al., 2015; Zhao et al., 2017).
As of today, the biggest performance losses for SOFC cells operating at reduced temperatures (<800°C) can be associated with cathodic polarization resistance (Boaro, 2014). This is mainly due to the insufficiently low catalytic activity toward the oxygen reduction reaction (ORR) (Ishihara, (2014) Perovskite Oxide for Solid Oxide Fuel Cells New York: Springer). Currently developed state-of-the-art air electrode materials, while delivering a largely improved performance, are still troubled by a number of crucial problems related to insufficient chemical and microstructural stability, unsuitable thermomechanical characteristics, and vulnerability to CO2- and Cr-poisoning effects (Fergus, 2005; Gao et al., 2016).
Among the most promising cathode materials, the so-called double perovskites with the chemical formula of REBaCo2O5+δ (RE: La, Pr, Nd, Gd, Sm, Y, etc.), also including partially doped materials, must be mentioned (Raveau and Seikh, (2012); Karppinen et al., 2002; Frontera et al., 2005; Raveau and Seikh, (2012); Mogni et al., 2013; Volkova et al., 2013; Pelosato et al., 2015). The uniquely layered arrangement in the RE-Ba sublattice, which is directly influencing structural, transport, as well as electrocatalytic properties, enables manufacturing of air electrode layers showing excellent catalytic activity toward ORR (Kim and Manthiram, 2008; Kim et al., 2012; Sengodan et al., 2015). This is mainly due to the high mixed ionic–electronic conductivity (MIEC), especially with regard to the ionic contribution, as well as the presence of catalytically-active cobalt cations at the surface region with coordination number lower than six (Kim and Manthiram, 2015; Hwang et al., 2017). What is more, the high versatility of double perovskites allows for the application not only in SOFCs but also in Protonic Ceramic Fuel Cells (PCFC) (Kim and Manthiram, 2015). Still, the considered materials exhibit some disadvantages, such as relatively high values of the thermal expansion coefficient (TEC), limited chemical stability at the interface with solid electrolytes, vulnerability to CO2 from the atmosphere, as well as to the previously mentioned Cr-poisoning from the interconnects (Sun et al., 2010). However, it is believed that at least some of those problems can be addressed by proper doping (Liu et al., 2017).
While doping at the B-site of Co-based double perovskites (e.g., with Fe, Mn, or Cu) has been relatively thoroughly studied (Karppinen et al., 2002; Zhang, 2004; Tsvetkov et al., 2011; Kim et al., 2013; Broux et al., 2014; Tsvetkov et al., 2016; Kong, 2018; Olszewska and Świerczek, 2019; Olszewska et al., 2019), in the case of this type of double perovskites, the occupancy of the A-sites can have an equally great impact on the properties of the materials, creating further opportunities for their tailoring. In fact, most of the properties, such as oxygen non-stoichiometry, electronic conductivity, ionic conductivity, or thermal expansion coefficient (TEC), can be directly correlated to the ionic radius of the A-site lanthanide and/or its difference when compared to Ba cations, see also Supplementary Figure S1 (Lee et al., 1998; Du et al., 2014; Kim and Manthiram, 2015; Olszewska, Świerczek, et al., 2019). In most cases, the selection of bigger RE ions, such as La or Pr, helps in enhancing the transport properties, however, at a price of increasingly high TEC values (Kim and Manthiram, 2015) (e.g., from 18.2 to 29.5·10–6 K−1 for YBaCo2O5+δ and LaBaCo2O5+δ, respectively) (Olszewska, Świerczek, et al., 2019) Similarly, the oxygen nonstoichiometry also changes drastically, varying at room temperature from δ ≈ 0.41 to δ ≈ 1 for Y- and La-based compositions, respectively, and can be further modified by substituting Ba with other smaller alkali ions such as Sr or Ca (Kim and Manthiram, 2015). However, despite the profound effect of the A-site occupancy on the properties of the double perovskites, the studies concerning the utilization of multi-ionic A-site arrangement (with multiple lanthanide ions) are still much less popular than those of B-site modifications. In this context, it seems that one especially tempting, but yet not explored, approach for further adjustment of the physicochemical and electrochemical properties of double perovskites is to apply the high-entropy design principle. This way offers a number of additional potential advantages, such as increased stability due to the entropic stabilization, and potentially, the presence of additional synergistic effects (Miracle and Senkov, 2016; Kübel et al., 2018). In this context, based on the aforedescribed profound impact of the relationship between Ba and RE ions’ ionic radii, it still remains to be seen whether the inherent lattice distortion and spread of the ionic radii in the high-entropy compound might introduce further, unexpected effects, thanks to replacing the atomic-level smooth Ln-O plane by a highly distorted, uneven, high-entropy analog, in which the ionic radius of the lanthanide changes from one lattice site to another.
The application of the high-entropy approach to design novel oxide systems led to the development of the high-entropy oxides (HEOx) family, which since the pioneering study of Rost et al. in 2015 concerning the rock salt-structured (Co,Cu,Mg,Ni,Zn)O (Vinnik, et al., 2019), has been expanded on a vast number of compositions and structures, including the high-entropy perovskites Zhang et al. (2019) History of high entropy oxides, Singapore: Spronger Nature; Djenadic et al., 2016; Berardan et al., 2016; Li et al., 2019; Tseng and Mccormack, 2019; Vinnik et al., 2019; Dąbrowa et al., 2020a; Dąbrowa et al., 2021). Despite a very short development history, such materials have already been proven to exhibit a number of potentially interesting features from the viewpoint of SOFC technology. For example, in our previous article, it was documented that Cr-containing La1-xSrx(Co,Cr,Fe,Mn,Ni)O3-δ (x = 0, 0.1, 0.2, 0.3) simple perovskite could be successfully used as the air electrode material for SOFCs (Dąbrowa et al., 2020b), displaying a number of beneficial, functional features such as moderate thermomechanical behavior and high-temperature stability. Another recent report concerning the high-entropy equivalent of the LSM material (La1-xSrxMnO3-δ), namely the (La,Nd,Pr,Sm,Sr)MnO3-δ, showed that the utilization of the high-entropy design principle with regard to the “A” sublattice may allow suppressing the alkaline ions surface segregation, greatly enhancing the longevity of the fuel cell (Yang et al., 2021), a feature which might also be of interest in double perovskites, suffering from the similar issue (Kim et al., 2009a). Last, but not least, in nearly all known cases, not only regarding the SOFC applications (Han et al., 2021; Shen et al., 2021) but other energy-conversion technologies as well (Kübel et al., 2018; Zhao et al., 2020), HEOx are characterized by excellent long-term stability of electrochemical performance, an effect whose origins still remains far from being completely understood.
Considering the aforementioned benefits of the high-entropy approach, as well as the lack of reports regarding the possibility of obtaining high-entropy double perovskites, not to mention their possible application in SOFCs, it is especially appealing to evaluate the properties of the proposed (La,Pr,Nd,Sm,Gd)BaCo2O5+δ material. This is particularly of interest since, as was described earlier, the ionic radius (or mean radius) of the lanthanides strongly influences the physiochemical characteristics of the double perovskites (Kim and Manthiram, 2008; Kim J. H. et al., 2009; Kim and Manthiram, 2015). However, it remains an open question as to whether by the introduction of the high-entropy approach at the A-site, these properties can be affected beyond the simple interpolation based upon the mean radius of all introduced lanthanides. Therefore, to provide a valid reference, a more conventional Nd0.88Sm0.12Co2O5+δ composition was also prepared with the ratios of the lanthanide ions being selected to provide an identical effective ionic radius, but without the level of lattice distortion, typically associated with the high-entropy compounds.
2 Materials and methods
The studied materials, namely La0.2Pr0.2Nd0.2Sm0.2Gd0.2BaCo2O5+δ [later denoted as (La,Pr,Nd,Sm,Gd)BaCo2O5+δ] and Nd0.88Sm0.12Co2O5+δ, were synthesized by using a modified Pechini method, using nitrate precursors provided by Alfa Aesar (99.9% purity for lanthanide salts, 98–102% for cobalt nitrate). Citric acid monohydrate (Alfa Aesar 99.5+ %) and ethylene glycol (EG) were also used, with the molar ratio of all the cations, citric acid, and EG in the mixture being 1:2:4. After dissolving in demineralized water, the mixture was then put on a magnetic stirrer, with a heating plate set initially to 150°C (esterification step). After obtaining a clear solution, the temperature was increased to 300°C. The obtained gel was calcined at 800°C for 4 h to remove organics, and then at 1,100°C for 16 h to decompose the highly-stable barium carbonate. This step was followed by slow cooling (with the furnace) to room temperature (RT). The obtained powder after grounding was used to prepare pellets of 10 mm in diameter, formed under a repeatedly applied pressure of 1, 1.5, and 2 tons, using a uniaxial hydraulic press with a vacuum pump attached. Subsequently, the green pellets were free-sintered in a chamber furnace for 20 h at 1,200°C, and cooled at the rate of 2°C min−1 to ensure close-to-equilibrium oxygen content and decrease the possibility of cracking.
The X-ray diffraction (XRD) measurements were performed at RT using a Panalytical Empyrean diffractometer with Cu Kα radiation, working in Bragg–Brentano geometry, within a 10–90 deg range. The obtained data were analyzed with the GSAS/EXPGUI set of software on a basis of Rietveld refinements. Structures at high temperatures and the corresponding TEC values were investigated using results from the high-temperature (HT) XRD measurements carried out on an Anton Paar HTK 1200N oven-chamber mounted on the diffractometer. The thermal expansion data were further supplemented by dilatometric measurements using a Linseis L75 Platinum Series dilatometer.
Morphology, chemical composition, and homogeneity of the materials were studied by scanning electron microscopy (SEM) combined with the energy-dispersive X-ray spectroscopy (EDS), using ThermoFisher Scientific Phenom XL Desktop SEM equipped with a silicon drift detector. The applied voltage for EDS analysis was 15 kV. The results were processed with the use of ProSuite software.
Further evaluation of the chemical and structural homogeneity of the studied high-entropy double perovskite was performed on the La,Pr,Nd,Sm,Gd)BaCo2O5+δ pellet (free-sintered in a chamber furnace for 20 h at 1,200°C, and cooled at the rate of 2°C min−1), using the transmission electron microscopy (TEM). Thin lamellae for the TEM investigation were prepared using Thermo-Fisher Scientific SCIOS II DUAL BEAM scanning electron microscope. TEM and Scanning TEM (STEM) measurements were carried out using Thermo-Fisher Scientific Titan Themis XFEG 200 kV S/TEM, equipped with a probe Cs-corrector.
The oxygen content in the synthesized materials was established with the iodometric titration method (Olszewska et al., 2018). The end-point of the titration was detected potentiometrically with an EM40-BNC Mettler Toledo titrator. The whole process was carried out in an argon atmosphere, and deionized water, used as a titration medium, was previously freed from the dissolved oxygen by boiling. To ensure the removal of the adsorbed species on the powdered material, immediately before iodometric titration, the sample was heated up to 200°C in air and then slowly cooled to RT. In order to evaluate the oxygen content changes with temperature, the thermogravimetric (TG) method was utilized (TA Q5000 IR thermobalance) with measurements (two consecutive cycles) performed in synthetic air in an RT-900°C temperature range, with 5°C min−1 heating and cooling rates.
Electrical conductivity studies by the 4-probe DC method were conducted within a temperature range of 25–1,000°C, using the Fine Instruments FRASB-1000 setup consisting of: TF1200 tube furnace, Keysight Multimeter 34465A, Keysight Function/Arbitrary Waveform Generator 33210A, control unit CFRASB-1000 with AM16/32B multiplexer, measuring probe SSC-15, and BR07 retaining decade.
To measure the cathodic polarization resistance, LSGM (La0.8Sr0.2Ga0.8Mg0.2O3-δ) electrolyte-supported symmetric cells with (La,Pr,Nd,Sm,Gd)BaCo2O5+δ|LSGM| (La,Pr,Nd,Sm,Gd)BaCo2O5+δ configuration were prepared and tested. Dense electrolyte pellets with a thickness of approx. 600 μm were sintered using commercial LSGM powder (Fuelcellmaterials), homogeneously mixed with 1 wt% of the poly(vinyl butyral-co-vinyl alcohol-co-vinyl acetate). The mixture was pressed into 13 mm diameter pellets and annealed in air at 1,450 °C. Screen printing was used to manufacture electrode layers on both sides of the electrolyte. This required preparing the electrode slurry by mixing fine (i.e., as-sintered) (La,Pr,Nd,Sm,Gd)BaCo2O5+δ powder with a commercial texanol-based binder (ESL ElectroScience) in a 2:1 wt. ratio, with 5 wt% addition of a pore-forming agent (starch). Sintering of the layers was performed at 1,100°C for a duration of 2 h.
Electrochemical properties of the constructed symmetrical cells were determined by electrochemical impedance spectroscopy (EIS) using the Solartron 1,260 Frequency Response Analyzer, combined with 1,287A electrochemical interface. Data were measured in the temperature range of 600–900°C. Studies were performed in the 0.1–106 Hz range with a perturbation amplitude signal of 25 mV. For data-fitting, an L-R0-Q1R1-Q2RL equivalent circuit was used (analyzed with the ZView software). For details about the interpretation of the respective resistances (R) and meaning of the constant phase elements (Q), see previous works (Zhao et al., 2013; Du et al., 2014; Zhang et al., 2015; Du et al., 2017).
In addition, an electrolyte-supported (thickness ca. 200 μm) button-type full cell with Ni-Ce0.8Gd0.2O2-δ|Ce0.8Gd0.2O2-δ|La0.8Sr0.2Ga0.8Mg0.2O3-δ|(La,Pr,Nd,Sm,Gd)BaCo2O5+δ configuration was prepared. Due to the known poor chemical stability between Ni and LSGM electrolytes on the anode side of the asymmetrical cell, a Ce0.8Gd0.2O2-δ (gadolinium-doped ceria, GDC; fuel cell materials) buffer layer was applied with the screen-printing method, followed by sintering at 1,300°C for 2 h. Afterward, an Ni–GDC cermet anode (with an initial NiO to GDC wt. ratio of 60:40) was applied and sintered at 1,350°C for 2 h. Then, the (La,Pr,Nd,Sm,Gd)BaCo2O5+δ layer was screen-printed on the cathode side of the cell and sintered at 1,100°C. The Ag paste was used to prepare the current collectors, with its sintering temperature equal to 750°C. During tests, humidified hydrogen (3 vol% of H2O) with a 40 cm3/min flow rate was supplied to the anode, and air with a 100 cm3/min flow rate was supplied to the cathode.
3 Results and discussion
3.1 Comparison of physicochemical properties of (La,Pr,Nd,Sm,Gd)BaCo2O5+δ in relation to REBaCo2O5+δ
As visible in Figure 1, the measured diffractogram for the calcined powders of both (La,Pr,Nd,Sm,Gd)BaCo2O5+δ and Nd0.88Sm0.12Co2O5+δ show a typical set of peaks corresponding to the double perovskite (A-site layered) crystal structure, with no secondary phase reflexes visible, confirming the phase purity. Rietveld refinement of the data allowed to confirm the presence of aristotype, tetragonal P4/mmm space group in both compositions, with the RT lattice cell parameters equal to a = 3.9014(1) and c = 7.6123(1) Å, and a = 3.9020(1) and c = 7.6060(1) Å, for (La,Pr,Nd,Sm,Gd)BaCo2O5+δ and Nd0.88Sm0.12Co2O5+δ, respectively, with a good agreement between these values proving the correctness of the conventional composition’s design. After sintering, the materials preserved their single-phase structure, see Supplementary Figure S2. Importantly, for this refinement, preferential orientation had to be included to obtain the matching intensity of the fitted profile to the measured data. This is expected for the measurements of the sintered pellet comprising the layered oxide material.
FIGURE 1. Diffractogram measured at RT for the as-calcined powders of Ba(La,Pr,Nd,Sm,Gd)Co2O5+δ and Nd0.88Sm0.12Co2O5+δ, together with Rietveld refinement.
In order to evaluate the potential benefits of the high-entropy approach application, it is necessary to place the obtained experimental data in the proper context. As already mentioned, in the double perovskites, the size of the lanthanides plays a crucial role in terms of the material’s properties, therefore, it can be expected that by determining the effective mean radius of the RE cations in high-entropy double perovskites, one will be able to interpolate the expected values of physiochemical parameters, not accounting for the possible synergies. Regarding the mean value of the (effective) radius
Regarding the homogeneity and microstructure of the considered high-entropy double perovskite, results from the SEM/EDS analyses of the fractured pellet, presented in Figure 2, indicate even and close-to-nominal content of the elements in the sample. Furthermore, the sinter is characterized by high density. Considering the EDS point-analysis data, it should be remembered that for the lanthanide cations, the overlapping of the EDS signal occurs which hinders the sensitivity of the method to evaluate with respect to rare-earth elements. Nevertheless, it can be stated that within the expected accuracy range, the results confirm the homogeneity of the obtained sample.
FIGURE 2. Micrograph taken from a fractured (La,Pr,Nd,Sm,Gd)BaCo2O5+δ pellet. Results of the EDS mappings and point analysis data (at% values) are also provided.
While based on the XRD and SEM/EDS data it can be stated that the studied (La,Pr,Nd,Sm,Gd)BaCo2O5+δ material is homogenous and single-phase, it should be noted that in the case of REBaCo2O5+δ double perovskites the atomic-scale behavior is often complex, exhibiting a tendency toward the presence of local domains, which can be described by different space groups (Muñoz-Gil et al., 2014). Such effects may be correlated with the local differences in the oxygen non-stoichiometry level, which in turn might affect the properties of the material. In order to verify chemical and structural homogeneity TEM observations were carried out for multiple regions and grains within the prepared lamellae. First, the analysis was performed in TEM mode. A number of bright field images (BF) together with the corresponding selected area electron diffraction patterns (SADP) were taken from different grains. The exemplary results are presented in Figure 3. According to SADPs, the sample is homogenous and the phase structure is well-indexed according to the P4/mmm structure with SADPs taken along the [201], [
FIGURE 3. Exemplary bright field image (upper left-hand corner) and the corresponding SAED pattern (upper right-hand corner), taken from a thin lamella of the (La,Pr,Nd,Sm,Gd)BaCo2O5+δ sample. The zone axis (ZA) along which the SAED pattern was taken is indicated. The lower part of the figure presents the results of STEM/EDS mapping, with the corresponding elemental distribution maps across the studied area. The results of the EDS analysis in typical micro areas in four different grains are also provided (at%).
Based on the HT-XRD measurements it can be stated that the (La,Pr,Nd,Sm,Gd)BaCo2O5+δ material is stable within the 25–1,100°C range in air, with the corresponding thermal expansion coefficient (TEC) value being 19.7(6)·10–6 and 25.2(1)·10–6 K−1 for 25–400°C and 400–1,000°C ranges, respectively (see Supplementary Table S2 and Supplementary Figures S6, S7A). These results are also in perfect agreement with the TEC values determined for the respective temperature ranges with the use of dilatometric measurements determined as 19.7(1)·10–6 K−1 and 25.2(1)·10–6 K−1 (Supplementary Figure S7B). A closer comparison with the effective thermal expansion reported for NdBaCo2O5+δ (25.1(1)·10–6 K−1 for 400–900°C) and SmBaCo2O5+δ (23.1(1)·10–6 K−1 for 400–900°C) reveals that the recorded TEC value is just slightly higher than the expected one, calculated as a weighted average from the aforementioned values (i.e., 24.8(1)·10–6 K−1). What is, however, very interesting, is that the more conventional Nd0.88Sm0.12Co2O5+δ composition appears to be characterized by slightly lower TEC values of 19.1(1) and 23.7(1)·10–6 K−1, suggesting that the averaging of properties in the high-entropy composition might actually be even more effective. In terms of the particular lattice parameters, the comparison of the thermal expansion of a and c/2 parameters in (La,Pr,Nd,Sm,Gd)BaCo2O5+δ with the data for Nd- and Sm-based double perovskites is presented in Supplementary Figure S8, with a similar comparison for the unit cell’s volume being shown in Supplementary Figure S9. Generally, it can be stated that the observed thermal expansion behavior of (La,Pr,Nd,Sm,Gd)BaCo2O5+δ closely matches the one reported for conventional REBaCo2O5+δ double perovskites, being, as expected, very close to the one of NdBaCo2O5+δ with a significant chemical expansion component appearing at elevated temperatures (Kim and Manthiram, 2008; Zhang et al., 2008).
The total electrical conductivities of (La,Pr,Nd,Sm,Gd)BaCo2O5+δ and Nd0.88Sm0.12Co2O5+δ materials, measured as a function of temperature, are shown in Figure 4. Reference plots for NdBaCo2O5+δ and SmBaCo2O5+δ are also provided (Kim and Manthiram, 2015). As typical behavior for Co-based double perovskites, the materials exhibit a metallic-type conductivity behavior, with exceptionally high specific-conduction values, which in the vicinity of RT exceed 1,600 S cm−1. These results are consistent with a high degree of electronic delocalization, which occurs only if favorable conditions for the electronic conduction appear (Co-O-Co bond angles being equal to 180 deg in the aristotype P4/mmm structure, and limited oxygen vacancies concentration near RT). At elevated temperatures, the behavior is strongly correlated with the oxygen release from the structure (see below), leading to the increased oxygen vacancies content. This may be interpreted as originating from disruption of the Zener double-exchange mechanism (Goodenough, 1958), but can be also understood as due to the decreased concentration of the effective charge carriers (electron holes) (Olszewska et al., 2018). Furthermore, with the chemical expansion taking place, less effective overlapping between O 2p and Co 3d orbitals must also be mentioned as a factor influencing electrical conductivity behavior at elevated temperatures. Considering the comparison to conventional double perovskites with RE = Nd or Sm, the conductivity values are very similar to the ones reported for NdBaCo2O5+δ and slightly higher than in SmBaCo2O5+δ up to ca. 400°C (for reference to other double perovskites also see Supplementary Figure S1A). In comparison, the behavior of Nd0.88Sm0.12Co2O5+δ, especially within the 100–400 °C, is more similar to SmBaCo2O5+δ. Above this threshold, the behavior of all four considered compositions is nearly identical (Kim and Manthiram, 2015). It is worth noting that the possible distortion of the lanthanide sublattice, resulting from the presence of different-sized RE ions, does not affect the effectiveness of the charge transfer.

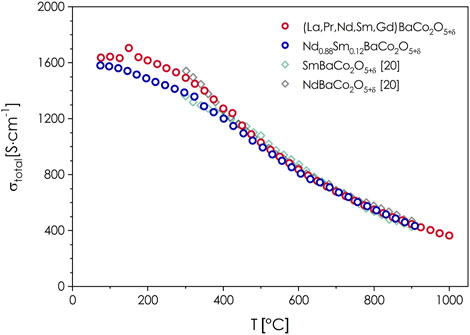

FIGURE 4. Temperature dependence of the total electrical conductivity in air determined for a dense pellet of (La,Pr,Nd,Sm,Gd)BaCo2O5+δ with the use of the 4-probe DC method. Reference data for NdBaCo2O5+δ and SmBaCo2O5+δ from (Kim and Manthiram, 2015).
In order to fully understand the transport properties of (La,Pr,Nd,Sm,Gd)BaCo2O5+δ, knowledge of the actual, equilibrated oxygen content as a function of temperature must be provided. Consequently, oxygen nonstoichiometry, essential for the physiochemical properties, was established at RT using the iodometric titration method. The equilibrium oxygen content was found to be 5.69, which is almost the same as the anticipated (interpolated) value considering the trend in the REBaCo2O5+δ series (Supplementary Figure S1C, Supplementary Table S3). In the case of Nd0.88Sm0.12Co2O5+δ, a slightly higher value of δ = 0.71 was determined, which is still comparable within the assumed error of the method. The obtained value of δ = 0.69 is slightly smaller than Pr- and Nd-containing materials (0.85 and 0.78 (Kim and Manthiram, 2015), respectively, or 0.77 and 0.70 (Olszewska et al., 2018), depending on the applied methodology), while, in line with the expectations, it is bigger than that in the case of SmBaCo2O5+δ [0.65 (Kim and Manthiram, 2015) or 0.58 (Olszewska et al., 2018)]. The observed agreement with the rule of mixture predictions must be emphasized because of the high sensitivity of the double perovskite structure toward this parameter. It should be noted that observing at RT P4/mmm tetragonal symmetry of (La,Pr,Nd,Sm,Gd)BaCo2O5+δ and Nd0.88Sm0.12Co2O5+δ corresponds to the vacancy-disordered structure, and similarly for slightly bigger Nd ions, but contrary to the Pmmm symmetry with δ close to 0.5 as observed for SmBaCo2O5+δ (Olszewska et al., 2018).
The determined RT value is then taken as a starting point for the TG measurements in air, allowing to present the temperature dependency of the oxygen content in (La,Pr,Nd,Sm,Gd)BaCo2O5+δ, as presented in Figure 5. For comparison, again, the data for NdBaCo2O5+δ and SmBaCo2O5+δ are also provided (Olszewska et al., 2018). Unfortunately, due to technical limitations, it was not possible to perform such measurements for the Nd0.88Sm0.12Co2O5+δ composition. The observed level of the oxygen release at 900°C with δ decreasing down to 0.28 is probably the only distinctive feature of (La,Pr,Nd,Sm,Gd)BaCo2O5+δ, which does not follow the expected (interpolated) behavior compared to the reported RE = Nd and Sm compounds (Olszewska et al., 2018). While it is still in between the results for both mentioned compositions within the considered temperature range, the curve of oxygen release, which starts much closer to the one for Nd-containing perovskite, ends up closer to the Sm-containing one at 900°C. This larger-than-anticipated oxygen release might be due to the presence of a significant amount of bigger RE3+ cations (La and Pr), for which Co-based double perovskites tend to release oxygen more strongly and at lower temperatures (Olszewska et al., 2018).
FIGURE 5. Temperature dependence of close to equilibrium oxygen content in (La,Pr,Nd,Sm,Gd)BaCo2O5+δ as determined by iodometric titration (initial data at RT) and TG measurements during both heating and cooling runs. Reference data for NdBaCo2O5+δ and SmBaCo2O5+δ are also included (Olszewska et al., 2018).
3.2 Electrochemical performance as the candidate air electrode material
With only marginal differences in the physicochemical characteristics of the high-entropy (La,Pr,Nd,Sm,Gd)BaCo2O5+δ from the expected values derived from interpolation using the mean ionic radii
Regarding the electrode polarization resistance Rp, the exemplary impedance spectra of the investigated symmetrical cell can be seen in Figure 6. Based on the equivalent circuit model described in (Olszewska et al., 2018), the value of Rp could be determined. The measured spectra shape, recorded at the highest temperatures (850–900°C) suggest that both contributions of the cathodic polarization resistance, associated with the interfacial electrolyte/electrode processes and charge transfer (high-frequencies arc) and surface-related processes (low frequencies arc) are similar, but both are small. What is interesting is that the shape of the impedance curves changes with a decrease in temperature, and the increased contribution of the high-frequency arc is visible at lower temperatures, which indicates the higher activation energy of interfacial electrolyte/electrode processes. The calculated values of the electrode polarization resistance exhibit a linear dependence on temperature in log Rp-T−1 coordinates, as is shown in Figure 7. The established activation energy is 1.21 eV, which can be considered moderate (Zheng et al., 2012; Pelosato et al., 2014; Olszewska and Świerczek, 2019). The lowest recorded value of Rp equals to 0.037 Ω cm2 at 900°C, while it increases to 0.175 Ω cm2 at 750°C. While the values of cathodic polarization are strongly dependent on the cathode’s microstructure, which makes a direct comparison challenging if not impossible, it can be seen that the determined performance fits into the range of values typically reported for Nd- and Sm-based compositions, which are also shown in Figure 7 for comparison (Kim et al., 2009; Kim and Irvine, 2012; Tomkiewicz et al., 2014; Donazzi et al., 2015). Taking into account the commonly accepted limit of the Rp value equal to 0.15 Ω cm2 (Pelosato et al., 2015), if the application is considered, the developed (La,Pr,Nd,Sm,Gd)BaCo2O5+δ layer should perform satisfactorily at and above ca. 770°C. It is likely that the performance can be further enhanced with the improvement of the electrode’s morphology (e.g., by further optimization of the sintering conditions).
FIGURE 6. Impedance spectra collected during electrode polarization resistance measurements of (La,Pr,Nd,Sm,Gd)BaCo2O5+δ layers (manufactured on an LSGM solid electrolyte), performed with the use of the EIS method. The applied equivalent circuit is also presented. All spectra are corrected by the R0 value.

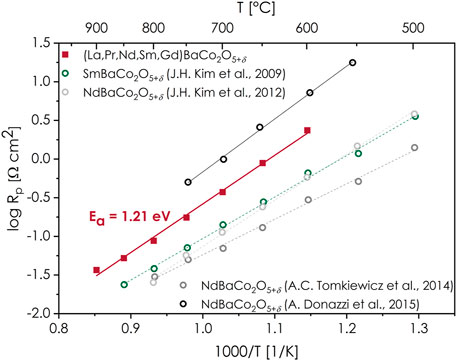

FIGURE 7. Electrode polarization resistance dependence on temperature (Arrhenius-type coordinates), determined for the layer manufactured on the LSGM solid electrolyte. The energy of activation is calculated according to Arrhenius relation: Rp = Rp,0 exp(Ea/kT). The literature data for NdBaCo2O5+δ and SmBaCo2O5+δ are also provided (Kim et al., 2009; Kim and Irvine, 2012; Tomkiewicz et al., 2014; Donazzi et al., 2015).
To further prove the possibility of utilizing the (La,Pr,Nd,Sm,Gd)BaCo2O5+δ material in SOFC technology, the electrolyte-supported, Ni-Ce0.8Gd0.2O2-δ|Ce0.8Gd0.2O2-δ|La0.8Sr0.2Ga0.8Mg0.2O3-δ|(La,Pr,Nd,Sm,Gd)BaCo2O5+δ button-type full cell was prepared, and its operating parameters were determined, as presented in Figure 8. As can be seen, utilization of the (La,Pr,Nd,Sm,Gd)BaCo2O5+δ cathode allows obtaining an excellent electrochemical performance, with the peak power density of 857 mW/cm2 recorded at 850°C. Such a value, especially accounting for the fact that it was determined for the electrolyte-supported cell, further proves the high catalytic activity of the (La,Pr,Nd,Sm,Gd)BaCo2O5+δ material toward the oxygen-reduction reaction. The polished cross-section of the cell after the measurement is presented in Supplementary Figures S11, S12. Surprisingly, the EDS point analysis indicates the possibility of local instability of the system, with the elemental ratio suggesting the local presence of a simple perovskite phase. Furthermore, long-term studies of stability under the current load will be certainly necessary to address this observation. Still, it does not appear to affect the observed performance.
FIGURE 8. Current–voltage and power density curves recorded in a 650–850 °C temperature range for the Ni-Ce0.8Gd0.2O2-δ|Ce0.8Gd0.2O2-δ|La0.8Sr0.2Ga0.8Mg0.2O3-δ|(La,Pr,Nd,Sm,Gd)BaCo2O5+δ electrolyte-supported, button-type fuel cell.
Based on the previously presented results, it can be stated that despite no evident high-entropy-related significant modification of the physicochemical properties of (La,Pr,Nd,Sm,Gd)BaCo2O5+δ, the material shows excellent electrocatalytic activity if used to manufacture SOFC air electrodes. The application of the high-entropy approach, which does not allow obtaining the basic properties outside of the rule-of-mixtures, enables a very precise implementation of the aforementioned rule—in fact to a higher degree than in the system with only two lanthanide ions. Further studies will focus on exploring the other potential benefits of the high-entropy approach, such as the possibility of suppressing the surface segregation effects, and increasing the long-term stability of electrochemical performance, as reported in (Yang et al., 2021) and (Shen et al., 2021).
4 Conclusion
To summarize, a novel single-phase P4/mmm-structured high-entropy (La,Pr,Nd,Sm,Gd)BaCo2O5+δ double perovskite having a layered arrangement of the A-site cations was successfully synthesized for the first time, with the use of the soft chemistry method. The presence of a multicomponent occupancy at the A-sites seems to not affect the physicochemical properties of the material, with no obvious synergistic effects being observed. Instead, most of the studied characteristics are within the expected interpolated range based on the mean radius
