Xiaolin Huang1†Jiaheng Liu1†Bin Zhao1Yibing Bai1Zhibin Peng2Jundan Zhou1Chenxi Wang1Xuan Zhao1
Shiyan Han1*Chunlei Zhang1*- 1Key Laboratory of Bio-Based Material Science and Technology (Northeast Forestry University), Ministry of Education, Harbin, China
- 2Department of Orthopedic Surgery, The First Affiliated Hospital of Harbin Medical University, Harbin, China
Biomass-based carbon dots (Bio-CDs) were prepared from dehydroabietic acid using a one-step hydrothermal process. Characterization by TEM, XPS and FTIR spectroscopy showed that the Bio-CDs are spherical nanoparticles containing mainly C, N and O elements, with functional groups such as amino and carbonyl groups on their surface. The optical properties of the Bio-CDs were studied in detail. A solution of Bio-CDs exhibited excitation-dependent blue fluorescence emission. The solution showed excellent photostability under ultraviolet light and the fluorescence intensity could be enhanced by decreasing the temperature. The intensity of fluorescence emission of the solution was essentially unchanged over the pH range 3.91–8.69, and in the presence of different anions and cations, other than Fe3+ and Pb2+. Fe3+ and Pb2+ ions, respectively, quenched and enhanced the intensity of the fluorescence emission of the solution, allowing sensitive and selective detection of Fe3+ (LOD = 2.33 μM, Em = 437 nm) and of Pb2+ (LOD = 0.27 μM, Em = 437 nm and LOD = 0.33 μM, Em = 500 nm). As a further demonstration of potential applications, the Bio-CDs were shown to have low cytotoxicity and to stain cell nuclei as effectively as the commonly used nuclear stain 4′,6-diamino-2-phenylindole (DAPI), demonstrating their promise in the field of cell imaging.
Introduction
With increasing global realization of the importance of sustainable resources and energy, forest-based biomass resources and the development of highly processed products have become areas of intense research interest (Klemm et al., 2005; Yao et al., 2013; Yu et al., 2014; Liu et al., 2021d; Liu et al., 2021f). Many highly processed products derived from biomass resources, including cellulose, lignin, and rosin and its derivatives, have been widely studied (Li et al., 2016; Li et al., 2019b; Liu et al., 2020; Song et al., 2020; Liu et al., 2021e; Nie et al., 2021). Such products have been developed for use in energy storage (Sun et al., 2014; Liu et al., 2021b; Liu et al., 2021c; Xu et al., 2021), catalysis (An et al., 2019; Li et al., 2021c), sensing (Du et al., 2019a; Zhang et al., 2021a; Miao et al., 2021; Yuan et al., 2021; Zhao et al., 2021; Liu et al., 2022) and biomedicine (Du et al., 2019a; Liu et al., 2020), etc. Biomass resources have gradually become one of the main sources of photoluminescent chemicals because they are abundant, inexpensive, easy availability and have good sustainability (Ge et al., 2021a; Cai et al., 2021; Wareing et al., 2021; Yu et al., 2021). Photoluminescent materials derived from biomass resources include fluorescent organic molecules (He et al., 2018; Han et al., 2020) and carbon dots (Ge et al., 2021b; Ge et al., 2021c; Li et al., 2021b; Tan et al., 2021); the latter have been widely studied because they are non-toxic, have good biocompatibility and optical tunability and also demonstrate strong photoluminescence (Su et al., 2020; Wang et al., 2021a; Zhang et al., 2021b). Carbon dots are discrete quasi-spherical nanoparticles, with particle sizes of less than 10 nm (Li et al., 2021a), the surfaces of which can be decorated with various functional groups, such as −NH2, −C=O, −OH and −COOH (Du et al., 2019b; Li et al., 2021a). Because of their favorable physical, chemical and biomedical properties, such as broad absorption spectra, tunable fluorescence, and excellent photostability and biocompatibility, carbon dots have been widely used as functional optical materials in fluorescence sensing, bioimaging and other fields (Liu et al., 2019; Li et al., 2020; Khairol Anuar et al., 2021; Li et al., 2021d; Wang et al., 2021b).
With the acceleration of urbanization and industrialization, environmental pollution is becoming an increasingly serious global problem. Heavy metal ions, which are not biodegradable, are considered to be the most toxic pollutants (Zhao et al., 2019) and pollution of water with heavy metal ions is one of the most serious environmental problems in the world (Bolisetty et al., 2016; Ko et al., 2017). The ability to detect trace amounts of heavy metal ions in water with high sensitivity and specificity is critical for waste management, environmental protection and water safety. Conventional techniques for detecting and analyzing metal ions often require expensive instrumentation and/or complex sample preparation, such as emission spectroscopy or atomic absorption, anodic stripping voltammetry, inductively coupled plasma mass spectrometry and capillary electrophoresis. Thus, it is urgent to explore new sensing technologies that can detect metal ions with simpler operation, higher sensitivity and selectivity and lower costs. With the development of nanoscale science and engineering, fluorescence nanoprobes are currently the most commonly used analytical tools for detecting metal ions because of their high sensitivity, selectivity, efficiency and low costs. (Zhang et al., 2016; Li et al., 2020). We now describe a one-step hydrothermal synthesis of water-soluble biomass-based carbon dots (Bio-CDs) from dehydroabietic acid and ethylenediamine. The Bio-CDs can be used as fluorescent probes to detect Fe3+ with limits of detection (LOD) of 2.33 μM (Em = 437 nm); Pb2+ with LODs of 0.27 μM (Em = 437 nm) and 0.33 μM (Em = 500 nm), respectively. The Bio-CDs can also be used for cell imaging, with the same nuclear imaging capability as commercially available 4′,6-diamino-2-phenylindole (DAPI) (Scheme 1).

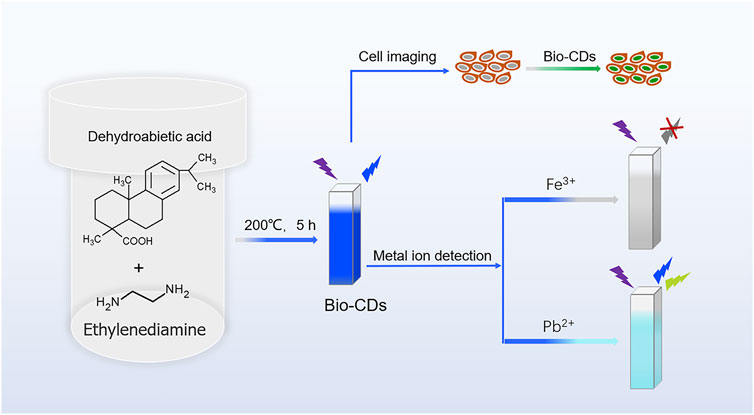

SCHEME 1. Formation of biomass-based carbon dots for detection of metal ions and cell imaging.
Materials and Methods
Materials
Dehydroabietic acid (99.06%) was purchased from Jusheng Technology Co., Ltd. (Hubei, China). Ethylenediamine, Al(NO3)3·9H2O, NaH2PO2·H2O, Ca(NO3)2·4H2O,Cd(NO3)2·4H2O, Cu(NO3)2·3H2O, Fe(NO3)3·9H2O, AgNO3 and NaNO3 were purchased from Bodi Chemical Industry Co., Ltd. (Tianjin, China). Ni(NO3)2·6H2O, Pb(NO3)2, Sr(NO3)2, Ba(NO3)2, C2H2ClO2Na, CH3COONa and NaNO2 were purchased from Fuyu Fine Chemical Co., Ltd. (Tianjin, China). EDTA-2Na, B4O7Na2, C2O4Na2, Na2HPO4, NaCl, NaF, NaHCO3, Co(NO3)2·6H2O, FeCl2, Na2SO3, Na2SO4, Na2SiO3, Na2S2O3 and NaH2PO4 were purchased from Yongda Chemical Reagent Co., Ltd. (Tianjin, China). All chemicals were of analytical purity and were used as received. Deionized water was prepared using a smart-q30 UT ultrapure water system (Zhiang Instrument Co., Ltd., Shanghai, China). The cell counting kit-8 (CCK-8) assay was purchased from Dojindo Laboratories (Kumamoto, Japan), Normocin was purchased from InvivoGen (San Diego, CA, United States). Dulbecco’s modified Eagle’s medium/Ham’s F12 medium (DMEM/F12), phosphate-buffered saline (PBS), and fetal bovine serum (FBS) were all Gibco brand and were purchased from Thermo Fisher Scientific Inc., Waltham, MA, United States). HUVECs was purchased from the Chinese Academy of Sciences (Shanghai, China).
Characterization
The morphology, structure and atomic composition of the Bio-CDs were determined using a JEM-2100 transmission electron microscope (JEOL Ltd., Tokyo, Japan), a Fourier Transform infrared (FTIR) spectrometer (Perkin Elmer Inc., Waltham, MA, United States) and an ESCALAB 250Xi X-ray photoelectron spectrometer (Thermo Fisher Scientific, New York, NY, United States), respectively. The ultraviolet-visible (UV-vis) absorption spectrum was recorded using a TU-1950 spectrofluorometer (Persee General Instrument Co., Ltd., Beijing, China). Fluorescence was measured using an LS55 fluorescence spectrometer (Perkin Elmer Inc., Waltham, MA, United States). Time-resolved fluorescence spectra were recorded using a DeltaFlex modular fluorescence lifetime instrument (Horiba Jobin Yvon IBH, Ltd., Glasgow, United Kingdom). Fluorescence images were captured using a DMI4000 B inverted fluorescence microscope (Leica Microsystems Inc., Wetzlar, Germany).
Synthesis of Bio-CDs
Ethylenediamine (1 ml) was added to a mixture of dehydroabietic acid (0.4 g) and deionized water (60 ml) in a 100 ml Teflon-lined stainless autoclave and the mixture was stirred thoroughly using a glass rod. The mixture was heated to 200°C for 5 h and then allowed to cool to room temperature. The resulting solution was filtered through a 0.22 μm ultrafiltration membrane and then freeze-dried to provide the crude product. The crude product was ground to a powder, dissolved it with absolute ethanol, and filtered to separate insoluble matter. The insoluble matter was dried under vacuum at 50°C to provide Bio-CDs.
Results and Discussion
Characterization of Bio-CDs
Transmission electron microscopy (TEM) showed that the Bio-CDs were nanoparticles (Figure 1A), with a particle size distribution of 3.9–6.3 nm and an average diameter of 5.07 nm (Figure 1B). The lattice fringe spacing of the Bio-CDs, observed in high-resolution TEM (HRTEM) images, was 0.21 nm (Figure 1A, inset), which corresponds to the graphene (100) plane (Chen et al., 2016; Zheng et al., 2021). The FT-IR spectrum (Figure 1C) of the Bio-CDs showed an absorption peak at 3,305 cm−1, which is characteristic of -NH stretching vibrations (Li et al., 2019a; Shi et al., 2017). The absorption peaks at 1,665 cm−1 and 1,637 cm−1 correspond to the stretching vibration of C=O/C=N groups (Chen et al., 2017; Miao et al., 2018; Shi et al., 2017). A strong peak at 1,566 cm−1 was attributed to N−H bending vibrations (Guo et al., 2019; Shi et al., 2017; Zhu et al., 2013). The FT-IR spectrum thus confirmed the presence of functional groups such as amino and carbonyl groups on the surface of the Bio-CDs. The full X-ray photoelectron spectroscopy (XPS) spectrum (Figure 1D) showed peaks at 285 eV, 399.8 and 530.9 eV, corresponding to C 1s (69.05%), N 1s (12.56%) and O 1s (18.39%), respectively. The high-resolution C 1s spectrum showed a peak at 284.5 eV, attributed to C−C/C=C (Bi et al., 2018; Li et al., 2019a), a peak at 285.8 eV, attributed to C−O/C−N (Nie et al., 2014; Lee et al., 2021) and a peak at 288.2 eV, attributed to C=O/C=N (Bi et al., 2018; Li et al., 2019a) (Supplementary Figure S1A). The high-resolution O1s spectrum showed two components, corresponding to O=C (530.9 eV) (Miao et al., 2018) and C−OH/C−O−C (532.3 eV) (Nie et al., 2014), repectively (Supplementary Figure S1B). The high-resolution N 1s spectrum showed peaks at 399.2 and 400.9 eV (Supplementary Figure S1C), corresponding to amino N (Jiao et al., 2020; Ge et al., 2021b) and pyrrole N (Sheng et al., 2011; Chen et al., 2017), respectively. All of these results indicate that the Bio-CDs have a large number of functional groups. The rich surface functionalization means that the Bio-CDs are highly soluble in water, which is very important for practical applications.
FIGURE 1. (A) TEM image of Bio-CDs (inset: high resolution TEM image of Bio-CDs); (B) Particle size distribution of Bio-CDs; (C) FT-IR spectrum of Bio-CDs; (D) Full XPS spectrum of Bio-CDs.
Optical Properties of Bio-CDs
Having established the physical characteristics of the Bio-CDs, we next systematically investigated their optical properties, including UV-vis absorption, photoluminescence (PL) excitation, PL emission, PL decay and PL stability (Figure 2). The UV absorption spectrum of an aqueous solution of Bio-CDs showed a strong absorption peak at ∼300 nm and a shoulder peak at 345 nm (Figure 2A), which were attributed to π-π∗ transitions of C=C and n-π∗ transitions of C=O/C=N bonds, respectively (Jiang et al., 2020; Jiao et al., 2020; Wei et al., 2020). In the PL spectrum of an aqueous solution of Bio-CDs (Figure 2B), the emission wavelength gradually shifted from 427 to 491 nm as the excitation wavelength was increased from 330 to 430 nm. An aqueous solution of Bio-CDs thus show excitation-dependent emission, which is common among previously reported Bio-CDs (Ge et al., 2021c; Zhou et al., 2020). The optimal excitation wavelength of an aqueous solution of Bio-CDs is 370 nm and the maximum emission wavelength is 442 nm; both the optimal excitation and maximum emission wavelengths of solutions of Bio-CDs are essentially unaffected by changes in the concentration of the solution (Supplementary Figure S2). The PL excitation spectrum of an aqueous solution of Bio-CDs is consistent with the PL emission spectrum (Figure 2A). The excitation spectrum coincides with the UV absorption at 345 nm (Figure 2A), indicating that the emission of an aqueous solution of Bio-CDs is associated with the surface state (Liu et al., 2021a). The time-resolved fluorescence spectrum of an aqueous solution of Bio-CDs (Figure 2C) shows that the average fluorescence lifetime is 1.64 ns, fitted by the double exponential decay function. We also recorded the change in fluorescence intensity of an aqueous solution of Bio-CDs (λex = 370 nm) at different temperatures. The emission intensity weakened with increasing temperature (Figure 2D and Supplementary Figure S3), and the fluorescence intensity remained essentially unchanged over several temperature cycles (Supplementary Figure S4). The phenomenon of decreasing emission intensity with increasing temperature is associated with non-radiative relaxation (Ge et al., 2021b; Nie et al., 2014). The fluorescence intensity did not change when an aqueous solution of Bio-CDs was continuously excited with 365 nm UV light for 50 min (Figure 2E). The emission intensity of an aqueous solution of Bio-CDs was also essentially unchanged when the pH of the solution was adjusted between 3.91 and 8.69 (Figure 2F and Supplementary Figure S5). This is the pH range of the intracellular microenvironment, indicating that the Bio-CDs are suitable for cell imaging (Cosnier et al., 2014).
FIGURE 2. (A) Absorption, excitation and emission spectra of aqueous solution of Bio-CDs; (B) Normalized fluorescence intensity of aqueous solution of Bio-CDs at different excitation wavelengths; (C) Time-resolved fluorescence spectrum of Bio-CDs; (D) Changes in fluorescence intensity of aqueous solution of Bio-CDs on repeated cycling between 20 and 70°C; (E) Intensity of fluorescence emission of aqueous solution of Bio-CDs (1 mg ml−1) excited at 365 nm for 50 min; (F) Changes in fluorescence intensity of aqueous solutions of Bio-CDs at different pH values.
Selectivity and Sensitivity of Bio-CDs for Different Ions
Over recent years, carbon dots have been widely studied for use as ion probes (Li et al., 2020; Liu et al., 2019; Zhou et al., 2020). The fluorescence response of Bio-CDs to various anions and cations was measured by adding the test ion (50 μM) to an aqueous solution of Bio-CDs (20 μg ml−1) and measuring the fluorescence intensity of the solution before (F0) and after (F) addition of the test ion. Anions had no effect on the fluorescence intensity of the solution of Bio-CDs (Figure 3A). Among the tested cations, Fe3+ ions significantly quenched the fluorescence intensity and Pb2+ ions significantly enhanced the fluorescence intensity of Bio-CDs (Figure 3B), whereas the other cations had no effect. The selective quenching of the fluorescence of Bio-CDs by Fe3+ ions is attributable to coordination of the Fe3+ ions with amino groups on the surface of the Bio-CDs, which disrupts radiative transition and leads to quenching of fluorescence (Atchudan et al., 2018; Gao et al., 2019). We next explored the feasibility of using Bio-CDs to detect Fe3+. The fluorescence intensity of the Bio-CDs decreased significantly on addition of Fe3+ ions (Figure 3C and Supplementary Figure S6) and, over the range 0–160 μM, the ratio of Fe3+ concentration to fluorescence intensity (F0/F) fitted well to the linear equation F/F0 = −0.0025c + 1.0006, where c is the concentration of Fe3+ (Figure 3D). The LOD was 2.33 μM, based on a signal-to-noise ratio of 3 (3σ/m, where σ is the standard deviation of the blank signal (over three tests) and m is the slope of the linear fit). Because lead is a soft metal, it can covalently or synergistically interact with N-containing groups, such as the many amino groups on the surface of the Bio-CDs, which provide high affinity binding sites for Pb2+ ions. A large number of amino groups on the surface of the Bio-CDs can coordinate with Pb2+, thus enhancing the fluorescence intensity of the Bio-CDs (Li et al., 2020). We next explored the feasibility of using Bio-CDs to detect Pb2+ ions (Li et al., 2020). The intensity of the fluorescence emission of the Bio-CDs (at 437 and 500 nm) was significantly enhanced by the addition of Pb2+ (Figure 3E, Supplementary Figure S7 and Supplementary Figure S8A), with the emission intensity at 437 nm increasing significantly faster than that at 500 nm (Supplementary Figure S7). Over the range 0–160 μM, the emission intensity of Bio-CDs at 437 and 500 nm and the ratio of Pb2+ concentration to fluorescence intensity (F0/F) fitted well to the linear equations F/F0 = 0.0081c + 0.979 and F/F0 = 0.0134c + 1.0624, respectively (Figure 3F and Supplementary Figure S8B). The LOD values were 0.27 and 0.33 μM, respectively, showing that the Bio-CDs are well suited to the detection of trace amounts of Pb2+.
FIGURE 3. (A,B) Fluorescence intensity ratio (F/F0) of aqueous solution of Bio-CDs (20 μg ml−1) on addition of different ions, where F and F0 are the fluorescence intensities with and without ions, respectively; (C) Changes in fluorescence intensity of aqueous solution of Bio-CDs (20 μg ml−1) in the presence of different concentrations of Fe3+; (D) Dependence of F0/F on the concentration of Fe3+ ions over the range 10–160 μM; (E) Changes in fluorescence intensity of aqueous solution of Bio-CDs (20 μg/ml) in the presence of different concentrations of Pb2+; (F) Dependence of F0/F on concentration of Pb2+ ions over the range 10–160 μM.
Cytotoxicity of Bio-CDs and Use for Cell Imaging
It has been widely reported that Bio-CDs can be used for cell imaging (Atchudan et al., 2016; Demir et al., 2018; Khairol Anuar et al., 2021; Wang et al., 2021b). Here, we used a standard cell counting kit-8 (CCK-8) to determine the cytotoxicity of Bio-CDs in HUVECs (Zhou et al., 2020). Bio-CDs were found to have good biocompatibility and not to show cytotoxicity when incubated with HUVECs for 24 h, at concentrations as high as 800 μg ml−1 (Figure 4A). We next investigated the potential of Bio-CDs for cell imaging by incubating them with HUVECs for 10 h (Zhou et al., 2020). Cells stained with DAPI, a commonly used nuclear stain, and with Bio-CDs are shown in Figure 4B and Figure 4C, respectively. The two images overlap well (Figure 4D), demonstrating that Bio-CDs can also be used as an effective nuclear stain.
FIGURE 4. (A) Cell viability of HUVECs incubated with different concentrations of Bio-CDs for 24 h; (B) Image showing nuclear staining of HUVECs by DAPI; (C) Image showing nuclear staining of HUVECs by Bio-CDs; (D) Overlay of images shown in (B) and (C).
Conclusion
Bio-CDs were prepared from dehydroabietic acid and ethylenediamine, using a one-step hydrothermal reaction. An aqueous solution of Bio-CDs emitted blue fluorescence when irradiated with a 365 nm UV lamp and the Bio-CDs showed good stability, resistance to photobleaching and biocompatibility. As examples of practical applications, when used as a fluorescent probe, the LOD for Fe3+ ions was 2.33 μM (Em = 437 nm) and those for Pb2+ were 0.27 μM (Em = 437 nm) and 0.33 μM (Em = 500 nm). When used for cell imaging, stained the nucleus of HUVECs just as effectively as the commercially available nuclear stain, DAPI. It is proved that the Bio-CDs can be used both for sensitive and selective detection of heavy metal ions and for whole cell imaging.
