Influence of the Casing Eccentricity on the Cement Sheath Sealing Integrity in the Tie-Back Interval Under the Complex Temperature and Pressure Conditions of Deep-Water Oil and Gas Wells

The integrity of cement sheath seals in casing connection sections is an important part of preventing air channelization. It is of great significance to evaluate the failure mechanism of cement sheath seals in casing connection sections under complex temperatures, pressures, and casing eccentricities. Based on the self-developed high-temperature and high-pressure full-size casing connection period of the cement sheath seal integrity evaluation device and the casing loading/unloading casing eccentricity influence on the cement sheath seal failure under the experimental conditions, it is concluded that the casing pressure changes, annulus preset pressure, and casing eccentricity influence the law of cement sheath seal integrity. The results show that the following: ① Casing eccentricity has an important influence on the failure of the cement sheath seal when the casing is loaded, and to ensure the integrity of the cement sheath seal the casing should be greater than 75%; ② in the case that the annular pressure is not set, casing eccentricity has little influence on the integrity of the cement annular seal during casing unloading, and sealing failure occurs when pressure unloading is 15–20 MPa; ③ when there is a preset pressure in the annulus, casing eccentricity has a great influence on seal failure during unloading. The greater the preset pressure in the annulus is, the better the seal integrity of the cement annulus. The research results provide an important basis for ensuring the integrity of cement sheath seals in casing connection sections.

1 Introduction

As a key part of oil and gas well barriers, cement sheaths are of great significance to ensure the integrity of wellbores (Song et al., 2002; Pang et al., 2009; Yang et al., 2019). In deep-water oil and gas wells, high temperature, high pressure, and narrow pressure windows are typical characteristics. The cementing quality of the open hole interval is often poor because of the lower displacement during cementing construction with a narrow pressure window. In this case, the sealing integrity of the cement sheath in the casing tieback interval is the key to preventing the phenomenon of gas channeling. The cement sheath in the casing connection section of HPHT oil and gas wells not only faces the complex formation environment of high temperature and high pressure, but is also affected by the initial cementing quality and subsequent construction conditions, so the risk of sealing failure of the cement sheath in HPHT wells is very high. The occurrence of an annulus pressure in Central Sichuan (Su et al., 2014), South China Sea (Xie et al., 2016) and Tarim (Yang et al., 2018) also means that the sealing integrity of the cement sheath in the casing tieback interval has been damaged. The problem of annular pressure has brought serious hidden dangers to the safe development of petroleum resources (Gao and Liu, 2019). Therefore, it is urgent to study the failure mechanisms of cement sheath seals and find feasible solutions.

The influencing factors and rules of cement seal integrity are complex. Existing studies show that different seal failures of cement sheaths, such as compression failure, tensile failure, and cementation failure (Andrade et al., 2016; De Andrade and Sangesland, 2016), may occur under such conditions as temperature changes in the wellbore, casing pressure tests and density reductions in the casing (Liu et al., 2014; Rossine Medeiros de Souza et al., 2018). The elastic modulus of the cement sheath, initial stress, bonding strength and other factors have a great influence on the sealing ability of the cement sheath (Ladva et al., 2004; Wang and Taleghani, 2014; Arjomand et al., 2018). To solve this problem, the experimental evaluation of the seal failure of cement sheath in the casing connection section is beneficial for exploring the influence rules of different factors on the seal integrity of cement sheaths and put forward specific optimization suggestions, which is of great significance for solving the problem of seal failure of cement sheath. Currently, in terms of the integrity of cement sheath seals, several sets of failure evaluation devices for cement sheath seals have been developed. Their technical parameters, experimental capacities and main experimental purposes are shown in Table 1:

TABLE 1

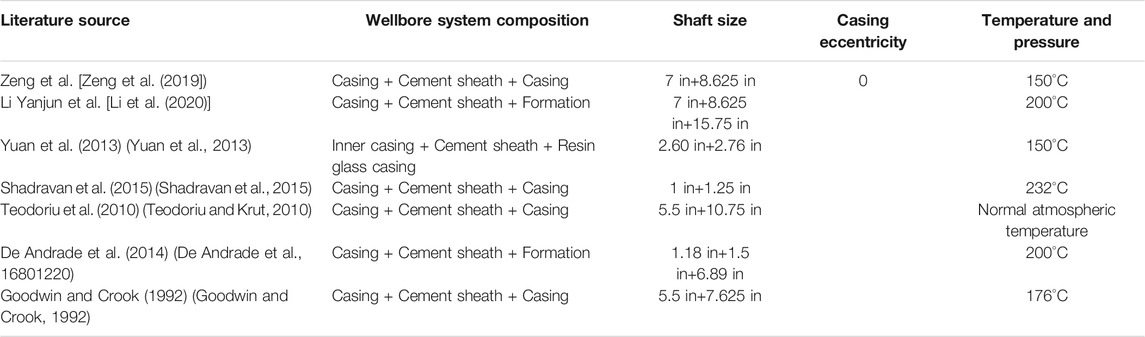

TABLE 1. Cement sheath seal failure evaluation device.

However, most of the above evaluation experiments are performed with equal-scale reduction devices, which require a complex stress equivalent conversion. In addition, casing eccentricity is ignored during the experimental process. At the same time, existing studies show that casing centralization has a great influence on the stress state of cement sheaths (Liu et al., 2018). As such, a set of full-scale devices for cement sheath seal integrity evaluation at high temperature and high pressure returns and eccentric casing is developed. The influence of the casing eccentricity on the cement sheath seal failure under pressure loading/unloading in the casing is studied.

This paper is organized as follows. Section 2 describes the cement sheath seal failure evaluation experiment, including the experimental device, the experimental materials to be utilized, and the experimental scheme for the performed experiments. Section 3 describes the results of the experimental investigations, including the complex temperature and pressure conditions and the annular reserved pressure under different casing eccentricities, followed by conclusions in Section 4.

2 Cement Sheath Seal Failure Evaluation Test of the Casing Tieback Interval

2.1 Experimental Device

According to the complex environment of cementing cement sheaths in high-temperature and high-pressure oil and gas wells and the conditions of casing eccentric wellbores, combined with the experimental test method of annular air channeling after cement sheath sealing failure, a set of sealing integrity evaluation devices for casing eccentric cement sheaths in high-temperature and high-pressure full-size return sections is developed. The experimental device consists of a full-size inner and outer casing, a heating control system, an annular pressurization system, an inner casing pressurization system, a gas pressurization system, eccentric flange, etc. The inner and outer casings are composed of 177.8 and 244.5 mm casings, respectively. The temperature control system can control a 20–200°C temperature, the annulus pressurization system can control a 0–40 MPa annulus pressure, and the inner casing pressurization system can control a 0–70 MPa casing pressure. The gas pressurization system can control a 0–10 MPa gas pressure. The eccentric flange can adjust the casing centering δ to 50%, 67%, 75% and 100%. The schematic diagram of casing centering is shown in Figure 1 and Table 2.

FIGURE 1

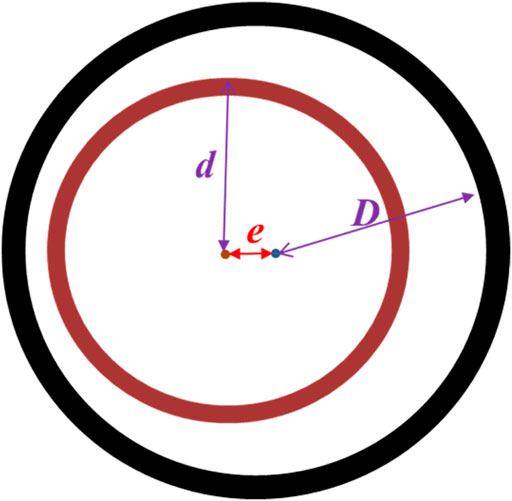

FIGURE 1. The schematic diagram of casing eccentric.

TABLE 2

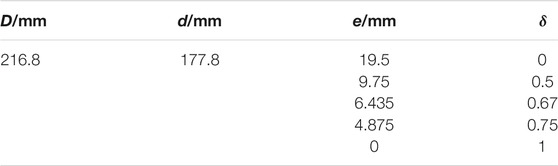

TABLE 2. The casing centering δ and their corresponding eccentricity e.

The device structure diagram and general assembly diagram are shown in Figure 2.

FIGURE 2

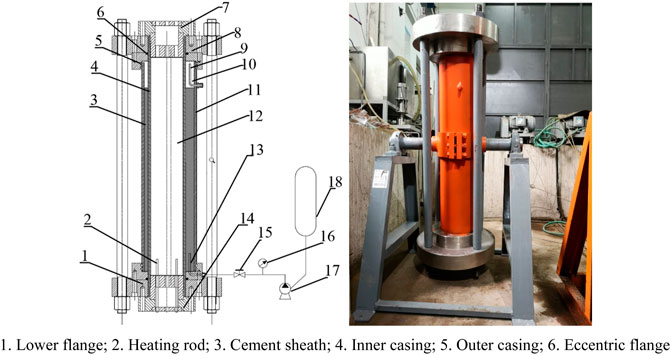

FIGURE 2. Sealing integrity evaluation device for an eccentric cement sheath of a casing in a high-temperature and high-pressure full-size return section.

1. Lower flange; 2. Heating rod; 3. Cement sheath; 4. Inner casing; 5. Outer casing; 6. Eccentric flange.

2.2 Experimental Materials

The high temperature resistant cementing slurry system for casing back connection of Lingshui 25-1 Deepwater High Temperature and high pressure gas field in the South China Sea is selected as the experimental material, with a density of 2.15 g/cm³. Its composition is shown in Table 3.

TABLE 3

TABLE 3. Formula of the cement slurry system for the experiment.

2.3 Experimental Scheme

2.3.1 Experimental Scheme Setting

To evaluate the influence of casing eccentricity on cement sheath seal failure, the influence of casing centering on cement sheath seal failure under different loading and unloading pressures is set. The experimental scheme is shown in Table 4.

TABLE 4

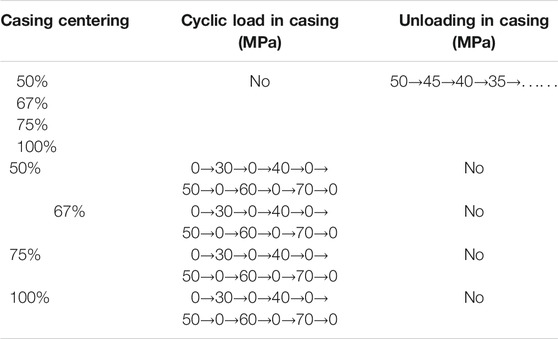

TABLE 4. Effect of casing eccentricity on cement sheath seal failure.

2.3.2 Experimental Steps

Comprehensively considering the complex temperature and pressure changes in the casing, casing eccentricity and other factors, cement sheath seal failure is evaluated based on the gas channeling differential pressure method, where the following experimental steps are set:

Step ①: install the base, lower the casing flange and lower the eccentric flange, and connect the inner and outer casing with the eccentric flange to form an annular space; Step ②: prepare the cement slurry according to the GB/T 19139-2012 test method for oil well cement, and inject the prepared cement slurry into the annular space formed by the inner and outer casing (the cement slurry accounts for 85–95% of the volume of the annular space). Add a certain amount of white oil to the upper end face of the cement slurry to prevent the cement slurry from boiling due to the high temperature; Step ③: install the upper casing flange and upper eccentric flange, connect all high-pressure pipelines, and fill the inner casing with heat transfer oil; Step ④: according to the experimental scheme, set the curing temperature of the cement slurry, pressure in the casing and curing time, ensure that the pressure at the upper end of the cement sheath is 2 MPa during heating, and release the pressure value after curing; Step ⑤: open the air inlet valve at the bottom of the experimental device, adjust the air inlet pressure to 0.1 MPa, change the temperature and pressure in the casing according to the experimental scheme, observe whether there are bubbles on the upper end face of the cement sheath, and record the change in the air inlet pressure, as shown in Figure 3.

FIGURE 3

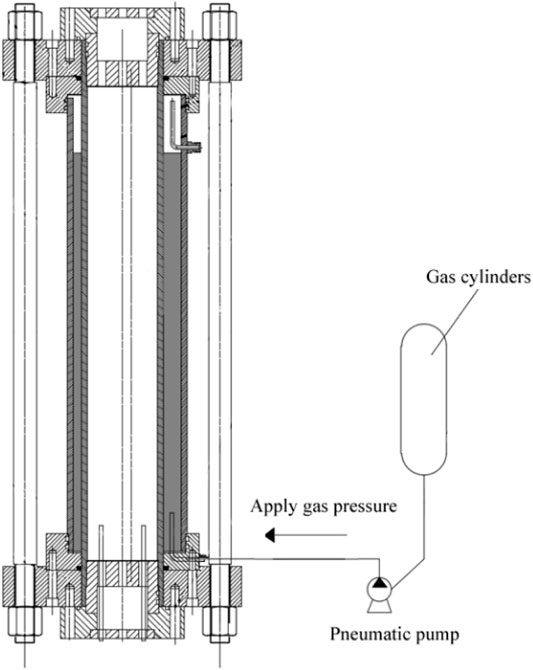

FIGURE 3. Experimental schematic diagram.

3 Experimental Results and Analysis

3.1 Pressurization in Casing

According to the experimental scheme in Table 2, the experiment on the influence of loading in the casing on the sealing integrity of the cement sheath under the condition of casing eccentricity is performed. The experimental process is shown in Figure 4:

FIGURE 4

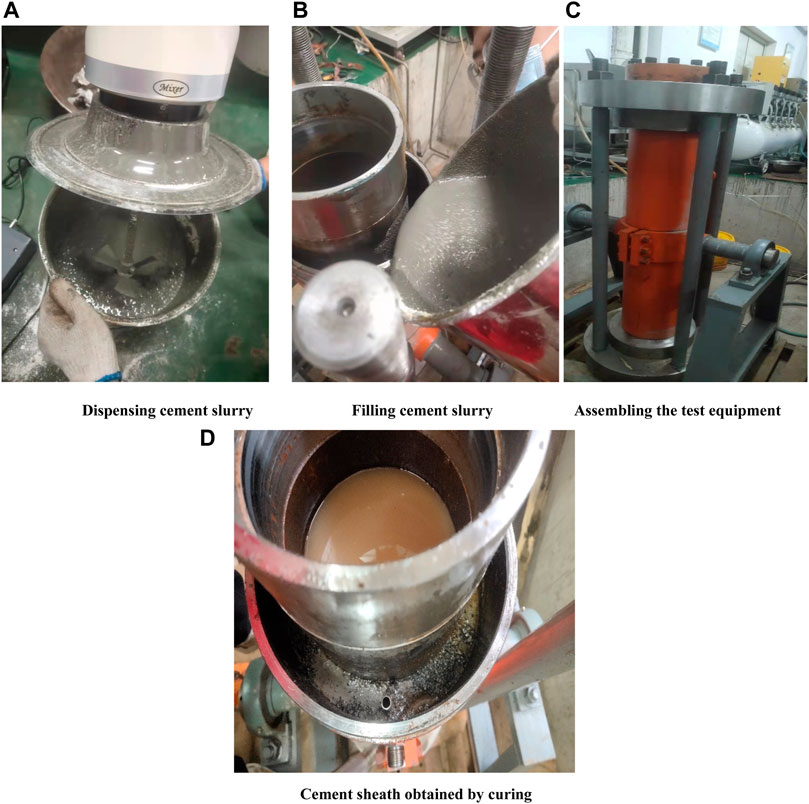

FIGURE 4. Experimental process.

The experimental results are shown in Table 5. The results show that for the two types of casing centricities of 50% and 67%, when the casing is pressurized from 0 to 60 MPa and unloaded to 0 MPa, gas channeling occurs at the interface between the inner casing and the cement sheath (as shown in Figure 4). For 75 and 100% casing centering, the casing is pressurized to 70 MPa and unloaded to 0 MPa. After cyclic loading 5 times, the cement sheath interface is not damaged, and there is no annular air channeling.

TABLE 5

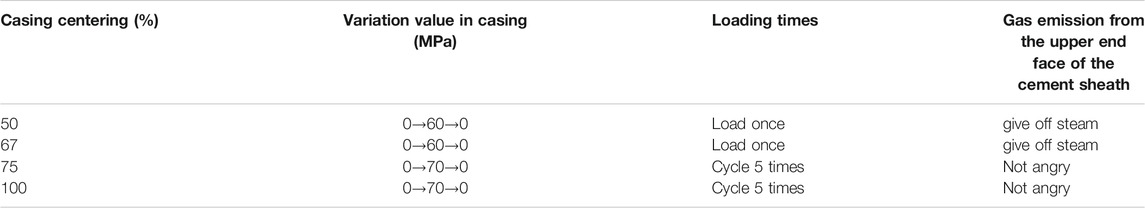

TABLE 5. Experimental results of the influence of casing internal pressure on sealing integrity under the casing eccentricity.

The finite element numerical simulation method is used to analyze the experimental results of cement sheath sealing integrity under the experimental conditions. The numerical simulation results are shown in Figure 5.

FIGURE 5

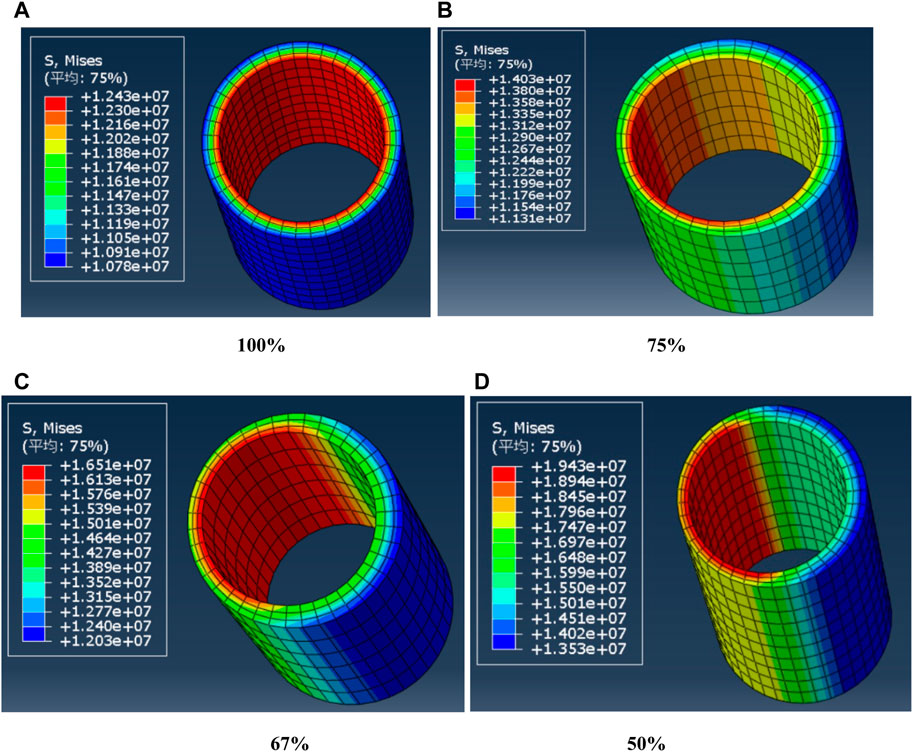

FIGURE 5. stress distribution under different conditions.

Figure 5A–D are the simulation results when the centering degree is 100%, 75%, 67% and 50%, respectively. With a decrease in the centering degree of the casing, there is an obvious stress concentration in the weak part of the cement sheath. Compared with complete centering, the mise stress when the centering degree is 50% increases by more than half. The results show that for pressurization in the casing, casing centering is of great significance to ensure the integrity of the cement sheath.

3.2 Pressure Relief in Casing

According to the experimental scheme in Table 2, the experiment on the impact of pressure relief in the casing on the sealing integrity of the cement sheath under the condition of casing eccentricity is performed, which is divided into two cases: preset annular pressure in the early stage and non-preset annular pressure. For the case of preset annular pressure in the early stage, a certain pressure is applied in the annulus during the cement slurry curing stage, and the annular pressure is released 24 h after the cement slurry solidifies. The experimental results are shown in Table 6.

TABLE 6

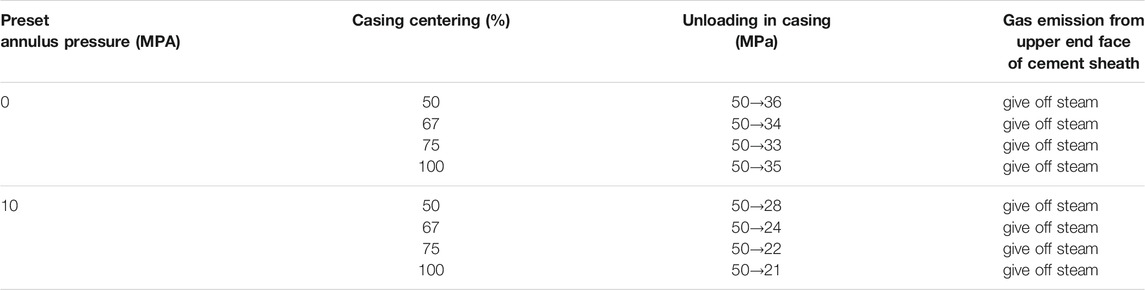

TABLE 6. Effect of the pressure relief in casing on the sealing integrity under casing eccentricity.

The results show that the eccentricity of casing has little effect on the sealing failure of cement sheath caused by unloading in casing when the preset annular pressure is not applied. However, when the preset annular pressure is applied, with an increase in the casing centering, the resistance of cement sheath to annular air channeling caused by unloading in casing is enhanced. In this case, casing centering is of great significance to ensure the sealing of the cement sheath.

The finite element numerical simulation method is used to analyze the experimental results of the cement sheath sealing integrity under the experimental conditions. It is discussed in two cases: 0 and 10 MPa preset in the annulus.

First, the influence of an annular pressure of 10 MPa on the stress distribution of the cement sheath is obtained via numerical simulations. The specific steps are as follows:

Step (1): Establish the finite element model of the casing, apply a 10 MPa pressure on the outer wall of the casing, and calculate the displacement generated by the annular pressure on the outer wall of the casing. The calculation results are shown in Figure 6:

FIGURE 6

FIGURE 6. Calculation results of the casing displacement.

Step (2): According to the calculation results, the preset stress of the 10 MPa annulus will cause a 0.024 mm displacement of the outer wall of the casing. When the preset stress is unloaded, the casing will squeeze the solidified cement sheath and apply a load in the casing. The load size is constantly adjusted to determine the load size that produces the same displacement as in step (1) and makes an equivalent replacement.

Step (3): Apply a load consistent with that in step (2) in the casing-cement sheath-casing model and read the stress of the cement sheath based on the stress at the first interface. The stress of the cement sheath obtained by the above method is shown in Figure 7:

FIGURE 7

FIGURE 7. Calculation results of the influence of the preset annulus stress on the cement annulus stress.

Step (4): According to the calculated stress results, set the stress of −3.7 MPa at the interface between the casing and cement sheath for the next calculation.

The casing centering degree is 75%, and the casing internal pressure is reduced by 25 MPa under the two cases. The numerical simulation results are shown in Figure 8.

FIGURE 8

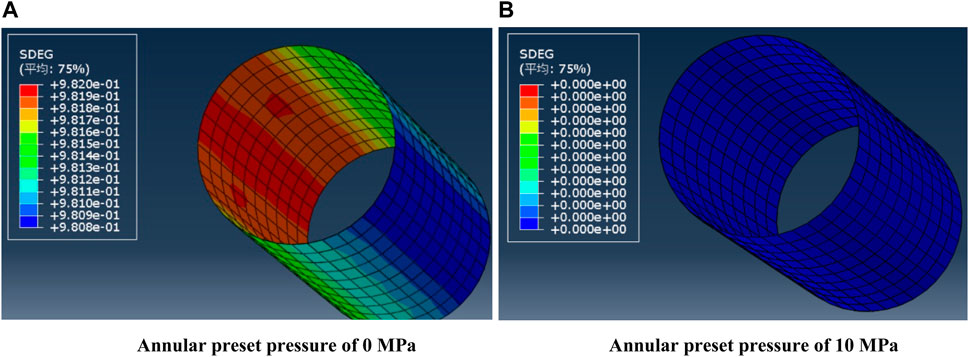

FIGURE 8. Simulation results of pressure relief in casing.

The damage coefficient SDEG of the cement sheath interface is used to measure the sealing failure of the cement sheath interface. SDEG represents the stiffness decline rate of cohesive element. When the stress meets the damage initiation criterion, the interface begins to cause damage and the stiffness decreases, and the SDEG increases. The damage initiation criterion used in the model is as follows:

${\left\{\frac{{\sigma }_n}{{\sigma }_n^0}\right\}}^2+{\left\{\frac{{\sigma }_s}{{\sigma }_s^0}\right\}}^2+{\left\{\frac{{\sigma }_t}{{\sigma }_t^0}\right\}}^2=1(1)$

Where, σ_n^o、σ_s^o、σ_t^o represent the strength of the cementing surface in three directions respectively. If the displacement on both sides of the interface further increases and the cementation failure eventually occurs, the interface stiffness decreases to 0 and the SDEG reaches 1. So, when 0 < SDEG < 1, the cement sheath interface is damaged, and when SDEG = 1, the cement sheath interface is completely damaged. Figure 8A shows the simulation results of the non-preset pressure in the annulus, and Figure 8B shows the simulation results of the preset 10 MPa pressure in the annulus. The results show that when the preset pressure of the annulus is 0, the damage coefficient of the cement sheath interface tends to be close to 1, and the cement sheath interface tends to be completely damaged. However, when the preset pressure of the annulus is 10 MPa, the cement sheath interface is not damaged. Therefore, applying the preset pressure of the annulus can, to a certain extent, effectively improve the sealing capacity of the cement sheath and prevent damage to the cementation interface due to casing depressurization.

4 Conclusion

1) When loading in the casing, the eccentricity of the casing has an important impact on the sealing failure of the cement sheath. Due to the stress concentration at the thin-walled cement sheath, plastic deformation easily occurs at the thin-walled cement sheath, resulting in sealing failure of the cement sheath. The centering degree of the casing that ensures the sealing integrity of the cement sheath should be greater than 75%.

2) When the pressure in the casing decreases, the casing eccentricity has no obvious effect on the sealing integrity of the cement sheath when the annular pressure is not preset. When the same annular pressure is preset, the sealing integrity of the cement sheath is more likely to be damaged with an increasing casing eccentricity.

Data Availability Statement

The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.

Author Contributions

All the authors conceived and designed the study. Investigation, YW; Writing—original draft, ZL; Writing—review and editing, RX and ZW.

Funding

This study received funding from CNOOC Research Institute Co., Ltd. the funder was not involved in the study design, collection, analysis, interpretation of data, the writing of this article or the decision to submit it for publication. All authors declare no other competing interests.

Conflict of Interest

ZL, YW, RX, and ZW were employed by CNOOC Research Institute Co., Ltd.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The authors gratefully acknowledge the CNOOC scientific research project “Study of risk assessment and countermeasures of well drilling and completion under ultra-high temperature and high pressure” and “Research on development feasibility of LS25-1 gas field” (Grant Nos. YXKY-ZX-09-2021, 2020FS-08).
