Impact Assessment of Solar Power Generation Uncertainty on Smart Grid Reliability and Carbon Neutrality

The global concerted effort toward achieving carbon neutrality has given impetus to the accelerated growth of renewable energy sources with government patronage. The smart grid has the mandate to integrate renewable energy sources adeptly toward meeting the vision of carbon neutrality by 2050 in many countries. Solar energy generation has emerged as one of the most viable options due to the rapid stride of innovations in this domain as well as due to the decreasing trend of the cost of photovoltaic (PV) technology. However, the uncertain sunlight leading to uncertain solar energy generation with a low-capacity factor has been a challenge to maintain the legacy reliability of the power system. Unlike a two-state model being used for analyzing conventional generators, a multistate model has been proposed for incorporating the random variation of solar energy generation correlating with random irradiance. An innovative approach for formulating probabilistic modeling of solar energy is implemented to evaluate different reliability indices such as loss of load probability (LOLP) and expected energy not served (EENS). Different case studies with results prove the efficacy of the proposed probabilistic model–based availability of solar power generation due to solar irradiance uncertainty along with interaction with stochastic load model on smart grid reliability and carbon neutrality.

Introduction

The contemporary electric power system is undergoing unprecedented changes with the proliferation of distributed energy sources (DERs), inducted to mitigate the adverse effects of fossil fuel–based generating units on the ecosystem (Alrashidi et al., 2021). However, the inclusion of DERs (such as wind and solar) having stochastic nature poses many new challenges to the existing smart grids (Jiang et al., 2021). The ever-increasing power demand requires a diverse combination of renewable and conventional generation (Manohar et al., 2020), which further requires new methodologies to incorporate the technological changes (Kumar, Mohanta, and Reddy 2015). The existing methodologies must consider the intermittency associated with the non-conventional generating sources and its impact on the reliability of the grid. Furthermore, the replacement of conventional fossil fuel–based units with greener technologies must achieve carbon neutrality (Gopakumar et al., 2014) without compromising the overall generation capacity. Solar energy has tremendous potential across the world as a viable alternative to traditional energy sources to contribute toward carbon neutrality.

Motivation

In order to extract a significant amount of power from solar panels, considerable space is required (Tripathi et al., 2021), and hence replacing a conventional generator with a single solar farm may not be feasible. As a consequence, solar energy is captured at numerous locations in a given region that receives an equivalent amount of solar radiation.

The modeling of intermittency associated with distributed power generation is a major challenge in analyzing the impact on power system reliability. In contrast to the conventional generating units, which are usually represented by a two-probability state (up state and down state) model, solar energy is associated with multiple probability states (Ostovar et al., 2021) due to varying levels of irradiance at different intervals of time. The multiple probability states of solar energy are approximated using standard probability density functions (PDFs). However, the pattern of solar irradiance varies with changes in season, and hence it is difficult to determine the PDF to accurately represent them (Sreenivasulu et al., 2021). Therefore, an accurate generalized probabilistic model to represent the uncertainty associated with solar power needs a careful approach. The interaction of the probabilistic solar generation model with the discrete stochastic load model (DSLM) is another important aspect for the computation of the reliability of the electric grids (Vardi, Zahavi, and Avi-Itzhak,1977). Conventionally, the interaction of the generation model with the load model is represented by the convolution process, which becomes complex and time-consuming with an increase in the number of generating units and multistate load model. The computations can be drastically reduced if the interactions of the models are analyzed in the frequency domain (Proakis and Manolakis,2021).

The motivation of this research is to model the uncertainty and intermittency associated with solar irradiance, which can be easily combined with load uncertainty and outage of conventional generating units to obtain the reliability of the system with reduced computations. The impact of the inclusion of solar distributed generation (DG) on carbon emissions is also investigated to achieve carbon neutrality.

Past Research

Many research studies have been proposed in the recent past for reliability modeling of solar irradiance and integration of the solar system with the conventional systems. The focus of this work was to track the maximum irradiance for obtaining maximum solar power (Yan et al., 2018; Li et al., 2021; de Vries, Loonen, and Hensen 2021), assess reliability based on power loss due to variable insolation (Pandit et al., 2021), determine the reliability of electric vehicles (Hashemi-Dezaki 2019; Talukdar et al., Deka, and Goswami 2021), and optimize the cost for reliability evaluation (Ram, Bhandari, and Kumar 2021). However, the major challenge for the present and upcoming grid-connected solar DG system is to adequately supply the load demand (Okundamiya 2021), which needs to be addressed. A significant amount of work has been reported for adequacy assessment of wind farm integrated power system (Ak et al., 2018; Zhu and Zhang, 2018); however, limited work has been reported on adequacy of solar DG considering the intermittency of solar irradiation. The power generated by a PV cell depends on the intensity of solar irradiation, which further depends on the location of the solar unit. The uncertainty of solar generation is represented by probability density functions, which vary with the change in seasons of the year (Vale 2015). Normal distribution function (Kim et al., 2020) and Weibull distribution (Afzaal et al., 2020) function have been used to represent the global solar irradiation data. Hence, a common simplified model needs to be developed to represent solar data to integrate the solar DG with the conventional reliability assessment schemes. The adequacy assessment schemes also involve multiple iterations, which need to be further addressed.

Reliability analysis of solar photovoltaic systems has been reported in considering the components of the solar PV systems (Pradeep Kumar and Fernandes 2017; Gautam and Kaushika 2002). The methods take into account the solar PV arrays and the grid-connected converter, but the solar irradiation intermittency is not taken into account. Although intermittency of solar irradiation has been taken into account by Yin, Molini, and Porporato (2020), the research does not consider a generalized model for it. The topological variations for solar irradiation have been taken into account for reliability studies in Carpio (2021); Almaktar, Elbreki, and Shaaban (2021), but the methods for reliability evaluation are complex. The consideration of irradiation uncertainty having multiple states in generation makes the reliability evaluation process complex. The FFT-based algorithm used in Lakshmi et al. (1995) is imperative to make the computations simpler. Also, carbon neutrality with the inclusion of solar DG needs to be taken into account (Kumar, Mohanta, and Reddy 2015; Wyrwa et al., 2022).

Unique Contributions

Solar PV has been globally deployed; hence, the solar irradiation uncertainty modeling in a generalized way can facilitate significantly toward impact assessment on reliability and carbon neutrality. The representation of solar irradiation using different PDFs at different locations is cumbersome, and hence a generalized model for the representation of the probabilities of solar irradiation has been developed. The model is also consistent with topological variations so that interactions of a multistate solar power model with the stochastic load model as well as with the random outage probabilities of conventional generating units are blended suitably using the frequency domain approach for computation. The algorithm used for generation planning considering carbon neutrality is computationally efficient with lesser memory requirements. In a nutshell, the unique contributions of the present research as compared to the existing literature are as follows:

1) Development of a generalized probabilistic model for the representation of solar intermittency taking topological variations into account.

2) Impact assessment of solar power generation uncertainty on the reliability using smart grid discrete production simulation (SGDPS).

3) Frequency domain approach for reliability evaluation using efficacious interaction of the stochastic load model along with binary state conventional generator outage model.

4) Assessment of net carbon neutrality by integration of solar PV generation instead of coal-based generation.

The remainder of the study is organized as follows: Section 2 formulates a probabilistic model for solar power uncertainty; the section proposes a generalized model for solar irradiation based on Weibull distribution. Section 3 discusses the discrete production simulation considering uncertainty in solar DG for reliability analysis of smart grids. Section 4 analyzes the impact of solar generation considered in the present work on carbon neutrality and Section 5 provides a discussion on the results of the proposed methodology.

Generalized Probabilistic Model for Solar Uncertainty Representation

Solar energy generation plays a quintessential role in achieving carbon neutrality due to its availability in abundance. However, the nature of solar energy is uncertain in nature, which needs to be represented mathematically for the purpose of analysis in generation planning for a more reliable and smarter grid. For analyzing the impact of uncertainty related to the randomness of solar irradiation, a suitable probabilistic distribution has been chosen to truly reflect the stochastic nature of solar irradiation. Such distribution is selected based on its appropriateness corresponding to the time series data. The distribution gives information about the probabilistic nature of the solar irradiation in terms of probability of occurrence and distribution of irradiation values at a particular site. In general, the stochasticity of wind is depicted by the Weibull distribution. However, because several distributions have been used to represent solar irradiation, defining the distribution that is capable of representing solar irradiation is challenging. Despite the fact that Weibull distributions have produced better results for time-series data sets, beta distributions are commonly used to depict solar DGs (Afzaal et al., 2020). As a result, the Weibull distribution is used to represent the data sets in this study.

Representation of Data Using Weibull Distribution

It is vital to get the data in the time-series format in order to describe the solar data using the Weibull distribution. The present study utilizes the data from various locations in California, the United States, because that state receives the maximum solar irradiation all year round. Two locations, namely, farm 1 and farm 2 were chosen to represent a distributed generation. Hourly data of each location are considered for a duration of 2 years (2018–2019) from 7:00 a.m. to 5:00 p.m. The data points can be represented by Eq. 1. Here$, I$ corresponds to irradiance data, $(i=\mathrm{1,2},\dots ,n)$ corresponds to the number of days, and $(j=\mathrm{1,2},\dots ,m)$ corresponds to the hour taken into consideration. The sample irradiation values of farm 1 are presented in Table 1 for a duration of 2 years, where the duration of (7:00 a.m. to 8:00 a.m.) is represented by first hour, duration (8:00 a.m. to 9:00 a.m.) is represented by second hour, …., and (4:00 p.m. to 5:00 p.m.) is represented by 10th hour.

$I=\left[\begin{array}{cccc}\mathit{d}\mathrm{11}& \mathit{d}\mathrm{21}& \cdots & \mathit{d}\mathit{m}\mathrm{1}\\ \mathit{d}\mathrm{12}& \mathit{d}\mathrm{22}& \cdots & \mathit{d}\mathit{m}\mathrm{2}\\ ⋮& \mathit{d}\mathit{i}\mathit{j}& \ddots & ⋮\\ \mathit{d}\mathrm{1}\mathit{n}& \cdots & \cdots & \mathit{d}\mathit{m}\mathit{n}\end{array}\right](1)$

$f\left(I\right)=\frac{\mathit{\alpha }}{\mathit{\beta }}{\left(\frac{I}{\mathit{\beta }}\right)}^{\mathit{\alpha }-\mathbf{1}}\mathit{exp}{\left(\frac{-I}{\mathit{\beta }}\right)}^{\mathit{\alpha }}(2)$

$x_r=\mathit{\beta }{\left[\mathbf{ln}\left(\frac{\mathrm{1}}{\mathrm{1}-r}\right)\right]}^{\frac{\mathrm{1}}{\alpha }}(3)$

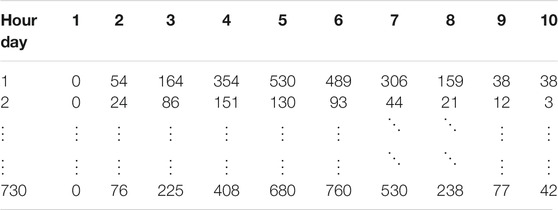

TABLE 1

TABLE 1. Representation of irradiance data (W/m taken for 10 h for 2 years (730 days).

The data given by Eq. 1 are a time-series data for a duration of 10 h each day, and hence the data of the duration considered (1 year) can be approximated to Weibull distribution $f\left(I\right)$ as given by Eq. 2 (Phan and McCool 2009). Here, $\alpha =(std/\overline{I}$) corresponds to the shape parameter of the distribution, $\beta$ = $\overline{I}/\text{Γ}\left(1+\frac{1}{\alpha }\right)$ corresponds to the scale parameter of the distribution, $\overline{I}$ corresponds to the mean of the solar irradiation data, $std$ is the standard deviation of the irradiation data, and $\text{Γ}$ is the gamma function. The PDF plots for farm 1 and farm 2 considering 2 years of data are shown in Figure 1. The $r^{th}$ quantile of Weibull distribution in terms of the shape and scale parameters of Weibull distribution is given by Eq. 3. Here, $r^{th}$ quantile represents an irradiation value equal to or less than $x_r$, and the $x_r$ values for different quantiles are presented in Table 2.

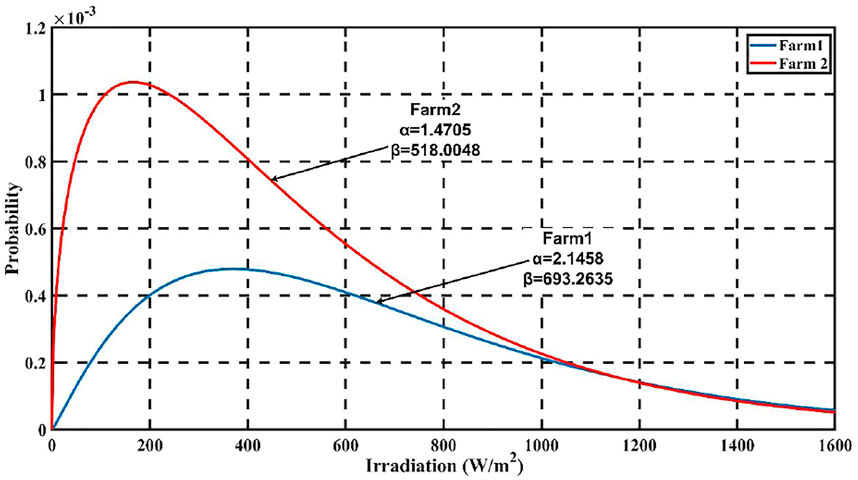

FIGURE 1

FIGURE 1. PDF of solar irradiation for two farms.

TABLE 2

TABLE 2. Quantile of Weibull for different farms and maximum irradiance value (W/m²) present in them.

The Weibull parameters of different farms have been tabulated in Table 4. It can be observed from Table 2 that the quantile which includes the maximum solar irradiation value for farm 1 is 93.02%, and the quantile which includes the maximum solar irradiation value for farm 2 is 89.13%. Hence, it can be inferred that the solar data considered spans about 90% of the distribution, thus making Weibull distribution suitable for solar irradiation. The Weibull parameter fluctuates with change in location, even within the same region, making it challenging to determine an appropriate model to represent solar irradiation. A generalized model for solar irradiance would be useful for analyzing solar data at various locations in practical applications. The approach is useful in places where there is a shortage of historical data. The purpose of the framework is to accurately determine the output power of solar DGs installed in various geographic regions. The PDF plot of two solar farms is shown in Figure 1 in terms of the two-parameter Weibull distribution. This section determines the probability distribution of solar irradiance in terms of variance, which is obtained from the expected values of the PDF plot. The combined PDF plot for farm 1 and farm 2 is shown in Figure 2, which is obtained by taking the average of the probabilities of the two wind farms. The standard deviation $S\left(X\right)= \sqrt{E{\left(X_i-E\left(X\right)\right)}^2}$ of the PDF can be obtained from the expected value $E\left(X\right)$ = ${\displaystyle \sum P_i}{X}_i$ of the combined PDF. Here, $P_i$ corresponds to the probability of $X_i$ (irradiance value) in the combined PDF plot of the solar irradiation at different sites.

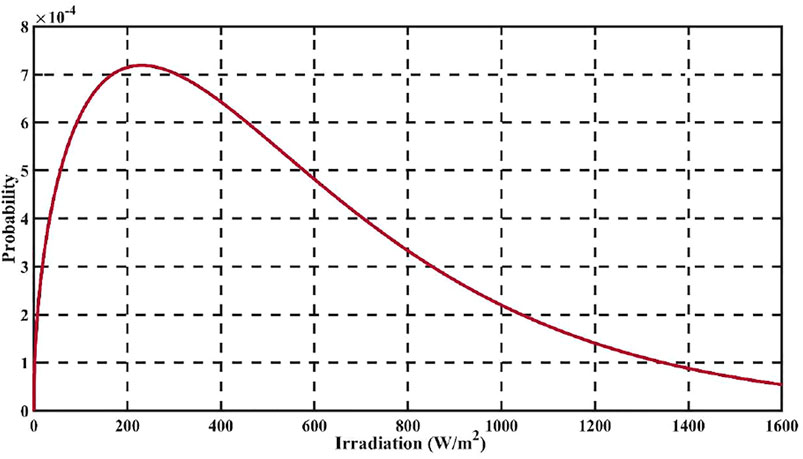

FIGURE 2

FIGURE 2. Combined solar irradiation PDF for two farms.

Based on the standard deviation $S\left(X\right)$ obtained, the generalized model considers solar irradiation values up to $\left(5\sigma \right)$, which accounts for very high irradiance despite their low probability. The distribution is divided into $N_D$ number of steps with a step size of $(5\sigma /N_D)$, and the midpoint of each step $MP{S}_i\left(i=\mathrm{1,2,3}\dots , N_D\right)$ is given by (4). For example, if we consider a 50-step model, then the size of each step is $0.1\sigma$, and the midpoint of steps $MP{S}_i$ are given as: $0.05\sigma , 0.15\sigma , 0.25\sigma ,\dots , 4.95\sigma$. If the number of 24-h solar irradiation values obtained for a given time interval is $N_{ys}$, and $N_{bsi}$ is the number of values in step $i$, then the probability $P_{bi}= N_{bsi}/N_{ys}$ of step $i$.

$MP{S}_i=\frac{\mathbf{5}\mathit{\sigma }}{\mathrm{2}{N}_D}+\frac{\mathbf{5}\mathit{\sigma }}{N_D}\left(i-\mathbf{1}\right)(4)$

The generalized solar irradiation model can be used to obtain the probability of a particular site if the mean $\left(\overline{I}\right)$ and standard deviation $\left(std\right)$ of the irradiance of the data at the site are known.

Generalized Solar Generation Model

The conventional generating unit is represented by a two-state model, with the states representing zero power generation or “down state” and rated capacity generation or “up state”. However, due to solar power intermittency caused by variation of solar irradiation due to movement of the sun, it is pragmatic to represent the solar power with a multistate model. The multistate modeling helps to incorporate the random variation of solar energy generation correlating with random irradiance. Furthermore, the generation reliability analysis requires the computation of power generated at a particular site with a solar farm so as to check whether it meets the load demand. The amount of power generated from a solar farm location varies with the amount of solar irradiation. The solar power curve, which is a correlation between solar irradiation and generated power as shown in Figure 3, can be used to calculate the power generated at a location. The power varies non-linearly when the solar irradiation is less than a predefined set radiation point $R_{sp}$ (usually considered 150 W/m²). The power varies linearly when the irradiation lies between $R_{sp}$ and solar irradiation at a predefined standard value in a given environment $R_{pse}$ (usually taken as 1000 W/m²). The generated power is the rated value $P_r$ beyond $R_{pse}$. This has been explained in Section 2.2.

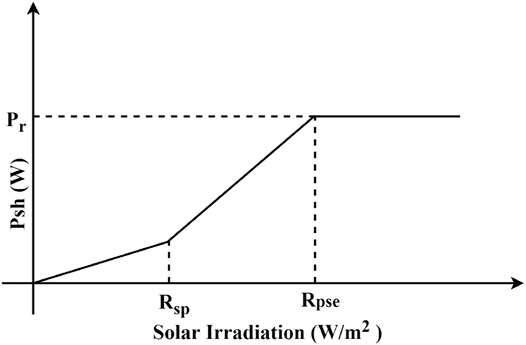

FIGURE 3

FIGURE 3. Correlation of output power with solar irradiation.

Figure 4 depicts the process of constructing a standard solar power model. The model requires solar data from a place with similar mean and standard deviation solar irradiation statistics. To develop a site-specific solar irradiation model, the annual mean and standard deviation of solar irradiation for that location are needed. Finally, solar power generated at a specific site for various irradiation values is calculated using solar power curve data.

FIGURE 4

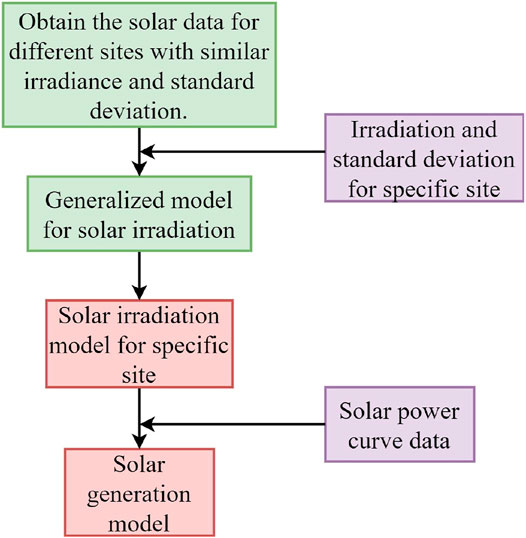

FIGURE 4. Flowchart for development of generalized solar irradiation model.

The hourly solar power generated $P_{shi}(i=\mathrm{1,2,3}\dots ,N_D)$ at a particular site corresponding to solar irradiation value $MP{S}_i(i=\mathrm{1,2,3}\dots ,N_D)$ is given by Eq. 4. Table 3 lists the values of solar irradiation and equivalent output power for a solar DG considering a rated power of 1500 MW and $\sigma =229.6488$ for a 30-step model.

$P_{shi}= \{\begin{array}{c}\frac{P_r\times MP{S}_i^{\mathrm{2}}}{R_{pse}\times R_{sp}}; 0\le MP{S}_i<R_{sp}\\ \frac{P_r\times MP{S}_i}{R_{pse}};R_{sp}\le MP{S}_i<R_{pse}\\ P_r;MP{S}_i\ge R_{pse}\end{array}(5)$

TABLE 3

TABLE 3. Combined probability of solar irradiance and corresponding power for a 30-step model considering farm 1 and farm 2, having combined rated power 1500 MW and$\sigma =229.6488$

The power generated is zero for the duration for which solar irradiation is not present, which has not been taken into account for the power calculation state. The probability $P_{prz}$ for zero power output is obtained from Eq. 6, where $N_z$ is the number of data points for zero solar irradiation. Similarly, rated power output is obtained beyond $R_{pse}$. Therefore, the probability of step bands beyond it can be combined to obtain the probability for rated power output $P_{prr}$ given by Eq. 7.

$P_{prz}=\frac{N_z}{N_{sy}}(6)$

$P_{prr}={\displaystyle \sum P_{bi}}, for MP{S}_i\ge R_{pse}(7)$

Smart Grid Discrete Production Simulation Considering Stochastic Generation for Reliability Analysis

Generation planning is an essential aspect of determining the reliability of power delivered to the consumers. The incorporation of solar PV-generating units and other renewable energy resources in the generation has mandated the need for efficient generation planning tools to account for generating unit stochasticity. The algorithms of the existing planning tools are incredibly efficient, and updating them to integrate solar DG units enables the planning process smart for smart grids. The present work considers the discretized version of load and solar generation intermittency to formulate smart grid discrete production simulation (SGDPS) with stochastic generation. The DSLM is the kernel of SGDPS which immaculately integrates the stochastic load and the generation model. DSLM is the modification of the initial DSLM (load represented in terms of time duration of its demand), which is shifted and modified to account for uncertainty in a generation in terms of the load. If a certain capacity of generation is removed from the existing system, changes are affected in the load as generation follows the load. Hence, this phenomenon is expressed by an equivalent rise in load causing the shifting of the initial DSLM to obtain a new DSLM. A typical DSLM is shown in Figure 5A. Point $(l,n)$ on the curve represents the time duration $"n"$, for which the $"l"$ MW of the load is exceeded and the point is represented as $n=F\left(l\right)$, that is, time is represented as a function of load. The initial DSLM specifies the time duration for which a load is present, $D$ is the maximum time duration under which the investigation is carried out, and $l_{max}$ is the maximum connected load to the system. The total energy under the initial DSLM is given by Eq. 8.

$E_{DL}={\displaystyle \sum _{l=0}^{l_{\mathit{max}}}F}\left(l\right)(8)$

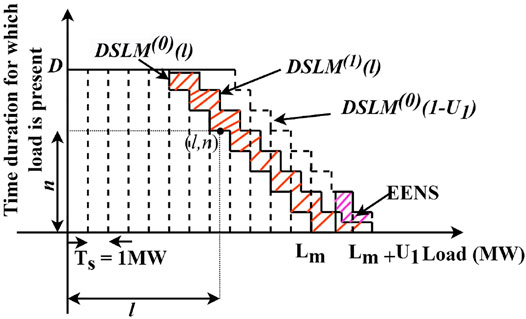

FIGURE 5

FIGURE 5. DSLM incorporating random outage of a generator.

Incorporation of Random Outage of Conventional Unit

The outage of the conventional unit is represented by a two-state model. If the outage of each generating unit $G_1$, with an outage capacity $U_1$, is treated as a single event, then the probability of failure state is represented by forced outage rate (FOR) of the generator having the value $"q"$. The probability of the generator being in the normal state is by $"p=\left(1-q\right)"$. The DSLM is constructed by convolving all the generating units one at a time, with the order of convolution based on the priority of operation. The DSLM after consideration of outage of a single unit is pictorially represented in Figure 5; here, $DSL{M}^{\left(0\right)}\left(l\right)$ is the original load duration curve, and $DSL{M}^{\left(1\right)}\left(l\right)$ is the DSLM after consideration of outage of one generating unit $G_1$, with an outage capacity of $U_1$. The outage of the unit can be mathematically represented by Eq. 9, which involves the convolution of DSLM with the outage probability of the unit. Here, $p_1$ is the probability of $G_1$ being in a normal state, and $q_1$ is the probability of outage of $G_1$. In general, the outage of unit $G_i(i=\mathrm{1,2,3},\dots , N_G)$ with capacities $U_i(i=\mathrm{1,2,3},\dots ,N_G)$ can be represented by (9), which is a convolution of DSLM and outage of a generator. Here, $p_i$ is the probability of $G_i$ being in a normal state, and $q_i$ is the probability of outage of $G_i$. If the maximum capacity of the generating units is $U_{GT}$, then the final DSLM has a maximum load of $(l_m+U_{GT})$. The present work considers DSLM and probabilistic DSLM synonymously.

$DSL{M}^i\left(l\right)=DSL{M}^{i-1}\left(l\right)\otimes G_i=p_i\times DSL{M}^{i-1}\left(l\right)+q_i\times DSL{M}^{i-1}\left(l-U_i\right)(9)$

Inclusion of Solar Power Uncertainty in the Probabilistic Simulation Model

The uncertainty of solar power generation is represented by multiple power states, necessitating the use of the multistate algorithm. If the uncertainty of the solar power is represented by $N_{\kappa }$ states, then the probability of $P_{shi}(i=\mathrm{1,2,3},\dots ,N_{\kappa })$ solar DG states are $pr{s}_i\left(i=\mathrm{1,2,3},\dots ,N_{\kappa }\right)$. The power states of the solar DG, where $P_{sh\nu }$ is the rated capacity of the solar DG, and the probabilities of all the power states of the solar DG must satisfy ${\displaystyle \sum pr{s}_i}=1$

If the outage of $N_G$ conventional units has been taken into account by convolving the initial $DLSM$ with all the generating units, then the final $DSLM$ after convolution is $DSL{M}^{N_G}$. This obtained $DSLM$ needs to be convolved with the stochastic power generating states of the solar unit. If the solar unit $S{G}_j$ is added to the system, then for a generating state $P_{shi}$ having probability $pr{s}_i$ is mathematically represented by the shifting of DSLM by $P_{shi}$ to the right. The final DSLM is obtained by convolving all the generating states of solar DG with the previously obtained DSLM and is given by Eq. 10.

$DSL{M}^j\left(l\right)={\displaystyle \sum _{i=1}^{N_{\kappa }}\left[pr{s}_i.DSL{M}^{j-1}\left(l-P_{shi}\right)\right]}(10)$

Equation 10 reduces to Eq. 9 if $N_{\kappa }=2$, and for $j=1$, $DLS{M}^{j-1}$ is taken as the final DSLM obtained by convolving all the conventional generating units with initial DSLM. The pictorial representation of convolution of all the conventional generating units to obtain $DSL{M}^{N_G}$ and its convolution with probabilistic solar DG power model is shown in Figure 6.

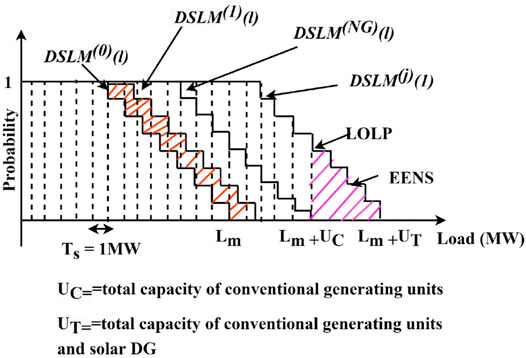

FIGURE 6

FIGURE 6. DSLM considering outage of all the conventional generators and solar DG.

Reliability Evaluation Using Frequency Domain Approach

Convolution of generating units with initial DSLM in the time domain necessitates several iterations, and the number of data points after convolution rises. This increases the memory requirements of the processor, and massive computations make the processor slow. If the time domain signals are converted to the frequency domain, the large number of addition and multiplications reduces to point by point data multiplication (Proakis and Manolakis 2021). The data are converted from the time domain to the frequency domain using a fast Fourier transform (FFT) algorithm. FFT requires the initial DSLM data and the data related to the uncertainty of the generating units to be sampled, and the number of sampling points must satisfy $N_{samp}=2^c$, where $C$ is an integer. A discrete time-domain signal $s\left(z\right)$ can be represented by $"N_{samp}"$ impulses scaled by a factor $"a_m(m=\mathrm{1,2,3},\dots ,N_{samp})"$ and uniformly shifted by a factor $"\text{Δ}z"$, given by (11). The signal is converted to the frequency domain using (12), where $W=e^{j2\pi /N_{samp}}$, $n=(\mathrm{1,2,3},\dots ,N_{samp})$, and $m=(\mathrm{1,2,3},\dots ,N_{samp})$. The signal is converted back to the frequency domain using inverse FFT (IFFT) given by Eq. 13. The number of sampling points is chosen based on $N_{samp}\ge \frac{T_0}{T}\mathit{ }$ (21) (Lakshmi et al., 1995), where $T_0=l_m+(U_{NG}+P_{sh\nu })$ to consider sampling based on maximum loading, and the sampling interval $T$ is chosen as 1 MW. When the number of generating units and states increases, the computational time and memory requirements for the frequency domain drop significantly.

$s\left(z\right)={\displaystyle \sum _{k=0}^{N_{samp}-1}{a}_k}\times \mathrm{\delta }\left(z-k.\mathbf{\Delta }z\right)(11)$

$S\left(n\right)={\displaystyle \sum _{k=0}^{N_{samp}-1}{a}_k}{W}^{-nk}(12)$

$\begin{array}{c}{y}_k={\displaystyle \sum }_{n=0}^{N_{samp}-1}{\displaystyle S}\left(n\right)W^{nk}\\ s\left(n\right)={\displaystyle \sum _{k=0}^{N_{samp}-1}{y}_k}\times \delta \left(z-\mathbf{\Delta }z\right)\end{array}\}(13)$

Evaluation of Reliability Indices

The DSLM obtained after all the units have been convolved with the initial DSLM shifts the initial DSLM based on the maximum generating capacity of the system. If the system has $"\lambda "$ number of generating units with a total generating capacity $\left(U_t\right)$, then the final DSLM after convolving all the generating units is $DSL{M}^{\lambda }\left(l\right)$. The peak load in the final DSLM is equal to $(l_{max}+U_t)$; the reliability indices, namely, loss of load probability (LOLP) and expected energy not served (EENS), which can be obtained from the final obtained DSLM, are given by Eqs 14, 15. The proposed methodology first requires solar data to formulate a generalized solar generation model so that a multistate generation model for any site can be obtained using mean and standard deviation. The obtained data are convolved with the DSLM obtained by convolving the conventional generating units with the initial DSLM. Finally, the reliability indices are obtained to determine the reliability of the system. The proposed methodology is shown in Figure 7.

$LOLP=DSL{M}^{\mathit{\lambda }}\left(l_{\mathit{max}}+U_t\right)(14)$

$EENS={\displaystyle \sum _{U_t}^{l_{\mathit{max}}+U_t}DSL{M}^{\lambda }}\left(l\right)(15)$

FIGURE 7

FIGURE 7. Reliability evaluation process considering outage of generating units and intermittency of solar generation.

Impact Assessment of Solar Generation on Carbon Neutrality

Since the beginning of the industrial revolution, carbon dioxide emissions, mostly from the combustion of fossil fuels, have risen substantially. CO₂ emissions vary depending on the type of fossil fuel utilized to generate power. Burning coal produces more CO₂ than burning natural gas or oil to produce the same amount of power. Achieving net-zero emissions (carbon neutrality) by 2050 is a colossal task, especially in the face of rising economic and population expansion. It calls for unwavering support from all the countries to massively generate power from natural sources of energy such as wind and solar energy. The enormity of the changes required to achieve worldwide net-zero emissions by 2050 is beyond the capabilities of the government energy or environment ministries, as well as individual countries. It will entail an unparalleled level of global collaboration (IEA 2021). The countries, in an effort to reduce carbon emissions, are actively encouraging and providing incentives for the installation of wind and solar power plants at the places of potential to deliver. Among clean energies, renewables such as solar energy, wind power, and ocean energy are some of the most important and efficient means to achieve carbon neutrality (Wang et al., 2021). These renewable technologies provide around half of the emission savings to 2030 in the net-zero emissions.

The impact of solar generation on carbon neutrality is assessed using the following equation:

$E_p\left(Total C{O}_2 emissions\right)=O_p\ast {\displaystyle \sum _{i=1}^N{H}_i}\ast E{F}_i(16)$

where Op is the total electricity generation output of the grid in MWh. It is equal to the product of installed capacity in MW, capacity factor, and 8,760 h/a. EFi is the emission factor for specific technology and fuel type expressed in t CO_2e/MWh, $H_i$ is the percentage contribution of technology i, and N is the number of different technologies. Depending upon the type of fuel used for generating power, the emission factor varies. The emission factor depends on the energy released when fuel is burnt. To analyze the emission factor for different fuels, the amount of CO₂ released per unit of energy output or heat content is calculated. With the use of fuel having a lower emission factor, carbon emissions can be significantly reduced by the generating units to achieve carbon neutrality.

Case Studies and Discussions

The impact of solar power generation on the reliability of the conventional system is tested and validated on the IEEE-RTS system (Grigg et al., 1999), which has been widely used for testing and validating various reliability algorithms. The system comprises 32 generating units with a total generation of 3405 MW generation and a connected load of 2805 MW. The original system has been modified to accommodate the solar DG in the system. A 155 MW coal unit has been replaced to include a 1500 MW solar farm in the system to represent a capacity factor (equivalent generating capacity/actual capacity of the plant) of 0.1033; the generating capacity of all the connected generators is listed in Table 4. The modified IEEE-RTS used in this study also includes the different generators along with their capacities. The generating units used are mainly nuclear, coal/steam, oil/steam, and hydro, along with their generation capacities.

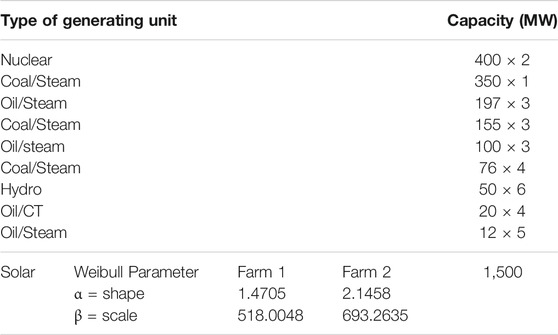

TABLE 4

TABLE 4. Type of generator with their capacities connected in modified IEEE-RTS.

Solar energy has a significant role in reducing the global carbon footprint. Table 5 enlists the carbon dioxide emissions from the major carbon emitting generating sources and solar PV system. The carbon emissions from each of these sources are calculated for equal generation capacities, and during calculations, it is assumed that the thermal and oil power plants operate at their rated capacity with a capacity factor of “1”. The thermal and oil units operate for 24 h, whereas the solar PV system generates power depending on the availability of the sun, which is taken as 10 h in the present study. Table 5 also enlists the emission factor of various fuel types (Environment 2022). It can be observed that the emission factor of the thermal unit is maximum due to the fact that it utilizes coal as a fuel, and because the emission factor of the oil unit is also considerable. The carbon emission factor of the solar PV system is very less when compared to coal and oil units, and hence it can serve as a major alternative source of generation in order to reduce the carbon emissions. Considering the operating scenario in the present work, the carbon emissions in ton CO₂ equivalent is tabulated in Table 5, calculated from Eq. 16. It can be observed that the emissions from the thermal unit is 117.724 × 10⁶ t CO₂ eq., which is very high; the CO₂ emission from the oil unit is reduced to 93.67, but is still significant. Hence, the major CO₂-emitting source, which is the thermal unit, needs to be replaced with the solar unit in order to achieve carbon neutrality. The present work does not consider the replacement of the nuclear unit as it is a large unit serving base load. The replacement of a thermal unit with a solar unit reduces the CO₂ emissions to 22.630 t CO₂ eq., thus playing a major role in achieving carbon neutrality.

TABLE 5

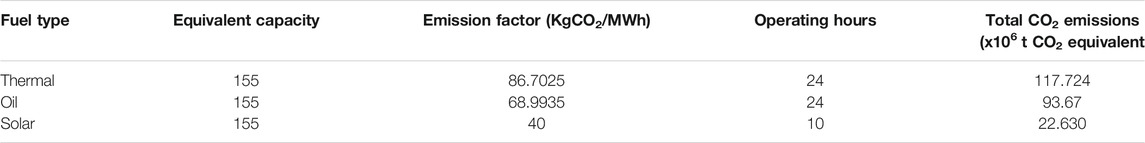

TABLE 5. Total CO₂ emissions for different units.

The two farms mentioned in Section 2 represent distributed generation, and the solar data have been obtained from National Solar Radiation Database (2021), through which data can be obtained for any geographic site. The solar irradiance data collected for 2 years from the particular site with solar farms are used in this study for the distributed stochastic load model (DSLM). The solar irradiance data have been represented in hours and days as rows and columns, respectively, with a local standard time from 7:00 a.m. to 5:00 p.m. for each day. Table 1 shows the data represented in matrix form with rows as the number of hours from 1 to 10 and the number of days from 1 to 730. Table 2 shows the rth quantile of the Weibull distribution for farm 1 and farm 2. From this, it can be inferred that for the 63rd quantile, the scale parameter is equal to the Weibull distribution factor for both farms 1 and 2. The maximum solar irradiation for farm 1 occurs at 89.13th quantile, its Weibull distribution factor corresponding to 890.750, and for farm 2, it occurs at 93.02^th quantile and its value corresponds to 1,005.150.

The present work takes into account a 30-step model to consider a step size of around 50 MW, so that the power states are obtained with sufficient accuracy. The combined probability of farm 1 and farm 2 for various irradiation values has been presented in Table 3; the power corresponding to various irradiation states has also been mentioned. Both farm 1 and farm 2 have a combined rated power of 1500 MW and a standard deviation of 229.6488. From Table 3, it can be inferred that with an increase in solar irradiation, the probability decreases. The corresponding power increases gradually, and for the step value of 20, it settles at 1,343.4456 MW. With further increase in the step value beyond the 23rd step with a power magnitude of 1500 MW, the probability remains constant at zero. The load data for a year considering the time in weeks have been taken from Grigg et al. (1999), and the initial DSLM plot representing the peak load for different weeks in a year is shown in Figure 8.

FIGURE 8

FIGURE 8. DSLM for IEEE-RTS and modified RTS.

The DSLM plot for IEEE-RTS is shown in Figure 8, considering the convolution load and outage of all the generating units. The maximum value of load after convolving all the generating units is 6255 MW, and the LOLP and EENS obtained from DSLM are 0.009556 and 11.4240 (GWh/yr), respectively. It can be observed from Figure 9 that after considering the outage of generating units, the load curve has shifted, which signifies an increase in energy at the load side with an outage of generating units. The DSLM with the removal of the 155 MW generating unit and addition of 500 MW solar DG is shown in Figure 9. It can be observed that the modification of DSLM further shifts to the right, and the maximum load of the DSLM is 6600 MW. Inclusion of 500 MW generating unit results in a penetration of 13% of the solar generation, which results in a LOLP of 0.2875 and an EENS of 41.0293, as listed in Table 6. The results show that the solar DG penetration of 13% results in the decrease of reliability of the system. With a penetration of 31.5%, the LOLP improves to 0.1053 and the EENS improves to 14.7390 (GWh/yr), which is considerable. The inclusion of 1500 MW solar DG results in a capacity factor of 0.10. The result shows both quantitative and qualitative contributions of the solar photovoltaic systems. From the aforementioned results, it is evident that with an increase in solar DG penetration, the LOLP and the EENS improve, resulting in an increase in the reliability of the system. LOLP and EENS are important factors for reliability assessment. This further proves that by replacing the conventional units with the solar DGs, carbon neutrality can be achieved, thus lowering the amount of CO₂ emissions.

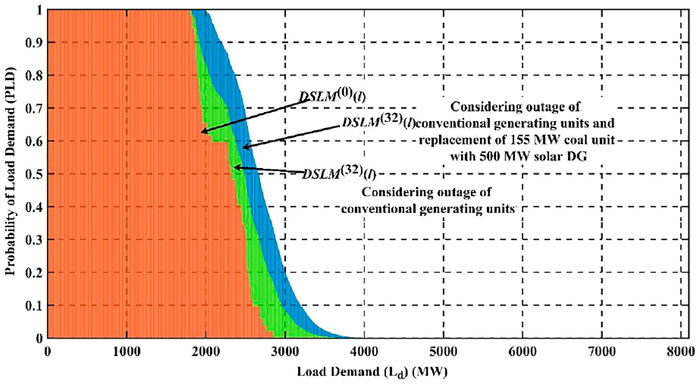

FIGURE 9

FIGURE 9. DSLM after convolving all the generating units considering different levels of DG penetration.

TABLE 6

TABLE 6. Reliability indices for the proposed system.

Conclusion

Solar energy has a massive potential around the world for minimizing carbon emissions. In an urge to decrease the carbon footprint on the environment, the usage of solar DG is increasing. In order to assess the impact of solar power generation in the current energy scenario, it is imperative to model the stochastic nature of solar irradiation. The proposed work quantifies the stochastic nature of solar irradiation. A generalized model to represent solar irradiation has been developed based on Weibull distribution for reliability purposes. Based on the model, a discrete production simulation model has been developed to represent solar DG. The algorithm has been tested on modified IEEE-RTS and the results prove that with a penetration of 31.57% of solar generation, the reliability of the system is close to the base RTS system in terms of EENS. The carbon neutrality based on penetration of renewables has been quantified and thus, replacing the conventional thermal unit with renewable energy from solar is highly indispensable and crucial for lowering CO₂ emissions and decarbonizing energy systems to achieve carbon neutrality.
