The Impact of Accurate Prediction of Natural Gas Compressibility Factor on the CO2 Replacement Method for Natural Gas Hydrate Exploitation

Introduction

Carbon capture, utilization, and storage (CCUS) is a new development trend of carbon capture and storage (CCS), which is a technology that captures and purifies the carbon dioxide (CO₂) emitted during the production process and then puts CO₂ into a new process of production for recycling or storage. This technology is not only a key technology to reduce CO₂ emissions from fossil energy power generation and industrial processes but also a bottom-line technology to achieve carbon neutrality. CO₂ geological storage is a core component of CCUS technology, which determines the development potential and direction of CCUS technology.

The oil and gas industry has relative technical advantages in CO₂ sequestration. Injecting captured CO₂ into oil and gas reservoirs can not only enhance the recovery of oil and gas but also achieve long-term CO₂ storage. At the same time, CO₂ can be injected into depleted oil layers, shale layers, and unmineable coal beds, which are used to enhance crude oil recovery (CO₂-EOR), enhance shale gas recovery (CO₂-ESGR), and improve coalbed methane recovery (CO₂-ECBM), respectively, while storing CO₂ (Zhang et al., 2020). The deep saline aquifer in the sedimentary basin is also considered as the main storage place for CO₂ geological storage due to its huge storage potential.

The environmentally friendly technologies for gas hydrate extraction based on CCUS are constantly developing. The combined technology of natural gas hydrate (NGH) exploitation using the CO₂ replacement method and ocean storage is also considered as potential long-term CO₂ storage solution due to its promising prospects for capturing, storing, and utilizing CO₂ (Tewari et al., 2021).

The natural gas compressibility factor is one of the most important physical parameters of natural gas, which characterizes the ratio of the same amount of real gas to the ideal gas volume under certain temperature and pressure conditions. This study focuses on the combined technology of NGH extraction with CO₂ replacement and ocean storage and points out that the impact of the prediction accuracy of the gas compressibility factor on the exploitation of NGH by the replacement with CO₂.

The Combined Technology of NGH Extraction With CO₂ Replacement and Ocean Storage

Fundamental

The combined technology of the CO₂ replacement method for NGH exploitation and ocean storage is a new coupling technology type which is safe and environmentally friendly. Its basic principle is to capture industrial waste CO₂ to mine NGH and achieve CO₂ sequestration under the premise of ensuring the stability of the seabed reservoir. This technology has improved the utilization of CO₂ resource greatly and maximized the storage of CO₂ by taking advantage of the huge potential of ocean storage space, which is a beneficial supplement to CCUS.

Ebinuma and Ohgaki et al. first proposed the idea of NGH exploitation using the CO₂ replacement method (Ebinuma, 1993; Ohgaki et al., 1996). After long-term research and demonstration, the idea has been proven to be highly feasible in terms of kinetics and thermodynamics. The replacement reaction formula is shown below:

${\text{CH}}_4・{\text{nH}}_2\text{O}+{\text{CO}}_2\left(\text{g}\right)\rightleftharpoons {\text{ CH}}_4\left(\text{g}\right)+{\text{CO}}_2・{\text{nH}}_2\text{O}\left(\text{n}\ge 5.75\right)(1)$

In the process of NGH exploitation using the CO₂ replacement method, the generation of CO₂ hydrate is an exothermic process, and the decomposition is an endothermic process. It can be seen from equations (Tewari et al., 2021) and (Ebinuma, 1993) that the exotherm is greater than the endothermic, so this process can proceed spontaneously (Yezdimer et al., 2002). The equations are given as follows:

${\text{nH}}_2\text{O}+{\text{CO}}_2\left(\text{g}\right)\to {\text{CO}}_2・{\text{nH}}_2\text{O}\left(\mathrm{\Delta }{\text{H}}_{\text{f}}=-57.98\text{ kJ}/\text{mol}\right)(2)$

${\text{CH}}_4・{\text{nH}}_2\text{O}\to {\text{CH}}_4+{\text{nH}}_2\text{O }\left(\mathrm{\Delta }{\text{H}}_{\text{f}}=54.49\text{ kJ}/\text{mol}\right)(3)$

The combined technology of CO₂ replacement mining NGH and ocean storage has unique development advantages. It can ensure the stability of the geological structure during the mining process, while storing the injected CO₂ on the seabed for a long time, which expands the application scope of CCUS technology to a certain extent. At present, the exploitation technology of NGH is still in the stage of trial production at home and abroad, and there are still many key technologies that need to be broken through. With the continuous innovation and development of related technologies, this technology will definitely become the main force of NGH extraction technology in the future.

Calculation of Decomposition Heat of NGH

When studying the phase equilibrium problem of the NGH system developed using the CO₂ replacement method, it is not only difficult to measure the heat of hydrate decomposition directly but also impossible to measure the heat of hydrate decomposition under all conditions directly. The main reason is that some gas hydrates have high formation pressure and the purity of the hydrates formed is difficult to determine. It is a simple and feasible method to use the Clausius–Clapeyron equation to calculate the heat of decomposition of hydrate. The decomposition heat of natural gas hydrate can be obtained by using the Clausius–Clapeyron equation based on the NGH phase equilibrium pressure, phase equilibrium temperature, gas constant, and gas compressibility factor (Sloan and Fleyfel, 1992). The specific formula is as follows:

$\frac{d(\ln P)}{d(1/T)}\mathrm{=}\frac{\mathrm{-\Delta }H}{ZR}(4)$

where: P—phase equilibrium pressure, MPa;

T—phase equilibrium temperature, K;

Z—gas compressibility factor; R—gas constant, 8.314 J/(molK).

As shown in equation (Ohgaki et al., 1996), it is necessary to use the gas equation of state to calculate the gas compressibility factor so as to obtain the decomposition heat of NGH under different phase equilibrium conditions. The slope of the logarithm of the NGH phase equilibrium pressure and the reciprocal curve of the phase equilibrium temperature is 10⁴–10⁵ orders of magnitude. Therefore, a small deviation in the calculation result of the compressibility will cause a larger calculation error of the decomposition heat; in other words, the prediction accuracy of the natural gas compressibility factor determines the calculation accuracy of NGH decomposition heat (Chen et al., 2019). Therefore, it is necessary to compare and analyze the calculation results of the compressibility factor of different equations of state and find the equation of state that calculates the gas compressibility factor accurately, so as to improve the calculation accuracy of the Clausius–Clapeyron equation to calculate the hydrate decomposition heat.

Analysis and Discussion

When using the CO₂ displacement method to exploit NGH, the concentration of CO₂ in the formation fluid will affect the calculation accuracy of the gas compressibility factor. The study displays that when the CO₂ concentration is higher than 50%, the deviation between the compressibility factor calculated using the cubic equation of state and the actual value can be as high as 5–40% (Li, 2018). By comparing the experimental test value of the compressibility factor with its calculated result, and using the Clausius–Clapeyron equation to compare the decomposition heat corresponding to the compressibility factor, the comparison result is shown in Figure 1, which means that the small deviation of the compressibility factor calculation result will bring a larger calculation error of decomposition heat.

FIGURE 1

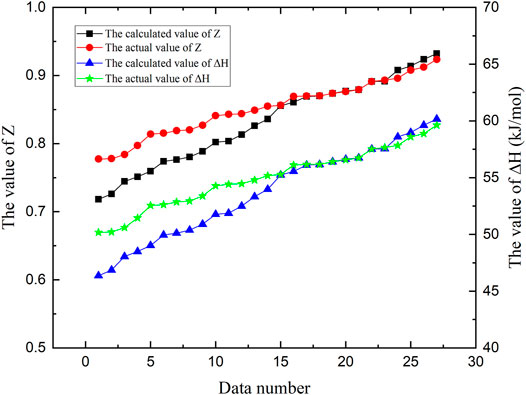

FIGURE 1. Comparison of compressibility factor (Z) and decomposition heat (ΔH) (The data were obtained from reference (Li, 2018)).

In summary, the accurate prediction of the natural gas compressibility factor is of great significance for the combined technology of NGH exploitation using the CO₂ displacement method and ocean storage. Therefore, it is particularly critical to determine this parameter quickly and accurately.

The various methods for calculating the compressibility factor proposed by domestic and foreign scholars can be summarized into four categories, which are experimental measurement method, chart method, equation of state method, and empirical formula method, respectively. The experimental measurement method has accurate calculation results, but the experimental cost is high, the cycle is long, and it is difficult to meet the needs of a large number of engineering calculations. The chart method is simple and easy to implement and can meet the engineering needs of a large number of calculations, but the error is large and the accuracy is not high. Although the equation of state method can accurately describe the gas compressibility factor, it is difficult to use for mixtures containing a large number of components due to the complexity of the parameters involved. This difficulty has prompted scholars to seek simpler and more reliable methods to obtain more accurate predictions of gas compressibility factors. The HY method, DPR method, and DAK method in the empirical formula method are the classic methods of applying the equation of state to calculate the natural gas compressibility factor. They can all represent the Standing–Katz chart relatively accurately within a certain range. In particular, the DAK method has the highest calculation accuracy, but its error at high temperature and high pressure is also slightly larger, and there is room for improvement.

Most methods for calculating the compressibility factor are applicable to conventional natural gas reservoirs. If the CO₂ concentration in the gas reservoir is high, it will affect the critical parameters of natural gas and cause the change of the compressibility factor. Hence, the critical parameters must be corrected when calculating the natural gas compression factor to obtain more accurate data. The commonly used correction methods are W-A (Chen, 1989; Guofa et al., 2011) and GXQ (Guo et al., 2000).

The artificial intelligence technology has been applied to the evaluation of the gas compressibility factor, which has shown excellent performance in terms of accuracy (Mohamadi-Baghmolaei et al., 2015; Attia et al., 2016; Irene et al., 2016; Adel et al., 2018; Tariq et al., 2019). In future research work, we should make full use of new technologies such as artificial intelligence to establish a calculation model for accurately predicting the gas compression factor, further improving the calculation accuracy of the natural gas compression factor and providing more accurate basic data for the combined technology of NGH exploitation using the CO₂ displacement method and marine storage, thereby accelerating the promotion of CCUS technology to achieve the goal of carbon neutrality.

Conclusion

1) As a core component of CCUS technology, CO₂ geological storage mainly includes storage in hydrocarbon reservoirs such as depleted oil layers, shale layers, and unmineable coal bed stages and storage of deep saline aquifers. The environmentally friendly technologies for gas hydrate extraction based on CCUS are constantly developing. The combined technology of NGH extraction with CO₂ replacement and ocean storage have enhanced the recovery of oil and gas at the same time by realizing geological sequestration of CO₂ and achieved the goal of “integration of sequestration and utilization, emission reduction and benefit win-win."

2) When studying the phase equilibrium problem of the NGH system developed using the CO₂ replacement method, according to the Clausius–Clapeyron equation, it was found that a small deviation in the calculation result of the compressibility factor will cause a larger calculation error of the decomposition heat. Therefore, the accurate prediction of the natural gas compressibility factor is of great significance to the combined technology of NGH extraction with CO₂ replacement and ocean storage. In order to improve the accuracy of the calculation results, it is necessary to compare and analyze the calculation results of different equations of state to find an accurate calculation of the gas compressibility factor, thereby improving the calculation accuracy of the hydrate decomposition heat.

3) In the future research work, we should make full use of new technologies such as artificial intelligence to establish a calculation model to predict the gas compressibility factor accurately, further improving its calculation accuracy, to provide more accurate basic data for the combined technology of NGH extraction with CO₂ replacement and ocean storage, so as to accelerate the development of CCUS technology and help achieve carbon neutrality.

Author Contributions

YN: mainly responsible for the construction of thesis ideas, literature research, and manuscript writing. GJ: mainly responsible for framework adjustment and thesis guidance. YL: mainly responsible for literature research.

Conflict of Interest

Author YL was employed by the company Sinopec Zhongyuan Petroleum Engineering Design Co., Ltd.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Adel, S., Elgibaly, A., Attia, M., Univesity, S., and Abdulraheem, A. (2018). “Comparing 5-Different Artificial Intelligence Techniques to Predict Z-Factor[C],” in Paper SPE192354 Presented at the SPE Kingdom of Saudi Arabia Annual Technical Symposium and Exhibition, Dammam, Saudi Arabia

Google Scholar

Attia, M., Mahmoud, M., Abdulraheem, A., and Abido, M. A. (2016). “Prediction of the Gas Compressibility Factor Using Coefficient-Matrices Based on ANN[C],” in Paper SPE 182780 Proceedings, SPE Kingdom of Saudi Arabia Annual Technical Symposium and Exhibition (Dammam).

Google Scholar

Chen, H., Guan, F., Xiao, Q., and liang, C. (2019). A New Method for Calculating the Dissociation Heat of Methane Hydrate[J]. Contemp. Chem. Industry 48 (8), 1783–1786. doi:10.3969/j.issn.1671-0460.2019.08.038

CrossRef Full Text | Google Scholar

Chen, Y. (1989). Method of Determining Deviation Coefficient of Acid Natural Gas [J]. Well Test. Prod. Technol. 10 (2), 1–5.

Google Scholar

Ebinuma, T. (1993). Method for Dumping and Disposing of Carbon Dioxide Gas and Apparatus therefor:US5261490A[P]. United States, 11–16.

Google Scholar

Guo, X., Yan, W., Chen, S., and Guo, T. (2000). Comparison of Methods for Calculating Compressibility Factor of Natural Gas at Elevated High Pressure[J]. J. Univ. Pet. 24 (6), 36–39. doi:10.3321/j.issn.1000-5870.2000.06.010

CrossRef Full Text | Google Scholar

Guofa, J., Mao, K., and Liu, D. (2011). Comparative Study on Correction Methods of Deviation Coefficients Containing Non-hydrocarbon Gases[J]. Inner Mongulia Petrochemical Industry 37 (10), 9–11. doi:10.3969/j.issn.1006-7981.2011.10.003

CrossRef Full Text | Google Scholar

Irene, A. I., Sunday, I. S., and Orodu, O. D. (2016). “Forecasting Gas Compressibility Factor Using Artificial Neural Network Tool for Niger-Delta Gas Reservoir[C],” in Paper SPE 184382 Proceedings, SPE Nigeria Annual International Conference and Exhibition (Lagos).

Google Scholar

Li, Z. (2018). Study on Phase Equilibrium of Gas Hydrate Extraction by CO2 Replacement method[D]. Chengdu: Southwest Petroleum University.

Google Scholar

Mohamadi-Baghmolaei, M., Azin, R., Osfouri, S., Mohamadi-Baghmolaei, R., and Zarei, Z. (2015). Prediction of Gas Compressibility Factor Using Intelligent Models. Nat. Gas Industry B. 2, 283–294. doi:10.1016/j.ngib.2015.09.001

CrossRef Full Text | Google Scholar

Ohgaki, K., Takano, K., Sangawa, H., Matsubara, T., and Nakano, S. (1996). Methane Exploitation by Carbon Dioxide from Gas Hydrates. Phase Equilibria for CO2-CH4 Mixed Hydrate System. J. Chem. Eng. Jpn. 29 (3), 478–483. doi:10.1252/jcej.29.478

CrossRef Full Text | Google Scholar

Sloan, E. D., and Fleyfel, F. (1992). Hydrate Dissociation Enthalpy and Guest Size. Fluid Phase Equilibria 76 (76), 123–140. doi:10.1016/0378-3812(92)85082-j

CrossRef Full Text | Google Scholar

Tariq, Z., Mahmoud, M., and Asad, A. (2019). “An Intelligent Data-Driven Framework to Develop New Correlation to Predict Gas Deviation Factor for High-Temperature and High-Pressure Gas Reservoirs Using Artificial Neural Network[C],” in Paper SPE 194715 Proceedings, SPE Middle East Oil and Gas Show and Conference, Manama.

Google Scholar

Tewari, R. D., Mohd Faizal Sedaralit, M. F., and Lal, B. (2021). “Pitching Early for CCUS Research and Development in Oil & Gas Industry: A Well Thought Endeavor,” in Paper 205809 presented at the SPE/IATMI Asia Pacific Oil & Gas Conference and Exhibition (Virtual).

CrossRef Full Text | Google Scholar

Yezdimer, E. M., Cummings, P. T., and Chialvo, A. A. (2002). Determination of the Gibbs Free Energy of Gas Replacement in SI Clathrate Hydrates by Molecular Simulation. J. Phys. Chem. A. 106 (34), 7982–7987. doi:10.1021/jp020795r

CrossRef Full Text | Google Scholar

Zhang, Z., Pan, S.-Y., Li, H., Cai, J., Olabi, A. G., Anthony, E. J., et al. (2020). Recent Advances in Carbon Dioxide Utilization. Renew. Sustain. Energ. Rev. 125 (Jun), 109799. doi:10.1016/j.rser.2020.109799

CrossRef Full Text | Google Scholar
