Inverter fault diagnosis based on Fourier transform and evolutionary neural network

The fault diagnosis of the inverter is fundamental to energy intelligence. Due to the complex characteristics of the inverter (e.g., high-dimensional decision and poor stability), it is challenging to solve the problem using traditional fault diagnosis methods. Recently, artificial intelligence (AI)-based approaches have emerged as the most promising methods. However, they often require to set hyperparameters manually, which hinders further AI-based applications in fault diagnosis of inverters. To fill the gap, we propose an inverter fault diagnosis method using fast Fourier Transform (FFT) and evolutionary neural network. This method combines the amplitude of low-frequency harmonic component of the three-phase inverter output current which is obtained by FFT and the average value in a period of three-phase inverter output current into the fault eigenvector. This method uses an evolutionary neural network trained by combining genetic algorithm (GA), ant colony optimization (ACO) algorithm and Back-propagation (BP) algorithm to realize fault diagnosis. This method can effectively resist noise interference and reduce the number of independent variables in the part of feature extraction, so that it can simplify the network model. In addition, this method can avoid the network training from trapping in local optima in the part of fault classification, with high accuracy and fast response speed. The experimental results show that the proposed algorithm and method of fault feature extraction can effectively detect and locate the insulated-gate bipolar transistor (IGBT) with open circuit (OC) fault in three-phase inverter, and can be applied to online monitoring.

1 Introduction

With the development of industrial automation and intelligent manufacturing, industrial robots are gradually replacing manual work. In order to prevent the problem of robot operation accuracy caused by data loss in case of abnormal voltage or mains power interruption, the control system of industrial robots is usually equipped with uninterruptible power supply. As the core component of uninterruptible power supply, the reliability of inverter has been widely concerned. Industrial demands put forward strict requirements for inverter (Ahmad et al., 2021; Yan et al., 2021) (High-voltage and high-power output, small system electromagnetic interference, low total harmonic distortion rate of output voltage, and small switch loss, etc.). Due to the wide application of wide band gap semiconductor devices, IGBT of converter is easily damaged, because it needs to withstand high-frequency interruption, high-voltage and high-current impact and temperature impact (Li et al., 2021). When the IGBT fails, the output current of the inverter will be seriously distorted that will result in irreversible damage to the subsequent equipment. Therefore, the fault diagnosis of the inverters has research significance for the industrial robot control system, and provides a basis for the research of the fault tolerance of inverter control strategy.

Fault diagnosis methods are mainly divided into model-based methods, signal-based methods, and knowledge-based methods. Model-based methods use the output state of the circuit that is evaluated by establishing an accurate mathematical model of the inverter to carry out fault diagnosis. The accuracy is high, but the modeling process is complex. For example, Wang et al. proposed a node path modeling method for fault detection Wang et al. (2021), this method used current path state and node potential to represent the circuit’s working mode, and located transistor faults according to the deviation of output current. Knowledge-based methods depend on the given knowledge in the relevant fields. They need to have a certain understanding of the system structure and summarize the relationship between the normal state of the system and different fault states. These methods have some limitations, such as slow derivation process, difficulty in establishing knowledge base and poor timeliness. For example, Kou et al. proposed a method based on knowledge driven and data driven Kou et al. (2020), which used the Concordia transform (knowledge driven) for feature conversion, and used the random forests technique (data driven) to train the fault diagnosis classifier for inverter fault diagnosis. Signal-based methods can directly analyze the measured signal to obtain fault characteristics. Artificial intelligence methods can be used for fault diagnosis. The fault feature extraction methods include Fourier Transform and wavelet transform, etc. Fault classification adopts machine learning methods, such as BP neural networks, support vector machines, Multi-layer Perceptron, etc. These methods have a high accuracy, but need to collect a large number of sample data to train the network. For example, Khomfoi et al. took the output voltage of the inverter bridge arm as the measured signal, used FFT to obtain the 40 high-order harmonic amplitudes as the fault diagnosis data. This method designed five multilayer feed forward networks, where the number of input nodes, hidden nodes, and output nodes were 40, 2, and 1, to operate in parallel for fault location. The classification performance could reach 98% (Khomfoi and Tolbert, 2007), but the data dimension was large and the network structure was complex. And Phaneendra Babu et al. built a Multilayer Perceptron neural network, where the number of input nodes, hidden nodes, and output nodes were 40, 12, and 1, to run for fault location, with 99% classification performance Phaneendra Babu et al. (2008).

In recent years, the signal-based methods are improving, but there are still shortcomings. In the traditional fault diagnosis methods based on FFT, the problems of high eigenvector dimension and too many independent variables lead to the complex structure of the neural network, slow response in engineering applications, and poor anti-interference. Cai et al. used FFT to extract the signal characteristics of line voltage, and used principal component analysis to reduce the dimension of eigenvector. They used Bayesian networks for fault diagnosis (Cai et al., 2017). This method made full use of fault information in samples, but it was difficult to resist high-frequency noise interference, and the original data dimension was huge. To reduce the dimension of eigenvector, it required 10 PCs to run simultaneously for data processing, which was very complex. Ji et al. used Park transform to obtain the fundamental amplitude of three-phase current as the characteristic variable of fault detection and divided the fault types in detail, and used BP neural network and logic judgment to achieve fault location (Ji and Liu, 2018). Although this method reduced the dimension of eigenvector, but it made the fault classification complex. What’s more, the algorithm used in it is easy to trap in local optima, resulting in low network accuracy.

To solve the above problems, this paper presents a diagnostic method for inverters based on FFT and evolutionary neural network. This method collects the output current of the three-phase inverters as measured signal. Firstly, the amplitudes of the DC component, fundamental wave and second harmonic of the output current under fault state are extracted through FFT, and the average value in a period is calculated and marked, then the above components are combined to obtain the eigenvector. This process can effectively reduce the number of variables, so that it can simplify the network model. Secondly, a neural network model is established, GA, ACO, and BP algorithm are combined to train the network. This method discretizes the solution interval of weight, uses GA and ACO to locate the optimal weight to a certain subinterval, and then uses BP algorithm to obtain the optimal weight. This process combines the advantages of the three algorithms, reduces the search time, accelerates convergence speed, avoids trap in local optima, and improves the solution efficiency. Finally, the trained network is applied to fault diagnosis of three-phase inverter. This method can realize different fault classification, accurately locate the fault point, and has high diagnostic accuracy. In addition, this is a software-based method, which reduces the hardware cost, and has filtering effect in the phase from signal acquisition to fault feature extraction, so that the influence of noise can be eliminated, and the response is fast, so it can be used for online monitoring.

This paper consists of the following parts: First, the fault of three-phase inverter is analyzed. Secondly, according to the characteristics of three-phase inverter output current under fault conditions, a fault feature extraction method based on FFT is proposed. Then an evolutionary network is proposed and the algorithm flow is analyzed in detail. Finally, MATLAB/Simulink is used to build a simulation model of three-phase inverter, and LabVIEW is used to build a virtual instrument for data acquisition. Through the joint simulation between the two, eigenvectors under fault state are extracted for network training. At the same time, the training results of the algorithm proposed in this paper, hybrid GA-BP algorithm, hybrid ACO-BP algorithm and traditional BP algorithm under the same training samples and network architecture are compared and analyzed.

2 Fault analysis

Inverters are widely used in power systems, and their reliability directly affects the security and stability of power supply systems. Affected by uncertain factors such as working environment, aging, electromagnetic interference, etc., power devices become the most vulnerable components of the inverter (Cao et al., 2021). The common fault types are OC faults and short circuit (SC) faults of power devices.

2.1 Topology of three-phase inverter

This paper takes three-phase inverter as the research object and the topology of three-phase inverter is shown in Figure 1 (Hu et al., 2011). As can be seen from Figure 1, U_dc, C_dc, S_n (n = 1,2,3,4,5,6), D_n (n = 1,2,3,4,5,6), L_n (n = 1,2,3), C_n (n = 1,2,3), and R_n (n = 1,2,3) represent the DC voltage, DC link capacitor, IGBTs, antiparallel connected diodes, filter inductance, filter capacitor, and load, respectively.

FIGURE 1

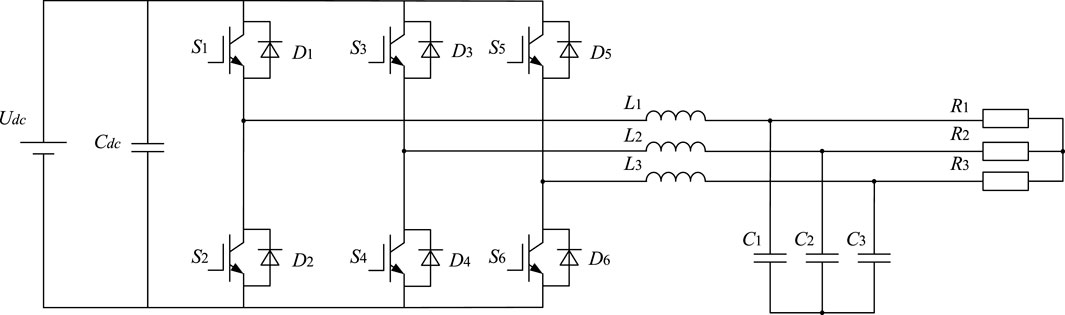

FIGURE 1. Topology of three-phase inverter.

The controller controls the switching on and off of the IGBTs by generating pulse width modulation wave, inverter filters the harmonics through the filter circuit so as to leave the fundamental wave, then it can convert DC power into three-phase alternating current power.

2.2 Short circuit fault analysis of three-phase inverter

When the IGBT in the inverter has an SC fault, for example, when the IGBT S₂ occurs SC fault, as shown in Figure 2, S₁ is turned on under the control signal, which will cause a short circuit to the DC source. In this case, the current in the circuit will increase sharply, which will cause the DC source, other IGBTs and even the whole circuit to burn out. In engineering application, the IGBT in the inverter is usually equipped with short circuiting protective circuit. When the IGBT is short circuited, the short circuiting protective circuit will react immediately, and then turn the SC fault into the OC fault (Li, 2020).

FIGURE 2

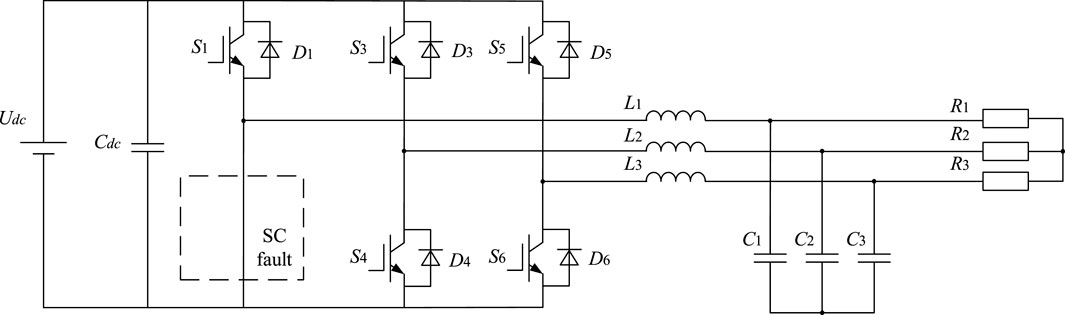

FIGURE 2. Topology of three-phase inverter with SC fault of S₂.

2.3 Open circuit fault analysis of three-phase inverter

When the IGBT has an OC fault, it cannot flow current, and the corresponding part of the inverter output current is missing. For example, when the IGBT S₂ of the lower bridge arm has an OC fault, its topology is shown in Figure 3, and its three-phase output current and its amplitude spectrum are shown in Table 1. It can be found that the negative half wave of phase A current disappears, the current waveform of phase B and C is severely distorted, and the harmonic content increases significantly. Similarly, it can be seen that when the IGBT S₁ of the upper bridge arm fails, the positive half wave of the corresponding output current will disappear, and the output current waveform of the other two phases will be severely distorted. This situation makes normal power supply impossible. This paper will mainly diagnose the OC fault of the inverter. In practical application, the fault of the inverter is usually the OC fault of one or two IGBTs, and the simultaneous OC fault of three IGBTs is rare. This paper focuses on the OC fault of one or two IGBTs.

FIGURE 3

FIGURE 3. Topology of three-phase inverter with OC fault of S₂.

TABLE 1

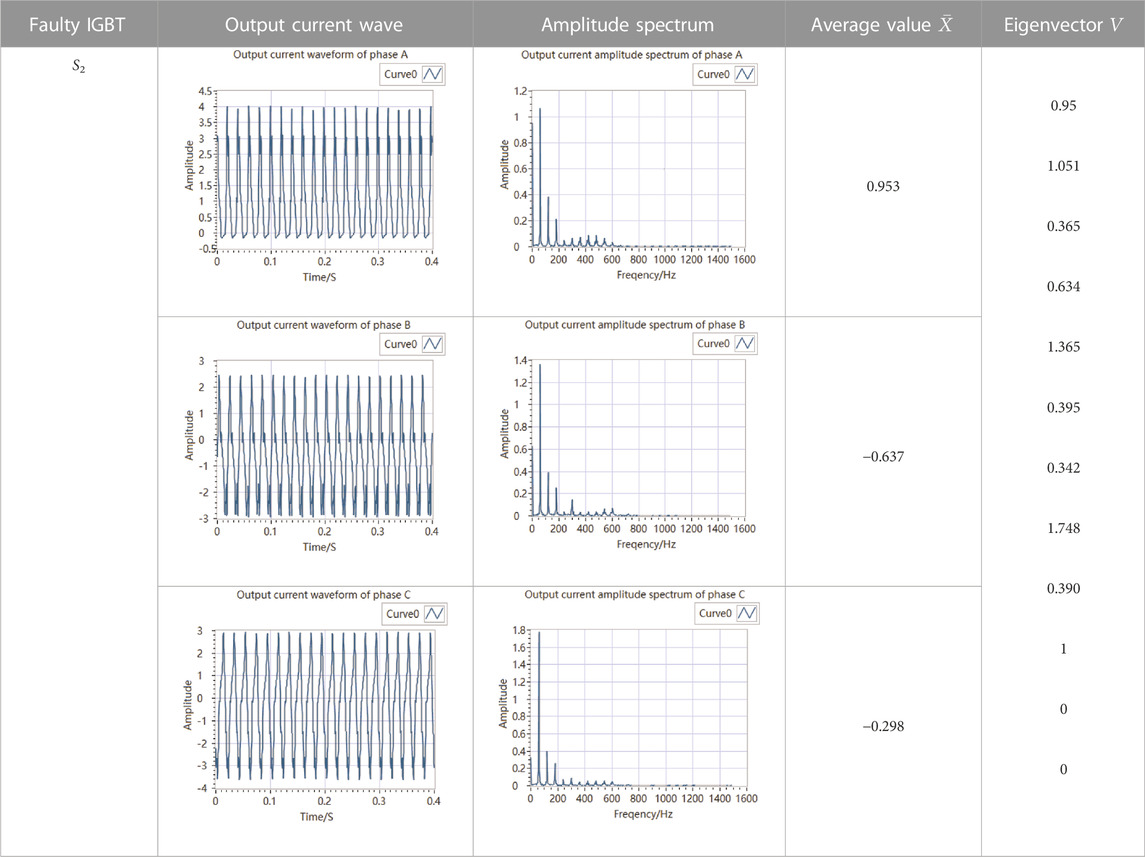

TABLE 1. Fault eigenvector and amplitude spectra of phase A, B, and C with S₂ failure.

There are six cases when the OC fault happens on single IGBT. There are 15 cases when the OC fault happens on two IGBTs at the same time.

3 Fault feature extraction

The traditional fault, extraction method has high feature dimension and is difficult to resist noise interference. This paper proposes a fault feature extraction method. First, the output current of three-phase inverter is collected and the amplitude spectrum is obtained through FFT. According to the amplitude spectrum, the amplitudes of DC component, fundamental wave, and second harmonic of the output current of phase A, B, and C are obtained. Secondly, the average values in a period of the output current of phase A, B, and C are calculated and marked. The 12-dimension fault eigenvector under fault condition is obtained. This method collects the amplitudes of specific low-frequency components as the diagnosis data, which can effectively avoid high-frequency interference caused by noise. The block diagram is shown in Figure 4.

FIGURE 4

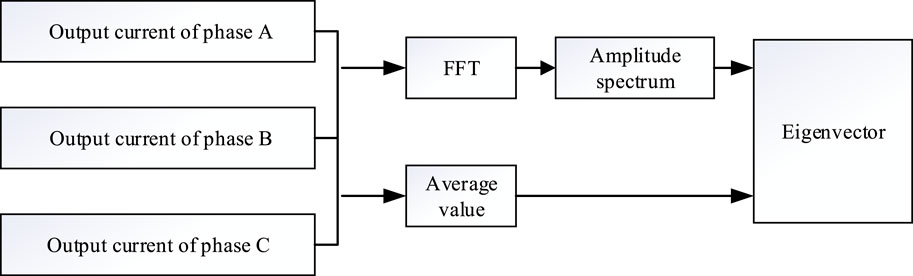

FIGURE 4. Block diagram of fault feature extraction.

3.1 Fast Fourier transform

Fourier Transform can convert time domain signal into a series of sinusoidal signals of different frequencies and amplitudes (Bi et al., 2021), and then it can get the amplitude spectrum of the time domain signal.

The Fourier Transform of the analog signal $x\left(t\right)$ is:

$\begin{array}{c}\begin{array}{c}X\left(w\right)={{\displaystyle \int }}_{-\infty }^{\infty }x\left(t\right)e^{-jwt}dt\end{array}\end{array}(1)$

$x\left(nT\right)$ is obtained by sampling $x\left(t\right)$, and its Discrete Fourier Transform (DFT) is:

$\begin{array}{c}\begin{array}{c}X\left(k\right)={\displaystyle \sum }_{n=0}^{N-1}x\left(n\right)W_N^{nk}={\displaystyle \sum }_{n=0}^{N-1}x\left(n\right)e^{-j\frac{2\pi }{N}nk},\hspace{1em}k=\mathrm{0,1},\dots ,N-1\end{array}\end{array}(2)$

where $X\left(k\right)$, $x\left(n\right)$, $W_N^{nk}$ are all complex, the above formula can be written as:

$\begin{array}{c}X\left(k\right)={\displaystyle \sum }_{n=0}^{N-1}x\left(n\right)W_N^{nk}\\ ={\displaystyle \sum }_{n=0}^{N-1}\left\{\mathrm{R}\mathrm{e}\left[x\left(n\right)\right]+\mathrm{j}\mathrm{I}\mathrm{m}\left[x\left(n\right)\right]\left(\mathrm{R}\mathrm{e}\left[W_N^{nk}\right]\right)+\mathrm{j}\mathrm{I}\mathrm{m}\left[W_N^{nk}\right]\right\}\\ ={\displaystyle \sum }_{n=0}^{N-1}\{\left(\mathrm{R}\mathrm{e}\left[x\left(n\right)\right]\right)\mathrm{R}\mathrm{e}\left[W_N^{nk}\right]-\mathrm{I}\mathrm{m}\left[x\left(n\right)\right]\left(\mathrm{R}\mathrm{e}\left[W_N^{nk}\right]\right)+j(\mathrm{R}\mathrm{e}\left[x\left(n\right)\right]\mathrm{I}\mathrm{m}\left[W_N^{nk}\right]\\ +\mathrm{I}\mathrm{m}\left[x\left(n\right)\right]\mathrm{R}\mathrm{e}\left[W_N^{nk}\right]\left)\right\}\end{array}(3)$

$W_N^{nk}$ has periodicity and symmetry.

$\begin{array}{c}{\left(W_N^{nk}\right)}^{*}=W_N^{-nk}\end{array}(4)$

$\begin{array}{c}{W}_N^{nk}=W_N^{\left(n+N\right)k}=W_N^{n\left(k+N\right)}\end{array}(5)$

FFT is a fast algorithm of DFT (Guo et al., 1998). In the FFT formula, the DFT equitation $X\left(k\right)$ is decomposed into a number of short transforms based the symmetry and periodicity of $W_N^{nk}$, then recombined regularly. This process reduces the cardinality of the sample points, makes the multiplication and addition operations much less, and makes the Fourier transform easy to achieve.

3.2 Average value

The average value in a period of a periodic signal is:

$\begin{array}{c}\overline{X}=\frac{1}{N}{\displaystyle \sum }_{i=1}^N{X}_i\end{array}(6)$

where $N$ is the number of sampling points in a period of the periodic signal.

3.3 Feature extraction

When the IGBT of the inverter has an OC fault, its topology changes, resulting in distortion of the output current. When the IGBTs on different bridge arms fail, the amplitude spectra of their output current waveform are different, but when the IGBTs with OC faults are at different positions of the same bridge arm, the amplitude spectra of their output current waveform are the same. It can be seen from Section 2.3, that if the IGBT on the same bridge arm fails, according to its location, its output current will have the loss of positive half wave or negative half wave. Therefore, according to the characteristics of the disappearance of positive half wave or negative half wave and the increase of harmonic content under the fault state, the method proposed in this paper extracts features from the amplitude spectrum and average value on one cycle of inverter output current for fault diagnosis. First, the output current of three-phase inverter is collected, and the amplitude spectrum is obtained through FFT. According to the amplitude spectra, the amplitudes of DC component, fundamental wave, and second harmonic of the output current of phase A, B, and C are obtained, and recorded as $A_{0A,0B,0C}$, $A_{1A,1B,1C}$, $A_{2A,2B,2C}$. Secondly, the average values on one cycle of the output current of phase A, B, and C are calculated and marked, recorded as ${\overline{X}}_{A,B,C}$. When the average value is greater than 0, it is marked as 1, when the average value is less than or equal to 0, it is marked as 0. After marking the mean value, it can effectively avoid excessive fluctuation of mean value caused by noise in engineering applications, which will affect the fault diagnosis results. The 12-dimension fault eigenvector $V$ is obtained as the fault diagnosis data.

$\begin{array}{c}V={\left[A_{OA},A_{1A},A_{2A},A_{OB},A_{1B},A_{2B},A_{OC},A_{1C},A_{2C},{\overline{X}}_A,{\overline{X}}_B,{\overline{X}}_C\right]}^T\end{array}(7)$

The S₂ failure, S_4, and S₆ failure simultaneously, S₃ and S₅ failure simultaneously are taken as examples to verify the effectiveness of the proposed fault exaction method, fault eigenvectors and amplitude spectra of phase A, B, and C are shown in Tables 1–3.

TABLE 2

TABLE 2. Fault eigenvector and amplitude spectra of phase A, B, and C with S₄ and S₆ failure simultaneously.

TABLE 3

TABLE 3. Fault eigenvector and amplitude spectra of phase A, B, and C with S₃ and S₅ failure simultaneously.

Based on the above tables, for each fault, the eigenvectors obtained by the fault exaction method proposed in this paper are different, which can be used for fault diagnosis of three-phase inverter.

4 Evolutionary neural network

BP algorithm is the most widely used in neural network training method, and its essence is a learning algorithm based on stochastic gradient descent. BP neural network is highly dependent on the initial connection weight values, which makes the neural network training easy to trap in local optima. In the late training period, the output neurons are prone to premature saturation. This will affect the convergence speed and learning accuracy of the neural network (Hongjiao, 2019; Lei et al., 2020). Although the appeal problems can be solved by appropriately increasing the number of hidden layers and hidden nodes, it will increase the complexity of the network structure, training time, and computation. This paper proposes an evolutionary neural network, which combines the global search of GA and ACO with the local search of BP algorithm to train the network weight to the optimal value, and is applied to inverter fault detection.

4.1 Genetic algorithm

GA is a simulation study of the evolution of biosystem (Yu et al., 2018; Lambora et al., 2019; Tao et al., 2021). It is a random global optimization algorithm. It simulates the functions of selection, crossover, mutation and other functions in genetics. Selection and crossover maintain the most suitable genetic information for the current iteration, but these two operations easily make network training trap in local optima, and mutation operations can maintain the diversity of the population. In each operation, the selection of genes is random to expand the search space and avoid trapping in local optima. Through inheritance and evolution of generations in a population, more excellent individuals are generated, and the optimal solution of the problem is finally obtained (Ma et al., 2021b; Ma et al., 2021c).

4.2 Ant colony optimization algorithm

ACO is a bionic algorithm that imitates the behavior of ants in nature (Yu et al., 2018; Yang and Shi, 2019; Mohamed et al., 2021). In the process of optimization, the path is selected according to the pheromone on the path, and roulette is used to increase the randomness in selection process. The pheromones are related to the number of times selected and the evaporation coefficient.

4.3 Back-propagation algorithm

BP algorithm is a local optimization algorithm, which adjusts the connection weights through the forward propagation of signals and the back propagation of errors. The stochastic gradient descent method is used to modify the connection weight values of each layer to minimize the errors, so as to achieve the goal of optimization. At the initial time, the connection weights of each layer are randomly assigned. As a result, it is easy to trap in local optima when using BP algorithm to train network.

4.4 Algorithm implementation

In this paper, there are many connection weights that need to be optimized. If GA is used alone to optimize, coding the connection weights into chromosomes will cause the network training time to be too long because the chromosome is too long. If the ACO is used alone for optimization, in the early stage of search, because the pheromones are equal, the progress of ant colony optimization is blind, which makes the convergence speed slow, leads to long calculation time, and traps in local optima easily (Khapre et al., 2020). Based on the above problems, this paper proposes an evolutionary neural network, which is trained by combining GA, ACO, and BP algorithm. The algorithm firstly adopts GA, with its capability of global stochastic searching, to find a number of optimal solution candidates, by which the initial pheromone distribution for ACO is updated, and then focuses the optimal solution to an interval using the ACO, and finally uses the BP algorithm to find the optimal solution. Combining the advantages of the three algorithms, the search time is reduced, the convergence speed is accelerated, and the solution efficiency is improved.

4.4.1 Establishing a three-layer neural network

A there-layer neural network is established, the number of parameters needed to be optimized is:

$\begin{array}{c}n=\left(n_i+1\right)\times n_h+\left(n_h+1\right)\times n_o\end{array}(8)$

where $n_i$ is the number of input nodes, $n_h$ is the number of hidden nodes, $n_o$ is the number of output nodes. All parameters are noted as $P_i\left(i=\mathrm{1,2},\dots ,n\right)$, and combined into a vector $P=\left[P_1,P_2,\dots ,P_n\right]$. The interval of each parameter is divided into $N$ parts, and the candidate values of the parameters consists of a random value in each subinterval. The candidate value set of $P_i$ is $I_{P_i}$, and the candidate values of all parameters constitute matrix $I_P$.

$\begin{array}{c}{I}_{P_i}=\left[\begin{array}{c}{I}_{P_{i1}}\\ I_{P_{i2}}\\ .\\ .\\ .\\ I_{P_{iN}}\end{array}\right]\end{array}(9)$

$\begin{array}{c}{I}_P=\left[\begin{array}{cccc}{I}_{P_{11}}& I_{P_{21}}& ...& I_{P_{n1}}\\ I_{P_{12}}& I_{P_{22}}& ...& I_{P_{\mathrm{n}1}}\\ ⋮& ⋮& & ⋮\\ I_{P_{1N}}& I_{P_{2N}}& ...& I_{P_{\mathrm{n}N}}\end{array}\right]\end{array}(10)$

The value of $N$ does not need to be too large. Too many candidate values have little effect on avoiding trapping in local optima, but will increase the training burden (Ma et al., 2021a; Ma et al., 2022).

4.4.2 Initializing the parameters of genetic algorithm

The candidate values of the parameters of the vector $P$ are constructed into chromosomes based on float-encoding to generate corresponding chromosome populations. The error function between the expected output vector $T$ and the actual output vector $Y$ of the neural network is:

$\begin{array}{c}{E}^{\prime }=\frac{1}{2}{\displaystyle \sum }_{i=1}^{n_0}{\left(t_i-y_i\right)}^2\end{array}(11)$

where $n_0$ is the dimension of the output vector.

For $q$ samples, the mean square error (MSE) of actual output and desired output is:

$\begin{array}{c}E=\frac{1}{2q}{\displaystyle \sum }_{i=1}^q{\displaystyle \sum }_{j=1}^{n_0}{\left(t_{ij}-y_{ij}\right)}^2\end{array}(12)$

The performance of the neural network is measured by the error function. The fitness function selected in this paper is:

$\begin{array}{c}f=\frac{1}{E}\end{array}(13)$

The larger the fitness value, the smaller the MSE, and the better the individual.

4.4.3 Crossover and mutation

Two individuals are randomly selected from the population for crossover, resulting in two new individuals. The new individuals generated by the crossover of the individual k and individual l at the gene j are:

$\begin{array}{c}\left\{\begin{array}{c}{x}_{kj}=x_{kj}\left(1-a\right)+x_{lj}a\\ x_{lj}=x_{lj}\left(1-a\right)+x_{kj}a\end{array}\right.\end{array}(14)$

where $a$ is a random number of [0,1].

An individual K in the population is randomly selected, the gene j of this individual is selected for mutation, and the resulting new individual is:

$\begin{array}{c}{x}_{kj}=\left\{\begin{array}{cc}{x}_{kj}\times \left[1-c\times {\left(1-\frac{t}{t_m}\right)}^2\right]& b\le 0.5\\ x_{kj}\times \left[1+c\times {\left(1-\frac{t}{t_m}\right)}^2\right]& b>0.5\end{array}\right.\end{array}(15)$

where $b$, $c$ are random numbers between [0,1], $t$ is the current number of iterations, $t_m$ is the maximum number of iterations.

4.4.4 Optimal individual preservation and worst individual replacement

The best individual in each iteration should be remained so that it no longer performs crossover and mutation. In this way, the inheritance of the best individual is preserved to the greatest extent. In this paper, the best individual in the current population is used to replace the worst individual in each iteration.

4.4.5 Initializing pheromone

Steps in Sections 4.4.3, 4.4.4 should be repeated until the GA training reaches the maximum number of iterations. In the last iteration of the GA training, all individuals are sorted according to the fitness value from large to small, and the first 10% of individuals are selected to guide the initial pheromone distribution of ACO training. First, the initial pheromones for the candidate values of each neural network parameter should be set equal, both of which are ${\tau }_0$. The top 10% of excellent individuals are selected so that the combination of connection weight values contained in each individual can be obtained, and the candidates in set $I_{P_i}$ that differ from the candidates in these combinations by less than one subinterval length can be found respectively. The initial pheromones of these candidates are updated according to Eq. 16.

$\begin{array}{c}{\tau }_{P_{ji}}={\tau }_0+\frac{Q}{E^{top}}\left(j=\mathrm{1,2},\dots ,Ni=\mathrm{1,2},\dots ,n\right)\end{array}(16)$

where $Q$ is the pheromone constant, $E^{top}$ is the MSE of the network formed by the weight combination of one of the top 10% excellent individuals of the fitness value.

4.4.6 Travel of ant colony

From the pheromone table, probability that the element in set $I_{P_i}$ is selected is defined by Eq. 17.

$\begin{array}{c}{P}_{select}\left(I_{P_{ji}}\right)=\frac{{{\tau }_{P_{ji}}}^{\alpha }}{{\displaystyle \sum }_{j=1}^N{{\tau }_{P_{ji}}}^{\alpha }}\end{array}(17)$

where $\alpha$ is heuristics for pheromone. The probabilities that all candidate values of each connection weight are selected are calculated, and each ant uses roulette to select the candidate for each element of the vector $P$.

4.4.7 Pheromone update policy

After a round trip of the ant colony, m ants constructed m combinations of weight values. The MSE of each combination is calculated separately, and the optimal path in this iteration is the combination with the smallest error and should be recorded.

The pheromone should be updated according to Eq. 18.

$\begin{array}{c}\left\{\begin{array}{c}{\tau }_{P_{ji}}=\left(1-\rho \right){\tau }_{P_{ji}}+∆{\tau }_{P_{ji}}\\ ∆{\tau }_{P_{ji}}={\displaystyle \sum }_{k=1}^m∆{\tau }_{P_{ji}}^k\end{array}\right.\end{array}(18)$

where $\rho$ is the evaporation coefficient, $∆{\tau }_{P_{ji}}^k$ is the amount of pheromone, which is left by the ant K after selecting the candidate $I_{P_{ij}}$.

$\begin{array}{c}∆{\tau }_{P_{ji}}^k=\left\{\begin{array}{cc}\frac{Q}{E_k}& antKselectscandidate{I}_{P_{ji}}\\ 0& antKdoesnotselectcandidate{I}_{P_{ji}}\end{array}\right.\end{array}(19)$

where $E_k$ is the RMS of the network formed by the weight combination selected by ant K.

4.4.8 The results of ant colony optimization guide the initialization of connection weight values

Steps in Sections 4.4.6, 4.4.7 should be repeated until the ACO training reaches the maximum number of iterations. The results searched by ACO are taken as the initial weight values of the neural network, and BP algorithm is used to start training until the requirements are met.

4.5 Algorithm flow chart

Based on the above training process of the evolutionary neural network, the algorithm flow chart is shown in Figure 5.

FIGURE 5

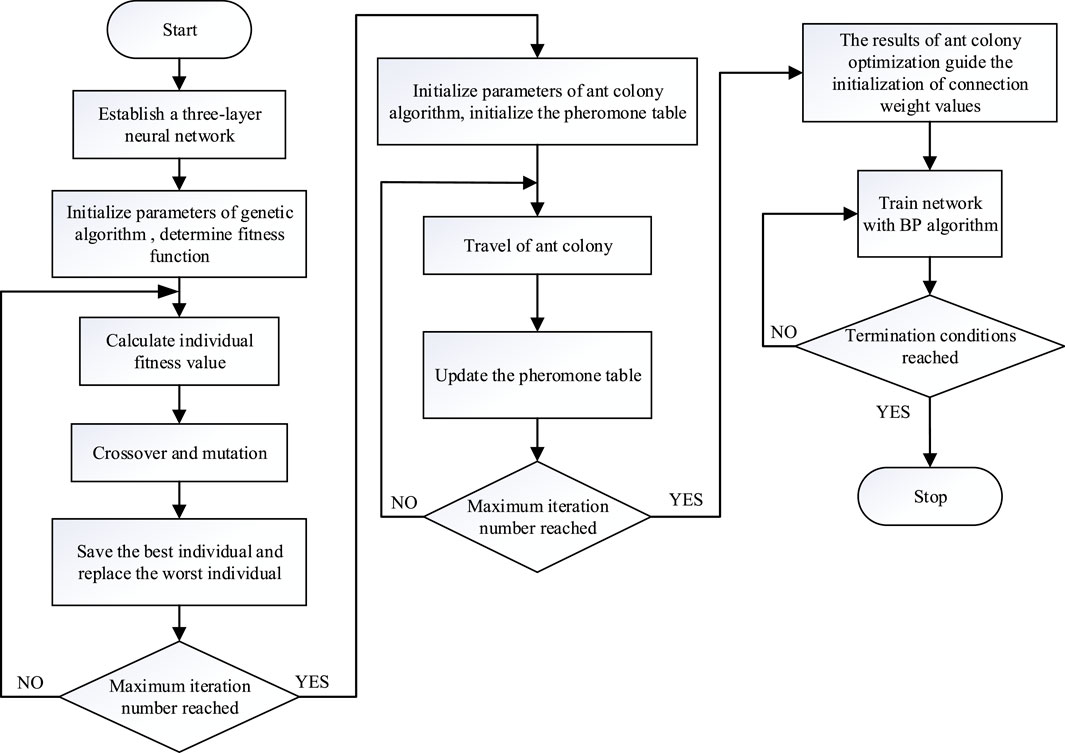

FIGURE 5. Algorithm flow chart.

5 Simulation results and analysis

MATLAB/Simulink is used to build the simulation model of the inverter, LabVIEW is used to collect the output current signal of the inverter and extract the features, and User Datagram Protocol is used for communication between them. The fault eigenvectors of 10 typical fault states of the inverters are selected as input data of the neural network. Fifty groups of data are collected for each fault state, and a total of 500 groups of data are used for network training and testing.

5.1 Simulation model

In order to demonstrate the method described in this paper, MATLAB/Simulink is used to build a three-phase inverter simulation model, as shown in Figure 6. The control mode is droop control, the modulation strategy is Space Vector Pulse Width Modulation, and its electrical parameters are shown in Table 4.

FIGURE 6

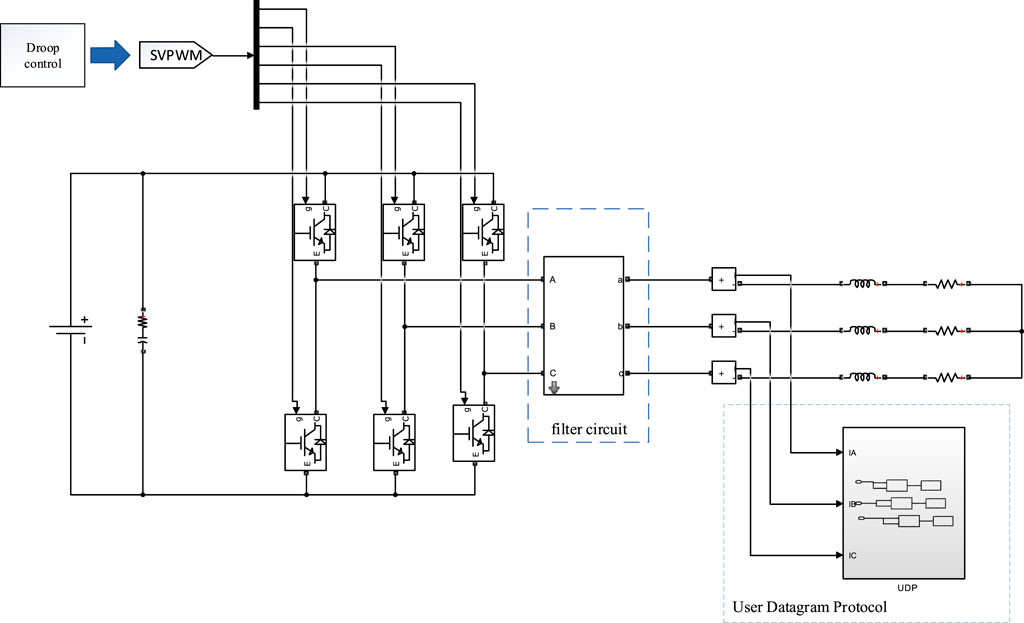

FIGURE 6. Three-phase inverter simulation model.

TABLE 4

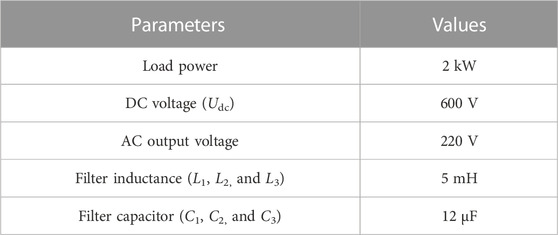

TABLE 4. Simulation parameters.

5.2 Network training

Based on the sample data, it is determined that there are 12 input nodes and 10 output nodes in the neural network. The number of hidden nodes is uncertain, and an appropriate number can be found according to Eq. 20. The Eq. 20 is an empirical formula.

$\begin{array}{c}a=\sqrt{n+b}+c\end{array}(20)$

where $n$ is the number of input node and $b$ is the number of output nodes. $c$ is a constant, usually between [0,10].

Too few hidden nodes will lead to poor network performance, too many will lead to too long training time, trap in local optima, and overfit easily. Therefore, the number of hidden nodes should be determined by comprehensively considering the complexity and error of network, it should be as small as possible on the basis of meeting the accuracy requirements.

According to Eq. 20, the appropriate numbers of hidden nodes are 6, 7, 8, 9, 10, 11, and 12. The neural networks are respectively built and trained using BP algorithm under the same training samples. The percentage of classification error and MSE of each network are shown in Figure 7, so the number of hidden nodes is selected as 9.

FIGURE 7

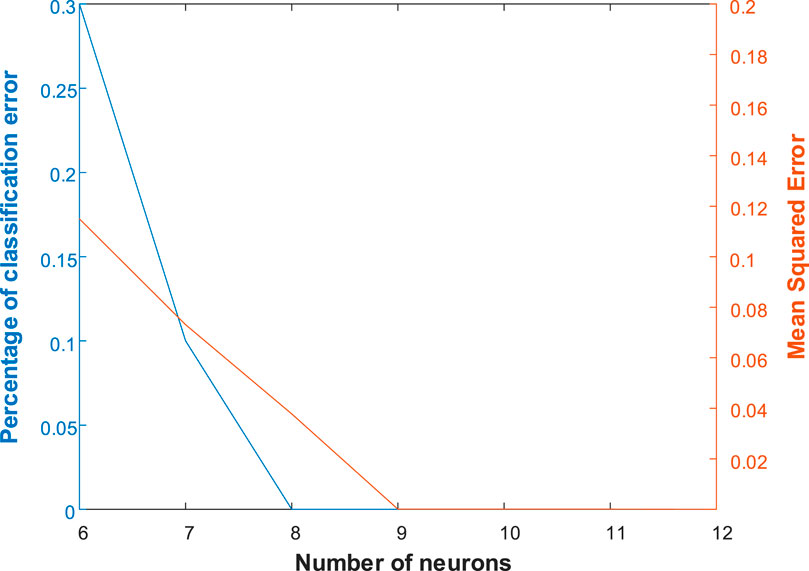

FIGURE 7. The relationship between the number of hidden nodes and classification error, MSE.

The number of input nodes, hidden nodes, and output nodes are 12, 9, and 10. The hidden layer uses the tansig function and the output layer uses the purelin function. There are 217 connection weights of neural network to be optimized. The interval [−10, 10] is equally divided into 100 parts. A number is randomly selected as candidate value in each cell. Finally, each connection weight to be optimized corresponds to a set of 100 candidate values. The initial chromosome of GA is composed of a candidate selected randomly from the set of candidate values for each parameter. After repeated matching and debugging, in the process of GA training, the population size and the number of iterations are finally selected as 100 and 300 respectively. In the process of ACO training, the ant population size, the evaporation coefficient $\rho$, the initial pheromone ${\tau }_0$, the heuristic pheromone factor $\alpha$, the pheromone constant $Q$, and the number of iterations are selected as 150, .7, 1,000, 3, 1, and 150 respectively. The minimum error of neural network training is set to .0001. Five hundred groups of data are divided into training data, validation data, and test data, which are 400 groups, 50 groups and 50 groups respectively.

5.3 Analysis of simulation results

The proposed algorithm is run for ten times independently, where the mean, variance, maximum, and minimum values of MSE are 4.9819e-6, 5.4712e-10, 8.7457e-5, and 1.2686e-5, respectively. The experimental results show that the algorithm has good stability based on smaller means, variances, and extreme values. The predictive failure categories and actual categories of the test data are shown in Figure 8.

FIGURE 8

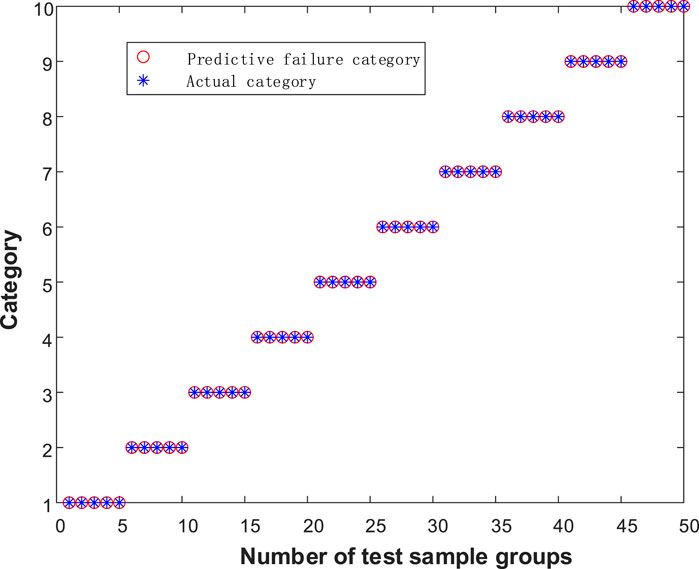

FIGURE 8. The predictive failure categories and actual categories of the test data.

In order to highlight the performance of the algorithm proposed in this paper, the training results of hybrid GA-BP algorithm, hybrid ACO-BP algorithm, and traditional BP algorithm under the same training samples and network architecture are added for comparative analysis. The RME decline curves of actual output and desired output are shown in Figures 9–12.

FIGURE 9

FIGURE 9. The training error of Traditional BP neural network.

FIGURE 10

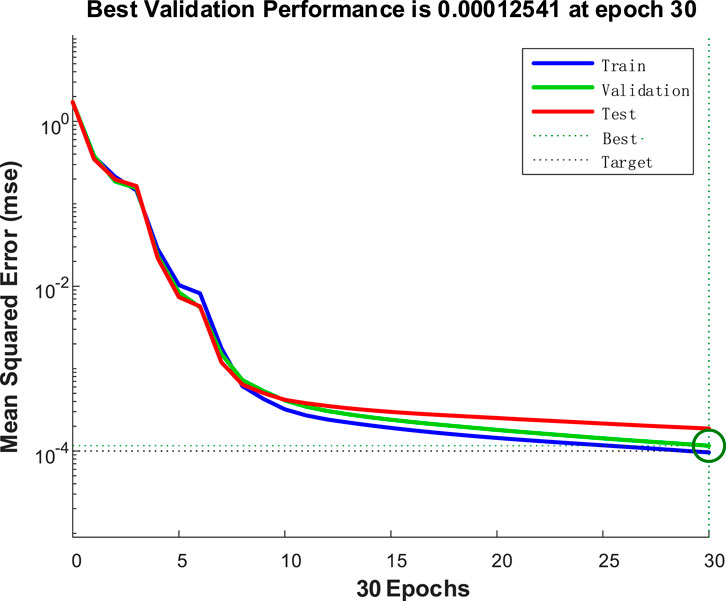

FIGURE 10. The training error of GA-BP neural network.

FIGURE 11

FIGURE 11. The training error of ACO-BP neural network.

FIGURE 12

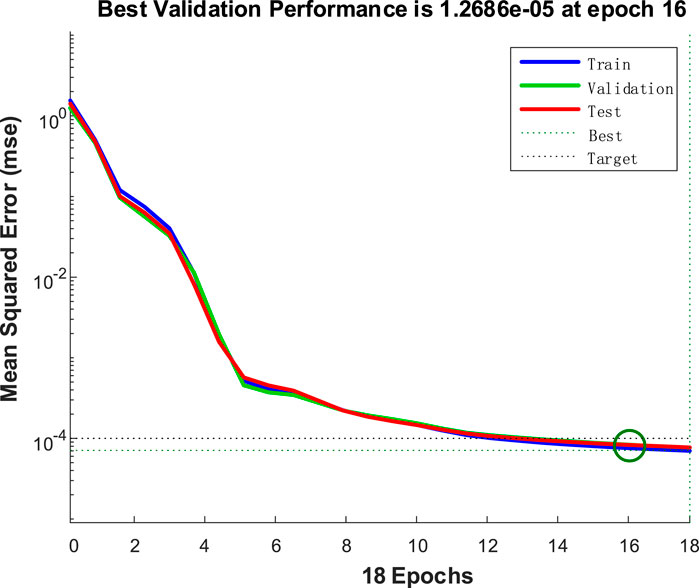

FIGURE 12. The training error of the evolutionary neural network.

It can be seen from Figure 8 that the trained evolutionary neural network can accurately classify test samples, and the fault extraction method and fault diagnosis algorithm proposed in this paper can effectively achieve accurate fault location. It can be seen from the comparison of Figures 9–12, the traditional BP neural network converges after 26 iterations, and the accuracy does not reach the predetermined value. The traditional BP neural network randomly assigns weights at the initial stage of training, so that it traps in local optima during the training process and occurs the problem of premature neuron saturation. This situation leads to the network training stopping before reaching the predetermined accuracy. GA-BP algorithm and ACO-BP algorithm converge after 30 and 26 iterations respectively, and the evolutionary neural network converges after 16 iterations, it is obvious that the evolutionary neural network has a faster convergence speed and smaller convergence error, because the evolutionary neural network introduces the crossover operator and mutation operator of GA and the ant colony tour of ACO during training, which expands the search space of the algorithm. The complementary advantages of GA and ACO improves the search ability and convergence speed, avoids trapping in local optima and improve the accuracy of the optimal solution.

6 Conclusion

Aiming at the characteristics of the increase of harmonic components and the loss of the positive and negative half waveforms of the output current in the inverter fault state, this paper proposed a feature extraction method based on FFT and average value on one cycle and an evolutionary neural network for fault diagnosis of three-phase inverter. The evolutionary neural network proposed in this paper combines the global search of GA and ACO with the local search of BP algorithm to obtain a more accurate combination of weight.

The joint simulation results of MATLAB/Simulink and LabVIEW show that the evolutionary neural network proposed in this paper is not easy to trap in local optima, has high learning accuracy and fast convergence speed, and is superior to the conventional neural network learning method in performance. Compared with traditional signal-based fault diagnosis methods, this method proposed in this paper can effectively resist noise interference and reduce the number of independent variables in the part of feature extraction, so that it can simplify the network model. In addition, this method can avoid the network training from trapping in local optima in the part of fault classification, with high accuracy and fast response speed. At the same time, it is mainly processed by software, which reduces the hardware cost, can realize precise location of the OC fault of one or two IGBTs of the inverter, can avoid the influences of noise, has fast response speed, and can be used for online monitoring.
