Influence of driving and parasitic parameters on the switching behaviors of the SiC MOSFET

The SiC MOSFET has lower conduction loss and switching loss than the Si IGBT, which helps to improve the efficiency and power density of the converter, especially for those having strict requirements for volume and weight, for example, electrical vehicles (EVs), on-board chargers (OBCs), and traction drive systems (TDS). However, the faster switching speed will cause overshoot and oscillation problems, which will affect the efficiency and security of the SiC devices and power electronic systems. For the SiC MOSFET to be better used, combining a theoretical analysis, the double-pulse test platform is built. The controllable principles of SiC MOSFETs are validated. The turn-on and turn-off delay, switching delay, switching di/dt, switching du/dt, switching overshoot, and switching loss of SiC MOSFETs under different driving and parasitic parameters are explored. Finally, some valuable suggestions for designing are proposed for a better application of the SiC MOSFET.

1 Introduction

The SiC MOSFET is a typical wide-bandgap power semiconductor device (Zeng and Li, 2018). Compared with the Si IGBT, the SiC MOSFET has lower conduction loss and switching loss, which means the efficiency of the converter can be improved, especially in high-frequency applications. At the same time, the operation temperature of the SiC MOSFET is higher than that of the Si IGBT, which reduces the size of the heat sink, so the power density of the converter can be improved too. Therefore, the SiC MOSFET is considered to have potential in electric vehicles, photovoltaic power generation, and high-frequency power supplies (Camacho et al., 2017; Xie et al., 2021). However, due to the high switching speed of the SiC MOSFET, the current and voltage overshoot would reduce the electromagnetic compatibility of the converter. In addition, the overshoots and oscillations will accelerate the aging of the device and eventually cause its failure (Sun et al., 2021).

Various literature works studied the overshoots and oscillations of the SiC MOSFET during the switching transients. The influence of the source inductance and drain inductance on the overshoots is reported in Li et al. (2016) and Yang et al. (2022). Considering different parasitic parameters, Bonyadi et al. (2015), Wang et al. (2019), and Talesara et al. (2020) provided the behavior model of the half bridge applying SiC MOSFETs, and the simulation and experiment results show that the overshoots and oscillations are mainly caused by the parasitic inductance in the loop, which should be reduced as much as possible. The analytical model is proposed in Stark et al. (2021) to characterize the switching behaviors of the SiC MOSFET. Riccio et al. (2018) confirmed that the gate driving resistor can damp the oscillation of the SiC MOSFET. However, comprehensive research about the influence of driving parameters and parasitic parameters on the switching behaviors of the SiC MOSFET is lacking among the existing studies, and there is no conductive guidance about designing the gate driver.

In this study, comprehensive research about the influence of driving parameters and parasitic parameters on the switching behaviors of the SiC MOSFET is carried out, which includes the gate resistance R_g, the gate–source capacitance C_gs, the gate–drain capacitance C_gd, the drain–source C_ds, the gate inductance L_g, the source inductance L_s, and the loop inductance L_loop. The measured results show that the switching behavior of the SiC MOSFET is controlled by these parameters from different aspects and should be given special attention during the designing period.

This paper is organized as follows. In Section 2, the switching behavior of the SiC MOSFET is studied. The dynamic characteristics of the SiC MOSFET with different driving and parasitic parameters are explained in Section 3. Finally, the conclusion is drawn in Section 4.

2 Switching behavior

2.1 Comparison between SiC and Si devices

The SiC MOSFET is considered a good substitute for the Si IGBT because better static and dynamic characteristics can be achieved in the SiC MOSFET. Table 1 shows the comparison of the key parameters between the SiC MOSFET and the Si IGBT. The Si IGBT (IXGH20N120B) and SiC MOSFET (C2M0080120D) are selected in the comparison because the power levels of the two devices are similar. In terms of the static characteristic, the on-state resistance of the SiC MOSFET is 80 mΩ, while the on-state voltage drop of the Si IGBT is 2.9 V, so the conduction loss of the SiC MOSFET is lower than that of the Si IGBT when the continuous conducting current is lower than 36.25 A. In terms of the dynamic characteristic, the gate charge and input capacitance of the SiC MOSFET are 62 nC and 950 pF, respectively, while those parameters of the Si IGBT are 72 nC and 1,700 pF, respectively. The lower gate charge and input capacitance of the SiC MOSFET mean that the SiC MOSFET can switch at a higher speed and frequency than those of the Si IGBT. It can be seen in Table 1 that the turn-on and turn-off switching losses of the SiC MOSFET are lower than those of the Si IGBT due to the high switching speed of the SiC MOSFET.

TABLE 1

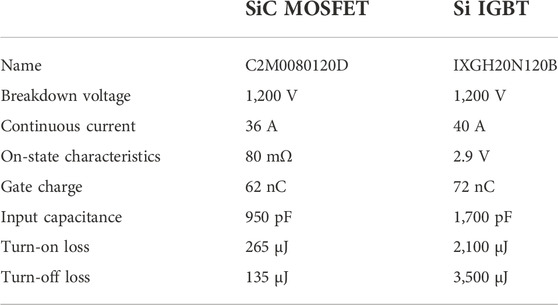

TABLE 1. Comparison of key parameters between the SiC MOSFET and Si IGBT.

The high switching speed of the SiC MOSFET will cause overshoots, oscillations, and EMI during the ns-level switching transient. The driving parameters will influence the charging speed of the input capacitance, and the parasitic parameters will form resonant networks. In order to investigate the dynamic characteristics of the SiC MOSFET in detail, the double pulse test is carried out as follows.

2.2 Double pulse test

The dynamic characteristics of the power device are usually tested on the double pulse test (DPT) platform, which is built into PSpice software. The DPT setting is shown in Figure 1, where V_BUS is the bus voltage, C_BUS is the bus capacitor, L_load is the load inductor, D_f is the body diode of the SiC MOSFET, L_loop is the parasitic inductance in the loop, L_g is the inductance in the gate loop, L_s is the source inductance of the device, C_gs is the gate–source capacitance, C_gd is the gate–drain capacitance, C_ds is the drain–source capacitance, R_g is the driving resistance, V_g is the positive driving voltage, and V_e is the negative driving voltage (Duan et al., 2018; Qin et al., 2018). The first driving pulse is used to establish the load current by turning on the SiC MOSFET, and the second pulse is used to observe the dynamic characteristics of the SiC MOSFET. It should be noted that R_g, C_gs, C_gd, and C_ds are changeable, and the parasitic inductances L_loop, L_g, and L_s are controllable during the design period.

FIGURE 1

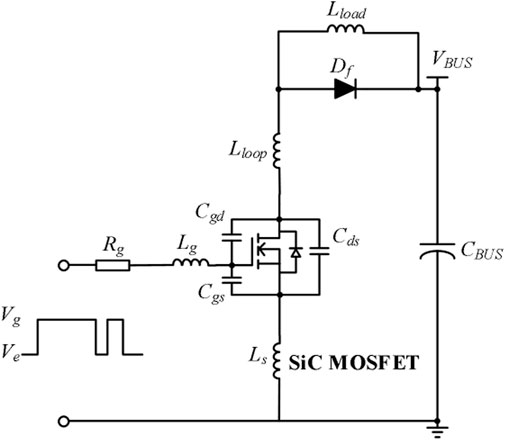

FIGURE 1. Double pulse test setting.

2.3 Switching behaviors

The switching behavior of the SiC MOSFET can be represented by the waveforms of the gate–source voltage u_gs, the drain–source voltage u_ds, and the drain current i_d (Li et al., 2017; Huang et al., 2021; Xiong et al., 2022a). The key waveforms of the SiC MOSFET are shown in Figure 2.

FIGURE 2

FIGURE 2. Switching behavior of the SiC MOSFET.

It can be seen from Figure 2 that the turn-on behavior and turn-off behavior of the SiC MOSFET have the similar and symmetrical relationship. Both the turn-on and turn-off periods have five typical transients, namely, the delay period, the di/dt period, the du/dt period, the overshoot and oscillation period, and the state period (As detailed in Appendix A). The slew rate of the drain current is the cause of the overshoot for i_d and u_ds. In the turn-on transient, the reverse recovery of the body diode will cause the current overshoot, and it has

$I_{peak}=\sqrt{\frac{2Q_{rr}\frac{d{i}_d}{dt}}{S+1}},(1)$

where I_peak is the peak value of i_d, Q_rr is the reverse recovery charge of the body diode, and S is the snappiness factor of the body diode. In the turn-off transient, the parasitic inductance in the loop will cause an obvious overshoot in u_ds (Wu et al., 2020; Zhao et al., 2020a; Qi et al., 2021), and it has

${\mathit{V}}_{\mathit{p}\mathit{e}\mathit{a}\mathit{k}}={\mathit{L}}_{\mathit{l}\mathit{o}\mathit{o}\mathit{p}}\frac{\mathit{d}{\mathit{i}}_{\mathit{d}}}{\mathit{d}\mathit{t}}+{\mathit{V}}_{\mathit{B}\mathit{U}\mathit{S}}.(2)$

The slew rate of the drain–source voltage u_ds is the cause for the crosstalk phenomena. When the SiC MOSFET switches at high switch, the displacement current through C_gd will cause the false turn-on of the synchronization device (Roy and Basu, 2021), and the displacement current i_gd can be expressed as follows:

${\mathit{i}}_{\mathit{g}\mathit{d}}={\mathit{C}}_{\mathit{g}\mathit{d}}\frac{\mathit{d}{\mathit{u}}_{\mathit{d}\mathit{s}}}{\mathit{d}\mathit{t}}.(3)$

The switching behavior of the SiC MOSFET is directly related to the reliability of the device (Chen et al., 2021; Rashid et al., 2021). Therefore, it is important to carry out the comprehensive research about the influence of driving parameters and parasitic parameters on the switching behaviors of the SiC MOSFET.

3 Experiment results

The DPT prototype is applied to investigate the dynamic characteristics of the SiC MOSFET, as shown in Figure 3. The load inductance L_load is equal to 200 μH, the tested device is C2M0080120D of CREE, the bus voltage is equal to 400 V, and the load current is 20 A. The oscilloscope is DPO3054 (500 MHz), the current probe is TCP305 A (30 MHz), and the voltage probe is P6139 A (500 MHz). The bandwidth of the probe is enough for measuring the transients of u_ds and i_d.

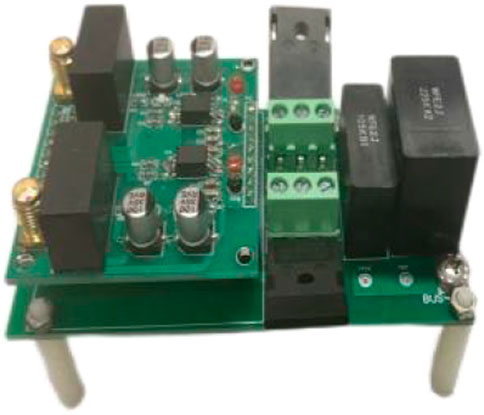

FIGURE 3

FIGURE 3. DPT prototype.

3.1 Influence of R_g

The gate driving R_g can be selected during the designing period. Figure 4 shows the waveforms of i_d and u_ds with different R_g, and Figure 5 presents the dynamic characteristics of the SiC MOSFET with different R_g. It is obvious that with the increase in R_g, the turn-on and turn-off delay of the device will increase because the charging time of the input capacitance increases. The slew rate of i_d and u_ds decreases with the increase of R_g, so the overshoot decreases and the device can operate at a slower speed. It is evident that both turn-on and turn-off losses increase with a larger R_g. Therefore, the worst efficiency of the converter occurs when a relatively large R_g is selected.

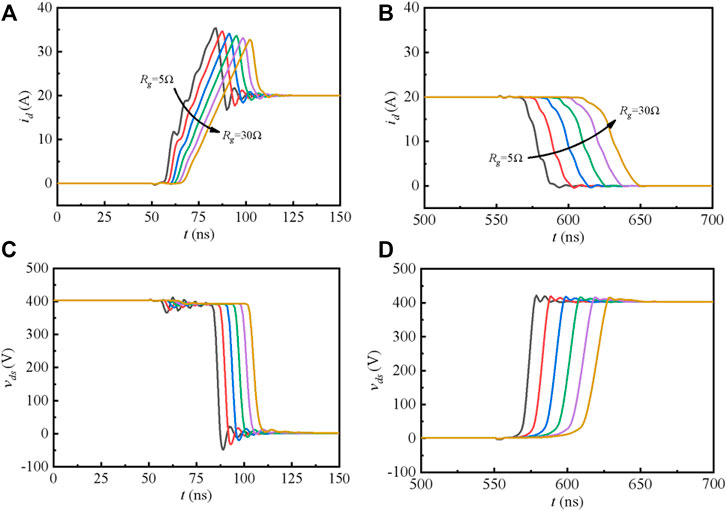

FIGURE 4

FIGURE 4. Influence of R_g on the switching behavior of the SiC MOSFET. (A) Turn-on i_d. (B) Turn-off i_d. (C) Turn-on u_ds. (D) Turn-off u_ds.

FIGURE 5

FIGURE 5. Dynamic characteristics of the SiC MOSFET with different R_g. (A) Switching delay. (B) Switching di/dt. (C) Switching du/dt. (D) Switching overshoot. (E) Switching loss.

3.2 Influence of C_gs

The gate–source capacitance C_gs determines the delay time and the value of di/dt. As shown in Figure 6 and Figure 7, the influence of C_gs on the dynamic characteristics of the SiC MOSFET is similar to that of R_g. The switching speed will decrease if a larger C_gs is selected. It should be noted that the value of C_gs has no significant influence on the slew rate of u_ds.

FIGURE 6

FIGURE 6. Influence of C_gs on the switching behavior of the SiC MOSFET. (A) Turn-on i_d. (B) Turn-off i_d. (C) Turn-on u_ds. (D) Turn-off u_ds.

FIGURE 7

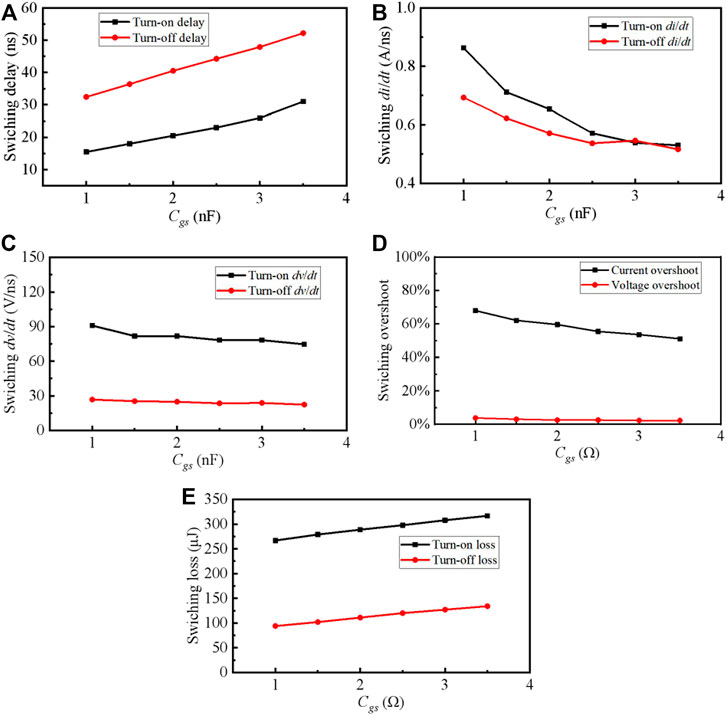

FIGURE 7. Dynamic characteristics of the SiC MOSFET with different C_gs. (A) Switching delay. (B) Switching di/dt. (C) Switching du/dt. (D) Switching overshoot. (E) Switching loss.

3.3 Influence of C_gd

The gate–drain capacitance C_gd determines the value of du/dt, which is also called the “Miller capacitance.” The value of C_gd is far lower than the value of C_gs and C_ds, and a little change in C_gd will cause a significant change in the value of du/dt. Figure 8 shows the waveforms of i_d and u_ds with different C_gd, and Figure 9 presents the dynamic characteristics of the SiC MOSFET with different C_gd. It can be seen that delay and di/dt have no obvious relationship with the value of C_gd. However, du/dt will decrease with the increase of C_gd, which will cause an increase in switching losses in turn. It should be noted that though the value of du/dt decreases with a larger C_gd, no significant optimization of overshoot occurs, and the risk of false turn-on will increase.

FIGURE 8

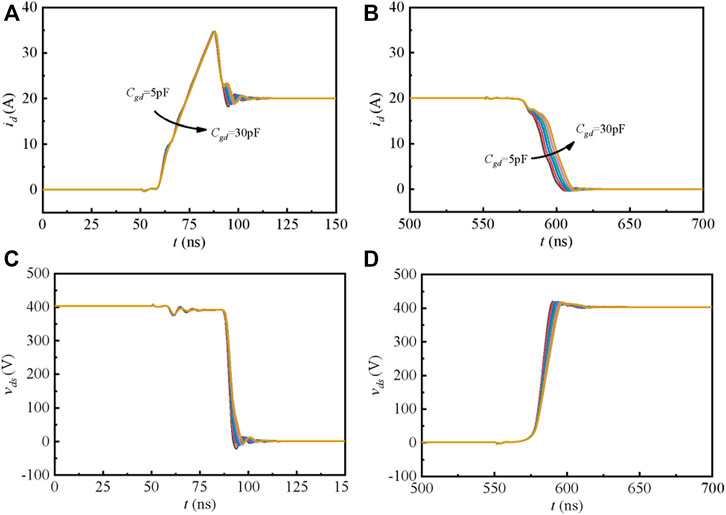

FIGURE 8. Influence of C_gd on the switching behavior of the SiC MOSFET. (A) Turn-on i_d. (B) Turn-off i_d. (C) Turn-on u_ds. (D) Turn-off u_ds.

FIGURE 9

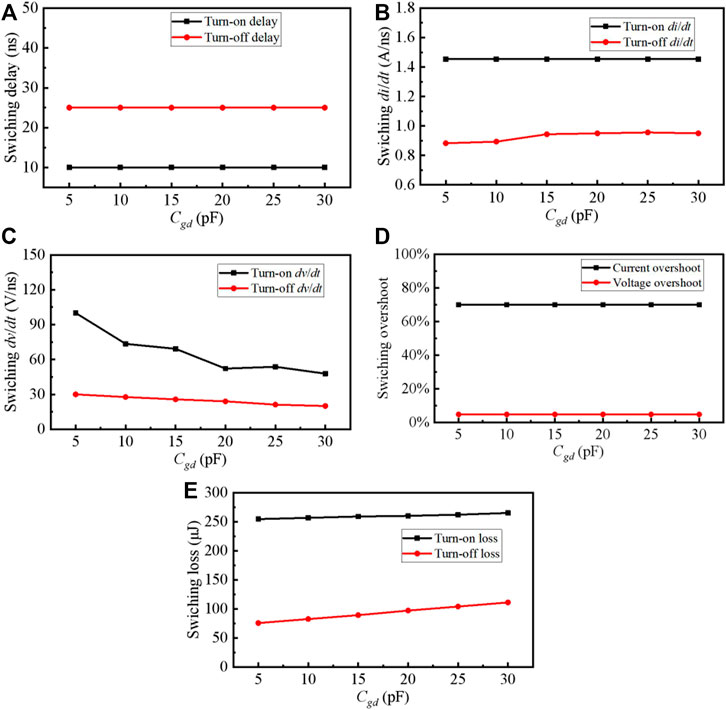

FIGURE 9. Dynamic characteristics of the SiC MOSFET with different C_gd. (A) Switching delay. (B) Switching di/dt. (C) Switching du/dt. (D) Switching overshoot. (E) Switching loss.

3.4 Influence of C_ds

The drain–source capacitance C_ds can influence the value of du/dt, and there is no necessary relationship between C_ds, delay, and di/dt. The additional C_ds is applied to achieve the soft turn-off by increasing C_ds. As shown in Figure 10 and Figure 11, both turn-on and turn-off du/dt will decrease with the increase of C_ds, and the turn-off loss and turn-off voltage overshoot will decrease as a result. However, the energy stored in C_ds during the turn-off period will cause a significant current overshoot during the turn-on period, which means an obvious increase in the turn-on loss.

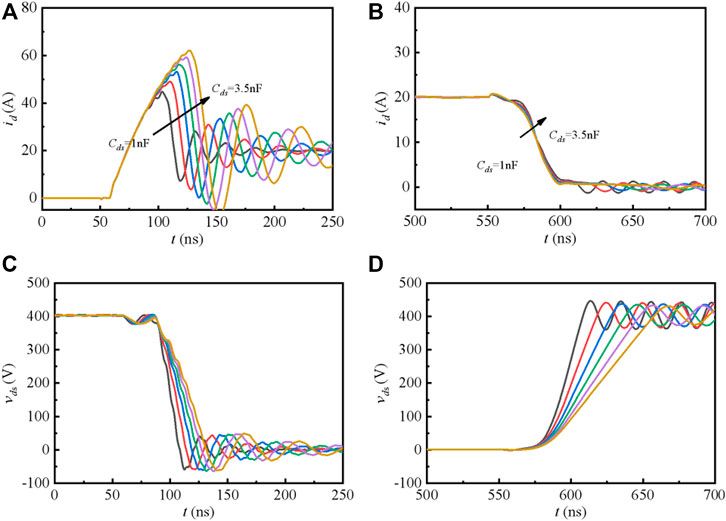

FIGURE 10

FIGURE 10. Influence of C_ds on the switching behavior of the SiC MOSFET. (A) Turn-on i_d. (B) Turn-off i_d. (C) Turn-on u_ds. (D) Turn-off u_ds.

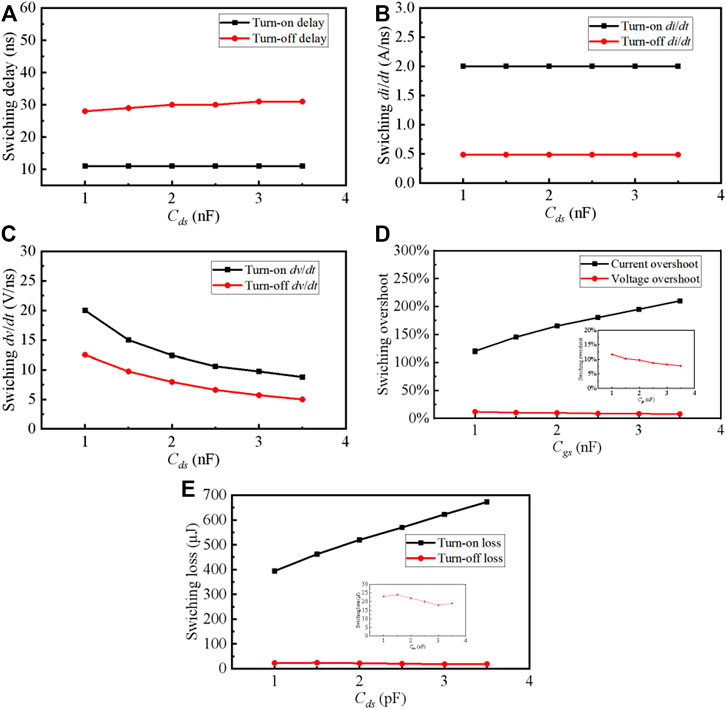

FIGURE 11

FIGURE 11. Dynamic characteristics of the SiC MOSFET with different C_ds. (A) Switching delay. (B) Switching di/dt. (C) Switching du/dt. (D) Switching overshoot. (E) Switching loss.

3.5 Influence of L_g

The gate inductance L_g is caused by the PCB trace of the gate loop. As shown in Figure 12, the value of L_g has a minor influence on the dynamic characteristics of the SiC MOSFET. However, L_g should be reduced as much as possible because L_g will result in the overshoot of u_gs, which risks the reliability of the gate.

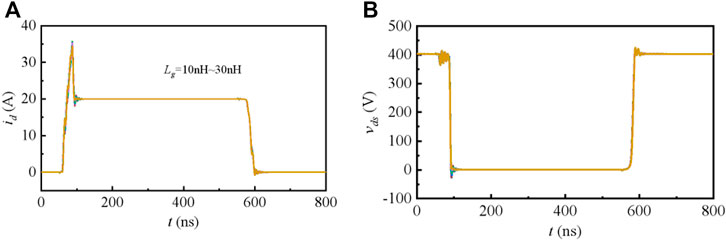

FIGURE 12

FIGURE 12. Influence of L_g on the switching behavior of the SiC MOSFET. (A) Turn-on and Turn-off of i_d. (B) Turn-off u_ds.

3.6 Influence of L_loop

The gate inductance L_loop is caused by the PCB trace of the power loop. It is different to cancel the L_loop, even though the relatively short PCB trace is designed. The most significant drawback brought by L_loop is the larger voltage overshoot, which will cause the device to breakdown. As shown in Figure 13 and Figure 14, the value of L_loop only influences the oscillation frequency and the voltage overshoot. In order to enhance the reliability of the SiC MOSFET, L_loop should be reduced as much as possible. It should be noted that a larger L_loop will result in lower turn-on loss because the drain–source voltage will drop during the di/dt period. At the same time, the turn-off loss will increase with the larger L_loop due to the additional loss from the voltage overshoot.

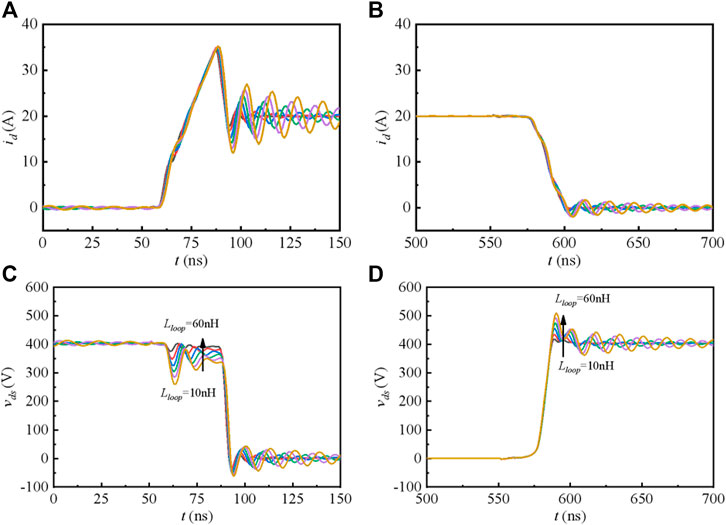

FIGURE 13

FIGURE 13. Influence of L_loop on the switching behavior of the SiC MOSFET. (A) Turn-on i_d. (B) Turn-off i_d. (C) Turn-on u_ds. (D) Turn-off u_ds.

FIGURE 14

FIGURE 14. Dynamic characteristics of the SiC MOSFET with different L_loop. (A) Switching overshoot. (B) Switching loss.

3.7 Influence of L_s

The source inductance L_s exists in the gate loop and the power loop. As shown in Figure 15 and Figure 16, when the drain current i_d changes sharply, the induced voltage on L_s will slow down the switching speed as a negative feedback effect. Therefore, the larger L_s will cause lower di/dt during the switching transients. In order to reduce the switching losses, new type packages are provided by manufacturers, such as TO-247-4 and TO-263-7.

FIGURE 15

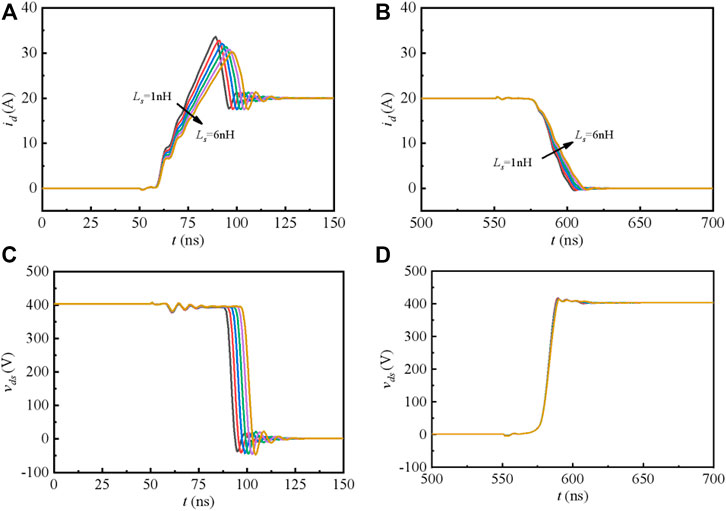

FIGURE 15. Influence of L_s on the switching behavior of the SiC MOSFET. (A) Turn-on i_d. (B) Turn-off i_d. (C) Turn-on u_ds. (D) Turn-off u_ds.

FIGURE 16

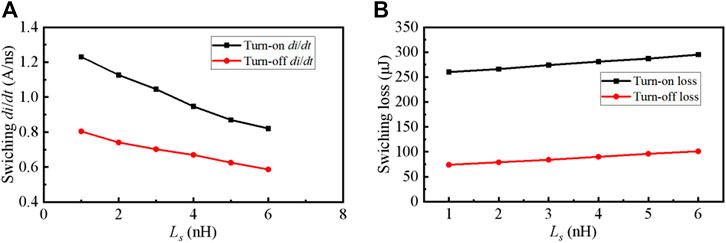

FIGURE 16. Dynamic characteristics of the SiC MOSFET with different L_s. (A) Switching di/dt. (B) Switching loss.

4 Conclusion

The SiC MOSFET is widely used in high-frequency and high-temperature applications, which helps to improve the efficiency and power density of the converter. However, the parasitic parameters will inevitably cause overshoot and oscillation of i_d and u_ds, which reduce the reliability of the SiC MOSFET. In this study, comprehensive research about the influence of driving parameters and parasitic parameters on the switching behaviors of the SiC MOSFET is carried out, and some valuable conclusions drawn are as follows:

1) The parasitic inductance should be reduced as much as possible by optimizing PCB traces and applying advanced packages

2) Different driving parameters will cause different dynamic responses of the SiC MOSFET, which should be considered according to special applications, respectively

3) The increase in C_gd is not recommended due to the higher risk of crosstalk

The influences of circuit parameters on the switching behaviors of the SiC MOSFET are listed as shown in Table 2.

TABLE 2

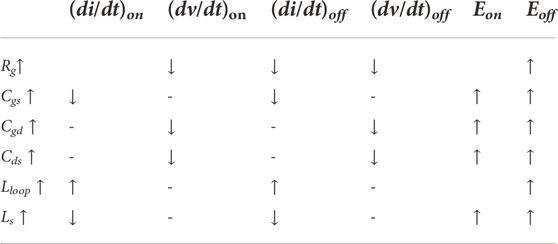

TABLE 2. Influences of circuit parameters on the switching behaviors.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.

Author contributions

SZ: conceptualization, formal analysis, data curation, writing—original draft, visualization, and funding acquisition.

Funding

This work was supported by the Education Department Project of Shaanxi Province, China (20JK0614), and the Science and Technology Bureau Project of Shangluo City, China (2021-Z-0016).

Conflict of interest

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Appendix A:

The turn-on current oscillation and the turn-off voltage oscillation are two critical phenomena when describing the switching behaviors of the SiC MOSFET (Li et al., 2020). The turn-on current resonance angle frequency and the resonance damping of the SiC MOSFET can be expressed as follows:

${\omega }_{on}=\frac{1}{\sqrt{L_{loop}\left(C_{oss}+C_L\right)}},(4)$

${\xi }_{on}=\frac{R_{ds\_on}\left(C_{oss}+C_L\right)}{2{\omega }_{on}}.(5)$

The turn-off voltage resonance angle frequency and the resonance damping of the SiC MOSFET can be expressed as follows (Liu et al., 2016; Mukunoki et al., 2018):

${\omega }_{off}=\frac{1}{\sqrt{L_{loop}\left(C_{oss}+C_L\right)}},(6)$

${\xi }_{off}=\frac{R_F}{2}\frac{1}{{\omega }_{off}{L}_{loop}}=\frac{R_F}{2}\sqrt{\frac{C_F+C_L}{L_{loop}}},(7)$

where C_L is the output capacitance of the freewheeling diode and R_L is the equivalent on-state resistance of the freewheeling diode.
