ORIGINAL RESEARCH article

Front. Energy Res., 24 November 2022
Sec. Advanced Clean Fuel Technologies
This article is part of the Research Topic Advances in Process Modeling and Optimization of Clean Energy Processes View all 7 articles

Performance evaluation of grid connected solar powered microgrid: A case study

  • 1Department of Electrical Engineering, Bansal Institute of Engineering and Technology, Lucknow, UP, India
  • 2Department of Electrical Engineering, Faculty of Engineering and Technology, Jamia Millia Islamia, New Delhi, India
  • 3Division of Sustainable Development, College of Science and Engineering, Hamad Bin Khalifa University, Qatar Foundation, Doha, Qatar

Besides being limited in quantity, conventional energy sources also emit toxic gases. The Photovoltaic (PV) Solar System is one of the most energizing green energy sources. Around the globe, solar panels are being installed on barren land as well as on the roofs of buildings to generate electricity. An education institute in northern India recently took a step in this direction by installing a grid-tied 100 kWp solar power plant. The installed PV panels are tilted at an angle of 30° and mounted on the roof of the building. The actual PV plant system’s performance differs from the performance under laboratory conditions. Hence, performance evaluation of real outdoor plants becomes essential, especially when the plant is commissioned in different situations, such as roof-mounted systems. Many softwares can estimate the plant’s performance evaluation, but their reliability is not yet proven. This paper examines the performance evaluation of grid-tied PV plants between January 2019 and December 2019 in accordance with the IEC 61724 standard. Moreover, the results of the actual plant have also been compared with the results from the PV*Syst software that simulates the real-time behavior of the plant. Further, in order to evaluate the power plant’s performance, this paper analyzes the various parameters of the PV plant, including reference yield, final yield, and performance ratio of the PV plant. An evaluation of the module’s performance indicates that it has produced 101.57 MWh of energy over 1 year, with a performance ratio of 0.60. It is evident from the comparative analysis that rooftop solar panels are an economically viable and technologically feasible means of providing electricity in the northern parts of India. By taking such measures, the institutes or offices can protect the environment and save money by becoming microgrids. The proposed project provides a roadmap for installing rooftop photovoltaic plants in populated cities without occupying additional land.

1 Introduction

Coal-based electricity generation plants have raised severe environmental concerns during their long-term operation. As an alternative, PV solar technology is one of the most reliable, clean, and environmentally friendly technologies for converting solar energy into electricity (Shamami et al., 2020; Ahmad et al., 2017). The PV plant has the potential to generate significant amounts of electricity since it has the ability to meet the electrical demands of the entire globe. There has been impressive progress in the production of electrical energy from solar photovoltaic plants throughout the world (Shariff et al., 2019; Shaikh et al., 2018). As a result of end-user awareness and incentives, India’s rooftop solar PV plants have expanded rapidly. The Jawaharlal Nehru National Solar Mission of the Ministry of New and Renewable Energy, Government of India, estimates 100 GW of PV capacity by 2022. Therefore in various cities, rooftop solar photovoltaic plants have been commissioned, the power generated by PV plants has been utilized, and the excess energy is delivered to the utility (Sharma et al., 2015; Upadhyay and Singh 2021; Yenneti, 2016). Setting up a solar PV plant on the floor isn't usually possible because of free and un-shaded land availability. Hence, the rooftop area may be applied efficaciously for power generation by putting in a solar PV plant (Milosavljevic et al., 2015; Dalal et al., 2021; Amir and Haque, 2022). Various tasks have been taken with the aid of government and private organizations to install solar PV plants on the roof of any of the government workplace buildings, houses, personal establishments and authorities, and personal workstations to address the latest power disaster and growth in tariff charges. The rooftop solar PV plant will not only solve the strength disaster but also mitigate the damaging consequences of greenhouse gases, including CO2 and NO2 gases, which can be produced with the aid of using fossil fuel-based power technology plants (Dalal et al., 2021; Turney and Fthenakis 2011; Zarzavilla et al., 2022). A substantial element of PV-based electricity may be used for promoting grid-tie solar PV plants of various sizes in step with the need of the consumer (Amir et al., 2022).

Performance assessment of PV systems in real outdoor conditions is very important as the performance of the PV system in a research laboratory environment is distinct from the performance of the PV system in practical open-air conditions (Asaad et al., 2017). There are a few software programs such PVsyst (Rachit and Vinod kumar 2016; PVSyst, 2020; Baqir and Channi 2021; Shrivastava et al., 2021), PVWatts (Psomopoulos et al., 2015; Dobos, 2014; Abdallah et al., 2022), PVGIS (Psomopoulos et al., 2015; Abdallah et al., 2022; PVGIS, 2012), RETScreen (Umar et al., 2018; Srivastava et al., 2020), SAM (Wang et al., 1999), TRNSYS (Beckman et al., 1994), PV*SOL (Firat, 2019; El Gindi et al., 2017; Kavitha et al., 2021), and HOMER (Ahmad and Alam 2018a; Ahmad and Alam 2017; Ahmad and Alam 2018b; Ahmad et al., 2020), etc. that are able to estimation overall performance of PV system however the reliability of the software program remains now no longer tested. International Electro-technical Commission has evolved the IEC 61724 standard that incorporates requirements and diverse constraints for the overall solar PV plant performance evaluation (IEC International Standard, 1998). Most nations have followed the IEC 61724 standard.

A 100-kW grid-tie solar photovoltaic plant was installed in 2018 and has been operating since then on the rooftop of Bansal Institute of Engineering and Technology, Lucknow, UP. The present case study has evaluated its 1-year performance (1 Jan 2019, to 31 December 2019) concerning reference yield, electricity generation, final yield, and performance ratio based on ICE 61724 standards. Along with that performance - evaluation of the actual power plant is compared with outcomes obtained from PV*syst software. Economic analysis and environmental effects of the plant have also been calculated to check the feasibility of the plant.

The paper is separated into five Sections. Section 2 provides a general overview of grid-tie PV plants. This Section introduces performance evaluation using PV*syst software. Section 3 discusses in detail the actual 100kWp PV plant. It includes details of the PV module, inverter configuration, AC and DC distribution box, and the support structure of the module. This Section also provides environmental data on the site location. In Section 4, various results of the actual plant and PV*syst software are presented. Also, a comparison of the installed PV power plant and PV*syst is carried out. In Section 5, the summary and conclusion of the paper are presented. Moreover, this paper outlines the contributions of the presented research. The key objective of this proposed study are as follows:

• According to the requirements of IEC 61724, the present paper examines the rooftop grid-connected PV system’s performance for 1 year.

• In order to evaluate the power plant’s performance, this paper analyzes the various parameters of the PV plant, including reference yield, final yield, and performance ratio (PR) of the PV plant.

• A detailed comparative analysis of the obtained results from the actual power plant with PV*syst software is carried out.

• Finally, we have explained how the proposed case study would help assess the feasibility of building a large-scale PV plant under different atmospheric conditions.

2 Literature review

Many kinds of research have been carried out on grid-tie rooftop PV plants in distinct parts of the globe. In this Section, we have reviewed some recently conducted studies.

Rajesh Arora et al. Arora et al. (2022) have done a performance evaluation of 186 kWp grid-connected PV plant commission on the roof of a building in Northern India. In this work, the plants have been monitored for 1 year (2018). PVsyst and SAM software were used to compare the actual plant and software results. The performance ratio of the plant has been reported to be 0.827. From the observation, it has been found that the net system losses are observed to be 27.7%.

Hassane Dahbi et al. Dahbi et al. (2021) investigated 12 months of a 6 MW grid-connected photovoltaic (PV) plant mounted on a ground-based PV plant in southern Algeria. In this work, the plant’s overall performance was estimated with the help of IEC 61724 standards. The yearly average performance ratio, system efficiency, and capacity factor were 74.68%, 11.39%, and 21.44%, respectively. It has been observed that the plant performance ratio decreases linearly with increasing ambient temperature or solar irradiation.

Ahmad Faiz Minai et al. Minai et al. (2022) monitored 462.7 kWp grid PV plant roofs of three separate high-rise buildings in India. The real-time performance of the system was investigated for 3 years. The plant performance has been compared with the PV*syst software results. The Performance Ratio of the 467.2 kWp system installed was 80.68%, while the system efficiency was about 15.47%.

Layachi Zaghba et al. Zaghba et al. (2022) did a performance evaluation of a photovoltaic plant in a Sahara environment (Algerian desert); the installed capacity of the plant is 2.25 kWp. The performance of the plant was monitored According to IEC standard 61724. From the performance evaluation, it has been found that the plant’s performance ratio varies from 0.78 to 0.97.

(Shrivastava et al., 2021) has executed an overall performance assessment of a hundred ninety kW grid-tie PV plant established in Punjab. From the observations, it's been noticed that the final yield, reference yield, and overall PR range from 1.45 to 2.84h, 2.29–3.53 h, and 0.55 to 0.83, respectively. The average electricity yield yearly of the Photovoltaic system is 812.76 kWh/kW/year, with system effectiveness of 8.3%. The outcomes obtained from the actual system were compared with those from the PV*Sol software program result.

Another study (Sharma and Goel, 2017) monitored an overall performance evaluation of a thirteen kW roof-established grid-tie photovoltaic plant. The plant is mounted on the roof of a college in Odisha. From the observations, it's been discovered that the PV, plant, and inverter efficiencies vary from 4.5 percent to 9.2 percent, 3.6 percent to 7.8 percent, and 50 percent to 87 percent, respectively, and the overall PR varies within the range of 0.29–0.66.

Software evaluation of a 1 kW grid-tie PV plant has been achieved (Tarigan and DjuwariKartikasari, 2015). PV*syst and RETscreen software programs were involved in the study. It has been observed that the plant may meet a home’s primary electric requirements. This plant delivers approximately one MWh of electricity annually into the grid with an average performance ratio of 0.72.

Further, (Pritam Satsangi et al., 2018), did an overall performance assessment of a forty kW grid-tie PV plant established in Uttar Pradesh state, India. The plant is installed on the roof of a college in Agra city, Uttar Pradesh state. The overall performance of the plant was estimated to the IEC 61724 standards. PV, inverter, and overall plant effectiveness for the year were determined to be 9.36 percent, 90.9 percent, and 8.51 percent, respectively. The performance ratio and capability factor have been determined to be 0.63 and 0.9.

Research (Peerapong and Limmeechokchai, 2014) has compared three varieties of grid-tie solar PV power plant life, namely solar household rooftop (11.04 kW), integrated ground-mounted rooftop (330 kW), and utility-scale plant (38.5 MW) in Thailand. From the analysis, it's been discovered that the least price of power of $0.27 per unit was by utility-scale solar PV plants. The energy cost with residential Sun rooftop PV plant and ground-mounted rooftop PV plant were $0.46 per unit and $0.29 per unit, respectively. The literature review of various plants commission at different locations of the world has been tabulated in Table 1.

TABLE 1
www.frontiersin.org

TABLE 1. Literature review of various plant commissions at different locations around the world.

The literature survey found that IEC 61724 standard and its indicators are used for the performance evaluation of PV plants (Rao et al., 2022). It has also been noticed that roof-mounted PV systems are feasible in most places worldwide. Comparing software results with the actual results is also essential to compare the plant’s expected and actual performance. From the literature survey, it has also been observed that PV*syst simulation software is mostly used. It has also been found that economic analysis is also a vital aspect of checking the feasibility of the plant.

3 Performance indicators

The International Electro-Technical Commission (IEC) has published IEC 61724 standard to suggest a detailed set of instructions and constraints for the performance evaluation of any solar PV plant (IEC International Standard, 1998; Boddapati et al., 2021; Srivastava et al., 2020). Many counties around the world have adopted this standard. The Bureau of Indian Standards also adopted the same standard in 1998. Some essential parameters prescribed by the standard are listed below:

3.1 Array yield (Ya)

Array yield is the generated energy output of the PV array on a per kW basis of an installed PV array. It indicates the energy output from the plant, and it is independent of plant size. Also, the Ya is the ratio of DC-generated energy output from a PV plant and the rated power of the PV plant. Array yield can be formulated in Eq. 1, Ya and EDC are array field, solar PV output energy, and PPVrated is the rated power of the PV system.

Ya=EDCPPVrated(1)

3.2 Final yield (Yf)

The final yield is the ratio of the PV plant’s net AC-generated energy output and the plant’s rated power, also referred to as the yield factor or PV yield. The yield factor is one of the key indicators reflecting plant operating conditions, for example, the tilt angle of the PV array and mounting structure (Srivastava et al., 2020; Shiva Kumar and Sudhakar, 2015). If value of Yf is near to one that means that suitable technology has been utilized whereas if value of Yf is low it means that appropriate technology has not been used (Tripathi et al., 2014). The final yield can be formulated as in Eq. 2, where EAC is AC energy available to the grid.

Yf=EACPPVrated(2)

3.3 Reference yield (Yr)

Reference yield is defined as the ratio of total global radiation on the surface of the PV plant Ht(kWh/m2/day) and reference radiation on the earth’s surface Gi.ref(1kWh/m2), i.e., standard solar radiation available at the sea’s surface. The Yr depends on the location of the PV plant, as incident solar radiation on the earth’s surface varies in different locations of the world. Reference yield can be formulated as in Eq. 3.

Yr=HtGi.ref=Ht(kWh/m2/day)/1kW/m2(3)

3.4 Performance ratio

The performance ratio (PR) is the ratio of reference yield and final yield. It is a unit less quantity. The performance ratio shows the aggregate loss of the PV plant. The ideal condition’s performance ratio is 1 (100%). But in practice, PR is less than one as the performance ratio is near the ideal value better the plant is working. The PR is the most significant parameter for the performance ratio of any plant, as the performance ratio is not dependent upon the rating of the plant. For example, a small PV plant can work more efficiently and shows a better performance ratio than a big PV plant working less efficiently and leading to less performance ratio. Performance ratio can be formulated as in Eq. 4, where Yf is final yield and Yr is reference yield.

PR=YfYr(4)

4 Solar photovoltaic plant

The 100 kWp on-grid plant is set up on the rooftop of a Bansal Institute of Engineering and Technology, UP, India. The global horizontal photo voltaic radiation data had been gathered from the NASA database. The overall performance evaluation of the proposed PV plant has been observed for 1 year (1 January 2019 to 31 December 2019). In this Section, a detailed description of the installed 100kWp grid-tie plant is discussed.

4.1 Site location

The 100kWp grid-tie PV plant is hooked up on the roof of Bansal Institute of Engineering and Technology, Lucknow. The institute is placed in the northern area of India. The mean annual temperature of Lucknow varies from 8°C to 40°C, and Lucknow’s mean annual precipitation rainfall is 670.3 mm. In Lucknow, June is the hottest month (33°C avg), whereas the coldest month is January (15°C avg), and the wettest month is July (194.7 mm avg) (Annual Weather Averages Near Lucknow). For the site location of Lucknow, March to June is the summer session, July to September is the rainy session, whereas October to February is the winter session. The proposed site is positioned at longitude 80°55′37.22″E and latitude 26°56′31.93″N. Figure 1 indicates a Google map of the plant vicinity (Google, 2022).

FIGURE 1
www.frontiersin.org

FIGURE 1. Location of the 100 kW grid-tie plant at Indian Map (Google, 2022).

4.2 Photovoltaic module

The one hundred kWpPV plants have 300 photovoltaic modules. The luminous modules LUM-24335 PV (Luminous India (a)) (each of 335 W power) having 72 photovoltaic cells in a module have been used. In the considered module, polycrystalline cells were used. The modules are not facing shading on any time horizon during the year. The modules are fixed with a tilted attitude of 30° facing the south direction, and the azimuth angle of the module is 0°. All the PV modules of the plant are established on metallic frames supported through pillars. Figure 2 indicates a pictorial view of the plant. The configuration of the photovoltaic modules is tabulated in Table 2.

FIGURE 2
www.frontiersin.org

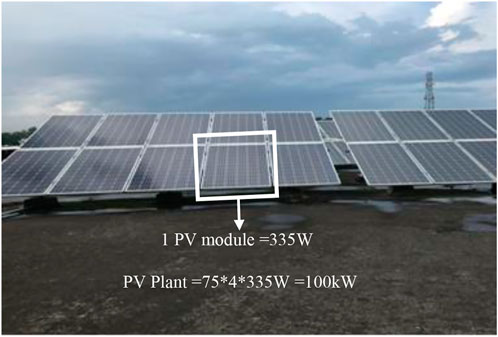

FIGURE 2. Pictorial view of the installed PV plant.

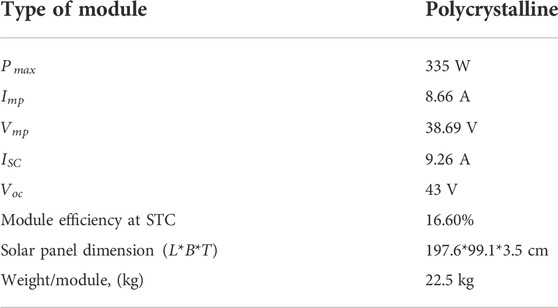

TABLE 2
www.frontiersin.org

TABLE 2. PV module specifications.

A total of 75 modules of 335 W have formed an array connected with an inverter; similarly, three more arrays are formed and connected with three inverters. Thus, a total of 4 inverters are employed in this project. Ten modules were placed in a single support structure, and 30 such structures were formed to support the modules.

4.3 Inverter

A 3-phase inverter, Luminous NXi 325 [Luminous India (b)], was used in this plant. The inverter has been employed to convert DC electricity into AC electricity. The inverter has a grid-tie feature; hence the generated AC electricity is directly fed to the state grid. The rated effectivity of the inverter is 95.6%. Figure 3 indicates a hardware setup of the inverters. The configurations of inverters are tabulated in Table 3.

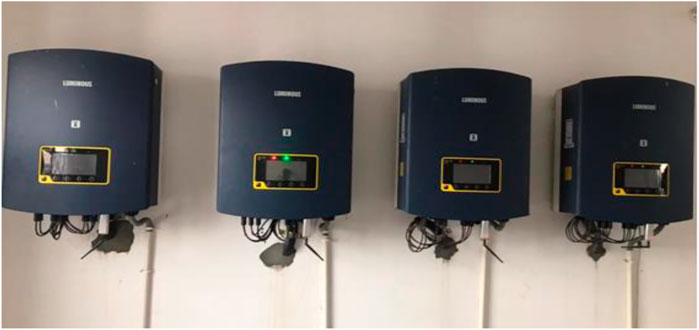

FIGURE 3
www.frontiersin.org

FIGURE 3. Hardware setup of the inverters.

TABLE 3
www.frontiersin.org

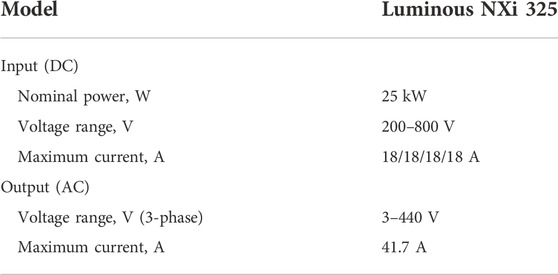

TABLE 3. Inverter specifications.

The module’s output power is first fed to the DC Distribution Box and then provided to the Inverters. DC Distribution box protects the inverter and module from lightning. All four Inverters have a 25 kW power rating with an input operating range from 200 to 800 DC voltage while producing a three-phase 440 V output voltage. All four Inverters are parallelly operated; that is why if one string or inverter fails, the remaining three inverters will be in the ON position, which means the whole plant will not shut down. That is why more than one inverter is used in the PV plant instead of a single inverter in most places. The output of the inverter is fed to the AC Distribution Box, and then power is fed to the grid via net metering. The AC distribution box protects the inverter and grid from overvoltage or current conditions.

4.4 Data acquisition and grid integration

A grid is an interconnected network to send electrical energy from generation units to the end users. Bansal Institute of Engineering and Technology, Lucknow, is located in the northern grid; hence, the plant is connected with the Jankipuram Substation of the Madhyanchal Vidyut Vitran Nigam Limited, an Utter Pradesh Corporation Limited subdivision. The plant is connected with the grid on the net-metering concept. When the plant generates electricity more than the required electricity demand of the institute and the electricity flow from the plant to the grid, and when the plant generates electricity less than the required electricity demand of the institution, the electricity flow from the grid to load. As the educational institute commissions, the plant considered in this study, power flows from the grid to the institute during weekdays. In contrast, excess electricity flows back to the grid on weekend days.

A monitoring and data acquisition system is also provided in this system. The inverters are connected to the server through the modem or Ethernet cable. The useful data of the inverter, such as grid voltage, dc-link voltage, current, and generated electricity, were stored in the inverter server. The user can check or monitor the data anytime by logging in to the inverter server.

4.5 Global solar radiation data

The vicinity is required for the overall performance assessment of the site’s global solar radiation data. For this, Global photo voltaic radiation data of this site location has been gathered from the NASA database. The month-to-month variation of global photovoltaic radiation is proven in Table 4. Global solar radiation is most in May (6.38 kW/m2/day) and minimal in December (3.12 kW/m2/day). The average global solar radiation for 12 months is 4.56 kW/m2/day.

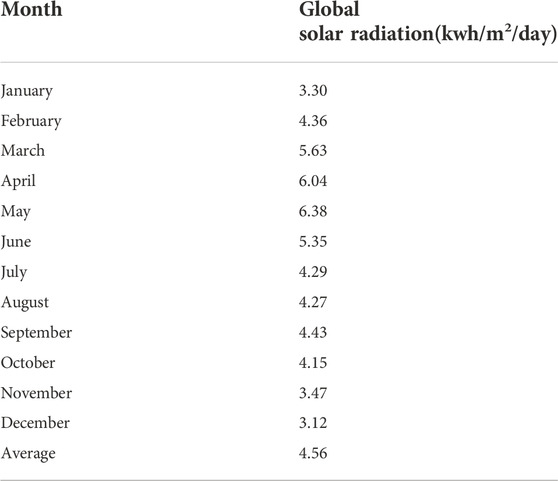

TABLE 4
www.frontiersin.org

TABLE 4. Monthly variation of global solar radiation for the site location.

5 Methodology for Performance evaluation

In this work, the performance evaluation of a 100-kW roof-mounted PV plant is carried out for 1 year, which is reasonably sufficient to analyze the effect of the season on the plant. Figure 4 shows the flow chart of the performance evaluation of a grid-connected solar-powered microgrid. For the performance evaluation, the following steps were carried out:

• Collection of daily generated electricity data from the inverter web database.

• Collection of solar radiation data from NASA database.

• Calculating reference yield, final yield, electricity generation, performance ratio, and other vital indicators per the prescription of IEC 61724 for evaluating the PV plant.

• Estimation of payback period and other critical economic parameters.

• Performance evaluation of the plant using PVsyst software.

• Comparison of the actual performance of the plant with PV*syst software results.

FIGURE 4
www.frontiersin.org

FIGURE 4. Graphical representation of proposed performance evaluation of grid-connected solar-powered microgrid.

6 Results of actual plant

To study the overall electrical performance of the installed grid-tie PV plant, some most significant parameters like reference yield, final yield, overall performance ratio, total electricity generation, etc., were calculated for 1 year (1 January 2019 to 31 December 2019) as per IEC 61724 standard. Various consequences drawn from the overall performance evaluation are listed in this Section.

6.1 Reference yield(Yr)

Reference yield has been computed with the help of the formula mentioned in Section 3.3. The month-to-month variation of reference yield is proven in Figure 5A. From Figure 5, it can be found that Yr is most in May month of 2019 (6.38h/day) and minimal in December (3.12h/day). The average Yr of the whole year is 4.56 h/day. From Figure 5A, it can also be observed that the reference yield is higher in the summer session (March to June) and lower in the winter session (November to February). Because solar radiation is high during the summer session, solar radiation is low in the winter session. The reference yield is medium in the rainy session (From July to September) due to the cloudy session.

FIGURE 5
www.frontiersin.org

FIGURE 5. (A) Monthly variation of Reference Yield (Yr). (B) Monthly variation in electricity generation. (C) Hourly variation in electricity generation. (D) Monthly variation of electricity generation final yield. (E) Monthly variation of Performance Ratio (PR).

6.2 Electricity generation

AC electrical energy output to the grid has been collected from the data acquisition plant through the internet. The data acquisition center collects data on a sample of 5 min. Electricity data has been collected for 12 months (1 January 2019 to 31 December 2019). The monthly variation of electricity produced is shown in Figure 5B. The plant generated a minimum electricity of 3823.4 kWh in December and a maximum of 14582.5 kWh in March. Figure 5 shows that power generation is maximum in the summer session (as for the site location March to June months are summer session) and minimum in the winter session (as for the site location November to February months are winter session). Because solar radiation is high during the summer session, solar radiation is low in the winter session. In the rainy session (as for the site location July to September months are raining session), electricity generation is medium due to the clouds. In October, electricity generation is in good quantity because of the clear sky in this month. The total electricity generation from the plant during the observed period is 101572 kWh.

Figure 5C shows the hourly variation of power generation on 15 January 2019, 15 May 2019, and 15 August 2019. The dates are selected as follows, 15 January represents the electricity generation pattern of the winter session, 15 May represents the electricity generation pattern of the summer session, and 15 August represents the electricity generation pattern of raining session. The annual electricity demand of the institute is about 170 MWh, and the plant generates 101 MWh annually, which covers 59.4% of the total required electricity demand.

6.3 Final yield (Yf)

The final yield has been computed with the help of the formula mentioned in Section 3.2. Figure 5D shows the month-to-month reference yield variation. The Yf is most in March 2019 (4.70 h/day) and minimal in August (1.15 h/day). The average Yr of the entire 12 months is 2.79 h/day.

6.4 Performance ratio (PR)

The overall performance ratio has been computed with the help of the formula mentioned in Section 3.4. The month-to-month version of the overall performance ratio is proven in Figure 5E. The overall performance ratio is most in March (0.84) and second most in October (0.80) as in these two months, atmospheric temperature is not so high, and there is almost negligible fog due to which plant work on optimal conditions whereas minimal in August (0.27) as in this month high cloud and rainfall is there due to which shading effects of the cloud affects the performance of the plant. The average overall performance ratio in the whole year is 0.60.

6.5 Economic investigation

The overall installation cost of the plant was 65 Lakh Indian Rupees (USD 819.33) (conversion rate: 1 USD $ = 79.33 INR as of 8th July 2022 (XE Currency Converter, 2022)). The cost of electricity from the utility to the institute is nine Indian Rupees/kWh (USD 0.11) (DERC, 2020). From the performance assessment of the PV plant, it is observed that the plant delivered 101.572 MWh of electricity in a year. The calculation shows that this plant saves approximately nine Lakh 14 thousand one hundred 48 Indian Rupees (USD 11522.97) in a year. From the calculations, it is also found that the simple payback duration of the proposed PV plant is 7 years and 1 month. Also, discounted payback duration of the plant is 8 years and 9 months, considering the 4.5 discount rate in India. Both the simple payback duration and discounted payback duration of the plant are less than 20 years (Sherwani et al., 2010); hence, the proposed PV plant is more economical.

6.6 Emission analysis

Electricity generation from the PV plant is 101.572 MWh in a year. Hence, the annual save of CO2 gas emission is 4.06 tons per the National Renewable Energy Laboratory report (the save of emission by PV Plant is approximately 40 g CO2/kWh) (NREL). From the calculations, it has been found that the plant will save a total of 101.5-ton CO2 in its life cycle, as the estimated life of the PV plant is 25 years.

6.7 Sustainable development goals

Sustainable Development Goals (SDGs) are 17 globally interconnected goals that aim to provide people and the planet with a blueprint for peace and prosperity in the 21st century. The Sustainable Development Goals (SDGs) were established by the United Nations General Assembly (UN-GA) in 2015 and are intended to be achieved by 2030. It will assist in achieving Goal 7, ensuring everyone has access to affordable, reliable, sustainable, and modern energy. Since India has an electricity deficit, installing self-generated photovoltaic plants will benefit the 7.1.1 goal: “Proportion of population with access to electricity.” As a result of such projects, the 7.2.1 goal of increasing the share of renewable energy in final energy consumption will be accomplished. Due to the high efficiency of solar energy, this plant can assist in achieving goal 7.3.1, which is a measure of energy intensity based on primary energy and GDP. As India is a developing country, the results of this research work will aid in achieving goal 7. a.1, which is to increase international financial flows to developing countries to support clean energy research and development, as well as the production of renewable energy, including hybrid systems. As this study is concerned with renewable energy, it will contribute to achieving goal 7. b.2, which is to install renewable energy-generating capacity in developing countries.

7 Simulation of PV*syst

Various parameters of the actual PV plant, such as PV module rating, inverter rating, a series-parallel combination of the PV module, geographical data, etc., were faded into PV*Syst software. Simulation outcomes of a 100 kW photovoltaic plant are analyzed in this Section. The outcomes had been bought from the simulation model of a 100 kW photovoltaic plant modeled in PV*syst as per the plant specifications and constraints. All the parameters of the plant and methodological data of the plant location have been fed into PV*Syst software, and results were computed.

7.1 Sun path

Shading performs a crucial function in the total performance evaluation of a photovoltaic PV plant. The plant considered in this study has no shading effect. The solar path graph for the plant is proven in Figure 6. From Figure 6, we can observe that in this solar radiation is available throughout the year. In the winter, the Sun is in lower digresses, whereas in the summer, the Sun is in higher digresses.

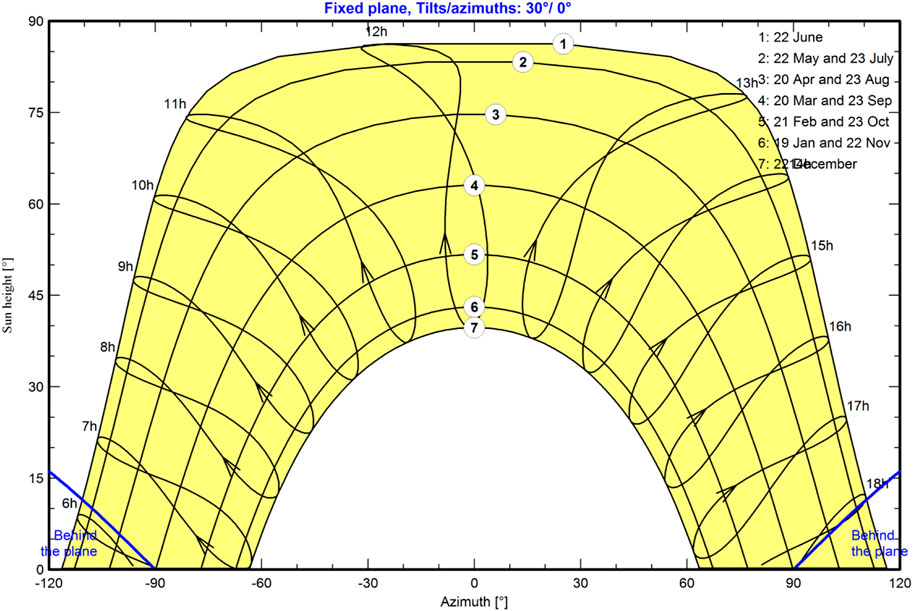

FIGURE 6
www.frontiersin.org

FIGURE 6. Sun paths height/azimuth plot within PV*Syst.

Figure 6 shows the variation of the Sun’s path throughout the year. During the peak winter days, say 22 December, the Sun’s azimuth varies from about −60° to+60° degrees, the Sun’s height is also shallow (about 35°), and the duration of the Sun also shines very low. But as we move toward summer, Sun azimuth spam is increasing, Sun height is also increasing, and the Sun shines for a longer duration. During the peak summer days, say 22 June, Solar azimuth varies from −120° to +120°, Sun height is also about 750, and Sun duration is very high. It has also been observed from the blue lining in the graph that the plant faces very slight shading in the summer session in the morning and evening. That is why we can say that the plant is not facing shading throughout the year.

7.2 Balances evaluation

Balances and their essential effects are demonstrated in Table 5, including the parameters like global radiation on a horizontal plane and ambient average temperature, global irradiation on a collector plane except for any optical alterations, and effective global photo voltaic radiation considering losses (soiling and shading). For the proposed site location, the global radiation on the horizontal plane is 1665.7 kWh/Sqm, and the annual global incident energy on the collector with no optical corrections and effective global radiation with optical losses are 1787.5 kWh/m2 and 1741.3 kWh/m2 respectively. The average diffused radiation is 907.86 kWh/Sq. m, whereas the average ambient temperature is 25.14°C. With this effective global photo voltaic radiation, annual DC electricity generated from the photovoltaic array and yearly AC electricity delivered into the grid is 147.52 MWh and 142.60 MWh, respectively. Here, the average performance ratio of the system is 0.783.

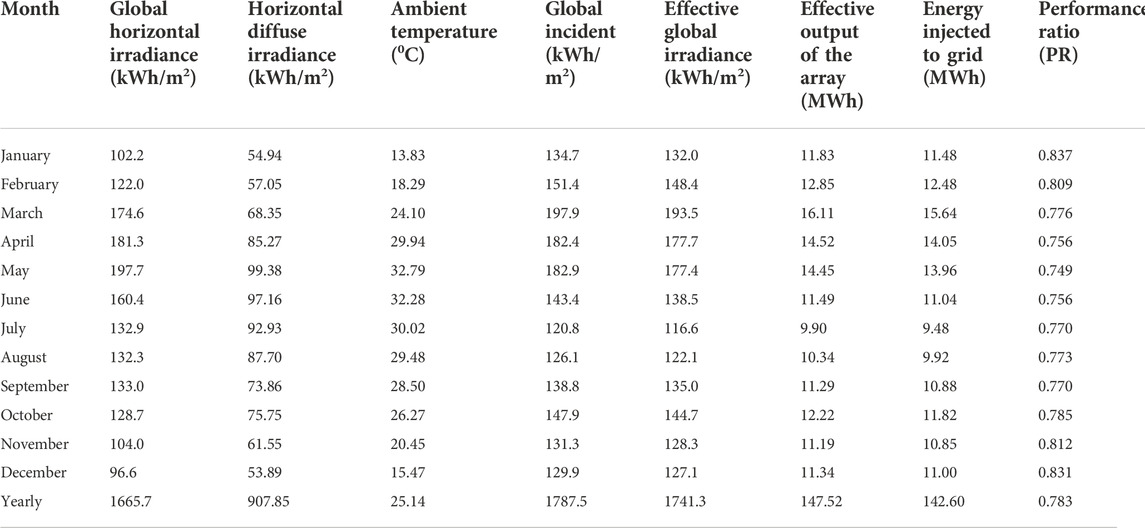

TABLE 5
www.frontiersin.org

TABLE 5. PV*syst software results of 100kWp solar PV plant.

7.3 Computation of losses

Various losses had been computed from the simulation analysis, proven in Figure 7. These performance indicators are defined through the IEC 61724 standard (Baqir and Channi, 2021); these indicators are popular indications for observation of Photovoltaic plant performance. From Figure 7, it has been observed that the array capture loss of the plant is 0.93 h/day. System loss of the PV plant is 0.13 h/day, whereas produced beneficial electricity is 3.84 h/day.

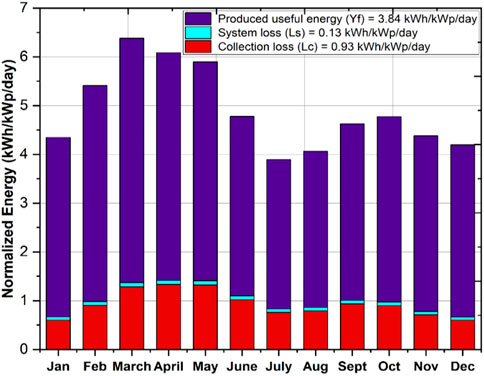

FIGURE 7
www.frontiersin.org

FIGURE 7. Various losses per installed kWp

It can also be observed that the plant generates the highest electricity in the summer session, say April and May, but losses are also very high. In the rainy session, say July and August, the plant generates lesser electricity, but losses are slightly lower. In the winter session, say December and January, the plant generates medium electricity with the least losses. That is why we can say that in the summer session, losses are high due to temperature, whereas losses are less due to lower temperatures in the winter session.

7.4 Average yields

Various yield mentioned in Section 3.1 has been proven in Table 5 shows that the reference yield of the plant varies from 3.90 to 6.38 h/day, whereas the average reference yield is 4.90 h/day. The array yield of the plant varies from 3.13 to 5.10 h/day, whereas the average reference yield is 3.97 h/day. The average array capture loss goes 0.929. It has additionally been discovered that the final yield of the PV plant varies from 3.06 to 5.01 h/day, whereas the average final yield is 3.89 h/day.

7.5 Distributed grid electricity

The designed 100kWp PV system injects 144726 kWh of electricity into the distribution grid in a year. The monthly data about the AC electricity injected into the distribution grid is provided in Table 6. The tabulated results show that the plant can produce minimum electricity in July, whereas the PV plant can generate maximum electricity in March.

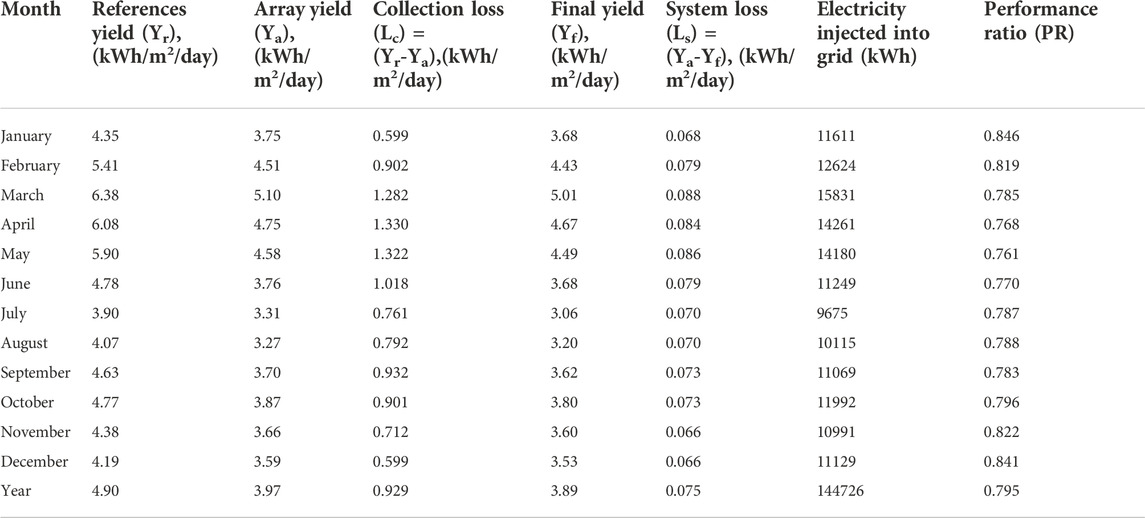

TABLE 6
www.frontiersin.org

TABLE 6. Various yields of the proposed PV plant and electricity injected into the grid.

7.6 Overall performance Ratio

The overall performance ratio (PR) for the virtual hundred kW PV plant is 79.5%. The variation in overall performance ratio values on a month-to-month basis is proven in Figure 8. From Table 6, it can be observed that plant performance is lower in the summer and higher in the winter months.

FIGURE 8
www.frontiersin.org

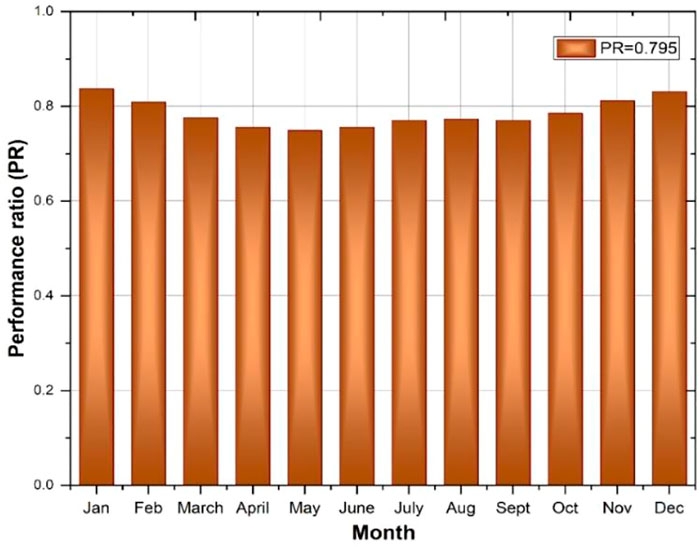

FIGURE 8. Overall performance ratio.

As described in Section 7.3, losses are least in the winter session, say December and January; hence performance ratio of the plant is also the highest. In the rainy session, say, July and August, losses are medium; hence performance ratio of the plant is also medium. In the summer session, say April and May, losses are the highest; therefore, the plant’s performance ratio is also the least. For this reason, plant performance does not depend on the plant’s power output but depends upon the plant’s performance.

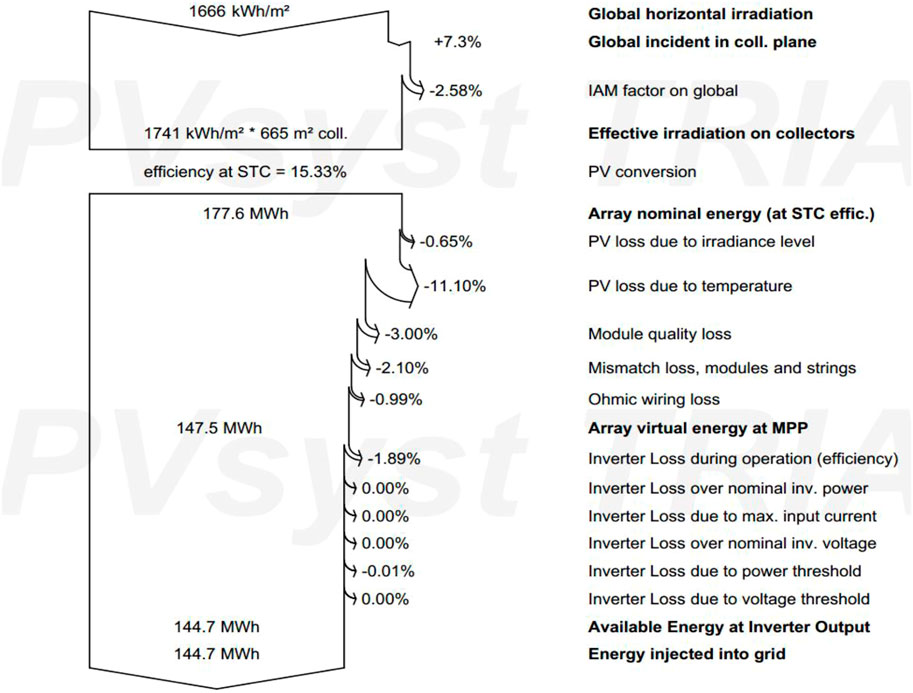

7.7 Arrow loss evaluation

The arrow loss graph is considered in Figure 9, representing the number of losses in the plant. Global photo voltaic radiation on the horizontal plane is 1966 kWh/m2; however, the effective photo voltaic radiation on the collector is 1741 kWh/m2. When this effective irradiance falls on the surface of a photovoltaic module or array, electricity or electrical energy is produced. After the PV conversion, the nominal array energy at standard testing conditions (STC) is 177.6 MWh. The efficiency of the PV array at STC is 15.33%. The annual array’s virtual energy at MPP is 147.5 MWh. The various losses in this stage are 11.10% loss due to temperature, 0.65% loss due to light-induced degradation, 2.1% loss due to module array mismatch, and 0.99% ohmic wring losses. Available energy on an annual basis at the inverter output facility is 144.7 MWh, injected into the grid. Here two losses were possible, and one is inverter loss during inverter operation, i.e., 1.89% and inverter loss over nominal inv. power is 0.1%.

FIGURE 9
www.frontiersin.org

FIGURE 9. Arrow loss diagram of the PV plant.

8 Comparative results analysis

Proposed 100kW rooftop PV plant results have been compared with the result bought from the PV*syst program simulation. The significant outcomes from the comparison are summarized in Table 6. Further, the monthly comparison of the electrical energy production from the installed PV plant and the projected electrical energy production from the PV*syst program simulation are tabulated in Table 7. Similarly, Table 8 also describes the actual plant’s overall PR and predicted comprehensive PR of the plant from the PV*syst program simulation on a monthly basis.

TABLE 7
www.frontiersin.org

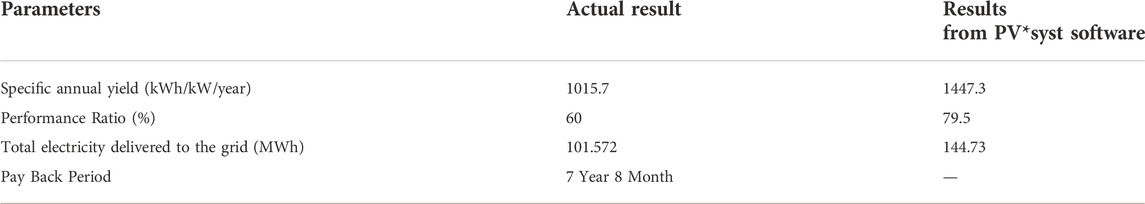

TABLE 7. Significant outcomes from the comparison.

TABLE 8
www.frontiersin.org

TABLE 8. Comparative analysis of power generation and performance ratio from actual 100kWPV plant PV*Syst software simulation.

From Tables 6, 7, it is observed that the plant is working satisfactorily, and its specific annual yield is 1015.7 kWh/kW/year. From the software results, it has been observed that the plant can produce up to 1447.3 kWh/kW/year. The actual plant generates a total of 101.5 MWh of electricity in the observed year, whereas software predicts 144.7 MWh of electricity generation in a year. The actual plant’s monthly electricity generation varies from 14.58 MWh to 03.57 MWh according to the weather conditions, whereas software predicts monthly variation from 15.83 MWh to 09.67 MWh. The actual plant’s performance ratio is 60%, whereas a plant can achieve up to 79.5%performance ratio. The actual plant performance ratio varies from 84.0% to 27.0% according to the session and outages, whereas software predicts significantly less variation from 84.6% to 76.1%. The difference between software results and actual results are there because software predicts the results in ideal condition, whereas in the observation period, the plant was not run in an optimal scenario, and some outages occurred during the observation duration. The PV*syst software shows detailed losses that occurred in different conversion processes. From the economic investigation, it has been noticed that the simple payback duration of the PV plant is 7 years and 8 months, whereas discounted payback duration of the PV plant is 8 years and 9 months. From the calculations, it has also been found that the plant will save a total of 101.5-ton CO2 in its life cycle.

The benefit of the proposed PV plant is that it shows satisfactory results and does not require any extra land space for installation. As space is an essential aspect of the populated area as the land cost is very high. Hence, this study can be beneficial for the installation of small-scale or medium-scale grid-connected PV plants on the roof of any residential or commercial building. Such a project can be beneficial in reducing dependency on utility as electricity cost is increasing day by day and power is cut by the utility. Such a project can also be helpful in the enhancement of microgrid developments. As in a microgrid, the generation and local loads are near, which leads to energy saving; as in a microgrid, transmission loss is much less. With the installation of such projects, the consumer becomes a prosumer, which means the consumer consumes and produces the electricity.

9 Conclusion

The proposed 100 kWp grid-tie PV plant commissioned on the rooftop of an academic building of the Bansal Institute of Engineering and Technology, Lucknow, was successfully monitored from January 2019 to December 2019. Further, its overall performance parameters have been analyzed month-to-month and annually. The substantial observations from the present study are summarized below:

• The annual average Yf of the proposed PV plant is 2.79h/d(1015.72kWh/kWp/year).

• The overall performance ratio ranges from 27 percent to 84 percent, with a yearly average value of 60%.

• The PV plant has delivered101.57 MWh of electrical energy to the grid in the observational period.

• The payback period of the PV plant is 7 years and 1 month.

• The present plant will save 101.5 tons of CO2 in its life cycle.

• From the software program comparison, it has been observed that for this site, we can attain up to 144.73 MWh of electrical energy from the plant by appropriate maintenance.

The actual system results have shown that a roof-mounted PV system can be very useful for developing DC and AC microgrids. Based on the case considered, the plant is able to meet 59% of the institute’s electricity needs without taking up any additional space. Additionally, the plant is both environmentally friendly and economically viable.

Further, the results of the system can be used to implement a large-scale solar plant. The study aims to gain a better understanding of the region and appropriate advanced technology. This will enable the planning and development of solar PV plants in northern India. Analyses of similar nature can be conducted at various locations, and the results can be compared with those obtained using other software. In the future, it will be possible to calculate performance evaluations for plants that receive shade. Ultimately, such a project can contribute to developing DC and AC multi-microgrids that can efficiently utilize PV energy.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Author contributions

All authors listed have made a substantial, direct, and intellectual contribution to the work and approved it for publication.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

Open access funding is provided by the Qatar National Library.
