Convergence characteristics and acceleration of the transient fixed source equation solved by Monte Carlo method

The safety analysis of nuclear systems such as nuclear reactors requires transient calculation. The Monte Carlo (MC) method has grown rapidly in recent years because of its high-fidelity modelling and simulation capability. The predictor-corrector quasi-static (PCQS) MC method has been investigated for kinetic calculation. However, the approach to shorten the computational time required to solve the transient fixed source equation (TFSE) is still under development. The convergence characteristic of the neutron source iteration algorithm of the PCQS MC method is analyzed in this study with a simplified model. It is found that the convergence rate of the iteration algorithm is governed by the effective spectral radius (ESR). The lower the ESR is, the faster the convergence is. In order to reduce the ESR, the asymptotic superhistory method (ASM) is developed for the PCQS MC method in the RMC code. The performance of ASM is evaluated by the C5G7-TD benchmark. Results show that the reduction in the number of inactive cycles is more than 85%, and over 15% of computational time including active cycles is saved. It is demonstrated how ASM speeds up the iterations using the Wasserstein distance measure.

1 Introduction

High-fidelity simulations for nuclear systems such as nuclear reactors and spent fuel reprocessing solutions have been developed rapidly in the last decade. In particular, the exponential increase of high-performance computing accelerates the implementation of high-fidelity simulations in engineering fields. Among many high-fidelity simulation methods, the Monte Carlo (MC) method is widely regarded as the most accurate method and is usually used for validations of other methods. The MC method has two major advantages: one is the usage of accurate continuous-energy cross-sections, and another is the precise 3-dimensional (3D) geometry modeling based on constructive solid geometry (CSG) or computer-aided design (CAD) geometry (Wilson et al., 2010; Davis et al., 2020; Deng et al., 2022). MC codes such as MCNP (Goorley et al., 2012), Serpent (Leppänen et al., 2015), OpenMC (Romano et al., 2015), and RMC (Wang et al., 2015) are widely used in new reactor designs, which have disparate features from normal nuclear reactors in geometry, material, and spectra.

Typically, the MC method is capable of steady state simulations, including criticality calculation and shielding calculation, etc. Kinetic simulation functions are not as well-developed as steady state simulation functions for many MC codes. However, transient behaviors are fundamental and essential in the safety analysis of nuclear systems. The lack of kinetic simulation functions severely limits MC codes’ further applications. Therefore, many studies concerning kinetic simulation methods are under development.

Generally, kinetic MC methods could be divided into two kinds: one is the direct MC kinetic simulation method, and another is the hybrid MC kinetic simulation method with deterministic methods. The direct MC kinetic simulation method includes Dynamic Monte Carlo (DMC) method (Sjenitzer and Hoogenboom, 2013; Jia et al., 2022) and similar methods which implement acceleration skills such as quasi-static treatments (Trahan, 2019). The direct method simulates the neutron flight and delayed neutron precursors variation with a continuous-in-time model, which is very accurate but causes massive computational consumption. The hybrid MC kinetic simulation method with deterministic methods include the time-dependent coarse mesh finite difference method (TD-CMFD) based on the multi-group cross-sections tallied from a MC solver (Shaner, 2018; Kreher et al., 2022), the transient fission matrix method (TFM) (Heuer et al., 2015), the time-dependent response matrix (TDRM) method (Mickus et al., 2020), and the predictor-corrector quasi-static (PCQS) method (Jo et al., 2016). Among the above methods, the TD-CMFD, TFM and TDRM methods require extra treatment on space meshing before calculation. As a result, the suited geometries are limited. By comparison, the PCQS method is still based on continuous-energy cross-sections and arbitrary complex geometries, and thus has an advantage in modelling flexibility.

A complete PCQS MC calculation consists of a series of single MC calculations at successive time steps. Every single MC calculation solves a transient fixed-source equation (TSFE), except for the first time step at which the eigenvalue equation is solved. Usually, solving the fixed-source equation by MC method does not need any iteration algorithm, but the neutron tracking may not terminate when calculating transient supercritical problems with a large time step (Jo et al., 2016). Therefore, the neutron source iteration algorithm is used to solve both the TFSEs and the eigenvalue equation. Figure 1 shows the flow chart of a complete PCQS MC calculation. Consequently, the computational cost of a complete PCQS MC calculation is tens of or even hundreds of times of a single MC criticality calculation, depending on the number of time steps. It is necessary then to accelerate the calculation, especially to reduce iterations for fission source and external source convergence.

FIGURE 1

FIGURE 1. Flow chart of the PCQS MC calculation.

Jo et al. (2016) proposed a partial current-based CMFD (p-CMFD) acceleration method, which has been the only acceleration method for PCQS MC calculation. As mentioned before, the CMFD method requires space meshing, which limits the capability to solve problems with irregular geometries.

Many previous studies have proposed methods to accelerate neutron source iterations. There are two kinds of acceleration methods. The first kind uses space meshing, including the fission matrix method (Kuroishi and Nomura, 2003; Dufek and Gudowski, 2009), the CMFD method (Lee et al., 2010; Yun and Cho, 2010), the functional Monte Carlo (FMC) method (Larsen and Yang, 2011), etc. These methods are all sensitive to the meshing methods, which are highly dependent on the users’ experience. Besides, some methods need a vast footprint, and some are only suited for nuclear systems with regular shapes, which eliminates the MC method’s advantage in free 3D modeling. The second kind is independent of space meshing, including the Wielandt’s method (Yamamoto and Miyoshi, 2004; Brown, 2007; She et al., 2015; Pan et al., 2022c), the superhistory method (Brissenden and Garlick, 1986; She et al., 2015; Mickus and Dufek, 2018; Pan et al., 2022c), the neutron population growth method (Mickus and Dufek, 2018; Pan et al., 2022a), and the source extrapolation method (Pan et al., 2022b). Wielandt’s method is based on the shifted inverse power method (Bronson et al., 2013). Other methods are based on the property that iteration computational cost is directly proportional to the neutron history number while the statistical error is in reverse proportion to the square root of the neutron history number. However, the above methods have only been applied to criticality problems where the eigenvalue equation is solved.

In this study, the asymptotic superhistory method (ASM) is developed to accelerate the neutron source iterations in solving TFSE. The basic theory is introduced in Section 2. Section 3 shows the numerical simulations and performance. Section 4 makes the conclusion.

2 Methodology

2.1 Transient fixed source equation of the predictor-corrector quasi-static method and the neutron source iteration algorithm

Before introducing the asymptotic superhistory method for TFSE, the deduction of TFSE is provided herein, and the iteration algorithm is discussed.

The TFSE is the key equation of the PCQS method. The fundamental equations of the PCQS method were firstly developed for deterministic codes (Dulla et al., 2008). The PCQS equations are derived from the time-dependent Boltzmann neutron transport equation:

$\begin{array}{cc}\hfill & \frac{1}{v}\frac{\partial \Phi \left(\mathit{r},\mathbf{\Omega },E,t\right)}{\partial t}+L\Phi \left(\mathit{r},\mathbf{\Omega },E,t\right)+T\Phi \left(\mathit{r},\mathbf{\Omega },E,t\right)\hfill \\ \hfill & =S\Phi \left(\mathit{r},\mathbf{\Omega },E,t\right)+\frac{{\chi }_p\left(E\right)}{4\pi }\left(1-\sum _{i=1}^d{\beta }_i\right)F\Phi \left(\mathit{r},\mathbf{\Omega },E,t\right)\hfill \\ \hfill & +\sum _{i=1}^d\frac{{\chi }_i\left(E\right)}{4\pi }{\lambda }_i{C}_i\left(\mathit{r},t\right),\hfill \end{array}(1)$

and the delayed precursor transport equation:

$\frac{\partial C_i\left(r,t\right)}{\partial t}={\beta }_{i}F\Phi \left(\mathit{r},\mathbf{\Omega },E,t\right)-{\lambda }_i{C}_i\left(\mathit{r},t\right),(2)$

where r is the neutron position, Ω is the neutron flying angle, E is the neutron energy, t is the time, Φ is the neutron flux, v is the neutron speed, χ_p is the prompt neutron energy spectra, i is the delayed neutron family, χ_i is the delayed neutron energy spectra of family i, β_i is the delayed neutron fraction of family i, λ_i is the delayed constant of family i, C_i is the delayed neutron precorsor concentration of family i. LΦ is the leakage operator, TΦ is the collision operator, SΦ is the scattering operator, and FΦ is the fission operator. Definitions of the operators in Eqs. 1, 2 could be found in Rao et al. (2019).

In the PCQS method, the implicit backward difference time discretization strategy is applied. At time step t_n+1, the partial differential terms in Eqs. 1, 2 are expressed as follows:

$\begin{array}{cc}\hfill \frac{\partial \Phi \left(\mathit{r},\mathbf{\Omega },E,t\right)}{\partial t}& \approx \frac{\tilde{\Phi }\left(\mathit{r},\mathbf{\Omega },E,t_{n+1}\right)-\Phi \left(\mathit{r},\mathbf{\Omega },E,t_n\right)}{\mathrm{\Delta }{t}_{n+1}},\hfill \\ \hfill \frac{\partial C_i\left(\mathit{r},t\right)}{\partial t}& \approx \frac{\widetilde{C_i}\left(\mathit{r},t_{n+1}\right)-C_i\left(\mathit{r},t_n\right)}{\mathrm{\Delta }{t}_{n+1}},\hfill \end{array}(3)$

where Δt_n+1 = t_n+1 − t_n.

Replace all t in Eqs. 1, 2 with t_n+1 except the partial item, substituting Eq. 3 into Eqs. 1, 2, and rearranging gives the predicted neutron flux equation:

$\begin{array}{cc}\hfill & L\tilde{\Phi }\left(\mathit{r},\mathbf{\Omega },E,t_{n+1}\right)+T^{\prime }\tilde{\Phi }\left(\mathit{r},\mathbf{\Omega },E,t_{n+1}\right)-S\tilde{\Phi }\left(\mathit{r},\mathbf{\Omega },E,t_{n+1}\right)\hfill \\ \hfill & =\left[\frac{{\chi }_p\left(E\right)}{4\pi }\left(1-\sum _{i=1}^d{\beta }_i\right)+\sum _{i=1}^d\frac{{\chi }_i\left(E\right)}{4\pi }\frac{{\lambda }_i\mathrm{\Delta }{t}_{n+1}}{1+{\lambda }_i\mathrm{\Delta }{t}_{n+1}}{\beta }_i\right]\hfill \\ \hfill & \times F\tilde{\Phi }\left(\mathit{r},\mathbf{\Omega },E,t_{n+1}\right)+S_n\left(\mathit{r},\mathbf{\Omega },E,t_{n+1}\right),\hfill \end{array}(4)$

where T′Φ is the PCQS leakage operator and S_n is the external source (PCQS source). Denote that

$\begin{array}{ll}\hfill M{\tilde{\Phi }}_{n+1}& =L\tilde{\Phi }\left(\mathit{r},\mathbf{\Omega },E,t_{n+1}\right)+T^{\prime }\tilde{\Phi }\left(\mathit{r},\mathbf{\Omega },E,t_{n+1}\right)\hfill \\ \hfill & -S\tilde{\Phi }\left(\mathit{r},\mathbf{\Omega },E,t_{n+1}\right),\hfill \end{array}(5)$

and

$\begin{array}{cc}\hfill F{\tilde{\Phi }}_{n+1}& =\left[\frac{{\chi }_p\left(E\right)}{4\pi }\left(1-\sum _{i=1}^d{\beta }_i\right)+\sum _{i=1}^d\frac{{\chi }_i\left(E\right)}{4\pi }\frac{{\lambda }_i\mathrm{\Delta }{t}_{n+1}}{1+{\lambda }_i\mathrm{\Delta }{t}_{n+1}}{\beta }_i\right]\hfill \\ \hfill & \times \int \int \nu {\mathrm{\Sigma }}_f\left(\mathit{r},E^{\prime },t_{n+1}\right)\tilde{\Phi }\left(\mathit{r},{\mathbf{\Omega }}^{\prime },E^{\prime },t_{n+1}\right)\mathrm{d}{E}^{\prime }\mathrm{d}{\mathbf{\Omega }}^{\prime },\hfill \end{array}(6)$

and then Eq. 4 becomes:

$M{\tilde{\Phi }}_{n+1}=F{\tilde{\Phi }}_{n+1}+S_n,(7)$

which is obviously a fixed-source equation. Therefore, Eq. 4 is the TFSE of the PCQS method.

The MC codes usually use a direct method to solve Eq. 7:

${\tilde{\Phi }}_{n+1}={\left(M-F\right)}^{-1}{S}_n,(8)$

however, there are several problems to use Eq. 8 to solve TFSE:

• As Jo et al. (2016) stated, the neutron history may not terminate when Δt_n+1 is not sufficiently small, which means that Eq. 8 does not have solutions. This characteristics will also be shown in Section 2.2.

• Code users cannot control statistical errors conveniently. Due to the variation of the geometries or materials during the transient process, the neutron multiplication characteristics differs at each time step. Consequently, the simulated neutron history number varies at different time steps. The estimated statistical errors may be significant in deep sub-critical conditions and minor in super-critical states.

Thus, the neutron source iteration algorithm is used instead, which is similar to that used in deterministic methods (Turinsky et al., 1994):

${\tilde{\Phi }}_{n+1}^{\left(j+1\right)}=M^{-1}F{\tilde{\Phi }}_{n+1}^{\left(j\right)}+M^{-1}{S}_n,(9)$

where (j) is the serial number of iterations. $F{\tilde{\Phi }}_{n+1}^{(j)}$ are fission neutron sources generated at (j)th iteration at t_n+1. Mixing the external sources S_n generated at t_n with the fission neutron sources $F{\tilde{\Phi }}_{n+1}^{(j)}$ by the ratio of the external source strength to the total source strength yields the neutron sources prepared for the next (j + 1)th iteration, and track the neutrons sampled from the neutron sources to obtain ${\tilde{\Phi }}^{(j+1)}$. The iteration stops at the total cycle set by the code users. The tally starts at the end of the inactive cycle. The process is just the same as that of the criticality calculation.

2.2 Convergence characteristics of the neutron source iteration algorithm

Before developing the acceleration algorithm, it is necessary to analyze the convergence characteristics of Eq. 9. Because Eq. 9 is closely related to the model complexity and does not have a common analytical solution, a 0-dimensional and mono-energy model with single family delayed neutron precorsor is used herein, which can also reveal the essence.

For the simplified model, Eqs. 1, 2 become:

$\frac{1}{v}\frac{\mathrm{d}\Phi \left(t\right)}{\mathrm{d}t}+{\mathrm{\Sigma }}_a\left(t\right)\Phi \left(t\right)=\left(1-\beta \right)\nu {\mathrm{\Sigma }}_f\left(t\right)\Phi \left(t\right)+\lambda c\left(t\right),(10)$

and

$\frac{\mathrm{d}c\left(t\right)}{\mathrm{d}t}=\beta \nu {\mathrm{\Sigma }}_f\left(t\right)\Phi \left(t\right)-\lambda c\left(t\right).(11)$

To obtain the PCQS fixed source equation corresponding to Eqs.10, 11 the implicit difference strategy is implemented:

$\begin{array}{cc}\hfill \frac{\mathrm{d}\Phi \left(t\right)}{\mathrm{d}t}& =\frac{{\Phi }_{n+1}-{\Phi }_n}{\mathrm{\Delta }{t}_{n+1}},\hfill \\ \hfill \frac{\mathrm{d}c\left(t\right)}{\mathrm{d}t}& =\frac{c_{n+1}-c_n}{\mathrm{\Delta }{t}_{n+1}}.\hfill \end{array}(12)$

Substituting Eq. 12 into Eqs. 10, 11 and rearranging gives:

${\Phi }_{n+1}=g_{n+1}{\Phi }_{n+1}+s_n,(13)$

where s_n is the external source:

$s_n=\frac{1}{1+v\mathrm{\Delta }{t}_{n+1}{\mathrm{\Sigma }}_{a,n+1}}\left({\Phi }_n+\frac{v\mathrm{\Delta }\lambda t_{n+1}}{1+\lambda \mathrm{\Delta }{t}_{n+1}}{c}_n\right),(14)$

and g_n+1 is a coefficient:

$g_{n+1}=\left(1-\frac{\beta }{1+\lambda \mathrm{\Delta }{t}_{n+1}}\right)\frac{k_{\text{eff},n+1}}{1+\frac{1}{v\mathrm{\Delta }{t}_{n+1}{\mathrm{\Sigma }}_{a,n+1}}},(15)$

where k_eff,n+1 is the effective multiplication factor of the simplified model at t = t_n+1 without external sources:

$k_{\text{eff},n+1}=\frac{\nu {\mathrm{\Sigma }}_{f,n+1}}{{\mathrm{\Sigma }}_{a,n+1}}.(16)$

Eq. 13 is the TFSE of this simplified model. When solving Eq. 13 using the fixed-point iteration method, the iteration format is:

${\Phi }_{n+1}^{\left(j+1\right)}=g_{n+1}{\Phi }_{n+1}^{\left(j\right)}+s_n,(17)$

Therefore, this paper called g_n+1 the equivalent spectral radius (ESR) of the TFSE. The condition that Eq. 17 is converged is:|g_n+1| < 1. Obviously, g_n+1 > 0, and thus the convergence condition is:

$g_{n+1}<1.(18)$

Besides, the closer to 1 the g_n+1 is, the lower the convergence rate is.

It is found that k_eff,n+1 ≤ 1 sets up Eq. 18, which means that the iteration is converged if the model at t = t_n+1 is critical or subcritical without external sources. When the model is supercritical, substituting Eq. 15 into Eq. 18 and rearranging yields a quadratic inequality:

$a{\mathrm{\Delta }}^2{t}_{n+1}+b\mathrm{\Delta }{t}_{n+1}-1<0,(19)$

where

$a=\lambda v\left(\nu {\mathrm{\Sigma }}_{f,n+1}-{\mathrm{\Sigma }}_{a,n+1}\right)(20)$

and

$b=\left(1-\beta \right)v\nu {\mathrm{\Sigma }}_{f,n+1}-\left(v{\mathrm{\Sigma }}_{a,n+1}+\lambda \right).(21)$

Because k_eff,n+1 > 1, a > 0, and thus b² + 4a > 0. Therefore, the quadratic fucntion

$h\left(\mathrm{\Delta }{t}_{n+1}\right)=a{\mathrm{\Delta }}^2{t}_{n+1}+b\mathrm{\Delta }{t}_{n+1}-1(22)$

is a parabola going upwards, and Eq. 19 has analytical solution:

$0<\mathrm{\Delta }{t}_{n+1}<\frac{-b+\sqrt{b^2+4a}}{2a}.(23)$

Eq. 23 shows that when the model is supercritical without external sources, the time step should be sufficiently small to make sure that the iteration is converged. Besides, direct solution by Φ_n+1 = s_n/(1 − g_n+1) will give meaningless results that Φ_n+1 < 0 when g_n+1 > 1, which is consistent with the discussion in Section 2.1.

Extrapolating from the study of the simplified model, the time step should be small enough when the model is supercritical, and the neutron source iteration is unconditional convergence when the model is subcritical or critical without external sources. The convergence rate can be increased by a lower ESR, which can be used to speed up TFSE iterations. The asymptotic superhistory approach is used in this paper to reduce ESR.

2.3 The asymptotic superhistory acceleration method

The superhistory method was proposed by Brissenden and Garlick (1986) to accelerate the MC criticality calculation. The MC criticality calculation solves the eigenvalue equation by neutron source iterations:

${\Phi }^{\left(j+1\right)}=\frac{1}{k_{\text{eff}}}{M}^{-1}F{\Phi }^{\left(j\right)}.(24)$

The convergence rate of Eq. 24 is determined by the dominance ratio $dr\left(M^{-1}F\right)$ which is less than 1. Reducing $dr\left(M^{-1}F\right)$ can speed up the iteration. The superhistory method modify the eigenvalue equation to:

${\Phi }^{\left(j+1\right)}=\frac{1}{k_{\text{eff}}^N}{\left(M^{-1}F\right)}^N{\Phi }^{\left(j\right)},(25)$

and the dominance ratio is reduced to $dr\left[{(M^{-1}F)}^N\right]=d{r}^N\left(M^{-1}F\right)$. Accordingly, the fission sources are tracked through N generations in one cycle.

Similarly, the superhistory method is applied to the TFSE as follows:

$\begin{array}{ll}\hfill {\Phi }^{\left(j+1\right)}& ={\left(M^{-1}F\right)}^N{\Phi }^{\left(j\right)}\hfill \\ \hfill & +\left(I+M^{-1}F+\cdots +{\left(M^{-1}F\right)}^{N-1}\right)S_n,\hfill \end{array}(26)$

and the ESR ρ(M⁻¹F) is reduced to $\rho \left[{(M^{-1}F)}^N\right]$. Accordingly, the fission sources and the external sources are tracked and mixed through N generations in one cycle.

Note that the Wielandt method is not applicable, because the Wielandt method is based on the shifted inverse power method, which is only suitable for solving the eigenvalue problems. However, the TFSE is a nonhomogeneous equation and thus only the ASM method is suitable.

Based on the effective DR measure, a metric of the computational burden, She et al. (2015) proved, however, that the superhistory method could not shorten the calculation time because every cycle requires additional time. The ASM (She et al., 2015), which lowers each generation’s neutron history number by a set of predetermined factors, is suggested as a remedy, and used in this paper:

1) Given the neutron population of each cycle m.

2) Input the asymptotic factors N₁, N₂, … , N_n and asymptotic period p. Notably, N₁ > N₂ > ⋯ > N_n.

3) Starting from the first cycle, the neutron population is changed to m/N₁. Then, one cycle consists of N₁ generations.

4) After p cycles, change the neutron population to m/N₂ and run p cycles.

5) Repeat until finishing n × p cycles.

6) Change the neutron population back to m and execute the simulation as usual.

The algorithm is implemented in the RMC code (Wang et al., 2015). The asymptotic factors are 16, 8, 4, 2 and the asymptotic periods are 5, by default, and thus the acceleration lasts for 20 cycles. Default asymptotic parameters are used in Section 3, however user-defined parameters are also allowed.

3 Results and discussion

The ASM’s performance is evaluated in this section. In order to more effectively compare the convergence characteristic with and without the superhistory method, this work uses the Wasserstein distance (WD) measure (Guo et al., 2022) as defined by Eq. 27, which is similar to the progress relative entropy but performs better:

${\text{WD}}_{r,j}=\frac{1}{m}\sum _i^m|d_{i,j}^{\ast }-d_{i,2}^{\ast }|,j\ge 2,(27)$

where WD_r,j is WD of cycle j in the r direction (r can be x, y or z), i is the neutron index, and $d_{i,j}^{\ast }$ is the coordinate of neutron i after sorting. The Wasserstein distance’s physical meaning is the average distance between neutrons in cycle j and cycle 2.

Besides, an experience-based convergence criterion is employed:

$j-j_{\text{min}}>\frac{j_{\text{max}}}{\ln j},(28)$

where j_max = max (WD_r,2, WD_r,3, … , WD_r,j) and $j_{\min }=\min ({\text{WD}}_{r,j_{\text{max}}},{\text{WD}}_{r,j_{\text{max}}+1},\dots ,{\text{WD}}_{r,j})$. This convergence criterion make use of the property that WD has a monotonically increasing trend. The meaning of Eq. 28 is that WD fluctuates within the range $({\text{WD}}_{r,j_{\text{max}}},{\text{WD}}_{r,j_{\text{min}}})$ over an experience-based number of cycles, j_max/ln j. j_max is larger as the convergence rate is lower, and the fluctuation process to reach convergence is longer since j_max/ln j is larger. The validity of this convergence criterion is provided below, based on the test case from the C5G7-TD benchmark (Hou et al., 2017).

3.1 The C5G7-TD benchmark and the TD4-4 case

The C5G7-TD benchmark consists of a set of kinetic and transient test cases. Figure 2 depicts a quarter of its geometry model, with Figures 2A,B showing the 2-dimensional (2D) geometry and the 3D geometry’s expansion down the z-axis, respectively. Guo et al. (2021) simulated all subcritical kinetic cases using the RMC code.

FIGURE 2

FIGURE 2. Geometry configuration of the C5G7-TD benchmark. (A) Horizontal and (B) vertical cross-section of the C5G7-TD model.

The C5G7-TD benchmark has 28 subcritical kinetic cases. The TD4-4 case is a 3D transient, driven by the control rod (CR) movement shown in Figure 3. Initially, the CRs in assembly 4 are inserted. After 2 s the insertion stops at one-third depth of the assembly, and then the CRs stay in the position. At the end of 4 s, the CRs in assembly 4 are withdrawn, meanwhile the CRs in assembly 3 are inserted. After 2 s, the CRs in assembly 4 are fully out of the core, and the CRs in assembly 3 stops insertion and are withdrawn until the end of 8 s.

FIGURE 3

FIGURE 3. Control rod movement in TD4-4.

3.2 Validation of the convergence criterion

The previous study (Guo et al., 2021) employed 200 inactive cycles and 400 active cycles for TD4-4’s convergence at all time steps, and the results showed good agreement with other codes. The reason for a global inactive cycle configuration throughout the transient is that the convergence is unknown in advance, and thus a conservative value is required. Using Eq. 28, the cycles at which the neutron source iteration achieves convergence are displayed in Figure 4.

FIGURE 4

FIGURE 4. The convergence cycles of TD4-4, given by Eq. 28.

Nearly half of the time steps require over 100 iterations to converge. Especially, time step t = 1.75 s requires a maximum of 194 iterations, and time step t = 4.75 s requires a second maximum of 187 iterations. Both are close to but still less than 200. Therefore, the convergence criterion demonstrates the conservatism of the previous configuration.

A comparative calculation is performed to further validate the convergence criterion, in which the inactive cycle configurations are set as the declared convergence iterations shown in Figures 4, 5 compares the reactivity results. It is found that the reactivity profile obtained by fewer iterations given by Eq. 28 is in good agreement with that obtained by 200 iterations, with all time-steps’ deviation less than 3 times the standard deviation. Therefore, the convergence criterion can be used to determine the convergence iteration. At least, it is valid for the TD4-4 case.

FIGURE 5

FIGURE 5. Comparison of reactivity profiles, obtained by setting 200 inactive cycles and using Eq. 28.

3.3 Performance of the asymptotic superhistory method

To accelerate the entire TD4-4 transient calculation, the ASM is used. After acceleration, the convergence iterations given by Eq. 28 are shown in Figure 6. When compared to Figure 4, the asymptotic super history method significantly speeds up the neutron source iteration. Notably, the convergence cycles are reduced at every time step.

FIGURE 6

FIGURE 6. The convergence cycles given by Eq. 28, after accelerating TD4-4’s transient calculation by ASM.

Figure 7 provides the comparison of reactivity profiles obtained with and without ASM. It is observed that two reactivity curves agree well statistically. Therefore, implementation of ASM does not reduce the accuracy of the result.

FIGURE 7

FIGURE 7. Comparison of reactivity profiles, obtained by setting 200 inactive cycles and using ASM.

The whole TD4-4 transient consists of 41 time steps, and the previous study used a total of 8,200 inactive cycles. Applying the asymptotic super history method reduces the number of inactive cycles to 1,172, a reduction of more than 85%. Considering that a complete MC calculation consists of both inactive and active cycles, the total simulation cycles and the total computational time are compared, and the results are listed in Table. 1. It is found that over 15% of the total computational cost is saved.

TABLE 1

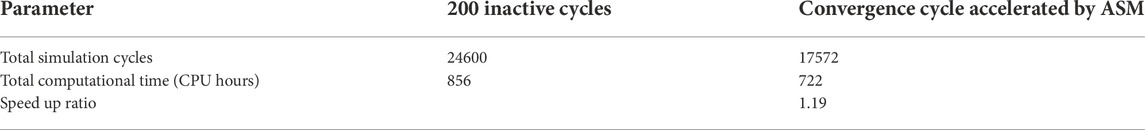

TABLE 1. Performance of ASM.

3.4 Inspection of the convergence process

A detailed inspection into the convergence process is studied using WD curves. Since the slowest convergence occurs at t = 1.75 s and t = 4.75 s as Figure 4 shows, the two time steps are selected to apply WD diagnostics. The Wasserstein diagnostics curves are depicted in Figures 8A,B at the two time steps.

FIGURE 8

FIGURE 8. WD curves at (A) 1.75 s and (B) 4.75 s, without ASM.

In the x and y direction, the WD curves exhibit steep rising edge and rapidly reaches stable after less than 20 cycles. However, in the z direction, the WD curves rise slowly, which slows down the convergence. Besides, the WDz curves show distinct fluctuation, which indicates that the neutron source distribution is oscillating along the z direction. One of the reason is that the length of the active region along the z direction is 128.52 cm, three times of that along the x and y directions (42.84 cm). Another reason is that this study uses a quarter core model, in which the left and up boundary conditions in Figure 2A are reflective along x and y directions, while the up and down boundary conditions in Figure 2B are crossing along z directions. Therefore, the neutron source distribution trends to oscillate around the axis of symmetry along the z direction.

It is also noted that the WDz curve is higher than the WDx and WDy curves at t = 1.75 s, while the WDz curve is lower at t = 4.75 s. Only the CRs in assembly 4 is moving vertically at t = 1.75 s, which causes larger changes of the neutron source distribution along the z direction. However, at t = 4.75 s the CRs in both assembly 3 and 4 are moving oppositely, and thus the neutrons are flowing from assembly 3 into assembly 4, causing larger changes in the horizontal direction.

After applying ASM, the WD curves exhibit significant changes, as shown in Figure 9. The curves in the x and y direction stable at much faster speed and lower level (WD < 0.1) than the curves in Figure 8. Considering the first asymptotic factor is 16, the neutron source distribution in the x and y direction is accelerated by 16 times the original convergence speed as revealed by Eq. 26. Because the neutron source distribution along the x and y directions converges at less than 20 cycles in Figure 8, the curves in the x and y direction after applying the ASM method stable after 2 cycles theoretically. Because WD uses the second cycle as the reference, the WDx and WDy values are as small as their fluctuation range.

FIGURE 9

FIGURE 9. WD curves at (A) 1.75 s and (B) 4.75 s, with ASM.

In the z direction, however, the WD curves stable at a little higher level than those in the x and y direction. Figure 10 compares the WD_z curves with and without ASM. It is found that the WD_z curves obtained with ASM are lower than those without ASM, which indicates that the convergence is accelerated in the first cycle because the neutrons of next cycles become closer to those of the second cycle. Therefore, the WD results also proves the acceleration capability of ASM.

FIGURE 10

FIGURE 10. Comparison of Wasserstein distance curves in the z direction at (A) 1.75 s and (B) 4.75 s.

4 Conclusion

The acceleration problem in the MC PCQS calculation is studied in this paper. TFSE and the corresponding neutron source iteration algorithm are introduced, as well as the reason to use iterations. A simplified model is used to analyze the iteration convergence features of TFSE. It is found that reducing ESR is capable of accelerating the iteration convergence. Therefore, ASM is developed for MC PCQS to decrease inactive cycle numbers and lower the computational cost. The performance is tested with the TD4-4 case of the C5G7-TD benchmark. Results show that the number of inactive cycles is reduced by more than 85% compared with the previous study, and over 15% of the total computational cost is saved. Using the Wasserstein distance measure, it is found that ASM considerably speeds up the convergence of the neutron source distributions along the x and y directions. The iteration is also accelerated along the z direction. As predicted by the convergence characteristic analysis using the simplified model, the time step affects the convergence, which will be studied in the future.
