Experimental Study on Stratification Morphology of the Molten Pool During Severe Accident

Stratification morphology of a molten pool under severe reactor accident was investigated by the CESEF experimental facility. The experimental scale was 5,000 g, the atomic ratio of U/Zr was 1.5, the content of stainless steel was 10%, and the oxidation degree of Zr was 40–100%. It was shown that the molten pool was obviously stratified within the range of experimental parameters; one was a metal layer, and the other was an oxide layer. The layered morphology of the molten pool was different with the composition of different corium. With the decrease in the Zr oxidation degree, the metal layer moved downward in the molten pool, and the molten pool would overturn. The main elements in the oxide layer were U, Zr, and O, and the content of stainless steel was low. The main element in the metal layer was stainless steel and contained a certain amount of U and Zr.

Introduction

In the severe accident of a nuclear reactor, such as the Fukushima Daiichi NPP (nuclear power plant), the fuel and structural materials in the core had been melted (Report of Japanese Government to the IAEA Ministerial Conference on Nuclear Safety, 2011). The molten materials (UO₂, Zr, ZrO₂, stainless steel, etc.) were heated up and melted by decay heat as the coolant in the pressure vessel was depleted. Finally, a molten pool with U-Zr-Fe-O as the main element is formed. The configuration of the molten pool, so called corium, as it affects the failure mechanism of the pressure vessel. The thermodynamic properties of the melt determine that the molten pool will be stratified at the lower head of the pressure vessel, and the stratification morphology of the molten pool determines the heat distribution of the lower head, which is one of the key factors of IVR (retention in the melt stack) strategy. For a long time, the stratification form of the molten pool has been a hot and difficult point in the field of severe accidents at home and abroad.

It was suggested that the compositions of the molten pool formed at the late phase of a severe accident would be in the domain of the miscibility gap of the U-Zr-Fe-O phase diagram, and two immiscible liquid phases will be formed (Theofanous et al., 1997). Edwards (Edwards and Martin, 1966), Hirotomo (Ikeuchi et al., 2020), Guéneau (Guéneau et al., 1998), Bakardjieva (Bakardjieva et al., 2010), Pierre Yves (Chevalier et al., 2004), and Pascal Piluso (Pascal et al., 2005) found that the U-O binary system will be divided into two layers, and Guéneau (Guéneau et al., 1998), Jinho Song (Song et al., 2020), and Bechta (Bechta and Granovsky, 2008) found that the U-Zr-O ternary system will also be divided into two layers. The thermodynamic database of the U-Zr-Fe-O-B-C-FPs complex system is established by the SGTE (scientific group thermodata Europe) database (Fukasawa et al., 2005), and the calculated results are consistent with the experimental data of MASCA (Fukasawa and Shigeyuki, 2012). Bechta (Bechta et al., 2005) supplemented and revised the European nuclear database (NUCLEA) with the help of the experimental data of CORPHAD and METCOR projects, providing a more accurate model for the thermodynamic calculation of the melt.

The RASPLAV project (Asmolov and Behbahani, 2000; Bechta and Khabensky, 2001; Bechta and Khabensky, 2006) carried out experimental research with prototype melt materials and found that the bottom of the molten pool was rich in U and the top was rich in Zr. In the MASCA project (Asmolov, 2004; Tsurikov et al., 2007), three different melting pool stratification forms were found, namely, the molten pool with the metal layer above and the oxide layer below, the molten pool with the metal layer below and the oxide layer above, and the molten pool with the metal layer suspended in the oxide layer. The South Korea COSMOS project (Kang and Park, 2014) found that the molten pool presents a three-layered structure, with a metal layer in the upper part and an oxide layer and some heavy metals in the lower part. The EU IVMR project (Almjashev et al., 2018) studied the layered inversion phenomenon of the molten pool and also found the stratification morphology of the three-layered molten pool. Masahide Takano (Takano et al., 2014) and other experiments on the Fukushima Daiichi nuclear accident show that the molten pool is divided into a metal layer (Fe-Cr-Ni-U-B-C) and an oxide layer (U-Zr-O). Sang Mo (Sang et al., 2016) also carried out experimental research on the prototype melt materials for the Fukushima Daiichi nuclear accident and found that the molten pool was divided into two layers, with a metal layer at the top and an oxide layer at the bottom.

In this study, the configuration of the molten pool for a typical Hualong nuclear reactor composition was investigated by a melting and solidification experiment using an induction heating technique in a cold crucible. The physical and chemical analyses were conducted for the samples taken from the solidified corium ingot to investigate the morphology and chemical composition at each position.

Experimental Methods

Experimental Setup

The CESEF facility is designed to investigate the stratification of the molten pool at the lower head of the pressure vessel under severe accident, which adopts an electromagnetic induction heating technique with a cold crucible. This technique has been optimized for melting of various reactor materials ranging from a metallic mixture of Zr and stainless steel to an oxidic mixture of UO₂ and ZrO₂, which are the prototypic reactor materials (Sang et al., 2016). The cold crucible consists of a copper plate and an induction coil. The copper plate is forced to circulate to provide cooling. The induction coil is located to provide induction heating by using a high frequency generator. A high frequency generator was designed to supply power up to 400 kW with 100 kHz. However, the frequency could change depending on several factors, such as crucible dimensions, induction coil turns, and melting materials, and so on (Sang et al., 2016). The cold crucible is installed in the inerting chamber and has a diameter of 110 mm and a height of 170 mm. A schematic diagram of the facility is given in Figure 1. There is a window at the top of the inerting chamber to measure the temperature of the molten pool, which adopts two-color infrared. The temperature measurement rang of two-color infrared is 1,500–3,500°C, and the measurement accuracy is ± 1.5%. Argon gas is purged into the inerting chamber through a tube at the bottom of the inerting chamber.

FIGURE 1

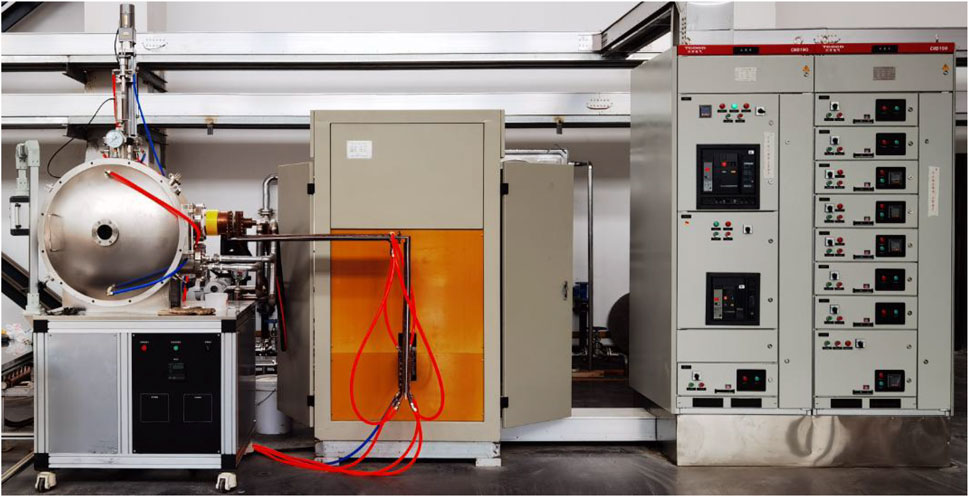

FIGURE 1. Schematic diagram of the CESEF facility.

Figure 2 shows the melt generation behavior along with the supplied voltage. The voltage increased by 10–20 V every 2 minutes. When the voltage was about 140–160 V, the Zr ring started to light up. After 200 V, the molten pool started to melt, the current decreased, and the power decreased. It was held for 2 h, and the experiment was ended.

FIGURE 2

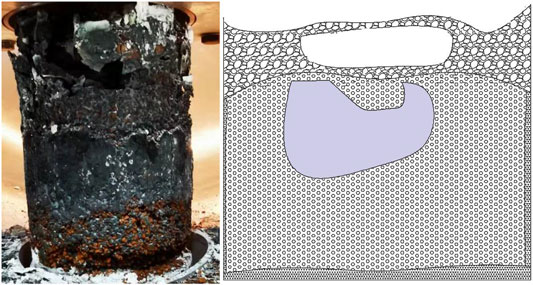

FIGURE 2. Morphology of the corium ingot after the experiment (2).

Experimental Materials

The cold crucible was filled with a mixture of UO₂ pellets, ZrO₂ powder, Zr pellets, and stainless steel pellets. The composition of the prototype material is usually defined by the atomic molar ratio (R_U/Zr) of U and Zr, the oxidation ratio (Cn) of Zr, and the mass ratio (X_SS) of stainless steel to the prototype material. Assuming that the mass of each component in the prototype material is m_i, i = UO₂, ZrO₂, Zr, and SS (stainless steel), the calculation method of each parameter is as follows:

$R_{U/Zr}=\frac{m_{U{O}_2}/271}{m_{Zr{O}_2}/123+m_{Zr}/91},(1)$

$C_n=\frac{m_{Zr{O}_2}/123}{m_{Zr{O}_2}/123+m_{Zr}/91},(2)$

$X_{SS}=\frac{m_{SS}}{m_{U{O}_2}+m_{Zr{O}_2}+m_{Zr}+m_{SS}}.(3)$

The experimental scale is 5,000 g, the R_u/Zr is 1.5, the X_SS is 10%, and the Cn is 40–100% experimental conditions are shown in Table 1. Cn of condition one is 100%, Cn of condition two is 80%, and Cn of condition three is 40%. The loading process is as follows: first, a layer of ZrO₂ was laid at the bottom of the crucible to protect the crucible during the melting process. Then, UO₂ pellets and ZrO₂ powder were added into the crucible; stainless steel was placed in the middle of the crucible to prevent direct contact between stainless steel and the crucible wall. It was allowed to flatten and compact; then, a layer of ring composed of Zr pellets was laid on the upper part as an initiator for induction heating, and finally, a layer of ZrO₂ powder was laid on the upper part to reduce heat loss from the melt to the environment. Some holes were initially made by the stainless steel wire for gas venting.

TABLE 1

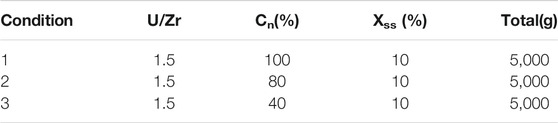

TABLE 1. Experimental condition.

Chemical Analysis

After the experiment, the molten ingot was cut from the middle by using a wire cutting machine and then sampled at different positions by using a tungsten cobalt hollow drill. The samples are used to analyze the chemical composition and structure, which was obtained from X-ray fluorescence (XRF) and a scanning electron microscope/energy dispersive spectrometer (SEM/EDS). The XRF equipment is S8 TIGER, a wavelength-dispersive X-ray fluorescence spectrometer produced by the BROOKE Company, with a maximum excitation current of 170 mA and a maximum excitation point of 60 kV. The SEM equipment is Gemini SEM, a fully functional emission scanning electron microscope produced by the Zeiss Company, and equipped with two Oxford X-ray spectrometers, which can be widely used for micro area morphology and composition analysis.

Results and Discussion

Morphology of Corium Ingot

Figure 2 shows the morphology of the corium ingot after the experiment. It is shown that the corium ingot consists of six parts; the upper crust, upper cavity, metal-rich layer, oxide-rich layer, side crust, and lower unmelted part. The upper crust is mainly unmelted ZrO₂ and sintered melt during the melting process (Sang et al., 2016) because the top layer is exposed to the atmosphere and cooled by radiating heat to the inerting chamber, so that the top layer has been cooled before reaching the melting temperature. Some amount of the unmelted layer was observed at the bottom and side of the corium ingot. A large cavity is formed between the upper crust and the molten ingot, which is formed due to the volume reduction of molten particles after melting and the downward collapse of the molten pool (Song et al., 2018). A lump of the corium ingot below the cavity was found; the metal layer and oxide layer are easy to distinguish after cut from the middle by the wire-cutting machine. The metal layer is bright, and the oxide layer is dark. After separating the metal layer and oxide layer, it is found that the metal layer is very hard and the oxide layer is brittle. It can be considered that liquid phase separation occurs in the melting process because phase separation will not be so complete if it occurs in the solidification process (Sang et al., 2016). The density of the metal layer and oxide layer is different so as to form a different morphology of the molten pool. We found three different molten pool stratification: the molten pool with a metal layer above and an oxide layer below, the molten pool with a metal layer below and an oxide layer above, and the molten pool with the metal layer suspended in the oxide layer, which is similar to the experimental results of the MASCA project (Asmolov, 2004; Tsurikov et al., 2007). A side crust with a thickness of about 2 mm is formed between the ingot and crucible. The crust isolates the internal 2,800°C high-temperature melt from the cold crucible, which shows that the thermal conductivity of the crust of the melt is very small.

Stratification Morphology of the Molten Pool

Figure 3 is a longitudinal sectional view of the corium ingot. The metal layer and oxide layer in the ingot are very easy to distinguish. The metal layer is bright, and the oxide layer is dark. In working condition 1, the melt composition is mainly oxide and Zr metal is completely oxidized. No obvious stratification is found in the molten pool formed by this melt composition, and only a metal ball with a diameter of about 10 mm is formed at the top of the molten pool. With the decrease in the Zr oxidation degree, obvious stratification began to appear in the molten pool, forming a bright metal layer and dark oxide layer. In working condition 2, the formed metal layer is located in the upper part of the molten pool, and the oxide layer is located in the lower part of the molten pool. The metal layer formed in working condition three is located in the middle of the molten pool; the oxide layer wraps the metal layer, and the approximate metal layer is suspended in the middle of the molten pool. The MA experiment in the MASCA project also found three-layered molten pools (Tsurikov et al., 2007).It is found that the metal ball in condition one is mainly composed of stainless steel, which will be described in detail in section 3.3 composition analysis. The density of stainless steel is lower than that of the oxide layer, and it floats on the upper part of the oxide layer. As the oxidation degree of Zr decreases, more U and Zr elements enter the metal layer, the density of the metal layer gradually increases, and the metal layer begins to migrate downward. By working condition 3, the density of the metal layer has been equivalent to that of the oxide layer. The metal layer is suspended in the oxide layer.

FIGURE 3

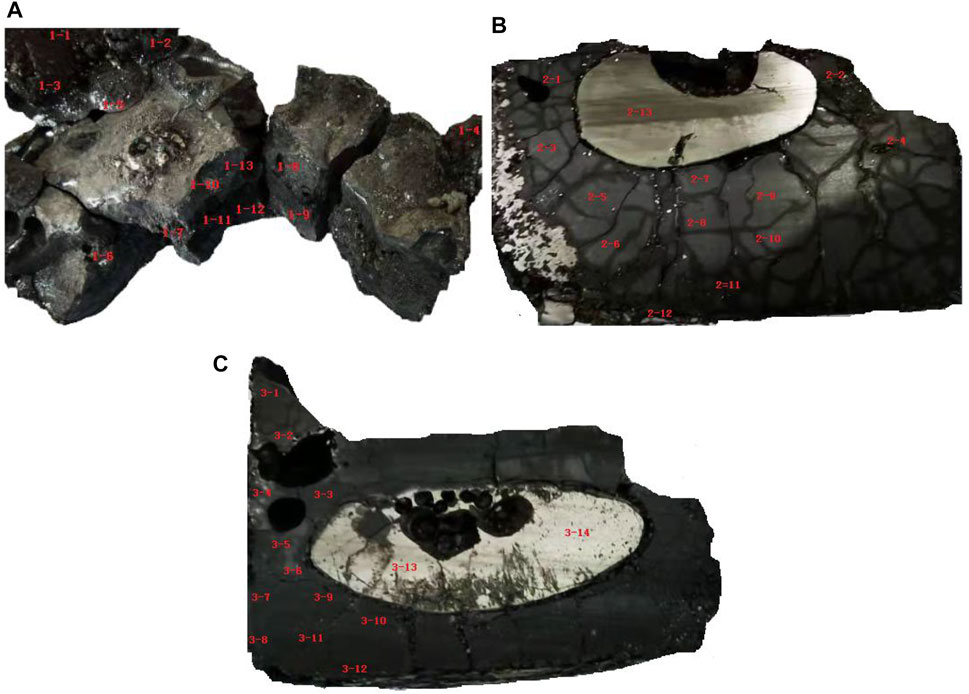

FIGURE 3. Longitudinal sectional view of the corium ingot (A) 1, (B) 2, (C) 3.

Composition Analysis

The corium ingot is cut axially, and then, a small part of the ingot was sampled at different positions, including the upper crust, around the cavity, side crust, lower crust, metal layer, and oxide layer, as shown in Figure 4.

FIGURE 4

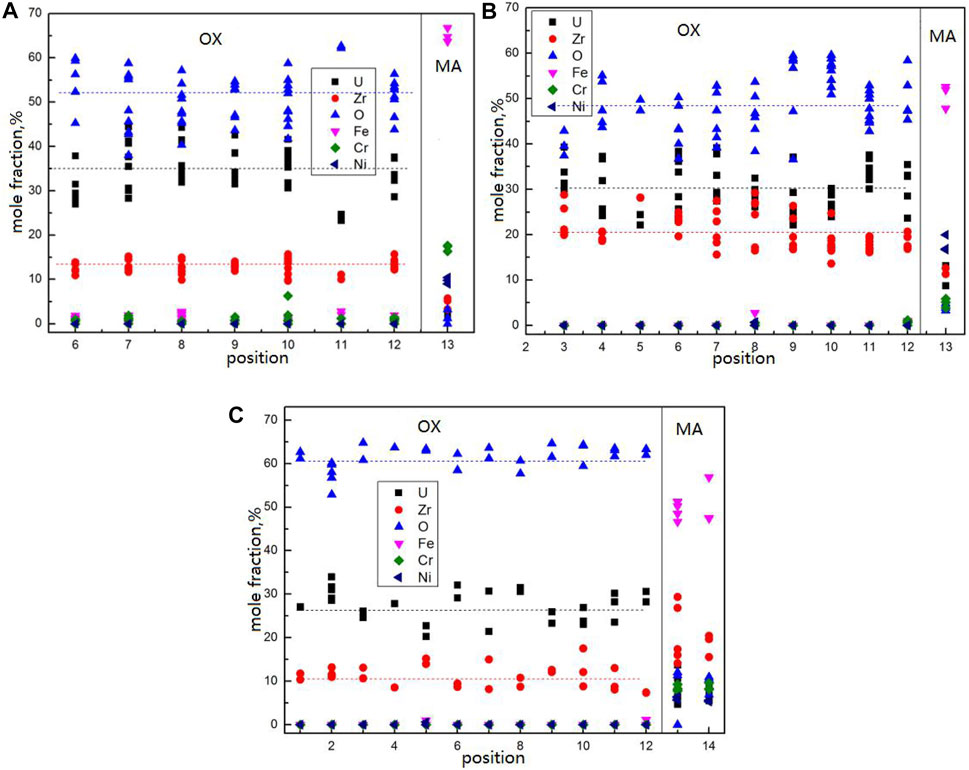

FIGURE 4. Element distribution characteristics of the molten pool (A) 1, (B) 2, (C) 3.

Elemental compositions of the samples taken from the different positions of the corium ingot are shown in Table 2. Table 2 only shows the XRF analysis results of condition 1. Total concentrations of U, Zr, Fe, Ni, and Cr in the samples were less than 100%, which implies that the samples contain other elements such as oxygen that are not measurable by XRF. In condition 1, 1-1 to 1–5 are the sampling points of the upper crust. It is found that the content of elements in different positions of the upper crust varies greatly, mainly because on the one hand, the top melt is not completely melted and is only sintered together, so it is difficult for mass transfer in the crust. On the other hand, after the upper crust is formed, it is quickly separated from the lower molten pool, forming a large cavity, and then, mass transfer will not occur with the molten pool. On the other hand, at high temperature, some elements will escape from the molten pool and then be adsorbed on the upper crust. Three reasons lead to great differences in the distribution of elements at different positions of the upper crust, and other conditions also have similar characteristics.

TABLE 2

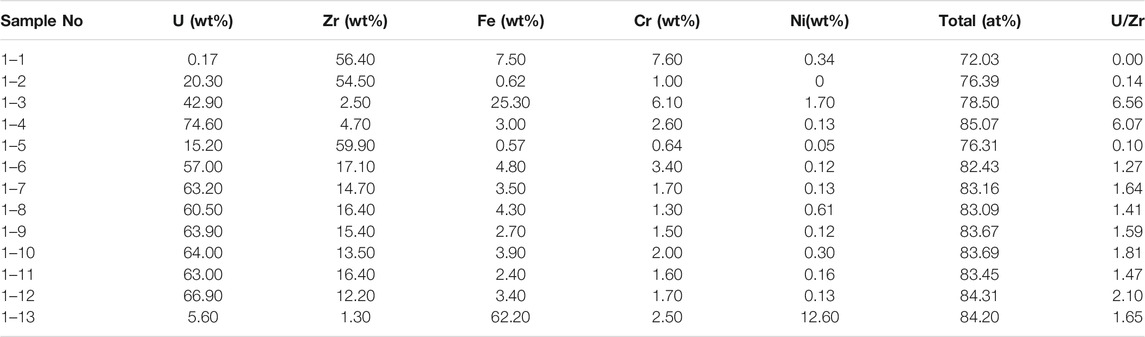

TABLE 2. Elemental compositions of the corium samples measured using XRF (condition 1).

The main elements of the oxide layer are U and Zr in condition 1; the content of U is about 62.64%, Zr is about 15.1%, and stainless steel is very low, less than 5%. Similar results are obtained in conditions 2and 3. The main elements in the metal layer are stainless steel, Fe, Cr, and Ni; the content of Fe in the metal ball in condition one is as high as 62.2%, and the contents of U and Zr are very low. With the decrease of C_n, the Fe content in the metal layer decreases, and the contents of U and Zr increase. Under condition 3, the Fe content in the metal layer is about 34%, while U is about 21% and Zr is about 19.5%. The increase of U and Zr contents in the metal layer will increase the density of the metal layer, and the metal layer begins to move to the lower part of the molten pool.

Figure 4 shows the SEM/EDS test results of the experimental sample. It can be found that the elements of the oxide layer are mainly U, Zr, and O, and there are certain differences in the content of elements at different positions. This may be that during the cooling process of the molten pool, the temperature gradient in the molten pool is large and segregation occurs, resulting in certain differences in the contents of U and Zr at different positions. Under condition 1, the average content of U in the oxide layer is about 35%, the average content of Zr is about 14%, and the average content of O is about 52%, forming the oxide (U, Zr)O_1.3. The content of stainless steel in the oxide layer is very low, basically below 3%. Under condition 2, the average content of U in the oxide layer is about 32%, the average content of Zr is about 20%, and the average content of O is about 50%. The oxide (U, Zr)O₁ is formed. The oxide layer contains very little stainless steel, and the content is less than 2%. Under condition 3, the average content of U in the oxide layer is about 26%, the average content of Zr is about 10%, and the average content of O is about 60%, forming the oxide (U, Zr)O_1.7. The composition of stainless steel is not measured.

The metal ball has great hardness in condition 1, and the main component is stainless steel (Fe, Cr, and Ni), in which the content of Fe reaches about 65%, and the content of O in the metal ball is very low, less than 3%. In condition 2, the main elements in the metal layer are also stainless steel (Fe, Cr, and Ni) and some U and Zr, in which the content of Fe is about 50%, the content of Ni is about 18%, the content of Cr is about 5%, the content of U is about 10%, the content of Zr is about 12%, and the content of O is about 4%. In condition 3, the metal layer is mainly composed of stainless steel, in which the content of Fe is about 48%, the content of Cr is about 9%, the content of Ni is about 5%, the content of U is about 8%, the content of Zr is about 20%, and the content of O is about 7.5%.

It can be found from conditions 1, 2, and 3 that when the R_U/Zr is unchanged and the stainless steel content is low, C_n is the key factor for the stratification of the molten pool. When C_n reaches 100%, the molten pool will form a single layer of the oxide layer. With the reduction of C_n, the molten pool begins to appear in stratification, the area occupied by the metal layer increases, and the U and Zr contents in the metal layer increase, resulting in the increase of the density of the metal layer, and the metal layer begins to sink. The molten pool is turned from a metal layer on the upper oxide layer to a metal layer on the lower oxide layer.

Conclusion

In this study, the prototype materials are used to study the stratification morphology of the molten pool, and the following conclusions are obtained:

1) After the experiment, a complete corium ingot was formed. The molten corium mainly includes the upper crust, upper cavity, metal-rich layer, oxide-rich layer, side crust, and lower unmelted part;

2) With different melt composition, the layered structure of the molten pool is different. An obvious layered structure of the molten pool is observed. One layer is the bright layer, and the other is the dark layer;

3) The main elements in the oxidation layer of the molten pool are U, Zr, and O, and the content of stainless steel is low. The main elements in the metal layer are stainless steel and contain a certain amount of U and Zr at the same time;

4) With the decrease in the Zr oxidation degree, the contents of U and Zr in the metal layer of the molten pool increase, the density of the metal layer increases, and the molten pool will turn over.
