Delay-Dependent Stability Analysis of Load Frequency Control for Power System With EV Aggregator

In this paper, the stability of load frequency control (LFC) for delayed power systems with an electric vehicle (EV) aggregator is studied based on Lyapunov theory and linear matrix inequalities (LMIs). Through mechanism analysis, the LFC of power systems with an EV aggregator based on a proportional–integral–differential (PID) controller is modeled. By constructing a delay interval information correlation functional and estimating its derivative using Wirtinger inequality and extended reciprocally convex matrix inequality, a new stability analysis criterion is proposed. Finally, in order to verify its advantage, the proposed method is used to discuss the influence of EV aggregator gains and PID controller gains on the delay margins for LFC of power systems with EV aggregator participation in frequency regulation.

1 Introduction

Under the guidance of sustainable development concept, the generation of renewable energy sources (RESs) such as wind power, hydropower, and photovoltaic power has developed rapidly in recent years, and part of traditional thermal power generation will be gradually replaced (Zhou et al., 2018). However, the grid connection of these RESs also brings some problems, especially the wind power generation with great intermittency and volatility (Jin et al., 2021b; Shi et al., 2021). These problems aggravate the imbalance between generation and load consumption in the power systems, resulting in obvious frequency fluctuation. Therefore, load frequency control (LFC) is widely used in power systems (Jin et al., 2019; Shangguan et al., 2021b). The frequency deviation caused by an intermittent energy grid connection is difficult to be eliminated by traditional generator sets. With the grid connection of controllable loads such as electric vehicles (EVs) and the rapid response characteristics of batteries, some studies paid attention to vehicle-to-grid technology, which provides frequency regulation services with a large number of converging EVs (Peng et al., 2017; Jia et al., 2018; Pinto et al., 2021; Teng et al., 2021).

In traditional power systems, the time delay phenomenon of the LFC system is not obvious. However, modern power systems tend to use flexible and open communication networks for information exchange (ShangGuan et al., 2021). For power systems with EVs and intermittent wind power connected, the EV aggregator needs to transmit the control command to the EVs through open communication networks (Ko and Sung, 2019; Li et al., 2019). The use of such networks will inevitably bring unreliable factors, such as time delay, packet loss, and potential failure, which may lead to instability of LFC for power systems (Jin et al., 2021a; Shangguan et al., 2021a). Therefore, it is very important to analyze the influence of time delays on the LFC of power systems with an EV aggregator. In addition, in order to ensure the stability of power system LFC, it is necessary to calculate the delay margins and determine all parameters of the proportional–integral–differential (PID) controller (Naveed et al., 2019b; Tek et al., 2020).

In recent years, EVs have been widely used in power systems, and there are also some studies on the influence of time delays and EV aggregator on LFC stability. The Rekasius substitution method is used to determine the stability delay margins of LFC with constant communication delays for an EV aggregator (Naveed et al., 2019a). Then, Naveed et al. presented a graphical method to describe the trajectory of the stable boundary and studied the influence of EV aggregators with communication delays on the stability regions and stability delay margins of the LFC system (Naveed et al., 2021). Based on Lyapunov theory and linear matrix inequalities (LMIs), stability criteria for time-varying delays using the Wirtinger-based improved integral inequality are proposed to calculate the delay margins for LFC with EVs, and the relationship between the gains and the delay margins of the PI controller is given in detail (Ko and Sung, 2018). Two stability criteria are derived, respectively, using Bessel–Legendre inequality and model reconstruction technique, and the interregional delay interaction and the effect of EV gain on the delay margins are discussed (Zhou et al., 2020). Khalil et al. proposed a microgrid model of photovoltaic power generation and EVs considering communication delay, and the maximum allowable delay bound for the stable operation of microgrids is calculated by solving the LMIs (Khalil et al., 2017). Dong et al. characterized the asymptotic stability of EV aggregation delays by using the delay distortion matrix structure of infinite operator dimension reduction and proved that convergence delay affects frequency stability in the form of low-frequency oscillation through three unstable modes (Dong et al., 2020). Although there have been some studies on the stability of delayed LFC systems with an EV aggregator, there are few studies on LFC of renewable energy power systems with an EV aggregator. Also, how to obtain more accurate delay margins remains a challenge.

In this paper, the stability of LFC for power systems with EV aggregator participation in frequency regulation is considered, and the influence of EV aggregator and controller gains on the delay margins is studied. Firstly, based on the PID controller, the LFC of power systems with an EV aggregator is modeled. Then, a new delay stability criterion using Wirtinger inequality and extended reciprocally convex matrix inequalities is proposed. Finally, according to the proposed stability criterion, the delay margins of LFC for power systems with an EV aggregator are obtained, and case studies are performed to show the advantage of the proposed method.

2 Model of LFC for Power System With EV Aggregator

The block diagram of the LFC for power systems with an EV aggregator is given in Figure 1, and the controller is the PID controller. e^−sτ and e^−sd denote the time delay of the frequency regulation circuit involved in the EV aggregator and the secondary frequency regulation circuit, respectively; K_EV is the gain of the EV aggregator; Δf, ΔP_EV, ΔP_WTG, ΔP_m, ΔP_v, and ΔP_d are the deviation of frequency, EV aggregator power output, wind turbine generator (WTG) power output, mechanical output of the generator, valve position, and load disturbance, respectively. Definitions of other related symbols in the figure are shown in Table 1.

FIGURE 1

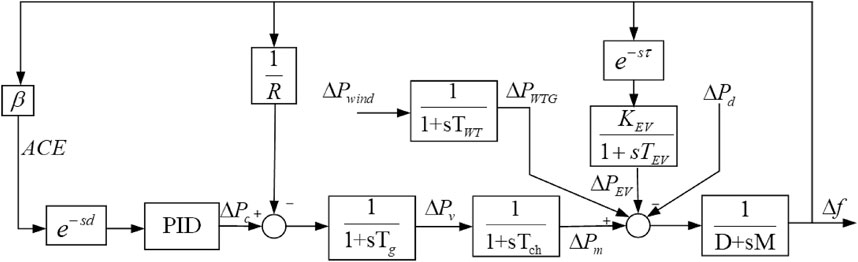

FIGURE 1. Frequency regulation scheme of the power system with an EV aggregator.

TABLE 1

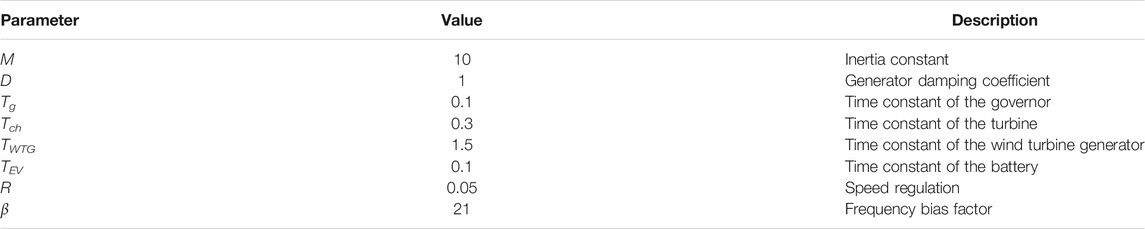

TABLE 1. Parameter of the LFC model.

Select the following state variables, output variables, disturbance, and control input:

$\bar{x}(t)={\left[\begin{array}{ccccc}\hfill \mathrm{\Delta }f\hfill & \hfill \mathrm{\Delta }{P}_{EV}\hfill & \hfill \mathrm{\Delta }{P}_{WTG}\hfill & \hfill \mathrm{\Delta }{P}_m\hfill & \hfill \mathrm{\Delta }{P}_v\hfill \end{array}\right]}^T,(1)$

$\bar{y}(t)=ACE(t)=\beta \mathrm{\Delta }f,(2)$

$w(t)={\left[\begin{array}{cc}\hfill \mathrm{\Delta }{P}_d\hfill & \hfill \mathrm{\Delta }{P}_{\text{wind\hspace{0.17em}}}\hfill \end{array}\right]}^T,(3)$

$u(t-\tau (t))=\mathrm{\Delta }{P}_c(t).(4)$

Then, the following system state space model can be obtained:

$\left\{\begin{array}{c}\dot{\stackrel{̄}{x}}(t)={\bar{A}}_1\bar{x}(t)+{\bar{A}}_2\bar{x}(t-\tau (t))+\bar{B}u(t-d(t))+\bar{F}\omega (t),\hfill \\ \bar{y}(t)=\bar{C}\bar{x}(t),\hfill \end{array}\right.(5)$

where

${\bar{A}}_1=\left[\begin{array}{ccccc}\hfill -\frac{D}{M}\hfill & \hfill \frac{1}{M}\hfill & \hfill \frac{1}{M}\hfill & \hfill \frac{1}{M}\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill -\frac{1}{T_{EV}}\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill -\frac{1}{T_{WT}}\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill -\frac{1}{T_{ch}}\hfill & \hfill \frac{1}{T_{ch}}\hfill \\ \hfill -\frac{1}{R{T}_g}\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill -\frac{1}{T_g}\hfill \end{array}\right],{\bar{A}}_2=\left[\begin{array}{ccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill \frac{K_{EV}}{T_{EV}}\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \end{array}\right],$

$\bar{B}={\left[\begin{array}{ccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \frac{1}{T_g}\hfill \end{array}\right]}^{\bar{T}}\bar{F}={\left[\begin{array}{ccccc}\hfill -\frac{1}{M}\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill \frac{1}{T_{WT}}\hfill & \hfill 0\hfill & \hfill 0\hfill \end{array}\right]}^T\bar{C}=\left[\begin{array}{ccccc}\hfill \beta \hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \end{array}\right].$

The controller is designed as

$u(t)=-K_{\text{p}}ACE(t)-K_{\text{i}}\int ACE(t)\mathrm{d}t-K_{\text{d}}\frac{\mathrm{d}ACE(t)}{\mathrm{d}t}.(6)$

Define the new vectors $x(t)={\left[{\bar{x}}^T(t)\int {\bar{y}}^T(t)dt\right]}^T$, $y(t)={\left[{\bar{y}}^T(t)\int {\bar{y}}^T(t)dt\frac{d}{dt}{\bar{y}}^T(t)\right]}^T$ and K = [K_p K_i K_d]. The system (Eq. 5) is rewritten as

$\left\{\begin{array}{c}\dot{x}(t)=A_{1}x(t)+A_{2}x(t-\tau (t))+Bu(t-d(t))+Fw(t),\hfill \\ y(t)=Cx(t)+Dw(t),\hfill \\ u(t)=-Ky(t),\hfill \end{array}\right.(7)$

where $A_1=\left[\begin{array}{cc}\hfill {\bar{A}}_1\hfill & \hfill 0\hfill \\ \hfill \bar{C}\hfill & \hfill 0\hfill \end{array}\right]$, $A_2=\left[\begin{array}{cc}\hfill {\bar{A}}_2\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill \end{array}\right]$, $B=\left[\begin{array}{c}\hfill \bar{B}\hfill \\ \hfill 0\hfill \end{array}\right]$, $F=\left[\begin{array}{c}\hfill \bar{F}\hfill \\ \hfill 0\hfill \end{array}\right]$, $C=\left[\begin{array}{cc}\hfill \bar{C}\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 1\hfill \\ \hfill \bar{C}{\bar{A}}_1\hfill & \hfill 0\hfill \end{array}\right]$, and $D={\left[\begin{array}{ccc}\hfill 0\hfill & \hfill 0\hfill & \hfill CF\hfill \end{array}\right]}^T$.

In order to simplify the analysis, it is assumed that the delay τ(t) of the frequency regulation circuit involved in the EV aggregator is consistent with the delay d(t) of the secondary frequency regulation circuit. Then, the closed-loop state space equation of LFC for the delayed power system with an EV aggregator can be obtained as follows:

$\dot{x}(t)=Ax(t)+A_{d}x(t-d(t))+F_{w}w(t),(8)$

where A = A₁, A_d = A₂ – BKC, and F_w = F − BKD.

3 Delay-Dependent Stability Analysis

When discussing the internal stability of the power system, the influence of external disturbance can be ignored. The model of LFC for the delayed power system with an EV aggregator is obtained as follows:

$\dot{x}(t)=Ax(t)+A_{d}x(t-d(t)),(9)$

where h₁ ≤ d(t) ≤ h₂ and ∀t > t₀.

The following stability criterion for system (Eq. 9) is derived by using Wirtinger inequality (Seuret and Gouaisbaut, 2013) and extended reciprocally convex matrix inequality (Zhang et al., 2017).

Theorem 1. For given scalars α > 0, h₂ > h₁ > 0, the LFC of the closed-loop power system with an EV aggregator (Eq. 9) is exponentially stable, if there exist matrices P > 0, Q_i > 0, Z > 0, R > 0, i = 1, 2, and any matrix S₁ or S₂ with appropriate dimension, satisfying

${\mathrm{\Phi }}_1=\left[\begin{array}{cc}\hfill {\mathrm{\Psi }}_{1,[h_1]}-{\mathrm{\Psi }}_2-{\mathrm{\Psi }}_4\hfill & \hfill E_2^T{S}_2\hfill \\ \hfill *\hfill & \hfill -\tilde{R}\hfill \end{array}\right]<0,(10)$

${\mathrm{\Phi }}_2=\left[\begin{array}{cc}\hfill {\mathrm{\Psi }}_{1,[h_2]}-{\mathrm{\Psi }}_2-{\mathrm{\Psi }}_5\hfill & \hfill E_3^T{S}_1\hfill \\ \hfill *\hfill & \hfill -\tilde{R}\hfill \end{array}\right]<0,(11)$

where

${\mathrm{\Psi }}_{1,[d(t)]}={\mathrm{\Pi }}_1^{T}P{\mathrm{\Pi }}_2+{\mathrm{\Pi }}_2^{T}P{\mathrm{\Pi }}_1+e_1^T{Q}_1{e}_1+e_2^T\left(Q_2-Q_1\right)e_2-e_4^T{Q}_2{e}_4+e_s^T\left[h_1^{2}Z+h_{12}^{2}R\right]e_s$

${\mathrm{\Psi }}_2=E_1^T\left[\mathrm{d}\mathrm{i}\mathrm{a}\mathrm{g}\{Z,3Z\}{e}^{-\alpha h_1}\right]E_1$ ${\mathrm{\Psi }}_4={\left[\begin{array}{c}\hfill E_2\hfill \\ \hfill E_3\hfill \end{array}\right]}^T\left[\begin{array}{cc}\hfill 2\tilde{R}\hfill & \hfill S_1\hfill \\ \hfill *\hfill & \hfill \tilde{R}\hfill \end{array}\right]\left[\begin{array}{c}\hfill E_2\hfill \\ \hfill E_3\hfill \end{array}\right]$${\mathrm{\Psi }}_5={\left[\begin{array}{c}\hfill E_2\hfill \\ \hfill E_3\hfill \end{array}\right]}^T\left[\begin{array}{cc}\hfill \tilde{R}\hfill & \hfill S_2\hfill \\ \hfill *\hfill & \hfill 2\tilde{R}\hfill \end{array}\right]\left[\begin{array}{c}\hfill E_2\hfill \\ \hfill E_3\hfill \end{array}\right]$${\mathrm{\Pi }}_1=\mathrm{col}\left\{e_1,h_1{e}_5,\left(d(t)-h_1\right)e_6+\left(h_2-d(t)\right)e_7\right\}$${\mathrm{\Pi }}_2=\mathrm{col}\left\{e_s,e_1-e_2,e_2-e_4\right\}$$e_i=\left[0_{n\times (i-1)n},I,0_{n\times (7-i)n}\right],i=\mathrm{1,2},\dots ,7$$E_i=\mathrm{col}\left\{e_i-e_{i+1},e_i+e_{i+1}-2e_{i+4}\right\},i=\mathrm{1,2,3}$$\tilde{R}=\mathrm{diag}\{R,3R\}{e}^{-\alpha h_2}$h₁₂ = h₂ − h₁, e_s = Ae₁ + A_de₃.

Proof: Construct the following Lyapunov–Krasovskii functional:

$\begin{array}{cc}\hfill V(t)=& {\eta }^T(t)P\eta (t)+h_1{\int }_{-h}^0{\int }_{t+\theta }^t{e}^{\alpha (s-t)}{\dot{x}}^T(s)Z\dot{x}(s)dsd\theta +h_{12}{\int }_{-h_2}^{-h_1}{\int }_{t+\theta }^t{e}^{\alpha (s-t)}{\dot{x}}^T(s)R\dot{x}(s)dsd\theta \hfill \\ \hfill & +{\int }_{t-h_1}^t{e}^{\alpha (s-t)}{x}^T(s)Q_{1}x(s)ds+{\int }_{t-h_2}^{t-h}{e}^{\alpha (s-t)}{x}^T(s)Q_{2}x(s)ds,\hfill \end{array}(12)$

where $\eta (t)=\mathrm{col}\left\{x(t),{\int }_{t-h_1}^{t}x(s)ds,{\int }_{t-h_2}^{t-h_1}x(s)ds\right\}$.Calculating the derivative of V(t), we get

$\begin{array}{cc}\hfill \dot{V}(t)+\alpha V(t)\le & {\eta }^T(t)P\dot{\eta }(t)+{\dot{\eta }}^T(t)P\eta (t)+\alpha {\eta }^T(t)P\eta (t)+{\dot{x}}^T(t)\left(h_1^{2}Z+h_{12}^{2}R\right)\dot{x}(t)\hfill \\ \hfill & -h_1{\int }_{t-h}^t{e}^{-\alpha h_1}{\dot{x}}^T(s)Z\dot{x}(s)ds-h_{12}{\int }_{t-h_2}^{t-h}{e}^{-\alpha h_2}{\dot{x}}^T(s)R\dot{x}(s)ds+x^T(t)Q_{1}x(t)\hfill \\ \hfill & +e^{-\alpha h_1}{x}^T\left(t-h_1\right)\left(Q_2-Q_1\right)x\left(t-h_1\right)-e^{-\alpha h_2}{x}^T\left(t-h_2\right)Q_{2}x\left(t-h_2\right)\hfill \\ \hfill & ={\zeta }^T(t){\psi }_{1,[d(t)]}\zeta (t)-h_1{\int }_{t-h}^t{e}^{-\alpha h_1}{\dot{x}}^T(s)Z\dot{x}(s)ds-h_{12}{\int }_{t-h_2}^{t-h}{e}^{-\alpha h_2}{\dot{x}}^T(s)R\dot{x}(s)ds,\hfill \end{array}(13)$

where

$\zeta (t)=\mathrm{col}\left\{x(t),x\left(t-h_1\right),x(t-d(t)),x\left(t-h_2\right),{\int }_{t-h_1}^t\frac{x(s)}{h_1}ds,{\int }_{t-d(t)}^{t-h_1}\frac{x(s)}{d(t)-h_1}ds,{\int }_{t-h_2}^{t-d(t)}\frac{x(s)}{h_2-d(t)}ds\right\}.$

Based on Wirtinger inequality, we have

$h_1{\int }_{t-h_1}^t{e}^{-\alpha h}{\dot{x}}^T(s)Z\dot{x}(s)ds\ge {\epsilon }_1^T(t)\left[\begin{array}{cc}\hfill e^{-\alpha h_1}Z\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 3e^{-\alpha h_1}Z\hfill \end{array}\right]{\epsilon }_1(t)={\zeta }^T(t){\psi }_2\zeta (t),(14)$

$\begin{array}{c}{h}_{12}{\int }_{t-h_2}^{t-h}{e}^{-\alpha h_2}{\dot{x}}^T(s)R\dot{x}(s)ds=h_{12}\left({\int }_{t-d(t)}^{t-h_1}{e}^{-\alpha h_2}{\dot{x}}^T(s)R\dot{x}(s)ds+{\int }_{t-h_2}^{t-d(t)}{e}^{-\alpha h_2}{\dot{x}}^T(s)R\dot{x}(s)ds\right)\\ \ge \frac{h_{12}}{d(t)-h_1}{\epsilon }_2^T(t)\tilde{R}{\epsilon }_2(t)+\frac{h_{12}}{h_2-d(t)}{\epsilon }_3^T(t)\tilde{R}{\epsilon }_3(t),\end{array}(15)$

where

${\epsilon }_1(t)=\left[\begin{array}{c}\hfill x(t)-x\left(t-h_1\right)\hfill \\ \hfill x(t)+x\left(t-h_1\right)-2{\int }_{t-h_1}^t\frac{x(s)}{h_1}ds\hfill \end{array}\right],$

${\epsilon }_2(t)=\left[\begin{array}{c}\hfill x\left(t-h_1\right)-x(t-d(t))\hfill \\ \hfill x\left(t-h_1\right)+x(t-d(t))-2{\int }_{t-d(t)}^{t-h_1}\frac{x(s)}{d(t)-h_1}ds\hfill \end{array}\right],$

${\epsilon }_3(t)=\left[\begin{array}{c}\hfill x(t-d(t))-x\left(t-h_2\right)\hfill \\ \hfill x(t-d(t))+x\left(t-h_2\right)-2{\int }_{t-h_2}^{t-d(t)}\frac{x(s)}{h_2-d(t)}ds\hfill \end{array}\right].$

Using extended reciprocally convex matrix inequality to estimate Eq. 15 yields

$\begin{array}{cc}\hfill \frac{h_{12}{\epsilon }_2^T(t)\tilde{R}{\epsilon }_2(t)}{d(t)-h_1}+\frac{h_{12}{\epsilon }_3^T(t)\tilde{R}{\epsilon }_3(t)}{h_1-d(t)}& \ge {\epsilon }_2^T(t)\tilde{R}{\epsilon }_2(t)+{\epsilon }_3^T(t)\tilde{R}{\epsilon }_3(t)\hfill \\ \hfill & +\frac{h_2-d(t)}{h_{12}}{\left[\begin{array}{c}\hfill {\epsilon }_2(t)\hfill \\ \hfill {\epsilon }_3(t)\hfill \end{array}\right]}^T\left[\begin{array}{cc}\hfill \tilde{R}-S_2{\tilde{R}}^{-1}{S}_2^T\hfill & \hfill S_1\hfill \\ \hfill *\hfill & \hfill 0\hfill \end{array}\right]\left[\begin{array}{c}\hfill {\epsilon }_2(t)\hfill \\ \hfill {\epsilon }_3(t)\hfill \end{array}\right]\hfill \\ \hfill & +\frac{d(t)-h_1}{h_{12}}{\left[\begin{array}{c}\hfill {\epsilon }_2(t)\hfill \\ \hfill {\epsilon }_3(t)\hfill \end{array}\right]}^T\left[\begin{array}{cc}\hfill 0\hfill & \hfill S_2\hfill \\ \hfill *\hfill & \hfill \tilde{R}-S_1^T{\tilde{R}}^{-1}{S}_1\hfill \end{array}\right]\left[\begin{array}{c}\hfill {\epsilon }_2(t)\hfill \\ \hfill {\epsilon }_3(t)\hfill \end{array}\right]\hfill \\ \hfill & ={\zeta }^T(t){\psi }_{3,[d(t)]}\zeta (t),\hfill \end{array}(16)$

where

$\begin{array}{cc}\hfill & {\psi }_{3,[d(t)]}=E_2^T\tilde{R}{E}_2+E_3^T\tilde{R}{E}_3+\frac{h_2-d(t)}{h_{12}}{\left[\begin{array}{c}\hfill E_2\hfill \\ \hfill E_3\hfill \end{array}\right]}^T\left[\begin{array}{cc}\hfill \tilde{R}-S_2{\tilde{R}}^{-1}{S}_2^T\hfill & \hfill S_1\hfill \\ \hfill *\hfill & \hfill 0\hfill \end{array}\right]\left[\begin{array}{c}\hfill E_2\hfill \\ \hfill E_3\hfill \end{array}\right]\hfill \\ \hfill & +\frac{d(t)-h_1}{h_{12}}{\left[\begin{array}{c}\hfill E_2\hfill \\ \hfill E_3\hfill \end{array}\right]}^T\left[\begin{array}{cc}\hfill 0\hfill & \hfill S_2\hfill \\ \hfill *\hfill & \hfill \tilde{R}-S_1^T{\tilde{R}}^{-1}{S}_1\hfill \end{array}\right]\left[\begin{array}{c}\hfill E_2\hfill \\ \hfill E_3\hfill \end{array}\right].\hfill \end{array}$

Then, we can get

$h_{12}{\int }_{t-h_2}^{t-h}{e}^{-\alpha h_2}{\dot{x}}^T(s)R\dot{x}(s)ds\ge {\zeta }^T(t){\psi }_{3,[d(t)]}\zeta (t).(17)$

Applying Eq. 14 and Eq. 17 to Eq. 13, the following holds:

$\dot{V}(t)+\alpha V(t)\le {\zeta }^T(t)\left[{\psi }_{1,[d(t)]}-{\psi }_2-{\psi }_{3,[d(t)]}\right]\zeta (t).(18)$

By using the Schur complement, Eqs 10, 11 are equal to the following inequalities:

${\psi }_{1,\left[h_1\right]}-{\psi }_2-{\psi }_{3,[h_1]}\le 0,(19)$

${\psi }_{1,\left[h_2\right]}-{\psi }_2-{\psi }_{3,\left[h_2\right]}\le 0,(20)$

which implies

${\psi }_{1,[d(t)]}-{\psi }_2-{\psi }_{3,[d(t)]}\le 0.(21)$

Thus, it follows from Eq. 21 that $\dot{V}(t)+\alpha V(t)\le 0$, which further leads to

$V(t)\le e^{-\alpha \left(t-t_0\right)}V\left(t_0\right).(22)$

Noting that V(t) ≥ ρ‖x(t)‖², $V\left(t_0\right)\le \beta \Vert \varphi {\Vert }^2$, ρ > 0, and β > 0, we have

$\Vert x(t)\Vert \le \sqrt{\frac{\beta }{\rho }}{e}^{-0.5\alpha \left(t-t_0\right)}\Vert \varphi \Vert ,(23)$

which implies the system (Eq. 9) is exponentially stable (Yang et al., 2020).According to the above, system (Eq. 9) is exponentially stable if Eqs 10, 11 hold. The proof is completed.

Remark 1. The method proposed in this section establishes the constraint relation between the delay information and the exponential stability of the LFC for power systems with an EV aggregator, which can be used to analyze the influence of delays on the stability of the system and calculate the delay margins. The margins represent the time delay tolerance range of the system to ensure exponential stability, which is composed of the delay lower bound h₁ and delay upper bound h₂.

Remark 2. In Theorem 1, the LFC for power systems with an EV aggregator is exponentially stable if Eqs 10, 11 are satisfied. The calculation steps of the delay margins for the stability of the system can be briefly summarized as follows:

1) Construct the LFC closed-loop model for power systems with an EV aggregator and a PID controller.

2) Choose the values of α, the EV aggregator gain K_EV, and the allowable lower bound h₁.

3) Calculate the delay margin h₂ of the power system by using the binary search technique (Zhang et al., 2013) and MATLAB/LMI toolbox to solve the LMIs in Theorem 1.

4 Case Studies

Case studies of LFC for power systems with an EV aggregator are presented to verify the advantage of the proposed method and study the influence of PID controller and EV aggregator gains on the delay margins. The related parameters of the system are shown in Table 1.

4.1 Comparison With the Existing Research

The method proposed by Jiang et al. (2012) is used to verify the advantage of the proposed method. Set h₁ = 0, α = 0, K_d = 0, and k_EV = 1, and the system can be considered asymptotically stable if the conditions in Theorem 1 are true. Then, the delay margins of the method proposed in this paper are compared with the delay margins of time-varying delay (μ = 0.9) in the study of Jiang et al. (2012). It is clear from Table 2 that the results of the proposed method are less conservative.

TABLE 2

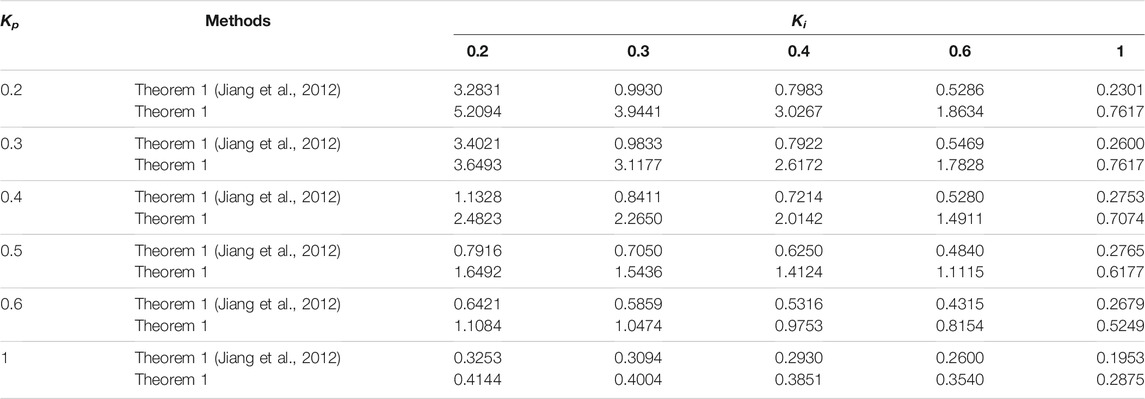

TABLE 2. Delay margins for different methods.

4.2 Effect of PID Controller and EV Aggregator Gains

The gains of the PID controller and EV aggregator have an important effect on the delay margins of the LFC for power systems with an EV aggregator. Firstly, let h₁ = 0, α = 0.01, k_EV = 1, and PID controller parameters K be different; the delay margins of the system are obtained, and the related results are shown in Tables 3–5.

TABLE 3

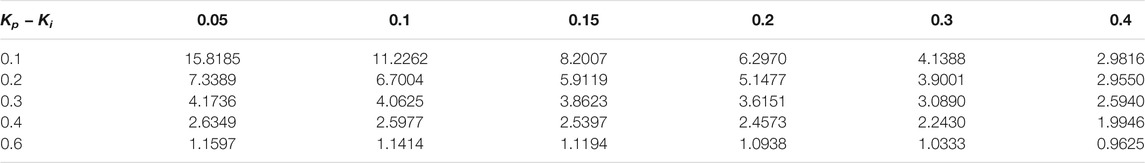

TABLE 3. Delay margins for K_d = 0.

TABLE 4

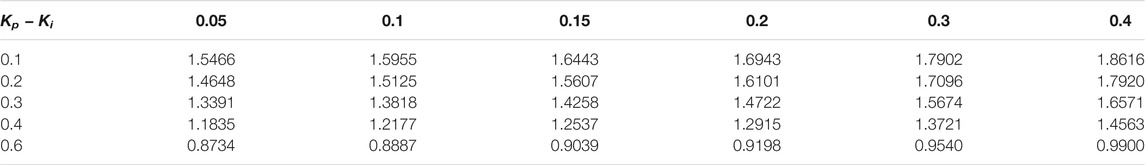

TABLE 4. Delay margins for K_d = 0.2.

TABLE 5

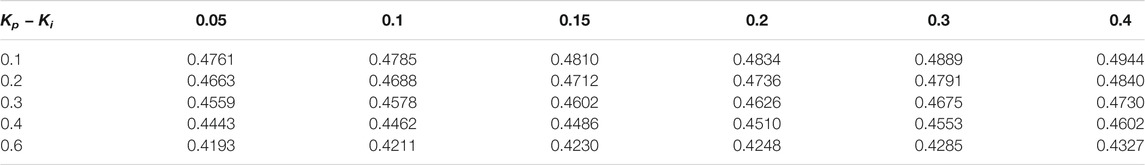

TABLE 5. Delay margins for K_d = 0.5.

As shown in Table 3, when K_d = 0 (PI controllers), for fixed K_p, the delay margins decrease gradually with the increase of K_i. For fixed K_i, with the increase of K_p, the delay margins decrease gradually. As can be seen from Tables 3–5, when K_d is not 0 (PID controllers), the delay margins gradually become smaller with the gradual increase of K_d. For fixed K_p, the delay margins increase gradually with the increase of K_i; for fixed K_i, the delay margins decrease as K_p increases. To sum up, the delay margins under PI controllers are larger than that under the PID controller. The larger K_p or K_d is, the smaller delay margins are.

Then, the frequency deviations of LFC for power systems with an EV aggregator under the delay of 5.15s and different PID controller gains are simulated. It is assumed that the power deviations of load and WTG fluctuate randomly in the range of 0.19–0.21 p. u. and 0.49–0.51 p. u., respectively. As shown in Figure 2, when K = [0.2 0.2 0], the system is stable. When K_p and K_i decrease (K = [0.1 0.1 0]), the frequency deviation also tends to zero. But when K_p and K_i are increased (K = [0.4 0.4 0]), or K_d is increased (K = [0.2 0.2 0.5]), it is clear that the frequency deviations do not converge in these cases. Therefore, Figure 2 validates the analysis in Tables 3–5, and appropriate selection of PID controller gains K is very important for the stability of LFC for power systems with an EV aggregator.

FIGURE 2

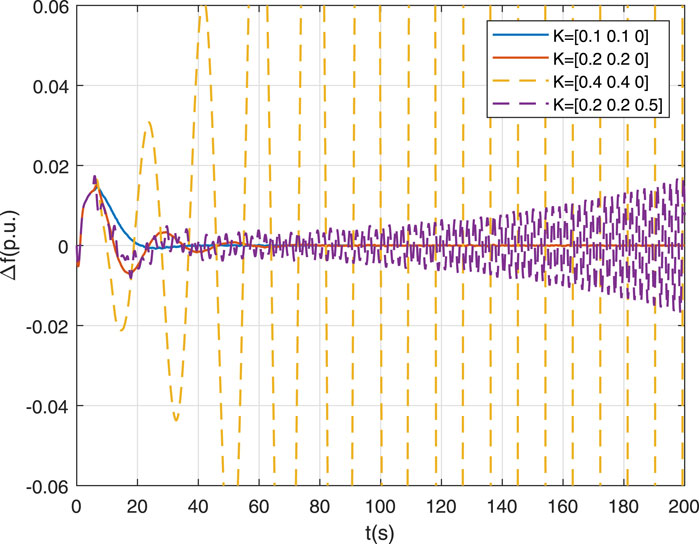

FIGURE 2. Frequency deviations for different K.

Finally, the gain of the EV aggregator K_EV is also an important factor affecting the delay margins of LFC for power systems with an EV aggregator. As shown in Table 6, regardless of how the gains of the PID controller change, the delay margins of the delayed LFC system with an EV aggregator and intermittent wind energy decrease with the increase of K_EV.

TABLE 6

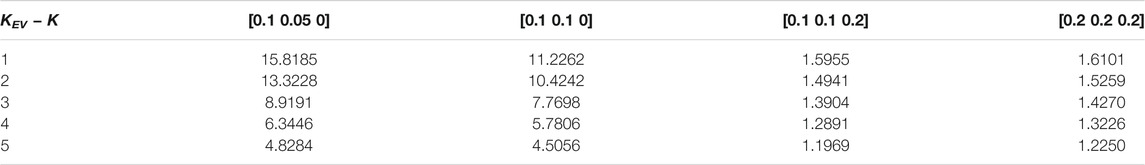

TABLE 6. Delay margins for different values of K_EV and K.

5 Conclusion

In this paper, the LFC stability of delayed power systems with an EV aggregator was studied. The LFC of the power system was modeled as a delayed linear system with an EV aggregator. Based on Lyapunov stability theory and the linear matrix inequality approach, a new stability criterion was proposed by using Wirtinger inequality and improved inverse convex matrix inequality. Finally, the influence of EV aggregator gains and PID controller gains on the delay margins was studied, and some case studies have shown the advantage of the results. The research of this paper can solve the delay margins more accurately and guide the design of PID controllers of LFC for power systems with an EV aggregator effectively.
