Burnable Poison Selection and Neutronics Analysis of Plate Fuel Assemblies

Burnable poisons play a critical role in long-life pressurized water reactors. Plate fuel elements have good application prospects in long-life pressurized water reactors. In long-life pressurized water reactors with large initial residual reactivity in the core, a reasonable selection of burnable poisons can suppress the large residual reactivity at beginning of lifetime and can achieve a long burnup depth at end of lifetime. Therefore, the selection of burnable poisons is a crucial factor to be considered in the design of long-life pressurized water reactors. In this study, the selection of burnable poisons and neutronics characteristics of long-life PWR plate fuel assembly were studied. The transport-burnup calculations of different burnable poison fuel assemblies were carried out. Some candidate BPs are selected to realize the effective control of reactivity. The results show that when the enriched isotopes ¹⁵⁷Gd, ¹⁶⁷Er and B₄C are used as burnable poisons, there is almost no reactivity penalty; when PACS-J and ²³¹Pa are used as burnable poisons, due to their own characteristics, not only does not cause reactivity penalty at end of lifetime, but also the fuel assembly life is extended, the fuel utilization rate is improved. The combination of PACS-J and the slow-burnup burnable poisons can obtain a better reactivity curve. The results of this article show that the plate fuel assemblies can be selected with enriched isotope ¹⁵⁷Gd, enriched isotope ¹⁶⁷Er, B₄C, ²³¹Pa and PACS-J as burnable poisons, and the combinations of burnable poisons can be selected with two combination schemes, PACS-Er and PACS-Pa.

Introduction

Long-life reactor designs are currently available in the United States, Russia and other countries, such as the MIT-designed submarine reactor (Ippolito, 1990) and the Russian KLT-40 series of reactors (Gontov et al., 2019). Nuclear propulsion power reactors are an important area of pressurized water reactors (PWRs) development. Small nuclear reactor is the ideal main power units for large marine vessels due to its high power density and small size. The refueling of reactor core in marine reactors is time-consuming, expensive, and has extreme requirements for nuclear waste management and radiation protection, which can directly affect the utilization rate of nuclear marine reactors. Reducing the number of reactor core refueling during the service of such reactors can substantially improve their economic viability and reduce the amount of nuclear waste. By increasing the core fuel enrichment, the initial residual reactivity of the core is improved and the core can be operated for a longer period of time with a single fuel load. The long-life reactor design can reduce or eliminate the frequency of reactor refueling, allowing large marine vessels to operate for 10–20 years or more with a single fuel load.

The power level and reactor core lifetime are the crucial performance indexes of nuclear reactors. An ideal nuclear power reactor must have both long core lifetime and high power. Plate fuel has a large heat transfer area, short distance between fuel center and coolant channel, and high heat transfer efficiency (Cheng and Xiong, 2020). Lower fuel pellet and surface temperatures can be obtained at the same power level and coolant flow rate, or when the fuel pellet and surface temperature does not exceed the limit, nuclear reactors are allowed to operate at higher power. Further, plate fuel has a compact structure, which is conducive to the miniaturization of reactor core (ZCongpeiDshouhui, 1987; Song, 2013). Plate fuel is a commonly used fuel geometry for high flux research reactors and compact nuclear power reactors with high power density (Ye, 1997; Afshin et al., 2007; Gong et al., 2015; Mohamed and Mohamed, 2019). Long-life reactors based on plate fuel exhibit immense potential in applications that require both power and lifetime.

The reactor core lifetime can be enhanced by increasing the loading or conversion ratio of fissile nuclides. In pressurized water reactors (PWRs), it is difficult to achieve ultra-long reactor core lifetime by simply increasing the conversion ratio because the conversion ratio is much less than 1. Meanwhile, another challenge is that the leakage probability of the primary circuit pressure boundary increases the power distribution of reactor core and the positive temperature coefficient of moderator. Burnable poisons (BPs) has a strong capacity to absorb neutron, and the product formed after neutron absorption can either be a “transparent” nuclide or a nuclide that can continue to absorb neutron, so it has flexible residual reactivity control ability (Li et al., 2019). Therefore, BP design is a significant method to control the core residual reactivity of long-life PWR. The existing studies on the selection of burnable poisons for pressurized water reactors had been studied (Anwar and Cao, 2010; Li et al., 2019; Xu et al., 2021), but most of the current studies are based on conventional rod-shaped with low-enrichment fuel assemblies, and there are fewer studies on the selection of burnable poisons for high-enrichment plate fuel assemblies with better burnable poison neutronics characteristics. Long-life PWRs have high enrichment fuel, so long-life PWRs have large initial residual reactivity. If reactivity control is performed using traditional BPs, it may be difficult to achieve a smooth release and control of reactivity over the lifetime of a long-life PWRs.

In this study, long-life PWR plate fuel assemblies are studied. Calculations are carried out using different BPs schemes for plate fuel assemblies, and the performance of different BPs is analyzed by the variation in the k_inf of assembly containing different BPs as a function of burnup to obtain the better BPs. This study can provide a reference for the selection and design of BPs for long-life PWRs.

Calculation Procedure and Model

Calculation Procedure

The DRAGON program is used for the transport-burnup calculation. DRAGON (Marleau et al., 2016) is a deterministic reactor lattice calculation program developed by Montreal University of Technology, Canada. Many numerical method modules can be used to solve 1D/2D/3D neutron transport problems, such as interface flow method, collision probability method, discrete ordinate method, characteristic method, and spherical harmonic function method. The DRAGON can handle fuel assemblies with different geometric structures (e.g., tube bundles, plates, hexagons) and different reactor types (e.g., light water reactor, heavy water reactor), so it has a strong geometric applicability and flexibility (Guangwen and Shengyi, 2010). The feasibility of DRAGON for plate assembly calculation has been verified (Haitao et al., 2005; Ma et al., 2015; Zhao, 2017; Yu et al., 2020). DRAGON can also perform accurate calculations for nuclides with complex burnup chains (Canbakan and Hébert, 2015; Xia et al., 2021).

There are many modules available inside the DRAGON, so in this article, the subgroup method module is chosen for resonance self-shielding calculations, the Sanchez module is chosen to handle the double non-uniformity problem, and the MOC module is chosen to handle the transport calculations. The cross section library is selected from the 172-groups WIMSD.

Calculation Model

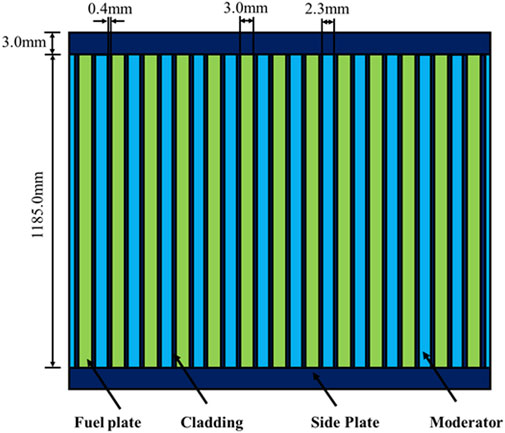

The Schematic of plate fuel assembly is shown in Figure 1. The assembly consists of 13 fuel plates, two support plates, and water gaps (H₂O), where UO₂ particles, which is dispersed in the ⁴Zr matrix, is selected as the fuel, and ⁴Zr alloy is used as the material for the cladding, support plates, and matrix. The thicknesses of fuel core, fuel cladding, water gap between two fuel plates, the support plate, and fuel plate height are 3.0, 0.4, 2.3, 3.0, and 1,185.0 mm, respectively. Dispersion fuel has the advantages of reasonable irradiation stability, excellent thermal conductivity, good corrosion resistance, long service life, and high burnup, thus it is widely used in long-life PWR. The enrichment of UO₂ in this study is 60%. The loading arrangement of BPs is as follows: the BPs are uniformly mixed with the fuel to facilitate dispersion loading, and a symmetrical arrangement of fuel plates containing BPs is considered. To ensure the accuracy of the design, the calibration results are shown in Table 1.

FIGURE 1

FIGURE 1. Schematic of plate fuel assembly.

TABLE 1

TABLE 1. Calibration results.

Candidate BPs

Unlike conventional low-enrichment rod fuel assemblies, assemblies within long-life core have higher initial reactivity. From a neutronics perspective, the selection of either natural nuclides or enriched isotopes as BPs should follow three principles: (1) BPs should suppress a large initial reactivity at beginning of lifetime; (2) BPs need to ensure a gentle release of reactivity during the lifetime; (3) Small or no reactivity penalties at end of lifetime for assemblies containing BPs allow reactors to achieve longer days of full power operation (Xie et al., 2017). In this study, the relevant physical properties of candidate BPs are evaluated in terms of suppression of initial reactivity at beginning of lifetime, reactivity released during life and reactivity penalty at end of lifetime, and BPs suitable for high enrichment long-life PWR are selected. By reducing the loading in the fuel plate, different BPs are added to make the initial value of infinite medium multiplication coefficient (k_inf) as 1.20 in the assembly. Further, by changing the content of BPs in the single board and the number of BP boards in the assembly, the reactivity control requirements are satisfied and a smaller reactivity penalty is achieved finally.

Here, BP materials including non-proliferative BPs, actinide BPs, and advanced polymeric BPs are selected as the research object for the analysis.

Non-proliferative BPs

The components of non-proliferative BP materials are naturally abundant, and the main materials are B₄C, Dy₂O₃, Er₂O₃, Eu₂O₃, Gd₂O₃, and Sm₂O₃.

Actinide BPs

Some actinide nuclides can be converted into fissile nuclides after absorbing neutron. When these nuclides are used as BPs, they can inhibit excessive reactivity by absorbing neutron at the beginning of lifetime, and they can also use the converted fissile nuclides to prolong the life of the assembly and enhance the reactivity. Finally, it leads to a gentle variation in the residual reactivity. The actinide nuclides selected in this study are ²³¹Pa, ²⁴¹Am, ²³⁷NP, ²³⁸Pu, and ²⁴⁰Pu.

PACS: Advanced Polymeric BP

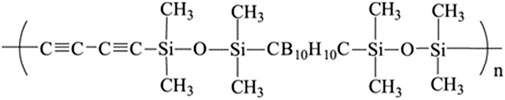

Polycarboborane-siloxane-ethynyl (PACS) has good corrosion resistance and stability, thus it is an effective BP [21]. Figure 2 shows the chemical structure of PACS. In this study, two advanced polymeric BPs: PACS-J and PACS-L (Allen et al., 2003), are selected, and their compositions are shown in Table 2.

FIGURE 2

FIGURE 2. Chemical structure of PACS.

TABLE 2

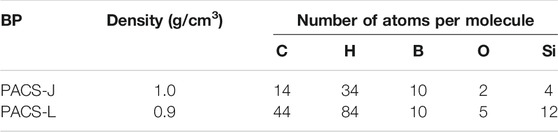

TABLE 2. Composition of PACS [22].

Results and Analysis

Calculation Results

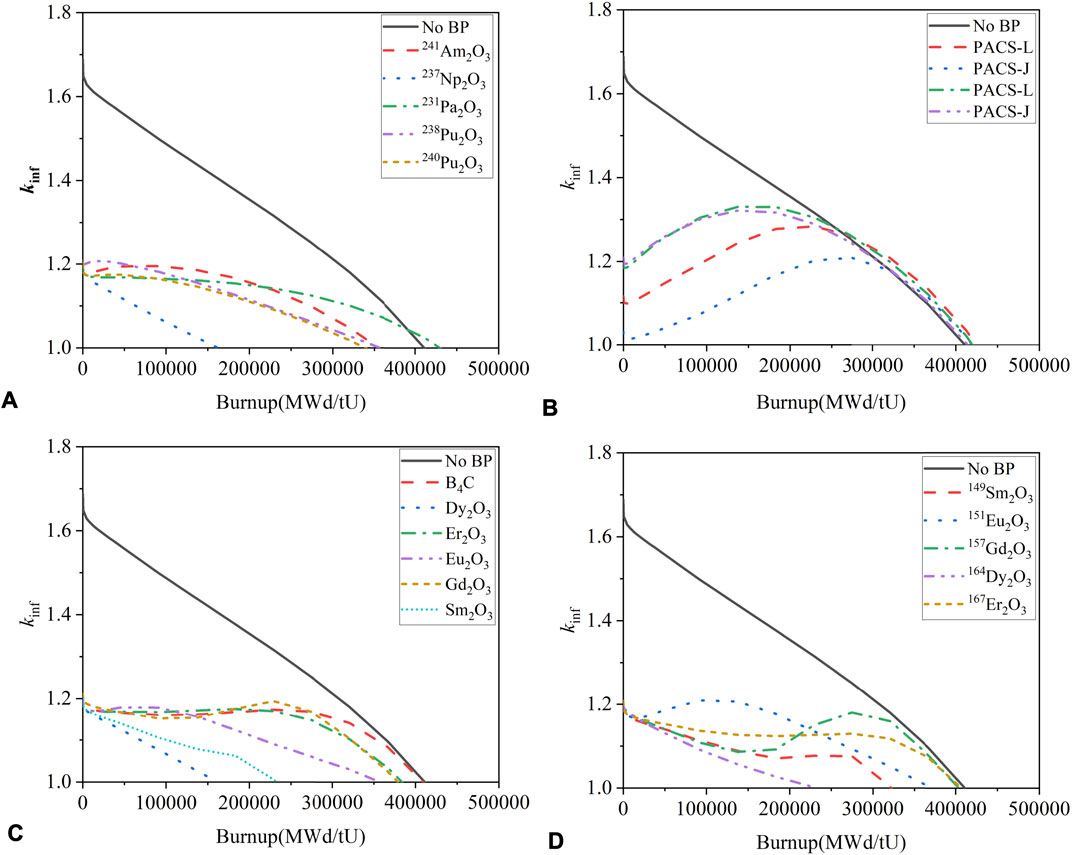

The candidate BPs burnup curves are shown in Figure 3. As seen in Figure 3A, only ²³¹Pa of the actinide BPs extends the life of the assembly at k_inf = 1.0 in the case of high fuel enrichment, and all other actinide BPs showed reactive penalties of different magnitudes.

FIGURE 3

FIGURE 3. Variation in the k_inf of assembly with different BPs schemes.

Figure 3B shows that at k_inf = 1.0, the two advanced polymer BPs extend the life of the assembly at end of lifetime due to their own properties. At an initial k_inf = 1.20, assemblies containing both advanced polymer BPs showed a large reactive release in the middle and late life cycle and difficulties in reactivity control. The rate of reactive release of BPs was reduced by increasing the BPs content in a single plate (increasing the BPs self-shielding effect) to slow down the rate of BPs consumption. The fuel burnup curve of PACS-L does not meet the requirements for safe reactor operation because the reactivity fluctuates widely throughout the assembly lifetime and the reactivity is more difficult to control. The reactivity fluctuation of the burnup curve of the assembly containing PACS-J did not exceed 0.2 throughout the lifetime at the initial k_inf = 1.04, but the reactivity showed a large release in the middle and late stages of the lifetime, which prolonged the assembly lifetime but made the reactivity control difficult.

As seen in Figure 3C, the assembly containing the B₄C had no reactivity penalty at end of lifetime, but the assemblies containing the other BPs all caused a reactivity penalty. The nuclides have a small absorption cross section in BPs with different natural ratios, and the nuclides produced by offspring have different absorption cross sections and half-lives. This can lead to reactivity penalty if k_inf = 1.0. For highly enrichment assemblies, the use of natural ratios of non-proliferative BPs is not optimal.

Therefore, in this study, the natural proportion of non-proliferative BPs (Er₂O₃, Eu₂O₃, Gd₂O₃, and Sm₂O₃) corresponding to enriched isotope oxides (¹⁶⁷Er₂O₃, ¹⁵¹Eu₂O₃, ¹⁵⁷Gd₂O₃, and ¹⁴⁹Sm₂O₃) are selected, and all the separated isotopes are enriched at 100%.As seen in Figure 3D, at high fuel enrichment, the enriched isotope is consumed more quickly as BPs, causing less reactivity penalty at end of lifetime and greater burnup of the assembly than what can be achieved with naturally proportioned BPs. The use of enriched isotopes as BPs reduces the production of daughter nuclides in the burnup chain, resulting in a reduction of some daughter nuclides with absorption cross sections, reducing the reactivity penalty at end of lifetime and improving fuel utilization.

Through the above calculations, this article conducted a selection study on different types of BPs. The results show that ²³¹Pa, B, ¹⁵⁷Gd, ¹⁶⁷Er, and PACS-J is more suitable than other BPs for long-life reactors. The reactive release of B₄C and ¹⁶⁷Er as BPs was smooth throughout the burnup cycle, with no significant fluctuations throughout the life cycle and little to no reactive penalty at end of lifetime. ¹⁵⁷Gd, when used as BPs, causes only a small reactivity penalty, but the reactivity is released more rapidly over the life span. When ²³¹Pa and PACS-J are used as BPs, the lifetime of the assembly is extended beyond that of non-BPs fuel assemblies due to ²³¹Pa own burnup chain and PACS-J own characteristics, resulting in improved fuel utilization. However, when PACS-J is used as a single BPs, there are difficulties in lifetime reactivity control.

Neutronics Characteristics Analysis of BPs

From Calculation Rresults, it can be seen that ²³¹Pa, B, ¹⁵⁷Gd, ¹⁶⁷Er and PACS-J showed better results than other BPs. Therefore, this article performs neutronics characteristics analysis for ²³¹Pa, B, ¹⁵⁷Gd, ¹⁶⁷Er and PACS-J.

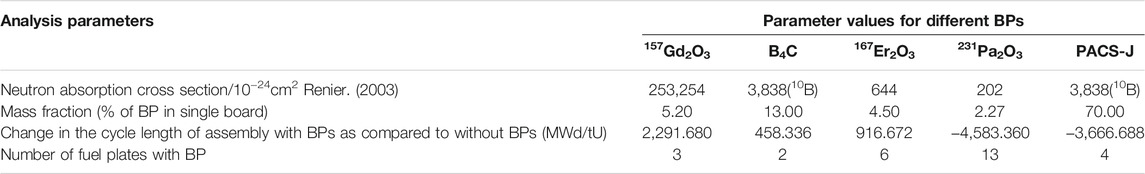

The analysis parameters of ²³¹Pa, B, ¹⁵⁷Gd, ¹⁶⁷Er and PACS-J are shown in Table 3. The neutron absorption cross sections for the different BPs are given in Table 3. Table 3 also contains the BPs content in a single plate, the number of plates in the assembly containing different BPs and the reactivity penalty at end of lifetime, which are the input parameters and results of the selection calculations performed in Calculation Rresults. In order to visualize the arrangement of fuel plates containing BPs in the assembly, Figure 4 shows the arrangement of fuel plates containing different BPs in the assembly.

TABLE 3

TABLE 3. Analysis parameters for different BPs.

FIGURE 4

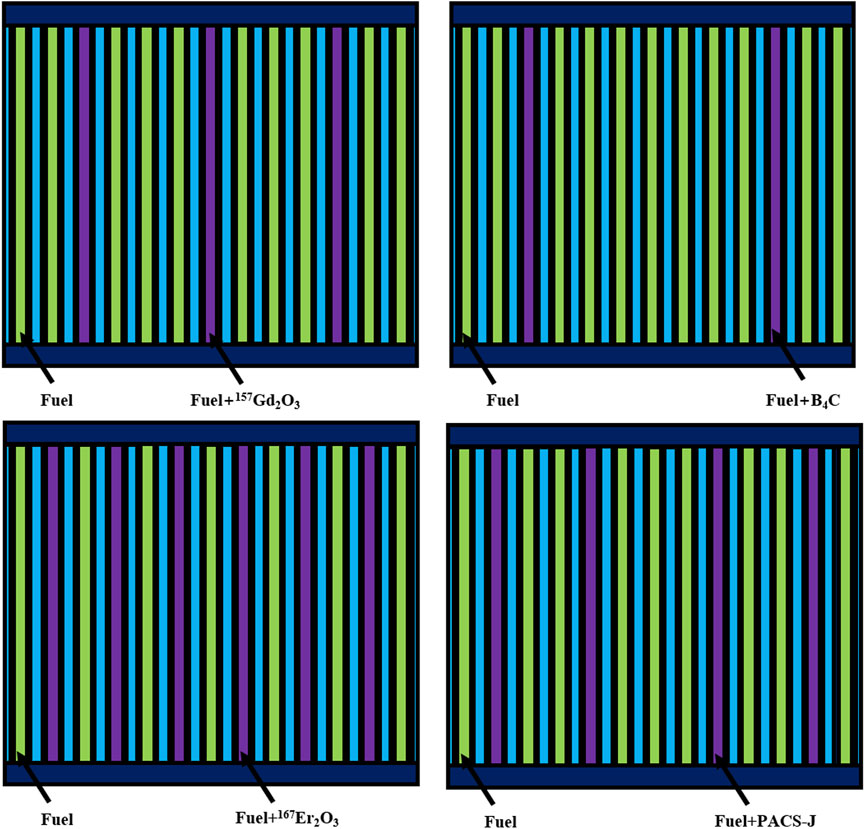

FIGURE 4. Layout scheme of different burnable poison assemblies.

The neutron absorption cross section of ¹⁵⁷Gd is the largest among the selected BPs. When ¹⁵⁷Gd is used as BPs, the initial residual reactivity can be suppressed by adding only 5.20% of ¹⁵⁷Gd₂O₃ at beginning of lifetime, but the large absorption cross section makes the BPs consume faster, and a large reactivity release occurs in the middle and late stages of the lifetime, producing reactivity fluctuations. There is a certain neutron absorption cross section for the daughter nuclides produced by the absorption of neutrons by ¹⁵⁷Gd, which causes a small reactivity penalty at end of lifetime.

The neutron absorption cross section of ¹⁰B is the largest of the two isotopes, and the burnup chain of B is very simple, absorbing neutrons and converting them directly to helium and lithium, which are essentially “transparent” to neutrons, with essentially no reactivity penalty at end of lifetime, but as a diffuse BPs the swelling of fuel elements due to helium release needs to be considered.

¹⁶⁷Er has a smaller neutron absorption cross section compared to ¹⁵⁷Gd, but has a certain neutron absorption cross section that burnup slower compared to ¹⁵⁷Gd, reducing the BPs content in a single plate and making ¹⁶⁷Er₂O₃ as completely consumed as possible at end of lifetime. The daughter nuclides produced by the absorption of neutrons by ¹⁶⁷Er have a certain neutron absorption cross section, which causes a small reactivity penalty at end of lifetime.

The neutron absorption cross section of ²³¹Pa is relatively small compared to ¹⁵⁷Gd and ¹⁶⁷Er, so the burnup rate is significantly slower and better control of reactivity can be achieved. The burnup chain of ²³¹Pa is different from the other nuclides (Kulikov et al., 2017). ²³¹Pa acts as the parent nucleus of this burnup chain, and fissionable ²³²U and ²³³U exist directly in the burnup chain. ²³²Pa is generated after the capture of neutrons by ²³¹Pa, and ²³²Pa has a half-life of only 1.3 days and decays to form ²³²U. The fission and capture cross sections of ²³²U are very similar, which allows ²³²U to both capture neutrons to produce the fissile nuclide ²³³U and to fission directly to supplement reactivity. The capture and fission cross section of ²³²U is shown in Figure 5. The special burnup chain of ²³¹Pa offers the possibility to achieve high burnup with ²³¹Pa assemblies.

FIGURE 5

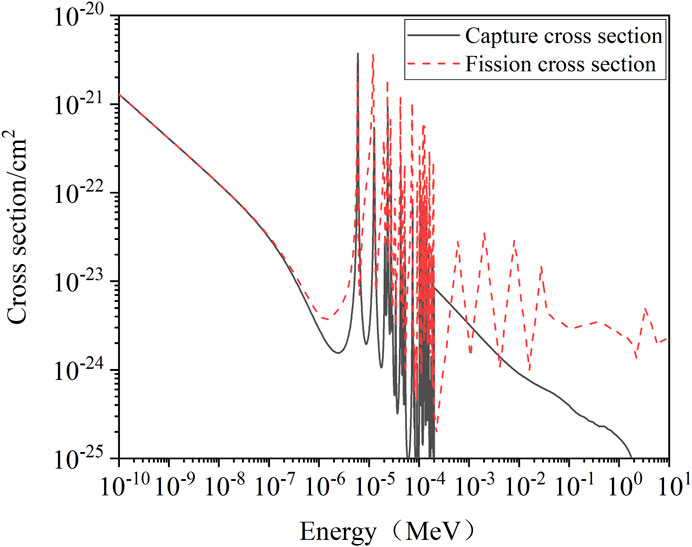

FIGURE 5. Capture and fission cross sections of ²³²U.

PACS-J has a high hydrogen content and high boron content, and its high hydrogen content makes PACS-J have its own slowing effect as BPs, which can better slow down neutrons at end of lifetime, improve thermal neutron utilization, and promote the consumption of fission nuclide Pu. Therefore, PACS-J can extend the burnup and improve fuel utilization at end of lifetime when used as BPs.

From the above neutronics characteristics analysis, it is known that the main neutron absorber in PACS-J is ¹⁰B, and the absorption cross section of ¹⁰B is 3,838barn.Because the higher fuel enrichment makes the life time initial reactivity larger, when PACS-J is used as a single BP for reaction control, although increasing the content (70%) of BP in a single plate to increase the self-shielding effect, the assembly reactivity fluctuation is still the largest among the selected BPs. Therefore, in the case of high fuel enrichment, PACS-J can be considered in combination with BPs with small neutron absorption cross section (slow-burnup).

Combination of BPs

In this article, a preliminary study of BPs combinations was conducted without changing the BPs content in a single plate and only adjusting the number of BPs plates containing PACS-J, ¹⁶⁷Er₂O₃ and ²³¹Pa₂O₃ in the assemblies.

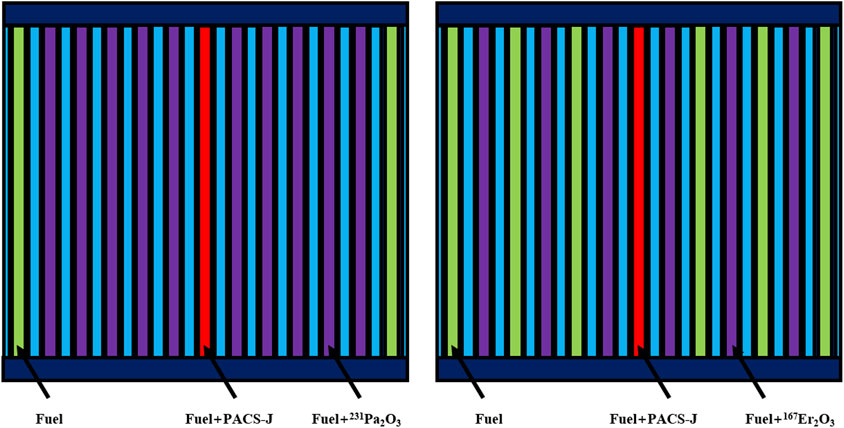

For the combination of PACS-J and ¹⁶⁷Er₂O₃, the number of BPs plates containing PACS-J and ¹⁶⁷Er₂O₃ is 1 and 4, respectively, and the others are pure fuel plate elements. For the combination of PACS-J and ²³¹Pa₂O₃, the number of BPs plates containing PACS-J and ²³¹Pa₂O₃ is 1 and 10, respectively, and the others are pure fuel plate elements. The schematic diagram of the assemblies arrangement is shown in Figure 6.

FIGURE 6

FIGURE 6. Layout scheme of assembly with different numbers of burnable poisons.

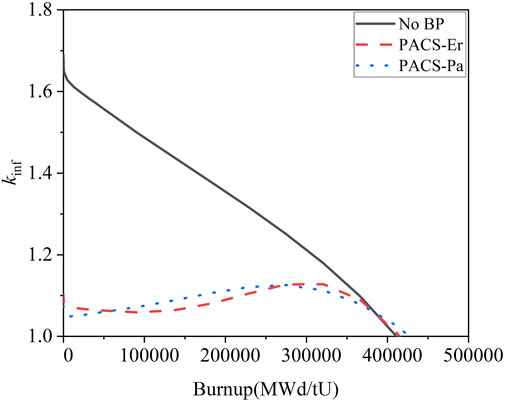

Figure 7 shows the burnup curves of PACS-J combined with ¹⁶⁷Er₂O₃ and ²³¹Pa₂O₃. It can be seen that the initial k_inf of the assembly is about 1.10 after the combination of PACS-J with BPs of small neutron absorption cross section, and there is no large fluctuation in the reactivity of assemblies throughout the lifetime, and the reactivity is released smoothly during the lifetime. There was no reactivity penalty at the end of life and the lifetime was extended by 2,750.016 MWd/tU at end of lifetime for the PACS-Er combination and 9,625.056 MWd/tU for the PACS-Pa combination. The reactivity fluctuations for both BPs combination scenarios were about 0.1 over the entire lifetime.

FIGURE 7

FIGURE 7. Variation in the k_inf of assembly with different BP combination schemes.

PACS-J has a large neutron absorption cross section as BPs, and because the assemblies has a large initial reactivity, if single BPs with a large neutron absorption cross section is used for reactivity control, the initial residual reactivity can be suppressed at beginning of lifetime. However, as the burnup deepens, the reactivity is released more quickly and the assemblies show large reactivity fluctuations. The combination of “fast-burnup” BPs with “slow-burnup” BPs can compensate the disadvantage of difficult assembly reactivity control at high enrichment, thus obtaining better reactive burnup curve.

Conclusion

In this study, based on high enrichment plate fuel assemblies, BPs selection and neutronics characterization studies are carried out, transport-burnup calculations are performed for different BPs, and BPs with better neutronics performance are selected. The specific conclusions are as follows:

1) For plate fuel assemblies, oxides of ¹⁵⁷Gd and ¹⁶⁷Er in enriched isotopes can be used as BPs to reduce the reactivity penalty at end of lifetime; there is almost no reactivity penalty at end of lifetime when B₄C is used as BPs. Also ²³¹Pa and PACS-J, when used as BPs, both extend the assemblies burnup at end of lifetime and improve fuel utilization. The ¹⁵⁷Gd, ¹⁶⁷Er, ²³¹Pa and PACS-J can be used as candidates for long-life PWRs when they are obtained economically.

2) At high fuel enrichment, some of the “fast-burnup” BPs are not suitable for reactive control as a single BPs in the assembly, but a better reactive burnup curve can be obtained by a reasonable combination with “slow-burnup” BPs. For example, PACS can be combined with “slow-burnup” BPs Er and Pa to increase the control of reactivity.
