Effect of Rolling Deformation on Creep Properties of FeCrAl Alloys

Huan Sheng LaiHuan Sheng Lai1Jingyu GuoJingyu Guo1Shanglin ZhangShanglin Zhang2Xiaobin YuXiaobin Yu3Fanqiang MengFanqiang Meng1Zilong Zhao
Zilong Zhao4*Wenzhong Zhou
Wenzhong Zhou1*
  • 1Sino-French Institute of Nuclear Engineering and Technology, Sun Yat-sen University, Zhuhai, China
  • 2Science and Technology on Reactor System Design Technology Laboratory, Nuclear Power Institute of China, Chengdu, China
  • 3Suzhou Nuclear Power Research Institute, Suzhou, China
  • 4School of Chemical Engineering and Technology, Sun Yat-sen University, Zhuhai, China

FeCrAl alloy is one of the most promising nuclear fuel claddings among many accident tolerant fuel (ATF) materials due to its excellent oxidation resistance and good mechanical properties. However, the effect of process conditions on the creep properties of the FeCrAl alloy is not clear till now. In this study, the impact of a process condition of hot-rolling on the creep properties of FeCrAl alloy was investigated using a nano-indentation creep test under a temperature of 350°C. The microanalysis results indicated that the grain size became smaller with the increase of the hot-rolling thickness reduction. The nano-indentation creep test results showed that the creep power-law stress exponent was about four, and the creep resistance increased when the hot-rolling thickness reduction increased.

Introduction

The core of a nuclear reactor exposes to a high-temperature steam environment when the nuclear reactor is in a loss of coolant accident. In this way, zirconium alloys are no longer the best choice of the cladding material in the cores of light-water reactors because the zirconium alloys react with steam over the high temperature of 1,200°C, and the reaction releases a lot of heat and hydrogen gas (Moalem and Olander, 1991; Pint et al., 2013; Yamamoto et al., 2015; Gamble et al., 2017). Accident tolerant fuel (ATF) materials hence have been proposed to avoid the disadvantage of the zirconium alloys (Zinkle et al., 2014; Terrani et al., 2014).

The high-strength wrought material of FeCrAl alloy is one of the materials that can meet the required conditions of ATF, which have high melting temperature and good mechanical and chemical properties, especially the excellent oxidation resistance at high temperature (Tang et al., 2018). The creep properties of FeCrAl alloy have been extensively investigated to achieve the goal of using the FeCrAl alloy as a cladding material. The power-law creep constitutive model was obtained at the temperature lower than 600°C (Saunders et al., 1997) and at the temperature above 600°C for the FeCrAl alloy (Terrani et al., 2016); the power-law creep stress exponent of n was a constant value of 5.5, but the power-law creep constant was dependent on the temperature. Two rupture regimes were observed under the long-term creep and the oxidation test for the FeCrAl foils (Dryepondt et al., 2012). The creep deformation mechanism of FeCrAl oxide dispersion strengthened (ODS) alloy was divided into three regions; n ranged from two to five in region II but was around 20 in regions I and III (Masuda et al., 2016; Kamikawa et al., 2018). The creep deformation mechanism of the cooperative grain boundary sliding was found for FeCrAl ODS alloy (Kamikawa et al., 2018), and the creep constitutive model related to the interparticle distance was proposed for FeCrAl ODS alloy (Ukai et al., 2020). However, little work has been done to examine the effect of process conditions on the creep properties of the FeCrAl alloy.

The nano-indentation test can obtain the mechanical properties such as hardness, elastic modulus, and residual stress (Fischer-Cripps, 2006; Sebastiani et al., 2011). In comparison to the traditional creep test which takes thousands of hours to obtain the creep properties, the nano-indentation creep test just needs tens of minutes. Therefore, the nano-indentation creep test has been widely accepted and used to test the creep properties for many materials (Thornby et al., 2021; Zhang et al., 2019; Li et al., 2019).

In this study, the effect of a process condition of hot-rolling thickness reduction on the creep properties of FeCrAl alloy was investigated using a nano-indentation creep test. The microstructure of the FeCrAl alloy was analyzed using an optical microscope first. After that, a nano-indentation creep test was carried out. The effect of the hot-rolling thickness reduction on the power-law creep model was finally obtained.

Experimental Procedure

The as-received sheet material of FeCrAl alloy, which was prepared using induction melting, followed by forging at 1,200°C, and hot-rolling down to thickness of 5 mm at 1,100°C, was used in this research. The chemical composition of the alloy is shown in Table 1. Due to the low ductility at room temperature, the alloy was rolled under the temperature of 300°C in order to avoid cracking and recrystallization. The rolling thickness reduction was fixed at 0.5 mm for each time. Therefore, two different thicknesses of 2 and 0.5 mm of the FeCrAl alloy plates were obtained after 6 and 9 times of the hot-rolling, respectively, as shown in Figure 1. This meant that the two plates showed 60 and 90% total thickness reduction, respectively, after hot-rolling. Several samples were mechanically polished, and then were electropolished using perchloric, an acid and alcohol mixed liquid. After that, parts of the samples were etched in a solution of 30 ml HCl, 10 ml HNO3, and 20 ml C3H8O3 to characterize the alloy’s microstructures using an optical microscope, and the remaining samples were used to carry out nano-indentation creep tests. Note that there were no oxides on the nano-indentation creep test samples because the samples were polished.

TABLE 1
www.frontiersin.org

TABLE 1. Chemical composition of FeCrAl alloy, wt%.

FIGURE 1
www.frontiersin.org

FIGURE 1. FeCrAl alloy plates: (A) 60% total thickness reduction and (B) 90% total thickness reduction.

Nano-indentation tester with the thermal drift of 0.05 nm/s was used to carry out the test. The diamond Berkovich indenter with the three-sided pyramid was used in this study. In a light-water reactor, light water was used as the primary coolant, with a temperature of about 350°C (Saunders et al., 1997; Park et al., 2015). Therefore, the nano-indentation creep tests were carried out at the temperature of 350°C. Four different applied loads of 100 mN, 200 mN, 300 mN, and 400 mN were used for creep generation. The loading time from the 0 mN to the applied loads was fixed as 30 s, the holding time of the applied loads was set as 600 s, and the unloading time from the applied loads to 0 mN was fixed as 60 s. The time, displacement, and applied loads were recorded automatically during the tests.

Results

Microstructure of FeCrAl Alloy

The microstructure of FeCrAl alloy is shown in Figure 2. As shown in Figures 2A,B, the grain boundaries were clear for the alloy, with 60% total thickness reduction. The grain deformation was slight, and the grain size was about 220 μm, even though it was slightly elongated to the rolling direction. For the alloy with 90% total thickness reduction, as shown in Figures 2C,D, the grain deformation was very significant, and it was challenging to find an equal-axis grain. All grains were elongated to the rolling direction, and the grain size was about 100 μm, which was smaller than that of the alloy with 60% total thickness reduction. The grain size was not uniform, and the grain length was much larger in the rolling direction. Therefore, the grains became flat and were elongated along the rolling direction after the hot-rolling due to the rolling force perpendicular to the rolling surface. This phenomenon accounted for the rolling process providing the energy for the dynamic recrystallization of the crystal. The larger the rolling thickness reduction was, the more energy was provided to the crystal and the more grains completed the dynamic recrystallization process. Similar results were also found by Yamamoto et al., (2015) and Zheng et al., (2019). In addition, the tiny black dots were defects or inclusions which were produced during metallurgy.

FIGURE 2
www.frontiersin.org

FIGURE 2. Optical microscope images of FeCrAl alloy. (A) Low magnification with 60% total thickness reduction, (B) high magnification with 60% total thickness reduction, (C) low magnification with 90% total thickness reduction, and (D) high magnification with 90% total thickness reduction.

Nano-Indentation Creep Test

The steady-state creep strain rate also satisfies the power-law creep model in the nano-indentation creep test as follows (Goodall and Clyne, 2006):

ε˙=Aσn,(1)

where ε˙ is the creep strain rate, σ is the applied stress, A is the power-law creep constant, and n is the power-law creep stress exponent. In the nano-indentation creep test, σ is calculated using the same function as the traditional tension creep test by

σ=F/S,(2)

where F is the applied load and S is the projected contact area. For the used Berkovich indenter in the tests, S=24.56hpc2, where hpc is the contact displacement.

ε˙ is defined as follows during the indentation period (Park et al., 2015):

ε˙=1hcdhcdt,(3)

where hc is the creep displacement. Substituting Eqs. 2,3 into Eq. 1, the creep power-law stress exponent n is calculated by the following:

n=lnε˙lnσ=ln(1hcdhcdt)ln(F24.56hpc2).(4)

The values of F, hc, and hpc can be measured from the nano-indentation creep test. When these values were obtained, the value of n can be calculated using Eq. 4.

The nano-indentation creep test results of the indentation load and the corresponding displacement are shown in Figure 3. As shown in Figure 3, the displacement increased with increase of load. When the load was larger than 100 mN, the displacement first decreased to a certain value and then kept on increasing in the load holding stage or the creep stage. The possible reason was that the loading rate was slightly large, because this phenomenon did not appear in the load of 100 mN.

FIGURE 3
www.frontiersin.org

FIGURE 3. Nano-indentation creep test results of the indentation load and the corresponding displacement for FeCrAl alloys at the temperature of 350°C: (A) 60% total thickness reduction and (B) 90% total thickness reduction.

The nano-indentation creep test results are shown in Figure 4 for the variation of the creep displacement with the creep time at the temperature of 350°C. As shown in Figure 4, the creep displacement increased with the applied load increase because the creep deformation increased with the applied load. Also, as shown in Figure 4, the creep displacement curves were similar to those of the traditional creep tests. They could be divided into two creep stages, that is, the primary creep stage and the steady-state creep stage. The primary creep stage was much shorter. As shown in Figure 4, after the time of 200 s, all curves almost reached the steady-state creep stage. Therefore, the power-law creep model was fitted using the curves after the time of 200 s.

FIGURE 4
www.frontiersin.org

FIGURE 4. Nano-indentation creep test results of FeCrAl alloys at the temperature of 350°C: (A) 60% total thickness reduction and (B) 90% total thickness reduction.

When the values of F, hc, and hpc were measured from the nano-indentation creep test, the values of lnε˙ and lnσ could be calculated according to Eq. 4. According to Eq. 4, the value of n was the slope of the lnε˙lnσ curve. The fitted results of n under different applied loads are shown in Figure 5, for the FeCrAl alloy at the temperature of 350°C. As shown in Figure 5A, the value of n was slightly affected by the applied load for the 60% total thickness reduction, where the maximum value of n was 5.58 with the applied load of 200 mN, and the minimum value of n was 3.16 with the applied load of 400 mN. However, the value of n was almost not affected by the applied load for the 90% total thickness reduction, as shown in Figure 5B. The average value of n was 4.25 and 3.24 for the 60 and 90% total thickness reduction, respectively. The values of n ranging from three to seven were also obtained by other researchers using traditional tension creep tests for FeCrAl alloy (Kamikawa et al., 2018; Ukai et al., 2020; Kang and Mercer, 2007). Therefore, the obtained values of n were reasonable using the nano-indentation creep test. The values of A were also calculated as shown in Table 2 and Table 3 for FeCrAl alloys with 60 and 90% total thickness reductions.

FIGURE 5
www.frontiersin.org

FIGURE 5. Variation of n under different applied loads for the FeCrAl alloy at the temperature of 350°C: (A) 60% total thickness reduction and (B) 90% total thickness reduction.

TABLE 2
www.frontiersin.org

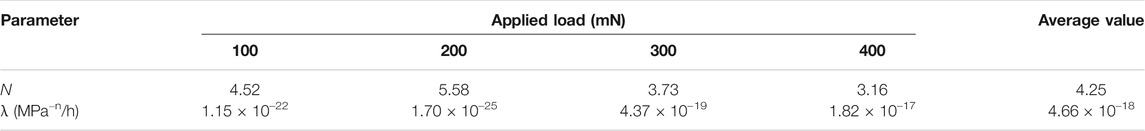

TABLE 2. Nano-indentation creep test results for FeCrAl alloy with 60% total thickness reduction.

TABLE 3
www.frontiersin.org

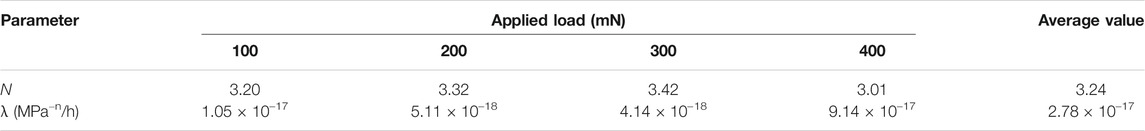

TABLE 3. Nano-indentation creep test results for FeCrAl alloy with 90% total thickness reduction.

Based on the test results of Table 2 and Table 3, the power-law creep model for the FeCrAl alloy was obtained as follows:

ε˙=4.66×10-18σ4.25(5)

with 60% total thickness reduction,

ε˙=2.78×10-17σ3.24(6)

with 90% total thickness reduction. The variations of ε˙ under different values of σ are shown in Figure 6 for the FeCrAl alloy with 60% total thickness reduction and 90% total thickness reduction, where ε˙ was calculated using Eqs. 5,6, and the value of σ was ideally chosen from 100 to 130 MPa. As shown in Figure 6, ε˙ of the 60% total thickness reduction was larger than that of the 90% total thickness reduction. Therefore, the hot-rolling thickness process could increase the creep resistance of the FeCrAl alloy. The possible reason was that the grains became smaller under the large rolling thickness reduction, as shown in Figure 2. After the grains became smaller, the corresponding number and length of the grain boundaries were significantly increased, and the dislocation also increased. In this way, the creep behavior was restricted because more resistance needed to be overcome during the creep process. Therefore, the creep resistance was increased with increase of the rolling thickness reduction. However, further microscopic observations, such as SEM and EBSD, are necessary to support this opinion.

FIGURE 6
www.frontiersin.org

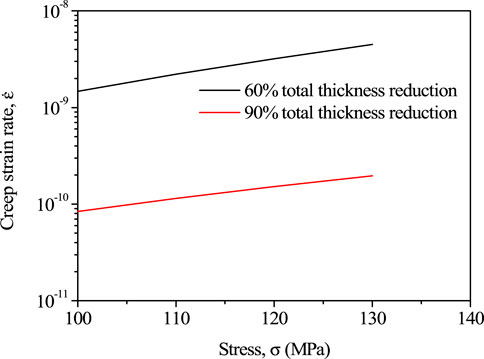

FIGURE 6. Comparison of ε˙ under different values of σ for the FeCrAl alloys with 60 and 90% total thickness reductions.

Conclusion

The effect of a process condition of hot-rolling thickness reduction on the creep properties of FeCrAl alloys was investigated using a nano-indentation creep test at the temperature of 350°C. The microanalysis results indicated that grain size became smaller with the increase of the hot-rolling thickness reduction, and the grain elongated to the hot-rolling direction. The power-law creep model was obtained using the nano-indentation creep tests. The test results showed that the power-law creep stress exponent was about four, and the creep resistance increased by the increase of the hot-rolling thickness reduction.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding authors.

Author Contributions

All authors listed have made a substantial, direct, and intellectual contribution to the work and approved it for publication.

Funding

The financial support from the Project of National Natural Science Foundation of China (No. 51705078), International Sci & Tech Cooperation Program of GuangDong Province (2019A050510022), Guangdong Major Project of Basic and Applied Basic Research (2019B030302011), and Key-Area Research and Development Program of GuangDong Province (2019B010943001, 2017B020235001).

Conflict of Interest

Author XY was employed by the company Suzhou Nuclear Power Research Institute Co. Ltd.
