Novel Poly Deep Eutectic Solvents Based Supported Liquid Membranes for CO2 Capture

Manzar IshaqManzar Ishaq1Mazhar Amjad GilaniMazhar Amjad Gilani2Zobila Muhammad AfzalZobila Muhammad Afzal2Muhammad Roil BiladMuhammad Roil Bilad3Abdul-Sattar NizamiAbdul-Sattar Nizami4Mohammad RehanMohammad Rehan5Eza TahirEza Tahir4Asim Laeeq Khan
Asim Laeeq Khan1*
  • 1Department of Chemical Engineering, COMSATS University Islamabad, Islamabad, Pakistan
  • 2Department of Chemistry, COMSATS University Islamabad, Islamabad, Pakistan
  • 3Chemical Engineering Department, Universiti Teknologi PETRONAS, Perak, Malaysia
  • 4Sustainable Development Study Centre, Government College University, Lahore, Pakistan
  • 5Center of Excellence in Environmental Studies (CEES), King Abdulaziz University, Jeddah, Kingdom of Saudi Arabia

The poly deep eutectic solvents (PDESs), a potential substituent to ionic liquids, have emerged as relatively new material and have been successfully applied in catalysis, nanotechnology, and, more importantly, in gas separation. Herein, the PDESs were incorporated for the first time in the CO2 capturing membranes to exploit their inherent advantages in the acid gas capture. The PDESs were synthesized by mixing choline chloride (hydrogen bond acceptor-HBA) and two hydrogen bond donors-HBDs (polyacrylic acid and polyacrylamide) separately in different molar ratios. The physical changes of the resulting homogeneous mixture along with the Fourier Transform Infrared confirmed the successful synthesis of the PDESs. Afterward, these PDESs were impregnated into microporous polyvinylidene fluoride (PVDF) membrane support to fabricate supported liquid membranes (SLMs). The gas performance of the prepared PDES-SLMs was tested under pure and mixed-gas conditions for CO2, CH4, and N2. The PDES-SLMs showed a significantly high CO2/CH4 and CO2/N2 selectivities of the order of 55.5 and 60, respectively. To evaluate their practical implication, the SLMs were investigated systematically under different operating conditions such as choline content, temperature, volume fraction of the CO2 in the feed, and the activation energy required for CO2 capture. The synthesized SLMs showed exceptional results in both permeability and selectivity viewpoint. The remarkable SLMs gas performance can be ascribed to the basicity, molar free volume, and the H-bonding strength of the synthesized PDESs. The green potential, low cost, and the promising gas separation performance make theses PDESs a favorable alternative to the competing PILs in capturing the greenhouse acid gases.

Introduction

The carbon dioxide (CO2), primarily released to the environment by the consumption of fossil fuels and other major industrial processes, contributes to 60% of the greenhouse gases and, posing the threat of global warming (Coninck et al., 2005). As a result, there is an urgent requirement of effective CO2 capturing technologies to control the emissions of greenhouse gases. Primarily there are three methods of CO2 capturing, i.e., Pre-combustion, Post-combustion, and oxy-fuel method. The conventional technologies for CO2 suppression include cryogenic distillation, adsorption, and absorption. In the cryogenic distillation, CO2 is captured at low temperature, and the process involves compression and expansion of the CO2, and at the end, liquefied CO2 is obtained. This technology has limitations of high energy consumption, special equipment requirement, and small concentration of CO2, which make the process uneconomical as it cannot be used at a large scale. The absorption method usually employs the amine-based porous adsorbents for CO2 capturing. This process involves both physisorption and chemisorption of the acid gas. The main disadvantage of the adsorption method is difficult regeneration and scarcity of suitable adsorbents (Shen et al., 2020). In the absorption technique, CO2 is separated based on solubility in the solvent. CO2 is absorbed in a solvent, then separated from the solvent at high temperature, and solvent is regenerated. The absorption could be physical or chemical. The main issue with absorption technology is high energy requirement and the need for particular green solvents with high CO2 solubility values (de Almeida Quintino, 2014; Songolzadeh et al., 2014). These techniques are energy intensive because of the solvent regeneration and elevated operating conditions (Tuinier et al., 2010; Wang et al., 2011). The membrane technology provides numerous advantages over other conventional techniques such as eco-friendliness, low energy demand, ease of operation, and one-step separation (Bernardo et al., 2009; Peng et al., 2014; Pan et al., 2020). In particular, the supported liquid membranes (SLMs), especially supported ionic liquid membranes (SILMs) have been investigated broadly, which combine the highly processable and flexible polymeric support impregnated with ionic liquids (ILs) for CO2 capture (Malik et al., 2011; Uchytil et al., 2011).

The inherent advantages of ILs such as high thermal stability, extremely low vapor pressure, and non-flammability, make them suitable options for CO2 capture (Meine et al., 2010; Emel’yanenko et al., 2014). Additionally, the relatively new idea of combining polymer and IL as polymerized ionic liquid (PIL) membranes was put forward by Bara et al. for the first time in 2007 (Bara et al., 2007). The PIL membranes share the advantageous properties of ILs along with high mechanical stability of the membranes under high pressure. However, the CO2 permeabilities of these PIL dense membranes were found to be significantly lower because of low diffusion rate of the acid gas through them (Bara et al., 2007; Bara et al., 2008a). The PIL based SLMs have also been fabricated and investigated for their potential in increasing CO2 permeability and CO2/light gas selectivity by relying on the solubility selectivity (Bara et al., 2008b; Bara et al., 2009b; McDanel et al., 2014). Despite these many advantages discussed above, several drawbacks of ILs have also been articulated, such as extremely high viscosity, toxicity, synthesis cost, and non-biodegradability (Pham et al., 2010; Biczak et al., 2014). Therefore, there is a need for green substituent of ILs in the field of SLM that can selectively separate the acid gas from the mixture of gases.

In this context, deep eutectic solvents (DESs), obtained because of hydrogen bonding formed between the hydrogen bond acceptor (HBA) and hydrogen bond donor (HBD), are a promising alternative (Francisco et al., 2013; García et al., 2015). The melting point of the DESs lies far below the melting points of the individual precursors, which is a characteristic feature of the eutectic solvents. The characteristic properties of the DESs can also be tuned according to the application requirement by altering the choice of HBA and HBD and their molar ratios (García et al., 2015). The DESs have many advantages compared to ILs, such as cost-effectiveness, biodegradability, ease of synthesis, and biocompatibility (Smith et al., 2014). The very first DES reported by Abbott et al. was formed between choline chloride-HBA (a vitamin B component) and urea-HBD (Abbott et al., 2003). Afterward, most of the DESs reported were primarily obtained from the choline chloride because it is a biodegradable and low cost, as the price of choline based DESs is merely 4–9% of the conventional ILs (Ma et al., 2018).

In the past decade, a plethora of review articles on CO2 absorption by the DESs have been published so far, showing high DESs affinity for CO2 (García et al., 2015; Aissaoui et al., 2017; Sarmad et al., 2017; Zhang et al., 2018). The polymerized deep eutectic solvents (PDESs), are a new class of DESs in which the HBD part is polymerizable (Zhang et al., 2012; Mota-Morales et al., 2013; Ren’ai et al., 2018). PDESs have also been investigated like PILs, for CO2 capture in the absorption process by Isik et al. (Isik et al., 2016a; Isik et al., 2016b), showed significantly high CO2 uptakes. The polymerizable HBD was employed to synthesize PDESs for CO2 absorption process, while the HBD was polymerized using photo polymerization. The results of the investigations revealed that the PDESs are excellent CO2 sorbents (Isik et al., 2016a; Isik et al., 2016b). However, the risk of a complete conversion of the HBD to polymerized HBD and the maintenance of HBA-HBD interactions cannot be neglected.

To the best of our knowledge, PDESs have never been investigated in membrane-based CO2 capturing. The ambition behind this study is the findings of molecular dynamics simulation work investigated by Shen and Hung (2017), which revealed that the DESs family could efficiently be incorporated in the porous support of SLMs for CO2 capture. Therefore, this study, for the first time, used polymerized HBD to make DES with the HBA to avoid the risk of incomplete polymerization; plus the energy requirements reduced significantly for such chemistry. Polyacrylic acid (PAA) and polyacrylamide (PAM) were chosen as polymerized HBDs, and four types of PDESs were synthesized using choline chloride as HBA. These novel PDESs were impregnated as membrane liquids in the SLMs. The performance of the synthesized SLMs was evaluated with the CO2 permeability and CO2/CH4 selectivity to estimate the practical implication of these SLMs. The effect of operating conditions on membrane separation performance was also analyzed.

Materials and Methods

Choline chloride (≥99%), polyacrylic acid (Mn 1,500 g mol−1), poly acrylamide (Mn 1,000 g mol−1) were used in the synthesis of PDES. Polyvinylidene difluoride (PVDF) and N-Methyl-2-Pyrrolidone (NMP) were used to prepare membrane support. Sigma Aldrich supplied all materials. Chemicals were used as provided by the company.

Synthesis of PDESs

PDESs were prepared using the choline chloride (ChCl) as HBA and the polymers-HBDs (PAA and PAM) in two different molar ratios of 15:1 and 20:1, respectively. In a typical procedure, HBD and HBA were mixed in a suitable amount in a sample bottle using a magnetic stirrer. The mixture was heated to 80°C with continued stirring. A homogeneous viscous liquid (PDES) was obtained at the end of 30 min of simultaneous heating and stirring. The mixture was kept under the same reaction conditions for 2 h to ensure complete conversion. By repeating the similar procedure, four different PDESs were synthesized. The composition and nomenclature of the PDESs are presented in Table 1.

TABLE 1
www.frontiersin.org

TABLE 1. Composition and nomenclature of the synthesized PDESs.

SLM Fabrication

PDES-SLMs were prepared by using a PVDF ultrafiltration membrane as a support material. The phase inversion method was used to prepare PVDF membrane support. 15 wt% solution of PVDF was mixed with NMP and stirred for 24 h. Subsequently, a clear homogenous solution was formed that was then casted using Elcometer. 250 μm thickness was maintained during the casting process, and a cast film was formed. The phase transformation was accomplished by dipping the cast membrane in a nonsolvent (water) coagulation bath for 10 min to ensure the complete phase inversion. The synthesized membrane support was placed in a desiccator for 24 h to remove any volatile or water content present. The PVDF membrane sheet was placed in the desiccator overnight to ensure the complete drying to facilitate the incorporation of the PDES liquid on to the surface of the porous membrane. Subsequently, the SLM-1 based on PDES-1 was prepared using the impregnation method. In this typical method, 3 ml of the PDES-1 liquid was evenly spread on the surface of the PVDF support. Afterward, the membrane was placed in the circular permeation cell at 2 bar nitrogen pressure for 1 h to ensure the impregnation of the PDES-1 into the pores of the PVDF support. As evidence of complete impregnation, a thin layer of the PDES-1 was obtained at the bottom of the PVDF support. The same method was adopted for preparing SLM-2 SLM-3, and SLM-4 based on the corresponding PDES-2-4. The schematic image of synthesized SLMs is presented in Figure 1.

FIGURE 1
www.frontiersin.org

FIGURE 1. Schematic representation of SLM.

Characterization Techniques

The interaction between HBD and HBA has been confirmed through Fourier Transform Infrared (FTIR) spectroscopy. The FTIR spectra of the HBD and HBA and the PDESs were obtained in a scan range of 4000–800 cm−1 at room temperature with a resolution of 8 cm−1. The FTIR spectra were taken using Thermo-Nicolet (6700P) FTIR Spectrometer (USA). Viscosities of the PDESs are very crucial in deciding their practical applications, particularly as membrane liquid in SLMs. The viscosities of the PDESs were determined at room temperature using Ubbelohde viscometer. The vibrating tube densitometer Krüss DS7800 model was used to measure the density of the PDESs at atmospheric pressure.

Membrane Performance Testing

Gas separation performance of the prepared membranes was tested in a custom-built permeation setup by calculating pure and mixed gas permeabilities and selectivities. Gas permeation was tested at isochoric conditions (constant volume and variable pressure). The pressure of the setup is increased with time. A gas chromatograph equipped with two thermal conductivity detectors, at the front and back of gas chromatograph, was used to analyze the compositions of retentate and permeate. The schematic gas separation setup is shown in Figure 2. This setup is constructed of stainless steel. The composition and flow rate of the feed gas is controlled by Mass flow controller. The flow rate could vary from 0 to 1 L/min. The functional area of membrane in single cell permeation setup is 3.8 cm2. The working principle and specifications of the setup are defined elsewhere (Khan et al., 2010). The prepared membranes were positioned on the metallic porous support and airtight. The gas feed was introduced at 1 L/min into the membrane system. The prepared membranes were analyzed within the feed temperature range of 298–338 K to investigate the temperature effect on the gas separation performance. All the experiments were repeated at least three times to eliminate any ambiguity. The SILMs follow the solution diffusion mechanism for the transport of the gasses through them, according to this model

J=DS,(1)

where J Permeability, D Diffusion Coefficient, S Solubility Coefficient.

FIGURE 2
www.frontiersin.org

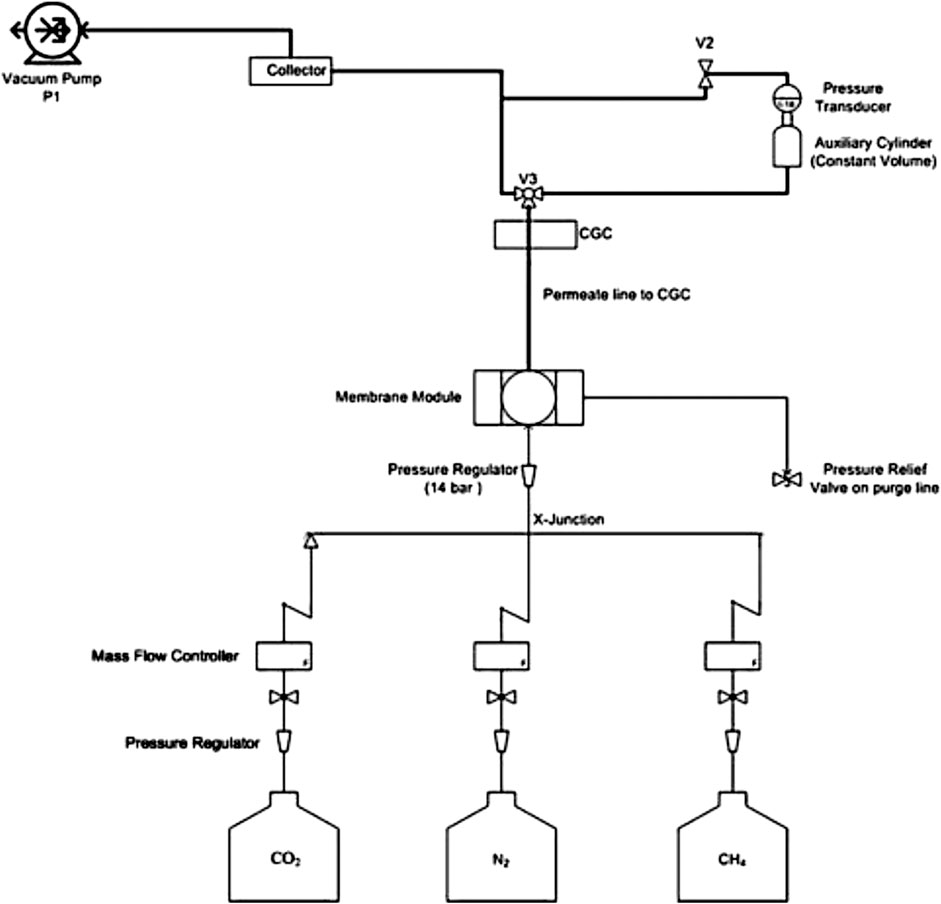

FIGURE 2. Set-up for pure and mixed-gas evaluation of membranes.

The time lag method was adopted to calculate “D” and “S” (Crank, 1975; Ash and Barrie, 1986). In this method, a high vacuum is applied at one side of the test gas, and D is calculated by calculating the lag time before the steady-state is achieved.

An auxiliary cylinder of 50 cm3 equipped with a pressure transducer that records the rate of increase in pressure is joined to a vacuum pump by valve V. The test gas was fed from one side of the cylinder while keeping the other side at vacuum until the steady-state achieved. The time lag intercept θ was calculated from the plotted graph of increasing gas pressure on the vacuum side. The following equation was used to calculate “D

D=  l26θ,(2)

where l is membrane thickness. After calculating the D, the S was calculated using Eq. 1. The selectivity of the gas A over gas component B was calculated using the following equation.

αA/B=PAPB.(3)

Results and Discussion

Characterization of the PDESs

The FTIR spectra of the DESs and their individual precursors, presented in Figures 3A,B, have confirmed the interaction between individual precursors resulting in the formation of DES. The characteristic peak analysis of the PDESs presented Figure 3 revealed that it is an approximately an overlap of its constituting components. The characteristic peaks of all the individual components did not disappear in the PDESs spectra showing that the structural integrity of these components has been maintained. The characteristic peaks of ChCl obtained at 3,200 cm−1 correspond to hydroxyl (OH bending) group. While the peak obtained at 1,480 cm−1 corresponds to alkyl group present in the structure of ChCl (Ullah et al., 2015). In case of pure PAA, the broad vibrational band observed between 3,200 and 3,600 cm−1 exhibits the OH stretching in all the PAA containing samples. The other important band that appeared at 1,682 cm−1 represents the carbonyl group present in the PAA (Mota-Morales et al., 2013). In case of pure PAM, the band obtained between 3,450 and 3,300 cm−1 represent the amine group (NH2 stretching). The bands at 1,702 and 1,640 cm−1 attributed to the carbonyl group (C=O) present. (Kumar et al., 2012). The peaks that appeared between 1,300–1,180 cm−1 are ascribed to the–C–N–linkage and CH2 groups (Dumitrescu et al., 2015).

FIGURE 3
www.frontiersin.org

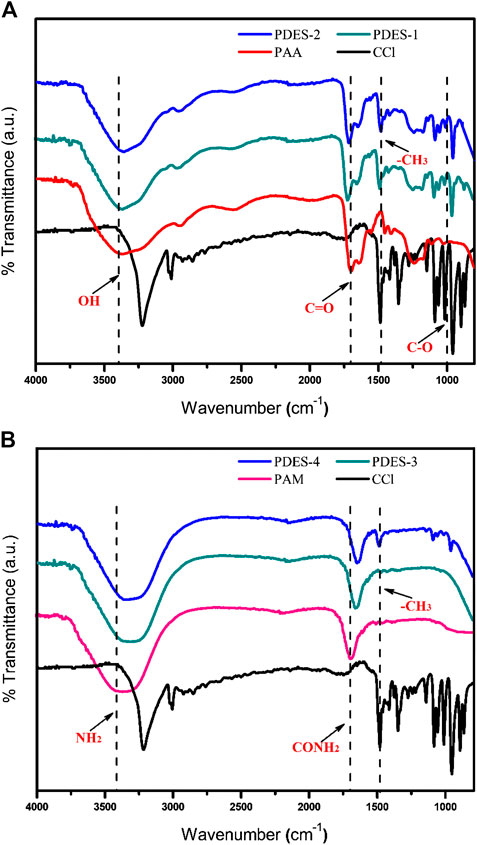

FIGURE 3. (A) FTIR spectra of PAA based PDESs. (B) FTIR spectra of PAM based PDESs.

The carboxylic group present in PAA was found to be in its acid form that is reflected in the peaks obtained at 1,736 and 1,711 cm−1, in PDES-1 and PDES-2, respectively (Mota-Morales et al., 2013). This feature revealed that the interaction between the PAA and ChCl was through hydrogen bonding, a characteristic property of the DESs. The band at 1,480 cm−1 in case of pure ChCl is shifted toward shorter wave number as the percentage of ChCl is increased. Interestingly, the NH2 bands are shifted toward lower wave number, which confirms the formation of the hydrogen bond between the HBA and HBD moieties (Yue et al., 2012). Additionally, it may be observed in case of all the PDESs spectra that the characteristic peaks undergo redshift as the concentration of the choline content is increased in the PDESs. This can be attributed to the strength of H-bond formed between the polymer and the ChCl, i.e., lower the wave number stronger the H-bond (Jiang et al., 2017).

The molar volume (V) of CO2 sorbent is a critical factor in determining the maximum amount of the gas sorbed per unit volume of the sorbent (Camper et al., 2006). Therefore, the molar volume of the PDESs was measured by the experimental values of density using the following equation.

V=MPDESρ.(4)

In the above equation, MPDES and ρ are the molar mass and density of the PDESs, respectively. Where the MPDES for the prepared PDESs was determined by using the following equation established for the DESs (Abbott et al., 2011; Peng et al., 2014),

MPDES=XHBAMHBA+XHBDMHBDXHBA+XHBD,(5)

where X and M represent the mole ratio and molar mass (g mol−1) of the HBAs and HBDs, respectively. The physical properties of the prepared PDESs are presented in Table 2. The viscosity and density, being the critical parameters for SLM fabrication, were measured three times with great care, and the average of the values are displayed. It can be observed from Table 2 that the prepared PDESs are moderately viscous. However, these values are lower and comparable to most of the ILs and DESs (García et al., 2015).

TABLE 2
www.frontiersin.org

TABLE 2. Physical properties of the PDESs.

Performance of Synthesized PDES-SLMs

The gas performance of the synthesized PDES-SLMs was analyzed by using pure gases CO2, N2, and CH4, and the results are presented in Table 3. The solution-diffusion mechanism is responsible for the transport of CO2 through the SLMs. It is a three-step mechanism in which the CO2 is first dissolved in the impregnated liquid, diffuses through it, and then for the concentration gradient, is desorbed to the permeate side of the SLMs. The CO2/CH4 and CO2/N2 selectivities for both types of SLMs were found to be significantly higher between 45.37–50.71 and 56.05–60, respectively. In the case of CO2/CH4, the SLM-2 membrane showed the highest selectivity, and for CO2/N2, the SLM-4 was the membrane with the highest selectivity. These significantly high selectivities can be attributed to the high solubility of the CO2 in the DESs (Abbott et al., 2004; García et al., 2015; Aissaoui et al., 2017). The selectivity results can also be justified on the ground of kinetic diameter of the analyzed gases (de Almeida Quintino, 2014). The PDES-SLMs prefer the permeation of small molecules and renders large molecules to pass through the membrane. The kinetic diameter of CO2 (3.30 Å) is small as compared to the N2 (3.64 Å) and CH4 (3.80 Å) that favors the improved selectivity of CO2/CH4 and CO2/N2. Moreover, the higher values of selectivity may also be ascribed to the lower molar volume of the prepared PDESs. This can be satisfactorily explained by using Camper model (Scovazzo, 2009), according to which the solubility of CO2 is higher in low molar volume liquids. The molar volume of the prepared PDESs presented in Table 2 has lower values than most of the commercially used ILs (Scovazzo, 2009). Interestingly, it can be observed from Table 3 that the CO2/CH4 and CO2/N2 selectivities were found to be increased by increasing the ChCl molar ratio. The increase in selectivity can be explained based on molar free volume and the basicity of the DESs (Trivedi et al., 2016; Ghaedi et al., 2017b). It is well established that the molar free volume and basicity of the DESs increase on par with the ChCl content in the DESs (Abbott et al., 2017). The increase in the molar free volume and basicity of the DES give rise to the permeability of the CO2, which resulted in high values of selectivities.

TABLE 3
www.frontiersin.org

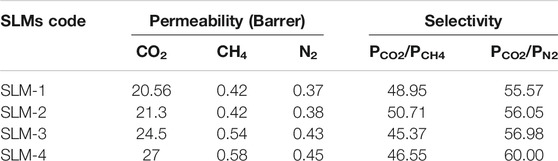

TABLE 3. CO2/CH4 and CO2/N2 ideal gas permeability and selectivity.

The acid gas permeability through the prepared SLMs can be illustrated using the hole theory explained by Abbott and coworkers (Abbott et al., 2007). According to this theory, free spaces between the individual ionic moieties of the PDES permit the ions to move through it. Ion-HBD interactions control the size of these holes (Abbott et al., 2007). The PAA based SLMS (SLM-1 and SLM-2) showed notable CO2 permeability of the order 19.45 and 19.9 Barrer, respectively. The permeability of these novel PDES-SLMs is comparable to the first-ever reported PIL membranes, which were in the range of 9–32 Barrer (Bara et al., 2007). Although the viscous membrane liquids are generally assumed to have lower CO2 permeability values (Scovazzo, 2009), the prepared PDESs have shown significant CO2 permeability values. This can be ascribed to the high solubility of the acid gas in the membrane liquid, as the molecular interaction is mainly assumed to govern the permeability rather than the bulk properties (Iarikov et al., 2011). This can also be supported by the reduced permeability values of CH4 and N2, as witnessed in the case of permeability results presented in Table 3. Moreover, the PAM based SLMs coded as SLM-3 and SLM-4 exhibited higher permeabilities than the SLM-1 and SLM-2. These SLMs showed significantly higher CO2 permeability values than most of the functionalized imidazolium-based PIL membranes (Bara et al., 2008a; Horne et al., 2015). The SLM-4 showed the maximum CO2 permeability of the order of 25 Barrer. The reason for this high permeation is the higher solubility, lower molar volumes, and moderate viscosities than the PAA based PDESs (SLM-1,2), as enlisted in Table 2.

The increase in ChCl concentration increases the intermolecular interactions (H-bonding) between the ChCl and HBD polymers, as anticipated in the FTIR spectra presented in Figures 3A,B. Therefore, the CO2 permeability of the PDESs is expected to decrease at higher ChCl concentrations because of stronger intermolecular interactions between the PDES moieties, which in turn reduced the attraction for third moiety CO2. On the contrary, the CO2 permeability was found to be increased, instead of decreasing, on a par with ChCl concentration in both types of HBDs, i.e., 20.5 to 21.3 in PAA-SLMs and 24.5 to 27 Barrer for PAM-SLMs when ChCl mole ratio was increased from 15 to 20. This peculiar behavior of CO2 permeability of the PDES-SLMs could be explained better through Lewis acid-base relation of the acid gas and the PDESs. It is well established that the basicity of the DESs increased to a significant level by increasing the ChCl concentration in the DESs, thereby making the DESs more attractive media for the acid gas capture (Abbott et al., 2017).

The mixed gas (50/50 wt%) permeability and the selectivity results were also evaluated, and the results are presented in Table 4 to prove the application of the DESs on a commercial scale. The permeability of the CO2 for polymeric membranes is generally reduced under mixed-gas conditions because of the competitive sorption through the membranes. This competitive phenomenon also lowers the selectivity because of the hindrance created by the CH4 and N2 molecules. Interestingly, the mixed gas results for SLMs were not significantly different from the pure gas measurements. This could be attributed to the fact that solubility selectivity governs the membrane selectivity while the gas diffusivity selectivity remains constant for a given gas pair, which is the main difference between supported liquid and polymeric membranes (Condemarin and Scovazzo, 2009). Contrarily, with polymeric membranes, the solubility selectivity remains the same, and diffusivity selectivity governs the overall selectivity of the membrane (Camper et al., 2006). This can be explained by considering the polymer matrix swelling, which alters the diffusivity in polymeric membranes while the diffusivity selectivity performs an insignificant role in case of SLMs.

TABLE 4
www.frontiersin.org

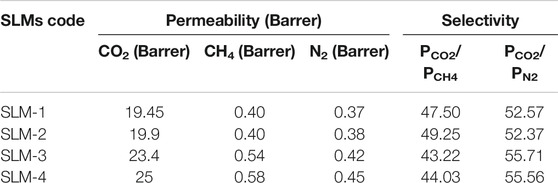

TABLE 4. CO2/CH4 and CO2/N2 mixed gas permeability and selectivity.

Effect of Temperature on CO2 Permeability

The CO2 permeability through all SLMs is significantly affected by changing the operating temperature, as reflected in Figure 4. The CO2 permeability exhibits Arrhenius behavior with a coefficient of determination (R2) higher than 0.99 for all of the PDES-SLMs. It is well reported that the solubility of the CO2 in the DESs decrease with the increment in temperature (Li et al., 2008). Moreover, the solubility selectivity is governing the overall performance on the SLMs. Thus, the permeability is expected to decrease with the rise in the operating temperature. However, the CO2 permeability, instead of decreasing, increased on par with the temperature for all the synthesized PDESs-SLMs. On average, every SLM exhibited a rise in the CO2 permeability of the order of 12 Barrer by increasing the temperature in the range of 298–338 K. The maximum increment in the CO2 permeability was witnessed in the case of SLM-2 of the order of 13.2 Barrer. However, this increment in the permeability can be explained by the viscosity and molar free volume parameters. This increase in permeability can be attributed to the lowering of the viscosities of the PDESs at elevated temperatures (D’Agostino et al., 2011). Moreover, the increase in temperature increases the ionic motions in the PDESs, which in turn increases the chain mobility and the hole size of the PDESs, thereby increasing the permeability of the acid gas through the SLMs. It is a valid argument that the molar free volume of the DESs also increased at the elevated temperatures resulting in the more permeability of the penetrant gas through the SLMs (Ghaedi et al., 2017a). The increment of CO2 permeability with temperature was also found to be in good agreement with the ILs literature (Jindaratsamee et al., 2011; Santos et al., 2014). Therefore, the increase in temperature resulted in an increase in the CO2 permeability for all PDES-SLMs.

FIGURE 4
www.frontiersin.org

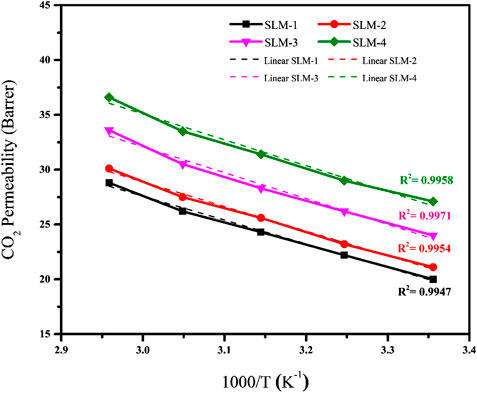

FIGURE 4. Arrhenius plot of temperature and CO2 permeability.

The acid gas permeability was correlated to the feed temperature via activation energy (Ea) in the Arrhenius equation as under

P=P0exp(Ea/RT),(6)

where P CO2 permeability, P0 pre-exponential factor, R gas constant, T feed temperature.

The activation energies (Ea) of CO2 permeation for all the PDESs-SLMs are listed in Table 5. The PDES-SLMs showed remarkably lower Ea values in the range of 4.04–4.34 kJ/mol. Interestingly, the SLMs Ea values found in this study were significantly lower than most of the reported SILMs using the same PVDF support, which exhibited the Ea values in a range of 16.55–19.37 kJ/mol (Jindaratsamee et al., 2011; Santos et al., 2014). The practical implication of this study and prolific addition to membrane literature is evident from the lower experimental Ea values of the SLMs. It can be observed from Table 5 that the SLM-4 presented the lowest Ea value of 4.04 kJ/mol, thereby making the CO2 easier to permeate through the membrane. This can be ascribed to the molar free volume and the lower viscosity of the polyacrylamide.

TABLE 5
www.frontiersin.org

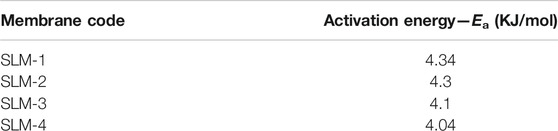

TABLE 5. Activation energies of the PDES-SLMs.

Effect of CO2 Concentration on CO2/CH4 Selectivity

The CO2 concentration in the feed has a significant effect on the CO2/CH4 selectivity, as shown in Figure 5. In CO2/CH4 pair, the selectivity decreased by increasing the CO2 concentration in the feed from 10 to 70%. The higher values of selectivity at low feed concentration is due to the relative ease of the CO2 solubility and lesser possibility of matrix swelling by CO2 plasticization through the PDESs. On increasing the CO2 concentration from 10 to 70%, the decrease in the selectivity was not significant that supports the argument of the absence of facilitated transport. In facilitated transport, the carriers become saturated at high CO2 concentration, which enormously lowers the selectivity of the given gas pairs (Bao and Trachtenberg, 2006; Iarikov and Oyama, 2011).

FIGURE 5
www.frontiersin.org

FIGURE 5. Effect of CO2 concentration in feed on CO2/CH4 selectivity.

Comparison With PIL Based SLMs With Reported Literature

The gas performance of the synthesized PDES-SLMs and previously reported PIL membrane literature is plotted on the Robeson plot (Robeson, 2008) in Figure 6, which is considered as a benchmark in gauging the performance of the membranes. The Robeson plot is an illustration of ideal selectivity for a given gas pair against permeability of the permeate gas. At the same time, the upper bound line can be viewed as a target for the membrane developers to design new materials (Robeson, 2008). It can be witnessed from Figure 6 that the prepared PDES-SLMs lie very close to the upper bound, characterized by higher selectivities and significantly high CO2 permeabilities as compared to the neat PIL and PIL/IL composite membranes. Most of the reported neat PIL membranes lie on the top left side, exhibiting significant CO2/CH4 selectivities. The very first neat PIL membranes incorporating imidazolium cations on polystyrene and polyacrylate backbone showed CO2 permeability as low as nine Barrer and moderate CO2/CH4 selectivities from 17 to 39 (Bara et al., 2007). The second generation of the functionalized PIL membranes improved the CO2 permeability from 8 to 14 Barrers, while reduced CO2/CH4 selectivity (29–37) (Horne et al., 2015). The cross-linked PIL membranes showed extremely low CO2 permeabilities (3.8–4.4 Barrer) for low diffusivity and moderate CO2/CH4 selectivities (22–28) (Bara et al., 2008a). The highly permeable PIL membranes were also developed with a permeability of 130 Barrer, although CO2/CH4 selectivity was significantly reduced (8.7), which rendered their practical implications where high throughput is required (Carlisle et al., 2013). Conclusively, the functionalization or the variation of cation of neat PIL membranes was not sufficient to endorse the large improvement in gas permeability along with the permselectivity.

FIGURE 6
www.frontiersin.org

FIGURE 6. CO2/CH4 separation performance comparison on upper bound [61]. The chart is plotted on a log-log scale and PIL and PIL/IL membrane data taken from references (Bara et al., 2007; Bara et al., 2008a; Bara et al., 2008b; Bara et al., 2009a; Bara et al., 2009b; Tomé et al., 2013a; Tomé et al., 2013b; Carlisle et al., 2013; McDanel et al., 2014; Horne et al., 2015).

These PIL/IL composite membranes were thought to overcome the permeability drawbacks of neat PIL membranes. Incorporating the free IL in PIL matrix increased permeability by approximately 400% as compared to neat PIL membranes (Bara et al., 2008b). However, the CO2/CH4 selectivity was reduced to 27, with the difference of minus 25% as compared to the neat PIL membranes (Bara et al., 2008b). The functionalization of free IL with ether, fluoroalkyl, siloxane, alkyl, and nitrile exhibited increased CO2 permeabilities (47–53 Barrer). However, the CO2/CH4 selectivity remained almost unaffected (Bara et al., 2009b). The PIL/IL composite having nitrile group exhibited the highest CO2/CH4 selectivity of 28 (Bara et al., 2009b). Besides the functionalization, the amount of free IL was also increased to 50, 60, and 75% to investigate the effect of the concentration of the PIL/IL composite on the gas performance of the membranes (McDanel et al., 2014). The highest CO2 permeability achieved was 100 Barrer, but the CO2/CH4 selectivity was only up to 20. It was concluded that the increase of free IL above a certain level makes the PIL membranes similar to SILMs (McDanel et al., 2014). It is evident from Figure 6 that the PIL/IL composite membranes also have a severe drawback of reduced selectivity, which makes them impractical in the applications where high purity streams are required.

The PDES-SLMs represents an improvement over the PIL and PIL/IL composite membranes reported in the literature. The synthesized membranes are approaching the upper bound, and systematic research can be targeted to improve the CO2 permeability while retaining the CO2/CH4 selectivity. Besides, the seemingly large combinations of HBAs and HBDs and the tunable nature of the PDESs opens a wide research window in this area. The initial proof of concept for PDES-SLMs is very promising, and novel aspects of this work in synthesizing a green and low-cost substituent of PIL membranes can successfully be achieved with improved acid gas performance as compared to the competitive PIL membrane literature.

Practical Implications of This Study

The membrane technology provides an energy efficient and robust solution for environmental problems. This study focuses on resolving the low permeability and selectivity plus the environmental concerns posed by commonly used CO2 capturers. The comparison with the previously reported neat PIL and PIL/IL membranes revealed that the novel synthesized PDES-SLM has shown significant improvement in CO2 permeability and CO2/CH4 selectivity. Moreover, another limitation of the membrane based separation systems is the demand of the large surface area. This problem was successfully resolved by the use of yet another membrane module called hollow fiber membrane. The hollow fiber membrane provides a significantly high surface area to volume ratio, and using PDESs in this type of membrane is an interesting idea. This idea has been tested using IL in the hollow fiber module and conceded prolific separation results (Wickramanayake et al., 2013). However, the mechanical stability of the membrane and the drawbacks of IL and rendered the application of these membranes on a commercial scale. The biocompatibility and low cost PDES-SLM should find practical applications in CO2 sequestering and sweetening of natural gas. The mechanical stability of the suggested membrane system could also be enhanced by applying different membrane fabrication methods and investigating the separation performance under a wide range of pressure (Kim et al., 2011). This study has investigated the novel PDES-SLMs and provided promising results. The practical application of this work would certainly be found by the encouraging idea of using the PDES based hollow fiber membranes.

Conclusions

A novel study on synthesis, characterization, and the gas separation performance of SLMs using PDESs obtained from already polymerize HBDs is presented. The homogeneous clear solution and FTIR analysis confirmed the formation of the PDESs because of strong hydrogen bonding between the HBAs and HBDs. The PDES prepared herein provided an easy and energy-efficient approach of CO2 capture by eliminating the complex synthetic steps. The CO2 permeability of the prepared PDES-SLMs was increased with increasing ChCl content in the PDESs. The SLMs exhibited significantly high values of CO2 permeability and CO2/CH4 selectivity in gas separation experiments. The CO2 permeability in the PDES-SLMs increased with operating temperature for a decrease in the viscosity of the PDESs at elevated temperatures. The effect of increasing CO2 concentration in the feed gas mixture proved the absence of facilitated transport in the SLMs. The comparison of the results obtained in this work with the competing literature indicated that PDESs are promising alternatives to the PILs in the membrane-based separations. The present work is one of the very first milestones in this field of PDES based SLM for CO2 capture. It will open a window of opportunity to design PDESs with task-specific HBD and HBA that might reduce the permeability-selectivity trade-off and surpass the upper-bound.

Data Availability Statement

All datasets presented in this study are included in the article.

Author Contributions

All authors listed have made a substantial, direct, and intellectual contribution to the work and approved it for publication.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

AK would like to thank Pakistan Science Foundation (PSF), Pakistan for their Grant No. PSF/Res/P-CIIT/Engg (124).

Abbreviations

PDES, poly deep eutectic solvents; DES, deep eutectic solvents; PIL, polymerized ionic liquid; IL, ionic liquid; HBA, hydrogen bond acceptor; HBD, hydrogen bond donor; PAA, polyacrylic acid; PAM, polyacrylamide; ChCl, choline chloride; Ea, activation energy
