Water Use for Energy Production and Conversion in Hebei Province, China

In recent years, with the socio-economic development, energy production and water consumption have been given more and more scientific, political and public concern. Taking Hebei Province, China as, an example, this paper performs an in-depth analysis of the energy production and water consumption. In this study, the water withdrawals and water consumption associated with energy production in Hebei Province from 2015 to 2050 were estimated by using the bottom-up Long-range Energy Alternative Planning model, which established three scenarios based on three different development models. The results show that the energy production and their associated water requirements would continue to grow at a high speed in the Reference Scenario. The energy production and their associated water withdrawals and water consumption were found to have decreased sharply in the coordinated development scenario and the strong emission reduction scenario compared to the reference scenario. It shows that industrial restructuring, energy structure optimization and the renewable energy replacement have played an important role in energy-efficient and water-efficient in coordinated development scenario and strong emission reduction scenario. Further coordinated management policy on water and energy should be fully considered to promote the sustainable management of water and energy in Hebei Province.

Introduction

Water and energy resources are significant material foundations for the development of human society and a powerful driving force for the modernization process (Spang et al., 2014; Qin et al., 2015). However, in the context of global climate change and an increasing population, we are facing many problems regarding the demand for water resources and energy. The UN Sustainable Development Goals proposed in 2015 pointed out that, as the global economy grows year by year, despite the improvement in energy efficiency, energy use will have grown by 35% by 2020, and the world’s energy consumption will increase by nearly 50% over the next 30 years (Bureau for Workers’ Activities, 2014). At the same time, <3% of the world’s water will be fresh, and it is estimated that two-thirds of the world’s population will face water shortages by 2025 (Lu et al., 2015). Therefore, one of the objectives of the United Nations (UN) World Water Day, which has the theme of “Water and Energy,” is to call on countries to implement more “coordinated, coherent, and consistent” sustainable development policies for energy and water resources.

Hebei Province (E 113°27′–119°50′, N 36°05′–42°40′) is located on the shores of the Bohai Sea. Its inner ring contains the cities of Beijing and Tianjin, and it is one of China’s primary industrial bases (Figure 1). It holds a critical strategic position in the integrated development of Beijing–Tianjin–Hebei (Jing-Jin-Ji). Hebei is a major energy and industrial center and faces population pressure, resource shortages, and environmental pollution. Hebei Province is rich in energy resources but seriously lacks water resources, and there is typically a serious mismatch between the energy and water resources distribution patterns. The energy industry is responsible for a large part of the water use of the industries in Hebei province. The exploitation and processing of traditional energy consumes a lot of fresh water every year, but Hebei Province is seriously deficient in water resources. The water resources per capita are 386 m³, the water resources per acre are 243 m³, and the water resources per capita and acre are equivalent to one-eighth of the national average value (Ministry of Water Resources of China, 2015).

FIGURE 1

FIGURE 1. The location of the study region in China.

The continuous increase in demand for energy poses enormous challenges for water use and safety in Hebei Province. In the functional orientation of the “Beijing–Tianjin–Hebei (Jing-Jin-Ji) Collaborative Planning Outline,” Hebei Province is considered to be an area that supports the Beijing–Tianjin–Hebei ecological environment and plays an important role in the utilization of ecological resources and environmental protection. It is a typical regional economic area and a significant hub for the integration of Jing-Jin-Ji. However, the primary industry and the secondary industry require a large amount of imported water due to the fact that the local water resources cannot meet their total water demand. Considering the implement of the recent development plan (“The development of Xiongan New Area” and the “Two-child Policy”), hosting the Winter Olympic Games, and the technological innovation in the energy sector, without a doubt, it will exert great influence on the tense relationship between water and energy in Hebei Province. At this stage, studies focused on Hebei is commonly found on water-energy nexus and the decomposition analysis of water utilization in Jing-Jin-Ji region (Wang et al., 2015; Sun et al., 2018; Li X. et al., 2019). Specifically, for Hebei Province, Lv et al. (2018) identified optimal strategies for the energy-water nexus system under multiple uncertainties and various water-saving scenarios (Lv et al., 2018). However, few studies are employed to perform an in-depth analysis of the energy production and their associated water consumption under a multi-scenario analysis considering the low-carbon and sustainable policy in Hebei Province. Thus, this study established a multi-scenario analysis of water requirements for energy production in Hebei province using the Long-range Energy Alternative Planning (LEAP) model via comprehensively considering the corresponding policy of the development of a low-carbon economy. Furthermore, the paper explores the trend of change in water demand for energy production under the influence of the corresponding greenhouse gas emission policies in Hebei Province as well as the water use problems in the energy industry. The results of this study may provide a scientific basis for decision-making to improve the management of energy and water use and implement sustainable energy and water resource development policies, and be conducive to the sustainable development of the Beijing–Tianjin–Hebei region.

The paper is organized as follows: Introduction section introduces motivation and objective and contribution of this study; Literature Review briefly reviews the previous literatures; Methodology and Data describes the methodology and data; Empirical Results and Discussion present the empirical results and discussion of this work; conclusions and policy implications are presented in the final section.

Literature Review

In recent years, energy production and water restrictions have attracted more and more scientific, political and public concern. Water withdrawals and water consumption for energy production always serve as key indicators for assessing the water use in energy production. Water withdrawals refer to the diverted or withdrawn water from a surface or groundwater source while water consumption is the consumed part (evaporation, absorbed by a product, or other losses) of withdrawn water from natural water bodies (Strzepek et al., 2012).

To date, researches on water use for energy extraction, processing, and conversion widely reported, including traditional fossil fuel production (coal, oil, and natural gas), heat and electricity generation, the production of energy from biomass, and the impact of water use in the energy production process on the ecological environment (Veil et al., 2004; Mielke et al., 2010; Zhou et al., 2016). In addition, the policy implications for managing the two resources have been assessed at the national level, where energy and water management are generally independently regulated (Pate et al., 2007). Many scholars have commented on the content of sustainable development policies for both energy and water resources, including the sustainable development of wind, solar, and biomass energy sources, an energy conservation policy, a climate policy, the sustainable development of water resources, the three Red Lines water policy, and technological innovation (Kiparsky et al., 2013; Qin et al., 2015; Zhou et al., 2016). The results of most of the abovementioned energy production studies are based on the research results of other studies and not on regional policies. For example, according to the energy strategy scenario of China’s International Energy Agency (IEA), Cai et al. (2014) evaluated the water withdrawals for energy production from 2011 to 2030 (Cai et al., 2014), and Qin et al. (2015) assessed the water use in the energy industry and its impact on the “3 Red Lines water policy” (Qin et al., 2015). Based on a multiregional input-output analysis, Jin et al. (2019) investigated the water—energy nexus networks in China, which provided valuable reference for synergetic development of water and energy resources (Jin et al., 2019). However, few of the studies are employed to performs an in-depth analysis of the energy production and their associated with water consumption with a multi-scenario analysis considering the low-carbon and sustainable policy in Hebei Province.

There are three main approaches to calculate the water requirements for energy production. One is to use a technology-based bottom-up approach to calculate water use (water withdrawals or water consumption) in the energy sector, which is calculated by multiplying the energy production by the water use coefficients of a range of energy technologies, including fossil-fuel-based energy production and power generation (Veil et al., 2004; Kenney and Wilkinson, 2011; Nicot and Scanlon, 2012; Zhou et al., 2016; Zhou et al., 2019). Another approach is to use a hybrid strategy consisting of a lifecycle approach and an input—output approach (Cooper and Sehlke, 2012; Fang and Chen, 2016). The third approach is to use the scenario analysis method, which simulates water requirements in the medium- and long-term for energy production by setting different conditions (Cooper and Sehlke, 2012; Shang et al., 2016). The bottom-up approach is a simple and effective way to calculate local and overall water usage. The hybrid approach is more rigorous, but its data requirements are strict. The scenario analysis method can be used to set changes in different conditions and conduct medium- and long-term simulations of energy production and water requirements.

Methodology and Data

Methodology

The Framework of the Model

In view of the complex relations between water use, energy production, and socio-economic factors, the LEAP-Hebei model was adopted in this research to perform a systematic analysis of current and future energy production and the associated water use. Figure 2 presents the model’s framework, which was applied to assess the water use for energy production in Hebei Province.

FIGURE 2

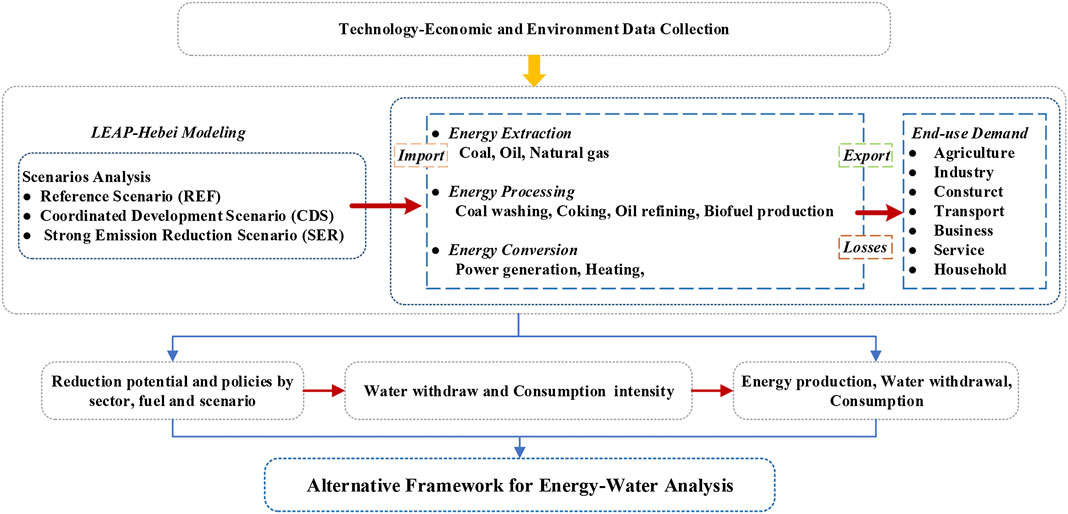

FIGURE 2. The model’s framework.

The Long-range Energy Alternative Planning Model

The bottom-up approach can be used to calculate a local or an overall water use value. At this stage, most studies on water use for energy production use bottom-up accounting methods to calculate the water use value in the energy sector. These studies multiply the energy production by the water use coefficient of a range of energy technologies. The LEAP model was developed by the Stockholm Environment Institute in Boston. It is a bottom-up model and can be applied to perform a comprehensive analysis of the energy-economy-environment nexus based on different planning scenarios (Clark and Heaps, 2012). Different scenarios can be set up in the model, and different policy measures and technical means can be adopted to carry out medium- and long-term simulations of energy supply, energy consumption, and environmental conditions by linking the environmental emissions and the driving factors in the study area (Cai et al., 2008). It is widely used on global, national, and local scales to predict energy supply and demand and the impact of energy policy changes on the environment. Based on the LEAP model, Chen et al. (2020) established four scenarios to estimate China’s energy demand and carbon emissions from 2020 to 2050. Katta et al. (2019) simulated energy demand and supply of Canada’s oil sands from 2007 to 2050. Agrawal et al. (2018) developed an integrated framework to analyze the impact of climate change on water consumption and greenhouse gas emissions. Zhao et al. (2011) analyzed the path of China’s development of a low-carbon economy by 2050. Hong et al. (2016) used the LEAP model to discuss the effectiveness of policies imposed on the Korean transportation sector, and the chain effect on Korea’s energy and environment by 2050. Rahman et al. (2016) combined SMAA (Stochastic Multicriteria Acceptability Analysis) with the LEAP model to promote multi-sector-related interests and plan energy policies to achieve a sustainable low-carbon path. Emodi et al. (2017) used the LEAP-Ningbo model to simulate the greenhouse gas emissions of the six energy sectors in Ningbo, which is a pilot low-carbon city. In summary, the LEAP model is a bottom-up, long-term energy planning model. Most current research focuses on energy forecasting and carbon emissions simulation, but there is relatively little research on water use for energy production using the LEAP model. In this study, we combined the LEAP model with energy production forecasting to analyze water use for the energy sector.

Water Withdrawals and Consumption

Most of the energy scenarios that are currently used to study energy production and water use are based on the research results of other studies and do not fully integrate the policies in the study area. In this paper, we concentrate on current and future water use for energy production by first applying policies on economic growth, energy utilization (clean energy), industrial structure, and innovative technology in a bottom-up approach based on the establishment of the LEAP-Hebei model. The water use for energy production was calculated by multiplying the energy production of each sector by the intensity of water withdrawals and the intensity of water consumption to calculate the water withdrawals and water consumption, respectively, of various types of energy production.

$W={\displaystyle \sum }_{i=1}^n{E}_i{\alpha }_i(1)$

$C={\displaystyle \sum }_{i=1}^n{E}_i{\beta }_i(2)$

where E_i represents the i-type energy production, W represents the water withdrawals for the energy production, C represents the water consumption for the energy production, n represents the total number of energy production types, and α_i and β_i indicate the i-type intensity of water withdrawals and consumption for the energy production, respectively.

Scenario Settings

The proposed scenario is based on the Hebei 13th Five-Year Plan, the Hebei Town Planning System, China’s recent “Climate Planning,” and the 2050 China Energy and Carbon Emissions Report. Three scenarios were established based on the activity level of each energy sector, the energy intensity, and the energy structure by the bottom-up approach. The key data and assumptions, including Gross Domestic Product (GDP), population, and urbanization, were set to be the same in order to compare the results from the three scenarios. Regarding the settings of the scenarios in Hebei province, reference was made to the research of Li Z. et al. (2019). As a basic scenario, the reference (REF) scenario is consistent with the REF scenario of Li Z. et al. (2019), representing the existing development status of Hebei Province. The coordinated development scenario (CDS) comprises the industry structure optimization scenario and the terminal consumption structure optimization scenario, which are based on the REF scenario, and optimize the industrial structure and energy structure, inhibit the development of the secondary industry, vigorously develop the tertiary industry, improve energy efficiency, implement natural gas instead of coal, develop renewable energy, and increase the proportion of renewable energy. The strong emission reduction (SER) scenario is referenced to the low-carbon development scenario, and the other key parameters refer to the settings described in this article. The SER scenario is based on the CDS scenario, and further improves energy efficiency, implements natural gas instead of coal, develops renewable energy, focuses on the development of wind and solar energy, which, in this scenario, become the energy sources with the dominant proportion of power generation, and introduces advanced carbon capture and storage (CCS) technology to reduce carbon emissions from thermal power generation. The major parameters that were used in the sub-sectors of the REF, CDS, and SER scenarios in the LEAP-Hebei model are given in Supplementary Tables S2–S6.

There are many technologies that can reduce the amount of water use for energy production, most notably cooling technology. In this paper, the parameters for change in consideration of the development of water-saving technology were set for the future. The intensity of water withdrawals and water consumption remained unchanged at the base year in REF. The other two scenarios take into account the development of water-saving technology, and the intensity of water withdrawals and the intensity of water consumption are estimated from the scenario. The proportion of the three cooling technologies in the three scenarios is based on (Zhang et al., 2014; Zhou et al., 2016). The future cooling technology development ratio parameters (excluding seawater cooling) were set as shown in Table 1.

TABLE 1

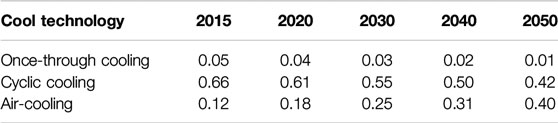

TABLE 1. The cooling technology in the future setting [the coordinated development scenario and the strong emission reduction scenario] in the model.

Data Acquisition

Data Collection

The data for the modeling process that were collected for this research included: historical data on Hebei Province, baseline data from 2015, trend data, and reference parameters. The historical data were used for key assumptions and scenarios, such as industry added value, urbanization, population, and GDP, and were primarily statistics from the Hebei economic statistics yearbook (2000–2016) (Li et al., 2018), the sixth Hebei population census, and town planning in Hebei province (Wang and Yang, 2015; Department of Housing and Urban-Rural of Hebei, 2017). The baseline data from 2015 were statistics taken from the Hebei Economic Yearbook of 2016 and the China Energy Statistics Yearbook of 2016 (China Electric Power Yearbook Editorial Committee, 2016) regarding energy supply, imports and exports, transformations, input, and demand in seven sectors. The trend data (changes in industrial structure and changes in energy efficiency) and some binding indicators were obtained from government and special department planning documents. The government department survey data were taken from Hebei’s 13th five-year energy development plan, reports from academic institutions in various departments of Hebei, the program for the coordinated development of Beijing–Tianjin–Hebei, and China’s Energy and Carbon Report 2050 (China energy and Carbon Emission Research Group, 2009; Department of Housing and Urban-Rural of Hebei, 2017; Zhou et al., 2017). The reference parameter data were derived from the “General Calculation Rules for Integrated Energy Consumption” (GB/T-2589-2008), the energy conversion standard coal coefficient, and the average low heat generation of energy, which are all contained in Appendix 4 of the China Energy Statistics Yearbook of 2016 (China Electric Power Yearbook Editorial Committee, 2016).

The estimations of water withdrawals and consumption for energy production were found to vary widely across the following sources of information: the National Pollution Source Survey of China (Zhang et al., 2013), The Chinese Environmental Statistics Database of 2011 (Lv et al., 2018), and other research data (Qin et al., 2015). In this study, the water withdrawals coefficient was based on (Zhang et al., 2013; Lv et al., 2018), and the water consumption coefficient was based on (Zhang and Anadon, 2013; Zhou et al., 2016). The water withdrawals and consumption factors that were used in this paper are provided in Supplementary Table S1.

Accounting Scope

In this study, water withdrawals and water consumption were assessed in the energy sector. Energy production included primary energy (coal, oil, and natural gas) extraction. The primary energy processes included processes for washing coal, coking, refining oil, and biofuel production. Primary energy conversion included coal power generation, natural gas power generation, biomass power generation, nuclear power, hydropower, wind power, and solar power generation and heating.

Considering that wind energy and nuclear energy are not widely used in Hebei, the water use for wind energy and nuclear energy were not taken into consideration (Chen et al., 2016). In the future, the use of solar energy and photovoltaic power generation will continue to grow in Hebei, and about 0.019 m³/MW h of water will be used when cleaning the surfaces of battery components (Macknick et al., 2012). Hydropower, according to some studies, is considered to be a water-intensive energy carrier (Liu et al., 2015; Zhou et al., 2016). Biomass power generation only accounts for a small part of the total power generation in Hebei Province, and uses crop straw and garbage as fuel. In this study, we did not consider the water that was used in the production of biological raw materials; we only considered water consumption during power generation (Cai et al., 2014). In this paper, we analyzed the use of fresh water in energy production in Hebei Province; accordingly, the utilization of seawater fell outside the accounting scope. A power plant’s cooling technology has a great impact on water withdrawals and water consumption. Three types of cooling systems were considered in our research: once-through, cyclic, and air-cooling. Only the “operable” water withdrawals and the water consumption that was directly related to energy production were considered in this research.

Empirical Results and Discussion

Results and Analysis

The Predicted Results for Energy Demand and Production

Figure 3 shows the long-term energy demand trend in Hebei Province. There are no inflection points in any of the three scenarios. There is an increasing trend during the projection period in the REF and CDS scenarios. The SER scenario also shows an upward trend; however, the growth rate is slow. The total energy demand in the SER scenario increased from 321,618 Mtce in 2015–2,253.13 Mtce in 2050, with an average annual growth rate of 5.72%.

FIGURE 3

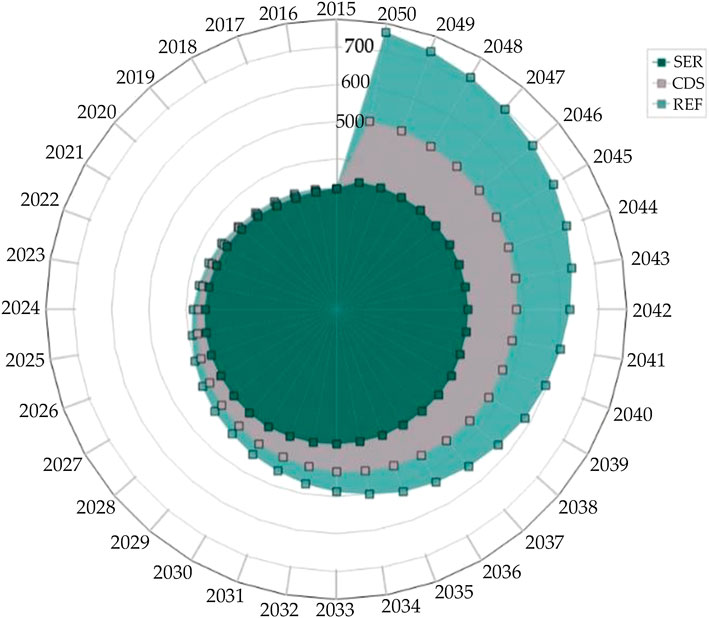

FIGURE 3. The energy demand in the three scenarios during the period 2015–2050.

Figure 4 shows the energy production in Hebei Province. There is an increasing trend during the projection period in the REF and CDS scenarios; however, in the SER scenario, the energy production peaked around 2030 due to strict control policies and then slowly declined. The energy production in the SER scenario decreased significantly compared to the REF and CDS scenarios. The energy production in the REF, CDS, and SER scenarios reaches 826.04, 547.01, and 340.30 Mtce, respectively, in 2050. In the REF scenario, traditional fossil fuels dominate the period 2015–2050; consequently, in this scenario, the coal industry accounts for the highest proportion of energy production among the various industries. In the CDS scenario, the total coal output and energy production in 2030 and 2050 decreased by approximately 19.78 and 39.47%, respectively, compared with the REF scenario. In the SER scenario, the production of natural gas shows an upward and then a downward trend. Renewable energies, such as wind and solar energy, become the main sources of energy. The production of coal, oil, and natural gas decreased by approximately 43.09, 34.34, and 59.60%, respectively, the production of wind energy increased by approximately 28.45%, and the production of solar energy increased by approximately 62.96% compared with the CDS scenario in 2050. Renewable energy gradually becomes an important energy, and the gradual expansion of renewable energy use also effectively reduces CO₂ emissions.

FIGURE 4

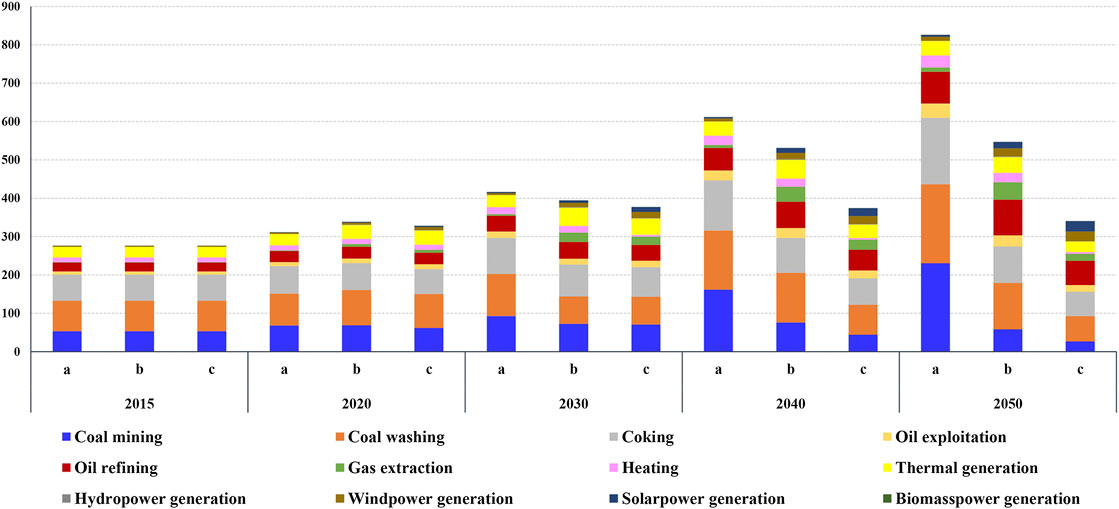

FIGURE 4. The energy production of each sector in the three scenarios: (a) reference, (b) coordinated development scenario, (c) strong emission reduction (the detailed data was shown in Supplementary Table S7).

Water Withdrawals and Water Consumption for Energy Production

The amount of water required for energy production is affected by changes in energy production and different policies will have different effects on energy production. Three different scenarios, as shown in Figures 5–7, were analyzed in this paper. A comparison of the three scenarios shows that, in the REF scenario, the energy structure was not adjusted, energy production is on the rise, and water withdrawals and water consumption for energy production are also on the rise. In the CDS scenario and the SER scenario, the water withdrawals and water consumption for energy production first increase and then decrease, and reach their peak in 2020 and 2030, respectively.

FIGURE 5

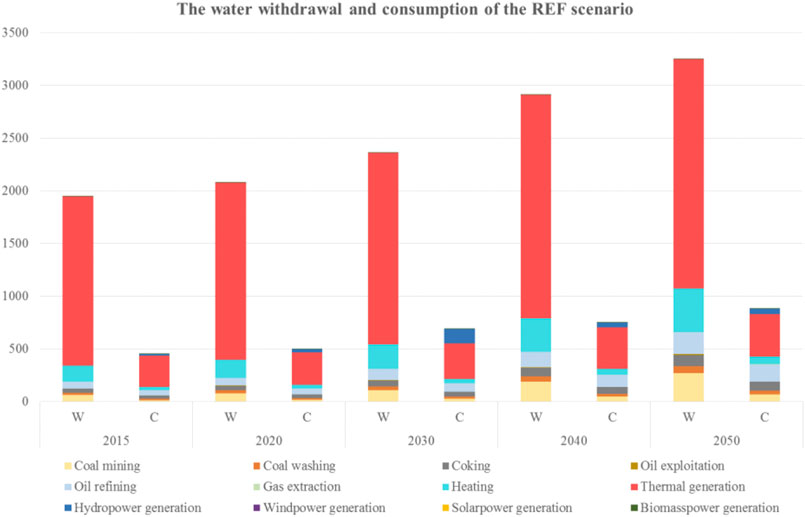

FIGURE 5. The water withdrawal and water consumption of each sector in the reference (REF) scenario. Note: W represents water withdrawal, and C represents water consumption.

FIGURE 6

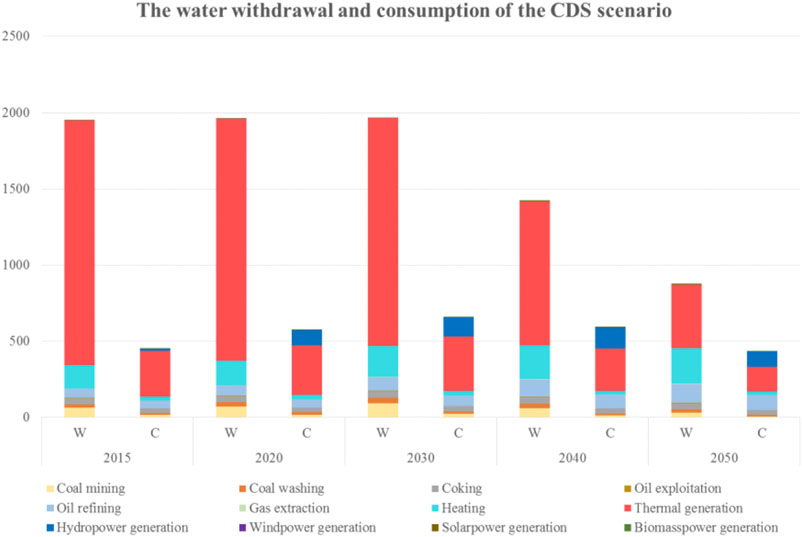

FIGURE 6. The water withdrawals and water consumption of each sector in the coordinated development scenario (CDS) scenario. Note: W represents water withdrawal, and C represents water consumption.

FIGURE 7

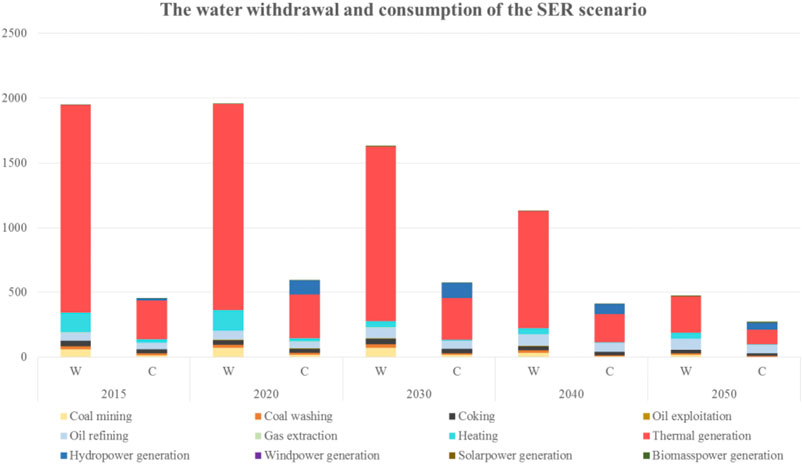

FIGURE 7. The water withdrawal and water consumption of each sector in the strong emission reduction (SER) scenario. Note: W represents water withdrawal, and C represents water consumption.

As shown in Figure 5, the REF scenario represents a continuation of the existing status. The water withdrawals requirements for energy production will increase to 2.08, 2.36, 2.91, and 3.25 billion m³, and the water consumption for energy production will increase to 0.45, 0.50, 0.59, 0.75, and 0.88 billion m³, in 2020, 2030, 2040, and 2050, respectively, Comparing 2015 with 2050, the water withdrawals and water consumption will increase by 66.80 and 95.68%, respectively, and the average annual growth rate of water withdrawals and water consumption will increase by 5.60 and 5.72%, respectively. This will pose a serious challenge to the protection of water resources in Hebei province. In terms of water withdrawals by 2050, about 72.43% of the water will be used for thermal power generation, and 7.76% of the water will be used by the heating industry. Coal mining, coal washing, coking, oil extraction, oil refining, and natural gas extraction account for 9.80% of the total water consumption. In terms of water consumption by 2050, coal mining, coal washing, coking, oil extraction, oil refining, and natural gas mining account for approximately 36.19%, the heating industry accounts for approximately 5.55%, and power industry’s water consumption accounts for approximately 58.25%, of which thermal power accounts for approximately 56.06% of the total water consumption.

As shown in Figure 6, the water withdrawals and water consumption for energy production decreased sharply compared with the REF scenario. The water withdrawals and water consumption first increased and then decreased, and both the water withdrawals and the water consumption peaked around 2030. The water withdrawals decreased by 33.58 and 73.09% and the water consumption decreased by 26.95 and 57.58% compared with the REF scenario in 2030 and 2050, respectively. In the CDS scenario, the project to replace coal with natural gas is adopted, which causes the water used in coal mining and coal washing to reach a peak around 2040, with an inflection point. The amount of water used for thermal power generation peaks around 2030, then slowly declines, and the other sectors continue with an upward trend. In terms of water withdrawals by 2050, the proportion of thermal power generation will remain the largest, accounting for approximately 50.30% of the total value, and approximately 20.14% will be used by the heating industry. Coal mining, coal washing, coking, oil extraction, oil refining, and natural gas extraction will account for approximately 29.16% of the total water withdrawals, which is 6.85% lower than in the REF scenario. In terms of water consumption by 2050, the proportion of coking and oil refining will have increased. Thermal power generation will account for approximately 39.54%, and this industry will be the sector with the largest water withdrawals and water consumption.

As shown in Figure 7, compared with the CDS scenario, the water withdrawals and water consumption for energy production decreased sharply in the SER scenario, and the water withdrawals and water consumption peaked around 2020. The water withdrawals decreased by 17.06 and 18.41% and the water consumption decreased by 46.05 and 37.96% compared with the CDS scenario in 2030 and 2050, respectively. However, in order to further reduce carbon emissions, the introduction of advanced CCS technology will increase from 10 to 60% from 2030 to 2050. The additional water withdrawals and water consumption required for CCS technology will be 52.34 million m³ in 2030, which will increase to 184.93 million m³ in 2050, an increase of 2.53 times compared with 2030. Although the application of CCS technology reduces carbon emissions, it increases the use of water resources and reduces the efficiency of electricity production; hence, the limits of water resources should be weighed against reductions in carbon emissions. In the SER scenario, the amount of water used in coal mining and coal washing peaked around 2030, and there was an inflection point. The amount of water used for thermal power generation peaked around 2020, and then slowly declined. The amount of water used in the coking process peaked around 2030, and other sectors continued in an upward trend, while the growth rate slowed down noticeably. In terms of water withdrawals by 2050, the results are basically consistent with the CDS scenario. The proportion of thermal power generation remained the largest. About 44.40% of the water is used for thermal power generation, and 29.44% is used by the heating industry. Coal mining, coal washing, coking, oil extraction, oil refining, and natural gas extraction account for approximately 25.66% of the total water withdrawals. In terms of water consumption by 2050, the proportion of water consumption for oil refining increased. Thermal power generation accounts for approximately 36.22% of the total water consumption, which is the largest proportion of water consumption. The proportion of water consumption for hydropower generation increased, accounting for approximately 18.34% of the total water consumption in 2050. However, this proportion was decreased in comparison to the CDS scenario; in the CDS scenario, the further development of wind energy and solar energy increased the proportion again. The thermal power generation sector remains the sector with the largest water withdrawals and water consumption, and should be considered by the local government in the future.

Discussion

Energy Transformation and Technological Innovation

A comparison of the CDS scenario with the SER scenario shows that the SER scenario further improved the energy efficiency and developed renewable energy sources, such as wind energy and solar energy, to replace traditional thermal power generation. The water withdrawals by the electricity sector in the SER scenario decreased by approximately 18.02 and 32.30% compared with the CDS scenario in 2030 and 2050, respectively. The water consumption decreased by approximately 17.90 and 36.84% in 2030 and 2050, respectively. This is due to the fact that almost no water is used in wind power generation and solar power generation, and the water-saving benefits increase as the scale of development expands. Hebei Province’s geographical advantages and natural resources should be fully exploited to increase the use of renewable energy. In this paper, we considered three main types of cooling techniques (once-through cooling, cyclic cooling, and air-cooling) whose water withdrawals and water consumption vary greatly. The results of the scenario analysis indicate that a change in cooling technology (from once-through cooling to air-cooling) will have an obvious water-saving effect, which can effectively reduce the water withdrawals and water consumption of the thermal power generation sector.

Impact on the “Three Red Lines” Water Policy

In 2011, the Ministry of Water Resources selected Hebei Province to pilot the most stringent water resources management system, the “three red lines” target system (the red line used to control the total amount of water, the red line used to control water efficiency, and the red line used to control the water function area to limit pollution). In terms of the red line used to control the total amount of water, the total water use value will be limited to 21.7, 22.1, and 24.6 billion m³ in 2015, 2020, and 2030, respectively, in Hebei Province (The State Council of the People’s Republic of China, 2012).

The ratio of water use for energy production to provincial water abstraction was calculated to illustrate the impact of water use for energy production on the limited water resources in Hebei. Although the water use for energy production only accounts for a small portion (approximately 8.7%) of the total water use in Hebei, it would have a greater impact on local water resources. Hebei is a region with a serious shortage of water resources, and the water use in agriculture is huge. An increase in water use for energy production, especially an increase in water use for traditional fossil fuel energy production and thermal power generation, will pose a serious threat to the local ecological environment. The amount of water used in agricultural and other industrial production processes will be reduced as more water will be used for energy production, which poses a high risk of local water shortages. Optimizing the industrial and energy structure, inhibiting the development of the secondary industry, vigorously developing the tertiary industry, improving energy efficiency, implementing natural gas instead of coal, developing renewable energy, increasing the proportion of renewable energy, and making use of advanced water-saving technologies will alleviate this trend. We estimated the impact of the policy measures adopted in the SER scenario on the “three red lines” water policy in Hebei. The water withdrawals for energy production accounted for approximately 8.7, 12.3, and 20.7% of the total water use control target in 2015, 2020, and 2030, respectively, in the REF scenario. A series of corresponding policy measures were taken in the SER scenario, where the water withdrawals accounted for approximately 8.7, 7.9, and 6.2% of the control targets, respectively. The water use for energy production in the SER scenario decreased by 4.4 and 14.5% compared with the REF scenario in 2020 and 2030, respectively. These results indicate that these policy measures can effectively save water and help to achieve the control target of the “three red lines.” But it is worth noting that the water saving measures like the air-cooling technology might bring a risk of high economics cost for this region. The coordinated management of energy-water-economy needs further attention. Anyhow, air-cooling technology is still a better choice of thermal power station in the area like Hebei Province rich in coal but short of water.

Uncertainty in the Scenario Analysis Results

This study used a series of parameters that were selected in accordance with the requirements of the 13th Five-Year Plan of Hebei Province. The LEAP model was adopted to predict the energy production, and the water intensity was derived from other studies. The selection of parameters was too simple and was not optimized. In addition to not including all of the influencing factors, there were also uncertainties in the setting of the future parameter values for the selected driving factors, including GDP growth rate, industrial structure, population growth rate, and energy import and export volume. The economy, population, and urbanization rate of Hebei were predicted according to the overall development trend in China for the period 2015–2050. As Hebei has no perfect plan for or information that would allow us to discuss its development trend, the average development trend of China’s provincial-level regions was derived from other references. It was not subdivided into the detailed terminal equipment planning of each department, thus causing uncertainty in the accuracy of the results. There is a direct relationship between energy production and import and export volume, which is significant to the model that was used in this research, and as the energy import and export volume was based on a statistical analysis of historical data on Hebei Province, it is uncertain and therefore could cause uncertainty in the estimated energy production values. The estimations of the intensity of water withdrawals and water consumption were made using a predictive analysis that considered technological progress every 10 years. Detailed changes in each year were not considered, partly due to limited data, but also because we made a general estimate for the three scenarios based on the set conditions, which would not affect the comparison between the scenarios.

There is still another limitation to this study. The water use for nuclear energy were not taken into consideration in Hebei Province, since the first planed nuclear power station in Cangzhou of Hebei hadn’t been put into operation to date. But anyway, the nuclear plant is going to be a very important factor to water resource stress in Hebei Province if the planned nuclear power plants will come into service in the next couple of years. Thus, if reliable data become available, future work on this topic will be carried out thoroughly and deeply.

Conclusions and Policy Implications

Conclusions

(1) In this study, the bottom-up LEAP model was applied to estimate the water withdrawals and water consumption associated with energy production for each sector in Hebei Province from 2015 to 2050. Our main conclusions are as follows.

(2) The energy production and the water requirements for energy production would continue to grow at a high speed in the REF scenario (the business-as-usual scenario); the energy production, the water withdrawals, and the water consumption for energy production decreased sharply in the CDS and SER scenarios compared with the REF scenario due to optimization of the industrial structure and the energy structure, inhibition of the development of the secondary industry, vigorous development of the tertiary industry, improvements in energy efficiency, implementation of natural gas instead of coal, development of renewable energy, and an increase in the proportion of renewable energy.

(3) The water withdrawals and water consumption would peak around 2030 and 2020 during the forecast period in the CDS and SER scenarios, respectively, indicating that these measures can effectively reduce energy production and water requirements. The thermal power generation sector remains the sector with the largest water withdrawal and water consumption; however, there is a decreasing trend with the implementation of policies and the development of renewable energy. The water use of the heating sector gradually increases with the improvement of people’s living standards.

(4) The results of the comparison of the SER scenario and the CDS scenario indicate that advances in energy technology, optimization of the energy structure, and an increase in the proportion of renewable energy will play an increasingly significant role in Hebei’s long-term development. Therefore, the development of a low-carbon economy is not only an urgent problem due to climate challenges and air pollution, but is also necessary in order to reduce the pressure on water resources. The government should adopt stricter policies to reduce the production of traditional fossil energy (especially by the coal industry), vigorously develop renewable energy technology, and reduce the pressure on Hebei’s limited water resources.

(5) The selection of cooling technology for use in electricity generation should consider specific geographical factors. The promotion of air-cooling technology must consider the trade-off between energy efficiency and water use. In addition, the choice of electricity generation and cooling technologies should also consider the trade-off between funding and operating costs and between water conservation and greenhouse gas emissions. CCS technology should be carefully developed in areas where water resources are currently scarce. The trade-off between emissions reductions and water use by methods that reduce CO₂ should also be carefully considered.

Policy Implications

Combing the above analysis and the industrial structure, energy structure and energy efficiency of Hebei Province, this paper put forward the following policy implications to improve energy efficiency and reduce water consumption:

Firstly, Hebei Province should speed up the adjustment of industrial structure, reduce the dependence of traditional industrial structure on energy consumption, promote the optimization of industrial structure, reduce the proportion of the primary and secondary industries gradually, develop the tertiary industry such as modern service industry vigorously, and promote the integration of the tertiary industry and other industries. Secondly, for the future development, Hebei Province should increase the proportion of cleaner alternative energy, continue to replace raw coal and coke with natural gas and electricity, improve the energy efficiency of thermal power generation, and focuses on the development of wind and solar energy. Finally, Hebei Province should increase investment in technologies, encourage the innovation in energy technologies, carry out the research on energy technologies, and increase the introduction and deployment of clean energy technologies on both the demand and supply, such as use cooling technology to reduce water consumption and improve energy efficiency of each sectors. At the same time, according to the current policy of Hebei Province, there may be some barriers for the above policy implications: for the adjustment of industrial structure, the large-scale industrial bases provided favorable conditions for the development of the secondary industries in Hebei Province, and it is difficult to reduce the dependence of economic development on the secondary industry in the short term. For cleaner alternative energy, there are still some problems in Hebei Province, such as insufficient development and low energy utilization of cleaner alternative energy, serious shortage of energy allocation management system. The photovoltaic power generation in Hebei Province is also in the initial stage. For energy technologies, the development of energy technologies is slow in Hebei Province, and the water saving measures like the air-cooling technology need higher economic cost, while the government lacks funds for relevant investment.
