High Reversibility of “Soft” Electrode Materials in All-Solid-State Batteries

All-solid-state batteries using inorganic solid electrolytes (SEs) are considered to be ideal batteries for electric vehicles and plug-in hybrid electric vehicles because they are potentially safer than conventional lithium-ion batteries (LIBs). In addition, all-solid-state batteries are expected to have long battery life owing to the inhibition of chemical side reactions because only lithium ions move through the typically used inorganic SEs. The development of high-energy density (more than 300 Wh kg⁻¹) secondary batteries has been eagerly anticipated for years. The application of high-capacity electrode active materials is essential for fabricating such batteries. Recently, we proposed metal polysulfides as new electrode materials. These materials show higher conductivity and density than sulfur, which is advantageous for fabricating batteries with relatively higher energy density. Lithium niobium sulfides, such as Li₃NbS₄, have relatively high density, conductivity, and rate capability among metal polysulfide materials, and batteries with these materials have capacities high enough to potentially exceed the gravimetric-energy density of conventional LIBs. Favorable solid–solid contact between the electrode and electrolyte particles is a key factor for fabricating high performance all-solid-state batteries. Conventional oxide-based positive electrode materials tend to give rise to cracks during fabrication and/or charge–discharge processes. Here, we report all-solid-state cells using lithium niobium sulfide as a positive electrode material, where favorable solid–solid contact was established by using lithium sulfide electrode materials because of their high processability. Cracks were barely observed in the electrode particles in the all-solid-state cells before or after charging and discharging with a high capacity of approximately 400 mAh g⁻¹ suggesting that the lithium niobium sulfide electrode charged and discharged without experiencing substantial mechanical damage. As a result, the all-solid-state cells retained more than 90% of their initial capacity after 200 cycles of charging and discharging at 0.5 mA cm⁻².

Introduction

Secondary batteries are one of the most important components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). Among many types of secondary batteries, lithium-ion batteries (LIBs) are typically used in current EVs and PHEVs because of their high-energy density and long life (Armand and Tarascon, 2008; Dunn et al., 2011; Etacheri et al., 2011). To achieve a long driving range, the batteries must be densely packed in the battery pack because of the limited space for batteries in EVs and PHEVs. However, this dense packing usually increases the operating temperature of batteries. Thus, the safety and cyclability of these batteries at high temperature must be improved for use in EVs and PHEVs; otherwise, large-volume cooling units will be required.

Conventional LIBs employ liquid electrolytes with organic solvents (Armand and Tarascon, 2008; Dunn et al., 2011). These batteries are associated with some safety risks and exhibit accelerated degradation when they are operated at high temperatures. All-solid-state batteries that use inorganic solid electrolytes (SEs) are considered to be ideal batteries for EVs and PHEVs because they are potentially safer than conventional LIBs (Minami et al., 2006; Kamaya et al., 2011; Sakuda et al., 2013a). In addition, these batteries are expected to have long battery life because of the inhibition of chemical side reactions as only the lithium ions move in the typically used inorganic SEs.

The development of high-energy density (more than 300 Wh kg⁻¹) secondary batteries has been eagerly anticipated for years. The application of high-capacity electrode-active materials is essential for the fabrication of such batteries. Lithium/sulfur batteries have attracted attention because of their high theoretical energy densities based on the high capacities of sulfur in positive electrode materials (Yamin and Peled, 1983; Ji et al., 2009; Bruce et al., 2012; Schuster et al., 2012). However, the use of sulfur–carbon composites is required to activate insulating sulfur, and the composites require large amounts of carbon to achieve high performance, which decreases their energy density. Recently, we proposed metal polysulfides as new electrode materials (Hayashi et al., 2012a; Matsuyama et al., 2012; Sakuda et al., 2013b, 2014a,b,c,d). These materials show higher conductivity and density than sulfur. Thus, they are expected to exhibit improved volumetric-energy densities because of their relatively low conductive carbon ratios and relatively high material densities.

Understanding and exploiting the materials’ mechanical properties are important in all-solid-state batteries (Hayashi et al., 2012b; Sakuda et al., 2013a). The all-solid-state batteries with sulfide SEs can be fabricated through high-pressure pressing at room temperature because of the sulfide SEs unique mechanical properties. The sulfide SE powder becomes highly densified as the grain boundaries decrease during pressing at room temperature. We term this densification “room-temperature pressure sintering” (Sakuda et al., 2013a). This phenomenon enables the creation of intimate contact between the electrode and SE materials, which is an essential requirement for all-solid-state operation, via room-temperature processing. The mechanical properties of electrode materials are also important. When brittle materials are used as the active material, the fragmentation of the electrode particles may occur during the high-pressure pressing used for cell construction. This fragmentation is especially serious at the interfaces between brittle materials as a result of stress concentration during high-pressure pressing (Sakuda et al., 2016). When electrode materials with some plastic character are used, the morphology of the electrode layer differs from that when brittle materials are used. For instance, the fragmentation during high-pressure pressing is expected to be suppressed. Furthermore, a dense electrode layer with a favorable electrode–electrolyte interface can likely be constructed. Electrode materials with large capacities usually show large volume changes during charging and discharging. The maintenance of intimate solid–solid contact is an essential requirement for long cycle life. The plasticity of the electrode materials is believed to affect the maintenance of this contact. Lithium-containing metal sulfides with three-dimensional (3D) structures are attractive model materials with some degree of plastic character based on an intermediate bond character between ionic and covalent. Lithium niobium sulfides, such as rock-salt Li₃NbS₄, have relatively high density, conductivity, and rate capability among metal polysulfide materials (Sakuda et al., 2014c,d). Additionally, the batteries that use these materials have capacities that are high enough to potentially exceed the gravimetric-energy density of conventional LIBs. Furthermore, Li₃NbS₄ is considered to have relatively soft mechanical nature. Its application in all-solid-state batteries is expected to enhance these batteries’ cyclability.

Here, we report high reversibility of soft electrode materials in all-solid-state batteries. The Li₃NbS₄ is used as a model material of soft electrode materials. This material shows unique mechanical properties that it can be densified by pressing at room temperature, and charged and discharged without the fragmentation. As a result, a dense electrode layer with a favorable conducting pathway and electrode–electrolyte interface is constructed. Furthermore, the dense electrode layer is maintained during charging and discharging, and the all-solid-state cell created here has a long cycle performance.

Materials and Methods

Li₃NbS₄ was mechanochemically synthesized using a planetary ball mill apparatus (P-5, Fritsch GmbH). In an argon-filled glove box, a mixture of lithium sulfide (Li₂S, 99.9%, Mitsuwa Pure Chemicals), niobium disulfide (NbS₂, 99%, High Purity Chemicals), and sulfur (S₈, 99.9%, Wako Pure Chemical Industries) was placed into a zirconia pot (500 mL) along with zirconia balls (4 mm in diameter, 1,000 g). The total weight of the mixture of the starting materials was 10 g. The rotation speed and time of ball milling were fixed at 250 rpm and 120 h (60 min × 120 times), respectively. The 75Li₂S⋅25P₂S₅ (mol%) glassy SE (Hayashi et al., 2001) was used, because it is the most typical sulfide-based SE. The SE was mechanochemically prepared from Li₂S and phosphorus pentasulfide (P₂S₅, 99%, Sigma-Aldrich) via planetary ball milling. Heptane was used as the ball-milling solvent. Zirconia pots (500 mL) and zirconia balls (4 mm in diameter, 1,000 g) were used. The starting materials were weighed in an argon-filled glove box and milled in air-sealing pots for 20 h. The lithium-ion conductivity of the powder-compressed pellet of the as-prepared SE and smaller-sized SE particles exhibited almost the same value (approximately 4 × 10⁻⁴ S cm⁻¹) at 25°C. All-solid-state cells were constructed as follows. The Li₃NbS₄ and the SE were mixed at a weight ratio of 75:25 for 3 min using a vortex mixer (IKA^® Lab Dancer test tube shakers) via a dry process to prepare the positive composite electrode. The conductive additive was not included in this study because electronic conductivity of the Li₃NbS₄ is sufficiently high (>2 × 10⁻³ S cm⁻¹) relative to the lithium-ion conductivity in the composite electrode (Sakuda et al., 2014c,d). The resistance component attributable to electronic resistance in the composite electrode was hardly observed by AC impedance measurements. A lithium–indium alloy was used as the counter/reference electrode for the two-electrode cell. The lithium–indium alloy has been reported to show a voltage plateau at 0.62 V vs. Li⁺/Li, over a wide range of compositions (Takada et al., 1996). Bilayer pellets (φ = 10 mm) consisting of the positive composite electrodes (10 mg) and the SE (80 mg) were obtained by pressing under 330 MPa at room temperature; indium foil (t = 0.3 mm, φ = 9 mm) and lithium foil (t = 0.2 mm, φ = 8 mm) were then attached to the bilayer pellets by pressing under 100 MPa. The pellets were pressed using two stainless steel rods, which were used as current collectors for both the positive and negative electrodes. All the processes involved in preparing the all-solid-state cells were performed in an argon-filled glove box [(H₂O) < 1 ppm].

Powder XRD measurements were performed at room temperature over the 2θ angle range 10° ≤ 2θ ≤ 80° with a step size of 0.1° using a D8 ADVANCE (Bruker AXS) diffractometer with CuKα radiation. The particle size distribution was measured using a particle size analyzer (SALD-7500nano, Shimadzu) with heptane/dibutyl ether as a solvent. Cross sections of the all-solid-state cells were prepared for scanning electron microscopy (SEM) observation using an argon-ion beam cross-section polisher (CP; IB-9020CP, JEOL) with an air-sealing holder. The samples were placed in the argon-filled glove box, transferred to the CP using the air-sealing holder, and milled for approximately 2 h. The acceleration voltage and argon gas pressure used were 6 kV and 3 × 10⁻³ Pa, respectively. During argon-ion milling, the stage was rocked ±30° to prevent beam striations and ensure uniform etching of the composite materials. Then, the obtained cross-section samples were transferred to the glove box and placed in the transfer vessel for SEM (JSM-6510A, JEOL) observation. The charge–discharge performances were evaluated at 50°C.

Results

Figure 1 shows the XRD patterns of the Li₃NbS₄ prepared by mechanical milling (MM) with some reference materials. The peaks attributable to rock-salt type Li₃NbS₄ (Sakuda et al., 2014c,d) were confirmed after MM for 120 h, according to the preparation conditions used in this study. The average crystalline diameter of the Li₃NbS₄ estimated from the XRD peak widths was <10 nm, indicating that the sample obtained here included an amorphous phase.

FIGURE 1

Figure 1. XRD patterns of samples of Li₃NbS₄ prepared by MM for 120 h. The XRD patterns of the starting materials and rock-salt Li₃NbS₄ are also shown.

Figure 2 shows the SEM images of the (Figure 2A) Li₃NbS₄ and (Figure 2B) 75Li₂S·25P₂S₅ glassy SE particles. The average particle sizes of the Li₃NbS₄ and 75Li₂S·25P₂S₅ glassy particles measured by the particle size analyzer were 5.7 and 15 μm, respectively. The Li₃NbS₄ particles are smaller than the SE particles in this study.

FIGURE 2

Figure 2. SEM images of (A) Li₃NbS₄ prepared by MM for 120 h and (B) 75Li₂S·25P₂S₅ glassy SE particles.

Figure 3 shows the cross-sectional SEM image of the positive electrode layer. The light- and dark-gray particles are Li₃NbS₄ and the SE, respectively. The dense pellet was obtained by pressing at room temperature. It should be noted that the grain boundaries are hardly visible at some interfaces between Li₃NbS₄ particles. No cracking or fragmentation can be seen in the Li₃NbS₄.

FIGURE 3

Figure 3. Cross-sectional SEM images of the composite electrode of the all-solid-state cell with Li₃NbS₄. (A) Low- and (B) high-magnification images.

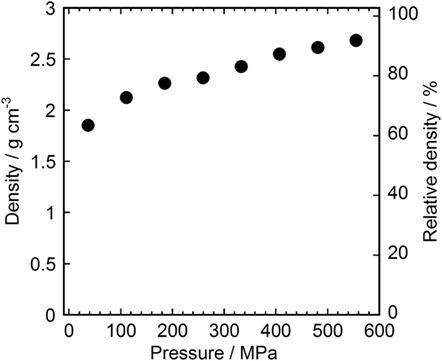

Figure 4 shows the dependence of the density of the Li₃NbS₄ pellet on the molding pressure. In this measurement, the Li₃NbS₄ was uniaxially compressed in a 10-mm-diameter mold. The relative densities were defined by the ratios between the pellets’ densities and the powder true density, which was determined using a gas pycnometer (AccuPyc II 1340, Shimadzu), and the relative density was 2.92 g cm⁻³ for Li₃NbS₄. The relative density increases as the applied pressure increases and exceeds 90% when the Li₃NbS₄ powder is compressed by a pressure of over 500 MPa. Compressed Li₃NbS₄ with a remarkably high relative density can be obtained by pressing without heat treatment. Thus, Li₃NbS₄ is amenable to room-temperature pressure sintering.

FIGURE 4

Figure 4. Molding pressure dependence of the relative density of Li₃NbS₄.

Figure 5A shows the charge–discharge curves of the all-solid-state Li–In/Li₃NbS₄ cells. The current density used was 0.25 mA cm⁻². Cutoff voltages of 2.4 and 0.9 V (vs. Li–In) were used in this study and correspond to 3.0 and 1.5 V (vs. Li⁺/Li). Figure 5B presents the charge–discharge curves, with the number of lithium atoms per formula unit shown on the x-axis. The initial charge and discharge capacities were 263 and 370 mAh g⁻¹, respectively. After the first cycle, a capacity of ca. 370 mAh g⁻¹ was maintained for the charge and discharge process; however, a small increase in the capacity believed to be attributable to some sort of electrode activation was observed. This capacity corresponds to structures ranging from Li_0.6NbS₄ to Li_4.0NbS₄. The reversible capacity per unit area was 3.54 mAh cm⁻². Rock-salt Li₃NbS₄ has been reported to exhibit reversible charging and discharging for compositions ranging between Li_0.4NbS₄ and Li_3.9NbS₄ when charged and discharged with cutoff voltages of 3.0 and 1.5 V (vs. Li⁺/Li), respectively (Sakuda et al., 2014c). Thus, Li₃NbS₄ can be used in all-solid-state cells as well as in the cells with carbonate-based liquid electrolytes. The potentials for charging and discharging were almost the same as those in cells with carbonate-based liquid electrolytes.

FIGURE 5

Figure 5. (A) Charge–discharge curves of the all-solid-state Li–In/Li₃NbS₄ cells measured at 50°C. (B) Charge–discharge curves with the number of lithium atoms per formula unit shown on the x-axis. The current density was 0.25 mA cm⁻², and the cutoff voltage was 0.9–2.4 V vs. Li–In electrode.

Figure 6 shows the cross-sectional SEM image of the positive composite electrode layer after the first charging (Figure 6A) and discharging (Figure 6B). The respective EDX mappings for Nb, P, and S are also shown in Figures 6C,D. The figures show that the electrode layers are free of cracks. The EDX mappings show that the light- and dark-gray particles are Li₃NbS₄ and the SE, respectively. The void volume increases after charging, and it decreases after discharging. It is noted that the Li₃NbS₄ particles are well connected in the composite electrode after discharging process. The fragmentation of Li₃NbS₄ is hardly observed.

FIGURE 6

Figure 6. Cross-sectional SEM images of the composite electrode of the all-solid-state cell after the first charging (A) and discharging (B). The EDX mappings for Nb–L, P–K, and S–K of the cross-sections of the composite electrode after first charging (C) and discharging (D) are also shown.

Figure 7 shows the cycle performance of the all-solid-state cell. The current densities used for the cycle test were 0.25 mA cm⁻² for the first through fifth cycles and 0.5 mA cm⁻² after the sixth cycle. The capacity decreased only slightly when the current density changed from 0.25 to 0.5 mA cm⁻². The all-solid-state cell exhibited high cyclability, retaining 92.3% of its capacity from the 7th to 200th cycle. The average cycle efficiency was 99.96% per cycle, and the average coulombic efficiency was 99.998%.

FIGURE 7

Figure 7. Cycle performance of the all-solid-state Li–In/Li₃NbS₄ cell. (A) 1st to 20th cycle and (B) 1st to 200th cycles.

Discussion

The experimental results show that dense electrode layer can be prepared solely by pressing the composite electrode with Li₃NbS₄ electrode and 75Li₂S·25P₂S₅ SE particles. The grain boundaries are hardly visible in the some interfaces between Li₃NbS₄ particles, indicating that this material sinters during pressing at room temperature. The Li₃NbS₄ particles are effectively deformed, make intimate contact, and create chemical bonds between the contacting particles. The cracking and fragmentation of electrode particles occur at the stress concentration point when typical lithium metal oxide electrodes, which are rather brittle materials, are used (Sakuda et al., 2016).

After charging and discharging, the electrode layer was still free of cracks (Figures 6A,B), despite the strong possibility of the electrode experiencing a large volume change during the charging and discharging cycle. The charge–discharge of Li₃NbS₄ involves large crystal structure changes, including amorphization. Therefore, it is difficult to determine the degree of volume change of the material by XRD measurements in charged and discharged electrodes. Thus, we estimated the volume change by measuring the molar volume of the mechanochemically prepared lithium niobium sulfides with the composition of Li_xNbS₄ (x = 0, 1, 2, and 3) (Sakuda et al., 2014d) by measuring the powder true density using a gas pycnometer. Table 1 summarizes the results of the powder true density measurements. These materials potentially include amorphous phase because of the preparation process. The powder true densities and molar volumes gradually changed as the lithium contents changed. The changes in the molar volume relative to Li₃NbS₄ range from 79% for x = 0 to 106% for x = 4. Thus, the molar volume of Li₃NbS₄ changes from ca. 82% (x = 0.6) to 106% (x = 4) during charging and discharging. In fact, the density of the electrode was largely changed during charging and discharging process (Figures 6A,B). Although an electrode that undergoes large volume changes usually exhibit fragmentation of the electrode particles, loss of interfacial contact between the electrode and electrolyte, and decreased packing density, these effects were not observed here. Instead, the electrode’s density decreased by charging and increased by discharging relative to the as-prepared composite electrode layer (Figure 3). This result suggests that the room-temperature pressure sintering of the electrode particles occurred during discharging process, increasing the contact area of both electrode–electrolyte interface and electrode–electrode interface. The Nb–S bond in the Li_xNbS₄ structure has a relatively covalent bond character and is relatively strong. The Li–S bond in the Li_xNbS₄ structure has an intermediate bond character between ionic and covalent. The bond-dissociation energy of the Li–S bond in Li₃NbS₄ is relatively small compared to that of a typical ionic bond, such as Li–F, and a typical covalent bond, such as Si–O. This intermediate bond character and relatively small bond energy make these particles amenable to room-temperature pressure sintering by quasi-plastic deformation. Quasi-plastic deformation involves the breaking and reformation of chemical bonds, such as the Li–S bond. Furthermore, niobium’s coordination structure is flexible in sulfide materials. Thus, the stress magnification factor of Li_xNbS₄ should be small, and the material should exhibit quasi-plastic deformation. The crystalline size of the Li₃NbS₄ in this study was very small; the crystalline diameter estimated based on the XRD pattern was <10 nm. The Li₃NbS₄ crystal domains are believed to be connected by an amorphous Li–Nb–S matrix. This structure is favorable for quasi-plastic deformation because amorphous phases usually have larger free volumes and smaller cohesive energies than crystal phases. Clearly, the application of some degree of pressure to the all-solid-state cells during operation is important for these cells’ high performance. Under the applied pressure, the interfacial contact between the Li₃NbS₄ electrode and SE can be maintained despite relatively large volume changes.

TABLE 1

Table 1. Powder true density, molar mass, molar volume, mean atomic volume, and change in molar volume (vs. Li₃NbS₄) of lithium niobium sulfides (Li_xNbS₄) prepared by MM.

The high cyclability of the all-solid-state batteries as shown in Figure 7 is attributable to the unique mechanical properties of the Li₃NbS₄ particles, which are believed to deform effectively without fragmentation during charging and discharging. The composite electrode layer rather becomes dense during discharging process, although the electrode becomes less dense during charging. This densification is also likely related to the small capacity increase during the initial several cycles.

In this study, we presented a new, qualitative perspective concerning the usefulness of deformable electrode materials in all-solid-state batteries. The effective electrode–electrode intimate contacts can be maintained even if the electrode shows volume changes during charging and discharging by using the deformable soft electrode materials. The transition metal sulfides with sulfur-rich composition are model materials as the soft electrode materials with high capacity. In addition to the deformability of electrode materials, many other factors, such as elastic modulus and morphology of the electrode particles, and the pore volume of the composite electrode, also affect battery performance. Therefore, additional quantitative studies are required to better understand the requirements to achieve “ideal” all-solid-state batteries.

Author Contributions

AS wrote the manuscript and TT, MS, HS, and HK revised the manuscript. AS, TT, and HK designed the work. AS conducted the experiments and AS, TT, MS, HS, and HK characterized the materials.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Funding

This work was partially supported by JSPS KAKENHI (Grant Number 15K17920).
