ORIGINAL RESEARCH article

Front. Energy Res., 11 February 2015
Sec. Bioenergy and Biofuels
This article is part of the Research Topic Recent Advancements in Algae-to-Biofuels Research: Novel Growth Technologies, Conversion Methods, and Assessments of Economic and Environmental Impacts View all 11 articles

Demineralization of Sargassum spp. macroalgae biomass: selective hydrothermal liquefaction process for bio-oil production

  • 1Department of Chemistry, University of Puerto Rico Río Piedras Campus, San Juan, PR, USA
  • 2Bioenergy Laboratory, Desert Research Institute, Reno, NV, USA
  • 3College of Engineering, University of Georgia, Athens, GA, USA

Algae biomasses are considered a viable option for the production of biofuel because of their high yields of oil produced per dry weight. Brown macroalgae Sargassum spp. are one of the most abundant species of algae in the shores of Puerto Rico. Its availability in large quantity presents a great opportunity for use as a source of renewable energy. However, high ash content of macroalgae affects the conversion processes and the quality of resulting fuel products. This research studied the effect of different demineralization treatments of Sargassum spp. biomass, subsequent hydrothermal liquefaction (HTL), and bio-oil characterization. Demineralization constituted five different treatments: nanopure water, nitric acid, citric acid, sulfuric acid, and acetic acid. Performance of demineralization was evaluated by analyzing both demineralized biomass and HTL products by the following analyses: total carbohydrates, proteins, lipids, ash content, caloric content, metals analysis, Fourier transform infrared-attenuated total reflectance spectroscopy, energy dispersive spectroscopy, scanning electron microscopy, and GCMS analysis. HTL of Sargassum spp. before and after citric acid treatment was performed in a 1.8 L batch reactor system at 350°C with a holding time of 60 min and high pressures (5–21 MPa). Demineralization treatment with nitric acid was found the most effective in reducing the ash content of the macroalgae biomass from 27.46 to 0.99% followed by citric acid treatment that could reduce the ash content to 7%. Citric acid did not show significant leaching of organic components such as carbohydrates and proteins, and represented a less toxic and hazardous option for demineralization. HTL of untreated and citric acid treated Sargassum spp. resulted in bio-oil yields of 18.4 ± 0.1 and 22.2 ± 0.1% (ash-free dry basis), respectively.

Introduction

Currently, bio-oil obtained from algae is considered a promising alternative to fossil fuels due to its high energy content (Azadi et al., 2014; Brownbridge et al., 2014) and low life-cycle emissions of greenhouse gases (Li et al., 2011; Azadi et al., 2014). Algae biomass (both microalgae and macroalgae/seaweeds) has higher lipid content and energy content than most lignocellulosic biomass (wood, plants) used for biofuels (Ross et al., 2008). In addition, macroalgae, in particular, are able to regenerate continuously without any special nutrition (Nautiyal et al., 2014; Venteris et al., 2014). In contrast to the high lignocellulosic contents of terrestrial flora, macroalgae are primarily composed of elastic polysaccharides such as alginic acid, laminarin, carrageenan, and agarose that make macroalgae a more suitable feedstock for thermochemical conversion processes (Guiry and Blunden, 1991; Holdt and Kraan, 2011). Recent studies have demonstrated that higher calorific value products can be obtained from macroalgae through hydrothermal liquefaction (HTL) (Peterson et al., 2008; Jena et al., 2011; Toor et al., 2011).

Hydrothermal liquefaction is a process used to obtain bio-crude from wet biomass in moderate to high temperatures (280–370°C) and pressures (10–25 Mpa) (Villadsen et al., 2012), in which water in its subcritical state acts as a highly reactive medium and catalyzes many chemical reactions (Toor et al., 2011). This process is fast and eco-friendly (Peterson et al., 2008) and is energetically efficient because it does not include a drying step as in the pyrolysis process (Bridgwater et al., 1999; Jena and Das, 2011). High reactivity and superior ionic product (Kw) of subcritical water break down biomass complex polymers including polysaccharides, lipids, and proteins into simpler molecules that can be converted into bio-oils with different viscosities (Peterson et al., 2008; Villadsen et al., 2012) depending on the catalysts, solvents, feedstock composition, and pretreatment methods employed. (Zhuang et al., 2012; Neveux et al., 2014; Singh et al., 2015).

Brown macroalgae, Sargassum ssp., are considered as a potential biomass source for energy production due to their relatively fast growth rates, ease of harvesting, and low preproduction cost (Guo et al., 2012). Sargassum fluitans, S. natans, and S. filipendula are three of the most abundant macroalgae species found at Puerto Rico’s coasts. The lipids content of Sargassum spp. ranges between 1.0 and 2.5% (total lipids). Li et al. (2012) reported the use of Sargassum patens C. Agardh biomass to generate bio-oil via HTL. They reported a bio-oil yield of (32.1 ± 0.2)% wt./wt. as dry algae basis) with a calorific value of 27.1 MJ/kg. Another study on HTL of brown algae Saccharina ssp. reported a yield of 8.7 and 27.7% of bio-oil depending on the harvest times and harvesting conditions of the macroalgae (Elliott et al., 2013). Blue–green algae and red macroalga (Porphyra tenera) have also been investigated for its bio-oil production through pyrolysis procedures, resulting in a similar calorific values as S. patens but with higher yields employing temperatures of 500°C (Bae et al., 2011; Hu et al., 2013). A recent research report described hydrothermal treatments for six types of green algae (Chlorophyta) (Neveux et al., 2014) that produced lower bio-oil yield, 9.7 to 26.2%, of bio-oil than the reported yield for Sargassum patents C. Agardh.

Although HTL has the potential to generate high yields of bio-oil, there are some limitations that need to be addressed if macroalgae biomass is used as feedstock. One of the major limitations of using macroalgae to produce biofuels is their high ash content (up to 50%), which reduces the yield and quality of the generated bio-oils and restricts their use in direct combustion and gasification processes (Bach et al., 2014; Neveux et al., 2014). The high ash content of macroalgae is due to the presence of inorganic salts and metals. The effect of inorganic content on the thermal conversion of terrestrial biomass has been well studied and documented; however, the effect of ash content on HTL conversion of marine feedstocks such as macroalgae is not well known (Rowbotham et al., 2013). It is expected that the high inorganic content in macroalgae will affect the physicochemical characteristics of HTL bio-oil and its storage through the catalysis of polymerization reactions.

Most alkali and alkaline earth metals present in algae can either play a catalytic role or act as inhibitors during thermochemical conversions. Ross et al. (2008) reported that the high content of alkaline metals in macroalgae impacted negatively the quality and yield of bio-crude during pyrolysis. There is a need to remove (or reduce) most of the inorganic elements in the biomass. To lower the inorganic content, Ross et al. (2009) employed two demineralization pretreatments of three brown algae species: washing the biomass with nanopure water and with hydrochloric acid solution. It was found that HCl-demineralization treatment was more effective in reducing the amount of metals and increasing the caloric value of the generated pyrolysis product. Shakirullah et al. (2006) published another demineralization study in which they employed chelating agents like EDTA and weak acids like citric acid for coal metal leaching. Their findings showed similar patterns and demineralization potential, removing 64% of the ash content without harm to the carbon content in the samples.

Bio-crudes generated from biomass require further refining by catalytic hydrodeoxygenation and cracking methods. High ash content in macroalgae can bring additional challenges to the catalytic refining of biofuel such as decrease in catalyst activities, poisoning, and coking (Bach et al., 2014; Neveux et al., 2014). It is reported that alkali and alkali earth metals present in lignocellulosic feedstocks inactivated the catalysts used in the downstream upgrading processes of bio-oil (Liu and Bi, 2011). Although it is already established that metal content impacts biomass thermochemical processing, their role and mechanisms are not well understood and have only been studied for a few types of feedstocks and biomass thermochemical conversion techniques (Liu and Bi, 2011; Jiang et al., 2013).

In this article, we investigate the impacts of different demineralization treatments of macroalgae biomass. Five different treatments were selected for the study: two strong acids (nitric and sulfuric acid), two weak acids (citric and acetic acid), and nanopure water. Due to its abundance in Puerto Rico coast, Sargassum spp. were selected for the study. The study focused on analysis of the biomass changes in its physical–chemical composition, and the impact of the pretreatment on the bio-oil yield through the HTL process. The pre-treated and non-treated Sargassum spp. biomass were analyzed and compared for their metal contents and organic composition. The quality and chemical composition of the generated bio-oil from untreated and demineralized biomass were compared in terms of energy content and higher heating values (HHVs).

Materials and Methods

Raw Material

Sargassum spp. (a mixture of S. fluitans, S. natans, and S. filipendula) were collected from Naguabo, Puerto Rico, located on the south–east coast of the island facing the Caribbean Sea and Toa Baja, Puerto Rico, located on the north of the island facing the Atlantic Ocean during March–June, 2012. Impurities and salts were removed using nanopure Milli-Q water. Macroalgae biomass was dried at 60°C, pulverized and milled for 6 min using an 8000 M mixer/mill (SPEX CertiPrep, Metuchen, NJ, USA) and stored in a desiccator at room temperature until further analysis.

Demineralization Method

Demineralization procedures were adapted from the study reported by Jiang et al. (2013). Sargassum spp. biomass was submitted to five different demineralization treatments: nanopure Milli-Q water, sulfuric acid (10% v/v), nitric acid (10% v/v), acetic acid (10% v/v), and citric acid (10% w/v). All acids were 99.9% pure and were purchased from Sigma Aldrich. Acid solutions were prepared using nanopure Milli-Q water. In a typical demineralization treatment, 8.0 g of biomass were immersed in 100 mL 10% acid solution (or, just water) to obtain sludge. Algae sludge was magnetically stirred at 28°C and 1000 rpm for 12 h. After demineralization, the samples were filtered and rinsed with an excess of nanopure Milli-Q water until the pH value was neutral. Treated biomass samples were dried in an electric oven at 60°C overnight and stored in a sealed desiccator until further analysis. Demineralization treatments and analyses were done in triplicate and mean values are reported.

Biomass Characterization

Biomass biochemical analysis

Untreated and treated Sargassum biomass was analyzed for soluble carbohydrates, total proteins, and total lipids content. Anthrone method (Hedge and Hofreiter, 1962), a colorimetric assay, was used to determine the total soluble carbohydrates content as follows: 0.1 g of dry algae was heated in 10 mL HCl 2.5 M, filtered and neutralized using NaHCO3 until neutral pH; 1 mL of the resulting solution was mixed with 2 mL of aqueous solution 75% H2SO4 and 4 mL of anthrone solution. The absorbance was read at 630 nm using a ultraviolet-visible spectrophotometer (Hach Dr5000). Algal proteins were extracted by a mild digestion using 0.6 M sodium hydroxide solution at 40°C for 12 h. The extracts were filtered, dialyzed against nanopure water for 48 h, and then lyophilized. The protein content in algal biomass was determined by bicinchoninic acid (BCA) assay (Wiechelman et al., 1988) and measured at 562 nm. The total lipid content (%) was determined using an adaptation of the method reported by Bligh and Dyer (1959). Briefly, 1 g of the biomass was homogenized using 15.0 mL of a mixture of solvents [chloroform/(methanol/water) 3:1] using a tissue grinder (Omni® Tissue Master, 125 Watt-Lab Homogenizer with a 7 mm probe tip). Then the homogenate was transferred to a separation funnel and 15 mL of chloroform were added. The aqueous phase was discarded; the organic extract was collected and evaporated to dryness in weighed vials to determine the total lipid content of the sample.

Proximate and metal analysis of untreated and treated Sargassum biomass

Moisture, ash, volatile (dry), and fixed carbon contents of untreated macroalgae and solid residues (bio-char) were measured using a thermogravimetric analyzer (TGA), (Leco TGA-701, Leco Corp.) following the ASTM D-5142 method: 1 g sample was heated until 900°C at a rate of 50°C/min. For metal analysis, 100 mL of algae solutions were prepared by adding 0.5 g of samples and were digested in 35 mL of concentrated 69.6% Nitric acid (Fisher scientific, USA) solution. Standard solutions and samples were analyzed in an atomic absorption spectrometer (Perkin Elmer AA analyst 200). Biomass samples were also analyzed using energy dispersive spectroscopy (EDS) X-ray fluorescence (EDAX Detecting Unit PV7757/81 ME) to determine elemental composition. Ash compositions of raw and treated biomass were determined through the use of a muffle furnace. Briefly, three 1.00 g samples of each dry algae biomass were weighed in crucibles and then heated in a muffle furnace at 600°C for 6 h as reported by Ververis et al. (2007). After cooling the samples in a desiccator, the ash content (%) was determined. Results were expressed on a dry algae basis.

Internal energy change (ΔU) of macroalgae biomass

The internal change of energy (ΔU) associated with combustion of the Sargassum spp. biomass in the presence of excess oxygen was measured using a bomb calorimeter. The reaction was carried out experimentally in a closed, constant-volume calorimeter (Parr 1341 Plain Jacket Oxygen Bomb 2901EB Ignition unit 115/50/60) and the experimentally measured quantity was the heat associated with the process. Since the change in internal energy is equal to the heat at a constant volume (ΔU = qV), a measurement of the heat gives ΔU of the combustion reaction directly. The internal energy of combustion was determined from the heat capacity of the system and the temperature rise. All the calculations were done as indicated on the instrument manual and as reported by Garland et al. (2009). The calorimeter calibration and its heat capacity (Ccalorimeter) calculation were performed using benzoic acid as the reference standard.

FTIR-ATR characterization analysis of macroalgae biomass

Untreated and demineralization treated samples were analyzed using Fourier transform infrared-attenuated total reflectance spectroscopy (FTIR-ATR) (Perkin Elmer Spectrum 100 FTIR spectrometer) to identify the chemical structural differences due to the demineralization processes. For this analysis, 2 mg of sample was ground to obtain a particle size of ~150 μm. The attenuated total reflectance infrared absorption spectra of the samples were recorded in the frequency range of 4000–450 cm−1 and 40 scans were recorded at a resolution of 4 cm−1. Three absorption spectra were obtained for each sample and the average spectra are reported.

Scanning electron microscopy analysis

The morphology and surface of gold coated biomass were studied by scanning electron microscopy (SEM) [(JEOL, JSM 6480LV) with low vacuum at 20 kV and 2000× magnification factor to determine its potential change to the physical structure of the macroalgae.

Hydrothermal Liquefaction Methodology

Hydrothermal liquefaction experiments were carried out in a 1.8 L batch reactor system (Parr Instruments Co. Moline, PA, USA) at 350 ± 5°C with a holding time of 60 min and stirred at 300 rpm as reported by Jena et al. (2011) (Jena and Das, 2011). Algal slurry was prepared using 80% deionized water and 20% dry algae biomass by weight. In a typical experiment, homogenized algal slurry (~500 g) was loaded in the reactor and sealed. The system was purged with He for 3 min and pressurized to 2.03 MPa (295 ± 2 psi). At the end of the reaction, the reactor was cooled down using tap water flowing through an internal cooling coil that was regulated by a solenoid valve. Gas products were collected in Tedlar® sample bags. HTL products were separated into bio-oil fraction, water soluble fraction, solid residues, and gaseous fraction (Figure 1). The rotor, reactor, and solids residues were washed using dichloromethane (DCM), Sigma Aldrich, USA. The solid product was removed by filtration and the liquid phase product was separated by liquid–liquid extraction. Bio-oil and water soluble products were stored in glass bottles in darkness at 4°C and solids residues (bio-char) were oven dried at 50°C for 24 h and stored for further analysis. All HTL experiments were performed in duplicate.

FIGURE 1
www.frontiersin.org

Figure 1. Hydrothermal liquefaction process and product separation.

Analysis of HTL products

Bio-oil and bio-char were analyzed by FTIR-ATR using the procedure described in Section “FTIR-ATR Characterization Analysis of Macroalgae Biomass” for solid samples. For liquid samples, a drop was employed in the same analysis. Elemental C, H, N, S, and O contents in bio-oil and bio-char were measured using a LECO brand (Model CHNS-932) analyzer. Gas chromatography and mass spectroscopy (GC/MS) analysis of bio-oil samples and water soluble products was carried out with an Agilent Technologies 6890N Network GC system, 5973 Network Mass selective Detector and Agilent JW Scientific, DB-5 GC column (5% phenyl and 95% methylpolysiloxane 30 m × 0.25 mm × 0.32 mm). The gas fractions were analyzed by gas chromatography coupled to a thermal conductivity detector (GC-TCD Agilent Technologies G2858A) with a column (5A PLOT) of 10 m × 0.32 mm size and using Helium as mobile phase.

Bio-oil and water soluble product GC/MS procedures. Profiles of volatile and semivolatile compounds present in the bio-oil and residual water samples were analyzed by a gas chromatograph coupled to a mass spectrometer (Agilent Technologies 6890N Network GC system, 5973 Network Mass selective Detector). Bio-oil samples were submitted to a derivitization procedure to improve the detection of alcohol and fatty acids. Briefly, 10 mg of bio-oil were added in a 5 mL reaction vessel with an excess of a silylating reaction mix [BSTFA (N, O-bis (trimethylsilyl) trifluoroacetamide) and TMCS (trimethylchlorosilane) SUPELCO; Sigma Aldrich]. The reaction mixtures were incubated at 70°C for 30 min. After the derivatization procedure, the samples were diluted to 2.00 mL with DCM and an aliquot of 1 μL was analyzed by GC/MS. The GC/MS method was as follows: sample injection splitless, inlet temperature at 250°C, pulse pressure 25 psi, and flow 1 mL/min; Column DB-5 30 m × 0.320 mm and film 0.21 μm. The MS was in positive ion and total ion scan mode. The GC oven temperature program was as follows: held at initial temperature at 70°C for 1 min, then 5°C/min until 120°C, followed by an increase of 8°C/min until 260°C where it was held for 5 min.

In order to determine the compounds present in the water soluble aqueous co-product (ACP), ACP samples were pre-concentrated using solid phase extraction technique with a 12 cc Oasis™ HLB copolymer with hydrophilic lipophilic balance (HLB) Vac cartridge (Waters Co.) as a stationary phase. About 100 mL of ACP sample was passed through the cartridge; retained compounds were eluted using 10 mL of ethyl acetate and then pre-concentrated with an inert flow of nitrogen to 2.00 mL. Samples were derivatized using the same procedure used for bio-oil samples using BTSFA-TMCS as the silylating agent. The GC/MS method was the same as for bio-oil with the follows changes in the oven temperature program: initial temperature at 40°C held by 2 min, and ramped at 40°C/min until 100°C, 2°C/min until 120°C, 30°C/min until 200°C, 15°C/min until 260°C, 30°C/min until 300, and held for 3 min at that temperature. For bio-oil and water soluble analyses, compounds were identified using a NIST library; only the compounds with a quality identification (R match) of 70% or more and a signal to noise (S/N) ratio ≥15 were reported.

Calculation methods: bio-oil and bio-char yield, higher heating value, and energy recovery. Bio-oil and bio-char product yields were calculated separately on an ash and moisture free dry weight basis using the following equation (Li et al., 2012):

YPRODUCT=WPRODUCTWFEEDSTOCKWASHWMOISTURE×100

where, YPRODUCT is the bio-oil or bio-char yield (wt.%) on a dry weight basis, WPRODUCT is the mass of product (g), WFEEDSTOCK is the mass of macroalgae biomass used in the reactor, WASH and WMOISTURE are the ash content and moisture content of the feedstock, respectively. The HHVs of the generated bio-oil and bio-char were calculated using the proximate analysis results and the Dulong formula (Landau and Lifshitz, 1980; Qu et al., 2003):

HHVMJkg=0.3383C+1.422HO8

where C, H, O are the wt.% present in the product.

The chemical energy recovery (ER) was calculated for the bio-crude and bio-char phase according to the following equation (Neveux et al., 2014):

ER=HHVPRODUCT×WPRODUCTHHVFEEDSTOCK×WFEEDSTOCK×100

Results and Discussion

Effects of Demineralization on Biomass Composition and Bio-Oil Yield

Material recovery, biochemical composition, and internal energy

The effectiveness of the different biomass demineralization treatments was evaluated considering the impact of the treatments on the biochemical composition of the algae. The yield of bio-oil in HTL depends on the amount of biomolecules such as carbohydrates, proteins, and lipids present in the biomass. Therefore, the most effective treatment should be able to reduce the mineral content of the biomass without losing these molecules. Table 1 summarizes the impact of the demineralization treatments on the biomass composition. From Table 1, it can be concluded that all treatments significantly decrease the biomass ash contents; however, they also reduce the total soluble carbohydrates and total proteins in the biomass. An average total biomass reduction of 36% was observed for all treatments. On the other hand, the percent of lipids extracted from the biomass after the demineralization treatments were higher than with the untreated biomass. This increase in the effectiveness of lipid extraction may be caused by the breakdown of the cellular walls of the macroalgae during the treatments, which makes intracellular lipids more accessible. The treatments did not increase the amount of lipids present in the algae, they maybe just make the extraction process more effective and it is shown in the% of recovery obtained.

TABLE 1
www.frontiersin.org

Table 1. Recovery percentage, chemical content and changing in internal energy of algae biomass after the demineralization treatment (all values are reported on dry biomass basis).

Among all demineralization treatments conducted in this study, nitric acid was found to be the most effective in reducing the ash contents from 27.64% in the starting biomass to 0.99%, followed by citric acid that resulted in 7% ash content in the treated biomass. These treatments also resulted in lower reduction of soluble carbohydrates and proteins contents, and higher energy content (ΔU) (Table 1). Even nanopure water treatment was able to reduce the ash content significantly suggesting that part of the mineral content lost from Sargassum, is composed of water soluble components such as chlorides, nitrates, carbonates, and phosphates as observed for terrestrial biomass (Patwardhan et al., 2010; Jiang et al., 2013).

From Table 1, it can be seen that all demineralization treatments resulted in similar biomass recovery. The change in internal energy (−ΔU) associated with the combustion reaction of the algae biomass was determined by the calorimetric analysis. The change in internal energy was used to estimate the amount of energy the biomass may release. The calorimetric analysis results showed that demineralized biomass releases a higher amount of energy during its combustion. The biomass demineralized with nitric acid releases the highest amount of energy. It may be due to the fact that the removal of the inorganic components allows a more complete combustion of the organic components of the biomass. Also, de-ashing properties of nitric acid solutions have been shown in the demineralization of different types of coals, which is related to a more aggressive digestion (Shakirullah et al., 2006).

Metal analysis of treated and untreated biomass

Treated and untreated Sargassum biomass was analyzed for copper (Cu), iron (Fe), magnesium (Mg), manganese (Mn), sodium (Na), and zinc (Zn) content using an atomic absorption (AA) spectrometer. Biomass was analyzed before and after each demineralization (Table 2). The metal content was reduced in the treated biomass for all demineralization treatments. The inorganic acid, sulfuric acid was the most effective treatment in removing Cu, Fe, Mn, and Zn and was followed by another inorganic acid, nitric acid. The organic acids, citric and acetic acid, were found to be effective treatments for the removal of Mg and Mn.

TABLE 2
www.frontiersin.org

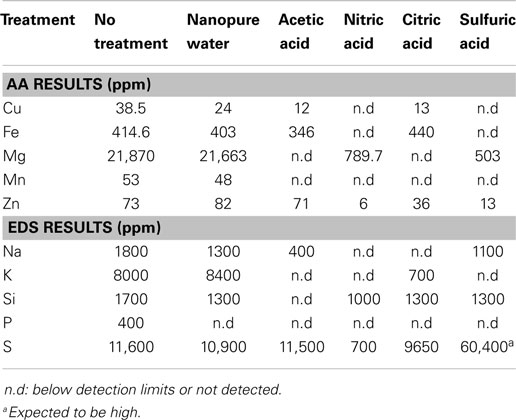

Table 2. Elemental analysis in untreated and treated biomasses.

Other elements (Na, K, Si, P, and S) were analyzed using electron dispersive spectroscopy (EDS) and are presented in Table 2. The EDS results also confirmed the reduction in inorganic contents of the biomass in the demineralization treatments. Both EDS and AA results confirmed the reduction of alkali and alkaline earth metals concentration in Sargassum biomass after the treatments.

Treatment of biomass in strong acids is an efficient method for removal of the inorganic elements of the feedstock before its HTL conversion into bio-oil. However, the treatment could also affect the structural and physicochemical properties of the sample. The treatments with weak acids such as citric and acetic acid are less effective than the treatment with strong acids, but are less aggressive removing the organic content of the biomass.

Characterization of Biomass

FTIR-ATR characterization analysis

Fourier transform infrared-ATR analysis was performed to obtain more information on the chemical composition differences in untreated and demineralized Sargassum biomass. Figure 2 shows the IR spectra of untreated and treated biomass. Results obtained from FTIR-ATR analysis confirmed that after the demineralization process, the same types of chemical compounds were still present in all treated solids, although FTIR results also revealed that some of the treatments showed losses of structural compounds features. These results agreed with our biochemical composition analysis reported in Table 1. In the mid-infrared spectra, a prominent band at 3000–3700 cm−1 was attributed to O–H stretching vibrations of hydroxyl functional groups in carboxylic, phenolic, and alcoholic compounds. The band at 2800–3000 cm−1 was related to =C–H and C–H stretching vibrations. Intensities of the above bands decreased in almost all the solid samples from demineralization treatment, except for the nitric acid treatment. The increase of this band height can be attributed to the presence of residues of nitric acids in the treated samples showing a narrower band in the region of 3491–3550 cm−1. Another relevant band that appeared at a frequency of 1725 cm–1, is attributed to the C =O stretching vibration of free carbonyl groups present in lipids and some polysaccharides such as alginate.

FIGURE 2
www.frontiersin.org

Figure 2. Fourier transform infrared spectra of Sargassum biomasses after demineralization processes.

The bands peaks in the region, 1370–1320 cm−1 were attributed to O–H, C ≡C, and C =O stretching vibrations. The band height at 1350 cm−1 decreased with all demineralization treatments. Some bands were observed at 900–1200 cm−1, with the most intense band in this region corresponding to C–O stretching, which might be associated with the polysaccharides (alginate, laminarin, and fucoidan) (Ross et al., 2009). Some of the observed bands were sharper for samples from acids demineralization treatments. The observed changes in this region could be attributed to changes in some of the major constituents due to cross linking reactions between C–OH, C–O–C, and other reactive functional groups present in the biomass (Mayer et al., 2012). The breakdown and leaching of some polysaccharides is suggested from the increase of the bands at 900–1200 cm−1. Similar behavior has also been in terrestrial biomass (Jiang et al., 2013).

Biomass surface analysis (SEM)

Scanning electron microscopy was used to study changes in the biomass surface due to demineralization pretreatments. The SEM micrographs are shown in Figure 3. The micrographs showed that treated algae biomass materials were more porous than untreated algae, and showed distinct differences in the morphology. The untreated biomass showed a defined structure in which small particles were attached. The biomass treated with nanopure water, acetic acid, and citric acid still showed an almost intact surface when compared with the untreated biomass, but most of the small particles observed on the untreated biomass were removed; only the particles with larger dimensions were noticed on the surface. After treatment with strong acids (nitric acid and sulfuric acid), the structure of the biomass surface seemed to be wrinkled and fewer particles were seen adhering to the surface, as compared to the weak acid treatments. The changes in morphology of the biomass surface and the analysis of metal composition suggest that the particles observed at the surface of the biomass could be minerals. The strong acid treatment produced the most drastic change in fiber structure of the biomass, demineralization treatments were able to remove the minerals but at the same time they dissolved the polysaccharides (Jiang et al., 2013).

FIGURE 3
www.frontiersin.org

Figure 3. Scanning electron microscopy micrographs showed the disruption of Sargassum biomass after the pretreatment with: (A) No treatment, (B) nanopure water, (C) acetic acid, (D) nitric acid, (E) citric acid, and (F) sulfuric acid.

HTL of Untreated and Demineralized Sargassum Biomass

Although nitric acid was a better pretreatment for demineralizing the selected biomass, it could be associated with proteins and soluble carbohydrates losses, some structural harm and it is a toxic compound. It was not selected for these reasons and also because it is recommended to avoid the presence of nitrogen in the HTL process. Alvarez et al. (2003) found an increase in nitrogen-containing compounds in the demineralized coal employing nitric acid treatment that could be associated with the release of NOx during combustion. Although the citric acid demineralization pretreatment did not show the highest demineralization potential, it was selected for further HTL studies due to its low toxicity and its potential to remove inorganic components with a minimum loss of organic compounds (polysaccharides, proteins, and lipids) that are crucial for the HTL process.

Biomass proximate analysis

Proximate analysis of the untreated and demineralized algae biomass (treated with citric acid) was performed and resulted in higher fixed carbon percent (19.0 ± 1.0%) and lower ash content (7.0 ± 0.8%) than the untreated feedstock (9.6 ± 0.0% fixed carbon and 27.4 ± 0.9% ash), suggesting that there is higher organic content in the same amount of treated feedstock. As mentioned earlier (see Effects of Demineralization on Biomass Composition and Bio-Oil Yield), demineralized biomass had a lower metal content in the ash. Also, the citric acid treated biomass had a higher percent of volatiles (73.0 ± 2.0%) and lower moisture content (4.9 ± 0.6%) than untreated Sargassum biomass (61.5 ± 0.9% volatiles and 13.3 ± 0.2% moisture).

Bio-oil and bio-char yield, higher heating value, and energy recovery

Hydrothermal liquefaction reaction conditions of 350°C, 20% solids load, 300 rpm and 60 min reaction time were selected following the settings reported by Jena et al. (2011) (Jena et al., 2011). Bio-oil yields from HTL citric acid treated and untreated Sargassum biomass are presented in ash-free dry weight basis in Table 3. As anticipated from the proximate analysis, a higher bio-oil yield (22.2%) was obtained from the HTL of demineralized Sargassum biomass than that of the raw biomass, which had a bio-oil yield of 18.4%. This could be due to more organic content in the same amount of feedstock that validates the demineralization treatment performed. The resulting bio-oil had a HHV of 32.4 and 32.3 MJ/kg in the demineralized and control, respectively, which was significantly higher than that of the obtained by Li et al. (2012), 27.1 MJ/kg. There are no significant differences in elemental carbon, hydrogen, and oxygen composition in bio-oil samples obtained from the untreated and treated biomass (Table 3). Both untreated and demineralized biomass produce bio-oil with C, H, and O values comparable to the other studies reported in the literature for the liquefaction of algal biomass (%C 70–73; %H, 7–8; %O 10–11; %S 0–1; and %N 1–7) (Zhou et al., 2010; Anastasakis and Ross, 2011). High oxygen content in bio-oil suggests that a catalysis process before or after the HTL process is required to convert the product in a useful fuel (Li et al., 2012).

TABLE 3
www.frontiersin.org

Table 3. Ultimate analysis, product yield and energy recovery of HTL bio-crude and bio-char product obtained from untreated and demineralized Sargassum.

Table 3 includes the values for bio-oil ER. A higher energy recovery value (42.3 ± 0.1)% was obtained for the bio-oil obtained from the demineralized biomass, while only (23.5 ± 0.1) was obtained from the raw biomass. Given that the HHV was not altered, the increase in the ER value may be attributed to the increase in the yield production of bio-oil. Table 3 also shows that after citric acid treatment and HTL, bio-oil was obtained with slight increase of C/O. This confirms the increase in the potential energy output. Furthermore, S content was minimized, suggesting a more environmental friendly bio-oil product was obtained.

In contrast to the consistency of the elemental composition of the obtained bio-oil, bio-char composition was changed considerably between the untreated and the demineralized biomass as shown in Table 3. The untreated biomass produced an organic rich bio-char with higher carbon content 60%, while the bio-char from the demineralized biomass had only 43.47% C. Therefore, a HHV was obtained for it (20.7%) versus 11.5% for the bio-char obtained from the demineralized biomass, suggesting that inorganic substances help preserve the energy output in bio-char although the total yield may be decreased. Although the HHV of bio-char has decreased, the C/O content has also decreased. The reduction in C content in itself is not a desirable thing, but the increase in O is considered desirable because the presence of oxygenated groups in bio-char enhances its properties in soils applications – like its cation exchange capacity (CEC) – as reported in previous studies with terrestrial biomasses and production of char (Cheng et al., 2006). The C/O ratio of the produced bio-char suggest that it has a high number of oxygenated functional groups (phenol, hydroxyl, carboxyl among others), a property that can improve its chemisorption ability, increasing its potential to be used to remediate contaminated soils (Jose et al., 2013).

In summary for the HTL primary fuel target, the bio-oil, we observe an increase in yield, lower S, and slightly lower N, along with an increase in ER after the demineralization pretreatment. The generated bio-char have a considerably high energy and higher carbon content than other algae bio-char (Li et al., 2012; Neveux et al., 2014), thus may be a valuable by-product if used for soil application [e.g., as a fertilizers or for remediation purposes (Bird et al., 2012)] or as a feedstock for subsequent thermochemical processes such as pyrolysis (López Barreiro et al., 2013). In terms of ER about 47.2% of the energy present in the original biomass was recovered in the form of bio-oil (19.6%) and bio-char (27.6%) in the HTL of the demineralized biomass, while in the case of the untreated biomass only 28.3% of the energy was recovered. Part of the remaining chemical energy, in both cases may be present in the aqueous phase. As presented in the GCMS analysis of the aqueous residues that follows this section, in both cases there are compounds of energetic value present that may be recovered if a more efficient extraction of the aqueous phase is performed. The ER of the process was improved by the demineralization process, but it still needs to be increased. Our results point that the demineralization pretreatment may be of benefit for the bio-refinery.

Bio-oil chemical composition

ATR-FTIR analysis. The generated bio-oils were analyzed for their chemical composition with ATR-FTIR and the obtained spectra are presented in Figure 4. Peaks at 722, 737, and 819 cm−1, O–H bending, shows the presence of aromatic compounds, phenols, esters, and ethers; at 1265 cm−1, C–O stretching for alcohols and with peaks at 1383 and 1458 cm−1, C–H bending, presence of fats; alkenes are detected at 1625 cm−1, C =C stretching; ketones, aldehydes, and carboxylic acids with peak at 1688 cm−1, C =O stretching; alkanes are found at 2875, 2932, and 2965 cm−1, C–H stretching and water with the peak at 3375 cm−1. In the IR-spectrum for the bio-oil obtained from the demineralized biomass, the bands that evidence the presence of alcohols, phenols, esters, ethers, and alkanes are more prominent than in the bio-oil of the raw biomass. Proximate analysis showed that the bio-oil from raw biomass had 1.3 ± 0.7% of water, while the bio-oil from demineralized biomass had lower water content 0.8 ± 0.4% w. It is consistent with the FTIR analyses where the band corresponding to OH was more prominent in the bio-oil from raw biomass.

FIGURE 4
www.frontiersin.org

Figure 4. Fourier transform infrared spectra of bio-oils obtained with Sargassum biomass. (a) Untreated and (b) demineralized with citric acid.

GCMS analysis of the bio-oil product. In general, bio-oil generated from Sargassum biomass is a very complex blend of more than 100 compounds that were presumptively identified by GCMS. The chromatograms were analyzed with the NIST library and compounds having quality identification factor higher than 70 were reported. Table S1 in Supplementary Material section shows the compounds identified in the bio-oil obtained from the untreated and demineralized biomass, respectively. Both bio-oil samples obtained from untreated and treated biomass were composed of alcohols, ketones, aldehydes, phenols, alkenes, fatty acids, esters, aromatics, amino acids, nitrogen-containing heterocyclic compounds, and chlorinated/brominated compounds. The nitrogen-containing heterocyclic compounds, such as indole, could be generated from the decomposition of proteins. In addition, pyrazine derivatives were detected and their presence can be attributed to Maillard reactions, which are reaction of sugars and amines (Kruse et al., 2007). The bio-oil obtained from the demineralized biomass has a higher abundance and varieties of fatty acids, alcohols, and hydrocarbons. Oleic acid is the most abundant fatty acid. Only one fatty acid methyl ester was detected in the products, the hexadecanoic acid methyl ester. Different types of ketones and phenols were also identified in the bio-oils, but a higher diversity of phenols was found on the bio-oil obtained from the demineralized biomass. It could be attributed to a more efficient conversion of the polysaccharides and cellulose by reactions of hydrolysis, dehydration, cyclization among other reactions (Shuping et al., 2010; Li et al., 2012). A larger number of polycyclic aromatic compounds were identified in the untreated biomass; these compounds can be associated with an incomplete process.

Analysis of water soluble aqueous co-products. The aqueous fractions obtained with the treated biomass showed a weak acidity (pH = 5.9) as expected for the demineralization process, while untreated biomass showed a weak basicity (pH = 8.0). Table S2 in Supplementary Material list the compounds identified in the water soluble organics produced in HTL of the untreated and the demineralized biomass, respectively. Most of the compounds identified have low molecular weight and are polar. Organic acids such as butanoic, pentanoic, and hexadecanoic acid were detected. Glycerol, an important by product, was found in all the samples. Benzene derivatives and various nitrogen-containing compounds were also identified. In addition, some fatty acids were detected in the water phase suggesting the need for more effective extraction and separation of the different HTL products.

Analysis of gases. The gas fraction produced during the HTL was analyzed by gas chromatography coupled to a thermal conductivity detector for measuring relative CO2 and CH4 concentrations. We focus on these two gases because they are main component of the gas mixture. However, there are some research reports that inform the presence of small amounts of C2H4, C2H6, and H2S when conditions similar to ours are used and in the presence of heterogeneous catalyst in the HTL process (Duan and Savage, 2010).

Carbon dioxide and methane generated from the different biomass feed stocks are presented in Table 4. The demineralized Sargassum biomass produced a higher amount of CO2 and CH4, than that of the untreated biomass. The detected percentages indicate that there are other components present in the product gases. The higher carbon dioxide content obtained for the demineralized biomass, suggest that the decarboxylation reactions were more productive, leading to obtain a higher bio-oil yield and quality.

TABLE 4
www.frontiersin.org

Table 4. GC-TCD analysis of the HTL gas fraction obtained for untreated and demineralized Sargassum biomass.

Conclusion

The efficiency of five demineralization pretreatments (nanopure water, nitric acid, citric acid, sulfuric acid, and acetic acid) of Sargassum spp. biomass and the effects of demineralization on HTL conversion were studied. It was found that all the demineralization pretreatments decreased the inorganic contents in the Sargassum biomass. However, citric acid was selected as the best option because it was able to remove almost all the mineral content (from 27.46 to 7% ash content) without significantly altering the organic composition and structure of biomass. In addition, it represents a more eco-friendly alternative. HTL process was performed on both demineralized and untreated Sargassum biomass. Results showed that demineralized biomass generated a higher bio-oil yield (22.2%) when compared with the untreated biomass (18.4%). The demineralization process did not significantly affect the HHV of the generated bio-oil, but since a higher bio-oil yield and a bio-char with high carbon content were obtained for the demineralized biomass, the net total ER in HTL was an increase from 47.4 to 63.5% when considering the energy associated with the bio-oil and the bio-char products. The chemical composition of the bio-oil obtained from the demineralized biomass confirms that the demineralization process facilitated the generation of a product richer in compounds with higher energy value such as alkanes and fatty acids. The bio-chars obtained from the HTL of the demineralized biomass had a higher percent of fixed carbon and HHV than the original feedstock therefore is suitable for further processing and ER.
