Casper P. Hagen1,2*
Margit Bistrup Fischer1,2
Gylli Mola1,2Theis Bech Mikkelsen1,2Line Hartvig Cleemann1,2Claus Højbjerg Gravholt3,4
Mette H. Viuff3
Anders Juul1,2,5Anette Tønnes Pedersen6
Katharina Maria Main1,2,5- 1Department of Growth and Reproduction, Copenhagen University Hospital – Rigshospitalet, Copenhagen, Denmark
- 2International Center for Research and Research Training in Endocrine Disruption of Male Reproduction and Child Health (EDMaRC), University of Copenhagen, Rigshospitalet, Denmark
- 3Department of Molecular Medicine, Aarhus University Hospital, Aarhus, Denmark
- 4Department of Diabetes and Endocrine Diseases, Aarhus University Hospital, Aarhus, Denmark
- 5Department of Clinical Medicine, University of Copenhagen, Copenhagen, Denmark
- 6Department of Gynecology, The Fertility Clinic, Copenhagen University Hospital – Rigshospitalet, Copenhagen, Denmark
Turner syndrome (TS) is a chromosomal disorder that affects about 1 in 2500 female births and is characterized by the partial or complete absence of the second X chromosome. Depending on karyotype, TS is associated with primary ovarian insufficiency (POI). Approximately 50% of girls with a mosaic 45, X/46, XX karyotype may enter puberty spontaneously, but only 5-10% of women with TS achieve pregnancy without egg donation. In this review, we will evaluate the clinical use of markers of ovarian function in TS patients. Based on longitudinal studies of serum concentrations of reproductive hormones as well as ovarian morphology in healthy females and patients with TS, we will evaluate how they can be applied in a clinical setting. This is important when counseling patients and their families about future ovarian function essential for pubertal development and fertility. Furthermore, we will report on 20 years of experience of transition from pediatric to gynecological and adult endocrinological care in our center at Rigshospitalet, Copenhagen, Denmark.
Introduction
Various pathological conditions cause early loss of ovarian follicles resulting in absence or cessation of pubertal development and primary or secondary amenorrhea (premature ovarian insufficiency, POI). The most prevalent inherited condition of accelerated follicle loss is Turner syndrome (TS) affecting approximately 1:2500 liveborn females (1).
Due to complete or partial loss of one X-chromosome in all cells (e.g. 45,X) or part of the cells (mosaicisms, e.g. 45,X/46,XX), TS patients suffer from a variable degree of prenatal loss of follicles (2–5) (Figure 1).

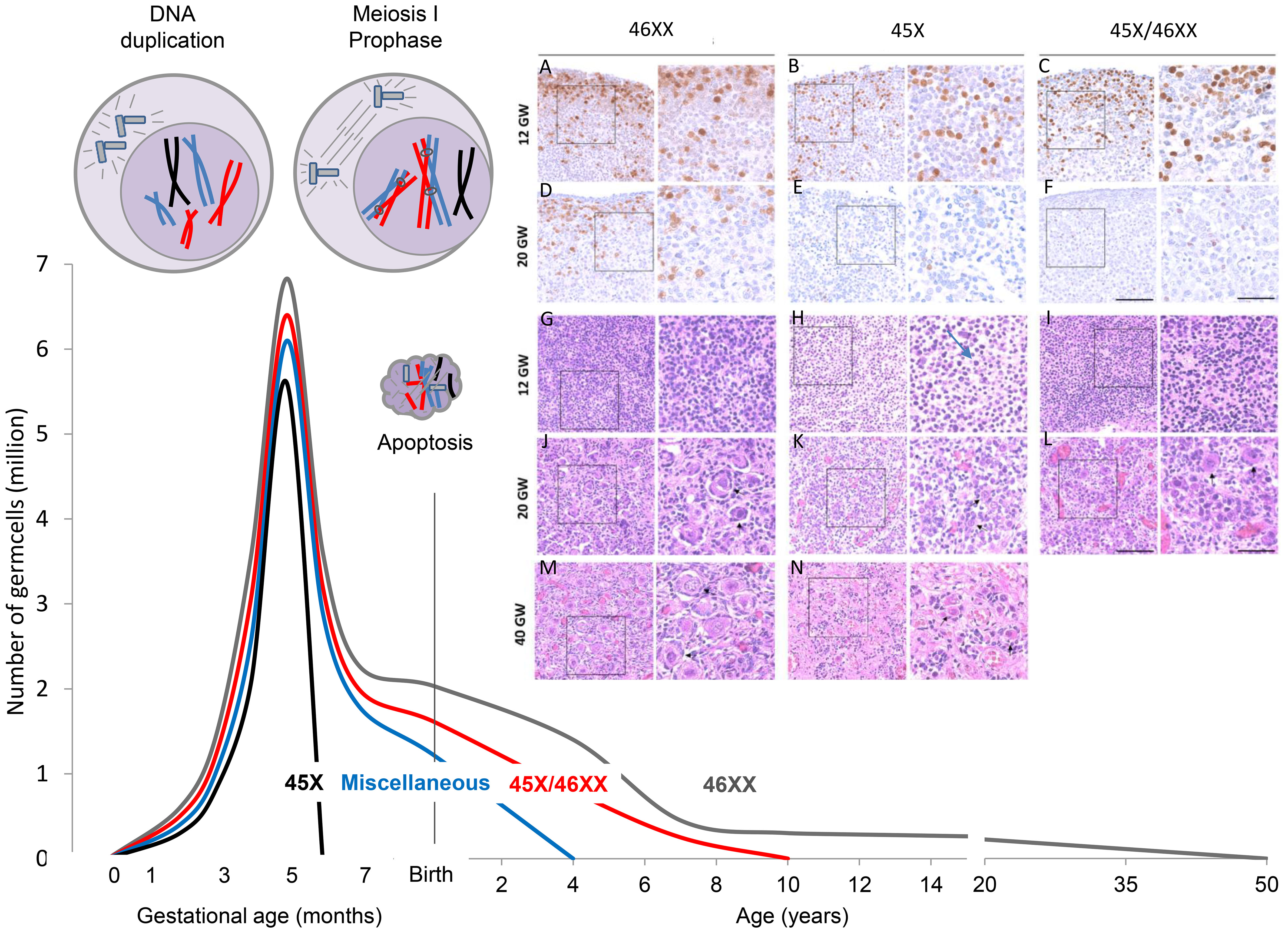

Figure 1 Accelerated loss of follicles depends on the TS karyotype. The mechanism is believed to be apoptosis caused by pairing failure of homologous chromosomes in meiosis I. This is schematically shown in the top left corner with only one duplicated X chromosome (black). Histology samples A-N modified from (5): In early fetal life, there are plenty of OCT4 positive oogonia present in 45, X ovaries (B), but many of the germ cells are degenerated with contracted nuclei and a thin layer of cytoplasm (H arrow). Later in gestation, primordial and small growing follicles are present in the healthy ovary (J+M), whereas somatic cells and fibroblasts are abundant in the 45, X ovary (K+N). Schematic illustration of the number of germ cells in healthy females (46,XX, grey line) from early fetal life to time of menopause; data based on Baker et al. (6, 7).
When TS is diagnosed during childhood, patients and their families are often concerned about future reproductive potential. Will they develop similar to their teenage peers? Will they enter puberty spontaneously without hormone replacement therapy? Will they eventually achieve pregnancy? The increasing success rates of ovarian cryopreservation for future fertility in girls with cancer prior to gonadotoxic therapy have inspired similar protocols in patients with TS. In experimental settings, cryopreservation of ovarian tissue has been performed, and it is essential only to offer cryopreservation to patients with ovarian follicles (8, 9).
However, it is a challenge to assess ovarian activity in girls and it is even more difficult to predict future ovarian function. Apart from a transient neonatal gonadotropin surge, the hypothalamic-pituitary-gonadal (HPG) axis is quiescent until pubertal onset allowing only gonadotropin-independent growth of follicles reaching small antral stages. Therefore, in TS patients with streak ovaries, the usual lack of negative feedback and consequently hypergonadotropic hypogonadism is not evident prior to time of expected pubertal onset (8–15)(Figure 2).

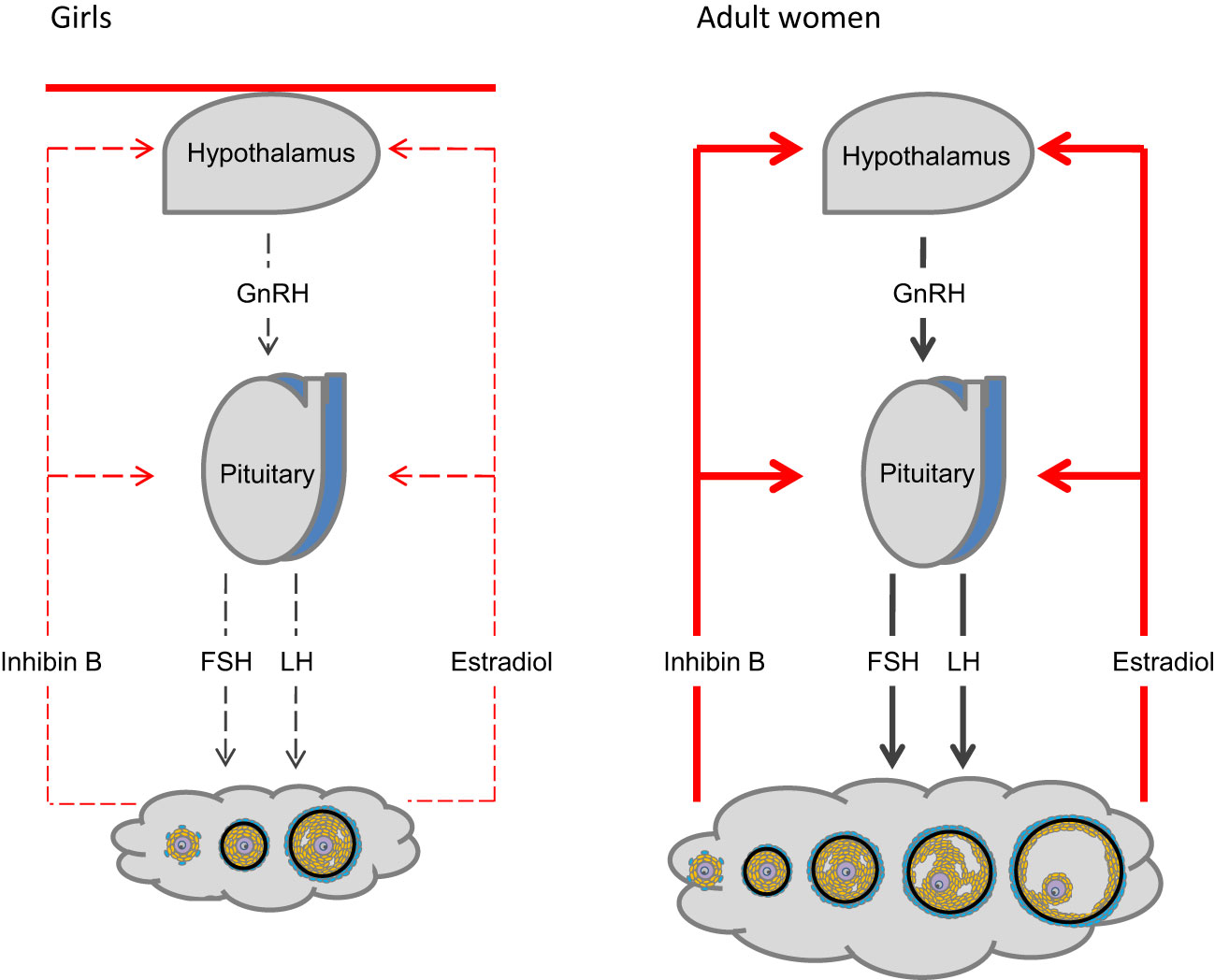

Figure 2 The hypothalamic-pituitary-gonadal (HPG) axis. Activity of the hypothalamus and pituitary is regulated by negative feedback of ovarian hormones (right). The HPG axis is centrally inhibited during mid-childhood (left). Follicles are primarily restricted to stages growing independently from FSH stimulation. Only occasionally FSH- induced follicle growth occurs.
Today, the best candidate as a marker of subtle ovarian activity is Anti-Müllerian Hormone (AMH) produced by granulosa cells in small growing follicles (11). Initially, the focus of attention on this peptide was the testicular production of AMH. Alfred Jost was the first to suggest that a substance produced from the developing gonad in the male fetus was responsible for the regression of the Müllerian ducts (ovarian ducts, uterus and the proximal one-third of the vagina) (12). This hormone is AMH, previously referred to as Müllerian Inhibiting Substance (MIS), produced by immature Sertoli cells in the male fetus (13, 14). AMH is a member of the TGF-beta family. It is encoded by the AMH gene (15) which is located on chromosome 19p13.3 (16). AMH exerts its effect through the single transmembrane receptor, AMH type 2 (AMHR2), leading to phosphorylation of Smad 1/5/8 that enter the nucleus and regulate transcriptional activity (17). In young patients with Differences of Sex Development (DSD), high serum concentration of AMH is a specific and sensitive marker of testicular tissue (immature Sertoli cells) in the gonad (18–21).
In females, circulating AMH originates exclusively from the ovaries (22). The function of AMH is not fully elucidated but knock-out mice models and human in vitro data indicate that AMH inhibits follicle growth as well as FSH induced aromatase activity (11, 23–25). Effects on recruitment from primordial follicles may be species dependent. AMH promotes primordial follicle recruitment in cultured human ovaries (9) and in vitro and in vivo data from non-human primates support stimulating action of AMH on preantral follicle growth (26) (Figure 3). Thus, production and effects of AMH are follicle stage dependent and AMH seems to play an essential role as gate-keeper for FSH-induced follicle maturation, estradiol production, as well as regulator of the selection of the dominant follicle in the late follicular phase of the menstrual cycle. In humans, rare mutations of the gene encoding AMH result in premature ovarian insufficiency (27). Extragonadal effects of AMH have been proposed, and AMH may play a role in upregulation of GnRH dependent LH pulsatility (28). Circulating AMH levels are usually elevated in PCOS patients as well as in patients with granulosa cell tumors (29–31).

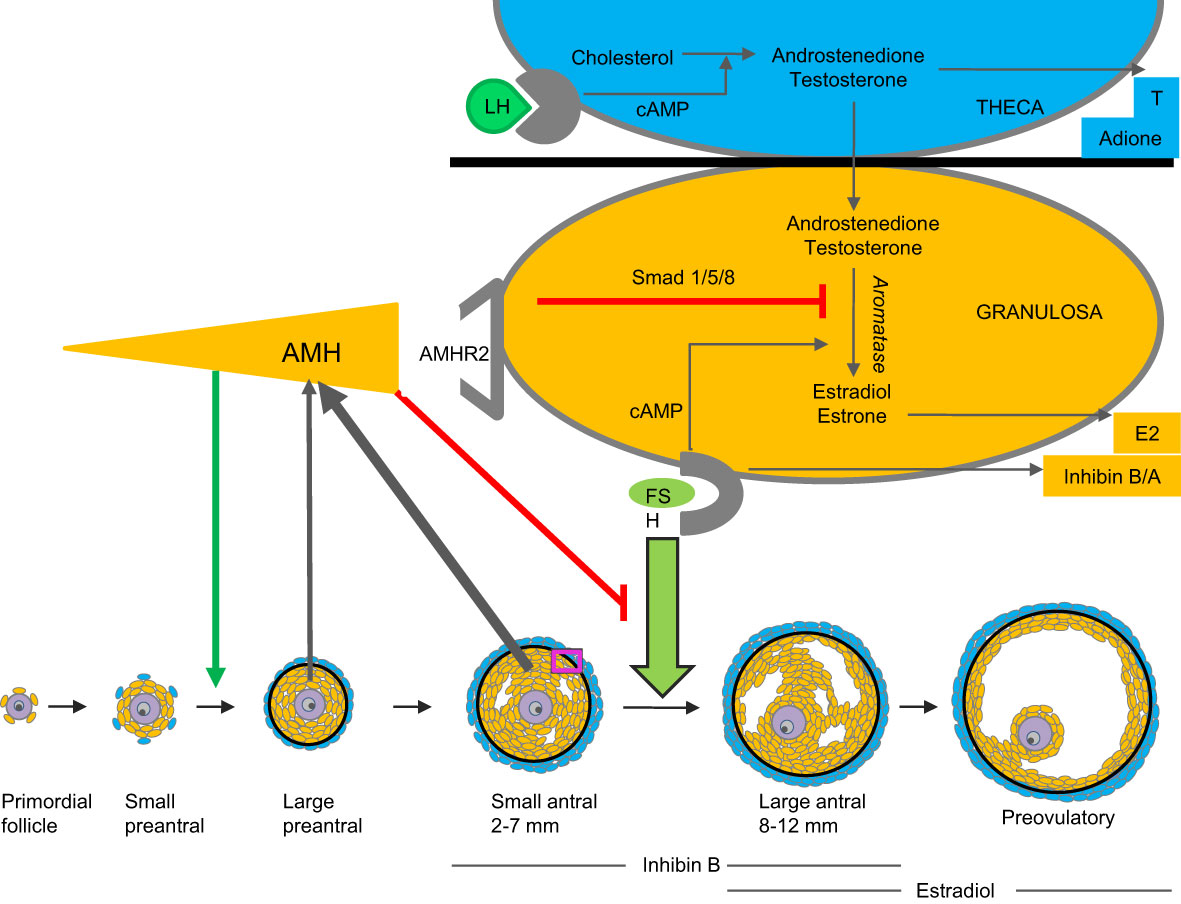

Figure 3 Model of AMH production and action. AMH is produced by granulosa cells of small growing follicles. It inhibits FSH-induced follicle growth as well as gonadotropin-induced aromatization of androgens to estrogens (9, 24–26).
The unique source of AMH from follicles growing independently of FSH-stimulation poses several clinical advantages. Circulating AMH levels are more refractive to fluctuations of gonadotropin levels compared to hormones produced by larger follicles. Thus, circulating concentrations of AMH are relatively stable through the menstrual cycle (although cycle dependent fluctuations are more pronounced in women with higher AMH concentrations) (32–34). AMH is decreased app. 30% by oral contraceptive therapy (35) and 50% during pregnancy (36). In healthy adult women, serum levels correlate with the number of antral follicles (37). Due to a fine equilibrium between follicles in different stages (38, 39), AMH levels reflect the number of primordial follicles constituting the ovarian reserve (40) (Figure 4). In healthy adult women, circulating AMH is therefore predictive of the reproductive lifespan (41–45). Women with age specific low AMH tend to enter menopause earlier than women with higher AMH. However, considerable overlap exists, and the predictive value for AMH in a given woman concerning age at menopause is limited (46).

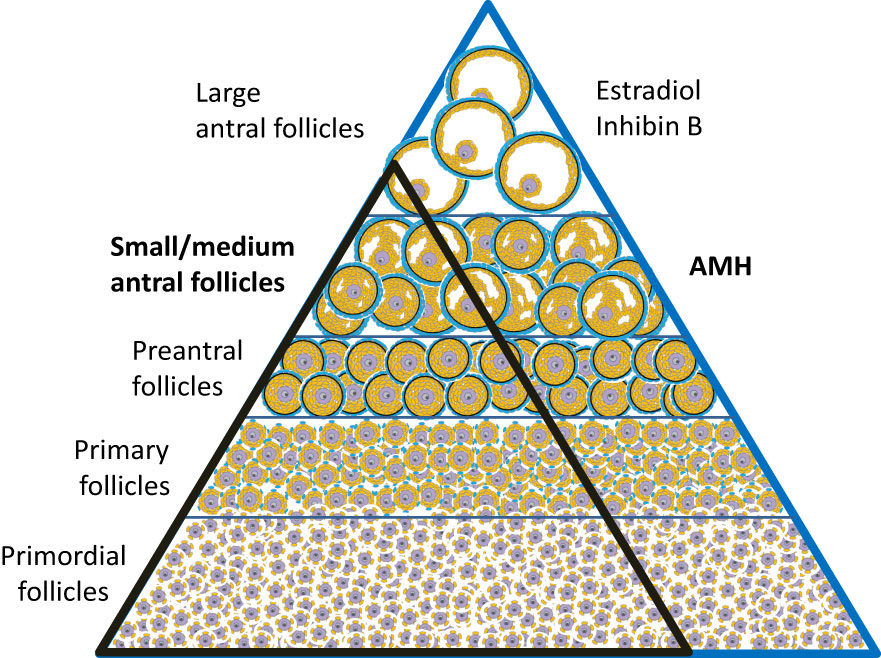

Figure 4 The number of follicles decline as they mature. Histological studies suggest that the number of follicles in different stages is in equilibrium; i.e. an individual with many primordial follicles have more preantral and antral follicles (blue triangle) compared with an individual with fewer primordial follicles (black triangle) (38, 39).
In this review, we will present data relevant when assessing AMH in girls and adolescents with TS. To interpret a given AMH measurement in a patient at risk of POI, it is essential to know details about AMH in healthy girls. Age specific reference ranges are mandatory. Additionally, cross sectional studies of AMH in relation to ovarian morphology are necessary to assess if AMH in girls reflects the number of small antral follicles – which may reflect the ovarian reserve of primordial follicles. Longitudinal studies of individual AMH levels are needed to evaluate the predictive value of AMH concerning future ovarian activity in healthy girls as well as in patients with TS. Further, we will briefly discuss the qualitative aspect of AMH concerning fecundability.
Karyotype as predictor of ovarian activity
In TS patients, the karyotype is strongly associated with ovarian status; i.e. the risk of POI is highest in monosomic patients compared to karyotypes with mosaicism including a healthy cell line (45,X/46,XX) or isochromosomes (6, 47–51). The mechanism causing accelerated loss of germ cells is believed to be apoptosis caused by pairing failure of homologous chromosomes in meiosis I. In early fetal life when the first oocytes enter the diplotene stage of meiotic prophase I, there are plenty of oogonia present in 45,X ovaries (Figure 1, histology section B, OCT4), but many of the germ cells are degenerated with contracted nuclei and a thin layer of cytoplasm (Figure 1, arrow in section H). Later in gestation, primordial and small growing follicles are present in the healthy ovary (Figure 1, J+M), whereas somatic cells and fibroblasts are abundant in the 45,X ovary (Figure 1, K+N). There are very few follicles.
In theory, the loss of follicles depends on the specific TS karyotype: Patients with 45,X are often born with streak gonads (Figure 1, black line) whereas TS patients with mosaicisms including a healthy cell line (45,X/46,XX) have approximately 50% chance of entering puberty spontaneously (Figure 1, red line) (6). All other TS genotypes caused by structural abnormalities of one X chromosome are referred to as miscellaneous having intermediate chance of preserved ovarian function (Figure 1, blue line).
The degree of mosaicism evaluated in 30 white blood cells may not be fully representative of the gonadal mosaicism (52). That is also the case when patients are diagnosed prenatally by non-invasive prenatal testing, amniocentesis, chorionic villus sampling or by fetal DNA in maternal blood sample. Furthermore, different tissue from the same patient – and even different cells from the same ovary may express variable degree of mosaicism (53, 54). Thus, the proportion of affected cells in peripheral blood is not always predictive of the remaining primordial follicles. This may explain cases of apparently monosomic patients with preserved ovarian function (55). There are even reports of 45,X patients with multiple unassisted pregnancies (56). Patients with miscellaneous karyotypes have an intermediate chance of maintaining ovarian activity, but from the limited number of patients with specific genotypes, it is not possible to clarify if certain loci are more prone for POI than others. Patients with TS including Y chromosome material are at risk of developing gonadoblastoma, and gonadectomy is recommended, although the degree of risk of gonadoblastoma still remains to be firmly established.
Thus, the karyotype based on DNA from white blood cells can be misleading concerning the degree of ovarian dysgenesis. The karyotype is a strong indicator of the degree of ovarian dysgenesis, but additional markers are needed to evaluate the ovarian function of girls and adolescents with TS.
Reproductive hormones
Detailed magnetic resonance imaging (MRI) and trans-abdominal ultrasound studies (TAUS) of ovarian follicle numbers in healthy girls revealed that small antral follicles were present in all prepubertal girls (57). Large follicles were present after pubertal onset, and the number of large follicles increased as puberty progressed (Figure 5). This knowledge of ovarian morphology is important for interpreting circulating levels of reproductive hormones during childhood. Pubertal reactivation of the HPG axis and increasing levels of gonadotropins is essential for maturation of follicles into large antral stages responsible for steroid hormone production. Thus, inhibin B and estradiol (produced by granulosa cells) as well as testosterone and androstenedione (produced by theca cells) correlated strongly with the number of large follicles (57), independent of pubertal stages (Figures 6B–D).

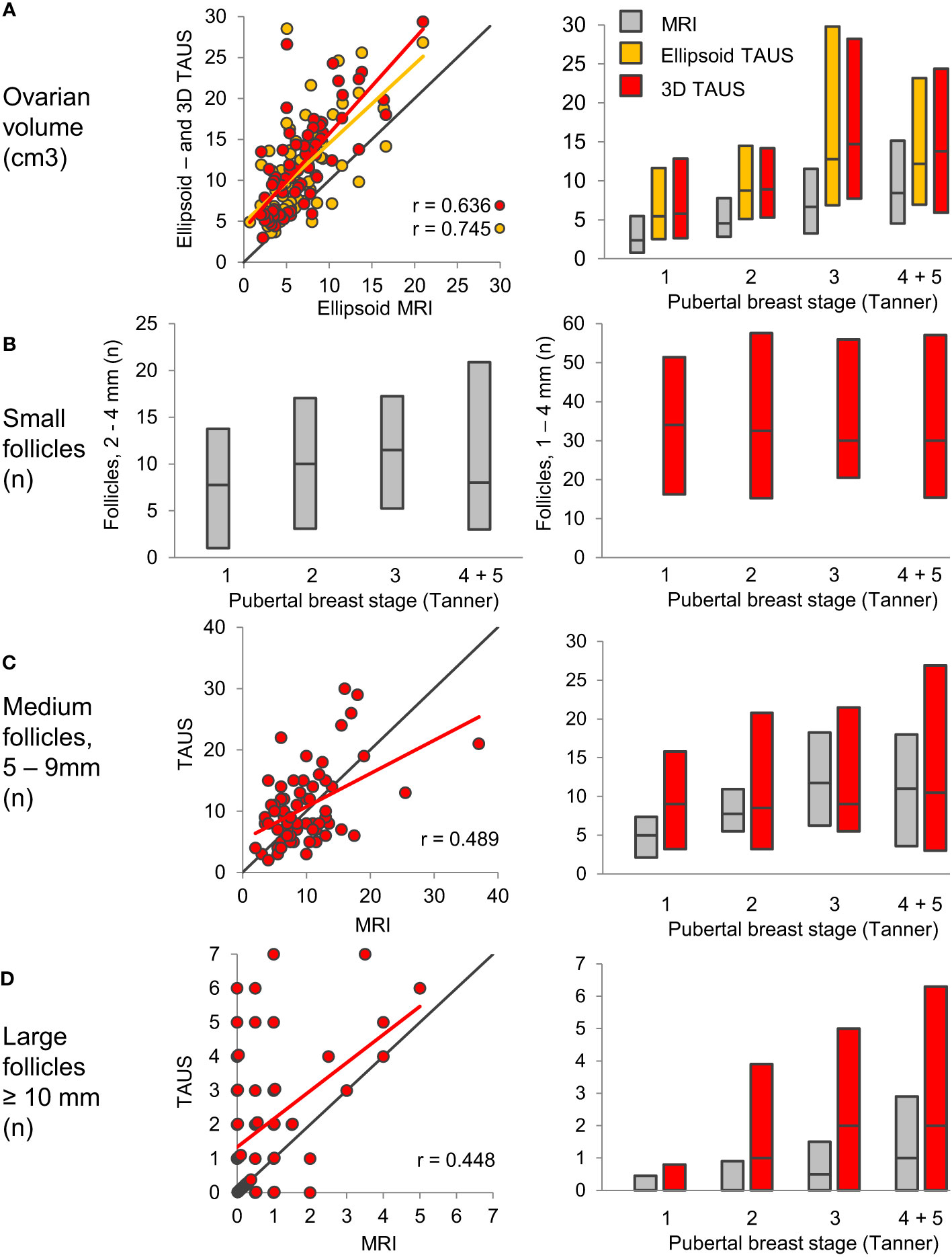

Figure 5 Ovarian volume (A) and follicle numbers (B–D) assessed by MRI (grey) and TAUS; Ellipsoid TAUS (orange) and 3D TAUS (red), according to pubertal breast stages. Bars indicate median, 10th and 90th percentiles. Black lines indicate lines of identity. Figure from (57).

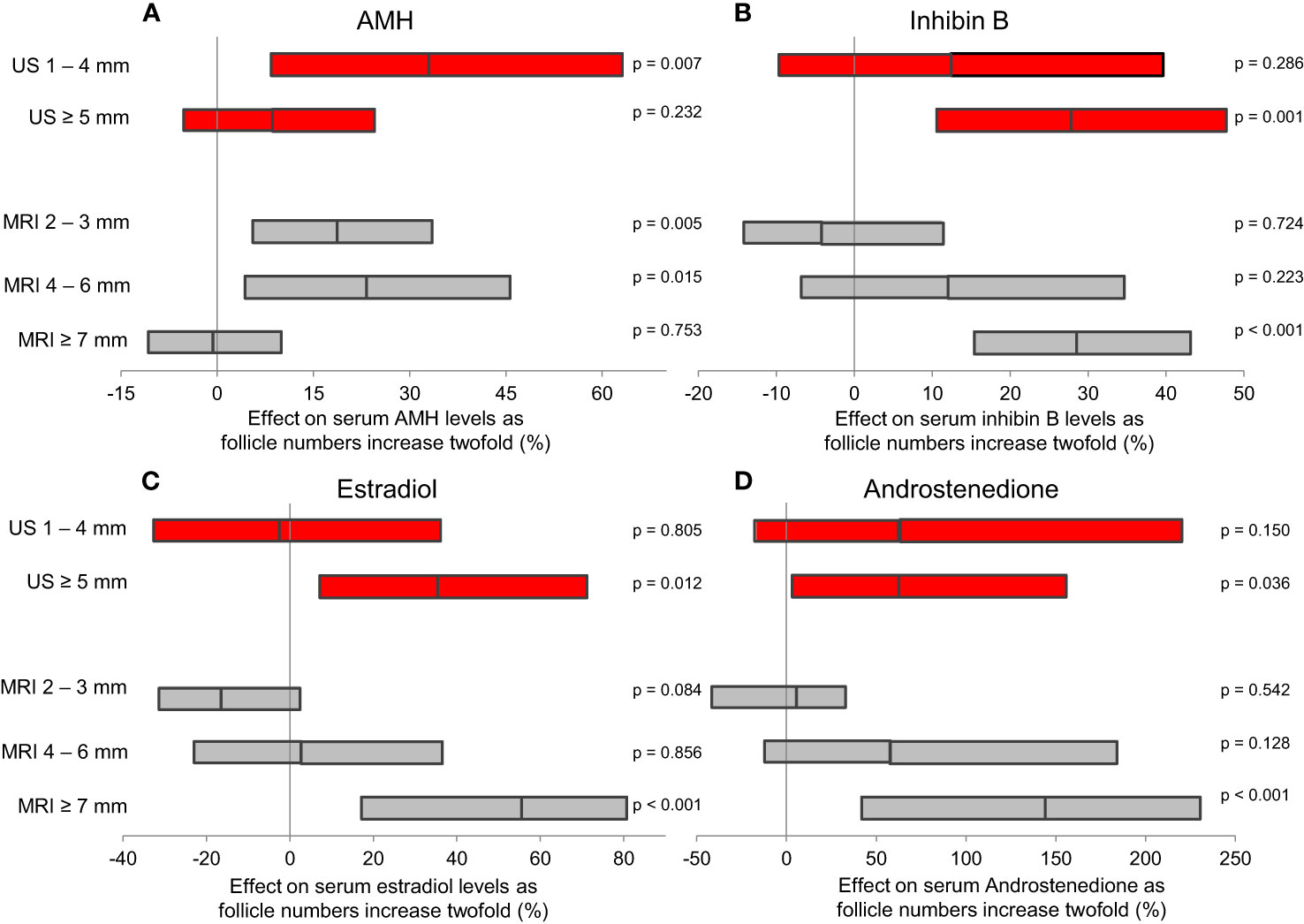

Figure 6 Results of multiple regression analyses evaluating which follicles contributed most to serum levels of ovarian hormones. The estimated effect of a two-fold increase (doubling) in follicle numbers is presented as geometric mean (95% CI). Both TAUS (red) and MRI (grey) revealed that AMH (A) is produced by smaller follicles than inhibin B (B), estradiol (C) and androstenedione (D). Figure from (57).
These morphological findings and their association with hormone levels explain the clinical challenges the pediatrician faces when evaluating ovarian activity during the quiescence of the HPG axis in mid-childhood. Reproductive hormone levels in mid-childhood are therefore similar to healthy girls; i.e. low levels of LH and FSH from the pituitary as well as low or undetectable levels of inhibin B and estradiol produced by granulosa cells surrounding larger antral follicles (8, 9, 58). Centrally inhibited levels of FSH, albeit measurable, are rarely sufficient for follicle maturation beyond small antral stages (Figure 2). Thus, in our longitudinal study of reproductive hormone levels in TS patients through childhood, gonadotropins were not elevated in the majority of patients who did not enter puberty spontaneously (FSH data seen in Figure 7) (47). However, there are indications that HPG activity during minipuberty does not end as abruptly in girls as in boys. Thus, FSH seems to be elevated in young prepubertal Turner syndrome patients up to 6 years of age (47, 58, 59). A single measurement of undetectable inhibin B was a prevalent finding in healthy girls and therefore not a very specific predictor of absent pubertal onset in TS patients. However, repeated blood samples increased the chance of revealing ovarian activity by detecting inhibin B produced by a randomly matured large follicle (47).

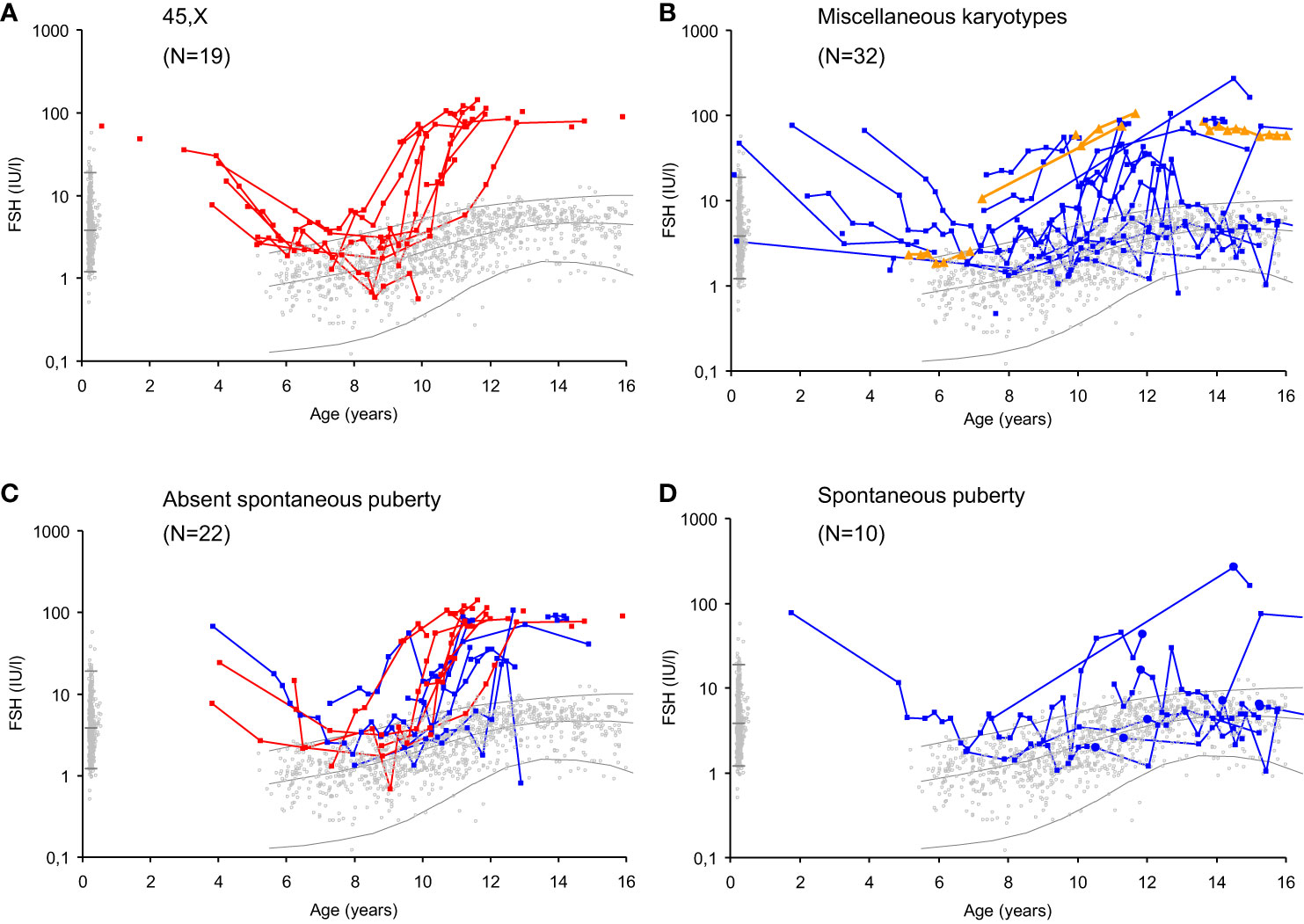

Figure 7 Serum FSH levels (IU/l) in girls with Turner syndrome (n=51) according to age, karyotype and spontaneous puberty onset compared to a reference range based on 2406 healthy Danish girls (grey dots). Lines represent geometric means and 95% prediction interval ( ± 2SD). Girls with 45,X monosomy (red, (A); miscellaneous TS karyotypes before (blue) and after gonadectomy (orange) (B); TS patients with absent spontaneous puberty (C) and spontaneous puberty (D). Age at spontaneous pubertal onset is illustrated by closed circles. Figure from (47).
Introduction of ultra-sensitive liquid chromatography–mass spectrometry (LCMS/MS) indicates that estrone (E1) is measurable in the majority of healthy prepubertal girls (10). Further studies on circulating concentrations of estrone and estradiol (LCMS/MS) in girls with TS are needed to evaluate the predictive value of these biomarkers. Despite ultra-sensitive LCMS/MS methods enabling measurement of low levels of circulating androgens, these hormones are co-produced by the adrenals and therefore not specific for ovarian activity (60).
Even after spontaneous pubertal onset and/or menarche, it remains a clinical challenge to evaluate ovarian function. Irregular anovulatory cycles are prevalent in healthy girls up to 2-3 years after menarche (61). Furthermore, reproductive hormones may remain within the normal range before POI is clinically evident, despite significant depletion of the ovarian reserve (37, 62, 63).
Thus, during mid-childhood, the clinical use of gonadotropins and products from larger ovarian follicles (inhibin B, estradiol, testosterone and androstenedione) is hampered by central inhibition of the HPG axis.
However, in clinical follow up, repeated assessments prior to pubertal onset may reveal ovarian activity (detectable inhibin B levels) or hypergonadotropic hypogonadism (elevated FSH levels).
AMH in healthy girls
Interestingly, circulating AMH reflects the number of small and medium antral follicles in healthy peripubertal girls (57) (Figures 6A, 8). Thus, AMH is a unique marker of ovarian activity during mid-childhood quiescence of the HPG axis.

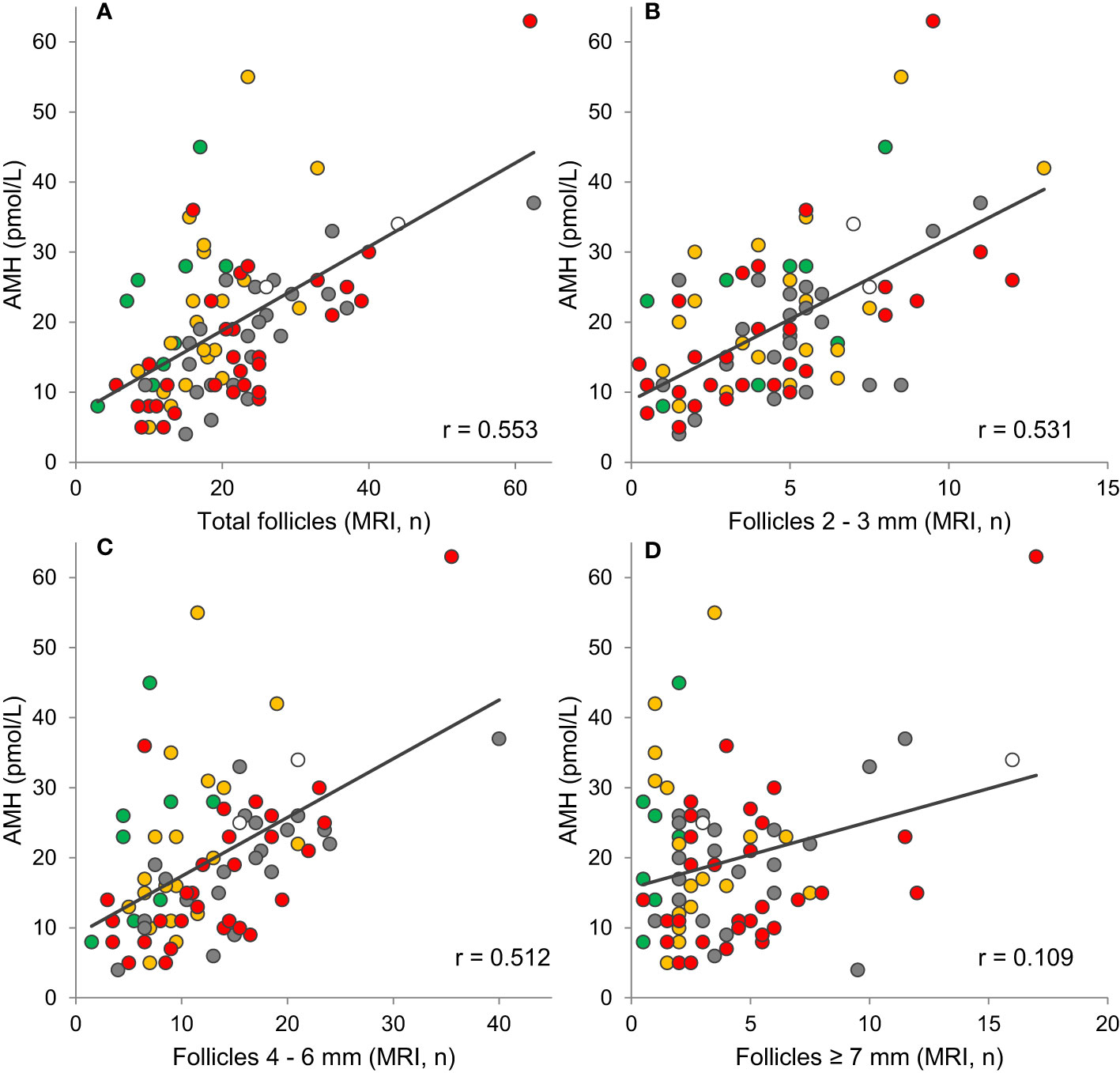

Figure 8 Correlations between AMH and (A) the total number of follicles (r=0.553, p<0.001), (B) small follicles (r=0.531, p<0.001), (C) medium follicles (r=0.512, p<0.001), and (D) large follicles (r=0.109, p=0.323) evaluated on MRI. Tanner stage B1, orange: B2, grey: B3, red: B4 + 5, white: Tanner stage unknown. Grey lines indicate tendency lines for correlations including all samples. Figure modified from (57).
We established the first reference range of AMH in females measured with a sensitive assay. It was based on 926 healthy females from birth to 69 years of age (Figure 9). We observed a surge of AMH at time of the so-called “minipuberty” (the transient postnatal activation of the HPG axis) (64). This was confirmed in a recent detailed longitudinal study of healthy girls – even indicating a biphasic pattern of AMH and other reproductive hormones during the first year of life (65).

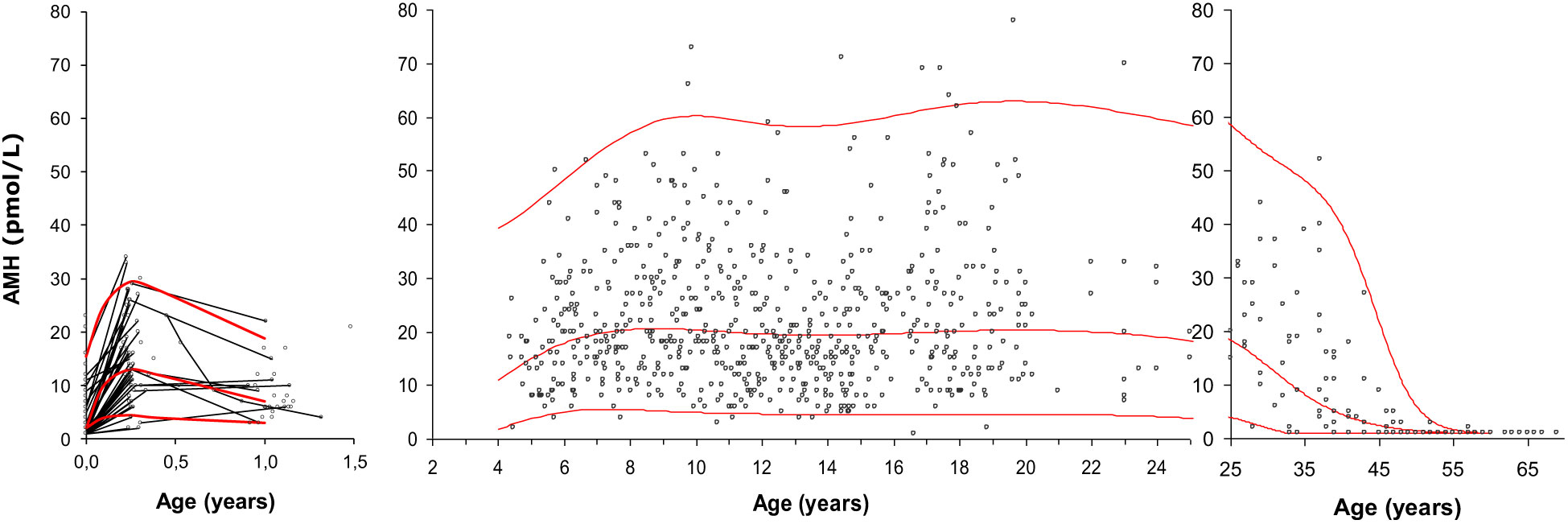

Figure 9 Serum AMH (pmol/L) in 926 healthy infants, girls, adolescents and adult women. Longitudinal values during infancy are connected with black lines. The red curves represent the median, the 2.5th percentile and the 97.5th percentile. Figure modified from (64).
The transient stimulation of the ovaries during minipuberty results in increasing numbers of antral follicles producing AMH (66). AMH seems to increase from 4 to 8 years of age, but compared to other reproductive hormones, circulating levels of AMH are remarkably stable in childhood, puberty and adolescence (64, 67). However, inter-individually between girls, AMH levels vary 15-fold. These findings are in line with the dynamics of ovarian follicles, as the number of AMH-producing follicles (antral follicles < 6mm) varies between healthy peripubertal girls but the number of these small growing follicles do not increase after pubertal onset (57).
A recent long-term longitudinal study of healthy females followed from infancy to adolescence reveal remarkable stable levels of AMH through the entire childhood (68). If a girl had high AMH, she remained with high levels through infancy, childhood, puberty and adolescence, and vice versa if she had low levels, she maintained low levels. Thus, the predictive value of low concentration of circulating AMH in mid-childhood is both sensitive and specific of low AMH in adolescence. Due to individual tracking of activity from small growing follicles, AMH in mid-childhood - and even in infancy - was associated with the number of small follicles in the same girl at puberty and adolescence. A meta-analysis including data from several studies suggests that AMH increases in late adolescence (69). The study is based on data from different cohorts using different immunoassay which are difficult to convert to comparable levels (70, 71). Circulating AMH is present in different molecular forms (72) which may explain the discrepancy between AMH assays (73). There is a need of an international standard to enable comparison of AMH levels between study populations when measured at different laboratories.
Thus, in healthy girls, AMH is a unique reproductive hormone reflecting and predicting the number of small antral follicles. Individual circulating levels are stable through infancy, childhood, puberty, and adolescence.
Regulation of AMH
In healthy girls, circulating AMH levels are negatively associated with FSH levels prior to pubertal onset (74). Furthermore, detailed longitudinal data revealed a limited but significant increase of AMH prior to pubertal onset (+17%) followed by decreasing levels (-30%) two years after pubertal onset. These findings have been confirmed by two British cohorts of healthy peripubertal girls (75, 76) (Figure 10). Initially, we speculated that the post-pubertal decrease of AMH was caused by the pubertal increase of FSH, leading to increased maturation of follicles which would reduce the number of AMH producing follicles. However, our detailed study of ovarian morphology revealed that the number of AMH producing follicles (< 6mm) actually increased during early puberty (57). In the same study, independent of follicle numbers, estradiol levels were negatively correlated with AMH. Increasing estradiol during early puberty may therefore directly inhibit AMH production. Firm causal conclusions of the negative association between AMH and FSH as well as estradiol cannot be drawn from our human clinical data. However, direct inhibition of AMH expression by estradiol has been suggested by in vitro studies of granulosa cells from patients undergoing in vitro fertilization (77). Conversely, AMH reduces sensitivity and growth rate of follicles in response to FSH as well as inhibits aromatase expression in smaller follicles (11, 26, 78). Thus, AMH seems to inhibit estradiol production in small follicles, whereas estradiol may inhibit AMH production in large follicles. We have speculated that in prepubertal girls, AMH is essential to prevent FSH-induced growth as well as premature estradiol production from small growing follicles.

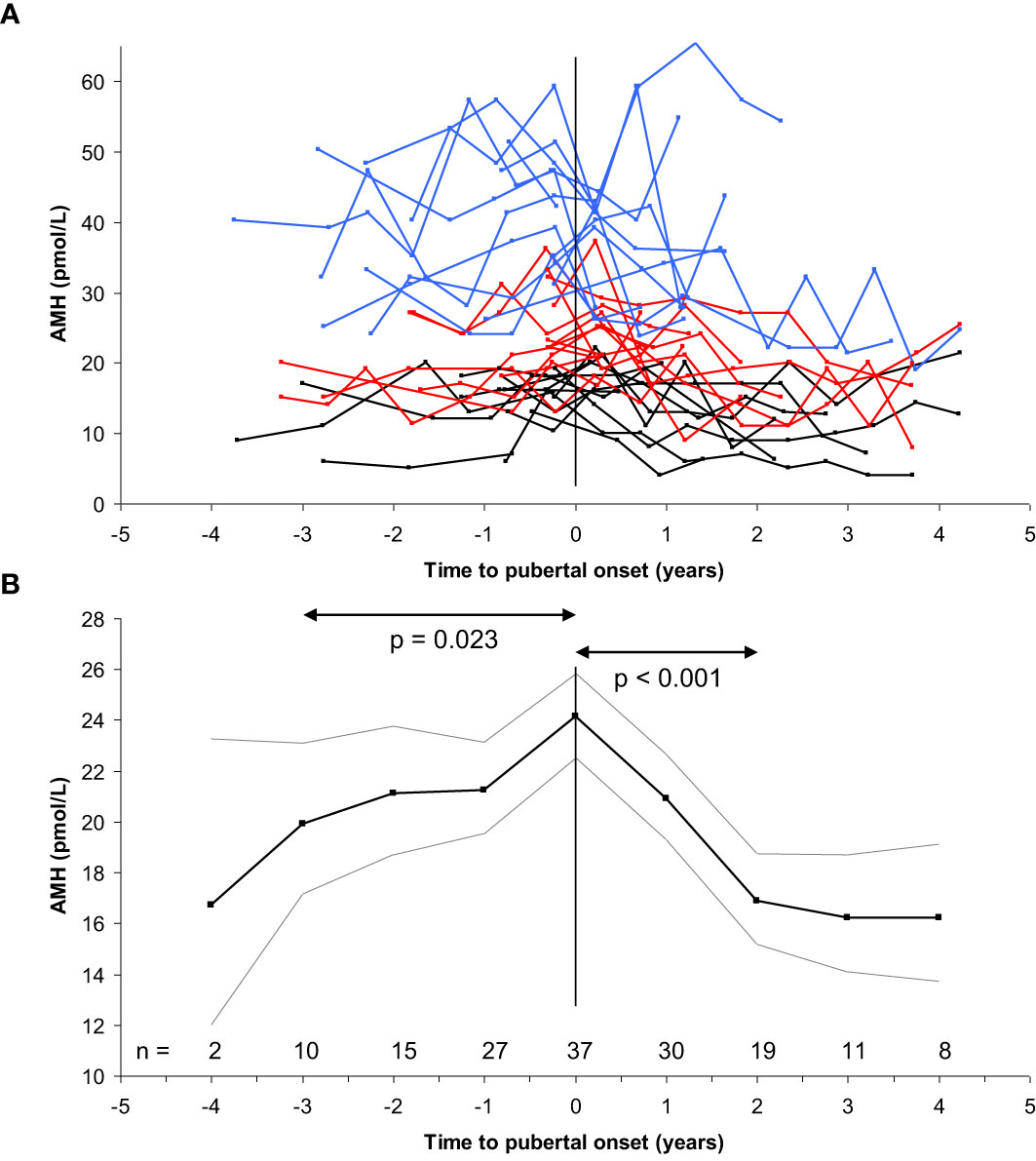

Figure 10 (A) Longitudinal AMH levels in 39 girls according to time to pubertal onset (breast development) (top). Blue, red and black lines indicate highest, medium and lowest tertile of AMH, respectively. (B) Variance component model (bottom) of the longitudinal data (black line: geometric mean, grey lines: +/- 1.96SD) revealed minor increase of AMH levels during the three years prior to pubertal onset (20 to 24 pmol/L, 17%, p=0.023), followed by decreasing levels two years after pubertal onset (24 to 17 pmol/L, 30%, p<0.001). Subsequently, AMH levels were stable. Figure based on data from (74).
The data discussed above are from healthy girls with an intact HPG axis. Cellular studies suggest that FSH does not affect AMH production in granulosa cells from healthy women (79), however, these studies were performed on granulosa cells retrieved from ovarian stimulation which may affect the response. Further insight in regulation of AMH is gained from studies manipulating the HPG axis. From small cross-sectional studies of women on hormonal contraceptive treatment (HCT), AMH levels were considered independent of pituitary activity (36, 80). However, larger cross-sectional studies as well as recent longitudinal studies suggest that AMH levels are reduced app. 30% by HCT (35, 81, 82). Whether this is caused by direct inhibition of AMH expression by estradiol or the effect is due to reduced number of medium antral follicles caused by suppression of GnRH secretion by potent synthetic estrogens remains to be elucidated. In our study of AMH levels in girls with central precocious puberty before, during and after GnRH agonist treatment, AMH was reduced 50% in response to suppression of pituitary activity (83). Although ultrasound was not performed on these girls, previous studies suggest reduced number of medium sized antral follicles during GnRHa treatment (84). This would be a plausible explanation for our findings.
In conclusion, the negative correlation between AMH and FSH supports that a degree of negative feedback between pituitary gonadotropin secretion and ovaries is exercised even in prepubertal girls.
AMH as a predictor of fecundability in adult women
Whereas the value of AMH as a quantitative marker of follicles seems to be established, it remains contentious whether AMH is a marker of oocyte quality. Data from IVF settings strongly suggest circulating AMH as a marker of oocyte quality. AMH predicts the ovarian response (85, 86), and positive associations with the chance of conception (87) and livebirth (88, 89) have been reported. However, data from healthy women are less convincing. The first report of AMH as a marker of fertility in healthy women indicated that very low AMH predicted reduced fecundability in 100 women in their late reproductive life (30 – 42 years) (90). In another study of sub-fertile women who were unsuccessful in conceiving after 12 months of unprotected sexual intercourse (mean age 36 years), AMH levels in the 14 women achieving pregnancy during the following 6 months were not different from the 69 non-pregnant women (91). In a large prospective study of 186 healthy women (mean age 27 years) adjusted for male confounders, we found that high but not low AMH predicted reduced fecundability (Figure 11) (92). Our finding that high AMH was associated with reduced fecundability is most likely explained by a PCOS-like biochemical profile in the females with high AMH. The low AMH tertile included women witih AMH < 13 pmol/L which is well above the detection-limit of the assay (2 pmol/L) and the -2SD of the reference range in young adults (5 pmol/L). Thus, the size of the study population did not allow us to evaluate the effect of very low AMH. In support of our findings, a study of 1202 healthy women who had previously conceived did not find a reduced fecundability in women with low AMH (93). There is the possibility that sub-fertile PCOS patients may have been excluded in the study which may explain why high AMH was not associated with reduced fecundability in their cohort. In another study, AMH levels measured in the first trimester of pregnancy was not associated with fecundability (self-reported) in a retrospective study of 87 healthy women conceiving naturally (mean age 31 years) (94). Other cohorts of different ethnicity support that low AMH is not associated with reduced fecundability (95).

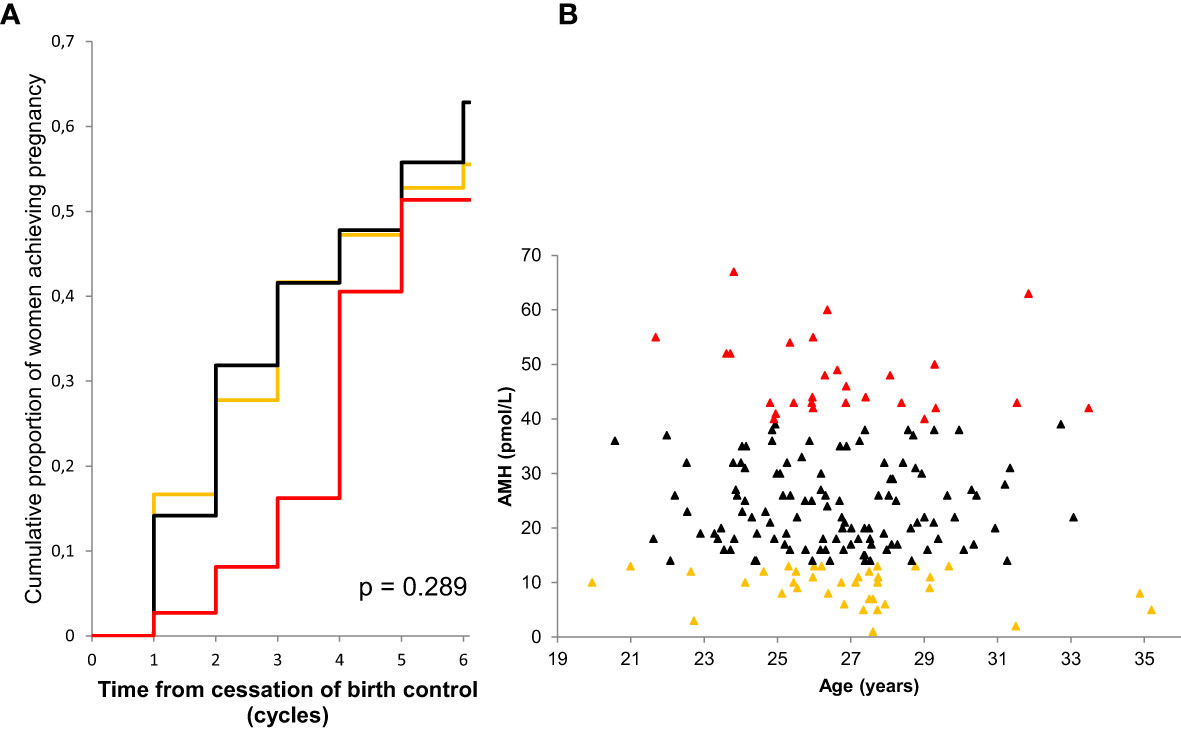

Figure 11 Kaplan-Meier curves showing the cumulative proportion of pregnancy by serum level of AMH (A). Low AMH (quintile 1) orange line, medium AMH (quintiles 2-4) black line, high AMH (quintile 5) red line. P-value describes difference between curves (log-rank test). AMH as a function of age in 186 participating women (B). Colors correspond to subgroups of AMH levels: low (orange), medium (black) and high (red). Figure from (92).
Patients with TS have increased risk of autoimmune conditions, and untreated Hashimoto´s hypothyroidism may contribute to reduced fecundability in adult patients with preserved ovarian function.
In conclusion, AMH in adult women seems to be a quantitative rather than a qualitative marker of ovarian follicles. Further studies are necessary to elucidate if extremely low AMH affects time to pregnancy and to confirm whether low AMH predicts reduced fecundability in healthy women in late reproductive life.
AMH as marker of ovarian activity in ts patients
AMH has been associated with ovarian status in adolescent and adult patients with TS; i.e. low or undetectable AMH in patients with POI vs. AMH in the reference range in the majority of patients with ongoing ovarian function (64, 96–99). These cross-sectional data have been confirmed in a longitudinal follow-up study (48) (Figure 12). The longitudinal data from TS patients developing POI were sparse and we can therefore not firmly conclude on specific AMH values as predictors of absent pubertal onset or imminent POI. However, AMH was < 5 pmol/L (equals -2 SD) in all patients prior to clinical manifestation of POI. A cross sectional ROC analysis including data from all adolescent and adult patients revealed that AMH < 3 pmol/L seems to be a sensitive and specific marker of POI (both 95%) (48). These findings suggest an increased risk of imminent POI in TS patients with AMH < -2SD. For the clinician, the apparent predictive value of low AMH is useful when counselling adolescent TS patients with ongoing ovarian function about their risk of POI.
Figure 12 Serum AMH levels (pmol/L) in girls, adolescents, and women with TS according to age, reference range and their ovarian status: never ovarian function (A), ongoing ovarian function (B), and loss of ovarian function (C). Green: patients with ongoing ovarian function; gray/black: patients with no ovarian function. Note the logarithmic Y-scale. Blue lines indicate the reference range (median, 2. and 97.5th percentiles). Figure from (48).
Taking into account that healthy girls maintain their relative AMH levels from infancy to adolescence (68) (Figure 13), it seems likely that undetectable AMH or AMH < -2SD is indicative of reduced ovarian activity in prepubertal TS patients. This was supported by our limited longitudinal data on young TS patients where all prepubertal girls with AMH < 4 pmol/L suffered from absent spontaneous pubertal onset (48). These findings are in line with a large European study where girls with TS having measurable AMH had a 19-fold increased chance of entering puberty spontaneously compared with patients with undetectable AMH (96). AMH is also undetectable or low in adult patients suffering from idiopathic premature ovarian insufficiency (100). FSH, LH, inhibin B, and estradiol may be unaffected until time of clinical manifestations of POI where the number of remaining follicles is severely reduced (37, 62, 63, 101). Our findings of multiple undetectable inhibin B measurements as a predictor of absent pubertal onset in young TS patients (47, 102) as well as decreasing inhibin B prior to POI in adolescent and adult patients (48). indicate that also inhibin B may be a valuable predictor of POI. However, single measurements of low or undetectable inhibin B should be interpreted with caution as this is a normal finding in healthy girls and adolescents (103).

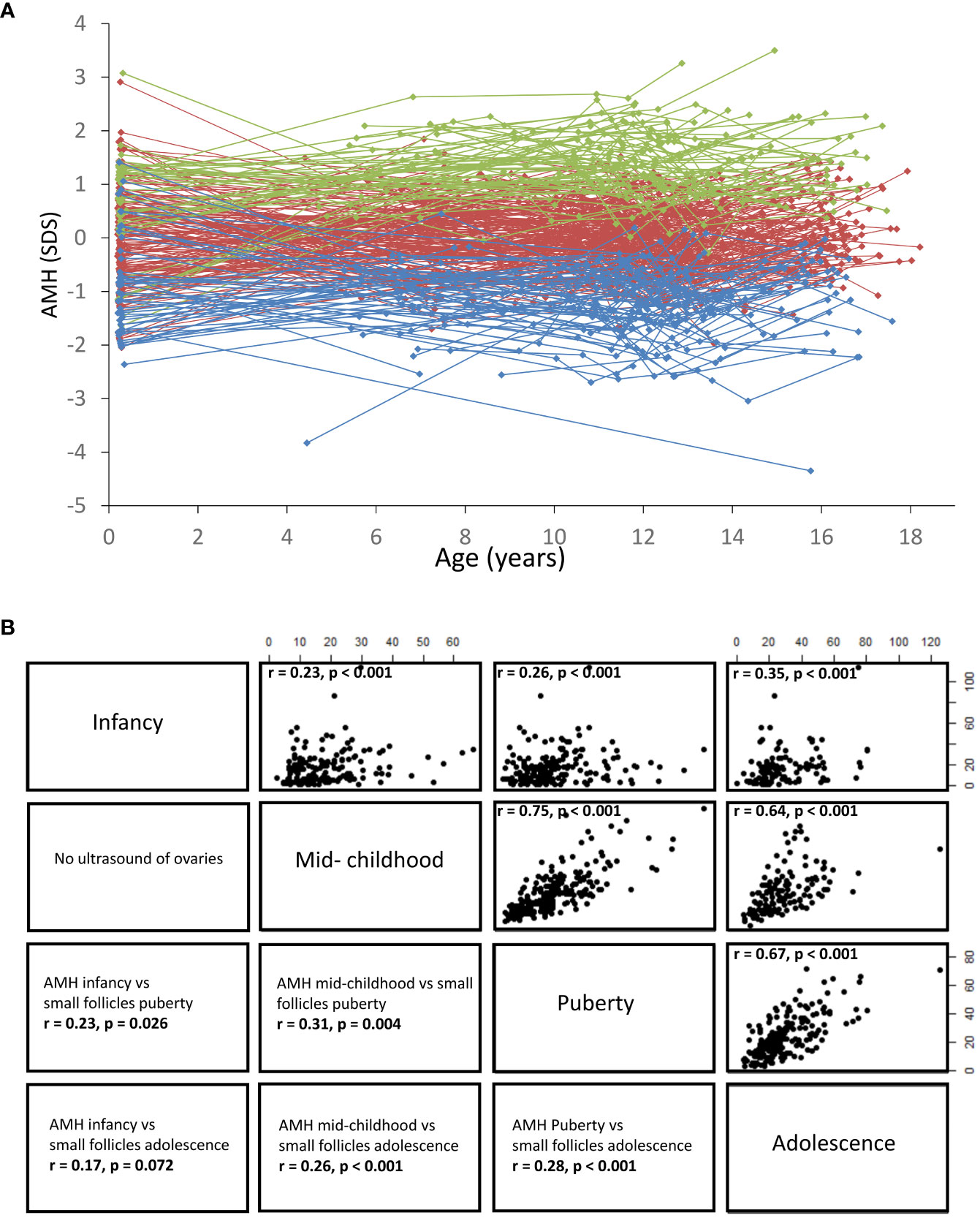

Figure 13 (A) Serum AMH concentrations shown as standard deviation scores according to age. Dots indicate individual values and longitudinal courses are connected by lines. All girls were divided into AMH quintiles (5 groups), based on the individual mean SD scores. Blue: 1st quintile, red: 2nd,3rd,4th quintile, green: 5th quintile. (B) Right side: Correlations (Spearman´s Rho, r value) between serum AMH concentrations (pmol/L) in infancy, mid-childhood, puberty and adolescence, all p < 0.001. Left side: Correlations (Spearman´s Rho, r value) between serum AMH concentrations and the number of small follicles (<4mm) assessed by transabdominal ultrasound. Figure based on data from (25).
Interestingly, adult Turner´s patients with ovarian function maintained their AMH levels during follow up, suggesting that they did not exhibit an accelerated depletion of their ovarian reserve compared to healthy controls (48). This is in line with UK biobank study where women who were not diagnosed with 45,X/46,XX had a similar number of children and did not enter menopause earlier than women with 46,XX (104). Of course there is a risk that the women in this study have a less severe phenotype compared with patients diagnosed with 45,X/46,XX. However, it suggests that patients with 45,X/46,XX have a chance for ongoing ovarian function and unaffected fertility comparable with healthy women. It also underlines the importance of continuous follow-up of such patients.
In conclusion, small studies of patients with TS suggest that AMH < -2SD is predictive of absent puberty and imminent POI, however larger studies are needed to qualify these findings further.
Ovarian cryopreservation in patients with TS
Hopefully, added understanding of the reproductive phenotype of patients with Turner’s syndrome will lead to an improved evidence-based and individualized fertility counselling. Based on successful experience with ovarian cryopreservation and later auto transplantation in other patients at risk of POI (e.g. girls with cancer prior to gonadotoxic therapy, girls with thalassemia prior to bone marrow transplantation) (105–112), this procedure is now a treatment modality in clinical studies to young patients with TS in several centers. In Sweden, girls with TS have been offered cryopreservation since early 2000´s (50) and in the Netherlands, inclusion of girls with TS in a cryopreservation study has recently been finalized (113). In these studies, many patients had no follicles in the retrieved ovary. Although the karyotype, FSH, AMH, and inhibin B were all associated with the presence of follicles, the sensitivity and specificity of these markers were limited (50).
In this context, it is essential to evaluate ovarian activity. Surgery for ovarian cryopreservation should be avoided in patients without any ovarian follicles. Furthermore, surgery is not indicated in patients with ongoing ovarian function in adult life as they are likely to have a normal prognosis for pregnancy. Knowledge of markers and predictors of ovarian function in girls with TS is essential when counseling patients and their families in these matters. Importantly, studies have shown that life-birth rate after auto transplantation of frozen-thawed ovarian tissue is negatively correlated with increasing age and low AFC, which could indicate that low AMH at the time of cryopreservation plays a prognostic role (114, 115). To date, there are no reports on achieved pregnancies (or live births) in patients with TS after auto transplantation of ovarian tissue.
In prepubertal girls, harvesting of ovarian tissue usually includes laparoscopic retrieval of one of the ovaries inducing a small risk of bleeding and infection. If pregnancy cannot be achieved after auto transplantation, cryopreservation may induce false hope and later psychosocial harm (116). Apart from these ethical issues, the removal of one ovary may potentially cause even earlier loss of valuable ovarian function. Importantly, hidden nests of viable 46,XX oocytes with the potential of future fertilization may get lost.
Taking these considerations into account, we have designed a national protocol offering selected girls and adolescents with TS ovarian cryopreservation; The Danish Turner Cryopreservation (DANTE) Study (start of inclusion planned in 2023). Ideally, only patients with sufficient numbers of primordial follicles who in the future will experience POI before time of desired pregnancy will benefit from this intervention. In The DANTE Study, all Turner patients (2-18 years) are invited to participate, see Flow-diagram (Figure 14). The patient is initially screened for ovarian activity including Tanner staging by physical examination, assessment of circulating concentrations of reproductive hormones (e.g. AMH, FSH, LH, Inhibin B, estradiol), and transabdominal ultrasound of the ovaries to assess the number of antral follicles. If ovarian activity is very low (e.g. AMH < 2SD) or undetectable, the patient is not offered cryopreservation. Prepubertal girls will be followed longitudinally until POI can be confirmed at time of expected puberty.

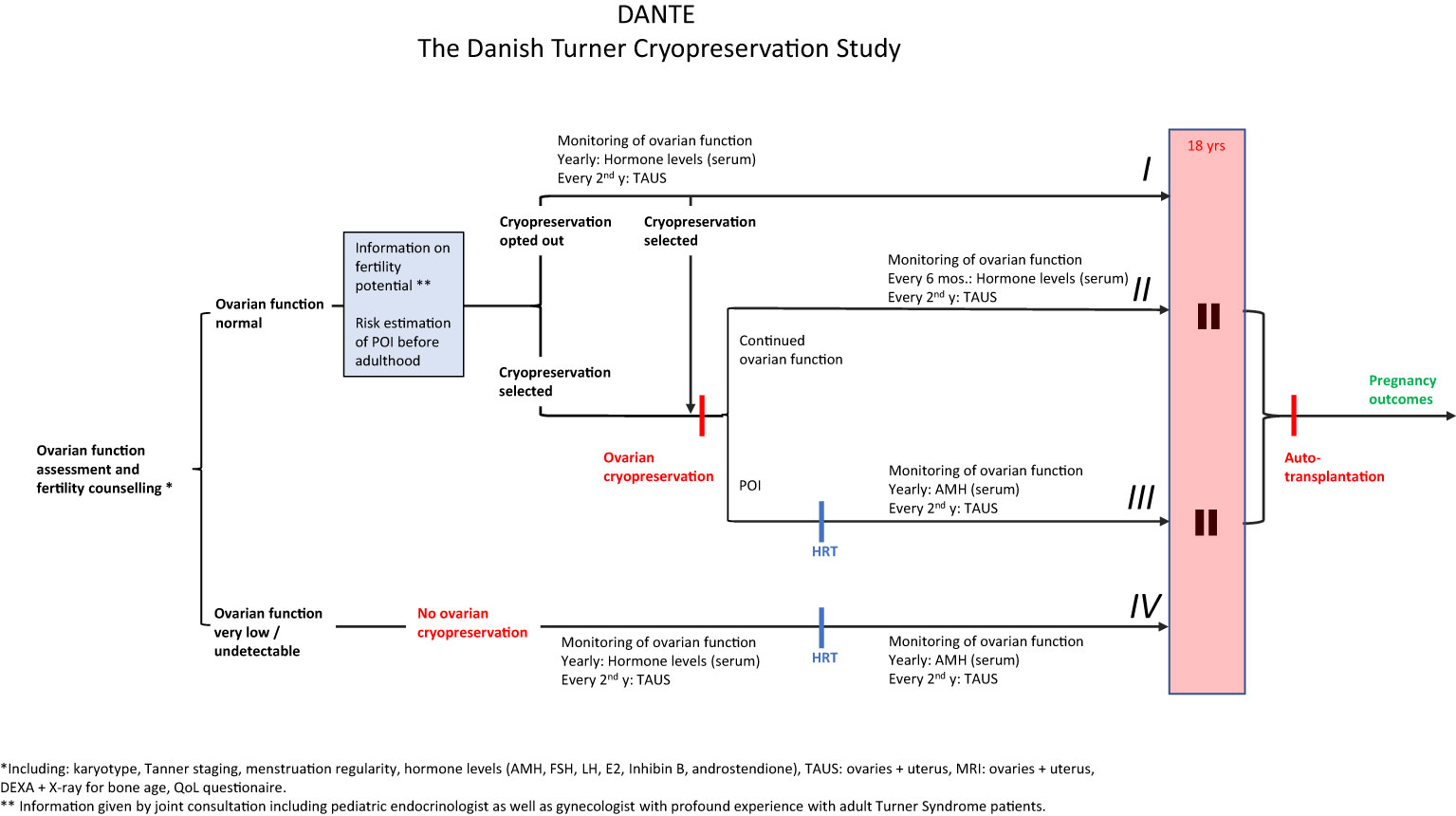

Figure 14 Study design of The Danish Turner Cryopreservation Study (DANTE). All Danish Turner Syndrome patients 2-18 years will be invited to participate. From an initial evaluation of ovarian function (Karyotype, Tanner staging, menstrual cycle regularity, circulating levels of reproductive hormones, transabdominal ultrasound and MRI of the ovaries) we will evaluate if ovarian function is normal or very low/absent. The patient will only be offered ovarian cryopreservation if parameters of ovarian function are within age-matched reference ranges. Based on thorough information concerning fertility potential including estimation of risk of POI before adulthood, the patient will decide for cryopreservation. The patient can opt out cryopreservation and monitor ovarian function closely (I) to select cryopreservation at a later stage if ovarian function declines (II and III). If initial evaluation of ovarian function reveals very low or no ovarian activity, the patients will not be offered cryopreservation (IV). POI (premature ovarian insufficiency): Prepubertal girls: AMH < -2SD and FSH > 2SD, transabdominal ultrasound: streak gonads or antral follicle count (AFC) < 10th percentile (57, 64). Post/ peripubertal: No spontaneous puberty, pubertal progression stopped or markedly delayed (117), or primary/secondary amenorrhea. Furthermore: AMH, E2 and inhibin B < -2SD, FSH > 2SD, streak ovaries and AFC < 10th percentile (57, 64).
In case of ovarian activity, the patient and her family receive information at a visit where both the pediatrician and a gynecologist participate. At this meeting we inform of expected fertility potential with and without ovarian cryopreservation based on current knowledge. Based on the initial screening, we will discuss the chances of remaining ovarian function in adult life without intervention, if we expect to find enough follicles by cryopreservation, details about the procedure of future auto transplantation, the success rates in other groups of patients, and we will describe alternative methods of establishing a family (oocyte donation, adoption).
As an alternative strategy for fertility preservation in adolescents and young adults with TS, oocyte vitrification after ovarian stimulation could be considered (118–120). The first live birth after vitrification of oocytes in a woman with TS was recently reported (121).
Transition clinic
During the past 20 years, we have established joint clinics for adolescent patients in our tertiary center between pediatric endocrinologists and gynecologists as well as adult endocrinologists, as also recommended in the international guideline (122). We have seen nearly 600 patients in these joint transition clinics. Patients with TS are primarily transferred to the gynecological department after adolescence. If they suffer from hypothyroidism or other endocrine conditions, they are also transferred to the department of endocrinology. The pediatrician and the gynecologist/endocrinologist see the patients and their families at a joint consultation in familiar surroundings at the pediatric department one or more times before the age of 18 years. The content of the joint visit is highly individual. Usual topics include e.g. treatment of menstrual irregularities, information on hormone replacement therapy (HRT) including dose and treatment, contraception, sexually transmitted diseases, HPV vaccine, and fertility options. This is also an opportunity to evaluate transabdominal ultrasound of the internal genitalia with special focus on uterine growth by estradiol treatment. The patients are informed about what to expect after the transfer from pediatric to adult follow up. Many adolescents have reservations concerning gynecological examinations, and the transition clinic is an opportunity to stress that this is not a mandatory part of consultations at the gynecological department. We experience that the patients are better prepared and more confident to change to an adult setting, reducing the risk of drop out after referral. However, also the pediatricians and colleagues at the adult departments benefit mutually professionally and scientifically from these joint consultations facilitating sharing of knowledge in rare endocrine disorders, updates on guidelines from other disciplines, novel and emerging treatment options, new evidence, organization of departments, and inspiration to research projects bridging adolescents and young adult patients.
Summary
Girls with TS are at increased risk of premature ovarian insufficiency. Many of these patients are diagnosed in mid-childhood, but due to central inhibition of the HPG axis, it is difficult to evaluate ovarian activity in girls prior to pubertal onset. Studies of ovarian morphology and reproductive hormones in healthy girls support that AMH is produced by granulosa cells surrounding small ovarian follicles. Even prior to pubertal onset, these follicles are continuously recruited from the pool of primordial follicles independently of gonadotropin-stimulation.
Circulating levels of AMH are predictive of the reproductive lifespan in healthy adult women. Our findings strongly indicate that the inter-individual variation of AMH in girls is indicative of the number of remaining primordial follicles – an important outcome in epidemiological research evaluating factors affecting prenatal establishment of the primordial follicle pool. Despite strong evidence of AMH as a quantitative marker of ovarian follicles, AMH does not predict the specific age at menopause for a given woman, nor is low AMH associated with reduced fecundability in young healthy women.
Marked inter-individual variation but little intra-individual variation of AMH in girls both reflects and predicts the number of small antral follicles. Thus, girls maintain their relative level of ovarian activity from follicles growing independently from FSH stimulation through infancy, childhood, puberty and into adolescence. Limited longitudinal data suggests AMH as a unique predictor of premature ovarian insufficiency in TS patients at risk of accelerated loss of follicles. AMH is therefore a key parameter when counseling patients and their families about future ovarian function. The karyotype of the patient as well as consecutive assessment of circulating levels of inhibin B and FSH may add to the predictive value of ovarian function of a given patient. This information is essential when considering whether the patient could benefit from ovarian cryopreservation.
Thus, the clinical use of AMH has been expanded from a marker of testicular tissue in rare DSD patients to a marker and predictor of ovarian activity used at a daily basis in pediatric endocrinology.
