Zhenchao Wang
Si Peng1,2†
Ji Hu- 1Department of Endocrinology, The Second Affiliated Hospital of Soochow University, Suzhou, China
- 2Department of Endocrinology, Shanghai Pudong New Area People's Hospital, Shanghai, China
- 3Department of Traditional Chinese Medicine, The Second Affiliated Hospital of Soochow University, Suzhou, China
Objective: To investigate the relationship between diabetic peripheral neuropathy (DPN) and gait abnormality in diabetic patients.
Methods: Related research concerning the gait of diabetic patients with and without DPN was collected and analyzed by searching PubMed, Embase, and Web of Science. Statistical analysis was performed by using RevMan 5.3 software.
Results: Twenty-one studies were included in this meta-analysis, consisting of 499 diabetic neuropathy patients and 467 diabetes controls without neuropathy. Meta-analysis results showed lower gait velocity, shorter stride length, longer stride time, longer stance time, and higher maximum knee extension moment in the DPN group, compared with their counterparts.
Conclusion: Among diabetic patients, those complicated with DPN possess lower gait velocity, shorter stride length, longer stride time, longer stance time, and higher maximum knee extension moment.
Introduction
As a common endocrine disease featured by impaired glucose metabolism, diabetes is afflicting approximately 10% of the adult population worldwide (1). Furthermore, the long-term hyperglycemic condition in patients can damage many target organs like the nerves, retina, and kidney, inducing various complications such as diabetic nephropathy, diabetic retinopathy, and diabetic nephropathy, respectively. Diabetic nephropathy can be further divided into diabetic central neuropathy and diabetic peripheral neuropathy (DPN), and the latter is more common in clinical practice. As one of the most common complications of diabetes, DPN affects about half of diabetes worldwide (2). The Toronto Consensus Panel on Diabetic Neuropathy defined DPN as a “symmetrical, length-dependent sensorimotor polyneuropathy attributable to metabolic and micro-vessel alterations as a result of chronic hyperglycemic exposure and cardiovascular risk covariates” (3). It is usually characterized as sensory or motor neuron abnormalities, which could lead to morbidity and mortality in patients and inevitably exacerbate their suffering, decreasing their quality of life. In addition, DPN patients often have gait abnormalities due to protective sensory impairment, reduced muscle power, and other reasons, resulting in falls and diabetic foot. However, many individuals are not diagnosed with DPN timely and thus usually fail to receive prompt intervention (4).
Recently, the association between DPN and its influence on human gait has been more and more highlighted. It has been reported that the development of DPN can lead to the dysfunction of muscle (5). Walking, as a natural daily activity that relies heavily on the cooperation of the nervous system and musculoskeletal system, can be easily affected by the pathological process in DPN patients (6). The alteration of the neuromuscular system can be a significant factor in gait variability. Because peripheral neuropathy is also found in pre-diabetes (7), gait analysis can be helpful for timely intervention in the diabetic population.
Therefore, this meta-analysis was conducted to review the published studies focusing on the characteristics of gait parameters in diabetics with and without peripheral neuropathy, hoping that more attention could be paid to the gait abnormality in DPN patients.
Methods
Search Strategy
A systematic search of PubMed, Embase, and Web of Science was conducted from inception to September 2020. The following keywords and MeSH headings were used:
1. 1.exp diabetic neuropathy/
2. DPN
3. diabetic peripheral neuropath*
4. 1 or 2 or 3
5. exp gait/
6. exp kinematics/
7. gait parameter*
8. gait disorders
9. gait characteristic*
10. gait analysis
11. or/5-10
12. 4 and 11
13. limit 12 to humans
Study Selection Process and Criteria

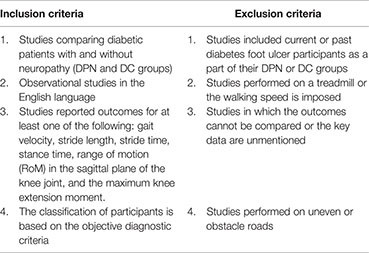

A total of 1,205 studies were obtained using all the search engines mentioned above, including PubMed (n = 545), Embase (n = 515), and Web of Science (n = 146). The duplicates were removed, and finally, 21 studies were selected (8–28) (based on the inclusion and exclusion criteria below). The selection process and records have been diagrammatically shown in Figure 1.

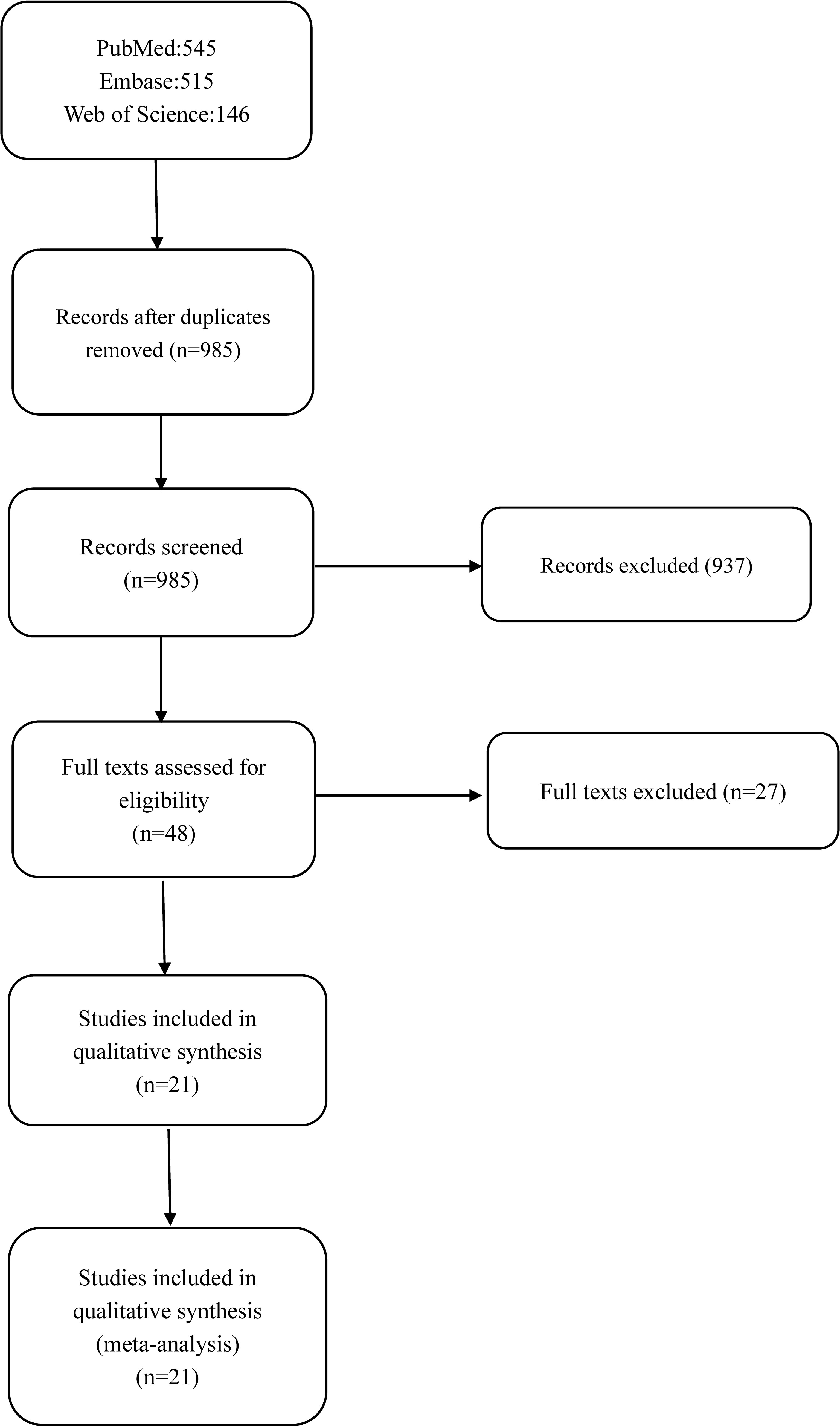

Figure 1 Flow diagram of studies selection.
Data Extraction
Two authors extracted the data independently according to predefined criteria. A difference of opinion between the two authors was resolved through discussion. The third author made the final decision if there is any disagreement. The data including the first author, year of publication, age of participants, observed outcomes, and quality assessment were extracted. Our outcome measures included gait velocity, stride length, stride time, stance time, stance time proportion, RoM in the sagittal plane of the knee joint, and the maximum knee extension moment. Data of the subgroup were merged when necessary.
Quality Assessment
Two authors independently assessed the quality of the included articles according to the article quality assessment tool. Twenty cross-sectional studies were evaluated by the Agency for Healthcare Research and Quality scale (AHRQ scale), and one self-control study was assessed by Methodological Index for Non-randomized Studies (MINORS). Any disagreement was resolved by discussion. The AHRQ scale consists of 11 items that assess the quality of study by the answer “yes = 1” or “no = 0” or “uncertain = 0.” Quality was assigned as low with a total score ≤3, high quality with a total score ≥8, and medium quality in other cases. The MINORS contains 12 items. Each item was scored from 0 to 2, 0 indicating that it was not reported in the article evaluated, 1 indicating that it was reported but inadequately, and 2 indicating that it was reported adequately. If a study’s total MINORS score is under 13, it will be regarded as low quality.
Statistical Analysis
All data were analyzed by RevMan 5.3 software. Since all the data included in this meta-analysis are continuous, weighted mean difference (WMD) and 95% CI are calculated if the outcome shares the same units of measurement, or the standardized mean difference (SMD) was used instead. Statistical heterogeneity was evaluated by the I2 test. The fixed-effect model was used if I2 < 50%, and the random-effects model was used if I2 ≥ 50%. Publication bias was detected by funnel plot.
Results
Search Yield and Study Characteristics
Figure 1 outlines the process and results of each step of the literature search. A total of 1,205 articles were initially identified. However, 1,185 articles were excluded for a variety of reasons, such as lack of DC groups, imposed walking speed, inappropriate methods used in data capture, irrelevant data, or the desired data cannot be calculated. As a result, 21 articles remained eligible for inclusion, comprising 20 cross-sectional studies and one self-control study. Among them, gait velocity was reported in all 21 studies, stride length in 11 studies, stride time in 7 studies, stance time in 6 studies, the proportion of stance time in gait cycle in 3 studies, RoM in the sagittal plane of the knee joint in 5 studies, and the maximum knee extension moment was reported in 3 studies. The general characteristics of the 21 studies and the quality scores are summarized in Table 1.

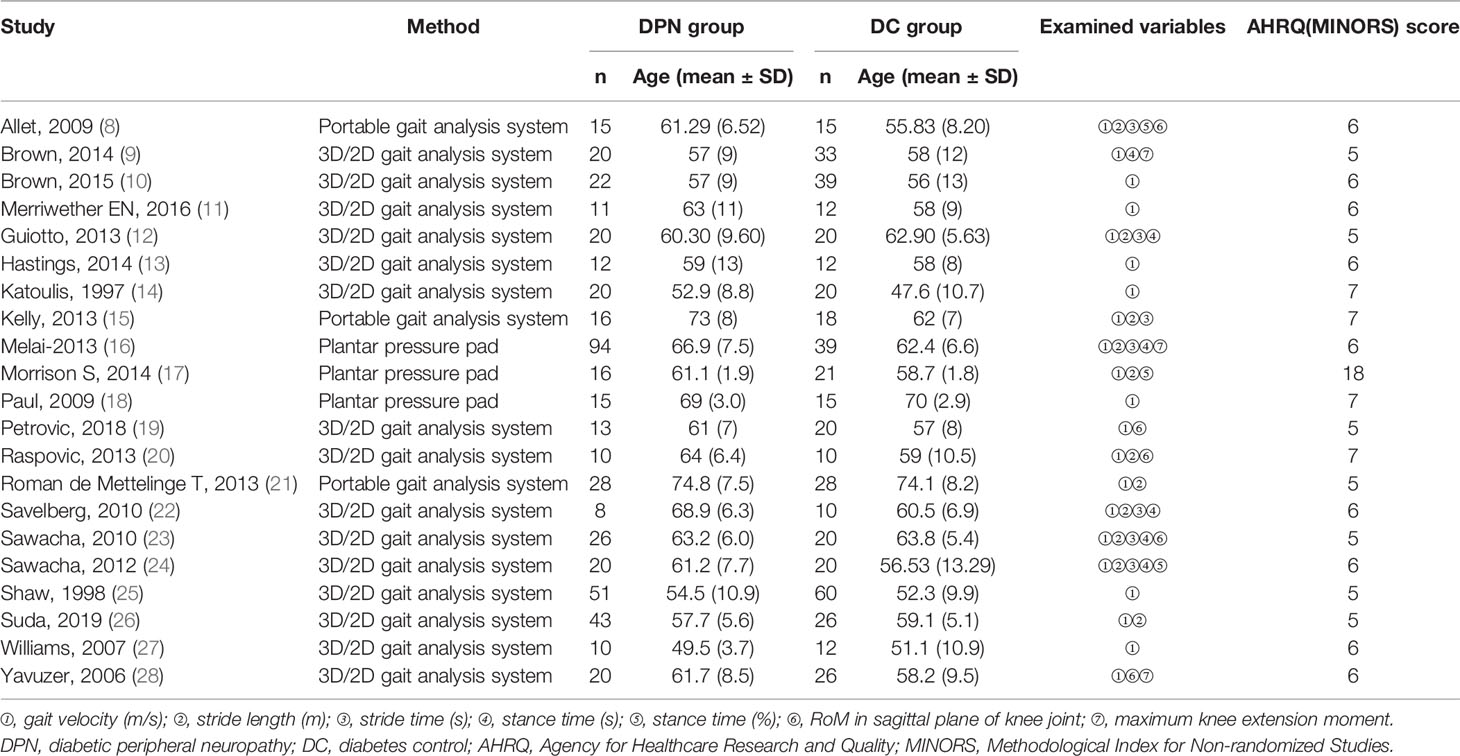

Table 1 Overview and quality assessment of considered studies.
Meta-Analysis of Outcomes
Gait Velocity (m/s)
All of the 21 studies mentioned above observed the gait velocity of both the DPN and DC groups. The meta-analysis performed on gait velocity showed that there was a significantly lower gait velocity in DPN patients compared to their counterparts (SMD: −0.28, 95% CI −0.41 to −0.14; p < 0.0001; I2 = 37%).
Stride Length (m)
Of the included studies, 11 observed the stride length of the DPN and DC groups. The meta-analysis showed that the stride length in DPN patients is shorter than that of their counterparts (SMD: −0.19, 95% CI −0.36 to −0.01; p = 0.04; I2 = 39%).
Stride Time (s)
Seven studies observed stride time (s). The combined data indicated that stride time in the DPN group was significantly longer than that of the DC group (WMD = 0.04, 95% CI 0.01 to 0.06; p = 0.006; I2 = 0%).
Stance Time (s)
Six studies reported their observations on the stance time of the participants. The meta-analysis showed that the DPN group tends to have a longer stance phase in the gait cycle (WMD = 0.03, 95% CI 0.01 to 0.05; p = 0.002; I2 = 12%).
Stance Time Proportion (%)
Three studies observed stance time proportion (%) in their research. The meta-analysis showed that DPN patients had longer percentage duration in the stance phase of gait (WMD = 1.02, 95% CI 0.16 to 1.89; p = 0.02; I2 = 0%).
Range of Motion of Knee Joint in Sagittal Plane (°)
Five studies recorded the range of motion in the sagittal plane of the knee joint as a kinematic parameter in their research. The meta-analysis result showed that there was no statistically significant difference between the two groups in this parameter (WMD = −0.44, 95% CI −4.31 to 3.43; p = 0.82; I2 = 53%).
Maximum Knee Extension Moment (N·m/kg)
Three studies recorded the maximum knee extension moment as a kinetic parameter in their research. The meta-analysis suggested that this parameter was higher in the DPN group compared to the DC group (WMD = 0.0675, 95% CI 0.0038 to 0.1312; p = 0.04; I2 = 0%).
Publication Bias
A funnel plot (Figure 2) was used in this meta-analysis to detect potential publication bias in the outcome of gait velocity. The symmetric distribution in the funnel plot demonstrated no potential publication bias in the studies.

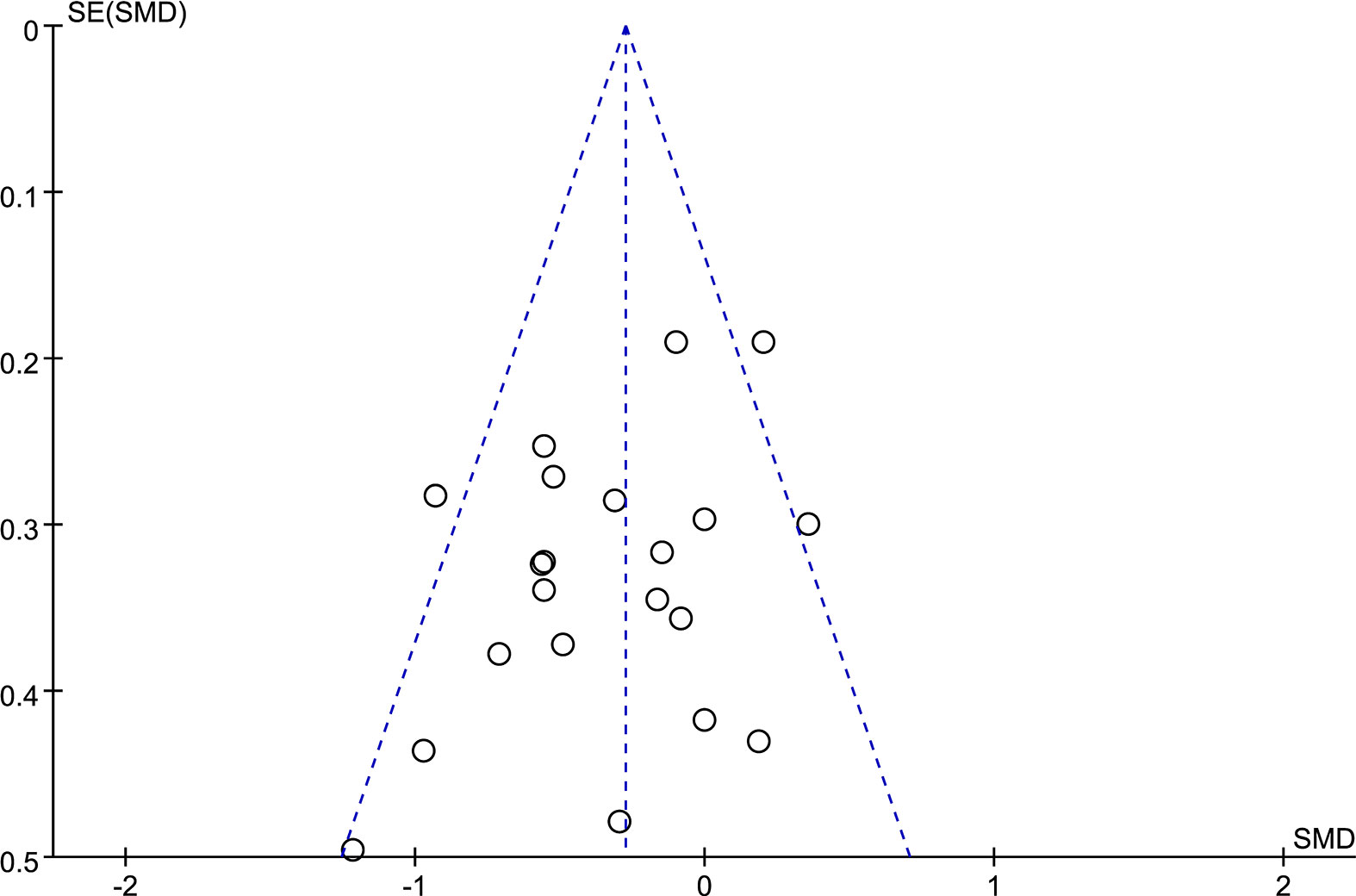

Figure 2 Funnel plot of gait velocity.
Discussion
Consistent with previous studies, this meta-analysis unveiled a significant difference between diabetic patients with and without neuropathy in spatiotemporal gait parameters (29). As is shown in the forest plot above (Figures 3–9), diabetic patients complicated with neuropathy walked at slower speed, shorter stride length, longer stride time, longer stance time, and higher maximum knee extension moment.

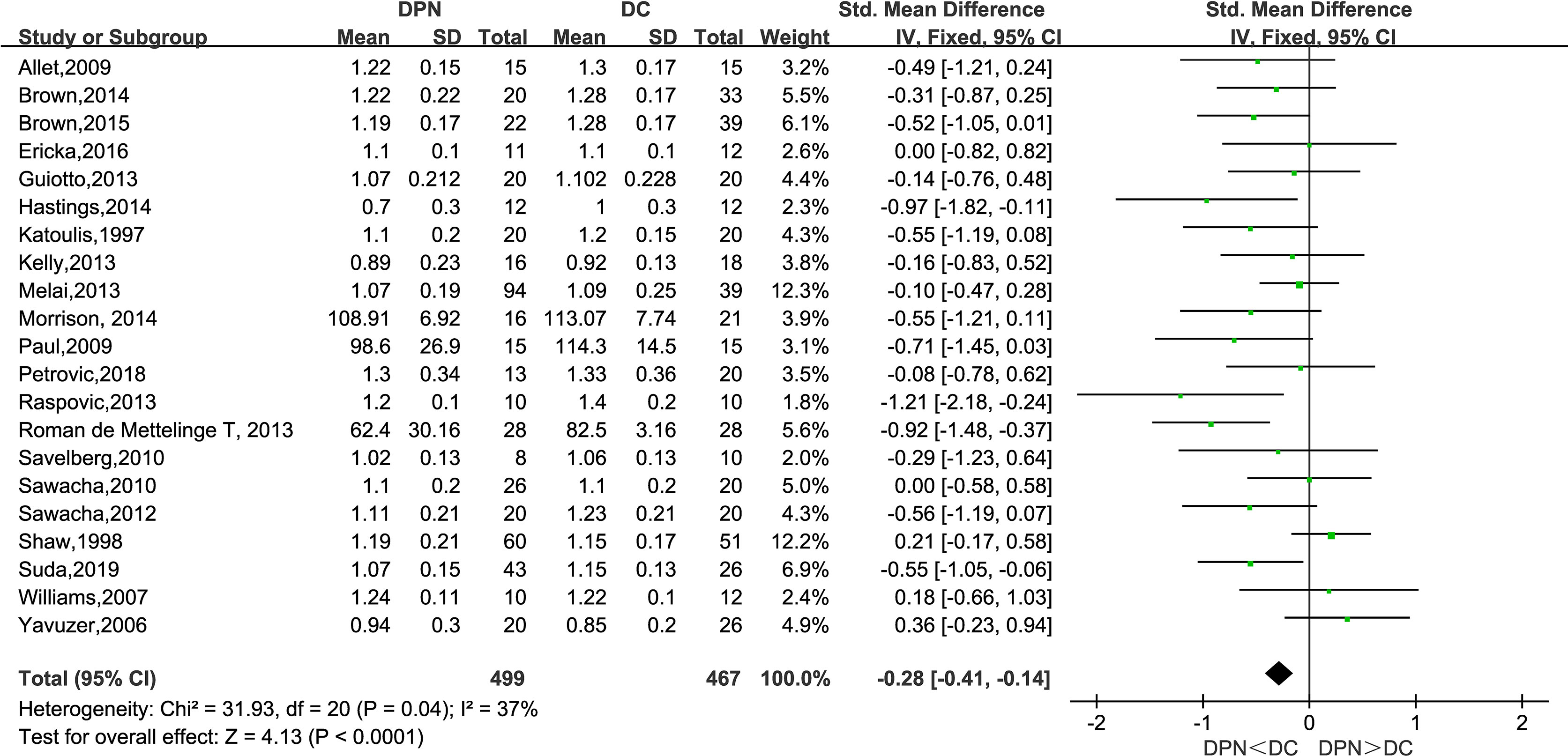

Figure 3 Forest plot of gait velocity(m/s).

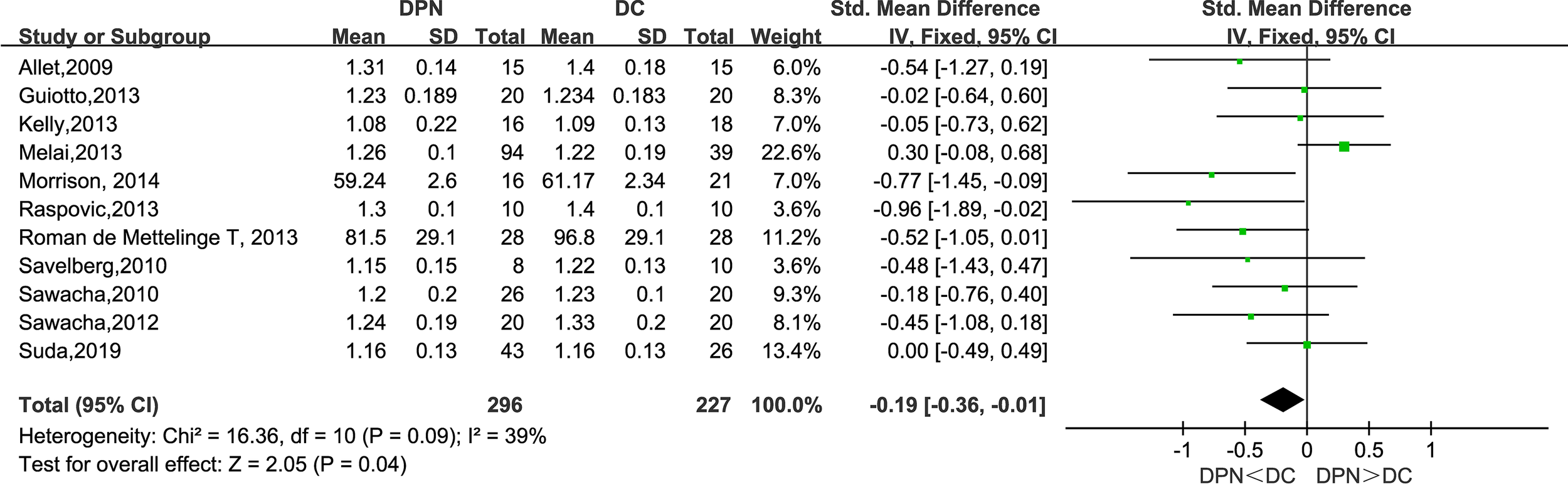

Figure 4 Forest plot of stride length(m).

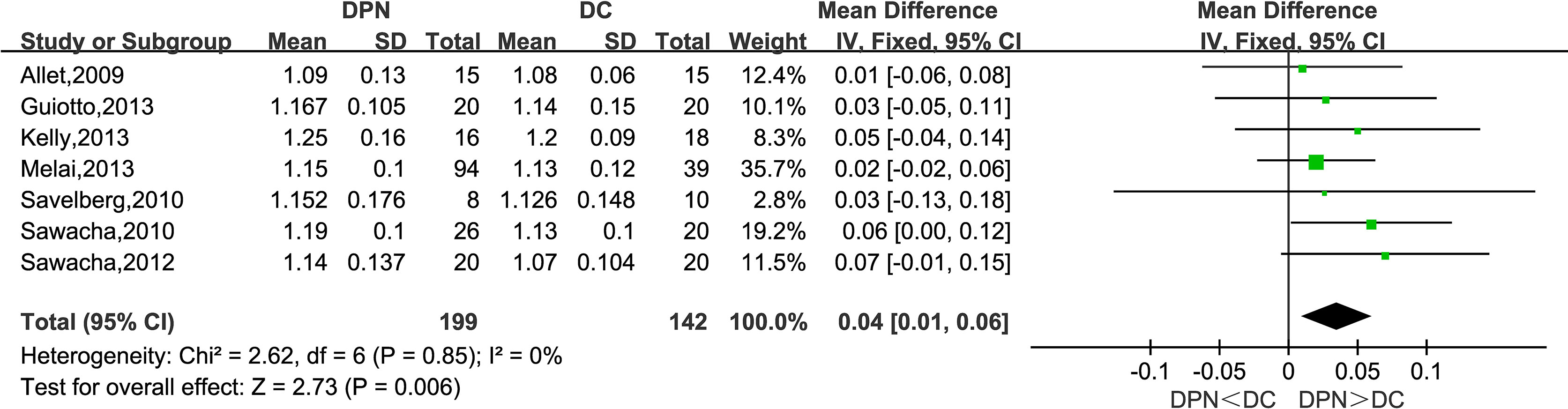

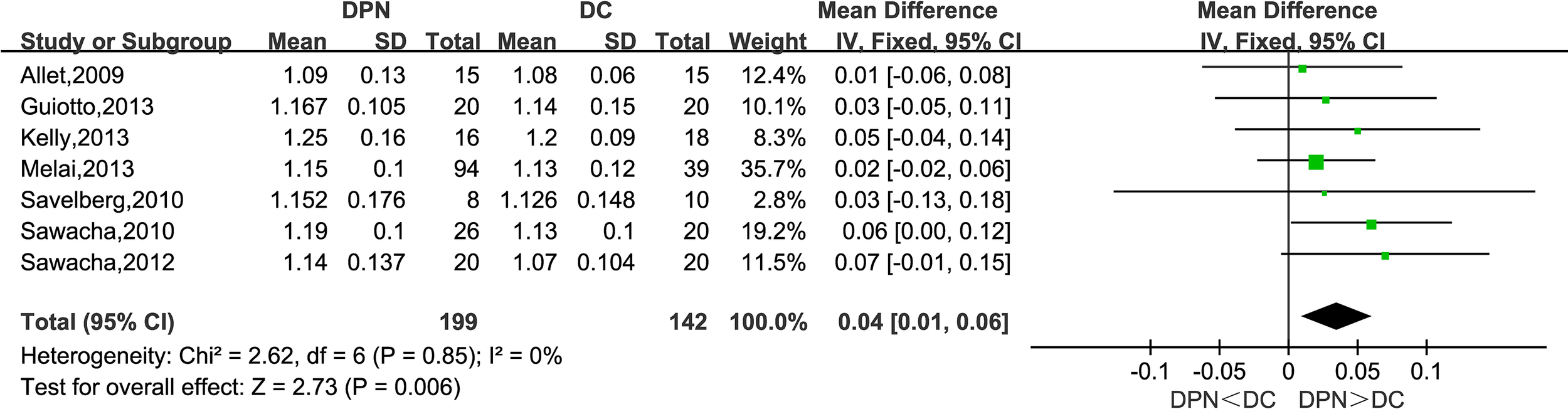

Figure 5 Forest plot of stride time(s).

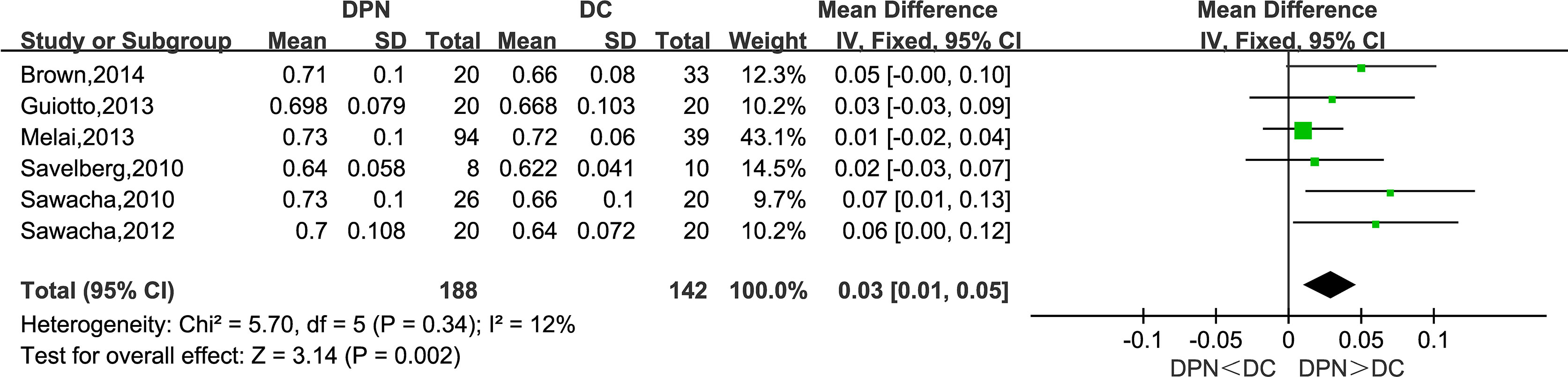

Figure 6 Forest plot of stance time(s).

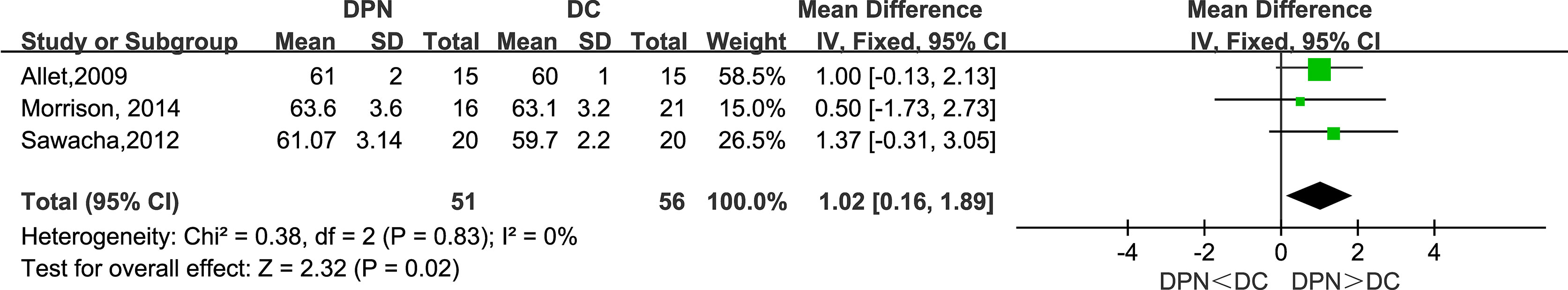

Figure 7 Forest plot of stance time(%).

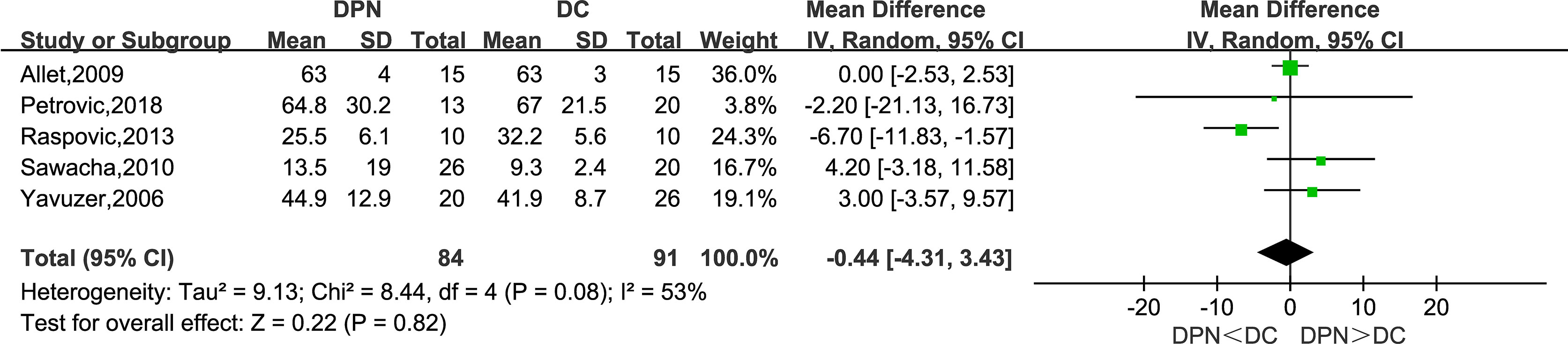

Figure 8 Forest plot of RoM of knee in sagittal plane(°).

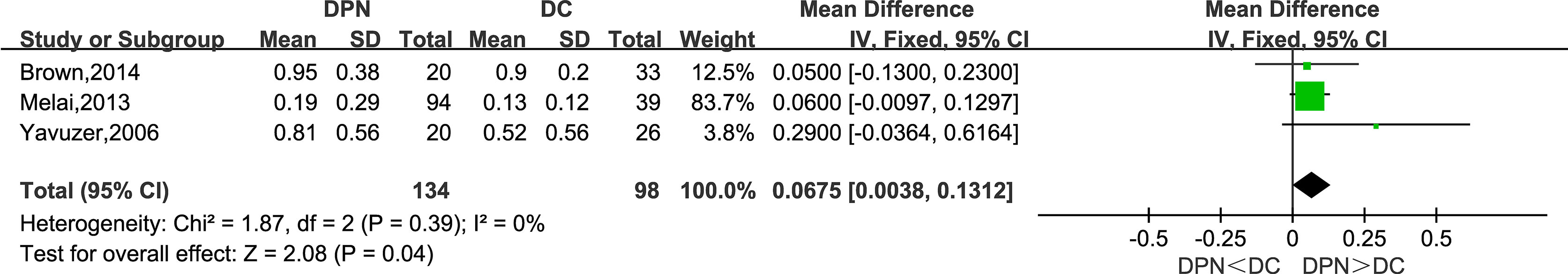

Figure 9 Forest plot of maximum knee extension moment(N·m/kg).
DPN patients may experience symptoms such as paresthesia and numbness (30). Notably, almost 50% of people with DPN suffer from peripheral neuropathic pain (31). These symptoms can finally lead to gait abnormality.
Many researchers reckon that the early or less severe stages of DPN typically result in sensory impairments. The development of the disease can eventually lead to major dysfunction of the neuromuscular system. These impairments may include muscle atrophy and weakness, slowing of muscle contraction, and loss of power and endurance. As a result, the loss of dorsiflexion mobility is seen as a key factor resulting in lower speed in DPN patients (32). Finally, the continuously pathologic processes of DPN can contribute to altered gait and increased fall risk (33).
Except for the explanations mentioned above, the central nervous system (CNS) also contributes to the gait abnormality in DPN patients. Epidemiologic studies have reported that diabetes is an independent risk factor for cognitive impairment (34, 35). Previous research indicated that the CNS can be affected by both the metabolic and vascular consequences of diabetes, causing cognitive dysfunction and neurologic impairment (36). Therefore, the information processing speed of CNS declines (37), which may cause conservative gait patterns in DPN individuals. Additionally, impairment of protective sensation toward pain and high pressure on the forefoot makes it easier for neuropathies to develop ulceration. That, in turn, causes abnormal gait (38).
It is also worth mentioning that the DPN group shows a higher maximum knee extension moment, but a clear explanation is yet to come. The following explanation may be helpful. At the early stage of the stance phase in the gait cycle, with the heel as the fulcrum, the tibia moves forward faster than the femur. At this time, an extension torque is needed to maintain the stability of knee joints, and the quadriceps femoris contracts to provide this torque. So the increase of peak knee extension torque indicates that the patients with DPN have to pay a higher price to keep their balance. In addition, the RoM in the sagittal plane of the knee joint between the two groups shows no significant difference. The reasons may be that the knee joint is controlled by many large muscles possessing enough compensative capacity, and DPN mainly affects distal limbs. So it may not be a suitable indicator of the gait abnormality caused by DPN.
We need to acknowledge some limitations in this study. First, most of the studies included in this meta-analysis do not view diabetic retinopathy as part of the exclusion criteria. However, as another common diabetic complication, diabetic retinopathy could also contribute to gait abnormality (39). Second, the outcomes we selected are limited. Despite these limitations, our meta-analysis has many advantages. First, many of our combined results show a low heterogeneity. Second, quite a number of studies are included in this meta-analysis.
Conclusion
In summary, this meta-analysis unveils that there exists a significant difference between diabetic patients complicated with DPN and the diabetic controls in gait parameters, including gait velocity, stride length, stride time, stance time, and the maximum knee extension moment. These deviations may be related to the development of peripheral polyneuropathy, low limb muscle dysfunction, and cognitive impairment and may be an explanation for fall events among DPN patients. More research is needed to confirm and update the findings of this analysis.
Data Availability Statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding authors.
Funding
This work was supported by the National Natural Science Foundation of China (No. 82170836 and No. 82071234).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
