Yining Wang1,2†Liming Yu3†Zhiqiang Ye2Rui Lin1,2
Antonia RuJia Sun4,5Lingna Liu2,6
Jinsong Wei7Feifu Deng7Xiangxin Zhong7
Liao Cui2*Li Li2*
Yanzhi Liu1,2,6*- 1Zhanjiang Key Laboratory of Orthopaedic Technology and Trauma Treatment, Zhanjiang Central Hospital, Guangdong Medical University, Zhanjiang, China
- 2Guangdong Provincial Key Laboratory for Research and Development of Natural Drug, School of Pharmacy, Guangdong Medical University, Zhanjiang, China
- 3Department of Stomatology, Affiliated Hospital of Guangdong Medical University, Zhanjiang, China
- 4Centre for Biomedical Technologies, Queensland University of Technology, Brisbane, Queensland, Australia
- 5Center for Translational Medicine Research and Development, Shenzhen Institute of Advanced Technology, Chinese Academy of Science, Shenzhen, Guangdong, China
- 6Marine Medical Research Institute of Zhanjiang, Zhanjiang, China
- 7Department of Orthopedics, Affiliated Hospital of Guangdong Medical University, Zhanjiang, China
Aims: Increasing evidence suggests that metformin can affect bone metabolism beyond its hypoglycemic effects in diabetic patients. However, the effects of metformin on fracture risk in type 2 diabetes mellitus (T2DM) patients remain unclear. A systematic review and meta-analysis were performed in this study to evaluate the association between metformin application and fracture risk in T2DM patients based on previous studies published until June 2021.
Methods: A systematic search was performed to collect publications on metformin application in T2DM patients based on PubMed, Embase, Cochran, and Web of Science databases. Meta-analysis was performed by using a random-effects model to estimate the summary relative risks (RRs) with 95% confidence intervals (CIs). Subgroup analyses based on cohort/case-control and ethnicity and sensitivity analyses were also performed.
Results: Eleven studies were included in the meta-analysis. Results demonstrated metformin use was not significantly associated with a decreased risk of fracture (RR, 0.91; 95% CI, 0.81–1.02; I2 = 96.8%). Moreover, metformin use also demonstrated similar results in subgroup analyses of seven cohort studies and four case-control studies, respectively (RR, 0.90; 95% CI, 0.76–1.07; I2 = 98.0%; RR, 0.96; 96% CI, 0.89–1.03; I2 = 53.7%). Sensitivity analysis revealed that there was no publication bias.
Conclusion: There was no significant correlation between fracture risk and metformin application in T2DM patients. Due to a limited number of existing studies, further research is needed to make a definite conclusion for clinical consensus.
1. Introduction
Diabetes mellitus (DM) is one of the leading causes of mortality and reduced life expectancy (1, 2). The estimated global number of individuals diagnosed with DM has increased from 422 million in 2014 (3) to over 536.6 million currently, and it is projected to reach 783.2 million by 2045, accounting for 12.2% of 20-79 year-olds (4). Type 2 DM (T2DM) represents approximately 90%–95% of all DM cases (5, 6). Diabetes-related complication costs are substantial and have significantly increased the healthcare burden of diabetes patients (7, 8). The estimated global direct health cost of diabetes is projected to rise to $845 billion by 2045 (9). Previous studies have demonstrated an increased risk for fragility fractures as an important complication of T2DM (10–12).
In contrast to patients with type 1 diabetes, T2DM patients exhibited increased or normal bone mineral density in the clinic but with increased bone fragility and fracture risk (13–15). The pivotal causes of higher bone fragility in T2DM are strongly associated with the phenotype of abnormal osseous architecture (especially the increased cortical porosity), collagen disorganization, bone vasculopathy, increased bone marrow adiposity, and low bone turnover, which together contribute to impairments in bone material properties (16–18). Patients with T2DM who have suffered fractures are prone to frequent wound infections, resulting in delayed fracture healing and an increased risk of nonunion or pseudoarthropathy (19–21). Fractures in T2DM patients result in prolonged immobility and hospitalizations and lead to substantial morbidity and mortality. In addition to the direct effects of diabetes on bone fragility, current medical management of T2DM also substantially impacts bone health and fracture risk (22, 23). For instance, thiazolidinediones have been associated with an increased fracture risk (24, 25), whereas metformin administration has been shown to have a protective effect on the bone health of diabetic patients (24–26).
Metformin, a biguanide antidiabetic drug, is considered the standard initial treatment for T2DM patients. It affects several aging-related processes, including bone deterioration, by suppressing cellular senescence and chronic inflammation and promoting autophagy (27, 28). Previous studies demonstrated that metformin directly promoted osteoblastic differentiation of different kinds of stem cells (including umbilical cord mesenchymal stem cells (29), adipose-derived stem cells (30), dental pulp stem cells (31), and bone marrow derived mesenchymal stem cells (32), enhanced the anabolic action of the bone (including beneficial effects on bone microarchitecture, bone mineral density, and bone turnover markers), and improved bone quality in patients with T2DM (33–36). Furthermore, a previous report suggested a potential benefit of metformin in contributing to decreased bone cancer risk in T2DM patients (37).
Nonetheless, whether metformin can reduce the risk of fractures remains unconfirmed and controversial. Previous studies have reported no significant correlation between fracture risk and metformin application (38) and no significant effects of metformin on bone marrow density (BMD) (39, 40). However, another investigation showed that 10 μg/mL of metformin might partially suppress the mineralization of osteoblasts (41). Borges et al. found that the effects of metformin monotherapy showed only small but not significant increases in lumbar spine BMD at all time points from baseline to week 80 in T2DM patients (42). Therefore, the effect of metformin on bone metabolism and whether metformin medication reduces the risk of fracture in patients with T2DM needs further evaluation.
In this study, to determine whether metformin treatment could reduce fracture risk in T2DM, a comprehensive meta-analysis was performed on the fracture risk of T2DM patients receiving metformin administration; it included all previous reports up to June 2021.
2. Methods
2.1. Search strategy
This meta-analysis was performed according to the Preferred Reporting Items for Systematic reviews and Meta-Analyses (PRISMA) statement guideline for systematic reviews and meta-analyses (43, 44), and it was registered with PROSPERO (No. CRD42022344967). We searched for studies on the fracture risk of diabetic patients with metformin administration published until June 2021 by using PubMed, Embase, Cochran library, and Web of Science databases. The following keywords were used for publication collection: (“Metformin” OR “dimethylbiguanide” OR “metformin HCI”) AND (“bone” OR “bone fracture” OR “fracture” OR “osteoporotic fracture” OR “broken bone” OR “bone mineral density” OR “BMD” OR “bone mass density” OR “osteoporosis” OR “bone health” OR “bone quality”).
2.2. Inclusion criteria
Each title and abstract were reviewed to identify relevant papers. Full texts of the articles were reviewed if the abstract was deemed potentially relevant. Studies that met the following criteria were eligible for inclusion:
(1) observational studies where metformin was the exposure variable and fractures were the main outcome variable or one of the outcome variables.
(2) T2DM participants aged ≥18 years.
(3) The odds ratio (OR), risk ratio (RR), and hazard ratio (HR) were reported as the effect size (ES).
2.3. Exclusion criteria
The exclusion criteria excluded studies that:
(1) Related to other drugs in combination treatment with metformin.
(2) Excluded placebo diabetic control.
(3) Included Type 1 diabetes patients.
(4) Included single gender.
A total of 1,031 publications were identified with the search strategy. Then, these studies were independently screened according to the inclusion and exclusion criteria. A total of 11 studies were eligible and included in the meta-analysis. (Figure 1)
Figure 1 Flowchart of the study selection process.
2.4. Data extraction
Two authors (WYN and YLM) independently conducted study screening and data extraction from the eligible literature. When disputes were encountered, they were resolved through discussion or assisted by the main investigator (LYZ). The following data were collected from all included studies: first author’s surname, publication year, study design, country, follow-up duration, mean age or age range of participants, gender, sample size, number of cases, outcome variables and fracture assessment method, the adjusted ORs, RRs, or HRs, and the corresponding 95% confidence intervals (CIs) (Table 1). The Newcastle-Ottawa Scale (NOS) quality assessment was used to evaluate the studies.

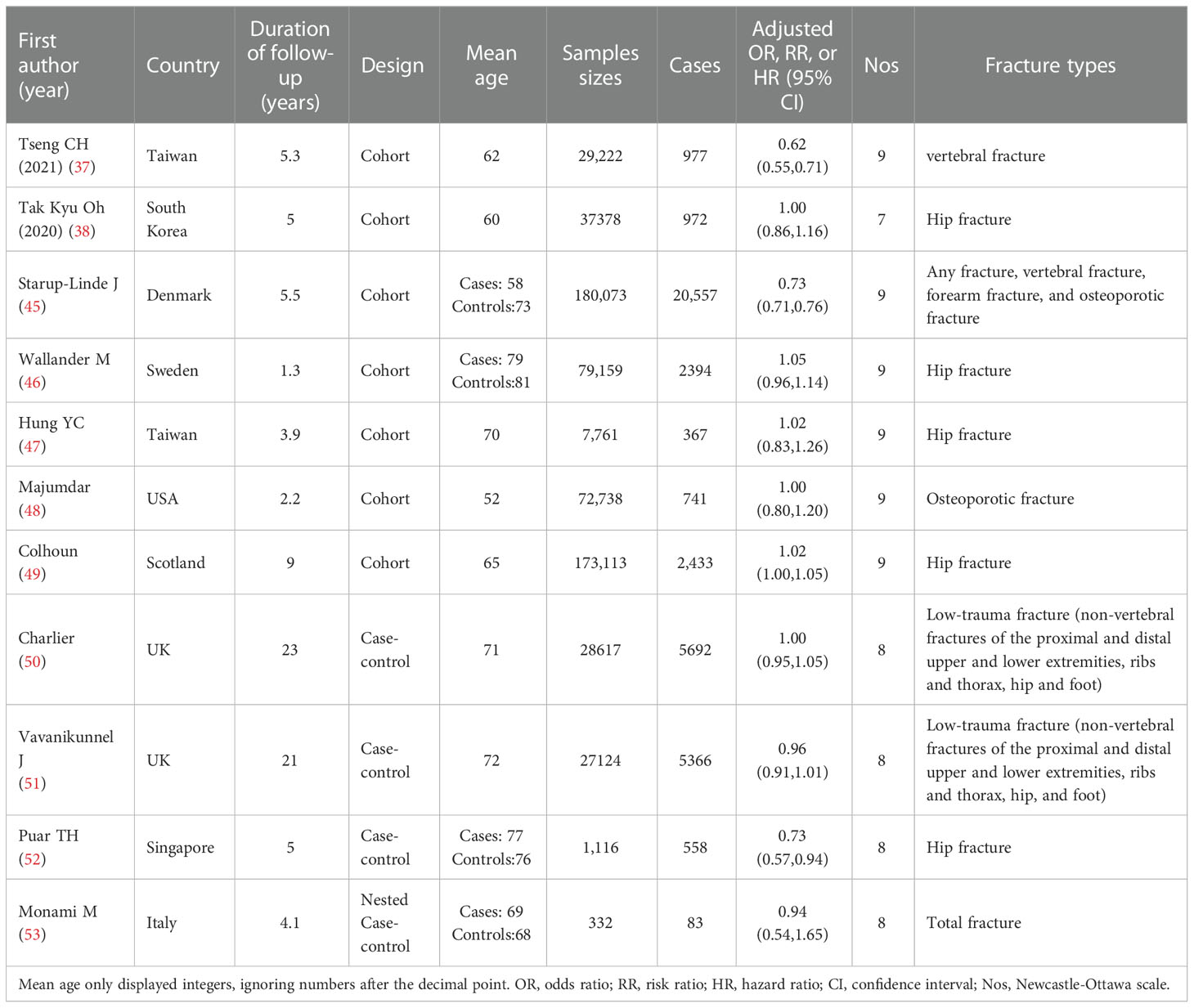

Table 1 Characteristic table of studies on the relationship between MF use and fracture risk in diabetic patients.
2.5. Statistical analysis
Stata software was used for meta-analysis (Stata, version 16, College Station, TX, USA). All reported ORs, RRs, HRs, and the 95% CIs for fracture risk were used to calculate the logarithmic RR and its standard error (SE). A random effects model was used to estimate the summary relative risks with 95% CIs. Q and I2 tests were performed to analyze the homogeneity of the included studies. For the Q test, statistical significance was set at p ≤ 0.05; for I2 statistics, the following critical points were specified to define the degree of heterogeneity: <25% (low heterogeneity), 25%–50% (moderate heterogeneity), 50%–75% (high heterogeneity), and >75% (severe heterogeneity).
The subgroup analyses of cohort, case-control, and ethnicity were respectively performed on the included studies. In addition, sensitivity analysis was used to investigate the extent to which inferences might depend on a particular study or research group. Visual inspection of the funnel chart was used to assess publication bias. A formal statistical assessment of funnel plot asymmetry was performed using Egger’s regression asymmetry test. P values of < 0.05 were considered statistically significant.
3. Results
3.1. Study characteristics
Among the 1,031 retrieved papers, 11 related to the application of metformin and the risk of fracture in T2DM patients and were included in this meta-analysis according to the inclusion/exclusion criteria (Table 1). Among the 11 studies, there were seven cohort studies (38, 45–49, 54), and four case-control studies (50–53). All studies included both genders (Figure 1).
These studies collectively included 635,945 participants and were published between 2008 and 2021; they were conducted in various regions, including one study each in the United States (48), Denmark (45), South Korea (38), Singapore (52), Italy (53), and Sweden (46), two in Taiwan (47, 54), and three in the United Kingdom (49–51).
Regarding the types of fractures, five studies included fractures at multiple sites, such as fractures of the proximal and distal upper and lower extremities, ribs and thorax, hip, and foot (45, 48, 50, 51, 53), two studies included vertebral fracture (45, 54), six studies included hip fractures (38, 45–47, 49, 52), and three studies included osteoporotic fracture (45, 46, 48).
3.2. Results of the meta-analysis
There were seven cohort studies and four case-control studies involved in the meta-analysis. Four studies revealed that metformin treatment reduced fracture risk, seven studies demonstrated that metformin had no significant effect associated with fracture risk, and no studies showed that metformin increased fracture risk.
In this meta-analysis, we had 11 effect sizes obtained from 11 studies. The meta-analysis results are shown as forest plots (Figure 2). Results demonstrated that metformin administration was not significantly associated with a decrease in the fracture rate of diabetic patients (RR, 0.91; 95% CI, 0.81–1.02). Significantly high between-study heterogeneity was found (I2 = 96.8%, p < 0.001).

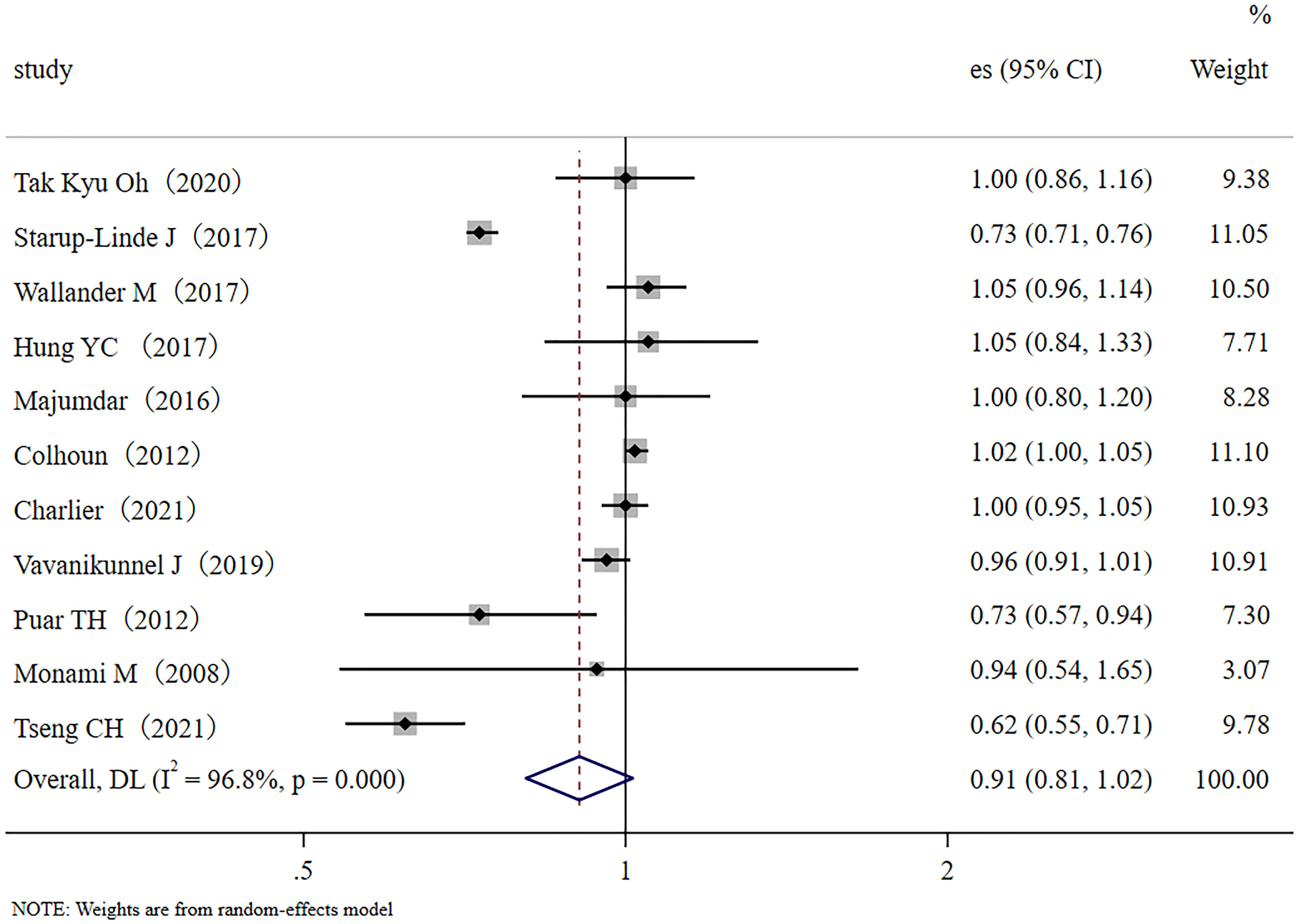

Figure 2 Forest plot of the 11 studies that examined the association between metformin application and fracture risk in T2DM patients; (Study: author and year of publication; es, effect size; 95% CI, 95% confidence interval).
In the sensitivity analysis, no single study significantly influenced the findings. No evidence of publication bias was found in this meta-analysis with Egger’s test evaluation (p = 0.99).
4. Discussion
The occurrence of fractures is closely related to low BMD and osteoporosis development (55, 56). Previous studies have demonstrated that BMD significantly decreased in patients with T1DM, leading to an increased risk of fractures (57). Although T2DM patients showed bone formation suppression, microarchitecture deterioration, and microvascular complications in the bone (58), unlike T1DM patients, T2DM patients might not demonstrate significant BMD decline (59). Since T2DM accounts for more than 90%–95% of all diabetes cases, the factors associated with type 2 diabetic fractures attract a lot of concerns. The effects of T2DM on bone are multifactorial, including hyperglycemia (60), insulin imbalance (61), obesity (62), and medications (63). Among several factors that might influence the risk of fracture, much attention has been given to glucose-lowering medications, for example, metformin.
In this study, we performed a meta-analysis and a series of sub-group meta-analyses to examine the association between metformin use and the risk of fracture in T2DM patients. We found no significant association between metformin use and fracture risk. Due to only a small number of studies (n=11) being included in this study, investigation of fractures in specific sites was not possible; therefore, our study used the same strategy as that of a previous report (64) that focused on the association of metformin use and fracture risk from any sites with no focus on a specific site.
We conducted a subgroup meta-analysis that only included the seven cohort studies to demonstrate multiple validations of our conclusion. The results showed that metformin administration was not closely related to a decreased fracture risk in diabetic patients (RR, 0.90; 95% CI, 0.76–1.07). Inter-study heterogeneity was significant; I2 = 98.0%, p < 0.001 (Figure 3A). We also conducted a subgroup meta-analysis that only included the four case-control studies. Like the cohort studies, the case-control studies also demonstrated that metformin administration was not closely related to a decreased fracture risk in diabetic patients (RR, 0.96; 95% CI, 0.89–1.03), but heterogeneity was not significant, I2 = 53.7%, p=0.090 (Figure 3B). In addition, ethnicity was used as a categorical variable for subgroup analysis. Based on the eleven collected studies, four studies were performed in Asian countries (traditional major population mainly of Far-Eastern origins), and seven were performed in Europe/the United States of America (traditional major population mainly of European origins). Therefore, we used the Far-Eastern origins/the European origins as the ethnic category for sub-group analysis. Results demonstrated that metformin administration was not closely related to a decreased fracture risk in diabetic people of Far-Eastern origins (RR 0.83, 95% CI, 0.63–1.09) (Figure 4A). The subgroup analysis in the diabetic people of European origins similarly demonstrated that metformin administration was not closely related to a decreased fracture risk (RR 0.95, 95% CI, 0.83–1.09) (Figure 4B). Overall, the subgroup meta-analyses demonstrated that different subgroup analyses support the same conclusion.

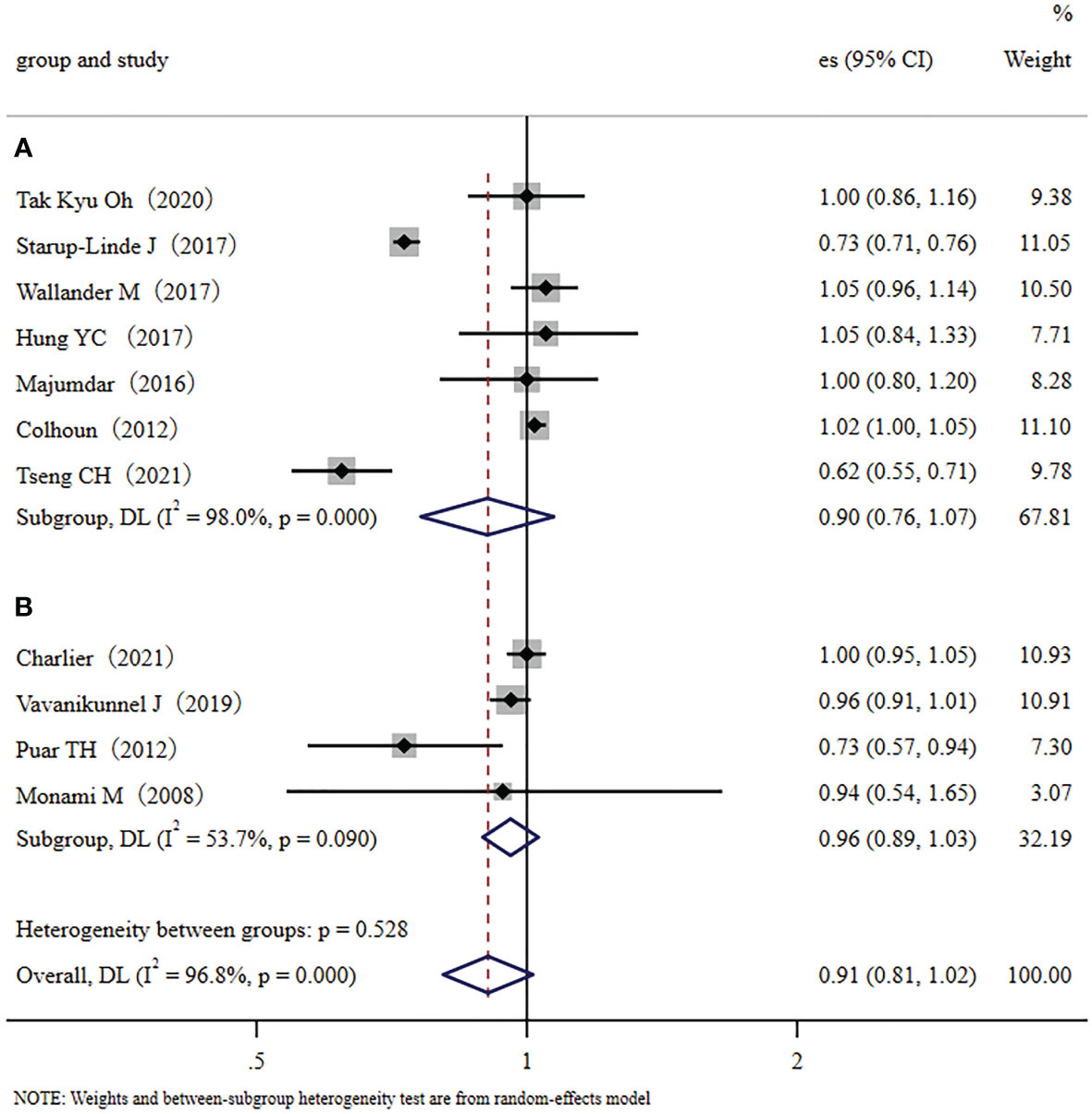

Figure 3 The cohort/case-control subgroup analysis: (A): Forest plot of the included Cohort studies that examined the association between metformin application and fracture risk in type 2 diabetic patients; (B): Forest plot of the included Case-control studies that examined the association between metformin application and fracture risk in type 2 diabetic patients. (Study: author and year of publication; es, effect size; 95% CI, 95% confidence interval; Weight, weight).

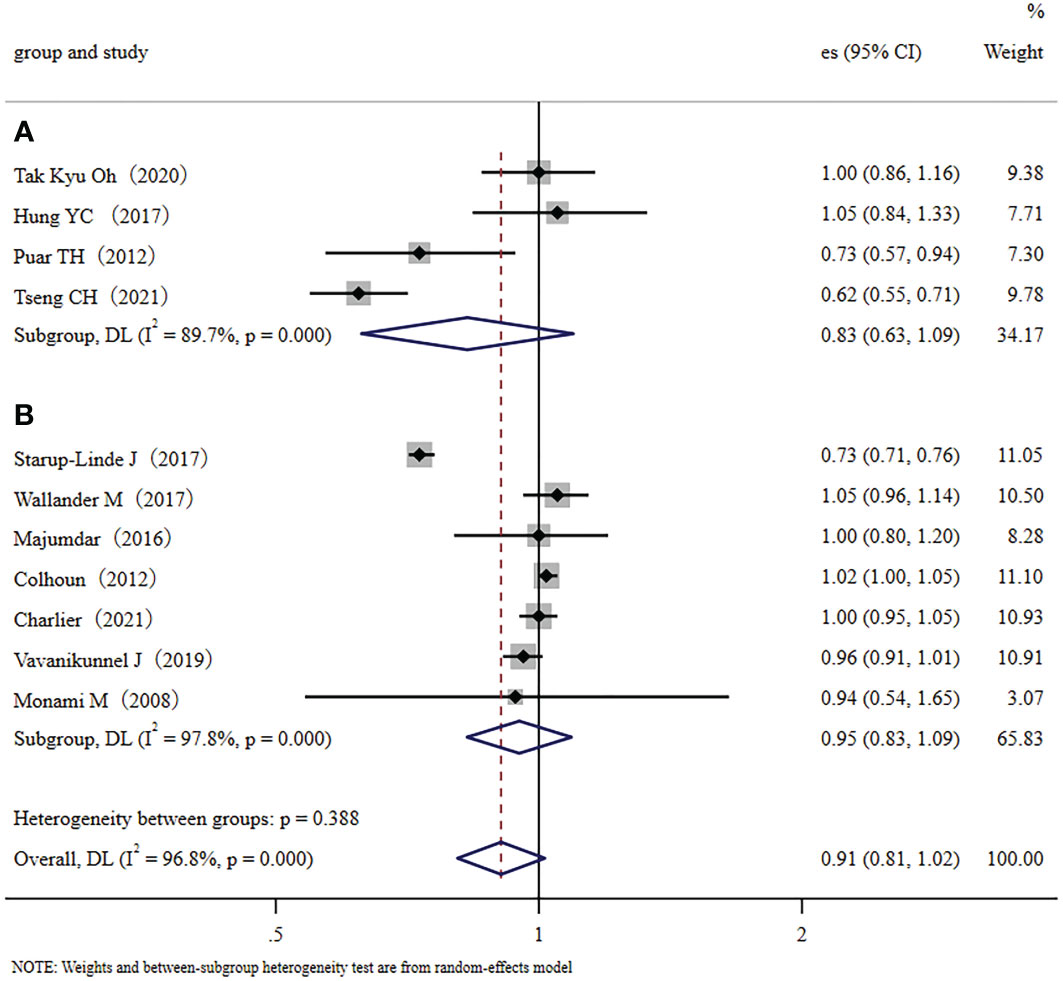

Figure 4 The ethnic subgroup analysis: (A): Forest plot of the four studies that were performed in Asia (major population: Far-Eastern origins); (B): Forest plot of the seven studies that were performed in Europe/the United States (major population: European origins); Study: author and year of publication; es, effect size; 95% CI, 95% confidence interval; Weight, weight).
After subgroup analyses, we conducted a bias analysis on the quality of the included studies, and STATA was used to prepare a funnel chart for the 11 included studies. Funnel plot analysis showed that five studies might significantly affect the overall heterogeneity of the analysis (Figure S1). We excluded four of the five studies that may have affected the overall heterogeneity of this analysis (Starup-Linde et al., 2017 (45), Colhoun et al., 2012 (49), Puar et al., 2012 (52), and Tseng et al., 2021 (54)) and the remaining seven studies were used for further meta-analysis (Figure S2). The results further demonstrated that metformin administration and the fracture risk of diabetic patients were not significantly inversely related (RR, 0.99; 95% CI, 0.96–1.02). The heterogeneity between studies was I2 = 0.0%, which demonstrated that the high heterogeneity across all 11 studies did not significantly affect the results in this meta-analysis. Therefore, the conclusion of this meta-analysis was robust and credible. The Egger’s test result was p=0.9301 and p>0.05, which indicated that the meta-analysis has no publication bias. A sensitivity analysis was used to test the stability of the effect size (ES) estimates (Figure S3). Overall, the data of these analyses all suggested that metformin use is not significantly associated with a decreased risk of fractures in T2DM patients.
Several studies demonstrated that metformin treatment was associated with significant low bone fracture risks in patients with diabetes (65, 66). The treatment of T2DM patients and osteoporosis with metformin and dietary intervention could decrease blood glucose levels, increase bone density, and alleviate osteoporosis (67–70). A recent study also reported that metformin use was associated with a lower risk of osteoporosis/vertebral fracture in T2DM patients (37). A prior systematic review and meta-analysis suggested that metformin use was inversely associated with the risk of fracture in diabetes (RR, 0.82; 95% CI, 0.72–0.93; n=7; I2 = 22.4%; p=0.259) (64). Another meta-analysis demonstrated that the use of metformin appears to decrease the fracture risk (RR, 0.86; 95% CI, 0.75–0.99; I2 = 95.2%; p <0.001). The reduced fracture risk with metformin could be related to metformin prescriptions that typically start in the early stages of type 2 diabetes mellitus (63). Furthermore, metformin has several relevant contraindications, including renal insufficiency, severe liver disease, and heart failure. A lower comorbidity may contribute to the influence of metformin on the lower incidence of bone fractures (53).
This study found that metformin use is not significantly associated with a decreased risk of fractures in T2DM patients. Our results are inconsistent with previous studies including type 1 and type 2 patients and single-gender data. Our study focused on T2DM patients and only included studies that examined both genders. A previous study by Wallander et al. (46), demonstrated that women with T2DM-oral medication had an increased risk of hip fracture compared to men. Therefore, we excluded studies that reported on single-gender involvement. According to the data we collected in the 11 studies, four studies revealed that metformin treatment could reduce fracture risk (45, 50, 52, 54), and another seven demonstrated that metformin had no significant effect associated with fracture risk (38, 46–48, 52). None of the studies in this review showed that metformin increased fracture risk. The differing results between studies may be due to variations in metformin dose and duration. However, we noted that all the included observational studies did not reveal the specific metformin dose, which makes it difficult to interpret and analyze the underlying reason. To model the univariate effects of metformin, the 11 included studies selected individuals who could be stratified based on cumulative exposure to metformin. For example, current metformin users were defined by Charlier et al. as participants with their last prescription ≤ 60 days prior to the index date (50), whereas Colhoun et al. included metformin users with a cumulative exposure of 1 year (49). Therefore, in this meta-analysis, we focused on T2DM patients with current metformin duration (at least>30 days) as the outcome and ignored the dose. We summarized the relevant information on metformin administration reported in the 11 included studies (Table S1). The data on ever-exposure to metformin was not used in this study, as we assumed that there were no legacy or carry-over effects from remote exposure to any antidiabetic drugs. Colhoun et al. considered that cumulative metformin exposure does not depend on the events in the unexposed and, therefore, cannot be affected by allocation bias (49). We used cumulative metformin exposure in this study was consistent with them. Therefore, the data from current cumulative exposure to metformin was considered more accurate than data from ever exposure to metformin. In addition, though several studies have various sub-group settings, they may not provide comprehensive information for analysis. Therefore, we preferred to use the total integrated data for the present analysis. For example, in a study by Charlier et al. (50), current metformin exposure was divided into three categories: ①HbA1c ≤ 7.0%, ②HbA1c>7.0% and ≤ 8.0%, and ③HbA1c>8.0%. Our study only collected the general comprehensive data for analysis, independently based on patients’ HbA1c levels. The results demonstrated that metformin treatment was not significantly associated with fracture risk. However, we noticed that HbA1 level is an important parameter in metformin use that may significantly affect fracture risk. Patients with current metformin use that controlled the HbA1 levels at the range of ≤7.0% and >7.0% but ≤8.0% demonstrated a significantly reduced risk of fractures (aOR, 0.89; 95% CI, 0.83–0.96, and 0.81; 95% CI, 0.73–0.90, respectively). The results suggested that proper blood sugar management by metformin may help to decrease fracture risk. However, Hung et al. demonstrated that severe hypoglycemia in T2DM patients significantly increases the risk of falls and the cumulative incidence of hip fracture (47). The study by Puar et al. also suggested a greater risk of falls in older adults with tight glycemic control (HbA1c<7%) (52). If metformin administration significantly contributes to severe hypoglycemia, then the fall risk may increase and decrease the beneficial effects of metformin on bone. Wallander et al. suggested that metformin administration was independently associated with an increased risk of non-skeletal fall injury (46).
In summary, our data demonstrated that metformin treatment was not significantly associated with the risk of fracture, and our results are independent of patients’ HbA1c levels/glycemic control levels. When the data with HbA1c control is considered for analysis, for example, If the data of HbA1c ≤ 7.0% (OR, 0.89; 95% CI, 0.83–0.96) (Charlier, 2021) (50) was used for our meta-analysis, it shifted the overall estimate (OR, 0.87; 95% CI, 0.77–0.97) and the results demonstrated that metformin treatment was related to a decreased fracture risk in T2DM patients (Figure S4).
Metformin is often prescribed in combination with other antidiabetic medications. The possible effect of interaction between metformin with other antidiabetic medications may also affect bone fracture risk. A previous study investigated the effect of metformin relative to placebo in combination with insulin analogs (Metformin + Insulin vs. Placebo + Insulin) on bone markers P1NP Procollagen type 1 N-terminal propeptide (P1NP) and C-terminal telopeptide of type I collagen (CTX) in patients with T2DM (71). The levels of bone formation marker P1NP and bone resorption marker CTX increased significantly in both groups. However, the Metformin+Insulin combination increased P1NP less than the Placebo+Insulin combination. There was no statistical difference in CTX between groups. There were no adverse effects on bone or muscle when metformin was used in combination with sitagliptin (72). The current use of metformin plus SGLT-2 inhibitor compared to the current use of metformin plus DPP-4 inhibitor was not associated with fractures in patients with type 2 diabetes (73). SGLT2 inhibitors + metformin combination treatment do not affect fracture risk compared to GLP-1 receptor agonists + metformin combination (74). SGLT2 and metformin combination therapy did not influence fracture risk compared with metformin monotherapy or other medications in patients with T2DM (75). Low-dose combination therapy with rosiglitazone and metformin was highly effective in preventing type 2 diabetes in patients with impaired glucose tolerance, with little effect on the clinically relevant adverse events of these two drugs (76). Another previous study demonstrated that metformin combined with sulfonylurea, meglitinide, acarbose, pioglitazone, immunosuppressants, or estrogen (women only) for diabetes management, all revealed a significant association with lower fracture risk. However, metformin combined with insulin or rosiglitazone for diabetes management did not show a decreased fracture risk. Significant interactions between metformin, insulin, sulfonylurea, and pioglitazone were found (p-values for interaction<0.05). The protective effect of metformin was not significant in insulin-treated patients, while metformin revealed greater beneficial effects in sulfonylurea or pioglitazone-treated patients (28). The possible effect of the interaction of metformin with other antidiabetic medications on bone fracture protection still needs more direct evidence to show specific indications clearly.
This meta-analysis has some limitations. There was significant heterogeneity between the 11 included studies. The reason may be due to differences in the sample sizes of the included studies. For instance, the study of Starup-Linde et al., 2017 (45) included the most fracture cases (20,557), while Monami et al., 2008 (53) included only 83 cases. The significant case differences in the sample size may have contributed to the high heterogeneity (77). Additionally, study differences in the quality, design, and country and continent of origin may have also contributed to the high heterogeneity. The high heterogeneity may have been caused by the difference in the strength of the correlation between the studies rather than the difference in the direction of the correlation (78). Further, the number of studies (n=11) included in this meta-analysis was limited, and it is expected that more sufficient samples and high-quality clinical data will be available in the future. Studies with a larger sample size will provide more accurate evidence to support metformin administration and its role in fracture risk in diabetic patients. In this study, we only focus on the association of metformin therapy and fracture risk. However, T2DM patients commonly use multiple medications for hyperglycemia management. The potential interaction effects between metformin and other antidiabetic medication on bone fracture protection also need more direct evidence to clearly show specific indication.
5. Conclusion
In this systematic review and meta-analysis, we found that metformin administration was not significantly correlated with a decreased fracture risk in T2DM patients. These results were independent of patients’ HbA1c levels and glycemic control levels. Due to the limited number of studies included in this meta-analysis, further investigations are needed to make stronger conclusions for clinical consensus.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.
Author contributions
Study design/manuscript preparation: YL, LL, and LC. Original draft preparation/Meta analysis: YW and LY. Sub-Group Meta analysis and validation: ZY and RL. Review and editing: AS, LL, and JW. Conduct data/Publication collection/Analysis: FD, and XZ. Funding acquisition: YL, LL, and LC. All authors have read and agreed to the published version of the manuscript. All authors contributed to the article and approved the submitted version.
Funding
This research was funded by grants from the National Natural Science Foundation of China (No. 81703584), The regional joint fund of natural science foundation of Guangdong province (No. 2020B1515120052), Guangdong Province Natural Science Foundation of China (No. 2017A030310614, 2021A1515010975), Discipline construction project of Guangdong Medical University (No. 4SG22002G, 4SG21156G, and CLP2021B012), Shenzhen International Collaborative Project (No. GJHZ20200731095009028), Special Funds for Scientific Technological Innovation of Undergraduates in Guangdong Province (No. pdjh2022a0214), the Discipline Construction Fund of Central People’s Hospital of Zhanjiang (No. 2022A09), Guangdong Medical University scientific research fund (No. B2017001). The Science and Technology Foundation of Zhanjiang, Guangdong Province, China (No. 2022A01099).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fendo.2022.1038603/full#supplementary-material
References
1. Wang F, Wang W, Yin P, Liu Y, Liu J, Wang L, et al. Mortality and years of life lost in diabetes mellitus and its subcategories in China and its provinces, 2005-2020. J Diabetes Res (2022) 2022:1609267. doi: 10.1155/2022/1609267
2. Kotwas A, Karakiewicz B, Zabielska P, Wieder-Huszla S, Jurczak A. Epidemiological factors for type 2 diabetes mellitus: evidence from the global burden of disease. Arch Public Health (2021) 79(1):110. doi: 10.1186/s13690-021-00632-1
3. Knudsen JS, Knudsen SS, Hulman A, Witte DR, Gregg EW, Lauritzen T, et al. Changes in type 2 diabetes incidence and mortality associated with introduction of HbA1c as diagnostic option: A Danish 24-year population-based study. Lancet Reg Health Eur (2022) 14:100291. doi: 10.1016/j.lanepe.2021.100291
4. Sun H, Saeedi P, Karuranga S, Pinkepank M, Ogurtsova K, Duncan BB, et al. IDF diabetes atlas: Global, regional and country-level diabetes prevalence estimates for 2021 and projections for 2045. Diabetes Res Clin Pract (2022) 183:109119. doi: 10.1016/j.diabres.2021.109119
5. Petersmann A, Muller-Wieland D, Muller UA, Landgraf R, Nauck M, Freckmann G, et al. Definition, classification and diagnosis of diabetes mellitus. Exp Clin Endocrinol Diab (2019) 127(S 01):S1–7. doi: 10.1055/a-1018-9078
6. Ortiz-Martinez M, Gonzalez-Gonzalez M, Martagon AJ, Hlavinka V, Willson RC, Rito-Palomares M. Recent developments in biomarkers for diagnosis and screening of type 2 diabetes mellitus. Curr Diabetes Rep (2022) 22(3):95–115. doi: 10.1007/s11892-022-01453-4
7. Wang Y, Zhang P, Shao H, Andes LJ, Imperatore G. Medical costs associated with diabetes complications in Medicare beneficiaries aged 65 years or older with type 2 diabetes. Diabetes Care (2022) 45(11):2570–6. doi: 10.2337/figshare.20611344
8. Morton JI, Lazzarini PA, Shaw JE, Magliano DJ. Trends in the incidence of hospitalization for major diabetes-related complications in people with type 1 and type 2 diabetes in Australia, 2010-2019. Diabetes Care (2022) 45(4):789–97. doi: 10.2337/dc21-2268
9. Williams R, Karuranga S, Malanda B, Saeedi P, Basit A, Besancon S, et al. Global and regional estimates and projections of diabetes-related health expenditure: Results from the international diabetes federation diabetes atlas, 9th edition. Diabetes Res Clin Pract (2020) 162:108072. doi: 10.1016/j.diabres.2020.108072
10. Napoli N, Chandran M, Pierroz DD, Abrahamsen B, Schwartz AV, Ferrari S, et al. Mechanisms of diabetes mellitus-induced bone fragility. Nat Rev Endocrinol (2017) 13(4):208–19. doi: 10.1038/nrendo.2016.153
11. Hofbauer LC, Busse B, Eastell R, Ferrari S, Frost M, Muller R, et al. Bone fragility in diabetes: novel concepts and clinical implications. Lancet Diabetes endocrinol (2022) 10(3):207–20. doi: 10.1016/S2213-8587(21)00347-8
12. Khosla S, Samakkarnthai P, Monroe DG, Farr JN. Update on the pathogenesis and treatment of skeletal fragility in type 2 diabetes mellitus. Nat Rev Endocrinol (2021) 17(11):685–97. doi: 10.1038/s41574-021-00555-5
13. Sihota P, Yadav RN, Dhaliwal R, Bose JC, Dhiman V, Neradi D, et al. Investigation of mechanical, material, and compositional determinants of human trabecular bone quality in type 2 diabetes. J Clin Endocrinol Metab (2021) 106(5):e2271–89. doi: 10.1210/clinem/dgab027
14. Sheu A, Greenfield JR, White CP, Center JR. Assessment and treatment of osteoporosis and fractures in type 2 diabetes. Trends Endocrinol metabolism: TEM (2022) 33(5):333–44. doi: 10.1016/j.tem.2022.02.006
15. Napoli N, Schwartz AV, Schafer AL, Vittinghoff E, Cawthon PM, Parimi N, et al. Vertebral fracture risk in diabetic elderly men: The MrOS study. J Bone mineral Res Off J Am Soc Bone Mineral Res (2018) 33(1):63–9. doi: 10.1002/jbmr.3287
16. Ferrari SL, Abrahamsen B, Napoli N, Akesson K, Chandran M, Eastell R, et al. Diagnosis and management of bone fragility in diabetes: an emerging challenge. Osteoporosis Int J established as result cooperation between Eur Foundation Osteoporosis Natl Osteoporosis Foundation USA (2018) 29(12):2585–96. doi: 10.1007/s00198-018-4650-2
17. Wolfel EM, Fiedler IAK, Dragoun Kolibova S, Krug J, Lin MC, Yazigi B, et al. Human tibial cortical bone with high porosity in type 2 diabetes mellitus is accompanied by distinctive bone material properties. Bone. (2022) 165:116546. doi: 10.1016/j.bone.2022.116546
18. Hunt HB, Torres AM, Palomino PM, Marty E, Saiyed R, Cohn M, et al. Altered tissue composition, microarchitecture, and mechanical performance in cancellous bone from men with type 2 diabetes mellitus. J Bone mineral Res Off J Am Soc Bone Mineral Res (2019) 34(7):1191–206. doi: 10.1002/jbmr.3711
19. Tanios M, Brickman B, Cage E, Abbas K, Smith C, Atallah M, et al. Diabetes and impaired fracture healing: A narrative review of recent literature. Curr osteoporosis Rep (2022) 20(5):229–39. doi: 10.1007/s11914-022-00740-z
20. Figeac F, Tencerova M, Ali D, Andersen TL, Appadoo DRC, Kerckhofs G, et al. Impaired bone fracture healing in type 2 diabetes is caused by defective functions of skeletal progenitor cells. Stem Cells (2022) 40(2):149–64. doi: 10.1093/stmcls/sxab011
21. Marin C, Luyten FP, van der Schueren B, Kerckhofs G, Vandamme K. The impact of type 2 diabetes on bone fracture healing. Front endocrinol (2018) 9:6. doi: 10.3389/fendo.2018.00006
22. Chandran M. Diabetes drug effects on the skeleton. Calcified Tissue Int (2017) 100(2):133–49. doi: 10.1007/s00223-016-0203-x
23. Stage TB, Christensen MH, Jorgensen NR, Beck-Nielsen H, Brosen K, Gram J, et al. Effects of metformin, rosiglitazone and insulin on bone metabolism in patients with type 2 diabetes. Bone. (2018) 112:35–41. doi: 10.1016/j.bone.2018.04.004
24. Yang BR, Cha SH, Lee KE, Kim JW, Lee J, Shin KH. Effect of dipeptidyl peptidase IV inhibitors, thiazolidinedione, and sulfonylurea on osteoporosis in patients with type 2 diabetes: population-based cohort study. Osteoporosis Int J established as result cooperation between Eur Foundation Osteoporosis Natl Osteoporosis Foundation USA (2021) 32(9):1705–12. doi: 10.1007/s00198-020-05801-6
25. Tsai WH, Kong SK, Lin CL, Cheng KH, Cheng YT, Chien MN, et al. Risk of fracture caused by anti-diabetic drugs in individuals with type 2 diabetes: A network meta-analysis. Diabetes Res Clin Pract (2022) 192:110082. doi: 10.1016/j.diabres.2022.110082
26. Bahrambeigi S, Yousefi B, Rahimi M, Shafiei-Irannejad V. Metformin; an old antidiabetic drug with new potentials in bone disorders. Biomed pharmacother = Biomed pharmacother (2019) 109:1593–601. doi: 10.1016/j.biopha.2018.11.032
27. Barzilai N, Crandall JP, Kritchevsky SB, Espeland MA. Metformin as a tool to target aging. Cell Metab (2016) 23(6):1060–5. doi: 10.1016/j.cmet.2016.05.011
28. Blumel JE, Arteaga E, Aedo S, Arriola-Montenegro J, Lopez M, Martino M, et al. Metformin use is associated with a lower risk of osteoporosis in adult women independent of type 2 diabetes mellitus and obesity. REDLINC IX study Gynecol Endocrinol (2020) 36(5):421–5. doi: 10.1080/09513590.2020.1718092
29. Shen M, Yu H, Jin Y, Mo J, Sui J, Qian X, et al. Metformin facilitates osteoblastic differentiation and M2 macrophage polarization by PI3K/AKT/mTOR pathway in human umbilical cord mesenchymal stem cells. Stem Cells Int (2022) 2022:9498876. doi: 10.1155/2022/9498876
30. Zhang M, Yang B, Peng S, Xiao J. Metformin rescues the impaired osteogenesis differentiation ability of rat adipose-derived stem cells in high glucose by activating autophagy. Stem Cells Dev (2021) 30(20):1017–27. doi: 10.1089/scd.2021.0181
31. Zhang S, Zhang R, Qiao P, et al. Metformin-induced MicroRNA-34a-3p downregulation alleviates senescence in human dental pulp stem cells by targeting CAB39 through the AMPK/mTOR signaling pathway. Stem Cells Int (2021) 2021:6616240. doi: 10.1155/2021/6616240
32. Ma J, Zhang ZL, Hu XT, Wang XT, Chen AM. Metformin promotes differentiation of human bone marrow derived mesenchymal stem cells into osteoblast via GSK3β inhibition. Eur Rev Med Pharmacol Sci (2018) 22(22):7962–8. doi: 10.26355/eurrev_201811_16424
33. Shaik AR, Singh P, Shaik C, Kohli S, Vohora D, Ferrari SL. Metformin: Is it the well wisher of bone beyond glycemic control in diabetes mellitus? Calcified Tissue Int (2021) 108(6):693–707. doi: 10.1007/s00223-021-00805-8
34. Loh DKW, Kadirvelu A, Pamidi N. Effects of metformin on bone mineral density and adiposity-associated pathways in animal models with type 2 diabetes mellitus: A systematic review. J Clin Med (2022) 11(14):4193. doi: 10.3390/jcm11144193
35. Sun J, Liu Q, He H, Jiang L, Lee KO, Li D, et al. Metformin treatment is associated with an increase in bone mineral density in type 2 diabetes mellitus patients in China: A retrospective single center study. Diabetes Metab (2022) 48(5):101350. doi: 10.1016/j.diabet.2022.101350
36. Mu W, Liang G, Feng Y, Jiang Y, Qu F. The potential therapeutic role of metformin in diabetic and non-diabetic bone impairment. Pharmaceuticals. (2022) 15(10):1274. doi: 10.3390/ph15101274
37. Tseng CH. Metformin and primary bone cancer risk in Taiwanese patients with type 2 diabetes mellitus. Bone. (2021) 151:116037. doi: 10.1016/j.bone.2021.116037
38. Oh TK, Song IA. Metformin therapy and hip fracture risk among patients with type II diabetes mellitus: A population-based cohort study. Bone. (2020) 135:6. doi: 10.1016/j.bone.2020.115325
39. Nordklint AK, Almdal TP, Vestergaard P, Lundby-Christensen L, Boesgaard TW, Breum L, et al. The effect of metformin versus placebo in combination with insulin analogues on bone mineral density and trabecular bone score in patients with type 2 diabetes mellitus: a randomized placebo-controlled trial. Osteoporosis Int J established as result cooperation between Eur Foundation Osteoporosis Natl Osteoporosis Foundation USA (2018) 29(11):2517–26. doi: 10.1007/s00198-018-4637-z
40. Schwartz AV, Pan Q, Aroda VR, Crandall JP, Kriska A, Piromalli C, et al. Long-term effects of lifestyle and metformin interventions in DPP on bone density. Osteoporosis Int J established as result cooperation between Eur Foundation Osteoporosis Natl Osteoporosis Foundation USA (2021) 32(11):2279–87. doi: 10.1007/s00198-021-05989-1
41. Salai M, Somjen D, Gigi R, Yakobson O, Katzburg S, Dolkart O. Effects of commonly used medications on bone tissue mineralisation in SaOS-2 human bone cell line: an in vitro study. Bone Joint J (2013) 95-B(11):1575–80. doi: 10.1302/0301-620X.95B11.31158
42. Borges JL, Bilezikian JP, Jones-Leone AR, Acusta AP, Ambery PD, Nino AJ, et al. A randomized, parallel group, double-blind, multicentre study comparing the efficacy and safety of avandamet (rosiglitazone/metformin) and metformin on long-term glycaemic control and bone mineral density after 80 weeks of treatment in drug-naive type 2 diabetes mellitus patients. Diabetes Obes Metab (2011) 13(11):1036–46. doi: 10.1111/j.1463-1326.2011.01461.x
43. Page MJ, McKenzie JE, Bossuyt PM, Boutron I, Hoffmann TC, Mulrow CD, et al. The PRISMA 2020 statement: an updated guideline for reporting systematic reviews. BMJ (2021) 372:n71. doi: 10.1136/bmj.n71
44. Page MJ, Moher D, Bossuyt PM, Boutron I, Hoffmann TC, Mulrow CD, et al. PRISMA 2020 explanation and elaboration: updated guidance and exemplars for reporting systematic reviews. BMJ. (2021) 372:n160. doi: 10.1136/bmj.n160
45. Starup-Linde J, Gregersen S, Frost M, Vestergaard P. Use of glucose-lowering drugs and risk of fracture in patients with type 2 diabetes. Bone. (2017) 95:136–42. doi: 10.1016/j.bone.2016.11.026
46. Wallander M, Axelsson KF, Nilsson AG, Lundh D, Lorentzon M. Type 2 diabetes and risk of hip fractures and non-skeletal fall injuries in the elderly: A study from the fractures and fall injuries in the elderly cohort (FRAILCO). J Bone Miner Res (2017) 32(3):449–60. doi: 10.1002/jbmr.3002
47. Hung YC, Lin CC, Chen HJ, Chang MP, Huang KC, Chen YH, et al. Severe hypoglycemia and hip fracture in patients with type 2 diabetes: a nationwide population-based cohort study. Osteoporosis Int (2017) 28(7):2053–60. doi: 10.1007/s00198-017-4021-4
48. Majumdar SR, Josse RG, Lin M, Eurich DT. Does sitagliptin affect the rate of osteoporotic fractures in type 2 diabetes? population-based cohort study. J Clin Endocrinol Metab (2016) 101(5):1963–9. doi: 10.1210/jc.2015-4180
49. Colhoun HM, Livingstone SJ, Looker HC, Morris AD, Wild SH, Lindsay RS, et al. Hospitalised hip fracture risk with rosiglitazone and pioglitazone use compared with other glucose-lowering drugs. Diabetologia. (2012) 55(11):2929–37. doi: 10.1007/s00125-012-2668-0
50. Charlier S, Vavanikunnel J, Becker C, Jick SS, Meier C, Meier CR. Antidiabetic treatment, level of glycemic control, and risk of fracture in type 2 diabetes: a nested, case-control study. J Clin Endocrinol Metab (2021) 106(2):554–66. doi: 10.1210/clinem/dgaa796
51. Vavanikunnel J, Charlier S, Becker C, Schneider C, Jick SS, Meier CR, et al. Association between glycemic control and risk of fracture in diabetic patients: A nested case-control study. J Clin Endocrinol Metab (2019) 104(5):1645–54. doi: 10.1210/jc.2018-01879
52. Puar TH, Khoo JJ, Cho LW, Xu Y, Chen YT, Chuo AM, et al. Association between glycemic control and hip fracture. J Am Geriatr Soc (2012) 60(8):1493–7. doi: 10.1111/j.1532-5415.2012.04052.x
53. Monami M, Cresci B, Colombini A, Pala L, Balzi D, Gori F, et al. Bone fractures and hypoglycemic treatment in type 2 diabetic patients: A case-control study. Diabetes Care (2008) 31(2):199–203. doi: 10.2337/dc07-1736
54. Tseng CH. Metformin use is associated with a lower risk of osteoporosis/vertebral fracture in Taiwanese patients with type 2 diabetes mellitus. Eur J Endocrinol (2021) 184(2):299–310. doi: 10.1530/EJE-20-0507
55. Fuggle NR, Curtis EM, Ward KA, Harvey NC, Dennison EM, Cooper C. Fracture prediction, imaging and screening in osteoporosis. Nat Rev Endocrinol (2019) 15(9):535–47. doi: 10.1038/s41574-019-0220-8
56. Wang L, Yu W, Yin X, Cui L, Tang S, Jiang N, et al. Prevalence of osteoporosis and fracture in China: The China osteoporosis prevalence study. JAMA Netw Open (2021) 4(8):e2121106. doi: 10.1001/jamanetworkopen.2021.21106
57. Pan H, Wu N, Yang T, He W. Association between bone mineral density and type 1 diabetes mellitus: A meta-analysis of cross-sectional studies.Diabetes Metab Res Rev (2015) 30(7):531–42. doi: 10.1002/dmrr.2508
58. Rubin MR. Skeletal fragility in diabetes. Ann New York Acad Sci (2017) 1402(1):18–30. doi: 10.1111/nyas.13463
59. Valderrábano, Linares MICD. Diabetes mellitus and bone health: epidemiology, etiology and implications for fracture risk stratification. Endocrinology (2018) 4(1):9. doi: 10.1186/s40842-018-0060-9
60. Tanaka KI, Yamaguchi T, Kanazawa I, Sugimoto T. Effects of high glucose and advanced glycation end products on the expressions of sclerostin and RANKL as well as apoptosis in osteocyte-like MLO-Y4-A2 cells. Biochem Biophys Res Commun (2015) 461(2):193–9. doi: 10.1016/j.bbrc.2015.02.091
61. Patsch JM, Kiefer FW, Varga P, Pail P, Rauner M, Stupphann D, et al. Increased bone resorption and impaired bone microarchitecture in short-term and extended high-fat diet-induced obesity. Metab-Clin Exp (2011) 60(2):243–9. doi: 10.1016/j.metabol.2009.11.023
62. Ellegaard M, Jorgensen NR, Schwarz P. Parathyroid hormone and bone healing. Calcified tissue international (2010) 87(1):1–13. doi: 10.1007/s00223-010-9360-5
63. Hidayat K, Du X, Wu M-J, Shi B-M. The use of metformin, insulin, sulphonylureas, and thiazolidinediones and the risk of fracture: Systematic review and meta-analysis of observational studies. Obes Rev (2019) 20(10):1494–503. doi: 10.1111/obr.12885
64. Salari-Moghaddam A, Sadeghi O, Keshteli AH, Larijani B, Esmaillzadeh A. Metformin use and risk of fracture: a systematic review and meta-analysis of observational studies. Osteoporosis Int (2019) 30(6):1167–73. doi: 10.1007/s00198-019-04948-1
65. Josse RG, Majumdar SR, Zheng YG, Adler A, Bethel MA, Buse JB, et al. Sitagliptin and risk of fractures in type 2 diabetes: Results from the TECOS trial. Diabetes Obes Metab (2017) 19(1):78–86. doi: 10.1111/dom.12786
66. Vestergaard P, Rejnmark L, Mosekilde L. Relative fracture risk in patients with diabetes mellitus, and the impact of insulin and oral antidiabetic medication on relative fracture risk. Diabetologia. (2005) 48(7):1292–9. doi: 10.1007/s00125-005-1786-3
67. Huang X, Li S, Lu W, Xiong L. Metformin activates wnt/beta-catenin for the treatment of diabetic osteoporosis. BMC Endocr Disord (2022) 22(1):189. doi: 10.1186/s12902-022-01103-6
68. Lu CH, Chung CH, Kuo FC, Chen KC, Chang CH, Kuo CC, et al. Metformin attenuates osteoporosis in diabetic patients with carcinoma in situ: A nationwide, retrospective, matched-cohort study in Taiwan. J Clin Med (2020) 9(9):2839. doi: 10.3390/jcm9092839
69. Chen B, He Q, Yang J, Pan Z, Xiao J, Chen W, et al. Metformin suppresses oxidative stress induced by high glucose via activation of the Nrf2/HO-1 signaling pathway in type 2 diabetic osteoporosis. Life Sci (2022) 312:121092. doi: 10.1016/j.lfs.2022.121092
70. Wang LX, Wang GY, Su N, Ma J, Li YK. Effects of different doses of metformin on bone mineral density and bone metabolism in elderly male patients with type 2 diabetes mellitus. World J Clin Cases (2020) 8(18):4010–6. doi: 10.12998/wjcc.v8.i18.4010
71. Nordklint AK, Almdal TP, Vestergaard P, Lundby-Christensen L, Jorgensen NR, Boesgaard TW, et al. Effect of metformin vs. placebo in combination with insulin analogues on bone markers P1NP and CTX in patients with type 2 diabetes mellitus. Calcified Tissue Int (2020) 107(2):160–9. doi: 10.1007/s00223-020-00711-5
72. Koshizaka M, Ishikawa K, Ishibashi R, Maezawa Y, Sakamoto K, Uchida D, et al. Effects of ipragliflozin versus metformin in combination with sitagliptin on bone and muscle in Japanese patients with type 2 diabetes mellitus: Subanalysis of a prospective, randomized, controlled study (PRIME-V study). J Diabetes Investig (2021) 12(2):200–6. doi: 10.1111/jdi.13340
73. Schmedt N, Andersohn F, Walker J, Garbe E. Sodium-glucose co-transporter-2 inhibitors and the risk of fractures of the upper or lower limbs in patients with type 2 diabetes: A nested case-control study. Diabetes Obes Metab (2019) 21(1):52–60. doi: 10.1111/dom.13480
74. Al-Mashhadi ZK, Viggers R, Starup-Linde J, Vestergaard P, Gregersen S. SGLT2 inhibitor treatment is not associated with an increased risk of osteoporotic fractures when compared to GLP-1 receptor agonists: A nationwide cohort study. Front endocrinol (2022) 13:861422. doi: 10.3389/fendo.2022.861422
75. Qian BB, Chen Q, Li L, Yan CF. Association between combined treatment with SGLT2 inhibitors and metformin for type 2 diabetes mellitus on fracture risk: a meta-analysis of randomized controlled trials. Osteoporosis Int J established as result cooperation between Eur Foundation Osteoporosis Natl Osteoporosis Foundation USA (2020) 31(12):2313–20. doi: 10.1007/s00198-020-05590-y
76. Zinman B, Harris SB, Neuman J, Gerstein HC, Retnakaran RR, Raboud J, et al. Low-dose combination therapy with rosiglitazone and metformin to prevent type 2 diabetes mellitus (CANOE trial): a double-blind randomised controlled study. Lancet. (2010) 376(9735):103–11. doi: 10.1016/S0140-6736(10)60746-5
77. Sedgwick P. Meta-analyses: what is heterogeneity? BMJ Br Med J (2015) 350:h1435. doi: 10.1136/bmj.h1435
Keywords: fracture, diabetes, metformin, bone, meta-analysis
Citation: Wang Y, Yu L, Ye Z, Lin R, Sun AR, Liu L, Wei J, Deng F, Zhong X, Cui L, Li L and Liu Y (2023) Association of metformin use with fracture risk in type 2 diabetes: A systematic review and meta-analysis of observational studies. Front. Endocrinol. 13:1038603. doi: 10.3389/fendo.2022.1038603
Received: 07 September 2022; Accepted: 21 December 2022;
Published: 11 January 2023.
Edited by:
Kok Yong Chin, National University of Malaysia, MalaysiaReviewed by:
Kok Lun Pang, Newcastle University Medicine Malaysia, MalaysiaZullies Ikawati, Gadjah Mada University, Indonesia
Chin-Hsiao Tseng, National Taiwan University, Taiwan
Copyright © 2023 Wang, Yu, Ye, Lin, Sun, Liu, Wei, Deng, Zhong, Cui, Li and Liu. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Yanzhi Liu, liuyanzhi02@163.com; Li Li, 1092819240@qq.com; Liao Cui, cuiliao@163.com
†These authors have contributed equally to this work
