- 1Henan Provincial Key Laboratory of Children’s Genetics and Metabolic Diseases, Children’s Hospital Affiliated to Zhengzhou University, Zhengzhou University, Zhengzhou, China
- 2Riphah Institute of Pharmaceutical Sciences, Riphah International University, Islamabad, Pakistan
- 3Department of Pharmacy, Iqra University Islamabad Campus, Islamabad, Pakistan
- 4Institute of Molecular Biology and Biotechnology, Bahauddin Zakariya University, Multan, Pakistan
- 5School of Pharmacy, Shanghai Jiao Tong University, Shanghai, China
- 6Department of Pharmaceutical Technology, Faculty of Pharmacy, University of Coimbra, Coimbra, Portugal
- 7REQUIMTE/LAQV, Group of Pharmaceutical Technology, Faculty of Pharmacy, University of Coimbra, Coimbra, Portugal
In an attempt to find new targets for α-amylase and α-glucosidase for the treatment of type 2 diabetes mellitus, the present study aims in determining the anti-diabetic potential of synthesized dihydropyrimidinone derivatives. The in vitro α-glucosidase and α-amylase inhibitory activity was performed and the molecular docking analysis of the ligand in the active binding site of target protein was determined. The results revealed significant percent inhibition of α-glucosidase by the compound 6-benzyl-4-(4-hydroxyphenyl)-3,4,6,7-tetrahydro-1H-pyrrolo[3,4-d]pyrimidine-2,5-dione (compound A). The active compound showed 81.99% inhibition when compared to standard ascorbic acid having percent inhibition 81.18%. The IC50 of active compound (A) showed to be 1.02 µg/ml. The molecular docking analysis revealed that the ligand bound to the active binding site of protein with the lowest binding energy of -7.9 kcal/mol that was also significantly similar to standard having -7.8 kcal/mol binding energy. The molecular dynamic simulation studies also revealed stable binding of ligand in the active binding site of protein with low RMSD of 1.7 Å similar to the protein RMSD 1.6Å In conclusion, the study revealed a potential new target against α-glucosidase to treat type 2 diabetes mellitus.
Introduction
Incidence of diabetes mellitus have increased globally. Around the world, diabetes mellitus is a major health issue associated with decreased quality of life, increased morbidity and mortality and increased burden of health care costs. Current diabetic therapies aimed at lowering blood sugar levels but did not address the root cause of diabetes mellitus as progression of insulin deficiency was not improved. Oral drugs for diabetes mellitus have many problems associated with treatment including loss of beta cell function and cause increase in impaired insulin secretion. The pathophysiology of this disease was not completely understood. Aside from that, current anti-diabetic drugs are not improving the side effects associated with anti-diabetic drugs including cardiovascular risk (1).
Traditionally, different treatment options are available which include a variety of oral hypoglycemic agents but none of which effectively control glucose levels indefinitely. However, although combination therapies are available but they have limitations in their function to end stage in type 2 diabetes mellitus (2). Several new drugs have become available in some countries nowadays, but higher cost of these drugs along with absence of clinical safety need to be addressed by health care organizations and clinicians (3). We have to consider the selection of newer anti-diabetic drugs but due to inconsistent reporting, we are not able to analyze the effect of each new anti-diabetic drug (4). Managing complications with diabetes mellitus has always been a challenge for physicians (5). To address or delay the complications associated with treatment of diabetes mellitus, there is a need to adopt a systematic approach for managing diabetes mellitus including self-management training (6, 7). Government needs to develop long term policies to deal with the growing burden of diabetes mellitus (8).
Dihydropyrimidinones (DHPM) are heterocyclic compounds with a pyrimidine moiety in the ring core and has been of interest in medicinal chemistry for decades due to its versatile bioactivity (9). Dihydropyrimidinones play important role in synthesis of RNA and DNA (10). They have great number of activities including anti-diabetic, anti-inflammatory, anti-hypertensive, anti-cancer, and anti-malarial and many more. Pyrimidine nucleus is the main reason of many therapeutic applications. Substitution in pyrimidine moiety offers an opportunity for development of newer drugs with better efficacy (11). Interestingly, the antidiabetic potential of dihydropyrimidinones is still not fully explored which give us the opportunity to determine the role of dihydropyrimidinones as anti-diabetic agents (12, 13). In type 2 diabetes mellitus patients, alpha glucosidase and alpha amylase enzymes perform short term effect and decreased blood glucose level. These enzymes helps to retard glucose absorption to decrease postprandial hyperglycemia (PPHG). Inhibition of these enzymes helps to reduce the rate of digestion of carbohydrates so less amount of glucose is absorbed because the carbohydrates are not broken down into glucose molecules. As both these enzymes helped to reduce the risk of developing diabetes mellitus (14).
In the present study, the antidiabetic potential of dihydropyrimidinone derivatives were explored. These derivatives were synthesized in a previous study and anti-cancer potential of these compounds were studied. The study showed promising anti-cancer activity against breast cancer cell line MCF7 (15). Moreover, the alkaline phosphatase activities of these compounds were also studied that showed potential of these compounds as alkaline phosphatase inhibitors (16). Keeping in view, of these potential activities of synthesized derivatives of dihydropyrimidinones the anti-diabetic potential of 6-benzyl-4-(4-hydroxyphenyl)-3,4,6,7-tetrahydro-1H-pyrrolo[3,4-d]pyrimidine-2,5-dione (compound A), 4-(4-hydroxyphenyl)-6-octyl-3,4,6,7-tetrahydro-1H-pyrrolo[3,4-d]pyrimidine-2,5-dione, 6-(4-chlorobenzyl)-4-(4-hydroxyphenyl)-3,4,6,7-tetrahydro-1H-pyrrolo[3,4-d]pyrimidine-2,5-dione (compound C) and 6-(4-fluorobenzyl)-4-(4-hydroxyphenyl)-3,4,6,7-tetrahydro-1H-pyrrolo[3,4-d]pyrimidine-2,5-dione (compound D) were thought to be studied. The alpha amylase and alpha glucosidase activities will be performed to evaluate the anti-diabetic activity. Moreover, the molecular docking studies and the molecular simulation studies of these compounds will be performed to analyze the binding energy and the protein changes occurring during protein ligand interaction.
Methodology
α-amylase inhibition assay
In α-amylase inhibition assay, the reaction mixture containing 15 μl phosphate buffer (pH 6.8), 25 μl α-amylase enzyme (0.14 U/ml), 10 μl sample (1 mg/ml DMSO) and 40 μl (2 mg/ml in potassium phosphate buffer) starch solution was incubated at 50°C for 30 min in 96 well plate. Then 20 μl of 1 M HCl was added to stop reaction. Afterwards 90 μl of iodine reagent (5 mM iodine, 5 mM potassium iodide in phosphate buffer) was added to each well. Blank was prepared by adding dimethyl sulphoxide and the phosphate buffer instead of sample and enzyme solution respectively, whereas negative control was prepared by adding dimethyl sulphoxide in place of sample. Ascorbic acid (250 μM) was used as a positive control. Absorbance of the reaction mixture was measured at 540 nm. The activity was expressed as the percent α-amylase inhibition and calculated by the following equation:
Where, On = Absorbance of negative control, Os = Absorbance of sample and Ob = Absorbance of blank well.
Samples which depicted 50% inhibition in the initial screening were further analyzed at lower concentration to find IC50 (17).
Selective alpha glucosidase inhibition assay
An aliquot of 25 μl of substrate solution was mixed with the 69 μl of phosphate buffer saline and 5 μl of test sample. Enzyme solution 1 μl was then added to respective wells of 96 well plate. Zero hour reading was recorded at 405 nm using microplate reader followed by an incubation period of 40 minutes at temperature of 37°C. Afterwards, 100 μl of sodium bicarbonate solution was added to the above solution to stop the reaction. Absorbance was noted at 405 nm. Procedure was repeated for preparation of negative and the positive control containing dimethylsuphoxide and ascorbic acid respectively.
Ac and As = Absorbance of control and absorbance of sample respectively.
Samples which depicted 50% inhibition in initial screening were further analyzed at lower concentration to find IC50 (17).
Molecular docking
Ligand selection and optimization
The synthesized chemical structures A, B, C and D were used as ligand molecules and their structures were drawn using chemsketch software. The files were saved in.mol format and converted to.pdb format using Discovery Studio 4.0. The ligands were then prepared for docking adapt using Autodock Tools 1.5.6 and converted to.pdbqt format. The AutoDock Tools prepared the ligands by adding polar hydrogens, gasteiger charges were added to all atoms, and non-polar hydrogens were removed from all the ligands.
Accession of target protein
The protein structures of alpha glucosidase (18) was selected for the protein ligand binding analysis. The protein was obtained from protein data bank having PDB ID: 5KZW (www.pdb.com).
Target protein optimization
For protein optimization the protein was prepared using mgl tools of AutoDock. The ligands and water were removed from the crystallized protein structure using Discovery studio 4.0. The protein was prepared using AutoDock Tools and saved in.pdbqt format.
Validation of docking
The validation of docking procedure was performed by redocking the obtained pose on the same active binding site of target protein. The grid parameters were kept unchanged and all the protocols were kept constant. The binding of ligand on the active binding site with less deviation when compared to actual complex validates the docking protocol. The redock complex was superimposed using the Discovery studio 4.0 and PyMol 2.3 on the reference complex. The redock complex of active ligand as well as the standard acarbose was superimposed and the root mean sqaure deviation was calculated.
Molecular dynamic simulation studies
The use of molecular dynamic simulation tools have helped us in many ways in the determination of structural stability of a protein as well as the protein-ligand complexes under physiological conditions. The most active ligand showing significant anti-diabetic activity was used for MD simulation studies. In molecular docking studies a static view of ligand is provided in the active binding site of protein thereby, predicting the ligand period binding status, whereas, in molecular dynamic simulation, the movement of atoms is calculated using the Newton’s classical equation of motion over a specific period of time. The Desmond (2012) module of Schrodinger software was used to perform the simulation studies. The simulations were run over a 100 nanosecond trajectory period using the OPLS-2005 force field. The physiological environment was simulated to predict the ligand protein binding status and the preprocessing of ligand-protein complex was done using the protein Preparation Wizard of Maestro. The complexes were optimized and minimized as well. In an orthrombic box, the complex was predefines in a TIP3P water model. The Na and CL ions were added to neutralize the overall charge of the system. The pressure of 1.0132 bar and temperature of 300K was kept constant while keeping the box volume minimized. The root mean swaure deviation (RMSD) was used to evaluate the stability of simulation studies for all the trajectories5c, 11 5c, 11.
Results
α-amylase inhibition assay

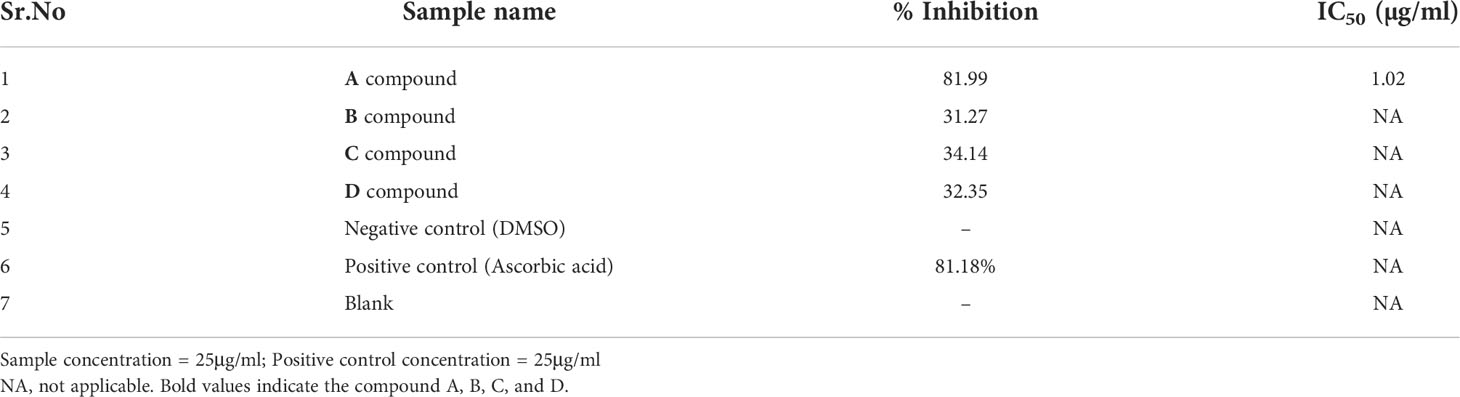

The tested compounds were subjected to examine the inhibitory potential against α-amylase. All of the compounds showed less than 50% inhibition having no potential activity against α-amylase.
Selective alpha glucosidase inhibition assay
Four test compounds were investigated for their antidiabetic activity through alpha glucosidase inhibition assay. While only one compound (A) showed antidiabetic activity against standard ascorbic acid. The compound A which depicted 50% inhibition in initial screening were further analyzed at lower concentration to find IC50. Table 1 showed results of alpha glucosidase inhibition assay.
Molecular docking

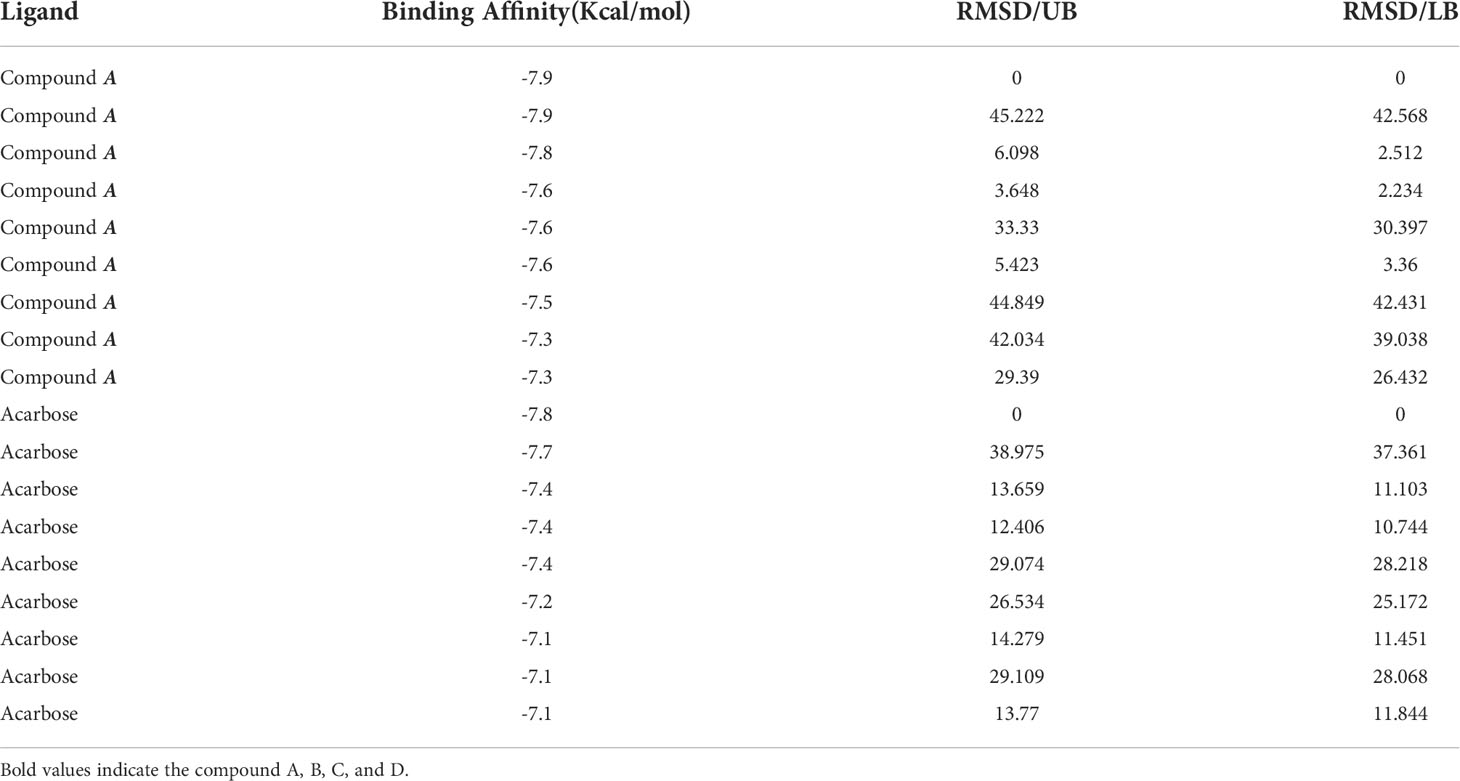

The docking analysis revealed efficient binding of ligand within the active binding site of protein having lowest binding energy of -7.9 kcal/mol as compared to standard acarbose showing lowest binding energy of -7.8 kcal/mol Figure 1. Table 2 shows the binding scores of active ligand and standard ascorbic acid. The interaction analysis revealed that the active ligand formed one stable conventional hydrogen bond with MET363. Some pi-alkyl and pi-pi stacked interactions were also observed with VAL867, LEU868 and ARG608. A pi-sigma interaction was observed between phenyl ring and HIS717 (Figure 2A). The amino acid interaction of standard acarbose was also visualized and the results revealed nine conventional hydrogen bonding with amino acid residues CYS127, TRP126, ASP91, VAL544, PRO94, ARG275 (Figure 2B).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1022623/fendo-13-1022623-HTML/image_m/fendo-13-1022623-g001.jpg)
Figure 1 Structures of synthesized dihydropyrimidinone derivatives, (A) 6-benzyl-4-(4-hydroxyphenyl)-3,4,6,7-tetrahydro-1H-pyrrolo[3,4-d]pyrimidine-2,5-dione (compound A); (B) 4-(4-hydroxyphenyl)-6-octyl-3,4,6,7-tetrahydro-1H-pyrrolo[3,4-d]pyrimidine-2,5-dione (Compound B); (C) 6-(4-chlorobenzyl)-4-(4-hydroxyphenyl)-3,4,6,7-tetrahydro-1H-pyrrolo[3,4-d]pyrimidine-2,5-dione (compound C); and (D) 6-(4-fluorobenzyl)-4-(4-hydroxyphenyl)-3,4,6,7-tetrahydro-1H-pyrrolo[3,4-d]pyrimidine-2,5-dione (compound D).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1022623/fendo-13-1022623-HTML/image_m/fendo-13-1022623-g002.jpg)
Figure 2 Protein-ligand interaction showing compound A (A) and standard acarbose (B) in the active binding site of protein α-glucosidase.
Validation of docking
The redocking was done by docking the best pose in the active binding site of target protein in order to validate the docking protocols and to ensure the docking efficiencies. The binding of ligand was observed in the same active site as that of reference after redocking having rmsd of 0.1 kcal/mol. The amino acid involved in interactions were MET363 showing bonding with the oxygen atom and one carbon hydrogen bond with HIS717. Similar pattern of pi-pi T shaped and Pi-alkyl interactions were observed with amino acid residues ARG608, VAL867 and LEU868. PyMOL was used to superimpose the native co-crystallized ligand in the docked complex. A very low rmsd of 0.1 kcal/mol suggested the validation of docking procedure (Figure 3A).The forest green complex shows the reference conformation attained during docking while the pink complex signifies the redock complex of active compound in the active binding site of a-glucosidase. Similarly, the yellow complex shows the redocked complex of acarbose in the active binding site of a-glucosidase and pink complex represents the reference complex attained during docking having rmsd of 0.1 kcal/mol (Figure 3B).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1022623/fendo-13-1022623-HTML/image_m/fendo-13-1022623-g003.jpg)
Figure 3 Superimposition of redocked complex with the reference complex. (A) The redocked complex of active compound is superimposed onto the reference conformation in the active binding site of protein. (B) The redocked complex of standard acarbose is superimposed onto the reference conformation in the active binding site of protein.
Molecular dynamic simulation studies
RMSD analysis
The molecular dynamic simulation studies were carried out at 100 ns and the changes in the protein ligand complex was determined using the root mean square deviation (RMSD). RMSD determines the flexibility of the protein, the equilibration and the average distance between the atoms of the proteins. The plot generated depicts the RMSD showing the complexes reached the stable form. For 100 ns trajectory, the complex showed stability throughout the simulation. The average RMSD for α-glucosidase-compound A complex was 1.7Å, a slight fluctuation was observed at 10-20ns, the equilibrium was then achieved after 40ns. The complex remained stable afterwards. The average RMSD for protein complex was 1.6Å, a similar pattern in fluctuation was observed for this complex over a 10 -20 ns. The equilibrium was attained after 40 ns which remained stable throughout simulation. The system stability is determined by a low RMSD values followed by little fluctuations (19). During the simulation trajectories, the results suggested stable interaction and acceptable range for the studied complex (Figure 4).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1022623/fendo-13-1022623-HTML/image_m/fendo-13-1022623-g004.jpg)
Figure 4 RMSD profile of protein-ligand complex (red) and protein complex (blue) for 100 ns of MD simulation.

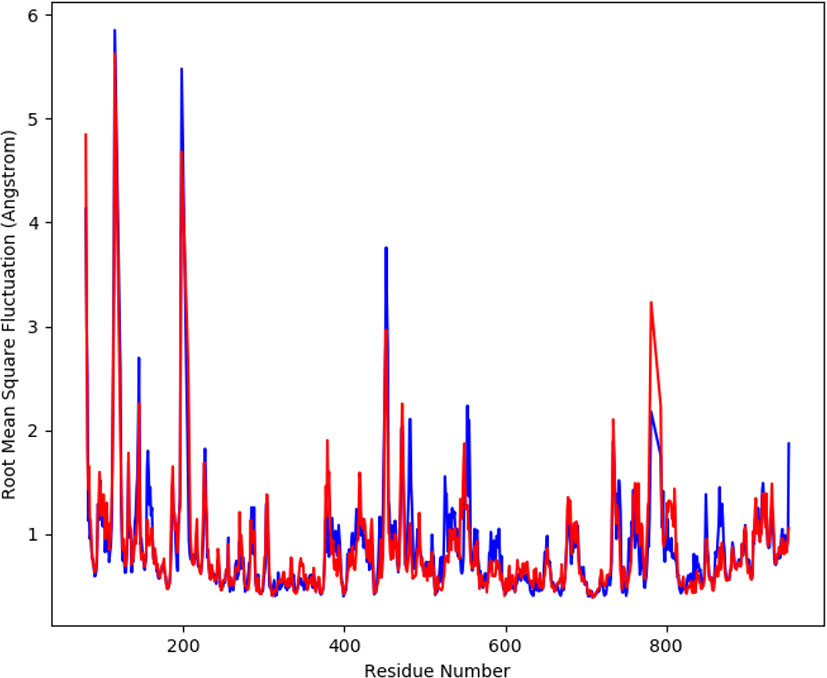

RMSF analysis
The average movement of atoms was measured by root mean square fluctuation (RMSF) at a specified temperature and pressure. The flexible region of the protein is determined by RMSF, moreover, the regions of structures that shows fluctuation to overall structure of protein is also evaluated by RMSF. A low value of RMSF is suggestive of a good stable system, a high RMSF is predictive of greater flexibility of the system during the simulation trajectories. At 100 ns period, the plot of RMSF was generated to observe the fluctuation in the residues of the protein a-glucosidase and the complex. The Figure 5 shows the flexibility of residues in the protein and complex as well as the fluctuation in the residues. The plot shows less fluctuation and good stability for both the complexes.
Radius of gyration
The changes in compactness between the ligand and protein complex is assessed by the radius of gyration (Rg). The stable folding and unfolding of protein and its complexes is also determined by Rg. A high Rg suggest a low compactness of protein-ligand complex. The average Rg of ligand showed to be 28.6 Å ranging from 28.2 to 28.6 Å (red). The protein complex average Rg was 28.4 Å ranging from 28.2-28.7Å (blue) (Figure 6). During MD simulation, a stable protein folding is determined by maintenance of a relative steady value of Rg, if Rg changes over time it indicates the unfolding of the protein (20, 21). The consistent values of Rg were observed form the results and a good stability was observed due to similar behavior of compactness by the complex.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1022623/fendo-13-1022623-HTML/image_m/fendo-13-1022623-g006.jpg)

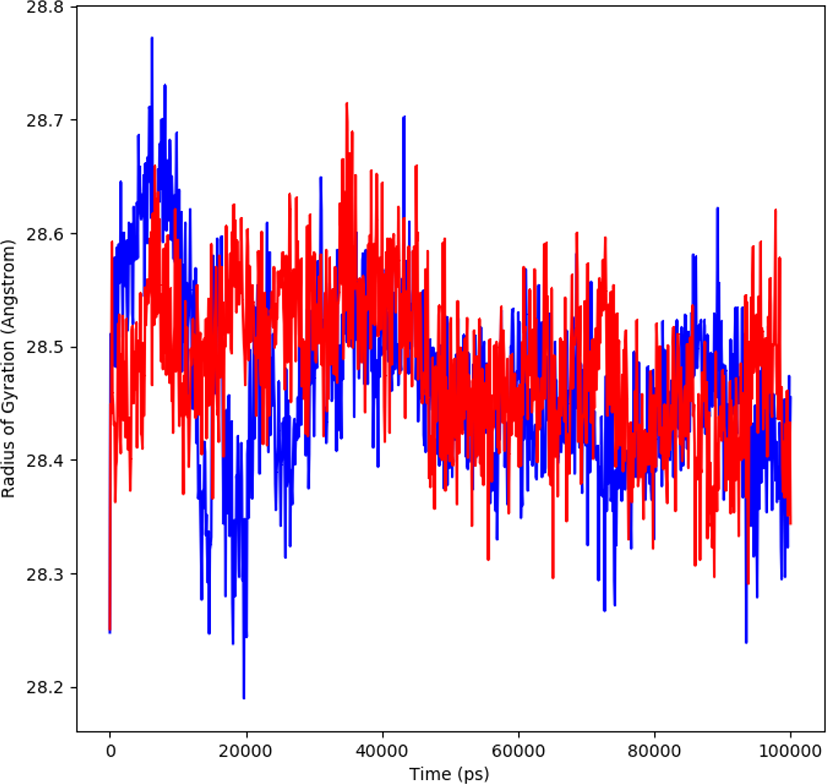

Figure 6 Rg plot representing changes observed in the conformational behavior of protein-ligand complexes (red depicting protein-ligand complex, while blue indicating protein) for 100 ns MD trajectories.
Solvent accessible surface area
The solvent accessible surface area (SASA) measures the interactions between the complexes and the solvents and predicts the conformational changes taking place during interaction. Therefore, the SASA of the protein-ligand complex was determined. Figure 7 depicts the SASA plot verses the time for both the protein-ligand complex and the protein complex. The average SASA value for protein-ligand complex was 30906.17 nm2 (red), similarly, the average SASA value for protein complex was 30736.86 nm2 (blue). The values suggested no significant changes on the protein structure and the values were found to be relatively stable over the period of 100 ns. The calculations showed that the complex had a significant similar value of SASA with that of reference protein (22).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1022623/fendo-13-1022623-HTML/image_m/fendo-13-1022623-g007.jpg)
Figure 7 SASA curves highlighting the changes in the solvent accessibility of the studied protein complexes (protein-ligand complex (A) and protein complex (B)) during 100 ns MD trajectories.
Interaction energy
The interaction energy is calculated to determine the strength with which protein and ligand binds with each other. The free energies of interaction between the ligand and protein structure is calculated by a detailed analysis to validate the binding energies generated by the molecular docking analysis. The interaction energy for the protein-ligand complex at 100 ns was found to be -53.16 kcal/mol. The highest energy attained was -69.3 kcal/mol and showed favorable binding of ligands with hTERT. The results validated the molecular docking results and showed the potential of ligand as a-glucosidase inhibitor. Figure 8 represents the interaction energy attained by the protein-ligand complex over a period of 100 ns.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1022623/fendo-13-1022623-HTML/image_m/fendo-13-1022623-g008.jpg)
Figure 8 The plot illustrating the interaction in the form of free energies of binding between protein-ligand complex.
Hydrogen bond analysis
The protein-ligand complex is considered stable depending on the hydrogen bonding between the ligand and the receptor. The hydrogen bonding also determines the drug specificity, metabolism and adsorption. The simulation results showed that the complex formed four hydrogen bonds concluding effective and tight bounding of ligands in the active biding site of α-glucosidase protein. The total number of hydrogen bonds formed in the complex during the 100 ns simulation period is shown in Figure 9.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1022623/fendo-13-1022623-HTML/image_m/fendo-13-1022623-g009.jpg)
Figure 9 Representation of hydrogen bonding pattern observed for protein ligand complexes (adapalene-red and tamsulosin-blue) for 100 ns MD simulation.
Discussion
Diabetes mellitus is a progressive metabolic disease characterized by in ability of the body to control blood sugar levels resulting in chronic hyperglycemia (23). Several traditional medications for the treatment of type 2 diabetes increases the insulin action and its secretion for β-pancreatic cells (24). Some of the digestive enzymes present in the intestine helps in breaking long chain polysaccharides to absorbable monosaccharides units. α-glucosidase is one of these enzymes that have gained considerable attention, targeting these enzymes would prevent the carbohydrate digestion and release of glucose in the blood stream (25). Most of the clinically used α-glucosidase inhibitors are acarbose, migitol and voglibose but due to several side effects of these drugs a less toxic-alpha glucosidase inhibitor is highly demanding (13).
Due to this, the antidiabetic potential of synthesized dihydropyrimidinone derivatives were evaluated using alpha-amylase and alpha-glucosidase assay. The in silico molecular docking and molecular dynamic simulation studies were also carried out to understand the binding mode of active ligand son the active binding site of protein. One of the tested compound A belonging to the class of DHMP showed positive results against antidiabetic activity by performing alpha glucosidase inhibition assay. The alpha-amylase inhibitory activity of these compounds did not show any potential inhibition by any of the ligands, however, in α-glucosidase activity, one of the compound (A) showed significant anti-diabetic activity. The compound A showed 81.99% inhibition of enzyme when compared to standard ascorbic acid that showed 81.18% inhibition. A very close inhibition of the enzyme by active ligand with the reference suggest potential role of this compound as selective a-glucosidase inhibitor. The IC50 of this compound determined by linear regression method showed to be 1.02 µg/ml. The structure activity analysis revealed that the compounds having alkyl substituents did not show any activity. Similarly, compounds having strong electron withdrawing groups (Compound C [-Cl] and Compound D [-F]) also did not show any inhibition of enzymes. Interestingly, the compound A having phenyl group with no substitution was effective against alpha-glucosidase activity. In a recent study, Bairagi and coworkers designed and synthesized a series of dihydropyrimidinone derivatives constituting electron withdrawing and electron donating groups on phenyl ring. The anti-hyperglycemic activity of those compounds were evaluated and their results revealed significant lowering of glucose level by the derivatives containing alkoxy group in the phenyl ring (12). In another study, in vitro anti-diabetic activity on α-amylase and α-glucosidase was conducted by Bharathi and coworkers against novel 10-chloro-4-(2-chlorophenyl)-12-phenyl-5,6-dihydropyrimido[4,5-a]acridin-2-amines. Their results also revealed significant inhibition of these enzymes by the synthesized derivatives (26). Karimian and co-workers also designed, synthesized and characterized a series of dihydropyrimidinone derivatives as β-glucuronidase inhibitor. Their study also revealed potent activity of one of these derivatives with IC50 of 31.52 ± 2.5 µM (27). Our results also revealed potential inhibitory activity of active compound against α-glucosidase.
In order to further explore the activity of active compounds against alpha-glucosidase the molecular docking analysis was performed. In silico tools are found to be very useful in the early prediction of pharmacokinetic and pharmacodynamic properties of new chemical entities as well finding novel targets for diseases through system biology approach (7, 28–30). The main purpose of the docking is to provide preliminary information about affinity of any compound before switching to in vitro experimentation. The docking analysis revealed stable protein ligand interaction having lowest binding energy score of -7.9 kcal/mol which was comparable to standard acarbose having lowest binding energy of -7.8 kcal/mol. The amino acid residues MET363 showed stable hydrogen bonding with the dihydropyrimidinone moiety. Some pi-alkyl and pi-pi stacked interactions were also observed with VAL867, LEU868, ARG608 and substituted benzene ring. The redocking analysis conformed the docking procedure by superimposing the already docked complex on the active binding site of redocked complex. The low rsmd of 0.1 kcal/mol revealed the docking procedure was validated. The molecular simulation studies were further performed to analyze the binding energies and the protein stability after complex formation. The study revealed the complex was stabilized at 100 s trajectories. The close rmsd of 1.7 A for the protein-ligand complex and the 1.6 A for the protein revealed the flexibility of the protein and stability of the complex. Moreover, the root mean square fluctuation also showed little fluctuation and stability of the both the complex and the protein. The consistent values of Rg were observed from the results and a good stability was observed due to similar behavior of compactness by the complex. The average SASA value for protein-ligand complex was 30906.17 nm2 (red), similarly, the average SASA value for protein complex was 30736.86 nm2 (blue). The values suggested no significant changes on the protein structure and the values were found to be relatively stable over the period of 100 ns. The calculations showed that the complex had a significant similar value of SASA with that of reference protein. The interaction energy for the protein-ligand complex at 100 ns was found to be -53.16 kcal/mol. The highest energy attained was -69.3 kcal/mol and showed favorable binding of ligands with hTERT. The results validated the molecular docking results and showed the potential of ligand as a-glucosidase inhibitor. The simulation results showed that the complex formed four hydrogen bonds concluding effective and tight bounding of ligands in the active biding site of α-glucosidase protein. The overall simulation data revealed the active ligand binds in the active binding site of protein with less fluctuation and lowest energy is required for the binding. The less difference in the energy, rmsd, rmsf and Rg revealed the protein does not fluctuates much while interacting with the ligand, suggesting it to be a good target for α-glucosidase.
Conclusion
The present study revealed successful determination of anti-diabetic potential of 6-benzyl-4-(4-hydroxyphenyl)-3,4,6,7-tetrahydro-1H-pyrrolo[3,4-d]pyrimidine-2,5-dione (Compound A) as α-glucosidase inhibitor. The inhibitory potential of this compound was shown to be 81% having IC50 of 1.02 µg/ml. The in silico molecular docking analysis is also consistent with the in vitro studies. The interaction pattern revealed important hydrogen bonding and electrostatic forces playing important role in binding. Moreover, the molecular dynamic simulation studies also showed stable interaction of ligand with the protein in the active binding site with less fluctuation and unfolding of protein during interaction. The energy required for interaction is also low suggesting the active compound has the potential to be developed as a selective new α-glucosidase inhibitor for the treatment of type 2 diabetes.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/supplementary material
Author contributions
UI, BN, RA: Project design and Concept, SM, MA, YD: Project Supervision, Project Administration, HZ, AP-S: Manuscript Proofreading and edition. All authors contributed in manuscript writing and edition. All authors contributed to the article and approved the submitted version.
Funding
The funding was provided by ORIC, Riphah-ORIC-21-22/ FPS-51 and Riphah-ORIC-21-22/ FPS-56, Riphah International University.
Acknowledgments
We would like to acknowledge ORIC, Riphah International University for funding this project.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. He ZX, Zhou ZW, Yang Y, Yang T, Pan SY, Qiu JX, et al. Overview of clinically approved oral antidiabetic agents for the treatment of type 2 diabetes mellitus. Clin Exp Pharmacol Physiol (2015) 42(2):125–38. doi: 10.1111/1440-1681.12332
2. Jain S, Saraf S. Type 2 diabetes mellitus–its global prevalence and therapeutic strategies. Diabetes Metab Syndrome: Clin Res Rev (2010) 4(1):48–56. doi: 10.1016/j.dsx.2008.04.011
3. Krentz AJ, Patel MB, Bailey CJ. New drugs for type 2 diabetes mellitus. Drugs (2008) 68(15):2131–62. doi: 10.2165/00003495-200868150-00005
4. Phung O, Sood N, Sill B, Coleman C. Oral anti-diabetic drugs for the prevention of type 2 diabetes. Diabetic Med (2011) 28(8):948–64. doi: 10.1111/j.1464-5491.2011.03303.x
5. Teoh SL, Das S. Phytochemicals and their effective role in the treatment of diabetes mellitus: a short review. Phytochem Rev (2018) 17(5):1111–28. doi: 10.1007/s11101-018-9575-z
6. Ilyas U, Asif M, Wang M, Altaf R, Zafar H, Faran Ashraf Baig MM, et al. Nanostructured lipid carrier-based delivery of pioglitazone for treatment of type 2 diabetes. Front Pharmacol (2022) 13:934156. doi: 10.3389/fphar.2022.934156
7. Huang T, Nazir B, Altaf R, Zang B, Zafar H, Paiva-Santos AC, et al. A meta-analysis of genome-wide gene expression differences identifies promising targets for type 2 diabetes mellitus. Front Endocrinol (2022) 13:985857. doi: 10.3389/fendo.2022.985857
8. Ha KH, Kim DJ. Current status of managing diabetes mellitus in Korea. Korean J Internal Med (2016) 31(5):845. doi: 10.3904/kjim.2016.253
9. Matos LHS, Masson FT, Simeoni LA, Homem-de-Mello M. Biological activity of dihydropyrimidinone (DHPM) derivatives: A systematic review. Eur J Med Chem (2018) 143:1779–89. doi: 10.1016/j.ejmech.2017.10.073
10. Kaur R, Chaudhary S, Kumar K, Gupta MK, Rawal RK. Recent synthetic and medicinal perspectives of dihydropyrimidinones: a review. Eur J med Chem (2017) 132(1):108–34. doi: 10.1016/j.ejmech.2017.03.025
11. Beena K, Suresh R, Rajasekaran A, Manna P. Dihydropyrimidinones-a versatile scaffold with diverse biological activity. J Pharm Sci Res (2016) 8(8):741.
12. Bairagi KM, Younis NS, Emeka PM, Sangtani E, Gonnade RG, Venugopala KN, et al. Antidiabetic activity of dihydropyrimidine scaffolds and structural insight by single crystal x-ray studies. Med Chem (2020) 16(7):996–1003. doi: 10.2174/1573406416666191227123048
13. Yar M, Bajda M, Shahzadi L, Shahzad SA, Ahmed M, Ashraf M, et al. Novel synthesis of dihydropyrimidines for α-glucosidase inhibition to treat type 2 diabetes: In vitro biological evaluation and in silico docking. Bioorg Chem (2014) 54:96–104. doi: 10.1016/j.bioorg.2014.05.003
14. Ahamad J, Naquvi KJ, Mir SR, Ali M, Shuaib M. Review on role of natural αlpha-glucosidase inhibitors for management of diabetes mellitus. Int J BioMed Res (2011) 2(1):374–80. doi: 10.7439/ijbr.v2i6.121
15. Altaf R, Nadeem H, Ilyas U, Iqbal J, Paracha RZ, Zafar H, et al. Cytotoxic evaluation, molecular docking, and 2D-QSAR studies of dihydropyrimidinone derivatives as potential anticancer agents. J Oncol (2022) 2022:7715689. doi: 10.1155/2022/7715689
16. Altaf R, Nadeem H, Iqbal MN, Ilyas U, Ashraf Z, Imran M, et al. Synthesis, biological evaluation, 2D-QSAR, and molecular simulation studies of dihydropyrimidinone derivatives as alkaline phosphatase inhibitors. ACS omega (2022) 7(8):7139–54. doi: 10.1021/acsomega.1c06833
17. Elya B, Handayani R, Sauriasari R, Hasyyati US, Permana IT, Permatasari YI. Antidiabetic activity and phytochemical screening of extracts from Indonesian plants by inhibition of alpha amylase, alpha glucosidase and dipeptidyl peptidase IV. Pakistan J Biol Sci (2015) 18(6):279. doi: 10.3923/pjbs.2015.279.284
18. Angeli A, Peat TS, Selleri S, Altamimi ASA, Supuran CT, Carta F. X-Ray crystallography of epacadostat in adduct with carbonic anhydrase IX. Bioorg Chem (2020) 97:103669. doi: 10.1016/j.bioorg.2020.103669
19. Kuzmanic A, Zagrovic B. Determination of ensemble-average pairwise root mean-square deviation from experimental b-factors. Biophys J (2010) 98(5):861–71. doi: 10.1016/j.bpj.2009.11.011
20. Ghasemi F, Zomorodipour A, Karkhane AA, Khorramizadeh MR. In silico designing of hyper-glycosylated analogs for the human coagulation factor IX. J Mol Graphics Model (2016) 68:39–47. doi: 10.1016/j.jmgm.2016.05.011
21. Kashyap J, Datta D. Drug repurposing for SARS-CoV-2: a high-throughput molecular docking, molecular dynamics, machine learning, and DFT study. J mater Sci (2022), 1–23. doi: 10.1007/s10853-022-07195-8
22. Zhang D, Lazim R. Application of conventional molecular dynamics simulation in evaluating the stability of apomyoglobin in urea solution. Sci Rep (2017) 7(1):44651. doi: 10.1038/srep44651
23. Peytam F, Takalloobanafshi G, Saadattalab T, Norouzbahari M, Emamgholipour Z, Moghimi S, et al. Design, synthesis, molecular docking, and in vitro α-glucosidase inhibitory activities of novel 3-amino-2,4-diarylbenzo[4,5]imidazo[1,2-a]pyrimidines against yeast and rat α-glucosidase. Sci Rep (2021) 11(1):11911. doi: 10.1038/s41598-021-91473-z
24. Dhameja M, Gupta P. Synthetic heterocyclic candidates as promising α-glucosidase inhibitors: An overview. Eur J Med Chem (2019) 176:343–77. doi: 10.1016/j.ejmech.2019.04.025
25. Casirola DM, Ferraris RP. α-glucosidase inhibitors prevent diet-induced increases in intestinal sugar transport in diabetic mice. Metabolism (2006) 55(6):832–41. doi: 10.1016/j.metabol.2006.02.011
26. Bharathi A, Roopan SM, Vasavi C, Munusami P, Gayathri G, Gayathri M. In silico molecular docking and in vitro antidiabetic studies of dihydropyrimido [4, 5-a] acridin-2-amines. BioMed Res Int (2014) 2014. doi: 10.1155/2014/971569
27. Karimian S, Moghdani Y, Khoshneviszadeh M, Pirhadi S, Iraji A, Khoshneviszadeh M. Rational design, synthesis, in vitro, and in silico studies of dihydropyrimidinone derivatives as β-glucuronidase inhibitors. J Chem (2021) 2021. doi: 10.1155/2021/6664756
28. Altaf R, Nadeem H, Babar MM, Ilyas U, Muhammad SA. Genome-scale meta-analysis of breast cancer datasets identifies promising targets for drug development. J Biol Res (2021) 28(1):5. doi: 10.1186/s40709-021-00136-7
29. Ilyas U, Zaman SU, Altaf R, Nadeem H, Muhammad SA. Genome wide meta-analysis of cDNA datasets reveals new target gene signatures of colorectal cancer based on systems biology approach. J Biol Res (2020) 27:8.
Keywords: Dihydropyrimidinones, alpha-glucosidase, molecular docking, anti-diabetic, in-silico
Citation: Ilyas U, Nazir B, Altaf R, Muhammad SA, Zafar H, Paiva-Santos AC, Abbas M and Duan Y (2022) Investigation of anti-diabetic potential and molecular simulation studies of dihydropyrimidinone derivatives. Front. Endocrinol. 13:1022623. doi: 10.3389/fendo.2022.1022623
Received: 18 August 2022; Accepted: 22 September 2022;
Published: 12 October 2022.
