Marco Di Gioia
Ivan Zanoni- 1Division of Immunology, Harvard Medical School, Boston Children’s Hospital, Boston, MA, United States
- 2Division of Gastroenterology, Harvard Medical School, Boston Children’s Hospital, Boston, MA, United States
Endogenous oxidized phospholipids are produced during tissue stress and are responsible for sustaining inflammatory responses in immune as well as non-immune cells. Their local and systemic production and accumulation is associated with the etiology and progression of several inflammatory diseases, but the molecular mechanisms that underlie the biological activities of these oxidized phospholipids remain elusive. Increasing evidence highlights the ability of these stress mediators to modulate cellular metabolism and pro-inflammatory signaling in phagocytes, such as macrophages and dendritic cells, and to alter the activation and polarization of these cells. Because these immune cells serve a key role in maintaining tissue homeostasis and organ function, understanding how endogenous oxidized lipids reshape phagocyte biology and function is vital for designing clinical tools and interventions for preventing, slowing down, or resolving chronic inflammatory disorders that are driven by phagocyte dysfunction. Here, we discuss the metabolic and signaling processes elicited by endogenous oxidized lipids and outline new hypotheses and models to elucidate the impact of these lipids on phagocytes and inflammation.
Introduction
Immune cells are strategically distributed in the body and react rapidly to internal and external cues, thereby controlling tissue homeostasis. In particular, phagocytes such as macrophages play a key role not only against pathogen invasions, but also in organ function. Macrophages regulate remodeling and maturation of synapses during brain development (1), as well as bone formation (2), electrical conduction in cardiomyocytes (3), gastrointestinal motility (4) and insulin sensitivity (5), among others. Thus, perturbations in the biology of these cells, or in the quality of their responses, have a profound impact on the etiology and development of several pathologies. Classically, phagocytes respond to stress stimuli, which trigger inflammatory programs and eliminate the source of stress, and/or support adaptation mechanisms. The persistence and accumulation of stress signals may lead to the exacerbation and persistence of inflammation, and thus to tissue dysfunction. Endogenous oxidized phospholipids have been shown to function as stress signals that may profoundly impact the activity of innate immune phagocytes.
The arachidonic acid-containing phospholipid 1-palmitoyl-2-arachidonoyl-sn-glycero-3-phosphocholine (PAPC) is a constituent of the plasma membrane of every cell type (6)), lung surfactant (7–9), and circulating lipoproteins (10). PAPC reacts with oxygen on the sn-2 chain to create a mixture of oxidized phospholipids, collectedly referred to as “oxPAPC”. Although exogenous acute administration of oxPAPC before the encounter with an inflammatory moiety reduces the subsequent immune response both in vitro and in vivo (11–13), endogenous production and accumulation of oxPAPC during pathophysiological conditions are strictly associated with the onset of a detrimental chronic inflammation. In fact, oxPAPC accumulates in apoptotic cells (14–16), microparticles released by activated or dying cells (17, 18), oxidized low density lipoproteins (oxLDLs) (19) and oxidized pulmonary surfactant (20). oxPAPC also actively modulates cellular signaling processes, and contributes to the initiation and amplification of inflammation in atherosclerosis (21), lung injury and viral infections (20), non-alcoholic steatohepatitis (NASH) (22), colitis (23), leprosy (24), UV-irradiated skin (25), myocardial and hepatic ischemia (17, 18, 26), multiple sclerosis (27, 28) and inflammatory pain (29, 30).
In this review, after an overview of the capacity of lipids to modify several signaling processes, we focus on the role of endogenous non-enzymatically oxidized phospholipids (oxPLs) such as oxPAPC, in sustaining and enhancing inflammatory disorders. In particular, we discuss how oxPLs modulate pro-inflammatory responses in immune cells, with special attention on the crosstalk between metabolic and signaling pathways in phagocytes; we discuss how oxPAPC affects the pathophysiology of inflammatory diseases such as atherosclerosis and lung infections.
Lipids Modulate Cellular Signaling Processes
Lipids not only serve a structural role in membranes and function as a source of energy, but they are able to modulate cellular signaling processes. This last task is performed via several mechanisms, which are not mutually exclusive.
Alteration of the relative abundance of lipid species that constitute the cellular “lipidome” (31) is one of such mechanisms. Changes in the lipid composition of the plasma membrane can modify its mechanical proprieties, such as curvature and fluidity, and can thereby affect several membrane-dependent events, including phagocytosis (32), ion channel gating (33), and signal transduction (34). Local distribution of lipids in intracellular organelles also coordinates their morphology and functionality, as has been described for mitochondria in which the ratio of the phospholipids phosphatidic acid (PA) and cardiolipin (CL) directs fusion or fission dynamics (35, 36). Remodeling of the cellular lipidome may be driven by perturbations of the extracellular milieu, as occurs during atherosclerosis progression, wherein diet-derived lipid deposition affects the lipid content of phagocytes and thus the features of their cellular processes (37). Alternatively, the remodeling can be actively governed by the cell that, by activating a specific set of enzymes, reshapes its lipid pool to trigger an optimal response toward a stress factor. This is the case when immune cells (such as macrophages) modify their lipidome configurations in relation to the nature of stimulus they receive (38). In this manner, the activation of different classes of Toll-like receptor (TLR) induces distinct lipidomes in macrophages that are necessary to promote an appropriate inflammatory response (38–41).
A second mechanism utilized by lipids to modify cellular signaling is the co- and post-translational protein modification, referred to as “lipidation”. Several lipids are covalently attached to proteins and change the folding of the proteins, their half-life, association to membranes and other proteins, sub-cellular localization, and binding affinity to their co-factors and substrates (42). Palmitoylation (the addition of palmitate to a cysteine residue (43)), is one of the best characterized lipid modifications and controls the stability, trafficking and functionality of the target protein. This has been shown for the nucleotide oligomerization domain (NOD)–like receptors 1 and 2 (NOD1/2), which are responsible for detecting bacterial products in immune cells. NOD1/2 require palmitoylation in order to be recruited to bacteria-containing endosomes and to function therein (44). Lipids are also an important source of acetyl-coenzyme A (acetyl-CoA) (45), which is a central metabolite that drives protein acetylation and thereby controls not only gene expression through histone modification, but also other key cellular processes such as DNA repair of double-strand breaks, cell cycle, cellular signaling, protein conformation, autophagy and metabolism (46). For example, acetylation supports the assembly and activation of the NACHT, LRR and PYD domain-containing protein 3 (NLRP3) inflammasome (47), an innate immune sensor that responds to several exogenous and endogenous stressors (48).
Lastly, lipids can be chemically and structurally modified to impact the signaling process. In this case, specific cellular enzymes catalyze definite modifications to a target lipid. Eicosanoids and steroid hormones are lipids that are produced via a spatially and temporally controlled multi-step mechanism, in which arachidonic acid (or other related polyunsaturated fatty acids (PUFAs)) and cholesterol, respectively, are converted into their final biological active forms by a succession of enzymatic reactions (49, 50). G protein-coupled receptors for eicosanoids, and nuclear receptors for steroid hormones then coordinate regulatory responses that control cellular as well as systemic metabolism, development, and tissue homeostasis (49, 50). Production of new lipidic molecules can also occur in a non-enzymatic manner: lipids can spontaneously react with free radical species present in both extracellular and intracellular compartments and give rise to a wide variety of biologically active products. PUFAs can undergo uncontrolled nitration (51), sulfation (52) and oxidation (19) during tissue stress conditions. For example, prostaglandins are eicosanoids produced by the strict guide of cyclooxygenase (COX) enzymes, on the contrary, isoprostanes (53) are prostaglandin-like compounds formed by non-enzymatic peroxidation of the same COX’s substrates during oxidative damage. OxPAPC is another important example of a class of chemically modified lipid moieties that are implicated in the development of inflammatory disorders.
Oxidized Phospholipids Boost and Sustain Inflammation In Phagocytes
oxPLs per se are weak inductors of pro-inflammatory cytokine production by phagocytes, and they only slightly upregulate the expression of interleukin-6 (IL-6) and IL-1β (20, 54, 55). Nevertheless, oxPLs potently boost and extend the inflammatory capacity of dendritic cells (DCs) and macrophages (56–60). In particular, prolonged exposure of phagocytes to oxPLs strongly potentiates the production of pro-inflammatory cytokines thanks to the ability of oxPLs to reprogram the mitochondrial metabolism of the phagocytes (60) and to activate the release of IL-1β, while maintaining cell viability (56).
Metabolic Activities of Oxidized Phospholipids in Phagocytes
Depending on the type of signal that is detected, phagocytes reprogram their cellular metabolism differently, in order to support a proper response (61). The Gram-negative bacteria lipopolysaccharide (LPS), one of the best characterized exogenous stressors, induces global rewiring of the major metabolic pathways that dictate microbial killing processes, production of pro-inflammatory mediators and the control of cell viability (62–66). LPS-activated phagocytes increase glycolysis and the pentose phosphate pathway (PPP), which in turn provide ATP and metabolic intermediates that support protein translation and the biosynthesis of several macromolecules, such as the fatty acids, necessary for the expansion of secretory compartments (63, 65, 67–70). In the LPS-activated phagocytes, mitochondrial activity undergoes several alterations: i) the tricarboxylic acid (TCA) cycle is “broken” in two places, due to a reduction in isocitrate dehydrogenase (IDH) expression and a decline in succinate dehydrogenase (SDH) functionality; and ii) the electron transport chain (ETC) is suppressed, mainly due to the production of nitric oxide (NO) (63, 64, 66, 71). These changes shorten the cell’s lifespan (66) and allows the accumulation of key metabolites such as citrate, succinate and itaconate, which control the activity of transcription factors and effector molecules such as hypoxia-inducible factor 1-alpha (HIF-1α) (63) and the NLRP3 inflammasome (72).
Recent evidence suggests that oxPLs can modify the metabolism of phagocytes, as reported for adipose tissue macrophages (ATM) in obese animals (73) and for circulating and tissue-resident monocytes/macrophages in atherosclerotic mice (60). Prolonged exposure of LPS-activated macrophages to oxPAPC (referred to hereafter as LPS+oxPAPC) profoundly interferes with the behavior of the mitochondria, and induces a novel metabolic state, termed hypermetabolism, that enhances the production of pro-inflammatory cytokines (60) (Figure 1). Mitochondrial activity is potentiated in cells treated with LPS+oxPAPC, sustaining the TCA cycle and respiration. The expression of IDH is selectively increased, and NO production is severely impaired, thus preventing the loss and dysfunction of ETC complexes. In this manner, the intact TCA cycle leads to the export of citrate into the cytosol, where it is converted into acetyl-coA and oxaloacetate (OAA) by the enzyme ATP-citrate lyase (ACLY). In turn, OAA, probably through direct inhibition of prolyl hydroxylases (PDH) (63, 74), stimulates stabilization of HIF-1α, which potently increases the transcription and production of IL-1β. This entire process is fed by glutamine catabolism rather than by glycolysis, even though LPS+oxPAPC cells continue to conserve a high rate of glucose utilization, as occurs in response to LPS only. Notably, glutaminolysis also plays a key role in epigenetic reprogramming, which controls long-term macrophage responses such as their inflammatory polarization and trained immunity (75–77). This mechanism is further reinforced by acetyl-coA, formed by ACLY, which directly supports histone modifications and thereby facilitates the transcription of target genes (78–80). In addition, oxPAPC treatment is sufficient to potently increase the mitochondrial potential (Δψm) of phagocytes (60), which is the gradient of the electric potential on the inner mitochondrial membrane generated by ETC proton pumps (81). Δψm has been implicated in several cellular processes in addition to ATP synthesis: these include production of reactive oxygen species (ROS), cell proliferation, functionality of sirtuin deacetylases, cell renewal, and transcription factor activity (82–85). Thus, the conserved and increased mitochondrial fitness induced by oxPLs, possibly assisted also by production of a redox-balancing response (86), may prolong the lifespan of macrophages, as has been described in atheromas (87) and lung injuries (88) - and sustain their inflammatory signature. We propose that all of the metabolic effects induced by oxPLs work in concert, favoring the persistence of long-lived, detrimental, pro-inflammatory phagocytes and collectively contributing to the development of chronic inflammatory diseases.
Figure 1 oxPAPC boosts inflammatory responses in LPS-activated macrophages. Upon LPS encounter and/or during atherosclerosis development, oxPAPC induces a metabolic remodeling state in phagocytes, termed hypermetabolism, that is characterized by 1) boosting of mitochondrial activity via iNOS inhibition and ETC protection; 2) sustaining the TCA cycle with glutamine and upregulation of IDH; and 3) upregulating ACLY. These events result in the conversion of citrate to OAA, which in turn stabilizes HIF-1α and increases production of pro-IL-1β. OxPAPC is also transported into the cytosol via the endocytic module CD14-SYK-PLCγ, where it interacts with caspse-11/4 and induces oligomerization of this enzyme. oxPAPC may also interact with caspase-1, to form caspase-11/4/5-1 hetero-complexes, or to activate the NLRP3 inflammasome. These processes, termed hyperactivation, lead to IL-1β cleavage and release, but not to pyroptosis.
Inflammasome Activation by Oxidized Phospholipids
Phagocytes are equipped with receptors that allow them to respond to stress stimuli. In particular, inflammasomes are multiprotein platforms that comprise a sensor protein (i.e. NLRP3), inflammatory caspases (i.e. caspase-1) and an adapter protein (i.e. apoptosis-associated speck-like protein containing a caspase recruitment domain (CARD) – ASC); together, inflammasomes integrate various non-self and self-signals and induce the secretion of active IL-1β and IL-18 (89). Activation of inflammasomes involves two steps: i) a priming step, generally induced by exogenous molecules via TLRs (e.g., LPS and TLR4), that is necessary for the expression of pro-IL-1β (an inactive form of IL-1β) and inflammasome components; and ii) an activation step, whereby a repertoire of intracellular stimuli lead to inflammasome assembly and enzymatic activation of dedicated caspases, resulting in the processing and release of IL-1β through a lytic cell death program (pyroptosis). Typically, perturbations in homeostasis of the cytosolic compartment, such as organelle dysfunction (90–93), ROS production (94, 95), ion flux (96–98), and metabolic alterations (99), prompt “canonical” activation of the NLRP3 inflammasome, while direct recognition of intracellular LPS by caspase-11/4/5 triggers “noncanonical” activation of the inflammasome (100–102). In this latter pathway, LPS elicits oligomerization of caspase-11/4/5, and its activation by auto-proteolytic cleavage (103); this then induces plasma membrane pore formation via gasdermin D (GSDMD) (104, 105) and subsequent potassium efflux (106) that, in turn, causes NLRP3 inflammasome activation, pyroptosis and IL-1β secretion.
Extracellular oxPLs can reach the cytosol via plasma membrane receptors such as scavenger receptors (107). As with LPS (108), oxPAPC is also a cargo for CD14 (57), which induces internalization of the oxPAPC, and triggers an endocytic process that is mediated by phospholipase C γ (PLCγ) and spleen tyrosine kinase (SYK). How oxPAPC leaves the endosome and enters the cytosol is a mystery. We suggest that other oxPL-specific receptors, such as Transmembrane Protein 30A (TMEM30A) (109) mediate this relocation, but we cannot rule out the possibility that the oxPAPC itself alters the composition of the endosomal membrane and provokes its own leakage from intracellular organelles into cytosol (110). Additionally, oxPLs can be produced intracellularly in response to cellular stress. For example, a recent report showed in a model of age-related macular degeneration that retinal pigmented epithelium cells produce oxPAPC, which supports their pro-inflammatory activity and their role in the development of pathology (111).
Once in the cytosol, oxPAPC binds caspase-11/4/5 and triggers an atypical inflammasome activation, culminating in active release of IL-1β, in the absence of pyroptosis (56) (Figure 1). This process, called “hyperactivation”, is critical not only for establishing local long-term inflammation, but also for promoting a strong adaptive immune response (56, 112). The persistence of IL-1β-producing DCs in lymph nodes or in the aortic wall (113), can boost T cell activation, proliferation, and Th1/Th17 polarization, thereby further sustaining local and systemic chronic inflammation.
Inflammasome activation governed by hyperactivation differs from non-canonical inflammasome activation driven by LPS. In fact, LPS and oxPAPC are believed to interact with different domains of caspase-11/4/5, and differentially modulate the downstream effects of this enzyme (56). The highly hydrophobic lipid A moiety of LPS binds the CARD domain of caspase-11/4/5, where basic residues are required for interaction with the phosphate head groups of lipid A (102). Upon engaging LPS, caspase-11/4/5 undergoes oligomerization and activation. However, the exact nature of interactions between oxPAPC and caspase-11/4/5 are still debated (56, 114). The first study on oxPAPC-caspase-11/4/5 of Zanoni et al. using surface plasmon resonance and pull-down approaches, reported that oxPAPC binds the catalytic domain of caspase-11/4/5, and not its CARD domain (56), which enables oxPAPC to promote caspase-11/4/5 oligomerization but does not trigger its enzymatic activity (56). Later on, Chu et al. confirmed the interaction between oxPAPC and caspase-11/4/5, but they found that oxPAPC competes with LPS for the CARD domain of caspase-11/4/5, thus preventing downstream LPS-initiated signaling (114). Although more experiments will be needed to unveil the complex nature of the interactions between oxPAPC, LPS and caspases, a possible explanation for the discrepancies described in the previous studies is that individual oxPAPC constituents bind caspase-11/4/5 in diverse positions, with different affinity and via more than one mechanism. In particular, oxPAPC’s interaction with proteins occurs via at least two mechanisms. Electrophilic oxPAPC components such as 1-palmitoyl-2-(5, 6-epoxyisoprostane E2)-sn-glycero-3-phsphocholine (PEIPC) covalently bind cysteine residues and modulate the activity of their protein targets. This type of interaction has been previously established for H-Ras (115), transient receptor potential cation channel, subfamily A, member 1 (TRPA1) (30), and for Kelch-like ECH-associated protein 1 (Keap-1) (116). Of note, no cysteine residues are present in the CARD domain of murine as well as human caspase-11/4/5 (117), but such residues are relatively abundant in its catalytic subunit. These data support the observation that oxPAPC selectively interacts with the catalytic portion of caspase-11/4/5 rather than competing with LPS for binding to the CARD domain (56). Alternatively, oxPAPC components that incorporate a terminal γ-hydroxy (or oxo)-α,β-unsaturated carbonyl in their sn-2 chain interact with proteins via electrostatic interactions. For example, positively charged residues in the scavenger receptor CD36 are necessary for interactions of the receptor with 1-palmitoyl-2-(5-keto-6-octene-dioyl)-sn-glycero-3-phosphocholine (KOdiAPC) (118, 119). These interactions mirror LPS binding mechanisms identified for LPS binding protein (LPB) (120), caspase-11/4/5 (102), and the newly discovered intracellular LPS receptor guanylate-binding protein 1 (GBP1) (121), which have also been implicated in the interaction of oxPAPC with caspase-11/4/5 (114).
The oligomerization of caspase-11/4/5 induced by oxPAPC is sufficient to stimulate the NLRP3 inflammasome, even in absence of its catalytic activity. Potassium efflux, a downstream effect of caspase-11/4/5 activation, is not required for IL-1β release from oxPAPC-treated DCs (56), which suggests that “silent” caspase-11/4/5 aggregates can also work in other ways to activate NLRP3 inflammasome.
oxPAPC also directly binds caspase-1 (56), as was identified in RAW 264.7 macrophages with use of tandem mass spectrometry (122). We postulate that the hetero-complexes are composed of caspase-11/4/5 and caspase-1, in which the lack of caspase-11/4/5 activity is balanced by the activity of caspase-1. Also, that engagement of caspase-1 by oxPAPC can bypass the requirement for caspase-11/4/5 to start or sustain inflammasome activation. Indeed, after oxPAPC administration, primed DCs that are caspase-11-deficient can decrease - but not abolish - levels of IL-1β, while those that are caspase-1-deficient completely lose the ability to secrete IL-1β (57). Based on this finding, we hypothesize that the oxPAPC-caspase-1 complex can stimulate NLRP3 assembly and activation. However, we cannot exclude the possibility that certain oxPAPC components, depending on their concentration and the responding cell type, can trigger NLRP3 activation also in “canonical mode” (58), through ROS production (58) or metabolic alterations (58, 60).
Once activated by oxPAPC, neither caspase-11/4/5 nor the NLRP3 inflammasome provoke pyroptosis, but the cell nonetheless acquires the ability to secrete IL-1β. How this cytokine is secreted from living cells is unclear, although GSDMD pores are reportedly implicated in this process (59). The pores form small channels for the secretion of cytosolic cytokines, but the lack of a secondary stimulus, such as potassium efflux (see above), may dampen the lytic death program (56, 59). The cell may also activate a repair mechanism that recruits the endosomal sorting complex required for transport (ESCRT) machinery to the site of membrane damage, and eliminate GSDMD pores from the plasma membrane in the form of ectosomes (121). The rapid turnover of the GSDMD pores allows IL-1β secretion but prevents them from causing extensive plasma membrane damage, which thereby protects the cell from pyroptosis. The effects of oxPAPC on mitochondrial activity (see previous paragraph) may also interfere with the mitochondrial damage that is induced by gasdermins (123), and thus may protect the cell from death. Moreover, oxPAPC-potentiated mitochondrial metabolism can lead to accumulation of specific metabolic intermediates that can alter GSDMD functionality. For example, fumarate reacts with GSDMD at critical cysteine residues to form S-(2-succinyl)-cysteine, thwarting its capacity to induce cell death (124). As discussed above for caspase-11/4/5 binding, we speculate that oxPAPC also directly interacts with GS-DMD via thiol groups, thus mimicking the effect of cysteine-modifying drugs such as disulfiram, which block GSDMD pore formation (125).
Lastly, fatty acid epoxycyclopentenone, a sn-2 moiety identified in some oxPAPC components, induces caspase-8 activation and IL-1β secretion (116). Caspase-8 has emerged as a new player in inflammasome induction (89): it participates in an alternative inflammasome activation pathway in human monocytes, wherein TLR engagement is sufficient to trigger inflammasome activation and IL-1β release, without pyroptosis (126). Of note, murine macrophages exposed to oxPAPC for a long time also acquire this capacity after they are stimulated by LPS only - the cells rapidly secrete high amounts of IL-1β, but preserve their viability (60). This phenotype is largely regulated by the metabolism remodeling induced by oxPAPC that boosts mitochondrial activity and favors the accumulation of metabolites; this, in turn, controls transcriptional and epigenetic programs (see previous paragraph). Nevertheless, oxPAPC could also alter the signaling hub mediated by caspase-8, enhance LPS-dependent responses and reshape NLRP3 activity. Thus, although further work is needed to understand whether or not oxPAPC interacts with human and murine caspase-8, and how it does so (directly or indirectly), oxPLs emerge as possible pleiotropic modulators also of alternative inflammasome pathways in both murine and human phagocytes.
Atherosclerosis: Roles of Oxidized Phospholipid-Activated Phagocytes
Atherosclerosis leads to a chronic and progressive deposition of fatty and fibrous material in arterial walls. This inflammatory condition can lead to a number of serious pathologies known collectively as cardiovascular diseases (CVDs) – these include coronary heart disease, hypertension and stroke (127). Circulating LDLs that accumulate in the intima layer of blood vessels and undergo oxidative modifications are the main initiators of atherosclerosis. However, other stressors may also contribute to this process. For instance, subclinical endotoxemia, which results from gut mucosal leakages induced during chronic infections, obesity, and ageing, may sustain the development of atherosclerosis (128, 129). oxLDLs start an enduring inflammatory reaction that involves multiple cell types, including endothelial cells, smooth muscle cells, resident macrophages and monocytes (127). In particular, activated macrophages proliferate locally (87, 130), and later, monocytes recruited from bloodstream sustain plaque formation (130). These phagocytes produce inflammatory mediators, and favor accumulation of lipid and lipid-laden cells called foam cells. Foam cells originate from macrophages as well as monocytes (130), and by metaplasia of smooth muscle cells (131), gather and progressively form a lipid-rich necrotic core, which increases over time. Non-immune cells also contribute to inflammation and deposition of extracellular material and promote plaque instability and rupture, with severe risk of thrombosis or other complications (132).
Hyperlipidemic humans and animals exhibit high levels of oxPLs, derived from oxLDLs and dead cells in their plasma and atherosclerotic plaques (133–135). These modified molecules control plaque inflammation and progression, and play a key role in the etiology of atherosclerosis (Figure 2). Selective oxPL neutralization, mediated by the ectopic expression of E06 antibody (136) single-chain variable fragment (E06-scFv) in high-fat fed mice that are deficient in LDL receptor (LDLR), results in severe reduction and slowing of pathology (21). In this hypercholesterolemic model, E06-scFv binds oxPLs but not unoxidized PLs, impairs pro-inflammatory macrophage activation in the aorta, and diminishes the in locus recruitment of monocytes and lymphocytes – this in turn reduces local and systemic inflammation. Thus, E06-scFv decreases the formation of atherosclerotic lesions and prevents valve dysfunction (21). These findings are supported by a report that quenching of reactive dicarbonyls also reduces atherosclerosis in LDLR-deficient mice (137). Indeed, oxidative reactions in the sn-2 unsaturated chain of PLs may generate highly reactive dicarbonyl moieties such as 4-oxo-nonenal (4-ONE), malondialdehyde (MDA) and isolevuglandins (IsoLGs) (138), which covalently bind proteins and other macromolecules. Thus, use of the dicarbonyl scavenger 2-hydroxybenzylamine (2-HOBA) to block the production of molecular adducts induced by oxPL species reduces systemic inflammation and increases plaque stability (137).

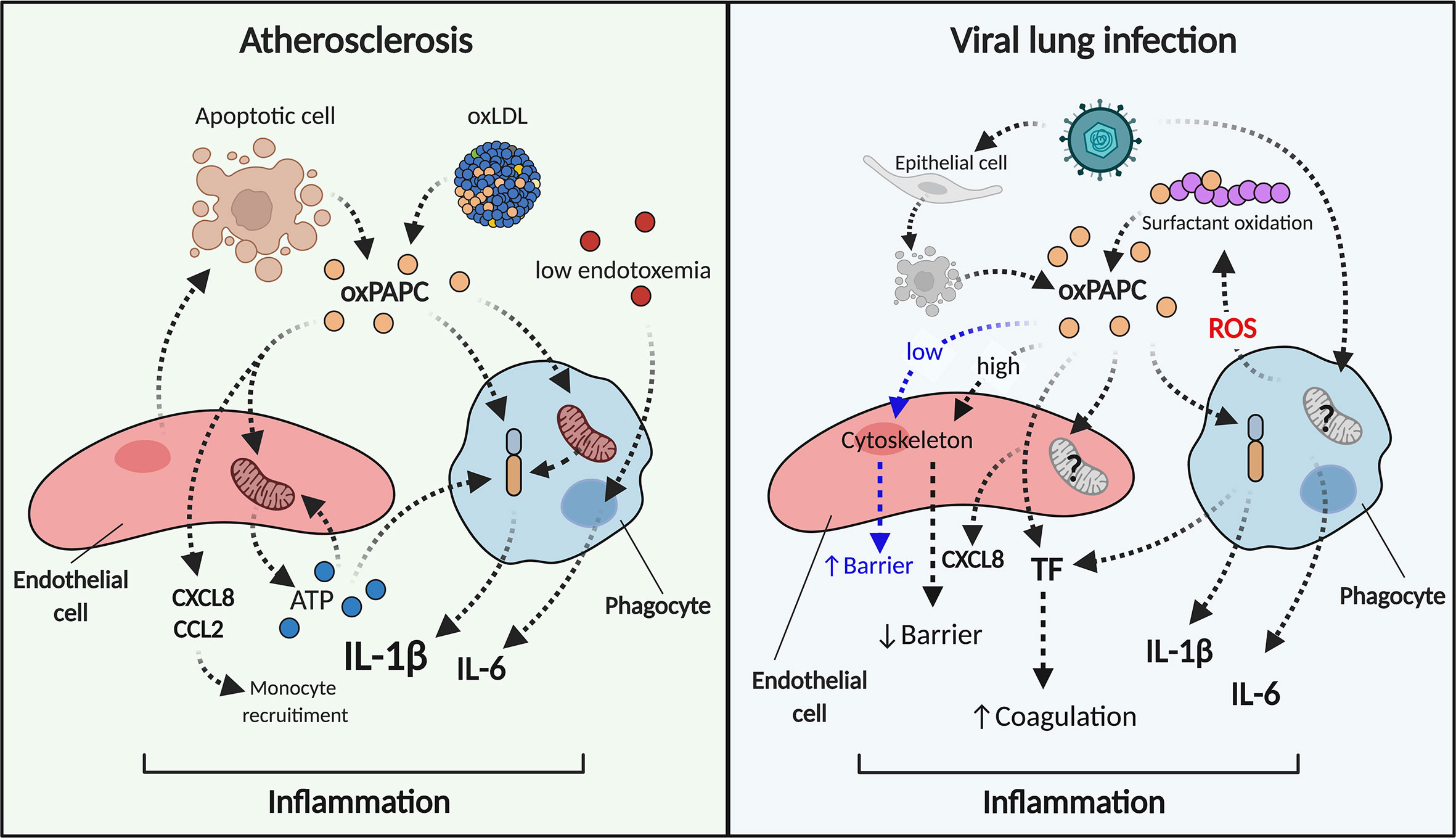

Figure 2 oxPAPC triggers and sustains inflammation in atherosclerosis and viral lung infections. During atherosclerosis (left) oxPAPC released from dying cells or contained in oxLDL induces the release of chemokines and ATP from endothelial cells (red). Phagocytes (blue) become hyperinflammatory, modify their metabolism, and produce pro-inflammatory cytokines such as IL-1β and IL-6. IL-1β can also be induced by extracellular stressors such as ATP. In this manner, the endothelial cell-phagocyte circuit sustains inflammation. During viral infections (right), oxPAPC released from infected-dead cells or from surfactant oxidation interacts with endothelial cells (red) that produce chemokines and TF. Low doses of oxPAPC (early steps of infection) elicit barrier function, while high doses of oxPAPC (late steps of infections) disrupt the endothelial barrier. Phagocytes (blue) activate inflammasome-dependent responses, secrete cytokines and TF and lead to inflammation and coagulation.
Interfering with the metabolic program induced in phagocytes also indirectly dampens the pro-atherogenic effects of oxPLs. oxPAPC induces glutamine utilization, ACLY-dependent OAA accumulation, and HIF-1α stabilization, and also boosts IL-1β expression. Systemic administration of glutaminolysis or ACLY inhibitors in hypercholesterolemic mice reduces early plaque formation and decreases the production of IL-1β by macrophages in the aorta (60). Additionally, peripheral blood transcriptional signatures from Framingham Heart Study (FHS) (139) participants with pro-atherogenic lipidemia reveal an enrichment of genes that control the same metabolic pathways described for oxPAPC-treated murine macrophages (60) - this indicates that similar metabolic rearrangements are shared between humans and mice, and that metabolic intervention could be a new clinical tool for treating atherosclerosis.
IL-1β produced by myeloid cells is a crucial mediator of atherosclerosis progression (140–142): it acts systemically and in the plaque on bystander cells to augment expression of adhesion molecules and proliferation (143–146). The essential role of this cytokine in atherosclerosis and CVDs has been recently highlighted in the Canakinumab Anti-Inflammatory Thrombosis Outcomes Study (CANTOS) trial: treatment with a monoclonal antibody against IL-1β (canakinumab) proved to be protective against cardiovascular dysfunctions in patients with a history of myocardial infarction (MI) and elevated high-sensitivity C-reactive protein (CRP) (147). Single-cell transcriptome analyses of human and murine atherosclerotic lesions have mapped immune populations that participate in plaque inflammation, and underscore the major role of IL-1β (148–151). Of note, lipid-laden macrophages (described as “foamy” BODIPYhiSSChi or TREM2hi cells) are not pro-inflammatory, while “non-foamy” CCR2+ macrophages are strongly enriched in inflammatory transcripts, including for IL-1β (148, 149, 151). Notably, macrophages treated with oxPAPC do not acquire a foamy phenotype and hugely upregulate IL-1β (60). Based on these reports, we speculate that the phenotype of inflammatory lesional non-foamy macrophages is driven by the metabolic program induced by oxPLs. And despite our lack of knowledge about the exact mechanisms that control the cellular and molecular dynamics induced by oxPLs in atheroma, we also propose that IL-1β release from these cells is due either to the direct action of oxPLs on macrophages (hyperactivation) or to canonical inflammasome activation. In the latter case, progressive accumulation of extracellular material such as cholesterol crystals (140) may provide the initiation signals for the activation of the NLRP3 inflammasome. In addition, macrophages and endothelial cells can form a functional circuit controlled by oxPLs (Figure 2). Indeed, oxPLs reportedly trigger the production of chemotactic mediators such as CCL2 and CXCL8 from endothelial cells (152–155), and recruit monocytes, thereby increasing the number of oxPL-responsive cells. oxPLs also stimulate purine release from endothelial cells and, via a metabolic reprograming that is controlled by mitochondrial methylenetetrahydrofolate dehydrogenase/cyclohydrolase (MTHFD2), also compensate for loss of ATP (156). The extracellular ATP released by endothelial cells can, then, activate the NLRP3 inflammasome in macrophages and trigger IL-1β secretion (89). We also posit that the nature and magnitude of inflammasome activation reflects the progression status of the atherosclerotic plaque: thus, following a dramatic increase of extracellular material in the arterial wall, a prevalence of hyperactivated macrophages is observed at early stages, and then a slow shift toward a pyroptotic phenotype takes place at later stages.
Besides production of IL-1β and other pro-inflammatory mediators, phagocytes carry out numerous functions that are dysregulated in atherosclerosis. For example, removal of dead cells is an essential anti-inflammatory process that slows down the progression of atherosclerotic lesions (157). oxPAPC alters actin polymerization in macrophages, and thereby reduces their phagocytic activity (158). oxPLs may decrease the clearance of dead cells, and thus favor inflammation and plaque widening. Lastly, long-lived inflammatory phagocytes induced by oxPLs promote and sustain the activation and proliferation of CD4+ T cells (56, 113), which in turn maintain chronic inflammation. This effect is further fueled by the capacity of some oxPAPC components, such as 1- palmitoyl-2-glutaroyl-sn-glycero-3-phosphorylcholine (PGPC), to enhance the ability of antigen presenting cells to migrate to the draining lymph nodes and thus potentiate T cell-dependent responses (112).
In sum, the above findings collectively establish the role of oxPLs in the induction and progression of atherosclerosis, but the proposed cellular and molecular mechanisms that underlie these effects remain to be verified.
Lung Infections: Perspectives on a New Role of Oxidized Phospholipid in COVID19
Pulmonary surfactant forms a film at the alveolar air-liquid interface and lowers surface tension, thereby preventing atelectasis during breathing. Surfactant is a complex mixture of lipids and proteins, whose primary components (90-80%) are saturated PLs (such as 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC)), which are active tension-lowering agents and are unreactive to air oxidation (7–9). Surfactant also contains (4-6%) unsaturated PLs (such as PAPC (7–9)) that can be oxidized (as discussed above). Under physiological conditions, surfactant is protected from atmospheric oxygen by antioxidant processes and by its rapid turnover. The first mechanism is mediated by specific proteins, for example surfactant protein A (SP-A) (159). The second one is carried out by type II pneumocytes and alveolar macrophages, which control the production/recycling and degradation of surfactant respectively (160–162).
Under stress, surfactant/lung homeostasis can be altered, leading to oxidation of PUFA moieties contained in pulmonary PLs. Several infections and treatments, such as acid aspiration, influenza viruses (H5N1, H1N1 and H3N2), Monkeypox virus, Yersinia pestis, Bacillus anthracis and severe acute respiratory syndrome coronavirus (SARS-CoV) (20, 163) can induce pulmonary oxPAPC accumulation, which is associated with a detrimental pro-inflammatory response, acute injury, and organ failure (20) (Figure 2). These detriment effects are triggered primarily by pathogen-induced generation of ROS from alveolar macrophages. Indeed, the genetic absence of NCF1 (neutrophil cytosolic factor 1) (a key component of the NADPH oxidase complex that is required for ROS production) in mice treated with H5N1 virus reduces generation of oxPL in the lung and alleviates lung dysfunctions (20). Once produced, oxPAPC modulates the inflammatory responses of macrophages, and boosts the production of cytokines such as IL-6 (20). oxPAPC also acts on endothelial cells. Although low doses of oxPAPC enhance the function of the lung endothelial barrier by remodeling the cytoskeleton and tightening cell-cell contacts (164–167), higher doses of oxPAPC, or its fragmented products, have opposite effects, disrupting endothelial barrier integrity (168, 169). This explains how pathogen-induced damage, inflammatory mediators secreted by macrophages and endothelial cell alterations can drive acute lung injury (ALI).
Coronavirus disease 2019 (COVID-19) that is caused by SARS-CoV-2 has become a global pandemic that threatens the lives of hundreds of millions of individuals around the world. SARS-CoV-2 causes mild respiratory symptoms, including fever and cough; but in some subjects it can degenerate to viral pneumonia and acute respiratory distress syndrome (ARDS). Uncontrolled pathology can lead to a cytokine storm, multi-organ failure, septic shock and coagulation abnormalities, which can lead to severe thromboembolic events (170).
SARS-CoV-2 shares 79.6% genomic sequence identity with SARS-CoV, and these two viruses likely share many features of their biology and pathogenesis (170). Notably, quantitative lipidomic and metabolomic profiling of plasma from COVID-19 patients reveals profound metabolic dysregulation, with enhanced oxidative stress and alteration of PUFA-PC homeostasis (171). These data suggest that oxPLs, which accumulate during SARS-CoV infections, also form during SARS-CoV-2 infections, and play a central role in maintaining harmful inflammatory responses. COVID-19 patients show high neutrophilia (172, 173). Since neutrophils are the major producers of ROS (174), we hypothesize that surfactant composition is extremely altered with the massive oxPAPC formation during SARS-CoV-2 infections. Moreover, high levels of IL-1β and IL-6 have been identified in SARS-CoV-2-infected subjects (175), and single-cell transcriptomic analysis of peripheral blood in COVID-19 patients also show increased subsets of IL-1β-producing monocytes (176). In addition, pulmonary arterial thrombosis has been detected in autopsy from SARS-CoV-2 patients (177, 178). In fact, all of these effects can be credited to inflammasome activation (179), which also drives the release of tissue factor (TF) (180, 181), an initiator of the coagulation cascade. Thus, oxPAPC, as an inflammasome modulator, could elicit IL-1β and TF, and coordinate inflammation as well as hemostasis during COVID-19 infection. Indeed, CD14, that regulates inflammasome activation in phagocytes in response to oxPAPC (182), as been proposed as a possible therapeutic target against COVID-19 (183). Lastly, phagocytes infected with SARS-CoV-2 remodel their metabolism and activate HIF-1α to sustain the cytokine storm (182). Accordingly, we propose that the oxPAPC that is produced during viral infections could also act on cellular metabolism, favoring ROS production – in a feed-forward loop. Although not yet validated experimentally, we propose that this detrimental loop feeds PUFA-PC oxidation and controls transcriptional responses via regulation of metabolite production.
Conclusions and Future Directions
Immune cells control tissue homeostasis and respond rapidly to noxious stimuli to maintain physiological conditions. oxPLs are endogenous stressors that reprogram phagocyte metabolism and boost their pro-inflammatory responses, inducing a novel hyperinflammatory phenotype that sustains chronic inflammatory diseases. Several studies focused on oxPAPC have elucidated several molecular events that underlie its effects on phagocytes, but some questions remain unresolved: 1) Given that oxPAPC consists of a mix of biomolecules, and single oxPAPC components can have redundant or even antagonistic effects, what are the metabolic and/or inflammatory responses of unique oxPAPC species? 2) What are the receptors/targets/pathways of oxPAPC that are necessary for inducing its metabolic and/or inflammatory activities? 3) How does oxPAPC modulate the responsivity of phagocytes to other endogenous or exogenous stressors? 4) How does oxPAPC sustain cell viability when the NLR3 inflammasome is activated? 5) Does oxPAPC modulate other processes in phagocytes, such as differentiation, proliferation, motility or migration?
Since oxPLs are virtually always present during inflammation (i.e. through neutrophil-dependent ROS release or tissue damage), we anticipate that identifying their biological targets will be vital for creating new therapies against pathologies initiated by exogenous agents, such as sepsis or cytokine storm, or by endogenous moieties, such as atherosclerosis.
Author Contributions
MG conceived and wrote the manuscript, and drew the figures. IZ was involved in discussing the contents of the paper and contributed to the writing. All authors contributed to the article and approved the submitted version.
Funding
IZ is supported by NIH grants 1R01AI121066, 1R01DK115217, and NIAID-DAIT-NIHAI201700100. IZ holds an Investigators in the Pathogenesis of Infectious Disease Award from the Burroughs Wellcome Fund.
Conflict of Interest
IZ reports compensation for consulting services with Implicit Biosciences.
The remaining author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
