Isotopic (δ 2H and δ 13C) tracing the provenance and fate of individual fatty acids fueling migrating animals: A case study of the monarch butterfly (Danaus plexippus)

Introduction: Among long-distance migratory insects, the monarch butterfly (Danaus plexippus) is one of the most iconic, whose journey is fueled by nectar from flowering plants along the migratory route which may involve up to 3,500 km. Understanding how and where monarchs obtain their dietary resources to fuel migratory flight and ensure overwintering stores would provide new insights into the migratory strategy of this species and subsequently help focus conservation efforts.

Methods: This pilot study was designed as a first attempt to assess the composition, dynamics, and isotopic (δ²H, δ¹³C) composition of essential and non-essential fatty acids (FA) acquired or manufactured de novo from larval host milkweed (Asclepias spp.) by monarch butterflies and from adult emergence to overwintering.

Results: Data from controlled laboratory isotopic tracer tests suggested that adult monarchs convert their dietary energy mainly into 16:0 and 18:1 fatty acids and store them as neutral lipids in their abdomen. FA isotopic composition reflects not only dietary sources but also subsequent isotopic fractionation from metabolism. On the other hand, δ²H values of essential omega-3 fatty acid alpha-linolenic acid (ALA) correlated with δ²H_Wing, as markers of an individual’s geographic origin and indicated the importance of larval diet. Additionally, in wild-type females, high isotopic fractionation in δ¹³C_ALA between neutral and polar lipids might indicate increased bioconversion activity during gravidity. Finally, δ²H_LIN showed positive H isotope fractionation from larval dietary sources, indicating that catabolic processes were involved in their manufacture. Furthermore, δ²H_LIN showed a negative correlation with δ²H_Wing values, which could potentially be useful when investigating individual life-history traits, such as migratory catabolic efforts or periods of fasting.

Discussion: This interpretation was supported by significant larger variations in δ²H_LIN and δ²H_LIN overwintering monarchs compared to other FA. Altogether, our results provide the first evidence that the H isotopic analysis of individual fatty acids in migrating and overwintering monarchs can be used to infer the nutritional history of individuals including the provenance of nectaring sites used to fuel key life history events.

Introduction

Migratory animals have evolved numerous morphometric, physiological, and behavioral adaptations to successfully achieve seasonal habitat movements, often involving impressive transcontinental passages (Dingle, 2014; Hobson et al., 2019). Independent of biome, vertebrate, and invertebrate adult migrants using terrestrial and aquatic habitats fuel their migratory journeys using energy-dense lipids, mainly triacyclglycerols (storage lipids), which are acquired directly from diet or are synthesized de novo, for example, from carbohydrates (McWilliams et al., 2004). Fats are typically accumulated and stored to fuel the entire migratory episode, or are obtained at stopover refueling sites. The dietary quality for animals at pre-migratory staging sites and along stopovers used during migration, along with the ability of animals to convert food into fuel, are crucial factors influencing the overall success of their migration cycle (Lennox et al., 2016).

Among long-distance migratory insects, the monarch butterfly (Danaus plexippus) is the most iconic. The eastern population of this species in North America undergoes a continental-scale fall migration of up to 3,500 km to overwinter in high altitude (3,000–4,000 m.a.s.l.) colonies in the oyamel (Abies religiosa) forests of the transvolcanic belt of central Mexico (Slayback et al., 2007). After reaching the overwintering colony, monarchs fast and rely on their accumulated fats to sustain them from December to March. Only successful gravid females begin re-migration north in the springtime reaching as far as Texas where they oviposit on milkweed (Asclepia sp.) plants. Successive generations continue northward, making use of newly available milkweed until the late summer cohort of individuals is produced, many of which migrate south to Mexico. The monarch’s fall migratory journey is fueled by nectar (Brown and Chippendale, 1974; Brower et al., 2006) obtained from flowering plants along the migratory route (Beall, 1948; Gibo and McCurdy, 1993; Brower et al., 2006). It has been proposed that nectaring resources in Texas provide the bulk of the lipids required to sustain both overwintering and subsequent reproduction the following spring (Brower, 1985). However, in a year of record drought in Texas (Brower et al., 2015) found that butterflies collected there contained lipid contents well below normal, while butterflies collected from overwintering sites had higher contents. They hypothesized that there should be other areas in Mexico where they could have access to abundant nectar. Recently, Hobson et al. (2020) provided hydrogen isotopic evidence contrasting total lipid δ²H and wing δ²H values that suggested migrant monarchs acquire overwintering storage lipids much closer to their winter roost sites than expected, rather than gradual by accumulation along the migratory route. Understanding where and how monarchs obtain the dietary fat resources to fuel migratory flight and to ensure overwintering stores would provide new insights into the migratory strategy of this species and subsequently inform conservation strategies (Brower et al., 2006).

Besides non-essential saturated and monounsaturated fatty acids composing the majority of energy storage in lipids, attention has turned to polyunsaturated fatty acids (PUFA) in animal nutritional ecology, and especially omega-3 polyunsaturated fatty acids (n-3 PUFA), such as the essential alpha-linolenic acid (18:3n-3, ALA), as well as the conditionally indispensable eicosapentaenoic acid (20:5n-3, EPA) and docosahexaenoic acid (22:6n-3, DHA), which are physiologically crucial but of limited dietary availability in nature (reviewed by Twining et al., 2016). Animals vary in their ability to convert essential ALA into EPA and DHA but they cannot synthesize ALA de novo. Currently, our understanding of animal lipid biochemistry and physiology is biased to marine food webs (Baird, 2022), with far less information available for freshwater, terrestrial, or insect food webs (but see Twining et al., 2016; Génier et al., 2021; Parmar et al., 2022). Little attention has been given to understanding the interactions between the physiological demands of long-distance migration (e.g., for insects, birds), spatial origin of lipids and subsequent storage, utilization, and conservation and dynamics of PUFA and the essential precursors such as linoleic acid (18:2n-6, LIN) and ALA.

Increasingly, efforts are underway to gain a better understanding of the spatio-temporal environmental conditions experienced by migrating monarchs (and other animals) during migration with respect to understanding population demographic trends and conservation (Saunders et al., 2019; Taylor et al., 2019). The findings of Hobson et al. (2020) were based on H isotopic measurements of “total” lipids in migrant monarchs, which for adult monarchs predominantly reflects the abundant non-essential oleic (18:1n-9) and palmitic acids (16:0) (Cenedella, 1971). Here we explore the idea that fatty acid profiles combined with compound-specific fatty acid isotopic (δ¹³C and δ²H) analyses of storage lipids could provide new information on energy provenance because lipids are composed of carbon and hydrogen atoms derived from spatially-distributed plant nectars [see West et al. (2008, 2010) regarding plant-based H and C isoscape patterns]. We hypothesized that the essential PUFA (i.e., ALA and LIN) would be derived exclusively from the larval milkweed host plant diet, because no notable amounts are taken up by the nectar feeding adults, and these PUFA should retain the isotopic composition of their geographical provenance (O’Brien et al., 2000; but see Levin et al., 2017), whereas non-essential fatty acids, such as palmitic acid (16:0), stearic acid (18:0), or oleic acid (18:1n-9) would be synthesized from dietary sources like nectar taken up along the migratory route, and simultaneously being used during flight. However, carbon and hydrogen isotope discrimination of stored fatty acids through mobilization kinetics (e.g., burning of fat) and by other biochemical processes are possible and could complicate isotopic-based inferences of these fatty acid spatial origins (Soto et al., 2013). Regardless, the measurement of the stable isotopic composition of stored lipids could be a powerful new method to infer origins of nectaring sites of migratory insects and potentially (re)fueling sites for migratory birds, other insects, and vertebrates (Hobson et al., 2020).

We designed this pilot study in a first attempt to assess the composition, trophic dynamics (i.e., trophic discrimination factors), and isotopic (δ²H and δ¹³C) structure of essential and non-essential fatty acids acquired or manufactured de novo from larval hostplant milkweed by monarch butterflies from adult emergence stage to overwintering. We used controlled captive experiments to raise monarchs from eggs on swamp (A. incarnata) and common (A. syriaca) milkweed hostplants to the eclosed adult butterfly. This experiment allowed us to examine stable isotopic relationships between the natal host plant and larval dietary fatty acids and those in newly emerged adults. With later diet-switching of newly eclosed adults to an isotopically spiked (δ²H) nectar we were able to infer which FAs were produced de novo and which were obtained directly via the larvae from the larval milkweed hostplant.

Using analyses of polar and neutral lipids, the compositional and isotopic structure of fatty acids derived from the head and thorax (i.e., functional compartments) were compared to those in the abdominal fat body (i.e., storage compartment) of the captive-raised monarchs. We examined the lipid composition and isotopic (δ¹³C and δ²H) structure of a small sample (n = 20) of wild monarchs obtained from an overwintering colony in Mexico in February 2022, and correlated wing δ²H measurements (e.g., proxy for migratory distance) to individual fatty acids to determine whether δ²H values of larval-derived essential fatty acids also provided information on spatial origins of individuals (Wassenaar and Hobson, 1998; Flockhart et al., 2013). The isotopic structure (δ¹³C and δ²H) of non-essential fatty acids, which were presumably derived from southern nectaring sites close to the winter colonies (Hobson et al., 2020) were examined to evaluate their potential for spatial inferences of where monarchs acquired the key storage lipids required to sustain overwintering.

Materials and methods

Captive rearing and tracer experiments

In a first experiment, swamp milkweed was grown in planter pots in a greenhouse and randomly assigned to two groups (10 pots per treatment). One group was watered for 4 weeks using tap water (∼δ²H-54‰) and the other on water spiked with 99% deuterated water (Sigma-Aldrich) to achieve a watering δ²H value of ∼+350‰. Milkweed leaves from these spiked and tap water groups were thereafter used to raise monarchs from eggs through the larval stage and pupa to the eclosed adult monarch. Eclosed adult monarchs (n = 8 per treatment) were sampled immediately after emergence without any subsequent nectaring.

In a second experiment, monarchs were raised on a single batch of wild-sourced common milkweed from Manitoulin Island, ON, Canada. Similar to those raised in captivity on the swamp milkweed, we sampled eclosed adults without any nectaring. A second group of the emerged adults were kept for seven additional days and fed a ²H spiked nectar consisting of a 3:1 water:sugar solution using spiked dilution water (δ²H = ∼+350‰).

Adult monarchs were euthanized and stored in a −80°C freezer and freeze-dried before conducting isotopic analyses. Subsamples of milkweed leaves representing (equally) all treatments were freeze-dried and powdered for subsequent stable isotope and lipid analyses.

Overwintering monarchs (Mexico)

A small sampling of 20 (10 M and 10 F) overwintering monarchs were collected live in late January 2022, at the Sierra Chincua wintering colony in Michoacan, Mexico. These wild monarch samples were transported cold on the collection day to the UNAM-Campus Morelia where they were euthanized and immediately freeze dried. These monarchs were stored whole at −20°C before being transported to the laboratory for lipid composition and stable isotopic analysis.

Monarch wing H isotopic analyses

Samples (0.35 ± 0.02 mg) of monarch wing chitin were weighed into 3.5 mm × 5 mm silver capsules, placed in a Uni-Prep autosampler (Eurovector, Milan, Italy, Wassenaar et al., 2015) and subsequently analyzed in a Eurovector 3000 Elemental Analyzer, coupled to a Thermo Delta V Plus isotope ratio mass spectrometer (Bremen, Germany) in continuous flow mode at the University of Western Ontario. After the samples were loaded, the Uniprep autosampler was heated to 60°C and evacuated and subsequently flushed with dry helium to remove adsorbed atmospheric moisture from the samples. Two USGS keratin standards, CBS: Caribou Hoof Standard and KHS: Kudu Horn Standard were included every ten samples. Samples were combusted at 1,350°C using a glassy carbon reactor. Values of δ²H of non-exchangeable hydrogen were derived using the comparative equilibration approach of Wassenaar and Hobson (2003) and calibrated to Vienna Standard Mean Ocean Water (VSMOW) using CBS (±1.9‰ 1 SD, n = 18, accepted δ²H = −197.0‰) and KHS (±1.6‰, n = 17, accepted δ²H = −54.1‰). Overall (within-run) measurement error for CBS and KHS δ²H was <∼2‰.

For the laboratory experiments, the δ²H analyses of water were done using a DLT-100 laser spectrometer (ABB/Los Gatos Research, Mountain View, CA, USA) using laboratory standards INV1 δ²H = −217.7‰ and ROD3 δ²H = −3.9‰, respectively, to normalize delta values to the VSMOW-SLAP scale. Accuracy as determined by replicate analyses of samples and reference waters was <±1 and 0.1‰, respectively.

Fatty acid quantification and stable isotope analysis

Lipids of the selected monarch body tissues and milkweed hostplants were extracted as in Heissenberger et al. (2010) and the lipid content was determined gravimetrically. Briefly, freeze-dried monarch and milkweed samples were homogenized and mixed with chloroform:methanol (2:1 vol/vol) and after sonication, vortexed and centrifuged three times to remove non-lipid material. Solvent-extracted lipids were evaporated to a final volume of 1.5 mL under N₂ flow. Lipids were then separated into neutral lipids (NL), free-fatty acids (FF), and polar lipids (PL) using solid phase extraction (SPE; Bond Elut LRC–SI, Agilent Technologies, Santa Clara, CA, USA). The SPE columns were conditioned using hexane and loaded using 0.5 mL of the sample extract. NL were eluded using Chloroform:2-propanol (2:1 v/v), followed by elution of the FF using 2% acetic acid in diethyl ether and PL using methanol (Kaluzny et al., 1985). For fatty acid methyl ester (FAME) formation, lipid samples were incubated with a sulfuric acid:methanol mixture (1:100 vol/vol) for 16 h at 50°C, following the addition of KHCO₃ and hexane. Samples were shaken, vortexed, and centrifuged and the upper organic layers collected, pooled, and concentrated under N₂ gas flow.

All δ¹³C and δ²H analyses of FA were performed following the analytical methodology described previously (Pilecky et al., 2021a). Briefly, a Thermo Trace 1310 GC (ThermoFisher Scientific, Waltham, MA, USA) was connected via a ConFlo IV combustion or reduction interface (ThermoFisher Scientific) to an Isotope Ratio Mass Spectrometer (IRMS, DELTA V Advantage, ThermoFisher Scientific). FAMEs were separated using a VF-WAXms 30 m column, 0.32 mm ID, film thickness 1 μm (Agilent) and then for δ¹³C analysis oxidized to CO₂ gas in a combustion reactor, filled with Ni, Pt, and Cu wires, at a temperature of 1,000°C, or for δ²H analysis reduced to H₂ gas by passing through a high thermal conversion (HTC) ceramic reactor at 1,420°C.

Lipid samples were reference scale-normalized using three-point calibration with FAME stable isotope (Me-C20:0) reference materials (USGS70: δ¹³C = –30.53‰, δ²H = –183.9‰, USGS71: δ¹³C = –10.5‰, δ²H = –4.9‰, and USGS72: δ¹³C = –1.54‰, δ²H = +348.3‰). FA δ¹³C and δ²H values (δI_FA) were corrected for methylation according to the formula (Pilecky et al., 2021a):

$$\mathrm{\delta }{I}_{FA}=(\left(n+1\right)\times \mathrm{\delta }{I}_{FAME}-\mathrm{\delta }{I}_{MeOH})/n$$

Where δI_FAME are the δ²H or δ¹³C values of the measured FAME and δI_MeOH the δ²H or δ¹³C values of the methanol used during methylation and n equals the total number of H-/C-atoms of the FAME molecule. Values for δ¹³C are referenced to Vienna PeeDee Belemite (VPDB).

$$\mathrm{\delta }{}^{13}C_{FA}=\left(\frac{{}^{13}C/{}^{12}C_{Sample}}{{}^{13}C/{}^{12}C_{VPDB}}-1\right)\times 1000$$

Values for δ²H are standardized against Vienna Standard Mean Ocean Water (VSMOW).

$$\mathrm{\delta }{}^{2}H_{FA}=\left(\frac{{}^{2}H/{}^{1}H_{Sample}}{{}^{2}H/{}^{1}H_{VSMOW}}-1\right)\times 1000$$

Data analysis

All data and graphical analyses were performed in R (Version 4.1.0) using the packages rstatix, ggplot2, and ggpubr. Data were presented as mean ± standard deviation including propagated errors wherever applicable. A student’s t-test, or one-way ANOVA with Tukey post-hoc test was used for two or multiple group comparison, respectively. The Pearson method was used for linear correlation analysis. Z-scores for individual FA relative abundance (% of total FAME of a sample) were calculated by normalization to the global study mean and standard deviation within this study.

Results

Fatty acid profiles of milkweed, wild, and captive monarchs

Milkweed host plant leaves had an average lipid content of 120.5 ± 12.3 μg mg^–1 of dry weight. The most abundant FA in milkweed leaves were palmitic acid 16:0 (11.3 ± 6.6 μg mg^–1) and ALA (10.3 ± 5.8 μg mg^–1), followed by LIN (2.7 ± 1.5 μg mg^–1), 18:1n-9 (2.2 ± 0.9 μg mg^–1), 18:0 (1.6 ± 0.9 μg mg^–1), and 16:1n-7 (0.7 ± 0.6 μg mg^–1). Furthermore, only traces of 16:1n-9, GLA, 18:1n-7, and 14:0 could be identified.

For monarchs, the lipid content was dependent on the sample type (ANOVA, F_4,31 = 19.8, p < 0.001). The lipid content of overwintering wild monarchs was approximately double for females (628 ± 208 μg mg^–1) compared to males (313 ± 136 μg mg^–1, Tukey, p < 0.001). Adults eclosed under controlled laboratory conditions and without any subsequent nectaring began life with an average lipid content of 136 μg mg^–1 ± 52, and the abdomen had twice the lipid content (214 ± 54 μg mg^–1) of the head/thorax tissue (94 ± 10 μg mg^–1).

Neutral lipids (NL) were positively correlated with total lipids (R² = 0.5, p < 0.001). The marked increase in the NL fraction of the wild individuals was due to the accumulation of 16:0 and 18:1n-9. The phospholipid (PL) mass fraction was slightly higher in the captive monarch adults (13.8 ± 3.2 μg mg^–1) compared to the overwintering individuals (female: 9.7 ± 4.6 μg mg^–1, male: 10.6 ± 3.7 μg mg^–1), with head and thorax tissue particularly rich in PL (21.2 ± 9.7 μg mg^–1).

Mass fractions of LIN (t-test, p < 0.001), ALA (t-test, p < 0.001) and EPA (t-test, p < 0.001) were significantly higher in the captive monarchs compared to wild overwintering individuals. The EPA content did not differ (paired t-test, p = 0.75) between NL and PL, however, higher mass fractions were found in the newly emerged adults (∼0.4 μg mg^–1) compared to wild overwintering monarchs (∼0.1 μg mg^–1), as well as having higher mass fractions in the head/thorax tissue (∼0.4 μg mg^–1) compared to the abdomen (∼0.1 μg mg^–1). Other PUFA detected in trace amounts were gamma-linoleic acid (GLA, 18:3n-6), 20:3n-3, and 20:4n-6, however, no SDA or PUFA with >20 carbon atoms were found (Table 1 and Figure 1). In total, six fatty acids were found to be abundant enough to allow for compound-specific stable isotope analysis: 16:0, 16:1 (sum of all isomers), 18:0, 18:1 (sum of all isomers), LIN and ALA. The C and H isotopic composition of EPA could only be measured in the PL fraction.

TABLE 1

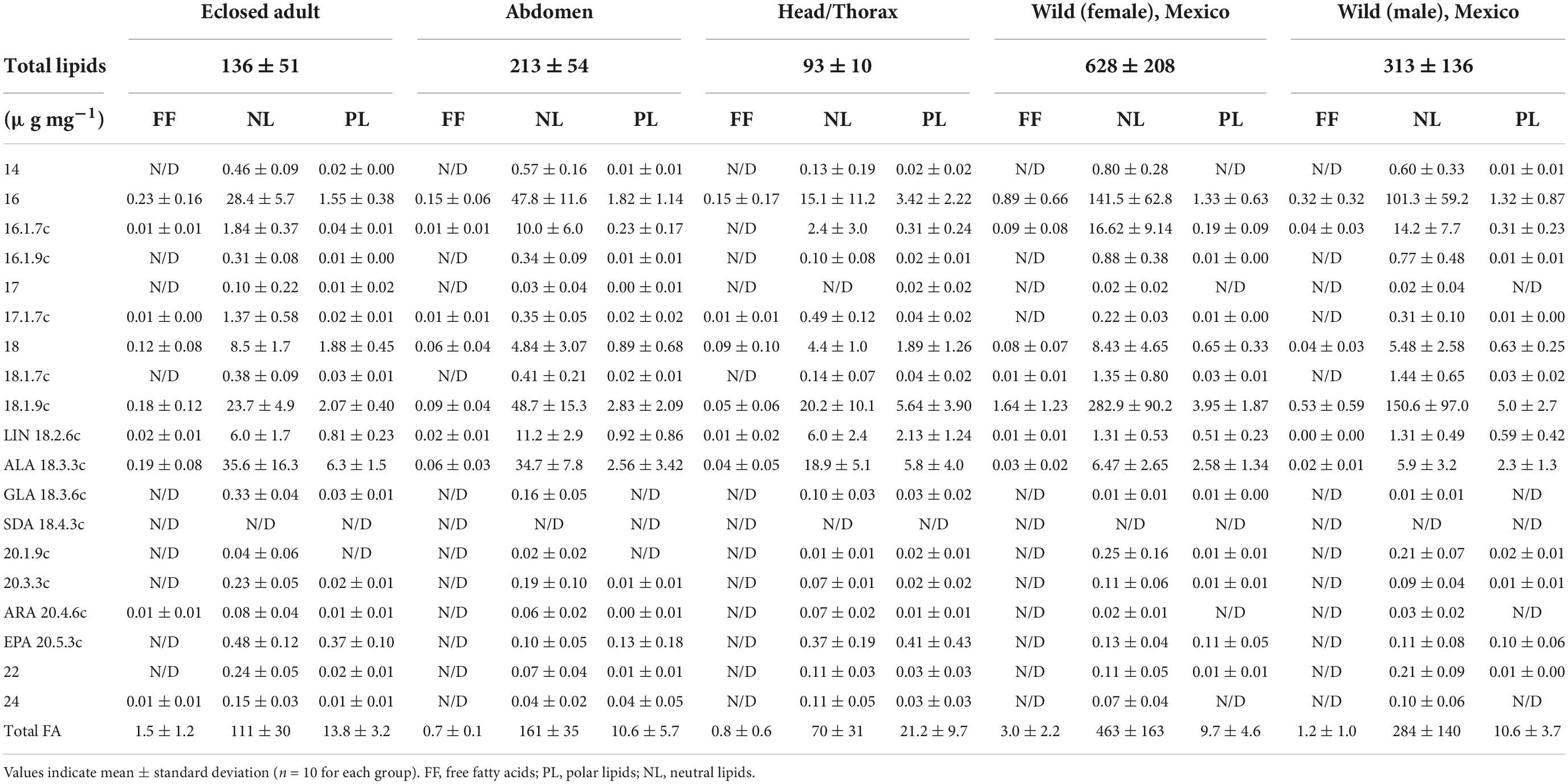

Table 1. Fatty acid mass fractions (μg mg^–1) in individual lipid classes for monarchs raised in captivity and over-wintering in Mexico.

FIGURE 1

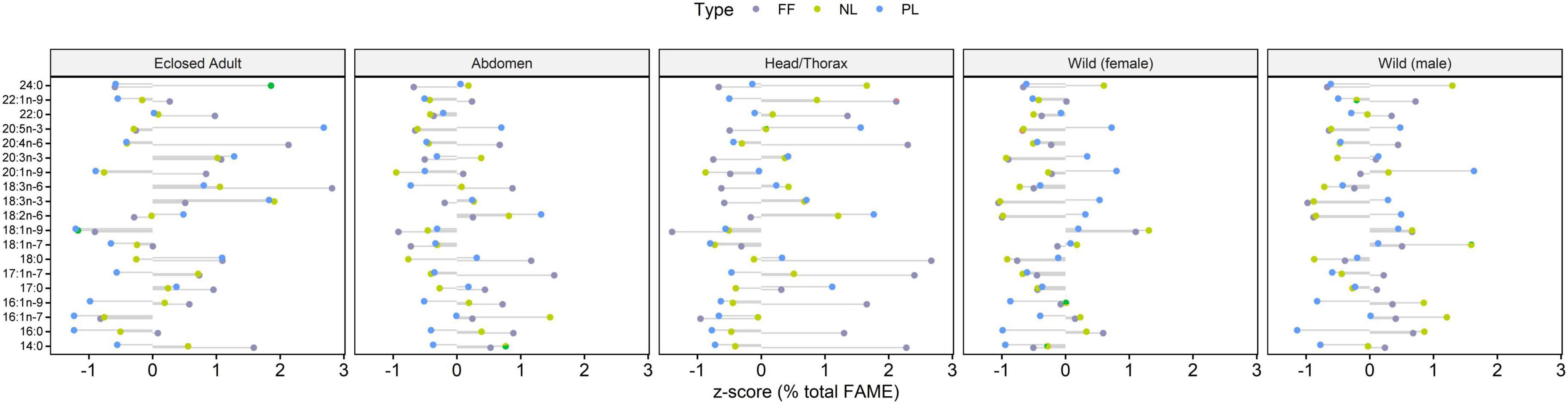

Figure 1. Z-scores (for all samples in this study) of relative fatty acid abundance (% total FAME) for each sample and corresponding mass fractions (μg mg^–1 dw). Wild monarchs, especially females, contained higher lipid fractions than males or monarchs raised in the lab, in which the abdomen had ca. twice the lipid content compared to the head/thorax region. Polar lipids (PL) content was comparable for all monarchs but particularly concentrated in head/thorax. Neutral lipids (NL) correlated with lipid content, mainly driven by the increase in 16:0 and 18:1n-9. Notably, EPA was concentrated in PL, while 18:1 and 24 were enriched in the NL. Relative EPA contents in the PL were lower in freshly emerged monarchs for both head/thorax and abdomen compared to those migrant individuals overwintering in Mexico. Relative fatty acid content of LIN and ALA was comparable between NL and PL.

Isotope fractionation in fatty acids of freshly eclosed adults compared to larval diet

The captive-raised milkweed and monarchs treated with ²H enriched (∼+350‰) water resulted in a ∼50–100‰ increase in the δ²H values of the fatty acids of milkweed and correspondingly of the fatty acids of monarch larvae, as reflected in the eclosed non-nectaring adults feeding on them (Figure 2A). Non-essential FA were significantly lower in δ²H values in the newly eclosed adults compared to larval milkweed diet (Δδ²H: 16:0: −79.7 ± 23.8‰; 16:1: −193.2 ± 31.5‰; 18:0: −72.5 ± 20.2‰; 18:1: −251.0 ± 26.8‰; all t-test, p < 0.001), while LIN was significantly enriched (Δδ²H +54.8 ± 12.4‰; t-test, p < 0.001). ALA showed a slight but insignificant positive trend (Δδ²H 7.8 ± 18.2‰; t-test, p = 0.665). There was no significant difference in the δ²H values between fatty acids of NL and PL of eclosed adults, except for 16:0, which were slightly enriched in ²H in PL compared to NL (Δδ²H −241.9 ± 5.9 vs. −267.8 ± 11.2‰, t-test, p = 0.007). The δ²H values of EPA could only be measured in PL and were approximately 40‰ higher compared to ALA when feeding on leaves from milkweed raised on tap water (Δδ²H −111.1 ± 7.7 vs. −149.7 ± 3.2‰) and ca. 60‰ enriched in individuals feeding on ²H-enriched leaves (Δδ²H −46.3 ± 0.8 vs. −111.8 ± 0.8‰) (Figure 2A).

FIGURE 2

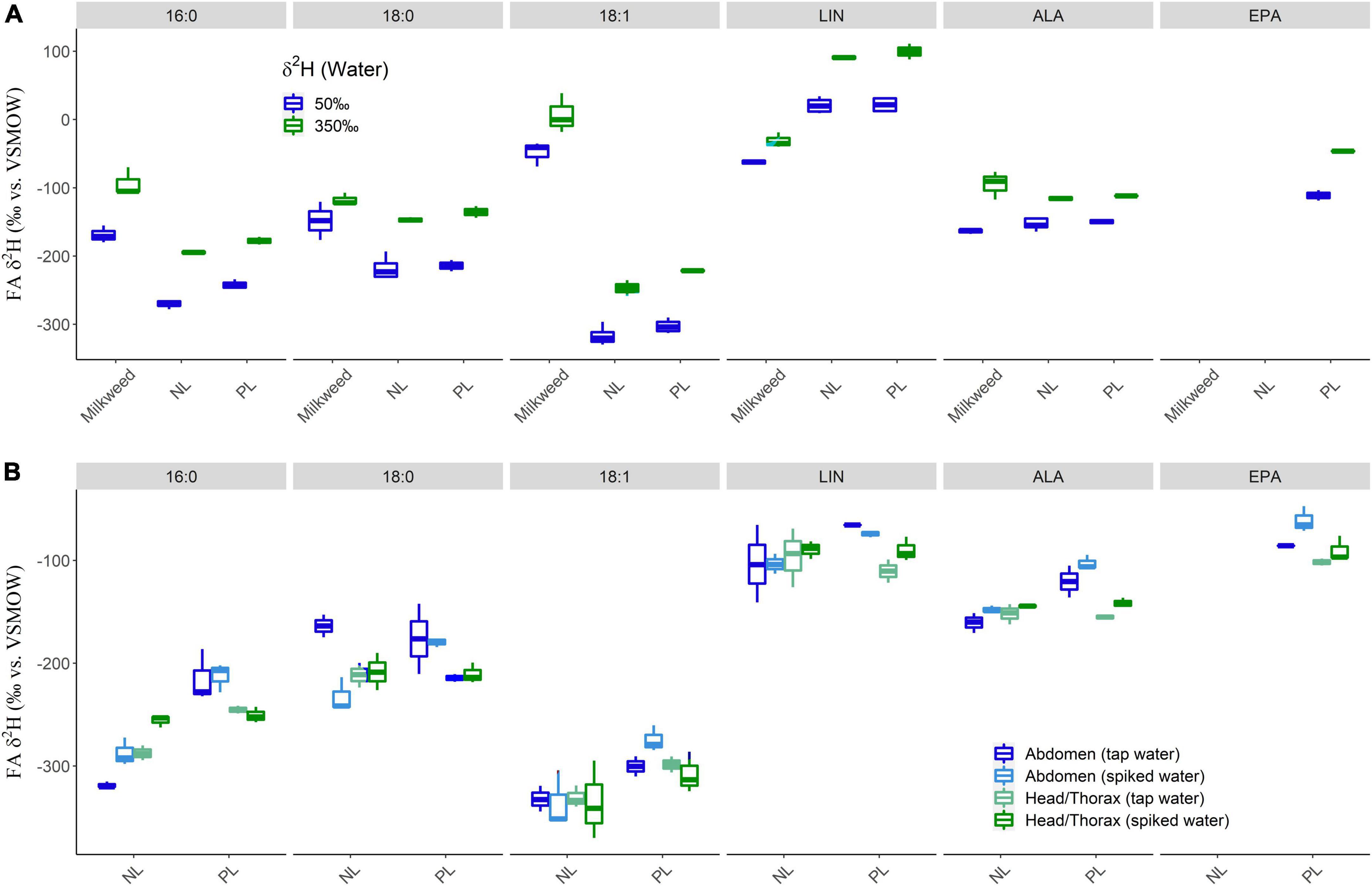

Figure 2. Hydrogen isotopic fractionation between diet and fatty acids (FA) of (A) eclosed monarchs after feeding on milkweed grown under two different water treatments at larval stage (experiment 1) and (B) adult monarchs feeding on nectar with or without spiked D₂O (experiment 2). (A) While the effect of ²H spiked water was universally seen, the saturated and monounsaturated fatty acids were significantly lighter in larvae compared to diet, while LIN was significantly enriched. Alpha-linoleic acid (ALA) closely reflected the diet. There were no differences in δ²H values between neutral lipids (NL) and polar lipids (PL). δ²H_EPA could only be determined in PL and was enriched compared to the corresponding ALA values. (B) 16:0 and 18:1 in PL were isotopically enriched compared to NL and δ²H_16:0 values of NL were lower in the abdomen, compared to head/thorax tissue, while the opposite held for PL. In addition, 16:0 was the only FA showing significant integration of deuterium, although slight isotopic effects could also be observed for ALA and EPA. LIN, ALA, and EPA in PL of the abdomen were isotopically enriched compared to NL or both PL and NL of head/thorax tissue.

Integration of deuterium into fatty acids in adults feeding on enriched nectar

Significant integration of the ²H tracer into the fatty acids of individuals feeding on ²H₂O enriched nectar was observed in 16:0 of NL (Δδ²H abdomen: 31.1 ± 13.8‰; t-test, p = 0.017; head/thorax: 31.7 ± 9.3‰; t-test, p = 0.004) but not for PL. Non-significant trends were observed in 18:1 in PL of the abdomen (Δδ²H 25.7 ± 18.7‰; t-test, p = 0.12) as well as ALA and EPA of all tissues and lipid classes (Δδ²H ∼+10‰). A negative trend was observed in 18:0 of NL of abdominal tissue (spiked – tap water Δδ²H −69.2 ± 22.9‰; t-test, p = 0.019; Figure 2B).

A significant positive H isotopic fractionation between the head/thorax and abdominal tissue was found in 16:0 of NL (Δδ²H 31.5 ± 11.2‰; t-test, p = 0.016), while a corresponding negative isotope fractionation was observed for 16:0 of PL (Δδ²H −34.1 ± 20.9‰; t-test, p = 0.003). Furthermore, in PL δ²H_LIN (Δδ²H −30.4 ± 14.0‰; t-test, p = 0.017), δ²H_ALA (Δδ²H −36.6 ± 15.2‰; t-test, p = 0.002), and δ²H_EPA (Δδ²H −22.4 ± 11.1‰; t-test, p = 0.018) values were lower in the head/thorax than in the abdomen.

Significant inter-class H isotopic fractionation between NL and PL was observed in 16:0 in abdominal tissue (Δδ²H 89.1 ± 22.4‰; t-test, p < 0.001), but also in head/thorax tissue (Δδ²H 23.6 ± 9.3‰; t-test, p = 0.027) as well as to a lesser extend in 18:1 (Δδ²H abdominal: 46.8 ± 24.7‰; t-test, p = 0.002; head/thorax: 29.7 ± 28.9‰; t-test, p = 0.05). Finally, δ²H_ALA values were lower in NL than PL in abdominal tissue (Δδ²H 42.6 ± 15.9‰; t-test, p < 0.001; Figure 2B).

Compound-specific isotope analyses (CSIA) of fatty acids in overwintering monarchs

Compared to monarchs raised in captivity in the laboratory, the samples of overwintering monarchs from Mexico had lower δ²H_16:0 (−328 ± 222 vs. −250 ± 15‰), δ²H_16:1 (−362 ± 25 vs. −310 ± 46‰) and δ²H_18:1 (−354 ± 11 vs. −307 ± 17‰), but higher δ²H_18:0 (−133 ± 46 vs. −203 ± 28‰) and δ²H_ALA values (−101 ± 27 vs. −135 ± 25‰). As observed in the captive study, the δ²H_16:0 values were lower in NL than PL, whereby the H isotopic fractionation was slightly higher in male than female monarchs (Δδ²H: 39.6 ± 11.6 vs. 27.9 ± 8.1‰), but in addition theΔδ²H_18:0 values were higher in NL than in PL (Δδ²H: female: −79.9 ± 34.3‰; male: −89.1 ± 53.4‰). The standard deviation of H isotopic fractionation between NL and PL in all 20 monarchs was lower in δ²H_16:0 (11.3‰), δ²H_18:1 (7.7‰), and δ²H_ALA (9.0‰) than in δ²H_18:0 (47.5‰) and δ²H_LIN (56.2‰). The δ²H_ALA values of both lipid classes strongly correlated with wing chitin δ²H values (Pearson, NL: R² = 0.78; PL: R² = 0.64). No significant correlation with wing chitin was observed for δ²H values of any other FA (Figure 3A).

FIGURE 3

Figure 3. Compound specific isotope analysis fatty acids (FA) for 20 monarchs at their overwintering habitat in Mexico. (A) In contrast to all other FA, δ²H_ALA correlated with wing δ²H suggesting strict conservation of this FA from their natal provenance. (B) δ²H and δ¹³C fatty acid specific biplots of 10 female and 10 male monarchs from the overwintering site in Mexico. Distinct groups in an isotopic biplot, indicating different nectaring provenance, could not be identified in this small dataset. (C) The individual isotopic fractionation between neutral lipids (NL) and polar lipids (PL).

Regarding δ¹³C, all saturated and monounsaturated FA had slightly lower values in NL compared to PL (δ¹³C 16:0 −2.1 ± 1.2‰; 18:0 −1.5 ± 2.0‰; 18:1 −2.0 ± 1.9‰). About half of the female monarchs had up to 6‰ higher δ¹³C_ALA values in NL than in PL, while no carbon isotopic fractionation in ALA between lipid classes was observed in males (Figures 3B,C).

Discussion

This is the first study investigating fatty acids in monarchs (or any migratory insect) using compound-specific δ²H and δ¹³C and controlled tracer test analysis. Data from controlled laboratory isotope tracer tests and from overwintering individuals suggested that adult monarchs convert their dietary energy mainly into 16:0 and 18:1 FA and store them as NL in their abdomen. Accordingly, the H and C isotopic values of the non-essential saturated and monounsaturated fatty acids should not correlate with the δ²H of monarch wings, a proxy of the natal origin of each individual (Wassenaar and Hobson, 1998; Flockhart et al., 2013), but are instead expected to correlate to the spatial origins of their nectar sources. On the other hand, the δ²H values of the essential omega-3 PUFA ALA were correlated with the δ²H_Wing, underscoring the physiological importance of ALA because it is retained by the migratory individual throughout its entire life cycle. Finally, δ²H_LIN showed a ²H enrichment compared to the larval milkweed diet, indicating the predominance of catabolic processes. In fact, we found considerable variations in the isotopic fractionation of δ²H_LIN and δ¹³C_LIN between NL and PL of overwintering monarchs. The absolute Δδ²H_LIN values of NL revealed a negative correlation with δ²H values of wing chitin which could potentially be useful when investigating individual life-history traits, such as past catabolic events or periods of fasting. Taken altogether, our results provide evidence that H and C isotopic analyses of individual fatty acids in migrating and overwintering monarchs can be used to gain new insights into the nutritional history of individuals including provenance of nectaring sites used to fuel key life history events.

Monarch larvae feeding on ²H-labeled milkweed leaves accordingly integrated the isotope tracer into all FA. The δ²H values of saturated and monounsaturated FA were significantly lower in the larvae than the hostplant milkweed, indicating predominant anabolic processes, that is, ongoing fatty acid synthesis. Conversely, δ²H_ALA closely reflected the milkweed hostplant diet, and those of LIN were significantly higher, indicating a predominance of catabolic processes. We were able to detect low contents of EPA, whose δ²H values were slightly higher compared to ALA (∼40‰), but even higher when feeding on the ²H-labeled leaves (∼60‰). This could be explained by the integration of the liquid water hydrogen/deuterium atoms into the FA molecule during the conversion process of ALA to EPA (Pilecky et al., 2022), which monarchs must perform because terrestrial plants do not contain any PUFA with more than 18 C atoms (Twining et al., 2016). Bioconversion is likely initiated by an elongation of ALA to 20:3n-3, followed by double desaturation to EPA as has been found in other hexapods (Strandberg et al., 2020) and because we did not detect any traces of stearidonic acid (18:4n-3) in monarchs in this study. Integration of deuterium atoms into EPA and into ALA of PL of head/thorax tissue also occurred for adults feeding on a sugar solution with ²H-enriched water but without any FA, which revealed that bioconversion of ALA to EPA is not only performed in monarch larvae, but also in adults, and that EPA in monarchs is potentially subjected to retro-conversion to ALA in head/thorax tissue. Still, the monarch larval stage appeared to be the only possibility for monarch adults to obtain this essential fatty acid. A recent study by Pocius et al. (2022) found a correlation between larval diet, i.e., milkweed species, and the free-flight energetics of monarch adults, hence it would be of great interest to establish whether the species of milkweed host plant (and its distribution) impacts the EPA quantity in freshly eclosed monarch adults. In many animal species, EPA increases the efficacy of neuronal tissue (e.g., providing higher visual acuity, memory capacity, or spatial navigation) and promotes reproduction, and is therefore particularly biosynthesized by females for maternal provision to offspring (Pilecky et al., 2021b). In our small pilot dataset of 20 wild overwintering monarchs, we found that about half of females showed a high carbon isotopic fractionation in δ¹³C_ALA between NL and PL, which suggest increased bioconversion activity during gravidity, although our sample size is too small to solidly support this idea. Unfortunately, determining δ²H_EPA and δ¹³C_EPA is analytically challenging in adult monarch lipid extracts due to the extremely low ratio of these EPA to total FAME, particularly in NL and abdominal tissue. As a result, we were unable to reliably measure δ²H_EPA and δ¹³C_EPA in the wild overwintering monarchs. Further methodological improvements will be required for studying EPA bioconversion rates in the wild monarch populations.

The large isotopic fractionation in δ²H_16:0 between PL and NL in abdominal tissue revealed a high rate of fatty acid synthesis and thereby underscores its importance for dietary energy conversion from carbohydrates to storage lipids. Unfortunately, our overwintering monarch sample size was too small to fully validate the suitability of compound-specific non-essential stable isotope analysis for linking wintering individual’s FA to different food sources spatially, and we were unable to identify any subgroups by dual (C + H) isotope plots of any FA to potentially differentiate nectaring locations. However, data from the controlled experiments showed that nectar sources were clearly reflected in the δ²H_16:0 values and may be integrated into δ²H_18:0 and δ²H_18:1 over a longer period of time, encouraging further studies investigating the suitability of this FA as food provenance and energy source marker.

Linoleic acid was the only fatty acid whose δ²H values were significantly enriched compared to diet and showed the largest variation in δ²H values in the 20 wild overwintering monarchs from Mexico, both in their absolute values but particularly in the isotopic fractionation between NL and PL. Furthermore, the δ²H_LIN of NL showed a negative correlation with wing chitin δ²H values (e.g., natal origin). We found low mass fractions of arachidonic acid (20:4n-6, ARA) mainly in the NL and almost none in PL, which suggested that ARA was a by-product of fatty acid bioconversion of the non-selective (between n-3 and n-6) bioconversion, rather than having an ARA-demanding physiological function. LIN is taken up together with ALA from milkweed leaves at the larval stage, whereas adults have no significant access to both PUFA. Omega-3 PUFA are vital for functioning of the neuronal system including vision and navigation and are thus particularly retained rather than catabolized (Pilecky et al., 2021b), while no similar biological function for LIN is known. We therefore postulate that LIN is accumulated at the larval stage up to eclosure of the adult. From that time on, LIN is partially used for energy production, particularly when running low on non-essential fatty acids. This is likely the cause of the observed increase in δ²H_LIN values in all samples, because fatty acids with lighter isotopic composition are mobilized faster, rendering the residual unused pool with heavier isotopic composition. It could be speculated that δ²H_LIN values are an energetics marker for individual life-history of migrant monarchs, but it remains to be tested whether directly or indirectly, for example by correlation of isotopic fractionation between LIN_NL and LIN_PL with spatiotemporal parameters such as total flight time or migratory distance and/or the number of over-wintering fasting days.

Conclusion

The controlled laboratory and field results of this pilot study encourage further investigation on the application of compound-specific ²H and ¹³C analysis investigations of the migration routes and nectaring energy sources of monarchs and for other migratory Lepidoptera or insects. Further studies using appropriately larger population samples sizes are warranted to better understand the physiological processes altering isotopic values of saturated and mono-unsaturated FA in addition to isotopic values of food sources. Larger datasets are also needed to correct for isotopic “noise” introduced by each individuals’ life-history (i.e., catabolism), which may blur the energy source signal from diet. Within this context, we suggest δ²H_LIN could potentially be useful as life-history marker, and our results establish an encouraging basis for future studies with flight-time/distance and/or fasting periods. Finally, our study reveals the power of compound-specific isotope analyses (CSIA) for a detailed investigation of the migration routes and fuel sources of insects and other migrating species.

Data availability statement

The original contributions presented in this study are included in the article, further inquiries can be directed to the corresponding author.

Author contributions

KH and JM designed the study and provided financial support. MP, LW, and KH performed the data analysis and led wrote the manuscript. KH, JM, and MR collected the samples. LW, KH, MK, JM, and MR assisted with manuscript editing. All authors critically assessed the manuscript and approved the submitted version.

Funding

This work was supported by discovery grant to KH from the Natural Sciences and Engineering Council (NSERC) of Canada (grant 2017-04430). The open access fee was covered by Donau-Universität Krems. Funding was provided in part by a grant from Environment and Climate Change Canada to JM.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
