Marco Picone
Eugenia Delaney1
Annamaria Volpi Ghirardini- 1Dipartimento di Scienze Ambientali, Informatica e Statistica, Università Ca’ Foscari, Venezia, Italy
- 2Consiglio Nazionale delle Ricerche, Istituto di Scienze Marine, Venezia, Italy
The effectiveness and reliability of the polychaete Hediste diversicolor (O.F. Müller, 1776) to bioaccumulate polychlorinated dibenzo-p-dioxins (PCDDs) and dibenzofurans (PCDFs) was assessed in an in-situ passive biomonitoring study. Field collected specimens were sampled in five sites within the Venice Lagoon (Italy), selected along a PCDD/F contamination gradient. The homolog profiles in the tissues of the common ragworm were considerably different from those observed in the sediments, independent of sediment contamination. Moreover, H. diversicolor accumulated preferentially the less chlorinated 2,3,7,8-TCDD, 2,3,7,8-TCDF and 2,3,4,7,8-PeCDF compared to the more chlorinated and hydrophobic hexa-, hepta- and octa-substituted congeners, as evidenced by the significant and linearly decreasing trend of the Biota-to-Sediment Accumulation Factor (BSAF) with the increasing lipophilicity of the congeners, expressed as the logarithmic form of the octanol/water partition coefficient (logKOW). The BSAFs for dioxins and furans were generally low compared to other organochlorine compounds such as polychlorinated biphenyls and organochlorine pesticides, suggesting that H. diversicolor may eliminate both dioxins and furans efficiently.
Introduction
Polychlorinated dibenzo-p-dioxins (PCDDs) and dibenzofurans (PCDFs) are highly persistent, bioaccumulative and toxic contaminants not intentionally produced, but occurring in the environment as byproducts of chemical processes involving the use of chlorine (i.e., wood pulp and magnesium industries), as a result of combustion processes from both natural (forest fires) and anthropogenic sources (smoke from incinerators, car and boat exhaust fumes) or as impurities in chemicals (i.e., pesticides and herbicides) (Swerev and Ballschmiter, 1989).
Once released, PCDD/F enter the marine and coastal environments via atmospheric deposition, riverine inputs from the inland, and direct discharges of urban and industrial wastewaters into the coastal waters (Armitage et al., 2009).
In the marine environment PCDD/F are quickly adsorbed onto suspended matter, due to their high hydrophobicity, and then deposited onto the sediment where they accumulate over time, due to their persistence. As a consequence, sediment may act both as a secondary source of PCDD/F pollution for the water column (Khairy et al., 2016) and as a primary source of contamination for the benthic species living and/or feeding on sediment-bound contaminants (Pruell et al., 1993, 2000).
Polychaetes are a major component of the coastal and estuarine systems, where they may represent up to 40% of the taxa constituting the communities (Amiard-Triquet et al., 2013). Many species living in soft-bottom habitats are endobenthic and occupy several ecological niches, serving as relevant vectors for the recycling of the detritus, as primary consumers of benthic algae and predators of other invertebrates, and as food for the organisms at the top of the benthic and aquatic trophic webs (Scaps, 2002; Dean, 2008; Amiard-Triquet et al., 2013).
Close contact with the sediment as well as detritivorous habits of most species make polychaetes vulnerable to the uptake of contaminants through both contact with dissolved chemicals and ingestion of pollutants bound to sediment particles or adsorbed onto detritus particles (Dean, 2008). Consequently, contaminants accumulated into the tissues of the polychaetes may then be transferred to higher levels of the trophic web, leading to possible biomagnification phenomena (Ruus et al., 2012; Sizmur et al., 2013). For these reasons, polychaetes are often used in ecotoxicological studies to assess both early warning signals of chemical stress, by using relevant biomarkers, and the bioavailability of the contaminants (Durou et al., 2007a, b; Nesto et al., 2010; Ruus et al., 2012; Amiard-Triquet et al., 2013).
A commonly used polychaete species in ecotoxicological research is the common ragworm Hediste diversicolor (O.F. Müller, 1776). This burrowing polychaete is omnivorous, but also behaves as a deposit feeder, by collecting detritus near the opening of its burrows, and is widespread in the shallow marine and estuarine waters of the European coasts of the Atlantic, the Mediterranean Sea, the Black Sea and the Caspian Sea (Scaps, 2002). Its large dispersion into brackish waters has favored its frequent use as a biological indicator for assessing exposure and effects of sediment-bound contaminants in estuaries and coastal lagoons affected by pollution due to anthropogenic sources, including metals (Volpi Ghirardini et al., 1999; Berthet et al., 2003; Frangipane et al., 2005) and organic contaminants, such as polynuclear aromatic hydrocarbons (PAHs) – although the ability of polychaetes to biotransform PAHs was demonstrated (Jørgensen et al., 2008) – and polychlorinated biphenyls (PCBs) (Gunnarsson et al., 1999; Cornelissen et al., 2006; Langston et al., 2012). Nevertheless, the ability of H. diversicolor to also accumulate other persistent and bioaccumulative toxicants, as PCDD/F, has been rarely explored, although these polychlorinated compounds may accumulate in fish – and also humans (Raccanelli et al., 2007) – through the marine and estuarine trophic web, where H. diversicolor represents a relevant trophic link (Nunes et al., 2011).
The present study examined the effectiveness and reliability of H. diversicolor as an indicator of exposure for PCDD/F in an in-situ passive biomonitoring study, using field-collected polychaetes. The Venice Lagoon was chosen as a case study since sources, inputs and sediment concentration of PCDD/F have been extensively studied in the past decades (Fattore et al., 1997; Marcomini et al., 1997; Jimenez et al., 1998; Bellucci et al., 2000; Frignani et al., 2001a). The aims of the study were the assessment of possible bioaccumulation in tissues of H. diversicolor, the identification of the congeners with higher ability to accumulate into polychaete tissues, and the analysis of the possible relationships between accumulation and the lipophilicity (expressed as logKOW) of the 2,3,7,8 chlorinated congeners.
The results of this study, performed in 1998, are presented only now because we found that in the last 20 years no significant progress has been made in the field of bioaccumulation of organochlorine compounds in estuarine environments. Although they play a relevant role in the trophic webs of marine and estuarine environments, benthic infaunal organisms such as polychaetes, have been too often disregarded as bioindicators for bioavailability/bioaccessibility of PCDD/Fs, in favor of other species of greater commercial interest (fish and molluscs). The focal purpose of this paper is thus to underline how these organisms are suitable for studying bioaccumulation of organic contaminants (other than PAHs), as well as to promote a more widespread exploitation of polychaetes in monitoring programs.
Materials and Methods
Study Area
The Venice Lagoon is one of the largest and relevant Coastal Transitional Ecosystems of the Mediterranean (Tagliapietra et al., 2009); it is about 50 km long and 10 km wide, accounting for a surface of about 550 km2. Out of them, 36 km2 are salt marshes, 30 km2 islands (excluding the barrier islands) and the rest is covered by water. The mean depth of the water column is about 1.2 m, with only 5% of the lagoon deeper than 5 m (Molinaroli et al., 2009). The volume of water contained in the lagoon is about 628 million m3, and according to Kjerfve (1994), the Venice Lagoon can be defined as a “restricted” coastal lagoon. The basin is connected to the Adriatic Sea through three inlets (Lido, Malamocco, and Chioggia) which allow tidal flushing twice a day (microtidal and predominantly semidiurnal tides) (Tagliapietra and Volpi Ghirardini, 2006). Every day the Venice Lagoon exchanges with the Adriatic Sea about 400 million m3 of water while the inflow from the inland through the rivers and subsoil averages 3.7 million m3 (Bernstein and Montobbio, 2011). The drainage basin is about 1850 km2, 40% of which is reclaimed land lying under the sea level.
The primary source of pollution is the Porto Marghera industrial district (Bellucci et al., 2000; Frignani et al., 2001a, b; Zonta et al., 2007). Other point and non-point sources of pollution flowing into the lagoon include also treated and untreated municipal wastewaters, streams, agricultural runoff, boat traffic and atmospheric deposition (Guerzoni et al., 2004; Secco et al., 2005; Volpi Ghirardini et al., 2005; Gambaro et al., 2009). The recorded pattern of pollution follows the urban and industrial development: evidence exists that contamination of waters and sediments started in 1920 with the development of the first part of the industrial area, then accelerated after 1933 and again after World War II (Frignani et al., 2001a, b). As a consequence, the contamination gradient was largely superimposed on the inland-sea transect (Picone et al., 2016, 2018).
The atmospheric and riverine inputs of PCDD/F into the Venice Lagoon has been estimated in the order of 2.2–195.7 g y–1 (Guerzoni et al., 2007) and 6.9 g y–1 (Bettiol et al., 2005), respectively; the contribution of treated and untreated discharges from the industrial district of Porto Marghera has been estimated in 0.10–0.26 g y–1 as toxicity equivalents (MAG. ACQUE-Uta, 2011).
Sediment and Polychaete Sampling
Sediment and polychaete samples were collected during summer 1998 from 5 sub-tidal shallows, selected along a gradient of chemical contamination and affected by different sources of pollution (Figure 1). Palude della Centrega (CE) is an inter-tidal mudflat in the northern basin of the Lagoon, chosen as possible reference site due to the low concentrations of contaminants characterizing the area (Volpi Ghirardini et al., 2005; Picone et al., 2008). Dese river (DE) and Osellino canal (OS) sites are two estuaries influenced by agricultural runoff; OS is also characterized by multi-sources pollution being affected by both urban and industrial discharges, due to the proximity to the urban area of Mestre and the illegal landfill of Campalto (Critto et al., 2003). Canale Industriale Sud (SA) and Canale Lusore-Brentelle (BR) are two industrial canals located within the Porto Marghera district; in particular, site BR is a polluted site both as concern metals and organic micropollutants (Volpi Ghirardini et al., 2005; Bellucci et al., 2009; Picone et al., 2018) catching also freshwater from the Naviglio di Brenta canal.
Figure 1. Map of the sampling sites within the Venice Lagoon. CE = Palude della Centrega; DE = Dese river; OS = Osellino canal; SA = Canale Industriale Sud; BR = Canale Lusore-Brentelle.
Sediment sampling was performed following the integrated design and Quality Assurance/Quality Control (QA/QC) procedures reported in Volpi Ghirardini et al. (2005). Briefly, in each site, the sampling area was defined as a circle with a diameter of 30 m. Within this area, eight sediment cores (depth 0–20 cm, diameter 5 cm) were collected with a Plexiglas® corer and then pooled to obtain an integrated sample. This procedure was performed in triplicate in each sampling area. Sediment samples were stored in 2 l glass containers and kept refrigerated until their arrival in the laboratory. Samples were processed within 2 weeks, according to ASTM guidelines (ASTM, 2014).
Polychaetes were collected within sediment sampling areas using a box corer (14×14×16 cm). Sediments collected with the box corer were washed into polyethylene tanks and then the sediment slurry was poured into a 1 mm mesh size sieve and thoroughly washed in situ with seawater to separate the worms from the substrate. Once collected, the polychaetes were placed in 1 liter polyethylene containers filled with a layer of clean quartz sand (grain size approx. 60–100 μm) and natural seawater, in order to minimize the stress during the transport in the laboratory. A variable number of polychaetes was retrieved in each site, from 30 up to 80 depending on the population density in the area. Only for sites BR and OS it was possible to obtain three replicates with sufficient biological material for analysis; as a consequence, it was necessary to pool organisms collected in each site in order to have enough biological material for performing chemical analysis with an adequate limit of detection (0.25 pg g–1 dw).
Sediment Analysis
Total organic carbon (TOC) analyses were performed using a CHNS-O analyzer on aliquots of 10–20 mg of dry sediment acidified with 20-μL of 1N HCl solution and dried at 105°C for 15 min. Sediment grain-size was determined following a gravimetric procedure and was subsequently classified according to Shepard (1954). PCDD/F in the sediments were analyzed according to the procedure reported in Bellucci et al. (2000), based on the United States. EPA method 1613/94 for the determination of 17 congeners 2,3,7,8 substituted of dioxins and furans using gas chromatography-mass spectrometry (GC-MS). One composite sample (n = 1) per site was analyzed.
Polychaete Holding and Analysis
Once in the laboratory, the polychaetes were depurated for 4 days in small glass aquaria (20 × 20 × 15 cm) containing acid-washed quartz sand and artificial seawater (1:1 v/v sand/water ratio), to allow the elimination of the gut’s content. Then, they were transferred for 1 day in aquaria containing only artificial seawater, to remove also the quartz sand accumulated during depuration phase (Lobel et al., 1991; Volpi Ghirardini et al., 1999). Artificial seawater was prepared by dissolving an artificial sea salt mixture (Ocean Fish®, PRODAC International, Cittadella, Italy) in Milli-Q® purified water.
Depuration was carried out under constant aeration, at a temperature of 18°C and salinity of 20 psu; overlying water was renewed every 48-h and the fecal pellets were removed daily, to avoid the ingestion by the worms and the consequent failure of the gut cleaning. Temperature, salinity and ammonia were checked daily.
During the last day of depuration in seawater, glass tubes were introduced into the aquaria to allow polychaetes to individually settle in there, to avoid aggressive behavior, cannibalism and also damages due to the lack of substrate (e.g., autotomy). At the end of the depuration phase, animals were anaesthetized using a 10% ethanol solution in seawater 20% and individually checked for species confirmation under a dissecting microscope. After taxonomic confirmation and determination of biometric parameters (in order to select polychaetes of comparable age), pooled samples of 20–30 specimens per sampling site were frozen until the analysis. Taxonomic identification was performed in order to avoid mixing with specimens belonging to other species, such as Alitta succinea (Leuckhart, 1847) and Perinereis cultrifera (Grube, 1840), that may share the habitat with H. diversicolor (Volpi Ghirardini et al., 1999). PCDD/F in the tissues were analyzed using the same method reported for sediments; prior to analysis, the frozen polychaete samples were freeze-dried. One composite sample (n = 1) per site was analyzed.
Lipids were extracted by Accelerated Solvent Extraction (ASE) with 50 ml of n-hexane/dichloromethane 50/05 at 150°C, 1500 psi 7-min heat-up and two cycles of 5 min static time. The extracts were desiccated using an evaporator equipped with a vacuum controller. The lipid content was then determined gravimetrically using an analytical balance.
Data Elaboration and Analysis
Concentrations of PCDD/F in sediments and tissues were reported on dry weight (dw) basis. The dry weight concentrations were then also converted in 2,3,7,8-TCDD equivalents by multiplying the sediment concentrations by the toxic equivalency factors (TEFs) proposed by the World Health Organization (Van den Berg et al., 2006). Cluster analysis was used to categorize the homolog profile of PCDD/F in sediments and tissues; Euclidean distances and complete linkage were used as distance metric and joining rule, respectively. Before cluster analysis, sediment and tissue concentrations were transformed to per mil 2,3,7,8 chlorosubstituted homologs, by normalizing the sum of the isomers with the same degree of chlorination (i.e., PeCDD or HxCDD) to the sum of all dioxins and furans congeners with a concentration above the detection limit (Marcomini et al., 1997).
Spearman’s non-parametric correlation was applied to test for significant correlations between sediment and tissue concentrations of the 17 congeners of PCDD/F, whilst linear regression was used to verify the linkage between BSAFs and the octanol-water partition coefficients (KOW), after logarithmic transformation. LogKOW values were taken from Chen et al. (2001).
Biota-Sediment Accumulation Factors (BSAFs) were calculated for each sampling site as the ratio of contaminant concentration in tissues (pg g–1 dw) on the contaminant concentration in sediments (pg g–1 dw), normalized to the lipid content and to the organic carbon content, respectively (Burkhard, 2009). For the calculation of BSAFs, concentrations below detection limits were assumed to equal a value half of the detection limit used. Welch’s ANOVA and Games-Howell test were applied to the pooled BSAF data in order to check for the overall significant difference in the accumulation of the congeners of PCDD/F. Welch’s ANOVA was chosen as a parametric method for the analysis of variance since homogeneity of variances condition was not met also after logarithmic and square root transformations.
All the statistical analysis were performed using the StatSoft Statistica v8.0 (Spearman’s non-parametric correlation, linear regression) and IBM SPSS Statistics v.25 software (Welch’s ANOVA and Games-Howell post hoc test).
Results
Sediment Chemistry
Total organic carbon in the sediments ranged from 1.88% (CE) up to 4.67% (OS); grain size was characterized by a prevailing fraction of silt, ranging from 52.9% (BR) up to 69.6% (SA). According to the ternary classification of Shepard (1954) samples CE, DE, OS, and SA were classified as clayey silts, whilst sample BR was classified sandy silt.
Sediment PCDD/F concentrations at the five study sites ranged between 73 and 6,621 pg g–1 dw. The sediments collected at site SA (6,621 pg g–1 dw) were the most contaminated being characterized by total concentrations (ΣPCDD/F) of 1 or 2 order of magnitude higher than the other samples (Table 1). As concern dioxins, the total sediment concentrations ranged from 24 pg g–1 dw (CE) to 677 pg g–1 dw (OS), with OCDD accounting for more than 75% of total dioxins in all samples; 2,3,7,8-TCDD occurred at concentrations above the detection limit (0.5 pg g–1 dw) only in sample SA (1 pg g–1 dw). With regard to furans, the highest concentration was measured in sample SA (6061 pg g–1 dw) whilst the reference sample collected in site CE was, as expected, the least contaminated one (47 pg g–1 dw); the congeners detected at highest concentrations were 1,2,3,4,6,7,8-HpCDF and 1,2,3,4,6,7,8,9-OCDDF.

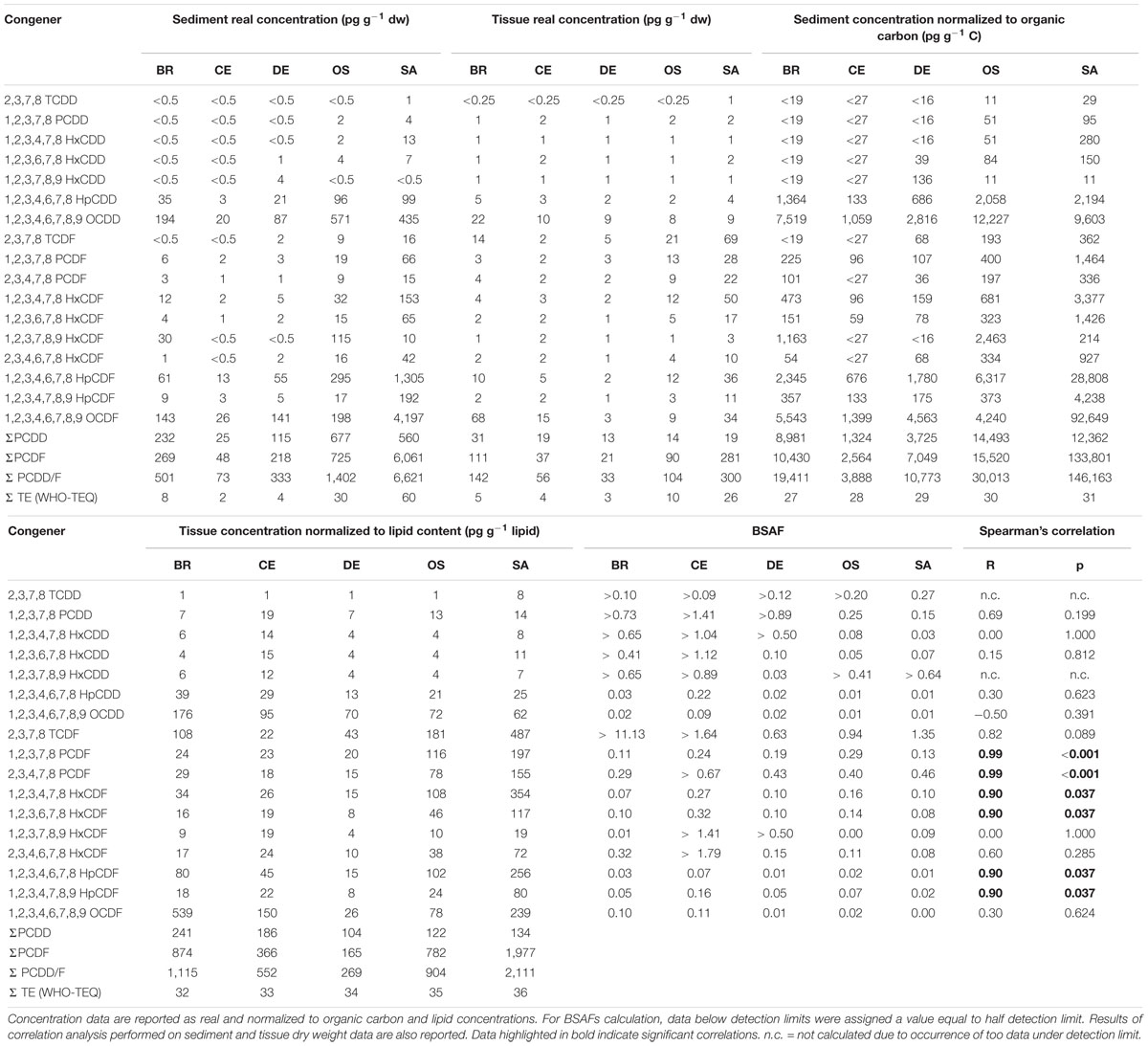

Table 1. PCDDs and PCDFs concentrations in composite sediment samples, composite polychaetes samples and Biota-to-Sediment Accumulation Factors (BSAFs) calculated for the 17 congeners of 2,3,7,8 chlorosubstituted dioxins and furans.
The equivalent toxicity ΣTE (WHO-TEQ) in the sediment samples ranged from 2 pg g–1 dw (CE) to 60 pg g–1 dw (SA) and showed the same gradient as the total concentrations: CE < DE < BR < < OS < SA.
Homolog profiles in sediment showed different patterns among sites, especially as concern the contribution of OCDD and OCDF (Figure 2). In sample SA, the profile was dominated by OCDF and characterized by negligible contributions of the other homologs except for OCDD and HpCDF; in contrast, in samples BR and OS the profiles showed a dominance of OCDD over the more chlorinated furans. In DE and CE the profile was characterized by a gradient of increasing concentrations of PCDD/F with increasing degree of chlorination, but with a dominance of OCDF over OCDD and HpCDF. Cluster analysis confirmed this categorization of samples into three groups (Figure 3).
Figure 2. Homolog profiles of PCDDs and PCDFs in sediments. Data are reported as per mil 2,3,7,8 chlorosubstituted homologs referred to the sum of all the isomers with concentration above detection limits.

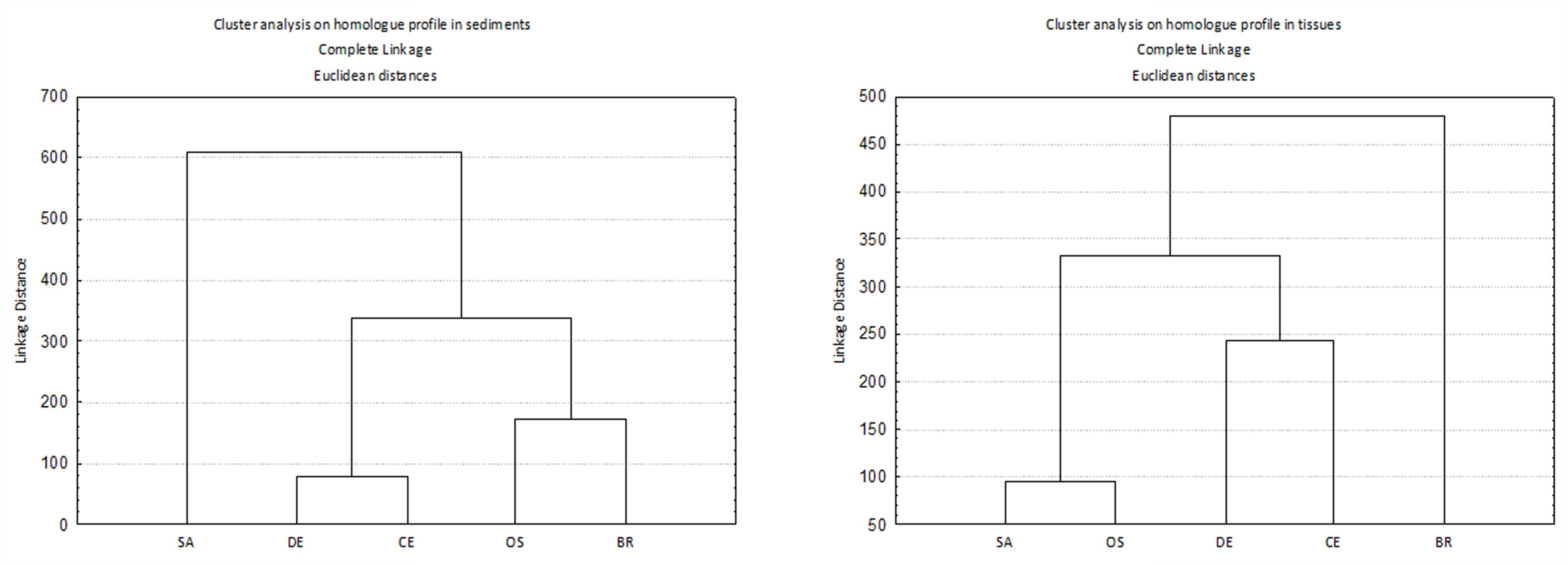

Figure 3. Cluster analysis on homolog profile in sediments (left) and tissues (right). Before analysis, data were transformed to per mil 2,3,7,8 chlorosubstituted homologs referred to the sum of all the isomers with concentration above detection limits.
Tissue Analysis
Polychaete tissues were characterized by a variable lipid concentration, ranging from 0.10 to 0.14 g g–1 of tissue, whilst organic carbon content averaged 0.53 g g–1 of tissue (range: 0.52–0.54 g g–1).
Real total concentration (ΣPCDD/F) in polychaete tissues ranged from 33 pg g–1 dw (DE) up to 300 pg g–1 dw (SA) (Table 1). The gradient of real total concentration was as follows: DE < CE < OS < BR < SA. The concentrations of dioxins were quite homogeneous among the samples, ranging from 13 pg g–1 dw (DE) to 30 pg g–1 dw (BR). In samples CE and DE only 1,2,3,7,8-PCDD, 1,2,3,4,6,7,8-HpCDD and OCDD occurred at concentrations above the detection limits (0.25 pg g–1 dw); this latter was also the congener exhibiting the highest concentration in all the samples. As observed in the sediments, 2,3,7,8-TCDD was detectable only in sample SA. Site DE also showed the lowest concentration of furans (21 pg g–1 dw), whilst the highest were detected in the tissues of the polychaetes sampled in the industrial canals BR (111 pg g–1 dw of furans) and SA (281 pg g–1 dw of furans). The congeners occurring at higher concentrations were 2,3,7,8-TCDF and 1,2,3,4,6,7,8,9-OCDF. Concentrations normalized to lipid content ranged from 268 pg g–1 lipids (DE) to 2111 pg g–1 lipids (SA).
The equivalent toxicity in the tissues ranged from 3 pg g–1 dw (DE) to 26 pg g–1 dw (SA); the gradient (DE < CE < BR < OS < <SA) was slightly different from the one for total concentrations, since OS showed higher equivalent toxicity with respect to BR (10 pg g–1 dw vs. 5 pg g–1 dw), despite lower total concentration (104 pg g–1 dw vs. 141 pg g–1 dw).
Cluster analysis on homolog profiles evidenced the occurrence of distinct patterns of accumulation in the tissue (Figure 3). At site BR the polychaetes accumulated mostly OCDF and secondarily OCDD and TCDF, whereas the polychaetes collected at sites SA and OS accumulated primarily furans (contributing up to 87% and 94% to ΣPCDD/F, respectively), with a prevalence of HxCDF, TCDF and PeCDF, over the other furans and OCDD. The samples with less accumulation, DE and CE, showed a more heterogeneous pattern, with an accumulation of OCDD and less chlorinated PCDF (DE) or OCDD and more chlorinated PCDF (CE) (Figure 4). In any case, differences in homolog concentrations in these samples are very low.
Figure 4. Homolog profiles of PCDDs and PCDFs in tissues of H. diversicolor. Data are reported as per mil 2,3,7,8 chlorosubstituted homologs referred to the sum of all the isomers with concentration above detection limits.
Comparison Between Sediments and Tissues
No correlation was observed between PCDD congeners in the sediment and in the polychaete tissues (p > 0.05); in the case of furans, significant correlations (Spearman’s R > 0.9; p < 0.05) were found for the PeCDFs, HpCDFs and two congeners of HxCDFs (namely, 1,2,3,4,7,8-HxCDF and 1,2,3,6,7,8-HxCDF). Spearman’s correlation was not calculated for 2,3,7,8-TCDD and 1,2,3,7,8,9 HxCDD due to the large number of data below detection limits.
Sediment Accumulation Factors value ranged between 0.003 (OCDF in site SA) and 11.13 (TCDF in site BR). Hepta- and octachlorinated congeners showed a BSAF about one order of magnitude lower than the less chlorinated congeners (Table 1).
Linear regression revealed a significant relationship with a decreasing trend between logBSAF and logKOw (F1,83 = 43.878; r2 = 0.289; r = −0.539; p < 0.0001), indicating a tendency to accumulate preferentially the congeners with lower logKOW (Figure 5).

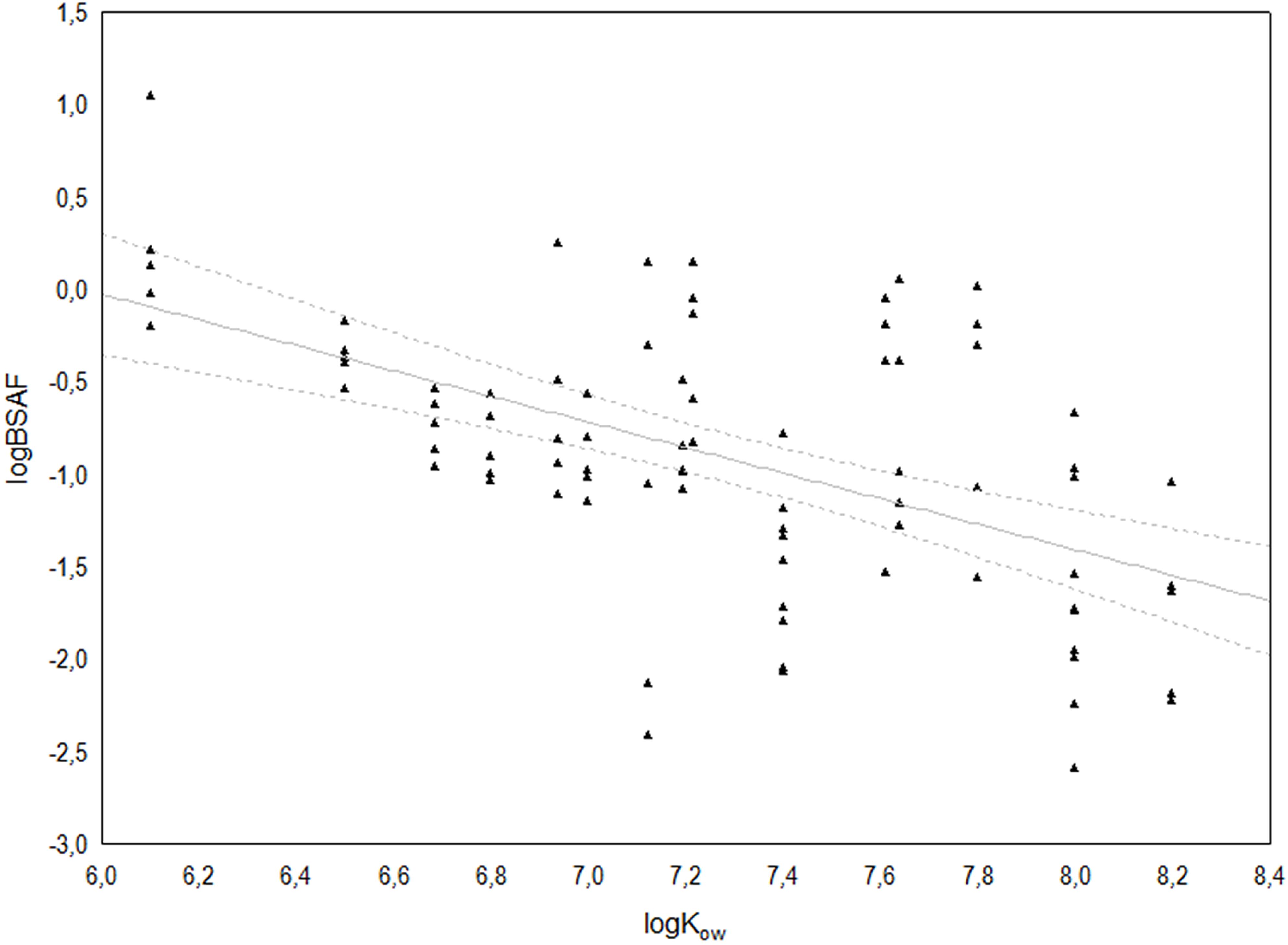

Figure 5. Relationship between log KOW and log BSAF for the 17 congeners of 2,3,7,8 chlorosubstituted dioxins and furans. The solid line represents the linear regression log(BSAF) = 4.12–0.69 log(KOW) (r2 = 0.289), whilst broken lines indicate the 95% confidence interval.
Welch’s ANOVA highlighted significant differences among the BSAFs calculated for the congeners (F16,25 = 6.108, p < 0.001); Games-Howell test detected significant differences (p < 0.05) between 2,3,7,8-TCDF and several congeners (Figure 6).

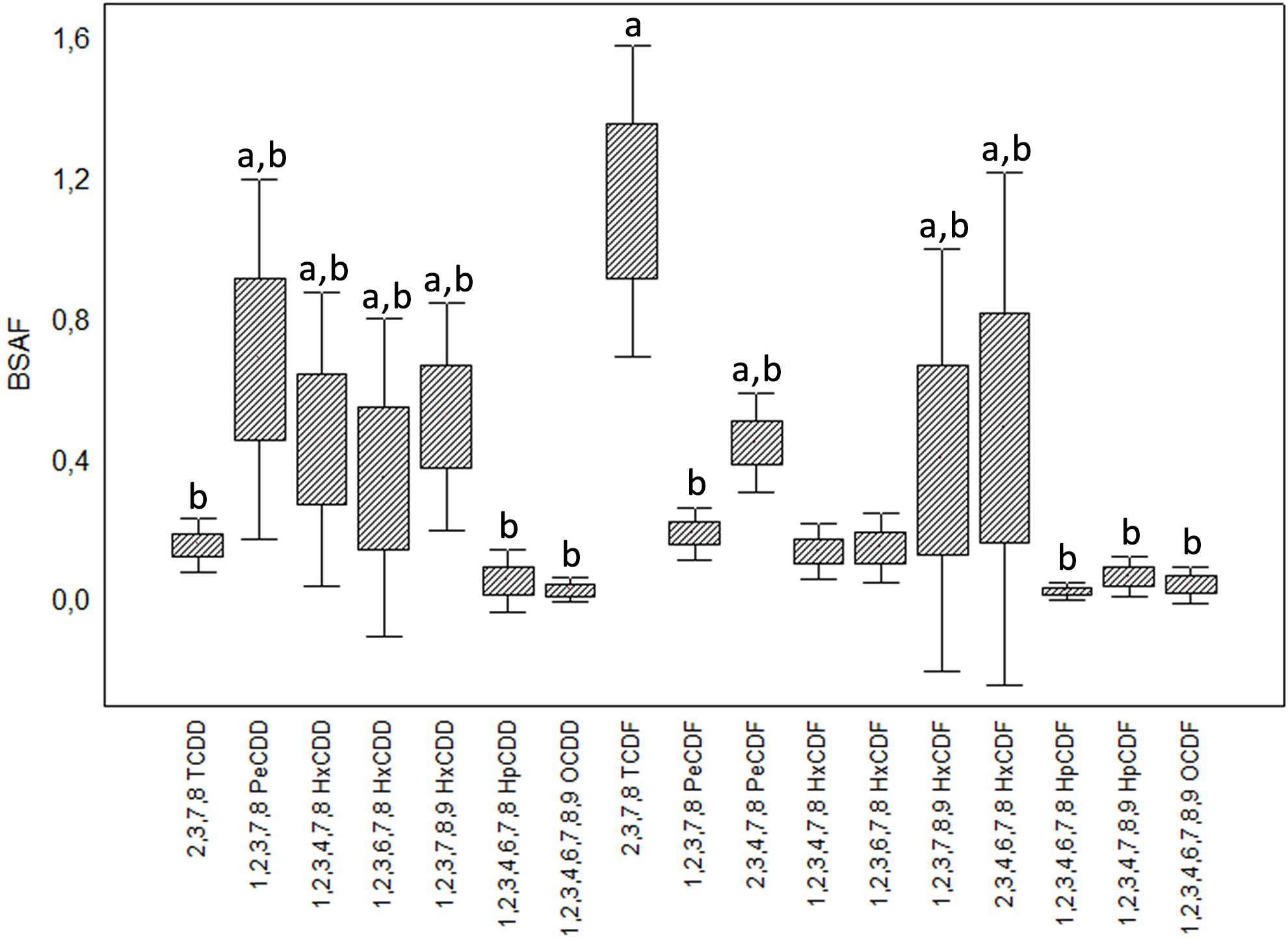

Figure 6. Biota-to-Sediment Accumulation Factors (BSAF) calculated for the 17 congeners of 2,3,7,8 chlorinated dioxins and furans. Boxes indicate mean ± standard error, whiskers mean ± standard deviation. Letter “a” identifies congeners with mean BSAF statistically different from 2,3,7,8-TCDF (after Kruskal-Wallis ANOVA and multiple comparison test).
Discussion
The lack of replication did not allow to verify whether among-site differences are significant (especially for the less contaminated CE and DE samples) and may raise issues concerning the analytical variability of the data. However, specific contamination patterns emerged both in sediments and in polychaete tissues that are consistent with the underlying contamination gradient and other studies (Jimenez et al., 1998; MAG. ACQUE-Thetis, 2006, 2007; Picone, 2006), suggesting that analytical variability is of secondary relevance as compared with environmental variability of PCDD/F contamination in the Venice Lagoon.
PCDD/F in the Sediments
Sediment total concentrations and toxicity equivalents corroborated expectations for the underlying contamination gradient. The lowest concentration of PCDD/F were measured at the reference site CE and at the estuarine site DE located far from the industrial district, whilst the highest were observed within the industrial area (SA) and at the estuarine site OS located in the proximity of the illegal landfill and also receiving urban and industrial discharges.
A review of PCDD/F concentration in the sediments of the Venice Lagoon reported a mean value of 14,000 pg g–1 dw of ΣPCDD/F for the industrial channels and 1,000 pg g–1 dw of ΣPCDD/F for the inner lagoon (Guerzoni et al., 2007). These data are higher than those observed in the present study, both for the industrial district and the reference and estuarine samples; nevertheless, the comparison with literature data is often complicated by the different depth of the sediment core analyzed in the various studies. For the industrial district, many data refer to the first 2 cm of sediments, where concentrations in the range 67–13,642 pg g–1 for dioxins and 592–126,561 pg g–1 for furans were reported (Bellucci et al., 2000; Frignani et al., 2001a); other projects investigated the vertical profile of PCDD/F in industrial channels and reported concentrations up to 36,590 pg g–1 dw for dioxins in the layer 35–38 cm depth and up to 19,241 pg g–1 dw for furans in the layer 8–10 cm depth (Frignani et al., 2001a).
Later studies conducted by the Venice Water Authority investigated the top layer to a depth of 25 cm (MAG. ACQUE-Thetis, 2007) in the shallows of the inner lagoon facing the industrial district and reported concentrations in the range 13–8,312 pg g–1 dw of ΣPCDD/F and equivalent toxicity (WHO-TEQ) up to 112 pg g–1 dw. These data are in agreement with the concentrations observed in the present study, both for the industrial district (SA, BR) as well as the estuarine sample OS. At this latter sample, the measured concentrations (1,402 pg g–1 dw as ΣPCDD/F) were also higher than those reported in the literature (depth 0–20 cm) for the inner lagoon shallows opposite to the estuary and in the proximity of the illegal landfill of Campalto (120 pg g–1 dw as ΣPCDD/F) (Picone, 2006). These data suggest that the pollution of the area could be due mainly to the urban and industrial discharges upstream, rather than to leakages from the landfill.
Fewer data are available for the sites DE and CE. In surface sediment (0–5 cm) collected in the estuarine site DE, Jimenez et al. (1998) measured a total ΣPCDD/F concentration of 79 pg g–1 dw.
The profiles of the homologs and the cluster analysis evidenced three distinct patterns of PCDD/F at the five study sites, that may be related to different sources of contamination. In the sediment of the industrial area Bellucci et al. (2000) already identified three distinct type of homolog profiles that fit with the main local sources: (type 1) profile dominated almost entirely by OCDD, produced by combustion processes, untreated domestic sewage, urban wastes and boat engine exhausts; (type 2) profile with the dominance of OCDF (90%) and OCDD (10%) that could be ascribed both to the stripping of vinyl chloride monomer (Stringer et al., 1995) and to the accumulation of atmospheric contaminants caused by both the runoff from the industrial district and the wastes of a factory for the production of liquid gases (Frignani et al., 2001a); and (type 3) profile containing mainly furans, with a prevailing component of OCDF, probably due to the production of metals, coke and related chemicals in the industrial district.
Nevertheless, in the present study only the sample collected from Canale Industriale Sud (SA), showed a profile that could be categorized into one of the three types outlined by Bellucci et al. (2000) since the homologs provided a specific pattern of furans with a dominance of OCDF, attributable to industrial production of coke, metals and related manufactories (type 3), whilst contribution of dioxins in negligible. In the remaining four samples, the profiles did not allow for the identification of a prevailing source, but indicate the co-occurrence of multiple sources of contamination. Samples CE and DE were characterized by a pattern of PCDD/F, consistent with atmospheric deposition from industrial sources. However, their profiles showed also a noteworthy contribution of OCDD, suggesting a not-negligible contribution of combustion processes unrelated to industrial pollution and boat traffic. In contrast, in samples OS and BR the dominance of OCDD over OCDF and HpCDF suggested a major contribution of deposition due to combustion combined with untreated domestic sewage over the deposition of furans from industrial sources.
PCDD/F in Tissues
In general, very few data are available in the literature concerning the field bioaccumulation of PCDD/F in polychaetes, although ragworms and lugworms are widely used as a bioindicator for biomarker and bioaccumulation studies (Ruus et al., 2005; Durou et al., 2007a, b) and are a key component of the coastal and estuarine food webs. Studies on H. diversicolor were performed by Nunes et al. (2011), that reported a concentration in tissues of 1.38 pg g–1 ww of ΣPCDD/F (81.16 pg g–1 lipid) for the Mondego estuary, Portugal. These data were lower than the concentration normalized to lipids observed both in the industrial district and in the estuarine sites of the Venice Lagoon in the present study (269–2,111 pg g–1 lipid), and may be related to the different levels and kind of pollution sources affecting the two estuaries.
In the Venice Lagoon the bioaccumulation of PCDD/F from the sediments has been most often assessed by measuring tissue concentration in clams and fishes, and never in polychaetes. Various studies have focused on the concentrations of PCDD/F in the Manila clam (Ruditapes philippinarum) collected both in the industrial district and in the inner lagoon: Sfriso et al. (2014) measured concentrations in the range of 40–110 pg g–1 dw for the inner lagoon, corresponding to an equivalent toxicity (WHO-TEQ) of 0.49–1.46 pg g–1 ww; Raccanelli et al. (2004, 2008) reported for the industrial area an equivalent toxicity of 2–9 pg g–1 ww; MAG. ACQUE-Thetis (2006) reported concentrations in the range 40–717 pg g–1 lipid and 9–58 pg g–1 lipid for industrial area and inner lagoon, respectively. In this latter study also the levels of PCDD/F in the muscle of the grass goby Zosterisessor ophiocephalus were measured, ranging between 14 and 435 pg g–1 lipid for the inner lagoon and 78−640 pg g–1 lipid for the industrial area (MAG. ACQUE-Thetis, 2006). Tissue concentrations in gobies are in agreement with the observed concentrations measured in polychaete tissues in the present study. Other authors also reported data for the thicklip gray mullet Chelon labrosus (1.6−2.6 pg g–1 ww of Σ PCDD/F) and the crab Carcinus aestuarii, both in the industrial district (36 pg g–1 ww of Σ PCDD/F) and in the inner lagoon (1.5–5 pg g–1 ww of Σ PCDD/F) (Jimenez et al., 1998; MAG. ACQUE, 1999).
Homolog profiles indicated that the polychaetes accumulated OCDD preferentially as concern dioxins, whilst two different patterns are evident for furans: at sites CE and BR the dominant congener was the more chlorinated OCDF, whilst in samples SA, OS and also DE there was a relevant contribution of the less chlorinated congeners. In particular, there was a notable contribution provided by 2,3,7,8-TCDF, a typical marker of pollution due to chloralkali plants (Jimenez et al., 1998).
Comparison Between Sediments and Tissues
Sediment concentrations were higher than tissue concentrations for all the analyzed PCDD/F, apart from the less chlorinated furan 2,3,7,8-TCDF and 2,3,4,7,8-PeCDF, whose concentrations were higher in the tissues of H. diversicolor than in the sediments at the same stations. The differences were up to one order of magnitude for the hepta- and octa-chlorinated congeners, especially at sites DE, OS and SA, whilst the trend was less evident for the hexa-chlorinated congeners.
Homolog profiles and Spearman’s correlation showed a generally low association between congener concentrations in sediment and polychaete tissues, resulting in large variability among the corresponding BSAF values. On the other hand, the significant linear relation observed between logBSAF and logKOW, despite having a low coefficient of determination (r2 = 0.289), outlined polychaete’s tendency to take up preferentially the less chlorinated and less lipophilic congeners, characterized by lower logKOW, as also observed by Kono et al. (2010) in a laboratory study aiming to model the dioxin transfer from sediments to Perinereis nuntia. These authors also evidenced that bioaccumulation of PCDD/F in polychaetes follow similar characteristics to those observed in fishes (Sijm et al., 1993).
The congeners 2,3,7,8-TCDD and 2,3,7,8-TCDF are characterized by high bioaccumulation and low elimination; thus their BSAF tends to be higher than those of the more chlorinated congeners (Sijm et al., 1993; Kono et al., 2010). In the case of H. diversicolor this is evident for 2,3,7,8-TCDF, whose accumulation factors were the highest in all the analyzed sample (except CE) despite the low sediment concentrations; for 2,3,7,8-TCDD this trend is not tangible, probably due to the sediment concentrations below detection limits that impeded any further analysis. Preferential accumulation of tetrachlorinated congeners has also been observed by Pruell et al. (2000) for the Nereididae Alitta virens following 70-d laboratory exposure to contaminated sediments: in this case, polychaetes accumulated only 2,3,7,8-TCDD and 2,3,7,8-TCDF, although the sediments were characterized by a range of PCDD/F and also high concentrations of highly chlorinated congeners.
On the other hand, 1,2,3,4,6,7,8-HpCDD, HpCDFs, 1,2,3,4,6,7,8,9-OCDD and 1,2,3,4,6,7,8,9-OCDF are congeners characterized by low bioaccumulation, as applies to all the 1,4-substituted and/or 6,9-substituted PCDD/F (Sijm et al., 1993; Kono et al., 2010). Both low bioavailability and elimination may contribute to the low accumulation (and also BSAF) of highly chlorinated PCDD/F. Lipophilicity is a major contributor for determining the bioavailability of sediment-bound PCDD/F, as confirmed by the negative relationship of BSAF versus KOW in H. diversicolor (this study) and P. nuntia. However, contaminant molecular size and conformation (specifically planarity/nonplanarity), sediment characteristics and feeding habits may also play a significant role, as observed in oligochaetes (Lyytikäinen et al., 2003). Elimination of highly chlorinated PCDD/F in caddisfly larvae and oligochaetes fits a biphasic model (Loonen et al., 1997; Pastershank et al., 1999). A first, rapid depuration phase was attributed to the elimination of the gut content, facilitated by a low assimilation efficiency for highly chlorinated compounds, whilst the slower phase of the depuration was attributed to elimination from other body compartments. The elimination process in polychaetes has not yet been elucidated, but a significant correlation between the elimination constant (k2) and log KOW has been observed by Kono et al. (2010), supporting the hypothesis that more chlorinated and hydrophobic congeners do not bioaccumulate since they are quickly eliminated. In fish and oligochaetes the more rapid elimination of super-hydrophobic organics as OCDD compared to lower chlorinated PCBs, TCDD and TCDF – also observed in human blood (Flesch-Janys, 1996) – also suggests that OCDD in invertebrates is mainly associated with fast-clearing compartments as cell membranes or blood serum (Kono et al., 2010).
The BSAFs for PCDD/F observed in the present study with H. diversicolor (0.02–1.41 for dioxins; 0.01 – 11.13 for furans) are at least one order of magnitude higher than those measured in P. nuntia (0.00036–0.22 for dioxins and 0.0002–0.36 for furans) (Kono et al., 2010); moreover, the data are in agreement with the BSAFs reported for other polychaetes such as Nephtys sp. (McFarland et al., 1994) and A. virens (Pruell et al., 1993, 2000; Schrock et al., 1997). In all cases, the BSAF obtained with H. diversicolor for 2,3,7,8-TCDF is higher than those reported for other polychaete species, suggesting a specific ability of H. diversicolor to accumulate this congener. Since bioavailability is a crucial factor driving bioaccumulation, and digestive fluids are the primary factors driving solubilization of organic contaminants in polychaetes (Voparil and Mayer, 2000; Ahrens et al., 2001), differences in BSAFs for 2,3,7,8-TCDF among H. diversicolor and other polychaete species may be due to differences in gut digestive chemistry. Concentrations and properties of digestive fluids vary broadly among species and it may affect the assimilation efficiency for some substances (Ahrens et al., 2001; Mayer et al., 2001). When compared to other invertebrates, the BSAFs calculated for H. diversicolor are in agreement with data reported for the freshwater oligochaete Lumbriculus variegatus (0.024–2.54), the crustaceans Palaemonetes pugio and Callinectes sapidus (0.089–0.73 in the hepatopancreas), the bivalves Macoma nasuta and Corbicula japonica (0.004–0.22 for PCDD/F) (Pruell et al., 1993; Schell et al., 1993; Kang et al., 2002; Pickard and Clarke, 2008; Iannuzzi et al., 2011). Also in this case, similarities in BSAFs may be due to comparable efficiency of the digestive fluids in the solubilization of the contaminants, as shown by Mayer et al. (2001) for benzo[a]pyrene.
Sediment Accumulation Factor data suggest that H. diversicolor may accumulate PCDD/F significantly from the sediments and may serve as an indicator for the bioavailability of dioxins and furans from sediments to the polychaete community, especially as concerns the less chlorinated 2,3,7,8-TCDF, 2,3,4,7,8-PeCDF and 2,3,4,7,8-PeCDD. Nevertheless, the BSAFs for PCDD/F in polychaetes are generally low (BSAF < 1 or less) when compared to the BSAFs measured for other organochlorine contaminants (i.e., PCBs and organochlorine pesticides) in a number of species including A. virens, N. incisa, Glycera sp., Perinereis nuntia and also H. diversicolor (Lake et al., 1990; Brannon et al., 1993; Volpi Ghirardini et al., 2004; Kono et al., 2010; Nesto et al., 2010); this trend was also observed in fishes where the apparent lower bioaccumulation of PCDD/F was attributed to lower solubility in the lipids, reduced membrane transport and also biotransformation mediated by cytochrome P450 monooxygenase isozymes (Opperhuizen and Sijm, 1990; Sijm et al., 1993; van der Oost et al., 2003). Biotransformation of PCDD/F in polychaetes has been rarely studied, and no data are available concerning the possible mechanisms involved. Nevertheless, since cytochrome P450 isozymes are active also in polychaetes (Zheng et al., 2013), it cannot be excluded that the lower bioaccumulation of PCDD/F in ragworms could be due to the same causes already identified for fishes. Further studies are needed, however, to elucidate these possible mechanisms of biotransformation and elimination.
Conclusion
Total PCDD/F concentrations in sediments in Venice Lagoon showed a clear pollution gradient along the investigated sites, with higher levels of contamination in the samples collected in the industrial district (SA) and in the estuarine site receiving urban and industrial discharges from the area of Mestre and the illegal landfill of San Giuliano. Distinctly different homolog profiles discriminated between sites influenced by heterogeneous pollution sources (BR, OS, DE and CE) and the industrial site (SA), where a specific pattern of furans with a dominance of OCDF attributable to industrial production of coke, metals and related manufactories was observed.
In the ragworm tissues, the concentration pattern of the congeners is different from those observed in the sediments, especially with regard to furans: in sample CE and BR the polychaetes accumulated mostly 1,2,3,4,6,7,8,9-OCDF whilst in samples SA, OS and DE the major contribution was due to the less substituted congeners and principally 2,3,7,8-TCDF, recognized as a marker of possible contamination deriving from chloralkali industrial plants.
In general, H. diversicolor was a good indicator for assessing the transfer of PCDD/F from sediment to biota, but accumulated more efficiently the less chlorinated congeners with lower logKOW resulting in a negative correlation between BSAF and KOw, after logarithmic transformation.
Despite H. diversicolor’s ability to accumulate 2,3,7,8-TCDD, 2,3,7,8-TCDF and 2,3,4,7,8-PeCDF, the BSAFs calculated for the PCDD/F are low as compared with those reported in the literature for other organochlorine compounds (i.e., PCBs and organochlorine pesticides) in a number of species including A. virens, N. incisa, Glycera sp., Perinereis nuntia and also H. diversicolor. Lower BSAFs for PCDD/F may be due to different uptake kinetics, or the presence in polychaetes of a more efficient elimination pathway for PCDD/F than for PCBs or pesticides, possibly involving also cyt-P450-mediated biotransformations; further research is needed to identify both biotransformation and elimination processes driving accumulation in polychaetes. Due to the paucity of information on this species, this research not only represents a baseline but also an invitation for further ecotoxicological studies on H. diversicolor.
Data Availability Statement
All datasets generated for this study are included in the article/supplementary material.
Author Contributions
MP developed the manuscript concept, wrote the manuscript, and took care of the statistical analyses. ED contributed to the development of the study design, supported sampling, took care of data analysis, and commented on the manuscript. DT participated in the development of study design, supported sampling and handling, and commented on the manuscript. IG supported the analysis and commented on the manuscript. AV developed the study design, participated in the manuscript concept development, supported writing and analysis. All authors contributed to the article and approved the submitted version.
Funding
This study was financially supported by the project ORIZZONTE 2023, funded by the Venice Water Authority through its concessionaire Consorzio Venezia Nuova.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
The authors are very grateful to Michele Cornello and Alessandra Arizzi Novelli for helping with sampling and handling of sediment and polychaetes.
