Wildlife Warning Reflectors' Potential to Mitigate Wildlife-Vehicle Collisions—A Review on the Evaluation Methods

Wildlife-vehicle collisions (WVC) produce considerable costs in road traffic due to human fatalities as well as ecological and economic losses. Multiple mitigation measures have been developed over the past decades to separate traffic and wildlife, to warn humans, or to prevent wildlife from entering roads. Among these, wildlife warning reflectors (WWR) have been frequently implemented, although their effectiveness remains a subject of discussion due to conflicting study results. Here we present a literature review on the effectiveness of WWR for N = 76 studies, including their methodological differences, such as the type of WWR (model and color), study conditions, and study designs. We used boosted regression trees to analyse WVC-data addressed in the literature to compare WWR effectiveness depending on the study design, study conditions, effective study duration, length of the tested sections, time period of the study, data source, reflector type, and animal species. Our analyses revealed no clear evidence for the effectiveness of WWR in preventing WVC. Instead, our meta-analysis showed that most studies indicating significant effects of WWR on the occurrence of WVC may be biased due to insufficiencies in study design and/or the approach of WVC data acquisition. Our computation of log response ratios (LRR_WVC) showed that only studies applying a before-after (BA) design concluded that WWR were effective. Moreover, BRT modeling revealed that only studies of <12 months effective study duration and <5 km test site length indicated that WWR might lower WVC. Based on the vulnerability to confounding factors of WWR-study designs applied in the past, this review suggests the standardization of study conditions, including a before-after control-impact (BACI) or a cross-over study design with spatial and temporal control sections, a minimum test site length and a minimum study duration.

Introduction

Since the beginning of the automobile era, wildlife-vehicle collisions (WVC) have strongly influenced the environmental impact of road traffic and have increasingly threatened both humans and wildlife (Stoner, 1925). Reliable data on economic and ecological costs is available to date for only a few European countries over the past three decades (cf. Langbein et al., 2011). For the year 1996 alone, in Europe 500,000 collisions with ungulates, 300 human fatalities and an economic loss of ca. one billion US dollars were estimated by Bruinderink and Hazebroek (1996). Two decades later, 263,000 officially reported WVC and an economic loss of almost 0.7 billion Euros were reported for Germany alone (GDV, 2017)¹. The total damage in Europe overall can therefore be assumed to be far larger than in 1996. At present, a total of 800,000 WVC with ungulates is estimated for Germany, given that likely more than two-thirds of all collisions remain unreported, as reported for the US and Canada (Huijser and Kociolek, 2008; Snow et al., 2015; Hesse and Rea, 2016). However, WVC are not randomly distributed, but tend to accumulate in certain areas as a result of spatial and temporal factors (Gunson et al., 2011; Bíl et al., 2013). The duration of temporary WVC-hotspots is determined by diurnal and seasonal changes depending on species and climate conditions (Madsen et al., 2002; Compare et al., 2007). Furthermore, local differences in WVC-hotspots usually depend on species' habitat characteristics (Malo et al., 2004), type of road, and traffic volume (Clarke et al., 1998; van Langevelde and Jaarsma, 2009; Langbein et al., 2011; Beben, 2012). As mammals utilize landscapes at a different spatial scale than, for example, amphibians, predicting exact WVC-hotspots for these species is difficult (van Gelder, 1973; Ashley and Robinson, 1996; Madsen et al., 1998). Deer-vehicle collisions are the most common type of reported WVC in northern Europe (DeNicola et al., 2000; Rutberg and Naugle, 2008) and involve ~6% of the roe deer (Capreolus capreolus) spring population (Bruinderink and Hazebroek, 1996); or up to 264,000 animals in Germany every year (GDV, 2017)². WVC-hotspots and temporal aggregations for this species are potentially due to habitat structure (Finder et al., 1999; Nielsen et al., 2003; McShea et al., 2008), seasonality (Hubbard et al., 2000), and perhaps lunar cycles (Steiner et al., 2014; Colino-Rabanal et al., 2018). Although WVC depend on both human and deer activities (Mysterud et al., 2004), deer-vehicle collisions have increased by 25% over the past decade, whereas all non-deer-vehicle collisions have decreased by 5–10% (Hothorn et al., 2015). The overall increase in WVC may therefore be due to an increase in deer population density rather than an increase in human activity or traffic intensity.

Mitigation measures (cf. Iuell et al., 2003; van der Ree et al., 2015) to reduce WVC on roads are often accompanied by high costs for construction and maintenance, including fencing, green bridges, or electric warning signs (Kruidering et al., 2005; Huijser et al., 2007a). Other, less costly measures (e.g., olfactory repellents, wildlife warning signs, speed limit reductions, or specific training to warn humans) have been shown to be ineffective in the long term, partly due to habituation (Elmeros et al., 2011; Beben, 2012). So far, only optical alarm devices, such as wildlife warning reflectors (WWR) have been occasionally reported to reduce WVC, but their effectiveness remains in question, as findings are mixed and concomitant conclusions are highly contradictory (cf. Brieger et al., 2016). Previous reviews have surveyed outcomes on the effectiveness of WWR and have sometimes conducted meta-analyses to include national and international published studies (D'Angelo and van der Ree, 2015: N = 13 studies; Brieger et al., 2016: N = 23 directly available studies, N = 18 indirectly available studies, N = 12 newspaper articles and N = 37 not accessible studies). However, we identified a considerable number of additional peer-reviewed studies which have not been evaluated, and which also focus on the effectiveness of WWR (Supplementary Table 1).

In this review we provide an extensive summary of research findings on the effectiveness of WWR (N = 65 directly available studies, N = 13 indirectly available studies); and excluded non-scientific public articles as sources. As far as we know, this is to date the most comprehensive review on the effectiveness of WWR, with almost twice as many studies than the next comprehensive review [cf. (D'Angelo and van der Ree, 2015) (N = 13 studies), and (Brieger et al., 2016) (N = 41 studies, 12 newspaper articles)]. In addition, we focused on methodological differences due to the variability in WWR models, such as manufacturer, reflector color, as well as study approaches, such as study designs and collision reports. This is the first study testing WWR, of which we are aware, that examines the relationship between study approaches and study results. We also aimed to identify minimal requirements for a successful study design in order to make further recommendations for effective studies on WWR efficiency. Consequently, we tested the hypotheses that: (H1) existing study results can be explained by the specifics of study designs, and (H2) a meta-analysis of previous studies identifies minimal requirements for a successful study design.

Fundamentals

Wildlife Warning Reflectors

Optical warning devices, such as WWR, are mounted along the road on guideposts oriented toward the road verge. WWR are intended to prevent wildlife from entering a road when a vehicle passes at night, its headlights reflecting off the WWR toward the road verge. The reflections from several WWR are supposed to create a “fence of light” in front of animals in close proximity to the moving vehicles. This is believed to alter the behavior of animals and interrupt their movement toward the road (e.g., Beilharz, 2017³; Schilderwerk Beutha, 2017). WWR have been distributed since the early 1960s and are now available in diverse construction types and in a variety of colors. Among the first models were the “Van de Ree” mirrors, developed in the Netherlands (McLain, 1964; Nettels, 1965), followed by the “Ruppert” reflectors (Queal, 1968). More commonly applied and tested are the models “Swareflex,” developed by Swarovski in 1973 in Austria (Rudelstorfer and Schwab, 1975) and “Strieter Lite,” developed by Strieter Corp. in 1994 in the United States (Barlow, 1997). Other WWR were developed by Bosch and GFT (Bosch, “WEGU,” and “AWIWA” reflectors), both in Germany (Gladfelter, 1984; Ujvari et al., 1998).

Color Vision

WWR are most commonly produced in red, but also in white or amber colors (D'Angelo et al., 2006). Whereas humans are trichromatic and perceive red as a warning signal (Goldstein, 1942; Elliot et al., 2007), most mammals, including ungulates, are dichromatic with a high density of rods (Witzel et al., 1978; Jacobs et al., 1994, 1998). Thus, ungulates have one photo-pigment associated with a cone mechanism for short wavelengths with a peak between 450 and 460 nm (S-cone), and a second photo-pigment associated with a cone mechanism 167 for middle wavelengths with a peak of 537 nm (M/L-cone) (e.g., Carroll et al., 2001). Therefore, red light with a wavelength of 650 nm exceeds the visible range of ungulates (Jacobs et al., 1994; Yokoyama and Radlwimmer, 1998; Pürstl, 2006). Thus, recently developed WWR models have been adjusted accordingly, and are now produced in colors of shorter wavelengths, such as green and blue (e.g., Beilharz, 2017⁴; Brieger et al., 2017a,b; Kämmerle et al., 2017; Schilderwerk Beutha, 2017).

Materials and Methods

Literature Survey and Study Selection

The available literature was surveyed systematically using the online databases ISI Web of Knowledge (webofknowledge.com) and Google Scholar (scholar.google.de). The search was conducted by combining the terms (“wildlife” OR “deer” OR “roadside” OR “animals”) AND (“reflectors” OR “mirrors”) using multiple languages (Dutch, Danish, German, Norwegian, Swedish, and Spanish). We additionally tested the names of various manufacturers of WWR (cf. Supplementary Table 1). All studies (including empirical studies and reviews) were filtered for their relevance regarding the effectiveness of WWR. Subsequently, we surveyed the reference lists of relevant studies for additional older studies which had not been recorded. In total, we found 76 publications evaluating the effectiveness of WWR between 1964 and 2017 (cf. Supplementary Table 1). Twelve of these studies were not accessible, but relevant information is presented indirectly through later studies in which they were cited.

Data Extraction and Data Processing

Each study was scanned for information on the reflector, reflector color, and manufacturer. If available, the respective species was documented and classified as cervid species, marsupial species, or other. All information on study duration (length in months), study location (e.g., field, enclosure, or laboratory) as well as the number and length in road distance of test- and control sites was listed. Additionally, we captured the effective study duration, which quantifies the effective duration of a test or control period, including or precluding the use of reflectors, respectively. Furthermore, the applied study design was identified [e.g., before-after (BA), control-impact (CI), before-after control-impact (BACI), cover/uncover(C/U), behavior, other) and, finally, the number of WVC was documented. We also collected information on the data source for counts of WVC (e.g., police, transportation administrations, research group or hunters) and the statistics used for analyzing the data (e.g., t-test, chi-square). To make possible an adequate comparison of observed occurrences between studies, we normalized each count of WVC to 1 year each of the effective study duration (time period of a test or control measurement) and 1 km of road distance (WVC_norm, year⁻¹ km⁻¹). In total, 41 sets of WVC data with and without reflectors were considered for our analysis (Supplementary Table 1). Using WVC_norm, we calculated the log response ratio (LRR) as an effect size measure of WWR-effectiveness, thus quantifying the effect of the mean outcome in the experimental group (i.e., with WWR) in comparison to the control (i.e., without WWR) as described by Hedges et al. (1999). The LRR represents a suitable metric for meta-analysis of count data, which can be easily compiled without knowledge of data variances and sample sizes of single studies (Borenstein et al., 2009).

Statistical Analysis

Statistical analyses were performed using the R system for statistical computing (R Core Team, 2018, version 3.4.3). The response variables WVC_norm and LRR_WVC were tested for normal distribution and homoscedasticity of variances (Zuur et al., 2010; Fox, 2015). Depending on the data structure of WVC_norm, we applied parametric (paired student's t-test) or non-parametric statistics (Mann-Whitney U-test) to test for mean differences between each test- and control- group (WWR vs. no WWR). In the case of LRR_WVC, we used a one-sample t-test to analyze whether the mean effect size was different from zero. Each time multiple comparisons were conducted we additionally implemented a Bonferroni correction. To model the significance of the study design and site conditions on the effect size of WWR, we applied a boosted regression tree (BRT) analysis. This machine learning procedure combines the regression tree approach (De'ath and Fabricius, 2000) with a boosting procedure aimed at achieving optimized model accuracy (Schapire, 2003). BRT analysis is suitable for the interpretation of ecological data as it can combine analysis of nominally and metrically-scaled data, and due to its robustness with respect to unbalanced designs, can accommodate missing data and implement interaction effects of independent variables. The interpretation of the model output is straightforward since the relative importance as well as fitted functions for each predictor variable in use can be computed (Elith et al., 2008). For this analysis we used the R package gbm in combination with BRT function gbm.step() as developed by Elith et al. (2008). We aimed to explain the variance in LRR_WVC and we therefore tested the importance of various possible predictors: (i) study design (BA, CI, BACI, CU); (ii) test road distance; (iii) effective study duration; (iv) data source for counts of WVC (authorities, hunters, scientists, others); (v) age of publication (1970s, ‘80s, ‘90s, 2000s, ‘10s); (vi) study region (North America, Europe, Australia); (vii) type of wildlife (cervids, marsupials, others); (viii) reflector type (Strieter, Swareflex, etc.); and (ix), reflector color (red, white, etc.,). Since the number of observations was too small to run a BRT model testing the importance of all possible predictors simultaneously [N = 9, reflector type, reflector color, study design, species, length of testing sites, study period, data source, effective study duration (i.e., times reflectors are “active”) and study region], we applied a core model using study design, effective study duration and test distance as permanent predictors. To additionally select the most influential predictors from these three, we implemented a series of BRT models, in each case adding the two other possible predictors in all possible combinations. Variables were considered as predictors for the final model only when their relative importance was not below 5%. The final model was fitted as 10-fold replication and the results were averaged to present a mean outcome of the partially stochastic procedure.

Results

Behavioral, Physiological, and Spectrometric Studies on the Effectiveness of WWR

Behavioral studies of the reactions of animals to WWR (N = 10) did not show any effect that would lower WVC or any reaction of animals that would decrease the risk of WVC. The reactions of different deer or marsupial species were examined mainly for Swareflex and Strieter Lite Warning Reflectors (e.g., Griffis, 1984; Zacks, 1985; D'Angelo et al., 2006; Ramp and Croft, 2006). No study found any flight behavior or increased vigilance of animals when WWR or other light sources were activated (e.g., Sheridan, 1991; Norman, 2001). If anything, D'Angelo et al. (2006) showed that deer were more likely to be involved in negative deer-vehicle interactions, i.e. that the chance of a collision between deer and approaching vehicles increased, when WWR were installed than in periods without reflectors. Moreover, spectrometric analyses of WWR showed that the reflected light intensity was infinitesimal even at short distances from the reflectors and was additionally diminished by the headlights of approaching vehicles (Sivic and Sielecki, 2001; Schulze and Polster, 2017).

Methodological Differences and Results of WWR Studies

In total, we found 76 publications evaluating the effectiveness of WWR between 1964 and 2017 (62 directly and 14 indirectly accessible, cf. Supplementary Table 1). Most studies (N = 51) conducted analyses of WWR in the field using either a before-after (N = 29), control-impact (N = 5), BACI (N = 8), or cover/uncover (N = 10) study design. Of these, 39 studies provided 41 data sets which could be standardized to WVC year⁻¹ km⁻¹ with and without reflectors. Information on study duration and road length of the study sites was available in 42 and 43 studies, respectively. Behavioral analyses of wildlife and WWR were conducted in 10 studies (e.g., Ujvari et al., 1998). Additionally, four studies analyzed optical response measures of cervids with respect to WWR effectiveness, but reflectors were not tested directly in these studies (Almkvist et al., 1980; Zacks and Budde, 1983; Martschuk, 2014; Brieger et al., 2017b), thus these studies were not considered further. Other studies used spectrometric (N = 2), physiological (N = 1), or meta- (N = 1) analyses to evaluate the efficacy of WWR (cf. Supplementary Table 1). Twenty studies concluded that WWR reduce WVC and 18 studies found no effect or no conclusion was provided (Figure 1), while only 15 datasets showed a decline in WVC. Moreover, 26 data sets demonstrated (and 38 studies concluded) that there was an increase in WVC after WWR implementation.

FIGURE 1

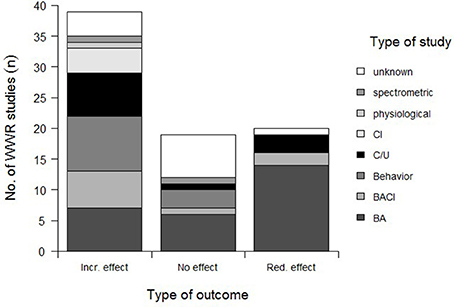

Figure 1. Findings of the effectiveness of Wildlife Warning Reflectors (WWR) to reduce Wildlife-Vehicle collisions (WVC). Study designs included before-after (BA), control-impact (CI), before-after-control-impact (BACI), or cover/uncover (C/U) study approaches, as well as behavioral, physiological, and spectrometric evaluations. Unknown study designs (N = 12) did not provide information on the applied design or the information was not accessible.

Wildlife warning reflector models evaluated in the literature were mainly Swareflex reflectors (N = 39). A slightly different model (Sivic and Sielecki, 2001), the Strieter Lite WWR, was tested in 16 studies (e.g., Barlow, 1997; Riginos et al., 2015, 2018). Other reflectors evaluated were WEGU (N = 2, e.g., Olbrich, 1984), AWIWA (N = 2, e.g., Voß, 2007), Bosch (N = 2, e.g., Gladfelter, 1984), Ruppert (N = 1, Queal, 1968), ITEK (N = 1, van den Berk, 2017), and Beutha reflectors (N = 3, Pluntke, 2014; Brieger et al., 2017a; Kämmerle et al., 2017) (cf. Supplementary Table 1). Study duration testing the effectiveness of WWR varied from 0.75 months (Ujvari et al., 1998) to 300 months (Sielecki, 2001), depending on the study approach (e.g., behavioral observations of Ujvari et al., 1998 compared to a before-after study design of Sielecki, 2001; cf. Supplementary Table 1). In summary, the majority of authors concluded that WWR were either ineffective (N = 19) or even (marginally) increasing WVC with WWR (N = 26). Other authors resumed that an effect remained undetected (N = 7). In contrast, twenty studies indicated a decreasing trend in WVC with WWR (Figure 1, Supplementary Table 1). All the studies differed greatly in their methodologies (Table 1). It is notable that statistical analyses comparing WVC with and without reflectors applying a before-after design led to a significant reduction in WVC after implementation of reflectors (p < 0.05). Other study approaches revealed a tendency toward increases in WVC (e.g., behavioral studies, BACI, cover/uncover, Figure 1) or at least no reductions in WVC after installation of WWR (Figure 2). Only 14 publications that included information on WVC year⁻¹ km⁻¹ concluded that WWR reduce WVC (N = 13 before-after, N = 1 control-impact) (cf. Supplementary Table 1).

TABLE 1

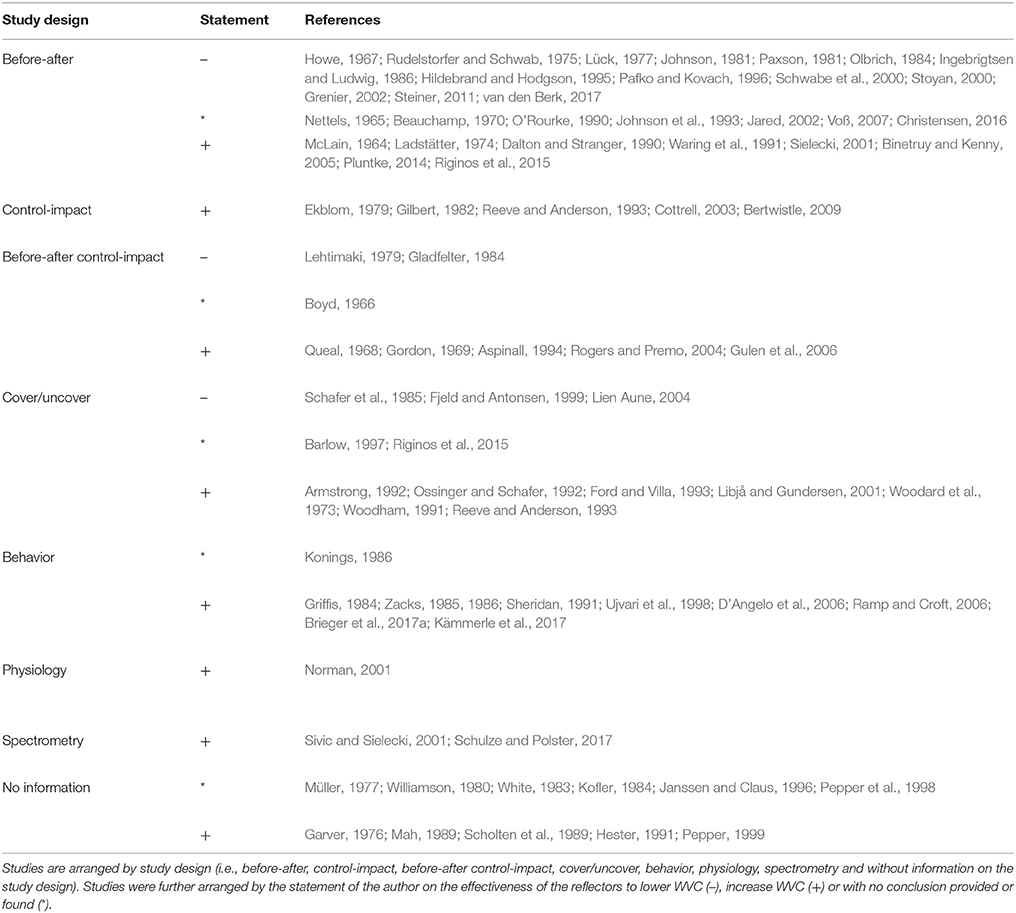

Table 1. Studies evaluating the effectiveness of wildlife warning reflectors (WWR) to reduce wildlife-vehicle collisions (WVC) on roads.

FIGURE 2

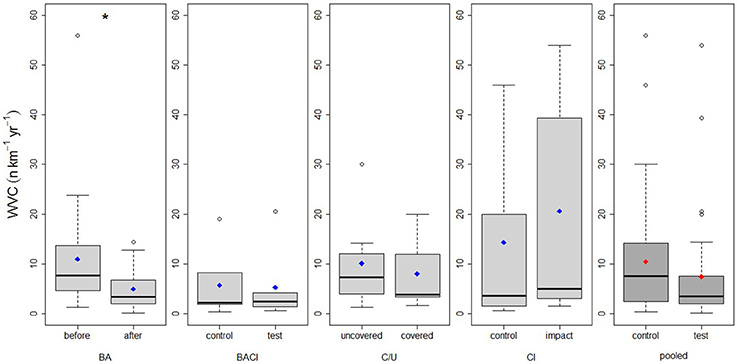

Figure 2. Boxplots showing the influence of Wildlife Warning Reflectors (WWR) on Wildlife-Vehicle collisions (WVC) with respect to the study design. Data was standardized to WVC year⁻¹ km⁻¹ for both with and without reflectors. Studies performing a before-after (BA) comparison showed a significant reduction in WVC-data (p < 0.05). Before-after control-impact (BACI), covered/uncovered studies (C/U), as well as control-impact (CI) studies, did not show any significant effect of WWR on WVC-data. All standardized data comparing WVC year⁻¹ km⁻¹ for both, with and without reflectors WVC did not show any significant effect of WWR on WVC-data (pooled).

Effects of Study Characteristics on the Outcome of WWR Efficiency

Based on 41 datasets presented in 39 studies, a quantitative analysis of the effectiveness of WWR on mitigation of WVC and its dependence on study conditions was applied. With respect to BRT modeling, the pre-selection of predictors revealed insignificance of the variables study region (mean relative importance: 0.1%), reflector type (1.9%), reflector color (0.0%), and the considered species (0.0%). Accordingly, the final model included five predictor variables and explained, on average, 23.2% of the variance observed in LRR_WVC (Figure 3). Study design was identified as the most influential predictor (mean relative importance: 32.7%) and the BRT revealed considerable differences between fitted values for the class before-after design in comparison to other study designs (Figure 3). The time of the study release as well as the testing site length of tested road segments indicated their relative importance for the accurate prediction of LRR_WVC observed (22.1% and 23.1%, respectively; Figure 3). Fitted values of LRR_WVC were generally higher using data from earlier published studies (1970–1990) and lower for more recent studies. With respect to effective testing site length, the fitted function showed a peak for the short road lengths studies (below 5 km) but the explanatory power was inconclusive for distances > ~15 km (Figure 3). Finally, the factor data source of WVC and effective study duration explained marginal degrees of the observed variance (relative importance: 14.0 and 8.2%, respectively). Fitted values of LRR_WVC varied slightly between datasets; for instance, those obtained from authorities, or data collected directly by scientists. The fitted function given for study duration followed the same curve as that of the road distance curve, with a high value plateau for low study durations (below 12 months) and a neutral prediction value above 20 months (Figure 3). Our statistical analyses, including BRT modeling, identified before-after study design, effective study duration <12 months and effective testing sites length <5 km as most influential variables on the tested “effectiveness” of reflectors.

FIGURE 3

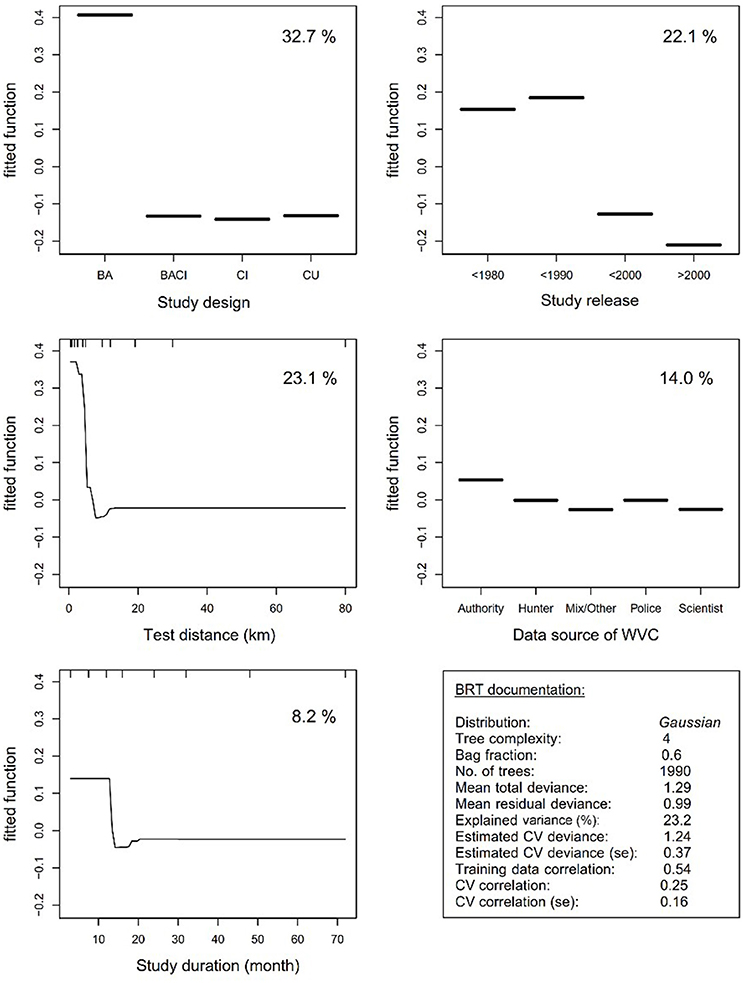

Figure 3. Partial response plots of the five explanatory variables in the boosted regression tree (BRT) model including BRT documentation, such as explanatory variance of the model (23.2%), and values indicating the relative influence of the explained variance in the BRT model, for each variable respectively. Study designs included before-after (BA), before-after control-impact (BACI), control-impact (CI), and cover/uncover (CU) approaches. Data source was separated by authority from which data were obtained, i.e., transportation administration, road authorities), hunters, mix/other (i.e., more than one data source was used), police (i.e., WVC which were officially reported to the local police station) and scientists.

Discussion

The results of both the review and the analysis of WVC-data from literature indicated that the effectiveness of WWR remains questionable and that the observed effect of WWR on WVC largely depended on other factors such as study design, effective study duration, and effective testing site length.

According to our meta-analyses the reflector model (1.9%) or the color of the reflectors (0.0%) did not indicate any influence on WWR. However, the risk of WVC varies during the year and the time of day, with high risks during the rutting season, as well as in the morning and first hours of the night (Hothorn et al., 2015). As ungulates, such as roe deer, prefer open areas and agricultural fields during the night (Mysterud et al., 1999a,b), the frequency of road crossings increases during darkness (Hothorn et al., 2015). Therefore, scotopic and mesopic vision play an important role in the life of ungulates with diurnal patterns (Hanggi et al., 2007), concomitant with greater rod density and better light perception in the range of blue and blue-green (Szél et al., 1996; VerCauteren and Pipas, 2003). From this perspective, the value of long-wavelength WWR is questionable and the likelihood of a reduction of WVC can be argued given the lack of animals' ability to perceive colors in these wavelengths (VerCauteren and Pipas, 2003). Modern WWR, produced and marketed in the past decade, are primarily blue (e.g., Brieger et al., 2017a; Beilharz, 2017⁵; Kämmerle et al., 2017; Schilderwerk Beutha, 2017). However, independent studies evaluating the effectiveness of modern WWR in the field as well as the influence of blue light on feeding behavior in roe deer have not found any effect of the reflectors, either in reducing WVC directly or resulting in aversion or increased vigilance in roe deer (Brieger et al., 2017a,b; Kämmerle et al., 2017). Moreover, spectrometric analyses of WWR models have shown that the reflected light intensity is already very low at distances near the devices (Sivic and Sielecki, 2001) and reflector intensity is further overlaid by the headlights of approaching vehicles (Schulze and Polster, 2017). This applies especially to colored WWR (Sivic and Sielecki, 2001). Thus, it is doubtful that the light reflected from WWR has a sufficient intensity to elicit any reaction in animals at all.

Interestingly, some studies as well as observations by local hunters report their positive experiences with various models of WWR, including red models. A temporary reduction in WVC after installation of WWR may be explained by chance or by naturally oscillating fluctuations in population densities related, e.g., to hunting effort and food supply (Fryxell et al., 1991, 2010). Animals may also react aversively to something “new” in their environment (i.e., “novel object,” cf. Forkman et al., 2007), so their reaction could be simply to the presence of the posts on which reflectors are mounted. In this case, the color of the reflector would not matter. Riginos et al. (2018) reported that carcass rates decreased by 33% when delineator posts were covered with white canvas bags compared to uncovered reflectors, but carcass rates were 32% lower with uncovered reflectors than with posts covered with black canvas bags. Thus, white canvas and reflectors might stand out more from the surrounding landscape than black. However, the animals could be expected to become habituated to the presence of these objects over time, with a resulting decline in their effectiveness. Reduction in WVC may also be due to the influence of the reflectors on the behavior of drivers rather than on the behavior of animals (Zacks, 1985), as the light intensity from the direct reflection to the driver is far larger than the reflection to the surroundings of the road (Schulze and Polster, 2017). An increased attention of drivers to wildlife near the road has been reported for studies testing deer-whistles, resulting in decreasing WVC (Zacks, pers. comm. 2015). However, the response of drivers to WWR has not been evaluated. It is also possible that the reflectors serve as a warning device that influences driver behavior (Rowden et al., 2008), but habituation might be expected as has been shown for wildlife warning signs (Huijser et al., 2007b).

BRT modeling showed that especially short studies, with <12 months of effective study duration and <5 km test sites and a before-after approach, showed a decrease in WVC with WWR. Thus, we could confirm our hypotheses that (H1) study results can rather be explained by the specifics of study designs than by the presence of WWR. Additionally, we can partly confirm our second hypothesis (H2) that examination of previous studies made it possible to infer minimal requirements for a successful study design: before-after study design, effective study duration <12 months and effective testing sites length <5 km as the most influential variables on the tested “effectiveness” of reflectors.

Before-after study designs most often detected a decrease in WVC with WWR, but it is possible that control and testing periods may not have used the same season. Activity patterns of ungulates are reflected in WVC peaks, especially during the rutting season of each species (Allen and McCullough, 1976; Lavsund and Sandegren, 1991; Hothorn et al., 2015). There could be a decrease in animals' vigilance during this period. A WVC peak during dusk and dawn, especially in the darker seasons (Steiner et al., 2014), in which high traffic volumes—such as during rush hours—coincide with an increase in the activity phase of animals. Thus, studies including all activity periods of animals are more likely to include all variables (e.g., mating season or fawning) that may influence the reactions of wildlife to oncoming vehicles. Although Brieger et al. (2016) note that a before-after study design requires at least 8 years of study to gain solid data on the effectiveness of WWR to reduce WVC, a longer study duration could be confounded by environmental changes or population fluctuations over that time period and thus affect the outcome of studies testing the effectiveness of WWR (Fryxell et al., 2010; Brieger et al., 2016).

LRR_WVC analyses showed that only studies applying a before-after study design found a decrease in WVC with WWR. When studies that applied the before-after or control-impact designs were omitted, WWR did not lower WVC. Moreover, BRT models showed that the applied study design explains most of the variance (>30%). Studying the impact of a single treatment in a paired study design usually takes the form of studying a population before and after a treatment or by studying two very similar populations or locations (Morrison et al., 2008). However, other potential factors influencing a change may complicate the interpretation of experiments, increasing the Type II error, as heterogeneity results in the confounding of experimental errors (Underwood, 1997; Morrison et al., 2008). Study designs such as before-after or control-impact designs lack the independence of different levels of single treatments and true replication (Morrison et al., 2008). Thus, although there may be no statistical problem with the study and the null hypotheses is rejected, a potential change after the implementation of a treatment cannot simply be assigned to that impact, but may be due to other factors such as weather, crop rotation, etc., (Underwood, 1997; Morrison et al., 2008). Therefore, results comparing the number of WVC before and after the implementation of WWR, as well as comparing test sites with control sites, must be treated with caution due to discontinuity in time or space. In these, BACI and cross-over study designs provide a remedy, as they have the highest inferential strength for assessing impacts on the environment (Green, 1979; Underwood and Chapman, 2003; Roedenbeck, 2007).

In addition to a number of influencing variables such as reflector model, reflector color or effective testing site length in road distance and effective study duration, the type of data collection also seems to affect the results of studies testing the effectiveness of WWR. BRT analyses showed that data sources influence the variance in the model by 15%. Also, the opinion of the authors can influence study results. While Gladfelter (1984) stated that WWR reduced the number of WVC significantly, he compared test and control sites that differed strongly in WVC numbers, challenging the control-impact approach. Moreover, WVC differed among test sites after installation of WWR; thus not all test sites showed a reduction in WVC after implementation. When his data were standardized, WVC changed only from 1.86 WVC year⁻¹ km⁻¹ without WWR and 1.39 year⁻¹ km⁻¹ with WWR (cf. Supplementary Table 1). Similar issues apply to the study conducted by Hildebrand and Hodgson (1995). While WVC were rather low before installation of WWR at two test (N = 1 WVC) and control sites (N = 2 WVC), numbers increased to 3 WVC year⁻¹ at the test sites and 2.75 WVC year⁻¹ at the control sites after installation. Standardizing this data to the test site length, WVC actually increased from 0.38 WVC year⁻¹ km⁻¹ without reflectors to 0.6 WVC year⁻¹ km⁻¹ with reflectors. With so few observations, a test for significance is not actually possible. However, the authors stated that they found a non-significant reduction in WVC comparing test and control sites, and concluded that WWR are effective in reducing WVC. Olbrich (1984) compared test sites that he maintained. Although WVC differed strongly among test sites after installation and no statistical test was applied, he concluded that WWR reduce WVC. In additional examples of previous study limitations, Pafko and Kovach (1996) compared data before and after installation of WWR, yet without proper information on WVC before the study and with an invalid type of data collection. However, the authors concluded that WWR effectively reduced WVC. Other studies have also failed to provide data on the numbers of WVC before installation of WWR (e.g., Nettels, 1965). For example Grenier (2002) conducted a meta-analysis including data from different highway and transportation agencies. He concluded that WWR are effective in reducing WVC, although it remains unclear which studies he considered, as studies without any effect of WWR were excluded.

Conclusions

The effectiveness of WWR remains doubtful, due to conflicting study results and questionable study designs, especially using the before-after approach. BRT modeling indicated that only studies with <12 months effective study duration and <5 km test sites found a decrease in WVC with WWR. Moreover, LRR_WVC analyses showed that only studies applying a before-after approach concluded that WWR was effective. This design however, lacks the independence that would accrue from different levels of single treatments and true replication (Morrison et al., 2008). Thus, a potential change after the implementation of a treatment cannot simply be assigned to that impact, but to other factors as well. (Underwood, 1997; Morrison et al., 2008). Additionally, analyses of physiological abilities and spectrometric requirements in the literature provide evidence that most mammals cannot effectively perceive red light and that reflected light has insufficient intensity to elicit any reaction in animals that would lead to a decreased risk of WVC. Thus, to include as many explanatory variables, but also to exclude as many confounding factors (environmental biases) as possible, a BACI or cross-over design (Roedenbeck, 2007; Morrison et al., 2008) is advisable. Furthermore, predictive variables such as test site length, effective study duration, and data source influenced the variance observed in LRR_WVC. Additionally, behavioral observations of animals reacting to WWR including all activity periods, especially WVC-peak seasons, are recommended for further studies testing the effectiveness of modern WWR.

Author Contributions

AB: Idea for this publication, Literature Survey, Data Collection, Data Analyses, Statistics, Writing the manuscript; PA: Statistics, comments on the manuscript; TV: Project idea, Organization of funding, comments on the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We gratefully thank T. Lübbe and A. Seiler for providing helpful comments on the manuscript. Moreover, we like to thank Kathleen Regan, US, for comments on the manuscript. We further like to thank all the diligent librarians, who made a real effort to find lost publications. Funding was provided by the German insurers (GDV). We acknowledge support by the German Research Foundation and the Open Access Publication Funds of the Göttingen University.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fevo.2018.00037/full#supplementary-material
