ORIGINAL RESEARCH article
Front. Earth Sci.
Sec. Geohazards and Georisks
Volume 13 - 2025 | doi: 10.3389/feart.2025.1558910
An experimental study of the water-holding and strength characteristics of unsaturated canal embankment soils in the South-to-North Water Diversion Project
Provisionally accepted- North China University of Water Resources and Electric Power, Zhengzhou, China
Select one of your emails
You have multiple emails registered with Frontiers:
Notify me on publication
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

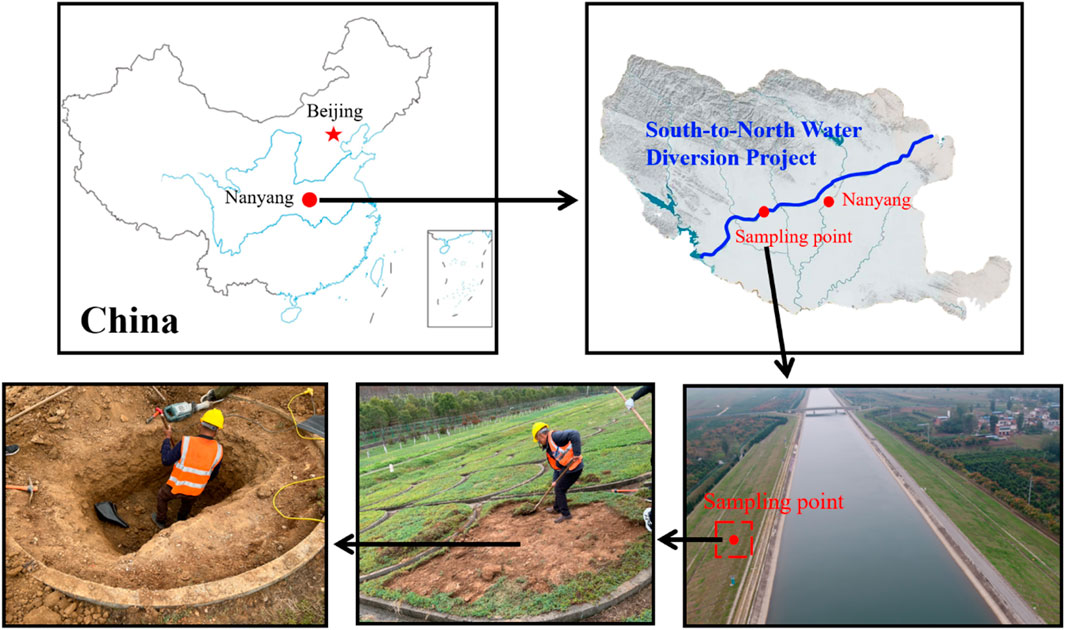

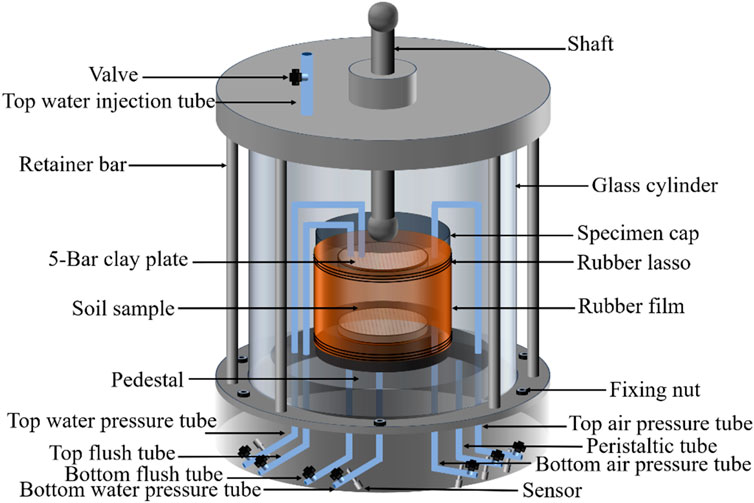

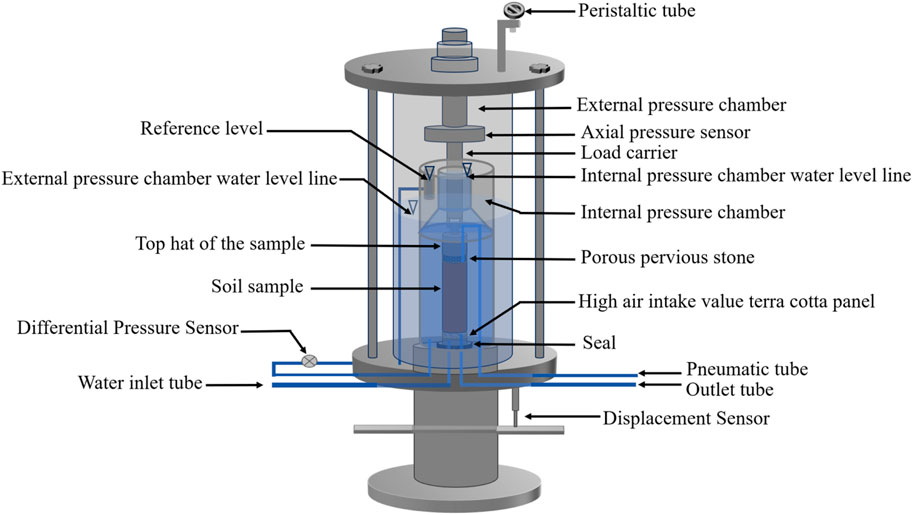

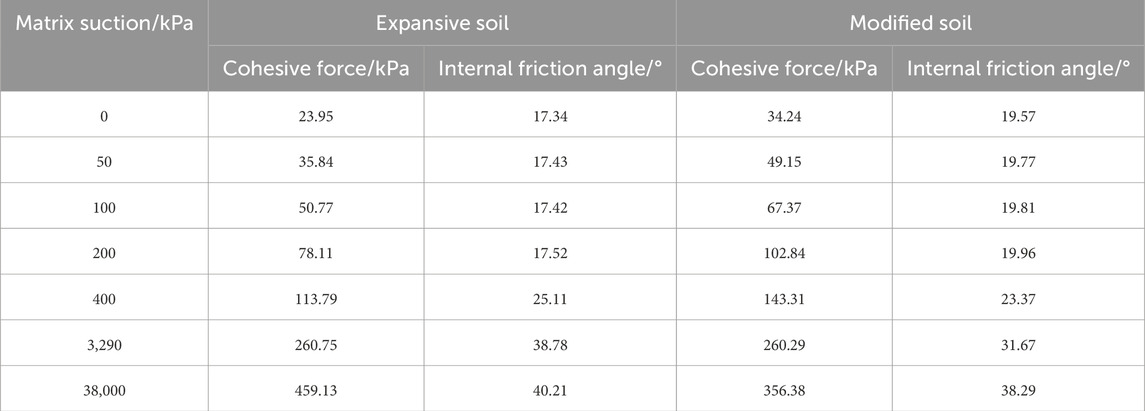

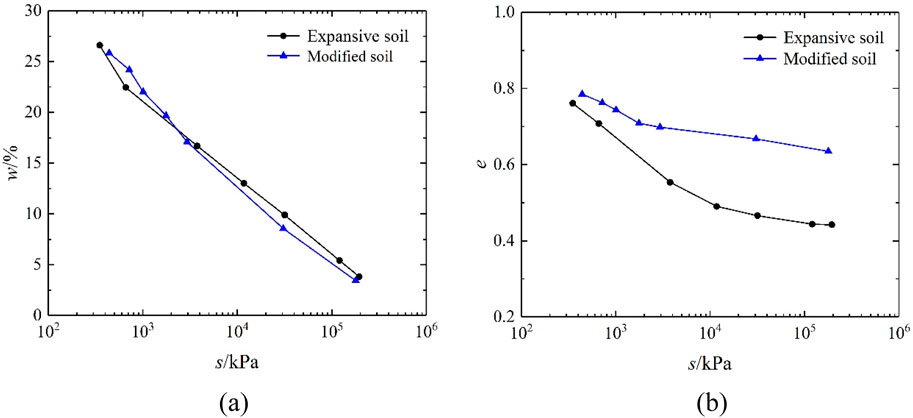

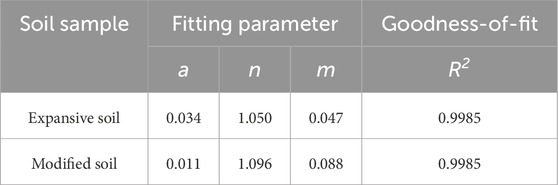

The water-holding and strength characteristics of unsaturated expansive soil and modified soil in a high-fill canal embankment along the central line of the South-to-North Water Diversion Project were investigated using a pressure plate apparatus and a GDS unsaturated triaxial test system. The soil-water characteristic curves (SWCCs) of expansive soil and modified soil were obtained by curve-fitting the results of water-holding characteristic tests, thereby revealing the distinctions in water-holding characteristics of the two soil types. The laws governing the effects of matrix suction on the stress-strain relationships and shear strength of the two soil types were explored through unsaturated triaxial drainage shear tests. According to the test results: (1) The moisture content and void ratio of each soil type decreased gradually with the increase in matrix suction, although the void ratio of modified soil decreased at a slower rate than that of expansive soil. (2) Matrix suction induced a transition from strain hardening to strain softening; (3) The shear strength of both soils increases with the matrix suction and confining pressure, with the increment of expansive soil greater than that of modified soil. Notably, the influence of confining pressure became progressively more significant with increasing matrix suction for both soils; (4) The cohesion and internal friction angle of expansive soil and modified soil increases with the matrix suction, with 200kPa as the critical point of increasing rate; (5) The expansive soil differs from modified soil in cohesion and internal friction angle under different matrix suctions, with matrix suction of 400kPa as the critical point. ( 6) The matrix suction thresholds of 200kPa and 400kPa can serve as references for engineering design and construction, as well as seepage prevention and slope reinforcement. This study provides technical parameters and theoretical support for the design, construction, and long-term stability of embankments on the expansive soil in the South-to-North Water Transfer Project site.
Keywords: High-fill canal embankment, Unsaturated soil, Shear behavior, Soil-Water Characteristic Curve (SWCC), Matrix suction
Received: 11 Jan 2025; Accepted: 21 Apr 2025.
