Mineralogical and geochemical characteristics of the third member of Palaeogene Dongying formation in the Nanpu Sag, Bohai Bay Basin: implications for controlling on organic matter accumulation

Introduction and Methods: To identify the unconventional shale oil exploration potential of the third member of the Palaeogene Dongying Formation (Ed₃) in the Nanpu Sag, Bohai Bay Basin, variations in paleoclimate and paleoenvironment and their influence on organic matter accumulation were investigated through analyzing mineralogical and geochemical characteristics of forty-nine mudstone samples.

Results: Results show that the Ed₃ mudstones exhibit strong heterogeneity with the organic carbon content ranging from 0.30% to 2.66%, petroleum potential yield ranging from 0.44 to 11.41 mg/g, and hydrogen index ranging from 57 to 466 mg/g TOC, which are dominated by mixed kerogen and low maturity to maturity. Multiple mineralogical and geochemical proxies suggest that the semi-humid to semi-arid paleoclimate during the Ed₃ period governed the fluctuations of paleoenvironmental elements. From bottom to top, the paleowater depth varied in an order of shallow water, deep water, and shallow water, respectively, and the corresponding paleosalinity of brackish water, fresh water, and brackish waterr, respectively. Water column evolved from weak oxidation to weak reduction, and then to weak oxidation, respectively. Two development models of the Ed₃ mudstones under semi-humid to humid and semi-arid to arid climate were summarized based on the influence of paleoenvironmental elements on organic matter supply and preservation/degradation in sediments. Mudstones were deposited in a deep-water environment with high primary productivity under the semi-humid to humid climate. The mixed aquatic and terrigenous organic matte were efficiently preserved in stratified and reduced water columns, resulting in high organic matter accumulation. Nevertheless, mudstones were developed in a shallow-water environment with medium primary productivity under the semi-arid to arid climate. Here, aquatic organic matter was oxidized and degraded in the oxidation condition, leading to low organic matter accumulation.

Discussion: The exploration of unconventional shale oil in the Ed₃ member of Nanpu Sag should focus on the organic-matter-rich mudstones developed in the humid climate.

1 Introduction

Organic matter accumulation in fine-grained sediments is a complex geological process influenced by multiple elements in the paleoenvironment, which are controlled by the co-evolution of tectonic and climatic factors (Carroll and Bohacs, 1999; 2001; Quan et al., 2017; Wang et al., 2020). It is achieved through the influence of paleoproductivity, paleowater depth, paleosalinity, and paleoredox conditions on the supply and preservation of organic matter. Paleoproductivity is an important factor affecting organic matter accumulation (Pedersen and Calvert, 1990). First, high primary productivity enhances the organic matter content in sediments. Second, the oxidation of excess organic matter can create anoxic conditions because of the consumption of free oxygen in the water column, which is conducive to the preservation of organic matter. Salinity leads to significant differences in the organic matter accumulation by governing the species and richness of planktonic organisms (Fu et al., 2022; Tang et al., 2020). Many euryhaline algae, e.g., cyanobacteria, diatoms, and green algae, etc., can survive in low-salinity water, whereas only a few salt-tolerant algae, e.g., amphora subacutiuscula, can thrive in high-salinity water. Nevertheless, organisms that are adapted to specific salinity ranges can propagate in these environments, benefiting from reduced competition for nutrients, survival space, and limited predators (Xu et al., 2024). Redox conditions play an important role in the preservation of hydrogen-rich organic matter. Water stratification controlled by the presence of salinity or temperature gradients can create an anoxic condition (Ocubalidet et al., 2018), particularly in deep-water environments. It is characterized by a lack of commutation between the surface oxygen-rich water and bottom oxygen-poor water at the stratification interface. Limited degradation of planktonic algae results in high organic matter accumulation. Nevertheless, a rapid commutation between the surface and bottom water can lead to oxic conditions with weak stratification, as seen in shallow-water environments (Lei et al., 2021b). Intense degradation by aerobic bacteria in the oxygen-enriched conditions could destroy algal organic matter during burial. Therefore, the reconstruction of paleolacustrine environments play an essential role in understanding the mechanisms of organic matter accumulation in fine-grained sediments. As carriers, fine-grained sediments record abundant information of paleoclimate and paleoenvironment in geological history. Recently, various methods have been developed to characterize the paleoclimate and paleoenvironment, including paleobiology, mineralogy, elemental geochemistry, organic geochemistry, and isotopic geochemistry, etc (Ghassal et al., 2018; Gyawali et al., 2019; Johnston et al., 2017; Moradi et al., 2016; Tribovillard et al., 2006; 2008; 2012; Yin et al., 2020; Wu et al., 2022).

In recent years, significant progress has been achieved in exploring and developing continental shale oil in major petroliferous basins in China, such as Songliao, Bohai Bay, Ordos, and Junggar basins. To reduce exploration uncertainties, increasing attention has been paid to the mechanisms of organic-matter-rich sediments (Cai et al., 2022; Wang et al., 2020; Wu et al., 2022; Zhang et al., 2017). Nanpu Sag has been recognized as an important petroliferous sag in the Bohai Bay Basin, with the conventional petroleum resources at approximately 7,000 × 10⁴ t, and the unconventional petroleum resources at approximately 12,000 × 10⁴ t (Jiang et al., 2023). Organic-matter-rich sediments in the Es₃, Es₁, and Ed₃ members are regarded as potential source rocks in the Nanpu Sag. Previous studies have suggested that the Es₃ and Es₁ members, with deep burial, high organic matter abundance, and Type Ⅰ-Ⅱ kerogen, are major source rocks in this sag. Owing to shallow burial and limited hydrocarbon generation capacity, less attention has been forced on the Ed₃ member in oil-gas exploration. Unexpectedly, unconventional shale oil has been discovered in the Ed₃ member of the Linque and Caofeidian sub-sags in the Nanpu Sag. No studies have concerned with the mechanisms of organic matter accumulation in the Ed₃ member, which hampered unconventional shale oil exploration.

In this study, a combination of mineralogy and geochemistry was used to interpret the paleoclimate and paleoenvironment of the Ed₃ member in the Nanpu Sag, and their influence on organic matter accumulation was discussed, providing insight into the shale oil exploration.

2 Geological setting

The Bohai Bay Basin is one of the major petroliferous basins in eastern China, with proven oil reserves of more than 150 × 10⁸ t and proven natural gas reserves of more than 0.36 × 10¹² m³. It is situated in the east of North China Platform, and can be divided into six sub-basins, namely Liaohe, Bozhong, Jizhong, Huanghua, Jiyang, and Linqing (Figure 1A). The focus of this study, Nanpu Sag, is situated in the northeast of Huanghua sub-basin and close to the southern margin of the Yanshan fold belt, with an area of 1932 km². Based on the structural forms, it can be divided into eight secondary structural belts, i.e., Nanpu No.1, Nanpu No.2, Nanpu No.3, Nanpu No.4, Nanpu No.5, Laoyemiao, Gaoshangpu and Liuzan, and three sub-sags, i.e., Shichang, Linque and Caofeidian (Figure 1B). The Nanpu Sag is a Cenozoic sedimentary basin developed on Mesozoic basement rocks, and exhibits faulting in the north and overlapping in the south. It is overlain by Cenozoic clastic sediments with a maximum thickness of 8,000 m, including Paleogene Shahejie (Es) and Dongying (Ed) formations, Neogene Guantao (Ng) and Minghuazhen (Nm) formations, and Quaternary Pingyuan (Qp) Formation (Figure 1C). Particularly, the Ed Formation can be divided into three members including Ed₃, Ed₂, and Ed₁, from bottom to top. The Ed₃ member, as the focus of this study, is an important source rock and oil-bearing reservoir in the Nanpu Sag. Controlled by the combination of strong activity of boundary faults and rapid subsidence of the basement, the deposition center of the Ed₃ member was located in the Linque and Caofeidian sub-sags, south of the Gaoliu fault. It is mainly composed of semi-deep/deep lake deposits. A series of fan delta sediments developed on the northern steep slope, and braided-river delta sediments developed on the southern gentle slope. Based on variations in lithological association, the Ed₃ member can be subdivided into two intervals including the lower interval (Ed₃l) and the upper interval (Ed₃u). The thickness of the Ed₃l interval is between 200 and 550 m, with a mud ratio of up to 70%, and the Ed₃u interval is between 180 and 450 m, with a mud ratio of up to 60%. Among these mudstones, colors are dominated by dark gray, black gray, and gray black, with the alternating micro-layered, layered and massive structures.

Figure 1

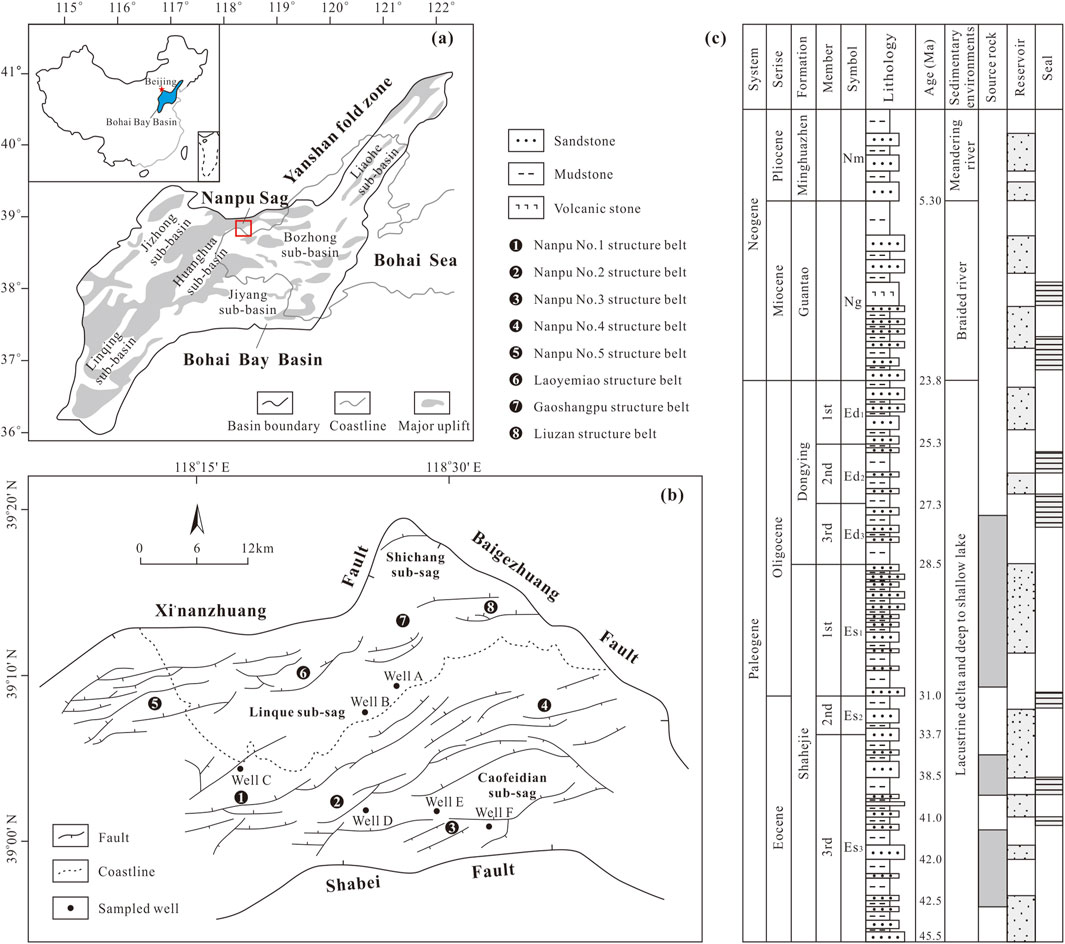

Figure 1. Regional structure (A, B) and stratigraphic comprehensive histogram (C) of the Nanpu Sag.

3 Materials and methods

In this study, two sample sets were taken from the Linque and Caofeidian sub-sags, because the deposition center of the Ed₃ member was located in these two sub-sags. One sample set includes forty-nine mudstone samples from six drilling wells (well location is shown in Figure 1B). It was employed for TOC and Rock–Eval pyrolysis analyses to estimate basic geochemical characteristics of source rocks. Another sample set includes twenty-one mudstone samples from Well E, which were selected for mineralogical component, major element, trace element, gas chromatography (GC), and gas chromatography-mass spectrometry (GC-MS) analysis to investigate the paleoclimate and paleoenvironment.

TOC and Rock-Eval pyrolysis parameters such as S₁, S₂, S₃, and T_max were conducted via a Rock-Eval II instrument furnished with total organic carbon measuring function. Mineralogical compositions were determined utilizing an X-ray diffractometer. Samples were crushed into a fine powder and then scanned from 5°C to 75°C at a rate of 2°C/min.

Major elements were determined using an X-ray fluorescence spectrometer. First, powder samples (less than 200 mesh) were dried in an oven at 105°C for 12 h. They were then heated at 1,000°C in a muddle furnace for 2 h. After cooling to 400°C, ashed samples were weighted, and the losses on ignition were recorded. Finally, these samples were mixed with lithium tetraborate and fused into glass beads for XRF analysis. Trace elements were determined using an Agilent 7500A inductively coupled plasma mass spectrometer (ICP-MS). First, powder samples were placed into mufflle furnace at 500°C to remove crystal water together with organic matter. The samples were sealed and dissolved with high-purity 0.1 mL HNO₃ and 0.1 mL HF in a Teflon beaker, and then heated at 190°C in an oven for 12 h. After cooling, the Teflon beaker was opened and heated at 140°C to achieve initial dryness before reacting with 1.0 mL HNO₃. Finally, the solution was transferred to a polyethylene bottle and diluted to a mixture (100 g) with 2% HNO₃ for analysis. The results were calibrated via standard and measured samples, with an analytical error of less than 5%.

Bitumen extractions were extracted from the powder samples using an azeotrope of methanol and methylene chloride (7:93) in a Soxhlet apparatus for 72 h. The fractions of hexane-soluble organic matter were separated into saturated components, aromatic components, and resin components through column chromatography. Saturated components were dissolved in hexane and analyzed by GC (a PONA fused silica column, 60 m × 0.25 mm i. d., film thickness 0.25 μm, with the temperature programmed from 40°C to 300°C at a rate of 4°C/min, and then held at 300°C for 30 min). GC–MS experiments were executed on an Agilent 7890A-GC/5975C-MS instrument coupled with a HP-5MS fused silica column (30 m × 0.25 mm i. d., film thickness 0.25 μm). For biomarkers analysis, the fragmentograms of steroids (m/z = 217) and terpenoids (m/z = 191) were recorded. Individual components were identified by comparing their retention times and mass spectra with published data. The relative abundances of steroids and terpenoids were calculated by determining peak heights in the m/z = 191 and m/z = 217 fragmentograms, respectively.

4 Results

4.1 Basic geochemical characteristics of source rocks

Owing to the rapid change in the deposition environment, the Ed₃ mudstones exhibit strong heterogeneity, especially in terms of organic matter abundance, type, and hydrocarbon-generation potential (Figure 2). Based on geochemical data analysis (Table 1), the Ed₃l interval was in a range of 0.64%–2.66% in TOC, with a mean of 1.48%, and in a range of 1.41–11.41 mg/g in PY, with a mean of 5.71 mg/g, indicating high-quality source rocks. The Ed₃u interval was 0.30%–1.91% in TOC, with a mean of 1.08%, and 0.44–8.67 mg/g in PY, with a mean of 3.78 mg/g, indicating general-quality source rocks. Generally, hydrogen index (HI) > 400 mg/g TOC, 150–400 mg/g TOC, 50–150 mg/g TOC suggests oil-prone kerogen (Type-I), mixed kerogen (Type-II), and gas-prone kerogen (Type-III), respectively. HI values of the Ed₃l and Ed₃u intervals were 156–461 mg/g TOC and 57–466 mg/g TOC, respectively, indicating that they were dominated by type II kerogen with a certain proportion of Type I and III kerogen. T_max can serve as an effective proxy for evaluating thermal maturity (Bechtel et al., 2012). T_max values for immature, low mature, mature, high mature and overmature organic matter are <435°C, 435°C–445°C, 445°C–455°C, 455°C–490°C, >490°C, respectively. The Ed₃l and Ed₃u intervals had a narrow T_max ranging from 440°C to 448°C and 436°C–444°C, respectively. It suggests that the thermal maturity of the analyzed samples varies between just pre-oil window and mid-oil window thermogenic conditions for hydrocarbon generation. Note that in Figures 2A, B, the Ed₃ source rocks developed in the deposition centers of the Nanpu Sag, namely Linque sub-sag and Caofeidian sub-sag, are comparable.

Figure 2

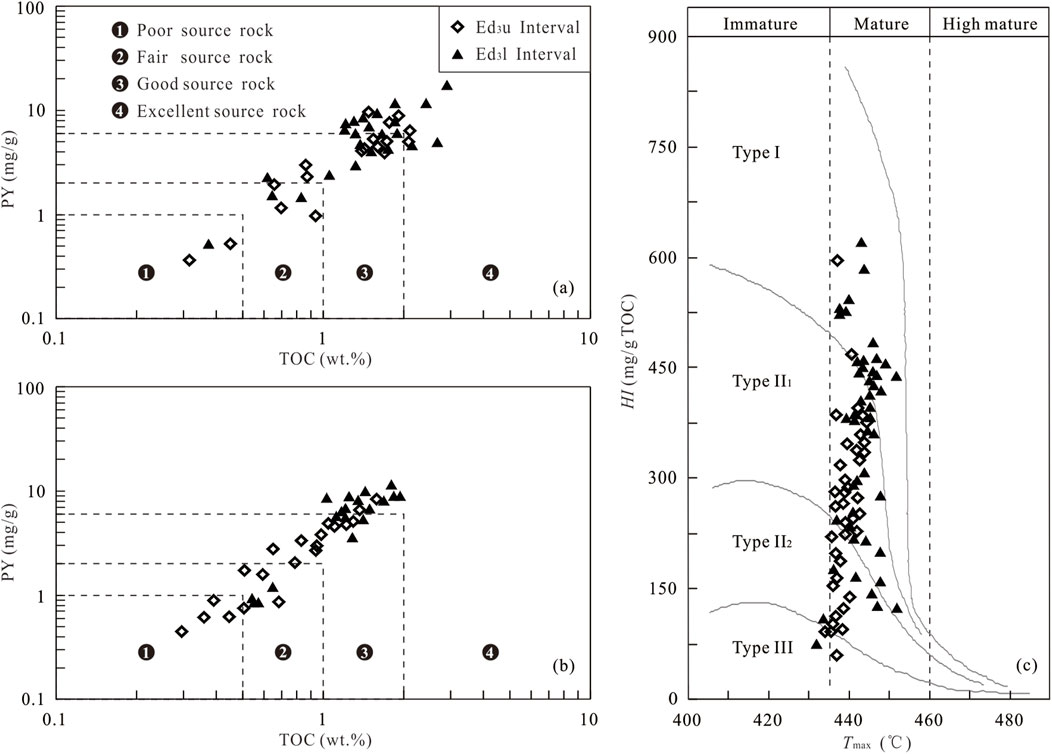

Figure 2. Organic matter abundance [(A) Linque sub-sag; (B) Caofeidian sub-sag] and type (C) of the Ed₃l and Ed₃u intervals in the Nanpu Sag. Note: Some data was collected from the PetroChina Jidong Oilfield Company.

Table 1

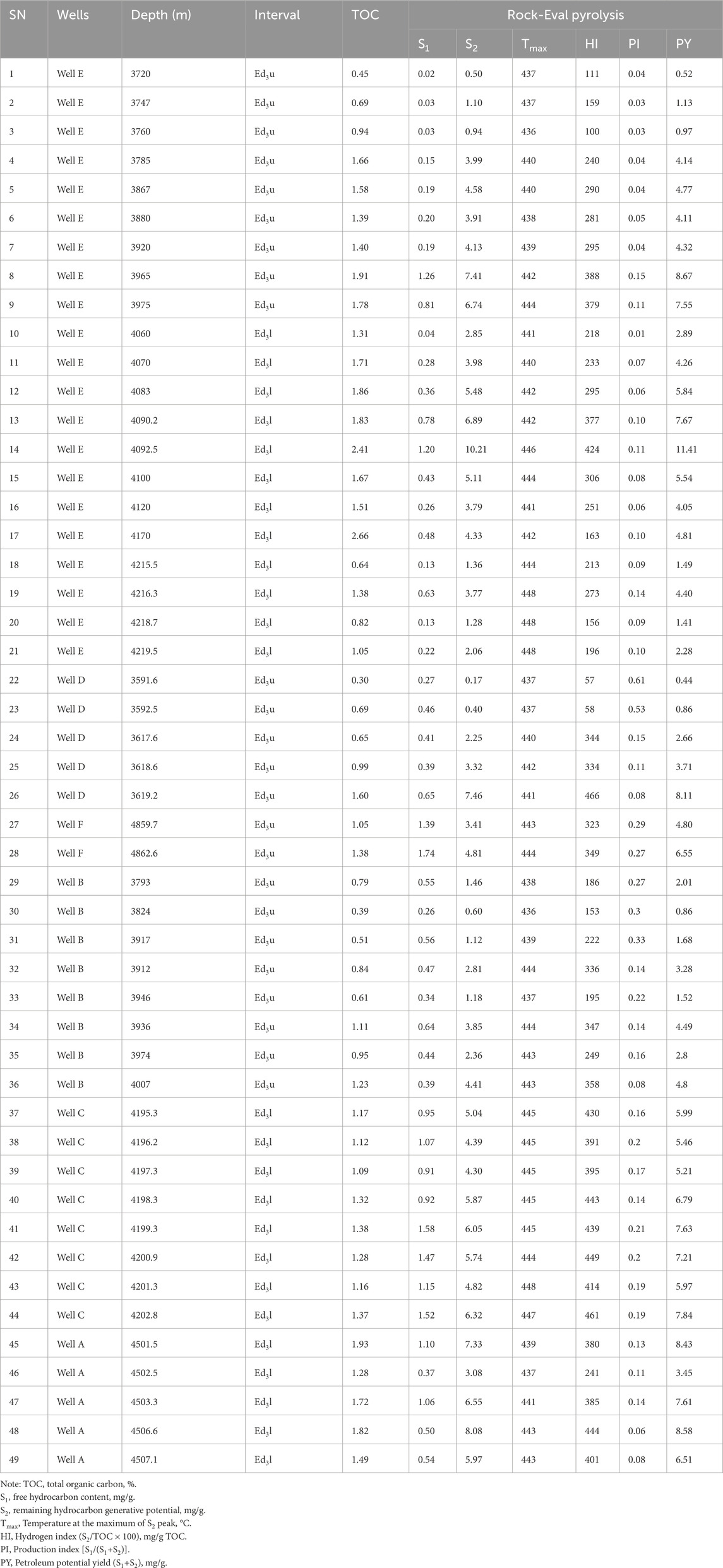

Table 1. Bulk compositions of the Ed₃l and Ed₃u intervals in the Nanpu Sag.

4.2 Mineralogical components

The mineralogical components identified in the Ed₃ member include quartz, feldspar, calcite, dolomite, clay minerals, and a small amount of pyrite and halite (Table 2). Quartz and clay minerals were the dominant mineral components (Figure 3), varying between 34.4 wt.% and 46.2 wt.% (average 39.9 wt.%), 17.0 wt.% and 40.1 wt.% (average 30.7 wt.%), respectively. The contents of feldspar, calcite, and dolomite were in a range of 7.3–24.5 wt.%, 5.0–13.7 wt.%, and 3.3–10.6 wt.%, respectively, with means of 13.1 wt.%, 8.8 wt.%, and 6.2 wt.%, respectively. A low content of pyrite was only found in the Ed₃l interval ranged from 0 to 2.7 wt.% (average 1.2 wt.%), and halite was only found in the Ed₃u interval ranged from 0 to 3.6 wt.% (average1.0 wt.%).

Table 2

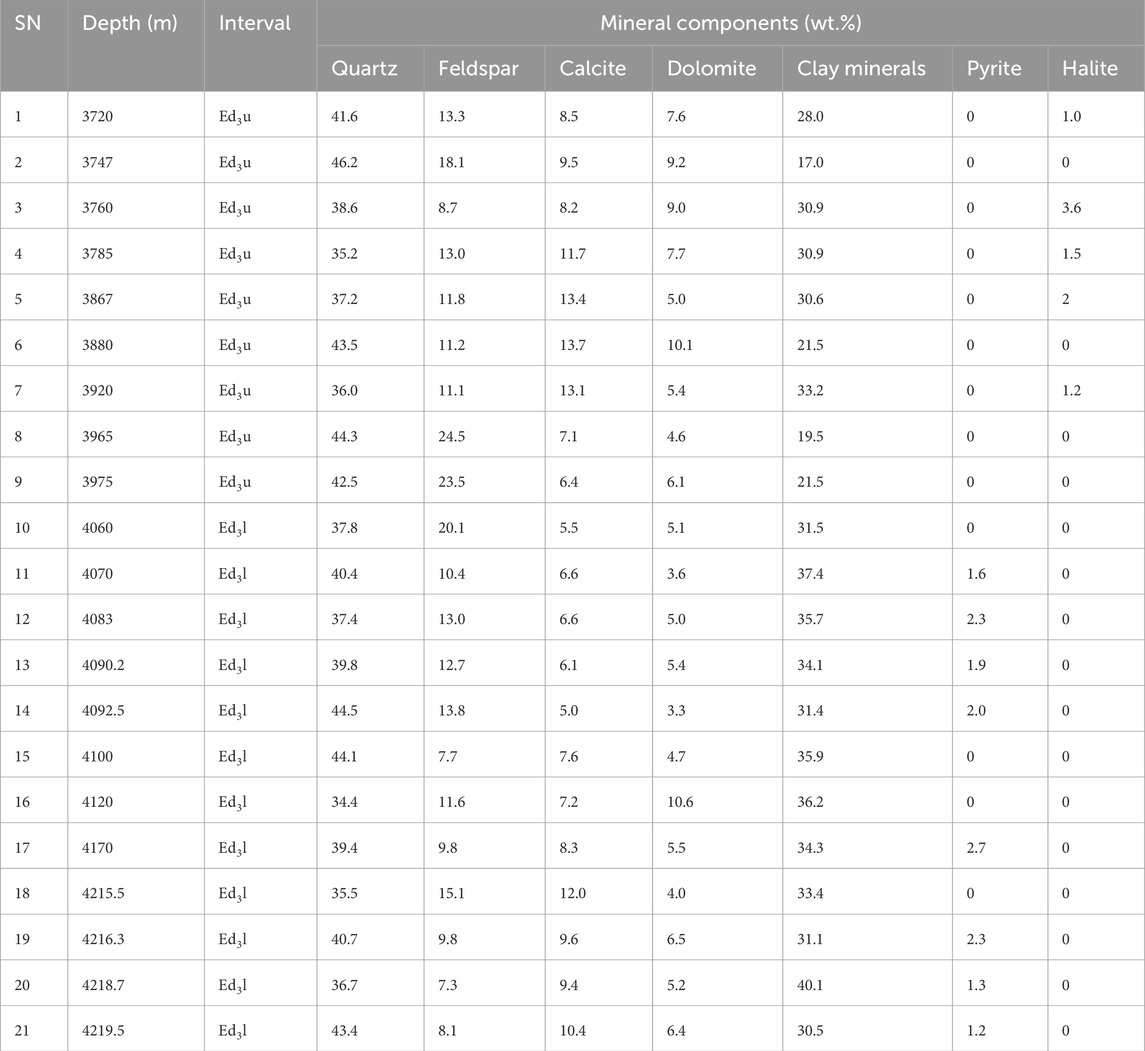

Table 2. Mineralogical compositions of the Ed₃l and Ed₃u intervals in the Nanpu Sag.

Figure 3

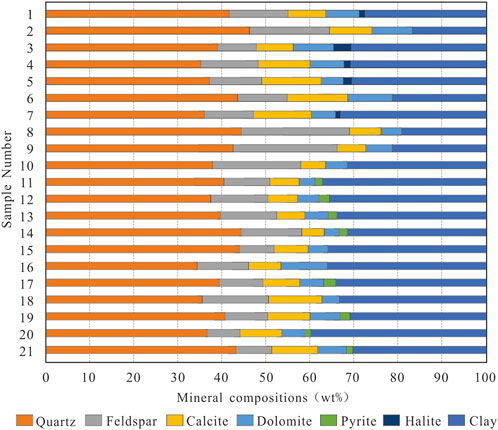

Figure 3. Mineralogical compositions of the Ed₃l and Ed₃u intervals in the Nanpu Sag.

4.3 Major and trace elements

The major element measurements are shown in Table 3. Major elements such as SiO₂ (53.94%–63.72%), Al₂O₃ (12.56%–14.98%),TFe₂O₃ (4.62%–8.06%), CaO (2.74%–9.23%), MgO (2.09%–3.74%), Na₂O (1.36%–4.43%), K₂O (2.01%–2.94%), and TiO₂ (0.64%–2.26%) showed significant vertical fluctuations. Terrigenous detrital, authigenic, and hydrothermal components are the main sources of major and trace elements in sediments (Tripathy et al., 2014; Xu et al., 2012). Al₂O₃ is chemically stable and little affected by weathering and diagenesis in late stage (Tribovillard et al., 2006). It is widely applied to estimate terrigenous debris influx. Results show that the Al₂O₃ concentrations in the Ed₃l and Ed₃u intervals were 13.13%–14.72% and 12.56%–14.08%, respectively, which were lower than that in the PAAS (18.90%). Hence, it is preliminarily concluded that these sediments were relatively poor in terrigenous detrital components and rich in authigenic or hydrothermal components. CaO primarily occurrs in carbonate minerals. The CaO concentrations in the Ed₃l and Ed₃u intervals fluctuated within the range of 2.74%–7.81% and 5.60%–9.23%, respectively. From the Ed₃l interval to the Ed₃u interval, the CaO concentration showed a trend of decreasing first and then increasing.

Table 3

Table 3. Major element concentrations of the Ed₃l and Ed₃u intervals in the Nanpu Sag.

The trace element measurements are shown in Table 4. The concentrations of most trace elements were lower than 100 × 10⁻⁶, except for Ba (785 × 10^-6–2151 × 10⁻⁶), Mn (462.3 × 10^-6–979.6 × 10⁻⁶), Sr (257.9 × 10^-6–430.2 × 10⁻⁶), and Zn (369.6 × 10^-6–4911.0 × 10⁻⁶). There was no significant correlation between trace elements and Al₂O₃ in the analyzed samples (not shown), indicating that the change in trace element concentration was not governed by detrital flux. The enrichment factor (EF), expressed as (Element/Al)_sample/(Element/Al)_PAAS, can be applied to investigate the variation in trace element concentrations in parent material after weathering, sedimentation, and diagenesis (Algeo and Tribovillard, 2009; Garzanti et al., 2015; Tribovillard et al., 2006; 2008). Dai et al. (2015) classified the enrichment or depletion of trace elements into six levels: depleted (EF ≤ 0.5), normal (0.5 < EF ≤ 2), slightly enriched (2 < EF ≤ 5), enriched (5 < EF ≤ 10), significantly enriched (10 < EF ≤ 100), and unusually enriched (EF > 100). Results show that some trace elements in the Ed₃l and Ed₃u intervals displayed differential enrichment, e.g., Ba and Sr were slightly enriched with EF between 2.1 and 4.2, and Zn was enriched or significantly enriched with EF between 6.1 and 38.7. The remaining trace elements were close to those in the PAAS with the EF of 0.5–1.7 (Figure 4).

Table 4

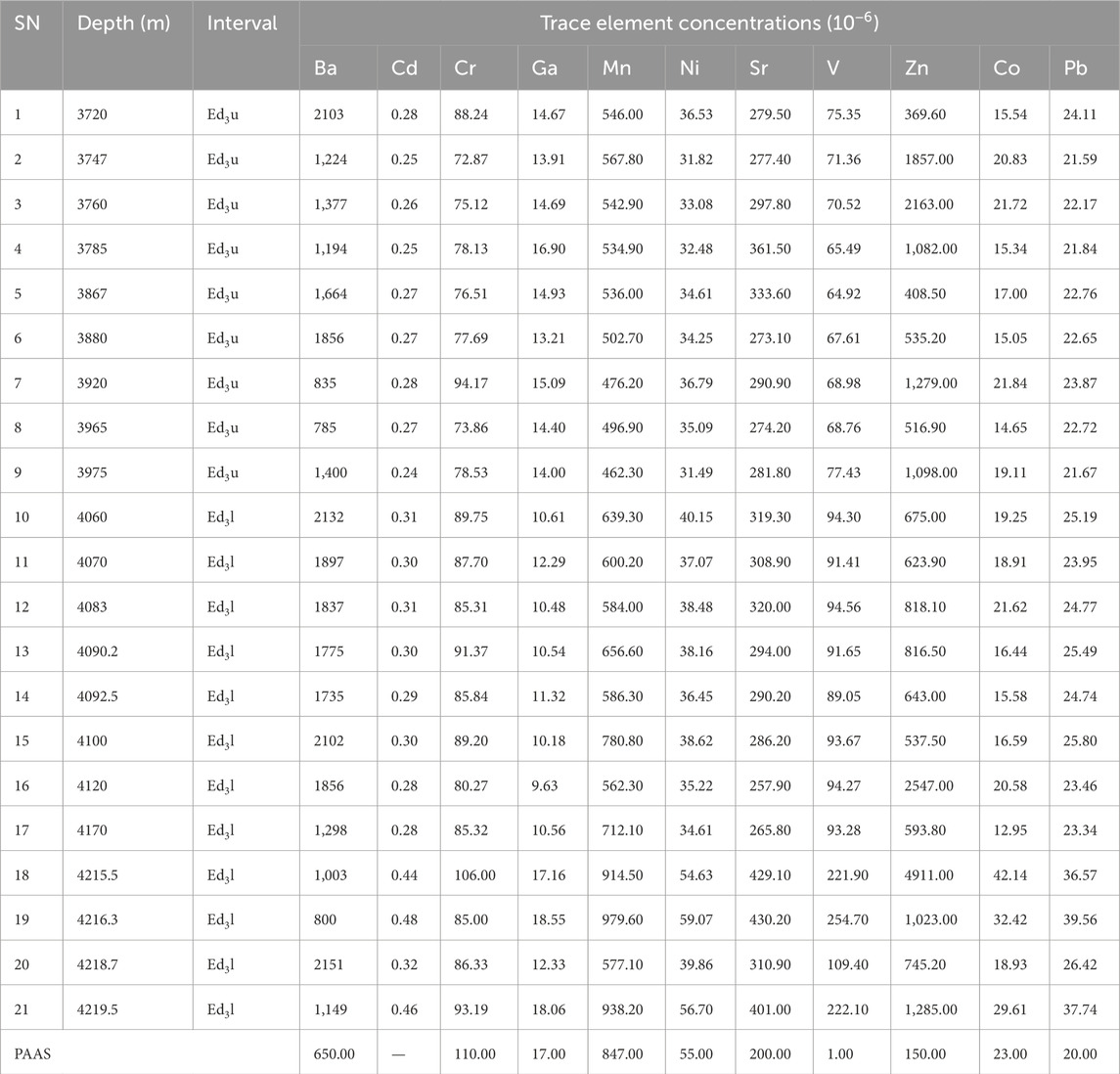

Table 4. Trace element concentrations of the Ed₃l and Ed₃u intervals in the Nanpu Sag.

Figure 4

Figure 4. Enrichment factors of major and trace elements for the Ed₃u (A) and Ed₃l (B) intervals in the Nanpu Sag. Note: The extent of the boxes represents the range of values (min-max) and the inner line shows the mean value.

Diagenetic alteration can cause the enrichment of Mn and the depletion of Sr in sediments, with the corresponding Mn/Sr ratio more than 10 (Kaufman and Knoll, 1995). Results show that the Mn/Sr ratios of the Ed₃l and Ed₃u intervals varied between 1.2 and 2.0, suggesting that the trace element concentrations were not affected by diagenetic alteration. Morford et al. (2005) proposed that hydrothermal fluid would enhance the abundance of Fe and Mn in sediments. And the concentrations of both V and Mo are significantly altered because of their involvement in the Mn cycle. No hydrothermal fluid was observed in the Oligocene strata as well as in the overlying strata in Well E. In addition, all samples in the Al-Fe-Mn triangular diagram fall into the non-hydrothermal zone (Figure 5), excluding the influence of hydrothermal fluid on the variation in trace element concentrations. Therefore, the measurements of these samples are in response to the original sedimentary environment and can be applied to investigate the paleoclimate and paleoenvironment.

Figure 5

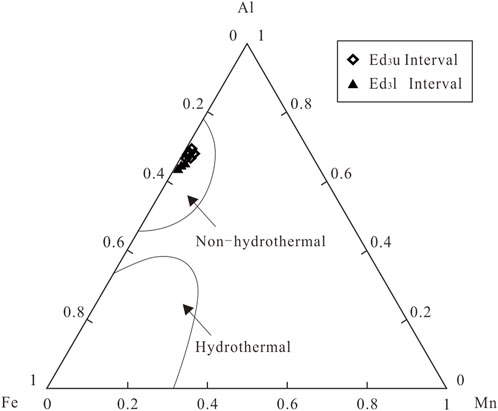

Figure 5. Al-Fe-Mn diagram of the Ed₃l and Ed₃u intervals in the Nanpu Sag (after Adachi et al., 1986).

4.4 Biomarkers

4.4.1 n-alkanes and isoprenoids

The identified n-alkanes in the Ed₃l and Ed₃u intervals were dominated by nC₁₂-nC₃₅, with the max peak at nC₂₁ or nC₂₃. The distribution pattern of n-alkanes is an effective indicator for deciphering original organic matter origin (Sachsenhofer et al., 2017; Volkman et al., 1990). Low-carbon compositions (<nC₂₀) dominated in n-alkanes derive from algae and microorganisms, and high-carbon compositions (>nC₂₅) dominated in n-alkanes originate from terrigenous higher plants. The distribution of n-alkanes in the Ed₃l and Ed₃u intervals was unimodal (Figure 6), where the abundance of low-carbon and high-carbon compositions was similar (C₂₁⁻/C₂₂⁺ = 0.78–1.43, Table 5), indicating the mixed origin of aquatic and terrigenous organic matter. Affected by low maturity, the Ed₃l and Ed₃u intervals had high CPI values of 1.08–1.24 and 1.27–1.50, respectively, and high OEP values of 1.03–1.15 and 1.16–1.35, respectively.

Figure 6

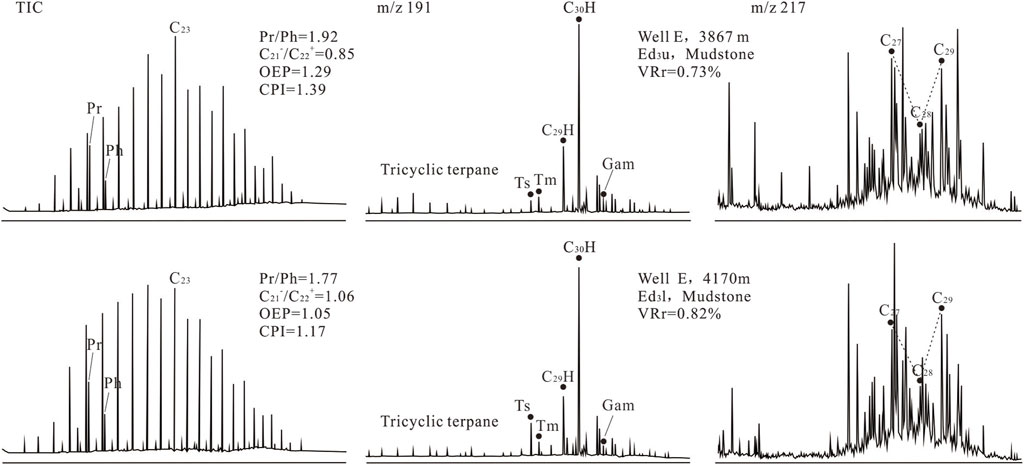

Figure 6. Biomarker fingerprints for the Ed₃l and Ed₃u intervals in the Nanpu Sag.

Table 5

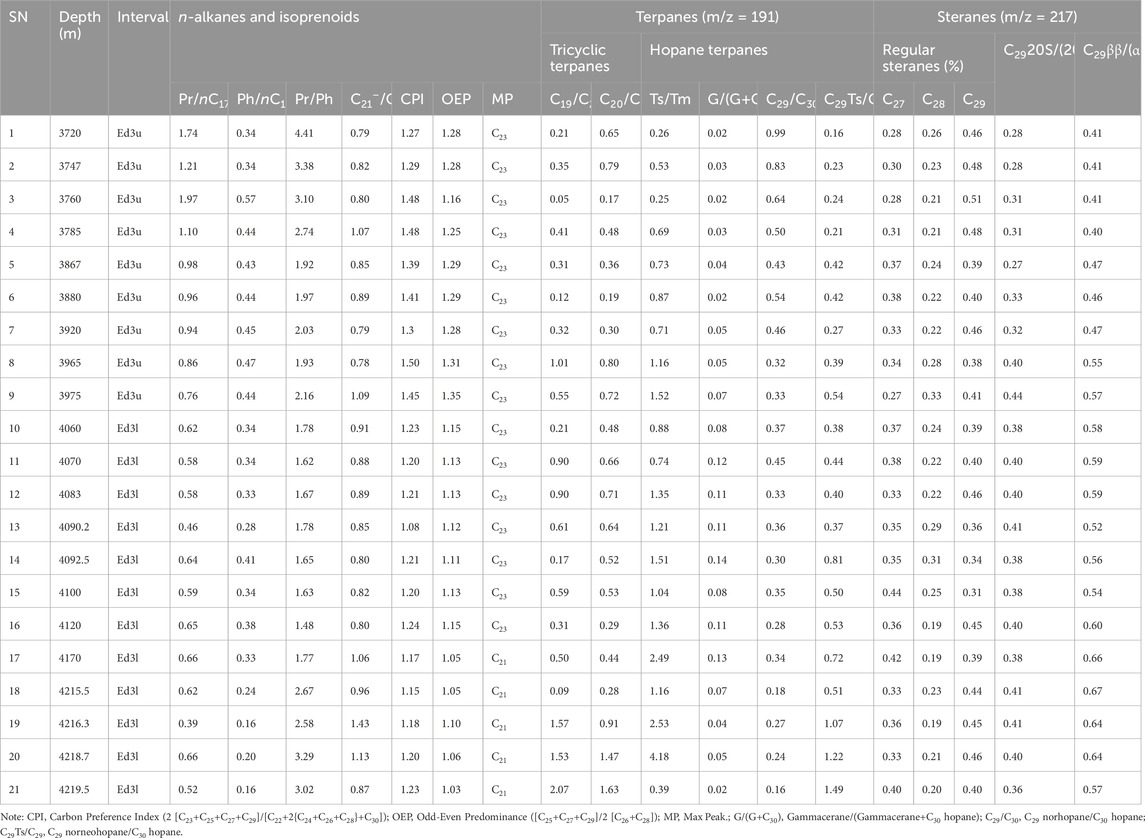

Table 5. Biomarker parameters for the Ed₃l and Ed₃u intervals in the Nanpu Sag.

Pristane (Pr) and phytane (Ph) are the most common acyclic isoprenoids in source rocks. These two compounds are primarily derived from phytol, which is present in the side chain of chlorophyll. It is achieved under specific redox conditions (Peters et al., 2005a). Phytanol is preferentially oxidized to phytanic acid under oxidation conditions, and then produces pristane via the removal of ethanol. In contrast, phytanol is transformed into dihydrophytol through hydrogenation under reduction conditions, and subsequently produces phytane via hydrogenation and the removal of ethanol. The abundance of Pr and Ph in the analyzed samples was lower than that of adjacent n-alkanes, with both Pr/nC₁₇ and Ph/nC₁₈ values less than 1.0 (Figure 7A). Additionally, the abundance of Pr in the Ed₃l and Ed₃u intervals was higher than that of Ph, with Pr/Ph values ranging from 1.48 to 3.29 and 1.92 to 4.41, respectively.

Figure 7

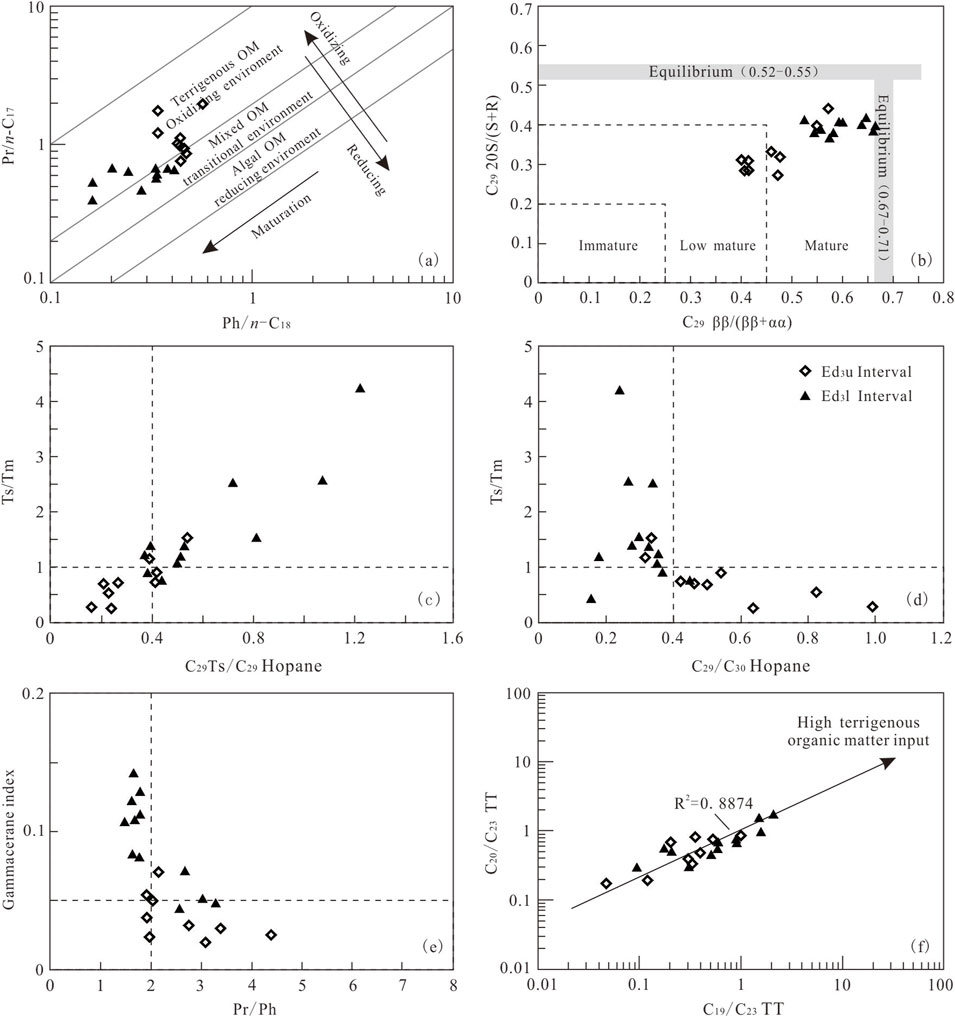

Figure 7. Cross-plots of various biomarker parameters (A–F) for the Ed₃l and Ed₃u intervals in the Nanpu Sag.

4.4.2 Steroids

Considerable steroid compounds such as pregnane, regular sterane, and diasterane were identified from m/z = 217 ion chromatograms (Figure 6). Regular steranes hold considerable biogenic significance (Farhaduzzaman et al., 2012; Peters et al., 2005b), e.g., C₂₇ regular steranes are mainly originated from aquatic organisms, C₂₈ regular steranes are derived from chlorophyll-c containing phytoplankton, and C₂₉ regular steranes are primarily sourced from terrigenous higher plants. The relative abundances of C₂₇, C₂₈, C₂₉ regular steranes in the Ed₃l and Ed₃u intervals ranged from 32.5% to 44.4%, 18.8%–31.4%, 31.1%–46.3% and 26.5%–38.3%, 20.5%–30.0%, 38.2%–51.1%, respectively. The typical “V” shape observed in the Figure 6 also suggests a mixed origin of aquatic and terrigenous organic matter.

There are four common configurations of regular steranes, including ααα20R, ααα20S, αββ20R, and αββ20S. Increasing thermal maturity can transform unstable αα configuration into stable ββ configuration, as well as convert unstable “R” shape into stable “S” shape (Hanson et al., 2000). Consequently, the ratios of C₂₉ sterane ββ/(αα + ββ) and C₂₉ sterane 20S/(S + R) are expected to increase with increasing thermal maturity, with determined thermodynamic equilibrium mixtures at 0.67–0.71 and 0.52–0.55, respectively. The isomerization of steranes in the Ed₃l and Ed₃u intervals was weak, with the C₂₉ sterane ββ/(αα + ββ) ratio of 0.52–0.67 and 0.40–0.57 (Figure 7B), respectively, and the C₂₉ sterane 20S/(S + R) ratio of 0.36–0.41 and 0.27–0.44, respectively. These suggest that the Ed₃l and Ed₃u intervals is present in low-mature to mature stage.

4.4.3 Terpenoids

Considerable terpenoid compounds including tricyclic terpane, tetracyclic terpane, and pentacyclic triterpene such as C₂₇ norneohopane (Ts), C₂₇ norhopane (Tm), C₂₉ norhopane, C₂₉ norneohopane, C₃₀ hopane, C₃₁-C₃₅ homohopane, and gammacerane were identified from m/z = 191 ion chromatograms (Figure 6). The Ts/Tm ratios of the Ed₃l and Ed₃u intervals varied in the range of 0.74–4.81 and 0.25–1.20, respectively, which can effectively distinguish hydrocarbon generation products. The C₂₉ Ts/C₂₉ hopane ratios of the Ed₃l and Ed₃u intervals ranged between 0.37–1.49 and 0.16–0.54 (Figure 7C), respectively. The abundance of C₃₀ hopane was higher than that of C₂₉ norhopane in the Ed₃l and Ed₃u intervals, with the C₂₉/C₃₀ hopane ratios of 0.16–0.45 and 0.32–0.99 (Figure 7D), respectively. The relative abundance of C₃₁-C₃₅ homohopane represented a positive sequence, i.e., C₃₁ homohopane > C₃₂ homohopane > C₃₃ homohopane > C₃₄ homohopane > C₃₅ homohopane, especially the abundance of C₃₄ and C₃₅ homohopane was extremely low, which is consistent with the non-strong reducing sedimentary environment (Peters and Moldowan, 1991).

Gammacerane, an important biomarker, is derived from the reduction of tetrahymanol (Ten Haven et al., 1989). The principal source of tetrahymanol seems to be bacterivorous ciliates, which thrive at the interface between aerobic and anoxic zones in stratified water columns (Hakimi et al., 2016; Yuan et al., 2017). This compound was commonly observed in the analyzed samples. The gammacerane index, expressed as gammacerane/(gammacerane + C₃₀ hopane), was less than 0.2 (Figure 7E). C₁₉ and C₂₀ tricyclic terpane are mainly derived from terrigenous higher plants (Adegoke et al., 2015). Higher C₁₉/C₂₃ tricyclic terpene (C₁₉/C₂₃TT) and C₂₀/C₂₃ tricyclic terpene (C₁₉/C₂₃TT) indicate more terrestrial organic matter input (Hao et al., 2011). These two ratios were comparable in the Ed₃l and Ed₃u intervals (Figure 7F). The former had C₁₉/C₂₃TT and C₂₀/C₂₃TT ranging from 0.09 to 2.07 and 0.28–1.63, respectively, and the latter from 0.05 to 1.01 and 0.17–0.80, respectively. This implies that differential terrestrial organic matter inputs were present in the Ed₃l and Ed₃u intervals.

5 Discussions

5.1 Paleoclimate

The migration and distribution of specific elements in sediments vary significantly under different climatic conditions (Moradi et al., 2016). Recently, C-value is widely employed to investigate paleoclimate changes. It is based on the hypothesis that Fe, Mn, Cr, Co, Ni, and V are typically enriched within humid conditions, whereas Ca, Mg, Ba, Sr, K, and Na are concentrated within arid conditions (Fedo et al., 1995; Li et al., 2020). The C-value is calculated as follows: C-value = ∑(Fe + Mn + Cr + Co + Ni + V)/∑(Ca + Mg + Ba + Sr + K + Na) (presented as 10⁻⁶). Generally, C-value 0.6 suggests intense chemical weathering within humid climate (Qiu et al., 2015). The C-values of the Ed₃l interval ranged from 0.32 to 0.45, with an average of 0.40. An increasing trend from bottom to top was observed in the Ed₃l interval (Figure 8), indicating that the paleoclimate changed from semi-arid to semi-humid. The C-values of the Ed₃u interval varied between 0.30 and 0.39, with an average of 0.36. In contrast, a decreasing trend from bottom to top was observed in the Ed₃u interval (Figure 8), suggesting that the paleoclimate shifted from semi-arid to semi-humid conditions.

Figure 8

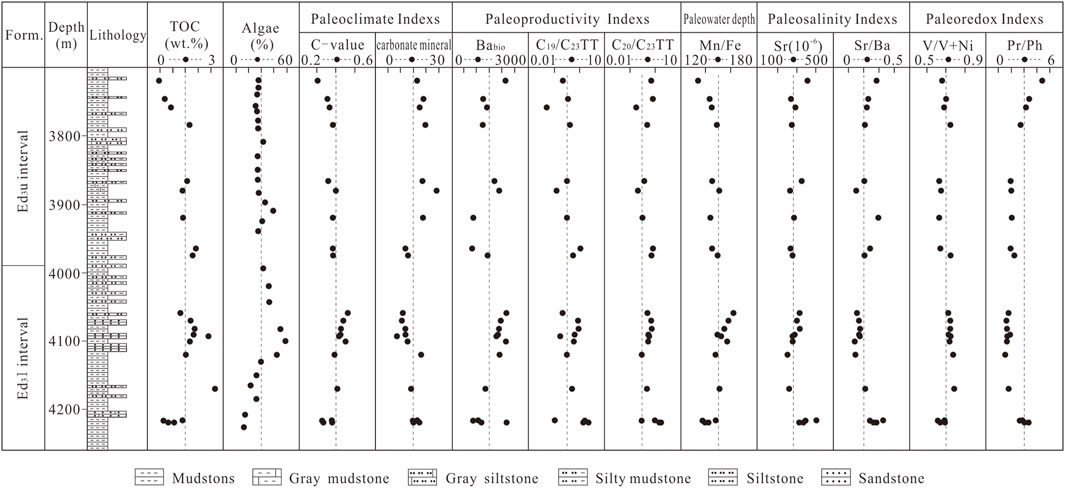

Figure 8. Vertical distribution of palaeoclimate and palaeoenvironment indexes for the Ed₃l and Ed₃u intervals in Well E. Note: Algal fossil data were collected from the PetroChina Jidong Oilfield Company.

The content of carbonate minerals (e.g., calcite, dolomite, aragonite) in sediments is particularly sensitive to paleoclimate changes (Gyawali et al., 2019). Two origins have been proposed to explain carbonate minerals in sediments. Protogenous components are derived from the weathering and denudation of carbonate-bearing parent rocks around the lake basin. In contrast, authigenic components are those precipitated by chemical and biological sedimentation in the lake basin, which is closely linked to climate change. Dean et al. (2015) proposed that increasing content of authigenic carbonate minerals in sediments indicates the transition from humid climate to arid climate. Previous studies have shown that the provenance of Paleogene sediments in the Nanpu Sag is the granite rocks of the Yanshan fold belt, excluding carbonate rocks (Lei et al., 2021a). That is, the carbonate minerals detected in the analyzed samples are authigenic and can be used as paleoclimatic indicators. The content of carbonate minerals in the Ed₃l interval ranged from 8.3% to 17.8%, with an average of 13.3%. A decreasing trend from bottom to top indicated that the paleoclimate had changed to humid conditions. The content of carbonate minerals in the Ed₃u interval varied between 11.7% and 23.8%, with an average of 17.4%. In contrast, an increasing trend from bottom to top suggested that the paleoclimate had shifted to arid conditions. This is consistent with the paleoclimate changes inferred from the C-value (Figure 9A). Variations in paleoclimatic conditions lead to significant differences in the deposition environment by regulating factors such as weathering intensity, primary productivity, and water column conditions, etc.

5.2 Paleoenvironment

5.2.1 Paleoproductivity condition

Paleoproductivity in the water body is fueled by various unicellular planktonic organisms, which serves as the material foundation for the accumulation of organic matter in sediments (Pedersen and Calvert, 1990). Biogenic Ba involving plankton decay has been proved to be a reliable proxy for paleomarine productivity (Paytan and Griffith, 2007; Plewa et al., 2006; Tribovillard et al., 2012), specifically, concentration of 200–1,000 μg/g indicates a medium productivity and 1,000–5000 μg/g represents a high productivity. However, estimating paleolacustrine productivity with biogenic Ba is rarely reported. To avoid interference from terrigenous debris, the biogenic Ba in a sample can be estimated using the following formula: Ba_bio = Ba_total - Al_total × (Ba/Al)_PASS, where Ba_bio represents the biogenic concentration of Ba, Ba_total and Al_total refer to the total concentrations of Ba and Al in the sediment, respectively. A value of 0.0075 is adopted as the Ba/Al ratio in the PAAS. Results show that the Ed₃l and Ed₃u intervals had high Ba_bio values, ranging of 800–2150μg/g and 785–2103μg/g, respectively, indicating a medium to high paleoproductivity. This is consistent with the paleoproductivity inferred from the abundance of planktonic algae fossils in sediments. Abundant planktonic algal fossils were observed in the Ed₃l and Ed₃u intervals, with content up to 16%–50% and 22%–40% (Figure 8), respectively. There was no significant correlation between TOC values and Ba_bio values for most samples (Figure 9B). This phenomenon suggests that, in addition to aquatic organisms, terrigenous higher plants have contributed to the accumulation of organic matter in the Ed₃l and Ed₃u intervals. This matches well with mixed organic matter inferred from the relative abundance of C₂₇, C₂₈, C₂₉ regular steranes.

Figure 9

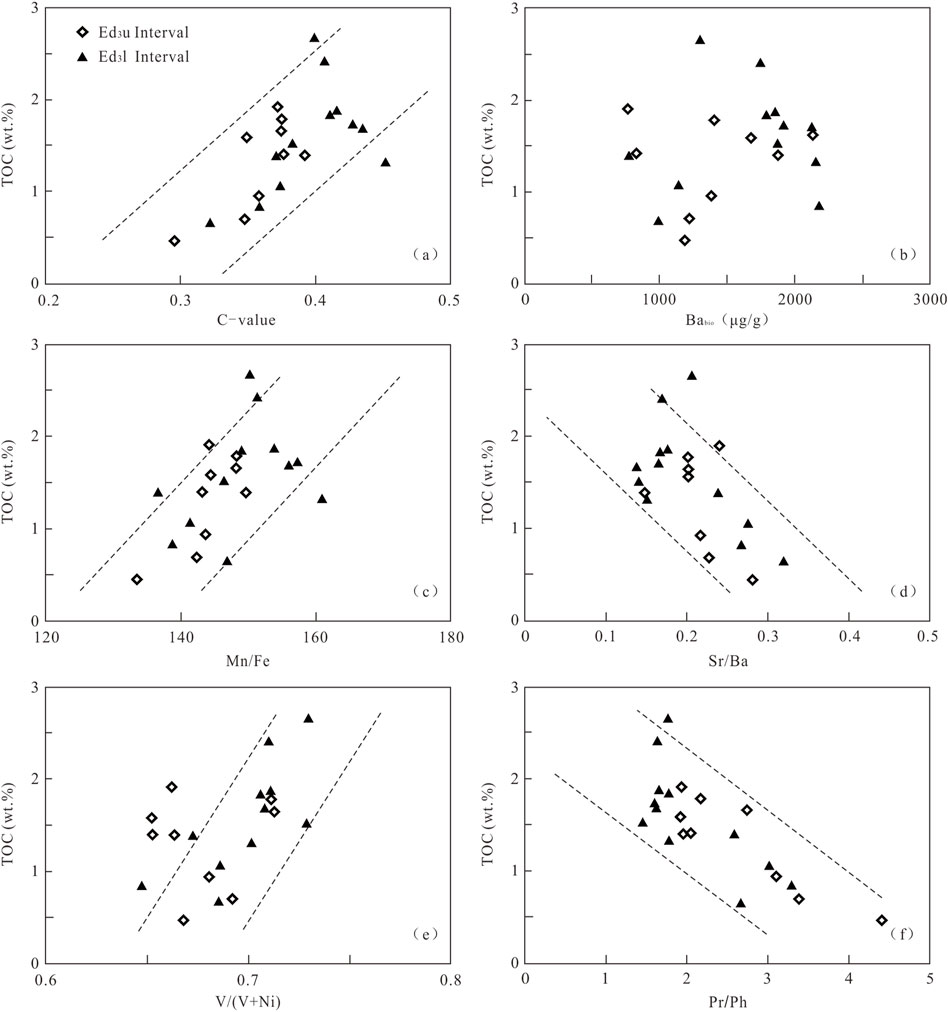

Figure 9. Relationship between TOC and palaeoclimate and palaeoenvironment indexes (A–F) for the Ed₃l and Ed₃u intervals in the Nanpu Sag.

5.2.2 Paleowater depth condition

Investigation on modern sediments shows that certain elements, e.g., Mn and Fe, are significantly different during sedimentation. Mn has strong stability and tends to be enriched in deep water after long-distance migration (Toyoda, 1993). In contrast, Fe is unstable and enriched in shallow water after short-distance migration. Therefore, the Mn/Fe ratios are commonly employed to investigate paleowater depth. A high value indicates the presence of a deep-water environment and vice versa. Results show that the Mn/Fe ratios of the Ed₃l interval ranged from 136.6 × 10⁻⁴ to 160.8 × 10⁻⁴, with an average of 148.9 × 10⁻⁴. An increasing trend from bottom to top was observed in the Ed₃l interval (Figure 8), indicating that the paleowater depth changed from shallow water to deep water. The Mn/Fe ratios of the Ed₃u interval varied between 133.4 × 10^-4–149.5 × 10⁻⁴, with an average of 144.1 × 10⁻⁴. In contrast, a decreasing trend from bottom to top was observed in the Ed₃u interval, suggesting that the paleowater depth evolved from deep water to shallow water. Note that in Figure 8, the Mn/Fe values exhibit similar trends as C-values in the vertical. This phenomenon suggests that the variation in water depth during the Ed₃ period was controlled by climatic factors. Enhanced lake evaporation and weakened atmospheric precipitation occur in the transition from humid to arid climate, resulting in the transformation of lakes from deep-water to shallow-water environment, and vice versa.

The fluctuation in water depth during the Ed₃ period caused the different burial efficiency of organic matter (Figure 9C). Generally, a reduction condition with stable water stratification commonly developed in a deep-water environment, whereas an oxidation condition with unstable water stratification formed in a shallow-water environment (Lei et al., 2021b). Hence,the burial efficiency of organic matter in the deep-water environment is significantly higher than that in the shallow-water environment.

5.2.3 Paleosalinity condition

Trace elements such as Sr and Ba are particularly sensitive to changes in water salinity. These two elements commonly occur as the form of ions in low salinity water. Sr has stronger migration ability than Ba in water body. Increasing water salinity can cause Ba²⁺ precipitating as BaSO₄ prior to Sr²⁺ precipitating as SrSO₄, resulting in a higher concentration of Sr in sediments compared to Ba. As a result, the Sr concentration and Sr/Ba ratio recorded in sediments is positively correlated with the paleosalinity. In general, the Sr concentration (presented as 10⁻⁶) less than 300 was a fresh water environment, 300–800 was a brackish water environment, 800–1,000 was a saline water environment, and more than 1,000 was an ultra-saline water environment. Wei and Algeo (2019) held that Sr/Ba <0.2 was fresh water, 0.2–0.5 was brackish water, and >0.5 was saline water. Sr concentrations in the Ed₃l and Ed₃u intervals were in a range of 257.90–405.20 (average 313.30) and 273.10–361.50 (average 296.90), respectively, with corresponding Sr/Ba ratios were 0.14–0.32 (average 0.20) and 0.15–0.29 (average 0.22), respectively. These indicators suggest that the water body fluctuated between fresh and brackish water (Figure 9D). Note that in Figure 8, The Sr/Ba values and C-values have a rough mirroring relationship in the vertical. This phenomenon implies that the changes of water salinity during the Ed₃ period was also controlled by climatic factors. When the humid climate changes to arid climate, the concentration of various ions in the water tends to concentrate due to the combination of enhanced lake evaporation and weakened atmospheric precipitation, and vice versa.

Abundant gammacerane is a sign of stratification in high salinity water (Ten Haven et al., 1989). Gammacerane index less than 0.2 for a freshwater environment, and more than 0.2 for a saltwater environment (Yuan et al., 2017). The gammacerane indexes of the Ed₃l and Ed₃u intervals were 0.04–0.14 and 0.02–0.07, respectively, with an average value of 0.09 and 0.04, respectively, indicating that fresh and brackish water coexisted during this period.

In summary, the suitable salinity during the Ed₃ period was conducive to the flourishing of aquatic organisms. This can be evidenced by abundant planktonic algal fossils, e.g., Chlorella Gracilis, Granulosus, Reticulosus, Rugosus, Spinococcus, Ceratophyllum, etc., provided by the PetroChina Jidong Oilfield Company.

5.2.4 Paleoredox condition

Redox-sensitive trace elements such as V and Ni can be differentiated under different redox conditions. These two elements are prone to precipitate at anoxic water column and dissolve at oxic water column, and not affected by the diagenesis (Scheffler et al., 2006; Tribovillard et al., 2006). Most samples have no obvious enrichment or depletion in the both V and Ni elements, with the EFs of 0.66–2.36 and 0.82–1.39, respectively (Figure 4). This phenomenon is a response to the weak reduction-weak oxidation conditions. Generally, V/(V + Ni) < 0.46 was an oxic condition with weak stratification, 0.60–0.84 was a dysoxic condition with medium stratification, and >0.84 was an anoxic condition with intense stratification and H₂S in the bottom water (Hatch and Leventhal, 1992). The Ed₃l and Ed₃u intervals had a narrow variation in the V/(V + Ni) ratios, ranging from 0.65 to 0.73 (averaging 0.70) and 0.65 to 0.71 (averaging 0.68), respectively. It suggests that the activity of water body during the deposition of the Ed₃l and Ed₃u intervals was weak, with a predominantly weak reduction-weak oxidation condition. This is consistent with the sedimentary structures observed in the mudstone core, where the alternating micro-layered, layered, and massive structures appear to be a response to the weak reducing-weak oxidizing condition.

The Pr/Ph ratio is also an important parameter to characterize redox conditions. Previous reported that Pr/Ph < 1 represented anoxic conditions, 1.0–3.0 suggested slightly oxic conditions, and >3 indicated oxic conditions (Peters et al., 2005a). The Pr/Ph ratio may be influenced by maturation. The influence of maturation on the Pr/Ph ratios could be ignored because all the samples were of low maturity. The Pr/Ph ratios of the Ed₃l and Ed₃u intervals were 1.48–3.29 and 1.92–4.41, respectively, with an average value of 2.07 and 2.62, respectively, which further indicated that the water body was dominated by weak reduction-weak oxidation environment. As shown in Figure 7A, the discriminant diagram of Pr/nC₁₇ and Ph/nC₁₈ also support this conclusion.

Organic matter accumulation in the Ed₃ member was clearly controlled by redox conditions. It can be inferred from the positive correlation of TOC values with V/(V + Ni) ratios (Figure 9E) and negative correlation with Pr/Ph ratios (Figure 9F) in most samples. A few samples deviated from the trend line, which may be related to abundant terrigenous organic matter with the degradation-resisting structure.

5.3 Development model for organic-matter accumulation in fine-grained sediments

Previous studies suggested that organic matter accumulation in fine-grained sediments is influenced by multiple elements in the paleolacustrine environment, which is controlled by the co-evolution of tectonic and climatic conditions. The Nanpu Sag underwent rapid subsidence during the Ed₃ period, with a maximum subsidence rate of 550 m/Ma (Wang et al., 2012). On the one hand, rapid subsidence provided sufficient accommodation space particularly in the deposition centers of the Linque sub-sag and Caofeidian sub-sag, with a maximum deposition thickness of up to 900 m. On the other hand, a semi-deep/deep lake environment occurred during the Ed₃ period, benefiting from subsidence rates that exceeded material supply rates. The paleoclimate changed between semi-humid and semi-arid conditions during the Ed₃ period. Hence, two development models of the Ed₃ source rock under semi-humid to humid and semi-arid to arid climate were established.

Owing to the combination of weakened lake evaporation and enhanced atmospheric precipitation, the existing deep-water environment was prone to forming a weak reduction condition with stable water column stratification under the semi-humid to humid climate (Figure 10A), such as in samples number 12–16. High water inflow under the semi-humid to humid climate brought considerable plant debris and terrigenous debris into the lake basin, as evidenced by moderate C₁₉/C₂₃TT, C₂₀/C₂₃TT, and Al₂O₃ ratios (Tables 3, 5). Terrigenous debris can provide abundant nutriment to support the growth of planktonic organisms, improving primary productivity. This interpretation is supported by the presence of abundant planktonic algal fossils, e.g., Chlorella Gracilis, Granulosus, Reticulosus, Rugosus, Spinococcus, Ceratophyllum Chlorellas, and Pediastrums, observed in organic-matter-rich mudstone. The accumulation of mixed aquatic and terrigenous organic matter provided material for Type Ⅱ kerogen. The semi-deep to deep lake had a water temperature gradient, giving rise to stable water column stratification under gravity (represented by moderate gammacerane indexes). No commutation between the surface and bottom water at the stratification interface, resulting in a weak reduction condition (represented by high V/(V + Ni) and low Pr/Ph values). Limited degradation occurred in the aquatic and terrigenous organic matter that could be effectively preserved during burial. The coexistence of mixed organic matter input and relative reduction condition gave rise to high organic matter accumulation. Vertically, the unconventional shale oil discovered in the Ed₃ member of the Nanpu Sag corresponds to the same location as the samples number 12–16 in well E.

Figure 10

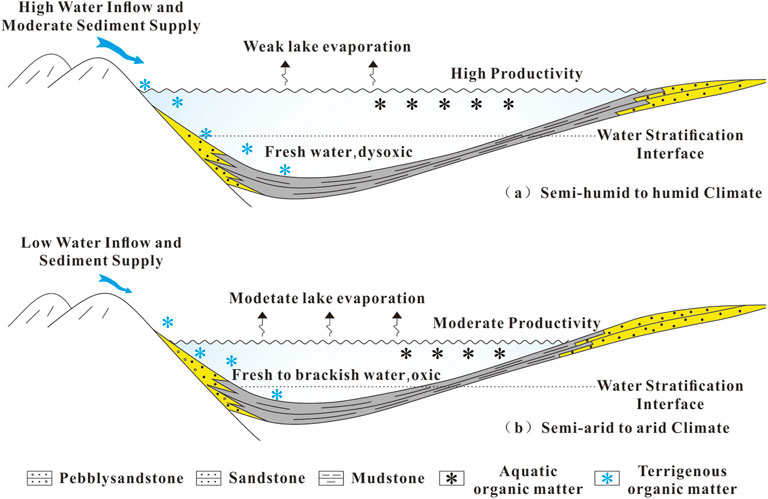

Figure 10. Development model (A, B) of source rock for the Ed₃l and Ed₃u intervals in the Nanpu Sag.

On the other hand, owing to the combination of enhanced lake evaporation and weakened atmospheric precipitation, the existing shallow-water environment is prone to forming a weak oxidation condition with unstable water column stratification under the semi-arid to arid climate (Figure 10B), such as samples number 1–3. The unstable water column stratification can be evidenced by low gammacerane indexes. Low water inflow under the semi-arid to arid climate brought limited plant debris and terrigenous debris into the lake basin, as evidenced by low C₁₉/C₂₃TT, C₂₀/C₂₃TT, and Al₂O₃ ratios. As a result, insufficient nutriment presentin these terrigenous debris could only support medium primary productivity. As oxygen-sensitive material, hydrogen-rich organic matter might be preferentially oxidized and subsequently degraded under an aerobic condition. This is supported by the observation of a positive correlation between TOC and V/(V + Ni) values, as well as a negative correlation between TOC and Pr/Ph values. The coexistence of limited organic matter input and relative oxidation conditions resulted in low organic matter accumulation. The exploration potential of unconventional shale oil in this location has not yet been realized.

6 Conclusion

Based on mineralogical and geochemical analysis of forty-nine mudstone samples, following conclusions can be obtained:

(1) Fine-grained sediments record abundant information of paleoclimate and paleoenvironment in geological history. The integrated mineralogy and geochemistry are a valid method in understanding the paleoclimate and paleoenvironment.

(2) The Ed₃ source rocks exhibit strong heterogeneity, especially in terms of organic matter abundance, type, and hydrocarbon-generation potential. Overall, they are dominated by general-quality to high-quality source rocks with mixed kerogen at low mature to mature stage.

(3) The alternated paleoclimate between semi-humid to semi-arid during the Ed₃ period governed the fluctuations of paleoenvironment elements. Two development models of the Ed₃ source rock under semi-humid to humid and semi-arid to arid climate were established to interpret the deposition process involving organic matter supply and preservation/degradation.

(4) The exploration of unconventional shale oil in the Ed₃ member of Nanpu Sag should focus on the organic-matter-rich mudstones developed in the humid climate. Reconstruction of the development model of organic-matter-rich mudstone based on the paleoenvironment controlled by the co-evolution of tectonic and climatic factors is a valid method for understanding unconventional shale oil exploration potential.
